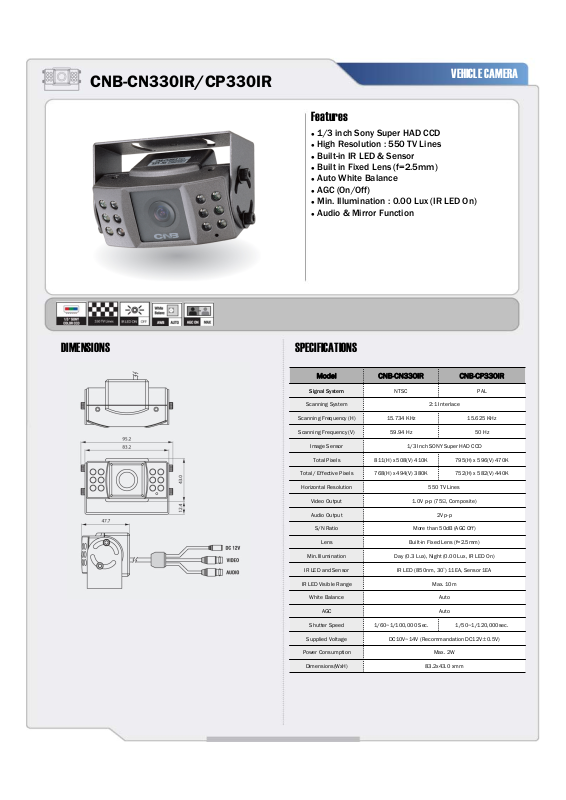

CNB CN330IR Specsheet

CNB-CN330IR/CP330IR

VEHICLE CAMERA

Features

z 1/3 inch Sony Super HAD CCD
z High Resolution : 550 TV Lines
z Built-in IR LED & Sensor
z Built in Fixed Lens (f=2.5mm)
z Auto White Balance
z AGC (On/Off)
z Min. Illumination : 0.00 Lux (IR LED On)
z Audio & Mirror Function

SPECIFICATIONSDIMENSIONS

Model CNB-CN330IR CNB-CP330IR

Signal System NTSC

Scanning System 2:1 Interlace

Scanning Frequency (H) 15.734 KHz 15.625 KHz

Scanning Frequency (V) 59.94 Hz 50 Hz

Image Sensor 1/3 Inch SONY Super HAD CCD

Total Pixels 811(H) x 508(V) 410K 795(H) x 596(V) 470K

Total / Effective Pixels 752(H) x 582(V) 440K

Horizontal Resolution 550 TV Lines

Video Output 1.0V p-p (75Ω, Composite)

Audio Output 2V p-p

S/N Ratio More than 50dB (AGC Off)

Lens Built-in Fixed Lens (f=2.5mm)

Min.Illumination Day (0.3 Lux), Night (0.00 Lux, IR LED On)

IR LED and Sensor IR LED (850nm, 30˚) 11EA, Sensor 1EA

IR LED Visible Range Max. 10m

White Balance Auto

AGC Auto

Shutter Speed 1/50~1/120,000sec.

Supplied Voltage DC10V~14V (Recommandation DC12V±0.5V)

Power Consumption Max. 2W

Dimensions(WxH) 83.2x43.0 xmm

768(H) x 494(V) 380K

1/60~1/100,000 Sec.

PAL

www.cnbtec.com
