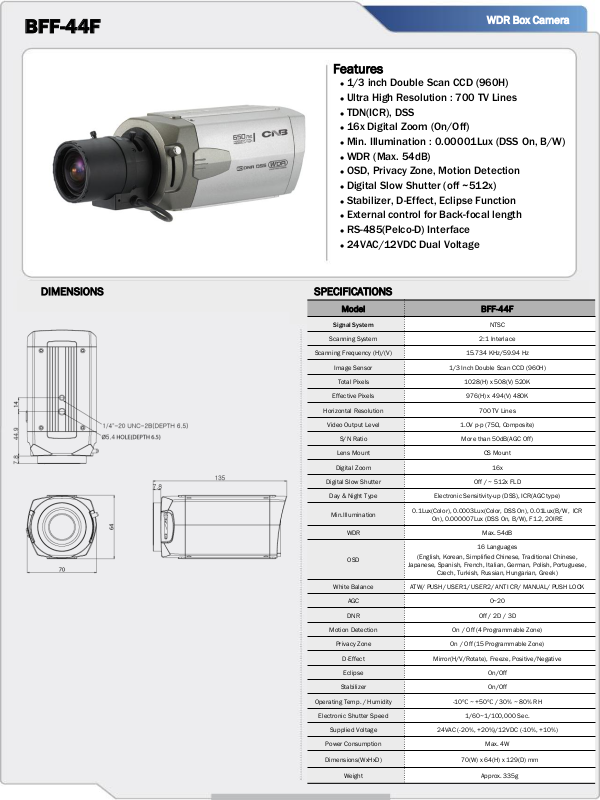

CNB BFF-44F Specsheet

BFF-44F

www.cnbtec.com

WDR Box Camera

Features

 1/3 inch Double Scan CCD (960H)

 Ultra High Resolution : 700 TV Lines

 TDN(ICR), DSS
 16x Digital Zoom (On/Off)
 Min. Illumination : 0.00001Lux (DSS On, B/W)
 WDR (Max. 54dB)
 OSD, Privacy Zone, Motion Detection
 Digital Slow Shutter (off ~512x)
 Stabilizer, D-Effect, Eclipse Function
 External control for Back-focal length
 RS-485(Pelco-D) Interface
 24VAC/12VDC Dual Voltage

SPECIFICATIONS DIMENSIONS

Model BFF-44F

Signal System NTSC

Scanning System 2:1 Interlace

Scanning Frequency (H)/(V) 15.734 KHz/59.94 Hz

Image Sensor 1/3 Inch Double Scan CCD (960H)

Total Pixels 1028(H) x 508(V) 520K

Effective Pixels 976(H) x 494(V) 480K

Horizontal Resolution 700 TV Lines

Video Output Level 1.0V p-p (75Ω, Composite)

S/N Ratio More than 50dB(AGC Off)

Lens Mount CS Mount

Digital Zoom 16x

Digital Slow Shutter Off / ~ 512x FLD

Day & Night Type Electronic Sensitivity-up (DSS), ICR(AGC type)

Min.Illumination

WDR M ax. 54dB

OSD

White Balance ATW/ PUSH/ USER1/ USER2/ ANTI CR/ MANUAL/ PUSH LOCK

AGC 0~20

DNR Off / 2D / 3D

Motion Detection On / Off (4 Programmable Zone)

Privacy Zone On / Off (15 Programmable Zone)

D-Effect Mirror(H/V/Rotate), Freeze, Positive/Negative

Eclipse On/Off

Stabilizer On/Off

Operating Temp. / Humidity -10℃ ~ +50℃ / 30% ~ 80% RH

Electronic Shutter Speed 1/60~1/100,000 Sec.

Supplied Voltage 24VAC (-20%, +20%)/12VDC (-10%, +10%)

Power Consumption Max. 4W

Dimensions(WxHxD) 70(W) x 64(H) x 129(D) mm

Weight Approx. 335g

0.1Lux(Color), 0.0003Lux(Color, DSS On), 0.01Lux(B/W, ICR
On), 0.000007Lux (DSS On, B/W), F1.2, 20IRE

(English, Korean, Simplified Chinese, Traditional Chinese,

Japanese, Spanish, French, Italian, German, Polish, Portuguese,

Czech, Turkish, Russian, Hungarian, Greek)

16 Languages
