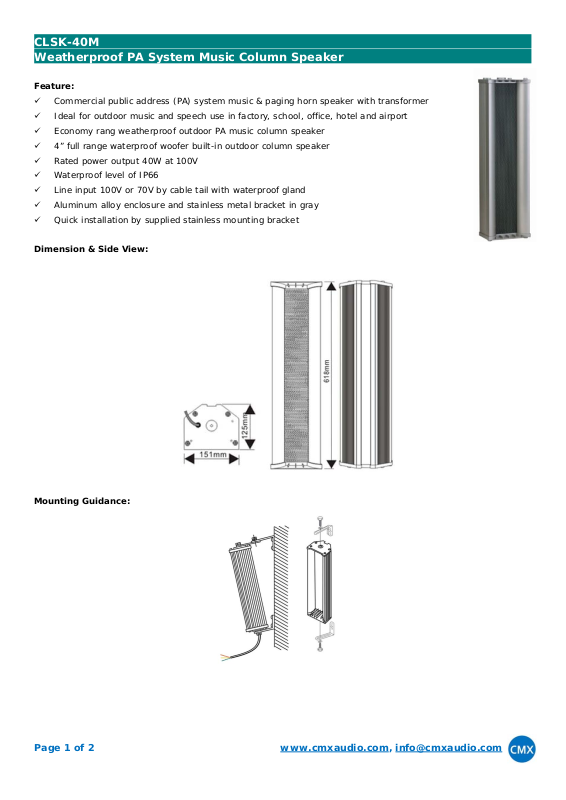

Page 1
CLSK-40M
Weatherproof PA System Music Column Speaker
Feature:
9 Commercial public address (PA) system music & paging horn speaker with transformer
9 Ideal for outdoor music and speech use in factory, school, office, hotel and airport
9 Economy rang weatherproof outdoor PA music column speaker
9 4” full range waterproof woofer built-in outdoor column speaker
9 Rated power output 40W at 100V
9 Waterproof level of IP66
9 Line input 100V or 70V by cable tail with waterproof gland
9 Aluminum alloy enclosure and stainless metal bracket in gray
9 Quick installation by supplied stainless mounting bracket
Dimension & Side View:
Mounting Guidance:
Page 1 of 2 www.cmxaudio.com, [email protected]
Page 2
CLSK-40M
Weatherproof PA System Music Column Speaker
Specification:
Model CLSK-40M
Description Weatherproof PA System Music Column Speaker
Rated Power Output 40W
Speaker 4” full range PP waterproof woofer
Line Input 100V or 70V
Frequency Response 100-15KHz
SPL(@1W/m) 94dB
IP Rate IP66
Connector By speaker cable tail with waterproof gland
Dimension 618(W) ×151(D)×125(H)mm
Material Aluminum alloy enclosure and stainless metal bracket in gray
Mounting Way Quick installation by supplied stainless mounting bracket
Net Weight 4.8kg
Carton Qty 2 PCS
Packaging 650(W) ×320(D)×160(H)mm, 12kg
Frequency Response & Impedance Diagram:
Page 2 of 2 www.cmxaudio.com, [email protected]
