CMP CallExtend User Manual

- i -

- ii -

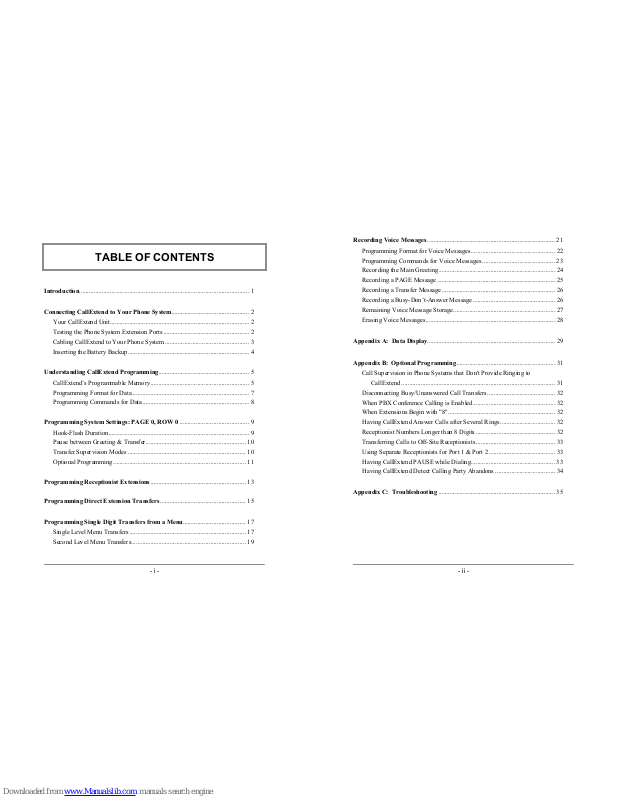

TABLE OF CONTENTS

Introduction......................................................................................................... 1

Connecting CallExtend to Your Phone System................................................ 2

Your CallExtend Unit...................................................................................... 2

Testing the Phone System Extension Ports ..................................................... 2

Cabling CallExtend to Your Phone System ....................................................3

Inserting the Battery Backup........................................................................... 4

Understanding CallExtend Programming........................................................ 5

CallExtend’s Programmable Memory............................................................. 5

Programming Format for Data ........................................................................ 7

Programming Commands for Data.................................................................. 8

Programming System Settings: PAGE 0, ROW 0 ........................................... 9

Hook-Flash Duration....................................................................................... 9

Pause between Greeting & Transfer.............................................................. 10

Transfer Supervision Modes ......................................................................... 10

Optional Programming.................................................................................. 11

Programming Receptionist Extensions ........................................................... 13

Programming Direct Extension Transfers ..................................................... 15

Programming Single Digit Transfers from a Menu....................................... 17

Single Level Menu Transfers ........................................................................17

Second Level Menu Transfers....................................................................... 19

Recording Voice Messages ...............................................................................21

Programming Format for Voice Messages.................................................... 22

Programming Commands for Voice Messages .............................................23

Recording the Main Greeting ........................................................................ 24

Recording a PAGE Message .........................................................................25

Recording a Transfer Message ...................................................................... 26

Recording a Busy-Don’t-Answer Message ................................................... 26

Remaining Voice Message Storage............................................................... 27

Erasing Voice Messages................................................................................ 28

Appendix A: Data Display............................................................................... 29

Appendix B: Optional Programming............................................................. 31

Call Supervision in Phone Systems that Don't Provide Ringing to

CallExtend ............................................................................................... 31

Disconnecting Busy/Unanswered Call Transfers.......................................... 32

When PBX Conference Calling is Enabled................................................... 32

When Extensions Begin with "8".................................................................. 32

Having CallExtend Answer Calls after Several Rings .................................. 32

Receptionist Numbers Longer than 8 Digits .................................................32

Transferring Calls to Off-Site Receptionists ................................................. 33

Using Separate Receptionists for Port 1 & Port 2 .........................................33

Having CallExtend PAUSE while Dialing.................................................... 33

Having CallExtend Detect Calling Party Abandons ..................................... 34

Appendix C: Troubleshooting ........................................................................ 35

-

1 -

- 2 -

Introduction

CallExtend is a two-port automated attendant that answers and routes your incoming

phone calls without your intervention.

CallExtend is available in two models:

 The Basic Model, with 32 seconds of voice recording capability per port.

 The Deluxe Model, with 2 minutes of voice storage per port.

CallExtend can be connected to one or two analog extension ports on a PBX or

hybrid key phone system that has hook-flash call transfer capability. When

CallExtend answers a call, it plays a user-recorded message, inviting the caller to

dial an extension or a single digit to reach a particular department. CallExtend can

process up to two incoming calls simultaneously.

While playing its message and for a period of time afterwards, CallExtend listens for

any digits dialed by the caller. Based on what is dialed, the call is then routed to a

department, to a secondary menu, or directly to an extension. If no digits are dialed,

or if "0" is dialed, the call is routed to the receptionist(s).

If desired, CallExtend can supervise call transfers, directing unanswered calls to a

receptionist, or it can transfer the call to the appropriate extension and then

immediately exit from the call. CallExtend is then free to handle the next incoming

call.

Connecting CallExtend to Your

Phone System

Your CallExtend Unit:

Your CallExtend package contains a CallExtend unit, a power transformer, this

User’s Manual, and a Programming Guide.

The CallExtend unit has ports labeled PORT 1 and PORT 2 that must first be

connected to 1 or 2 analog extension ports on your phone system. A standard touch-

tone phone connects to the ADMIN port for programming CallExtend. The power

transformer connects to the port labeled POWER and then to an A/C wall outlet.

This manual details the procedures you should follow to connect and program

CallExtend. The Programming Guide provides a place to record your CallExtend

programming.

Testing the Phone System Extension Ports:

IMPORTANT: Before connecting CallExtend to the extension ports of your phone

system, make sure that the ports are analog and that they will perform incoming

call transfers.

To test the analog port(s), first program your phone system to route incoming calls to

the port(s) CallExtend will be connected to. Then connect a standard touch-tone

phone to one of these extensions and make a test call into the phone system from an

outside line. This call should ring the phone you have connected. Answer the call

and try to transfer it to an extension. If this test transfer works, CallExtend will

operate properly on this port. If you plan to use a second extension port with

CallExtend, test that port as well.

-

3 -

- 4 -

CallExtend will not work on extension ports that will not perform call transfers.

Cabling CallExtend to Your Phone System:

After testing the phone system’s analog extension ports, you are ready to connect

CallExtend to these extensions. Use standard modular cords with RJ11C connectors,

as shown in Figure 1.

Your phone system should be programmed to route incoming calls to the extension

port(s) CallExtend is connected to.

Note: Typically, if both ports of CallExtend are to be used, incoming calls should be

routed first to the phone system extension that is connected to CallExtend’s Port 1.

Calls should then hunt to the phone system extension connected to CallExtend’s

Port 2. Do not

have each incoming call ring simultaneously to both of the phone

system extensions that CallExtend is connected to.

Inserting the Battery Backup:

A standard 9-volt battery can be inserted on the back of the CallExtend unit to

prevent loss of the voice messages

during power failures (see Figure 2). CallExtend

stores all of its programmed settings, except the voice messages, in non-volatile

RAM, so these settings are not

erased when there is a power failure.

If the battery runs out (or if no battery is inserted in CallExtend), CallExtend will

only lose the voice messages when there is a power failure. Once power is returned,

it will answer calls, but it will not have a greeting to play to the caller. When

CallExtend is powered on, it will light up the “Battery Low Light” on the front panel

to indicate low battery voltage or no battery attached.

-

5 -

- 6 -

Understanding CallExtend

Programming

After CallExtend has been connected to your phone system, it must be

programmed. CallExtend is programmed by dialing digits on a standard touch-tone

phone connected to the ADMIN port of the unit.

CallExtend's Programmable Memory:

PAGES:

CallExtend's programmable memory consists of eight banks of data

storage, called PAGES. Each PAGE of programming tells CallExtend

how to handle call transfers. The PAGES to be programmed corre-

spond to each first digit a caller can dial (e.g., program PAGES 1 & 2

if callers can dial 1

for sales or dial extensions 210, 220, etc.).

ROWS:

Each PAGE of CallExtend memory has room for eight ROWS of

instruction sets detailing how to transfer calls.

DATA:

And each ROW on the PAGE can store up to eight fields (single

touch-tone digits) of DATA.

Following is a graphical representation of this memory storage system:

When you begin programming CallExtend, you will first program PAGE 0 with

your system settings and your receptionist’s extension.

Then, you will program each PAGE of CallExtend memory that corresponds to

the first digit to be dialed by the calling party. PAGES can be programmed for

direct extension dialing or single digit dialing from a menu. Last of all, you will

program your voice messages.

For example: If you want to have callers dial directly to extensions that start with a

1, you will program PAGE 1 of CallExtend with the instructions for direct extension

dialing. If you want to have callers dial a 2 to reach extension 100, you will program

PAGE 2 with the instructions for menu dialing. If you want to have callers dial a 3

to reach a second-level menu, you will program PAGE 3 with this second-level

menu.

You need only program PAGE 0 and the PAGES of CallExtend that correspond

to the first digits callers will be dialing.

The CallExtend Programming Guide included with this manual has a separate

sheet for each PAGE of CallExtend's memory, for you to record your programming

entries.

-

7 -

- 8 -

Programming Format for Data:

To program CallExtend, you will dial digits on a touch-tone phone connected to

the ADMIN port. All programming is done in the format PAGE - ROW -

COMMAND - DATA

that corresponds to the configuration of CallExtend’s

memory. As you program CallExtend, the display will prompt you as follows:

P r C d

Enter the

PAGE number

to be

programmed

Enter the ROW

number to be

programmed

Hold down the

COMMAND key (

5 =

Enter Data,

7 = Review

Data) for a full second

Enter the DATA

(if using the

Enter Data

command)

When you first lift the ADMIN phone handset, CallExtend will prompt you with a

P,

asking for the PAGE number you want to program. Then, it will show an

r to

request the ROW number. Next, it will show a

C to request the COMMAND; press

and hold down the command key for at least one full second. If you use the Enter

Data command, the display will show

d to prompt you to enter your DATA; if you

use the Review Data command, the DATA currently stored in this ROW of the

PAGE will be displayed. Note: When using the Enter Data command to enter fewer

than 8 characters of DATA, dial a single

# sign at the end of the data to indicate

you’re done. For more information on CallExtend’s display, see Appendix A.

The CallExtend Programming Guide that came with this manual indicates what to

dial and allows you to write down your DATA before you enter it into CallExtend.

Programming Commands for Data:

When programming CallExtend, you will need to enter a COMMAND after the

PAGE and ROW numbers to tell CallExtend whether you are Entering Data or

Reviewing Data you already entered.

There are two DATA commands in CallExtend:

5

ENTERS Data into a ROW on a PAGE

7

REVIEWS Data in a ROW on a PAGE

Each COMMAND digit dialed on the ADMIN phone must be held down for at

least one full second to be considered a legal command by CallExtend. For

example: When entering DATA into a ROW, you must hold down the

5 key (Enter

Data Command) until a

d appears on the display. Command keys are highlighted

in gray in this manual to help them stand out from other digits you dial.

For example: To program PAGE 1, you would lift the ADMIN phone handset,
look for P on the CallExtend display, and:

Dial: 1 (to program PAGE 1); CallExtend will next show r.

Dial: 0 (to program ROW 0) ; CallExtend will next show C.

Dial: 5 (the COMMAND to enter DATA) -- hold the 5 down until you see d.

Dial: x (where x corresponds to the DATA you want to enter).

Dial: # if you enter fewer than 8 digits of DATA.

-

9 -

- 10 -

Programming System Settings:

PAGE 0, ROW 0

PAGE 0 of CallExtend's memory is used to set up system information and to enter

your receptionist extensions. ROW 0 of PAGE 0 contains three fields that must

be programmed and five optional fields (described in Appendix B). To program

this ROW, lift the handset on the ADMIN phone and dial as follows:

Field 1 Field 2 Field 3

Dial:

0

0

5

Single digit for phone

system’s Hook-flash

duration (see table)

Number of seconds 0-9

to wait after greeting

for caller to dial

Single digit for

Transfer Supervision

Mode desired

#

Dial: 0 0 7 to review the DATA you entered & make sure it’s correct.

highlighted digit

=

Hold this key down for at least one full second

FIELD 1: Hook-Flash Duration:

Field 1 on PAGE 0, ROW 0 should be programmed to match as closely as possible

the hook-flash duration used by your phone system for call transfers. Find your

phone system’s hook-flash duration in the following table and enter the single digit

0-9 shown for that duration into Field 1:

no hook-flash................ 0 600 ms...........................5

250 ms.......................... 1 750 ms...........................6

300 ms.......................... 2 900 ms...........................7

400 ms.......................... 3 1 sec ..............................8

500 ms.......................... 4 1.5 sec ...........................9

FIELD 2: Pause Duration After Greeting:

After CallExtend plays its initial voice greeting (the main greeting) to a caller, it will

pause the number of seconds programmed into this field to give the caller time to

dial an extension or a single digit. If the caller doesn’t dial within this time, the call

will be transferred to the receptionist. Enter the number of seconds (0-9) to wait.

FIELD 3: Transfer Supervision Mode:

This field tells CallExtend how to supervise call transfers. CallExtend can be

programmed for one of three supervision modes:

 Full Supervision: In this mode, CallExtend will fully supervise call transfers,

looking for both busy and no answer conditions. To select full supervision

mode, enter a digit 2-9 in Field 3, representing the number of rings CallExtend

should hear before declaring the call unanswered and transferring it to the

receptionist. Enter

*

for 12 rings or a # character (dial ## to enter a #

character into this field) for 16 rings. CallExtend will send calls transferred to

busy extensions directly to the receptionist without delay.

Hints on Full Supervision Mode:

If desired, CallExtend can disconnect callers instead of transferring

them to the receptionist if the extension is busy or does not answer. In

this Mode, CallExtend will play the “Busy - Don’t Answer Message” (e.g.,

“That extension is not answering; please try again later.”) and then

disconnect the caller. To use this Mode, see Appendix B, Case B.

CallExtend will connect a call through to an extension upon hearing a

voice answer. This connection may take a moment, so the first word said by

the answering party may not be heard by the caller.

 While CallExtend is supervising the call transfer, the phone system will have

the call in an “On Hold” status, so the calling party may NOT hear ringing

or busy tone. The caller will hear what the phone system puts out to a caller

on hold.

-

11 -

- 12 -

 In some phone systems, ringing will not be sent to the extension

originating a call transfer. In this case, CallExtend can be programmed to

wait for a period of TIME before transferring to a receptionist, rather than to

listen for ringback. See Appendix B, Case A for this programming.

 Busy-Only Supervision: Enter a 1 in Field 3 to select this mode. In this

mode, if CallExtend detects a busy tone from the extension it is transferring the

call to, it will transfer the call to the receptionist. If ringing is heard from the

extension, CallExtend will connect the call through to the extension and exit

immediately. If the extension rings and is not answered, CallExtend will NOT

send the call to the receptionist.

 Unsupervised: Enter 0 (zero) in Field 3 to have CallExtend transfer calls

without supervision. In this mode, CallExtend will connect the call through to

the desired extension and then immediately exit the call. CallExtend will NOT

send the call to the receptionist(s) if the dialed extension is busy or does not

answer.

FIELDS 4 - 7: Optional System Programming:

PAGE 0, ROW 0 has five additional fields that can be programmed for various

optional settings. These are covered in depth in Appendix B, Optional

Programming. See this appendix for additional system settings, such as how to:

 Have CallExtend answer calls on greater than 1 ring

 Have CallExtend pause during dialing

 Transfer calls to an off-site receptionist

 Allow callers to dial extensions that begin with “8”

 Direct calls answered by CallExtend’s Ports 1 & 2 to different receptionists

 Use an extra hook-flash during call transfers (required by some phone

systems’ conference calling features)

 Have CallExtend detect calling party abandons

This page intentionally left blank

-

13 -

- 14 -

Programming Receptionist Extensions:

PAGE 0, ROWS 1-4

At least one receptionist extension must be programmed, into PAGE 0, ROW 1

of CallExtend. Up to four receptionist extensions can be programmed, into ROWS

1-4 of PAGE 0.

Calls will be transferred to the receptionist extension if:

1.) The caller does not dial anything within the time limit programmed on

PAGE 0, ROW 0, Field 2.

2.) The caller dials a digit not recognized by CallExtend.

3.) CallExtend is programmed for the Full Supervision or Busy-Only

Supervision mode and the conditions for receptionist transfers are met.

4.) The caller dials a 0 during or after the voice greeting.

To program the first receptionist extension into PAGE 0, ROW 1, lift the handset on

the ADMIN phone and dial as follows:

Dial: 0 1 5

p

lus an extension up to 8 digits long; if less than 8, dial # when done.

Dial: 0 1 7 to review the extension you entered & make sure it’s correct.

highlighted digit

=

Hold this key down for at least one full second

To program additional receptionist extensions into PAGE 0, ROWS 2-4, dial as

shown above. However, replace the ROW number (the second digit to be dialed)

with the ROW number being programmed.

Hints on Receptionist Extensions:

CallExtend does not supervise calls sent to the receptionist. You should either

program receptionist extensions that will always be answered or specify the

starting extension of a phone system hunt group as the receptionist.

CallExtend does not hunt through multiple receptionist extensions. If more

than one receptionist extension is programmed on PAGE 0, ROWS 1-4,

CallExtend will transfer the first call to the first receptionist extension (in

ROW 1) and the next call to the second receptionist extension (ROW 2), even if

the first receptionist is available.

 Enter each extension number exactly as CallExtend must dial it for the phone

system to transfer the call. If the phone system needs to see

*

70 at the

beginning of a call transfer sequence, enter

*

70 at the beginning of each

receptionist extension (e.g., enter

*

70212 for extension 212). To have

CallExtend dial a

# as part of a number, program a # character in the

appropriate location by dialing

## (two # signs right in a row) from the Admin

phone.

An extension or phone number up to 16 digits long can be entered into

CallExtend as the only receptionist. To program this, enter the first eight

digits of the number into PAGE 0, ROW 1; then enter the remainder of the

number into ROW 2. ROWS 3 and 4 of PAGE 0 will be ignored after this.

When using a receptionist extension longer than 8 digits, you must also enter a

#

character (dial

## to enter a # character) into Field 7 of PAGE 0, ROW 0, as

described in Appendix B, Case F. Also see Appendix B for additional

receptionist options.

To remove an extension from the receptionist list, use a single # sign to erase

the contents of the applicable ROW. For example, to erase the contents of

PAGE 0, ROW 1, dial

0 1 5 (hold the 5 down for a full second) #.

CallExtend will still use the extensions before and after the empty ROW on the

list.

-

15 -

- 16 -

Programming Direct Extension

Transfers: PAGES 1-7

PAGES 1-7 of CallExtend's memory tell CallExtend how to respond to what

callers dial. Each PAGE of CallExtend memory corresponds to the first digit dialed

by the caller. For example, if a caller dials "214," CallExtend will examine PAGE 2

of its memory for instructions on how to handle the call.

If you want to have callers dial extensions directly, program the length of your

extensions into ROW 0 of the PAGE(S) that correspond to the first digit(s) of

your extensions. This is all the data entry you will need to do on these PAGES.

For example, if your extensions are all in the 100’s (100, 101, 102, etc.), you would

program PAGE 1, ROW 0 for a 3-digit extension format. CallExtend will accept

extensions up to 8 digits long for direct extension dialing.

To program direct extension dialing, dial the following on the ADMIN phone for

each PAGE that corresponds to the first digit of an extension (if your extensions

begin with the digit 8, see Appendix B, Case D):

Dial: PAGE number 1-7 then 0 5 then the extension length, then: #
Dial: PAGE number 1-7 then 0 7 to review the ext length & make sure it’s correct.

Example: If your phone system uses 3-digit extensions that begin with

either "1" or "2" (100, 110, 200, etc.), program PAGES 1 and 2 as shown:

PAGE 1 - Dial: 1 0 5 3 #

Dial: 1 0 7

Verify the display shows 3

PAGE 2 - Dial: 2 0 5 3 #

Dial: 2 0 7 Verify the display shows 3

Special digit dialing: If your phone system requires that special digits be dialed in

front of an extension number when transferring calls, you should enter the special

digits AFTER the extension length when programming ROW 0 of the PAGE(S).

For the extension length, you would enter the total of the special digits and the

number of digits in the extension. CallExtend will insert the special digits in front of

the extension a caller dials.

Example: The ABC Company uses extensions that begin with "5" and are

three digits long (e.g., 503, 515, 532, etc.). In order to transfer a call, their

phone system requires that *70 be dialed before the extension number.

CallExtend would be programmed as follows:

PAGE 5 - Dial: 5 0 5 6

*

7 0 #

Dial: 5 0 7

Verify the display shows 6 i 7 0

-

17 -

- 18 -

Programming Single Digit Transfers

from a Menu: PAGES 1-7

PAGES that are not used for direct extension transfers can be used for single-digit

dialing from a menu, if desired. CallExtend is capable of performing up to two

levels of menu transfers.

Single Level Menu Transfers:

To program a PAGE for single level menu transfers, you will first program a *

into ROW 0 of the PAGE and then enter the extensions that you want calls

transferred to into ROWS 1-6 of the PAGE.

For example, to have callers "dial 4 for Support," you would enter a

*

in PAGE 4,

ROW 0 and up to six extensions for the Support department into ROWS 1-6 of

PAGE 4.

Each extension in a ROW can be up to 8 digits long (to use an extension longer than

8 digits, see the following Hints). When programming an extension shorter than 8

digits, press a single

# sign to indicate that you are done entering the extension

number. If you want to include a

# as part of an extension, dial two # signs right in

a row in the appropriate place in the extension.

Example: The ABC Company wants callers to be able to dial 3 for Sales

and wants those calls to be sent to extension 117. To accomplish this, you

would program PAGE 3 by dialing the following on the ADMIN phone:

Page 3, Row 0 - Dial: 3 0 5

*

#

Dial: 3 0 7 Verify the display shows i

This enters a * (star) into PAGE 3, ROW 0. Next, extension 117 is entered

into PAGE 3, ROW 1:

Page 3, Row 1 - Dial: 3 1 5 1 1 7 #

Dial: 3 1 7

Verify the display shows 1 1 7

Hints on Programming Menu Dialing:

 Enter each extension number exactly as the phone system needs to see it to

transfer the call. If the phone system needs to see

*

70 at the beginning of an

extension to transfer a call, enter

*

70 at the beginning of each extension you

enter in CallExtend (e.g., enter

*

70117 for ext 117). You can enter an off-

premise phone number, hunt group, or voice mailbox number by programming

the exact digits to be dialed, including an initial "9" or "1." To have

CallExtend dial a

# as part of a number, program a # character in the appro-

priate location by dialing

## (two # signs right in a row) from the Admin

phone. To have CallExtend pause during dialing, see Case H in Appendix B.

A phone number up to 16 digits long can be entered into CallExtend as the

only number in the menu list. To program this, enter a

# character (dial ##

to enter a

# character) instead of a

*

in ROW 0 of the PAGE. Then, enter the

first eight digits of the number into ROW 1 of the PAGE and enter the

remainder of the number into ROW 2. ROWS 3-6 of the PAGE will be

ignored after this.

 To remove an extension from a department list, use a single # sign to erase

that ROW. Example: to erase the contents of PAGE 2, ROW 1, dial

2 1 5

(hold the 5 down for a full second) #. CallExtend will still use the

extensions before & after the empty ROW.

 CallExtend does not hunt through multiple extensions on a department

list. If more than one extension is programmed, CallExtend will transfer the

first call to the extension in ROW 1 and the next call to the extension in

ROW 2, even if the first extension is available. If you want calls to be sent to

a hunt group, program the hunt group extensions into the phone system, and

only the starting extension of the hunt group into CallExtend.

-

19 -

- 20 -

Second Level Menu Transfers:

Up to seven Second Level Menus can be programmed in CallExtend, to allow callers

to dial a single digit from the Main Greeting and get:

1) an additional menu of single digit dialing choices, or

2) an information message, such as directions to the company or company hours

A second level menu is programmed on the PAGE of CallExtend memory that

corresponds to the single digit the caller dials from the Main Greeting (e.g.,

PAGE 3 if “3” is dialed from the Main Greeting). Instead of programming a

*

in

ROW 0 of the PAGE, enter a value from the following chart to fit your application:

9

Allows you to enter up to six extensions on this PAGE, with each

extension up to 8 digits long. Callers will dial a single digit 1-6

from the second menu to reach the desired extension.

0

Allows you to enter up to three extensions on this PAGE, with

each extension up to 16 digits long. Callers will dial 1, 3, or 5

from the second menu to reach the desired extension.

#

*

Allows you to have an information voice message rather than a

second menu of dialing options. Callers will hear this second

voice message and then be disconnected.

With a 9 or 0 programmed in ROW 0 of this PAGE, callers will first dial the

appropriate single digit from the Main Greeting and then hear a second voice

message prompting them to dial another single digit, 1-6. The extensions to be

reached by this second level of dialing are entered next:

If 9 is programmed in ROW 0:

you will program ROWS 1-6 of this PAGE with the

extensions callers will reach by dialing the second single digit 1-6. The digit dialed

is the ROW number (e.g., the extension programmed in ROW 2 of the PAGE is

reached by callers dialing “2”). Each extension can be up to 8 digits long.

If 0 is programmed in ROW 0:

enter the first 8 digits of each extension in the ROW

that corresponds to the digit callers will dial (1, 3, or 5), and enter the remainder of

the extension in the next ROW (e.g., if callers will dial “3,” enter the first 8 digits of

the extension in ROW 3 and the rest of the extension in ROW 4).

Recording the Second Level Voice Message is explained in the “Recording Voice

Messages” section that follows (under the “Recording a PAGE Message”

instructions). The following example shows how to program CallExtend for a

second level menu:

Example: In their main greeting, the ABC Company asks callers to dial 4

for Technical Support; callers dialing “4” will hear a second menu allowing

them to choose which of two products they want support on, so they can be

directed to the appropriate technician. Callers will be prompted to dial 1 for

Product A and 2 for Product B. Extension 101 will handle calls for Product

A, and extension 105 will handle calls for Product B. To program this, you

would program PAGE 4 by dialing the following on the ADMIN phone:

Page 4, Row 0 - Dial: 4 0 5 9 #

Dial: 4 0 7

Verify the display shows 9

This enters a 9 into PAGE 4, ROW 0, as described in the previous chart.

Next, the extensions are entered into PAGE 4, ROWS 1 and 2:

Page 4, Row 1 - Dial: 4 1 5 1 0 1 #

Dial: 4 1 7

Verify the display shows 1 0 1

Page 4, Row 2 - Dial: 4 2 5 1 0 5 #

Dial: 4 2 7

Verify the display shows 1 0 5

-

21 -

- 22 -

Recording Voice Messages

CallExtend is available in a Basic Model, allowing up to 32 seconds

of digital voice

storage on each port, and a Deluxe Model, allowing up to 2 minutes

of digital voice

storage on each port. Different messages can be recorded for each port in both

models, if desired. All voice storage is for outgoing messages only and is not

designed for voice mail.

Both models of CallExtend allow you to record Four Types of Voice Messages to

be heard by the calling party:

MAIN GREETING:

This is the initial message played to all callers when CallExtend answers

the incoming call.

PAGE MESSAGE:

This is an optional message that will play to callers in response to the

dialing of a specific digit. Each PAGE of CallExtend memory can have a

single voice message associated with it. This is useful for informative

messages, such as directions to the company, or for a message prompting

callers to dial from a second level menu.

TRANSFER MESSAGE:

This is an optional message that will play to callers after they have finished

dialing but before the call is connected to an extension. This message will

play after the MAIN GREETING and after any PAGE MESSAGE that might

be recorded. This can be used for messages such as, “Please hold while I try

that extension.”

BUSY - DON’T ANSWER (BDA) MESSAGE:

This message plays to callers after an unsuccessful call transfer attempt,

but before the call is transferred to the receptionist. This message will

generally be something like, “That extension is not answering; your call is

being transferred to the receptionist.”

The following chart shows the organization of CallExtend’s voice storage.

CallExtend’s voice storage is comparable to a cassette tape, and all your messages

must

be recorded in this order:

MAIN

GREETING

PAGE 1

MESSAGE

PAGE 7

MESSAGE

TRANSFER

MESSAGE

BDA

MESSAGE

IMPORTANT: If you need to re-record a message, you must first ERASE the old

message and then record the new one in its place. Note that only the last message

you recorded can be erased and re-recorded. If you need to re-record an earlier

message, erase all messages and re-record them all in the order shown above.

Programming Format for Voice Messages:

CallExtend’s voice messages are recorded the same way other programming is done:

by using a standard touch-tone phone on the ADMIN port. The format for voice

programming is: PAGE -- ROW -- COMMAND -- SPEECH

Now, instead of entering DATA after a COMMAND, you will speak into the

ADMIN phone handset. The COMMAND digit will still need to be held for at

least one second, as were the

5 and 7 data commands, but you should release the

COMMAND digit and see an

S on the display to begin recording.

P r C S

Enter the

PAGE number

to be

programmed

Enter the ROW

number to be

programmed

Hold down the

COMMAND key (see

Table of Commands)

for a full second

Speak into the

Admin phone if

using Record

Command

-

23 -

- 24 -

Programming Commands for Voice Messages:

Just as the digits 5 and 7 are used to ENTER data into CallExtend and to REVIEW

it, other digits are used to RECORD, REVIEW, and ERASE voice messages.

The following table shows the Voice Recording Commands and their function.

The most commonly used commands are shown in bold type.

1

RECORDS Message for Both Ports at PAGE, ROW

2

RECORDS Message for Port 1 only, at PAGE, ROW

3

RECORDS Message for Port 2 only, at PAGE, ROW

4

ERASES Message from Both Ports at PAGE, ROW

6

ERASES Message from Port 1 only, at PAGE, ROW

8

ERASES Message from Port 2 only, at PAGE, ROW

9

ERASES ALL voice messages; use from PAGE 0, ROW 7

0

REVIEWS Messages on Port 1, at PAGE, ROW

*

REVIEWS Messages on Port 2, at PAGE, ROW

Each voice message is programmed into a particular PAGE and ROW location. The

Main Greeting, Transfer Message, and the Busy-Don’t-Answer (BDA) Message

are all programmed into PAGE 0, in the ROWS shown in the following chart. The

PAGE Messages are programmed into ROW 7 of the PAGES that correspond to the

first digit the caller will dial from the Main Greeting.

Message PAGE ROW

BDA Message 0 5

Transfer Message 0 6

Main Greeting 0 7

PAGE Message 1-7 7

Recording the MAIN GREETING:

The Main Greeting will be heard by all callers when CallExtend answers the

incoming call. This greeting generally identifies your company and invites callers to

dial an extension or dial a single digit from a menu.

Main Greeting Example: “You have reached the ABC Company. If you

know your party’s extension, you can dial it at any time. For Sales, dial 3,

for Technical Support, dial 4, and for our address, dial 6. If you do not

have a touch tone phone, or if you would like to speak to an operator,

please stay on the line and someone will assist you shortly. To repeat this

message, dial 9.”

The Main Greeting is programmed on PAGE 0, ROW 7. You can either record

the same greeting for both Ports 1 & 2 of CallExtend or record a different greeting

for each port. To record the same greeting on both CallExtend ports,

you would

dial the following on the ADMIN phone:

Dial: 0 7 1 Speak into the Admin Phone to record the greeting; hang up when done.
Dial: 0 7 0 Listen to the greeting.

highlighted digit

=

Hold this key down for at least one full second

Different Main Greetings

can be recorded on CallExtend’s Port 1 & 2 by using the

COMMANDS

2 and 3 in place of the 1 shown above. Different greetings are

sometimes used in shared office environments or when separate day/night modes are

used in the phone system. In addition to using separate greetings, you can direct the

calls answered by Port 1 to a different receptionist than the calls answered by Port 2;

to do this, see Appendix B, Case G.

To RECORD and REVIEW the main greeting for Port 1, you would dial the

following on the ADMIN phone:

-

25 -

- 26 -

Dial: 0 7 2 Speak into the Admin Phone to record the greeting; hang up when done.
Dial: 0 7 0 Listen to the greeting.

Then, to RECORD and REVIEW a different greeting on Port 2, you would dial:

Dial: 0 7 3 Speak into the Admin Phone to record the greeting; hang up when done.
Dial: 0 7

*

Listen to the greeting.

Replaying the Main Greeting:

Callers can dial “9” at any time during or just after

the main greeting to hear the greeting played again from the beginning. On long

messages, it is often helpful to include the option “Dial 9 to hear this message again”

in the main greeting.

Recording a PAGE MESSAGE:

A PAGE MESSAGE is a second-level voice message that can be played to callers

who dial a single digit from the main greeting. A different PAGE Message can be

recorded for each PAGE of CallExtend’s memory, PAGES 1 through 7. All

PAGE Messages should be recorded right AFTER the Main Greeting.

The applications for this type of message are endless but fall into two main

categories, described next:

1) An Informative Message, such as this example:

Example: In their Main Greeting, the ABC Company has told callers to

dial 6 to hear their address. This address message is programmed into PAGE

6, ROW 7 by dialing on the ADMIN phone as follows:

Page 6, Row 7 -

Dial: 6 7 1

Say, “Our office is located at 123

Main St., Anytown, USA.”

Hang up when done.

Dial: 6 7 0 Listen to the message.

2) A Second Level Menu Message, such as:

Example: In their Main Greeting, the ABC Company has told callers to

dial 4 for Technical Support. DATA programming for this example was

done on Page 20 of this manual. The second-level-menu message would be

recorded into PAGE 4, ROW 7 by dialing on the ADMIN phone as follows:

Page 4, Row 7 -

Dial: 4 7 1

Say, “For assistance with Product

A, press 1. For assistance with

Product B, press 2.” Hang up.

Dial: 4 7 0

Listen to the message.

Recording a TRANSFER MESSAGE:

A Transfer Message can be recorded to play after the final extension or menu

digit dialed by the caller (before CallExtend performs the first hook-flash). The

Transfer Message is ideal for informing callers about the progress of their call,

especially if CallExtend is in a supervised mode, where the calling party will not

hear ringing or busy signal.

This type of message should be recorded after the Main Greeting and all PAGE

Messages (if there are any) are recorded. This message is programmed on

PAGE 0, ROW 6. To record it, you would dial on the ADMIN phone as follows:

Dial: 0 6 1 Say, “Please hold while I try that extension.” Hang up when done.
Dial: 0 6 0 Listen to the message.

Recording a BUSY-DON’T ANSWER (BDA) MESSAGE:

The Busy - Don’t Answer (BDA) Message is an optional message that is only used if

CallExtend is in a supervised mode (Full Supervision and Busy-Only Supervision

are described on pages 10-11 of this manual). If recorded, the BDA Message will

play when CallExtend is not able to transfer a call to an extension because that

-

27 -

- 28 -

extension is busy or doesn’t answer. After trying the extension, CallExtend will

retrieve the call, play the BDA Message, and then transfer the call to the receptionist.

The BDA message must be recorded LAST

, after the Main Greeting, all PAGE

Messages (if any), and the Transfer Message are recorded. The BDA Message is

recorded on PAGE 0, ROW 5, by dialing on the ADMIN phone as follows:

Dial: 0 5 1 Say, “That extension is not answering; please hold for the receptionist.”

Hang up when done.

Dial: 0 5 0 Listen to the message.

Remaining Voice Message Storage:

When a message is reviewed using one of the CallExtend Review Commands
(

0 or

*

), CallExtend will play back the voice message to the ADMIN phone and
display a single digit in the CallExtend display. This digit represents the
approximate amount of remaining voice message storage (i.e., the amount of time
still available for recording more messages). Following is a chart of these single
digits and their values:

Digit

displayed:

Approximate percent of total voice storage that is

still available for recording messages:

A All voice storage (98-100%) is available for use
9 90-97% is available for use
8 80-89% is available for use
7 65-79% is available for use
6 55-64% is available for use
5 45-54% is available for use
4 35-44% is available for use
3 25-34% is available for use
2 15-24% is available for use

1 3-14% is available for use

0 0-2% is available for use

Erasing Voice Messages:

If you need to re-record a message, first erase the old message and then re-record the

message in the same PAGE, ROW location. Only the last message you have

recorded can be erased and re-recorded. If you need to re-record a message that

is in between recorded messages, you should erase ALL the voice messages and

begin again (this is done by dialing

0 7 and then holding 9 down for at least

one second, until the Data display returns to

P).

The chart on page 23 lists the CallExtend Erase Commands:

4, 6, 8, and 9. To

erase a message, dial on the Admin Phone in the following format:

PAGE number 0-7 ROW number 5-7 ERASE command 4, 6, 8, or 9

As with all other CallExtend commands, the ERASE command digit must be held

down for at least one full second before being released. When a message has been

erased successfully, the CallExtend display will return to

P.

-

29 -

- 30 -

Appendix A:

Data Display

To make programming easier, CallExtend uses its Data display to provide

information to the user. Watch this display for help during programming, and to see

the results of a Review Data Command. The display works as follows:

 P -- When the receiver of the ADMIN phone is picked up, the Data display will

show

P (to indicate that CallExtend is in Programming Mode and is waiting

for a PAGE

number to be entered).

 r -- Once a PAGE number has been dialed, the Data display will show r to

indicate that a ROW

is needed next.

 C -- Once a ROW number has been dialed, the Data display will show C (to

indicate that a COMMAND

should be entered next); remember that command

keys must be pressed and held down for at least one full second before being

released.

 d -- When the 5 key (Enter Data Command) has been held down long enough,

the display changes to

d (indicating that CallExtend is ready to receive

DATA

).

 S -- When the 1, 2, or 3 key (Record Voice Message Command) is held down

for at least one second and then released, CallExtend shows

S on the display

(indicating that CallExtend is recording your SPEECH

message).

After a Review Data Command, the Data display shows the contents of the PAGE

and ROW specified. Each digit is shown for a second, and then the next digit is

displayed. Blanks are shown as

‘ (small squares); an asterisk or star (

*

) is shown

as

i (since the display can't form the shape

*

), a pound character (#) as c and a

pause as

— (a dash or hyphen). If an error occurs during programming, CallExtend

beeps and shows

’ (three lines).

The following chart summarizes the Data display:

Displayed: Indicates:

P

waiting for a PAGE number to be entered

r

waiting for a ROW number to be entered

C

waiting for a COMMAND to be entered

d

waiting for DATA to be entered

S

Speech Mode: talk into the Admin phone to record a
voice message

i

a * stored in memory

c

a # stored in memory

—

a pause stored in memory

‘

a blank stored in memory

’

a programming error has occurred

A

98-100% of voice storage remains

0-9

in a Review Data Command, indicates the digit
displayed is stored in memory; in a Review Voice
Message Command, indicates amount of voice storage
still available for use

-

31 -

- 32 -

Appendix B:

Optional Programming

Some phone systems require additional system settings beyond the basic ones

detailed in the section, "Programming System Settings: PAGE 0, ROW 0."

These optional settings are programmed into the various fields of PAGE 0, ROW 0,

and they are described in the cases in this Appendix.

If none of the cases in this Appendix applies to your installation, you need only

program Fields 1, 2, & 3 as described on pages 9-11; the default values for Fields 4-8

will be used by CallExtend automatically. When you review the data after entering

it, you will see blanks (

‘) for the fields you didn’t program.

Record your PAGE 0, ROW 0 settings here. To program, dial on the Admin Phone:

1 2 3 4 5 6 7 8 Field Numbers

Dial:

0

0

5

#

1 0 0 0

blank Default values

Dial: 0 0 7 Review the DATA to make sure it’s correct.

NOTE: To program any of the optional settings into Fields 3-8, program all

the

fields prior to and including the desired field. (If programming an optional setting

into Field 2, program Fields 1-3, not just 1 & 2.) Next, press # to leave the

remaining fields blank; this will cause CallExtend to use the default values for them.

Example: to change the value of Field 6, program Fields 1-6 and then press #.

See pages 9-11 to program Fields 1-3; use the default values shown for the other

fields, unless one of the cases in this Appendix indicates otherwise.

Case A: Fully supervise call transfers in phone systems that don't provide

ringing or busy tones to CallExtend. Field 4

can be set to 0 (zero) to have

CallExtend interpret the number 2-9 in Field 3 (Transfer Supervision Mode) to be a

time period, rather than a number of rings. In this case, Field 3 represents the

amount of time (in 4-second increments) CallExtend will wait before transferring an

unanswered call to the receptionist(s). Example: if Field 4 is set to 0 (zero), a 3 in

Field 3 would tell CallExtend to wait 12 (4 x 3) seconds.

Case B: Disconnect supervised calls if the desired extension is busy or doesn’t

answer, instead of transferring the caller to the receptionist. CallExtend will

play the “Busy - Don’t Answer Message” (e.g., “That extension is not answering;

please try again later.”) and then disconnect the caller. To use this option, put a 0

(zero) in Field 8

and set Field 3 to the number of rings 2-9 CallExtend should hear

from an extension before declaring the call unanswered. If desired, you can have

calls to a busy extension be disconnected but have calls to ringing extensions be cut

through without further supervision by CallExtend; to do this, put a 0 (zero) in Field

8 and a 1 (one) in Field 3.

Case C: Supervise calls on phone systems that are programmed for conference

calling. If the phone system’s conference calling feature requires that an extra hook-

flash be used to retrieve a call for a second transfer, Field 4

should be set to 3. In

this case, CallExtend will do an extra hook-flash when transferring busy/unanswered

calls to the receptionist.

Case D: Allow callers to dial extensions that begin with 8. If you want callers to

be able to dial an extension beginning with 8, set Field 5

to the extension length (1-8

digits).

Case E: Have CallExtend answer calls after x number of rings, instead of on the

first ring. Program Field 6

to the number of times you want CallExtend to ring

before it answers the call (e.g., "4" to answer on the fourth ring). Set this field to 0

(zero) or 1 (one) to have CallExtend answer on the first ring.

Case F: Direct calls to a receptionist extension longer than 8 digits or to an

outside phone number. First program a

# character into Field 7 (dial ## to enter a

# character into this field). Then, program the receptionist extension as follows: In

-

33 -

- 34 -

PAGE 0, ROW 1, enter the first 8 digits of the extension or phone number. In PAGE

0, ROW 2, enter the remainder of the number. After this, CallExtend will direct calls

to the receptionist to the complete number entered into ROWS 1 and 2 of PAGE 0.

In this case, only one receptionist can be entered.

NOTE: When using an outside phone number as the receptionist, you may

need to modify Field 8.

If CallExtend dials an outside phone number and then

immediately exits the call, some phone systems will not connect the caller to

the outside phone line. If this is the case, program Field 8 to the number of

seconds (2-9) CallExtend should stay on the line after dialing the

receptionist's number, before it exits the call and connects the caller through.

Case G: Have calls answered by CallExtend's Port 1 be directed to a different

receptionist than calls answered by Port 2. Program a 1 (one) into Field 7

and

program the receptionist extensions as follows: In PAGE 0, ROW 1, enter the

extension to serve as receptionist for CallExtend's Port 1, up to 8 digits. Enter any

remaining digits in ROW 2; if none, leave ROW 2 blank. In PAGE 0, ROW 3,

enter the receptionist extension for CallExtend’s Port 2, up to 8 digits. Enter any

remaining digits in ROW 4; if none, leave ROW 4 blank.

Case H: Have CallExtend PAUSE while dialing. CallExtend can be programmed

to pause between digits when dialing extensions or outside phone numbers. Each

"pause" is 2 seconds in length, and multiple pauses can be used. To program a pause

into CallExtend, program the dialing string normally; at each spot you want

CallExtend to pause while dialing, enter a pause character by dialing

#* on the

ADMIN phone (a single

# sign followed immediately by a single

*

without a

significant delay). The pause counts as a single digit and uses one space in

CallExtend’s memory; when reviewing data, you will see a

— (dash or hyphen) for

each pause.

NOTE: CallExtend automatically pauses 2 seconds after dialing the first

digit of an extension or phone number that begins with 8, 9, 0,

*

, or a #

character. If a

#

*

pause is added after the initial 8, 9, 0, *, or # character,

CallExtend will pause a total of 4 seconds before dialing the next digit.

Case I: Have CallExtend detect Calling Party Abandons. In addition to

controlling the Pause Duration after the Main Message, Field 2

represents how

CallExtend will interpret call abandon signals (a short interruption in line feed

current) from the phone system. This programming is useful if the calling party

hangs up during the Main Message or during the pause afterwards. If an abandon is

detected, CallExtend will return to an idle state without sending the call to the

receptionist.

 Entering a digit 0-9 in Field 2 will cause CallExtend to look for an interrupt

duration of 400 ms as a call abandon. If CallExtend doesn’t see this interrupt,

it will pause the number of seconds corresponding to the digit programmed (to

allow the caller to dial) and then transfer the call.

 Entering a

*

character in Field 2 will cause CallExtend to look for an interrupt

duration of 80 ms as a call abandon. If CallExtend doesn’t see this interrupt, it

will pause 5 seconds to allow the caller to dial, and then it will transfer the call.

 Entering a # character in Field 2 (dial ## to enter a # character into this field)

will disable the call abandon detect feature and allow a 5 second pause

duration.

-

35 -

- 36 -

Appendix C:

Troubleshooting

If you experience problems when installing CallExtend, the following examples may

assist you in troubleshooting:

Call Transfer Examples:

Calls are not being transferred, and touch-tone digits are heard by the caller:

1. The hook-flash duration setting in CallExtend may be too short for the phone

system. Check the "Hook-Flash Duration" Field (the first field of PAGE 0,

ROW 0) to make sure it is set to correspond to the hook-flash duration setting in

the phone system.

2. Make sure that the phone system analog ports CallExtend is connected to are

programmed for call transfers. To test this, see page 2.

3. Make sure CallExtend has been programmed to dial any prefix digits that are

needed in front of extension numbers when transferring calls.

The caller dials to select a department or extension, and the call is dropped

without touch-tone digits being heard: The hook-flash duration CallExtend is

using when transferring calls may be too long for the phone system. Change the

value programmed into the first Field of PAGE 0, ROW 0 to a lower value that

matches the hook-flash duration setting in the phone system.

The caller dials a single digit but is not transferred to an extension: Make sure

that ROW 0 on that single digit's PAGE is set to

*

(star). Also, review the data in

ROWS 1-6 on the PAGE, to make sure that the desired extensions have been

programmed.

A call is transferred to an extension, but that extension only rings briefly before

the call is transferred to the receptionist: Set the "Transfer Supervision Mode"

field in PAGE 0, ROW 0 to a higher number of rings (see "Programming System

Settings: PAGE 0, ROW 0").

If a call is not answered by the extension it was transferred to, it is not

being

transferred to the receptionist:

1. The "Transfer Supervision Mode" setting in PAGE 0, ROW 0 may be set to zero

or one. This causes CallExtend to transfer the call without answer supervision.

See "Programming System Settings: PAGE 0, ROW 0" to change this value.

2. If this problem occurs when CallExtend is set to fully supervise call transfers,

check the extensions entered into ROWS 1-4 of PAGE 0, to make sure they are

valid extensions.

3. Make sure your telephone system can make a second call transfer from the

analog ports without any restrictions.

4. If the conference calling feature on your phone system causes an extra hook-

flash to be needed for the second call transfer, see Appendix B, Case C.

CallExtend seems to tie up a phone line for a long period of time without

transferring a call:

1. This may occur because the phone system does not pass a calling party abandon

signal (interruption in line current) to the CallExtend extension, or the phone

system passes a shorter signal to CallExtend than CallExtend is programmed to

recognize. Check the programming referred to in Appendix B, Case I.

2. If CallExtend does not have a proper receptionist extension programmed into it,

it will not be able to transfer callers who wait on the line to reach the receptionist

(e.g., if they are calling from a rotary phone); thus, these callers may be kept on

the line indefinitely. Verify that there is a valid receptionist extension entered in

PAGE 0, ROW 1.

-

37 -

- 38 -

Voice Message Problems:

The greeting is played twice to callers: With some phone systems, if an extension

does not answer a transferred call, the call is automatically returned to the extension

that originated the call transfer. In this case, calls will be transferred back to

CallExtend if they are not answered by the appropriate extension. When the call is

transferred back to CallExtend, it looks like a new call, so CallExtend plays its

greeting to the caller. Program the phone system to not transfer calls back to the

ports used with CallExtend. If this cannot be done, extend the phone system’s

extension recall timer, or change CallExtend to Supervised mode.

CallExtend answers calls but does not play any messages to the caller: The

voice messages may have been erased by a power failure and should be re-recorded.

Also, check the "Batt. Low" light on CallExtend; if this light is on, a new battery

should be inserted in the battery backup prior to re-recording the messages.

CallExtend allows calls to be transferred, but the Transfer Message and BDA

Message are not being heard by the caller: These messages may have been re-

recorded after they were originally recorded, without being erased first. Whenever

you need to re-record a message, you must first erase the old one. Erase all messages

and re-record them all, in the order described on page 22.

A voice message stops part-way through (always at the same place

), and the

caller is immediately transferred to an extension or the receptionist: Part of the

voice message may sound like a touch-tone digit to CallExtend, causing the call to

be transferred. If the digit is programmed, CallExtend will transfer the caller to the

appropriate department; if it is not programmed, the caller will be transferred to the

receptionist. Erase all voice messages and re-record them all, in the order described

on page 22.

A voice message stops part-way through at a random point

, and there is a pause

before the call is disconnected or is transferred to the receptionist: CallExtend

may be located near a transformer or power supply that emits a strong magnetic

field, causing CallExtend to lock up. Relocate the CallExtend unit.

How to Reach Customer Support:

If you encounter problems you are not able to resolve with your CallExtend system,

contact your CallExtend dealer or Call Management Products Inc., Broomfield,

Colorado, at [phone] or [phone].

Returning a CallExtend for Repair:

If you suspect that your CallExtend may need repair, contact our Customer Support

Department from the site where CallExtend is connected. A technician will ask you

some questions about the installation and will go through some tests over the phone.

If the Customer Support technician determines that the CallExtend needs to be

returned for repair, he or she will issue you a Return Merchandise Authorization

(RMA) number.

CallExtend comes with a 1-year warranty on parts and labor. If the manufacture date

on the bottom of the CallExtend is over 12 months old, a photocopy of the actual

sales receipt is required to prove the purchase date. Out-of-warranty repairs are

available.

Warranty:

Call Management Products Inc. (CMP) warrants this product, so far as the same is of

its own manufacture, against defects in material and workmanship under the normal

use and service for which it was designed, for a period of one year from date of

initial end user purchase. CMP’s obligation under this warranty is limited, however,

to the replacement or repair, at its option, to a part or parts determined by it to be

defective. Necessary packaging and transportation costs for the return of the goods

shall be paid by the buyer. All replacement or repaired goods will be returned

prepaid by CMP. This limited warranty does not include damage resulting from

accident, abuse, or non-factory modification of the product.

-

39 -

- 40 -

CMP shall under no circumstances be liable for any special, indirect, or

consequential damages owing to failure of the product. SELLER MAKES NO

WARRANTY OF FITNESS OR MERCHANTABILITY AND NO OTHER

WARRANTY, ORAL OR WRITTEN, EXPRESS OR IMPLIED, EXCEPT AS

SPECIFICALLY SET FORTH HEREIN.

FCC Notice:

1.) This equipment complies with Part 15 and Part 68 of the FCC rules. On the

bottom of the CallExtend unit is a label that contains, among other information,

the FCC registration number and the ringer equivalence number (REN) for this

equipment. If requested, this information must be provided to the telephone

company.

2.) This equipment uses the following USOC jacks: RJ11C.

3.) The Ringer Equivalence Number (REN) is used to determine the quantity of

devices that may be connected to the telephone line at one time. The REN

characterizes the load placed on the telephone company alerting (ringing) power

source by this product, as a ratio to a standard mechanical bell-type ringer.

Excessive RENs on the telephone line may result in the devices not ringing in

response to an incoming call. In most, but not all areas, the sum of the RENs

should not exceed five (5.0). To be certain of the number of devices that may be

connected to the line, as determined by the total RENs, contact the telephone

company to determine the maximum REN for the calling area.

4.) If this equipment causes harm to the telephone network, the telephone company

has the right to discontinue service temporarily on the line to which this product

is connected. The telephone company will notify you in advance if temporary

discontinuance of service is required. If advance notification isn't practical, the

telephone company will notify you as soon as possible. Also, you will be

advised of your right to file a complaint with the FCC if you believe it is

necessary.

5.) The telephone company may make changes in its facilities, equipment,

operations, or procedures that could affect the operation of this equipment and

could make it incompatible or less compatible. If this happens, the telephone

company will provide advance notice in order for you to make the necessary

modifications to maintain uninterrupted service.

6.) If trouble is experienced with this equipment, please contact your local dealer or

Call Management Products Inc. (CMP) for repair or warranty information. If the

trouble is causing harm to the telephone network, the telephone company may

request that you remove the equipment from the network until the problem is

resolved. Under no condition is any equipment to be sent to CMP without

contacting CMP in advance for return authorization.

7.) No repairs can be done by the customer.

8.) This equipment cannot be used on telephone company provided coin service.

Connection to Party Line Service is subject to state tariffs.

9.) This equipment is hearing-aid compatible.

CallExtend

User's Manual

Rev. 96A0411

Call Management Products Inc. reserves the right to make improvements to the product

described in this manual at any time and without notice.

This manual is copyrighted. All rights are reserved. This document may not, in whole or

part, be copied, photocopied, reproduced, translated, or reduced to any electronic medium

or machine readable form without prior consent, in writing, from Call Management

Products Inc.

Copyright 1996 by Call Management Products Inc., Broomfield, Colorado.
