TFT LCD Approval Specification

MODEL NO.: V520H1 - L04

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Customer:

pproved by:

Note:

Approved By

TV Head Division

LY Chen

QRA Dept. Product Development Div.

Reviewed By

Tomy Chen WT Lin

LCD TV Marketing and Product

Prepared By

Ken Wu Marcus Chang

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Management Div.

1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT INVERTER UNIT

3. ELECTRICAL CHARACTERISTICS --------------------------------------------------------7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

3.2.1 CCFL

3.2.2 INVERTER CHARACTERISTICS

3.2.3 INVERTER INTERTFACE CHARACTERISTICS

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

(Cold Cathode Fluorescent Lamp) CHARACTERISTICS

-------------------------------------------------------13

5. INPUT TERMINAL PIN ASSIGNMENT --------------------------------------------------------14

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

5.3 INVERTER UNIT

5.4 BLOCK DIAGRAM OF INTERFACE

5.5 LVDS INTERFACE

5.6 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

8.2 SAFETY PRECAUTIONS

-------------------------------------------------------22

-------------------------------------------------------25

-------------------------------------------------------29

9. REGULATORY STANDARD -------------------------------------------------------29

9.1 SAFETY

10. PACKAGING -------------------------------------------------------30

10.1 PACKING SPECIFICATIONS

10.2 PACKING METHOD

11. MECHANICAL CHARACTERISTICS

------------------------------------------------------32

2

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

REVISION HISTORY

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Version Date

Ver. 2.0

Sep.10, 2007

Page

(New)

All

Section Description

All

Approval Specification was first issued.

!

3

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V520H1-L04 is a 52” TFT Liquid Crystal Display module with 28-CCFL Backlight unit and 2ch-LVDS

interface. This module supports 1920 x 1080 HDTV format and can display true 16.7M colors (8-bit/color).

The inverter module for backlight is built-in.

1.2 FEATURES

- High brightness (500 nits)

- High contrast ratio (1500:1)

- Fast response time (Gray to gray average 6.5 ms)

- High color saturation (NTSC 92%)

- Full HDTV (1920 x 1080 pixels) resolution, true HDTV format

- DE (Data Enable) only mode

- LVDS (Low Voltage Differential Signaling) interface

- Optimized response time for 50/60 Hz frame rate

- Ultra wide viewing angle : Super MVA technology

- 180 degree rotation display option

- RoHS compliance

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

1.3 APPLICATION

- Standard Living Room TVs.

- Public Display Application.

- Home Theater Application.

- MFM Application.

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note Active Area 1152 x 648 (52.037”) mm Bezel Opening Area 1166.0x662.0 mm Driver Element a-si TFT active matrix - Pixel Number 1920x R.G.B. x 1080 pixel Pixel Pitch(Sub Pixel) 0.2 (H) x 0.6 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 16.7M color -

Display Operation Mode Transmissive mode / Normally black - -

Surface Treatment

Note (1) Please refer to the attached drawings in chapter 11 for more information about the front and

back outlines.

Low reflection coating< 1.3% reflection

Hard coating 3H

- (2)

(1)

Note (2) The spec of the surface treatment is temporarily for this phase. CMO reserves the rights to

change this feature.

4

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 1235 1236 1237 mm

Module Size

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Note (2) Module Depth does not include connectors.

Vertical (V) 718.2 719.2 720.2 mm Depth (D)

Weight 20000 g -

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 50 ºC (1), (2)

Shock (Non-Operating) S

Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

NOP

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

(1), (2)

56.5 57.5 58.5

Value

Min. Max.

X, Y axis - 40 G (3), (5)

Z axis - 30 G (3), (5)

- 1.0 G (4), (5)

NOP

mm W/I INV-COVER

Unit Note

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The maximum operating temperature is based on the test condition that the surface temperature of

display area is less than or equal to 65 ºC with LCD module alone in a temperature controlled chamber.

Thermal management should be considered in your product design to prevent the surface temperature

of display area from being over 65 ºC. The range of operating temperature may degrade in case of

improper thermal management in your product design.

Note (3) 11 ms, half sine wave, 1 time for ± X, ± Y, and ± Z.

Note (4) 10 ~ 200 Hz, 10 min, 1 time each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that

the module would not be twisted or bent by the fixture. The module would not be twisted or bent by the

fixture.

5

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

10

Storage Range

10

Temperature (ºC)

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Min. Max.

Power Supply Voltage VCC -0.3 13.5 V

Logic Input Voltage VIN -0.3 3.6 V

Value

Unit Note

8060-20 40020-40

(1)

2.2.2 BACKLIGHT INVERTER UNIT

Item Symbol

Lamp Voltage V Power Supply Voltage VBL 0 30 V (1) Control Signal Level

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) No moisture condensation or freezing.

Note (3)The control signals include On/Off Control, Internal PWM Control, External PWM Control and

Internal/External PWM Selection.

W

Ё

Valu e

Min. Max.

Ё

-0.3 7 V (1), (3)

3000 V

Unit Note

RMS

6

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE (Ta = 25 ± 2 ºC)

Parameter Symbol

Power Supply Voltage VCC 10.8 12 13.2 V (1) Power Supply Ripple Voltage VRP - - 350 mV Rush Current I

White - 1.5 2.1 A

Power Supply Current

Differential Input High

LVDS Interface

Threshold Voltage Differential Input Low Threshold Voltage Common Input Voltage V Terminating Resistor R Input High Threshold Voltage VIH 2.7 - 3.3 V CMOS

interface

Input Low Threshold Voltage V

Black - 0.6 - A Vertical Stripe

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Value

Min. Typ. Max.

- - 4.5 A (2)

RUSH

I

CC

- 1.2 - A

- - +100 mV

V

LVT H

-100 - - mV

V

LVT L

1.125 1.25 1.375 V

LVC

- 100 - ohm

T

0 - 0.7 V

IL

Unit Note

(3)

Note (1) The module should be always operated within the above ranges.

Note (2) Measurement condition:

(High to Low)

(Control Signal)

SW

+24V

Vcc

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

FUSE

Q2

2SK1470

C2

0.01uF

C3

1uF

Vcc

(LCD Module Input)

7

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

GND

Note (3) The specified power supply current is under the conditions at Vcc = 12V, Ta = 25 ± 2 ºC, fv = 60 Hz,

whereas a power dissipation check pattern below is displayed.

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Vcc rising time is 470us

Vcc

0.9Vcc

0.1Vcc

470us

a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

R

G

R

B

G

R

B

G

R R

G

B

R

G

B

R

Active Area

8

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.2 BACKLIGHT UNIT

3.2.1 CCFL (Cold Cathode Fluorescent Lamp) CHARACTERISTICS (Ta = 25 ± 2 ºC)

Parameter Symbol

Lamp Input Voltage VL - 1610 - V Lamp Current IL 5.5 6.0 6.5 mA

Lamp Turn On Voltage V

Operating Frequency FL 40 - 70 KHz (3) Lamp Life Time LBL 50,000 - - Hrs (4)

S

www.panelook.com

Value

Min. Typ. Max.

- - 2550 V

- - 2350 V

Unit Note

RMS

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

(1)

RMS

(2), Ta = 0 ºC (2), Ta = 25 ºC

3.2.2 INVERTER CHARACTERISTICS (

Parameter Symbol

Power Consumption at Gray level 255

Power Consumption at Gray level 128

Power Consumption at Gray level 0

Power Supply Voltage VBL 22.8 24 25.2 V

- 288 317 W (5), IL =6.0mA

P

255

- TBD - W

P

128

- TBD - W

P

0

Ta = 25 ± 2 ºC)

Valu e

Min. Typ. Max.

Unit Note

DC

Power Supply Current IBL - 12 - A Non Dimming

Input Ripple Noise - - - 912 mV

P-P

VBL=22.8V Oscillating Frequency FW 48 50 52 kHz Dimming frequency F Minimum Duty Ratio D

150 160 170 Hz

B

- 20 - %

MIN

Note (1) Lamp current is measured by utilizing AC current probe and its value is average by measuring

master and slave board.

Note (2) The life time of a lamp is defined as when the brightness is larger than 50% of its original value and

the effective discharge length is longer than 80% of its original length (Effective discharge length is

defined as an area that has equal to or more than 70% brightness compared to the brightness at

the center point of lamp.) as the time in which it continues to operate under the condition at Ta = 25

2к and I

Note (3) The power supply capacity should be higher than the total inverter power consumption P

= 5.5 ~ 6.5 mArms.

L

. Since

BL

the pulse width modulation (PWM) mode was applied for backlight dimming, the driving current

changed as PWM duty on and off. The transient response of power supply should be considered

for the changing loading when inverter dimming.

Note (4) The measurement condition of Max. value is based on 52" backlight unit under input voltage 24V,

average lamp current 5. 7mA and lighting 30 minutes later.

9

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Inverter

(Master)

A A

HV(Pink -)

2

HV (White +)

1

HV(Pink +)

2

HV (White -)

1

HV(Pink -)

2

HV (White +)

1

HV(Pink +)

2

HV (White -)

1

HV(Pink -)

2

HV (White +)

1

HV(Pink +)

2

HV (White -)

1

HV(Pink -)

2

HV (White -)

1

HV (Pink +) HV (White +)

HV (Pink -) HV (White -)

HV (Pink +) HV (White +)

HV (Pink -) HV (White -)

HV (Pink +) HV (White +)

HV (Pink -) HV (White -)

HV (Pink +) HV (White +)

A

1 2

A

1 2

A

1 2

A

1 2

A

1 2

A

1 2

A

1 2

A

Inverter

(Slave2)

LCD Module

Inverter

(Slave1)

A A

HV (White +)

1

HV(Pink +)

2

HV (White -)

1

HV(Pink -)

2

HV (White +)

1

HV(Pink +)

2

HV (White -)

1

HV(Pink -)

2

HV (White +)

1

HV(Pink +)

2

HV (White -)

1

HV(Pink -)

2

HV (White +)

1

HV(Pink +)

2

HV (Pink -) HV (White -)

HV (Pink +) HV (White +)

HV (Pink -) HV (White -)

HV (Pink +) HV (White +)

HV (Pink -) HV (White -)

HV (Pink +) HV (White +)

HV (Pink -) HV (White -)

A

1 2

A

1 2

A

1 2

A

1 2

A

Inverter

(Slave3)

A

1 2

A

1 2

A

1 2

A

10

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

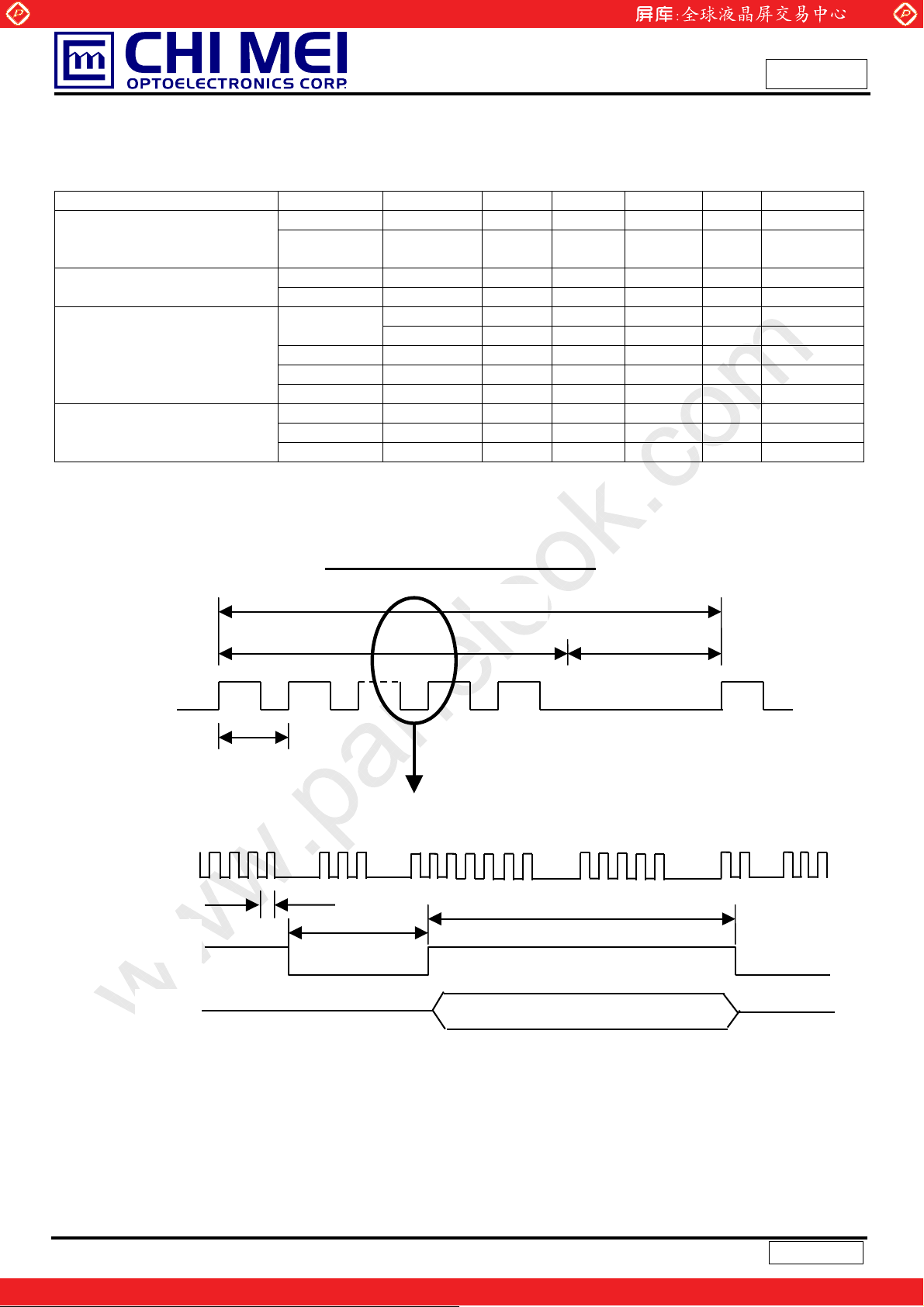

3.2.3 INVERTER INTERTFACE CHARACTERISTICS

No ITEM SYMBOL

1

2

On/Off Control Voltage

3

Internal PWM Control Voltage

4 External PWM Control Voltage

5 VBL Rising Time Tr1 Ё 30 Ё 50 ms

6 VBL Falling Time Tf1 Ё 30 Ё 50 ms

7 Control Signal Rising Time Tr ЁЁЁ 100 ms

8 Control Signal Falling Time Tf ЁЁЁ 100 ms

9 PWM Signal Rising Time T

10 PWM Signal Falling Time T

11 Input impedance R

12 PWM Delay Time T

13 BLON Delay Time T

14 BLON Off Time T

Note (1) The SEL signal should be valid before backlight turns on by BLON signal. It is inhibited to change

Error Signal ERR

OFF

MAX

ON

MIN

HI

LO

www.panelook.com

TEST

CONDITION

ЁЁЁЁЁ

V

BLON

V

IPWM

V

EPWM

PWMR

PWMF

IN

PWM

on

OFF

Ё

ЁЁ0Ё

Ё

ЁЁЁ

Ё 1 ЁЁ MӨ

Ё 100 300 mS

Ё 300 Ё 500 mS

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

MIN TYPE MAX UNIT NOTE

2.0

3.15 3.3 3.45 V Maximum Duty Ratio

2.0

Ё

0

Ё

0

5.0 V

0.8 V

V Minimum Duty Ratio

5.0 V ON Duration

0.8 V OFF Duration

50 us

(1-2)

(Note 2)

the internal/external PWM selection (SEL) during backlight turn on period.

Note (2) The power sequence and control signal timing are shown in the following figure.

Note (3) The power sequence and control signal timing must follow the figure below. For a certain reason,

the inverter has a possibility to be damaged with wrong power sequence and control signal

timing.

11

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

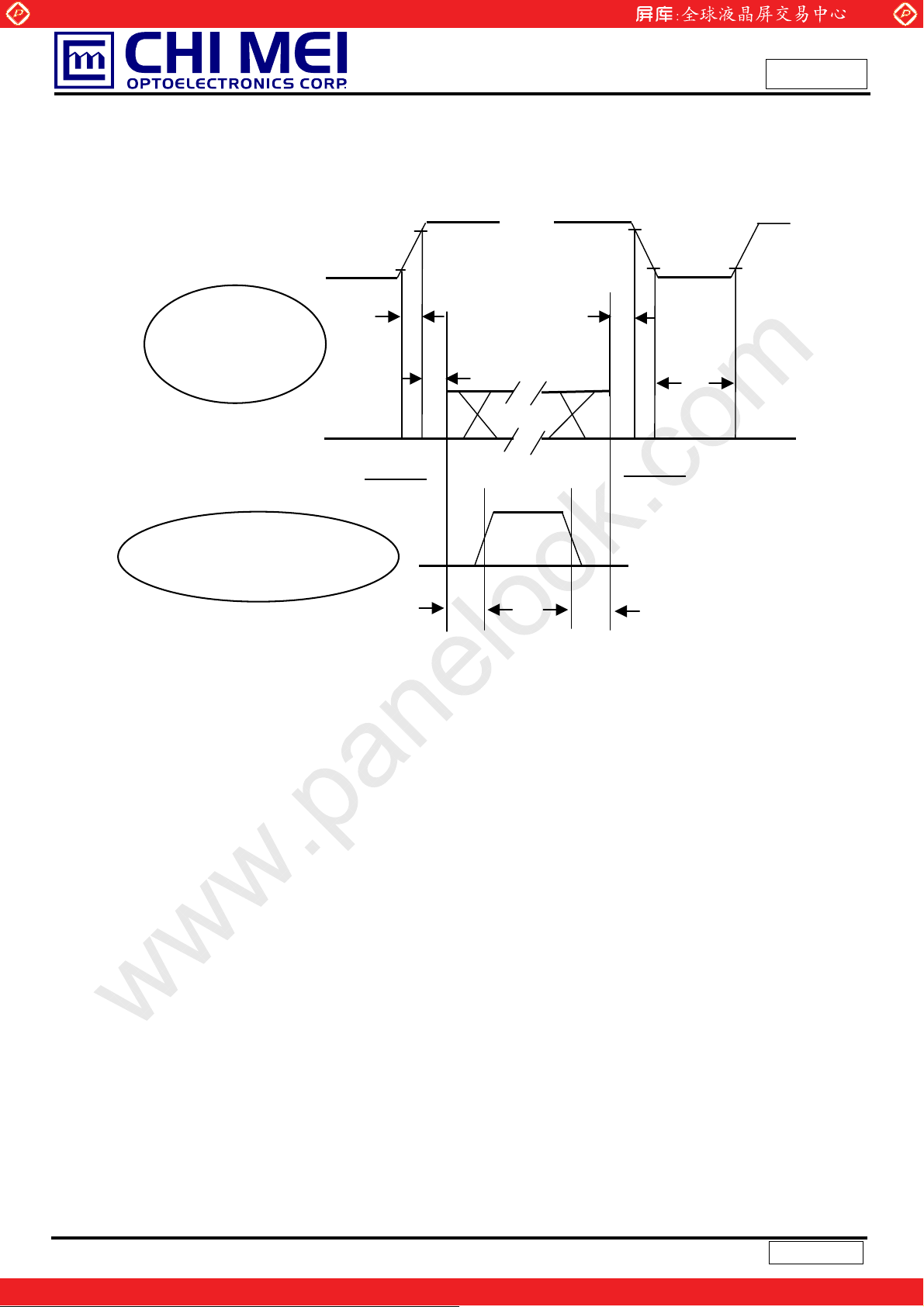

V

VBLON

V

EPWM

V

IPWM

Tr1

BL

2.0V

0.8V

2.0V

0.8V

3.3V

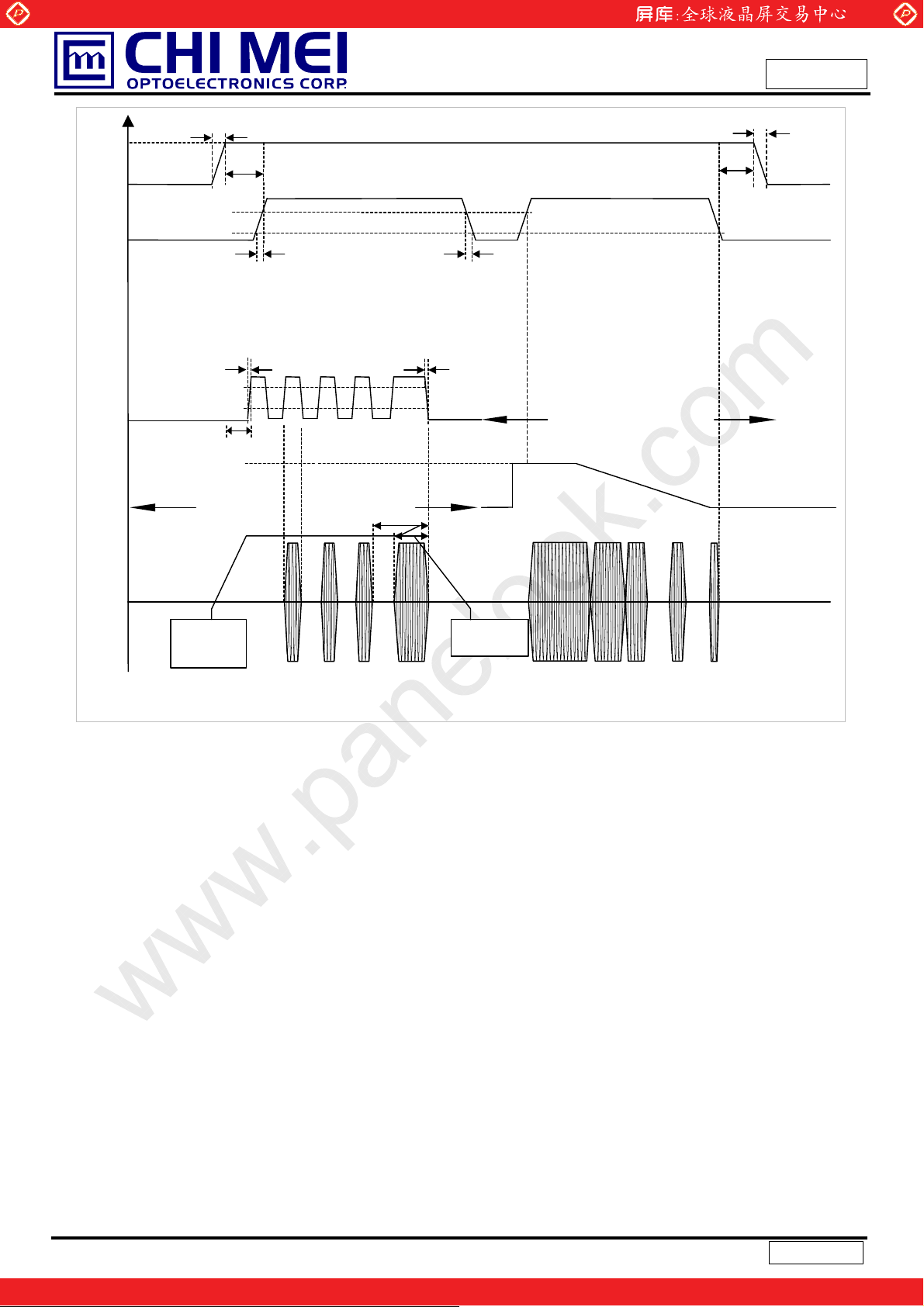

Ton

Backlight on duration

Tr

Ext. Dimming Function

TPWMR

PWM

T

Floating

T

Tf

PWMF

Floating

Int. Dimming Function

0

Tf1

Toff

V

W

External

PWM

Period

External

PWM Duty

100%

Minimun

Duty

12

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

)

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

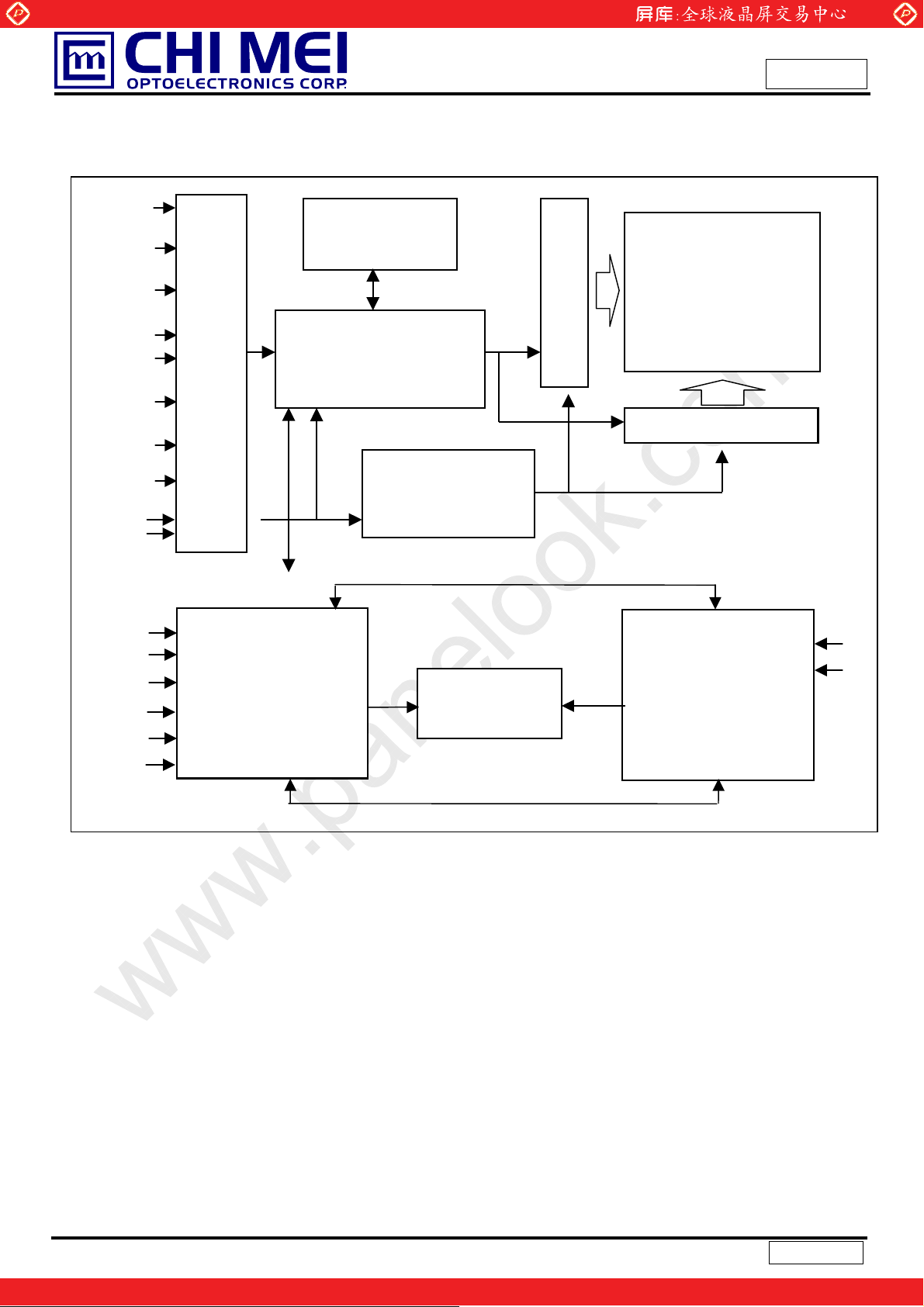

4. BLOCK DIAGRAM OF INTERFACE

4.1 TFT LCD MODULE

ERX0(+/-)

ERX1(+/-)

ERX2(+/-)

ERX3(+/-)

ECLK(+/-)

DCLK(+/-)

DE

INPUT CONNECTOR

(FI-RE51S-HF )

FRAME

BUFFER

CONTROLLER

ORX0(+/-)

ORX1(+/-)

ORX2(+/-)

ORX3(+/-) OCLK(+/-)

Vcc

GND

SCAN DRIVER

TFT LCD PANEL

(1920x3x1080)

TIMING

DATA DRIVER (RSDS

DC/DC CONVERTER

& REFERENCE

VOLTAGE

GENERATOR

VBL

GND

SEL

I_PWM

E_PWM

BLON

CN101: 528520870(Molex)

CN100

CONNECTOR

CN100:S14B-PH-SM3

-TB(D)(LF) or equivalent (Master)

INVERTER

CN102-CN103 , CN201-CN203 , CN301 , CN401: 528521070 (Molex) or equivalent

CN102,CN301: 528521070 (Molex) or equivalent

CN2-CN29:SM02 (12.0)B-BHS-1-TB(LF)(JST)

or equivalent

BACKLIGHT

UNIT

CN200-CN400

INVERTER

CONNECTOR

CN200-CN400:S12B-P

H-SM3-TB(D)(LF) or

Equivalent (Slave)

VBL

GND

13

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD Module

Pin Name Description Note

1 VCC +12V power supply 2 VCC +12V power supply 3 VCC +12V power supply 4 VCC +12V power supply 5 VCC +12V power supply 6 GND Ground 7 GND Ground 8 GND Ground

9 GND Ground 10 ORX0- Odd pixel Negative LVDS differential data input. Channel 0 11 ORX0+ Odd pixel Positive LVDS differential data input. Channel 0 12 ORX1- Odd pixel Negative LVDS differential data input. Channel 1 13 ORX1+ Odd pixel Positive LVDS differential data input. Channel 1 14 ORX2- Odd pixel Negative LVDS differential data input. Channel 2 15 ORX2+ Odd pixel Positive LVDS differential data input. Channel 2 16 GND Ground 17 OCLK- Odd pixel Negative LVDS differential clock input. 18 OCLK+ Odd pixel Positive LVDS differential clock input. 19 GND Ground 20 ORX3- Odd pixel Negative LVDS differential data input. Channel 3 21 ORX3+ Odd pixel Positive LVDS differential data input. Channel 3 22 N.C. No Connection 23 N.C. No Connection 24 GND Ground 25 ERX0- Even pixel, Negative LVDS differential data input. Channel 0 26 ERX0+ Even pixel, Positive LVDS differential data input. Channel 0 27 ERX1- Even pixel, Negative LVDS differential data input. Channel 1 28 ERX1+ Even pixel, Positive LVDS differential data input. Channel 1 29 ERX2- Even pixel, Negative LVDS differential data input. Channel 2 30 ERX2+ Even pixel, Positive LVDS differential data input. Channel 2 31 GND Ground 32 ECLK- Even pixel, Negative LVDS differential clock input 33 ECLK+ Even pixel, Positive LVDS differential clock input. 34 GND Ground 35 ERX3- Even pixel, Negative LVDS differential data input. Channel 3 36 ERX3+ Even pixel, Positive LVDS differential data input. Channel 3 37 N.C. No Connection 38 N.C. No Connection 39 GND Ground 40 ODSEL Overdrive Lookup Table Selection (5) 41 DCREN Dynamic Contrast Ratio Enable (6) 42 N.C. No Connection (2) 43 RPF Display Rotation (4) 44 N.C. No Connection (2) 45 SELLVDS LVDS Data Format Selection (3) 46 N.C. No Connection 47 N.C. No Connection 48 N.C. No Connection 49 N.C. No Connection (2)

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

(2)

14

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

50 N.C. No Connection 51 N.C. No Connection

Note (1) Connector part no. : FI-RE51S-HF (JAE) or equivalent.

Note (2) Please be reserved to open.

Note (3) Low : JEIDA LVDS Format (default), High : VESA Format.

Note (4) Low : normal display (default), High : display with 180 degree rotation

Note (5) Overdrive lookup table selection. The overdrive lookup table should be selected in accordance to the

frame rate to optimize image quality.

ODSEL Note

L Lookup table was optimized for 60 Hz frame rate.

H Lookup table was optimized for 50 Hz frame rate.

Note (6) Low : function disable (default), High : Dynamic Contrast Ratio function enable.

Note (7) Low =Open or Connect to GND, High = Connect to +3.3V

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

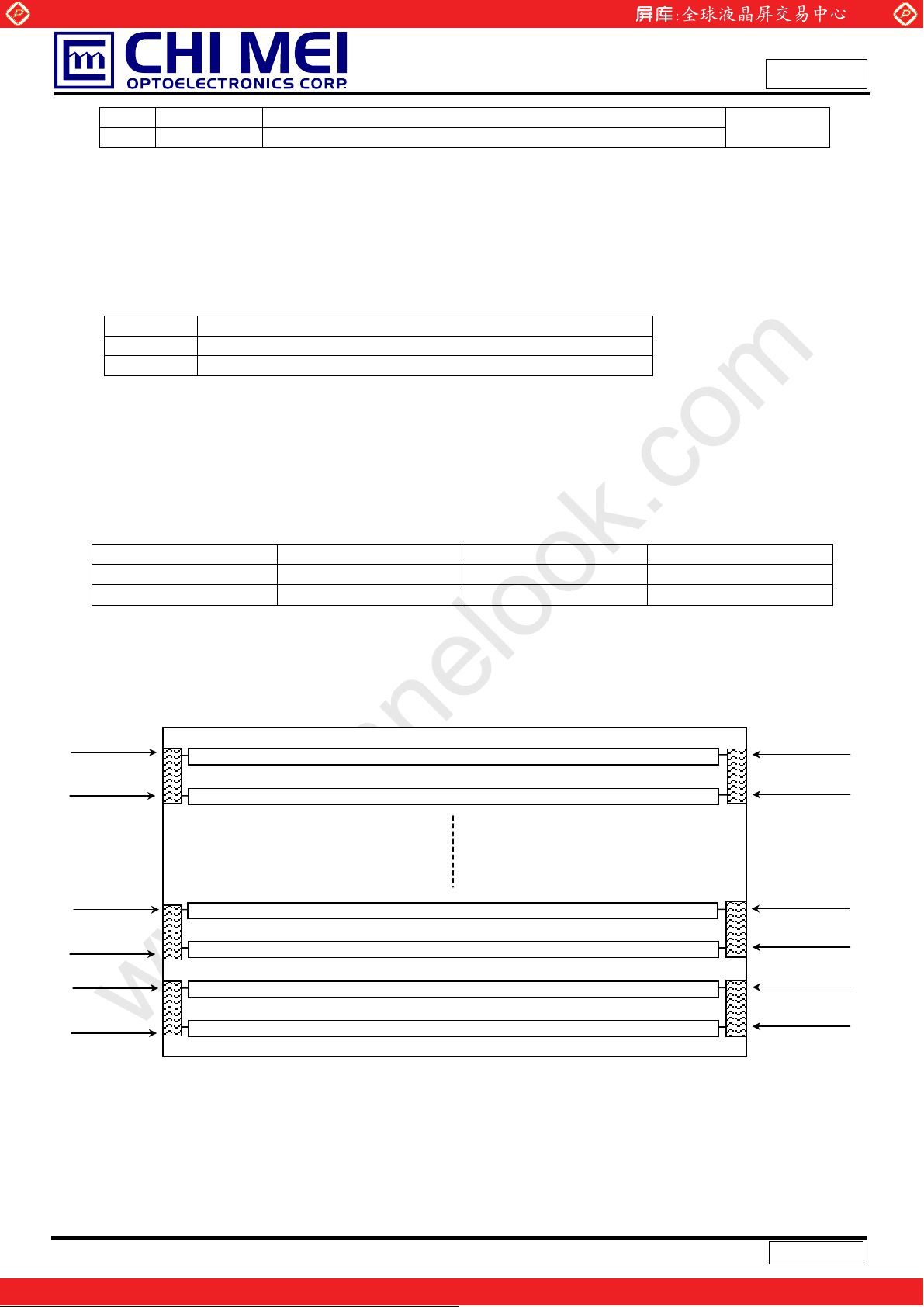

5.2 BACKLIGHT UNIT

The pin configuration for the housing and the leader wire is shown in the table below.

CN3-CN26:CP042CSC000 (CviLux).

Pin Name Description Wire Color

1 HV High Voltage Pink 2 HV High Voltage White

Note (1) The backlight interface housing for high voltage side is a model CP042CSC000, manufactured by

CviLux. The mating header on inverter part number is CP042CP1MC0.

1 HV(White)

2 HV(Pink)

1 HV(White)

1 HV(Pink)

2 HV(White)

1 HV(Pink)

2 HV(Pink)

1 HV(White)

2 HV(Pink)

2 HV(White)

1 HV(Pink)

2 HV(White)

15

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.3 INVERTER UNIT

CN100 (Header): S14B-PH-SM3-TB (D)(LF)(JST) or equivalent.

Pin No. Symbol Description

1 2 3 4 5 6 7 8 9

10

11 SEL

12 E_PWM

13 I_PWM

14 BLON Backlight on/off control

VBL +24V

GND GND

Internal/external PWM selection High : external dimming Low : internal dimming

External PWM control signal E_PWM should be connected to ground when internal PWM was selected (SEL = Low). Internal PWM Control Signal I_PWM should be connected to ground when external PWM was selected (SEL = High).

power input

DC

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

CN200-CN400 (Header): S12B-PH-SM3-TB (D)(LF)(JST) or equivalent.

Pin No. Symbol Description

1 2 3 4 5 6 7 8 9

10

11

12 NC NC

CN2-CN29 (Header): CP042CPIMC0-LF(CviLux) or equivalent

Pin No. Symbol Description

1 2

VBL +24V

GND GND

NC NC

CCFL HOT CCFL HOT

CCFL high voltage CCFL high voltage

power input

DC

16

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

CN102-CN103 , CN201-CN203 , CN301 , CN401 : 528521070(Molex)

Pin No. Symbol Description

1 Board to Board

2 Board to Board

3 Board to Board

4 Board to Board

5 Board to Board

6 Board to Board 7 Board to Board 8 Board to Board 9 Board to Board

10

CN101: 528520870(Molex)

Pin No. Symbol Description

1 Board to Board

2 Board to Board

3 Board to Board

4 Board to Board

5 Board to Board

6 Board to Board 7 Board to Board 8

Note (1) Floating of any control signal is not allowed.

Control

Signal

Board to Board

Control

Signal

Board to Board

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

17

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

G0-EG

0

G0-EG

0

r

0

p

ORx0

O

p

OG0

OB0

C

OG0

OB0

www.panelook.com

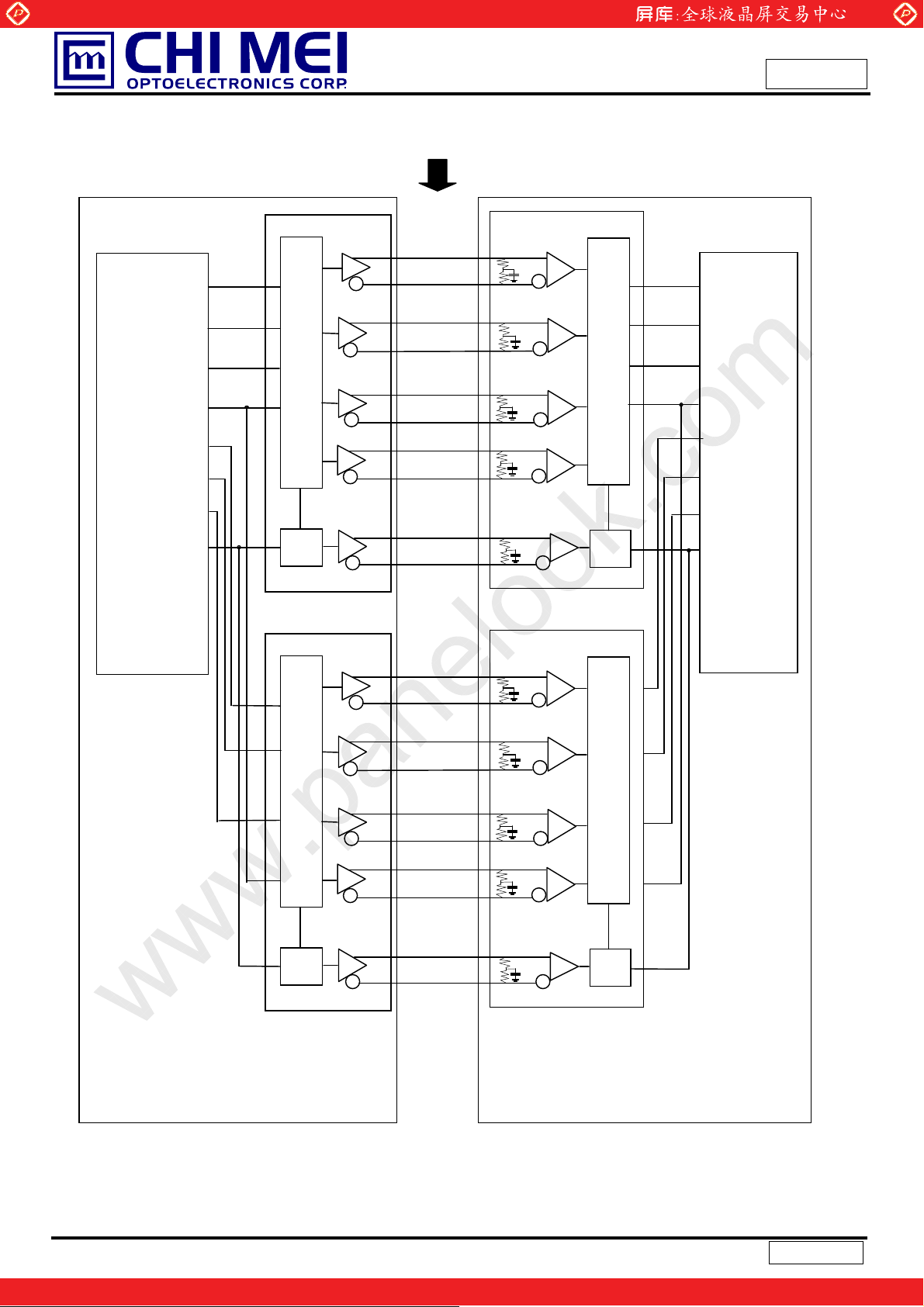

5.4 BLOCK DIAGRAM OF INTERFACE

CNF1

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

ER0-ER7

E

EB

-EB7

DE

OR0-OR7

-OG7

-OB7

D

Host

Graphics

Controller

7

LK

TxIN

PLL

ERx0+

ERx

-

ERx1+

ERx1-

ERx2+

ERx2-

ERx3+

ERx3-

ECLK+

ORx0+

ORx1+

ORx1-

51Ө

51Ө 51Ө

51Ө

100pF

100

100pF

F

RxOUT

ER0-ER7

E

EB

-EB7

DE

OR0-OR7

-OG7

7

-OB7

51Ө

-

100pF

51Ө

PLL

DCLK

Timing

51Ө

100pF

100

F

-

Controlle

LVDS Transmitter

THC63LVDM83A

(LVDF83A)

PLL

ORx2+

Rx2-

ORx3+

ORx3-

OCLK+

-

18

51Ө

100pF

51Ө 51Ө

100pF

51Ө

100pF

51Ө

PLL

LVDS Receiver

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

ER0~ER7 : Even pixel R data

EG0~EG7 : Even pixel G data

EB0~EB7 : Even pixel B data

OR0~OR7 : Odd pixel R data

OG0~OG7: Odd pixel G data

OB0~OB7 : Odd pixel B data

DE : Data enable signal

DCLK : Data clock signal

Notes: (1) The system must have the transmitter to drive the module.

(2) LVDS cable impedance shall be 50 ohms per signal line or about 100 ohms per twist-pair line

when it is used differentially.

(3) Two pixel data send into the module for every clock cycle. The first pixel of the frame is odd pixel

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

and the second pixel is even pixel.

19

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.5 LVDS INTERFACE

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

SIGNAL

LVDS _SEL =HLVDS _SEL =

R0

R1

R2

R3

R4

R5

G0

G1

G2

G3

G4

G5

B0

B1

B2

24bit

B3

B4

B5

DE

R6

R7

G6

G7

B6

B7

RSVD 1

RSVD 2

RSVD 3

DCLK 31 TxCLK IN TxCLK

L or OPEN

R2

R3

R4

R5

R6

R7

G2

G3

G4

G5

G6

G7

B2

B3

B4

B5

B6

B7

DE

R0

R1

G0

G1

B0

B1

RSVD 1

RSVD 2

RSVD 3

TRANSMITTER

THC63LVDM83A

PIN INPUT Host TFT-LCD PIN OUTPUT

51

52

54

55

56

3

4

6

7

11

12

14

15

19

20

22

23

24

30

50

2

8

10

16

18

25

27

28

TxIN0

TxIN1

TxIN2

TxIN3

TxIN4

TxIN6

TxIN7

TxIN8

TxIN9

TxIN12

TxIN13

TxIN14

TxIN15

TxIN18

TxIN19

TxIN20

TxIN21

TxIN22

TxIN26

TxIN27

TxIN5

TxIN10

TxIN11

TxIN16

TxIN17

TxIN23

TxIN24

TxIN25

INTERFACE

CONNECTOR

TA OUT0+

TA OUT0-

TA OUT1+

TA OUT1-

TA OUT2+

TA OUT2-

TA OUT3+

TA OUT3-

OUT+

TxCLK

OUT-

Rx 0+

Rx 0-

Rx 1+

Rx 1-

Rx 2+

Rx 2-

Rx 3+

Rx 3-

RxCLK

IN+

RxCLK

IN-

RECEIVER

THC63LVDF84A

Rx OUT0

27

Rx OUT1

29

Rx OUT2

30

Rx OUT3

32

Rx OUT4

33

Rx OUT6

35

Rx OUT7

37

Rx OUT8

38

Rx OUT9

39

Rx OUT12

43

Rx OUT13

45

Rx OUT14

46

Rx OUT15

47

Rx OUT18

51

Rx OUT19

53

Rx OUT20

54

Rx OUT21

55

Rx OUT22

1

Rx OUT26

6

Rx OUT27

7

Rx OUT5

34

Rx OUT10

41

Rx OUT11

42

Rx OUT16

49

Rx OUT17

50

Rx OUT23

2

Rx OUT24

3

Rx OUT25

5

26 RxCLK

OUT

TFT CONTROL INPUT

LVDS _SEL=HLVDS _SEL =

L or OPEN

R0

R1

R2

R3

R4

R5

G0

G1

G2

G3

G4

G5

B0

B1

B2

B3

B4

B5

DE

R6

R7

G6

G7

B6

B7

NC

DCLK

R2

R3

R4

R5

R6

R7

G2

G3

G4

G5

G6

G7

B2

B3

B4

B5

B6

B7

DE

R0

R1

G0

G1

B0

B1

NC

20

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

R0~R7: Pixel R Data (7; MSB, 0; LSB)

G0~G7: Pixel G Data (7; MSB, 0; LSB)

B0~B7: Pixel B Data (7; MSB, 0; LSB)

DE : Data enable signal

DCLK : Data clock signal

Notes: (1) RSVD (reserved) pins on the transmitter shall be “H” or “L”.

5.6 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the

color. The higher the binary input, the brighter the color. The table below provides the assignment of the

color versus data input.

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black Red

Green Basic Colors

Gray Scale Of Red

Gray Scale Of Green

Gray Scale Of Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue

Cyan

Magenta

Yellow

White

Red (0) / Dark

Red (1)

Red (2)

:

: Red (253) Red (254) Red (255) Green (0) / Dark Green (1) Green (2)

:

: Green (253) Green (254) Green (255) Blue (0) / Dark Blue (1) Blue (2)

:

: Blue (253) Blue (254) Blue (255)

0

1

0

1

0

:

1

0

:

0

:

0

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Data Signal

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

21

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

Frequency 1/Tc 60 74 80 MHZ -

LVDS Receiver Clock

LVDS Receiver Data

Vertical Active Display Term

Horizontal Active Display Term

Note (1) (ODSEL) = (H). Please refer to 5.1 for detail information.

Input cycle to cycle jitter Setup Time Tlvsu 600 - - ps Hold Time Tlvhd 600 - - ps

Frame Rate

Total Tv 1115 1125 1135 Th Tv=Tvd+Tvb Display Tvd 1080 1080 1080 Th Blank Tvb 35 45 55 Th Total Th 1050 1100 1150 Tc Th=Thd+Thb Display Thd 960 960 960 Tc Blank Thb 90 140 190 Tc -

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Trcl - - 200 ps -

Fr5 47 50 53 Hz (1)

6 57 60 63 Hz (2)

Fr

(2) (ODSEL) = (L). Please refer to 5.1 for detail information.

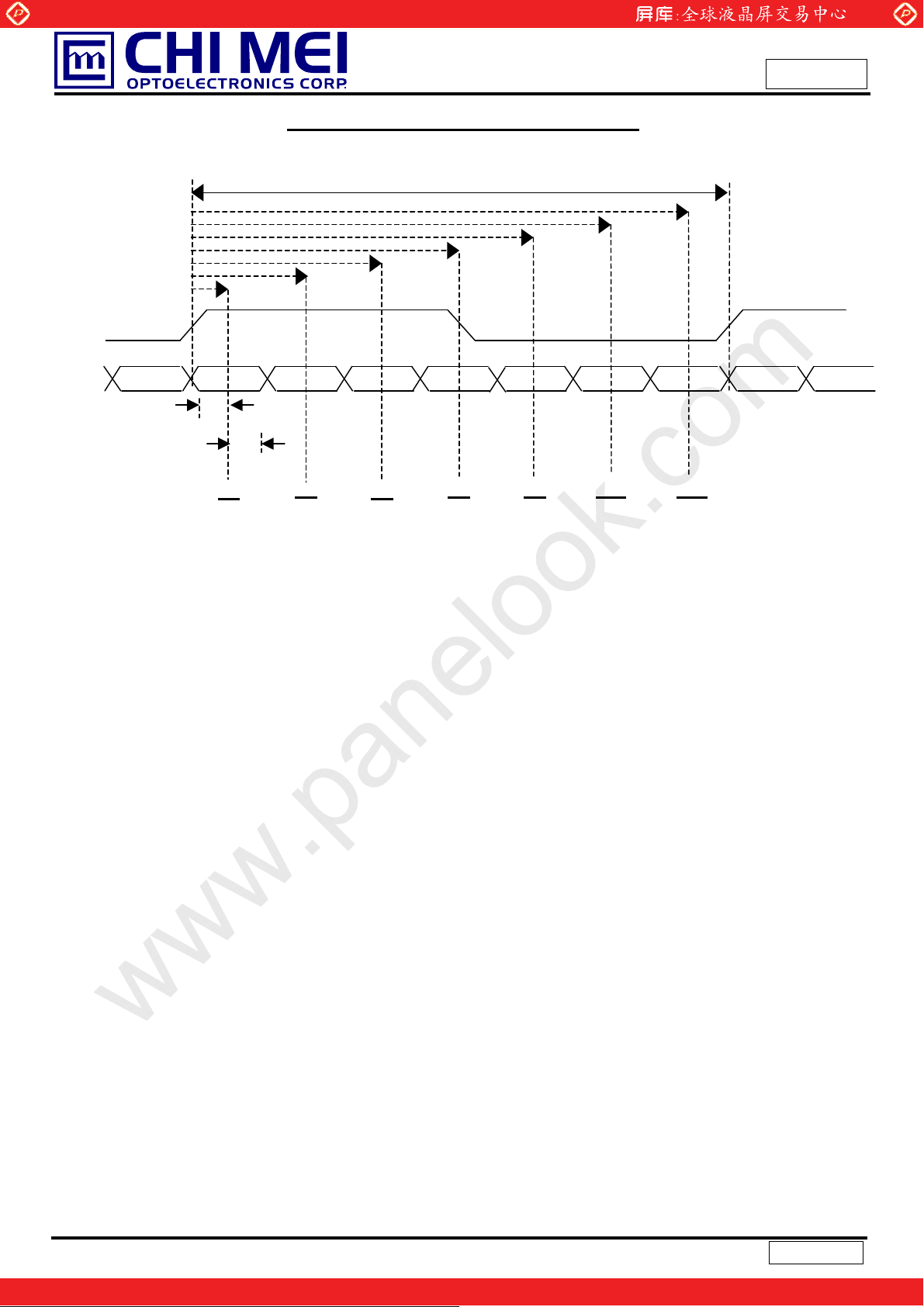

INPUT SIGNAL TIMING DIAGRAM

Tv

Tvd

DE

Th

DCLK

Tc

Thb

DE

Tvb

Thd

DATA

Valid display data ( 960 clocks)

22

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

RXCLK+/-

RXn+/-

Tlvsu

Tlvhd

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

LVDS INPUT INTERFACE TIMING DIAGRAM

Tc

1T‘ 14

3T‘ 14

5T‘ 14

7T‘ 14

9T‘ 14

11T‘

14

13T‘

14

23

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Љ

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should follow the

diagram below.

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Power Supply

V

0.5ЉT1Љ10ms

0

500ms

CC

0V

2

50ms

T

3

50ms

T

4

T

Signals

0V

Backlight (Recommended)

500ms

100msЉT6

T

5

0.9 VCC

0.1V

CC

Power On

CC

0.9 V

cc

0.1V

T

3T1

T

2

T4

VALI D

Power Off

50%

T

5

50%

T

6

Power ON/OFF Sequence

Note.

(1) The supply voltage of the external system for the module input should follow the definition of Vcc.

(2) Apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal

screen.

(3) In case of VCC is in off level, please keep the level of input signals on the low or high impedance.

(4) T4 should be measured after the module has been fully discharged between power off and on period.

(5) Interface signal shall not be kept at high impedance when the power is on.

24

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 12V V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Lamp Current I Oscillating Frequency (Inverter) F Vertical Frame Rate Fr 60 Hz

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown in 7.2. The following items should be

measured under the test conditions described in 7.1 and stable environment shown in Note (6).

www.panelook.com

L

W

25

50

5.5 50

r2

r10

r0.5

r3

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

o

C

%RH

mA

KHz

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

Response Time

Dynamic

Gray to

Center Luminance of White L

White Variation

Cross Talk CT 4 % Note (5)

Red

Green

Color

Chromaticity

Blue

White

Color Gamut C.G

Viewing

Horizontal

Angle

Vertical

CR 1200 1500

CR

gray

C

GW

Rx 0.658 -

T

=0q, TY =0q

x

Viewing Angle at normal Direction

Ry Gx Gy

Bx

By Wx Wy

6000

6.5 12 ms Note (3)

400 500 cd/m2 Note (4)

1.3 - Note (7)

0.328

Typ.

-0.03

0.186

0.676

0.152

Typ.

+0.03

0.064

0.280

0.285

90 92 % NTSC

T

+

x

T

-

x

T

+

Y

T

-

Y

CR

t20

80 88 80 88 80 88 80 88

- Note (2)

-

Note (6)

-

Deg. Note (1)

25

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

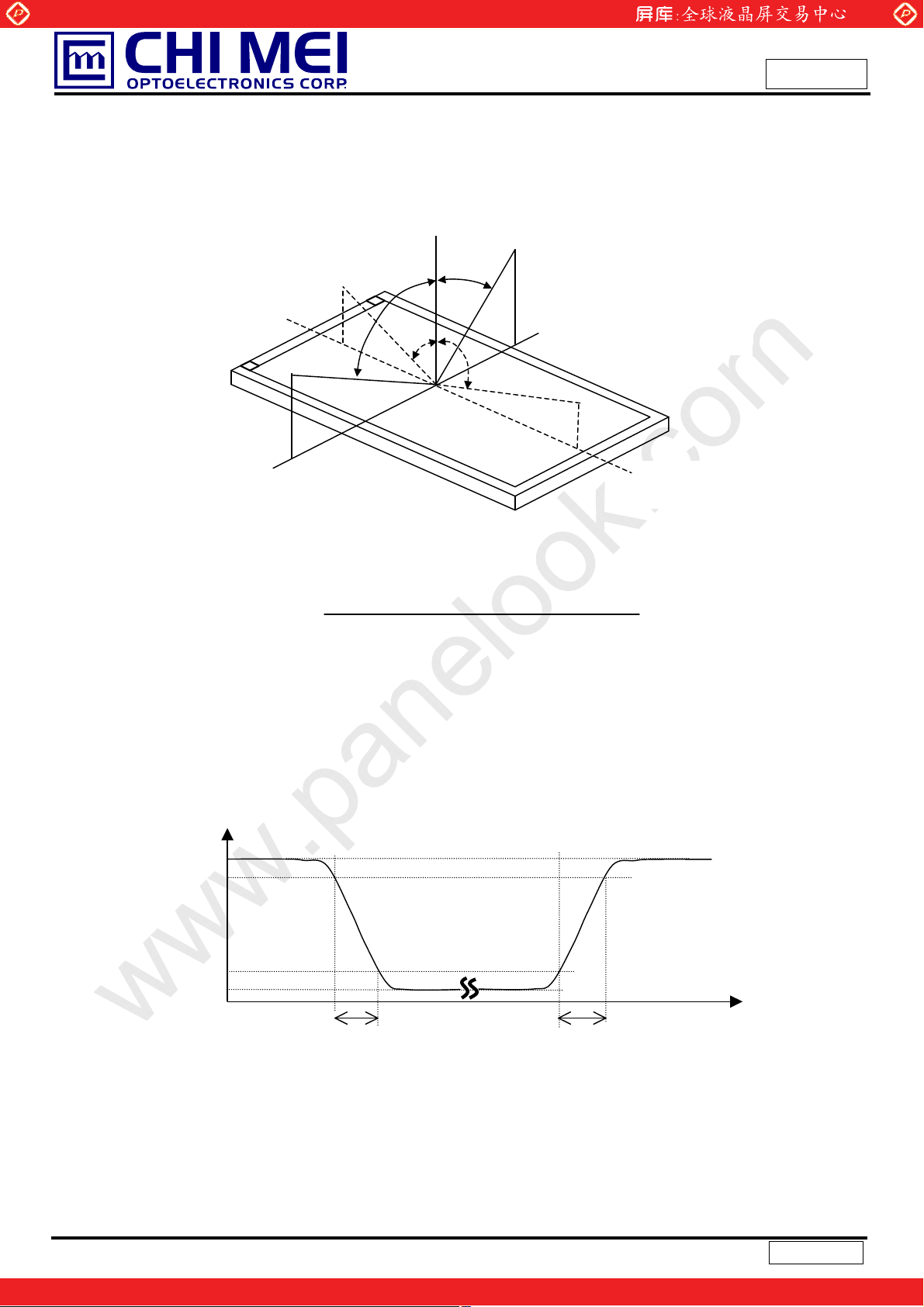

Note (1) Definition of Viewing Angle (Tx, Ty):

Viewing angles are measured by Eldim EZ-Contrast 160R

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Normal

Tx = Ty = 0º

Ty- Ty

TX- = 90º

6 o’clock

Ty- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Surface Luminance with all white pixels

Contrast Ratio (CR) =

Surface Luminance with all black pixels

CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in Note

(7).

The measured value will be “Dynamic CR” only when the function of dynamic contrast ratio is

Tx

Tx

y+

12 o’clock direction

Ty+ = 90º

x+

TX+ = 90º

enabled.

Note (3) Definition of Gray-to-Gray Switching Time:

100%

90%

Optical

Response

10%

0%

Gray to gray Switching time

The driving signal means the signal of gray level 0, 63, 127, 191, and 255.

Gray to gray average time means the average switching time of gray level 0, 63,127,191,255 to each other.

Time

26

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

Note (4) Definition of Luminance of White (LC):

Measure the luminance of gray level 255 at center point.

L

= L (5), where L (x) is corresponding to the luminance of the point X at the figure in Note (7).

C

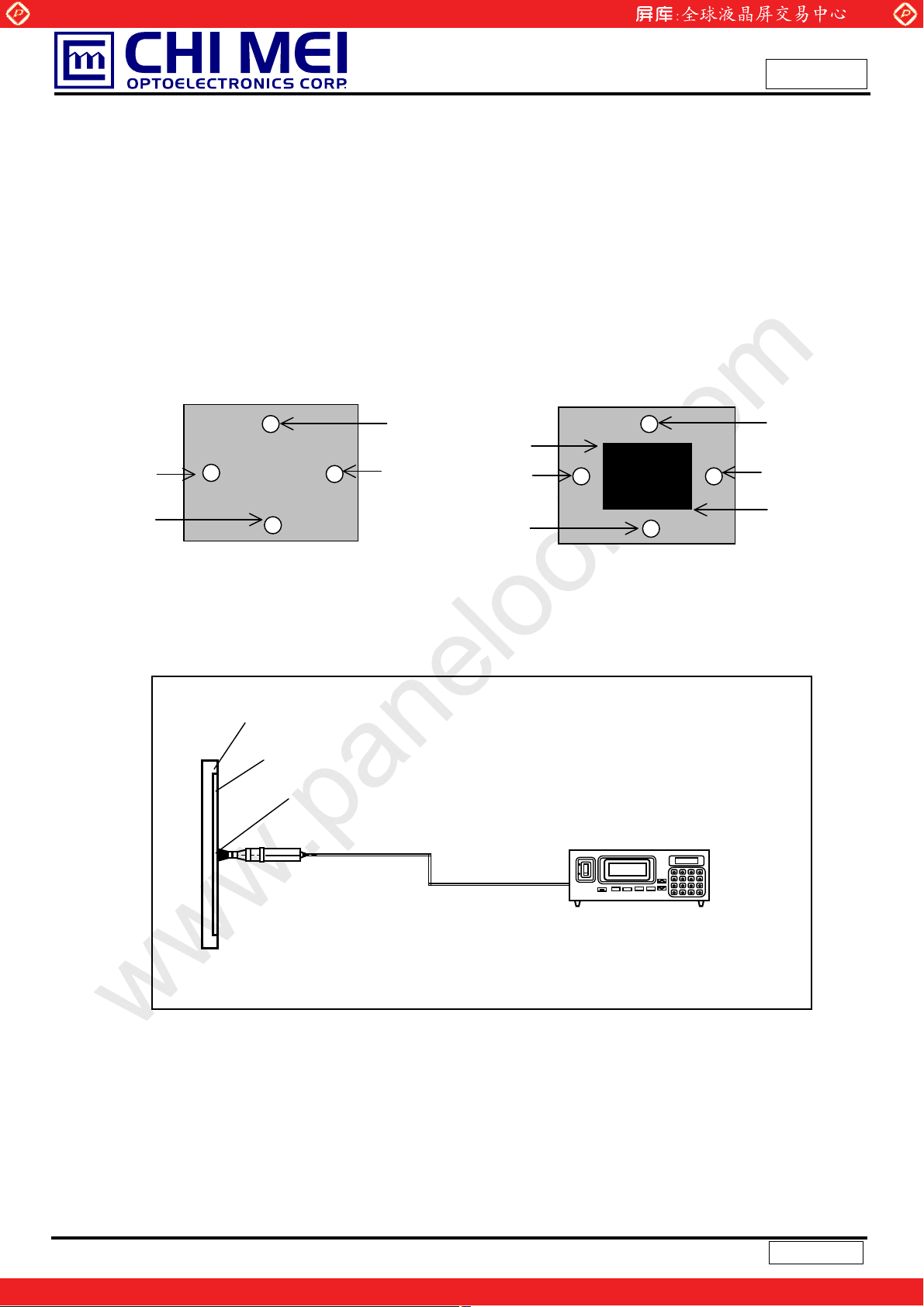

Note (5) Definition of Cross Talk (CT):

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

CT = | Y

– YA | / Y

B

Where:

= Luminance of measured location without gray level 0 pattern (cd/m2)

Y

A

= Luminance of measured location with gray level 0 pattern (cd/m2)

Y

B

ctive Area

Gray 128

Y

(D/8,W/2)

A, L

Y

(D/2,7W/8)

A, D

(0, 0)

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting backlight for 1 hour in a windless room.

u 100 (%)

A

Y

A, U

Y

A, R

(D, W)

(D/2,W/8)

(7D/8,W/2)

(D/4,W/4)

Y

(D/8,W/2)

B, L

Y

(D/2,7W/8)

B, D

(0, 0)

ctive Area

Gray 0

Gray 128

Y

B, U

Y

B, R

(3D/4,3W/4)

(D, W)

(D/2,W/8)

(7D/8,W/2)

LCD Module

LCD Panel

Center of the Screen

Display Color Analyzer

(Minolta CA210)

Light Shield Room

(Ambient Luminance < 2 lux)

27

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

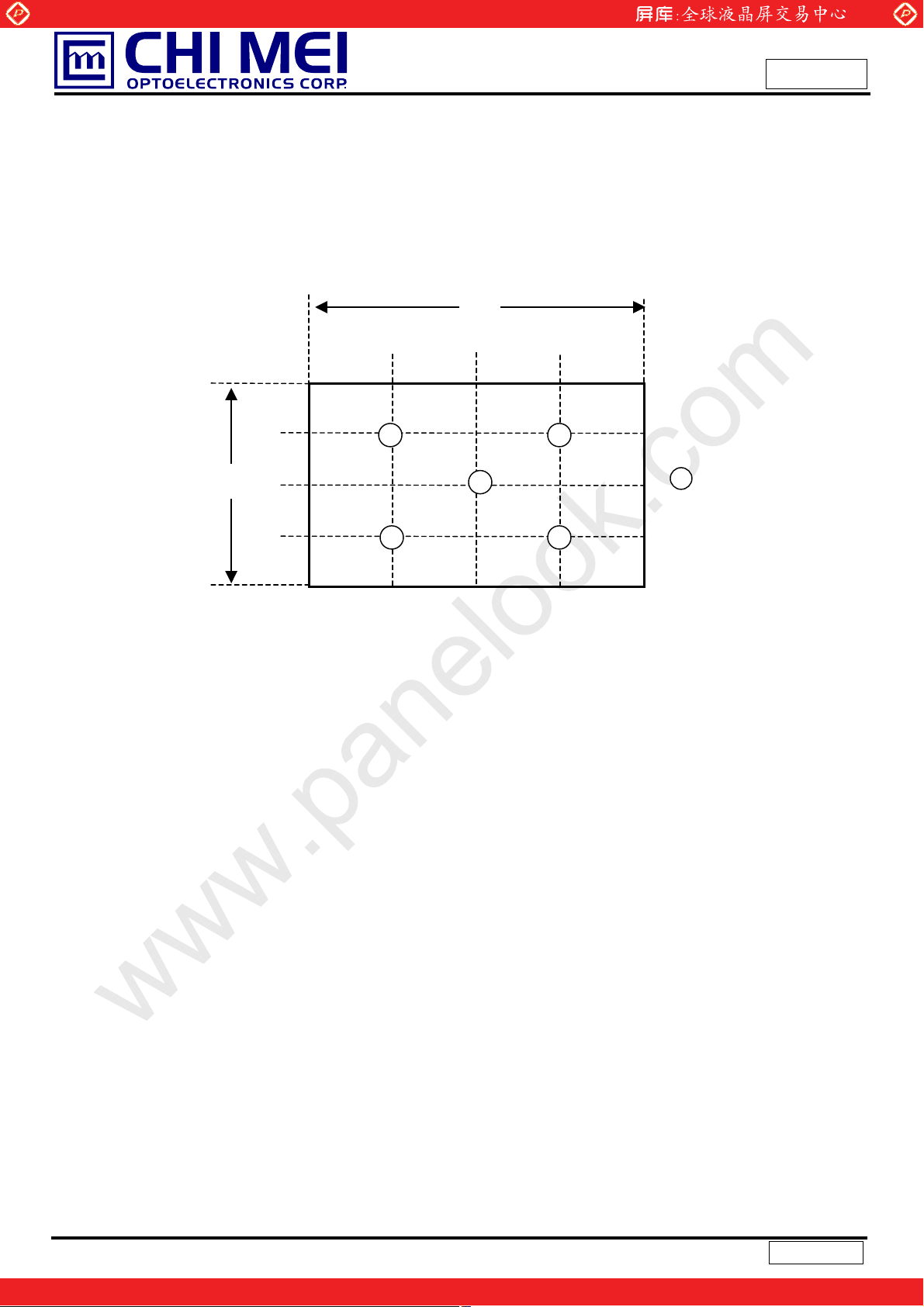

Note (7) Definition of White Variation (GW):

Measure the luminance of gray level 255 at 5 points

GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Horizontal Line

D

D/4 D/2 3D/4

W/4

W/2

W

Vertical Line

3W/4

12

X

5

34

Active Area

: Test Point

X=1 to 5

28

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) It is recommended to assemble or to install a module into the user’s system in clean working areas. The

dust and oil may cause electrical short or worsen the polarizer.

(3) Do not apply pressure or impulse to the module to prevent the damage of LCD panel and Backlight.

(4) Always follow the correct power-on sequence when the LCD module is turned on. This can prevent the

damage and latch-up of the CMOS LSI chips.

(5) Do not plug in or pull out the I/F connector while the module is in operation.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) Moisture can easily penetrate into LCD module and may cause the damage during operation.

(9) High temperature or humidity may deteriorate the performance of LCD module. Please store LCD

modules in the specified storage conditions.

(10) When ambient temperature is lower than 10ºC, the display quality might be reduced. For example, the

response time will become slow, and the starting voltage of CCFL will be higher than that of room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of a Backlight is approximately 1000 Volts. It may cause an electrical shock while

assembling with the inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

9. REGULATORY STANDARDS

9.1 SAFETY

Regulatory Item Standard

UL UL 60950-1: 2003

Information Technology equipment

Audio/Video Apparatus

cUL CAN/CSA C22.2 No.60950-1-03

CB IEC 60950-1:2001 UL UL 60065: 2003

cUL CAN/CSA C22.2 No.60065-03

CB

IEC 60065:2001

29

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10. PACKAGING

10.1 PACKING SPECIFICATIONS

(1) 2 LCD TV modules / 1 Box

(2) Box dimensions : 1334(L) X 284 (W) X 856 (H)

(3) Weight : approximately 47.5Kg (2 modules per box)

10.2 PACKING METHOD

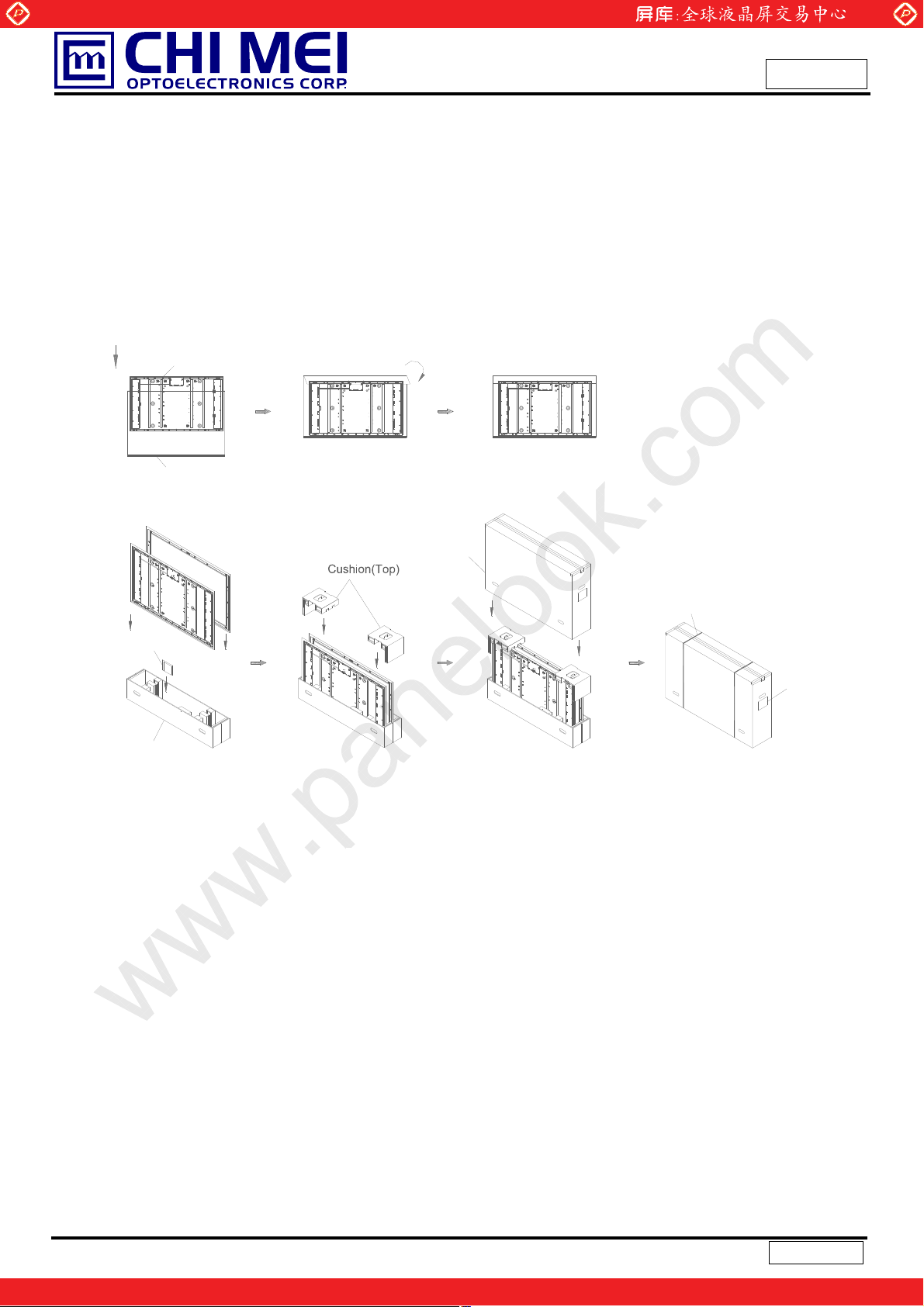

Figures 10-1 and 10-2 are the packing method

LCD TV Module

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Anti-static Bag

4pcs Drier

Cushion(Bottom)

Carton

PP Belt

Carton Label

Figure.10-1 packing method

30

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

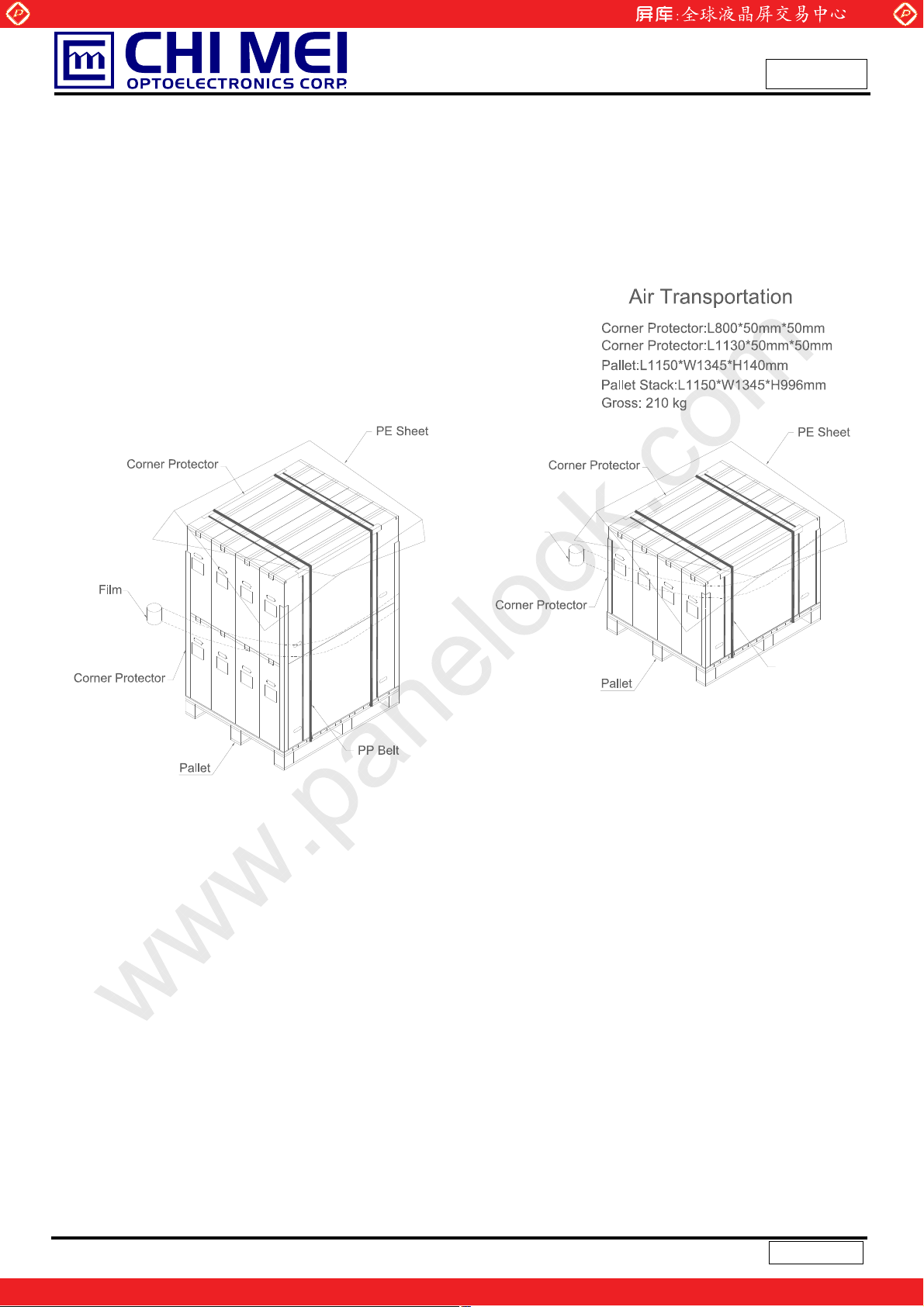

Sea Transportation

Corner Protector:L1780*50mm*50mm Corner Protector:L1130*50mm*50mm

Pallet:L1150*W1345*H140mm Pallet Stack:L1150*W1345*H1852mm

Gross: 400 kg

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

Film

Figure. 10-2 Packing method

PP Belt

31

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

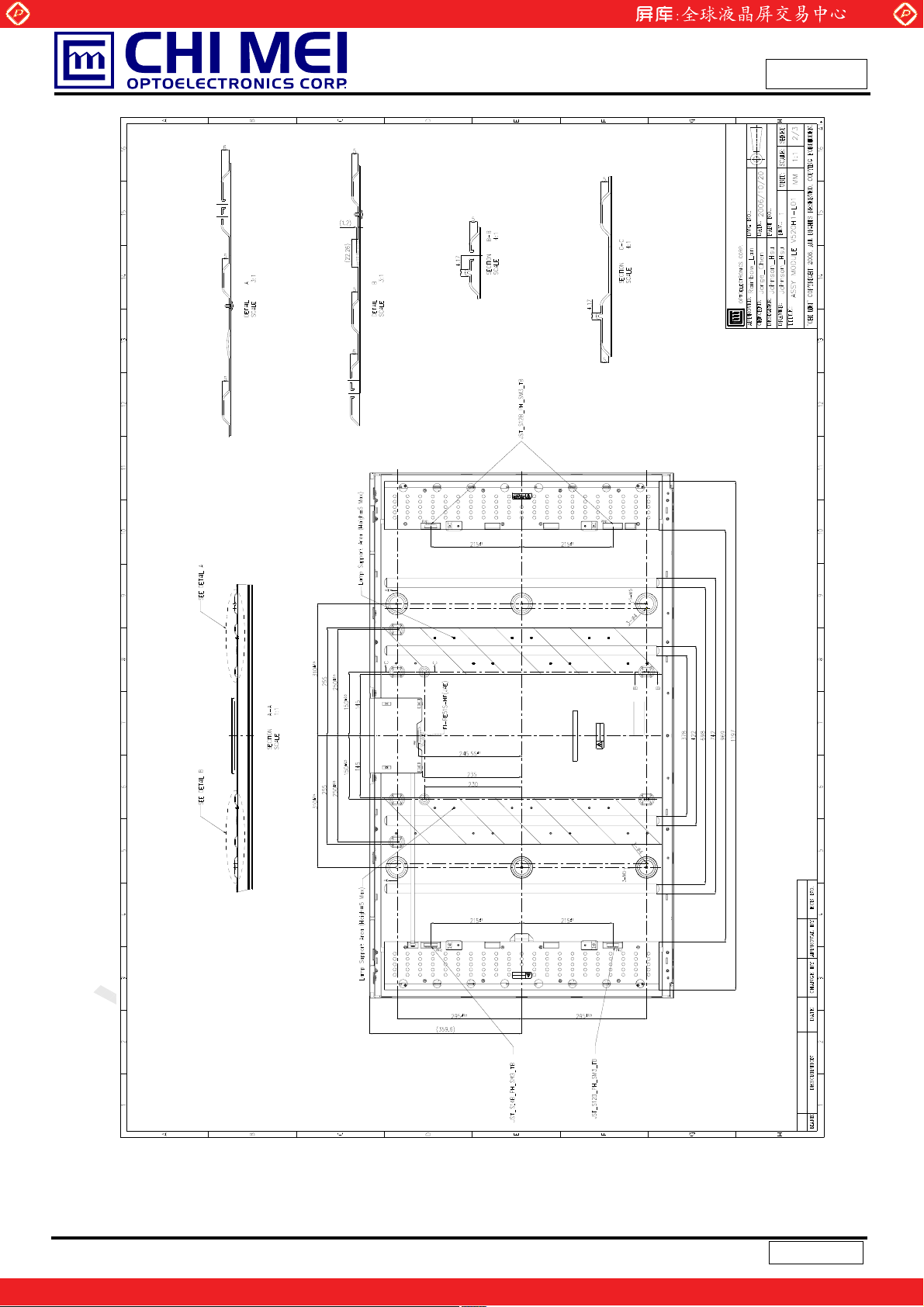

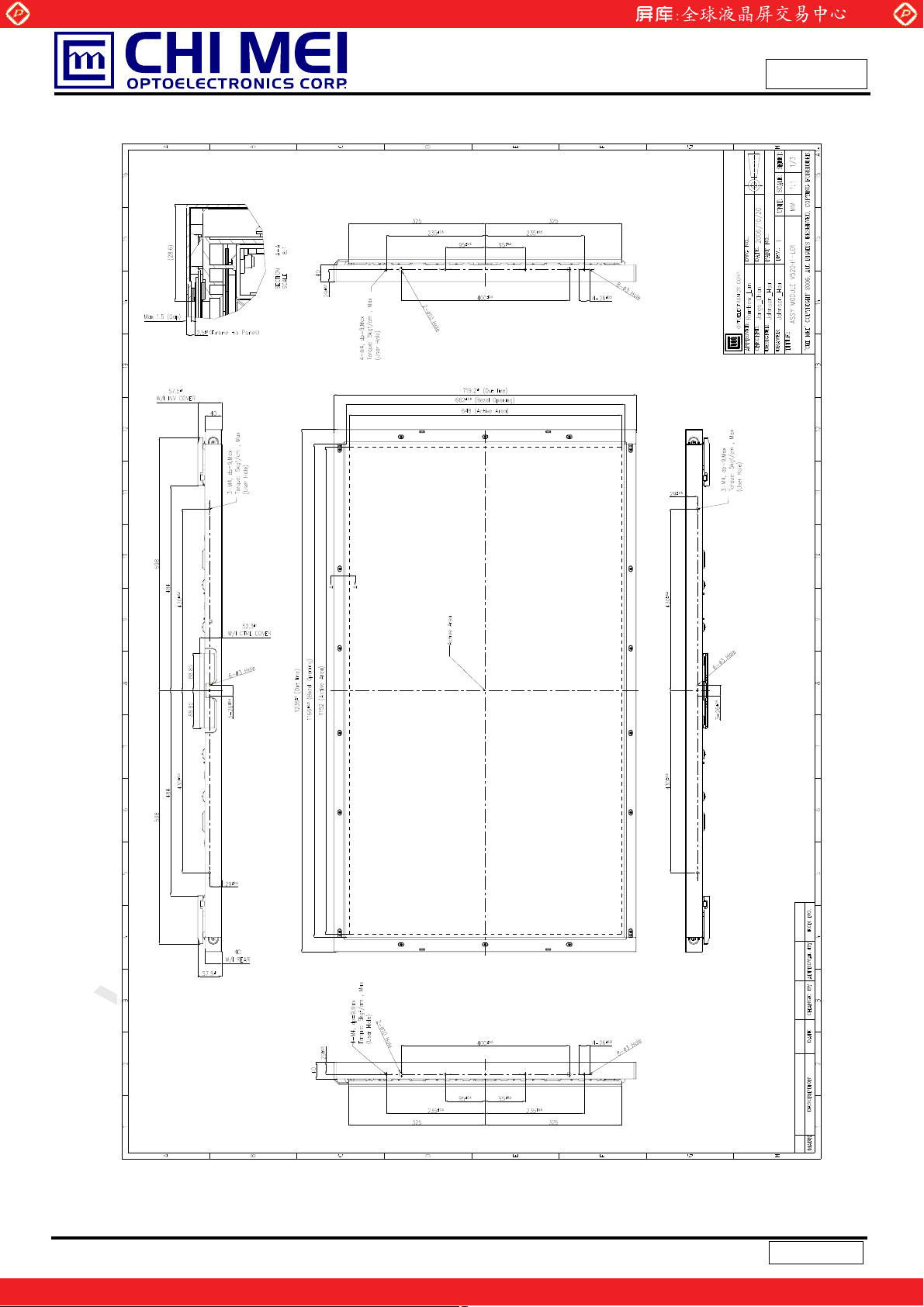

11. MECHANICAL CHARACTERISTIC

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

࡛ભሽ՗ٝڶૻֆ׹

%*+/'+

32

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

࡛ભሽ՗ٝڶૻֆ׹

%*+/'+

%#76+10

*+)*81.6#)'

219'4$'(14'5'48+%+0)

&+5%100'%66*''.'%64+%

4+5-1('.'%64+%5*1%-

/'4%74;2.'#5'(1..19.1%#.14&+0#0%'5144')7.#6+105(14&+5215#.

%1.&%#6*1&'(.714'5%'06.#/2+0.%&2#0'.%106#+05#5/#..#/17061(

219'4$'(14'5'48+%+0) &+5%100'%66* ''.'%64+% 4+5-1('.'%64+%5*1%-

%#76+10

*+)*81.6#)'

33

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

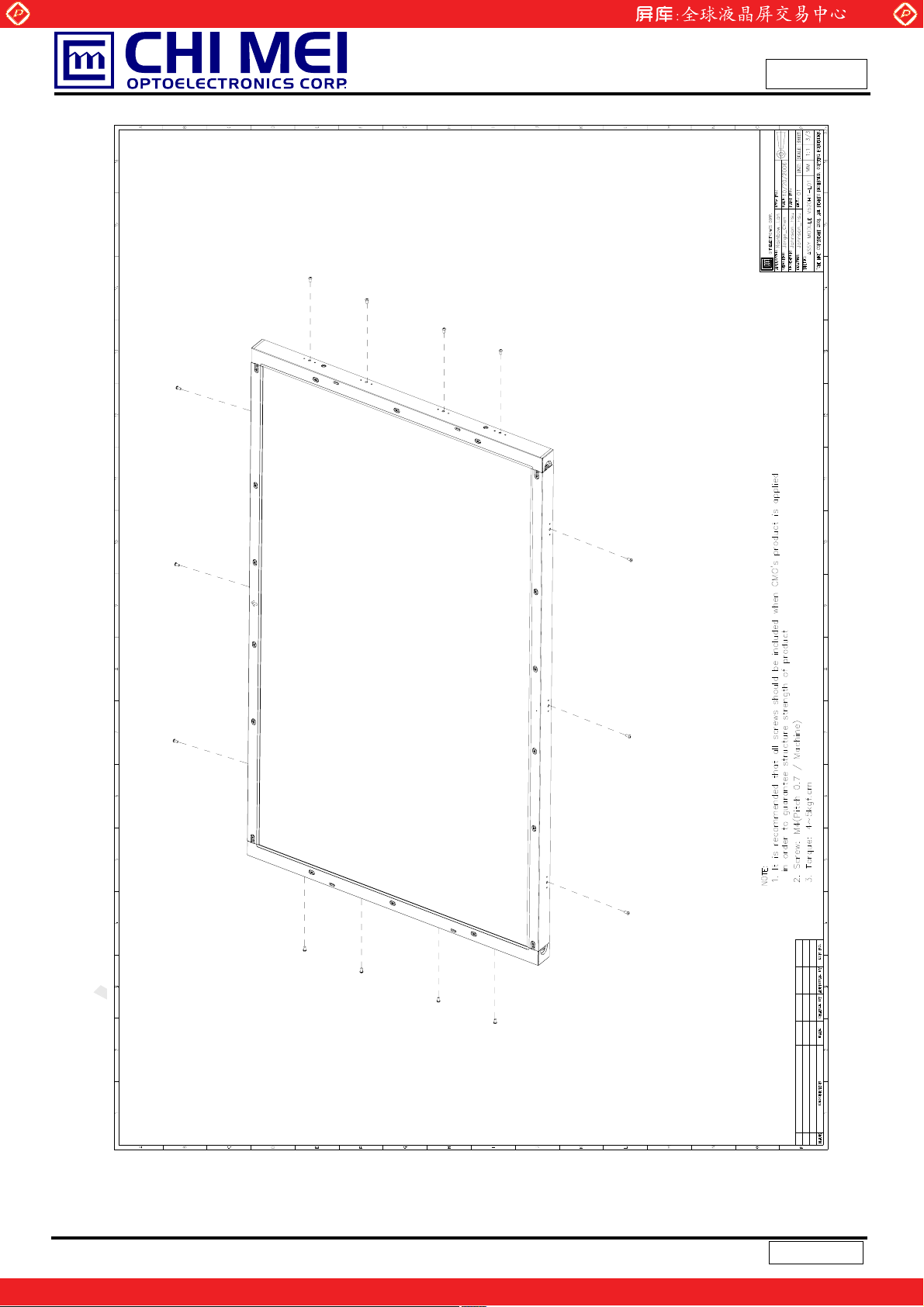

www.panelook.com

Issued Date: Sep.10.2007

Model No.: V520H1-L04

Approval

࡛ભሽ՗ٝڶૻֆ׹

%*+/'+

34

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
