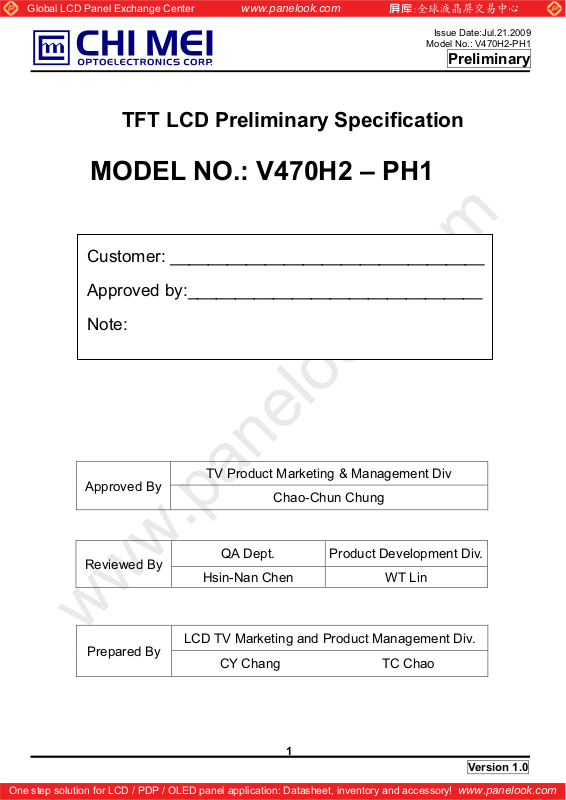

Page 1
Global LCD Panel Exchange Center
TFT LCD Preliminary Specification
MODEL NO.: V470H2 – PH1
Customer: _________________________________
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Approved by:_______________________________
Note:
TV Product Marketing & Management Div
Approved By
Chao-Chun Chung
QA Dept. Product Development Div.
Reviewed By
Hsin-Nan Chen WT Lin
LCD TV Marketing and Product Management Div.
Prepared By
CY Chang TC Chao
1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
CONTENTS
REVISION HISTORY ......................................................................................................................................................... 4
1. GENERAL DESCRIPTION ............................................................................................................................................ 5
1.1 OVERVIEW .......................................................................................................................................................... 5
1.2 FEATURES........................................................................................................................................................... 5
1.3 MECHANICAL SPECIFICATIONS ....................................................................................................................... 5
2. ABSOLUTE MAXIMUM RATINGS ................................................................................................................................ 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASE ON CMO MODULE V470H2-PH1) .................................... 6
2.2 PACKAGE STORAGE .......................................................................................................................................... 7
2.3 ELECTRICAL ABSOLUTE RATINGS .................................................................................................................. 7
2.3.1 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL) ................................................................................ 7
3. ELECTRICAL CHARACTERISTICS ............................................................................................................................. 8
3.1 TFT LCD MODULE .............................................................................................................................................. 8
3.2 RSDS CHARACTERISTICS ................................................................................................................................ 8
Note (3) V
4. BLOCK DIAGRAM OF INTERFACE ............................................................................................................................. 9
4.1 TFT LCD MODULE .............................................................................................................................................. 9
5. INPUT TERMINAL PIN ASSIGNMENT ....................................................................................................................... 10
5.1 TFT LCD Module Input ....................................................................................................................................... 10
6. OPTICAL CHARACTERISTICS .................................................................................................................................. 12
6.1 TEST CONDITIONS ........................................................................................................................................... 12
= 1.2V(VDDD = 3.3V) .......................................................................................................................... 8
CMRSDS
6.2 OPTICAL SPECIFICATIONS ............................................................................................................................. 12
7. PRECAUTIONS ........................................................................................................................................................... 15
7.1 ASSEMBLY AND HANDLING PRECAUTIONS ................................................................................................. 15
7.2 SAFETY PRECAUTIONS .................................................................................................................................. 15

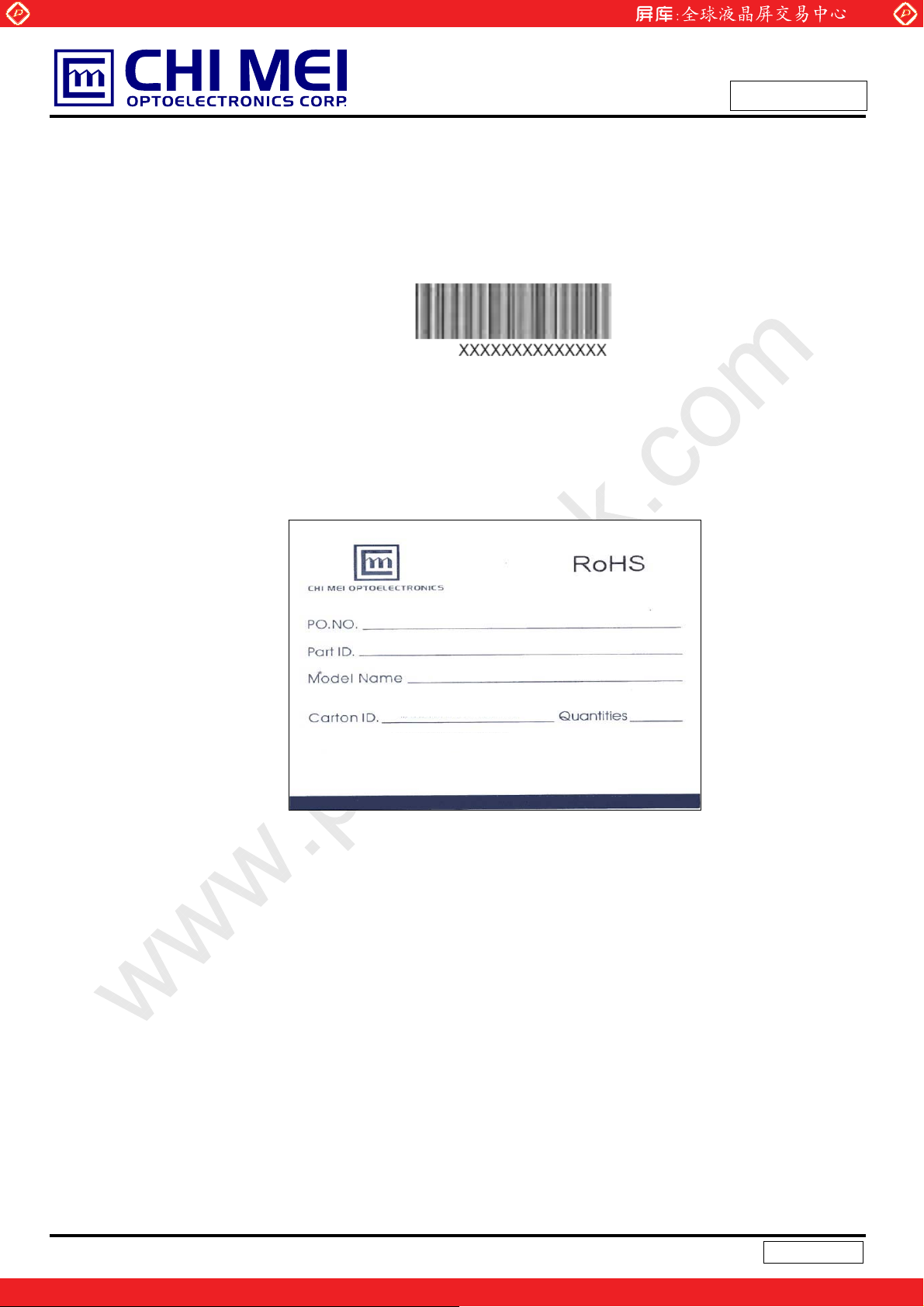

8. DEFINITION OF LABELS ............................................................................................................................................ 16
8.1 OPEN CELL LABEL ........................................................................................................................................... 16
8.2 CARTON LABEL ................................................................................................................................................ 16
2
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary

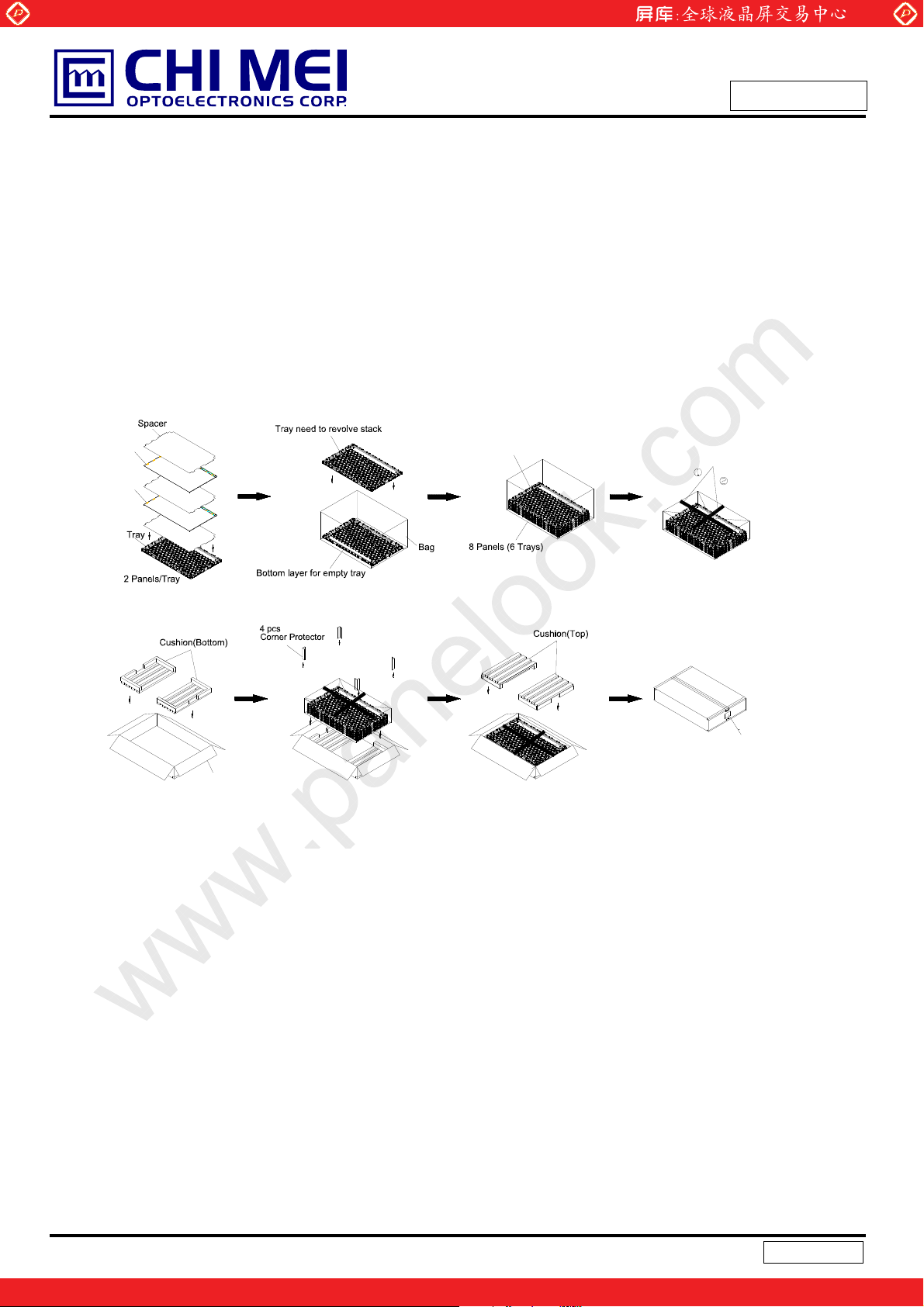

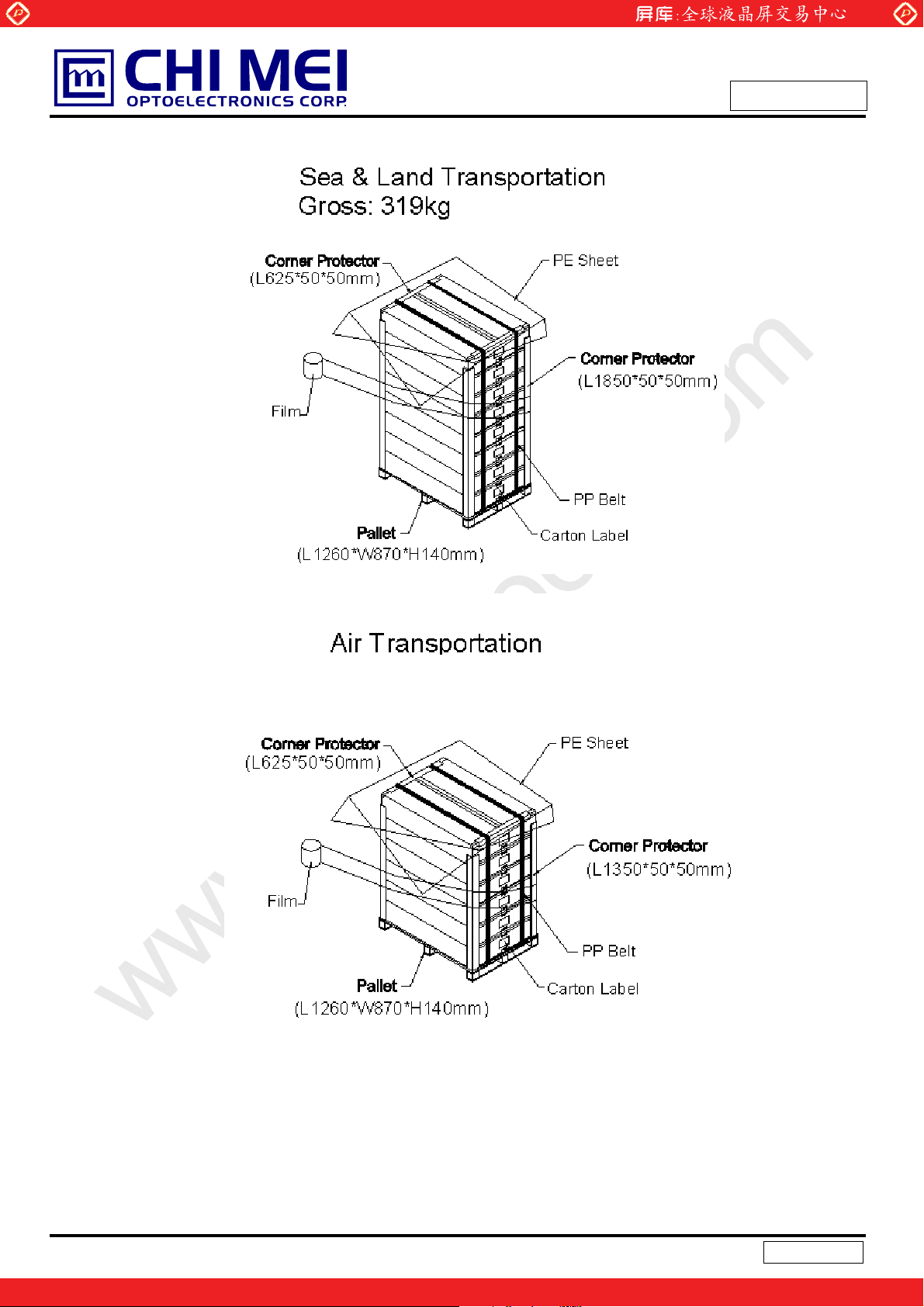

9. Packaging .................................................................................................................................................................... 17

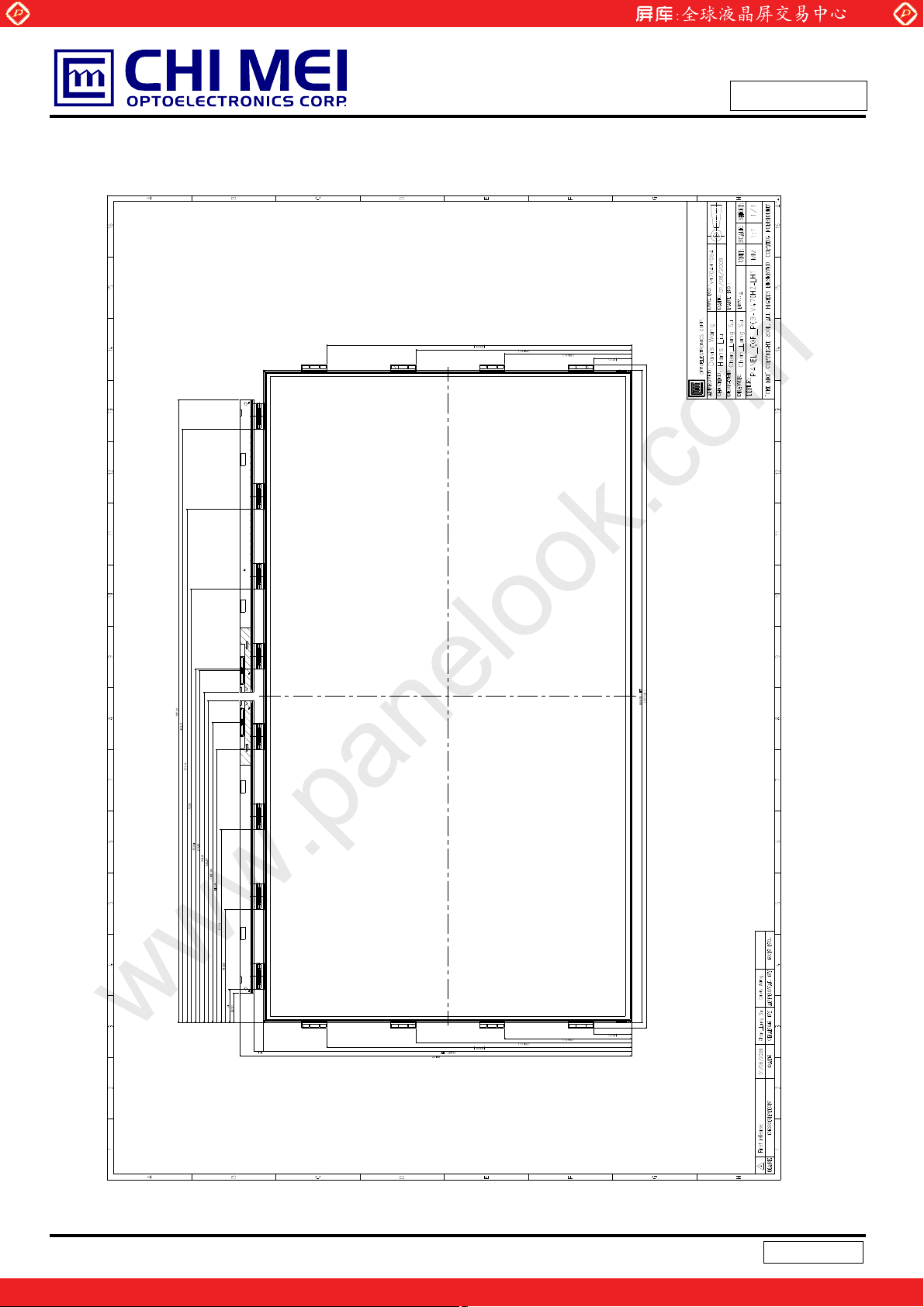

10. MECHANICAL CHARACTERISTICS ........................................................................................................................ 19
3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
REVISION HISTORY
Version Date Page(New) Section Description
Ver. 1.0 Jul.21.2009 All All The preliminary specification was first issued.
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center

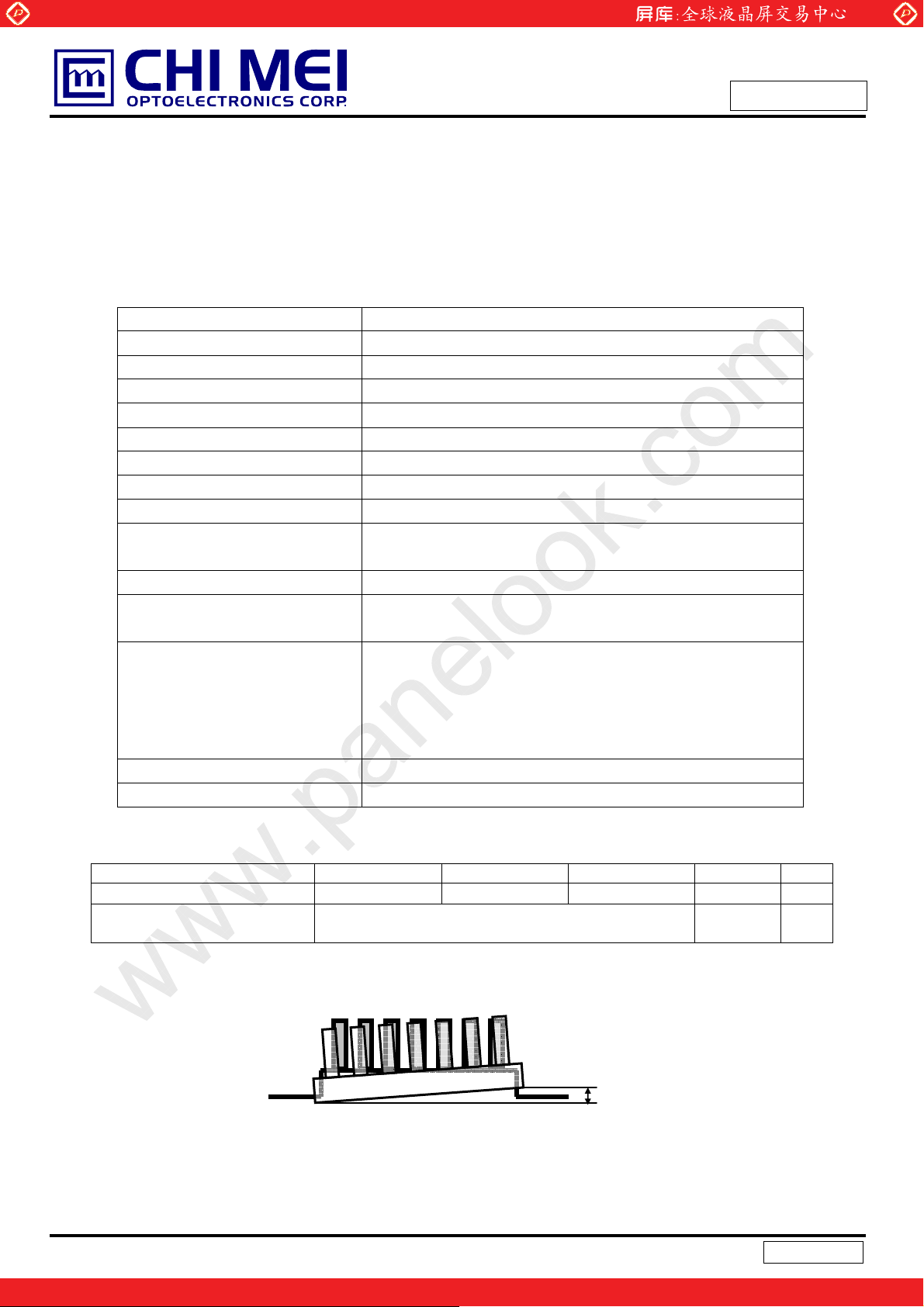

1. GENERAL DESCRIPTION
1.1 OVERVIEW
V470H2-PH1 is a 47” TFT Liquid Crystal Display module with driver ICs and 2ch-LVDS interface. This product
supports 1920 x 1080 Full HDTV format and can display true 1.07G colors (10-bit/color). The backlight unit is not
built-in.
1.2 FEATURES
CHARACTERISTICS ITEMS SPECIFICATIONS
Screen Diagonal [in] 47”
Pixels [lines] 1920 1080
Active Area [mm] 1039.68 (H) x584.82 (V) (47” diagonal)
Sub-Pixel Pitch [mm] ˃ˁˈˇ˃ˈ(V) ˃ˁ˄ˋ˃ˈ(H)
Pixel Arrangement RGB vertical stripe
Weight [g] 2560
Physical Size [mm] ˄˃ˈˌˁˊˋ(W) ˉ˃ˈˁˋˊ(H) ˄ˁˋ˃(D) Typ.
Display Mode Transmissive mode / Normallly black
Contrast Ratio 4000:1 Typ.
Glass thickness (Array / CF) [mm] 0.7 / 0.7
Viewing Angle (CR>20) +88/-88(H), +88/-88(V) Typ. (CRЊ20)
Color Chromaticity R = (0.652, 0.327)
Cell Transparency [%] 4.5%
Polarizer Surface Treatment Anti-Glare coating (Haze 11%), Hard coating (3H)
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
(Typical value measure at CMO’s module)
(Typical value measure at CMO’s module)
G = (0.274, 0.588)
B = (0.150, 0.086)
W= (0.307, 0.318)
* Please refer to “color chromaticity” on p.14
1.3 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Weight
I/F connector mounting position
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Connector mounting position
The mounting inclination of the connector makes the
screen center within 0.5mm as the horizontal.
˅ˈ˄˃
2560
˅ˉ˄˃
+/- 0.5mm
5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
g -
(2)
Version 1.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASE ON CMO MODULE V470H2-PH1)
Value
Item Symbol
Min. Max.
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 50 ºC (1), (2)
Shock (Non-Operating) SNOP - 50 G (3), (5)
Vibration (Non-Operating) VNOP - 1.0 G (4), (5)

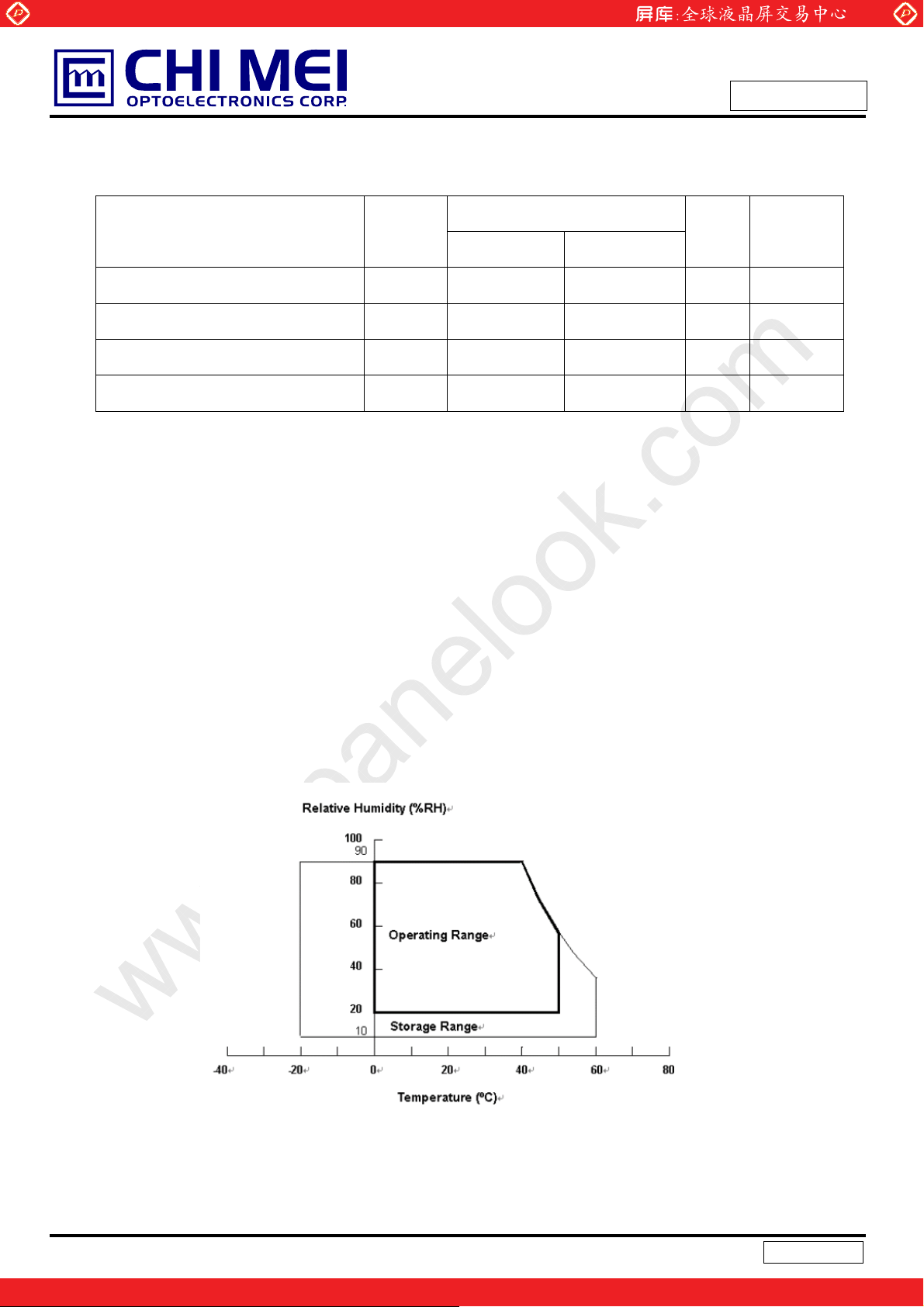

Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Unit Note
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The maximum operating temperature is based on the test condition that the surface temperature of
display area is less than or equal to 65 ºC with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 65 ºC. The range of operating temperature may degrade in case of
improper thermal management in final product design.
Note (3) 11 ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 200 Hz, 10 min, 1 time each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that
the module would not be twisted or bent by the fixture.
6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
2.2 PACKAGE STORAGE
Storage condition: With shipping package.
Storage temperature rang: 255к
Storage humidity range: 5010%RH
Shelf life: a month
2.3 ELECTRICAL ABSOLUTE RATINGS
2.3.1 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
Item Symbol
Power Supply Voltage VAA -0.5 +18 V
Power Supply Voltage VGH -0.3 +32.3 V
Power Supply Voltage VGL -5.7 -0.3 V
www.panelook.com
Min. Min.
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Value
Value Note
(1)
Logic Input Voltage VDD -0.3 +3.4 V
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
(Ta = 25 ± 2 ºC)
Parameter Symbol
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Value
Unit Note
Min. Typ. Max.
31 32 33 V
V
GH
VGL -5.8 -5.5 -5.2 V
Power Supply Voltage
VAA 17.4 17.7 18 V
VDD 3.2 3.3 3.4 V
V
16.85 17.00 17.15 V
REF
I
- 27.5 50 mA
GH
IGL - 7. 50 mA
Power Supply Current
IAA - 1.26 - A
IDD 270 A
CMOS
interface
Input High Threshold Voltage V
Input Low Threshold Voltage VIL 0 - 0.7 V
2.7 - 3.3 V
IH
Note (1) The module should be always operated within the above ranges.
3.2 RSDS CHARACTERISTICS
VDDD=3.0 to 3.6V, VDDA=13.5 to 18.0V, VSSD=VSSA=0V, Ta = -20~+85 ºC
Item Symbol Condition
RSDS high input Voltage V
RSDS low input Voltage V
RSDS common mode
input voltage range
RSDS Input leakage
current
DIFFRSDS VCMRSDS
DIFFRSDS VCMRSDS
V
V
CMRSDS
I
DL
DIFFRSDS
A/BDxxP, A/BDxxN,
A/BCLKP, A/BCLKN
Min Typ Max
= +1.2 V (1) 100 200 600
= +1.2 V (1) -600 -200 -100
= 200 mV
(2)
VSSD+0.5 Note(3) VDDD-1.2 V
-10 - 10
Value
Unit
mV
ӴA
Note (1) V
Note (2) V
Note (3) V
= (VCLKP + VCLKN)/2 or V
CMRSDS
DIFFRSDS
= VCLKP - VCLKN or V
= 1.2V(VDDD = 3.3V)
CMRSDS
CMRSDS
DIFFRSDS
= (VDXXP + VDXXN)/2
= VDXXP - VDXXN
8
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
4. BLOCK DIAGRAM OF INTERFACE
4.1 TFT LCD MODULE
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
TFT LCD PANEL
(1920x3x1080)
X(R) Board X(L) Board
Mini-LVDS Signal Input
9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD Module Input
CN1(XL) Connector Pin Assignment
Pin No. Symbol Description Pin No. Symbol Description
1 GND Ground 41 AD0M_1
2 BD1P_4
3 BD1M_4
4 GND Ground 44 N.C. No connection
5 B_CLKP
6 B_CLKM
7 GND Ground 47 GM16
8 BD0P_4
9 BD0M_4
10 AD1P_4
11 AD1M_4
12 AD0P_4
13 AD0M_4
14 BD1P_3
15 BD1M_3
16 BD0P_3
17 BD0M_3
18 AD1P_3
19 AD1M_3
20 AD0P_3
21 AD0M_3
22 BD1P_2
23 BD1M_2
24 BD0P_2
25 BD0M_2
26 AD1P_2
27 AD1M_2
28 GND Ground 68 STV
29 A_CLKP
30 A_CLKM
31 GND Ground 71 VDD
32 AD0P_2
33 AD0M_2
34 BD1P_1
35 BD1M_1
36 BD0P_1
37 BD0M_1
38 AD1P_1
39 AD1M_1
40 AD0P_1
Data driver clock
Data driver clock
Data driver clock
Data driver clock
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path Data driver clock
A-Path Data driver clock
A-Path RSDS data signal
A-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
42 GND Ground
43 GM20
45 GM18
46 GM17
48 GM15
49 GM14
50 GM13
51 GM12
52 GM11
53 GM10
54 GM9
55 GM8
56 GM7
57 GM6
58 GM5
59 GM4
60 GM3
61 N.C. No connection
62 GM1
63 GND Ground
64 TP1
65 CKV
66 OE1
67 OE2
69 GND Ground
70 VDD
72 VDDA
73 VDDA
74 VCM VCM Power supply
75 VCM VCM Power supply
76 VGL
77 VGL
78 VGH
79 VGH
80 GND Ground
A-Path RSDS data signal
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
RSDS data latch
Scan driver clock
Scan driver output enable 1
Scan driver output enable 2
Scan driver start pulse
Logic Power supply
Logic Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Preliminary
10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
CN2(XR) Connector Pin Assignment
Pin No. Symbol Description Pin No. Symbol Description
1 GND Ground 41 BD1M_6
2 VGH
3 VGH
4 VGL
5 VGL
6 VCM VCM Power supply 46 AD0P_6
7 VCM VCM Power supply 47 AD0M_6
8 VDDA
9 VDDA
10 VDD
11 V DD
12 GND Ground 52 GND Ground
13 VSCM VSCM Power supply 53 GM20
14 TP1
15 STV
16 CKV
17 OE2
18 OE1
19 GND Ground 59 GM14
20 BD1P_8
21 BD1M_8
22 BD0P_8
23 BD0M_8
24 AD1P_8
25 AD1M_8
26 AD0P_8
27 AD0M_8
28 GND Ground 68 GM5
29 C_CLKP
30 C_CLKM
31 GND Ground 71 N.C. No connection
32 BD1P_7
33 BD1M_7
34 BD0P_7
35 BD0M_7
36 AD1P_7
37 AD1M_7
38 AD0P_7
39 AD0M_7
40 BD1P_6
Note (1) CN1ΕCN2 Connector Part No.: FH31H-80S-0.5SH(06),Hirose
Driver Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Driver Power supply
Logic Power supply
Logic Power supply
RSDS data latch
Scan driver start pulse
Scan driver clock
Scan driver output enable 2
Scan driver output enable 1
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
Data driver clock
Data driver clock
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
B-Path RSDS data signal
www.panelook.com
42 BD0P_6
43 BD0M_6
44 AD1P_6
45 AD1M_6
48 BD1P_5
49 BD1M_5
50 BD0P_5
51 BD0M_5
54 N.C. No connection
55 GM18
56 GM17
57 GM16
58 GM15
60 GM13
61 GM12
62 GM11
63 GM10
64 GM9
65 GM8
66 GM7
67 GM6
69 GM4
70 GM3
72 GM1
73 GND Ground
74 AD1P_5
75 AD1M_5
76 D_CLKP
77 D_CLKM
78 AD0P_5
79 AD0M_5
80 GND Ground
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
A-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
B-Path RSDS data signal
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
Gamma Power supply
A-Path RSDS data signal
A-Path RSDS data signal
Data driver clock
Data driver clock
A-Path RSDS data signal
A-Path RSDS data signal
Preliminary
11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
x
Y
6. OPTICAL CHARACTERISTICS
6.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 12 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Lamp Current I
Oscillating Frequency (Inverter) F
Vertical Frame Rate Fr 60 Hz
6.2 OPTICAL SPECIFICATIONS
The relative measurement methods of optical characteristics are shown in 7.2. The following items should be
measured under the test conditions described in 7.1 and stable environment shown in Note (7).
Item Symbol Condition Min. Typ. Max. Unit Note
Red
Green
Color
Chromaticity
Blue
White
Center Transmittance T%
Contrast Ratio CR
Response Time
White Variation
Horizontal
Viewing Angle
Vertica l
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
o
25r2
50r10
L
W
Rcx
Rcy
9.3r0.5
r3
40
(0.643)
(0.332) -
Gcx (0.272) -
T
=0q, TY =0q
Gcy
Bcx (0.152) -
Bcy
Standard light source “C”
x
CS-1000T
Typ -
(0.599) -
0.03
Typ +
0.03
(0.067) Wcx (0.285) Wcy
Gray to
gray
GW
T
+
Tx-
T
+
TY-
=0q, TY =0q
T
x
With CMO Module
=0q, TY =0q
T
x
With CMO Module
@60Hz
T
=0q, TY =0q
x
With CMO Module
CRt20
With CMO Module
(3000) (4000)
(0.295) -
- (4.5) %
(4.5) (9) ms
-
- - (1.3)
(80) (88)
(80)
(80)
(80)
(88)
(88)
(88)
-
-
-
-
C
%RH
mA
KHz
-
(1),(6)
(2), (8)
(2), (4)
-
(5)
(2), (7)
Deg. (2), (3)
Note (1) Light source is the standard light source “C” which is defined by CIE and driving voltages are based on
suitable gamma voltages. The calculating method is as followingǺ
1. Measure Module’s and BLU’s spectrums. W, R, G, B are with signal input. BLU(for V420H1-L15) is
supplied by CMO.
2. Calculate cell’s spectrum.
3. Calculate cell’s chromaticity by using the spectrum of standard light source “C”
Note (2) Light source is the BLU which is supplied by CMO and driving voltages are based on suitable gamma
voltages.

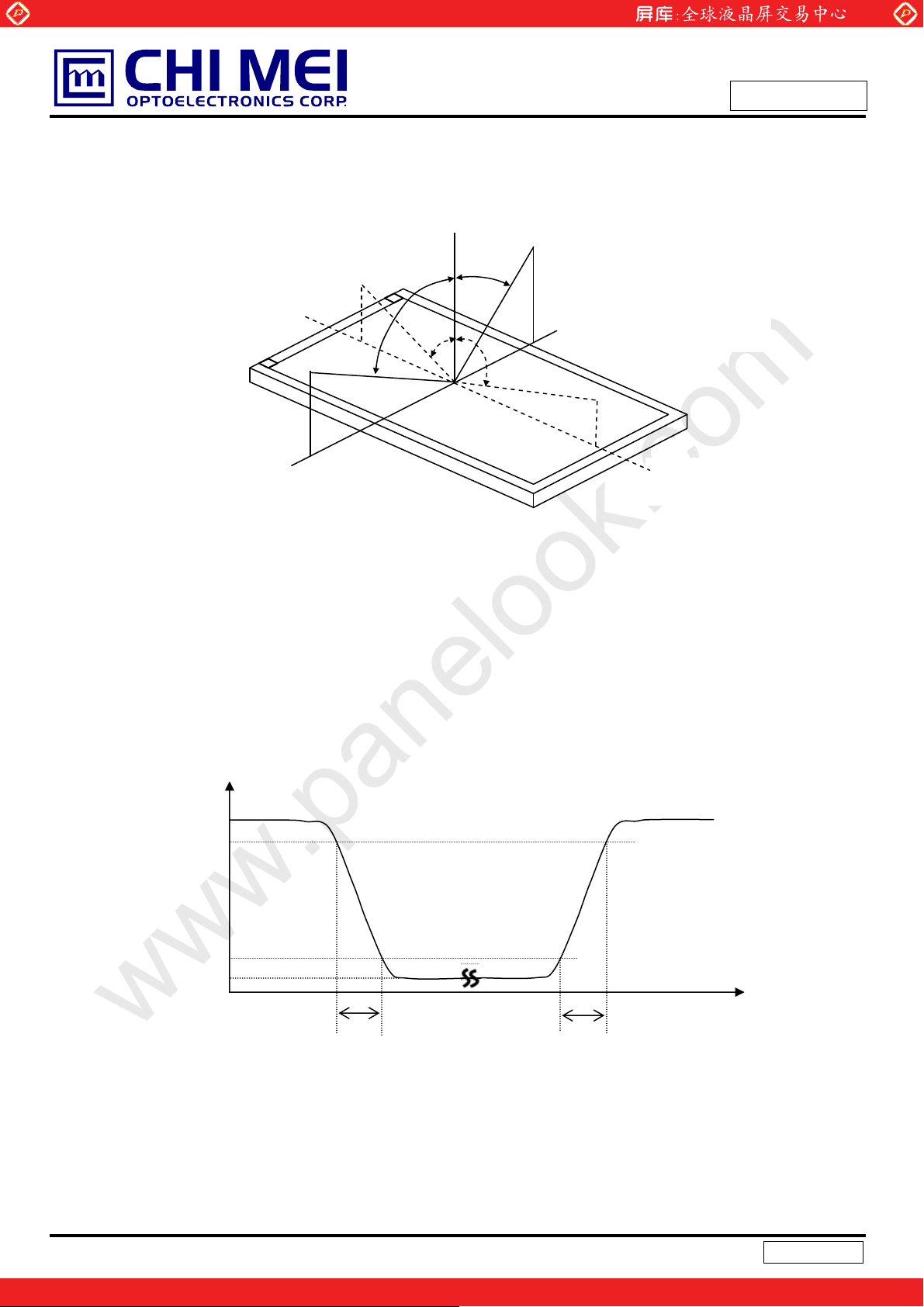

Note (3) Definition of Viewing Angle (Tx, Ty):
Viewing angles are measured by EZ-Contrast 160R (Eldim)
12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Normal
Tx = Ty = 0º
Ty- Ty
TX- = 90º
6 o’clock
T
y- = 90º
Note (4) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L255 / L0
L255: Luminance of gray level 255
L 0: Luminance of gray level 0
CR = CR (1), where CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (8).
Note (5) Definition of Gray to Gray Switching Time:
x-
Tx
y-
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
100%
90%
Optical
Response
10%
0%

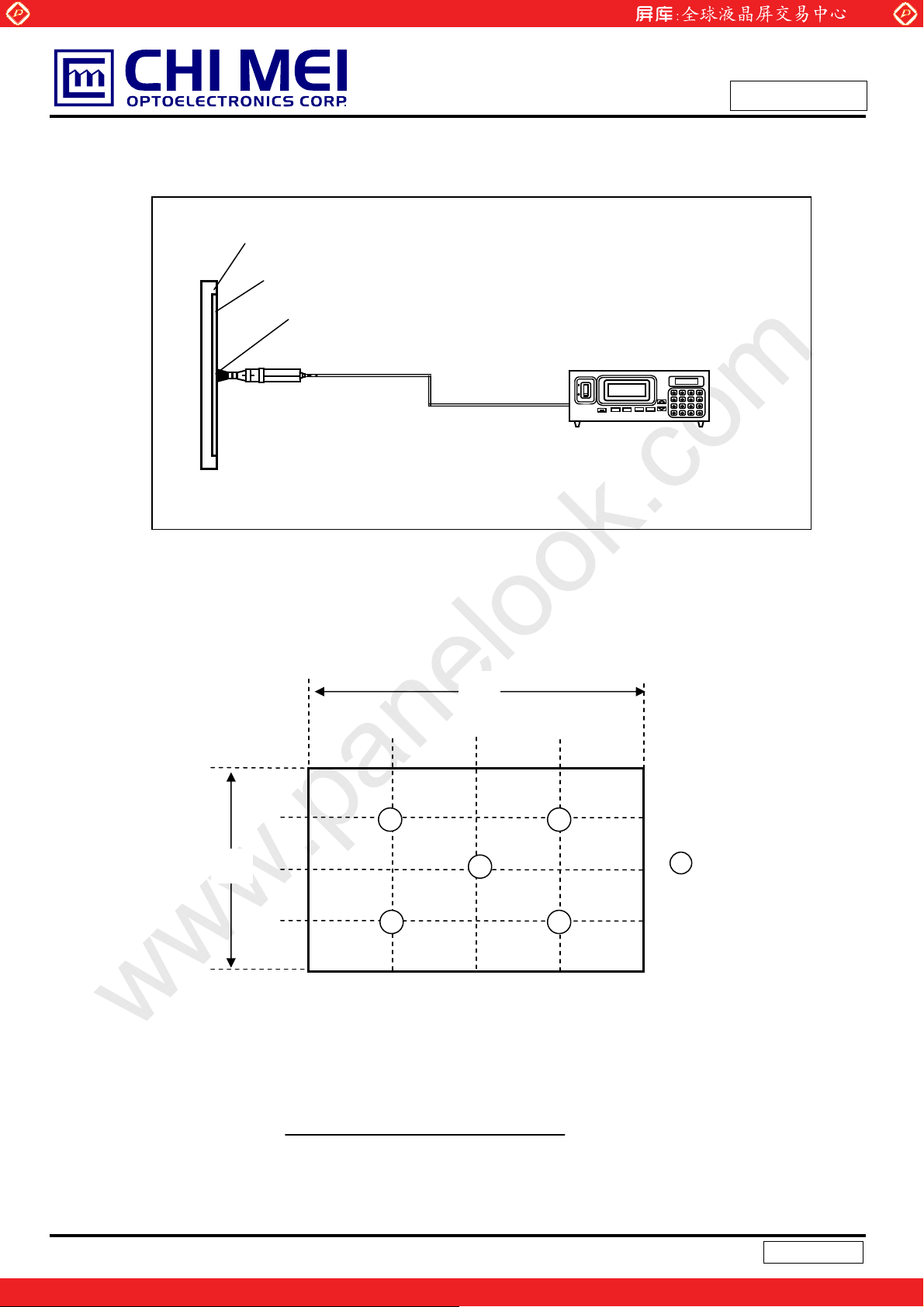

Note (6) Measurement Setup:
The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed
Gray to Gray
Switching Time
Gray to Gray
Time
Switching Time
13
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
after lighting backlight for 1 hour in a windless room.
LCD Module
LCD Panel
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Center of the Screen
Note (7) Definition of White Variation (GW):
Measure the luminance of gray level 255 at 5 points
GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
Display Color Analyzer
(Minolta CA210)
Light Shield Room
(Ambient Luminance < 2 lux)
Horizontal Line
D
D/4 D/2 3D/4
W/4
W/2
W
Vertical Line
3W/4
Note (8) Definition of Transmittance (T%):
Module is without signal input.
Luminance of LCD module
Transmittance =
Luminance of backlight
1 2
X
5
3 4
: Test Point
X=1 to 5
Active Area
Ϡ 100%
14
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
7. PRECAUTIONS
7.1 ASSEMBLY AND HANDLING PRECAUTIONS
[ 1 ] Do not apply rough force such as bending or twisting to the module during assembly.
[ 2 ] It is recommended to assemble or to install a module into the user’s system in clean working areas. The
dust and oil may cause electrical short or worsen the polarizer.
[ 3 ] Do not apply pressure or impulse to the module to prevent the damage of LCD panel and Backlight.
[ 4 ] Always follow the correct power-on sequence when the LCD module is turned on. This can prevent the
damage and latch-up of the CMOS LSI chips.
[ 5 ] Do not plug in or pull out the I/F connector while the module is in operation.
[ 6 ] Do not disassemble the module.
[ 7 ] Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily
scratched.
[ 8 ] Moisture can easily penetrate into LCD module and may cause the damage during operation.
[ 9 ] When storing modules as spares for a long time, the following precaution is necessary.
[ 9.1 ] Do not leave the module in high temperature, and high humidity for a long time. It is highly
recommended to store the module with temperature from 0 to 35кat normal humidity without
condensation.
[ 9.2 ] The module shall be stored in dark place. Do not store the TFT-LCD module in direct sunlight or
fluorescent light.
[ 10 ] When ambient temperature is lower than 10ºC, the display quality might be reduced. For example, the
response time will become slow, and the starting voltage of CCFL will be higher than that of room
temperature.
7.2 SAFETY PRECAUTIONS
[ 1 ] The startup voltage of a Backlight is approximately 1000 Volts. It may cause an electrical shock while
assembling with the inverter. Do not disassemble the module or insert anything into the Backlight unit.
[ 2 ] If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of
contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
[ 3 ] After the module’s end of life, it is not harmful in case of normal operation and storage.
15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
8. DEFINITION OF LABELS
8.1 OPEN CELL LABEL
The barcode nameplate is pasted on each open cell as illustration for CMO internal control.
8.2 CARTON LABEL
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
V470H2-PH1
The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation.
(a) Model Name: V470H2-PH1
(b) Carton ID: CMO internal control
(c) Quantities: 8 pcs
16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
9. Packaging
9.1 packing specifications
(1) 8 LCD TV Panels / 1 Box
(2) Box dimensions :1238 (L) X 842 (W) X 240(H)
(3) Weight : approximately 38Kg (8 panels per box)
9.2 packing Method
Figures 10-1 and 10-2 are the packing method
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Panel
Panel
Carton
Top layer for empty tray
Figure.10-1 packing method
Tape
Carton Label
17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
Figure.10-2 packing method
Figure.10-2 packing method
18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center
10. MECHANICAL CHARACTERISTICS
www.panelook.com
Issue Date:Jul.21.2009
Model No.: V470H2-PH1
Preliminary
࡛ભሽٝڶૻֆ
%*+/'+
19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Loading...
