TFT LCD Approval Specification

MODEL NO.: V236H1-P02

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

Customer :

Approved by :

Note :

2009.10.29

Director Accept

2009-10-29

08:48:46

MTR

1 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

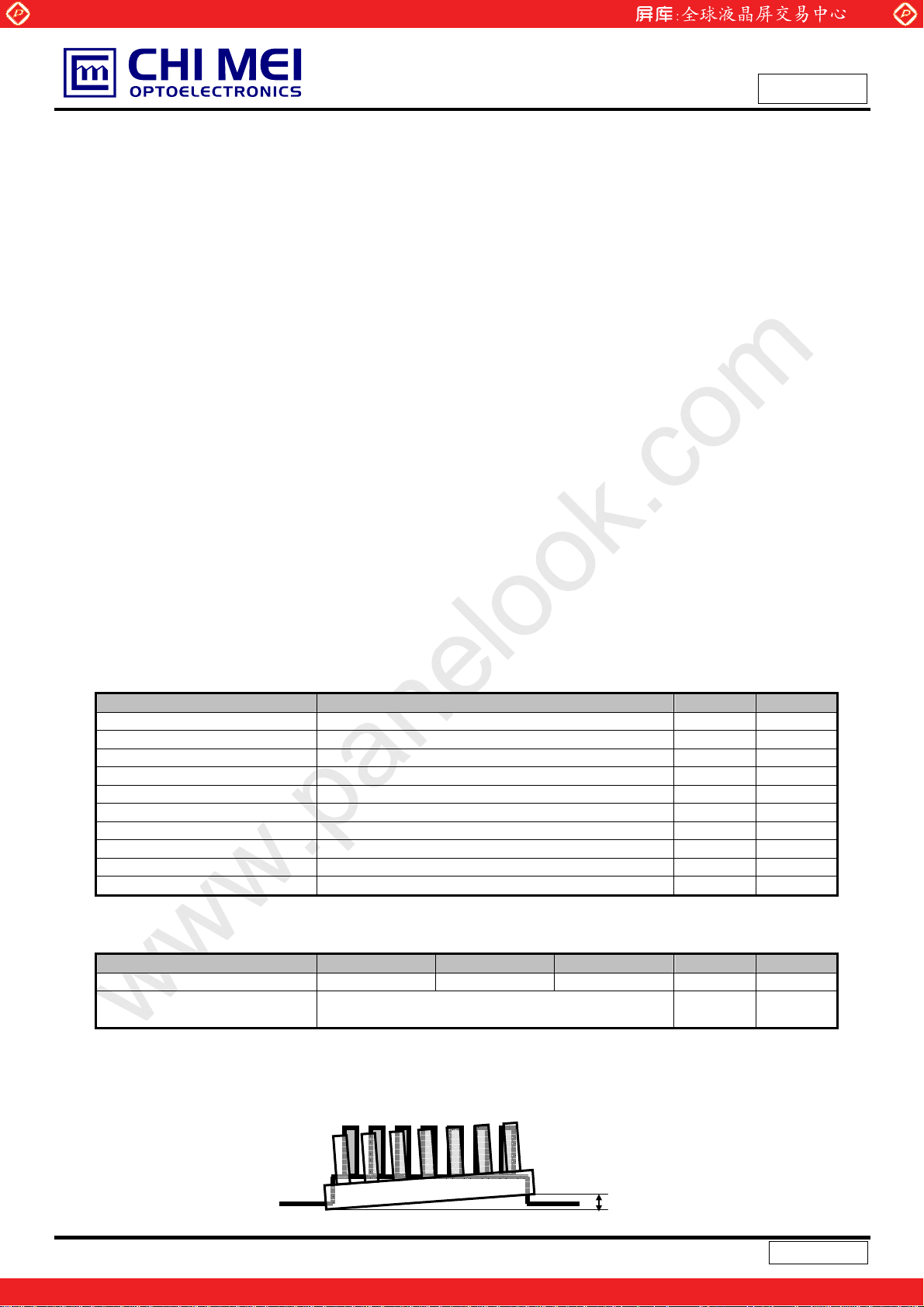

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE V236H1-L01)

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 6

3.1 TFT LCD OPEN CELL

3.2 Vcc POWER DIP CONDITION

4. BLOCK DIAGRAM ------------------------------------------------------- 8

4.1 TFT LCD OPEN CELL

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 9

5.1 TFT LCD MODULE

5.2 LVDS DATA MAPPING TABLE

5.3 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING ------------------------------------------------------- 12

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 15

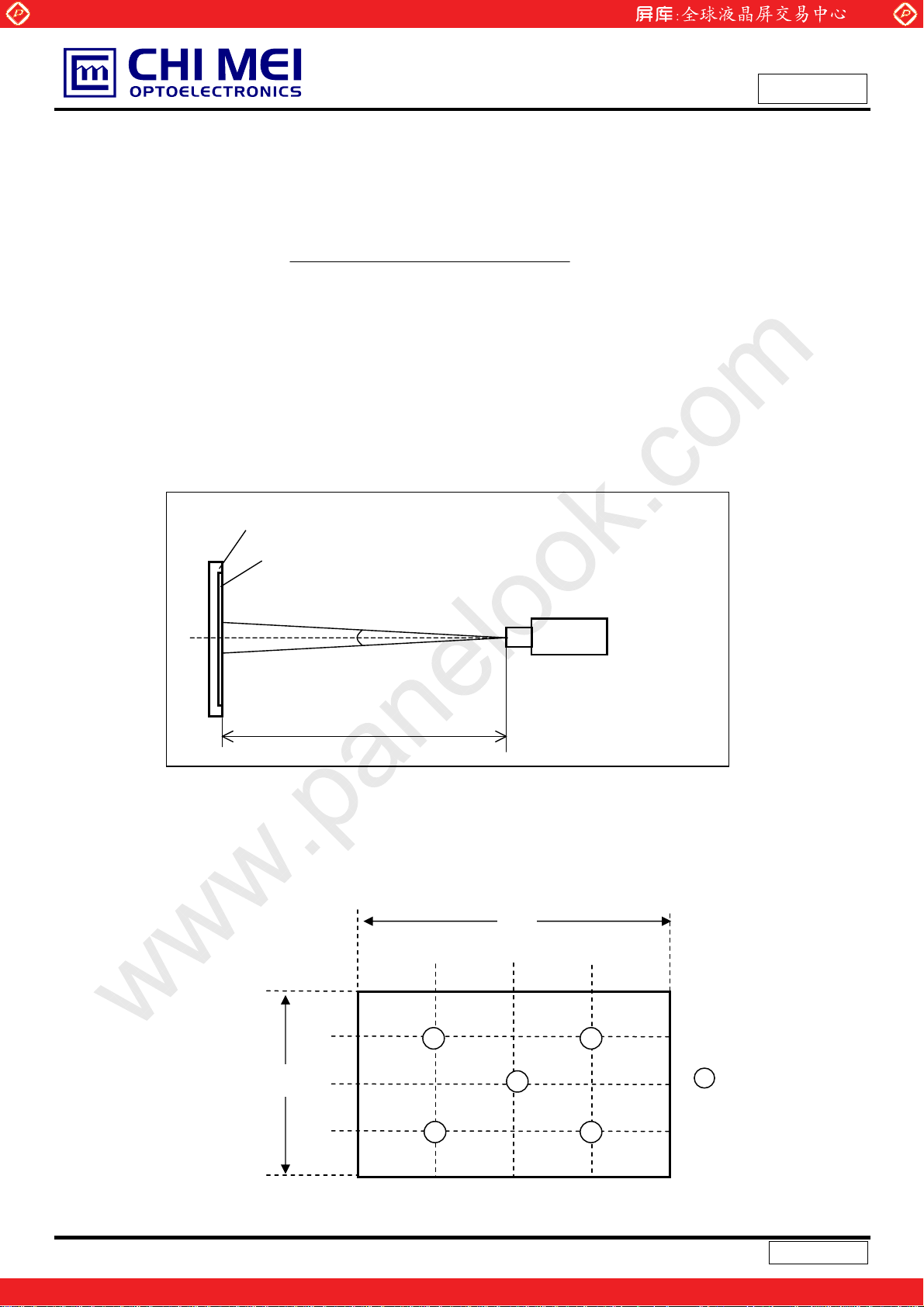

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

7.3 FLICKER ADJUSTMENT

8. PACKAGING ------------------------------------------------------- 19

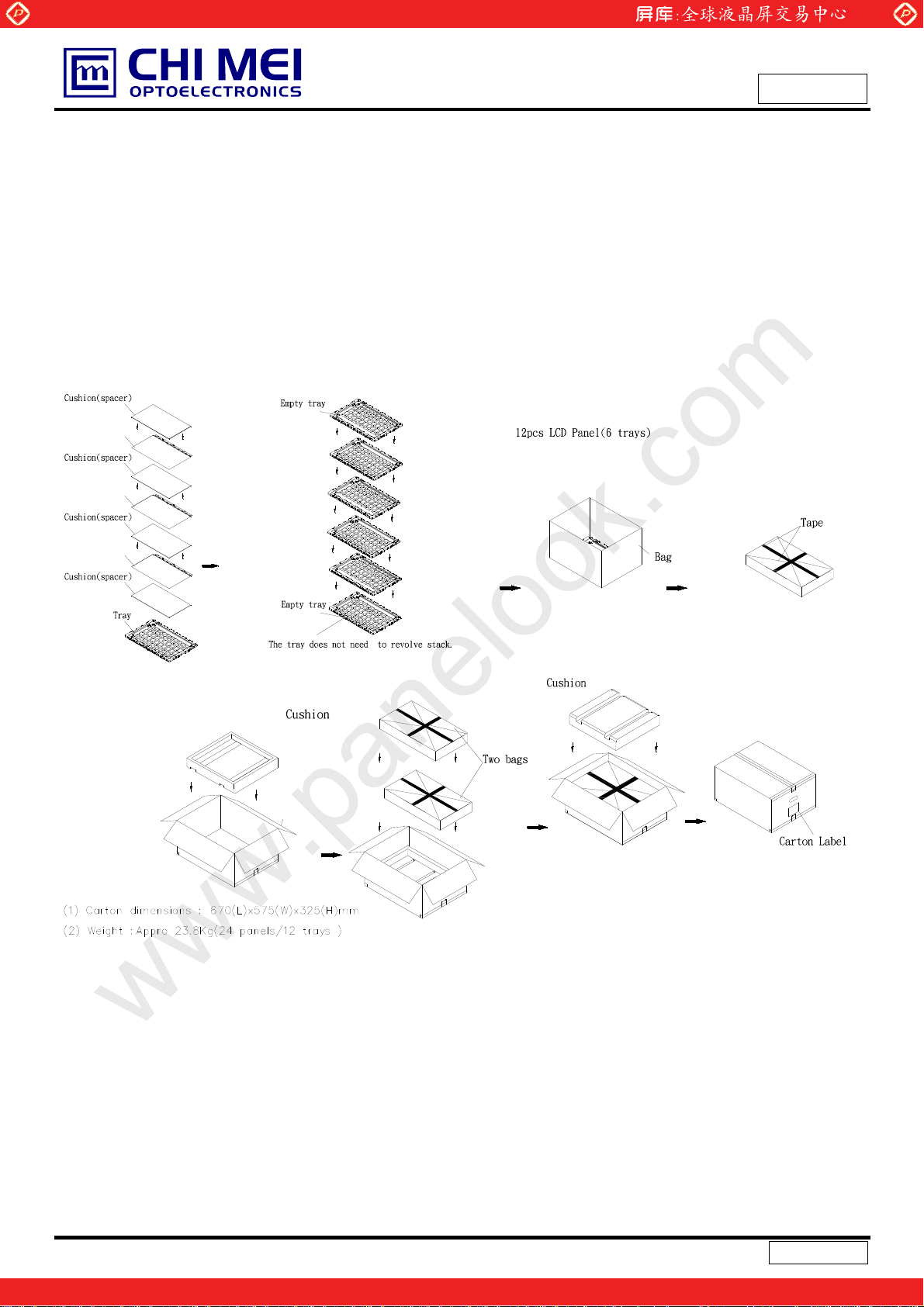

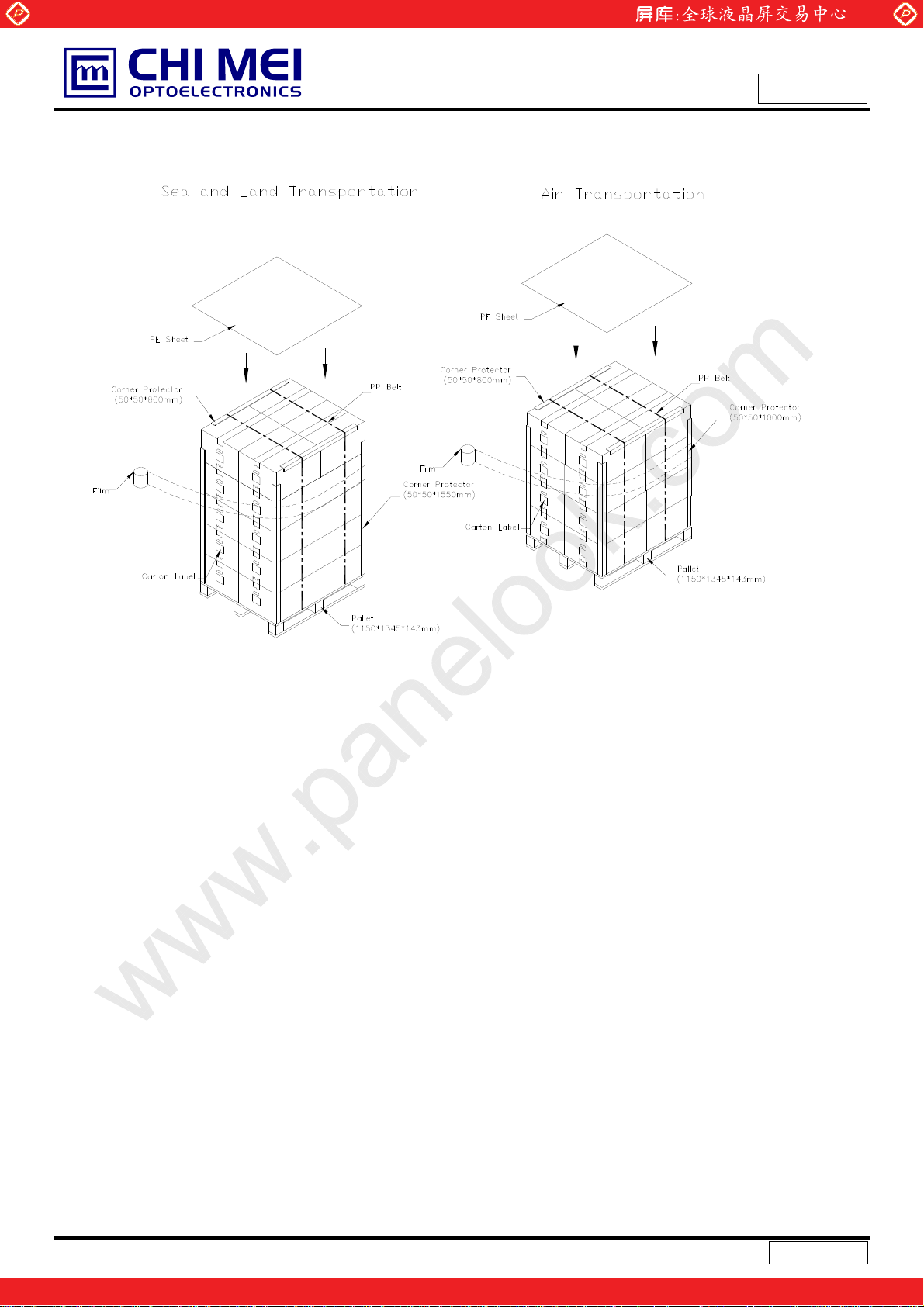

8.1 PACKING SPECIFICATIONS

8.2 PACKING METHOD

9. DEFINITION OF LABELS ------------------------------------------------------- 21

9.1 OPEN CELL LABEL

9.2 CARTON LABEL

10. RELIABILITY TEST ------------------------------------------------------- 22

11. PRECAUTIONS

11.1 ASSEMBLY AND HANDLING PRECAUTIONS

11.2 SAFETY PRECAUTIONS

11.3 OTHER

------------------------------------------------------- 23

12. MECHANICAL DRAWING ------------------------------------------------------- 24

2 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

REVISION HISTORY

Version Date Section Description

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

Ver. 2.0

Ver. 2.1

Sep, 16, ’09

Oct, 19, ’09 -1.5

3.1

V236H1-P02 Approval Specifications was first issued. Modified weightΰColumn “Typ.” and “Max.”α Modified the value ofμMaximum Logic High Input Voltageνfrom “3.3” to “3.6”. Removed ”Minimum” and ”Maximum” value ofμLVDS common input voltageν.

3 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

The V236H1-P02 is a 23.6-inch wide TFT LCD open cell with driver ICs and a 30-pins-2ch-LVDS circuit

board. The product supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The backlight

unit is not built in.

1.2 FEATURES

- Super wide viewing angle

- High contrast ratio

- Fast response time

- High color saturation

- Full HDTV (1920 x 1080 pixels) resolution

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

- DE (Data Enable) only mode

- LVDS (Low Voltage Differential Signaling) interface

- RoHS Compliance

1.3 APPLICATION

- TFT LCD Monitor/TV

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note

Diagonal Size 23.547 inch

Active Area 521.28 (H) x 293.22 (V) mm (1)

Driver Element a-Si TFT active matrix - -

Pixel Number 1920 x R.G.B. x 1080 pixel -

Pixel Pitch 0.2715 (H) x 0.2715 (V) mm -

Pixel Arrangement RGB vertical stripe - -

Display Colors 16.7M color -

Transmissive Mode Normally White - -

Surface Treatment Hard coating (3H), Anti-glare (Haze 25%) - -

Power Consumption 4.5 Watt (3)

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note Weight I/F connector mounting position

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

(2) Connector mounting position

(3) Please refer to sec.3.1 for more information of power consumption

The mounting inclination of the connector makes the screen center within ±0.5mm as the horizontal.

-

706 - g -

- (2)

+/- 0.5mm

4 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Oct.19, 2009

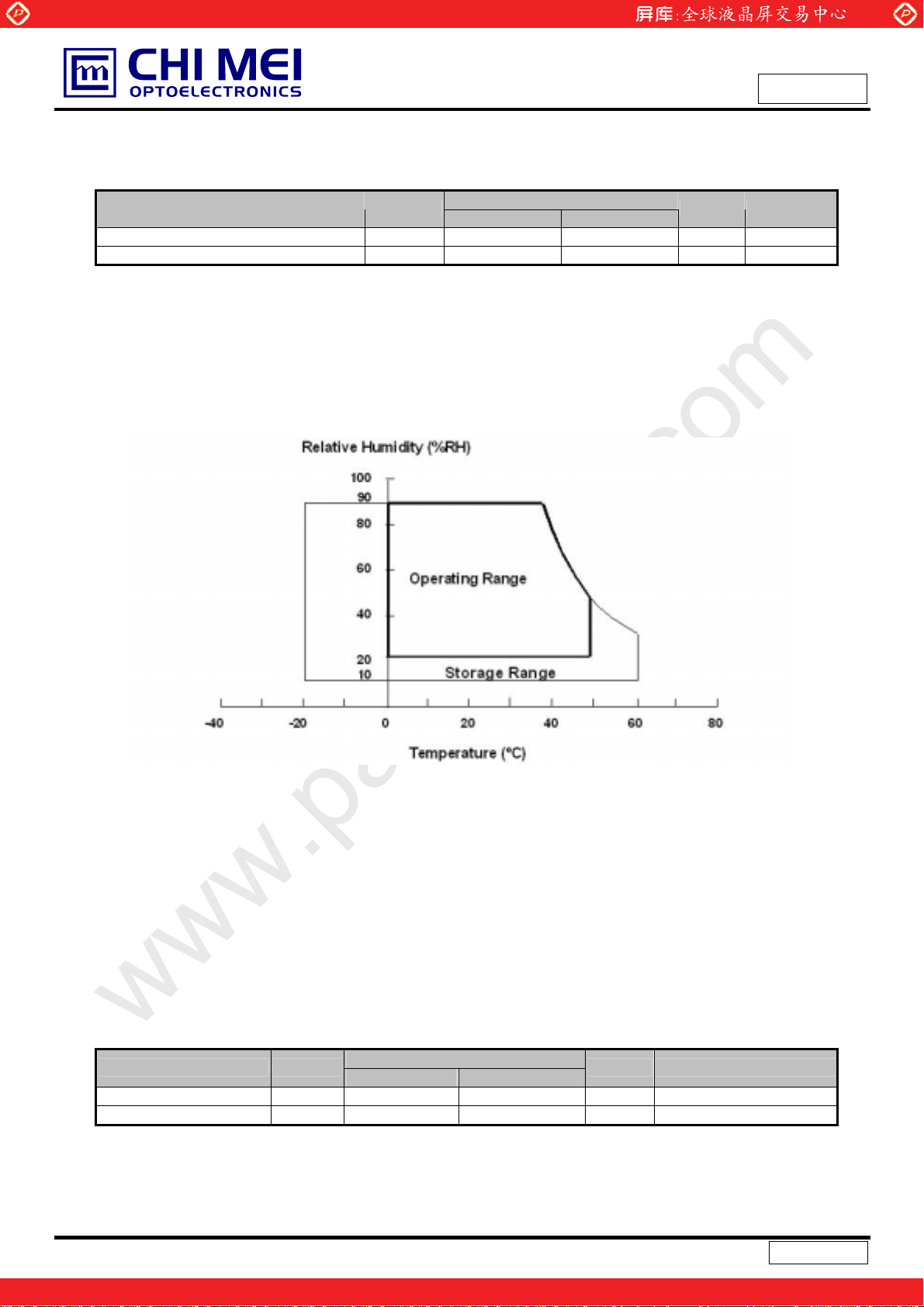

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE V236H1-L01)

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2)

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta 40 ºC).Љ

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.

Min. Max.

Value

Doc No.: 400039934

Model No.: V236H1-P02

Approval

Unit Note

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

High temperature or humidity may reduce the performance of panel. Please store LCD panel within the

specified storage conditions.

Storage Condition: With packing.

Storage temperature range: 25±5 ºC.

Storage humidity range: 50±10%RH.

Shelf life: 30days

2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

Item Symbol

Power Supply Voltage Vcc -0.3 +6.0 V (1)

Logic Input Voltage Vlogic 3.0 3.6 V -

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation should

be restricted to the conditions described under Normal Operating Conditions.

Min. Max.

Value

Unit Note

5 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD OPEN CELL Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max. Power Supply Voltage Vcc 4.5 5.0 5.5 V Ripple Voltage VRP - - 100 mV Rush Current I

- - 3 A (2)

RUSH

White - 0.6 0.72 A (3)a

Power Supply Current

Black - 0.9 1.08 A (3)b Vertical Stripe

lcc

- 0.85 1.02 A (3)c Power Consumption PLCD - 4.5 5.4 Watt (4) LVDS differential input voltage Vid 100 - 600 mV LVDS common input voltage Vic - 1.2 - V Logic High Input Voltage VIH 2.64 - 3.6 V Logic Low Input Voltage VIL 0 - 0.66 V -

Note (1) The module is recommended to operate within specification ranges listed above for normal

Value

Unit Note

Approval

function.

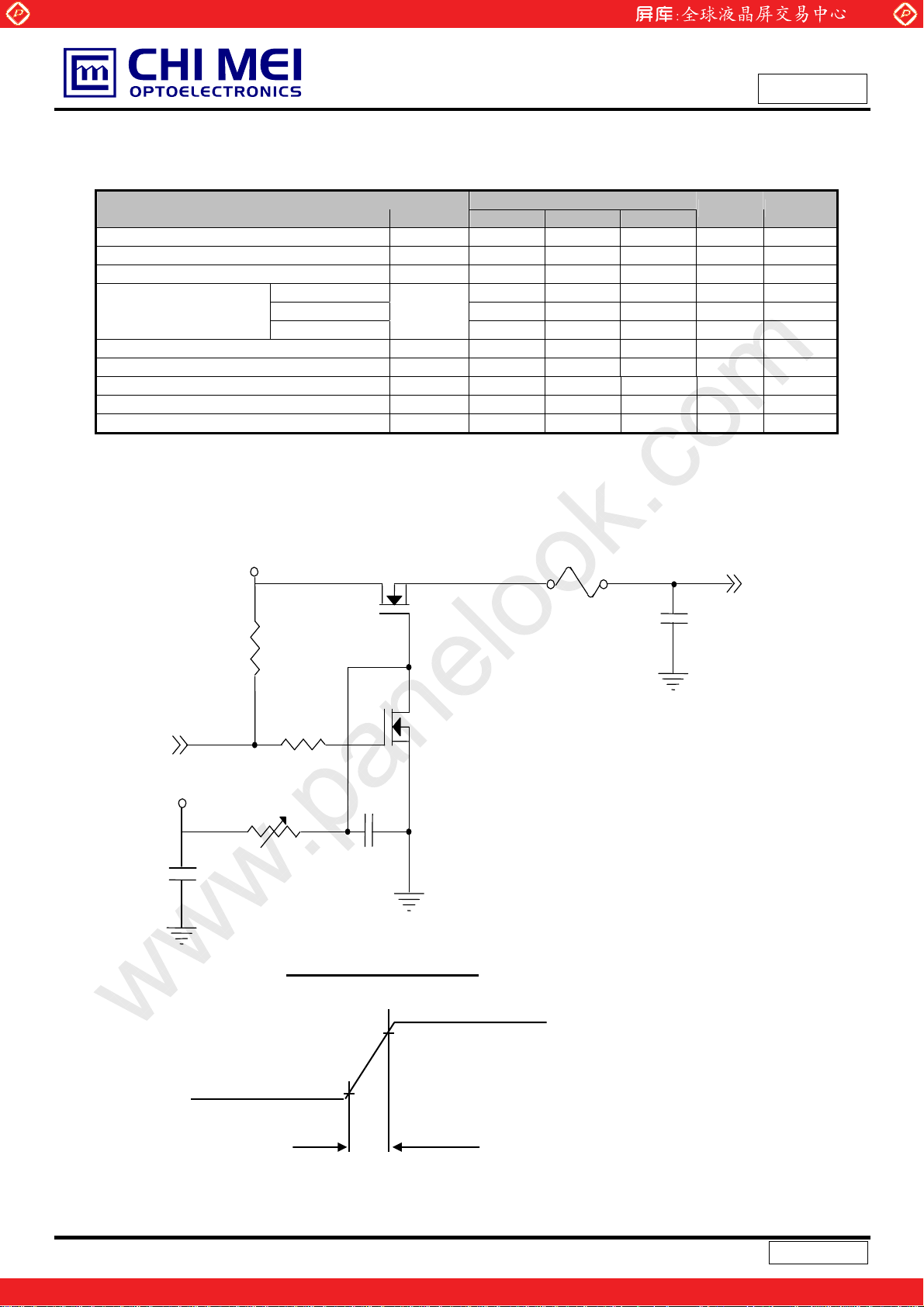

Note (2) Power on rush current measurement Conditions:

(High to Low)

(Control Signal)

SW

+12V

+5.0V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

Q2

2SK1470

C2

0.01uF

FUSE

C3

Vcc

(LCD Module Input)

1uF

Vcc rising time is 470μs

Vcc

0.9Vcc

0.1Vcc

GND

470μs

6 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

≤≤≤

Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, Fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

R

G

B

R

B

G

B

R

B

G

B

R

G

B

R

R R

G

Active Area

Note (4) The power consumption is specified at the pattern with the maximum current.

3.2 Vcc Power Dip Condition:

B

G

Vcc

4.5V

4.0V

Td

Dip condition:

msTdVVccV 20,5.40.4

B

7 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

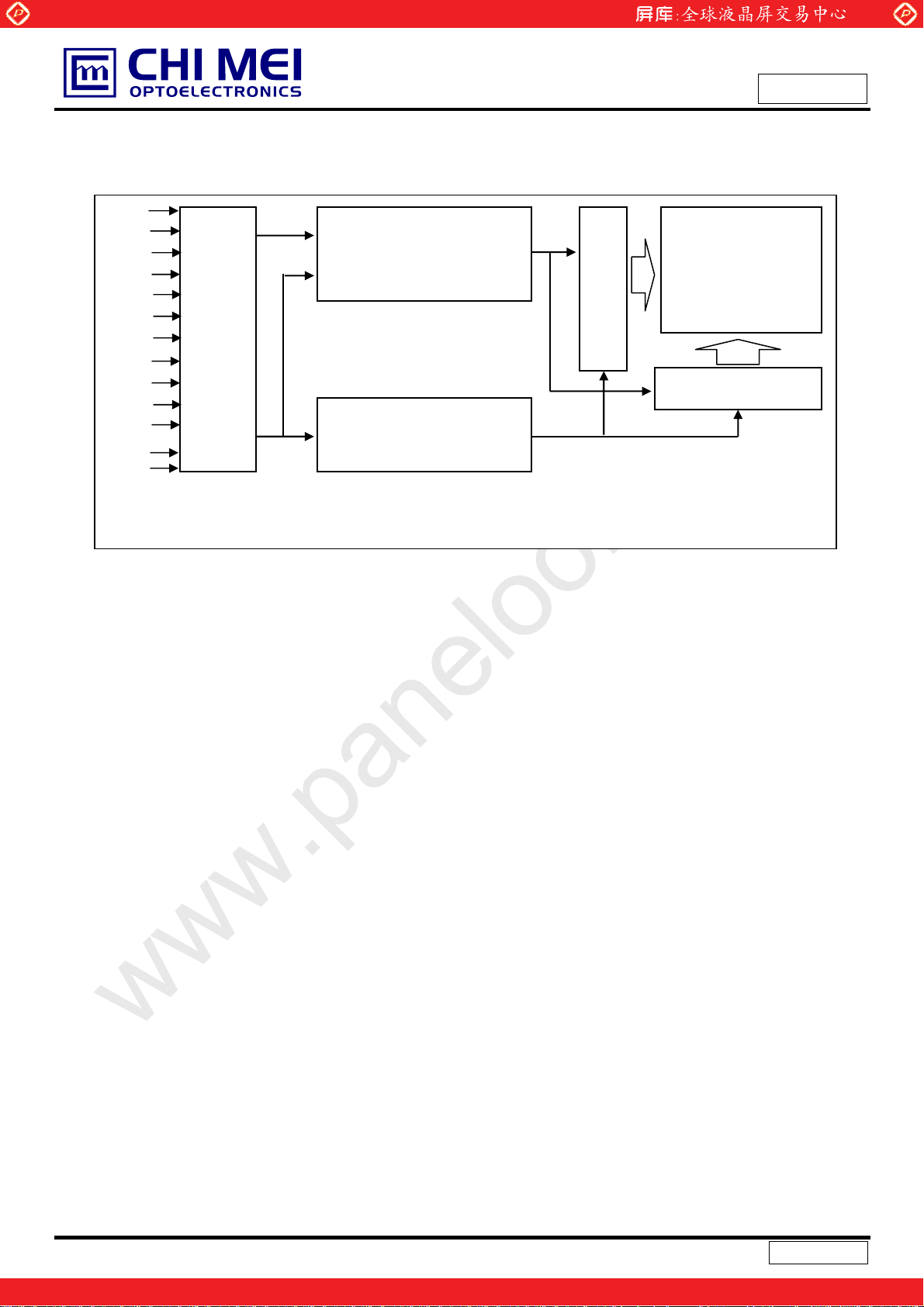

4. BLOCK DIAGRAM

4.1 TFT LCD OPEN CELL

RXO0(+/-)

RXO1(+/-)

RXO2(+/-)

RXO3(+/-)

RXOC(+/-)

RXE0(+/-)

RXE1(+/-)

RXE2(+/-)

RXE3(+/-)

RXEC(+/-)

AGMODE

NC

Vcc

GND

INPUT CONNECTOR

(FI-X30SSL-HF)

www.panelook.com

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

SCAN DRIVER IC

TFT LCD PANEL

(1920x3x1200)

(1920x3x1080)

DATA DRIVER IC

8 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Name Description

1 RXO0- Negative LVDS differential data input. Channel O0 (odd) 2 RXO0+ Positive LVDS differential data input. Channel O0 (odd) 3 RXO1- Negative LVDS differential data input. Channel O1 (odd) 4 RXO1+ Positive LVDS differential data input. Channel O1 (odd) 5 RXO2- Negative LVDS differential data input. Channel O2 (odd) 6 RXO2+ Positive LVDS differential data input. Channel O2 (odd) 7 GND Ground 8 RXOC- Negative LVDS differential clock input. (odd)

9 RXOC+ Positive LVDS differential clock input. (odd) 10 RXO3- Negative LVDS differential data input. Channel O3(odd) 11 RXO3+ Positive LVDS differential data input. Channel O3 (odd) 12 RXE0- Negative LVDS differential data input. Channel E0 (even) 13 RXE0+ Positive LVDS differential data input. Channel E0 (even) 14 GND Ground 15 RXE1- Negative LVDS differential data input. Channel E1 (even) 16 RXE1+ Positive LVDS differential data input. Channel E1 (even) 17 GND Ground 18 RXE2- Negative LVDS differential data input. Channel E2 (even) 19 RXE2+ Positive LVDS differential data input. Channel E2 (even) 20 RXEC- Negative LVDS differential clock input. (even) 21 RXEC+ Positive LVDS differential clock input. (even) 22 RXE3- Negative LVDS differential data input. Channel E3 (even) 23 RXE3+ Positive LVDS differential data input. Channel E3 (even) 24 GND Ground 25 NC Not connection, this pin should be open. 26 NC Not connection, this pin should be open. 27 NC Not connection, this pin should be open. 28 Vcc +5.0V power supply 29 Vcc +5.0V power supply 30 Vcc +5.0V power supply

Note (1) Connector Part No.: STM MSAKT2407P30HA or Starconn 093G30-B0001A or Equivalent

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

Note (2) The first pixel is odd.

Note (3) Input signal of even and odd clock should be the same timing.

9 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 LVDS DATA MAPPING TABLE

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

LVDS Channel O0

LVDS Channel O1

LVDS Channel O2

LVDS Channel O3

LVDS Channel E0

LVDS Channel E1

LVDS Channel E2

LVDS Channel E3

LVDS output D7 D6 D4 D3 D2 D1 D0 Data order OG0 OR5 OR4 OR3 OR2 OR1 OR0 LVDS output D18 D15 D14 D13 D12 D9 D8 Data order OB1 OB0 OG5 OG4 OG3 OG2 OG1 LVDS output D26 D25 D24 D22 D21 D20 D19 Data order DE NA NA OB5 OB4 OB3 OB2 LVDS output D23 D17 D16 D11 D10 D5 D27 Data order NA OB7 OB6 OG7 OG6 OR7 OR6 LVDS output D7 D6 D4 D3 D2 D1 D0 Data order EG0 ER5 ER4 ER3 ER2 ER1 ER0 LVDS output D18 D15 D14 D13 D12 D9 D8 Data order EB1 EB0 EG5 EG4 EG3 EG2 EG1 LVDS output D26 D25 D24 D22 D21 D20 D19 Data order DE NA NA EB5 EB4 EB3 EB2 LVDS output D23 D17 D16 D11 D10 D5 D27 Data order NA EB7 EB6 EG7 EG6 ER7 ER6

10 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Basic Colors

Gray Scale Of Red

Black Red Green Blue Cyan Magenta Yellow White Red(0) / Dark Red(1) Red(2)

:

: Red(253) Red(254) Red(255)

0

1

0

1

0

:

1

www.panelook.com

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Data Signal

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

Doc No.: 400039934

Approval

0

1

0

1

0

:

0

Green(0) / Dark Green(1)

Gray Scale Of Green

Gray Scale Of Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Green(2)

:

: Green(253) Green(254) Green(255) Blue(0) / Dark Blue(1) Blue(2)

:

: Blue(253) Blue(254) Blue(255)

0

:

0

:

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

11 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

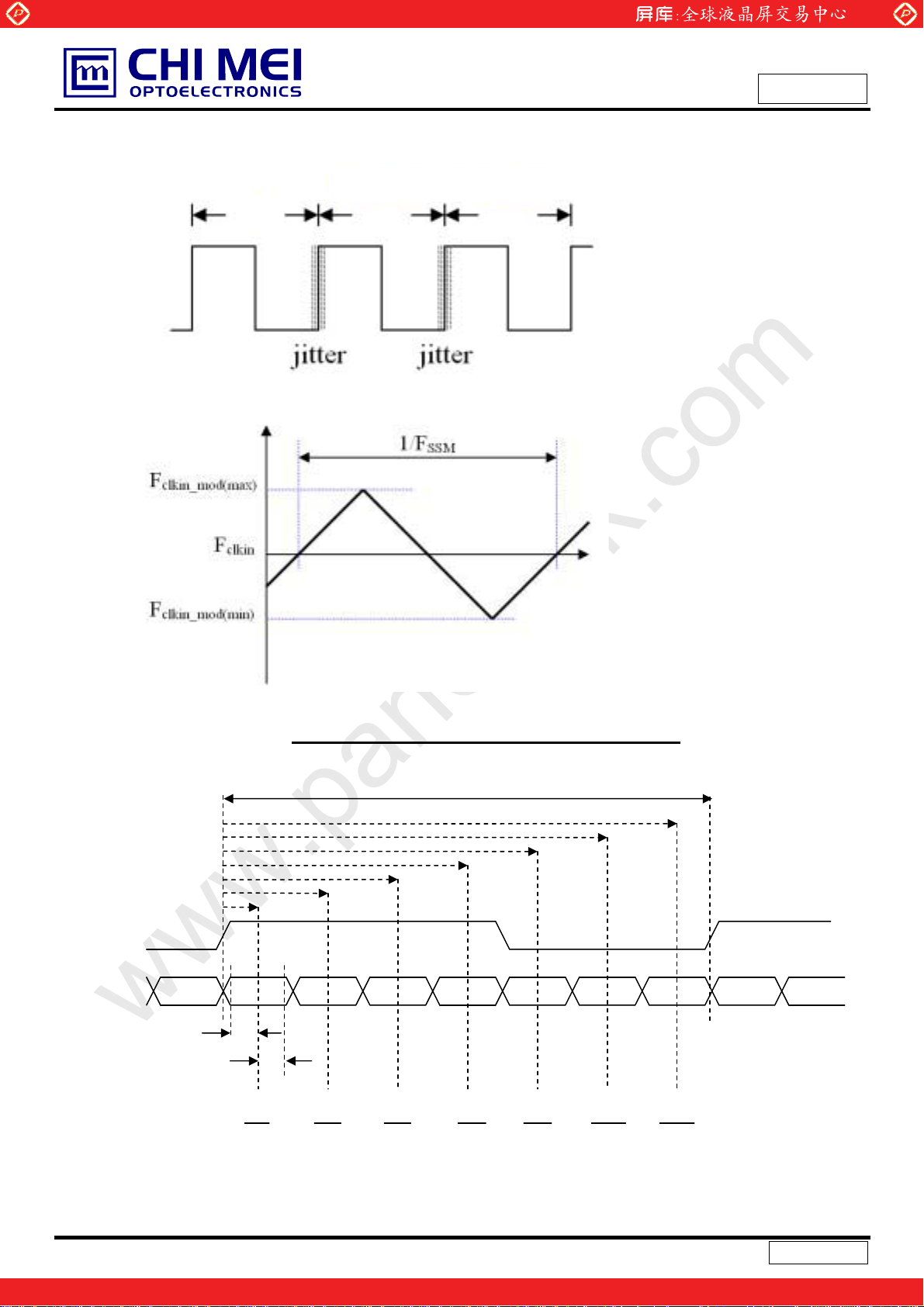

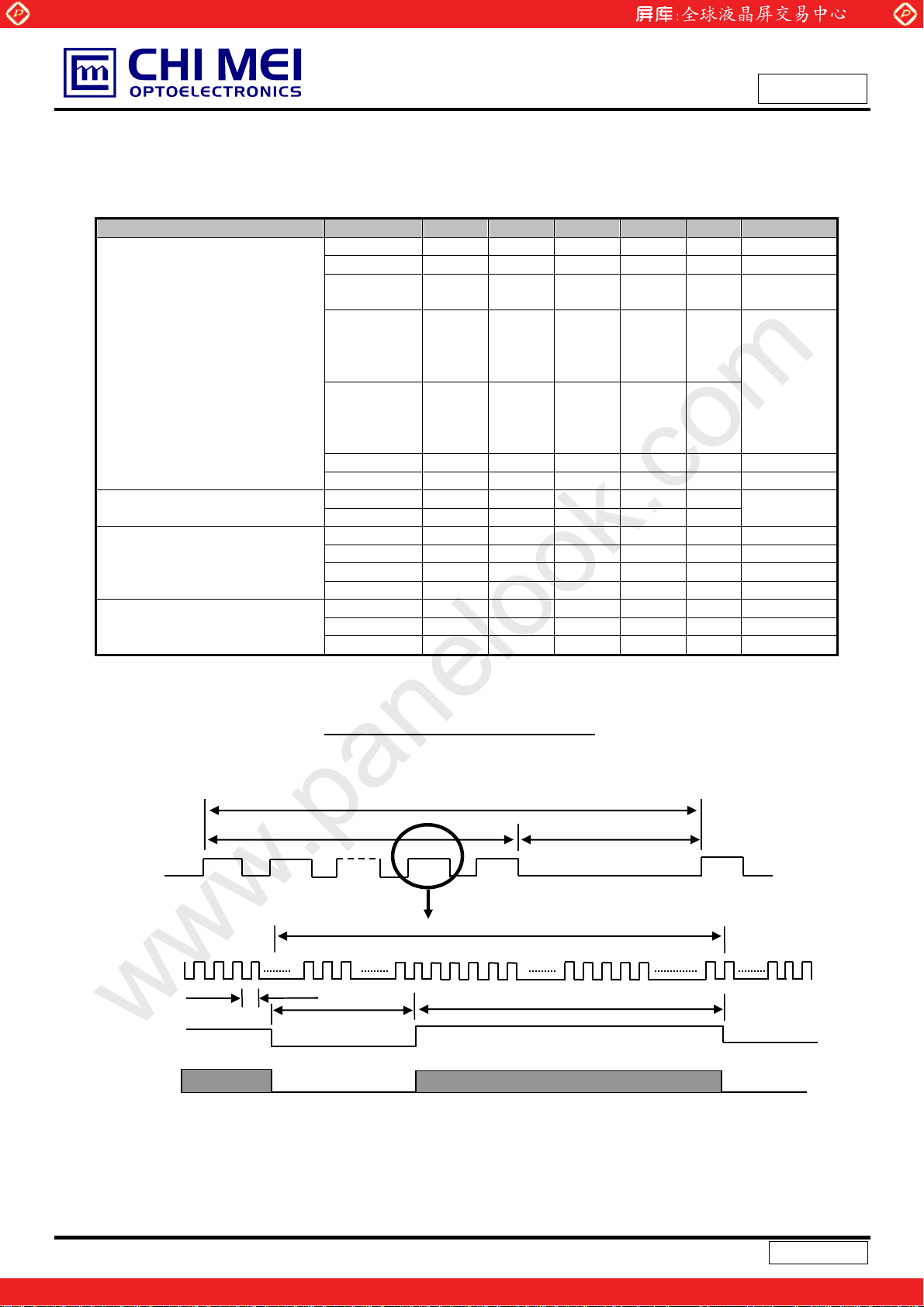

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

Frequency Fc 58.54 74.25 98 MHz Period Tc - 13.47 - ns Input cycle to cycle jitter Spread spectrum

LVDS Clock

LVDS Data

Vertical Active Display Term

Horizontal Active Display Term

NoteΚBecause this module is operated by DE only mode, Hsync and Vsync input signals are ignored.

modulation range Spread spectrum modulation frequency High Time Tch - 4/7 - Tc Low Time Tcl - 3/7 - Tc Setup Time Tlvs 600 - - ps Hold Time Tlvh 600 - - ps Frame Rate Fv 50 60 75 Hz Total Tv 1115 1125 1136 T h Tv=Tvd+Tvb Display Tvd 1080 1080 1080 Th Blank Tvb 35 45 56 Th Total Th 1050 1100 1150 Tc Th=Thd+Thb Display Thd 960 960 960 Tc Blank Thb 90 140 190 Tc -

www.panelook.com

T

clkin_mod

F

-0.02*Tc

rcl

0.98*Fc - 1.02*Fc MHz

- - 200 KHz

SSM

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

- 0.02*Tc ps (1)

(2)

(3)

DE

DCLK

DE

DATA

INPUT SIGNAL TIMING DIAGRAM

Tv

T

C

Thb

Th

TVb

hd

T

12 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (1) The input clock cycle-to-cycle jitter is defined as below figures. Trcl = I T1 – TI

Note (2) The SSCG (Spread spectrum clock generator) is defined as below figures.

www.panelook.com

T1T

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

2

T

Note (3) The LVDS timing diagram and setup/hold time is defined and showing as the following figures.

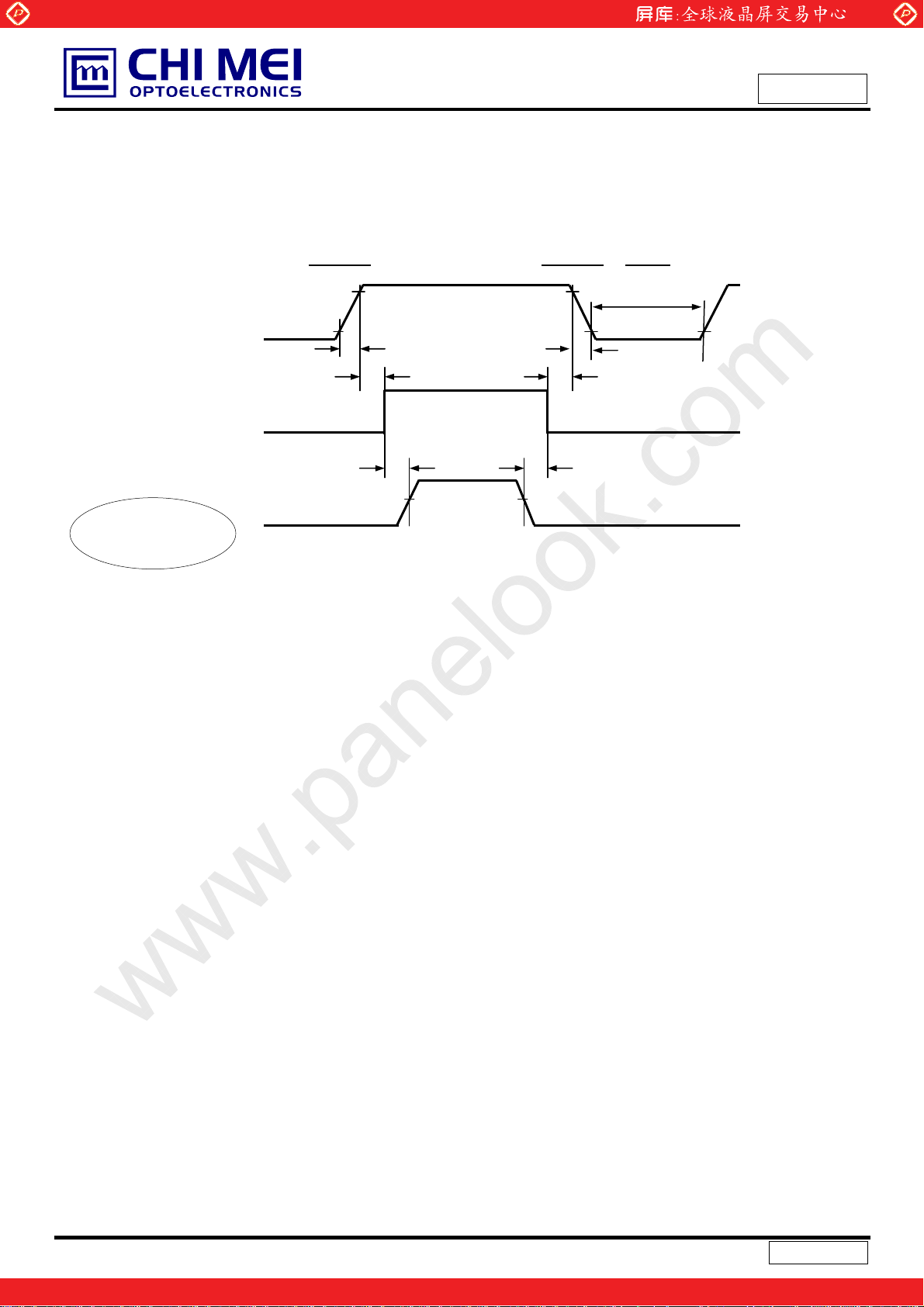

LVDS RECEIVER INTERFACE TIMING DIAGRAM

Tc

RXCLK+/-

RXn+/-

Tlvs

Tlvh

1

14

7

T

c

3

14

T

c

T

5

c

14

T

14

c

9

14

T

c

11

14

T

c

13

T

c

14

13 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should follow the conditions

shown in the following diagram.

- Power Supply

for LCD, Vcc

- Interface Signal

(LVDS Signal of Transmitter), V

I

- Recommended power for Lamp

Timing Specifications:

0.5< t1 Љ 10 msec

0 < t2 Љ 50 msec

0 < t3 Љ 50 msec

t4 Њ 500 msec

0V

Power On

90%

10%

Restart

t4

10%

Power Off

90%

t1

Valid Data

ONOFF OFF

t7

t3t2

t6t5

50%50%

t5 Њ 450 msec

t6 Њ 90 msec

5 t7 ЉЉ 100 msec

Note.

(1) The supply voltage of the external system for the module input should be the same as the definition of Vcc.

(2) Please apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

operation of the LCD turns off, the display may, instantly, function abnormally.

(3) In case of Vcc = off level, please keep the level of input signals on the low or keep a high impedance.

(4) T4 should be measured after the module has been fully discharged between power on/off periods.

(5) Interface signal shall not be kept at high impedance when the power is on.

(6) The company will not guarantee or compensate for the product damage caused by not following the Power

Sequence.

14 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 7.0 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current I Inverter Driving Frequency F

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown as below. The following items

should be measured under the test conditions described in 7.1 and stable environment shown in Note (6).

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Color

Chromaticity

(CIE 1931)

Center Transmittance T% - 5 Contrast Ratio CR

Response Time

White Variation

Viewing Angle

Note (0) Light source is the standard light source ”C” which is defined by CIE and driving voltage are based on

Green

Blue

White

Horizontal

Vertical

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

25 ± 2

50 ± 10

L

Rcx Rcy

Gcx Gcy

Bcx Bcy

θ

=0° , θY =0°

x

Viewing Angle at Normal

Direction

Standard light source “C”

Wcx Wcy

=0° , θY =0°

θ

x

with CMO module

=0° , θY =0°

TR - 1.5 - ms

T

F

δW

θ

x

with CMO

Module@60Hz

θ

=0° , θY =0°

x

with CMO module

θx+

θ

x

θY+

θ

Y

-

CR≥10

With CMO module

7.0 ± 0.5 55 ± 5

0.650

0.328

0.270

0.593

-

0.145

0.094

0.312

0.350

- 700 - - (1), (3)

- 3.5 - ms

- - 1.3 - (1),(7)

-

80 -

80

70

o

%RH

mA

KHz

-

Deg. (1), (2)

-

Approval

C

-

(0),(6)

-

%

(1), (5)

(4)

suitable gamma voltages. The calculating method is as following:

1. Measure Module’s and BLU’s spectrum. White is without signal input and R, G, B are with signal input.

CMO V236H1-L01 BLU is adopted in the measurement.

2. Calculate cell’s spectrum.

3. Calculate cell’s chromaticity by using the spectrum of standard light source “C”.

Note (1) Light source is the BLU, which is supplied by CMO, and driving voltage is based on suitable gamma

voltages.

15 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (2) Definition of Viewing Angle (θx, θy):

Viewing angles are measured by Conoscope Cono-80

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (3) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L255 / L0

L255: Luminance of gray level 255

L 0: Luminance of gray level 0

CR = CR (5)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).

θx−

θx+

12 o’clock direction

y+

θ

y+ = 90º

x+

θX+ = 90º

Note (4) Definition of Response Time (T

Gray Level 255

100%

90%

Optical

Response

10%

0%

R

T

, TF):

R

Gray Level 0

Gray Level 255

T

F

66.67ms 66.67ms

16 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

to 5

Note (5) Definition of Transmittance (T%):

Module is without signal input.

Transmittance =

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

Luminance of LCD module L(5)

Ϡ 100%

Luminance of backlight LBLU(5)

L (x) and L

BLU(X) are corresponding to the luminance of the point X at Figure in Note (7).

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 60 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 60 minutes in a windless room.

LCDModule

LCDPanel

Field of View = 1º

500 mm

CS-2000

Light Shield Room

Ambient uminance < 2 x)

(L lu

Note (7) Definition of White Variation (δW):

Measure the luminance of gray level 255 at 5 points

δW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

W/4

W/2

W

Vertical Line

3W/

Horizontal Line

D

D/4 D/2 3D/4

12

5

34

Active Area

17 / 24

X

: Test Point

X=1

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7.3 Flicker Adjustment

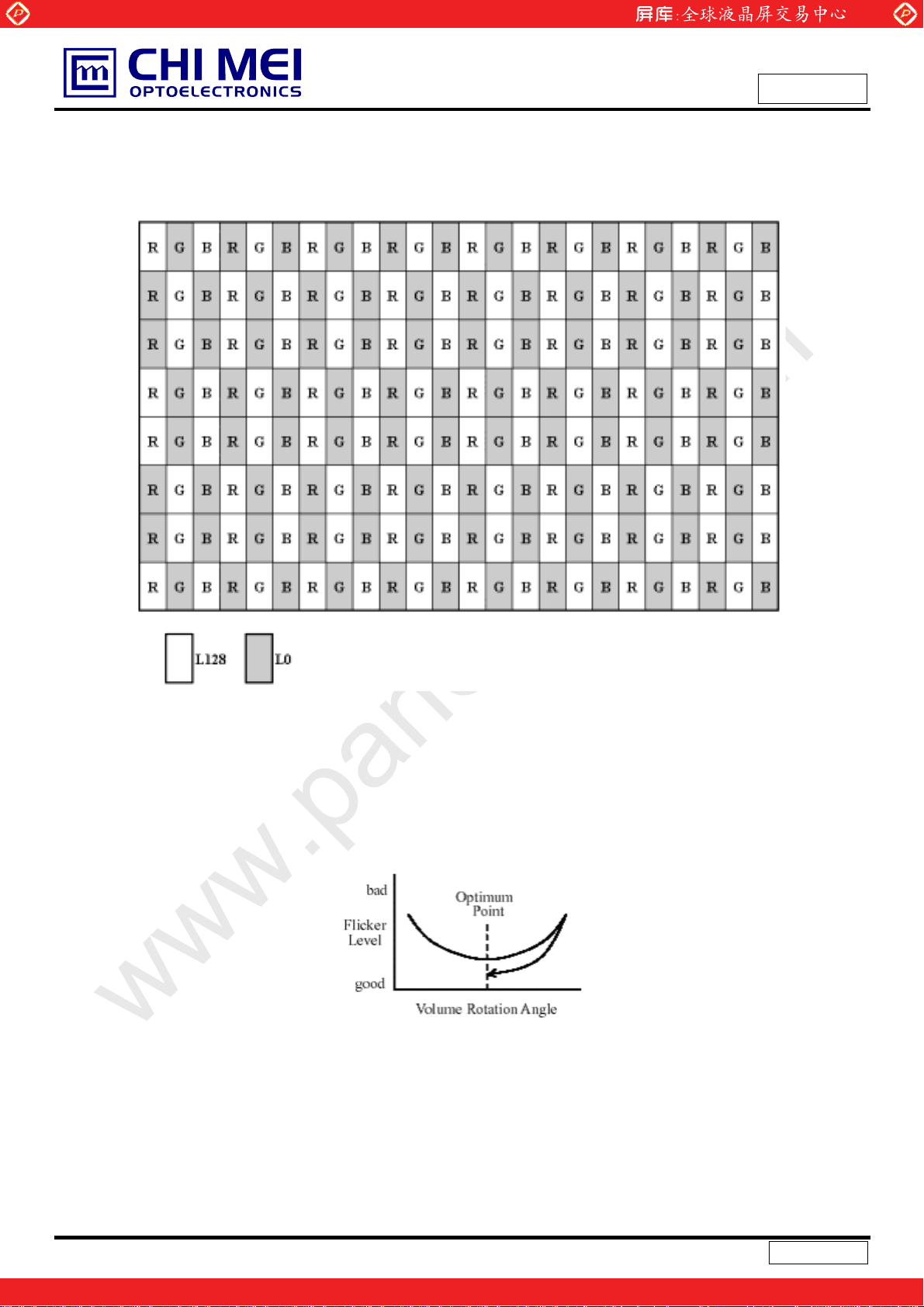

(1) Adjustment Pattern: 2H1V checker pattern as follows.

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

(2) Adjustment Method:

Flicker should be adjusted by turning the volume for flicker adjustment by the ceramic driver. It is

adjusted to the point with least flickering of the whole screen. After making it surely overrun at once, it

should be adjusted to the optimum point.

18 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. PACKAGING

8.1 PACKING SPECIFICATIONS

(1) 24 open cells / 1 Box

(2) Box dimensions: 670 (L) X 575 (W) X 325 (H) mm

(3) Weight: approximately 23.8Kg (24 open cells per box)

8.2 PACKING METHOD

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

LCD Panel

The design packing top layer for empty tray

Carton

19 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

20 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. DEFINITION OF LABELS

9.1 CMO OPEN CELL LABEL

The barcode nameplate is pasted on each OPEN CELL as illustration for CMO internal control.

9.2 CARTON LABEL

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation.

(a) Model Name: V236H1–P02

(b) Carton ID: CMO internal control

(c) Quantities: 24 pcs

21 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10. RELIABILITY TEST

Environment test conditions are listed as following table.

Items Required Condition Note

Temperature Humidity Bias (THB)

High Temperature Operation (HTO)

Low Temperature Operation (LTO)

High Temperature Storage (HTS)

Low Temperature Storage (LTS)

Package Vibration Test

Thermal Shock Test (TST)

www.panelook.com

Issued Date: Oct.19, 2009

Ta= 50к, 80%RH, 240hours

Ta= 50к, 50%RH , 240hours

Ta= 0к, 240hours

Ta= 60к, 240hours

Ta= -20к, 240hours

ISTA STANDARD

1.14Grms Random, Frequency Range: 1 ~ 200 Hz Top & Bottom: 30 minutes (+Z), 10 min (-Z), Right & Left: 10 minutes (X) Back & Forth 10 minutes (Y)

-20к/30min, 60к / 30min, 100 cycles

Doc No.: 400039934

Model No.: V236H1-P02

Approval

(1)

(2)

On/Off Test

Altitude Test

Note (1) The tests are done with LCD modules.

Note (2) The test is done with a package (24 open cells / 1 Box) shown in Section 8.

25к, On/10sec, Off /10sec, 30000 cycles

Operation: 10000 ft / 24hours Non-Operation: 30000 ft / 24hours

(1)

22 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400039934

Issued Date: Oct.19, 2009

Model No.: V236H1-P02

Approval

11. PRECAUTIONS

11.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the product during assembly.

(2) To assemble backlight or install module into user’s system can be only in clean working areas. The

dust and oil may cause electrical short or worsen the polarizer.

(3) It is not permitted to have pressure or impulse on the open cell because it will be damaged.

(4) Always follow the correct power sequence when the product is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the open cell is operating.

(6) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(7) It is dangerous that moisture come into or contacted the product, because moisture may damage the

product when it is operating.

(8) High temperature or humidity may reduce the performance of module. Please store this product within

the specified storage conditions.

(9) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly.

11.2 SAFETY PRECAUTIONS

(1) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(2) After the product’s end of life, it is not harmful in case of normal operation and storage.

11.3 OTHER

(1) When fixed patterns are displayed for a long time, remnant image is likely to occur.

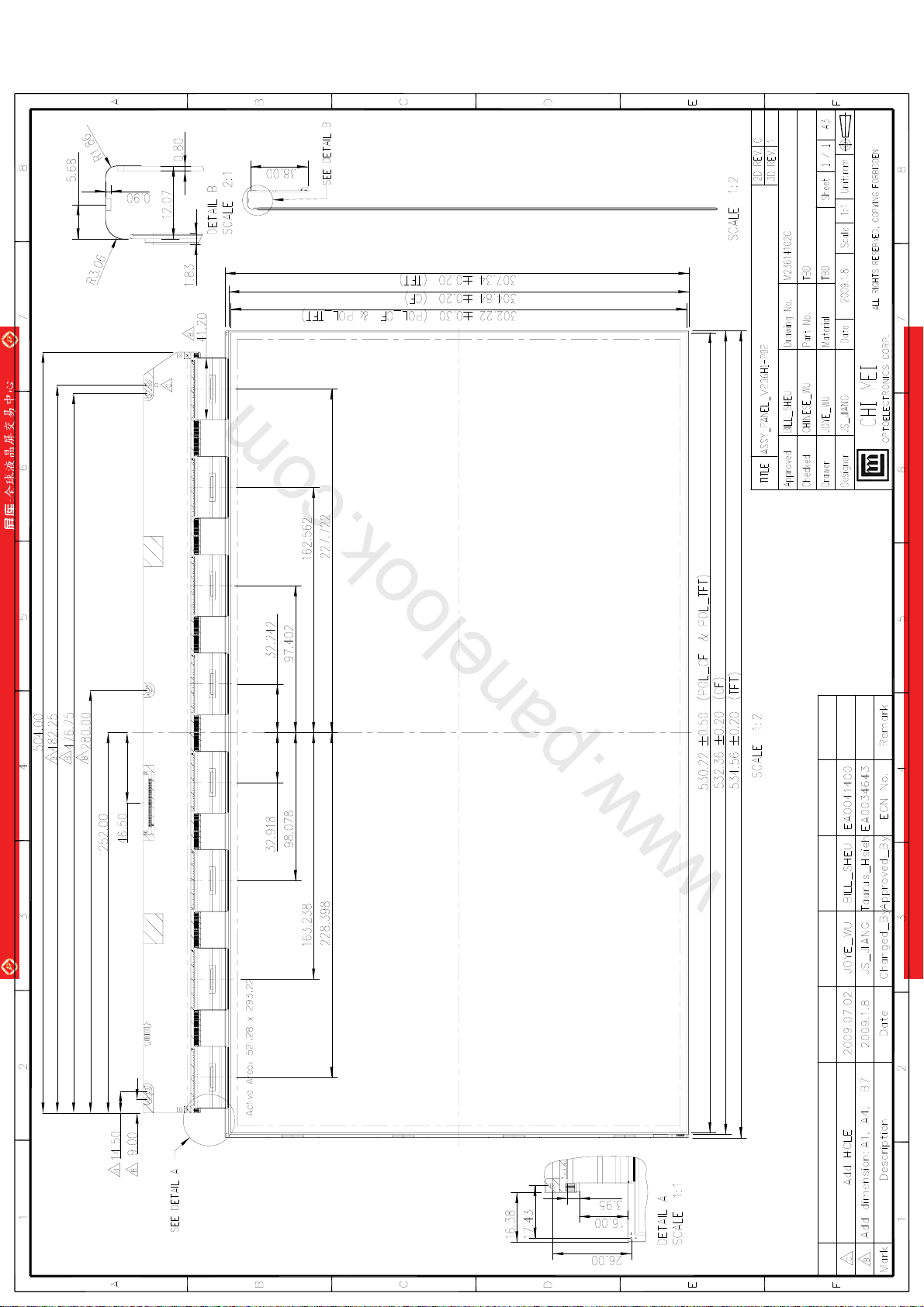

12. MECHANICAL DRAWING

23 / 24

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
