Issued Date: 25, May., 2010

Model No.: V216B1 – P13

TFT LCD Preliminary Specification

MODEL NO.: V216B1 – P13

Customer:

Preliminary

Approved by:

Note:

Approved By

TV Product Marketing & Management Div

Chao-Chun Chung

1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION ------------------------------------------------------- 4

1.1 OVERVIEW

1.2 CHARACTERISTICS

1.3 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE V216B1-L04)

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD OPEN CELL

4. BLOCK DIAGRAM ------------------------------------------------------- 9

4.1 TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10

5.1 TFT LCD MODULE

5.2 LVDS INTERFACE

5.3 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING ------------------------------------------------------- 13

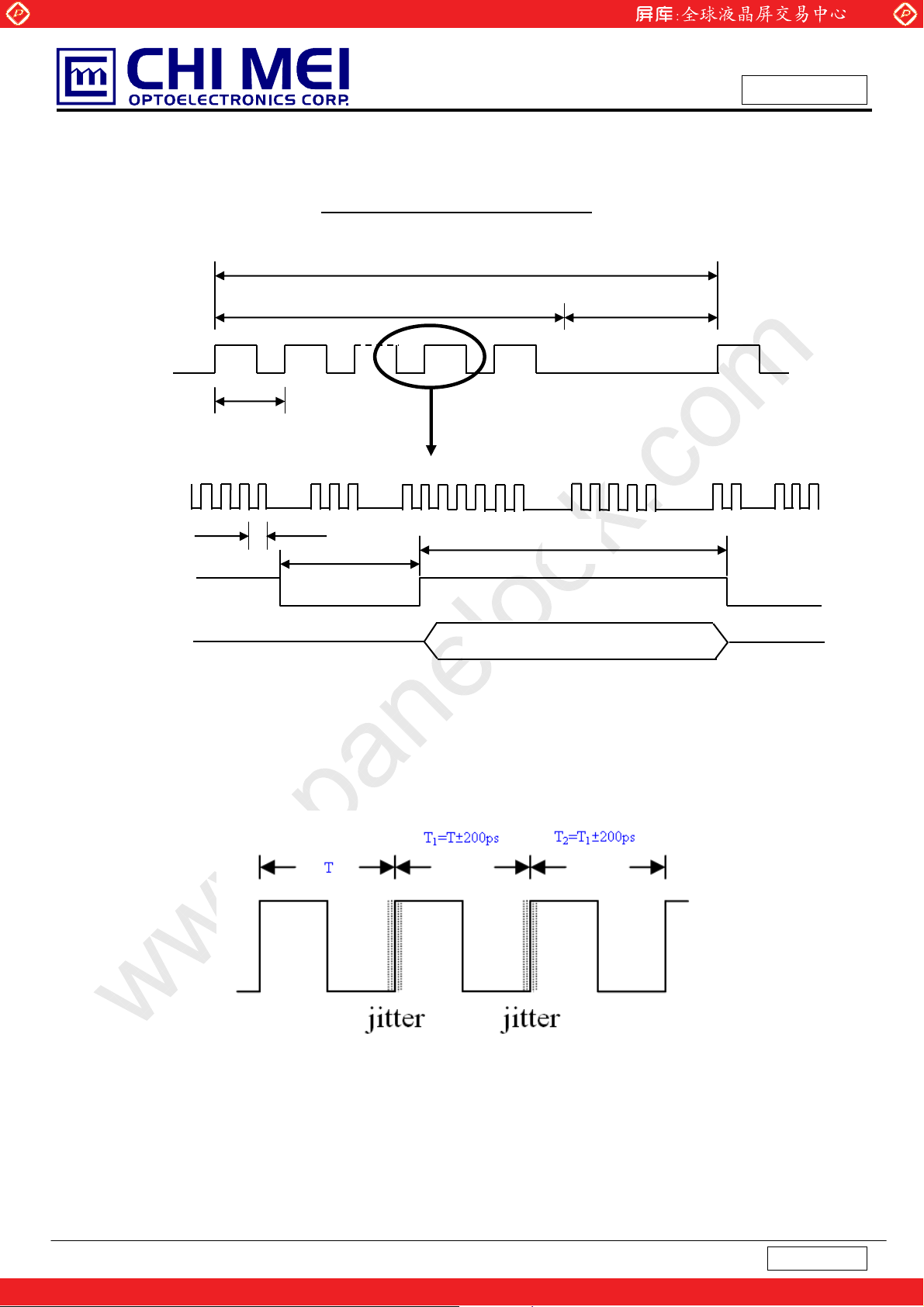

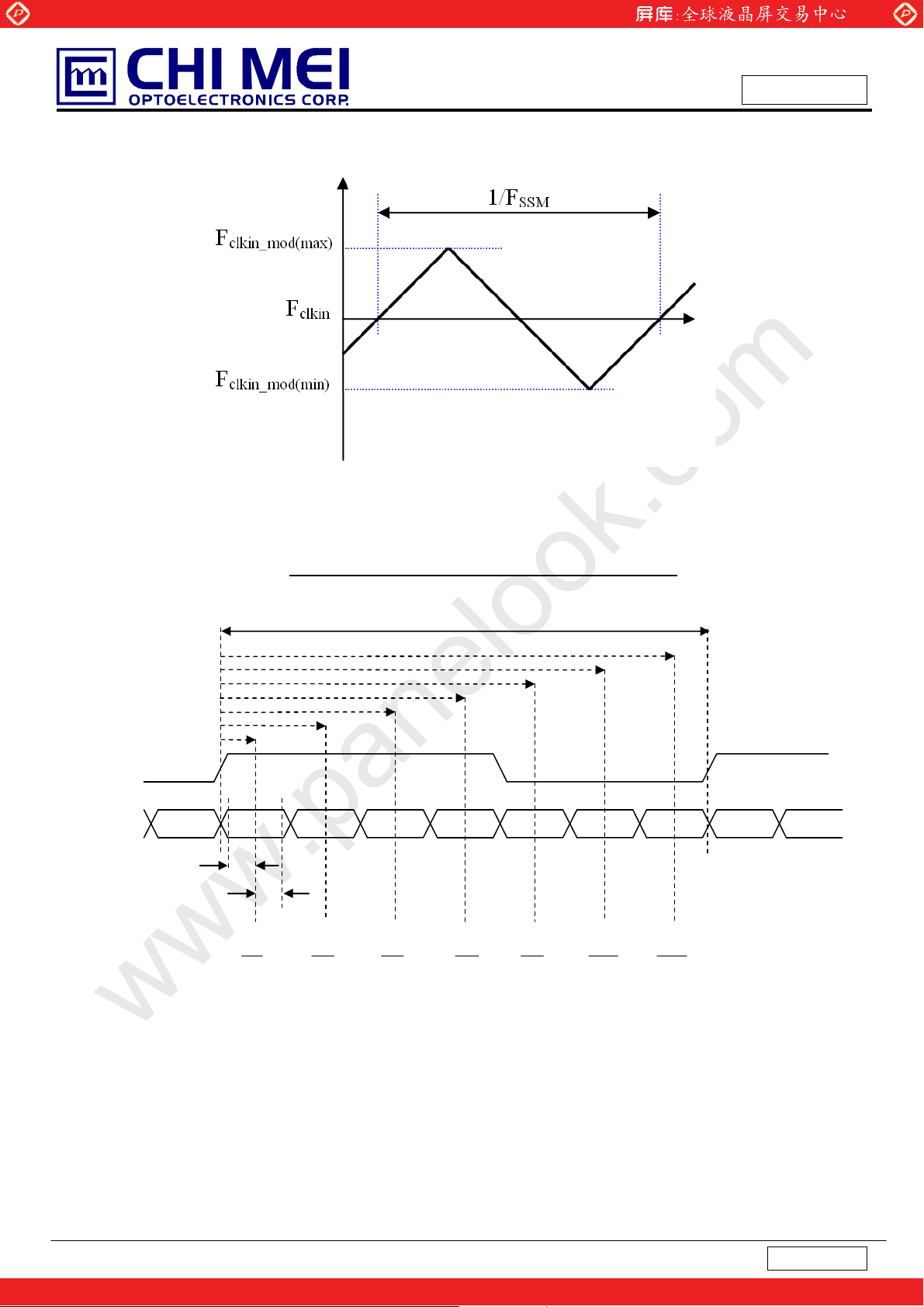

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

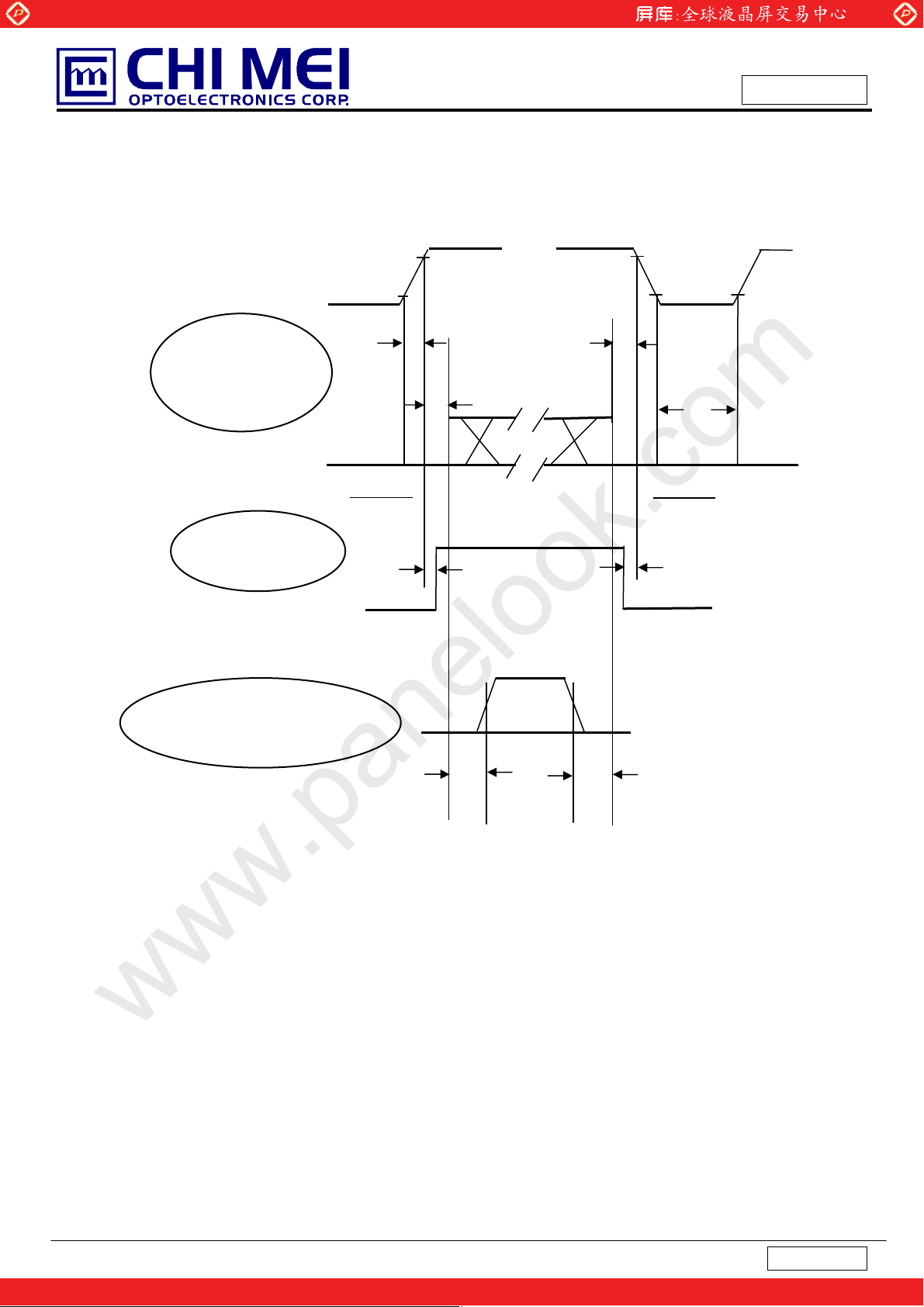

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 17

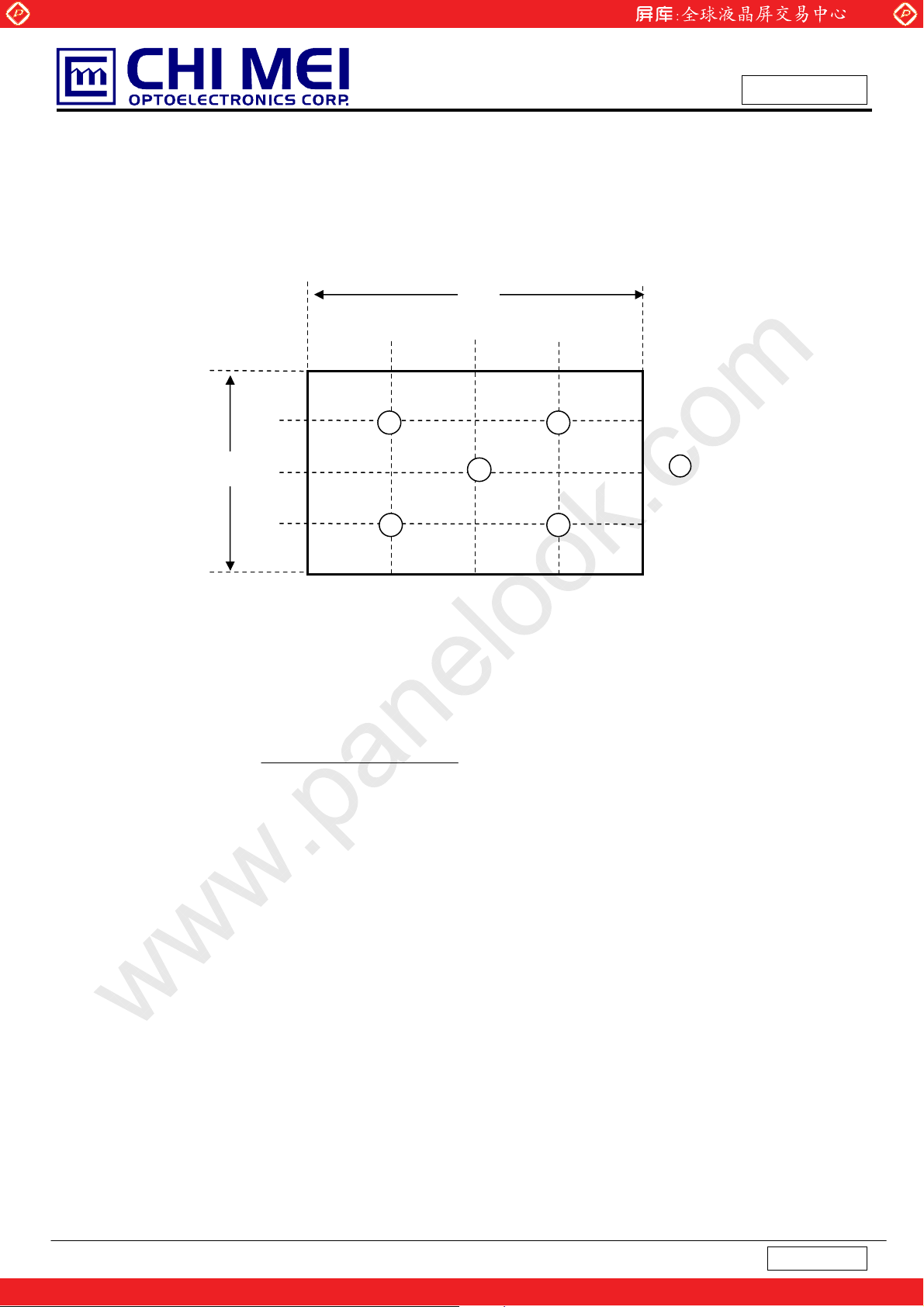

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. DEFINITION OF LABELS ------------------------------------------------------- 21

8.1 OPEN CELL LABEL

8.2 CARTON LABEL

9. PACKAGING ------------------------------------------------------- 22

9.1 PACKING SPECIFICATIONS

9.2 PACKING METHOD

10. PRECAUTIONS ------------------------------------------------------- 24

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

11. REGULATORY STANDARD -------------------------------------------------------- 25

11.1 SAFETY

12. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 26

2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Version Date

Page

(New)

Ver 1.0 May. 25,’10 All

REVISION HISTORY

Section Description

All Preliminary Specification was first issued.

Preliminary

3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V216B1- P13 is a 21.6-inch TFT LCD cell with driver ICs and 1ch-LVDS interface. This module supports

1366 x 768 WXGA format and can display 16.7M colors ( 6-bit+Hi-FRC). The backlight unit is not built in.

1.2 CHARACTERISTICS

CHARACTERISTICS ITEMS SPECIFICATIONS

Screen Diagonal [in] 21.6 Pixels [lines] 1366768

Active Area [mm] 477.417268.416 Sub -Pixel Pitch [mm] 0.1165 (H)0.3495 (V)

Pixel Arrangement RGB vertical stripe

Weight [g] TYP. 600ʳ ʳ

Physical Size [mm] 488.917(W) x 279.916(H) x 1.83(D) Typ. Display Mode TN, Normally White Contrast Ratio 800:1 Typ.

(Typical value measured at CMO’s module) Glass thickness (Array/CF) [mm] 0.7 / 0.7 Viewing Angle (CR>10) +85/-85(H), +80/-80(V) Typ.

(Typical value measured at CMO’s module) Color Chromaticity R=0.6883, 0.3115

G=0.3347,0.5615

B=0.1974,0.1237

W=0.3203,0.3595

*Please refer to “color chromaticity” on p.16

Cell Transparency [и] 7.1%Typ.

(Typical value measured at CMO’s module) Polarizer (CF side) Anti-Glare coating, (Haze 11%)

484.4(H) x 275.8(w), Hardness: 3H

Polarizer (TFT side) 484.4(H) x 275.8 (w)

1.3 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Weight - 600 - g -

I/F connector mounting position

Note (1) Connector mounting position

The mounting inclination of the connector makes the screen center within ±0.5mm as the horizontal.

+/- 0.5mm

- (1)

4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE V216B1-L04)

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S

Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The maximum operating temperature is based on the test condition that the surface temperature of

display area is less than or equal to 65 ºC with LCD module alone in a temperature controlled chamber.

Thermal management should be considered in final product design to prevent the surface temperature of

display area from being over 65 ºC. The range of operating temperature may degrade in case of improper

Љ

40 ºC).

NOP

Min. Max.

Ё

Value

50 G (3), (5)

1.0 G (4), (5)

Unit Note

thermal management in final product design.

Note (3) 11 ms, half sine wave, 1 time for ± X, ± Y, ± Z.

Note (4) 10 ~ 500 Hz, 10 min, 1 time each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

10

Storage Range

Temperature (ºC)

5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

80 60 -20 40 0 20 -40

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

Storage Condition: With shipping package.

Storage temperature range: 25±5

Storage humidity range: 50±10%RH

Shelf life: a month

2.3 ELECTRICAL ABSOLUTE RATINGS

2.3.1 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

Item Symbol

Power Supply Voltage Vcc -0.3 6.0 V Input Signal Voltage VIN -0.3 3.6 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

к

Value

Min. Max.

Unit Note

(1)

6

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

Parameter Symbol

Power Supply Voltage VCC 4.5 5.0 5.5 V (1) Rush Current I

White - 0.40 - A

Power Supply Current

Differential Input High

Threshold Voltage LVDS Interface

Differential Input Low

Threshold Voltage

Common Input Voltage V

Differential input voltage |VID| 200 - 600 mV

Terminating Resistor R

Input High Threshold Voltage VIH 2.7 - 3.3 V - CMOS interface

Input Low Threshold Voltage V

Note (1) The module should be always operated within above ranges.

Black - 0.53 0.61 A Vertical Stripe

Ta = 25 ± 2 ºC

Value

Min. Typ. Max.

- - 3.0 A (2)

RUSH

Unit Note

ICC

- 0.50 - A

+100 - - mV

V

LVT H

- - -100 mV

V

LVTL

1.0 1.2 1.4 V

LVC

- 100 - ohm

T

0 - 0.7 V -

IL

(3)

(4)

Note (2) Measurement Conditions:

+12.0V

R1

200K

(Low to High)

(Control Signal)

SW

R2

1K

Vcc rising time is 470us

Q1 AO4409

2N7002

Q2

47K

VR1

C1

10uF

+5V

FUSE

C3

1uF

Vcc

(LCD Module Input)

0.9Vcc

0.1Vcc

GND

470us

7

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

Note (3) The specified power supply current is under the conditions at Vcc = 5 V, Ta = 25 ± 2 ºC, fv = 60 Hz,

whereas a power dissipation check pattern below is displayed.

a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

Note (4) The LVDS input characteristics are as follows:

Active Area

R

G

R

B

G

R

B

G

R R

G

B

R

G

B

R

8

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

TFT LCD PANEL

BACKLIGHT UNIT CONNECTOR

LVDS SIGNAL INPUT

Connector Part No.:

(1366x3x768)

CP0404S0000(CviLux)

X BOARD

JAE: FI-X30SSL-HF or P-TW 187053-30091

Preliminary

9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

y

(2)

g

k

(2)

(3)

(2)

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

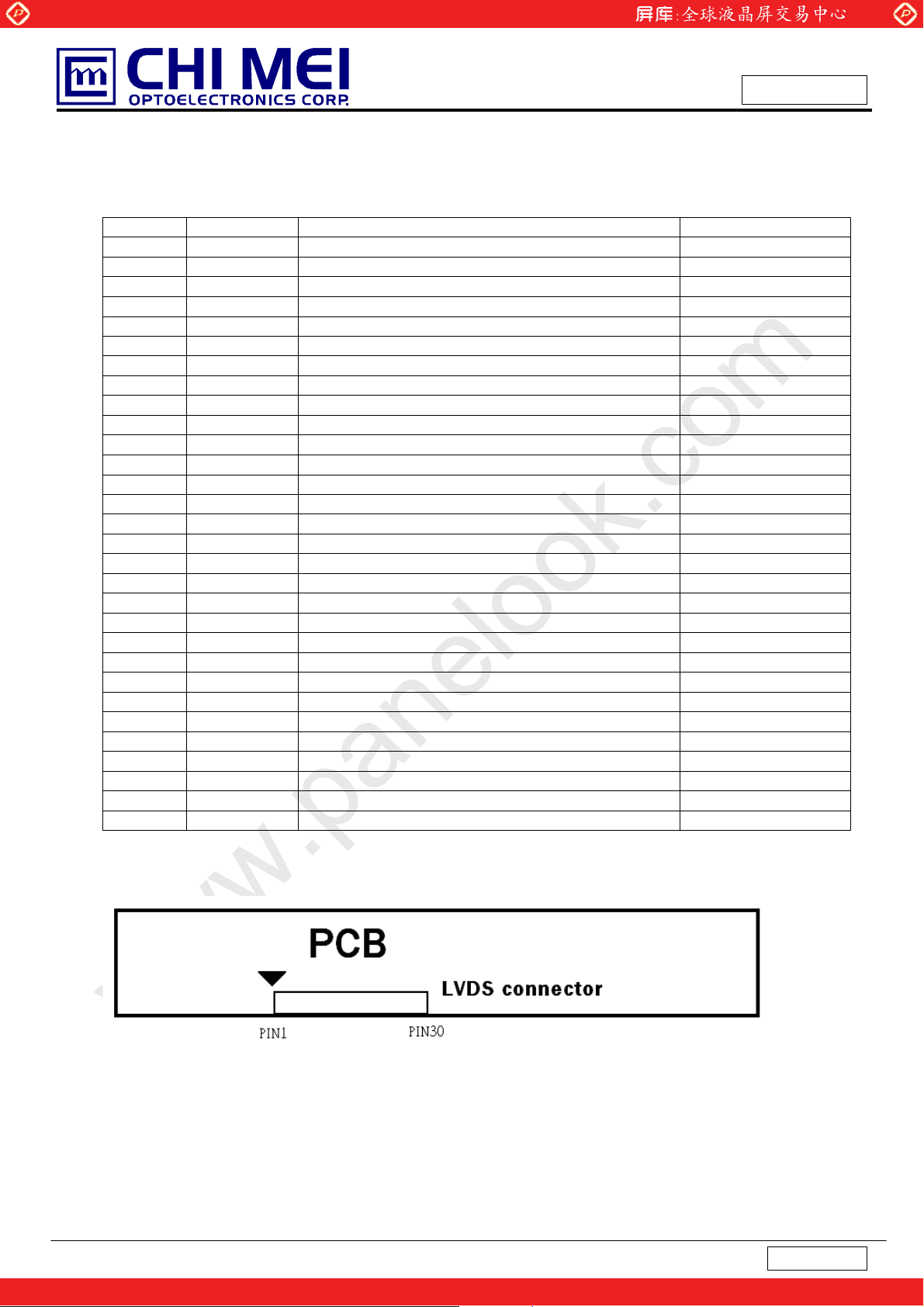

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

CN1 Connector Pin Assignment

Pin No. S

1 NC No connection 2 NC No connection 3 NC No connection 4 GND Ground 5RX0- Ne 6 RX0+ Positive transmission data of pixel 0 7 GND Ground 8RX1- Ne

9 RX1+ Positive transmission data of pixel 1 10 GND Ground 11 RX2- Negative transmission data of pixel 2 12 RX2+ Positive transmission data of pixel 2 13 GND Ground 14 RXCLK- Negative of cloc 15 RXCLK+ Positive of cloc 16 GND Ground 17 RX3- Negative transmission data of pixel 3 18 RX3+ Positive transmission data of pixel 3 19 GND Ground 20 NC No connection 21 SELLVDS Select LVDS data format 22 NC No connection 23 GND Ground 24 GND Ground 25 GND Ground 26 VCC Power supply: +5V 27 VCC Power supply: +5V 28 VCC Power supply: +5V 29 VCC Power supply: +5V 30 VCC Power supply: +5V -

Note (1)

Connector part no.: JAE FI-X30SSL-HF or P-TWO 187053-30091

LVDS connector pin orderdefined as follows

mbol Description Note

ative transmission data of pixel 0 -

ative transmission data of pixel 1 -

Preliminary

-

Note (2) Reserved for internal use. Please leave it open.

Note (3) High or OPEN: Normal, Ground: JEIDA LVDS format

Please refer to 5.2 LVDS INTERFACE (Page 11)

10

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

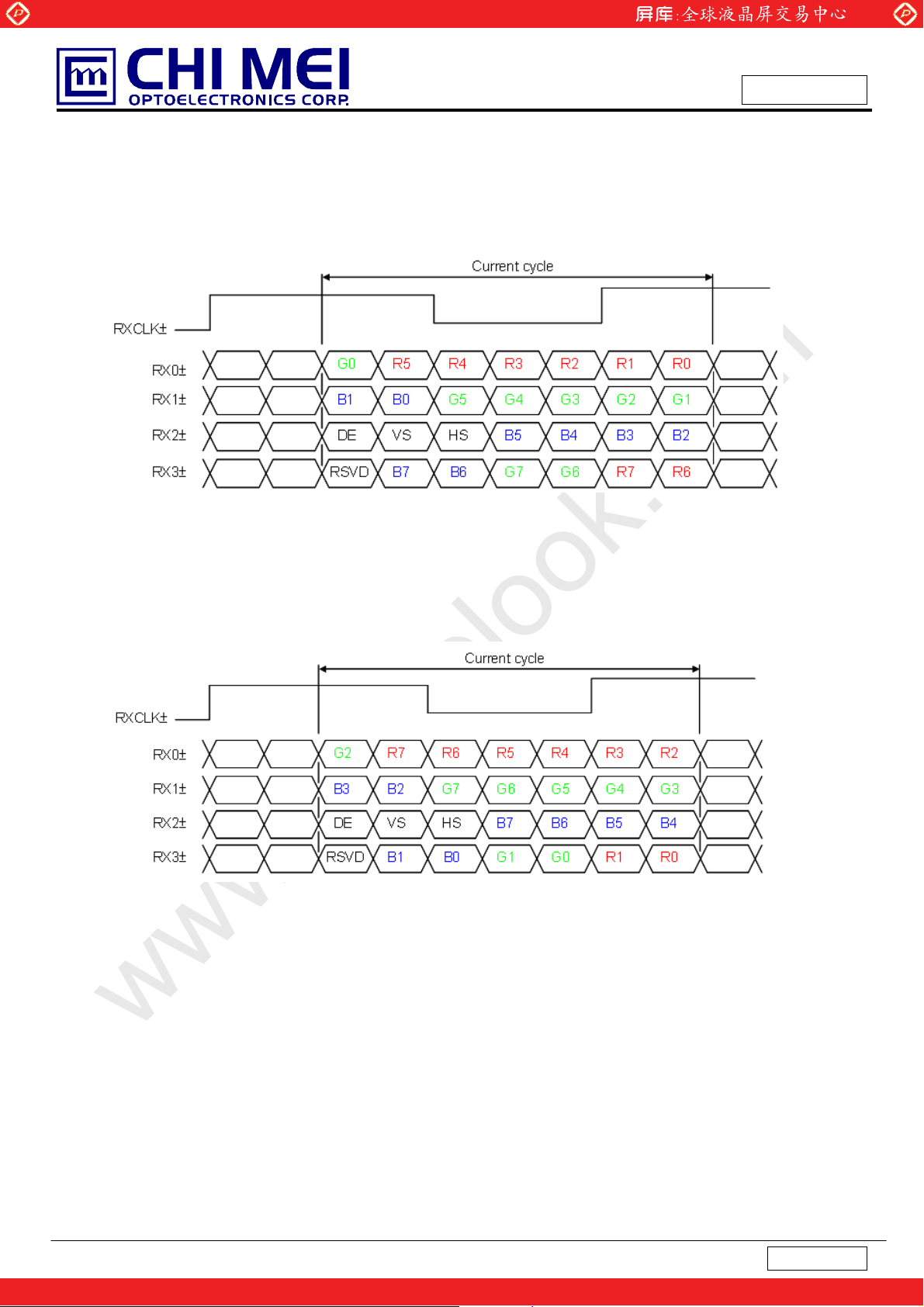

5.2 LVDS INTERFACE

SELLVDS = H or Open (VESA)

Preliminary

SELLVDS = L (JEIDA)

R0~R7: Pixel R Data (7; MSB, 0; LSB)

G0~G7: Pixel G Data (7; MSB, 0; LSB)

B0~B7: Pixel B Data (7; MSB, 0; LSB)

DE : Data enable signal

Notes(1) RSVD(reserved)pins on the transmitter shall be “H” or “L”.

11

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Data Signal

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

0

Black

Red

Green

Basic

Colors

Gray

Scale

Of

Red

Gray

Scale

Of

Green

Gray

Scale

Of

Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue

Cyan

Magenta

Yellow

White

Red(0) / Dark

Red(1)

Red(2)

:

Red(253)

Red(254)

Red(255)

Green(0) / Dark

Green(1)

Green(2)

:

Green(253)

Green(254)

Green(255)

Blue(0) / Dark

Blue(1)

Blue(2)

:

Blue(253)

Blue(254)

Blue(255)

0

1

0

1

0

:

1

0

:

0

:

0

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

:

0

:

0

:

1

0

:

0

1

0

1

0

:

0

1

0

:

0

1

0

1

0

:

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

1

0

1

0

:

1

0

1

0

1

12

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Item Symbol Min. Typ. Max. Unit Note

F

LVDS

Receiver

Clock

LVDS

Receiver

Data

Frequency

clkin

(=1/TC)

Input cycle to

T

- - 200 ps (3)

clkin_mo

F

rcl

d

cycle jitter

Spread spectrum

modulation range

Spread spectrum

F

modulation frequency

SSM

Setup Time Tlvsu 600 - - ps

Hold Time Tlvhd 600 - - ps

60 76 82 MHz -

-2% - F

F

clkin

+2% MHz

clkin

- - 200 KHz

Preliminary

(4)

(5)

Fr5 47 50 53 Hz

Vertical

Active

Frame Rate

57 60 63 Hz

F

r6

Total Tv 778 806 1050 Th Tv=Tvd+Tvb

-

Display

Term

Display Tvd 768 768 768 Th -

Blank Tvb 10 38 282 Th -

Horizontal

Active

Total Th 1442 1560 1936 Tc Th=Thd+Thb

Display Thd 1366 1366 1366 Tc -

Display

Term

Blank Thb 76 194 570

“Enlarging Vtotal from Max 888Th to 1050Th is OK, provided that both pixel clock & Htotal are within the

specified range in the spec.”

Note (1) Please make sure the range of pixel clock has follow the below equation

Fclkin(max)

Fr5

Ѽ

Њ

Fr6 Ѽ Tv Ѽ Th

Tv Ѽ Th Њ Fclkin(min)

Κ

Note (2) This module is operated in DE only mode and please follow the input signal timing diagram below

Κ

13

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

INPUT SIGNAL TIMING DIAGRAM

DE

Th

DCLK

Tvd

Tv

Tvb

Thd

Note (3) The input clock cycle-to-cycle jitter is defined as below figures. Trcl = I T

DE

DATA

Valid display data (1366 clocks)

– TI

1

14

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Note (4) The SSCG (Spread spectrum clock generator) is defined as below figures.

Note (5) The LVDS timing diagram and setup/hold time is defined and showing as the following figures.

Preliminary

RXCLK+/-

RXn+/-

Tlvsu

Tlvhd

1T

14

LVDS RECEIVER INTERFACE TIMING DIAGRAM

Tc

3T

14

5T

14

7T

14

9T

14

11T

14

13T

14

15

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the diagram

below.

0.5

ЉЉЉЉ

0

ЉЉЉЉ

0

1s

T

1

ЉЉЉЉ

T

2

ЉЉЉЉ

T

3

ЉЉЉЉ

T4

0V

10ms

50ms

0.1V

CC

T

3

T1

2

T

LVDS Signals

0V

Power On

VALI D

Power Off

0

ЉЉЉЉ

T

7

ЉЉЉЉ

0

Option Signals

(SELLVDS)

T2

ЉЉЉЉ

T

8

ЉЉЉЉ

T3

T7

0.1V

T

cc

T4

8

Backlight (Recommended)

ЉЉЉЉ

500ms

100ms

T5

ЉЉЉЉ

T

6

50%

5

T

50%

6

T

Power ON/OFF Sequence

Note (1) The supply voltage of the external system for the module input should follow the definition of Vcc.

Note (2) Apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become

abnormal screen.

Note (3) In case of Vcc is in off level, please keep the level of input signals on the low or high impedance. If

T2<0,that maybe cause electrical overstress failure.

Note (4) T4 should be measured after the module has been fully discharged between power off and on period.

Note (5) Interface signal shall not be kept at high impedance when the power is on.

16

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha

25±2

50±10 Supply Voltage VCC 12.0 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Lamp Current IL Oscillating Frequency (Inverter) FW

Vertical Frame Rate

Fr 60 Hz

7.5 ± 0.5 66 ± 3

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown as below. The following items

should be measured under the test conditions described in 7.1 and stable environment shown in Note (5).

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Rcx

Rcy

0.6883

0.3115

o

C

%RH

mA

KHz

-

Color

Chromaticity

Green

Gcx

Gcy

Bcx

θ

=0°, θY =0°

x

Viewing Angle at Normal

Direction

0.3347

0.5615

-

0.1974

-

(0),(5)

-

Blue

Bcy

Wcx

Standard light source “C”

0.1237

0.3203

-

White

Wcy

Center Transmittance T% - 7.1 - % (1),(7)

Contrast Ratio CR

TR -

Response Time

with CMO Module@60Hz

T

F

White Variation

δW

=0°, θY =0°

θ

x

with CMO module

=0°, θY =0°

θ

x

θ

=0°, θY =0°

x

- 800

-

- - 1.3 - (1),(6)

0.3595

- (1),(3)

1.3 -

3.7 -

-

ms

(4)

ms

with CMO module

θx+ - 80 -

Horizontal

Viewing

Angle

- - 80 -

θ

x

θY+

CR≥10

With CMO module

- 80 -

Deg. (1),(2)

Vertical

θ

-

Y

- 70 -

17

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

Note (0) Light source is the standard light source ”C” which is defined by CIE and driving voltage are based on

suitable gamma voltages. The calculating method is as following:

1. Measure Module’s and BLU’s spectrum. White is without signal input and R, G, B are with signal input.

BLU (for V216B1-L04) is supplied by CMO.

2. Calculate cell’s spectrum.

3. Calculate cell’s chromaticity by using the spectrum of standard light source “C”.

Note (1) Light source is the BLU which is supplied by CMO and driving voltage are based on suitable gamma

voltages.

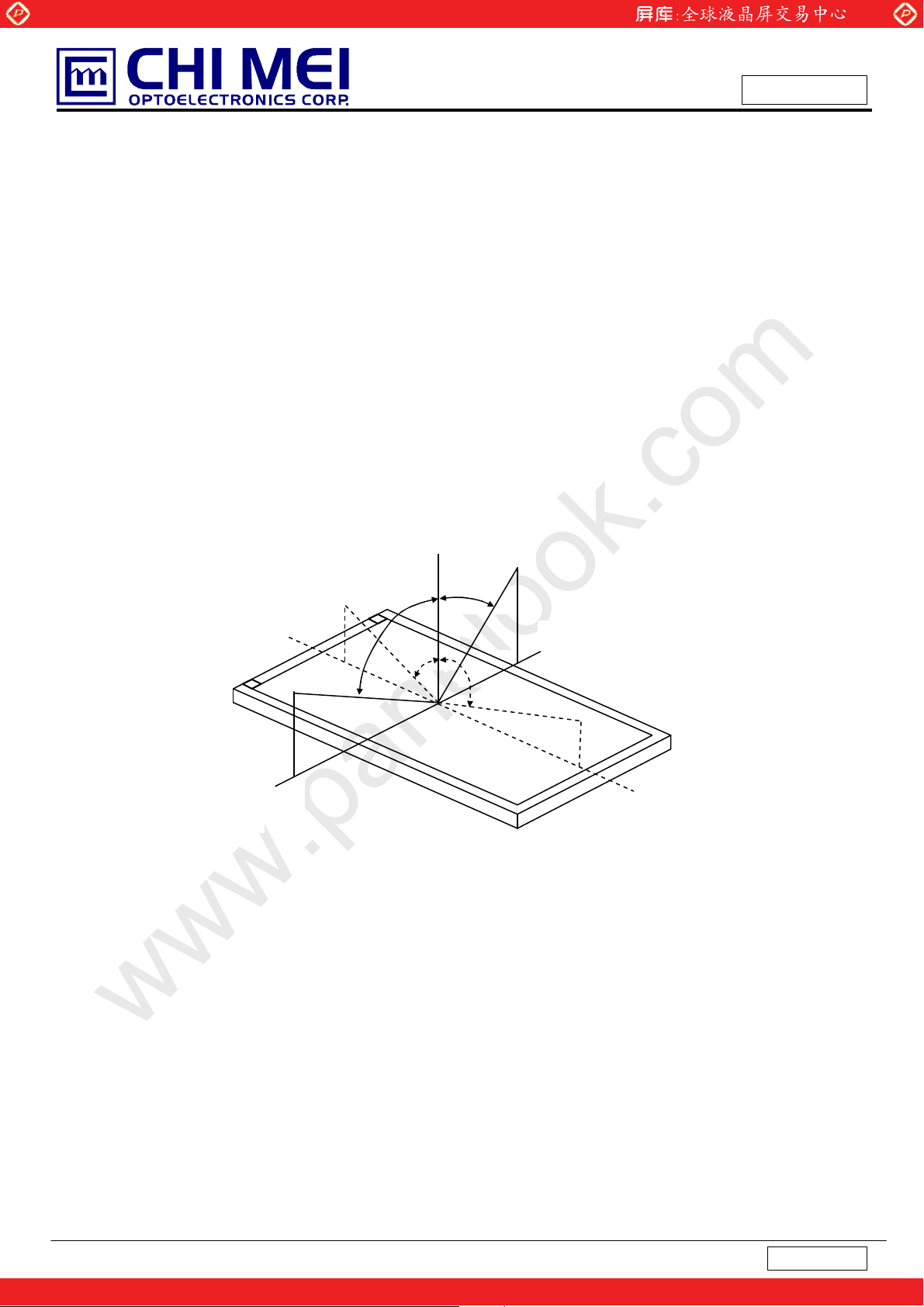

Note (2) Definition of Viewing Angle (θx, θy):

Viewing angles are measured by Autronic Conoscope Cono-80.

Normal

θx = θy = 0º

Note (3) Definition of Contrast Ratio (CR):

θX- = 90º

6 o’clock

θ

y-

= 90º

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L255 / L0

L255: Luminance of gray level 255

x-

y-

θy- θy+

θx−

θx+

12 o’clock direction

y+

θ

y+

= 90º

x+

θX+ = 90º

L 0: Luminance of gray level 0

CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in

Note (6).

18

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

T

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

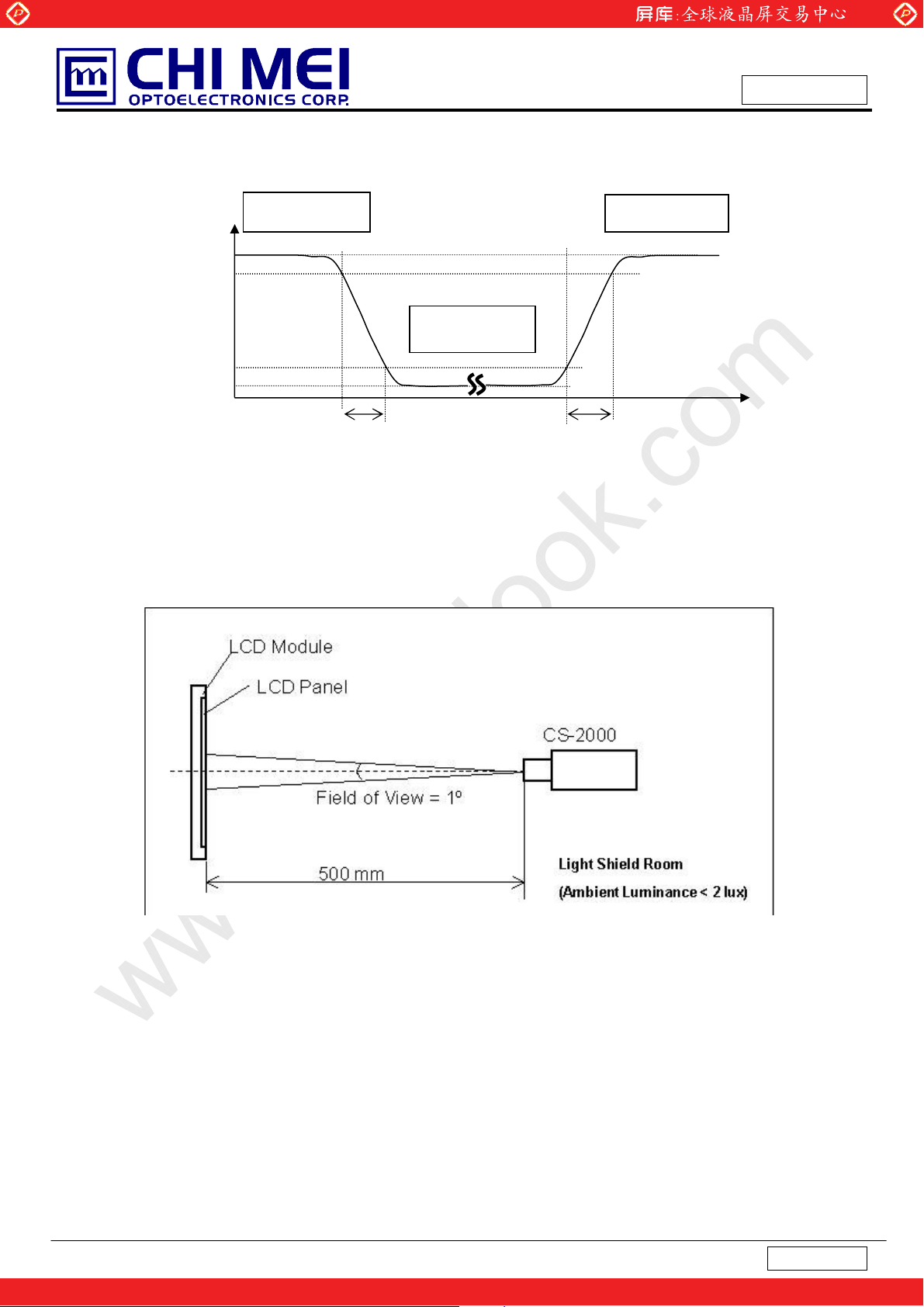

Note (4) Definition of Response Time (TR, TF):

Gray Level 255

100%

90%

Optical

Response

10%

0%

TR

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt temperature

change during measuring. In order to stabilize the luminance, the measurement should be

Preliminary

Gray Level 0

T

Gray Level 255

F

ime

executed after lighting Backlight for 1 hour in a windless room.

19

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 255 at 5 points

δW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

W

W/4

W/2

3W /4

Vertical Line

Horizontal Line

D

D/4 D/2 3D/4

1 2

: Test Point

5

3 4

X

X=1 to 5

Preliminary

Note (7) Definition of Transmittance (T%) :

Module is without signal input.

Transmittance = * 100%

Luminance of LCD module

Luminance of backlight

Active Area

20

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

8. DEFINITION OF LABELS

8.1 OPEN CELL LABEL

The barcode nameplate is pasted on each open cell as illustration for CMO internal control.

V216B1-P13 Rev.

XXXXXXXXXXXXXXX

8.2 CARTON LABEL

The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation

P.O. NO.

Parts ID.

Preliminary

(a) Model Name: V216B1– P13

Carton ID.

XXXXXXXXXXXXXX

Made in Taiwan

P.O. NO.

Parts ID.

Carton ID.

XXXXXXXXXXXXXX

Made in China

Quantities 27

(b) Carton ID: CMO internal control

(c) Quantities: 27

21

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

e

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

9. PACKAGING

9.1 PACKING SPECIFICATIONS

(1) 27 PCS LCD TV Panels / 1 Box

(2) Box dimensions : 640 (L) X 490 (W) X 320 (H)

(3) Weight : approximately 24 Kg

9.2 PACKING METHOD

Figures 9-1 and 9-2 are the packing method

LCD Panel

The design packing top layer for empty tray

Preliminary

LCD Panel

Carton

Carton Lab

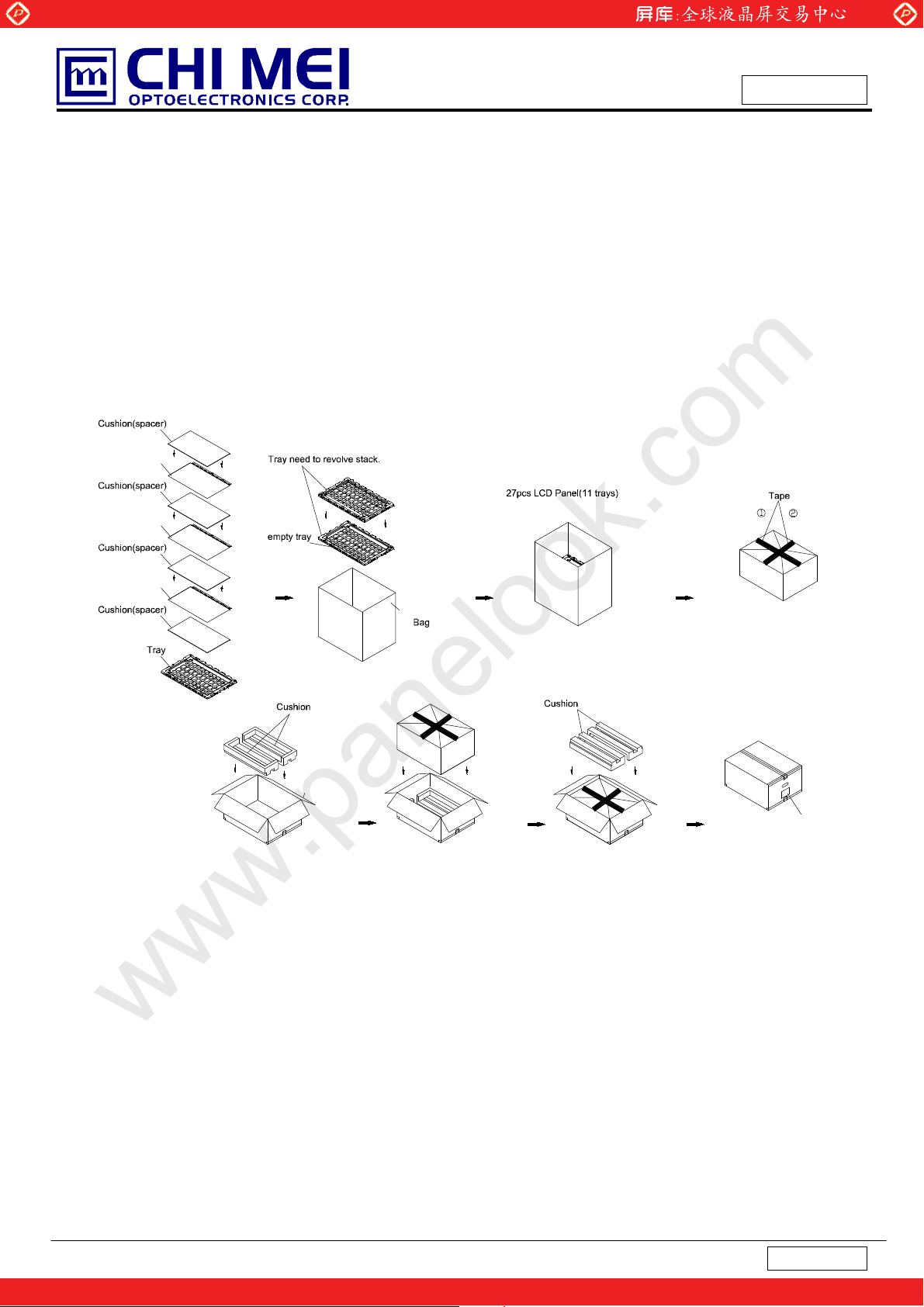

Figure.9-1 packing method

22

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Film

PE Sheet

PP Belt

Film

Preliminary

PE Sheet

PP Belt

Carton Label

PE Sheet

PP Belt

Film

Carton Label

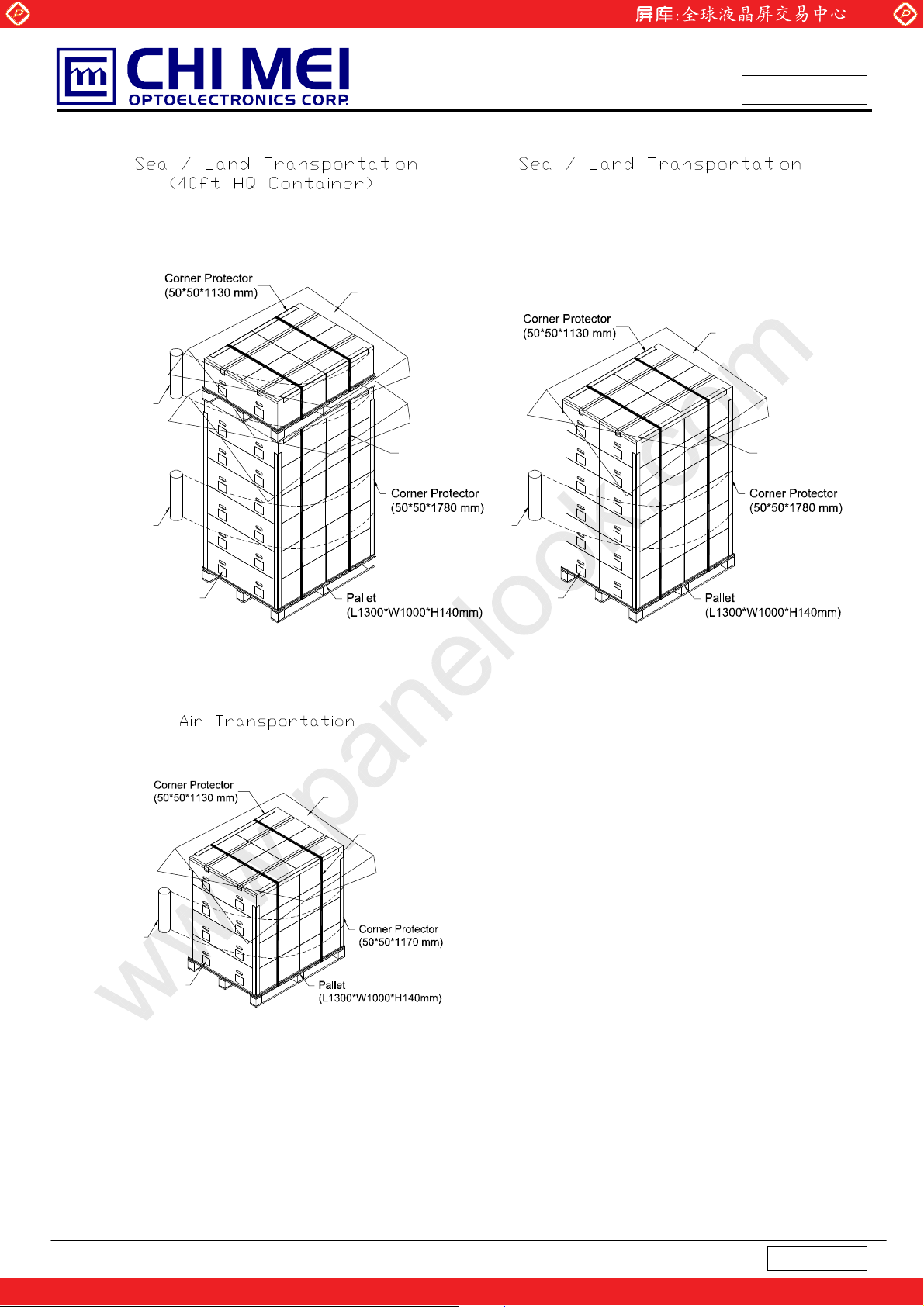

Figure.9-2 packing method

23

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

Preliminary

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the product during assembly.

(2) To assemble backlight or install module into user’s system can be only in clean working areas. The

dust and oil may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel will be damaged.

(4) Always follow the correct power sequence when the product is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(7) It is dangerous that moisture come into or contacted the product, because moisture may damage the

product when it is operating.

(8) High temperature or humidity may reduce the performance of module. Please store this product within

the specified storage conditions.

(9) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly.

10.2 SAFETY PRECAUTIONS

(1) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of

contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(2) After the product’s end of life, it is not harmful in case of normal operation and storage.

24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

11. REGULATORY STANDARDS

11.1

SAFETY

Information Technology equipment

Audio/Video Apparatus

Regulatory Item Standard

UL UL 60950-1: 2003

cUL CAN/CSA C22.2 No.60950-1-03

CB IEC 60950-1:2001

UL

UL 60065: 2003

cUL CAN/CSA C22.2 No.60065-03

CB

IEC 60065:2001

Preliminary

25

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 25, May., 2010

Model No.: V216B1 – P13

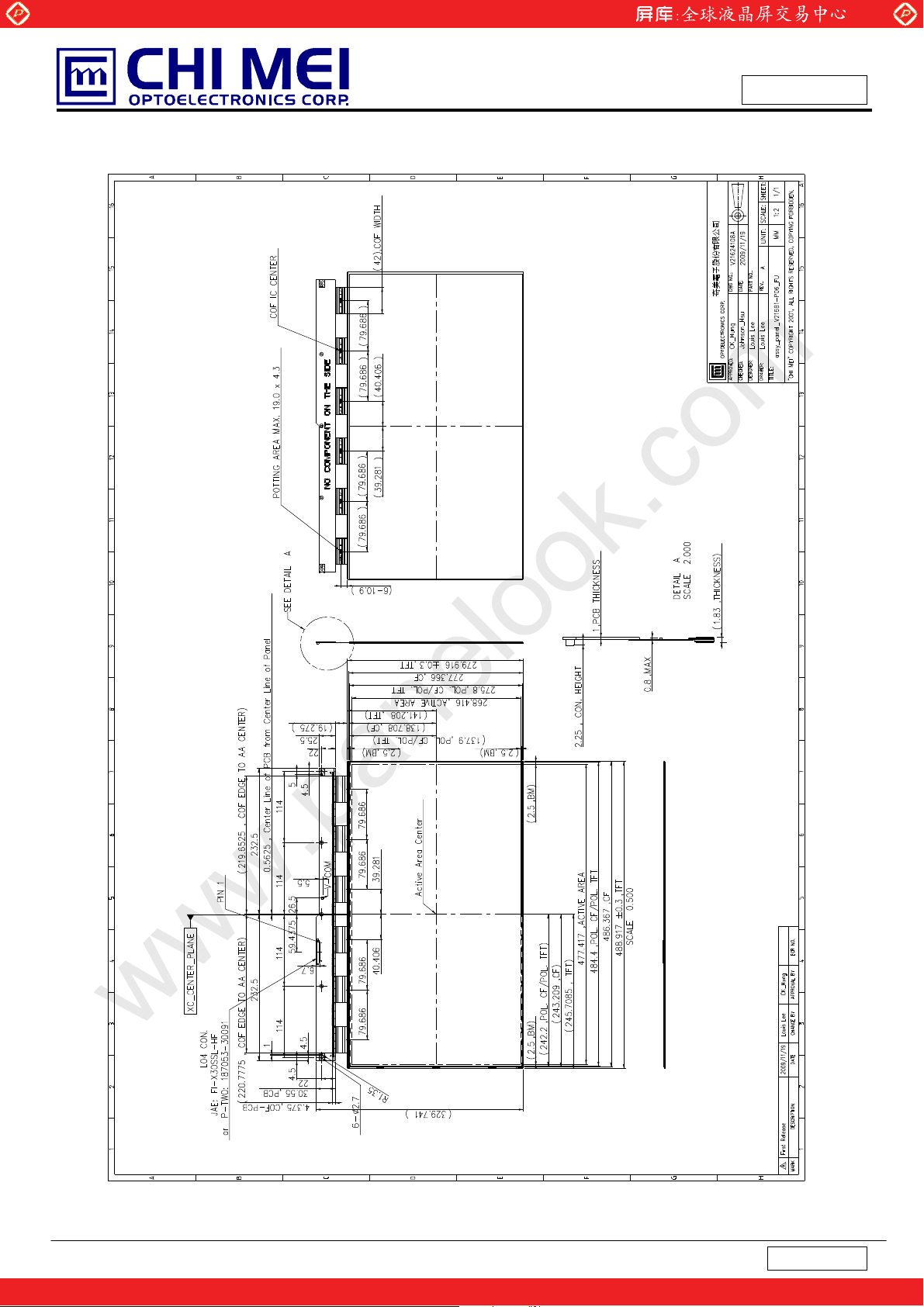

12. MECHANICAL CHARACTERISTICS

Preliminary

CHI MEI

26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com
