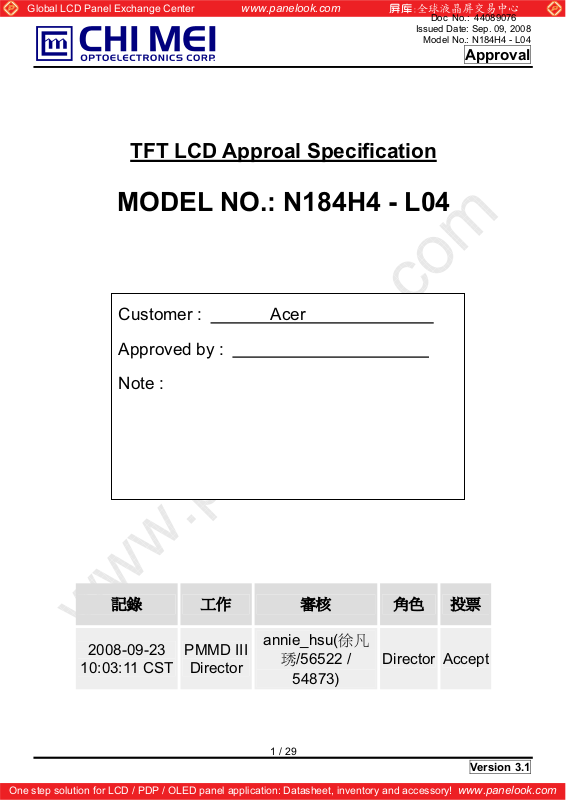

TFT LCD Approal Specification
MODEL NO.: N184H4 - L04
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
Customer : Acer
pproved by :
Note :
annie_hsu(ஊՅ
2008-09-23
10:03:11 CST
PMMD III
Director
≮/56522 /
DirectorAccept
54873)
1 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

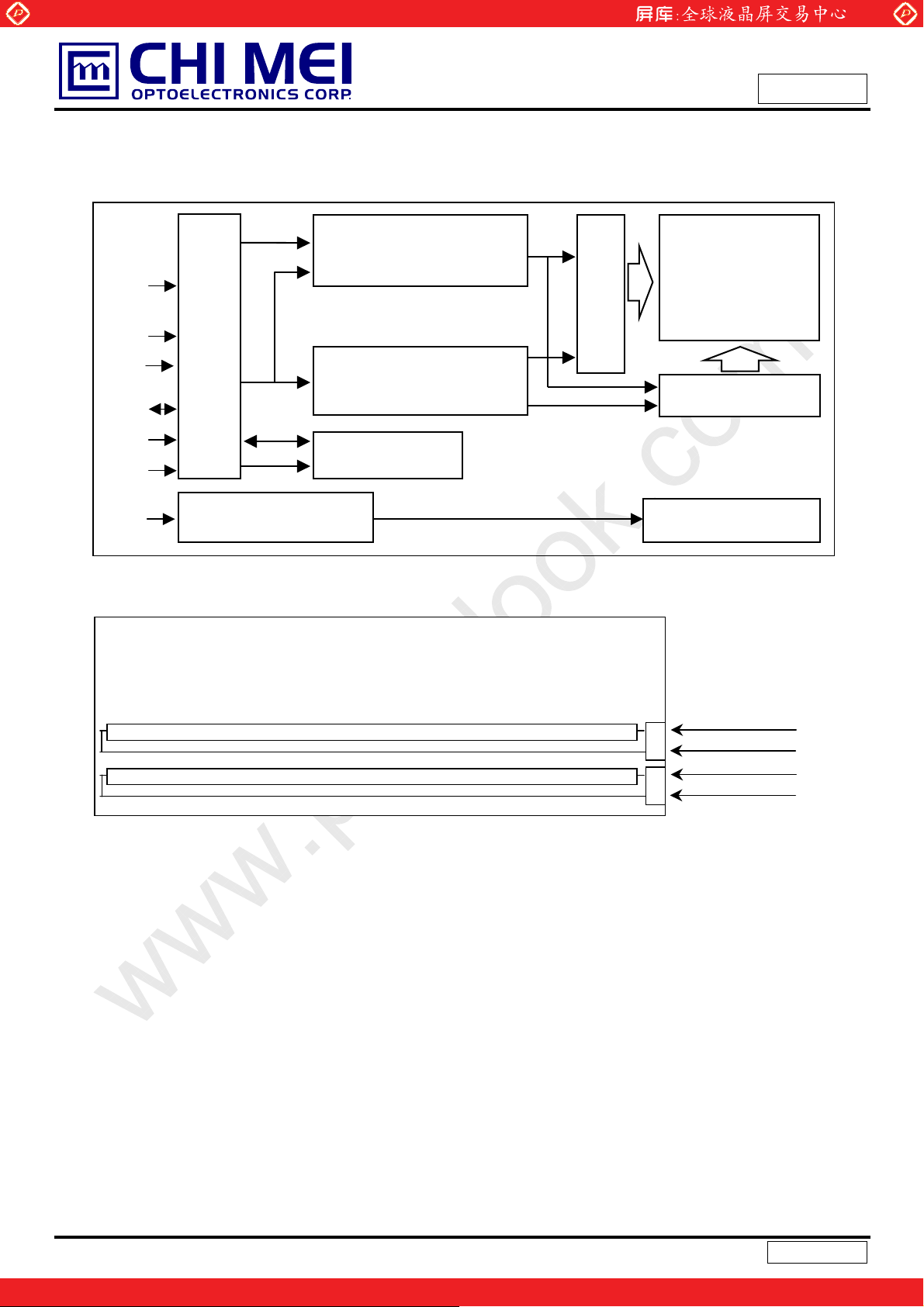

4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT

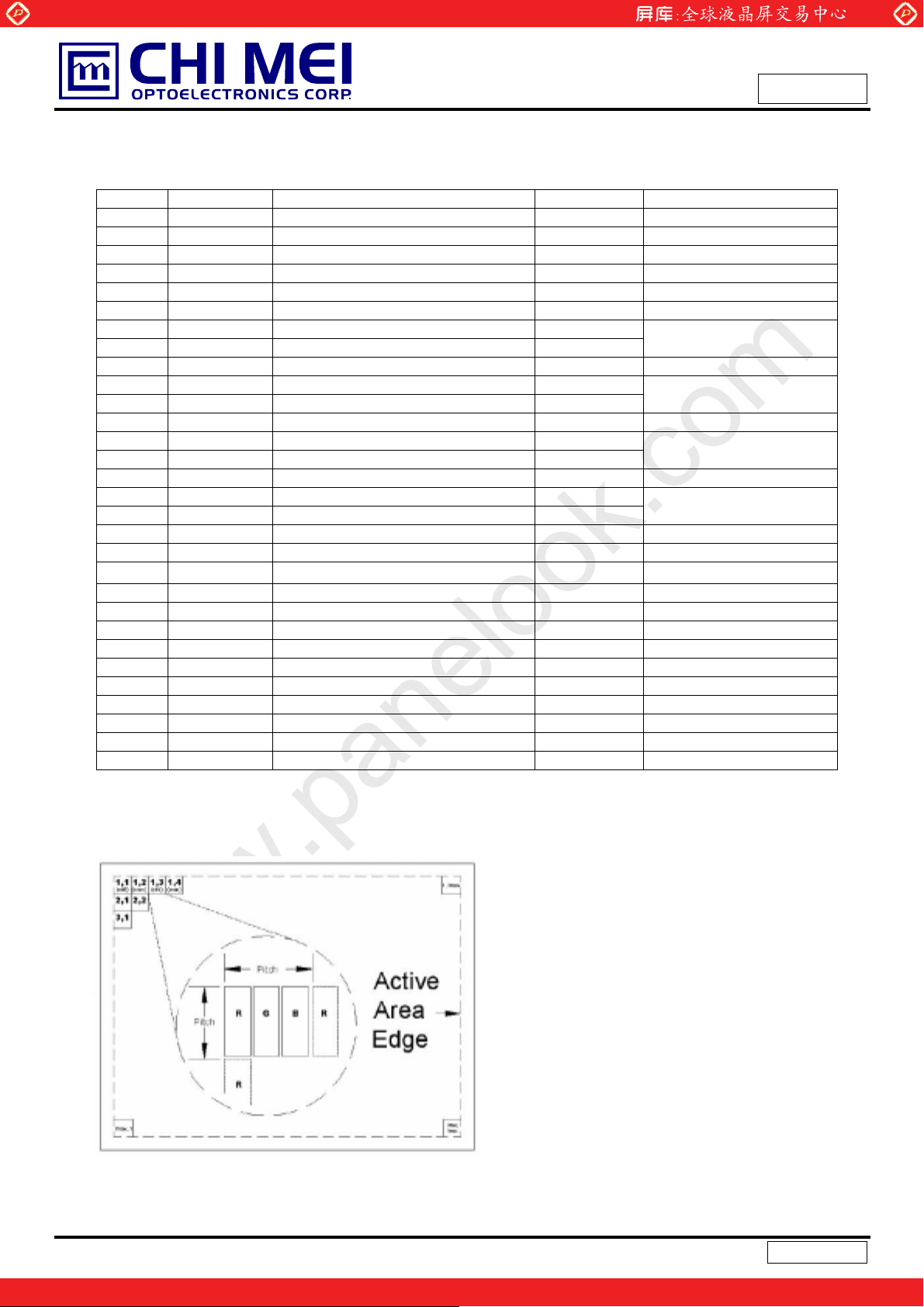

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

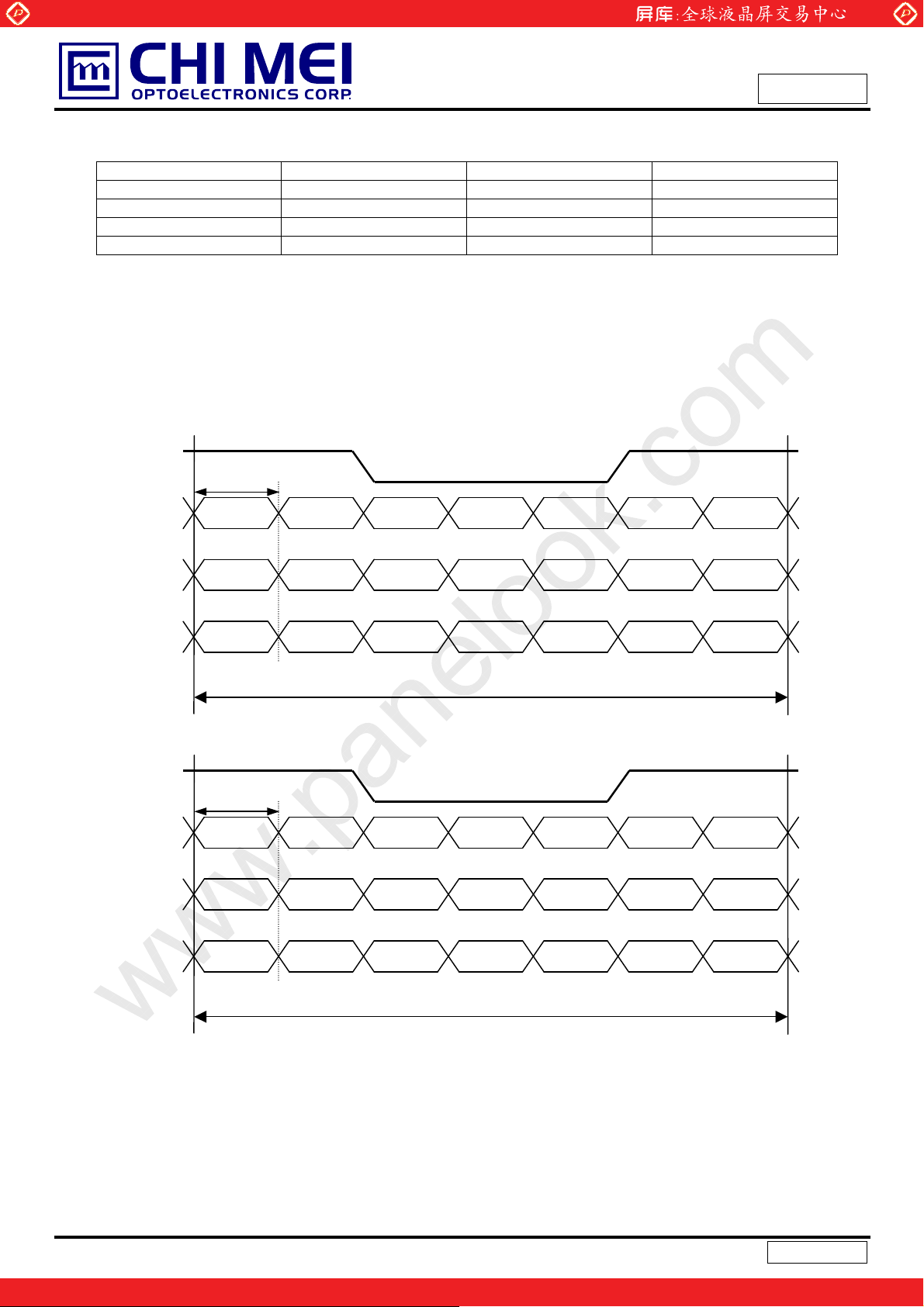

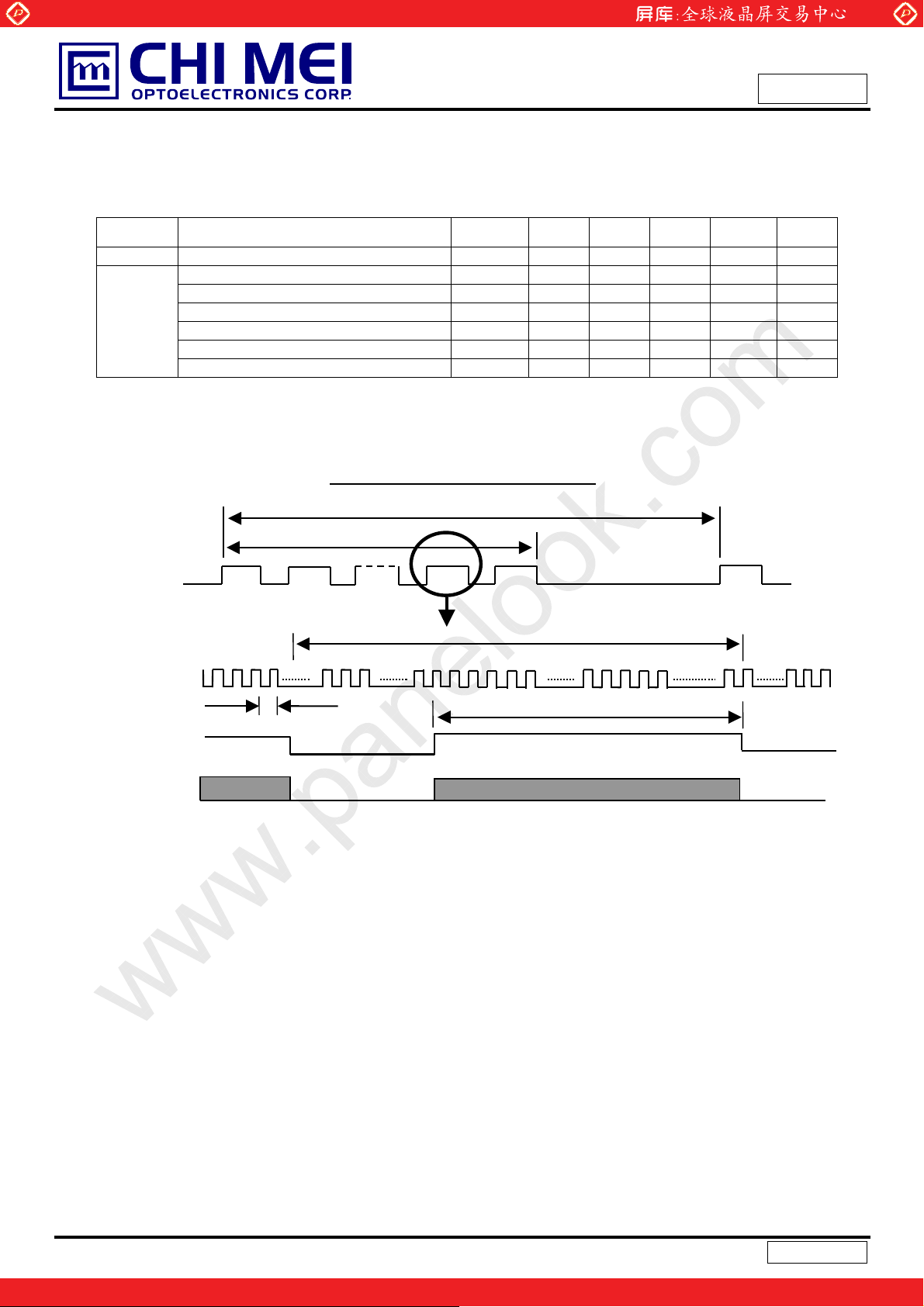

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID CODE DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 18
6.1 INPUT SIGNAL TIMING SPECIFICATIONS

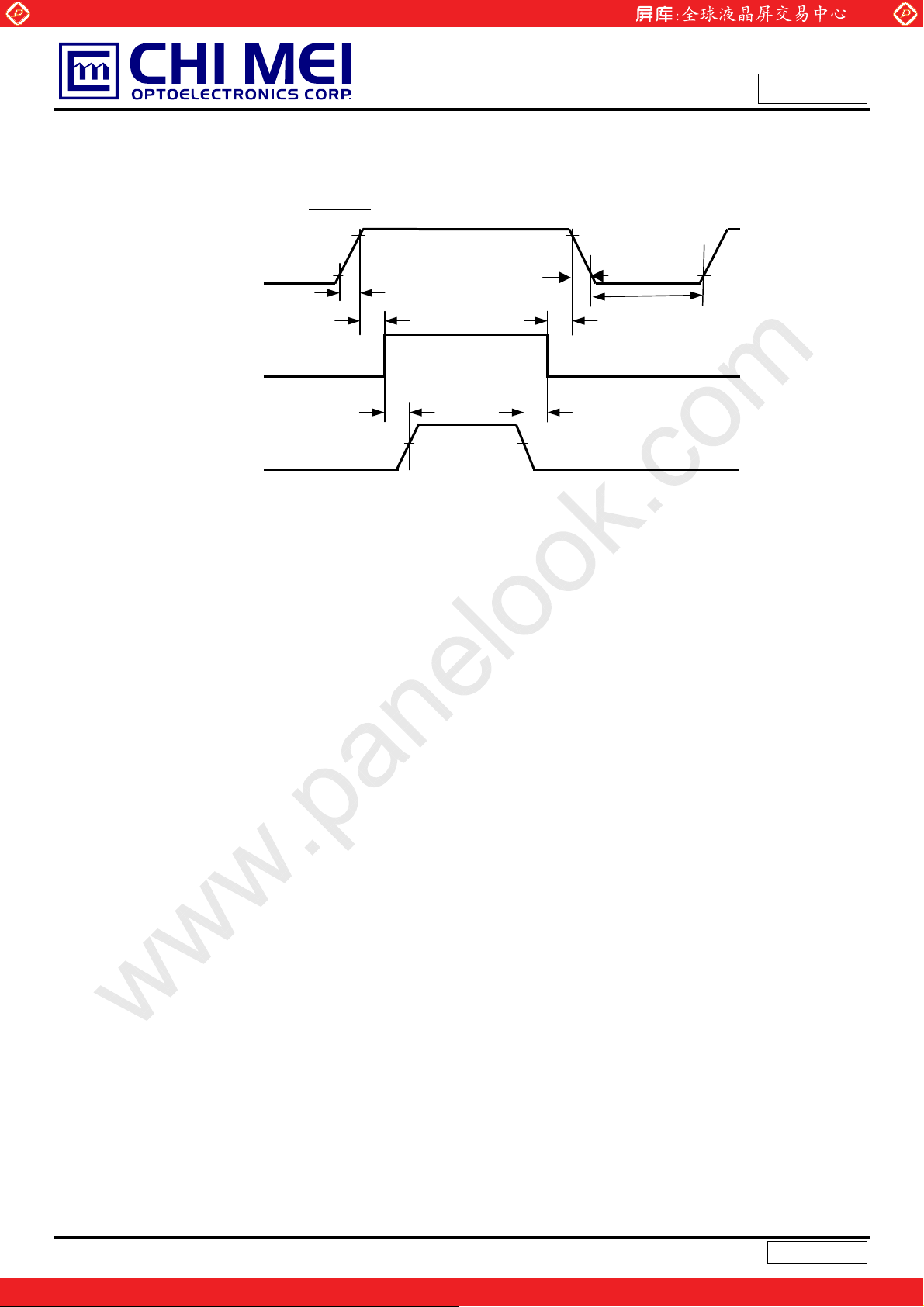

6.2 POWER ON/OFF SEQUENCE

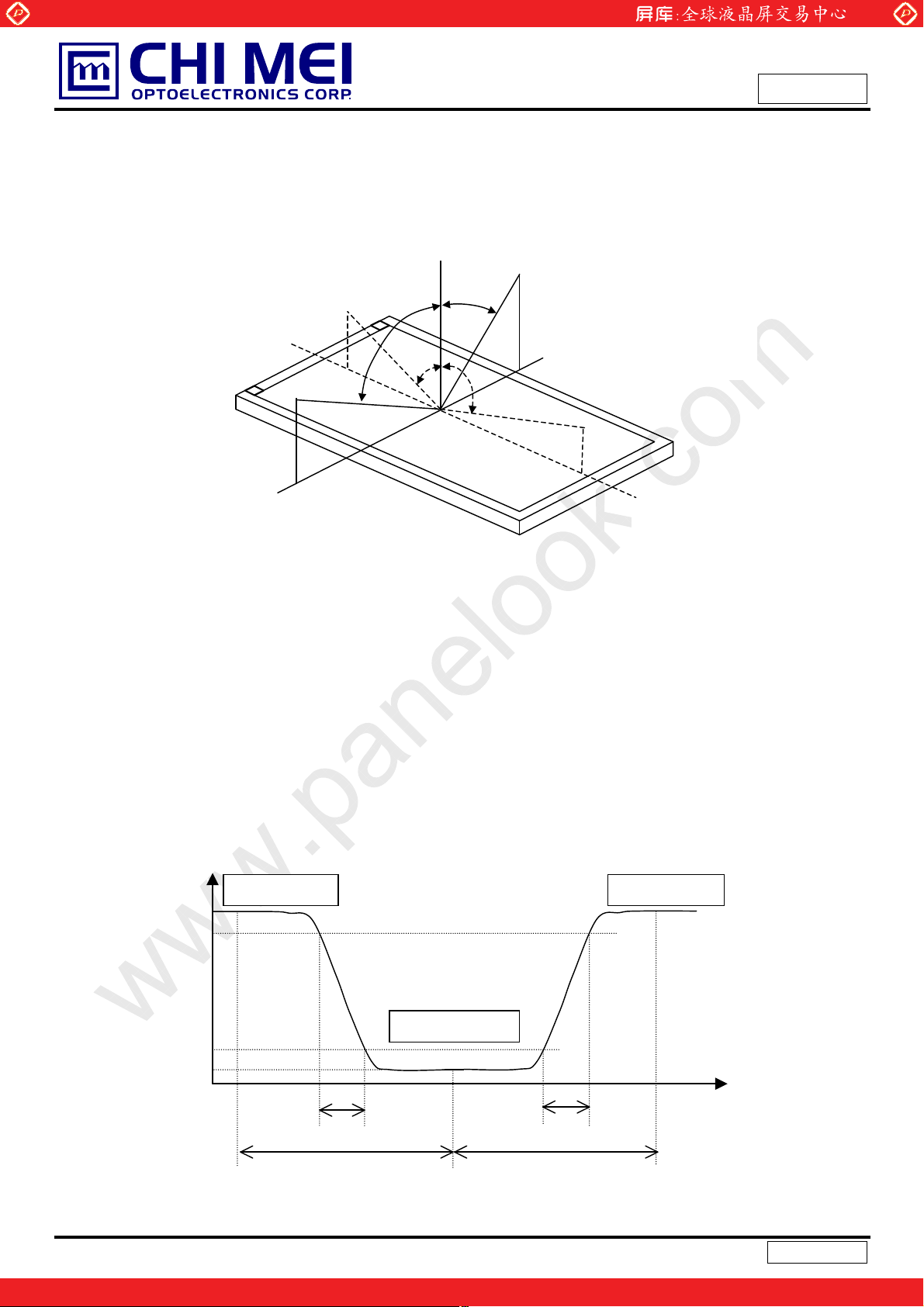

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 24
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS

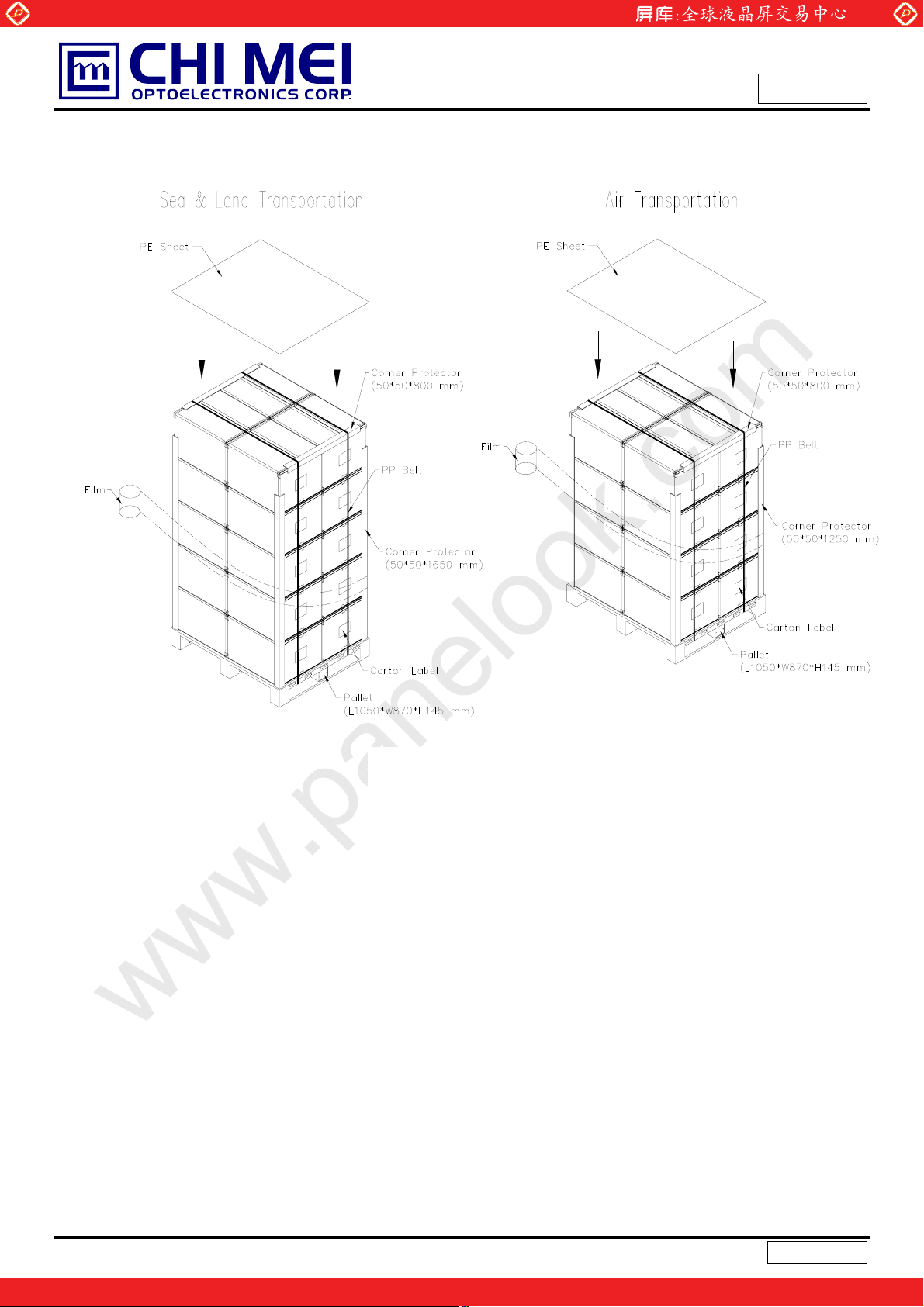

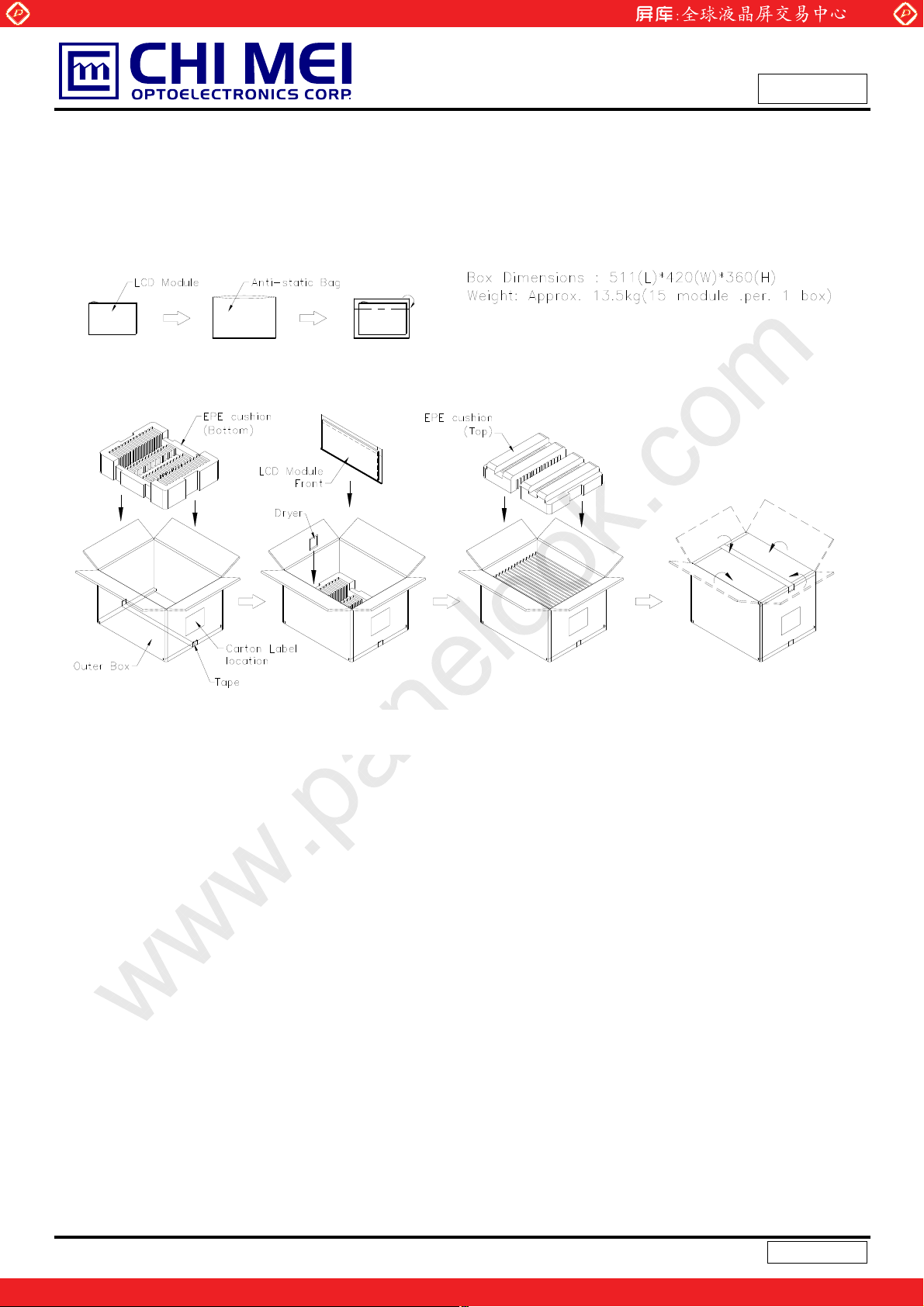

9. PACKING ------------------------------------------------------- 25
9.1 CARTON
9.2 PALLET

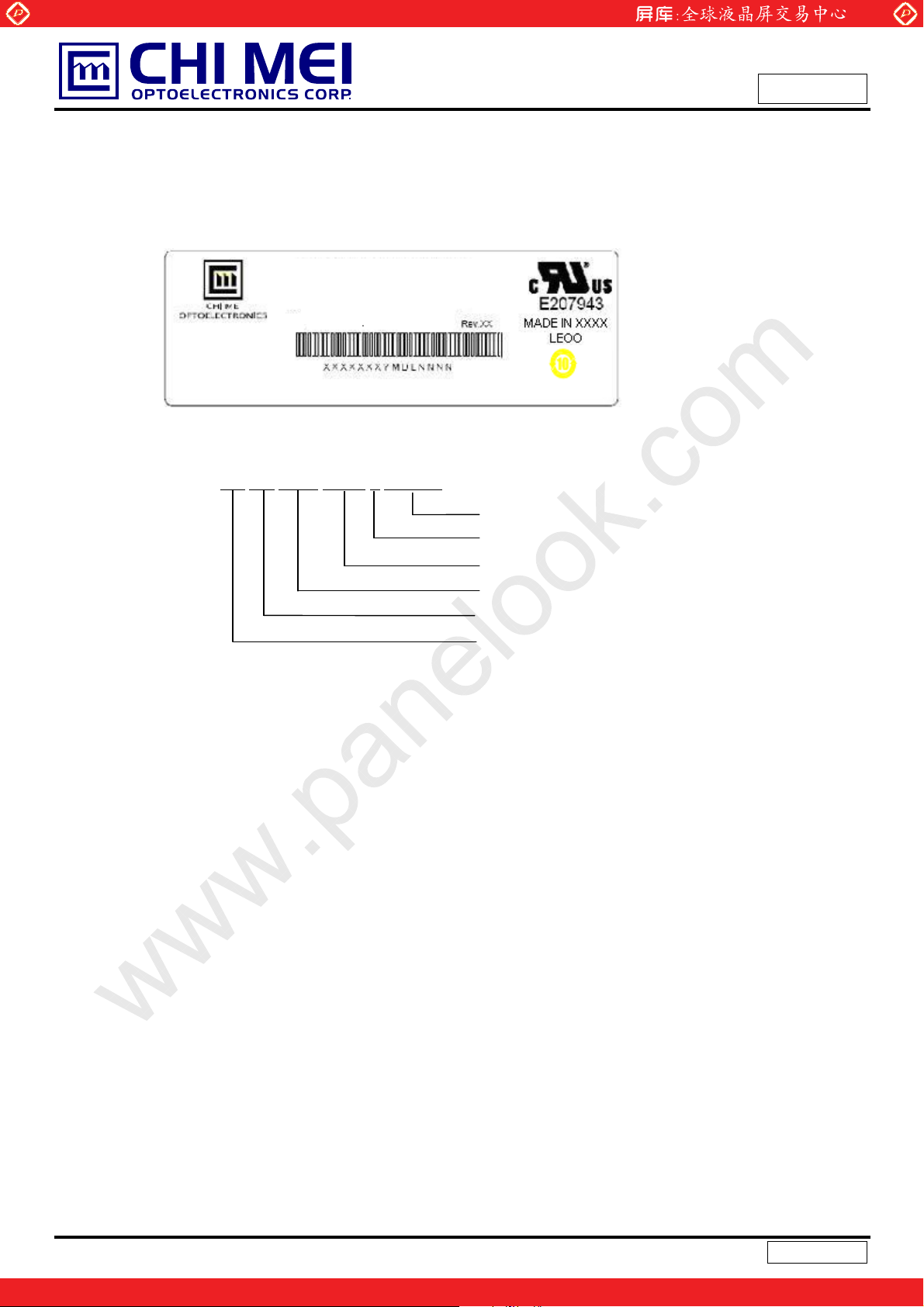

10. DEFINITION OF LABELS 10
.1 CMO MODULE LABEL
10.2 CMO CARTON LABEL
------------------------------------------------------- 27
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
REVISION HISTORY
Version Date
Ver. 0.0
Ver. 1.0
Ver. 3.0
Ver. 3.1
May. 14, ‘08
July. 10, ‘08
Aug. 21.’08
Sep. 09, ‘08
Page
(New)
All
All
All
27
Section Description
All
Tentative Specification was first issued.
All
Preliminary Specification was first issued.
All
Approval Specification was first issued for Acer.
10.1
Update S/N label drawing for Acer.
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N184H4 - L04 is a 18.4” TFT Liquid Crystal Display module with Duo CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1920 x 1080 Full HD mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and High Brightness
- Full HD (1920 x 1080 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
- 2CCFL
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 408.96 (H) x 230.04 (V) (18.4” diagonal) mm Bezel Opening Area 413.11(H) x 234.24(V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1920 x R.G.B. x 1080 pixel ­Pixel Pitch 0.213 (H) x 0.213 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare Type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 422 422.5 423 mm
Module Size

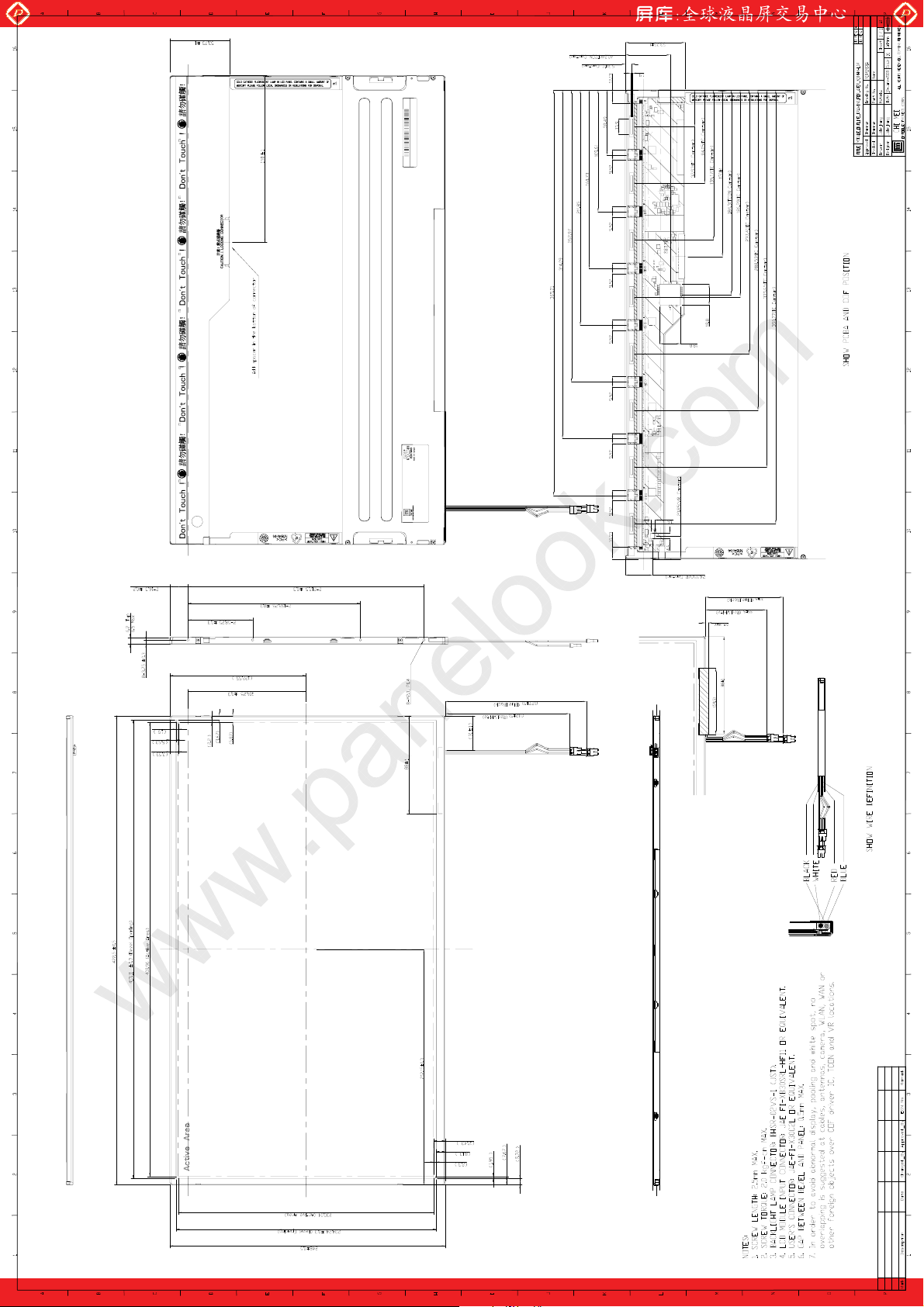

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 247.5 248 248.5 mm Depth (D) 6.2 6.5 mm
Weight 750 765 g -
(1)
(1)
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.
Relative Humidity (%RH)
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL -- 2.5K V Lamp Current IL 2.0 7.0 mA Lamp Frequency FL 45 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
K
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Rush Current I
- 1.5 A (2)
RUSH
Initial Stage Current IIS 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - 390 mA (3)a Black
Lcc
TH(LVDS)
TL(LVDS)
- 570 mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT - 100 - Ohm Power per EBL WG P
- 6.0 - W (4)
EBL
Note (1) The module should be always operated within above ranges.
Value
Unit Note
Approval
(5),
=1.2V
V
CM
(5),
=1.2V
V
CM
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47
R2
1K
VR1
C1
1u
F
47K
0.01uF
Q1
2SK147
5
Q2
2SK1470
C
2
FUSE
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470us
VCC
ICC
0V
I
RUSH
470us
0.1Vcc
0.9Vcc
+3.3V
100ms
I
IS
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
Approval
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from Logah. Please contact them for detail information. CMO
= 60 Hz,
v
b. Black Pattern
Active Area
doesn’t provide the inverter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
Single Ended
0V
V
Differential
0V
V
VID
VID
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
)
)
)
)
www.panelook.com
Doc No.: 44089076
Issued Date: Sep. 09, 2008
Model No.: N184H4 - L04
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Lamp Input Voltage V Lamp Current I
Lamp Turn On Voltage V
L
L
S
Min. Typ. Max.
Ё Ё ЁЁ 1690 (0к) ЁЁ 1860(25к)
Operating Frequency FL 50 Lamp Life Time LBL 15000 Power Consumption P
L
Ё
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
820
6.0
Ё
Ё Ё
mA
80 KHz (3)
ЁЁ
9.84
Ё
Unit Note
V
I
RMS
(1)
RMS
(2)
V
RMS
(2)
V
RMS
Hrs (4)
W (5), I
Approval
= 6.0 mA
L
= 6.0 mA
L
LCD
Module
HV (Red
LV (White
HV (Blue
1
2
Inverter
Current Meter
1
HV (Black
YOKOGAWA 2016
2
Ta = 25±2к
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise the lamp may not be turned on.
Note (3)The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
(a) When the brightness becomes Љ 50% of its original value.
o
C and IL = 6.0 mA
until one of the following events occurs:
RMS
(b) When the effective ignition length becomes Љ 80% of its original value. (The effective ignition
length is a scope that luminance is over 70% of that at the center point.)
Note (5) P
= IL VL 2
L

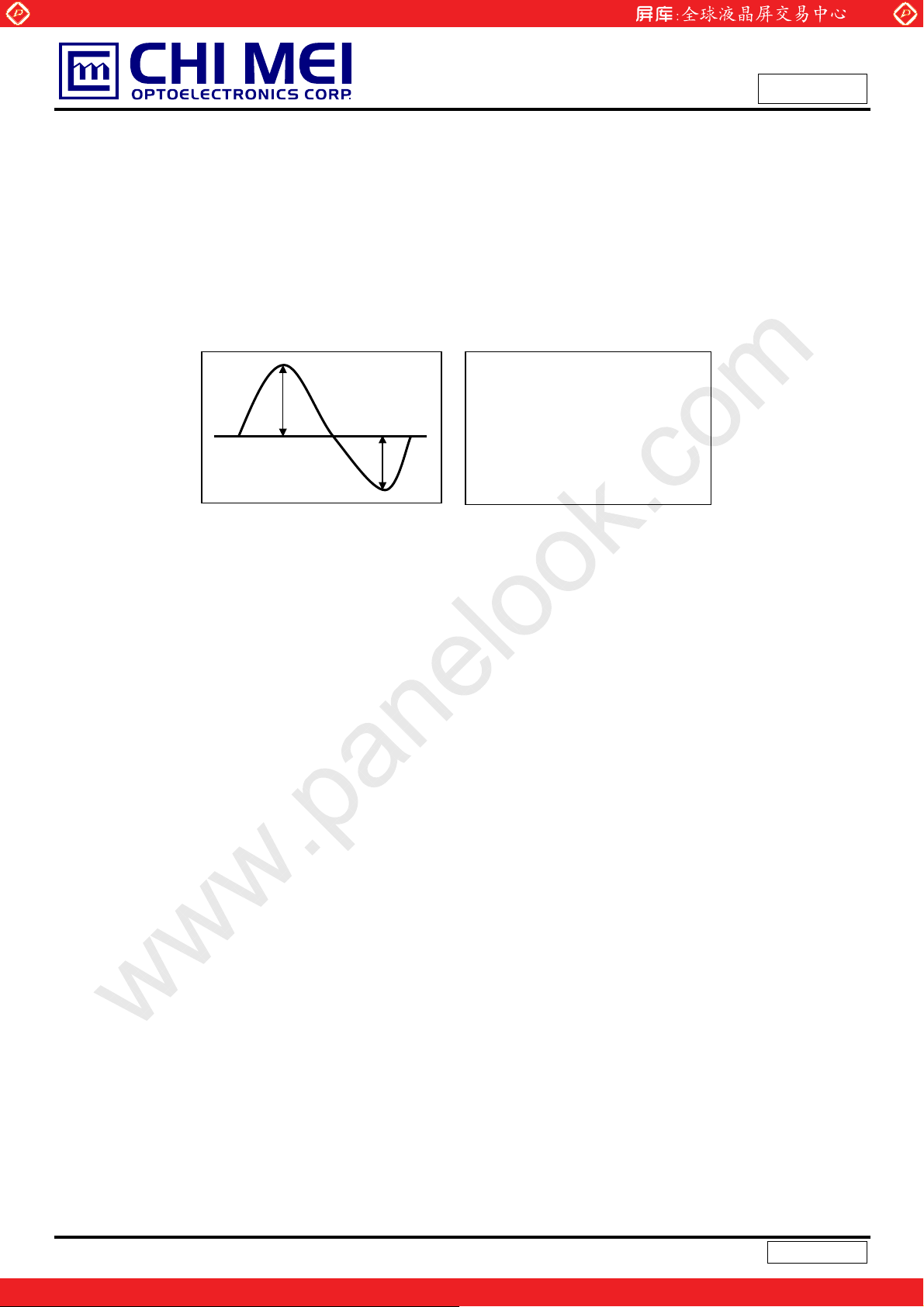

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
