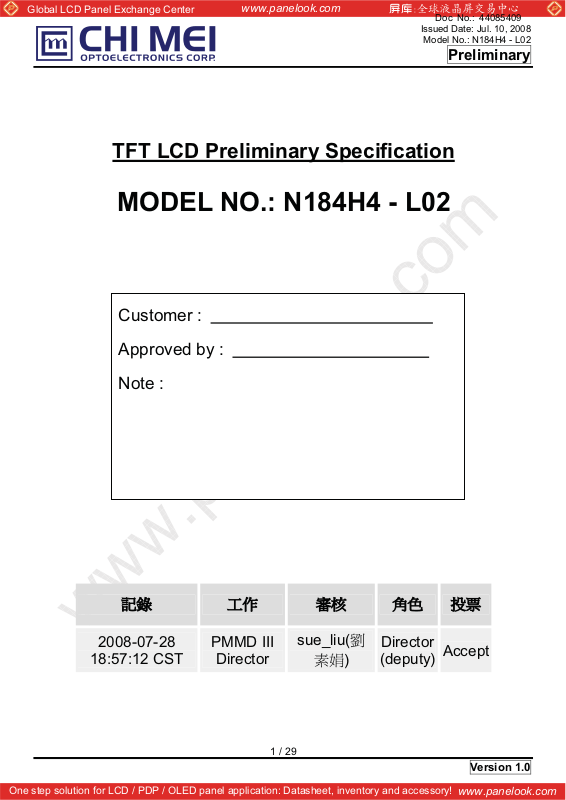

TFT LCD Preliminary Specification
MODEL NO.: N184H4 - L02
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Customer :
pproved by :
Note :
2008-07-28
18:57:12 CST
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PMMD III
Director
1 / 29
sue_liu(Ꮵ
ైୠ)
Director
(deputy)
Accept
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

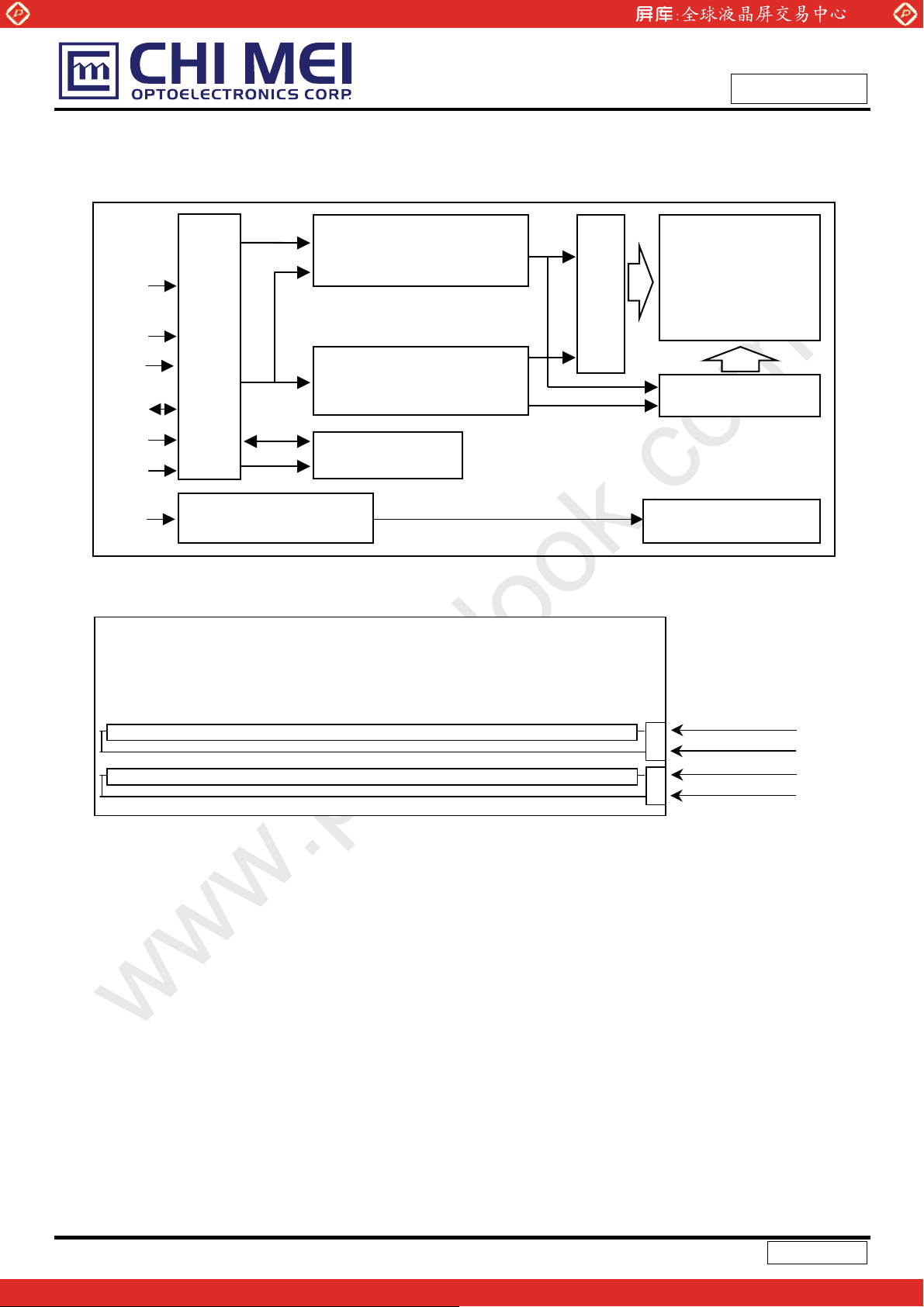

4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

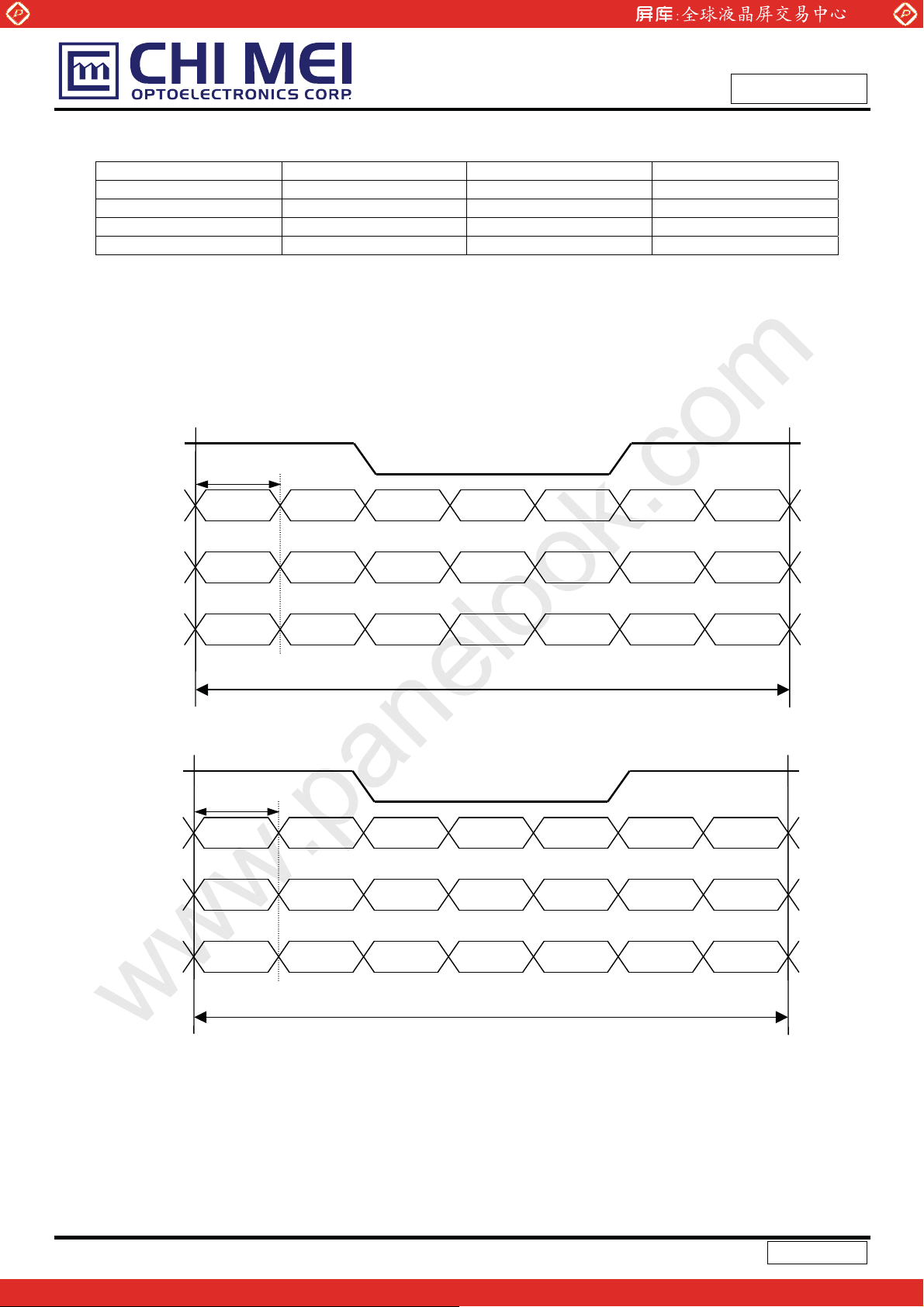

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID CODE DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 18
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE

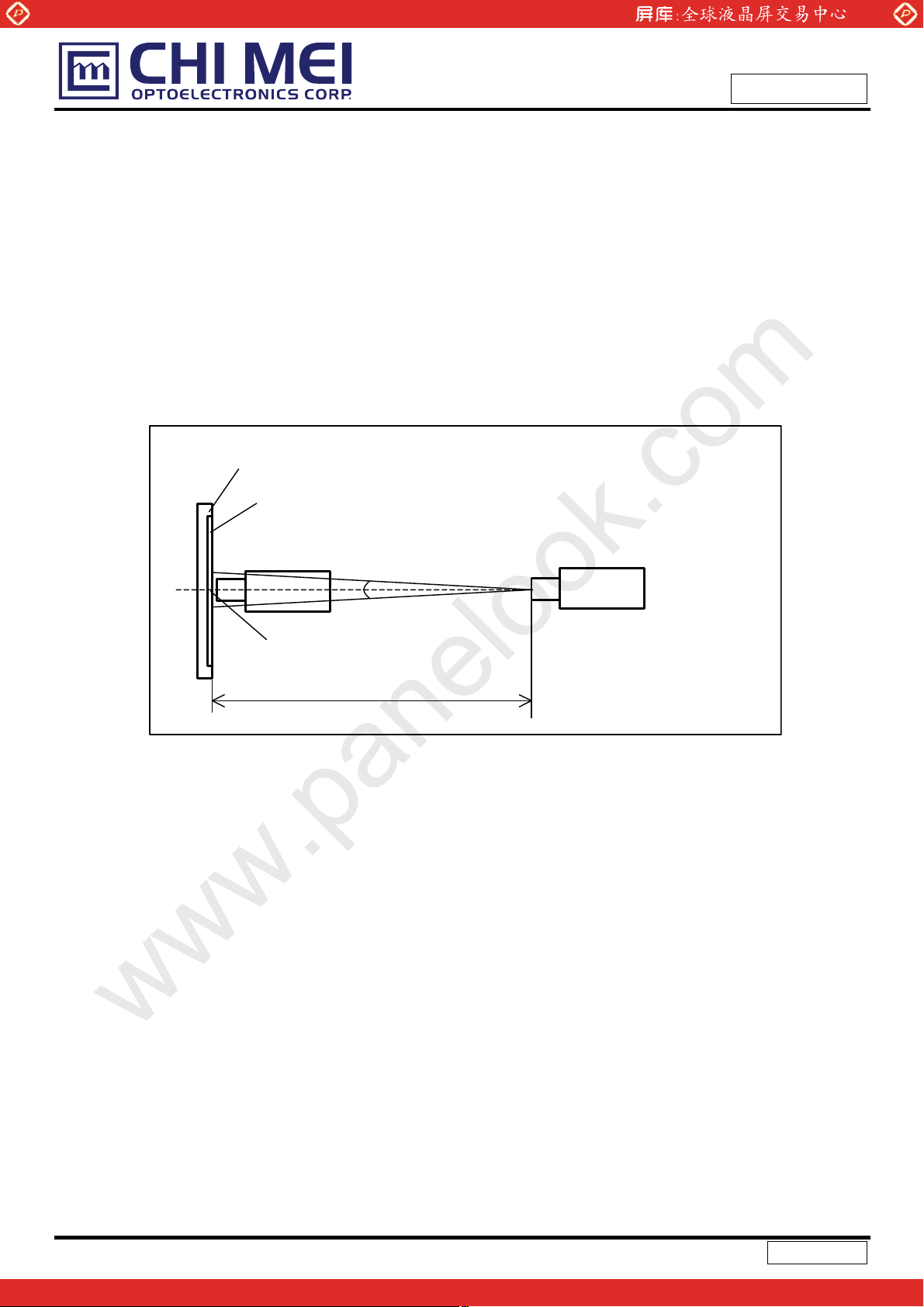

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 24
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. PACKING ------------------------------------------------------- 25
9.1 CARTON
9.2 PALLET

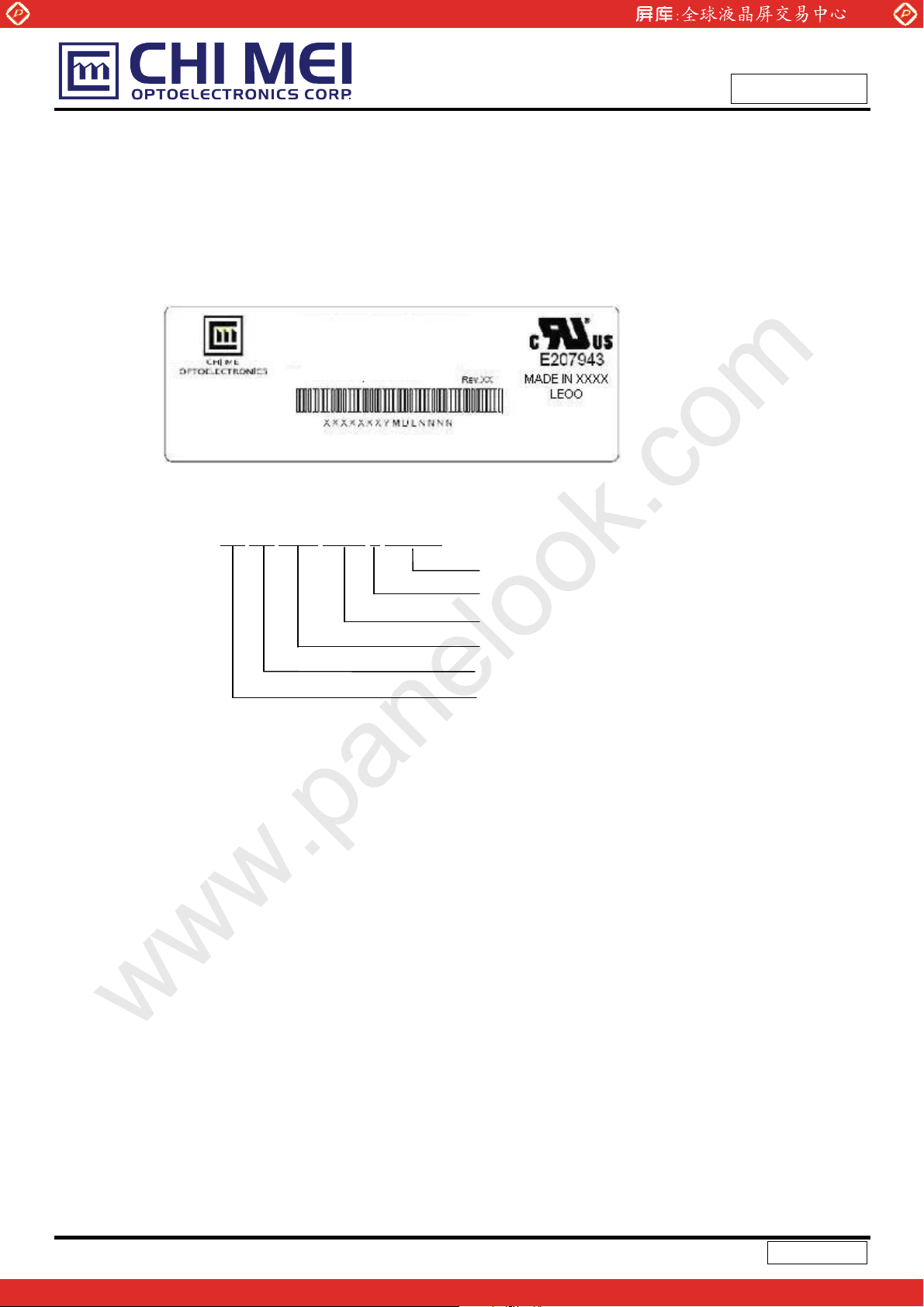

10. DEFINITION OF LABELS 10
.1 CMO MODULE LABEL
10.2 CMO CARTON LABEL
------------------------------------------------------- 27
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
REVISION HISTORY
Version Date
Ver. 0.0
Ver. 1.0
May. 14, ‘08
July. 10, ‘08
Page
(New)
All
All
Section Description
All
Tentative Specification was first issued.
All
Preliminary Specification was first issued.
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N184H4 - L02 is a 18.4” TFT Liquid Crystal Display module with Duo CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1920 x 1080 Full HD mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and High Brightness
- Full HD (1920 x 1080 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
- 2CCFL
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 408.96 (H) x 230.04 (V) (18.4” diagonal) mm Bezel Opening Area 413.11(H) x 234.24(V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1920 x R.G.B. x 1080 pixel ­Pixel Pitch 0.213 (H) x 0.213(V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare Type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 422 422.5 423 mm
Module Size

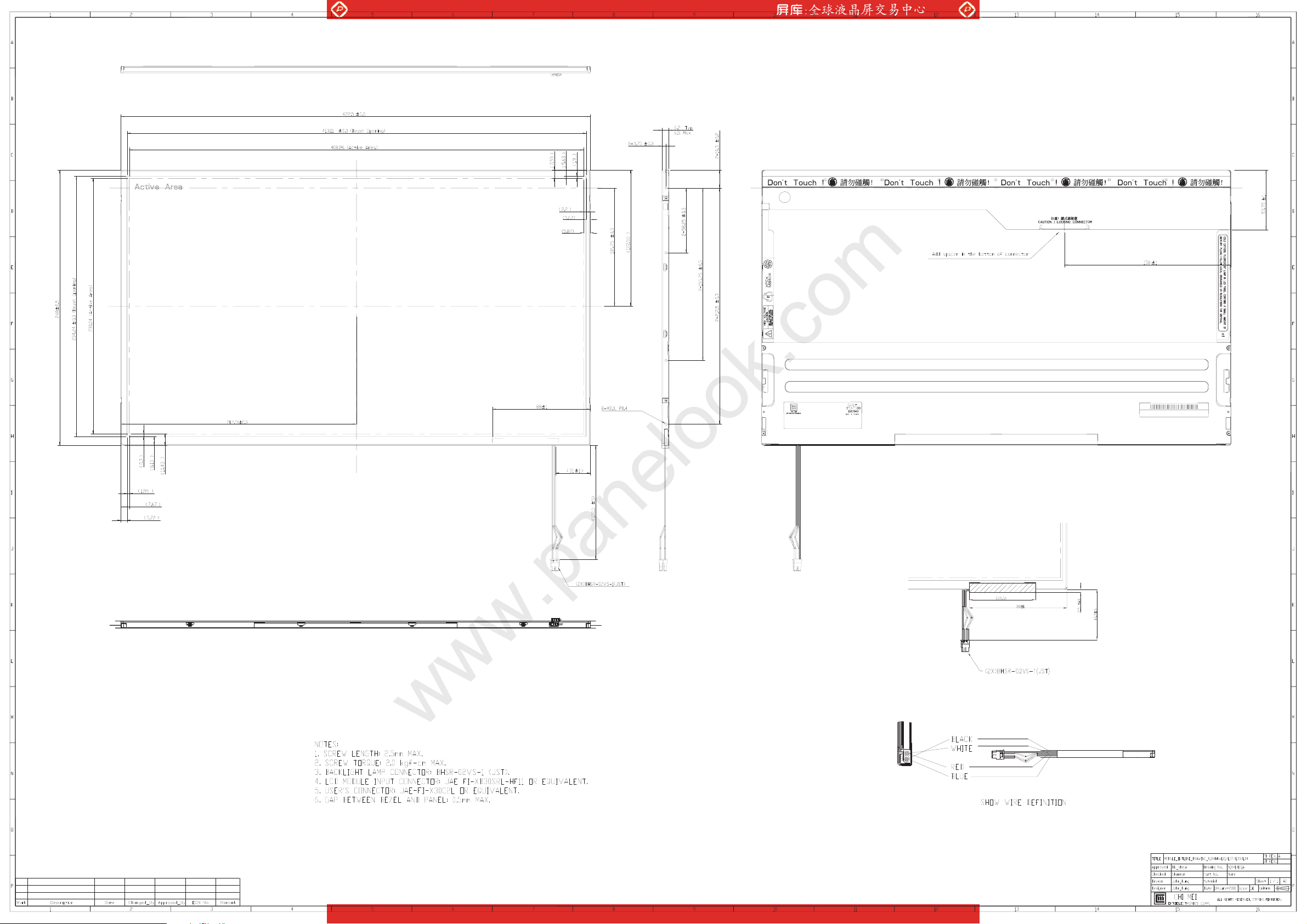

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 247.5 248 248.5 mm Depth (D) 6.2 6.5 mm
Weight 765 780 g -
(1)
(1)
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.
Relative Humidity (%RH)
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL -- 2.5K V Lamp Current IL 2.0 7.0 mA Lamp Frequency FL 45 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP 50 mV ­Rush Current I
1.5 A (2)
RUSH
Initial Stage Current IIS 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White (390) mA (3)a Black
Icc
TH(LVDS)
TL(LVDS)
(560) mA (3)b
+100 mV
-100 mV
LVDS Common Mode Voltage VCM 1.125 1.375 V (5) LVDS Differential Input Voltage |VID| 100 600 mV (5) Terminating Resistor RT 100 Ohm Power per EBL WG P
- (TBD) - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
VR1
C1
1uF
47K
Q1 2SK1475
FUSE
Q2
2SK1470
C2
0.01uF
Vcc rising time is 470us
+3.3V
0.9Vcc
C3
1uF
VCC
Vcc
(LCD Module Input)
100ms
I
IS
0V
I
RUSH
470us
0.1Vcc
ICC
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from (Sumida). Please contact them for detail information. CMO
= 60 Hz,
v
b. Black Pattern
Active Area
doesn’t provide the inverter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
Single Ended
0V
V
Differential
0V
V
VID
VID
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
)
)
)
)
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Lamp Input Voltage V Lamp Current I
Lamp Turn On Voltage V
L
L
S
Min. Typ. Max.
Ё Ё ЁЁ 1690 (0к) ЁЁ 1860(25к)
Operating Frequency FL 50 Lamp Life Time LBL 15000 Power Consumption P
L
Ё
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
820
6.0
Ё
Ё Ё
mA
80 KHz (3)
ЁЁ
9.84
Ё
Unit Note
I
V
RMS
(1)
RMS
(2)
V
RMS
(2)
V
RMS
Hrs (4)
W (5), I
Preliminary
= 6.0 mA
L
= 6.0 mA
L
LCD
Module
HV (Red
LV (White
HV (Blue
1
2
Inverter
Current Meter
1
HV (Black
YOKOGAWA 2016
2
Ta = 25±2к
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise the lamp may not be turned on.
Note (3)The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
(a) When the brightness becomes Љ 50% of its original value.
o
C and IL = 6.0 mA
until one of the following events occurs:
RMS
(b) When the effective ignition length becomes Љ 80% of its original value. (The effective ignition
length is a scope that luminance is over 70% of that at the center point.)
Note (5) P
L
= I
VL 2
L
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.

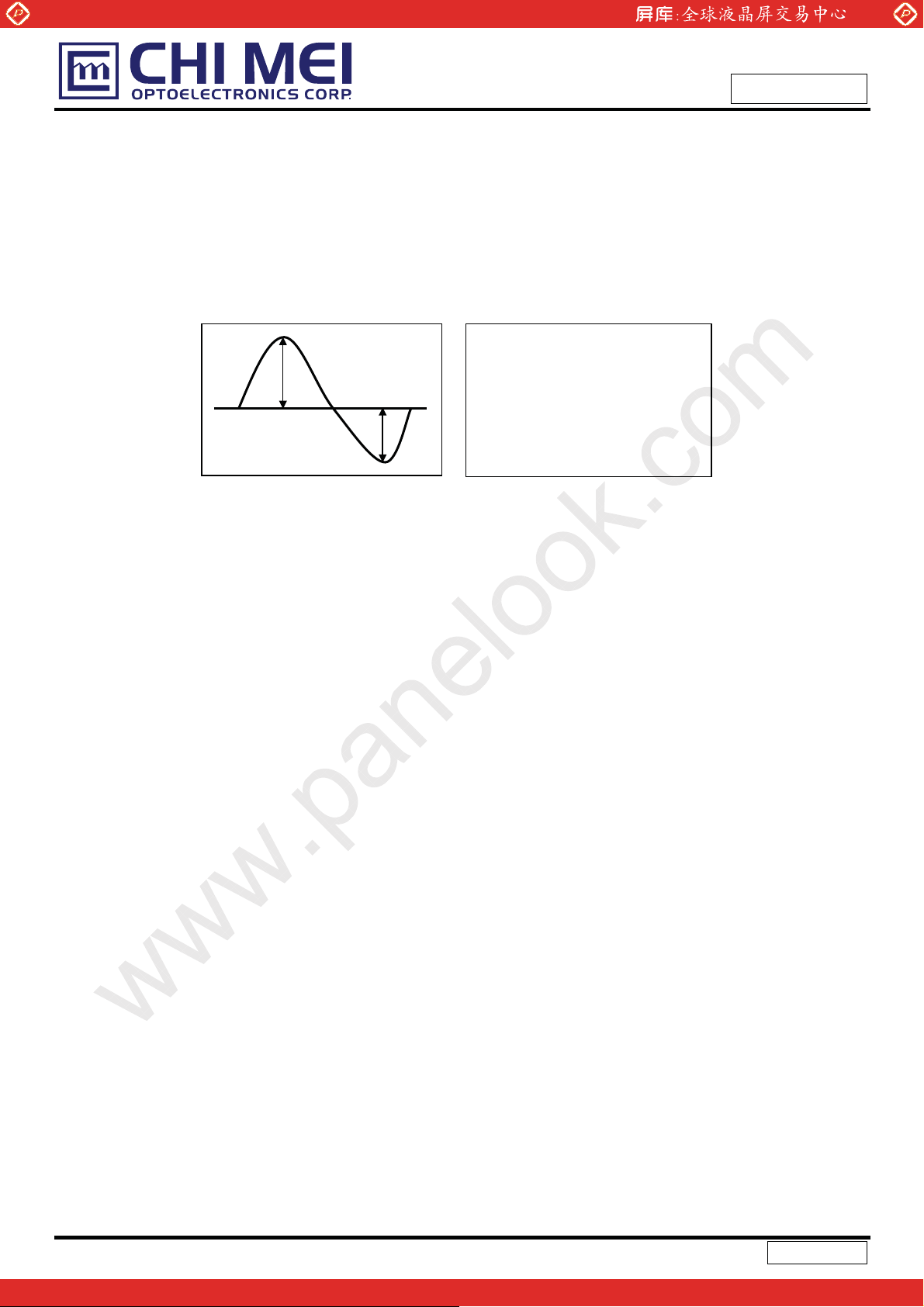

a. The asymmetry rate of the inverter waveform should be 10% below;
b. The distortion rate of the waveform should be within Ѕ2 ± 10%;
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
* Asymmetry rate:
I p
I -p
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
10 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
(
)
(
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
JAE-FI-XB30SRL-HF11
LVDS Display
Data & Clock
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
VL
INPUT CONNECTOR
LAMP CONNECTOR
(JST-BHSR-02VS-1)
4.2 BACKLIGHT UNIT
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
1. HV (Red)
2. LV
White
3. HV (Blue)
4. LV
Black
11 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 NC Non connection 6 CLK 7 DATA 8 RXO0- LVDS Differential Data Input (Odd) Negative
9 RXO0+ LVDS Differential Data Input (Odd) Positive 10 Vss Ground 11 RXO1- LVDS Differential Data Input (Odd) Negative 12 RXO1+ LVDS Differential Data Input (Odd) Positive 13 Vss Ground 14 RXO2- LVDS Differential Data Input (Odd) Negative 15 RXO2+ LVDS Differential Data Input (Odd) Positive 16 Vss Ground 17 RXOC- LVDS Clock Data Input (Odd) Negative 18 RXOC+ LVDS Clock Data Input (Odd) Positive 19 Vss Ground
20 RxE0- LVDS Differential Data Input (Even) Negative 21 RxE0+ LVDS Differential Data Input (Even) Positive
22 Vss Ground 23 RxE1- LVDS Differential Data Input (Even) Negative 24 RxE1+ LVDS Differential Data Input (Even) Positive 25 Vss Ground 26 RxE2- LVDS Differential Data Input (Even) Negative 27 RxE2+ LVDS Differential Data Input (Even) Positive 28 Vss Ground 29 RXEC- LVDS Clock Data Input (Even) Negative 30 RXEC+ LVDS Clock Data Input (Even) Positive
Note (1) Connector Part No.: JAE-FI-XB30SRL-HF11 or equivalent
DDC 3.3V Power
EDID
DDC Clock
EDID
DDC Data
EDID
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

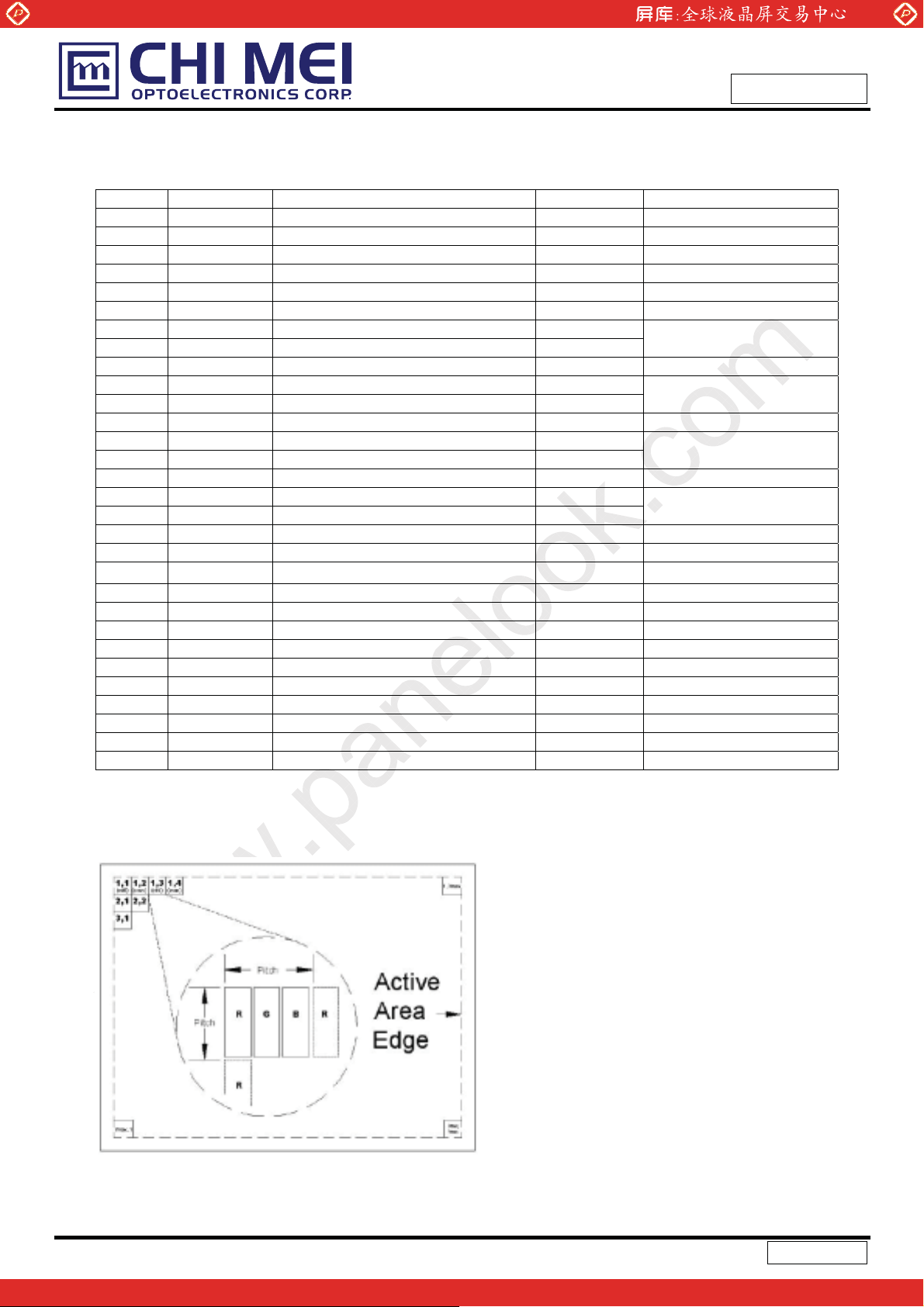

Note (3) The first pixel is odd as shown in the following figure.
12 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Red 2 LV Ground White 3 HV High Voltage Blue 4 LV Ground Black
Note (1) Connector Part No.: JST BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
RXOC+
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
RXO2+/-
RXO1+/-
RXO0+/-
RXEC+
RXE2+/-
RXE1+/-
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE OB5 OB4 OB3 OB2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
OB1 OG4 OG3 OG2 OG1OB0 OG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
OG0 OR3 OR2 OR1 OR0OR5 OR4
Signal for 1 DCLK Cycle (T)
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE EB5 EB4 EB3 EB2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
EB1 EG4 EG3 EG2 EG1EB0 EG5
RXE0+/-
IN6 IN5 IN4 IN3 IN2 IN1 IN0
EG0 ER3 ER2 ER1 ER0ER5 ER4
Signal for 1 DCLK Cycle (T)
13 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte #
(decimal)
0 1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41
Byte #
(hex)
Field Name and Comments
0 Header 1 Header 2 Header 3 Header 4 Header 5 Header 6 Header 7 Header 8 EISA ID manufacturer name (“CMO”)
9 EISA ID manufacturer name (Compressed ASCII) 0A ID product code (N184H4-L02) 01 0B ID product code (hex LSB first; N184H4-L02) 18 0C ID S/N (fixed “0”) 0D ID S/N (fixed “0”) 0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”) 10 Week of manufacture (fixed week code) 11 Year of manufacture (fixed year code) 12 EDID structure version # (“1”) 13 EDID revision # (“3”) 14 Video I/P definition (“digital”) 15 Max H image size (“40.896cm”) 16 Max V image size (“23.004cm”) 17 Display Gamma (Gamma = ”2.2”) 18 Feature support (“Active off, RGB Color”)
19 Rx1 Rx0 Ry1 Ry0 Gx1 Gx0 Gy1 Gy0 CC 1A Bx1 Bx0 By1 By0 Wx1 Wx0 Wy1 Wy0 B5 1B Rx=0.6553 A7 1C Ry=0.3277 54 1D Gx=0.2722 45 1E Gy=0.5905 97
1F Bx=0.1508 26
20 By=0.0887 16
21 Wx=0.313 50
22 Wy=0.329 54
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings
26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2
29 Standard timing ID # 2
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Value
(hex)
00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111
00 00000000 0D 00001101 AF 10101111
00 00000000
00 00000000
00 00000000
00 00000000
23 00100011
12 00010010
01 00000001
03 00000011
80 10000000
29 00101001
17 00010111
78 01111000 0A 00001010
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
01 00000001
Value
(binary)
00000010 00011000
11001100
10110101
10100111 01010100 01000101
10010111 00100110 00010110 01010000 01010100
15 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Byte #
(decimal)
42 43 44 45 46 47 48 49 50 51 52 53 54
55 56 57 58 59 60 61 62 63 64 65
66 67 68 69 70 71
72 73 74 75
76 77 78 79 80 81 82 83 84
Byte #
(hex)
2A Standard timing ID # 3 2B Standard timing ID # 3 2C Standard timing ID # 4 2D Standard timing ID # 4 2E Standard timing ID # 5
2F Standard timing ID # 5 30 Standard timing ID # 6 31 Standard timing ID # 6 32 Standard timing ID # 7 33 Standard timing ID # 7 34 Standard timing ID # 8 35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“138.65MHz”,
36
According to VESA CVT Rev1.1) 37 # 1 Pixel clock (hex LSB first) 38 # 1 H active (“1920”) 39 # 1 H blank (“160”)
3A # 1 H active : H blank (“1920 : 160”) 3B # 1 V active (”1080”) 3C # 1 V blank (”31”) 3D # 1 V active : V blank (”1080 :31”) 3E # 1 H sync offset (”48”)
3F # 1 H sync pulse width ("32”) 40 # 1 V sync offset : V sync pulse width (”3 : 5”)
# 1 H sync offset : H sync pulse width : V sync offset : V sync 41
width (”48: 32 : 3 : 5”) 42 # 1 H image size (”408 mm”) 98 43 # 1 V image size (”230 mm”) E6 44 # 1 H image size : V image size (”408 : 230”) 45 # 1 H boarder (”0”) 46 # 1 V boarder (”0”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol 47
Negatives 48 Detailed timing description # 2 49 # 2 Flag
4A # 2 Reserved
# 2 FE (hex) defines ASCII string (Model Name “N184H4-L02”,
4B
ASCII)
4C # 2 Flag 4D # 2 1st character of name (“N”) 4E 4E # 2 2nd character of name (“1”) 31
4F # 2 3rd character of name (“8”) 38 50 # 2 4th character of name (“4”) 34 51 # 2 5th character of name (“H”) 48 52 # 2 6th character of name (“4”) 34 53 # 2 7th character of name (“-”) 2D 54 # 2 8th character of name (“L”) 4C
Field Name and Comments
Va l ue (hex)
Value
(binary) 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
29 00101001
36 00110110 80 10000000
A0 10100000
70 01110000 38 00111000
1F 00011111
40 01000000 30 00110000 20 00100000 35 00110101
00 00000000
10011000
1110 0110 10 00010000 00 00000000 00 00000000
18 00011000
00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
01001110
00110001
00111000
00110100 01001000 00110100 00101101 01001100
16 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Byte # (decimal)
85
86 87 88 89 90 91 92 93 94
95 5F # 3 1st character of string (“C”) 96 60 # 3 2nd character of string (“M”) 97 61 # 3 3rd character of string (“O”) 98 62 # 3 New line character indicates end of ASCII string
99 63 # 3 Padding with “Blank” character 100 64 # 3 Padding with “Blank” character 101 65 # 3 Padding with “Blank” character 102 66 # 3 Padding with “Blank” character 103 67 # 3 Padding with “Blank” character 104 68 # 3 Padding with “Blank” character 105 69 # 3 Padding with “Blank” character
Byte # (hex)
Field Name and Comments
55 # 2 9th character of name (“0”) 56 # 2 9th character of name (“2”) 57 # 2 New line character indicates end of ASCII string 58 # 2 Padding with “Blank” character
59 # 2 Padding with “Blank” character 5A Detailed timing description # 3 5B # 3 Flag 5C # 3 Reserved 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) 5E # 3 Flag
Va l ue (hex)
Value (binary)
30 00110000
32 00110011
0A 00001010
20 00100000 20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
43 01000011 4D 01001101 4F 01001111 0A 00001010
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
106 6A # 3 Padding with “Blank” character 107 6B # 3 Padding with “Blank” character 108 6C Detailed timing description # 4 109 6D # 4 Flag 110 6E # 4 Reserved
# 4 FE (hex) defines ASCII string (Model Name“N184H4-L02”,
111 6F 112 70 # 4 Flag 113 71 # 4 1st character of name (“N”) 4E 114 72 # 4 2nd character of name (“1”) 31 115 73 # 4 3rd character of name (“8”) 38 116 74 # 4 4th character of name (“4”) 34 117 75 # 4 5th character of name (“H”) 48 118 76 # 4 6th character of name (“4”) 34 119 77 # 4 7th character of name (“-”) 2D 120 78 # 4 8th character of name (“L”) 4C 121 79 # 4 9th character of name (“0”) 122 7A # 4 9th character of name (“2”) 123 7B # 4 New line character indicates end of ASCII string 124 7C # 4 Padding with “Blank” character 125 7D # 4 Padding with “Blank” character 126 7E Extension flag
127 7F Checksum 9D 10011111
ASCII)
20 00100000
20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
01001110
00110001
00111000 00110100 01001000 00110100 00101101 01001100
30 00110000 32 00110011
0A 00001010
20 00100000 20 00100000 00 00000000
17 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc TBD 69.25 TBD MHz (2)
Vertical Total Time TV TBD 1111 TBD TH -
Vertical Active Display Period TVD TBD 1080 TBD TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.
(2) 2 channels LVDS input.
Vertical Active Blanking Period TVB TV-TVD 31 TV-TVD TH
Horizontal Total Time TH TBD 1040 TBD Tc (2)
Horizontal Active Display Period THD TBD 960 TBD Tc (2)
Horizontal Active Blanking Period THB
www.panelook.com
TH-THD
80
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
TH-THD
Tc (2)
DE
DCLK
DE
DATA

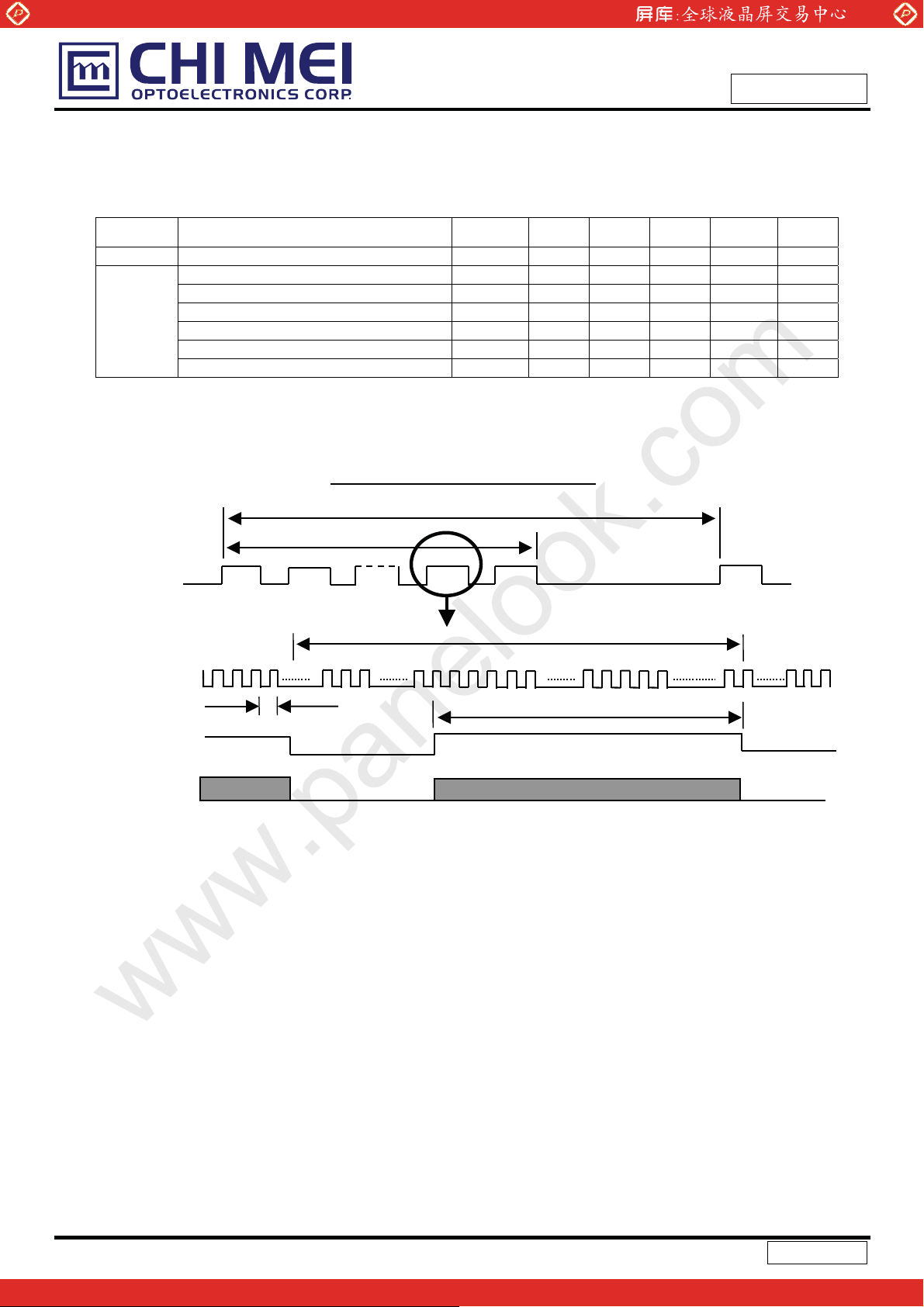

INPUT SIGNAL TIMING DIAGRAM
TC
HD
T
18 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6.2 POWER ON/OFF SEQUENCE
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Power Supply
for LCD, Vcc
0V
LVDS Interface
0V
- Power for Lamp
Timing Specifications:
0.5Љ t1 Љ 10 ms
0 Љ t2 Љ 50 ms
0 Љ t3 Љ 50 ms
t4 Њ 500 ms
t5 Њ 200 ms
Power On
90%
10%
Power Off
90%
t1
t3t2
Valid Data
t6t5
50%50%
ONOFF OFF
Restart
t7
10%
t4
10%
t6 Њ 200 ms
Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be
damaged.
Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be
sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time is better to follow (50us)Љt7Љ10ms.
19 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha
25r2
50r10 Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.0 mA Inverter Driving Frequency FL 55 KHz Inverter Darfon-VK.121164.101
7.2 OPTICAL SPECIFICATIONS
The relative measurement methods of optical characteristics are shown in 7.2. The following items
should be measured under the test conditions described in 7.1 and stable environment shown in Note (5).
o
C
%RH
Item Symbol Condition Min. Typ. Max. Unit Note
Red
Green
Color Chromaticity
Blue
White
Average Luminance of White L
Rx
Ry
Gx Gy
Bx
By
Wx 0.313
Wy
AVE
Contrast Ratio CR
Response Time
White Variation
Horizontal
Viewing Angle
Vertical
TR --- 2 8 ms T
GW T
Tx+
T
x
TY+
T
Y
(0.645)
(0.323)
(0.264)
(0.603) (0.156)
(0.077)
Typ +
0.03
(1), (5)
=0q, TY =0q
T
x
CS-1000T
Typ –
0.03
0.329
(250) (300) --- cd/m2(4), (5)
500 650 --- - (2), (5)
T
=0q, TY =0q
F
x
=0q, TY =0q
x
--- 6 12 ms
--- 1.25 1.40 - (5), (6)
50 60 ---
-
CR Њ 10
-
50 60 ---
40 50 ---
Deg. (1), (5)
40 50 ---
(3)
20 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Normal
Tx = Ty = 0º
Ty- Ty
TX- = 90º
6 o’clock
T
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (1)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF):
R
21 / 29
T
F
66.67 ms
Time
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
500
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6)
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
USB2000
AVE
):
CS-1000T
Center of the Screen
mm
Light Shield Room
(Ambient Luminance < 2 lux)
22 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center

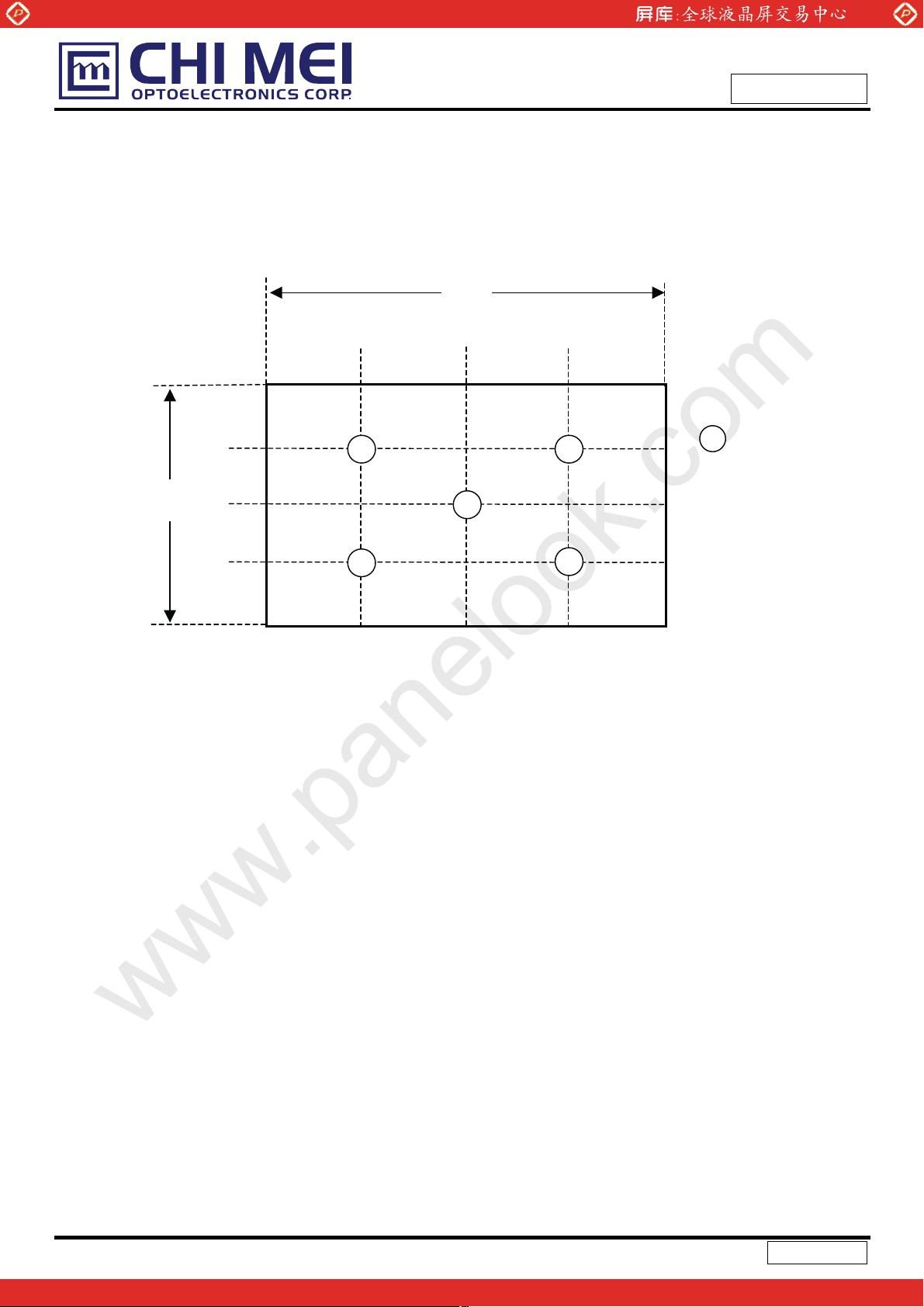

Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW = { Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
H/4
www.panelook.com
Horizontal Line
W
W/4 W/2 3W/4
2 3
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
: Test Point
X
X=1 to 5
H
Vertical Line
H/2
3H/4
1
4
Active Area
5
23 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
8.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
24 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
9. PACKING
9.1 CARTON
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary

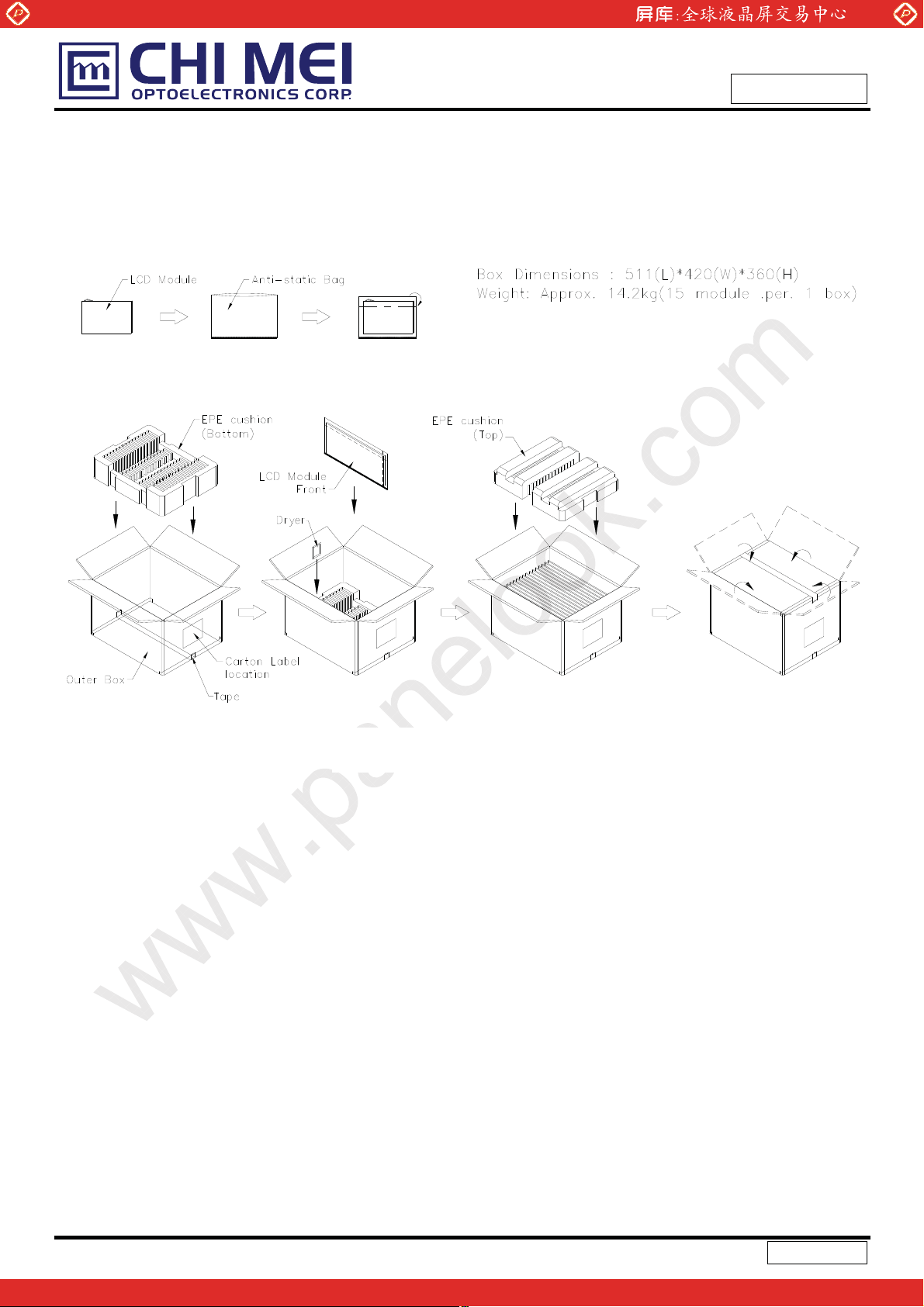

Figure. 9-1 Packing method
25 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
9.2 PALLET
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary

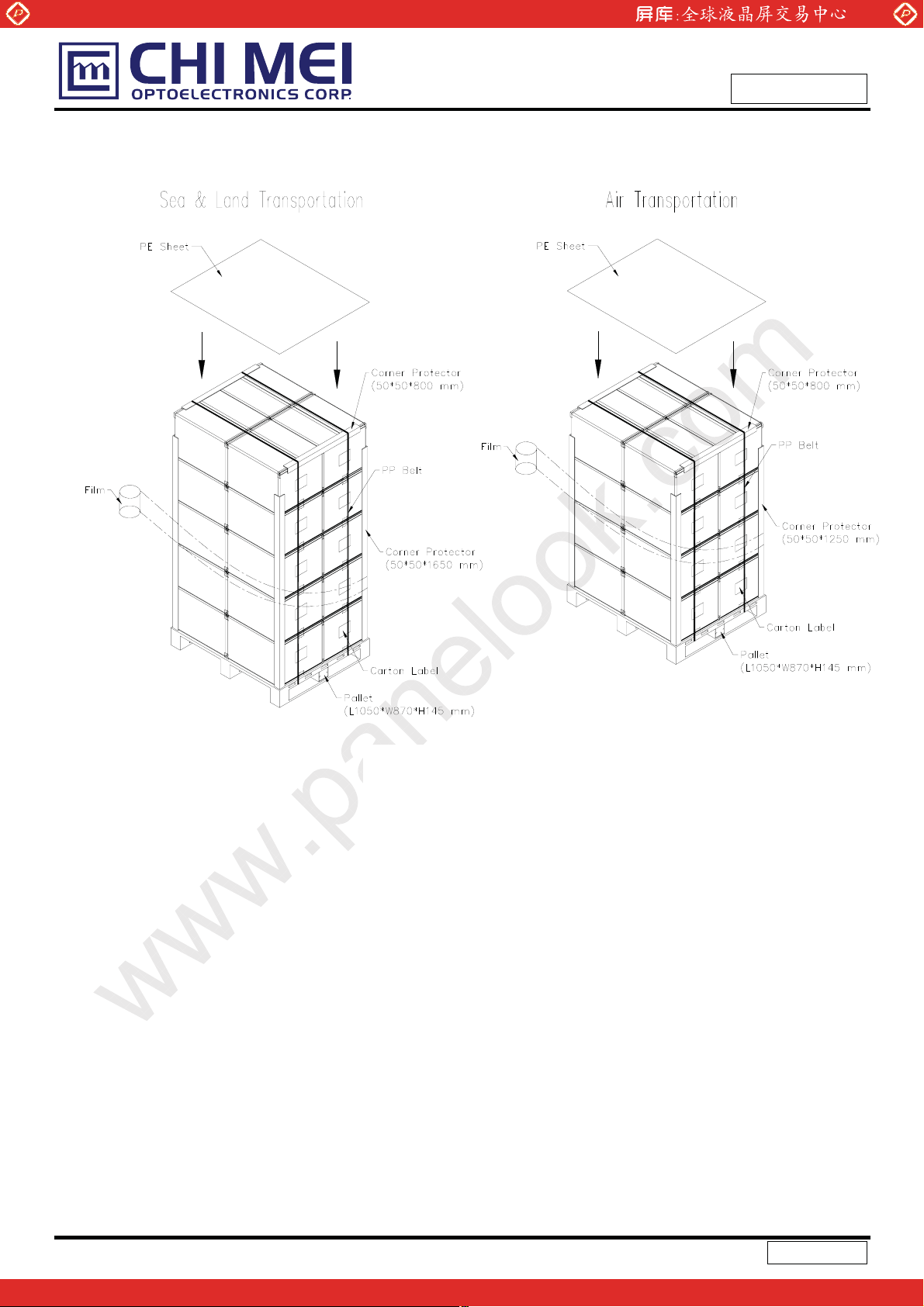

Figure. 9-2 Packing method
26 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
N184H4 -L02
(a) Model Name: N184H4 - L02
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
(e) UL logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL requirement.
The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL requirement.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
st
to 31st, exclude I , O and U
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
27 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center

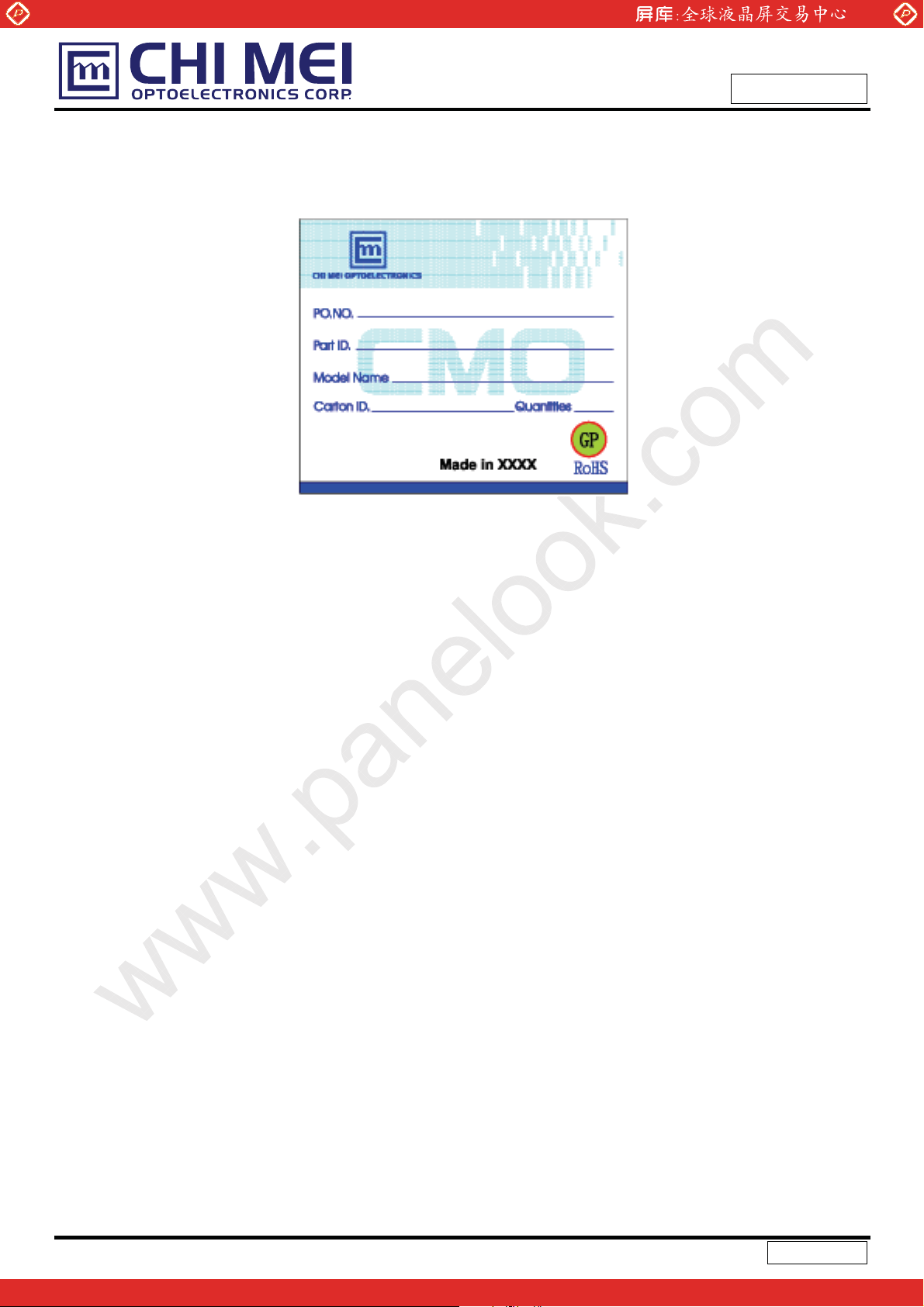

10.2 CMO CARTON LABEL
www.panelook.com
Doc No.: 44085409
Issued Date: Jul. 10, 2008
Model No.: N184H4 - L02
Preliminary
(a) Production location: Made In XXXX. XXXX stands for production location.
28 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
