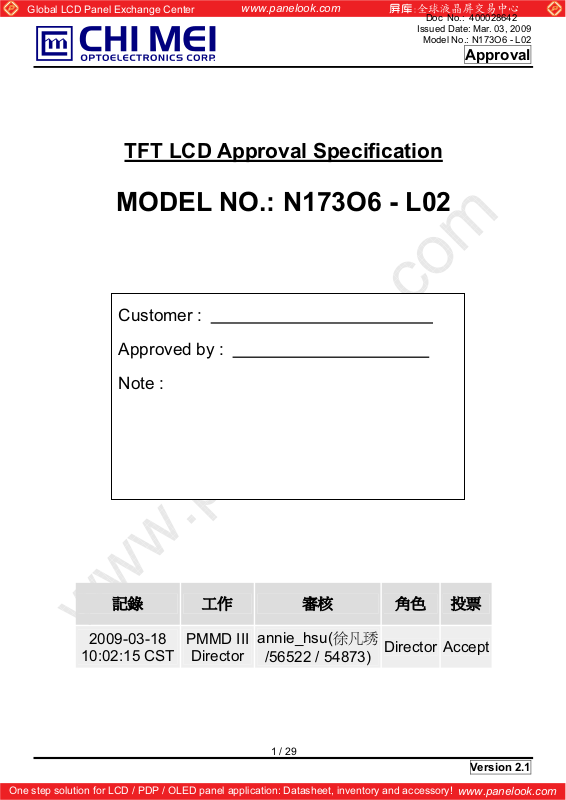

TFT LCD Approval Specification

MODEL NO.: N173O6 - L02

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Customer :

Approved by :

Note :



2009-03-18

PMMD III



annie_hsu(ஊՅ≮





Director Accept

10:02:15 CST

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Director

/56522 / 54873)

1 / 29



Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

- CONTENTS –

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10

4.1 TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

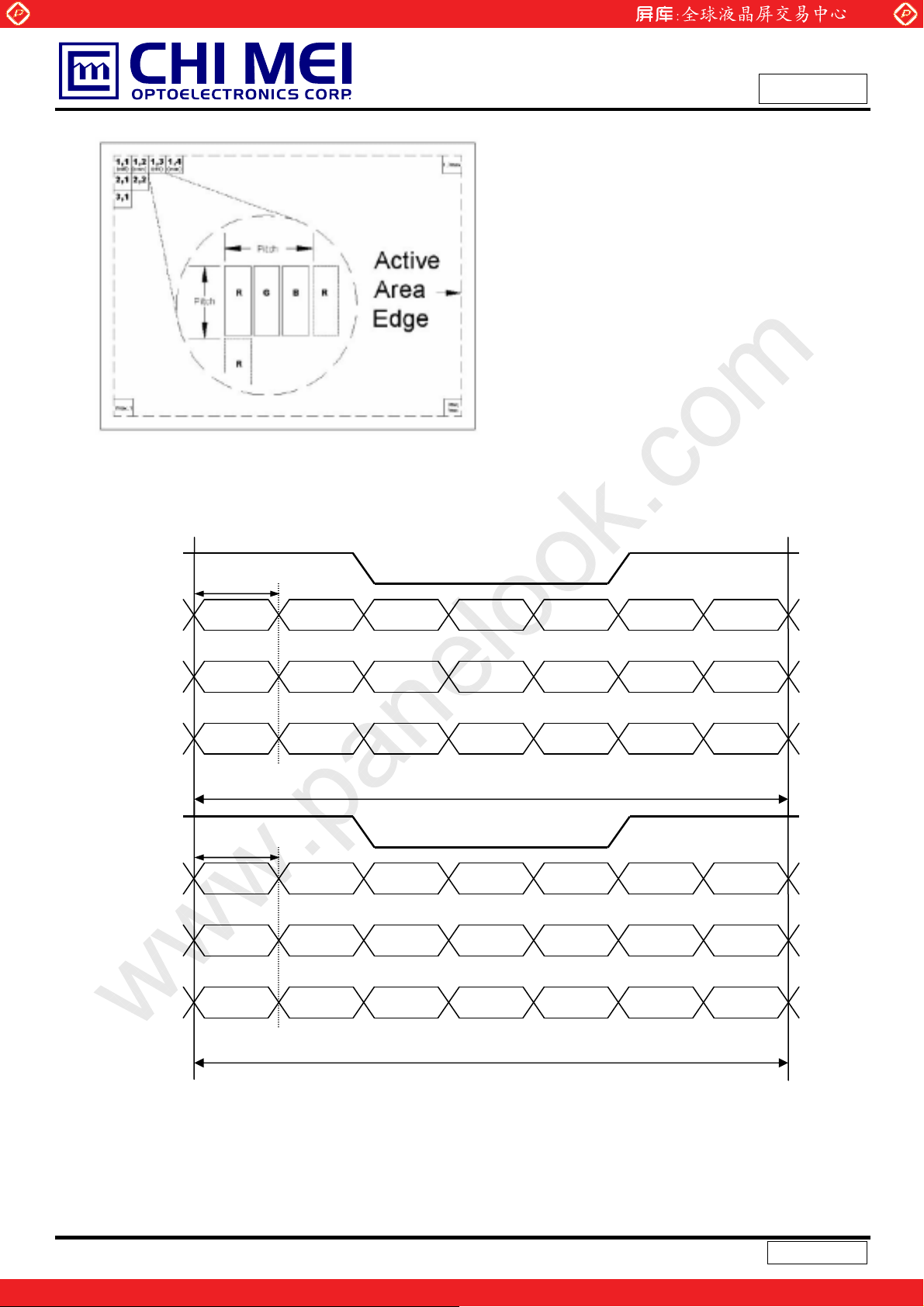

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID CODE DATA STRUCTURE

------------------------------------------------------- 11

6. Inverter Specification ------------------------------------------------------- 17

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

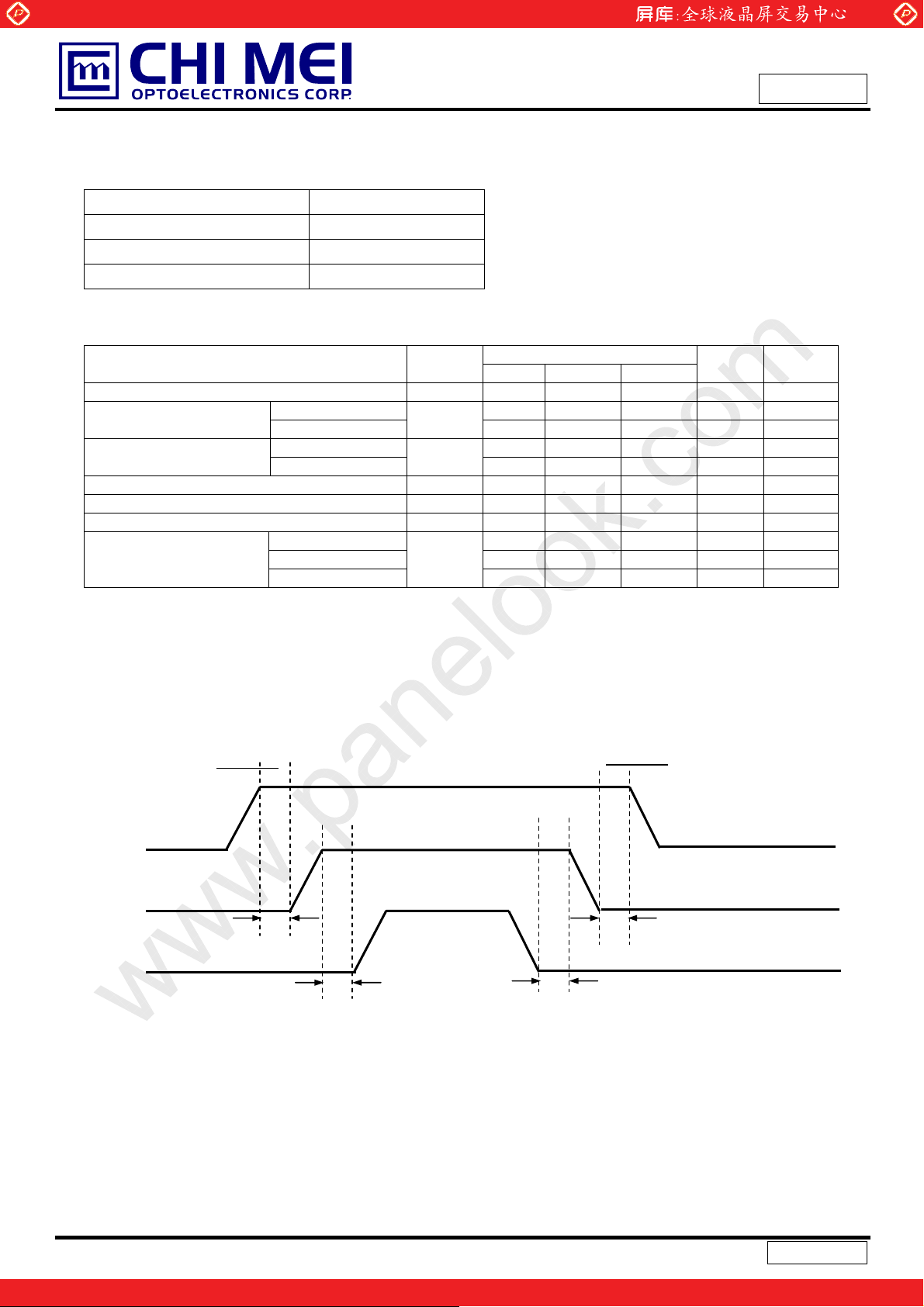

6.3 LED BACKLIGHT CONTROLL POWER SEQUENCE

7. INTERFACE TIMING ------------------------------------------------------- 18

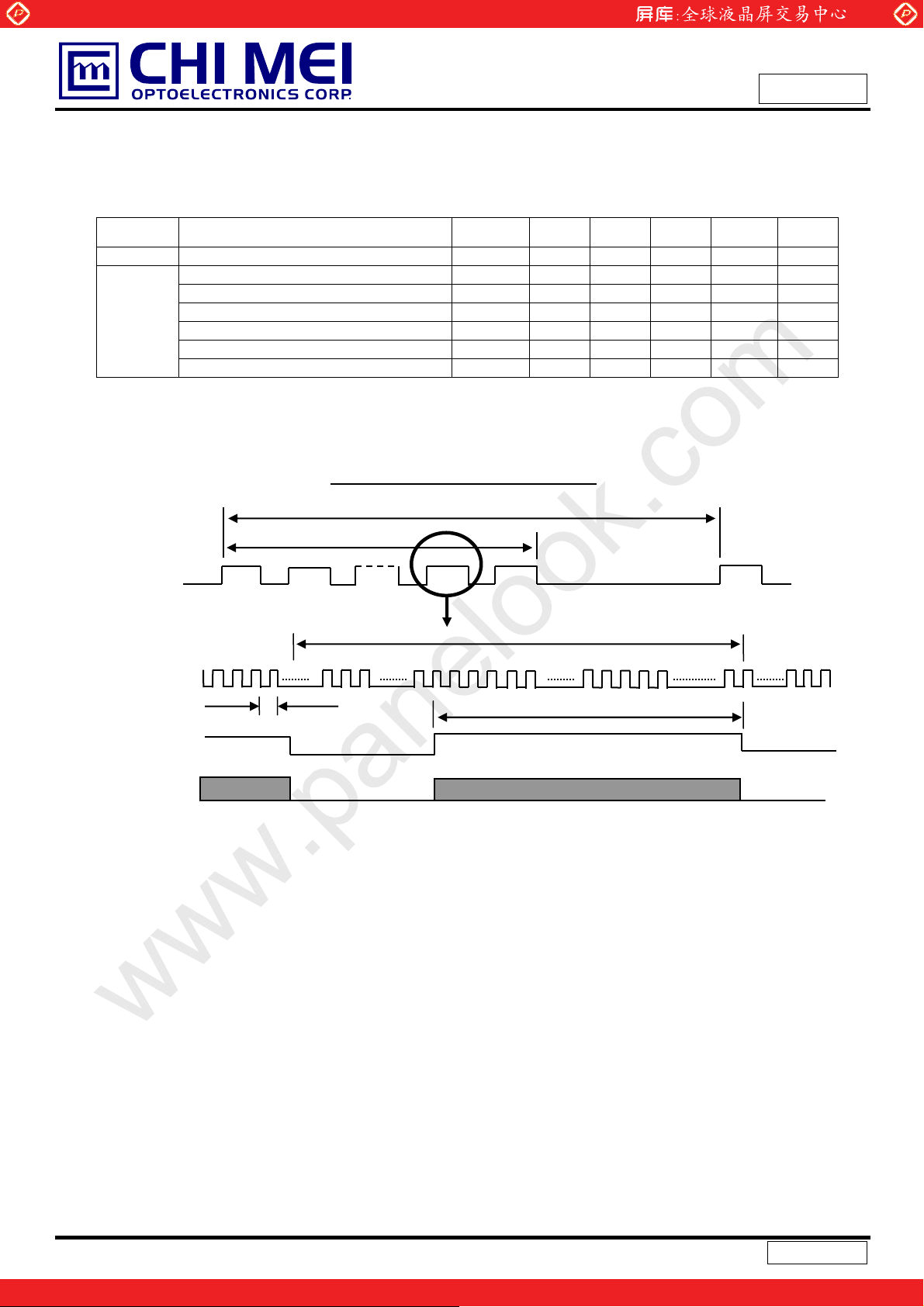

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 24

9.1 ASSEMBLY AND HANDLING PRECAUTIONS

9.2 SAFETY PRECAUTIONS

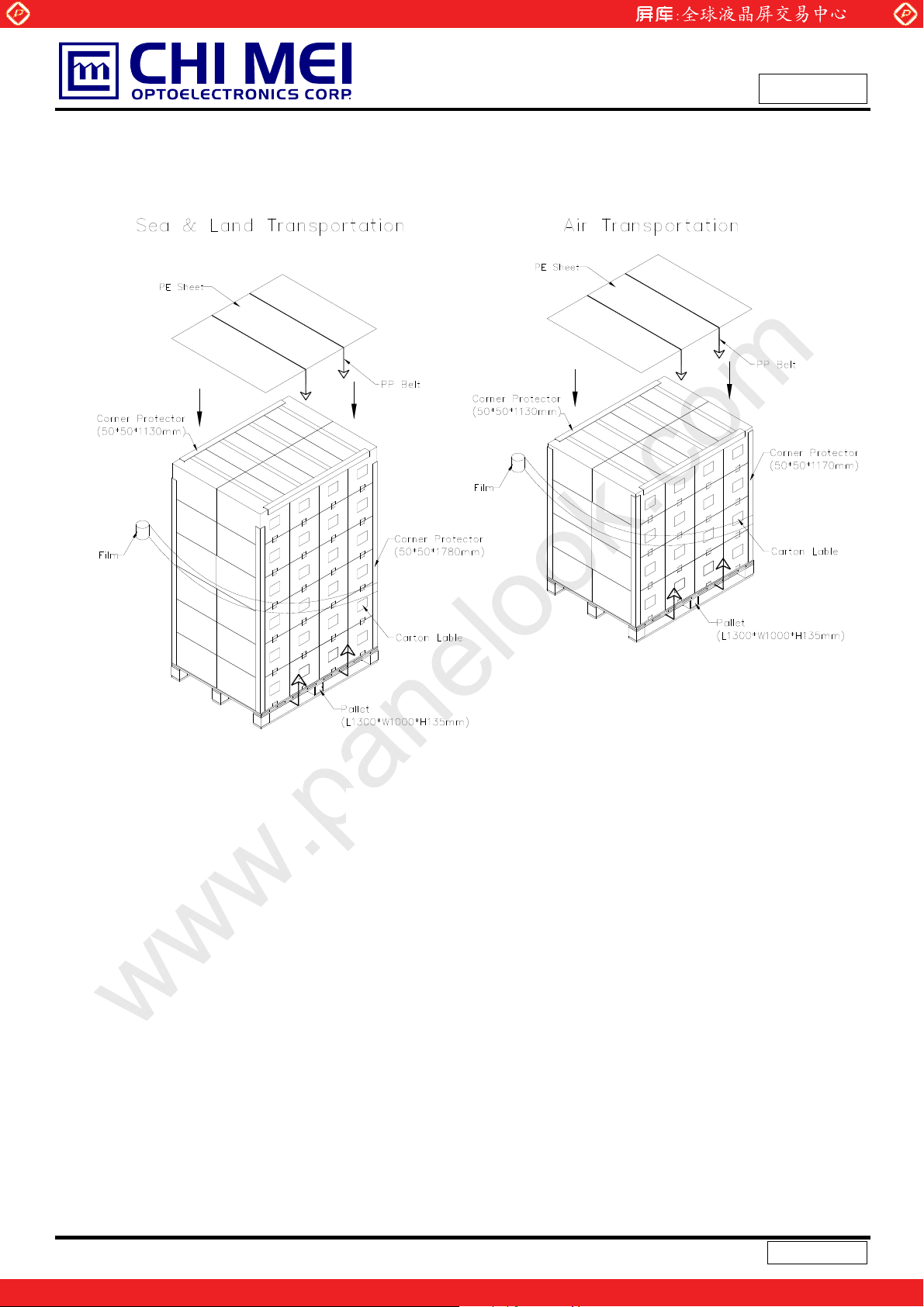

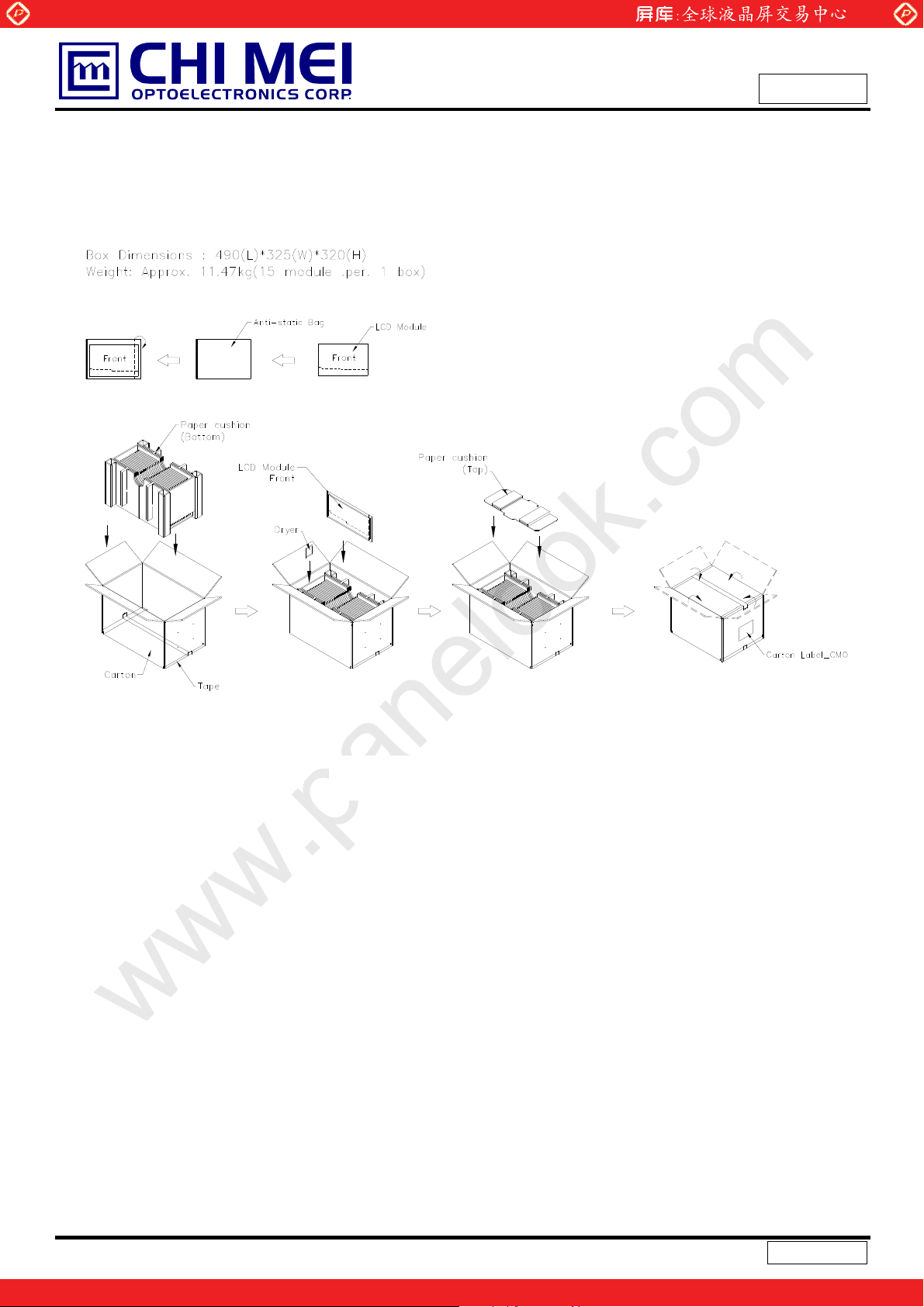

10. PACKING ------------------------------------------------------- 25

10.1CARTON

10.2 PALLET

11. DEFINITION OF LABELS

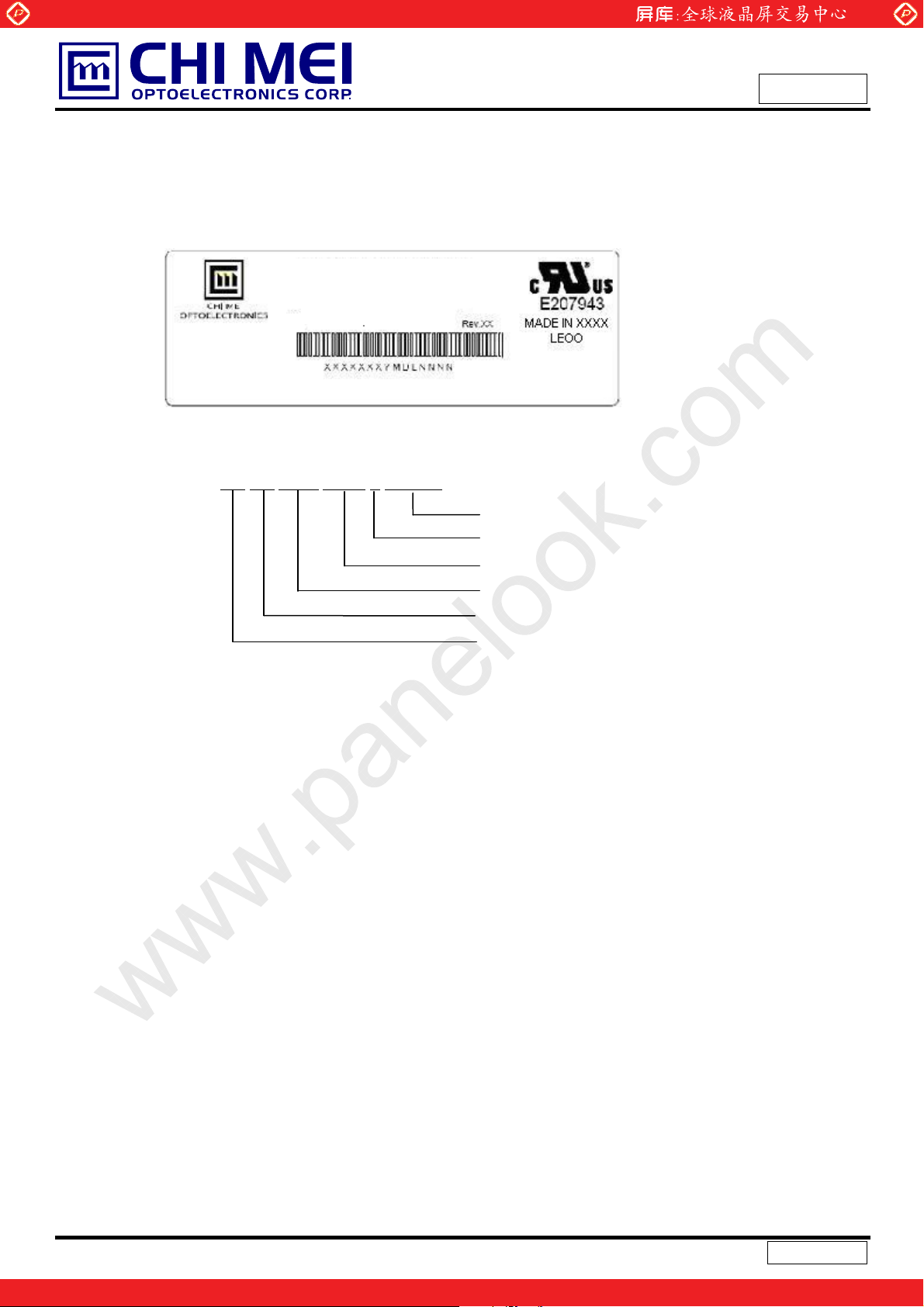

11.1 CMO MODULE LABEL

11.2

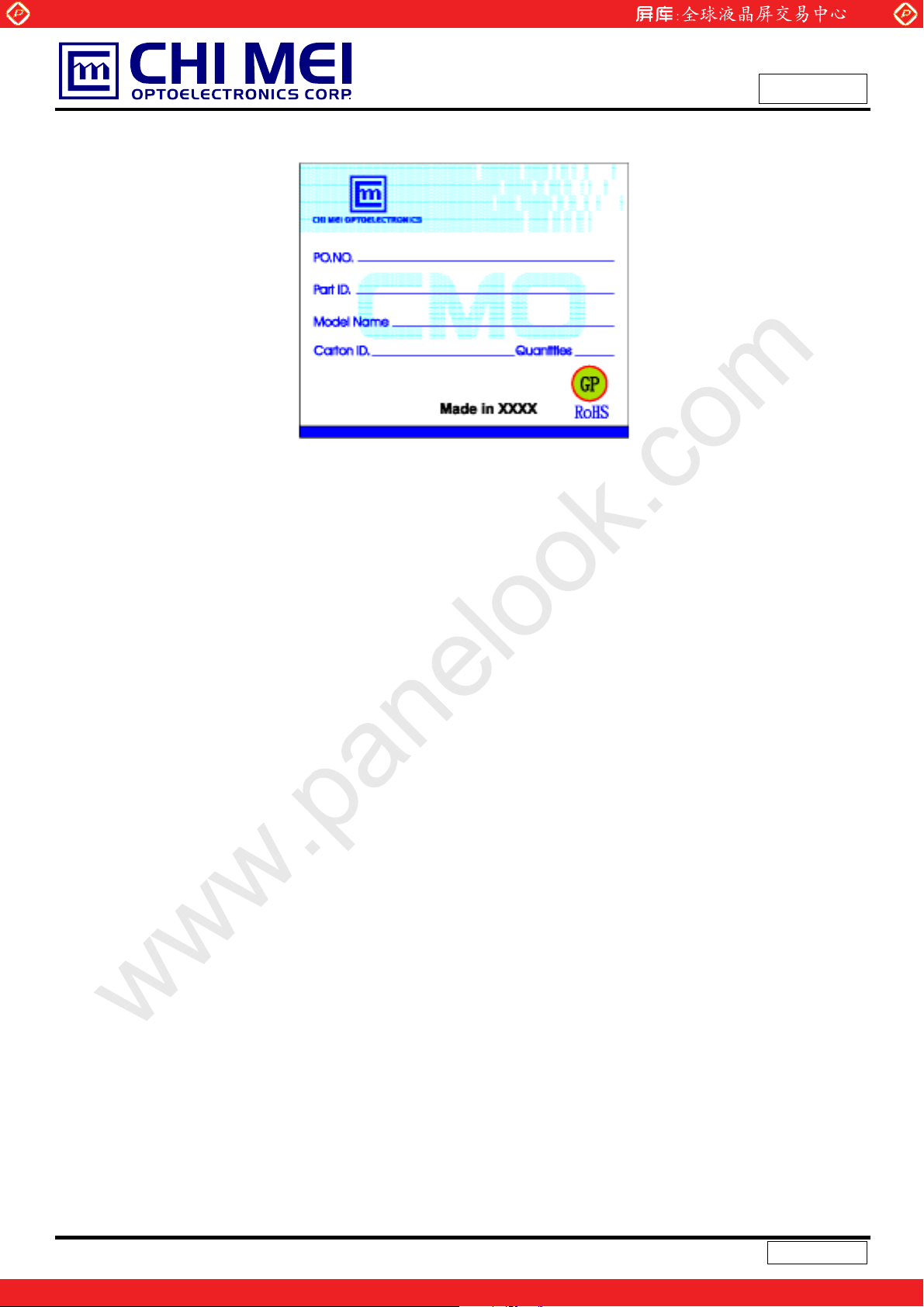

CMO CARTON LABEL

------------------------------------------------------- 27

2 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

REVISION HISTORY

Version Date

Ver. 1.0

Ver. 2.0

Ver.2.1

Dec. 22, ‘08

Jan.07, ‘09

Mar..02, ‘09

Page

(New)

All

All

29

17

Section Description

All

Preliminary Specification was first issued

All

Approval Specification was first issued.

Update Outline drawing

6.2

PWM Control Duty Ratio update from 20 to 10.

3 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N173O6 - L02 is a 17.3” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS

interface. This module supports 1600 x 900 HD+ mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction. The inverter module for Backlight is built in.

1.2

FEATURES

- HD+ (1600 x 900 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock

- LED

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 382.08 (H) x 214.92 (V) (17.3” diagonal) mm
Bezel Opening Area 386.88 (H) x 218.32 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1600 x R.G.B. x 900 pixel ­Pixel Pitch 0.2388 (H) x 0.2388(V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare Type - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 397.6 398.1 398.6 mm

Module Size

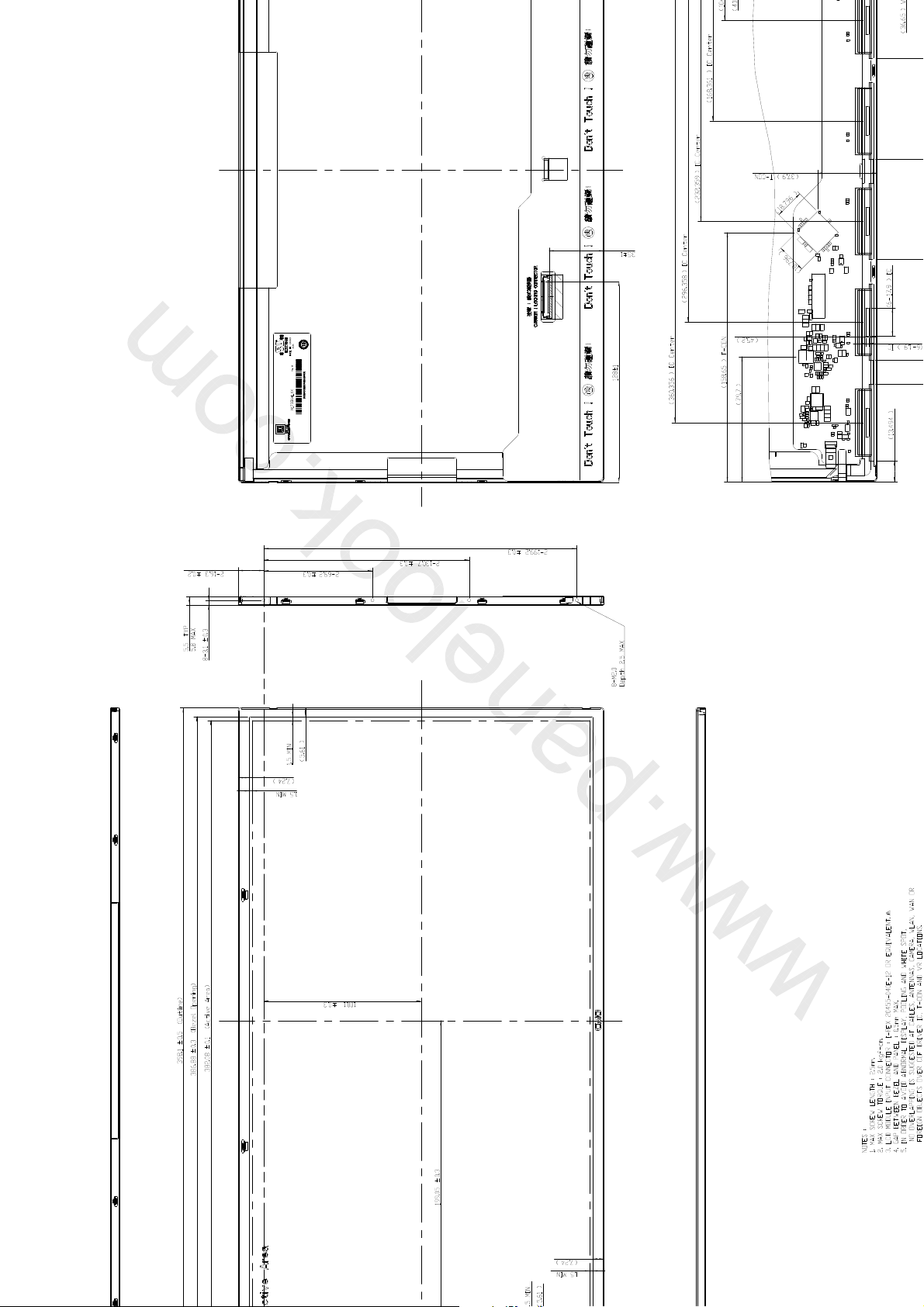

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical (V) 232.3 232.8 233.3 mm
Depth (D) 5.5 5.8 mm

Weight 540 555 g

(1)

(1)

4 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.

Relative Humidity (%RH)

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.

8060-20 40 0 20 -40

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

LED Light Bar Power Supply
Voltage
LED Light Bar Power Supply
Current

www.panelook.com

Value

Min. Max.

Value

Min. Max.

-40 28 V

V

L

0 200 mA

I

L

Unit Note

Unit Note

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

(1)

(1), (2)

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to 3.2 for further information).

6 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP 50 mV ­Rush Current I

1.5 A (2)

RUSH

Initial Stage Current IIS 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White 240 260 300 mA (3)a
Black 320 350 390 mA (3)b

TH(LVDS)

TL(LVDS)

+100 mV

-100 mV

LVDS Common Mode Voltage VCM 1.125 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 600 mV (5)
Terminating Resistor RT 100 Ohm
Power per EBL WG P

- 2.02 - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Unit Note

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

VR1

C1

1uF

47K

Q1 2SK1475

FUSE

Q2

2SK1470

C2

0.01uF

Vcc rising time is 470us

+3.3V

0.9Vcc

C3

1uF

VCC

Vcc

(LCD Module Input)

100ms

I

IS

0V

I

RUSH

470us

0.1Vcc

ICC

7 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

a. White Pattern

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

Note (5) The parameters of LVDS signals are defined as the following figures.

= 60 Hz,

v

b. Black Pattern

Active Area

Single Ended

Differential

V

0V

V

0V

V

CM

VID

VID

8 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current

22.4 25.6 28 V

V

L

133 140 147 mA

I

L

Min. Typ. Max.

Power Consumption PL 2.97 3.58 4.11 W

LED Life Time LBL 15000 - - Hrs (4)

Note (1) LED light bar configuration is shown as below.

Value

Unit Note

(1),(2) (Duty 100%)

(3),I
(Duty 100%)

Approval

=140mA

L

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with current

balancing function to drive LED light-bar.

Note (3) P

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25 ±2

= I

L

LVL

and I

= 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.

L

o

C

9 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

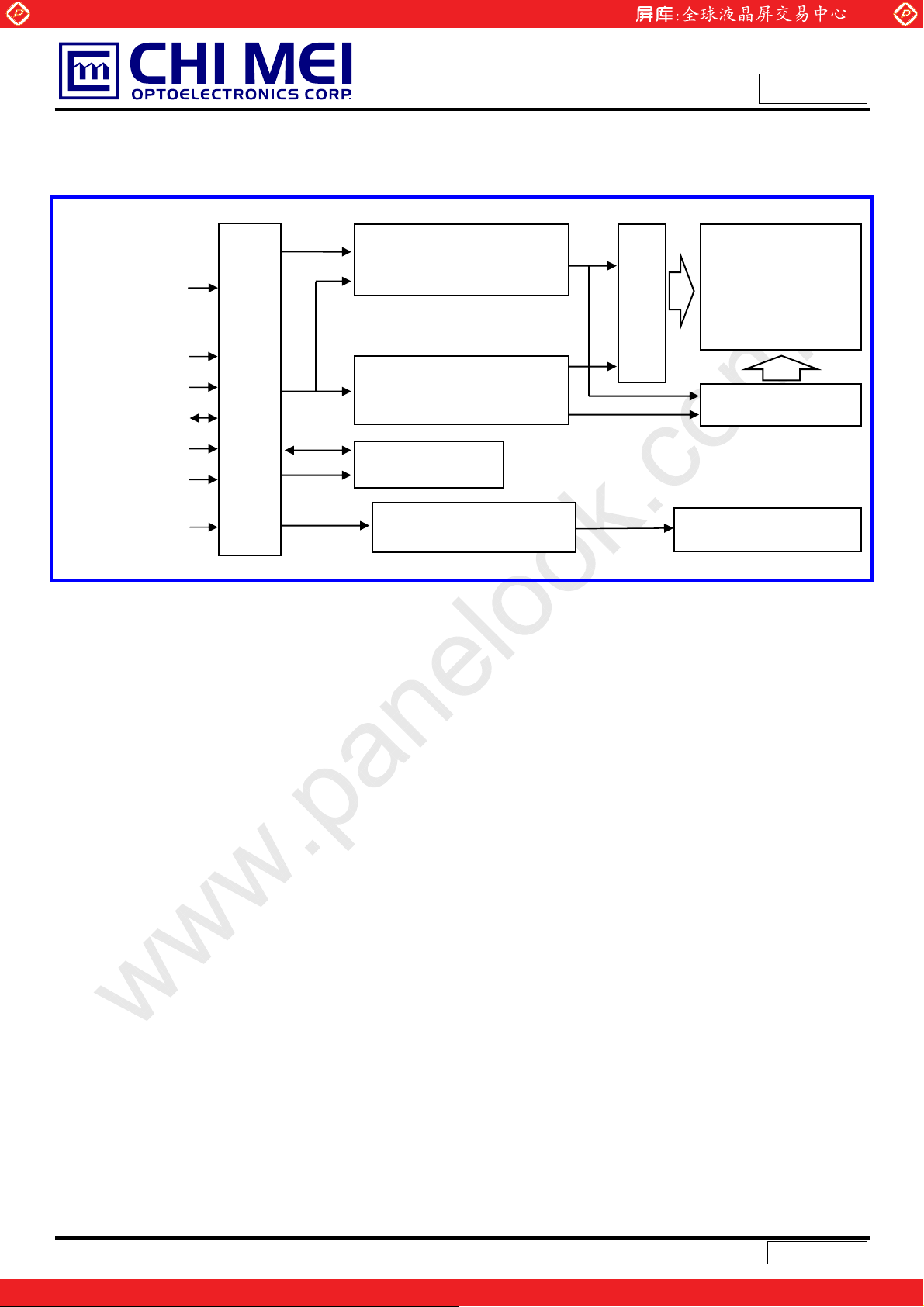

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

LED Power & Signal

INPUT CONNECTOR

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

LED

Converter

SCAN DRIVER IC

TFT LCD PANEL

(1600x3x900)

DATA DRIVER IC

BACKLIGHT UNIT

10 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Non connection
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 Reserve Non connection use by CMO
6 CLK
7 DATA
8 RXO0- LVDS Differential Data Input (Odd) Negative

9 RXO0+ LVDS Differential Data Input (Odd) Positive
10 Vss Ground
11 RXO1- LVDS Differential Data Input (Odd) Negative
12 RXO1+ LVDS Differential Data Input (Odd) Positive
13 Vss Ground
14 RXO2- LVDS Differential Data Input (Odd) Negative
15 RXO2+ LVDS Differential Data Input (Odd) Positive
16 Vss Ground
17 RXOC- LVDS Clock Data Input (Odd) Negative
18 RXOC+ LVDS Clock Data Input (Odd) Positive
19 Vss Ground
20 RxE0- LVDS Differential Data Input (Even) Negative
21 RxE0+ LVDS Differential Data Input (Even) Positive
22 Vss Ground
23 RxE1- LVDS Differential Data Input (Even) Negative
24 RxE1+ LVDS Differential Data Input (Even) Positive
25 Vss Ground
26 RxE2- LVDS Differential Data Input (Even) Negative
27 RxE2+ LVDS Differential Data Input (Even) Positive
28 Vss Ground
29 RXEC- LVDS Clock Data Input (Even) Negative
30 RXEC+ LVDS Clock Data Input (Even) Positive
31
32 LED_GND LED Ground
33 LED_GND LED Ground
34 Reserve No Connection use by CMO
35 LED_PWM System PWM Signal Input
36 LED_EN LED enable pin
37 Reserve No Connection use by CMO
38 LED_VCCS
39 LED_VCCS
40 LED_VCCS

DDC 3.3V Power

EDID

DDC Clock

EDID

DDC Data

EDID

GND Ground

LED Power
LED Power
LED Power

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Note (1) Connector Part No.: I-PEX 20455-040E-12,or equivalent

Note (2) User’s connector Part No: I-PEX 20453-040T-01 or equivalent

Note (3) The first pixel is odd as shown in the following figure.

11 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

RXOC+

T/7

RXO2+/-

RXO1+/-

RXO0+/-

RXEC+

RXE2+/-

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE OB5 OB4 OB3 OB2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

OB1 OG4 OG3 OG2 OG1OB0 OG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

OG0 OR3 OR2 OR1 OR0OR5 OR4

Signal for 1 DCLK Cycle (T)

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE EB5 EB4 EB3 EB2 Vsync Hsync

RXE1+/-

RXE0+/-

IN13 IN12 IN11 IN10 IN9 IN8 IN7

EB1 EG4 EG3 EG2 EG1EB0 EG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

EG0 ER3 ER2 ER1 ER0ER5 ER4

Signal for 1 DCLK Cycle (T)

12 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0
:
:

1

1

1

1

1

1

0

0

0

0

0

0
:
:

0

0

0

0

0

0

0

0

0

0

0

0
:
:

0

0

0

0

0

0

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

13 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

Byte
#(decimal)

0 0 Header

1 1 Header

2 2 Header
3 3 Header

4 4 Header

5 5 Header

6 6 Header

7 7 Header

8 8 EISA ID manufacturer name (“CMO”)

9 9 EISA ID manufacturer name (Compressed ASCII)

10 0A ID product code (N173O6-L02) 11

11 0B ID product code (hex LSB first; N173O6-L02) 17

12 0C ID S/N (fixed “0”)

13 0D ID S/N (fixed “0”)

14 0E ID S/N (fixed “0”)

15 0F ID S/N (fixed “0”)

16 10 Week of manufacture (fixed “00H”)

17 11 Year of manufacture (fixed “00H”)

18 12 EDID structure version # (“1”)

19 13 EDID revision # (“3”)

20 14 Video I/P definition (“digital”)

21 15 Max H image size (“38.768cm”)

22 16 Max V image size (“21.852cm”)

23 17 Display Gamma (Gamma = ”2.2”)

24 18 Feature support (“Active off, RGB Color”)

25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)

26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)

27 1B Red-x (Rx = “0.617”)

28 1C Red-y (Ry = “0.336”)

29 1D Green-x (Gx = ”0.321”)

30 1E Green-y (Gy = ”0.596”)

31 1F Blue-x (Bx = ”0.16”)

32 20 Blue-y (By = ”0.081”)

33 21 White-x (Wx = ”0.313”)

34 22 White-y (Wy = ”0.329”)

35 23 Established timings 1

36 24 Established timings 2

37 25 Manufacturer’s reserved timings

38 26 Standard timing ID # 1

39 27 Standard timing ID # 1

40 28 Standard timing ID # 2

41 29 Standard timing ID # 2

Byte
#(hex)Field Name and Comments Value(hex) Value(binary)

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

00 00000000

FF 11111111

FF 11111111
FF 11111111
FF 11111111

FF 11111111

FF 11111111

00 00000000

0D 00001101

AF 10101111

00010001

00010111

00 00000000

00 00000000

00 00000000

00 00000000

05 00000101

13 00010011

01 00000001

03 00000011

80 10000000

27 00100111

16 00010110

78 01111000

0A 00001010

06 00000110

35 00110101

9E 10011110

56 01010110

52 01010010

98 10011000

29 00101001

14 00010100

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

01 00000001

01 00000001

14 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

42 2A Standard timing ID # 3

43 2B Standard timing ID # 3

44 2C Standard timing ID # 4

45 2D Standard timing ID # 4

46 2E Standard timing ID # 5

47 2F Standard timing ID # 5

48 30 Standard timing ID # 6

49 31 Standard timing ID # 6

50 32 Standard timing ID # 7

51 33 Standard timing ID # 7

52 34 Standard timing ID # 8

53 35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“97.75MHz”, According to

54 36

55 37 # 1 Pixel clock (hex LSB first)

56 38 # 1 H active (“1600”)

57 39 # 1 H blank (“160”)

58 3A # 1 H active : H blank (“1600 : 160”)

59 3B # 1 V active (”900”)

60 3C # 1 V blank (”26”)

61 3D # 1 V active : V blank (”900 : 26”)

62 3E # 1 H sync offset (”48”)

63 3F # 1 H sync pulse width ("32”)

64 40 # 1 V sync offset : V sync pulse width (”3 : 5”)

65 41

66 42 # 1 H image size (”382 mm”)

67 43 # 1 V image size (”215 mm”)

68 44 # 1 H image size : V image size (”382 : 215”)

69 45 # 1 H boarder (”0”)

70 46 # 1 V boarder (”0”)

71 47

72 48 Detailed timing description # 2

73 49 # 2 Flag

74 4A # 2 Reserved

75 4B # 2 FE (hex) defines ASCII string (Model Name “N173O6-L02”, ASCII)

76 4C # 2 Flag

77 4D # 2 1st character of name (“N”)

78 4E # 2 2nd character of name (“1”)

79 4F # 2 3rd character of name (“7”)

80 50 # 2 4th character of name (“3”)

81 51 # 2 5th character of name (“O”)

82 52 # 2 6th character of name (“6”)

83 53 # 2 7th character of name (“-”)

84 54 # 2 8th character of name (“L”)

85 55 # 2 9th character of name (“0”)

VESA CVT Rev1.1)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
(”48: 32 : 3 : 5”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
Negatives

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

2F 00101111

26 00100110

40 01000000

A0 10100000

60 01100000

84 10000100

1A 00011010

30 00110000

30 00110000

20 00100000

35 00110101

00 00000000

7E 01111110

D7 11010111

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

37 00110111

33 00110011

4F 01001111

36 00110110

2D 00101101

4C 01001100

30 00110000

15 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

86 56 # 2 9th character of name (“2”)

87 57 # 2 New line character indicates end of ASCII string

88 58 # 2 Padding with “Blank” character

89 59 # 2 Padding with “Blank” character

90 5A Detailed timing description # 3

91 5B # 3 Flag

92 5C # 3 Reserved

93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

94 5E # 3 Flag

95 5F # 3 1st character of string (“C”)

96 60 # 3 2nd character of string (“M”)

97 61 # 3 3rd character of string (“O”)

98 62 # 3 New line character indicates end of ASCII string

99 63 # 3 Padding with “Blank” character

100 64 # 3 Padding with “Blank” character

101 65 # 3 Padding with “Blank” character

102 66 # 3 Padding with “Blank” character

103 67 # 3 Padding with “Blank” character

104 68 # 3 Padding with “Blank” character

105 69 # 3 Padding with “Blank” character

106 6A # 3 Padding with “Blank” character

107 6B # 3 Padding with “Blank” character

108 6C Detailed timing description # 4

109 6D # 4 Flag

110 6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N173O6-L02”,

111 6F

112 70 # 4 Flag

113 71 # 4 1st character of name (“N”)

114 72 # 4 2nd character of name (“1”)

115 73 # 4 3rd character of name (“7”)

116 74 # 4 4th character of name (“3”)

117 75 # 4 5th character of name (“O”)

118 76 # 4 6th character of name (“6”)

119 77 # 4 7th character of name (“-”)

120 78 # 4 8th character of name (“L”)

121 79 # 4 9th character of name (“0”)

122 7A # 4 9th character of name (“2”)

123 7B # 4 New line character indicates end of ASCII string

124 7C # 4 Padding with “Blank” character

125 7D # 4 Padding with “Blank” character

126 7E Extension flag

127 7F Checksum

ASCII)

32 00110010

0A 00001010

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

37 00110111

33 00110011

4F 01001111

36 00110110

2D 00101101

4C 01001100

30 00110000

32 00110010

0A 00001010

20 00100000

20 00100000

00 00000000

2F 00101111

16 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

6. CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS 28.0V

LED_GND +/-0.3V

LED_PWM, LED_EN -0.3V~5.5V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage

EN Control Level

PWM Control Level

Backlight On 2.0 --- 5.0 V
Backlight Off 0.0 --- 0.8 V
PWM High Level 2.0 --- 5.0 V
PWM Low Level 0.0 --- 0.15 V

LED_Vccs

Min. Typ. Max.

6.0 12.0 21.0 V

PWM Control Duty Ratio 10 100 %
PWM Control Permissive Ripple Voltage
PWM Control Frequency f

LED_VCCS=Min

Converter Input Current

LED_VCCS=Typ
LED_VCCS=Max

VPWM_pp

190 210 230 Hz

PWM

100 mV

591 703 833 mA (1)

I

BL

296 351 417 mA (1)
169 201 238 mA (1)

Value

Approval

Unit Note

Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min, Typ, Max”,

Ta = 25 ± 2 ºC, f

= 200 Hz, Duty=100%.

PWM

6.3 LED BACKLIGHT CONTROLL POWER SEQUENCE

Power On

LED_VCCS

0V

LED_PWM

0V

T

A

LED_EN

Timing Specifications:

0V

Њ 0ms

T

A

T

Њ 0ms

B

T

Њ 10ms

C

T

Њ 0ms

D

T

T

C

D

Note (1) Please follow the LED backlight power sequence as above. If the customer could not follow, it might

Power Off

T

B

cause backlight flash issue during display ON/OFF or damage the LED backlight controller

17 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 44 48.9 51.4 MHz (2)

Vertical Total Time TV 903 926 1157 TH -

Vertical Active Display Period TVD 900 900 900 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

(2) 2 channels LVDS input.

Vertical Active Blanking Period TVB TV-TVD 26 TV-TVD TH

Horizontal Total Time TH 1682 1760 2200 Tc (2)

Horizontal Active Display Period THD 1600 1600 1600 Tc (2)

Horizontal Active Blanking Period THB

www.panelook.com

TH-THD

160

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

TH-THD

Tc (2)

DE

DCLK

DE

DATA

INPUT SIGNAL TIMING DIAGRAM

TC

HD

T

18 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

- Power Supply

for LCD, Vcc

LVDS Interface

- Power for Backlight

Timing Specifications:

0.5Љ t1 Љ 10 ms

0 Љ t2 Љ 50 ms

0 Љ t3 Љ 50 ms

t4 Њ 500 ms

t5 Њ 200 ms

0V

0V

Power On

90%

10%

Power Off

90%

t1

t3t2

Valid Data

t6t5

50%50%

ONOFF OFF

Restart

t7

10%

t4

10%

t6 Њ 200 ms

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow 50usЉt7Љ10 ms.

19 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Lightbar power supply

Current

The relative measurement methods of optical characteristics are shown in 8.2. The following items should be

measured under the test conditions described in 8.1 and stable environment shown in Note (5).

8.2 OPTICAL SPECIFICATIONS

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

o

25±2

50±10

140 mA

I

L

C

%RH

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Green

Color
Chromaticity

Blue

White

Average Luminance of White L

Rx

Ry

Gx
Gy

Bx

By

Wx 0.313

Wy

AVE

Contrast Ratio CR

Response Time

TR --- 2 8 ms
T

Typ –

=0° , θY =0°

θ

x

0.03

CS-1000T

180 220 --- cd/m2(4), (5)

500 650 --- - (2), (5)

θ

=0° , θY =0°

F

x

--- 6 12 ms

0.613

0.344

0.326

0.59

0.160

0.082

0.329

Typ +

0.03

(1), (5)

(3)

White Variation δW θx=0° , θY =0° --- 1.25 1.40 - (5), (6)

Horizontal

Viewing Angle

Vertical

θx+ 40 45 ---

- 40 45 ---

θ

x

θY+ 15 20 ---

θ

-

Y

CR Њ 10

40 45 ---

Deg. (1), (5)

20 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

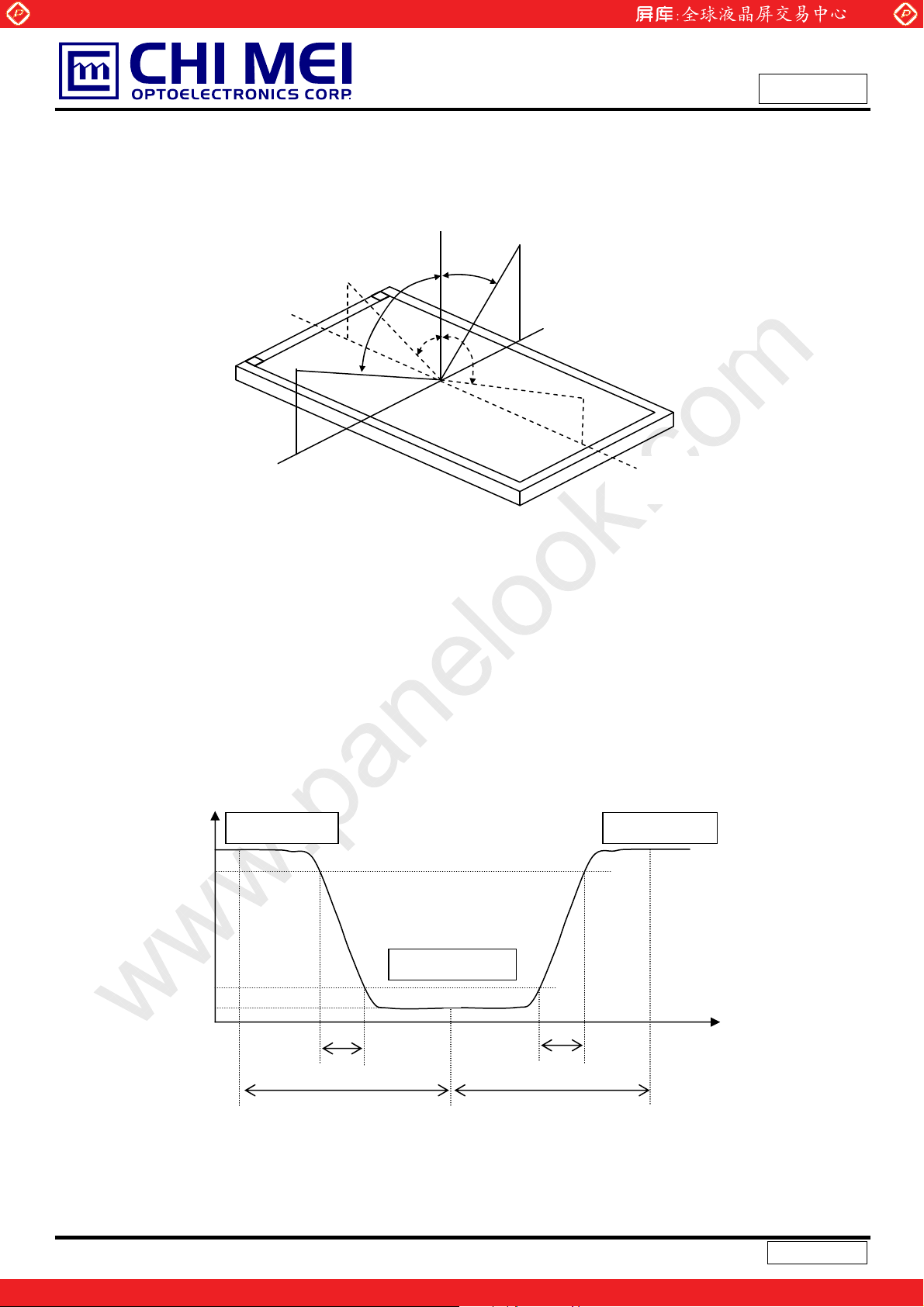

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

θx−

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

, TF):

R

T

R

66.67 ms

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

21 / 29

AVE

Time

T

F

66.67 ms

):

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

500

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

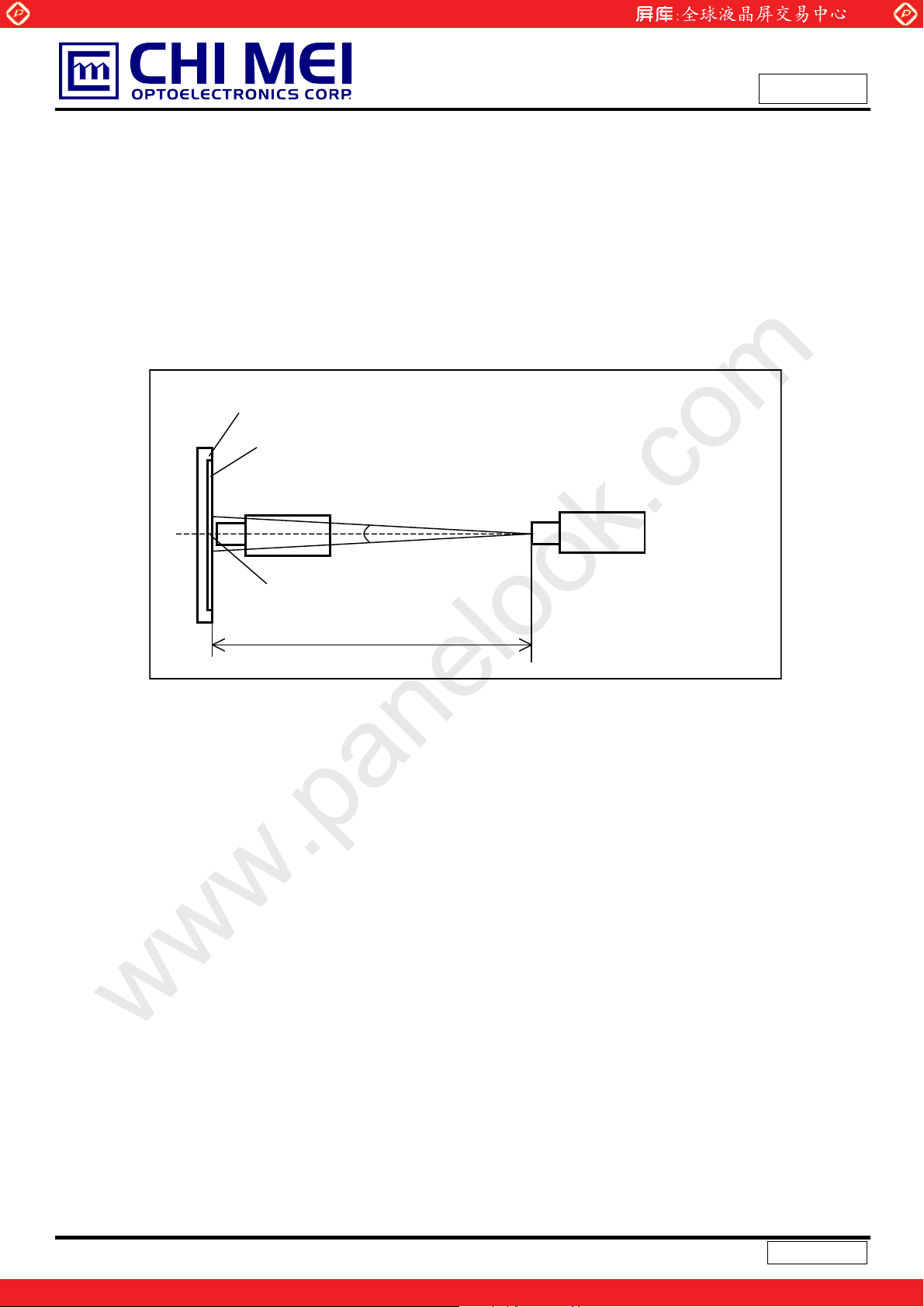

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

USB2000

Center of the Screen

mm

CS-1000T

Light Shield Room

(Ambient Luminance < 2 lux)

22 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

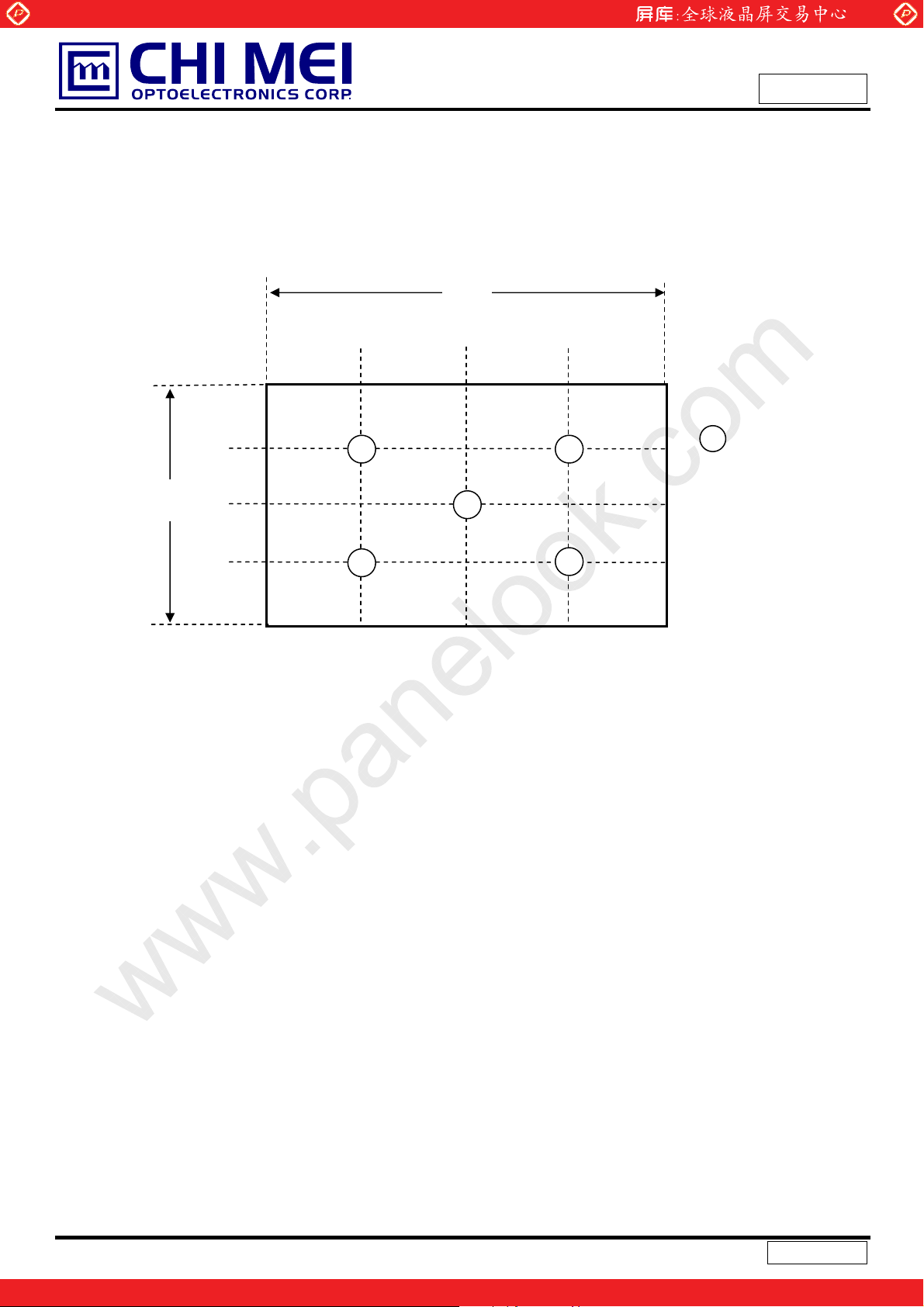

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW = { Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

H/4

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Horizontal Line

W

W/4 W/2 3W/4

: Test Point

2 3

X

X=1 to 5

Approval

H

Vertical Line

H/2

3H/4

1

4

Active Area

5

23 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

9. PRECAUTIONS

9.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

9.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

24 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

10. PACKING

10.1 CARTON

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Figure. 10-1 Packing method

25 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

10.2 PALLET

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

Figure. 10-2 Packing method

26 / 29

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following

explanation.

(a) Model Name: N173O6 - L02

(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

N173O6 -L02

(c) Serial ID: X X

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e) UL logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL requirement.

The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL requirement.

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

X X X X X Y M D X N N N N

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

Serial No.

CMO Internal Use

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

st

to 31st, exclude I , O and U

27 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

11.2 CMO CARTON LABEL

www.panelook.com

Doc No.: 400028642

Issued Date: Mar. 03, 2009

Model No.: N173O6 - L02

Approval

(a) Production location: Made In XXXX. XXXX stands for production location.

28 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com
