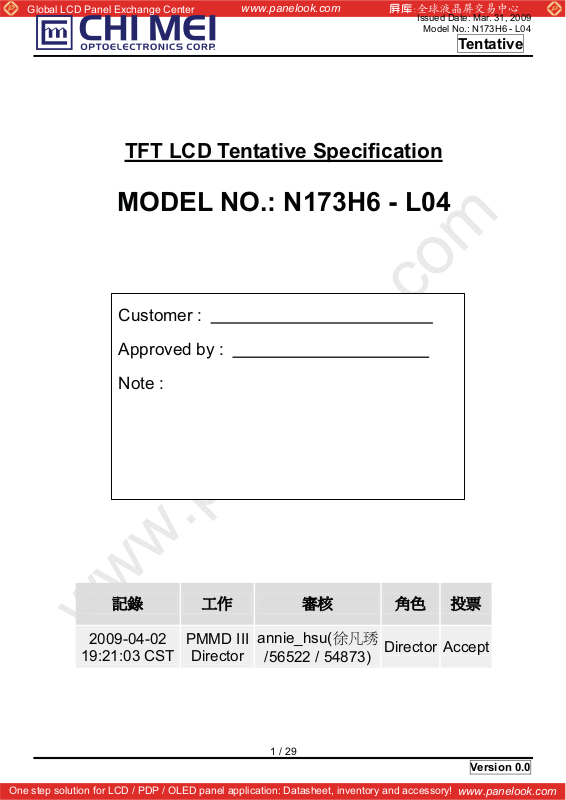

TFT LCD Tentative Specification
MODEL NO.: N173H6 - L04
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
Customer :
Approved by :
Note :
2009-04-02
PMMD III
annie_hsu(ஊՅ≮
Director Accept
19:21:03 CST
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Director
/56522 / 54873)
1 / 29
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
- CONTENTS –
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

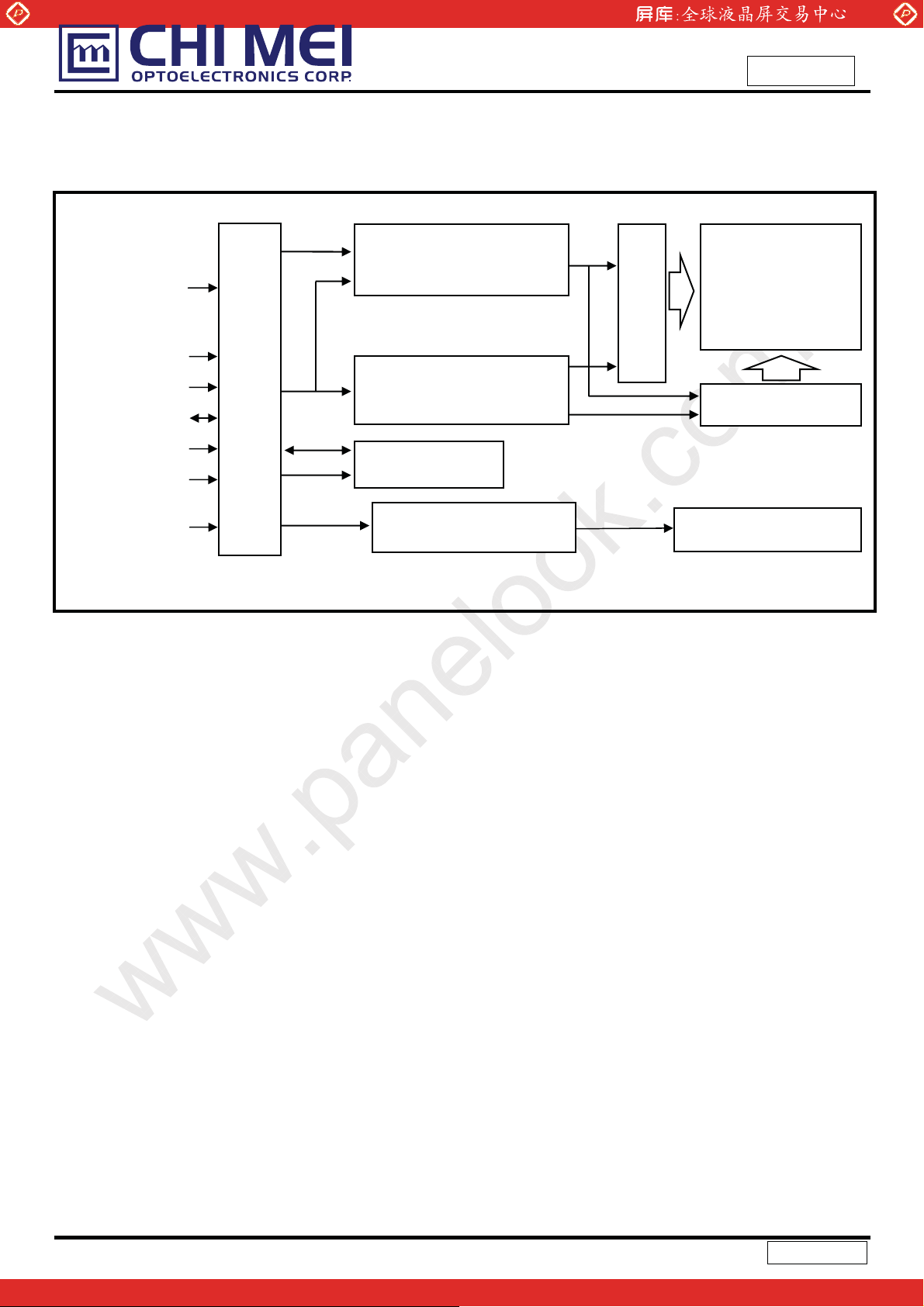

4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE

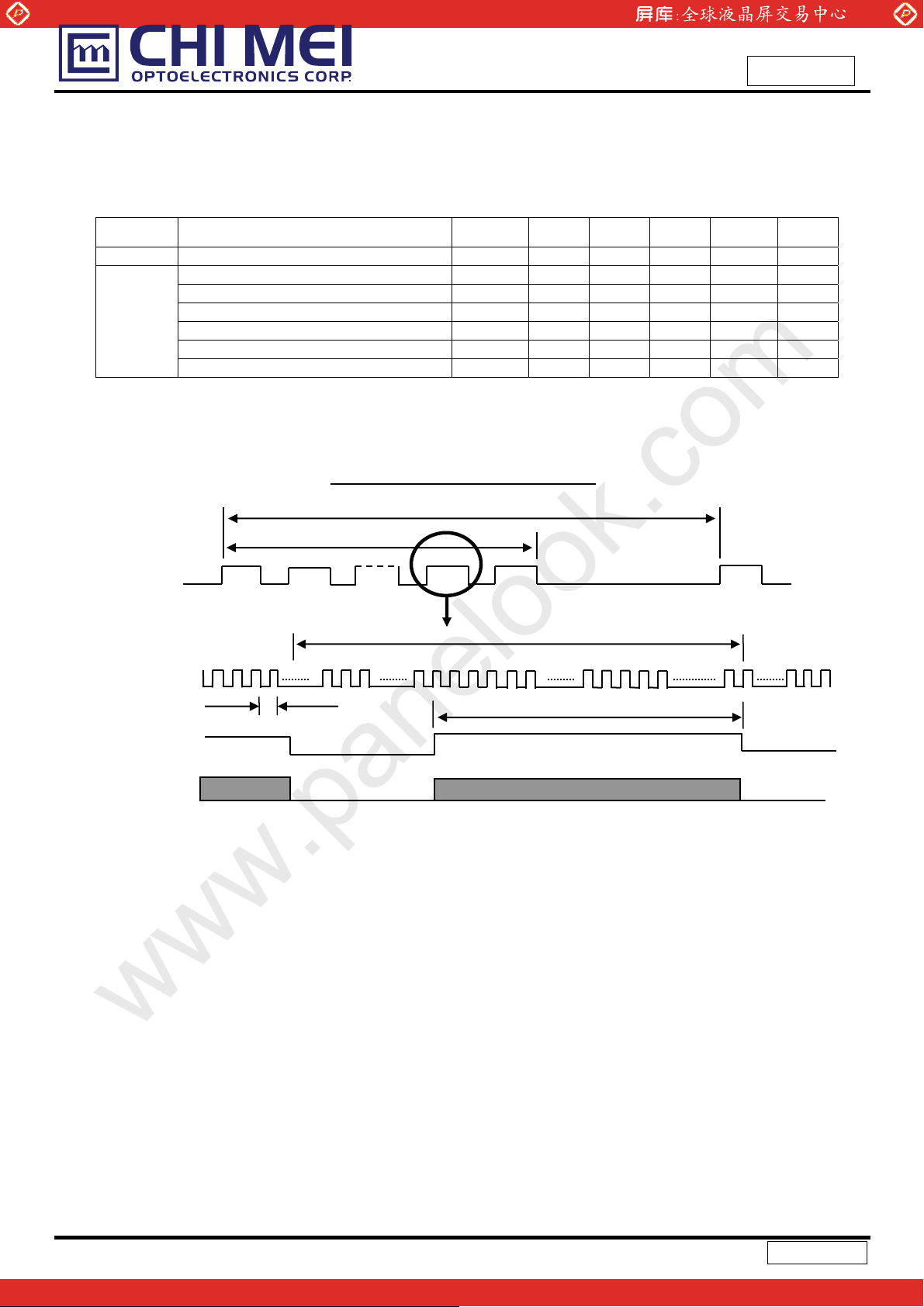

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID CODE DATA STRUCTURE
------------------------------------------------------- 11
6. Inverter Specification ------------------------------------------------------- 17
6.1 ABSOLUTE MAXIMUM RATINGS
6.2 RECOMMENDED OPERATING RATINGS
6.3 LED BACKLIGHT CONTROLL POWER SEQUENCE
7. INTERFACE TIMING ------------------------------------------------------- 18
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 24
9.1 ASSEMBLY AND HANDLING PRECAUTIONS
9.2 SAFETY PRECAUTIONS
10. PACKING ------------------------------------------------------- 25

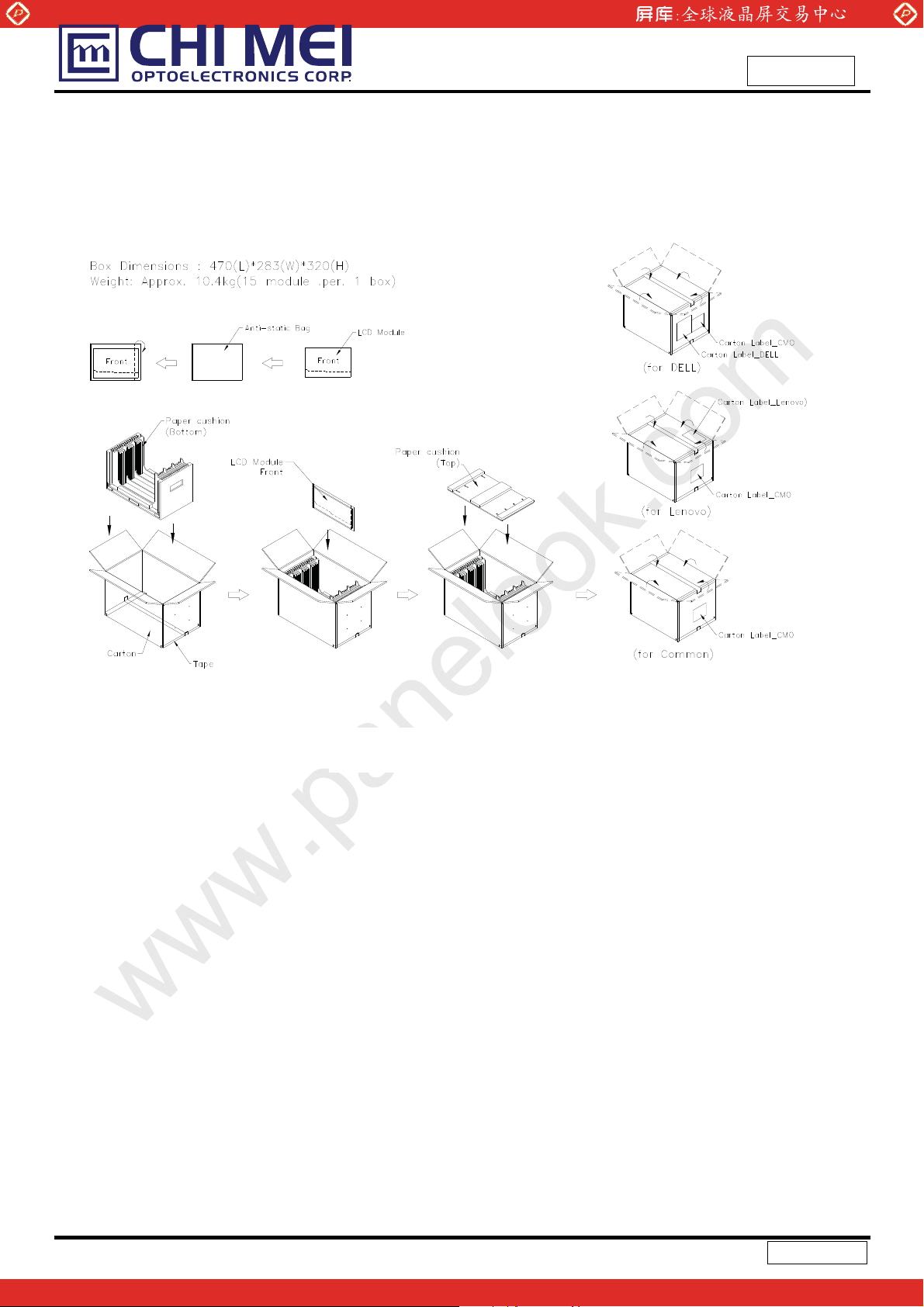

10.1CARTON

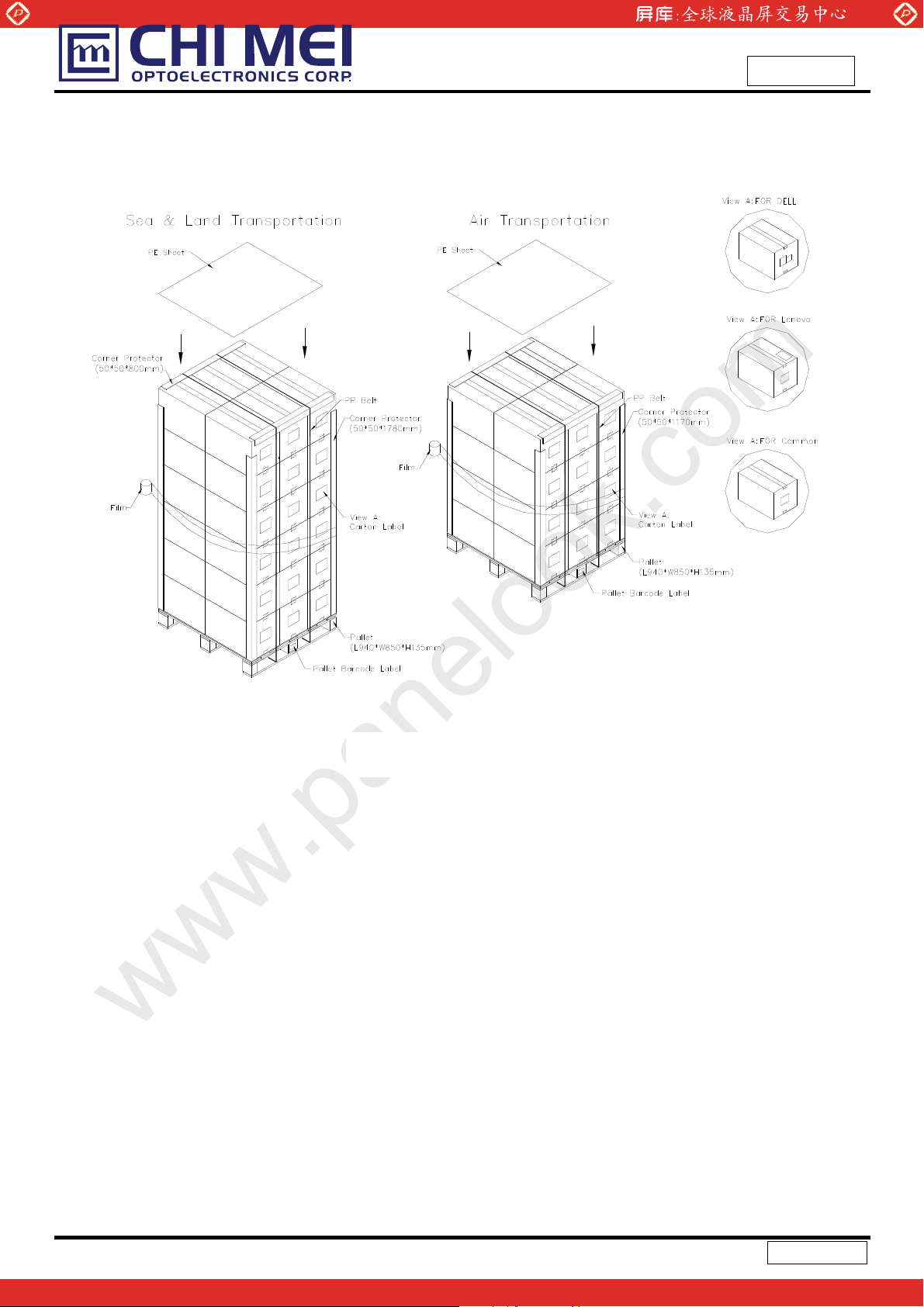

10.2 PALLET
11. DEFINITION OF LABELS

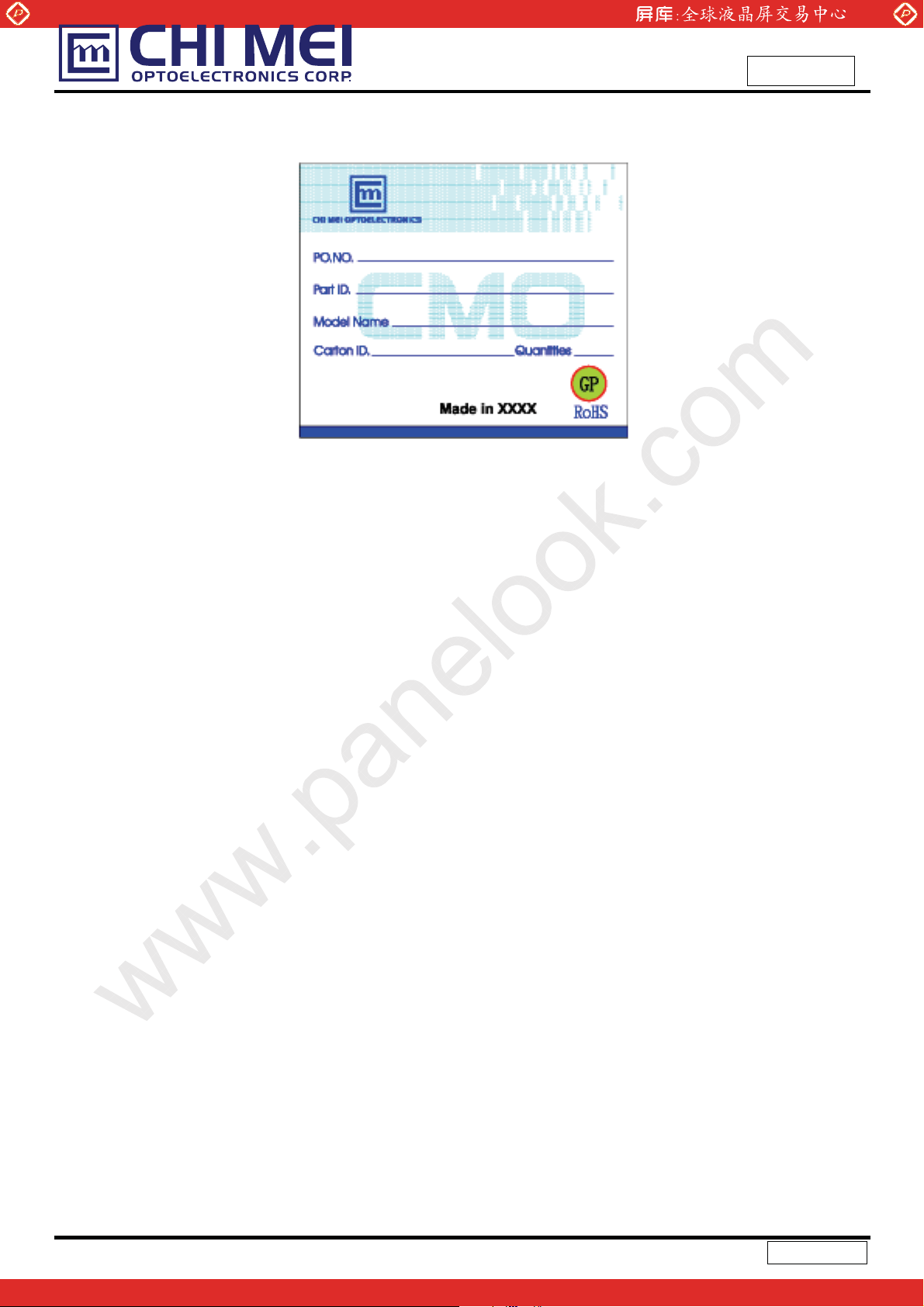

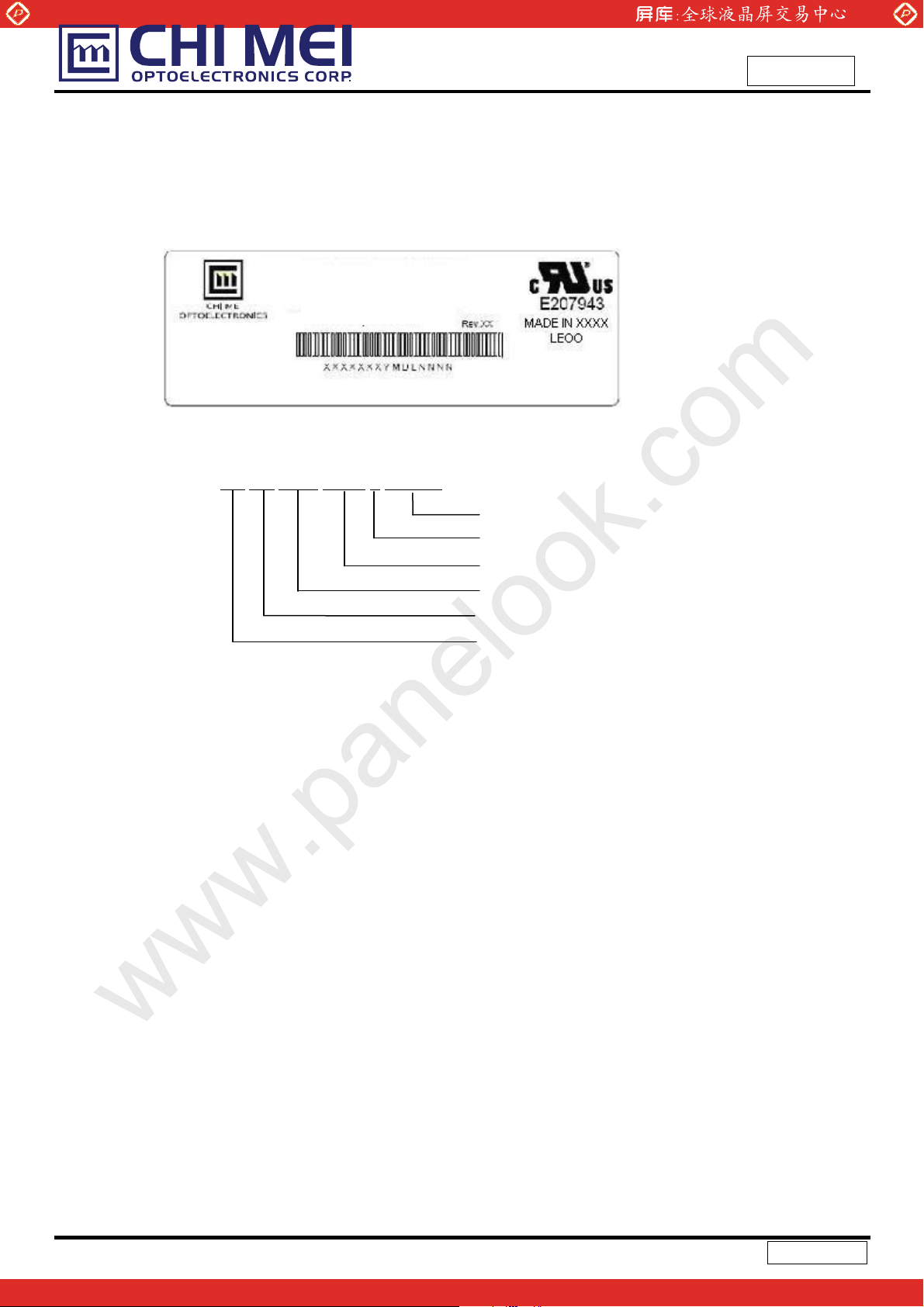

11.1 CMO MODULE LABEL
11.2
CMO CARTON LABEL
------------------------------------------------------- 27
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
REVISION HISTORY
Version Date
Ver. 0.0 Mar. 31, ‘09 All All Tentative Specification was first issued.
Page
(New)
Section Description
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N173H6 - L04 is a 17.3” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS
interface. This module supports 1920 x 1080 FHD mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The inverter module for Backlight is built in.
1.2
FEATURES
- FHD (1920 x 1080 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
- WLED
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 381.888 (H) x 214.812 (V) (17.3” diagonal) mm
Bezel Opening Area 386.88 (H) x 218.32 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1920 x R.G.B. x 1080 pixel Pixel Pitch 0.199 x 0.199 mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 397.6 398.1 398.6 mm
Module Size

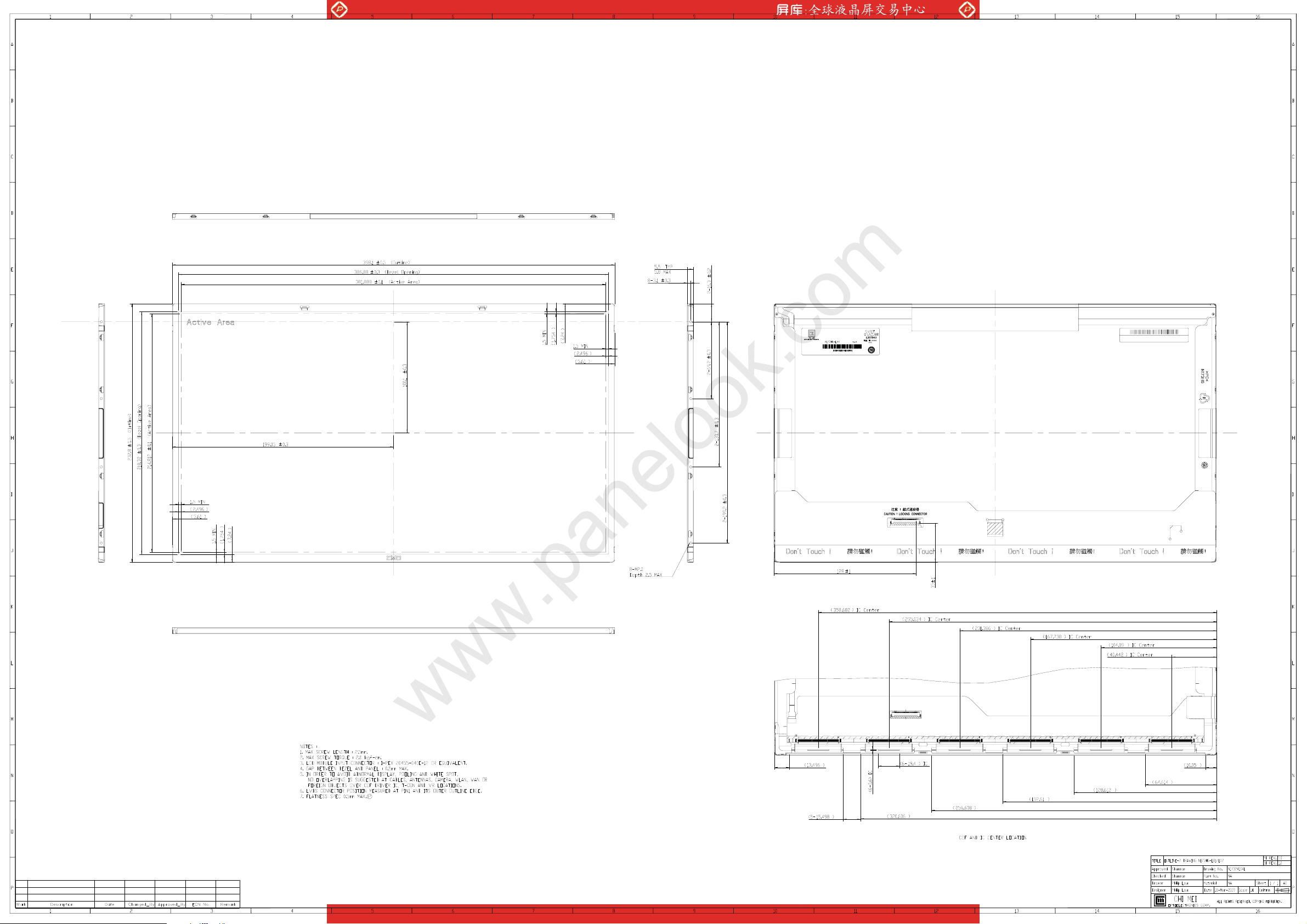

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 232.3 232.8 233.3 mm
Depth (D) 5.5 5.8 mm
Weight 555 570 g
(1)
(1)
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.
Relative Humidity (%RH)
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.
8060-20 40 0 20 -40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
LED Light Bar Power Supply
Voltage
LED Light Bar Power Supply
Current
www.panelook.com
Value
Min. Max.
Value
Min. Max.
-45 31.5 V
V
L
0 200 mA
I
L
Unit Note
Unit Note
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
(1)
(1), (2)
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for LED (Refer to 3.2 for further information).
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V Permissive Ripple Voltage VRP 50 mV Rush Current I
1.5 A (2)
RUSH
Initial Stage Current IIS 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White (320) mA (3)a
Black (750) mA (3)b
TH(LVDS)
TL(LVDS)
+100 mV
-100 mV
LVDS Common Mode Voltage VCM 1.125 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 600 mV (5)
Terminating Resistor RT 100 Ohm
Power per EBL WG P
- (TBD) - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
VR1
C1
1uF
47K
Q1 2SK1475
FUSE
Q2
2SK1470
C2
0.01uF
Vcc rising time is 470us
+3.3V
0.9Vcc
C3
1uF
VCC
Vcc
(LCD Module Input)
100ms
I
IS
0V
I
RUSH
470us
0.1Vcc
ICC
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
Tentative
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
Note (5) The parameters of LVDS signals are defined as the following figures.
= 60 Hz,
v
b. Black Pattern
Active Area
Single Ended
Differential
V
0V
V
0V
V
CM
VID
VID
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Mar. 31, 2009
Model No.: N173H6 - L04
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current
25.2 28.8 31.5 V
V
L
152 160 168 mA
I
L
Min. Typ. Max.
Power Consumption PL 3.83 4.60 5.29 W (3), (Duty 100%)
LED Life Time LBL 15000 - - Hrs (4)
Note (1) LED light bar configuration is shown as below.
Value
Unit Note
(1),(2) (Duty 100%)
Tentative
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with
current balancing function to drive LED light-bar.
Note (3) P
L
= I
LVL
Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25
o
±2
C and IL = 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.
