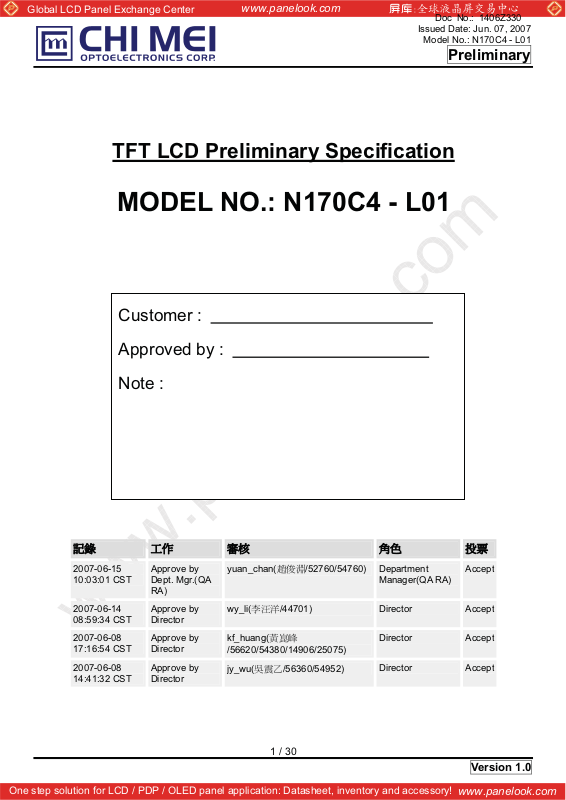

TFT LCD Preliminary Specification

MODEL NO.: N170C4 - L01

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Customer :

Note :



2007-06-15
10:03:01 CST

pproved by :



Approve by
Dept. Mgr.(QA
RA)



yuan_chan(᎓ঊෘ/52760/54760)



Department
Manager(QA RA)

Accept



2007-06-14
08:59:34 CST

2007-06-08
17:16:54 CST

2007-06-08
14:41:32 CST

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Approve by
Director

Approve by
Director

Approve by
Director

wy_li(ޕޫ/44701)

kf_huang(႓഼୽
/56620/54380/14906/25075)

jy_wu(ܦᔼԬ/56360/54952)

1 / 30

Director Accept

Director Accept

Director Accept

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 11

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

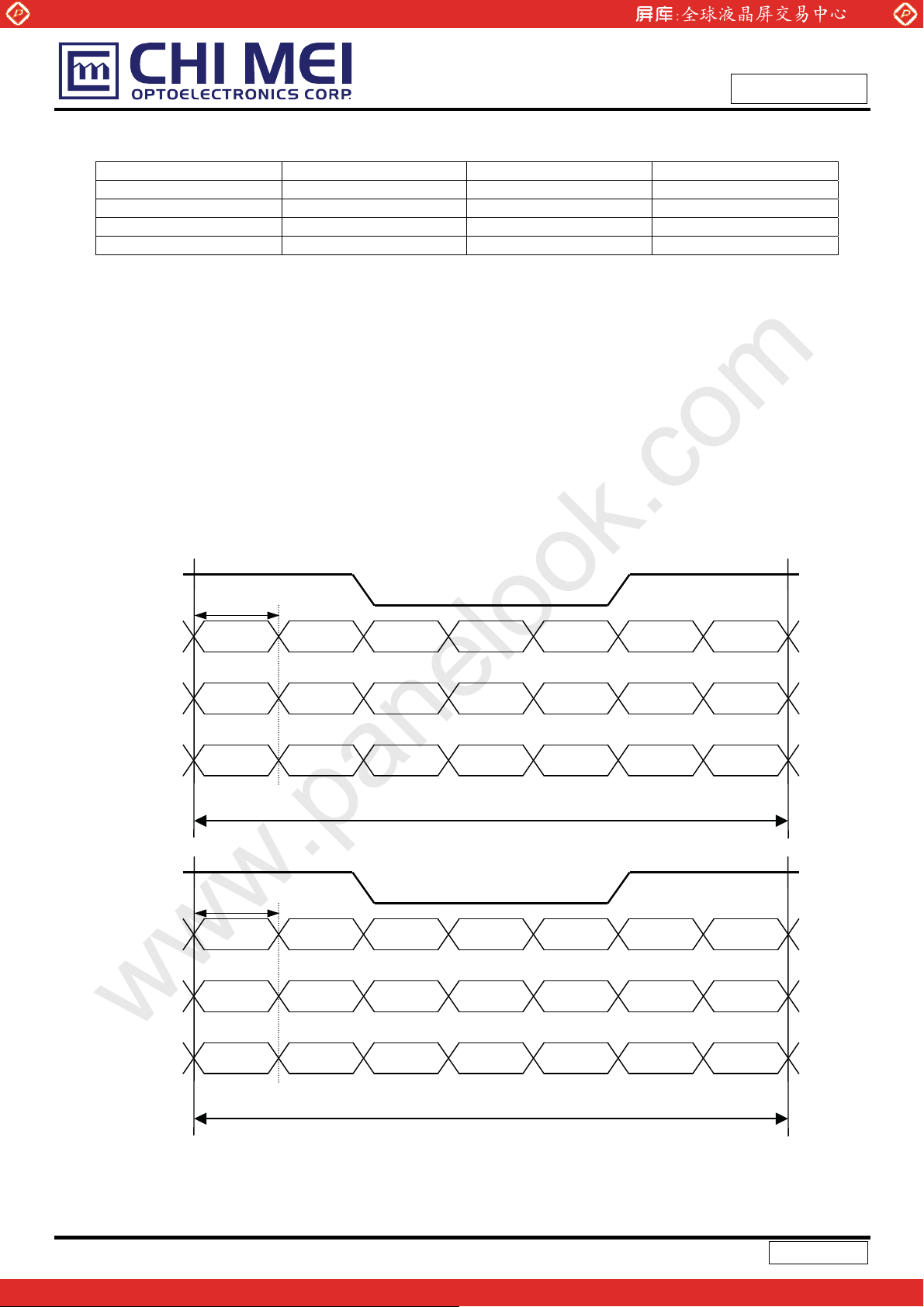

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID CODE DATA STRUCTURE

6. INTERFACE TIMING ------------------------------------------------------- 18

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS ------------------------------------------------------- 23

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

8.2 SAFETY PRECAUTIONS

9. PACKING ------------------------------------------------------- 24

9.1 CARTON

9.2 PALLET

10. DEFINITION OF LABELS
10

.1 CMO MODULE LABEL

10.2 CMO CARTON LABEL

------------------------------------------------------- 25

2 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

REVISION HISTORY

Version Date

Ver 1.0 Jun 07,2007 All All Preliminary Specification is first issued

Page

(New)

Section Description

3 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N170C4 - L01 is a 17.0” TFT Liquid Crystal Display module with two CCFLs Backlight unit and 30 pins

LVDS interface. This module supports 1440 x 900 Wide-XGA+ mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- Thin and High Brightness

- WXGA+ (1440 x 900 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock

- 2 CCFLs

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 367.2 (H) x 229.5 (V) (17.0” diagonal) mm
Bezel Opening Area 370.7 (H) x 232.8 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1440 x R.G.B. x 900 pixel ­Pixel Pitch 0.255 (H) x 0.255 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare Type - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 381.7 382.2 382.7 mm

Module Size

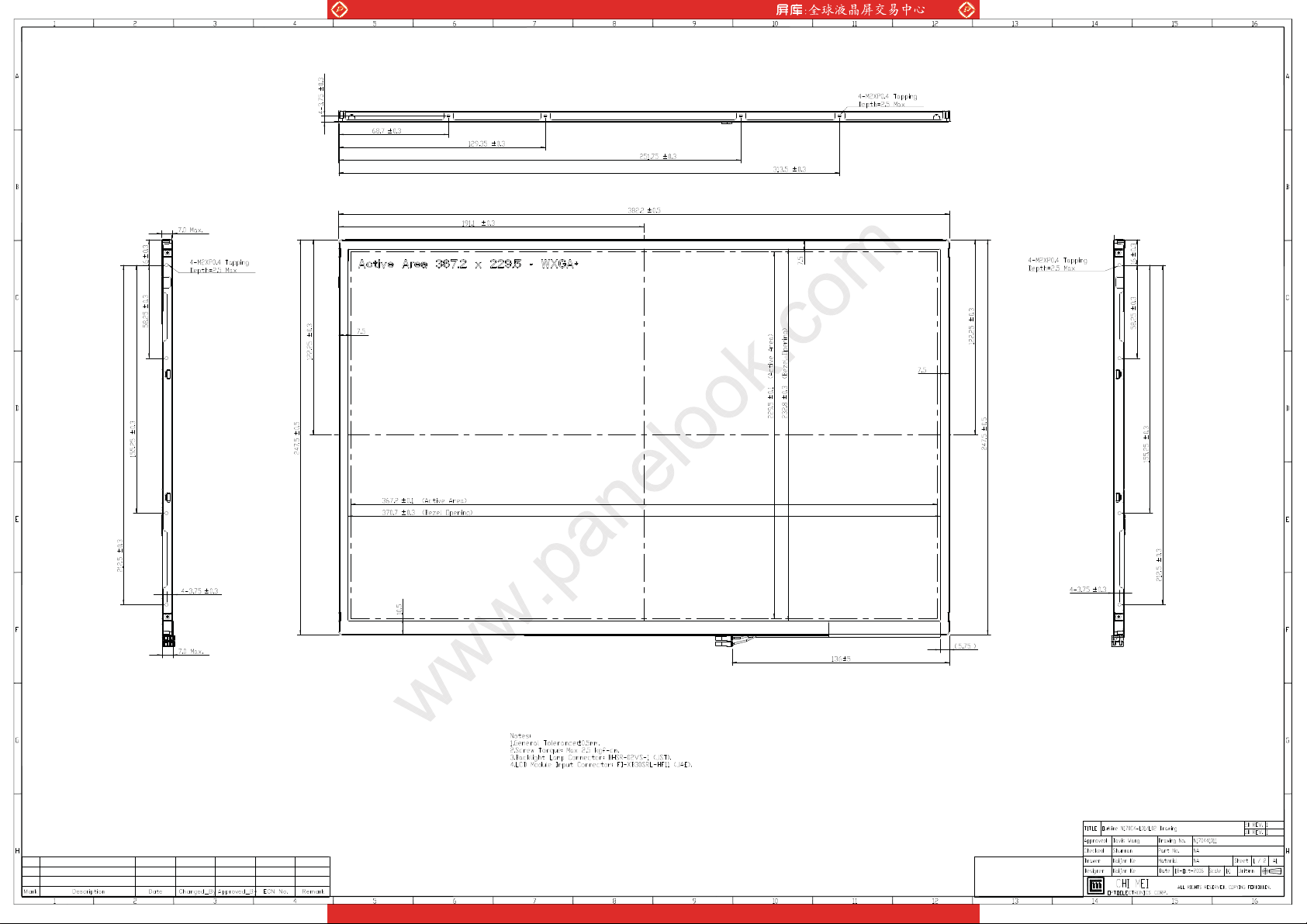

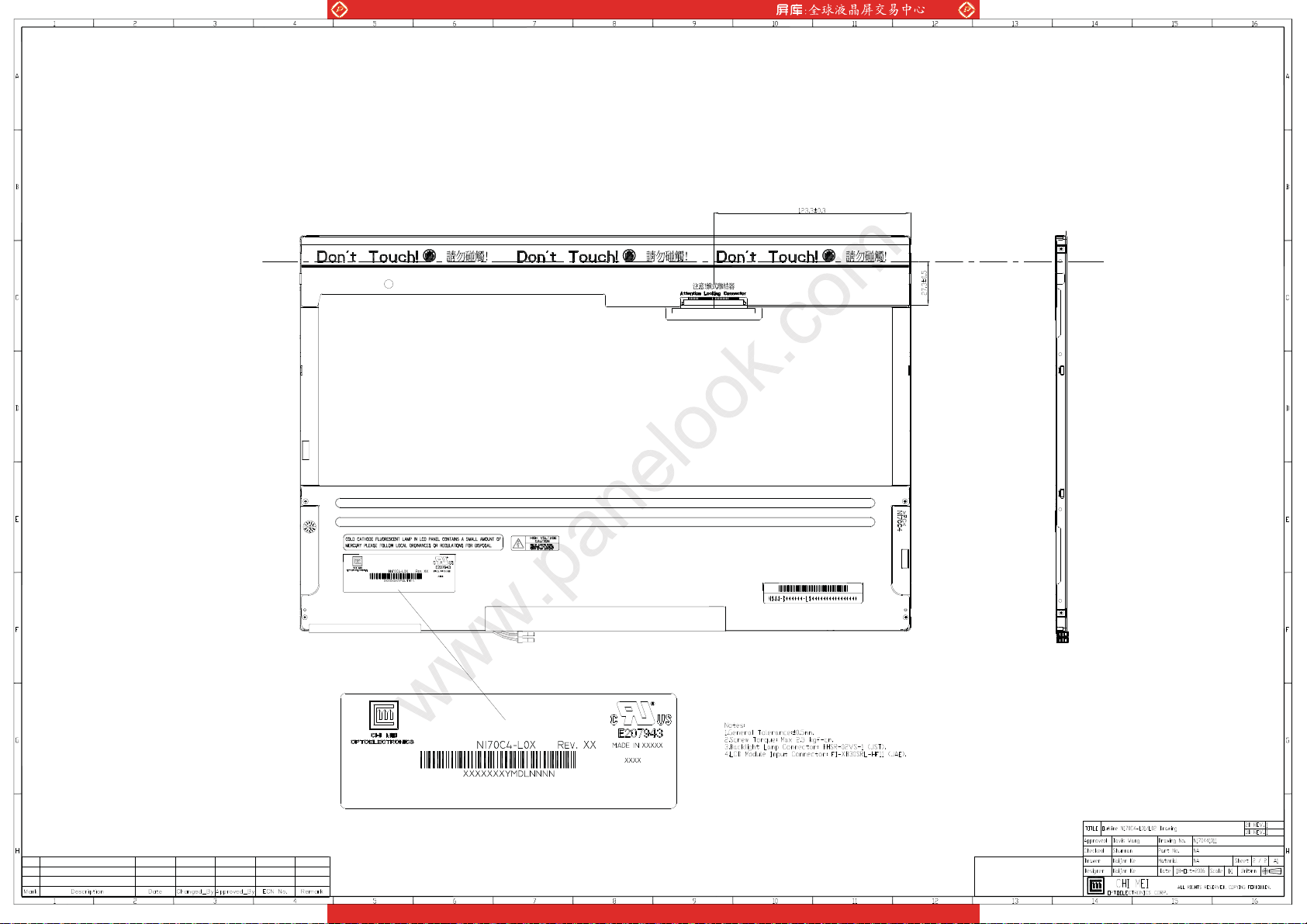

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical (V) 247 247.5 248 mm
Depth (D) --- --- 7.0 mm

Weight --- 710 725 g -

(1)

(1)

4 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

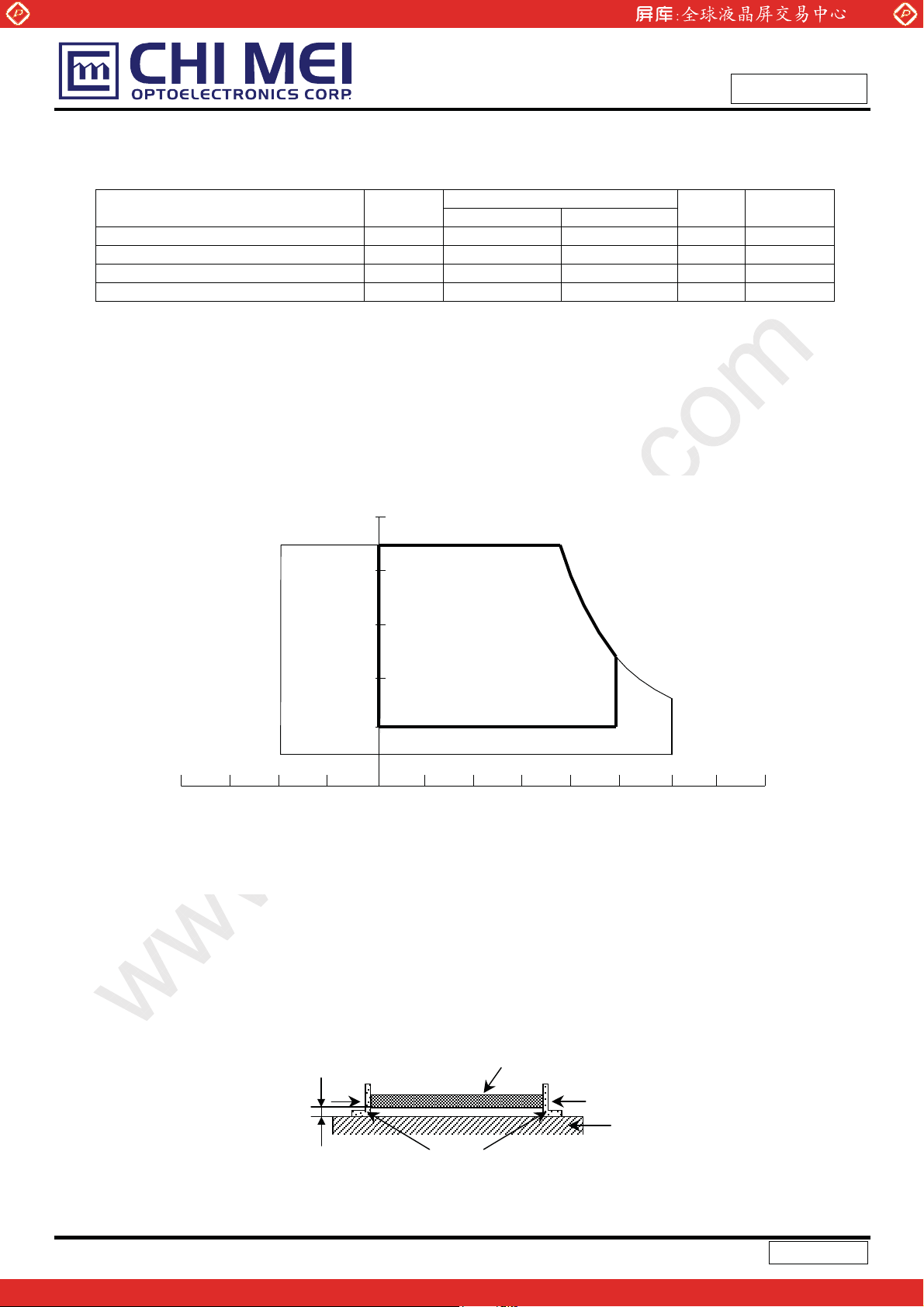

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown below.

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max...

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Value

Min. Max.

- 200/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave.

8060-20 400 20-40

Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z axis.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

LCD Module

Side Mount Fixing Screw

gap=2mm

Bracket

Side Mount Fixing Screw

Stage

5 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage V
Lamp Current I
Lamp Frequency F

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Value

Min. Max.

Value

Min. Max.

L

L

L

Ё
Ё
Ё

2.5K V
(6.0) mA

80 KHz

Unit Note

(1)

Unit Note

(1), (2), IL = 6.0 mA

RMS

RMS

(1), (2)

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

6 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP 100 mV ­Rush Current I

1.5 A (2)

RUSH

Initial Stage Current IIS 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White (450) (480) mA (3)a
Black

Icc

TH(LVDS)

TL(LVDS)

(570) (600) mA (3)b

+100 mV

-100 mV

LVDS Common Mode Voltage VCM 1.125 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 600 mV (5)
Terminating Resistor RT 100 Ohm
Power per EBL WG P

- (4.52) - W (4)

EBL

Note (1) The module should be always operated within above ranges.

Value

Unit Note

V

V

(5),

=1.2V

CM

(5)

=1.2V

CM

Note (2) I

I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

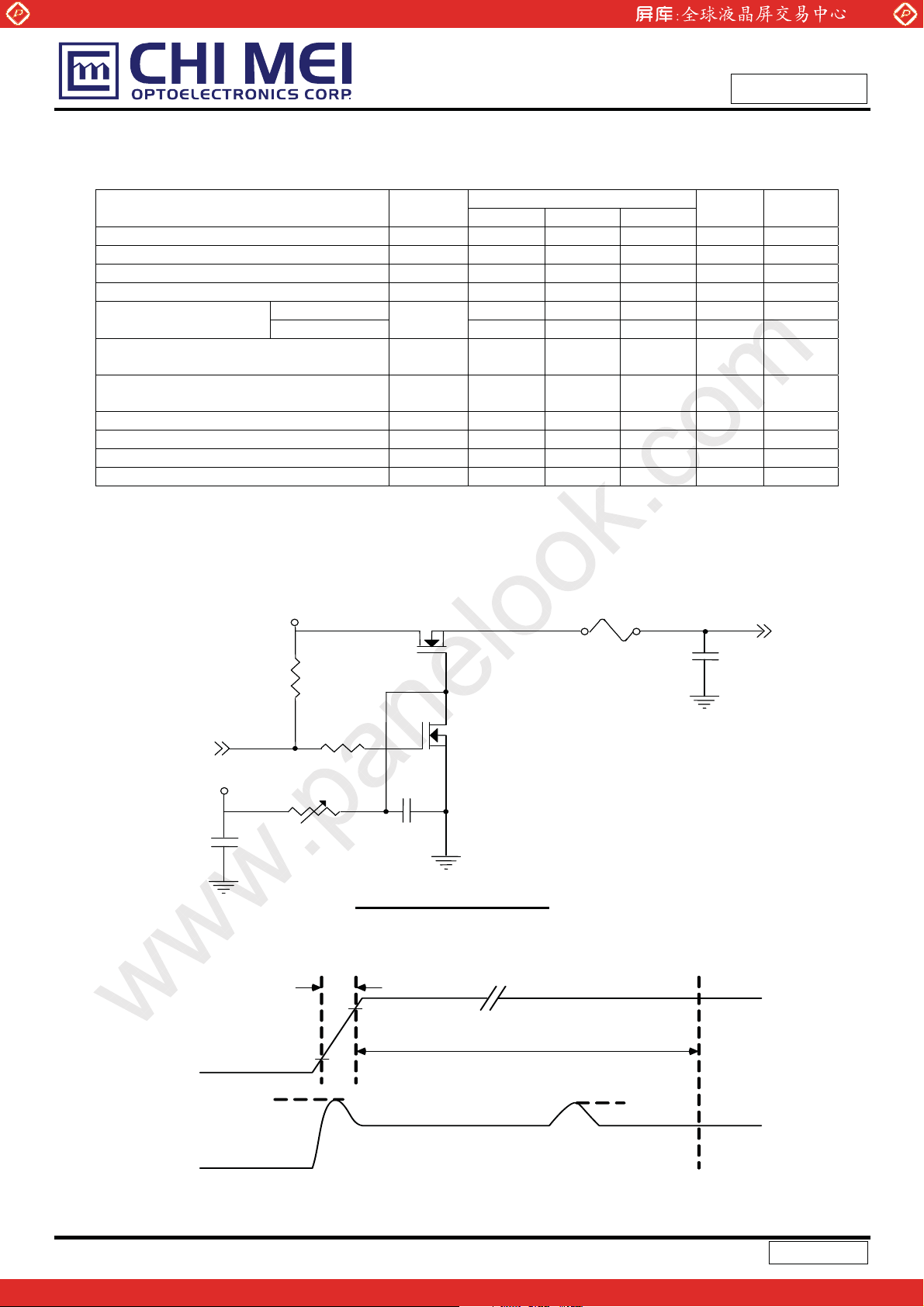

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

VR1

C1

1uF

47K

Q1 2SK1475

FUSE

Q2

2SK1470

C2

0.01uF

Vcc rising time is 470us

C3

1uF

Vcc

(LCD Module Input)

470us

+3.3V

0.9Vcc

100ms

I

Rush

0.1Vcc

I

IS

0V

7 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Vcc

Icc

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

a. White Pattern

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

(d) The inverter used is provided from Sumida. Please contact them for detail information. CMO

= 60 Hz,

v

b. Black Pattern

Active Area

doesn’t provide the inverter in this product.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

Differential

0V

V

VID

VID

8 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Lamp Input Voltage VL (675) (750) (825) V
Lamp Current IL (2.0) (6.0) (6.5) mA

Lamp Turn On Voltage V

S

ЁЁ
ЁЁ

Operating Frequency FL 50
Lamp Life Time LBL (12,000)
Power Consumption P

L

Ё

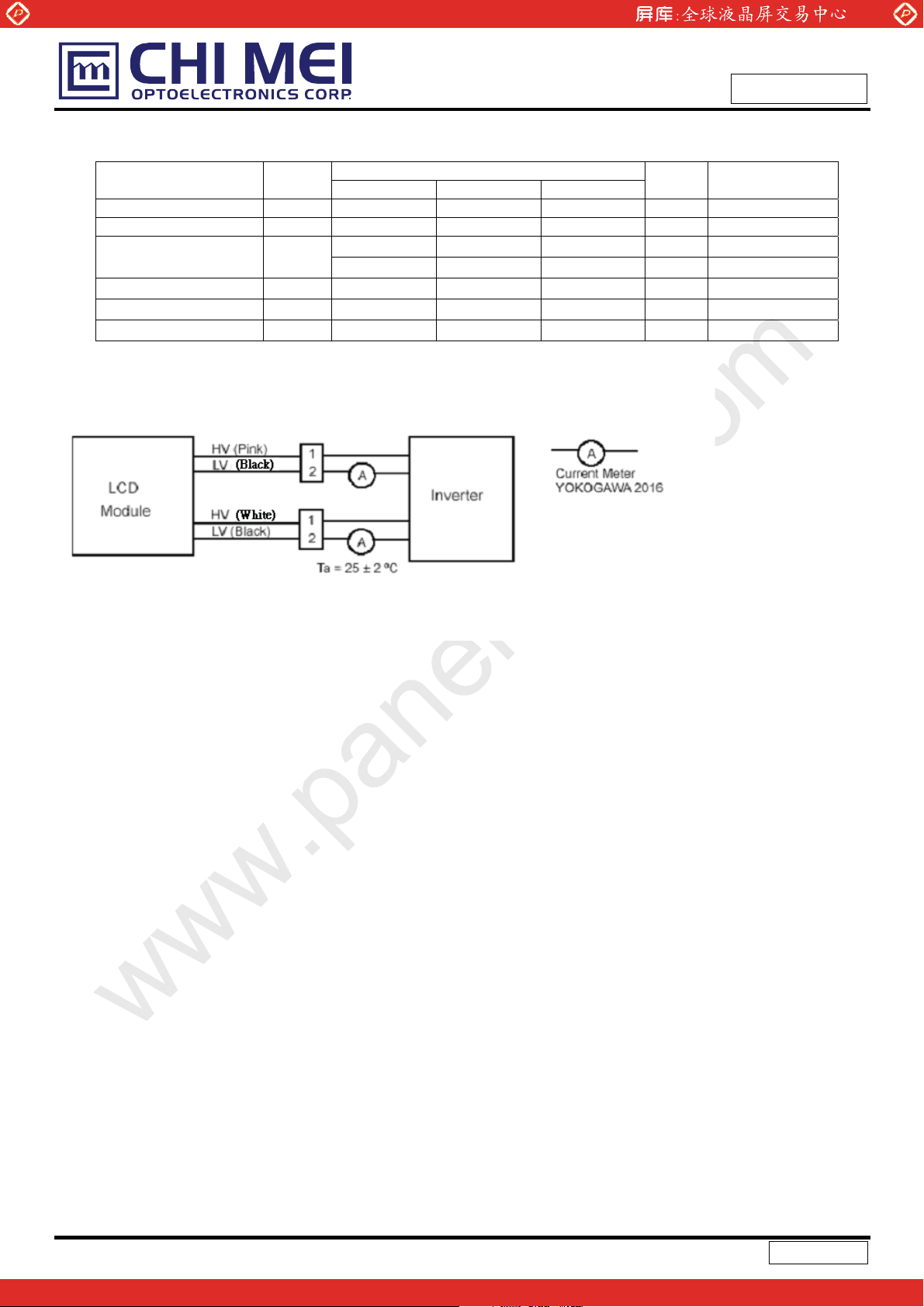

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

o

(1290) (25

(1560) (0

Ё

C) V

o

C) V

80 KHz (3)

ЁЁ

(9.0)

Ё

Unit Note

I

RMS

(1)

RMS

(2)

RMS

(2)

RMS

Hrs (5)

W (4), I

Preliminary

= 6.0 mA

L

= 6.0 mA

L

Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.

Otherwise the lamp may not be turned on.

Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

Note (4) P

= ILVLx2

L

Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta

= 25 2

o

C and IL = 6.0 mA

until one of the following events occurs:

RMS

(a) When the brightness becomes Љ 50% of its original value.

(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition

length is defined as an area that the brightness is less than 70% compared to the center point.)

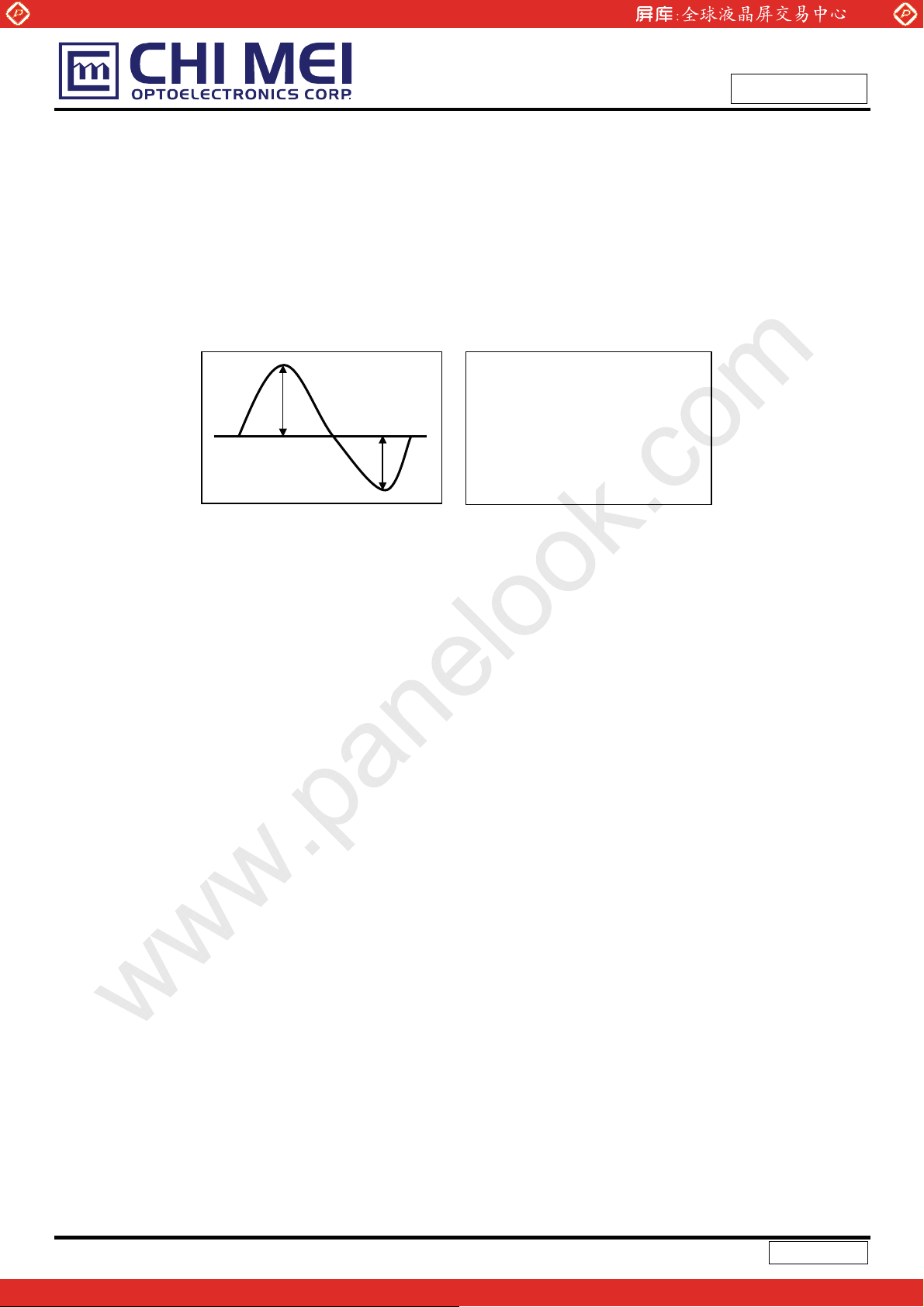

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid generating too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

9 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

should be operated in the same manners when it is installed in your instrument.

Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its

leakage current.

a. The asymmetry rate of the inverter waveform should be 10% below;

b. The distortion rate of the waveform should be within Ѕ2 ± 10%;

c. The ideal sine wave form shall be symmetric in positive and negative polarities.

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

* Asymmetry rate:

I p

I -p

| I

* Distortion rate

I

– I –p | / I

p

(or I –p) / I

p

rms

rms

* 100%

10 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

LVDSDisplay

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

VL

TIMING CONTROLLER

INPUT CONNECTOR

DC/DC CONVERTER &

REFERENCE VOLTAGE

LAMP CONNECTOR

LVDS INPUT /

GENERATOR

EDID

EEPROM

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

4.2 BACKLIGHT UNIT

11 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 NC Non-Connection
6 CLK
7 DATA
8 RXO0- LVDS Differential Data Input (Odd) Negative

9 RXO0+ LVDS Differential Data Input (Odd) Positive
10 Vss Ground
11 RXO1- LVDS Differential Data Input (Odd) Negative
12 RXO1+ LVDS Differential Data Input (Odd) Positive
13 Vss Ground
14 RXO2- LVDS Differential Data Input (Odd) Negative
15 RXO2+ LVDS Differential Data Input (Odd) Positive
16 Vss Ground
17 RXOC- LVDS Clock Data Input (Odd) Negative
18 RXOC+ LVDS Clock Data Input (Odd) Positive
19 Vss Ground

20 RxE0- LVDS Differential Data Input (Even) Negative
21 RxE0+ LVDS Differential Data Input (Even) Positive

22 Vss Ground
23 RxE1- LVDS Differential Data Input (Even) Negative
24 RxE1+ LVDS Differential Data Input (Even) Positive
25 Vss Ground
26 RxE2- LVDS Differential Data Input (Even) Negative
27 RxE2+ LVDS Differential Data Input (Even) Positive
28 Vss Ground
29 RXEC- LVDS Clock Data Input (Even) Negative
30 RXEC+ LVDS Clock Data Input (Even) Positive

DDC 3.3V Power

EDID

DDC Clock

EDID

DDC Data

EDID

Note (1) Connector Part No.: JAE-FI-XB30SRL-HF11 or equivalent

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

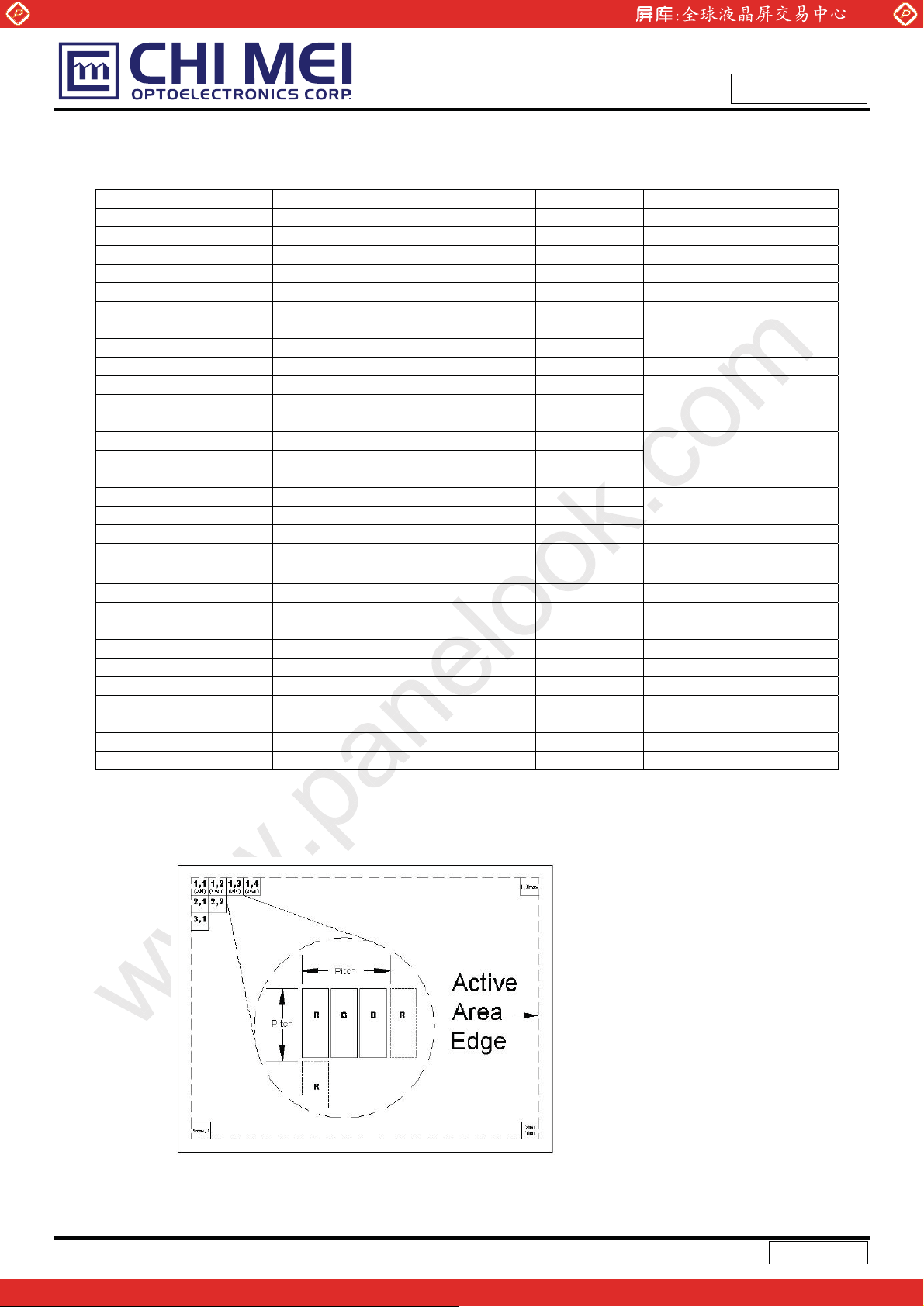

Note (3) The first pixel is odd as shown in the following figure.

12 / 30

Version 1.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 BACKLIGHT UNIT

Pin Symbol Description Color

1 HV High Voltage Pink
2 LV Ground Black
1 HV High Voltage White
2 LV Ground Black

Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent

Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

RXOC+

T/7

RXO2+/-

RXO1+/-

RXO0+/-

RXEC+

RXE2+/-

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE OB5 OB4 OB3 OB2Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

OB1 OG4 OG3 OG2 OG1OB0 OG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

OG0 OR3 OR2 OR1 OR0OR5 OR4

Signal for 1 DCLK Cycle (T)

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE EB5 EB4 EB3 EB2Vsync Hsync

RXE1+/-

RXE0+/-

IN13 IN12 IN11 IN10 IN9 IN8 IN7

EB1 EG4 EG3 EG2 EG1EB0 EG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

EG0 ER3 ER2 ER1 ER0ER5 ER4

Signal for 1 DCLK Cycle (T)

13 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

14 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte

#(deci

mal)

10 9 EISA ID manufacturer name (Compressed ASCII)

11 0A ID product code (N170C4-L01) 06
12 0B ID product code (hex LSB first; N170C4-L01) 17
13 0C ID S/N (fixed “0”)
14 0D ID S/N (fixed “0”)
15 0E ID S/N (fixed “0”)
16 0F ID S/N (fixed “0”)
17 10 Week of manufacture (fixed week code)
18 11 Year of manufacture (fixed year code)
19 12 EDID structure version # (“1”)
20 13 EDID revision # (“3”)

21 14 Video I/P definition (“digital”)

22 15 Max H image size (“36.72 cm”)

23 16 Max V image size (“22.95 cm”)

24 17 Display Gamma (Gamma = ”2.2”)

25 18 Feature support (“Active off, RGB Color”)
26 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)
27 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)
28 1B Red-x (Rx = “0.648”)
29 1C Red-y (Ry = “0.347”)
30 1D Green-x (Gx = ”0.283”)
31 1E Green-y (Gy = ”0.611”)
32 1F Blue-x (Bx = ”0.141”)
33 20 Blue-y (By = ”0.071”)
34 21 White-x (Wx = ”0.319”)
35 22 White-y (Wy = ”0.333”)

Byte

#(hex)

1 0 Header
2 1 Header
3 2 Header
4 3 Header
5 4 Header
6 5 Header
7 6 Header
8 7 Header
9 8 EISA ID manufacturer name (“CMO”)

Field Name and Comments

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Value(

Value(binary

hex)

00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111

00 00000000
0D 00001101
AF 10101111

00 00000000

00 00000000

00 00000000

00 00000000

28 00101000
0C 00001100

01 00000001

03 00000011

80 10000000

25 00100101

17 00010111

78 01111000

0A 00001010

FA 11111010
1D 00011101

A5 10100101

58 01011000

48 01001000
9C 10011100

24 00100100

12 00010010

51 01010001

55 01010101

)

00000110
00010111

36 23 Established timings 1

37 24 Established timings 2

38 25 Manufacturer’s reserved timings
39 26 Standard timing ID # 1

00 00000000

00 00000000

00 00000000

01 00000001

15 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

40 27 Standard timing ID # 1
41 28 Standard timing ID # 2
42 29 Standard timing ID # 2
43 2A Standard timing ID # 3
44 2B Standard timing ID # 3
45 2C Standard timing ID # 4
46 2D Standard timing ID # 4
47 2E Standard timing ID # 5
48 2F Standard timing ID # 5
49 30 Standard timing ID # 6
50 31 Standard timing ID # 6
51 32 Standard timing ID # 7
52 33 Standard timing ID # 7
53 34 Standard timing ID # 8
54 35 Standard timing ID # 8
55 36 Detailed timing description # 1 Pixel clock (“88.75 MHz”)
56 37 # 1 Pixel clock (hex LSB first)
57 38 # 1 H active (“1440”)
58 39 # 1 H blank (“160”)
59 3A # 1 H active : H blank (“1440 : 160”)
60 3B # 1 V active (”900”)
61 3C # 1 V blank (”26”)
62 3D # 1 V active : V blank (”900 : 26”)
63 3E # 1 H sync offset (”48”)
64 3F # 1 H sync pulse width (”32”)
65 40 # 1 V sync offset : V sync pulse width (”3 : 6”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48 : 32 :

66 41
67 42 # 1 H image size (”367 mm”)
68 43 # 1 V image size (”230 mm”)
69 44 # 1 H image size : V image size (”367 : 230”)
70 45 # 1 H boarder (”0”)
71 46 # 1 V boarder (”0”)
72 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
73 48 Detailed timing description # 2
74 49 # 2 Flag
75 4A # 2 Reserved
76 4B # 2 FE (hex) defines ASCII string (Model Name “N170C4-L01”, ASCII)
77 4C # 2 Flag
78 4D # 2 1st character of name (“N”)
79 4E # 2 2nd character of name (“1”)
80 4F # 2 3rd character of name (“7”)
81 50 # 2 4th character of name (“0”)
82 51 # 2 5th character of name (“C”)
83 52 # 2 6th character of name (“4”)
84 53 # 2 7th character of name (“-”)
85 54 # 2 8th character of name (“L”)
86 55 # 2 9th character of name (“0”)
87 56 # 2 10th character of name (“1”)
88 57 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

3 : 6”)

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001
AB 10101011

22 00100010

A0 10100000

A0 10100000

50 01010000

84 10000100

1A 00011010

30 00110000

30 00110000

20 00100000

36 00110110

00 00000000

6F 01101111

E6 111 00110

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000
FE 11111110

00 00000000

4E 01001110

31 00110001

37 00110111

30 00110000

43 01000011

34 00110100
2D 00101101
4C 01001100

30 00110000

31 00110001

0A 00001010

16 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

89 58 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
90 59 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

91 5A Detailed timing description # 3

92 5B # 3 Flag

93 5C # 3 Reserved

94 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

95 5E # 3 Flag
96 5F # 3 1st character of string (“C”)
97 60 # 3 2nd character of string (“M”)
98 61 # 3 3rd character of string (“O”)
99 62 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

100 63 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

101 64 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

102 65 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

103 66 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

104 67 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

105 68 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

106 69 (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

107 6A (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
108 6B (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

109 6C Detailed timing description # 4

110 6D # 4 Flag

111 6E # 4 Reserved

112 6F # 4 FE (hex) defines ASCII string (Model Name“N170C4-L01”, ASCII)

113 70 # 4 Flag

114 71 # 4 1st character of name (“N”) 4E

115 72 # 4 2nd character of name (“1”) 31

116 73 # 4 3rd character of name (“7”) 37

117 74 # 4 4th character of name (“0”) 30

118 75 # 4 5th character of name (“C”) 43

119 76 # 4 6th character of name (“4”) 34

120 77 # 4 7th character of name (“-”) 2D

121 78 # 4 8th character of name (“L”) 4C

122 79 # 4 9th character of name (“0”)

123 7A # 4 10th character of name (“1”)

124 7B (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

125 7C (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

126 7D (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

127 7E Extension flag
128 7F Checksum A0 10100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011
4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

01001110

00110001

00110111

00110000

01000011

00110100

00101101

01001100

30 00110000

31 00110001

0A 00001010

20 00100000

20 00100000

00 00000000

17 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 42 44.5 52 MHz (2)

Vertical Total Time TV 910 926 980 TH -

Vertical Active Display Period TVD 900 900 900 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

(2) 2 channels LVDS input.

Vertical Active Blanking Period TVB TV-TVD 26 TV-TVD TH

Horizontal Total Time TH 760 800 880 Tc (2)

Horizontal Active Display Period THD 720 720 720 Tc (2)

Horizontal Active Blanking Period THB

www.panelook.com

TH-THD

80

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

TH-THD

Tc (2)

DE

DCLK

TC

DE

DATA

6.2 POWER ON/OFF SEQUENCE

Power On

90%

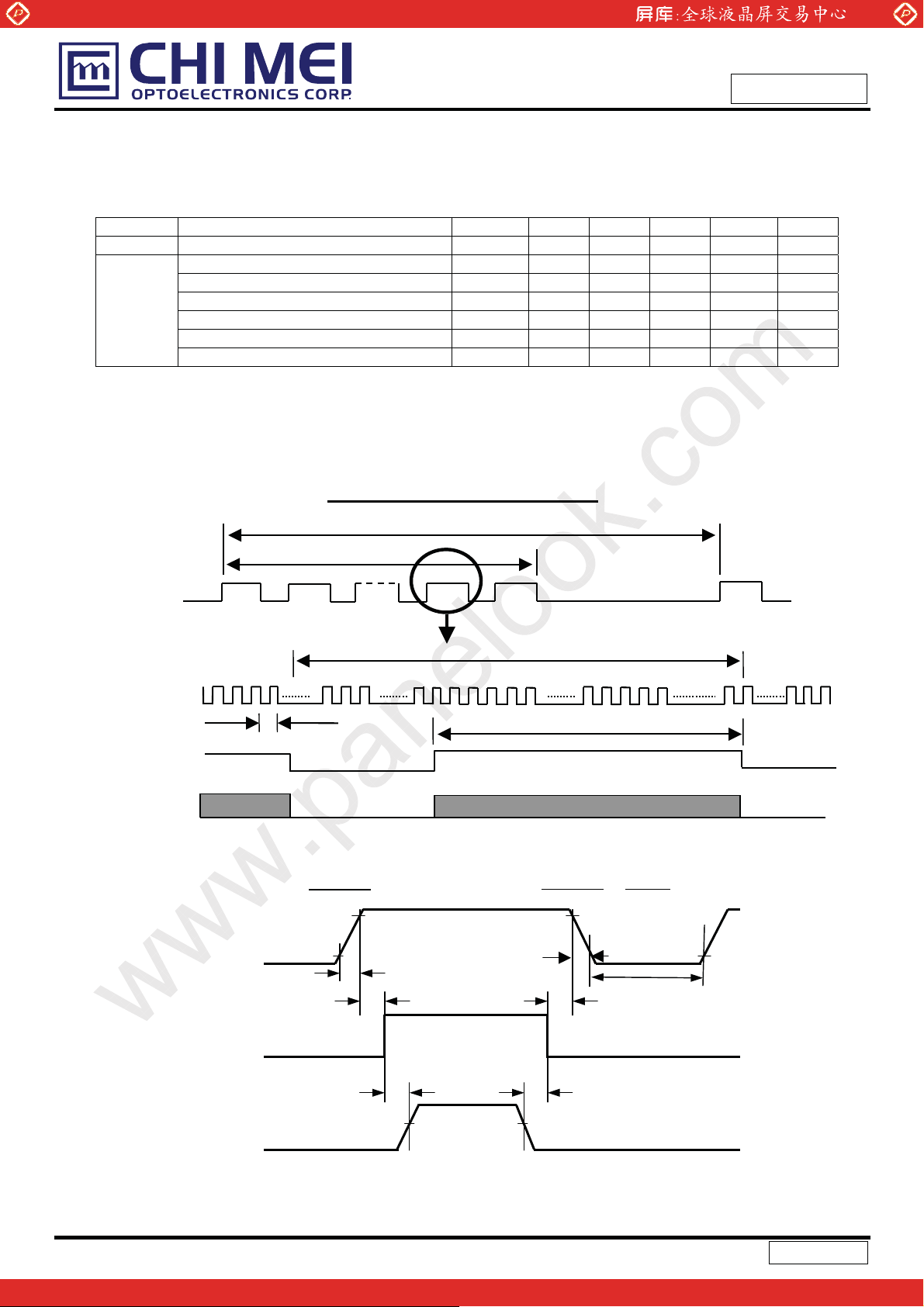

INPUT SIGNAL TIMING DIAGRAM

HD

T

Power Off

90%

t7

Restart

Power Supply

for LCD, Vcc

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power for Lamp

0V

0V

10%

10%

t1

t4

t3t2

Valid Data

t6t5

50%50%

ONOFF OFF

10%

18 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

Timing Specifications:

0.5 Љ t1 Љ 10 ms

0 Љ t2 Љ 50 ms

0 Љ t3 Љ 50 ms

t4 Њ 500 ms

t5 Њ 200 ms

t6 Њ 200 ms

Note (1) Please avoid floating state of interface signal at invalid period.

Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5Љt7Љ300 ms.

19 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IL (6.0) mA
Inverter Driving Frequency FL (61) KHz
Inverter ( Darfon VK.12164.101)

The relative measurement methods of optical characteristics are shown in 7.2. The

following items should be measured under the test conditions described in 7.1 and stable

environment shown in Note (6).

www.panelook.com

25r2

50r10

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

o

C

%RH

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR (450) (600) - - (2), (5)

Response Time

Central Luminance of White LC (240) (300) cd/m2(4), (5)

White Variation

Red

Color
Chromaticity

Viewing Angle

Green

Blue

White

Horizontal

Vertical

TR - (3) (8) ms

- (7) (12) ms

T

F

5pts - - (1.40) - (5), (6)

GW

Rx
Ry
Gx
Gy

Bx
By

Wx

Wy

Tx+

T

x

TY+

T

Y

=0q, TY =0q

T

x

Viewing Normal

Angle

TYP

-0.03

(60) (70) -

-

-

CRt10

(60) (70) ­(50) (60) ­(50) (60) -

(0.643)
(0.349)
(0.281)
(0.609)
(0.142)
(0.068)

0.313

0.329

TYP

+0.03

Deg.

-

-

-

-

-

-

-

-

(3)

(1)

20 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Normal

Tx = Ty = 0º

Ty- Ty

TX- = 90º

6 o’clock

T

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (5).

Tx

Tx

12 o’clock direction

y+

T

y+ = 90º

x+

TX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

R

66.67 ms

, TF) and measurement method:

R

T

F

66.67 ms

21 / 30

Time

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

500

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6).

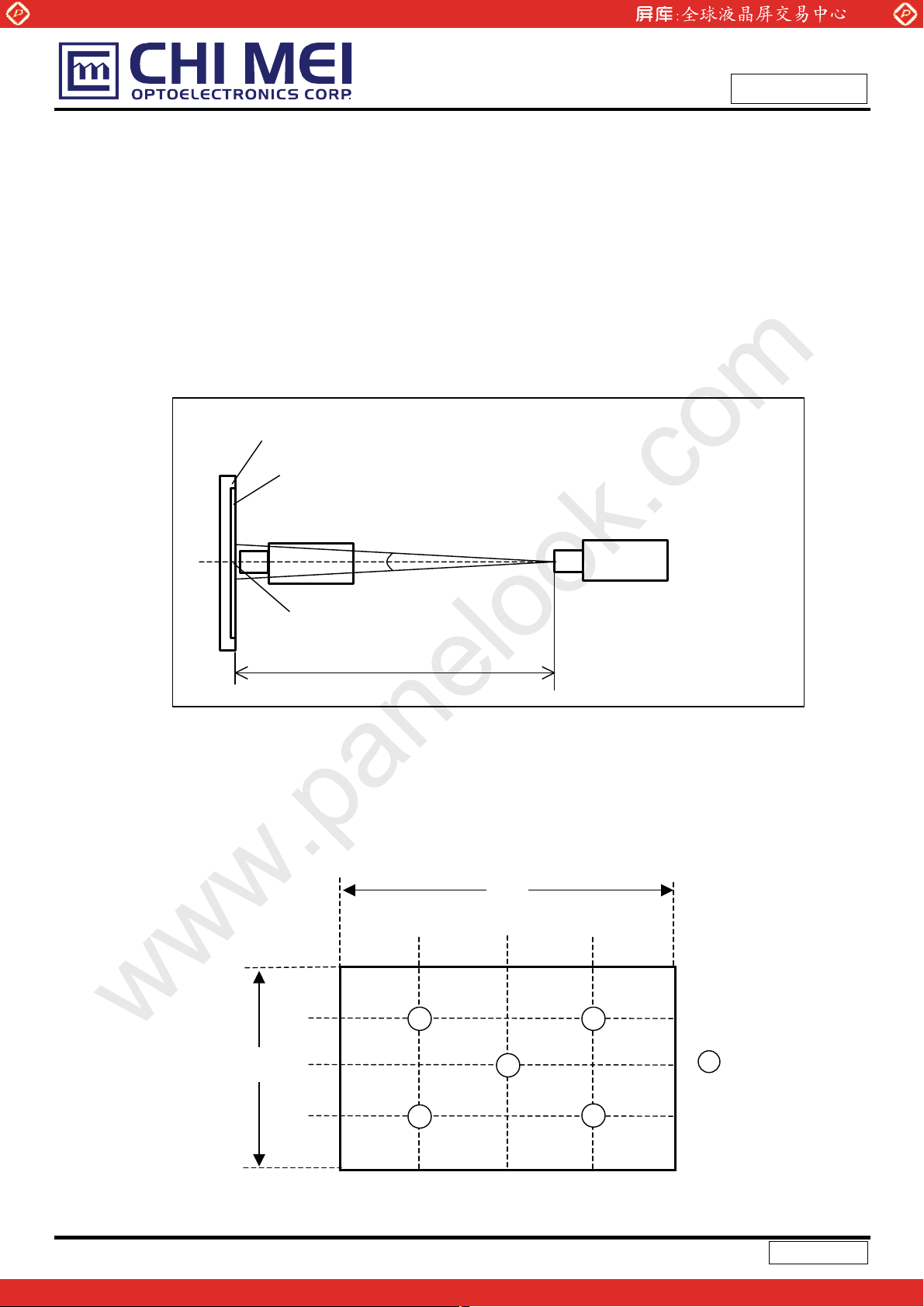

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 15 minutes in a windless room.

LCD Module

LCD Panel

USB2000

AVE

):

CS-1000T

Center of the Screen

Note (6) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW

= Maximum [L (1) ~ L (5)] / Minimum [L (1) ~ L (5)]

5p

W/4

W/2

W

Vertical Line

3W/4

mm

Light Shield Room

(Ambient Luminance < 2 lux)

Horizontal Line

D

D/4 D/2 3D/4

12

5

3

4

X

: Test Point

X=1 to 5

Active Area

22 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

23 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

9. PACKING

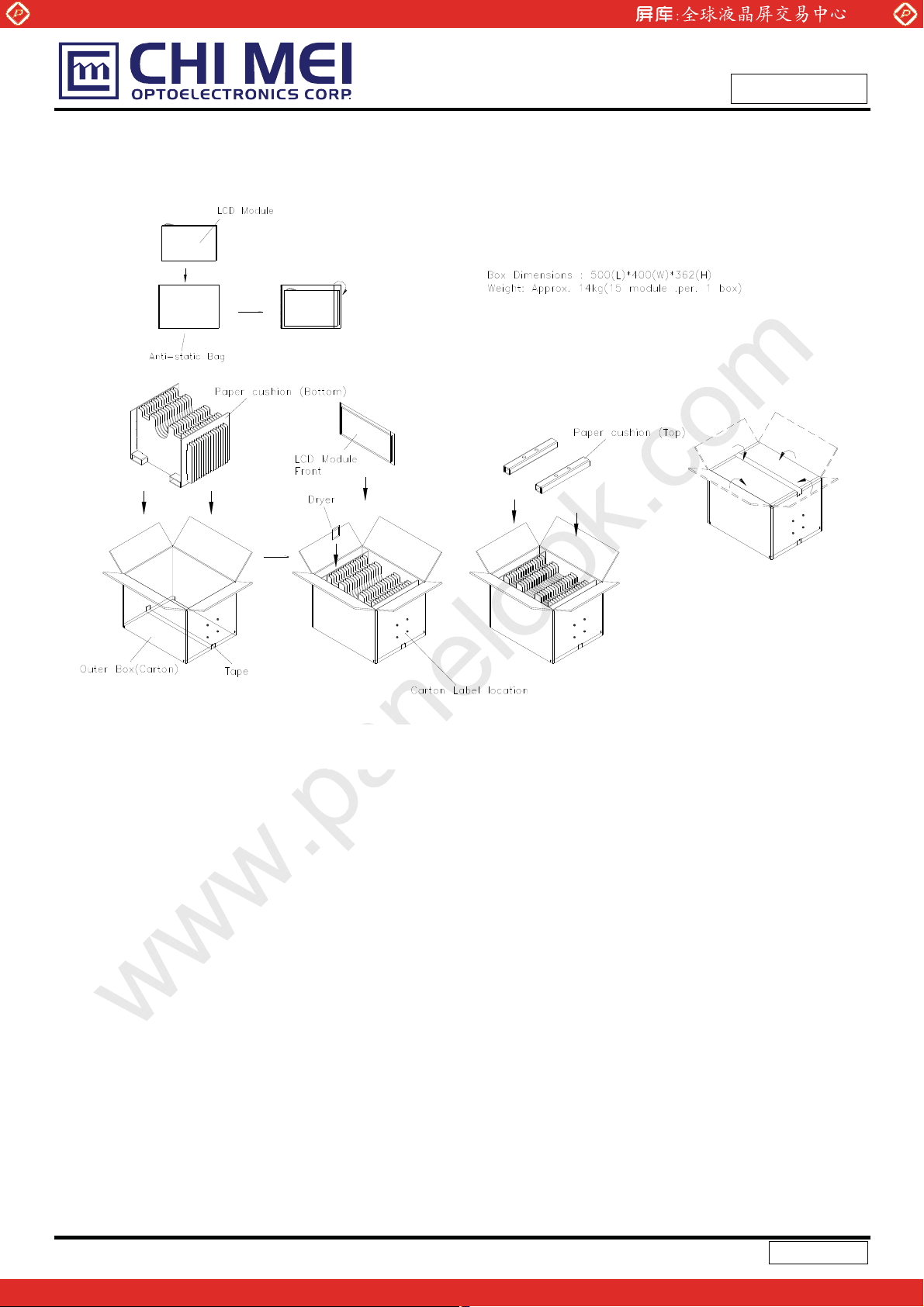

9.1 CARTON

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Figure. 9-1 Packing method

24 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

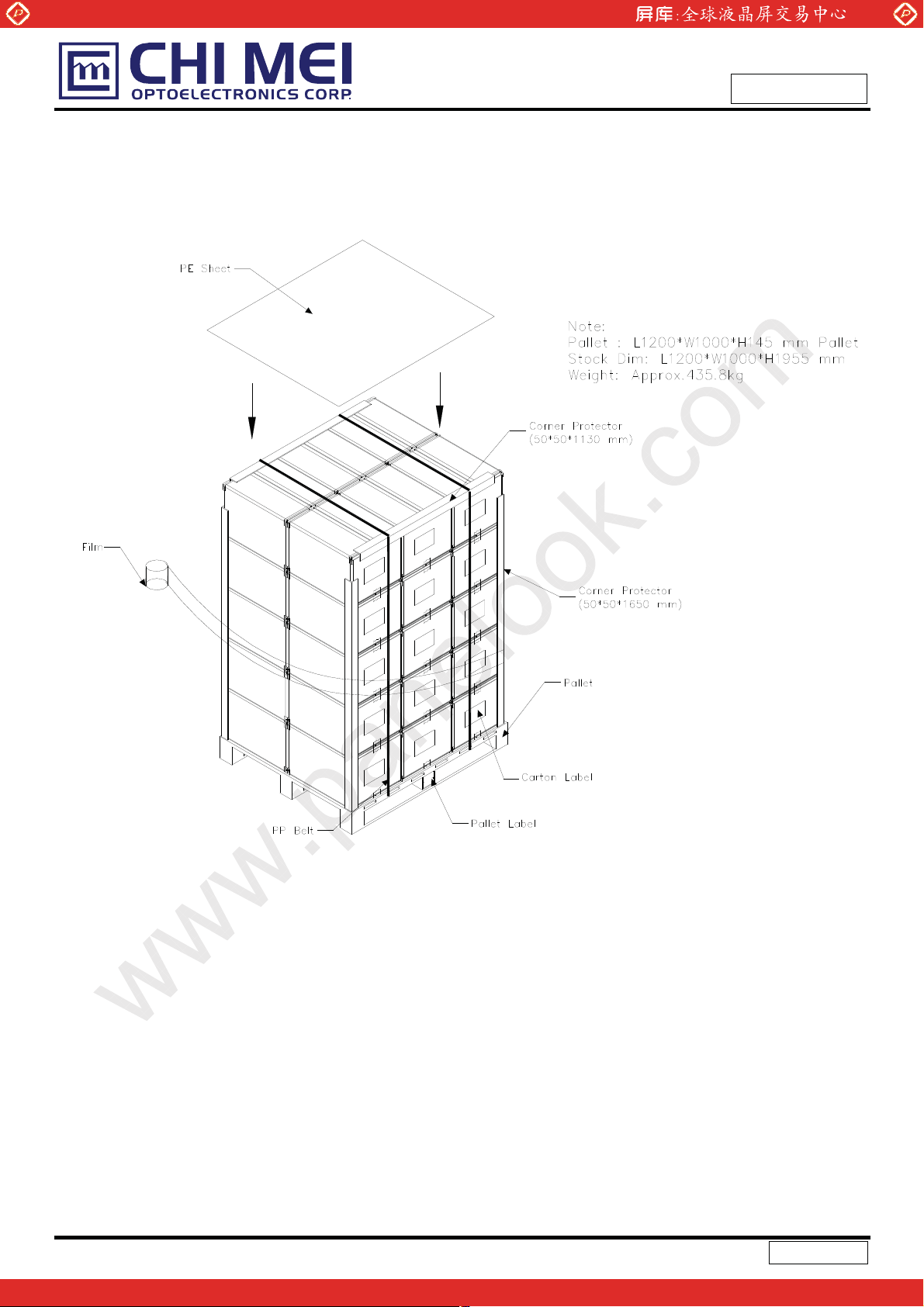

9.2 3$//(7)256($)5(,*+7

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Figure. 9-2 Packing method

25 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

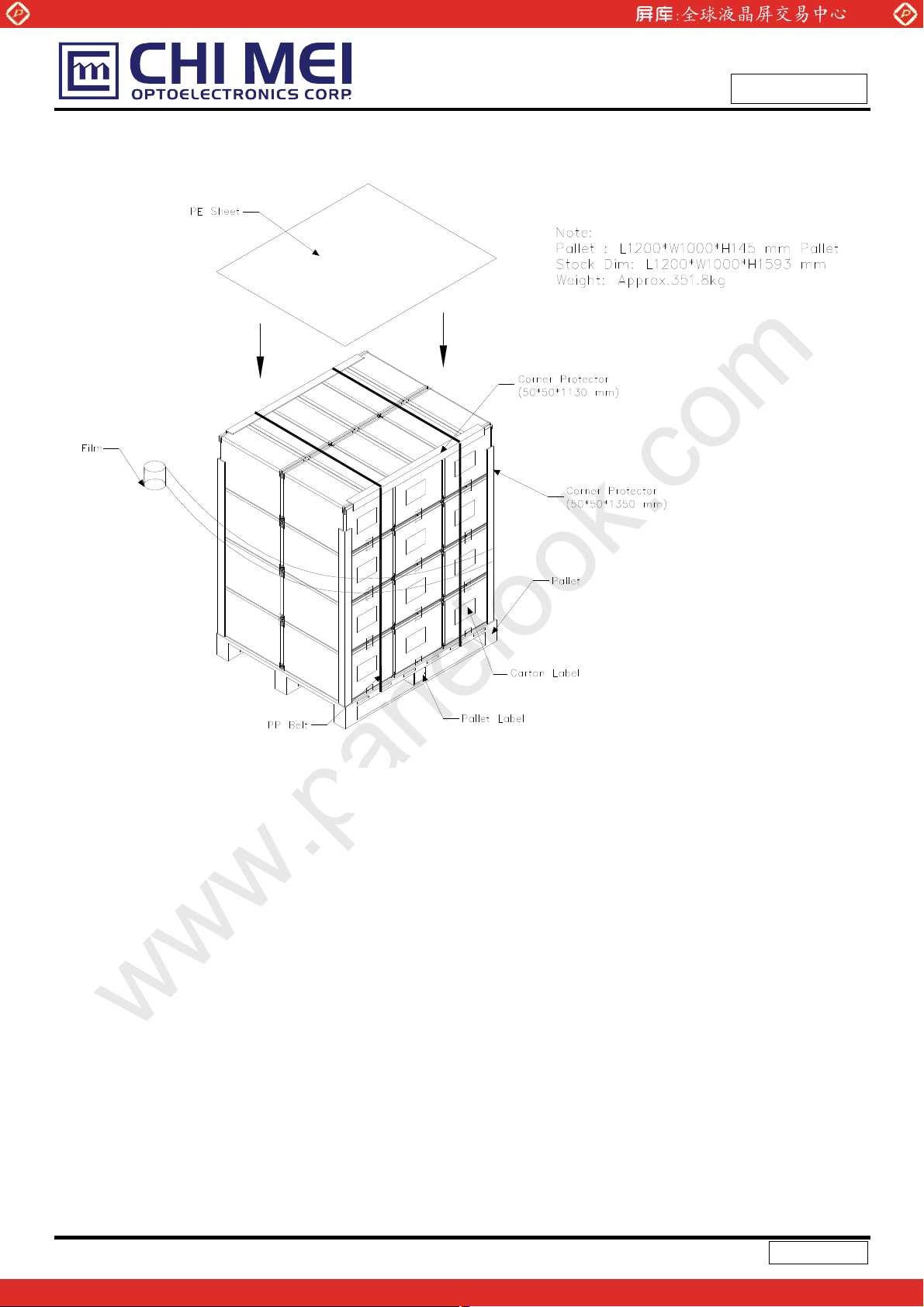

9.3 PALLET FOR AIR FREIGHT

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

Figure. 9-3 Packing method

26 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

10. DEFINITION OF LABELS

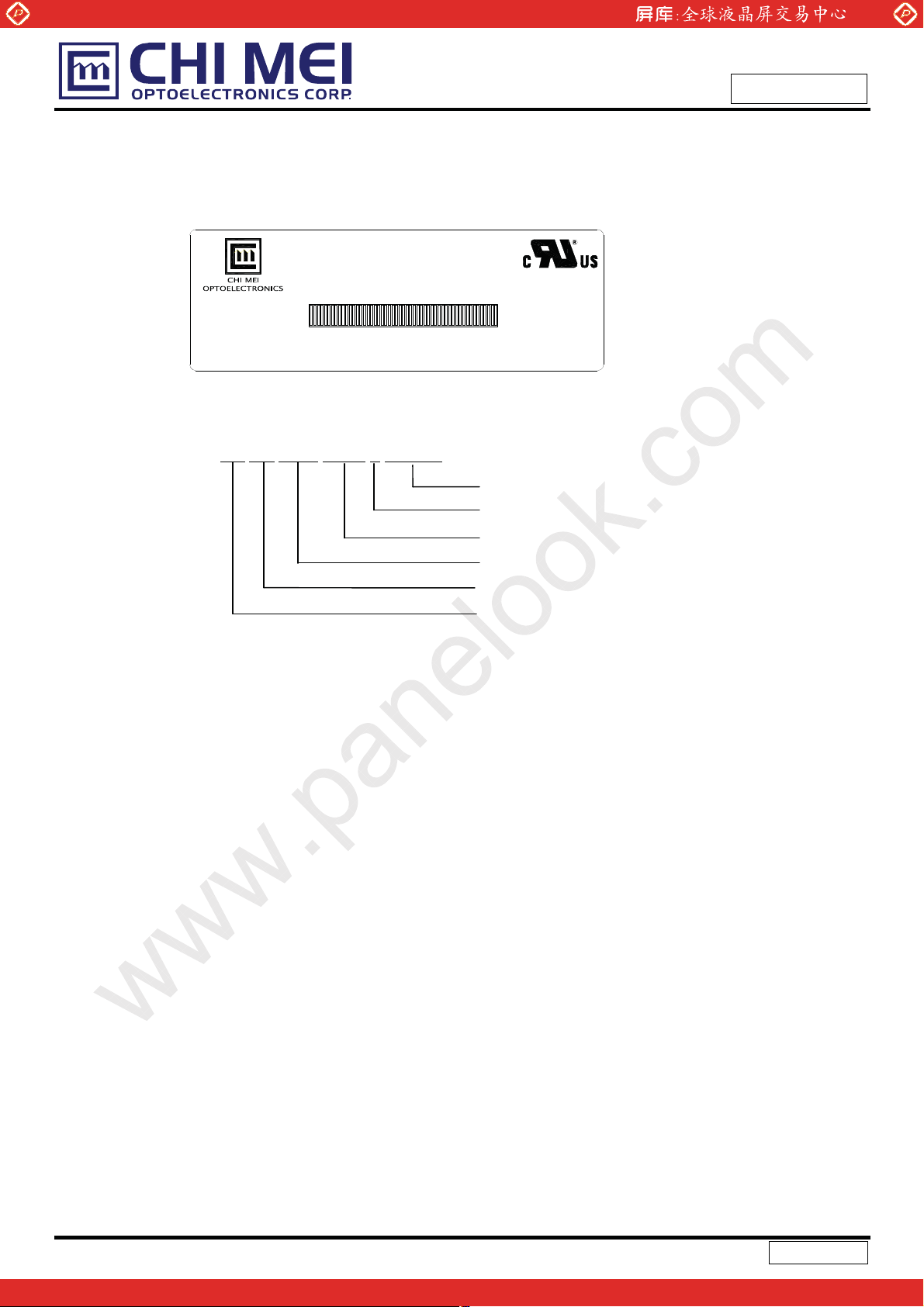

10.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

E207943

MADE IN TAIWAN

LEOO

01A

N141X5 - L03 Rev.XX

X X X X X X X Y M D L N N N N

-

C P 1 3 5 4 4 8 - 0 1

(a) Model Name: N170C4 - L01

(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D X N N N N

Serial No.

CMO Internal Use

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e) UL logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL requirement.

The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL requirement.

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

st

to 31st, exclude I, O and U

27 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

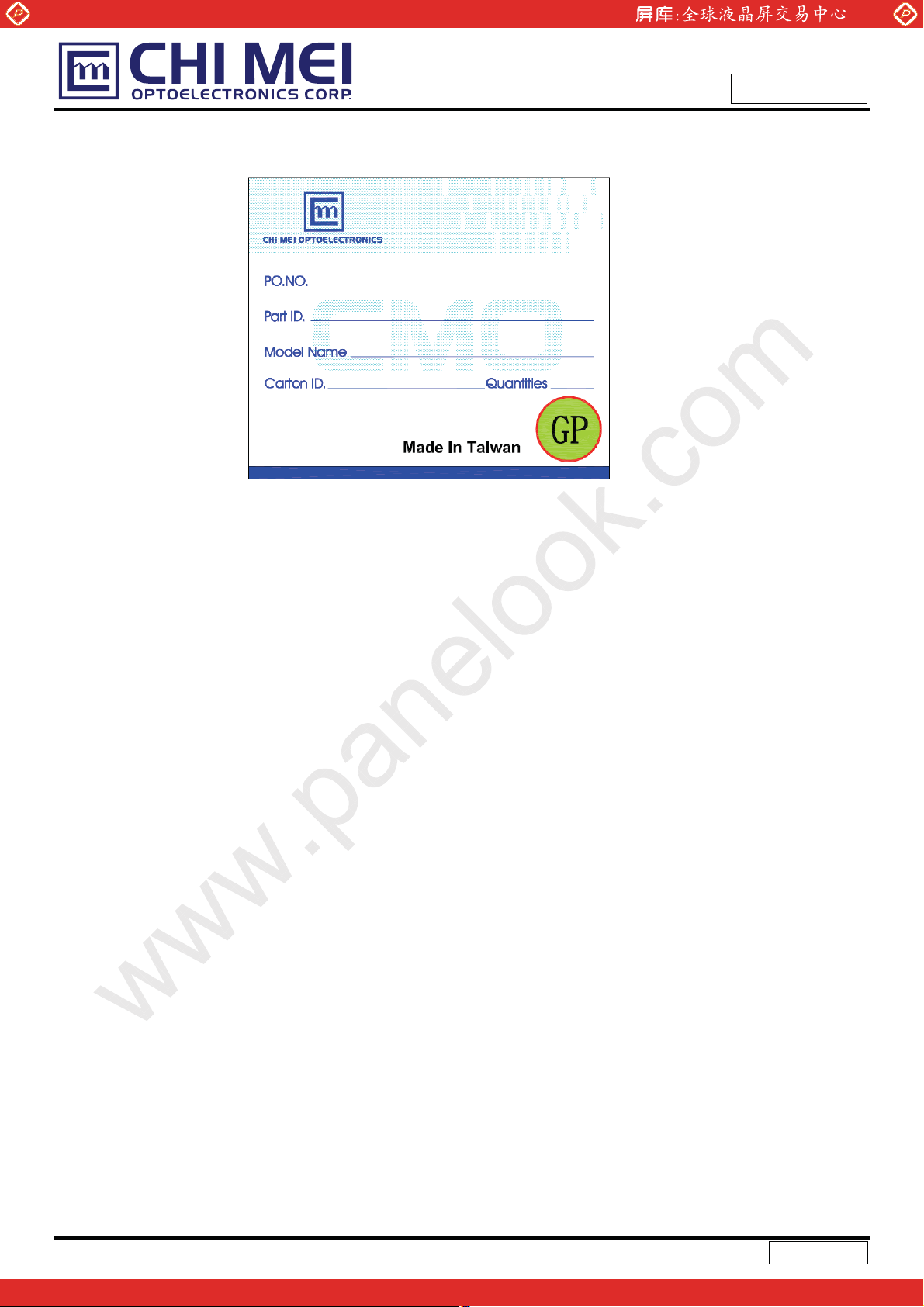

10.2 CARTON LABEL

www.panelook.com

Doc No.: 1406Z330

Issued Date: Jun. 07, 2007

Model No.: N170C4 - L01

Preliminary

28 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
