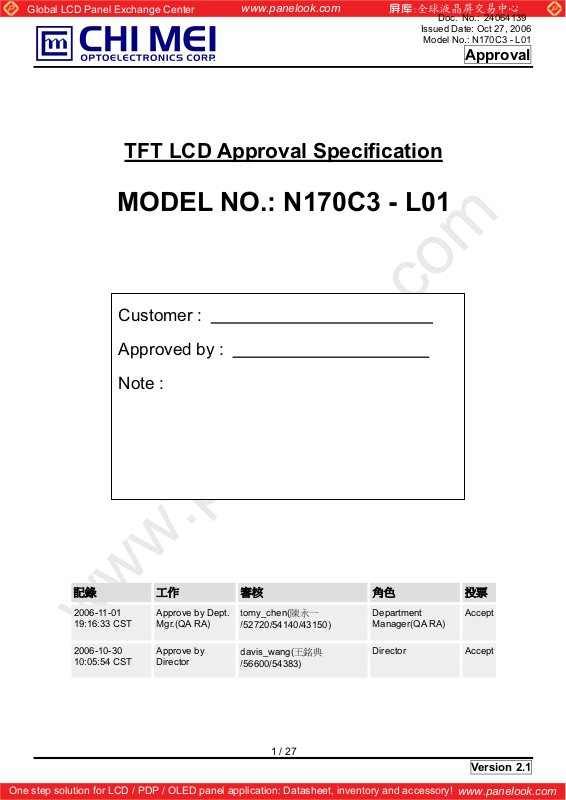

TFT LCD Approval Specification

MODEL NO.: N170C3 - L01

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Customer :

pproved by :

Note :



2006-11-01 19:16:33 CST

2006-10-30 10:05:54 CST

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Approve by Dept. Mgr.(QA RA)

Approve by Director

tomy_chen(ຫةԫ /52720/54140/43150)

davis_wang(׆Ꭾࠢ /56600/54383)

1 / 27

Department Manager(QA RA)

Director Accept

Accept

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

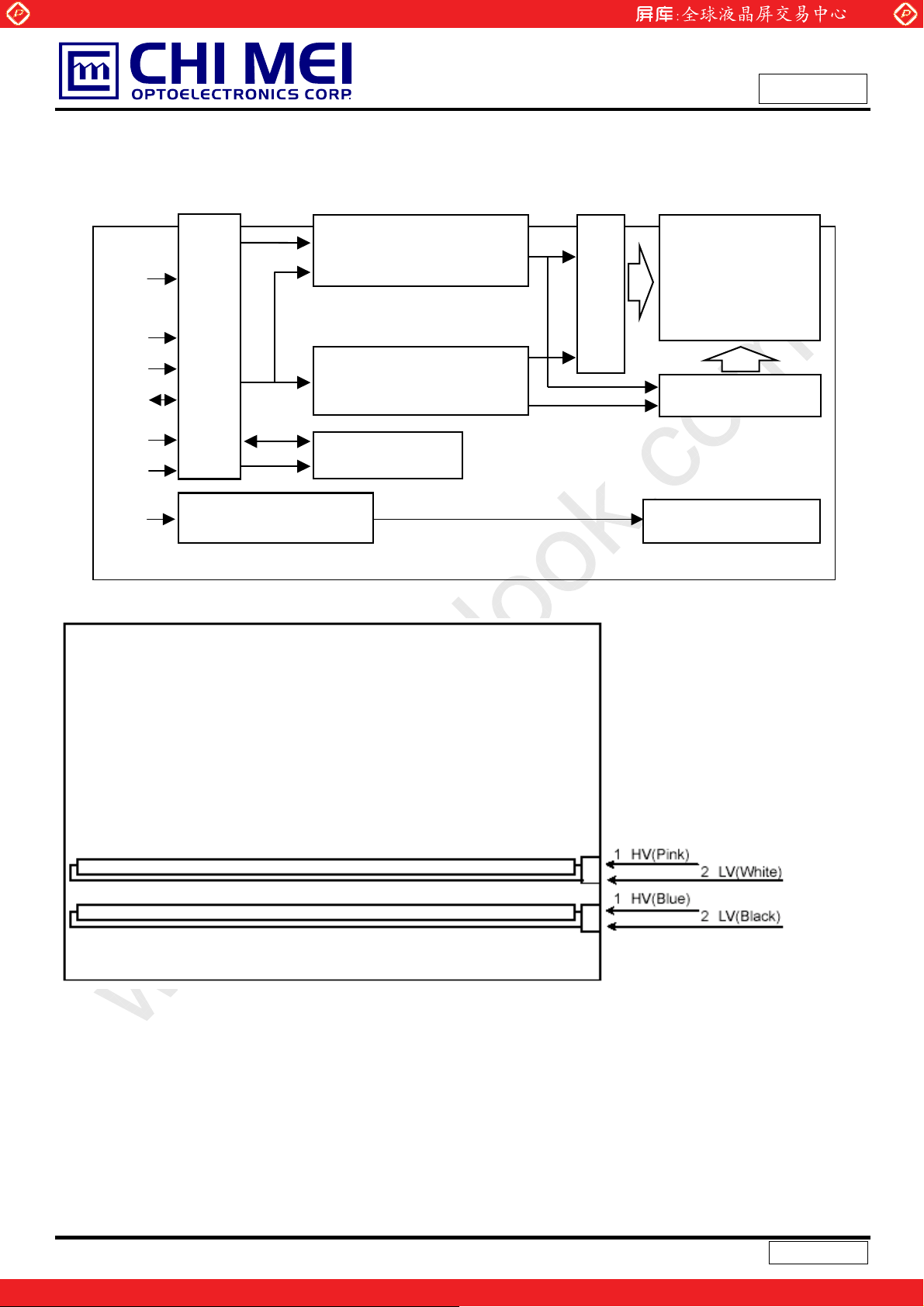

4. BLOCK DIAGRAM ------------------------------------------------------- 11

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

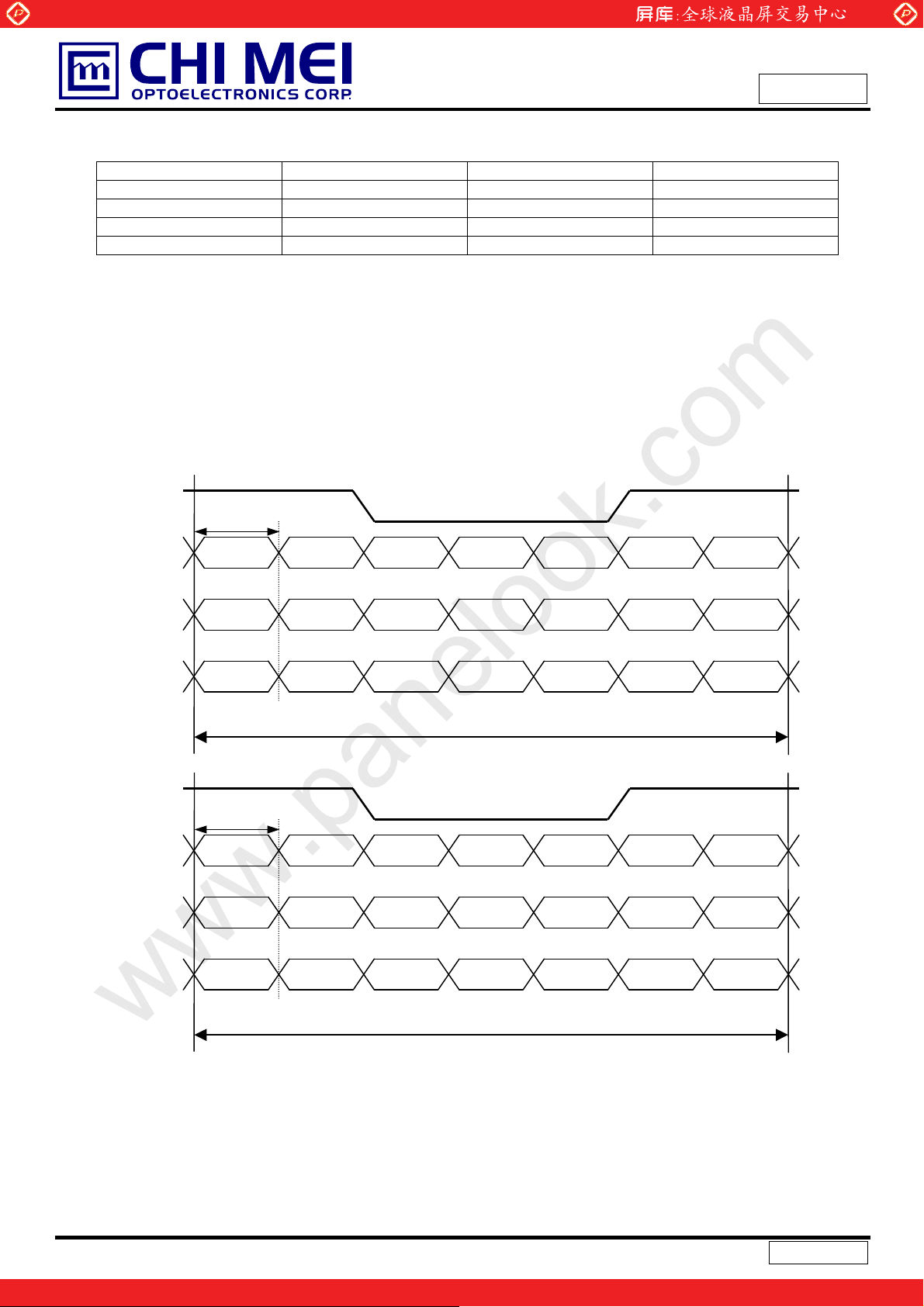

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID CODE DATA STRUCTURE

6. INTERFACE TIMING ------------------------------------------------------- 18

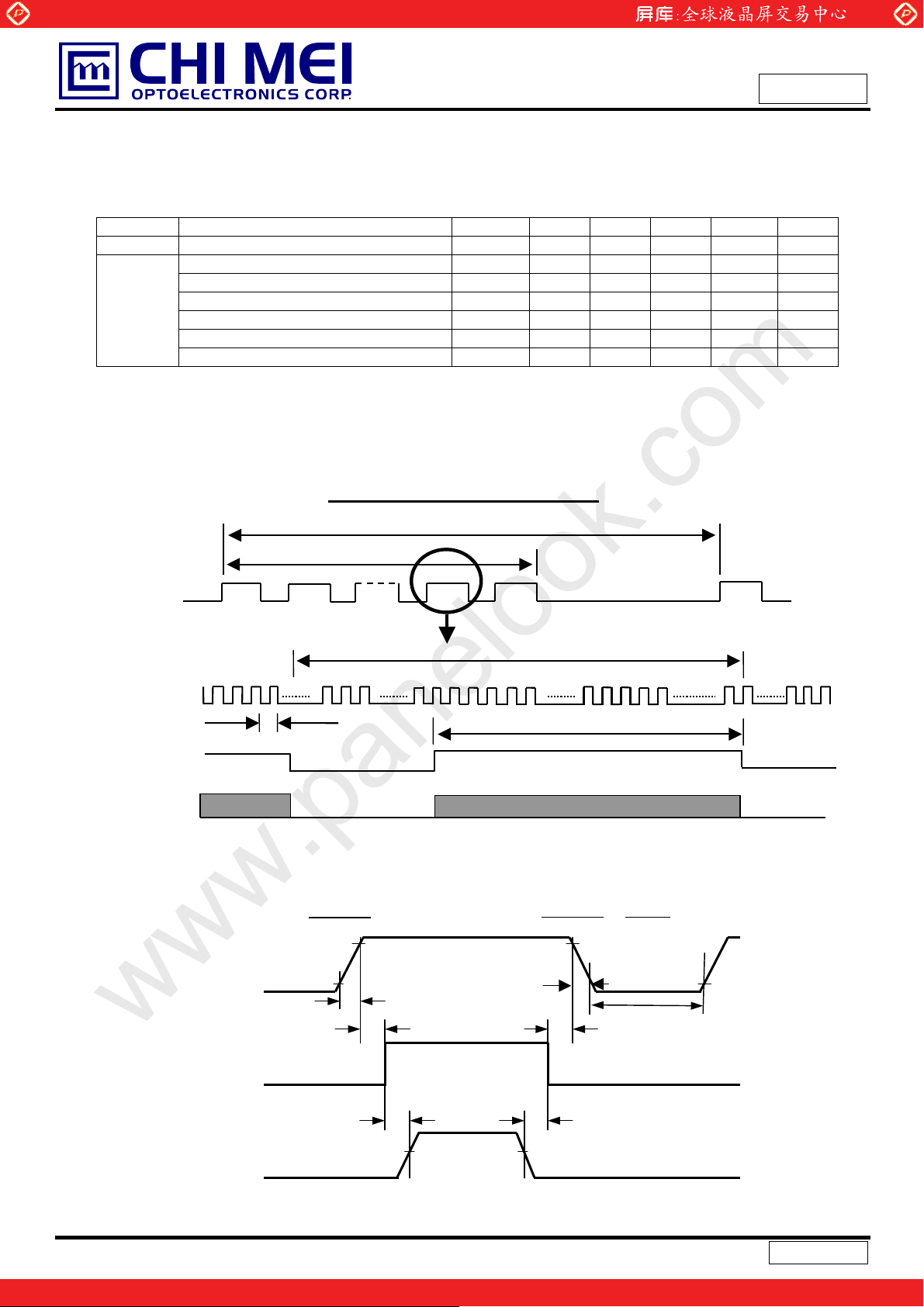

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20

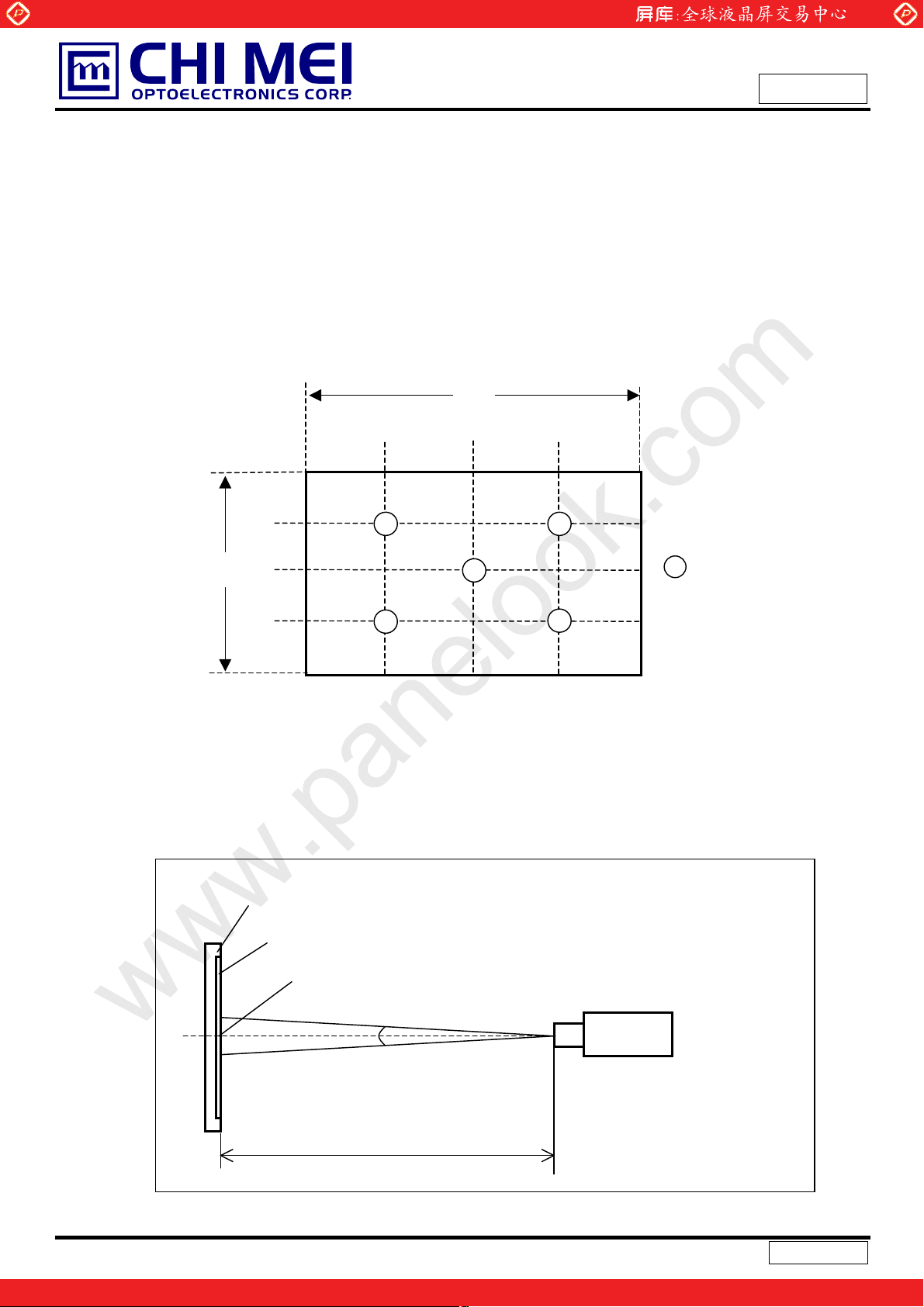

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS ------------------------------------------------------- 23

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

8.2 SAFETY PRECAUTIONS

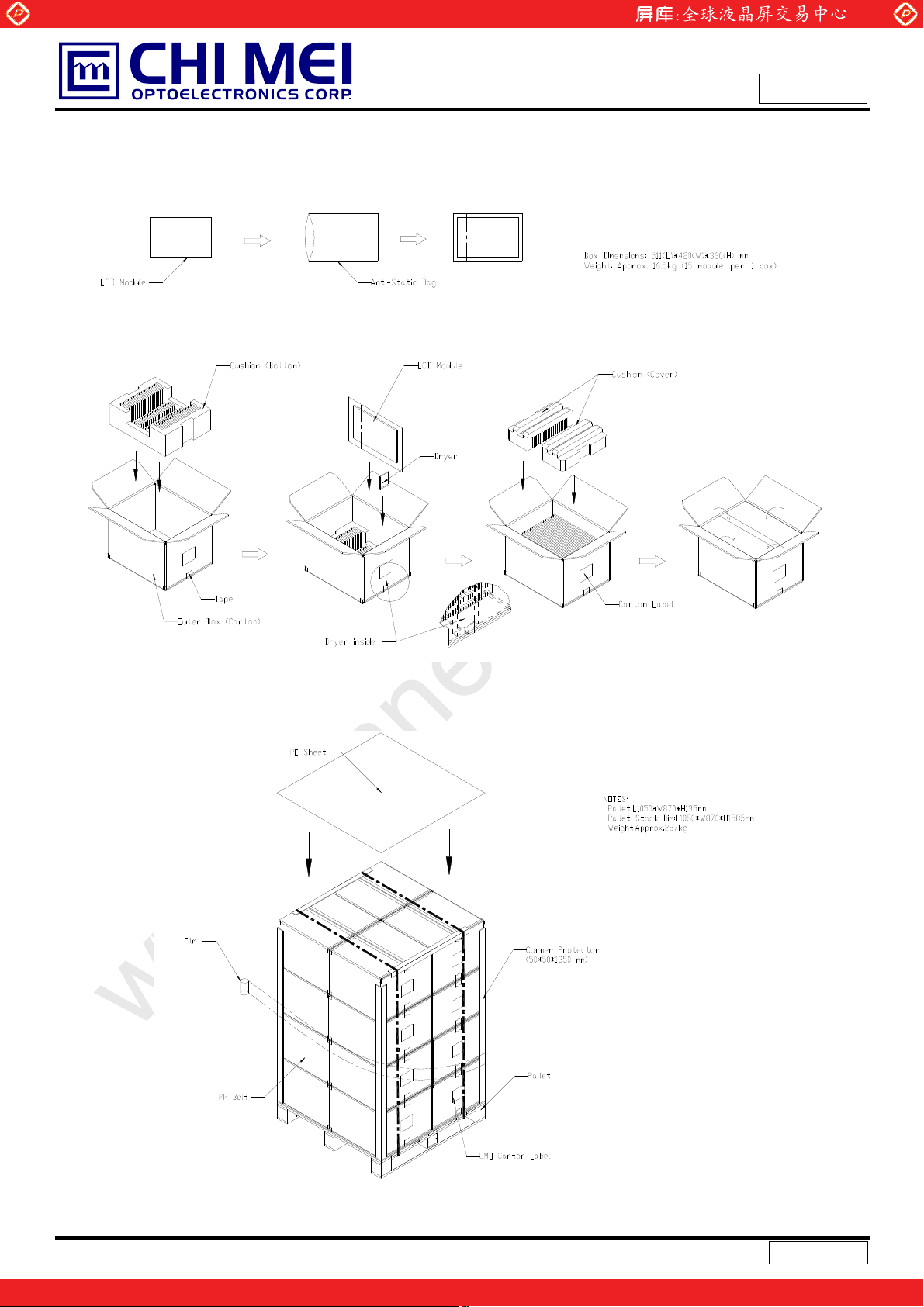

9. PACKING ------------------------------------------------------- 24

9.1 CARTON

9.2 PALLET

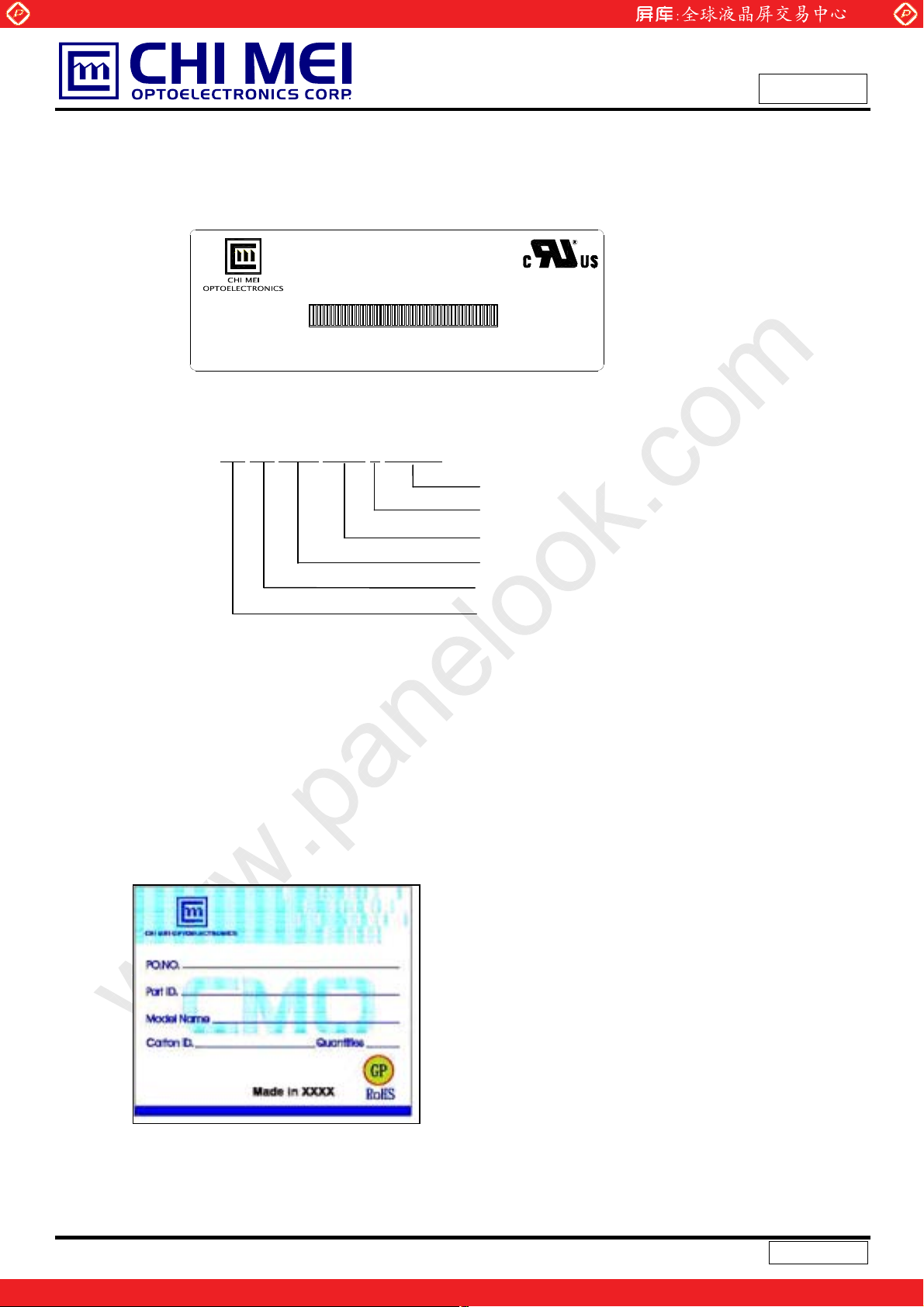

10. DEFINITION OF LABELS 10

.1 CMO MODULE LABEL

10.2 CMO CARTON LABEL

------------------------------------------------------- 25

2 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

REVISION HISTORY

Version Date

Ver 2.0

Ver 2.1

Aug. 4,2006

Oct. 27, 2006

Page

(New)

All

26

27

Section Description

All

Approval Specification was first issued

10.1

10.2

Revise Label Description, add NingBo production site information

3 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N170C3 - L01 is a 17.0” TFT Liquid Crystal Display module with two CCFLs Backlight unit and 30 pins

LVDS interface. This module supports 1440 x 900 Wide-XGA mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- Thin and High Brightness

- WXGA (1440 x 900 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock

- 2 CCFLs

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note Active Area 367.2 (H) x 229.5 (V) (17.0” diagonal) mm Bezel Opening Area 371.2 (H) x 233.5 (V) mm Driver Element a-si TFT active matrix - Pixel Number 1440 x R.G.B. x 900 pixel Pixel Pitch 0.255 (H) x 0.255 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Glare Type - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 381.7 382.2 382.7 mm

Module Size

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical (V) 246.3 246.8 247.3 mm Depth (D) --- 9.7 / 7.9 10.0~8.6 mm

Weight --- 930 960 g -

(1)

4 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) HST - 200/2 G/ms (3), (5) Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown below.

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Relative Humidity (%RH)

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Value

Min. Max.

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20 10

Storage Range

Temperature (ºC)

Note (2) The ambient temperature means the temperature of panel surface.

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave.

Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z axis.

8060-20 400 20-40

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

LCD Module

Side Mount Fixing Screw

gap=2mm

Bracket

Side Mount Fixing Screw

Stage

5 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage V Lamp Current IL 3.0 7.0 mA Lamp Frequency FL 45 80 KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Value

Min. Max.

Value

Min. Max.

L

Ё

2.5K V

Unit Note

(1)

Unit Note

(1), (2), IL = 6.0 mA

RMS

(1), (2)

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

6 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

K

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP 100 mV Rush Current I

Power Supply Current

White 450 480 mA (3)a Black

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

1.5 A (2)

RUSH

Lcc

TH(LVDS)

TL(LVDS)

570 600 mA (3)b

- - +100 mV

-100 - - mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT 100 Ohm Power per EBL WG P

- 4.52 - W (4)

EBL

Note (1) The module should be always operated within above ranges.

Value

Unit Note

Approval

(5),

=1.2V

V

CM

(5),

=1.2V

V

CM

Note (2) I

I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12

V

+3.3V

R1

47

R2

1K

VR1

C1

1uF

47K

Q1 2SK1475

C

2

0.01uF

FUS

E

Q2

2SK1470

Vcc rising time is 470us

C3

1uF

Vcc

(LCD Module Input)

470us

+3.3V

0.9Vcc

100ms

0V

0.1Vcc

I

Rush

I

IS

7 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Vcc

Icc

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

a. White Pattern

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

= 60 Hz,

v

b. Black Pattern

Active Area

(d) The inverter used is provided from Sumida. Please contact them for detail information. CMO

doesn’t provide the inverter in this product.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

Differential

0V

V

VID

8 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max. Lamp Input Voltage VL 705 785 855 V Lamp Current I

Lamp Turn On Voltage V

L

S

3.0

--- ---

--- --Operating Frequency FL 45 80 KHz (3) Lamp Life Time LBL 12,000 Hrs (5) Power Consumption PL 9.42 W (4), IL = 6.0 mA

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

6.0 7.0 mA

1290 (25

1560 (0

o

C)

o

C)

Unit Note

I

RMS

(1)

RMS

V

(2)

RMS

V

(2)

RMS

Approval

= 6.0 mA

L

Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1

second after startup. Otherwise the lamp may not be turned on.

Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

Note (4) P

L

= I

LVL

x2

Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition

Ta = 25 2

o

C and IL = 6.0 mArms until one of the following events occurs:

(a) When the brightness becomes or lower than 50% of its original value.

(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective

ignition length is defined as an area that has less than 70% brightness compared to the

brightness in the center point.)

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid generating too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

9 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

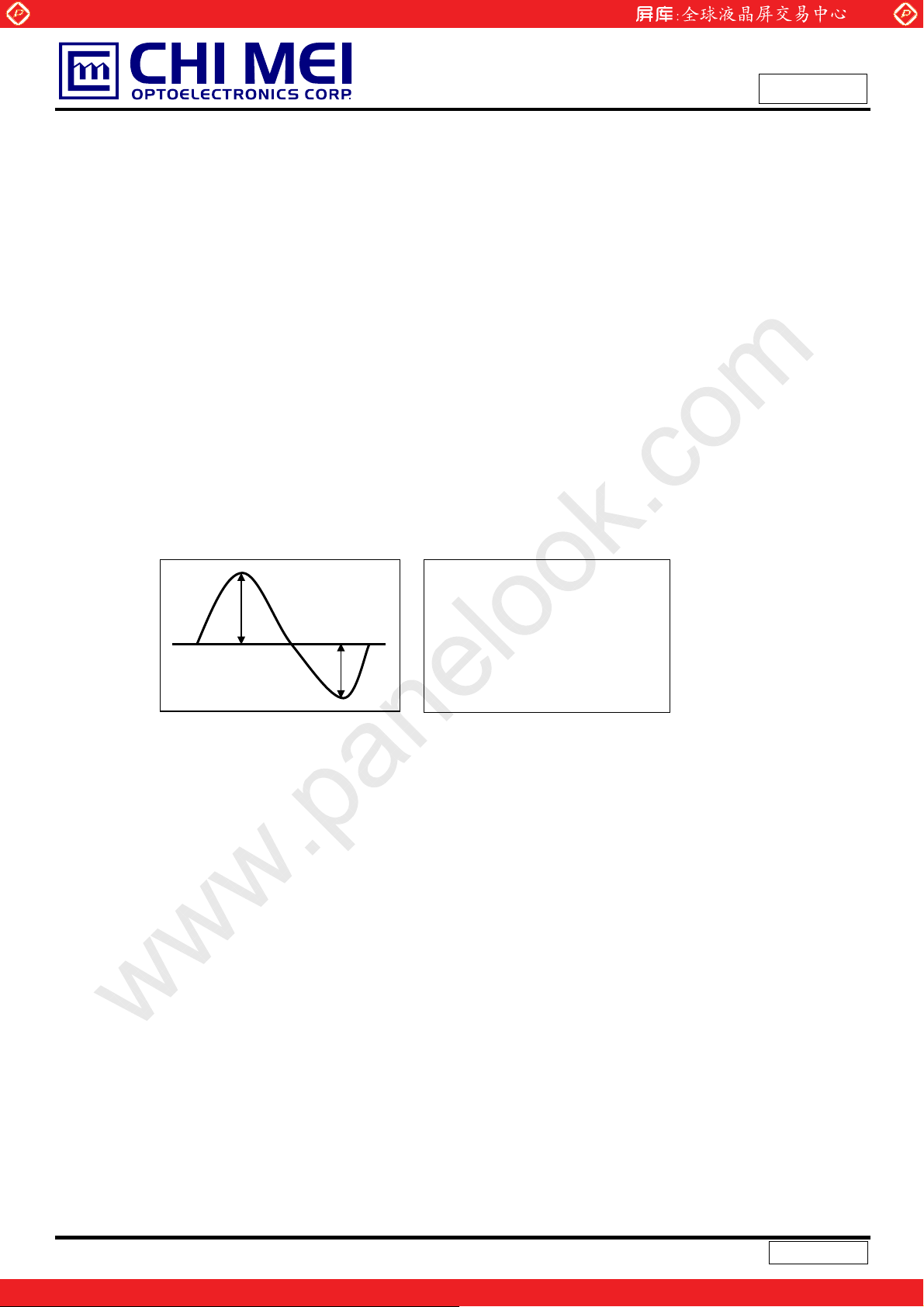

The output of the inverter must have symmetrical (negative and positive) voltage waveform and

symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter,

which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may

produce interface with horizontal synchronous frequency and as a result this may cause beat on the

display. Therefore lamp frequency shall be as away possible from the horizontal synchronous

frequency and from its harmonics in order to prevent interference.

Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its

leakage current.

a. The asymmetry rate of the inverter waveform should be 10% below;

b. The distortion rate of the waveform should be within Ѕ2 ± 10%;

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

c. The ideal sine wave form shall be symmetric in positive and negative polarities.

* Asymmetry rate:

I p

I -p

| I

* Distortion rate

I

– I –p | / I

p

(or I –p) / I

p

rms

* 100%

10 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

VL

INPUT CONNECTOR

LAMP CONNECTOR

4.2 BACKLIGHT UNIT

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

11 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

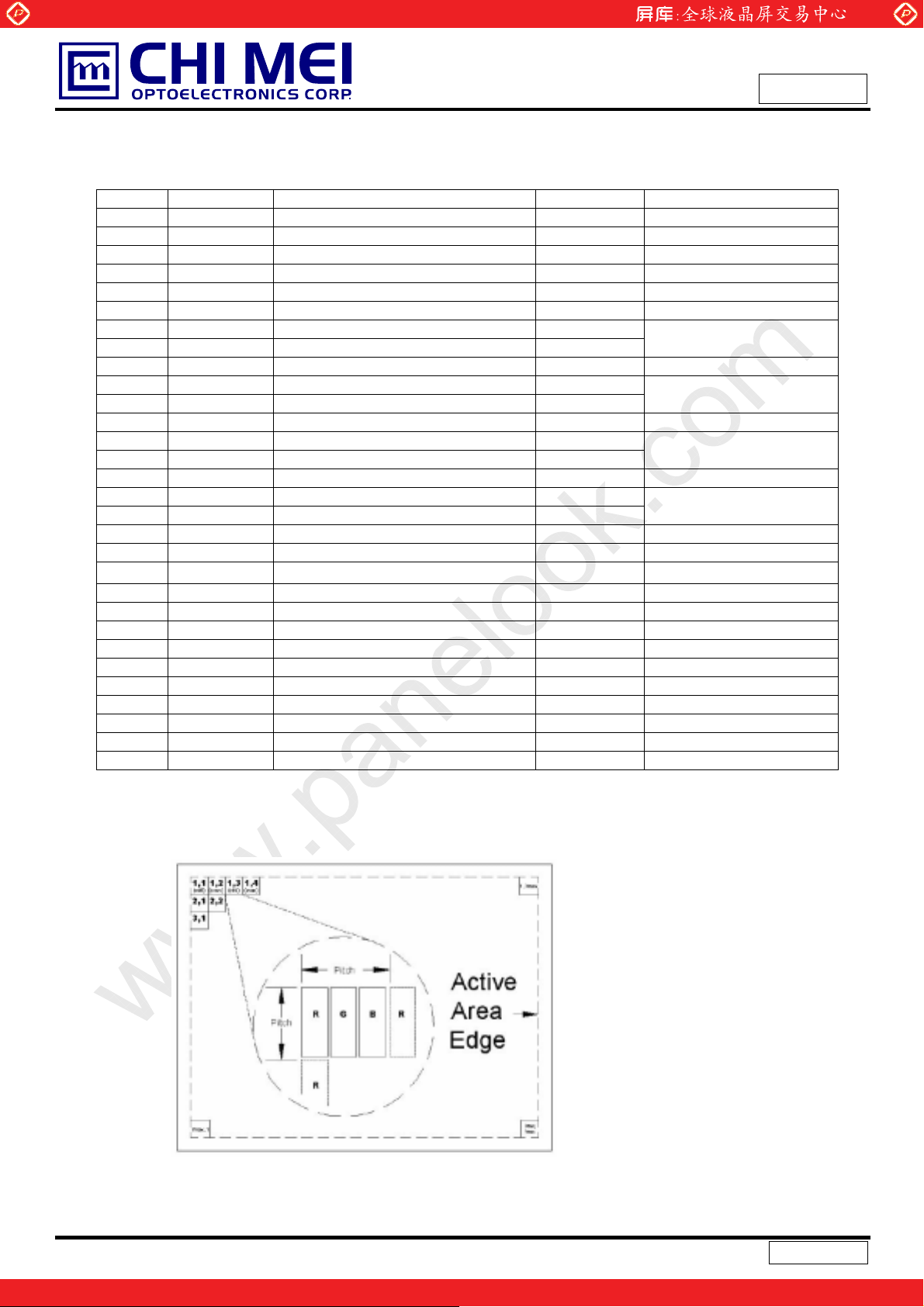

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 NC Non-Connection 6 CLK 7 DATA 8 RXO0- LVDS Differential Data Input (Odd) Negative 9 RXO0+ LVDS Differential Data Input (Odd) Positive

10 Vss Ground

11 RXO1- LVDS Differential Data Input (Odd) Negative 12 RXO1+ LVDS Differential Data Input (Odd) Positive 13 Vss Ground 14 RXO2- LVDS Differential Data Input (Odd) Negative 15 RXO2+ LVDS Differential Data Input (Odd) Positive 16 Vss Ground 17 RXOC- LVDS Clock Data Input (Odd) Negative 18 RXOC+ LVDS Clock Data Input (Odd) Positive 19 Vss Ground

20 RxE0- LVDS Differential Data Input (Even) Negative 21 RxE0+ LVDS Differential Data Input (Even) Positive

22 Vss Ground 23 RxE1- LVDS Differential Data Input (Even) Negative 24 RxE1+ LVDS Differential Data Input (Even) Positive 25 Vss Ground 26 RxE2- LVDS Differential Data Input (Even) Negative 27 RxE2+ LVDS Differential Data Input (Even) Positive 28 Vss Ground 29 RXEC- LVDS Clock Data Input (Even) Negative 30 RXEC+ LVDS Clock Data Input (Even) Positive

Note (1) Connector Part No.: JAE-FI-XB30SRL-HF11 or equivalent

DDC 3.3V Power

EDID

DDC Clock

EDID

DDC Data

EDID

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

Note (3) The first pixel is odd as shown in the following figure.

12 / 27

Version 2.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 BACKLIGHT UNIT

Pin Symbol Description Color

1 HV High Voltage Pink 2 LV Ground White 1 HV High Voltage Blue 2 LV Ground Black

Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent

Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

RXOC+

RXO2+/-

RXO1+/-

RXO0+/-

RXEC+

RXE2+/-

RXE1+/-

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE OB5 OB4 OB3 OB2Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

OB1 OG4 OG3 OG2 OG1OB0 OG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

OG0 OR3 OR2 OR1 OR0OR5 OR4

Signal for 1 DCLK Cycle (T)

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE EB5 EB4 EB3 EB2Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

EB1 EG4 EG3 EG2 EG1EB0 EG5

RXE0+/-

IN6 IN5 IN4 IN3 IN2 IN1 IN0

EG0 ER3 ER2 ER1 ER0ER5 ER4

Signal for 1 DCLK Cycle (T)

13 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green

Basic Colors

Gray Scale Of Red

Gray Scale Of Green

Gray Scale Of Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)

:

: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)

:

: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)

:

: Blue(61) Blue(62) Blue(63)

0

1

0

1

0

0 : :

1

0

0 : :

0

0 : :

0

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Data Signal

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

14 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

5.5 EDID DATA STRUCTURE

.

Byte #

(decimal)

10

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

Byte #

(hex)

0 1 2 3 4 5 6 7 8 9

Field Name and Comments

0 Header 1 Header 2 Header 3 Header 4 Header 5 Header 6 Header 7 Header 8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII) 0A ID product code (N170C3-L01) 04 0B ID product code (hex LSB first; N170C3-L01) 17 0C ID S/N (fixed “0”) 0D ID S/N (fixed “0”) 0E ID S/N (fixed “0”)

0F ID S/N (fixed “0”) 10 Week of manufacture (fixed week code) 11 Year of manufacture (fixed year code) 12 EDID structure version # (“1”) 13 EDID revision # (“3”) 14 Video I/P definition (“digital”) 15 Max H image size (“36.72 cm”) 16 Max V image size (“22.95 cm”) 17 Display Gamma (Gamma = ”2.2”) 18 Feature support (“Active off, RGB Color”)

19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) 1B Red-x (Rx = “0.648”) 1C Red-y (Ry = “0.347”) 1D Green-x (Gx = ”0.283”) 1E Green-y (Gy = ”0.611”)

1F Blue-x (Bx = ”0.141”)

20 Blue-y (By = ”0.071”)

21 White-x (Wx = ”0.319”)

22 White-y (Wy = ”0.333”)

23 Established timings 1

24 Established timings 2

25 Manufacturer’s reserved timings

26 Standard timing ID # 1

27 Standard timing ID # 1

28 Standard timing ID # 2

29 Standard timing ID # 2 2A Standard timing ID # 3

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Value

(hex)

00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 00 00000000 0D 00001101 AF 10101111

00 00000000 00 00000000 00 00000000 00 00000000 1E 00011110 10 00010000 01 00000001 03 00000011 80 10000000 25 00100101 17 00010111 78 01111000 0A 00001010 FA 11111010 1D 00011101 A5 10100101 58 01011000 48 01001000 9C 10011100 24 00100100 12 00010010 51 01010001 55 01010101 00 00000000 08 00001000 00 00000000 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001

Value

(binary)

00000100

00010111

15 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Byte #

(decimal)

43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65

66 67 68 69 70 71

72 73 74 75

76 77 78 79 80 81 82 83 84 85 86

Byte #

(hex)

2B Standard timing ID # 3 2C Standard timing ID # 4 2D Standard timing ID # 4 2E Standard timing ID # 5

2F Standard timing ID # 5 30 Standard timing ID # 6 31 Standard timing ID # 6 32 Standard timing ID # 7 33 Standard timing ID # 7 34 Standard timing ID # 8 35 Standard timing ID # 8 36 Detailed timing description # 1 Pixel clock (“88.75 MHz”) 37 # 1 Pixel clock (hex LSB first) 38 # 1 H active (“1440”)

39 # 1 H blank (“160”) 3A # 1 H active : H blank (“1440 : 160”) 3B # 1 V active (”900”) 3C # 1 V blank (”26”) 3D # 1 V active : V blank (”900 : 26”) 3E # 1 H sync offset (”48”)

3F # 1 H sync pulse width (”32”)

40 # 1 V sync offset : V sync pulse width (”3 : 6”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width

41

(”48 : 32 : 3 : 6”) 42 # 1 H image size (”367 mm”) 43 # 1 V image size (”230 mm”) 44 # 1 H image size : V image size (”367 : 230”) 45 # 1 H boarder (”0”) 46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol 47

Negatives 48 Detailed timing description # 2 49 # 2 Flag

4A # 2 Reserved

# 2 FE (hex) defines ASCII string (Model Name “N170C3-L01”,

4B

ASCII)

4C # 2 Flag 4D # 2 1st character of name (“N”) 4E # 2 2nd character of name (“1”)

4F # 2 3rd character of name (“7”) 50 # 2 4th character of name (“0”) 51 # 2 5th character of name (“C”) 52 # 2 6th character of name (“3”) 53 # 2 7th character of name (“-”) 2D 54 # 2 8th character of name (“L”) 4C 55 # 2 9th character of name (“0”) 56 # 2 10th character of name (“1”)

Field Name and Comments

Va l ue (hex)

01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001

AB 10101011

22 00100010 A0 10100000 A0 10100000 50 01010000 84 10000100 1A 00011010 30 00110000 30 00110000 20 00100000 36 00110110

00 00000000

6F 01101111 E6 111 00110 10 00010000 00 00000000 00 00000000

18 00011000

00 00000000 00 00000000 00 00000000

FE 11111110

00 00000000 4E 01001110 31 00110001 37 00110111 30 00110000 43 01000011 33 00110011

30 00110000 31 00110001

Value

(binary)

00101101 01001100

16 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Byte # (decimal)

87 88 89 90 91 92 93 94

Byte # (hex)

Field Name and Comments

57

(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

58

(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

59

(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

5A Detailed timing description # 3 5B # 3 Flag 5C # 3 Reserved 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

5E # 3 Flag 95 5F # 3 1st character of string (“C”) 96 60 # 3 2nd character of string (“M”) 97 61 # 3 3rd character of string (“O”) 98 62 99 63

100 64 101 65 102 66 103 67 104 68 105 69 106 6A 107 6B

(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

108 6C Detailed timing description # 4 109 6D # 4 Flag 110 6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N170C3-L01”,

111 6F

ASCII) 112 70 # 4 Flag 113 71 # 4 1st character of name (“N”) 4E 114 72 # 4 2nd character of name (“1”) 31 115 73 # 4 3rd character of name (“7”) 37 116 74 # 4 4th character of name (“0”) 30 117 75 # 4 5th character of name (“C”) 43 118 76 # 4 6th character of name (“3”) 33 119 77 # 4 7th character of name (“-”) 2D 120 78 # 4 8th character of name (“L”) 4C 121 79 # 4 9th character of name (“0”) 122 7A # 4 10th character of name (“1”)

(If <13 char, then terminate with ASCII code 0Ah, set remaining char =

123 7B 124 7C 125 7D

20h)

(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)

126 7E Extension flag 127 7F Checksum

Va l ue

Value

(hex)

(binary) 0A 00001010 20 00100000

20 00100000 00 00000000 00 00000000 00 00000000 FE 11111110 00 00000000 43 01000011 4D 01001101 4F 01001111 0A 00001010 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000

FE 11111110

00 00000000

01001110

00110001

00110111 00110000 01000011

00110011 00101101 01001100

30 00110000 31 00110001

0A 00001010

20 00100000 20 00100000 00 00000000 A2 10100010

17 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 35 44.5 60 MHz (2)

Vertical Total Time TV 910 926 1500 TH -

Vertical Active Display Period TVD 900 900 900 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

(2) 2 channels LVDS input.

Vertical Active Blanking Period TVB 10 26 600 TH

Horizontal Total Time TH 760 800 880 Tc (2)

Horizontal Active Display Period THD 720 720 720 Tc (2)

Horizontal Active Blanking Period THB

www.panelook.com

40

80

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

160

Tc (2)

INPUT SIGNAL TIMING DIAGRAM

DE

DCLK

TC

DE

DATA

6.2 POWER ON/OFF SEQUENCE

Power On

90%

T

Power Off

90%

HD

Restart

t7

Power Supply

for LCD, Vcc

- Interface Signal

(LVDS Signal of Transmitter), V

I

- Power for Lamp

0V

10%

t1

t4

t3t2

Valid Data

t6t5

50%50%

ONOFF OFF

10%

18 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

Timing Specifications:

0.5 Љ t1 Љ 10 ms

0 Љ t2 Љ 50 ms

0 Љ t3 Љ 50 ms

t4 Њ 500 ms

t5 Њ 200 ms

t6 Њ 200 ms

Note (1) Please avoid floating state of interface signal at invalid period.

Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5Љt7Љ300 ms

19 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.0 mA Inverter Driving Frequency FL 61 KHz Inverter (Sumida-H05-4915)

The relative measurement methods of optical characteristics are shown in 7.2. The

following items should be measured under the test conditions described in 7.1 and stable

environment shown in Note (6).

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Green

Color Chromaticity

Blue

White

Center Luminance of White Lcen 340 400

Contrast Ratio CR 400 600

Response Time

White Variation

Horizontal

Viewing Angle

Vertical

Rx

Ry

Gx Gy

Bx

By

Wx

Wy

T T

GW

Tx+

T

x

TY+

T

Y

www.panelook.com

=0q, TY =0q

T

x

Viewing Normal Angle

R

F

-

CR Њ 10

25r2

50r10

0.643

0.349

0.281

Typ –

0.03

Ё Ё Ё

60) 70 60 70

50 60

0.609

0.142

0.068

0.313

0.329

3 8 ms 7 12 ms

1.25 1.40

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

o

C

%RH

Typ +

0.03

Ё

ЁЁ

Ё Ё Ё Ё

Ё

(1), (6)

cd/m2(4), (6)

(2), (6)

(3)

Ё

Deg. (1)

(5)

20 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (Tx, T y):

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Normal

Tx = Ty = 0º

Ty- Ty

TX- = 90º

6 o’clock

T

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (5).

Tx

Tx

12 o’clock direction

y+

T

y+ = 90º

x+

TX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

R

66.67 ms

, TF) and measurement method:

R

T

F

66.67 ms

21 / 27

Time

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

Note (4) Definition of Center Luminance of White (L

Measure the luminance of gray level 63 at center points

L

= L (5)

CEN

L (x) is corresponding to the luminance of the point X at Figure in Note (5)

Note (5) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

Horizontal Line

D/4 D/2 3D/4

W/4

W/2

W

Vertical Line

3W/4

12

3

CEN

D

5

):

X

: Test Point

X=1 to 5

4

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

Active Area

Center of the Screen

Field of View = 2º

500 mm

Photometer

(CA210, CS-1000T)

Light Shield Room

(Ambient Luminance < 2 lux)

22 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

23 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

9. PACKING

9.1CARTON

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

9.2 PALLET

24 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc. No.: 24064139

Issued Date: Oct 27, 2006

Model No.: N170C3 - L01

Approval

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

-

C P 1 3 5 4 4 8 - 0 1

01A

N141X5 - L03 Rev.XX

X X X X X X X Y M D L N N N N

(a) Model Name: N170C3 - L01

(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D X N N N N

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

st

to 31st, exclude I, O and U

E207943

MADE IN TAIWAN

Serial No.

CMO Internal Use

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

10.2 CARTON LABEL

25 / 27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.1

www.panelook.com
