TFT LCD Approval Specification

MODEL NO.: N156O6-L01

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Customer : Fujitsu

Approved by :

Note :

NB

2009-09-22

00:04:12

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2009.09.22

1 / 34

Director Accept

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 11

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. CONVERTER ------------------------------------------------------- 19

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

7. INTERFACE TIMING ------------------------------------------------------- 21

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 24

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 28

9.1 HANDLING PRECAUTIONS

9.2 STORAGE PRECAUTIONS

9.3 OPERATION PRECAUTIONS

10. PACKING ------------------------------------------------------- 29

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

------------------------------------------------------- 31

12. MECHANICAL DRAWING

------------------------------------------------------- 33

2 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

REVISION HISTORY

Version Date

Ver. 3.0 Sep.16, 2009 All All

Page

(New)

Section Description

Approval spec 3.0 was first issued for N156O6-L01

3 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N156O6-L01 is a 15.6” ΰ15.547" diagonalαTFT Liquid Crystal Display module with LED Backlight unit and

40 pins LVDS interface. This module supports 1600 x 900 HD+ mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction. The converter module for backlight is built in.

1.2 FEATURES

- HD+ (1600 x 900 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock

- WLED

- LED converter embedded

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 344.16 (H) x 193.59 (V) (15.547” diagonal) mm
Bezel Opening Area 348.76(H)x197.19(V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1600 x R.G.B. x 900 pixel ­Pixel Pitch 0.215 (H) x 0.215 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-Glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H)
Vertical(V)
Thickness(T)

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Horizontal(H)
Vertical(V) 209 209.5 210 mm
Thickness(T) 5.2 5.5 mm

Weight

358.8 359.3

445 460

359.8 mm

g -

(1)

(1)

4 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 34

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VI -0.3 VCCS+0.3 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

2.2.2 BACKLIGHT UNIT

Item

LED Light Bar Power Supply Voltage -50 34 V
LED Light Bar Power Supply Current 0 150 mA

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

www.panelook.com

Value

Min. Max.

Value

Min Max.

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Unit Note

(1)

Unit Note

DC

DC

(1), (2)

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to Section 3.2 for further information).

6 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage VCCS 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White - 255 275 mA (3)a
Black

lcc

TH(LVDS)

-100 - - mV

TL(LVDS)

- 355 410 mA (3)b

- - +100 mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (4)
LVDS Differential Input Voltage |VID| 100 - 600 mV (4)
LVDS Terminating Resistor RT - 100 - Ohm -

Power per EBL WG PEBL - 2.2 - W (5)

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Approval

(4),

=1.2V

V

CM

(4)

=1.2V

V

CM

Note (2) I

: the maximum current when VCCS is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

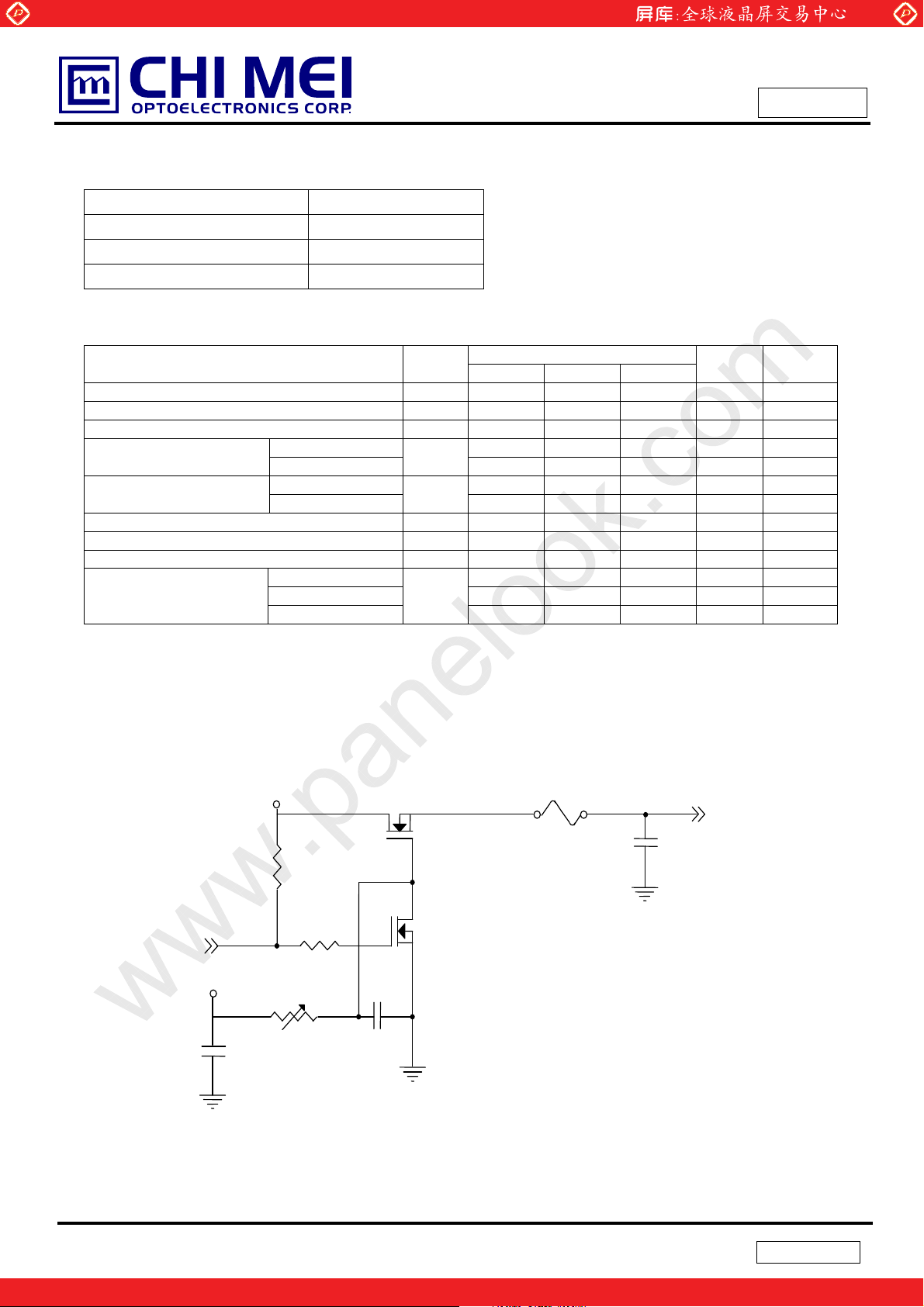

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

C2

0.01uF

Q2

2SK1470

FUSE

C3

1uF

VCCS

(LCD Module Input)

7 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

VCCS rising time is 0.5ms

Current and f

a. White Pattern

Note (4) The parameters of LVDS signals are defined as the following figures.

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

CM

V

Active Area

VID

Single Ended

0V

V

VID

Differential

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

0V

V

8 / 34

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

Note (5) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

(a) VCCS = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

= 60 Hz,

v

9 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

LED Light Bar input Voltage V
LED Light Bar input Current I

L

L

Min. Typ. Max.

29 32 34 V

114 120 126 mA

Power Consumption PL 3.306 3.84 4.284 W

LED Life Time LBL 15000 Hrs (4)

Note (1) LED light bar configuration is shown as below.

VL,I

L

LED

Light Bar Feedback

Light Bar

Channels

Value

Unit Note

(1) Duty 100%

(3)
IL= 120 mA
Duty=100%

Approval

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter

with current balancing function to drive LED light-bar.

Note (3) P

L

= I

L

Ø V

L

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta =

o

25 ± 2

C and IL = 20.0mA (Per EA) until the brightness becomes 50% of its original value.Љ

10 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

SC

C

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

LVDS Display

Data & Clock

VCCS

GND

Data

EDID

CLK

EDID

V

EDID

Converter

Input Signals

INPUT CONNECTOR

LVDS INPUT /TIMING

CONTROLLER

AN DRIVER I

TFT LCD PANEL

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

DATA DRIVER IC

EDID

EEPROM

LED CONVERTER BACKLIGHT UNIT

11 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 NC No Connection.
2 AVDD Power Supply, 3.3V (typical)
3 AVDD Power Supply, 3.3V (typical)
4 DVDD DDC 3.3V power
5 NC No Connect
6 SCL DDC Clock
7 SDA DDC Data
8 RXO0- LVDS Differential Data Input (Odd) Negative

9 RXO0+ LVDS Differential Data Input (Odd) Positive
10 Vss Ground
11 RXO1- LVDS Differential Data Input (Odd) Negative
12 RXO1+ LVDS Differential Data Input (Odd) Positive
13 Vss Ground
14 RXO2- LVDS Differential Data Input (Odd) Negative
15 RXO2+ LVDS Differential Data Input (Odd) Positive
16 Vss Ground
17 RXOC- LVDS Clock Data Input (Odd) Negative
18 RXOC+ LVDS Clock Data Input (Odd) Positive
19 Vss Ground

20 RxE0- LVDS Differential Data Input (Even) Negative
21 RxE0+ LVDS Differential Data Input (Even) Positive

22 Vss Ground
23 RxE1- LVDS Differential Data Input (Even) Negative
24 RxE1+ LVDS Differential Data Input (Even) Positive
25 Vss Ground
26 RxE2- LVDS Differential Data Input (Even) Negative
27 RxE2+ LVDS Differential Data Input (Even) Positive
28 Vss Ground
29 RXEC- LVDS Clock Data Input (Even) Negative
30 RXEC+ LVDS Clock Data Input (Even) Positive
31 LED_GND LED Ground
32 LED_GND LED Ground
33 LED_GND LED Ground
34 NC No Connection
35 LED_PWM PWM Control Signal of LED Converter
36 LED_EN Enable Control Signal of LED Converter
37 NC No Connection
38 LED_VCCS LED Power
39 LED_VCCS LED Power
40 LED_VCCS LED Power

Note (1) Connector Part No.: I-PEX 20455-040E-12 or equivalent

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Note (2) User’s connector Part No: I-PEX 20453-040T-01 or equivalent

Note (3) The first pixel is odd as shown in the following figure.

12 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Note (4) Mounting inclination of a connector carries out as follows

13 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

RXOC+

T/7

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

RXO2+/-

RXO1+/-

RXO0+/-

RXEC+

RXE2+/-

RXE1+/-

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE OB5 OB4 OB3 OB2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

OB1 OG4 OG3 OG2 OG1 OB0 OG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

OG0 OR3 OR2 OR1 OR0 OR5 OR4

Signal for 1 DCLK Cycle (T)

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE EB5 EB4 EB3 EB2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

EB1 EG4 EG3 EG2 EG1 EB0 EG5

RXE0+/-

IN6 IN5 IN4 IN3 IN2 IN1 IN0

EG0 ER3 ER2 ER1 ER0 ER5 ER4

Signal for 1 DCLK Cycle (T)

14 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

0

0

0

0

0

0

1

1

0

0
0
0
1
1
1
0
1
0
0
0

:

:
0
0
0
0
0
0

:

:
0
0
0
0
0
0

:

:
1
1
1

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

0

:

:

:

:

:

:

1

0

1

1

1

0

1

1

1

15 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte #

(decimal)

0
1
2
3
4
5
6
7
8
9

10

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

38

39
40

Byte #

(hex)

0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N156O6-L01) 74
0B ID product code (hex LSB first; N156O6-L01) 15
0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)
0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”)
10 Week of manufacture (fixed week code)

11 Year of manufacture (fixed year code)
12 EDID structure version # (“1”)
13 EDID revision # (“3”)
14 Video I/P definition (“digital”)
15 Active area horizontal 34.416cm
16 Active area vertical 19.359cm
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)
19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 7B
1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 95
1B Rx=0.610 9C
1C Ry=0.343 57
1D Gx=0.342 57
1E Gy=0.581 94
1F Bx=0.162 29
20 By=0.083 15
21 Wx=0.313 50
22 Wy=0.329 54
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings

26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2

www.panelook.com

Field Name and Comments

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Value

(hex)

00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111

00 00000000
0D 00001101
AF 10101111

00 00000000

00 00000000

00 00000000

00 00000000

29 00101001

12 00010010

01 00000001

03 00000011

80 10000000

22 00100010

13 00010011

78 01111000
0A 00001010

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

01 00000001

Value

(binary)

01110100

00010101

01111011

10010101

10011100
01010111

01010111
10010100
00101001
00010101
01010000
01010100

16 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

41
42
43
44
45
46
47
48
49
50
51
52
53

54

55
56
57
58
59
60
61
62
63
64

65

66
67
68
69
70

71

72
73
74
75
76
77
78
79
80
81
82
83
84
85

29 Standard timing ID # 2
2A Standard timing ID # 3
2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4
2E Standard timing ID # 5
2F Standard timing ID # 5
30 Standard timing ID # 6
31 Standard timing ID # 6
32 Standard timing ID # 7
33 Standard timing ID # 7
34 Standard timing ID # 8
35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“97.75MHz”, According to

36

VESA CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1600”)
39 # 1 H blank (“160”)
3A # 1 H active : H blank (“1600 : 160”)
3B # 1 V active (”900”)
3C # 1 V blank (”26”)
3D # 1 V active : V blank (”900 :26”)
3E # 1 H sync offset (”48”)
3F # 1 H sync pulse width ("32”)
40 # 1 V sync offset : V sync pulse width (”3 : 5”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
41

(”48: 32 : 3 : 5”)
42 # 1 H image size (”344 mm”) 58
43 # 1 V image size (”193 mm”) C1
44 # 1 H image size : V image size (”344 : 193”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
47

Negatives
48 Detailed timing description # 2
49 # 2 Flag
4A # 2 Reserved
4B # 2 FE (hex) defines ASCII string (Model Name “N156O6-L01”, ASCII)
4C # 2 Flag
4D # 2 1st character of name (“N”)
4E # 2 2nd character of name (“1”)
4F # 2 3rd character of name (“5”)
50 # 2 4th character of name (“6”)
51 # 2 5th character of name (“O”)
52 # 2 6th character of name (“6”)
53 # 2 7th character of name (“-”)
54 # 2 8th character of name (“L”)
55 # 2 9th character of name (“0”)

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

2F 00101111

26 00100110
40 01000000

A0 10100000

60 01100000
84 10000100

1A 00011010

30 00110000
30 00110000
20 00100000
35 00110101

00 00000000

10 00010000
00 00000000
00 00000000

18 00011000

00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001
35 00110101
36 00110110

4F 01001111

36 00110110
2D 00101101
4C 01001100

30 00110000

01011000
11000001

17 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

86
87
88
89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110

111

112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

56 # 2 9th character of name (“1”)
57 # 2 New line character indicates end of ASCII string
58 # 2 Padding with “Blank” character
59 # 2 Padding with “Blank” character
5A Detailed timing description # 3
5B # 3 Flag
5C # 3 Reserved
5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)
5E # 3 Flag
5F # 3 1st character of string (“C”)
60 # 3 2nd character of string (“M”)
61 # 3 3rd character of string (“O”)
62 # 3 New line character indicates end of ASCII string
63 # 3 Padding with “Blank” character
64 # 3 Padding with “Blank” character
65 # 3 Padding with “Blank” character
66 # 3 Padding with “Blank” character
67 # 3 Padding with “Blank” character
68 # 3 Padding with “Blank” character
69 # 3 Padding with “Blank” character
6A # 3 Padding with “Blank” character
6B # 3 Padding with “Blank” character
6C Detailed timing description # 4
6D # 4 Flag
6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N156O6-L01”,

6F

ASCII)
70 # 4 Flag
71 # 4 1st character of name (“N”) 4E
72 # 4 2nd character of name (“1”) 31
73 # 4 3rd character of name (“5”) 35
74 # 4 4th character of name (“6”) 36
75 # 4 5th character of name (“O”) 4F
76 # 4 6th character of name (“6”) 36
77 # 4 7th character of name (“-”) 2D
78 # 4 8th character of name (“L”) 4C
79 # 4 9th character of name (“0”)
7A # 4 9th character of name (“1”)
7B # 4 New line character indicates end of ASCII string
7C # 4 Padding with “Blank” character
7D # 4 Padding with “Blank” character
7E Extension flag
7F Checksum

31 00110001

0A 00001010

20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

43 01000011
4D 01001101
4F 01001111
0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

31 00110001
0A 00001010

20 00100000

20 00100000

00 00000000

19 00011001

01001110
00110001
00110101

00110110

01001111

00110110
00101101
01001100

18 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

6. CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS 28

LED_PWM -0.3V~5.5V

,LED_EN -0.3V~5.5V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage
Converter Rush Current
Converter Initial Stage Current

EN Control Level

PWM Control Level

Backlight on 1.6 --- 5 V
Backlight off 0 --- 0.8 V
PWM High Level 1.3 --- 5 V
PWM Low Level 0 --- 0.65 V

LED_Vccs

ILED

RUSH

ILED

IS

Min. Typ. Max.

6.0 12.0 21.0 V

- - 1.5 A (2)

- - 1.5 A (2)

PWM Control Duty Ratio 20 100 %
PWM Control Permissive Ripple Voltage
PWM Control Frequency f

LED_VCCS=6V 633 753 893 mA (1)

Converter Input Current

Note (1) ILED

ILED

: the maximum current when LED_VCCS is rising,

RUSH

: the maximum current of the first 100ms after power-on,

IS

LED_VCCS=12V
LED_VCCS=21V

VPWM_pp

190 210 230 Hz (3)

PWM

I

BL

100 mV

317 376 446 mA (1)
181 215 255 mA (1)

Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f

200 Hz, Duty=100%.

Value

Approval

Unit Note

=

PWM

(High to Low)

(Control Signal)

SW=24V

LED_VCCS(Typ)

LED_VCCS(Typ)

C1

1uF

VR1

R1

47K

R2

1K

47K

Q1 IRL3303

C2

0.01uF

Q2

IRL3303

FUSE

C3

1uF

(LED Converter Input)

19 / 34

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

≤∗+

+

≤

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

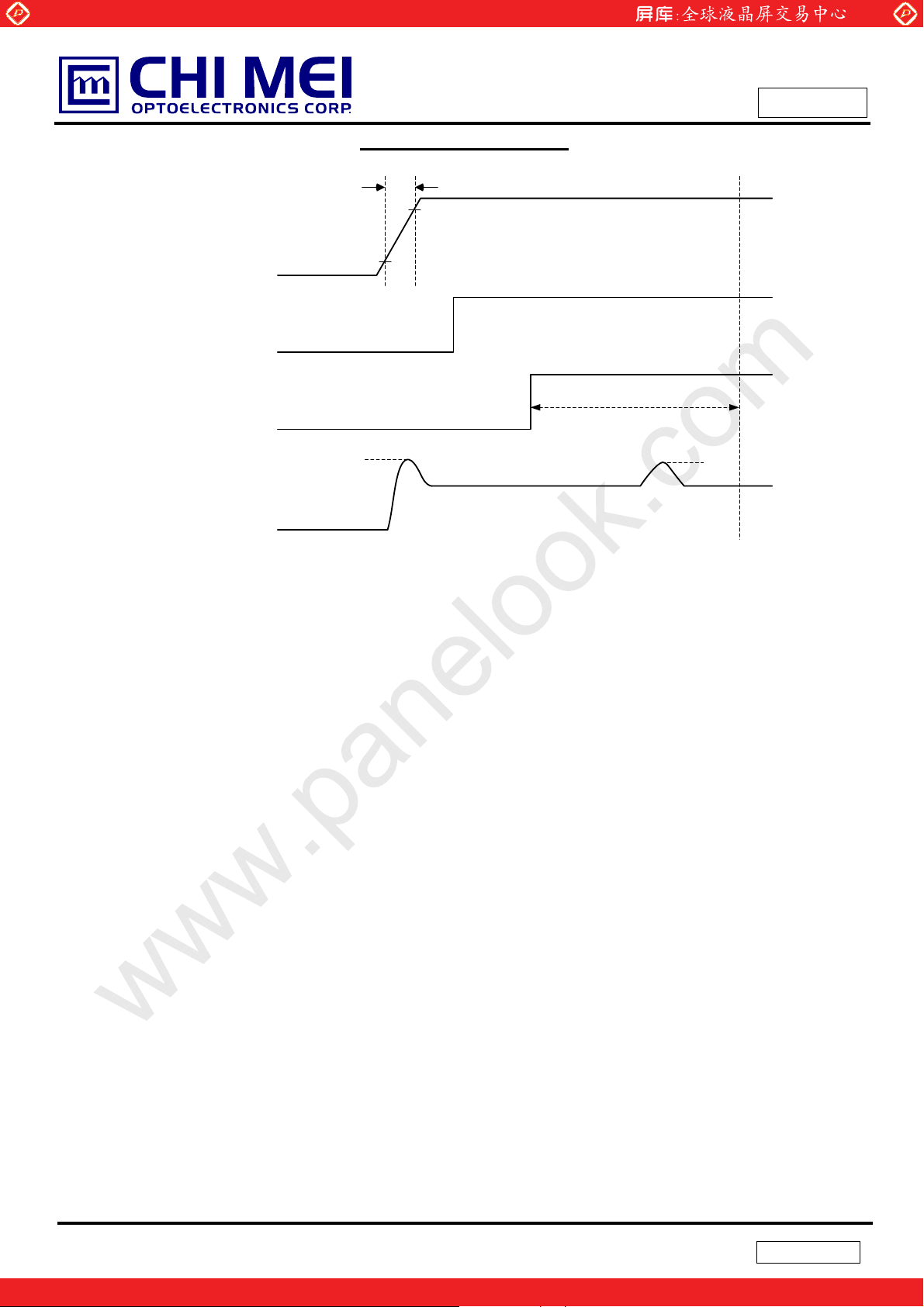

VLED rising time is 0.5ms

0.5ms

90%

ILED

10%

Rush

100ms

ILED

IS

LED_VCC

LED_PWM

LED_EN

ILED

Note (2) If the PWM control duty ratio is less than 10%, there is some possibility that acoustic noise or

backlight flash can be found. And it is also difficult to control the brightness linearity.

Note (3) If PWM control frequency is applied in the range less than 1KHz, the “waterfall” phenomenon on

0V

0V

0V

the screen may be found. To avoid the issue, it’s a suggestion that PWM control frequency should

follow the criterion as below.

PWM control frequency f

fN )4.0( f

N

: Integer )3( ≥N

f

: Frame rate

Note (4) The specified LED power supply current is under the conditions at “LED_VCCS = Min., Typ., Max.”,

Ta = 25 ± 2 ºC, f

= 200 Hz, Duty=100%.

PWM

should be in the range

PWM

PWM

)6.0(

fN ∗

20 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 46.45 48.89 51.34 MHz (2)

Vertical Total Time TV 910 926 952 TH -

Vertical Active Display Period TVD 900 900 900 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

Vertical Active Blanking Period TVB TV-TVD 26 TV-TVD TH

Horizontal Total Time TH 1700 1760 1910 Tc (2)

Horizontal Active Display Period THD 1600 1600 1600 Tc (2)

Horizontal Active Blanking Period THB

INPUT SIGNAL TIMING DIAGRAM

www.panelook.com

TH-THD

160

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

TH-THD

Tc (2)

DE

DCLK

DE

DATA

TC

HD

T

21 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

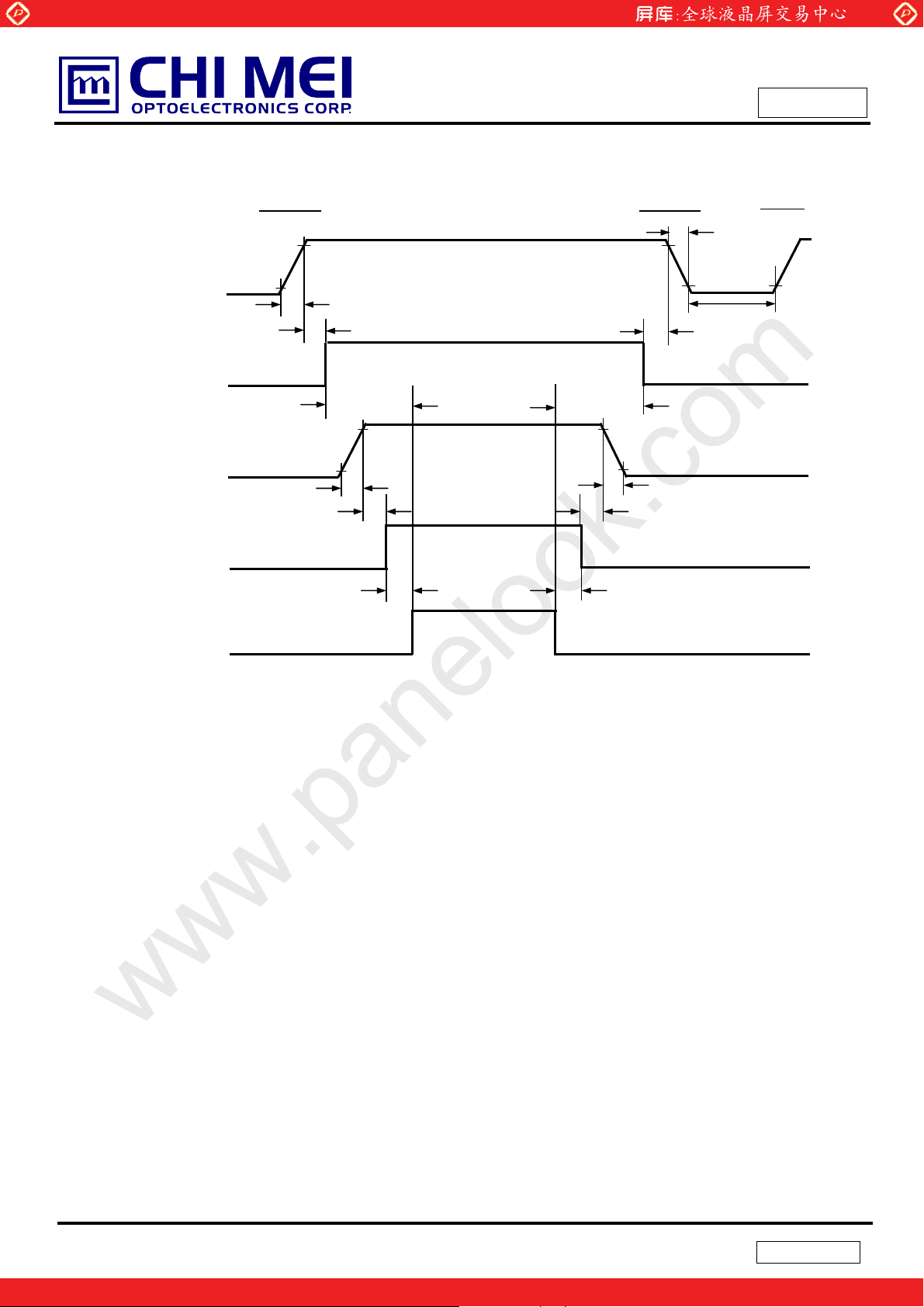

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

- Power Supply

for LCD, VCCS

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power Supply for

LED Converter,
LED_VCCS

- LED Converter

Dimming Signal,
LED_PWM

- LED Converter

Enable Signal,
LED_EN

0V

0V

0V

0V

0V

Power On

90%

10%

Power Off

t1

t2

Valid Data

t6t5

10%

90%

t

A

t

C

tE t

90%

t

B

t

D

F

90%

10%

Restart

t7

10%

t3

10%

t4

Timing Specifications:

0.5Љ t1ʳЉ 10 ms

0 Љ t2ʳЉ 50 ms

0 Љ t3ʳЉ 50 ms

t4ʳЊ 500 ms

t5ʳЊ 200 ms

t6ʳЊ 200 ms

0.5Љ t7ʳЉʳ 10 ms

0.5Љ t

0 І t

ʳЉʳ 10 ms

A

ʳЉʳ 10 ms

B

t

ʳЊ 10 ms

C

t

ʳЊ 10 ms

D

t

ʳЊ 10 ms

E

t

ʳЊ 10 ms

F

22 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

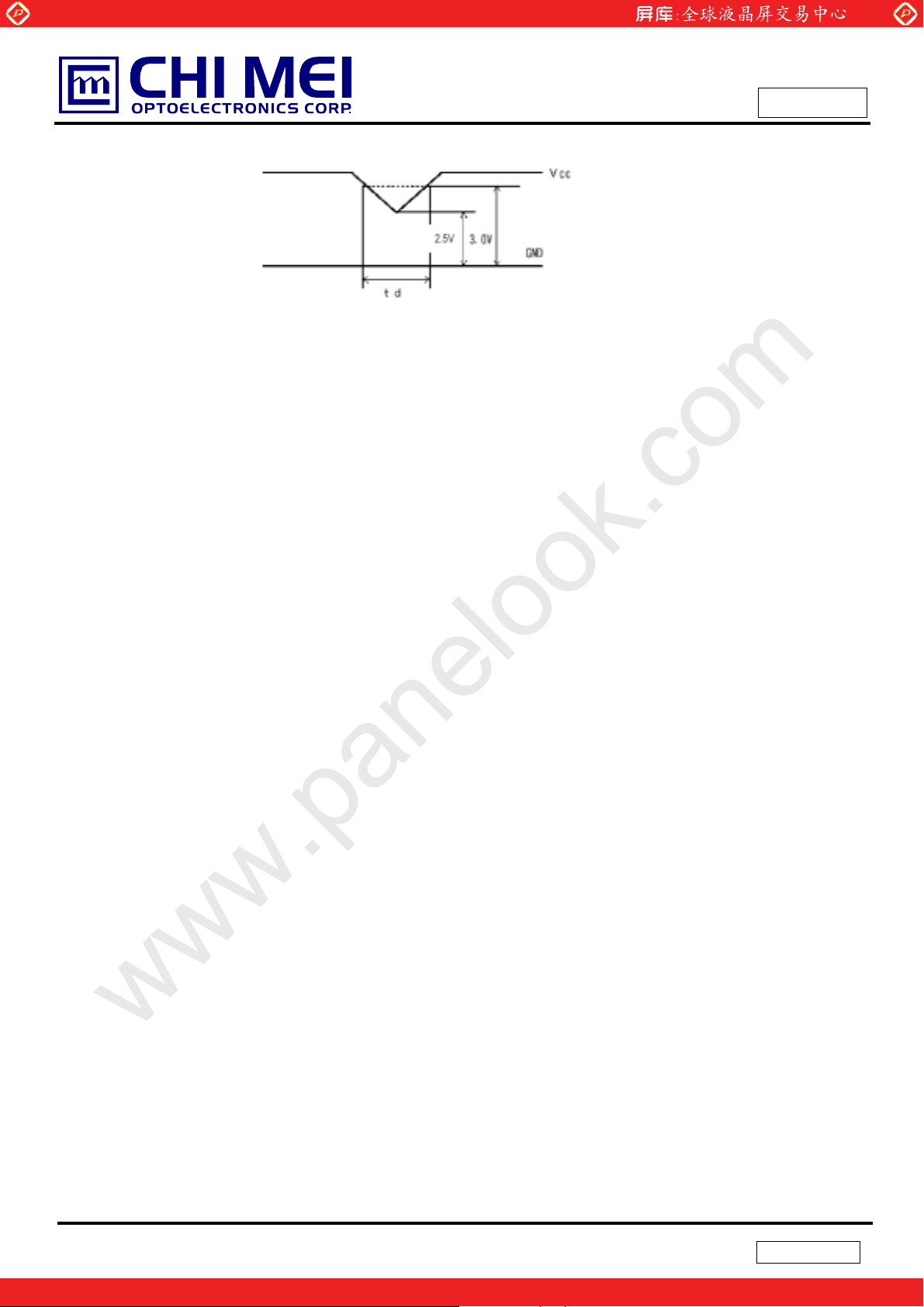

7.3 Momentary Voltage Drops

(1) When 2.5V Љ Vcc І3.0V and tdЉ10ms , the unit must work normally when VCC return to 3.0V.

(2) When Vcc < 2.5V, momentary voltage shall conform to the input voltage sequenc

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD VCCS to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the interface

signal is valid. The Backlight converter power must be turned off before the power supply for the logic

and the interface signal is invalid.

Note (4) Please follow the LED converter power sequence as above. If the customer could not follow, it might

cause backlight flash issue during display ON/OFF or damage the LED backlight controller

23 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current IL 120 mA

The measurement methods of optical characteristics are shown in Section 8.2. The following items should

be measured under the test conditions described in Section 8.1 and stable environment shown in Note (5).

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 400 500 - - (2), (5)

Response Time

Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points δW

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

o

25±2

50±10

TR - 3 8 ms
T

- 8 13 ms

F

L

AVE

Rx

Ry
Gx
Gy
Bx
By

=0° , θY =0°

θ

x

Viewing Normal Angle

180 220 - cd/m2(4), (6)

0.610

0.343

0.342

Typ –

0.03

0.581

0.162

Typ –

0.03

0.083
Wx 0.313 ­Wy

0.329

θx+ 60 70

- 60 70 -

θ

x

θY+ 50 60 -

-

θ

Y

5p

CR≥10

50 60 -

θx=0° , θY =0° 80 - - % (5),(6)

C

%RH

(3)

-

-

-

-

-

(1)

-

-

Deg. (1),(5)

24 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

θx−

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

66.67 ms

, TF):

R

Time

T

R

F

66.67 ms

25 / 34

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(

)

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

USB2000

AVE

):

CS-2000T

Center of the Screen

500 mm

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW

= {Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]}*100%

5p

Light Shield Room

Ambient Luminance < 2 lux

ʳ

26 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

˄˃

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

ˉ

˛˂ˇ

˅

˄˃

ˌ

ˇˈ

˄˄

˄˃ ˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ

˛

˛˂ˇ ˛˂ˇ ˛˂ˇ

ˊ

ˆ

˄

˄˅

˪

ˋ

X

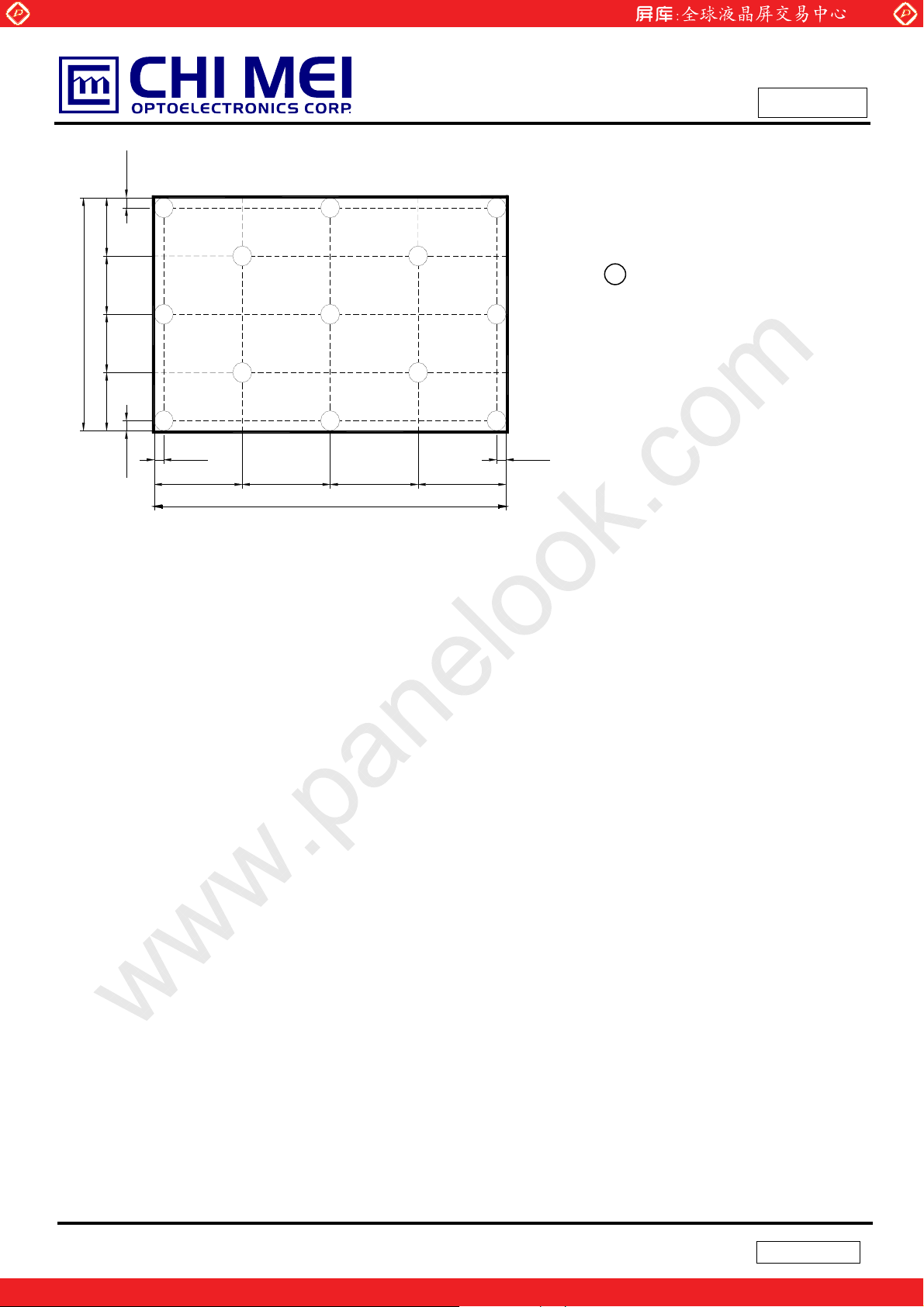

: Test Point

˄˃

˄ˆ

X=1 to 13

Active area

27 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

9.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the LED wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

9.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of LED will be higher than the room

temperature.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

28 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

10. PACKING

10.1 CARTON

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Figure. 10-1 Packing method

29 / 34

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10.2 3$//(7

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

Figure. 10-2 Packing method

30 / 34

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

N156O6-L01 Rev:XX

Made in XXX

LEOO

CP454835-01

(a) Model Name: N156O6-L01

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e) UL/CB logo: “LEOO” especially stands for panel manufactured by CMO Ningbo satisfying UL/CB

requirement. “LEOO” is the CMO’s UL factory code for Ningbo factory.

Serial ID includes the information as below:

X X X X X Y M D L N N N N

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

st

to 31st, exclude I , O and U

31 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

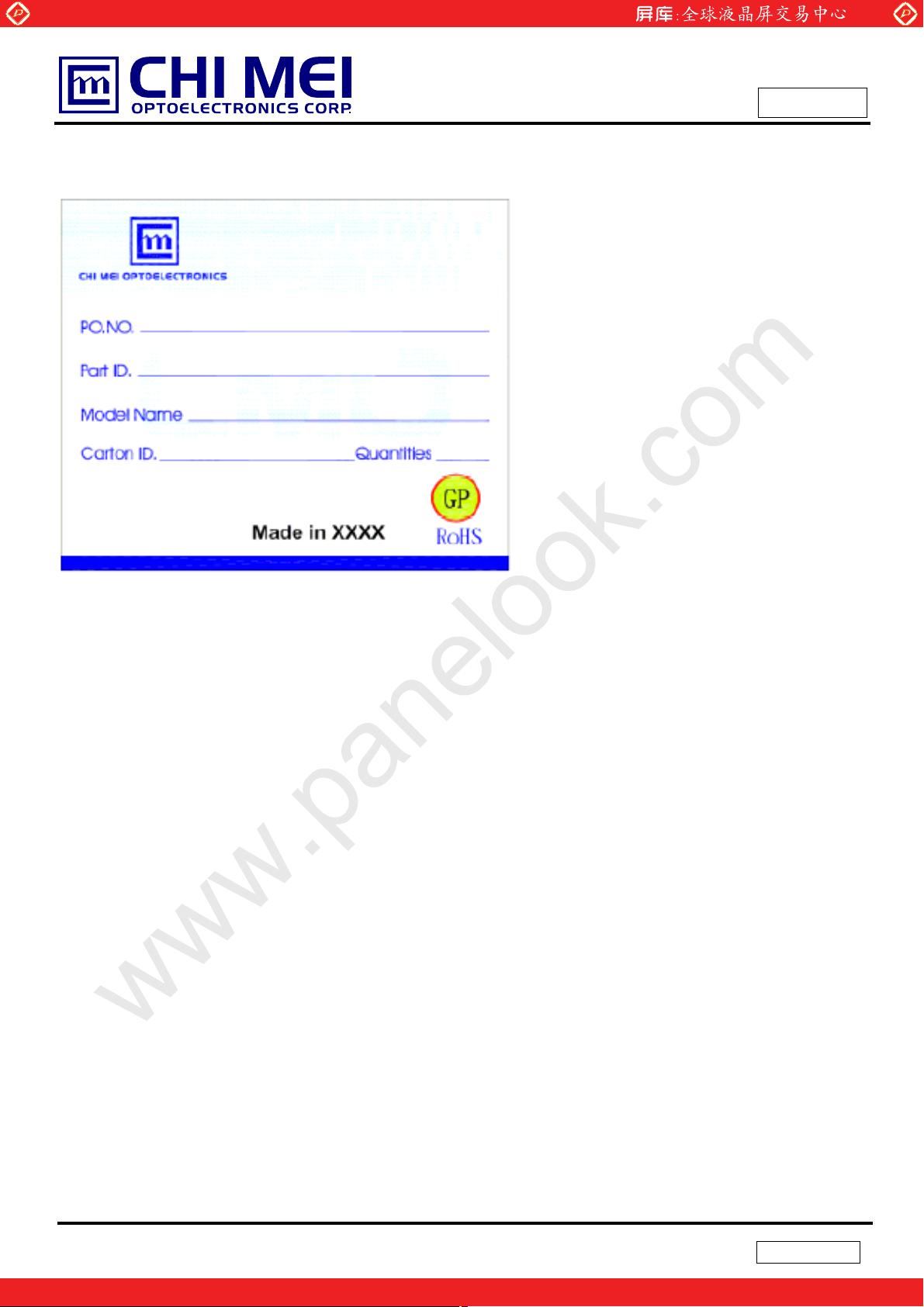

11.2 CARTON LABEL

CP454835-01 01A

N156O6-L01

www.panelook.com

Issued Date: Sep. 16, 2009

Model No.: N156O6-L01

Approval

20

32 / 34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
