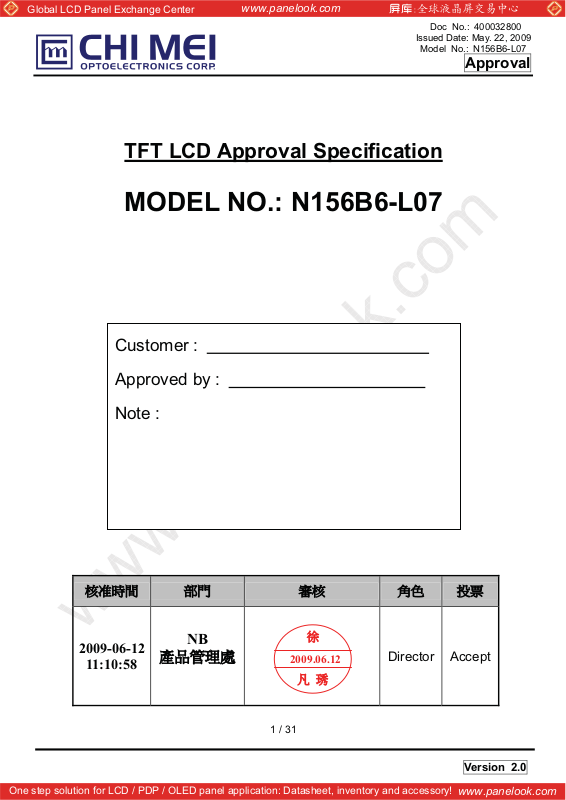

TFT LCD Approval Specification

MODEL NO.: N156B6-L07

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

Customer :

Approved by :

Note :

NB

2009-06-12

11:10:58

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2009.06.12

1 / 31

Director Accept

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. CONVERTER ------------------------------------------------------- 17

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

7. INTERFACE TIMING ------------------------------------------------------- 19

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 22

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 26

9.1 HANDLING PRECAUTIONS

9.2 STORAGE PRECAUTIONS

9.3 OPERATION PRECAUTIONS

10. PACKING ------------------------------------------------------- 27

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

------------------------------------------------------- 29

2 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

REVISION HISTORY

Version Date

Ver 2.0 May,22’ 2009 All All

Page

(New)

Section Description

Approval spec was first issued for N156B6-L07

3 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N156B6-L07 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and

40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction.

1.2 FEATURES

- HD (1366 x 768 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

- WLED

1.3 APPLICATION

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 344.232 (H) x 193.536 (V) (15.547” diagonal) mm
Bezel Opening Area 348.43 (H) x 197.74 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.252 (H) x 0.252 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 358.8 359.3 359.8 mm

Module Size

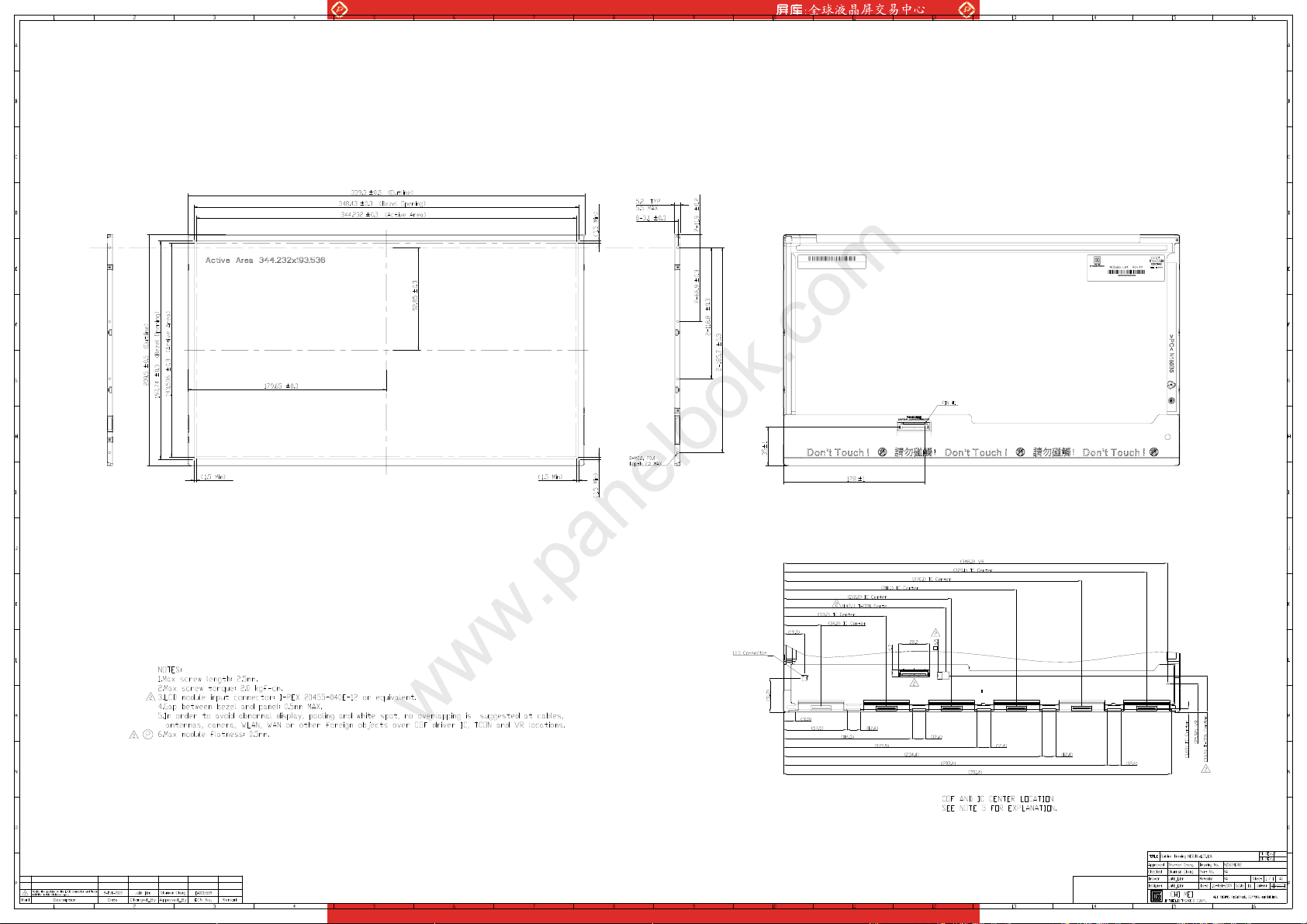

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 209 209.5 210 mm
Thickness(T) - 5.2 5.5 mm

Weight --- 430 445 g -

(1)

(1)

4 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.

Relative Humidity (%RH)

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

8060-20 40 0 20 -40

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

LED Light Bar Power Supply
Voltage
LED Light Bar Power Supply
Current

www.panelook.com

Value

Min. Max.

Value

Min. Max.

-40 28 V

V

L

0 150 mA

I

L

Unit Note

Unit Note

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

(1)

(1), (2)

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function

operation should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to 3.2 for further information).

6 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

White 240 260 280 mA (3)a
Black

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

-

-

TH(LVDS)

TL(LVDS)

350 380 400 mA (3)b

- - +100 mV

-100 - - mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)

Terminating Resistor RT - 100 - Ohm -

Power per EBL WG P

- 1.92 - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Approval

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

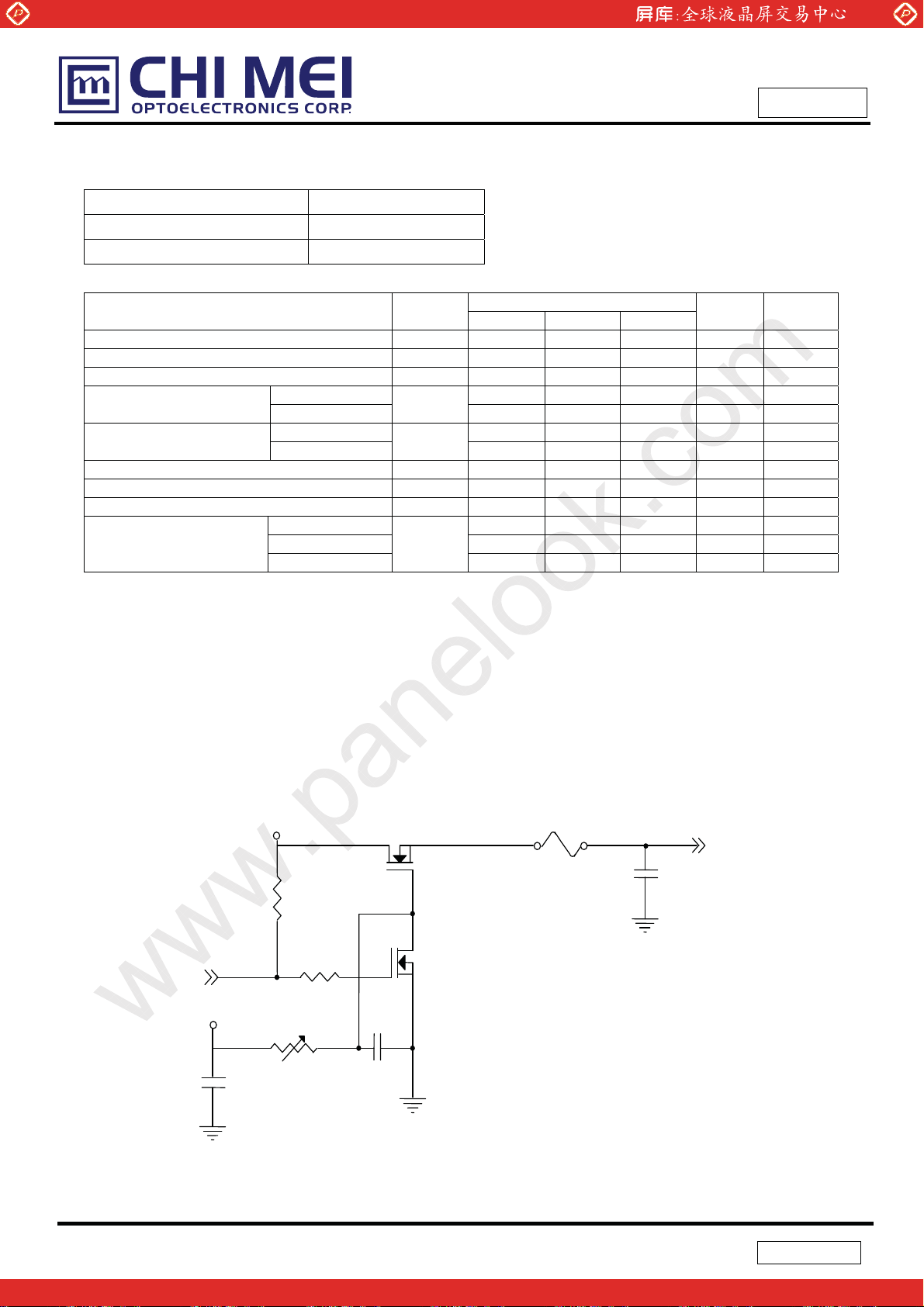

Measurement Conditions: Shown as the following figure. Test pattern: black.

: the maximum current when VCC is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

Q2

2SK1470

C2

0.01uF

FUSE

C3

1uF

Vcc rising time is 470us

+3.3V

VCC

Vcc

(LCD Module Input)

100ms

I

IS

0V

I

RUSH

470us

0.1Vcc

ICC

7 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

Current and f

a. White Pattern

Note (4) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

= 60 Hz,

v

Active Area

(c) Luminance: 60 nits.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

Differential

0V

V

VID

VID

8 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current

23.2 25.6 28 V

V

L

114 120 126 mA

I

L

Min. Typ. Max.

Power Consumption PL 2.65 3.07 3.53 W (3), (Duty 100%)
LED Life Time LBL 15000 - - Hrs (4)

Note (1) LED light bar configuration is shown as below.

VL,I

L

Light Bar Feedback

Value

LED

Light Bar

Unit Note

(1),(2) (Duty 100%)

Approval

Channels

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with

current balancing function to drive LED light-bar.

Note (3) P

Note (4) LED Lifetime was defined as the time when it continues to operate under the conditions at Ta=252

= I

L

LVL

and I

= 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.

L

o

C

9 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

LED Power & Signal

INPUT CONNECTOR

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

LED

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

10 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Reserve Non-Connection use by CMO
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 Reserve Non-Connection use by CMO
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative

9 Rxin0+ LVDS Differential Data Input Positive

10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
25 Vss Ground
26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection
31 LED_GND Ground_LED
32 LED_GND Ground_LED
33 LED_GND Ground_LED
34 Reserve Non-Connection use by CMO
35 LED_PWM System PWM Signal Input
36 LED_EN LED enable pin
37 Reserve Non-Connection use by CMO
38 LED_VCCS LED Power
39 LED_VCCS LED Power
40 LED_VCCS LED Power

Note (1) Connector Part No. I-PEX 20455-040E-12 or equivalent

DDC 3.3V Power DDC 3.3V Power

EDID

DDC Clock DDC Clock

EDID

DDC Data DDC Data

EDID

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

R0~R5,G0

G1~G5, B0, B1

LVDS Level Clock

Note (2) User’s connector Part No: I-PEX 20453-040T or equivalent

Note (3) The first pixel is odd as shown in the following figure.

11 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

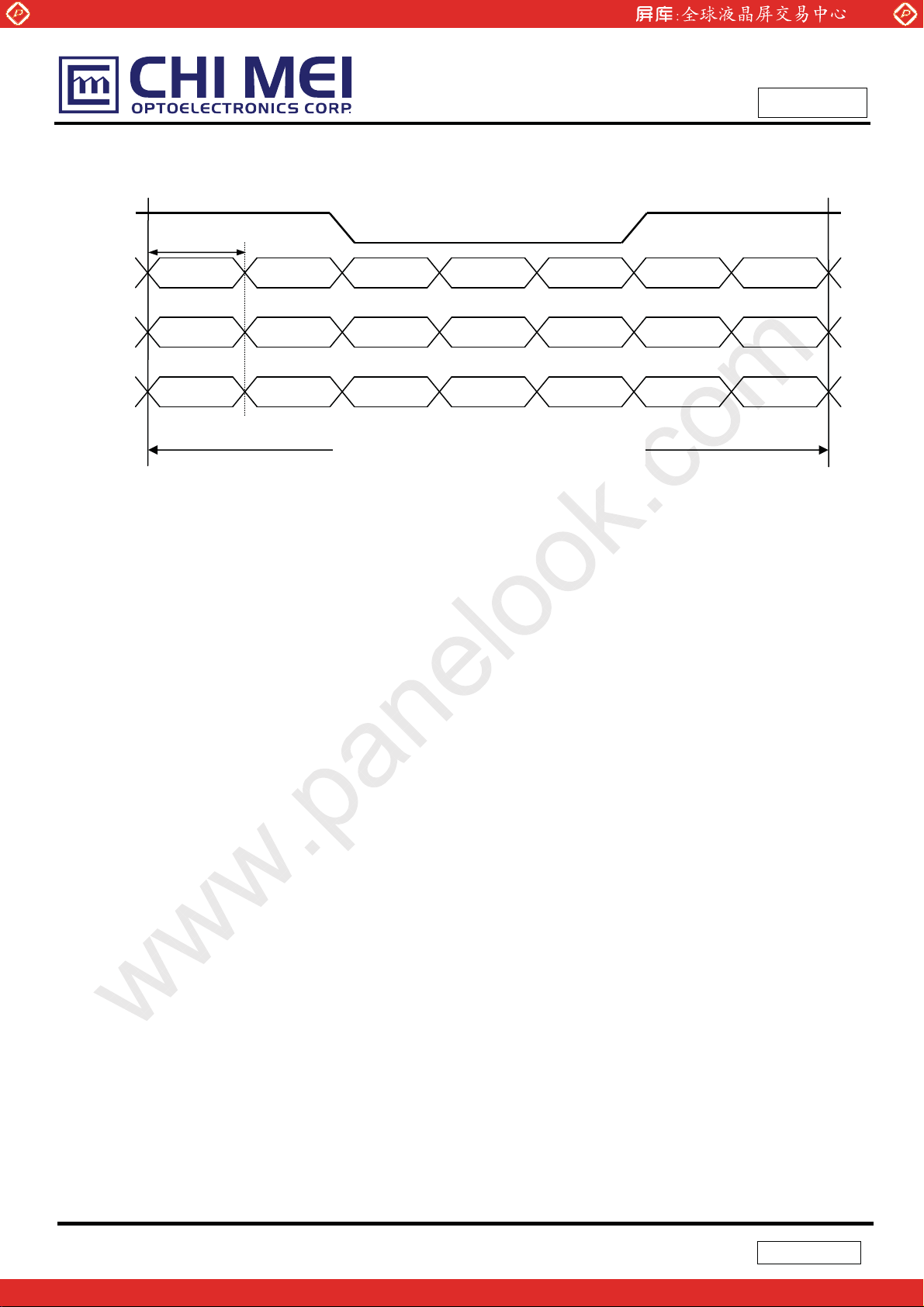

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

G0 R3 R2 R1 R0

R5

R4

Signal for 1 DCLK Cycle (T)

12 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

13 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

Byte
#(deci

Byte

mal)

#(hex) Field Name and Comments

0 0 Header

1 1 Header

2 2 Header

3 3 Header

4 4 Header

5 5 Header

6 6 Header

7 7 Header

8 8 ID system manufacturer name (LSB)

9 9 ID system manufacturer name (MSB)

10 0A ID system Product Code (LSB) B0

11 0B ID system Product Code (MSB) 40

12 0C ID Serial Number (32-bit serial number)

13 0D ID Serial Number (32-bit serial number)

14 0E ID Serial Number (32-bit serial number)

15 0F ID Serial Number (32-bit serial number)

16 10 Week of Manufacture

17 11 Year of Manufacture

18 12 EDID Structure version

19 13 EDID Revision

20 14 Video Input Definition

21 15 Active Area Horizontal Image Size (cm) - 35 cm

22 16 Active Area Vertical Image Size (cm) - 19cm

23 17 Display gamma (gamma x 100)-100, (Gamma 2.2)

24 18 Feature support

25 19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0

26 1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0

27 1B Rx=0.61

28 1C Ry=0.343

29 1D Gx=0.342

30 1E Gy=0.581

31 1F Bx=0.162

32 20 By=0.083

33 21 Wx=0.313

34 22 Wy=0.329

35 23 Established Timing 1

36 24 Established Timing 2

37 25 Manufacturer's Timings

38 26 Standard Timing Identification #1

39 27 Standard Timing Identification #1

Approval

Value

Value

(hex)

(binary)

00 00000000

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

00 00000000

30 00110000

AE 10101110

10110000

01000000

00 00000000

00 00000000

00 00000000

00 00000000

0A 00001010

13 00010011

01 00000001

03 00000011

80 10000000

23 00100011

13 00010011

78 01111000

EA 11101010

7B 01111011

95 10010101

9C 10011100

57 01010111

57 01010111

94 10010100

29 00101001

15 00010101

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

14 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

40 28 Standard Timing Identification #2

41 29 Standard Timing Identification #2

42 2A Standard Timing Identification #3

43 2B Standard Timing Identification #3

44 2C Standard Timing Identification #4

45 2D Standard Timing Identification #4

46 2E Standard Timing Identification #5

47 2F Standard Timing Identification #5

48 30 Standard Timing Identification #6

49 31 Standard Timing Identification #6

50 32 Standard Timing Identification #7

51 33 Standard Timing Identification #7

52 34 Standard Timing Identification #8

53 35 Standard Timing Identification #8

54 36 Detailed timing description # 1 Pixel clock (“75.5MHz”, According to VESA CVT Rev1.1)

55 37 # 1 Pixel clock (hex LSB first)

56 38 # 1 H active (“1366”)

57 39 # 1 H blank (“194”)

58 3A # 1 H active : H blank (“1366 :194”)

59 3B # 1 V active (”768”)

60 3C # 1 V blank (”38”)

61 3D # 1 V active : V blank (”768 :38”)

62 3E # 1 H sync offset (”31”)

63 3F # 1 H sync pulse width ("65”)

64 40 # 1 V sync offset : V sync pulse width (”4 : 12”)

65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync width (”31: 65 : 4 : 12”)

66 42 # 1 H image size (”344 mm”) 58

67 43 # 1 V image size (”193 mm”) C1

68 44 # 1 H image size : V image size (”344 : 193”)

69 45 # 1 H boarder (”0”)

70 46 # 1 V boarder (”0”)

71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives

Detailed timing description # 2 Pixel clock (“61.05MHz”, According to VESA CVT

72 48

73 49 #2 Pixel clock (hex LSB first)

74 4A #2 H active (“1366”)

75 4B # 2 H blank (“160”)

76 4C # 2 H active : H blank (“1366 : 160”)

77 4D # 2 V active (”768”) 00

78 4E # 2 V blank (”19”) 13

79 4F # 2 V active : V blank (”768 :19”) 30

80 50 # 2 H sync offset (”48”) 30

81 51 # 2 H sync pulse width ("32”) 20

82 52 # 2 V sync offset : V sync pulse width (”3 : 5”) 35

83 53 # 2 H sync offset : H sync pulse width : V sync offset : V sync width (”48: 32 : 3 : 5”) 00

84 54 # 2H image size (”344 mm”) 58

Rev1.1)

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

7E 01111110

1D 00011101

56 01010110

C2 11000010

50 01010000

00 00000000

26 00100110

30 00110000

1F 00011111

41 01000001

4C 01001100

00 00000000

01011000

11000001

10 00010000

00 00000000

00 00000000

18 00011000

D9 11011001

17 00010111

56 01010110

A0 10100000

50 01010000

00000000

00010011

00110000

00110000

00100000

00110101

00000000

01011000

15 / 31

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

85 55 # 2V image size (”193 mm”)

86 56 # 2 H image size : V image size (”344 : 193”)

87 57 # 2 H boarder (”0”)

88 58 # 2 V boarder (”0”)

# 2 Non-interlaced ; Normal display, no stereo ; Digital Separate ; V sync POL is

89 59

90 5A Flag

91 5B Flag

92 5C Flag

93 5D Data Type Tag

94 5E Flag

95 5F Middle Refresh Rate #1 (Horizontal active pixels / 8 ) - 31

96 60 Middle Refresh Rate #1 Image Aspect ratio (16 : 9)

97 61 Middle Refresh Rate #1 Refresh Rate = 50Hz

98 62 Low Refresh Rate #2 (Horizontal active pixels / 8 ) - 31

99 63 Low Refresh Rate #2 Image Aspect ratio(16 : 9)

100 64 Low Refresh Rate #2 Refresh Rate=40Hz

101 65 Brightness(220 /10 nit)

102 66 Feature flag

103 67 Reserved

104 68 LCD Supplier manufacturer code

105 69 LCD Supplier manufacturer code, (Hex, LSB first)

106 6A LCD Supplier Product code

107 6B LCD Supplier Product code (Hex, LSB first)

108 6C Flag

109 6D Flag

110 6E Flag

111 6F Data Type Tag

112 70 Flag

113 71 Model Name (N156B6-L07, 1st character, "N") 4E

114 72 Model Name (N156B6-L07, 2nd character, "1" ) 31

115 73 Model Name (N156B6-L07, 3rd character, "5") 35

116 74 Model Name (N156B6-L07, 4th character, "6" ) 36

117 75 Model Name (N156B6-L07, 5th character, "B" ) 42

118 76 Model Name (N156B6-L07, 6th character, "6" ) 36

119 77 Model Name (N156B6-L07, 7th character, "-" ) 2D

120 78 Model Name (N156B6-L07, 8th character, "L" ) 4C

121 79 Model Name (N156B6-L07, 9th character, "0" )

122 7A Model Name (N156B6-L07, 10th character, "7" )

123 7B

124 7C

125 7D

126 7E Extension flag

127 7F Checksum

negative; H sync POL is positive

Model Name(If <13 char, then terminate with ASCII code 0Ah, set remaining char =
20h)
Model Name (If <13 char, then terminate with ASCII code 0Ah, set remaining char =
20h)
Model Name (If <13 char, then terminate with ASCII code 0Ah, set remaining char =
20h)

C1 11000001

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

0F 00001111

00 00000000

8C 10001100

09 00001001

32 00110010

8C 10001100

09 00001001

28 00101000

16 00010110

09 00001001

00 00000000

0D 00001101

AF 10101111

50 01010000

14 00010100

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

37 00110111

0A 00001010

20 00100000

20 00100000

00 00000000

3E 00 11111 0

01001110

00110001

00110101

00110110

01000010

00110110

00101101

01001100

16 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: May. 22, 2009
Model No.: N156B6-L07

6. CONVERTER

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS -0.3~25V

LED_PWM, LED_EN -0.3V~5.0V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage
Converter Rush Current
Converter Initial Stage Current

EN Control Level

PWM Control Level

Backlight On 2.0 --- 5.0 V
Backlight Off 0 --- 0.8 V
PWM High Level 2 --- 5.0 V
PWM Low Level 0 --- 0.15 V

LED_Vccs

ILED

RUSH

ILED

IS

Min. Typ. Max.

6.0 12.0 21.0 V

- - 1.5 A (2)

- - 1.5 A (2)

PWM Control Duty Ratio 20 100 %
PWM Control Permissive Ripple Voltage
PWM Control Frequency f

LED_VCCS=Min

Converter Input Current

LED_VCCS=Typ
LED_VCCS=Max

VPWM_pp

190 210 230 Hz

PWM

100 mV

507 602 714 mA (1)

I

BL

253 301 357 mA (1)
145 172 204 mA (1)

Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min, Typ, Max”,

Value

Doc No.: 400032800

Approval

Unit Note

Ta = 25 ± 2 ºC, f

Note (2) ILED

ILED

: the maximum current when LED_VCCS is rising,

RUSH

: the maximum current of the first 100ms after power-on,

IS

= 200 Hz, Duty=100%.

PWM

Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f

Hz, Duty=100%.

(High to Low)

(Control Signal)

SW=24V

LED_VCCS(Typ)

LED_VCCS(Typ)

C1

1uF

VR1

R1

47K

R2

1K

47K

Q1 IRL3303

0.01uF

FUSE

Q2

IRL3303

C2

C3

1uF

(LED Converter Input)

PWM

= 200

17 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

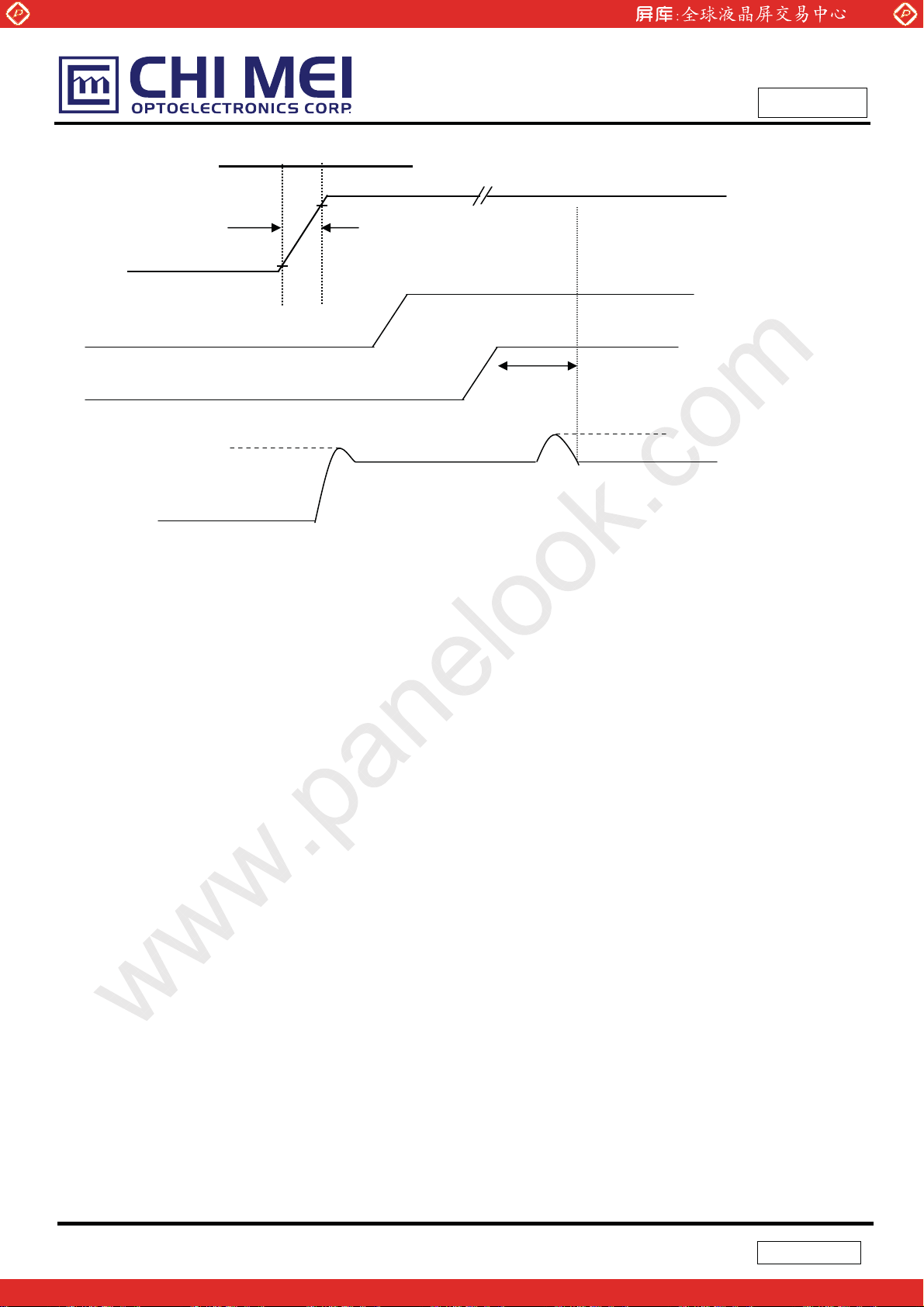

Vcc rising time is 500us

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

LED_VCCS

0.9Vcc

0V

LED_PWM

LED_EN

ILED

RUSH

0.5ms

0.1Vcc

100ms

ILED

IS

ILED

18 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 67.9 75.5 80 MHz (2)

Vertical Total Time TV 778 806 888 TH -

Vertical Active Display Period TVD 768 768 768 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

(2) 2 channels LVDS input.

Vertical Active Blanking Period TVB TV-TVD 38 TV-TVD TH

Horizontal Total Time TH 1446 1560 1950 Tc (2)

Horizontal Active Display Period THD 1366 1366 1366 Tc (2)

Horizontal Active Blanking Period THB

www.panelook.com

TH-THD

194

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

TH-THD

Tc (2)

DE

DCLK

DE

DATA

TC

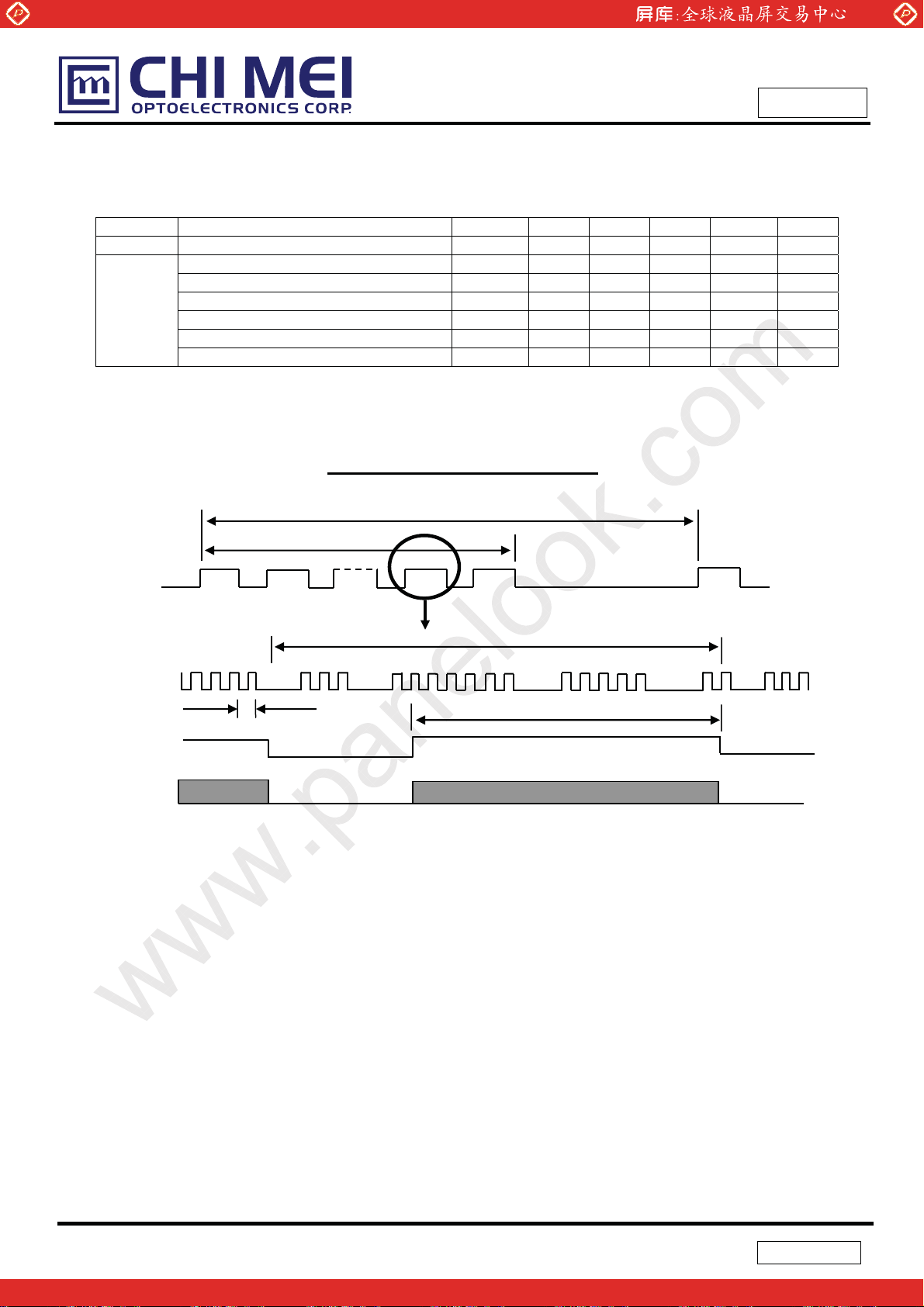

INPUT SIGNAL TIMING DIAGRAM

HD

T

19 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

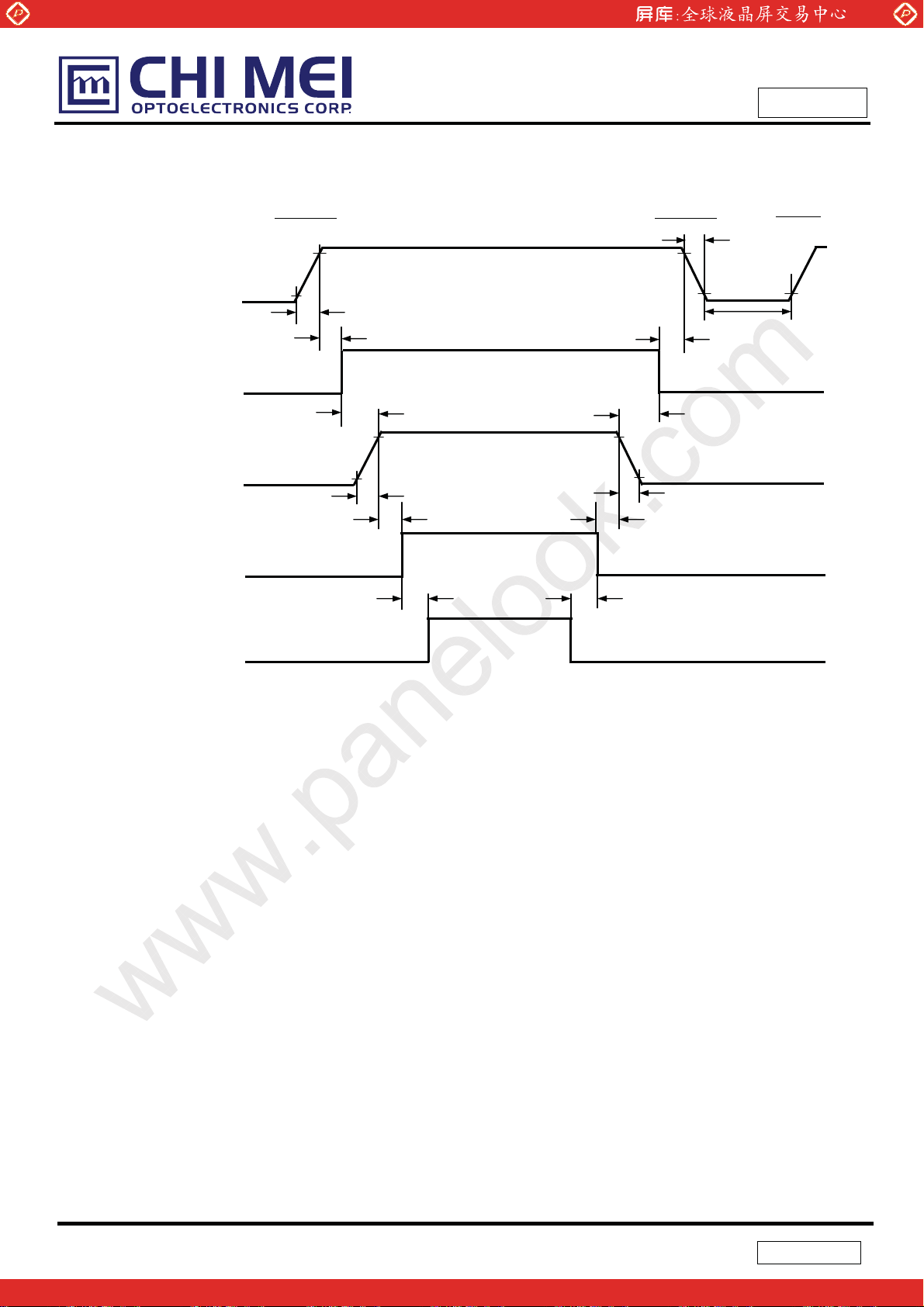

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

- Power Supply

for LCD, VCCS

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power Supply for

LED Converter,
LED_VCCS

- LED Converter

Dimming Signal,
LED_PWM

- LED Converter

Enable Signal,
LED_EN

0V

0V

0V

0V

0V

Power On

90%

10%

Power Off

t1

t2

Valid Data

t6t5

10%

90%

t

A

t

C

tE t

90%

t

B

t

D

F

90%

10%

Restart

t7

10%

t3

10%

t4

Timing Specifications:

0.5Љ t1ʳЉ 10 ms

0 Љ t2ʳЉ 50 ms

0 Љ t3ʳЉ 50 ms

t4ʳЊ 500 ms

t5ʳЊ 200 ms

t6ʳЊ 200 ms

0.5Љt7Љ10 ms

0.5Љt

ʳЉ 10 ms

A

0 Љt

B

t

ʳЊ 10 ms

C

t

Њ 10 ms

D

t

Њ 10 ms

E

t

Њ 10 ms

F

ʳЉʳ10 ms

20 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Please follow the LED converter power sequence as above. If the customer could not follow, it might

cause backlight flash issue during display ON/OFF or damage the LED backlight controller

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

21 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Converter Current IL 120 mA

The measurement methods of optical characteristics are shown in Section 8.2. The following items

should be measured under the test conditions described in Section 8.1 and stable environment shown in

Note (5).

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 500 650 - - (2), (5)

Response Time

Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points δW

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

25±2

50±10

TR - 3 5 ms

- 5 11 ms

T

F

L

AVE

Rx

Ry
Gx
Gy

Bx

By

=0° , θY =0°

θ

x

Viewing Normal Angle

190 220 - cd/m

0.623

0.345

0.340

TYP.

-0.03

0.592

0.159

TYP.

+0.03

0.074
Wx 0.313 ­Wy

0.329

θx+ 40 45 -

- 40 45 -

θ

x

θY+ 15 20 -

-

θ

Y

5p

CR≥10

40 45 -

θ

=0° , θY =0° 1.33 % (5),(6)

x

%RH

Deg. (1),(5)

Approval

o

C

(3)

2

(4), (6)

-

-

-

-

-

-

-

(1)

22 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

Gray Level63

Gray Level0

Gray Level63

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

θx−

θx+

12 o’clock direction

y+

θ

y+ = 90º

x+

θX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

66.67 ms

, TF):

R

Time

T

R

F

66.67 ms

23 / 31

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

500

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

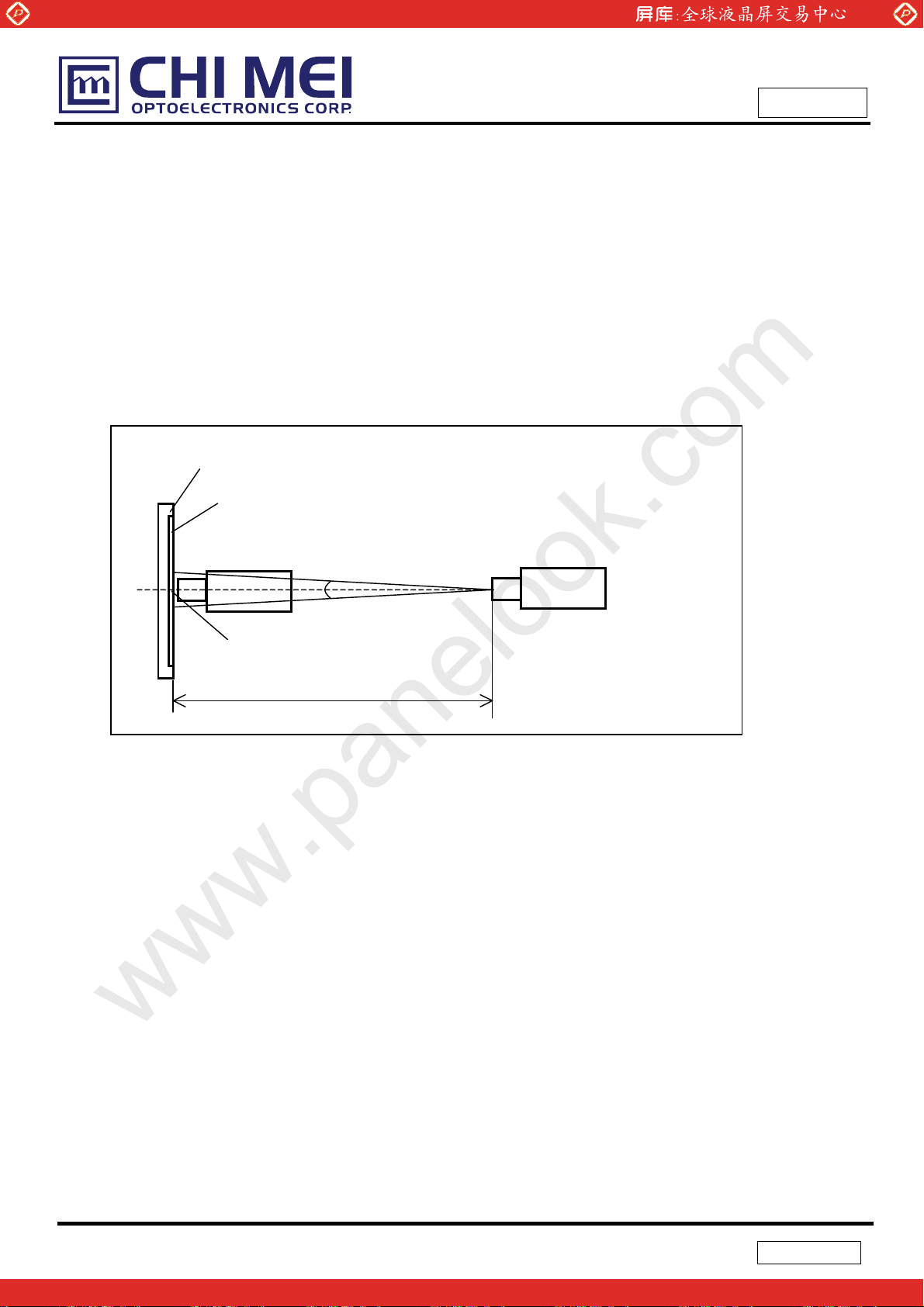

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

ʳ

LCD Module

LCD Panel

USB2000

AVE

):

CS-1000T

Center of the Screen

mm

Light Shield Room

(Ambient Luminance < 2 lux)

24 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW

= Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

5p

˄˃

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

ˉ

˛˂ˇ

˅

˄˃

ˌ

ˇˈ

˄˄

˄˃ ˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ

˛

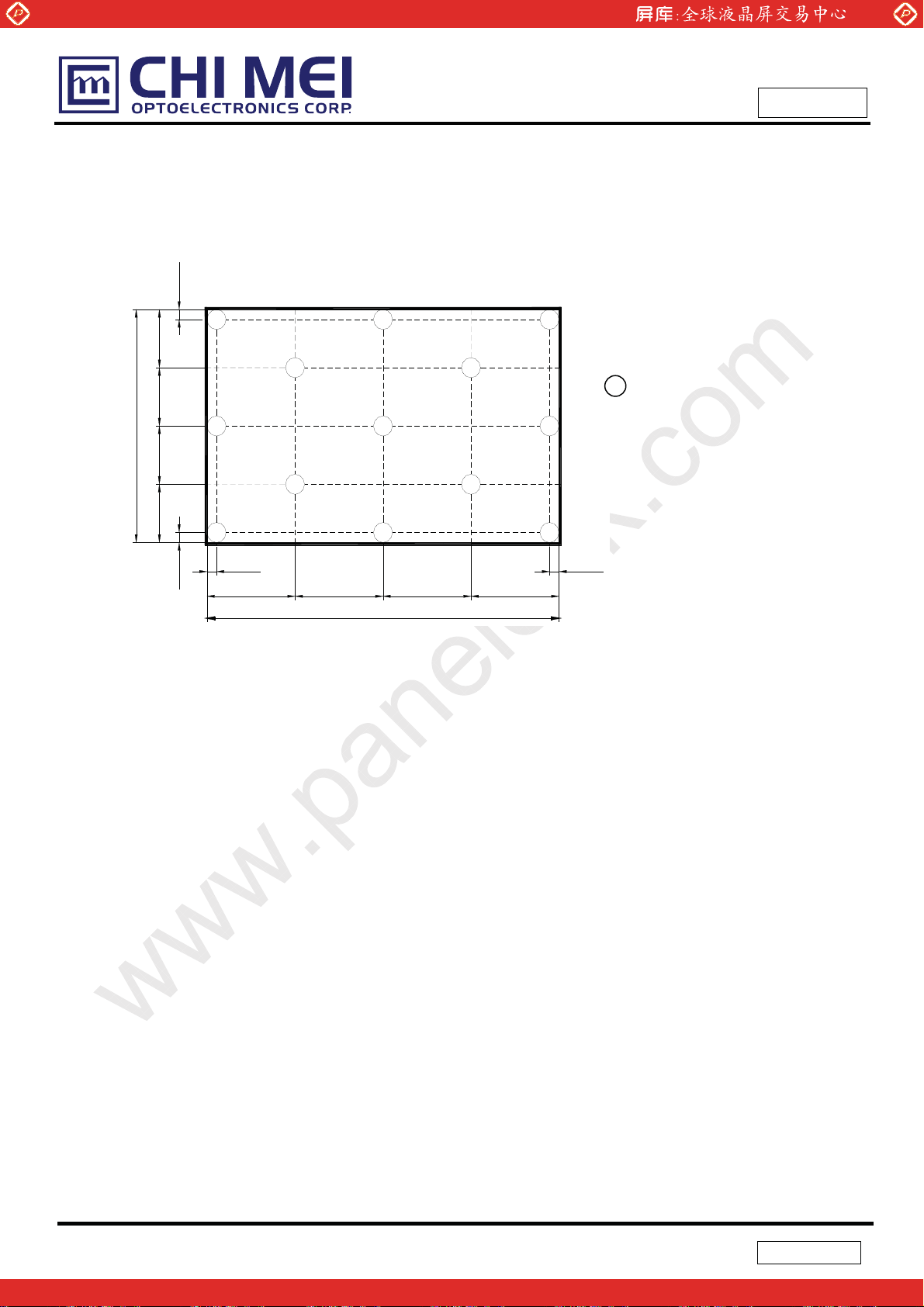

˛˂ˇ ˛˂ˇ ˛˂ˇ

ˊ

ˆ

˄

˄˅

˪

ˋ

X

: Test Point

˄˃

˄ˆ

X=1 to 13

Active area

25 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

9.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the LED wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

9.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of LED will be higher than the room

temperature.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

26 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

10. PACKING

10.1 CARTON

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

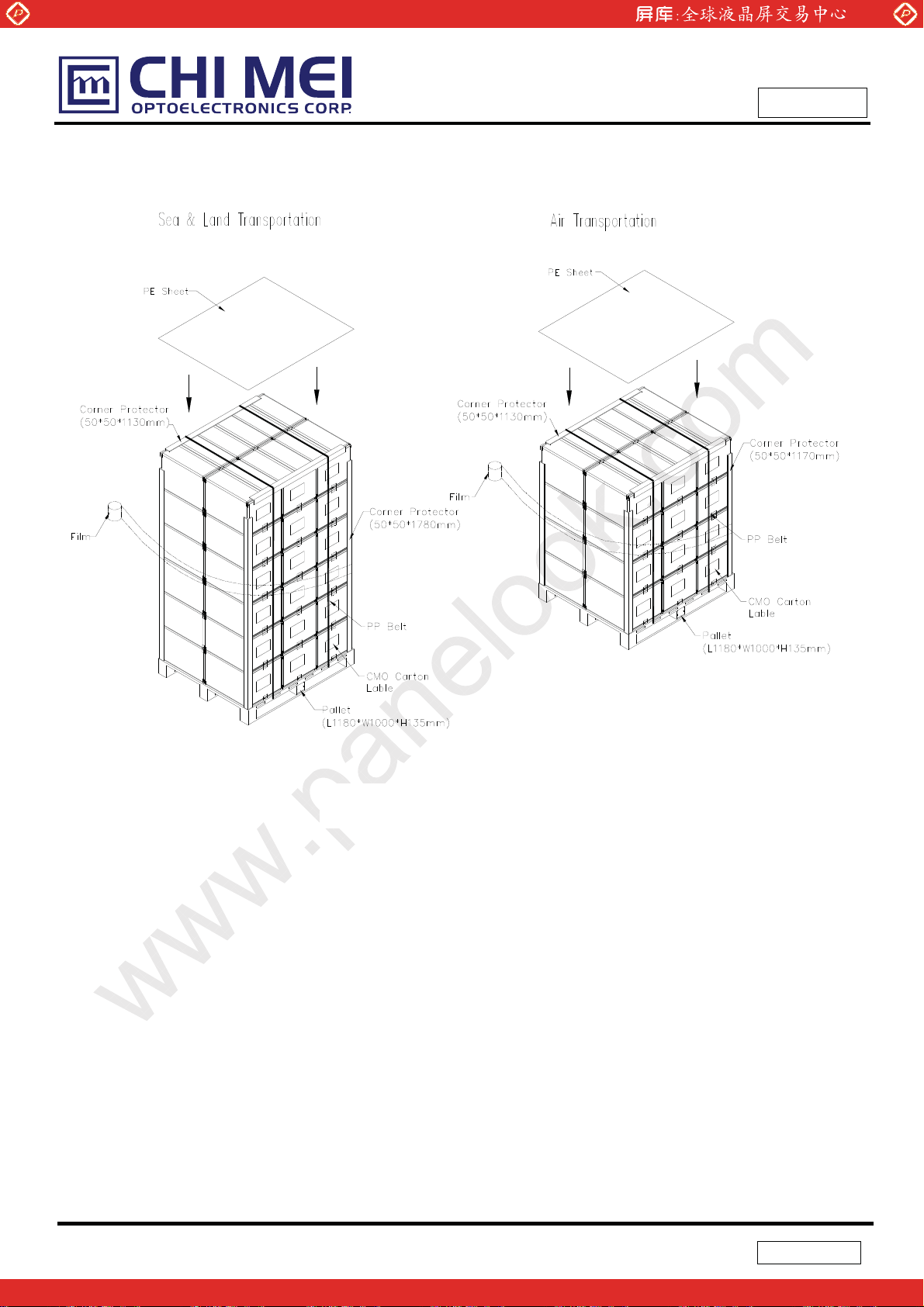

Figure. 10-1 Packing method

27 / 31

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10.2 3$//(7

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

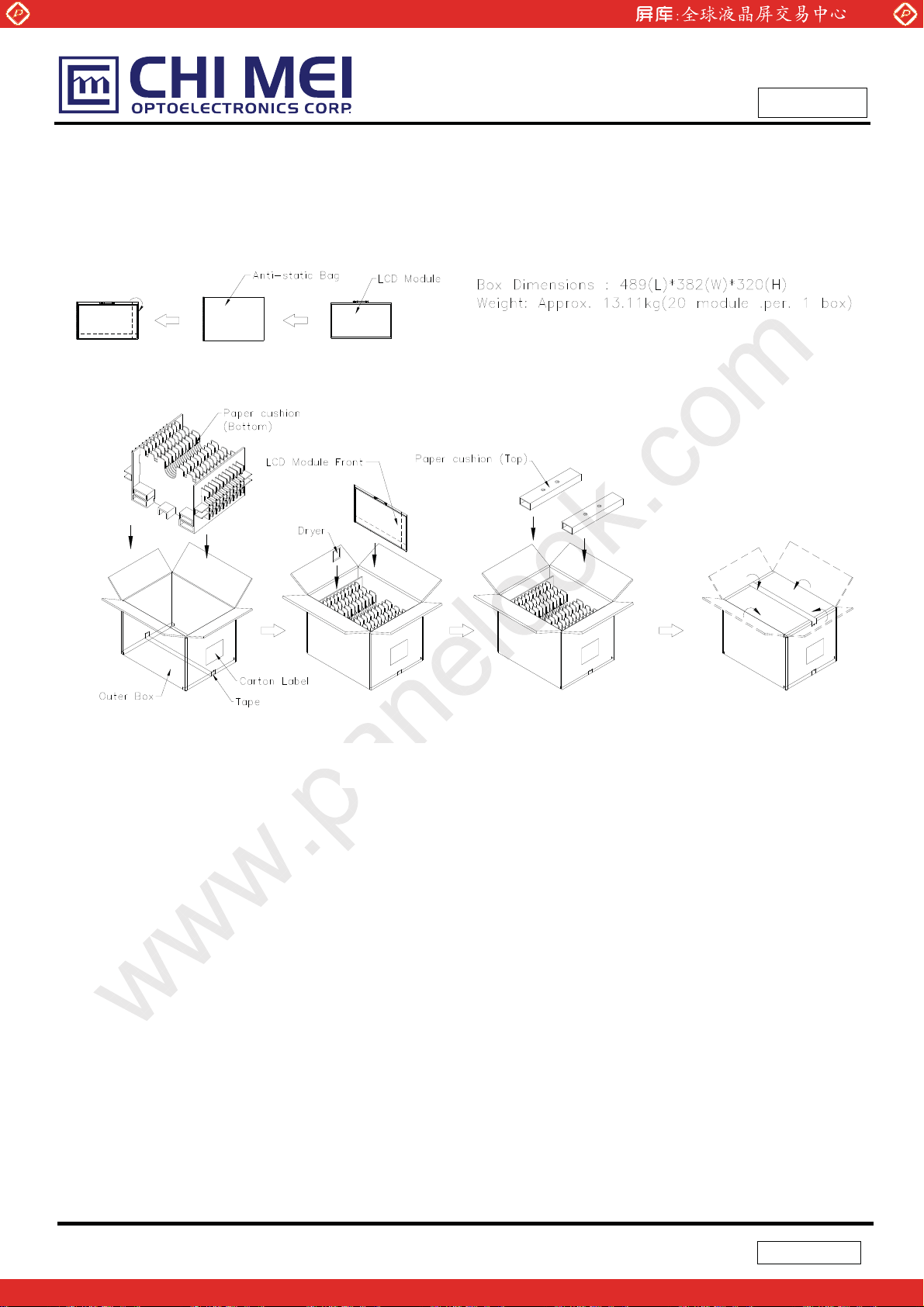

Figure. 10-2 Packing method

28 / 31

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

11. DEFINITION OF LABELS

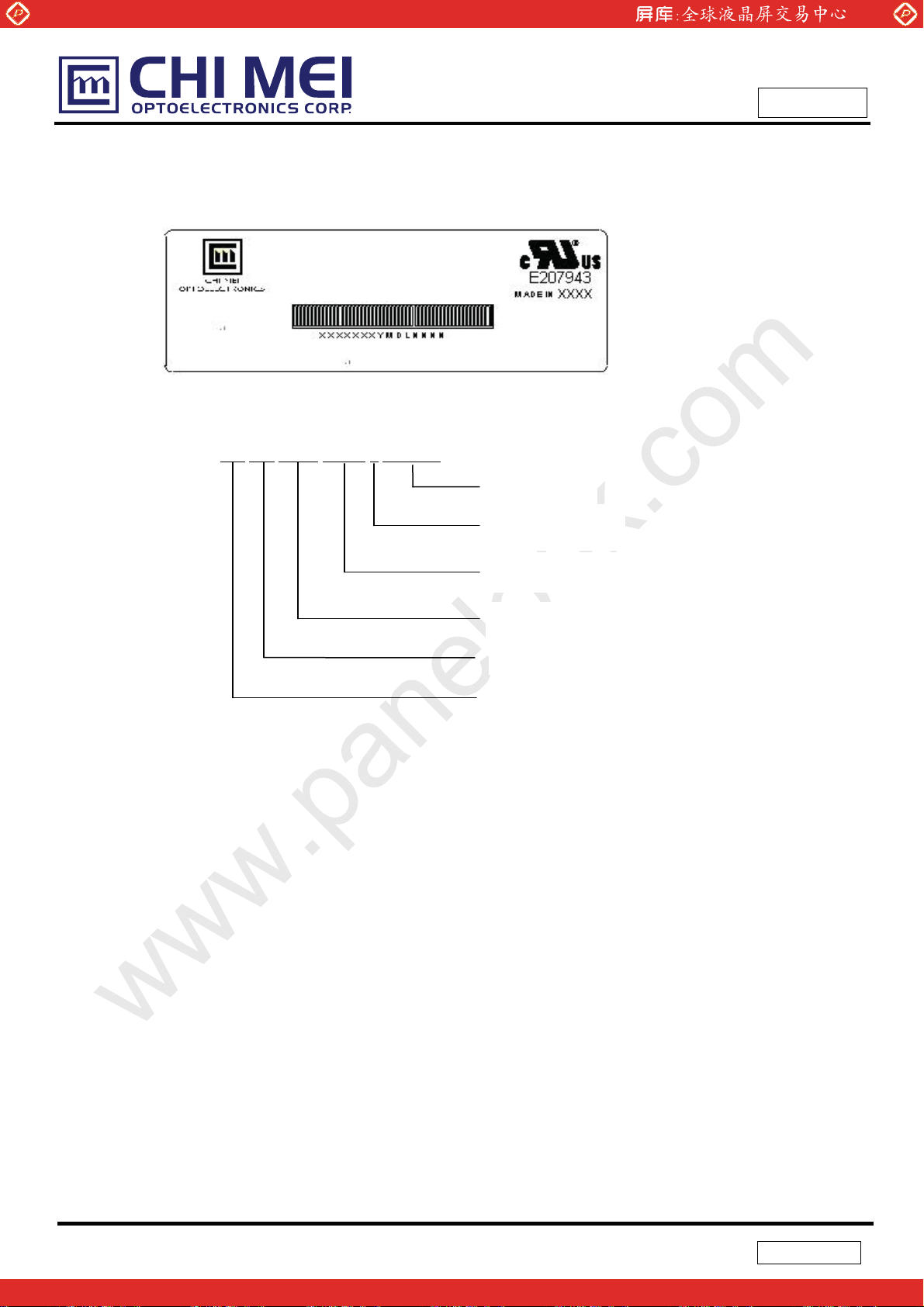

11.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

-

(a) Model Name: N156B6 - L07

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D L N N N N

Rev. XX

xxxx

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

st

to 31st, exclude I , O and U

29 / 31

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

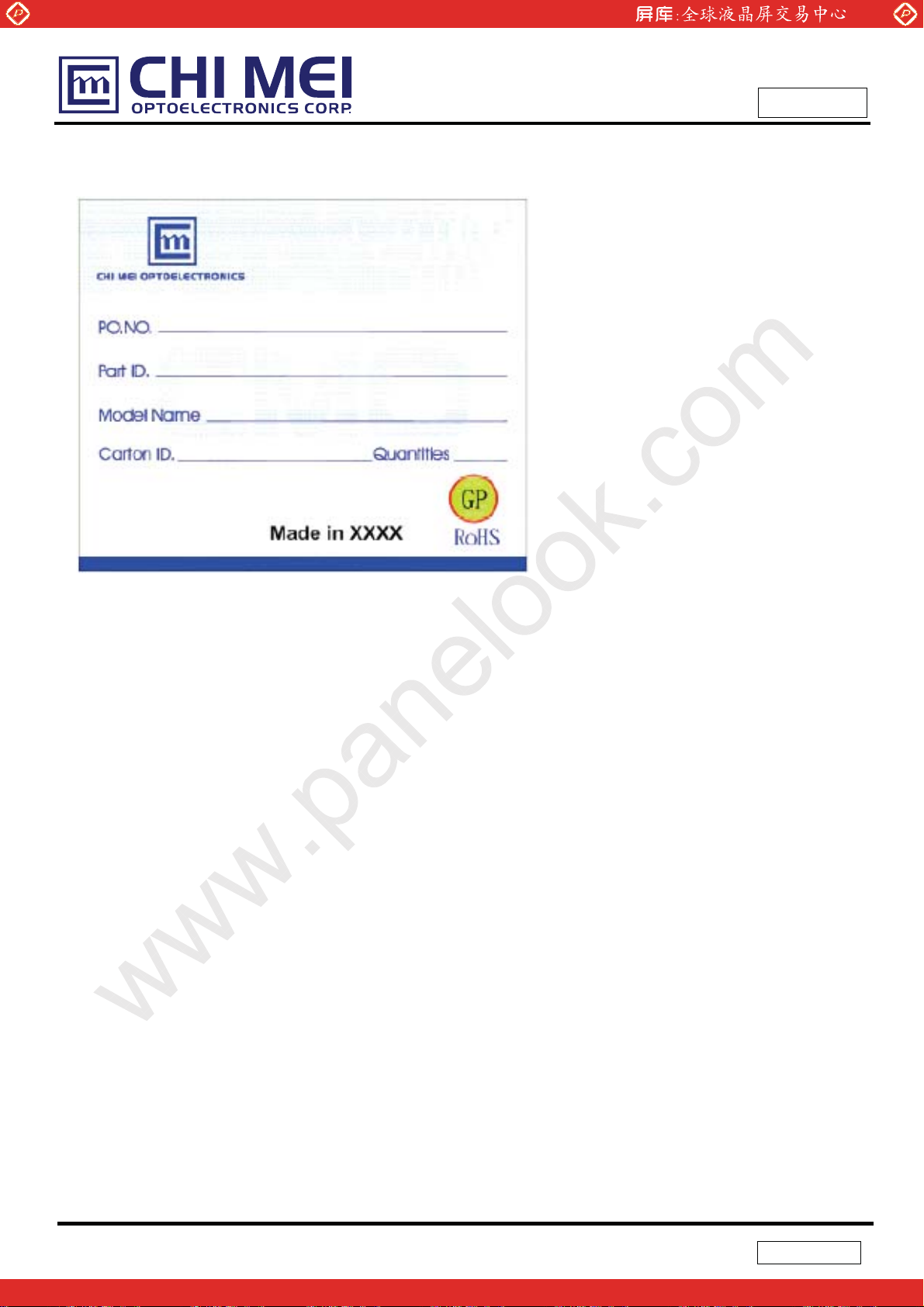

11.2 CARTON LABEL

N156B6-L07

www.panelook.com

Doc No.: 400032800
Issued Date: May. 22, 2009
Model No.: N156B6-L07

Approval

30 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
