CMO N156B6-L04 Specification
Global LCD Panel Exchange Center
ுழၴ ຝ ᐉு ߡۥ ދป
ขጥ
楊
竣 傑
TFT LCD Approval Specification
MODEL NO.: N156B6-L04
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
Customer : Compal
Approved by :
Note :
NB
2009-11-02
16:58:52
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2009.11.02
1 / 34
Director Accept
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE

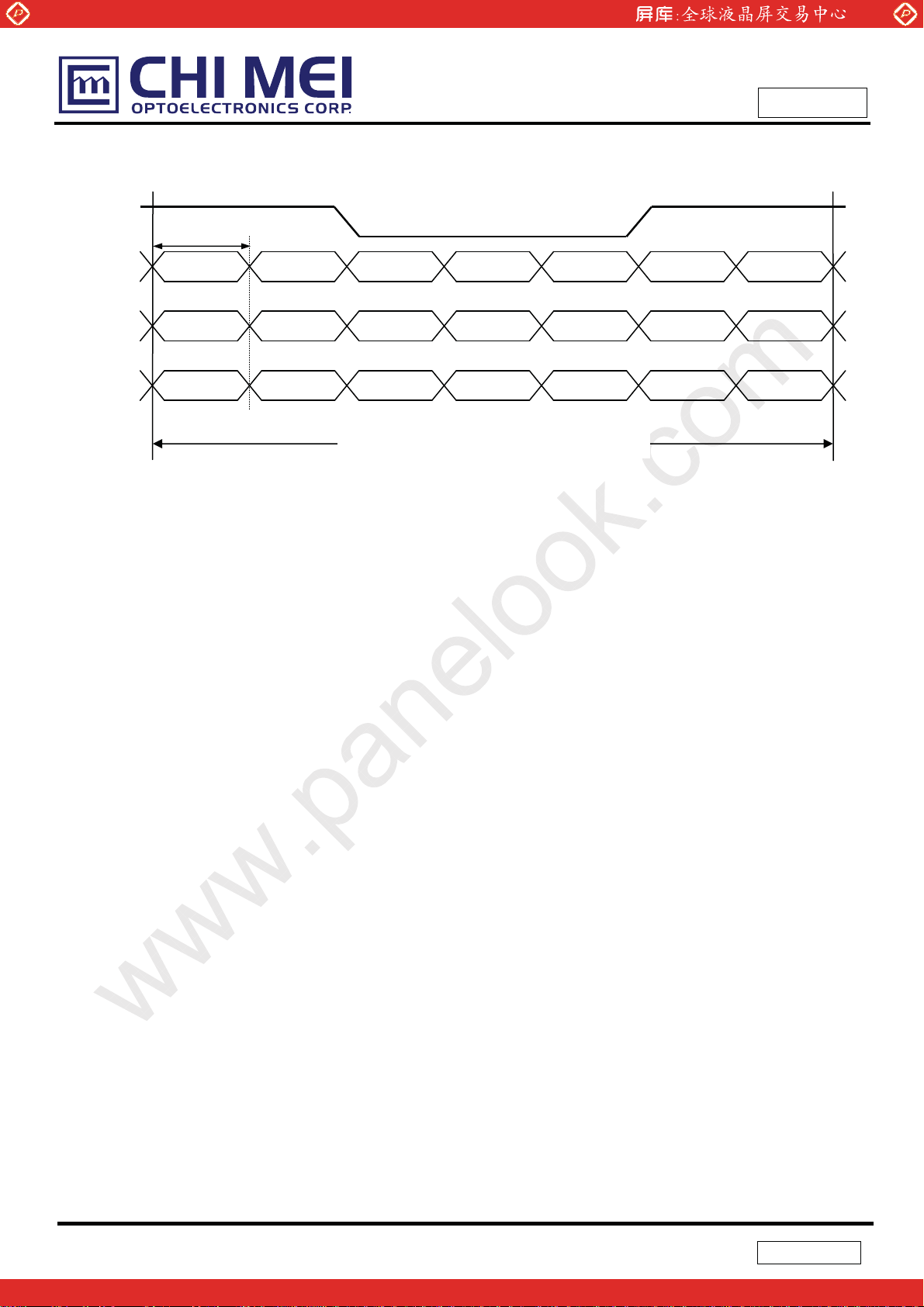

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

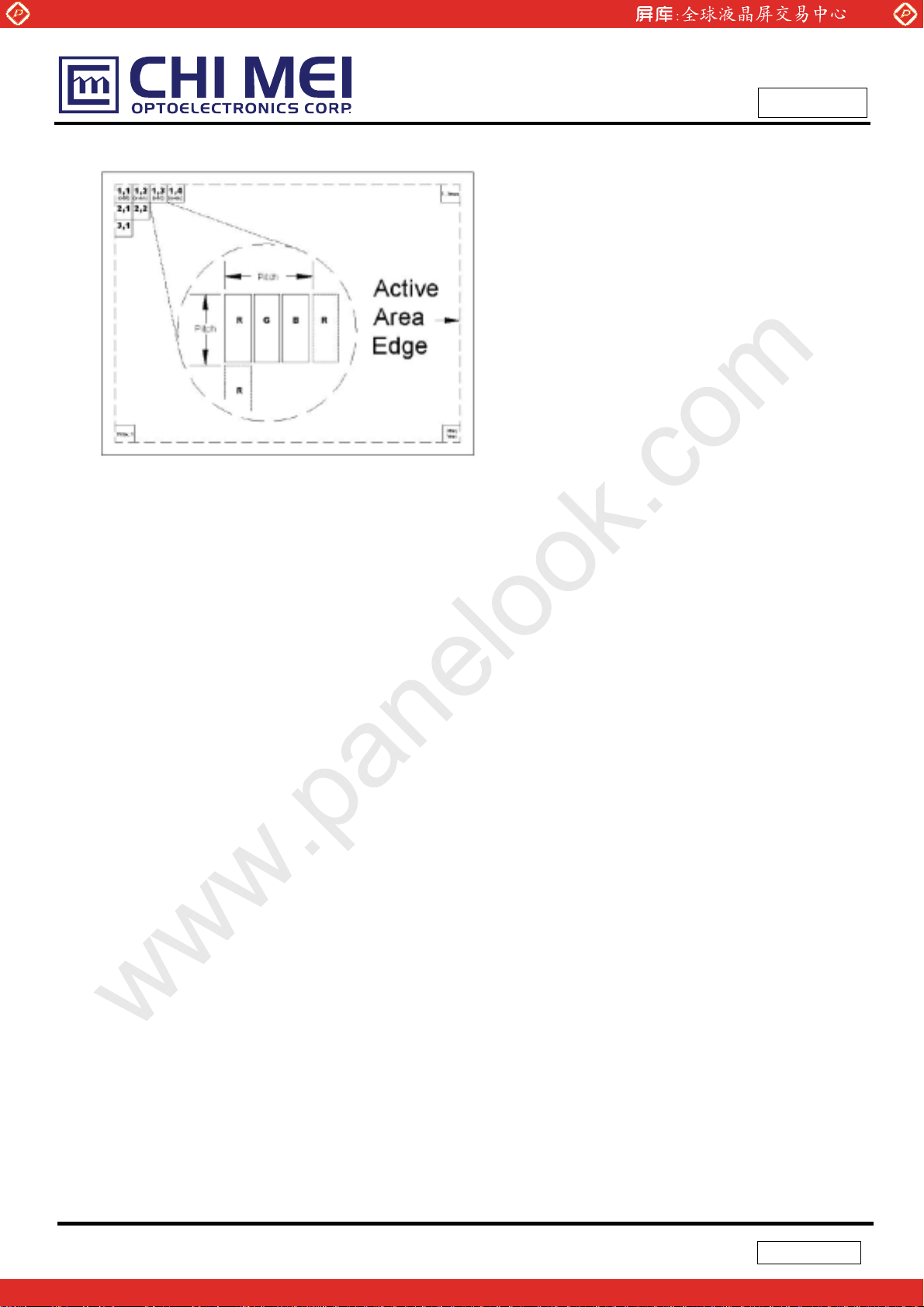

5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID DATA STRUCTURE
6. CONVERTER ------------------------------------------------------- 19
6.1 ABSOLUTE MAXIMUM RATINGS
6.2 RECOMMENDED OPERATING RATINGS
7. INTERFACE TIMING ------------------------------------------------------- 21
7.1 INPUT SIGNAL TIMING SPECIFICATIONS

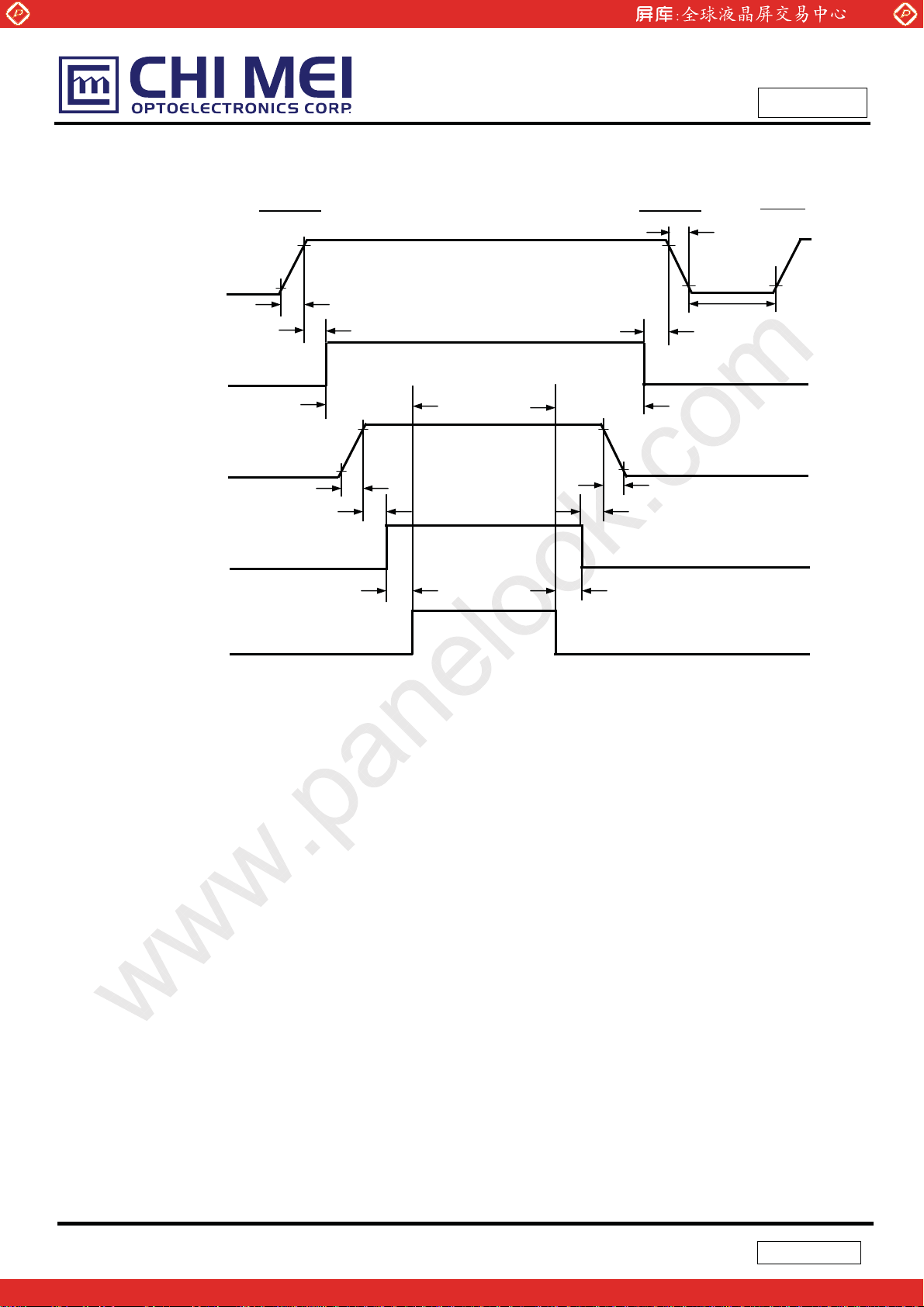

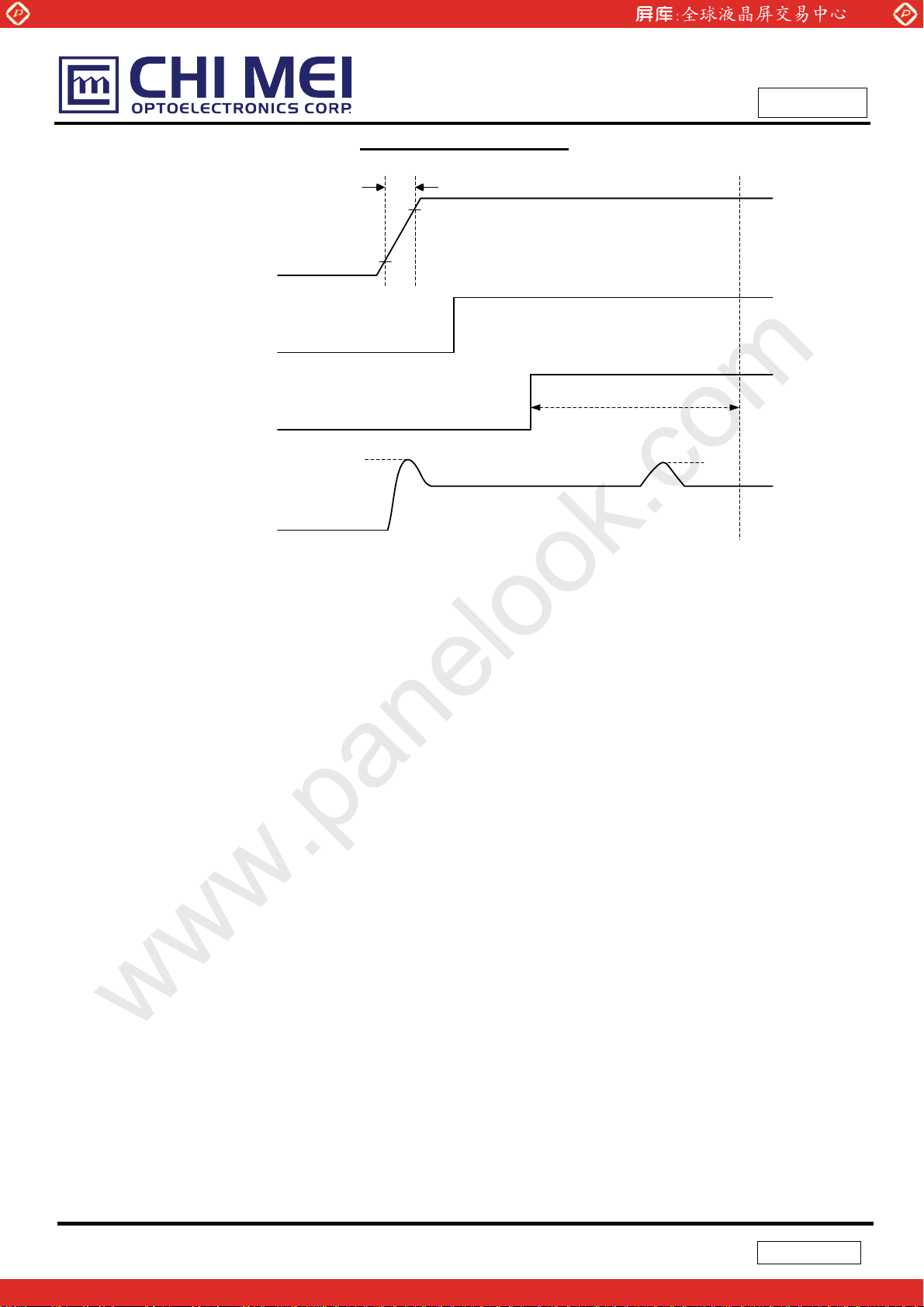

7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 24

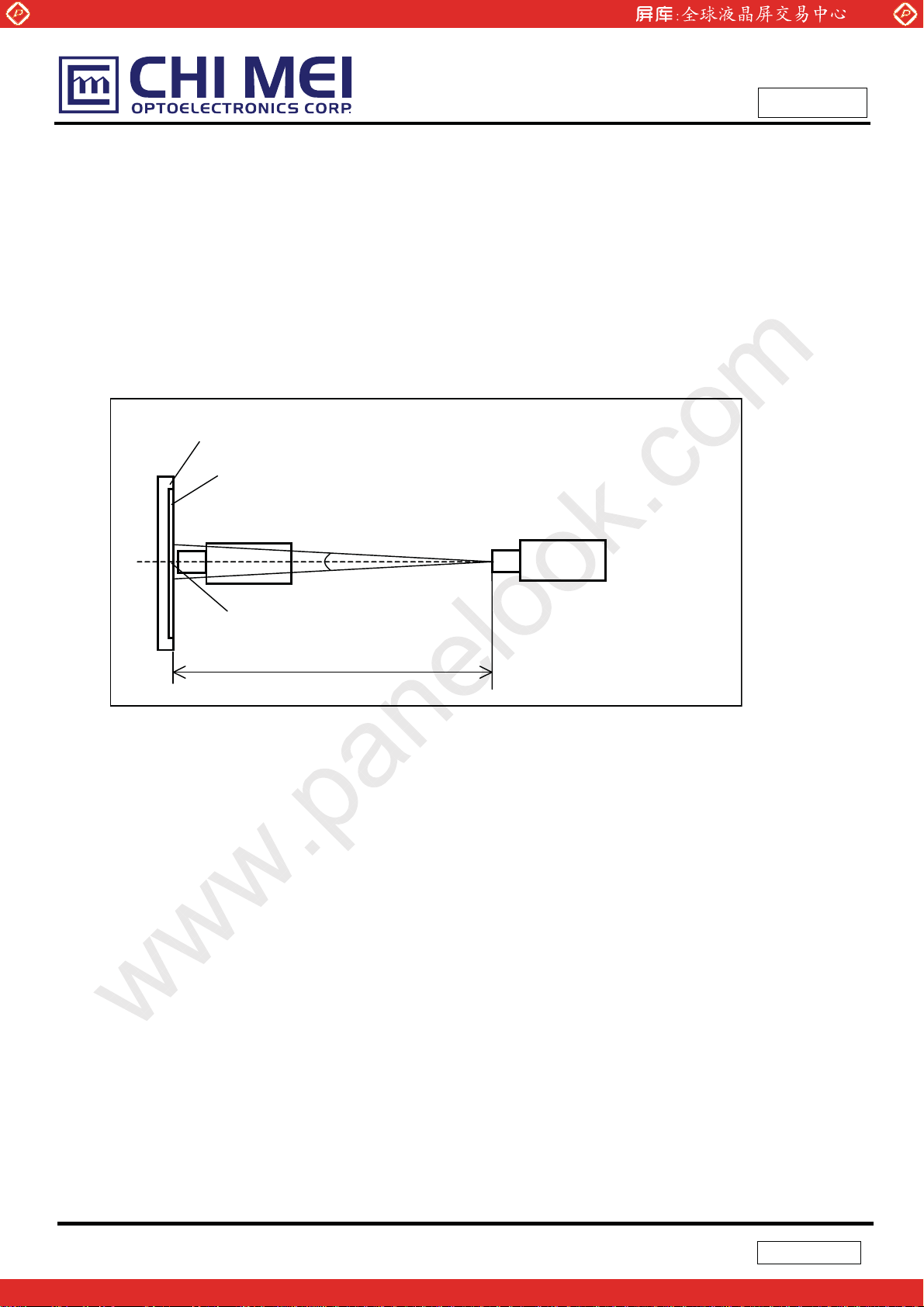

8.1 TEST CONDITIONS

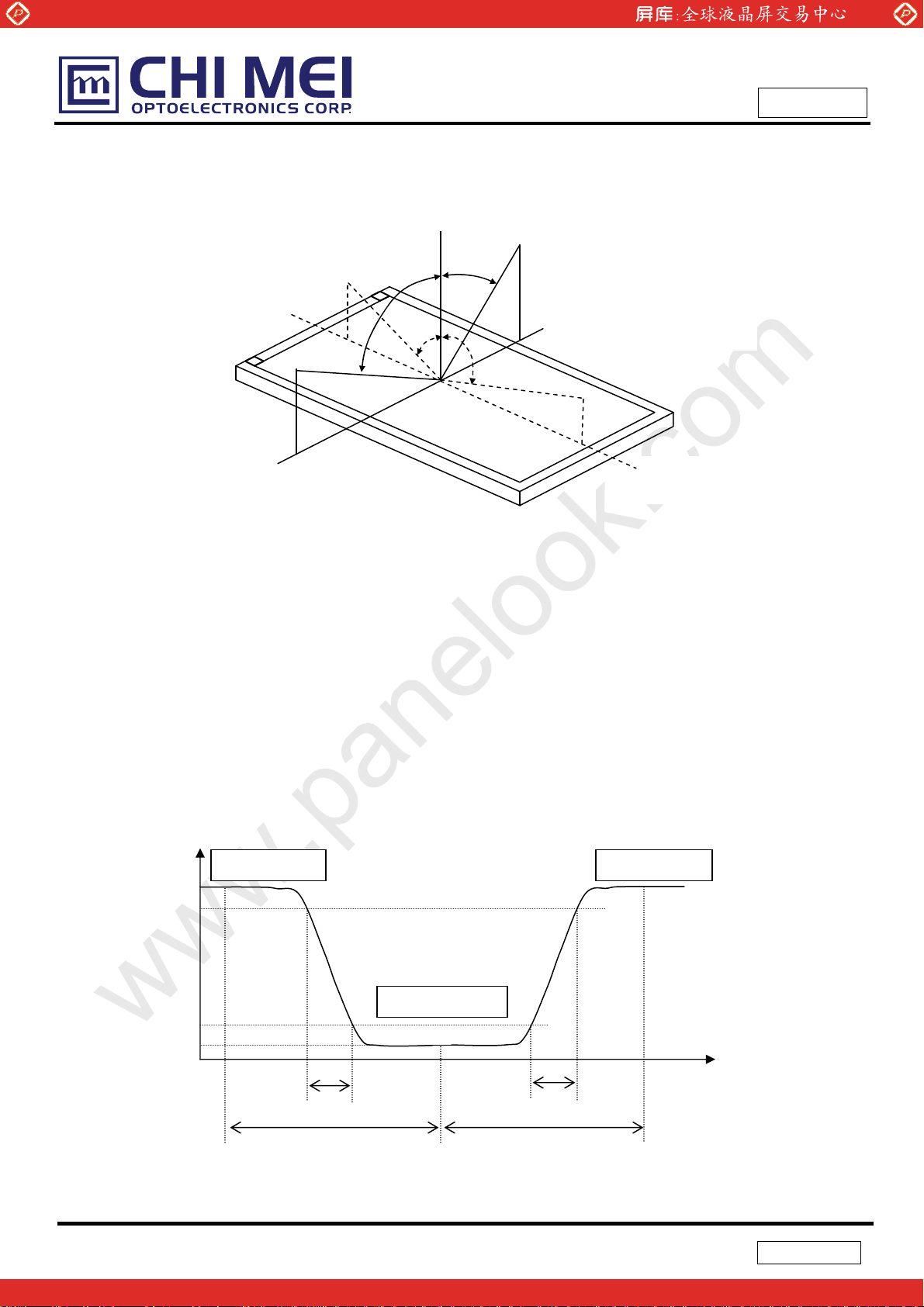

8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 28
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS

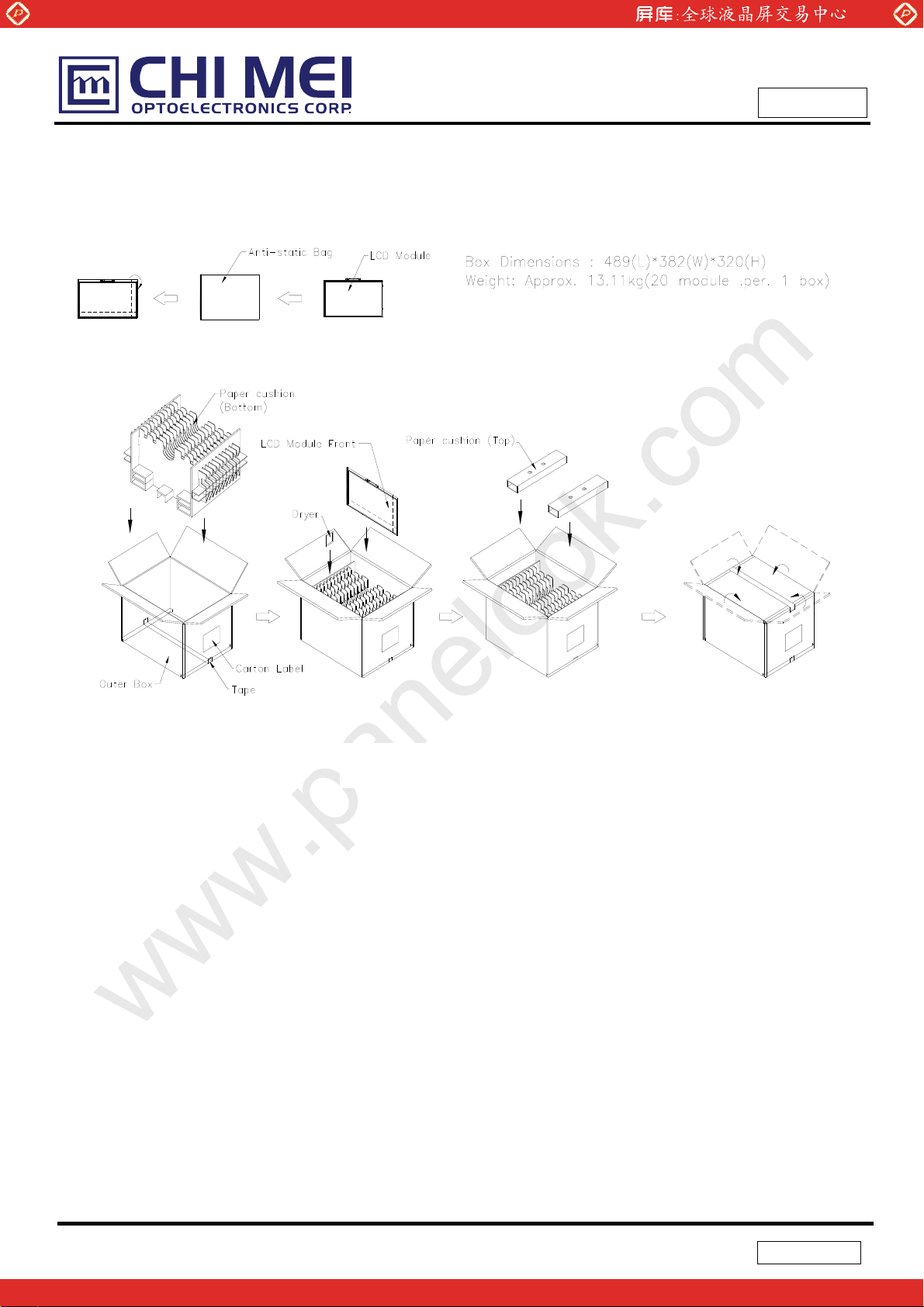

10. PACKING ------------------------------------------------------- 29
10.1 CARTON

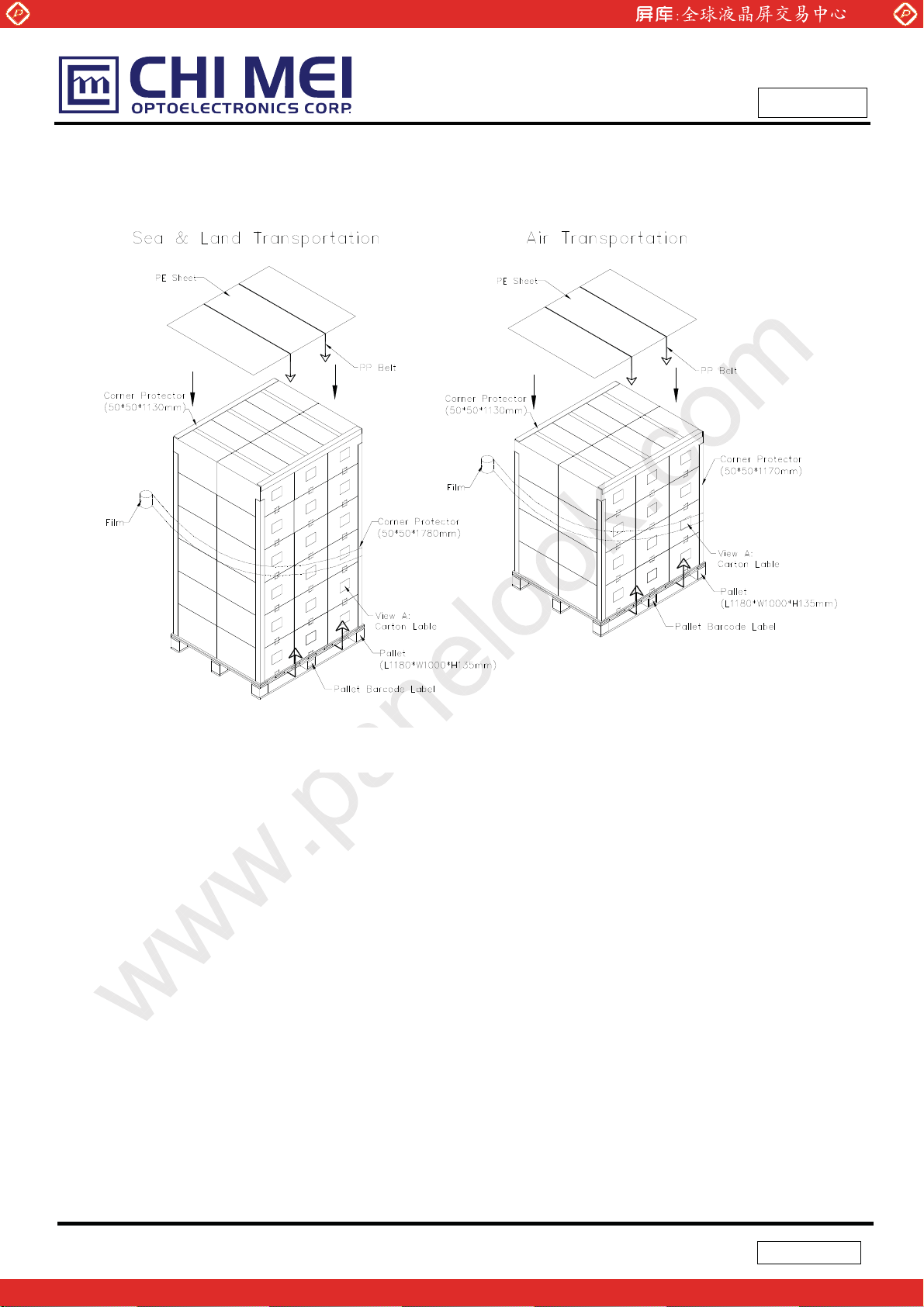

10.2 PALLET
11. DEFINITION OF LABELS

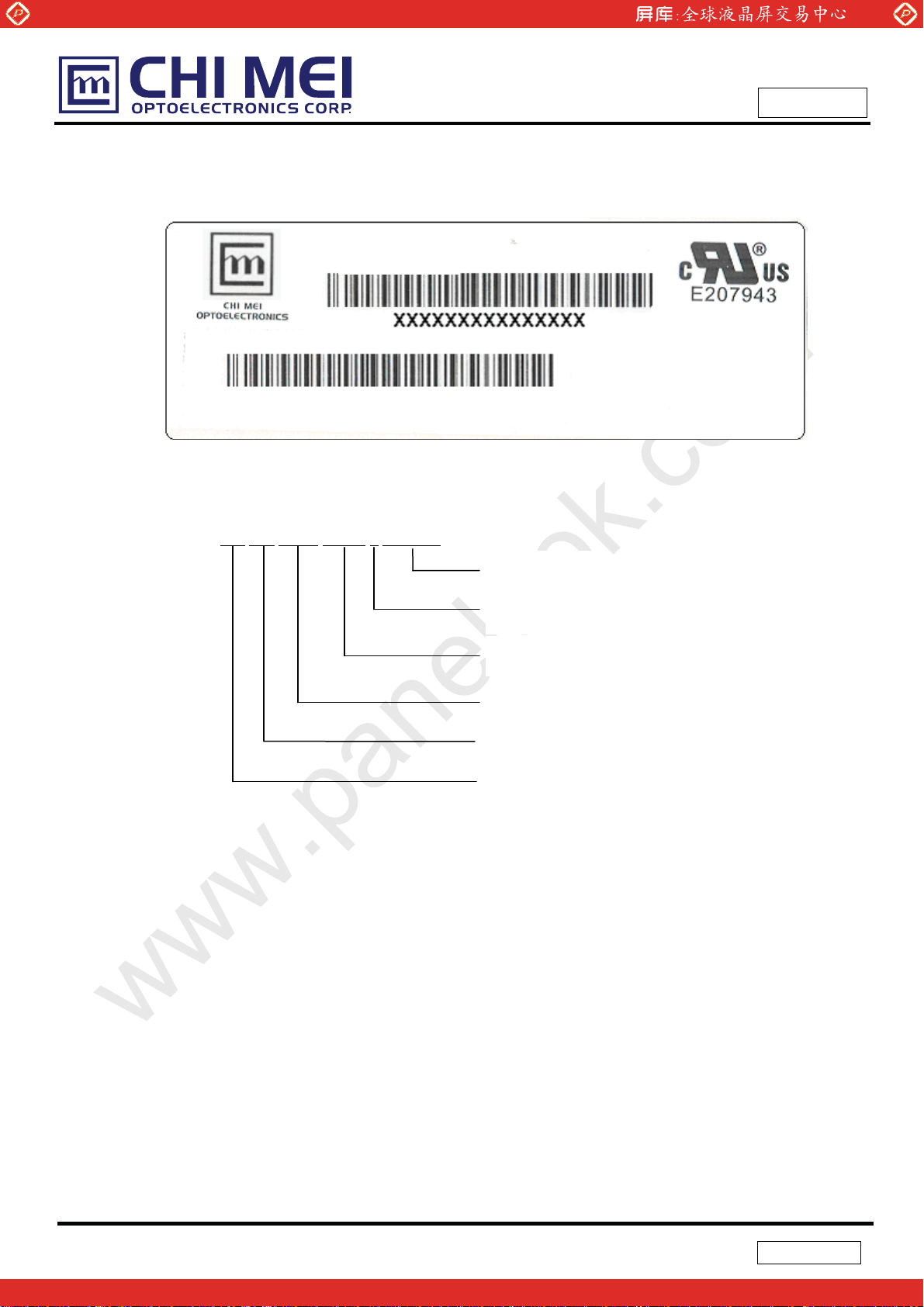

11.1 CMO MODULE LABEL

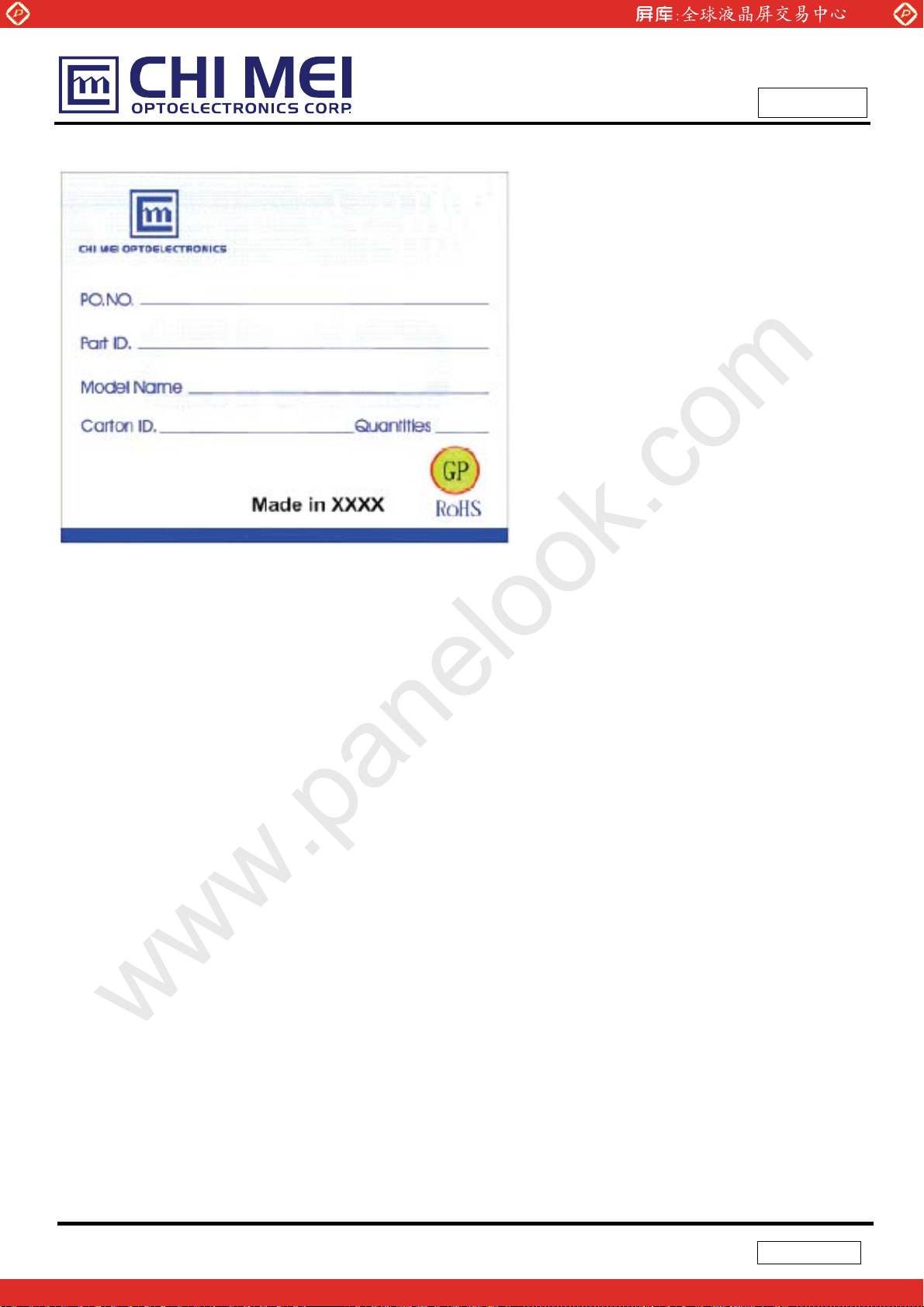

11.2 CARTON LABEL
------------------------------------------------------- 31

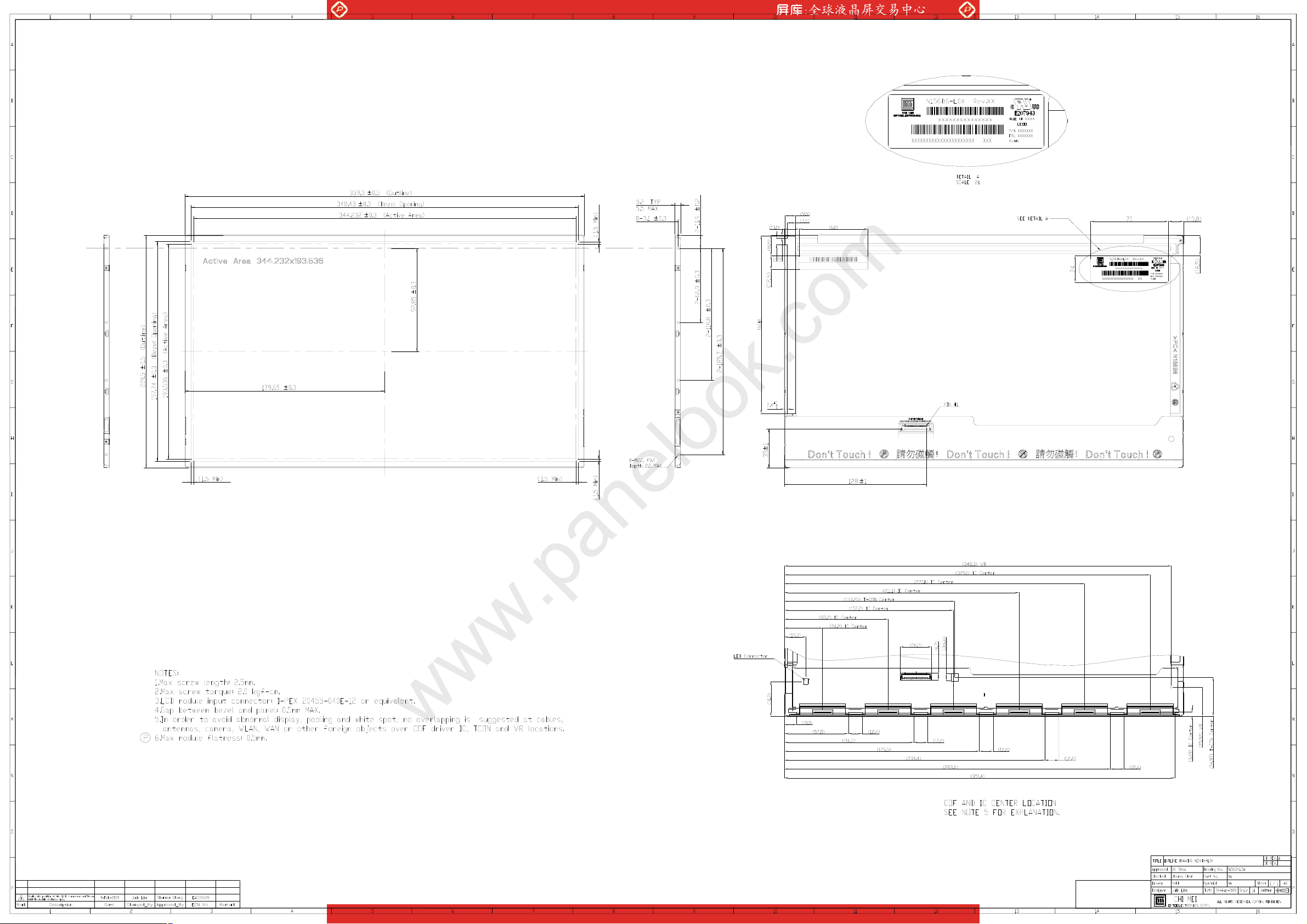

12. MECHANICAL DRAWING
------------------------------------------------------- 34
2 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
REVISION HISTORY
Version Date
Ver. 3.0 Sep.23, 2009 All All
Page
(New)
Section Description
Approval Spec 3.0 was first issued for N156B6-L04 for Compal
3 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N156B6-L04 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and
40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction.
1.2 FEATURES
- HD (1366 x 768 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface
- WLED
- LED converter embedded
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 344.232 (H) x 193.536 (V) (15.547” diagonal) mm
Bezel Opening Area 348.43 (H) x 197.74 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1366 x R.G.B. x 768 pixel Pixel Pitch 0.252 (H) x 0.252 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 358.8 359.3 359.8 mm
Module Size
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 209 209.5 210 mm
Thickness(T) - 5.2 5.5 mm
Weight --- 430 445 g -
(1)
(1)
4 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.
Relative Humidity (%RH)
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
10
Storage Range
8060-20 40 0 20 -40
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCCS+0.3 V
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
2.2.2 BACKLIGHT UNIT
Item
LED Light Bar Power Supply Voltage -40 28 V
LED Light Bar Power Supply Current 0 150 mA
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min Max.
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
Unit Note
(1)
Unit Note
DC
DC
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for LED (Refer to Section 3.2 for further information).
6 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage VCCS 3.0 3.3 3.6 V Ripple Voltage VRP - 50 - mV Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White 240 260 280 mA (3)a
Black
lcc
TH(LVDS)
TL(LVDS)
350 380 400 mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (4)
LVDS Differential Input Voltage |VID| 100 - 600 mV (4)
LVDS Terminating Resistor RT - 100 - Ohm -
Power per EBL WG PEBL - 2.04 - W (5)
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Unit Note
Approval
(4),
=1.2V
V
CM
(4)
=1.2V
V
CM
Note (2) I
: the maximum current when VCCS is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS

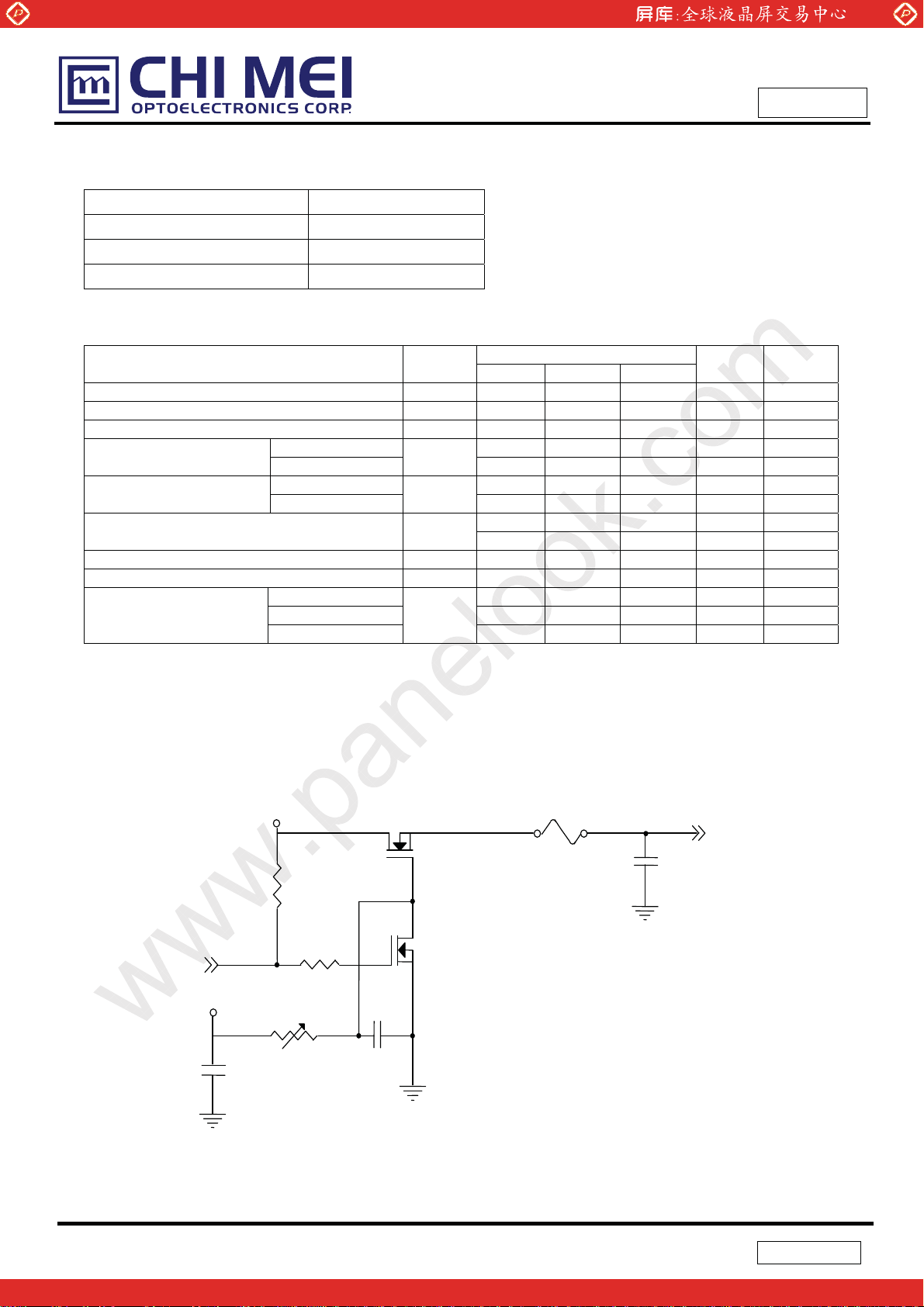

Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
VCCS
(LCD Module Input)
7 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
VCCS rising time is 0.5ms
Current and f
a. White Pattern
Note (4) The parameters of LVDS signals are defined as the following figures.
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
CM
V
Active Area
VID
Single Ended
0V
V
VID
Differential
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
0V
V
8 / 34
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
Note (5) The specified power are the sum of LCD panel electronics input power and the converter input
power. Test conditions are as follows.
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
(a) VCCS = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
= 60 Hz,
v
9 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
LED Light Bar input Voltage V
LED Light Bar input Current I
Power Consumption PL 2.65 3.072 3.53 W (3)Duty=100%
LED Life Time LBL 15000 - - Hrs (4)
Note (1) LED light bar configuration is shown as below.
VL,I
Light Bar Feedback
Channels
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
Value
Min. Typ. Max.
L
L
L
23.2 25.6 28 V
114 120 126 mA
LED
Light Bar
Unit Note
(1) Duty 100%
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter
with current balancing function to drive LED light-bar.
Note (3) P
L
= I
L
Ø V
L
Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta =
o
25 ± 2
C and IL = 20.0mA (Per EA) until the brightness becomes 50% of its original value.Љ
10 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
SC
C
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Issued Date: Sep. 23, 2009
Model No.: N156B6-L04
Approval
LVDS Display
Data & Clock
VCCS
GND
Data
EDID
CLK
EDID
V
EDID
Converter
Input Signals
LVDS INPUT /TIMING
CONTROLLER
AN DRIVER I
TFT LCD PANEL
INPUT CONNECTOR
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
DATA DRIVER IC
EDID
EEPROM
LED CONVERTER BACKLIGHT UNIT
11 / 34
