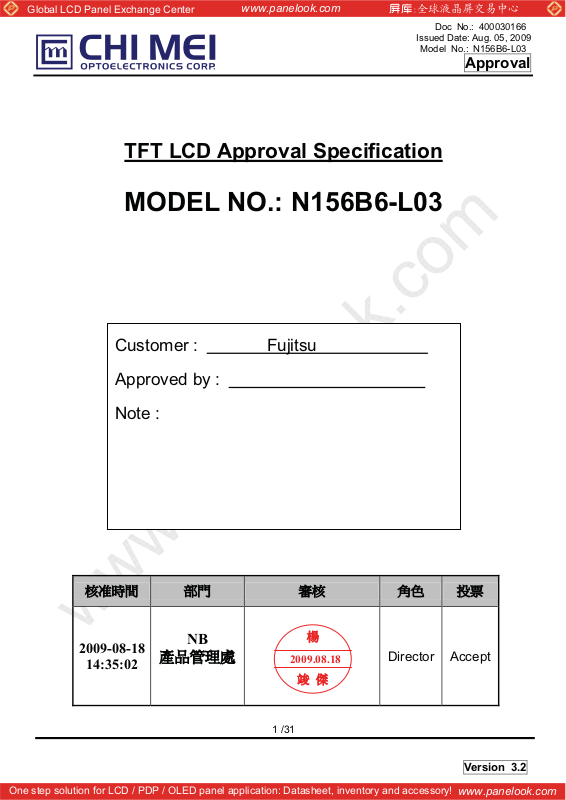

TFT LCD Approval Specification

MODEL NO.: N156B6-L03

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

Customer : Fujitsu

Approved by :

Note :

NB

2009-08-18

14:35:02

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2009.08.18

1 /31

Director Accept

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. CONVERTER ------------------------------------------------------- 17

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

7. INTERFACE TIMING ------------------------------------------------------- 19

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 22

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 26

9.1 HANDLING PRECAUTIONS

9.2 STORAGE PRECAUTIONS

9.3 OPERATION PRECAUTIONS

10. PACKING ------------------------------------------------------- 27

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

------------------------------------------------------- 29

2 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

REVISION HISTORY

Version Date

Ver 3.0

Ver 3.1

Ver 3.2

Feb.17. 2009

Mar. 11. 2009

Aug.05. 2009

Page

(New)

All

5

17

All

Section Description

All

Approval specification 3.0 was first issued for Fujitsu

2.1

6.2

Update the “temperature of panel surface” from 50 to 60к

Update the “PWM Control Permissive Ripple Voltage”

All

Approval specification 3.2 was first issued for Fujitsu

3 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N156B6-L03 is a 15.6” (15.547”) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins

LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction.

1.2 FEATURES

- HD (1366 x 768 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

1.3 APPLICATION

- TFT LCD Notebook

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 344.232 (H) x 193.536 (V) (15.547” diagonal) mm
Bezel Opening Area 348.43 (H) x 197.74 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.252 (H) x 0.252 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-Glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 358.8 359.3 359.8 mm

Module Size

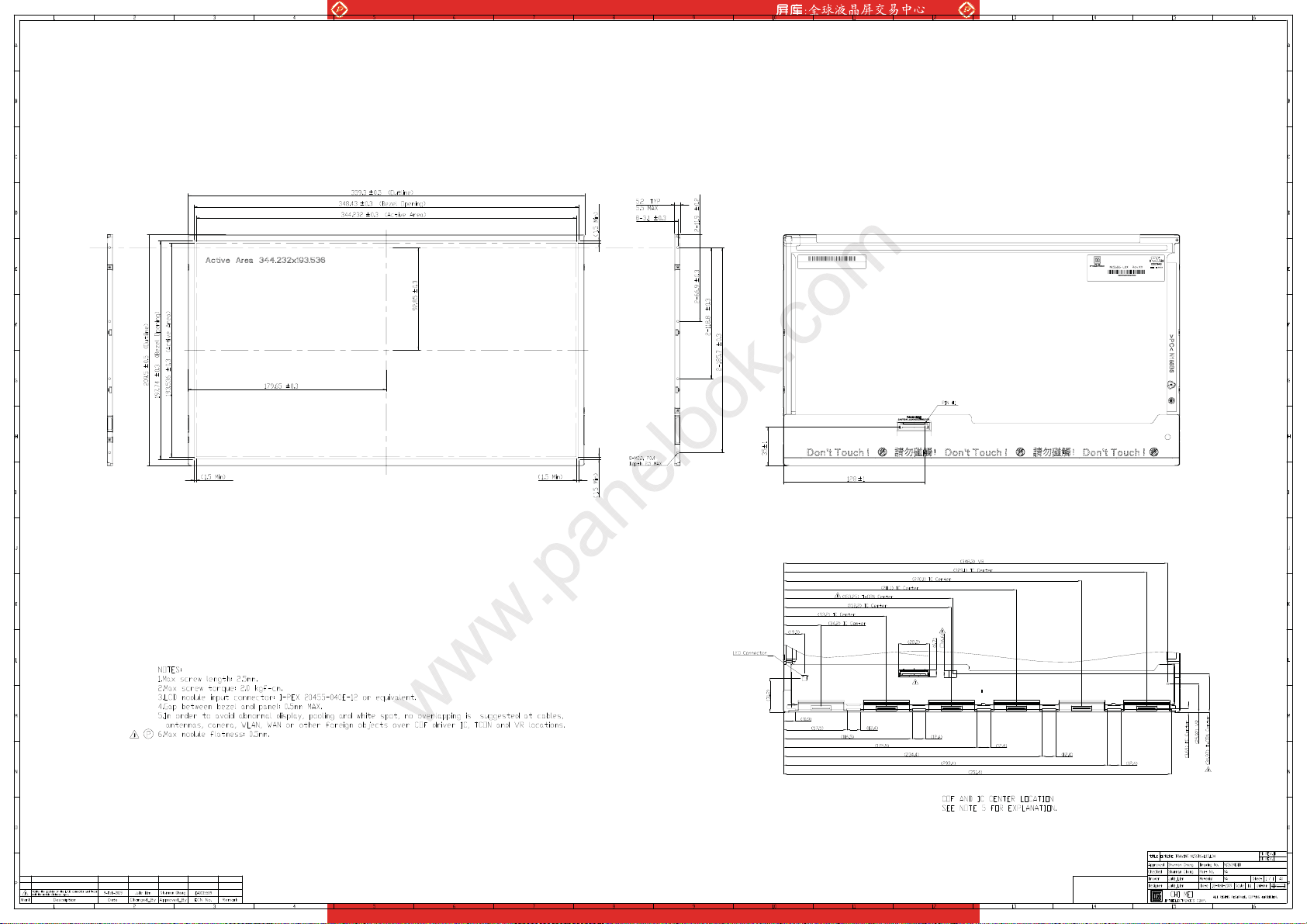

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 209 209.5 210 mm
Thickness(T) - 5.2 5.5 mm

Weight --- 430 445 g -

(1)

(1)

4 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 /31

Version 3.2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

LED Light Bar Power Supply
Voltage
LED Light Bar Power Supply
Current

www.panelook.com

Value

Min. Max.

Value

Min. Max.

-40 28 V

V

L

-- 150 mA

I

L

Unit Note

Unit Note

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

(1)

(1), (2)

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to 3.2 for further information).

6 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

White 240 280 290 mA (3)a
Black

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

-

-

TH(LVDS)

TL(LVDS)

330 370 410 mA (3)b

- - +100 mV

-100 - - mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)

Terminating Resistor RT - 100 - Ohm -

Power per EBL WG P

- 2.04 - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Approval

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

Measurement Conditions: Shown as the following figure. Test pattern: black.

: the maximum current when VCC is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

(High to Low)

(Control Signal)

SW

+12V

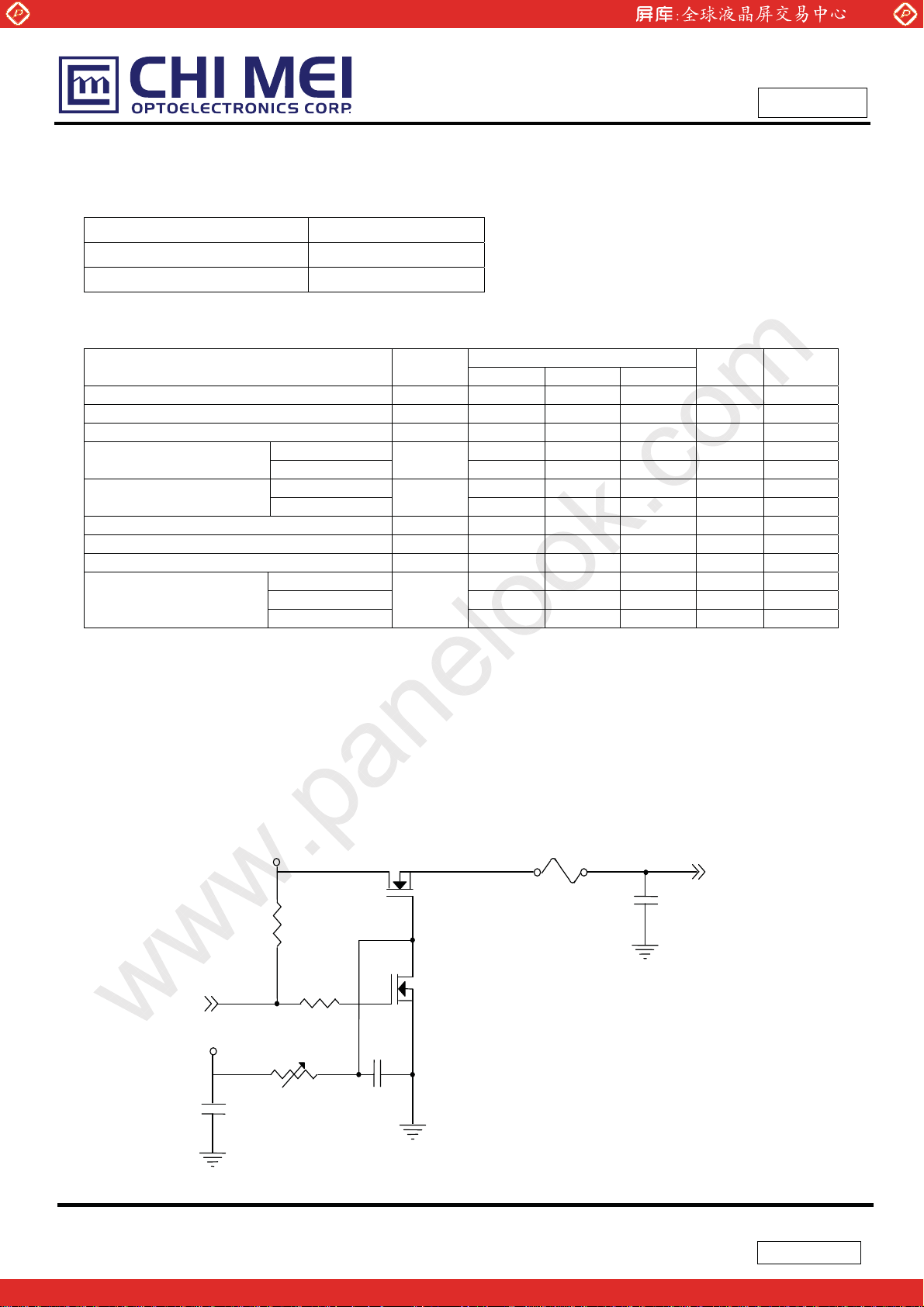

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

Q2

2SK1470

C2

0.01uF

FUSE

C3

1uF

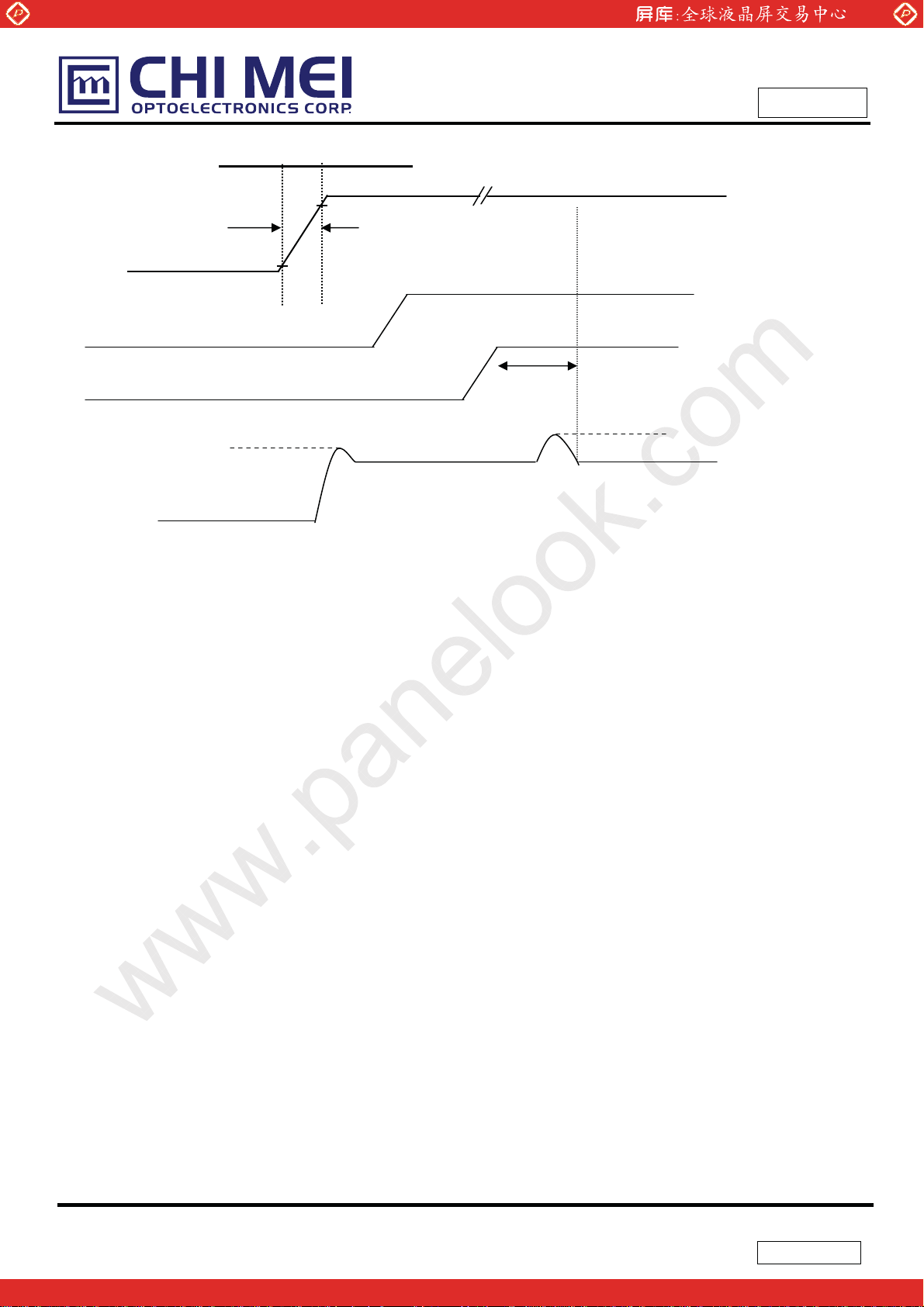

Vcc rising time is 470us

+3.3V

VCC

Vcc

(LCD Module Input)

100ms

I

IS

0V

I

RUSH

470us

0.1Vcc

ICC

7 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

Current and f

a. White Pattern

Note (4) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

= 60 Hz,

v

Active Area

(c) Luminance: 60 nits.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

Differential

0V

V

VID

VID

8 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current

23.2 25.6 28 V

V

L

114 120 126 mA

I

L

Min. Typ. Max.

Power Consumption PL 2.65 3.072 3.53 W

LED Life Time LBL 15000 - - Hrs (4)

Note (1) LED light bar configuration is shown as below.

VL,I

L

Value

LED

Unit Note

(1),(2) (Duty 100%)

(3), (Duty 100%at
20mA)

Approval

Light Bar

Light Bar Feedback

Channels

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with current

balancing function to drive LED light-bar.

Note (3) P

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25 2

and I

= 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.

L

L

= I

LVL

o

C

9 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

LED Power & Signal

INPUT CONNECTOR

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

LED

Converter

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

10 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Reserve Non-Connection use by CMO
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 Reserve Non-Connection use by CMO
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative

9 Rxin0+ LVDS Differential Data Input Positive

10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
25 Vss Ground
26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection
31 LED_GND Ground_LED
32 LED_GND Ground_LED
33 LED_GND Ground_LED
34 Reserve Non-Connection use by CMO
35 LED_PWM System PWM Signal Input
36 LED_EN LED enable pin
37 NC Non-Connection
38 LED_VCCS LED Power
39 LED_VCCS LED Power
40 LED_VCCS LED Power

Note (1) Connector Part No. I-PEX 20455-040E-12 or equivalent

DDC 3.3V Power DDC 3.3V Power

EDID

DDC Clock DDC Clock

EDID

DDC Data DDC Data

EDID

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

R0~R5,G0

G1~G5, B0, B1

LVDS Level Clock

Note (2) User’s connector Part No: I-PEX 20453-040T or equivalent

Note (3) The first pixel is odd as shown in the following figure.

Note (4) Mounting inclination of a connector carries out as follows

11 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

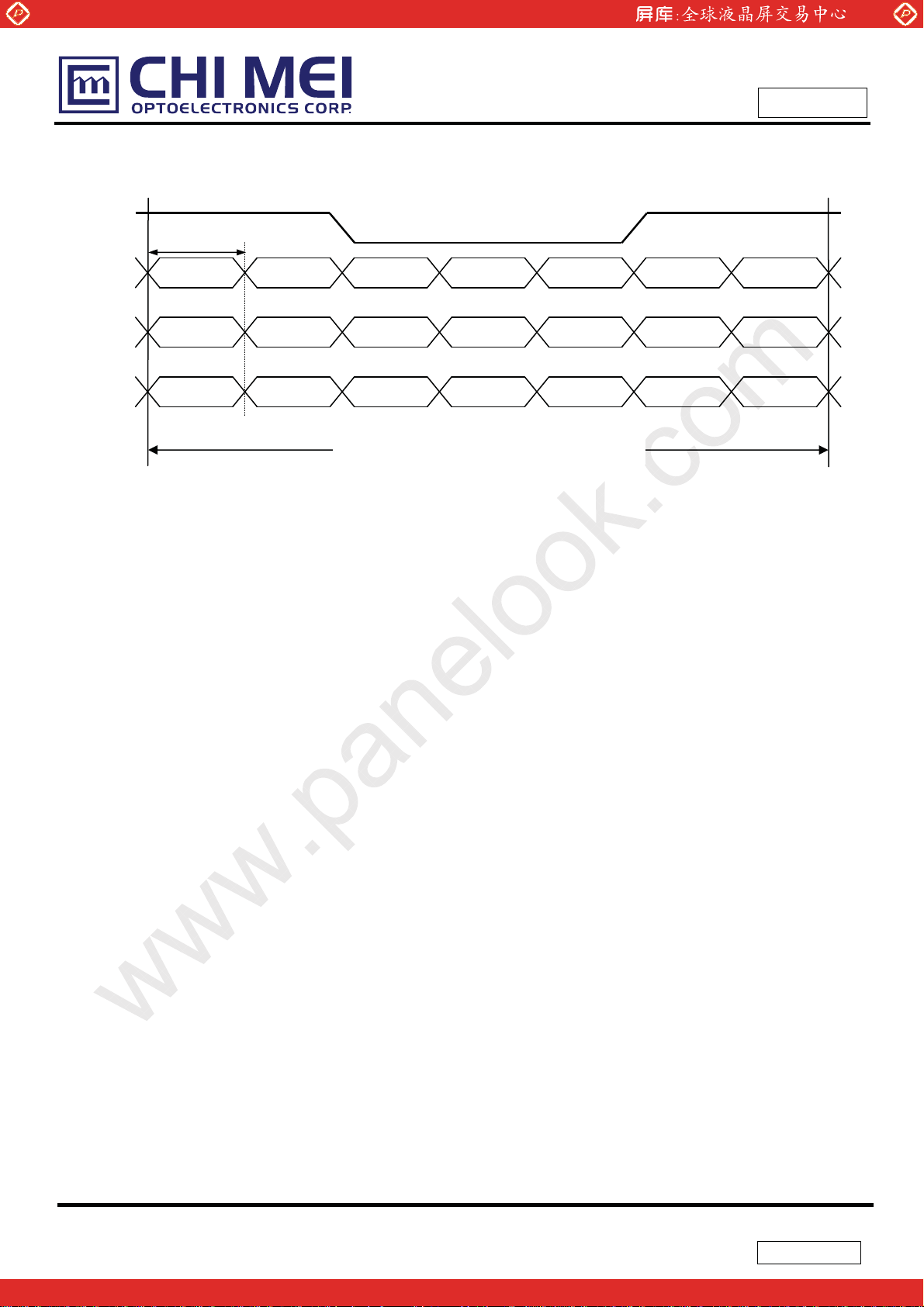

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

G0 R3 R2 R1 R0

R5

R4

Signal for 1 DCLK Cycle (T)

12 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

13 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte
#(deci
mal)

0 0 Header

1 1 Header

2 2 Header

3 3 Header

4 4 Header

5 5 Header

6 6 Header

7 7 Header

8 8 EISA ID manufacturer name (“CMO”)

9 9 EISA ID manufacturer name (Compressed ASCII)

10 0A ID product code (N156B6-L03) 70

11 0B ID product code (hex LSB first; N156B6-L03) 15

12 0C ID S/N (fixed “0”)

13 0D ID S/N (fixed “0”)

14 0E ID S/N (fixed “0”)

15 0F ID S/N (fixed “0”)

16 10 Week of manufacture (fixed “00H”)

17 11 Year of manufacture (fixed “00H”)

18 12 EDID structure version # (“1”)

19 13 EDID revision # (“3”)

20 14 Video I/P definition (“digital”)

21 15 Max H image size (“35cm”)

22 16 Max V image size (“19cm”)

23 17 Display Gamma (Gamma = ”2.2”)

24 18 Feature support (“Active off, RGB Color”)

25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)

26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)

27 1B Red-x (Rx = “0.602”)

28 1C Red-y (Ry = “0.340”)

29 1D Green-x (Gx = ”0.306”)

30 1E Green-y (Gy = ”0.530”)

31 1F Blue-x (Bx = ”0.151”)

32 20 Blue-y (By = ”0.120”)

33 21 White-x (Wx = ”0.313”)

34 22 White-y (Wy = ”0.329”)

35 23 Established timings 1

36 24 Established timings 2

37 25 Manufacturer’s reserved timings

38 26 Standard timing ID # 1

Byte
#(hex) Field Name and Comments

Approval

Value

Value

(hex)

(binary)

00 00000000

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

00 00000000

0D 00001101

AF 10101111

01110000

00010101

00 00000000

00 00000000

00 00000000

00 00000000

24 00100100

12 00010010

01 00000001

03 00000011

80 10000000

23 00100011

13 00010011

78 01111000

0A 00001010

07 00000111

F5 11110 1 0 1

9A 10011010

57 01010111

4E 01001110

87 10000111

26 00100110

1E 00011110

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

14 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

39 27 Standard timing ID # 1

40 28 Standard timing ID # 2

41 29 Standard timing ID # 2

42 2A Standard timing ID # 3

43 2B Standard timing ID # 3

44 2C Standard timing ID # 4

45 2D Standard timing ID # 4

46 2E Standard timing ID # 5

47 2F Standard timing ID # 5

48 30 Standard timing ID # 6

49 31 Standard timing ID # 6

50 32 Standard timing ID # 7

51 33 Standard timing ID # 7

52 34 Standard timing ID # 8

53 35 Standard timing ID # 8

54 36 Detailed timing description # 1 Pixel clock (“75.5MHz”, According to VESA CVT Rev1.1)

55 37 # 1 Pixel clock (hex LSB first)

56 38 # 1 H active (“1366”)

57 39 # 1 H blank (“194”)

58 3A # 1 H active : H blank (“1366 :194”)

59 3B # 1 V active (”768”)

60 3C # 1 V blank (”38”)

61 3D # 1 V active : V blank (”768 :38”)

62 3E # 1 H sync offset (”31”)

63 3F # 1 H sync pulse width ("65”)

64 40 # 1 V sync offset : V sync pulse width (”4 : 12”)

65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync width (”31: 65 : 4 : 12”)

66 42 # 1 H image size (”344 mm”)

67 43 # 1 V image size (”193 mm”)

68 44 # 1 H image size : V image size (”344 : 193”)

69 45 # 1 H boarder (”0”)

70 46 # 1 V boarder (”0”)

71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives

72 48 Detailed timing description # 2

73 49 # 2 Flag

74 4A # 2 Reserved

75 4B # 2 FE (hex) defines ASCII string (Model Name “N156B6-L03”, ASCII)

76 4C # 2 Flag

77 4D # 2 1st character of name (“N”)

78 4E # 2 2nd character of name (“1”)

79 4F # 2 3rd character of name (“5”)

80 50 # 2 4th character of name (“6”)

81 51 # 2 5th character of name (“B”)

82 52 # 2 6th character of name (“6”)

83 53 # 2 7th character of name (“-”)

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

7E 01111110

1D 00011101

56 01010110

C2 11000010

50 01010000

00 00000000

26 00100110

30 00110000

1F 00011111

41 01000001

4C 01001100

00 00000000

58 01011000

C1 11000001

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

35 00110101

36 00110110

42 01000010

36 00110110

2D 00101101

15 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

84 54 # 2 8th character of name (“L”)

85 55 # 2 9th character of name (“0”)

86 56 # 2 9th character of name (“3”)

87 57 # 2 New line character indicates end of ASCII string

88 58 # 2 Padding with “Blank” character

89 59 # 2 Padding with “Blank” character

90 5A Detailed timing description # 3

91 5B # 3 Flag

92 5C # 3 Reserved

93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

94 5E # 3 Flag

95 5F # 3 1st character of string (“C”)

96 60 # 3 2nd character of string (“M”)

97 61 # 3 3rd character of string (“O”)

98 62 # 3 New line character indicates end of ASCII string

99 63 # 3 Padding with “Blank” character

100 64 # 3 Padding with “Blank” character

101 65 # 3 Padding with “Blank” character

102 66 # 3 Padding with “Blank” character

103 67 # 3 Padding with “Blank” character

104 68 # 3 Padding with “Blank” character

105 69 # 3 Padding with “Blank” character

106 6A # 3 Padding with “Blank” character

107 6B # 3 Padding with “Blank” character

108 6C Detailed timing description # 4

109 6D # 4 Flag

110 6E # 4 Reserved

111 6F # 4 FE (hex) defines ASCII string (Model Name“N156B6-L03”, ASCII)

112 70 # 4 Flag

113 71 # 4 1st character of name (“N”) 4E

114 72 # 4 2nd character of name (“1”) 31

115 73 # 4 3rd character of name (“5”) 35

116 74 # 4 4th character of name (“6”) 36

117 75 # 4 5th character of name (“B”) 42

118 76 # 4 6th character of name (“6”) 36

119 77 # 4 7th character of name (“-”) 2D

120 78 # 4 8th character of name (“L”) 4C

121 79 # 4 9th character of name (“0”)

122 7A # 4 9th character of name (“3”)

123 7B # 4 New line character indicates end of ASCII string

124 7C # 4 Padding with “Blank” character

125 7D # 4 Padding with “Blank” character

126 7E Extension flag

127 7F Checksum

4C 01001100

30 00110000

33 00110011

0A 00001010

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

33 00110011

0A 00001010

20 00100000

20 00100000

00 00000000

40 01000000

01001110

00110001

00110101

00110110

01000010

00110110

00101101

01001100

16 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

6. CONVERTER

6.1 ABSOLUTE MAXIMUM RATINGS

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS -0.3~25V

LED_PWM, LED_EN -0.3V~5.0V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage

LED_Vccs

Min. Typ. Max.

6.0 12.0 21.0 V
Converter Rush Current - - 1.5 A
Converter Initial Stage Current - - 1.5 A

EN Control Level

PWM Control Level

Backlight On 2.0 --- 5.0 V
Backlight Off 0 --- 0.8 V
PWM High Level 2 --- 5.0 V

PWM Low Level 0 --- 0.15 V
PWM Control Duty Ratio 10 100 %
PWM Control Permissive Ripple Voltage
PWM Control Frequency f

LED_VCCS=Min

Converter Input Current

LED_VCCS=Typ
LED_VCCS=Max

VPWM_pp

190 210 230 Hz

PWM

100 mV

507 602 714 mA (1)

I

BL

253 301 357 mA (1)
145 172 204 mA (1)

Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min, Typ, Max”,

Value

Doc No.: 400030166

Approval

Unit Note

Ta = 25 ± 2 ºC, f

Note (2) ILED

ILED

: the maximum current when LED_VCCS is rising,

RUSH

: the maximum current of the first 100ms after power-on,

IS

= 200 Hz, Duty=100%.

PWM

Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f

Hz, Duty=100%.

(High to Low)

(Control Signal)

SW=24V

LED_VCCS(Typ)

LED_VCCS(Typ)

C1

1uF

VR1

R1

47K

R2

1K

47K

Q1 IRL3303

0.01uF

FUSE

Q2

IRL3303

C2

C3

1uF

(LED Converter Input)

PWM

= 200

17 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

Vcc rising time is 500us

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

LED_VCCS

0.9Vcc

0V

LED_PWM

LED_EN

ILED

RUSH

0.5ms

0.1Vcc

100ms

ILED

IS

ILED

18 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 50 75.5 85 MHz (2)

Vertical Total Time TV 778 806 888 TH -

Vertical Active Display Period TVD 768 768 768 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

(2) 2 channels LVDS input.

Vertical Active Blanking Period TVB TV-TVD 38 TV-TVD TH

Horizontal Total Time TH 1446 1560 1950 Tc (2)

Horizontal Active Display Period THD 1366 1366 1366 Tc (2)

Horizontal Active Blanking Period THB

www.panelook.com

TH-THD

194

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

TH-THD

Tc (2)

DE

DCLK

DE

DATA

TC

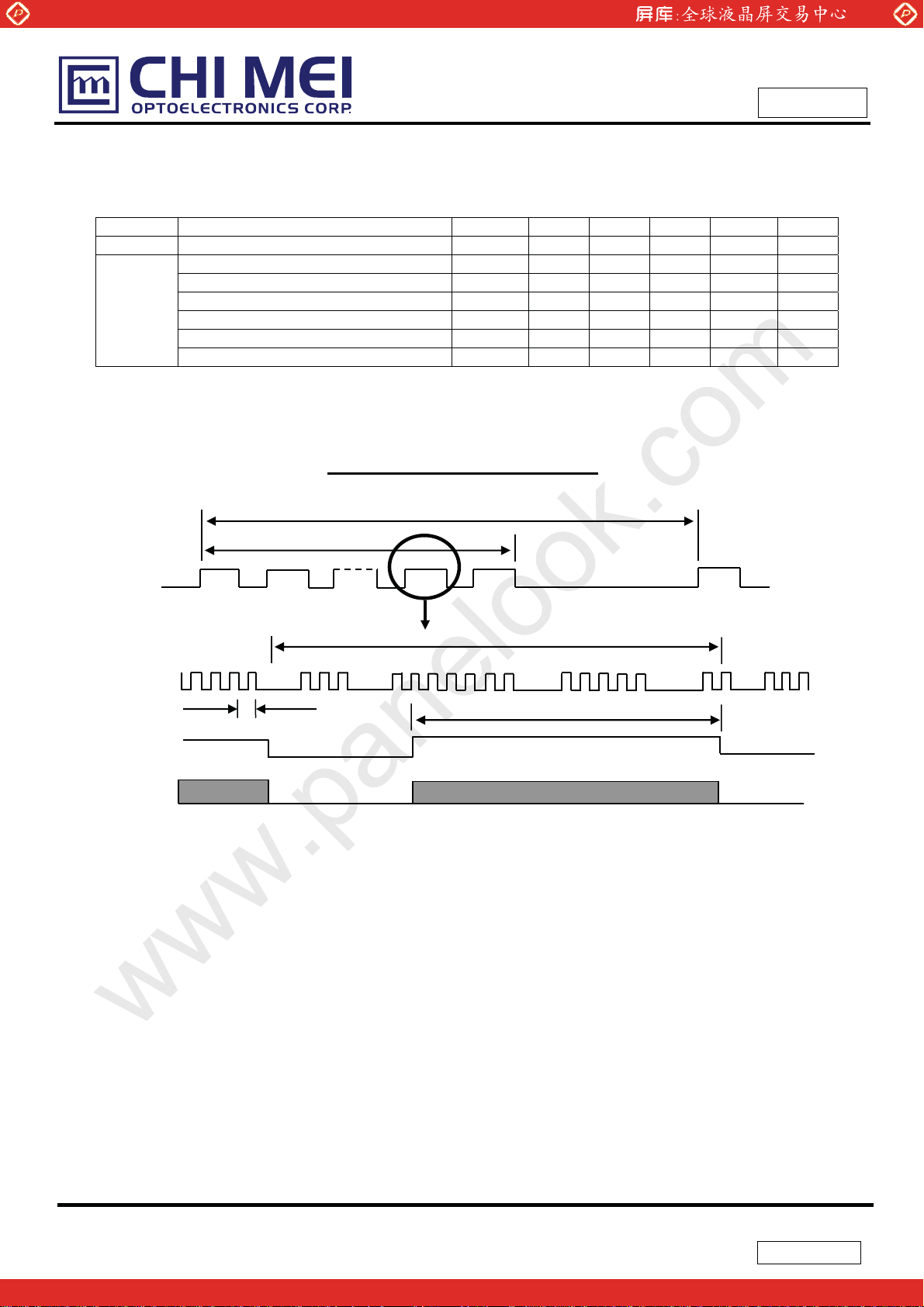

INPUT SIGNAL TIMING DIAGRAM

HD

T

19 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

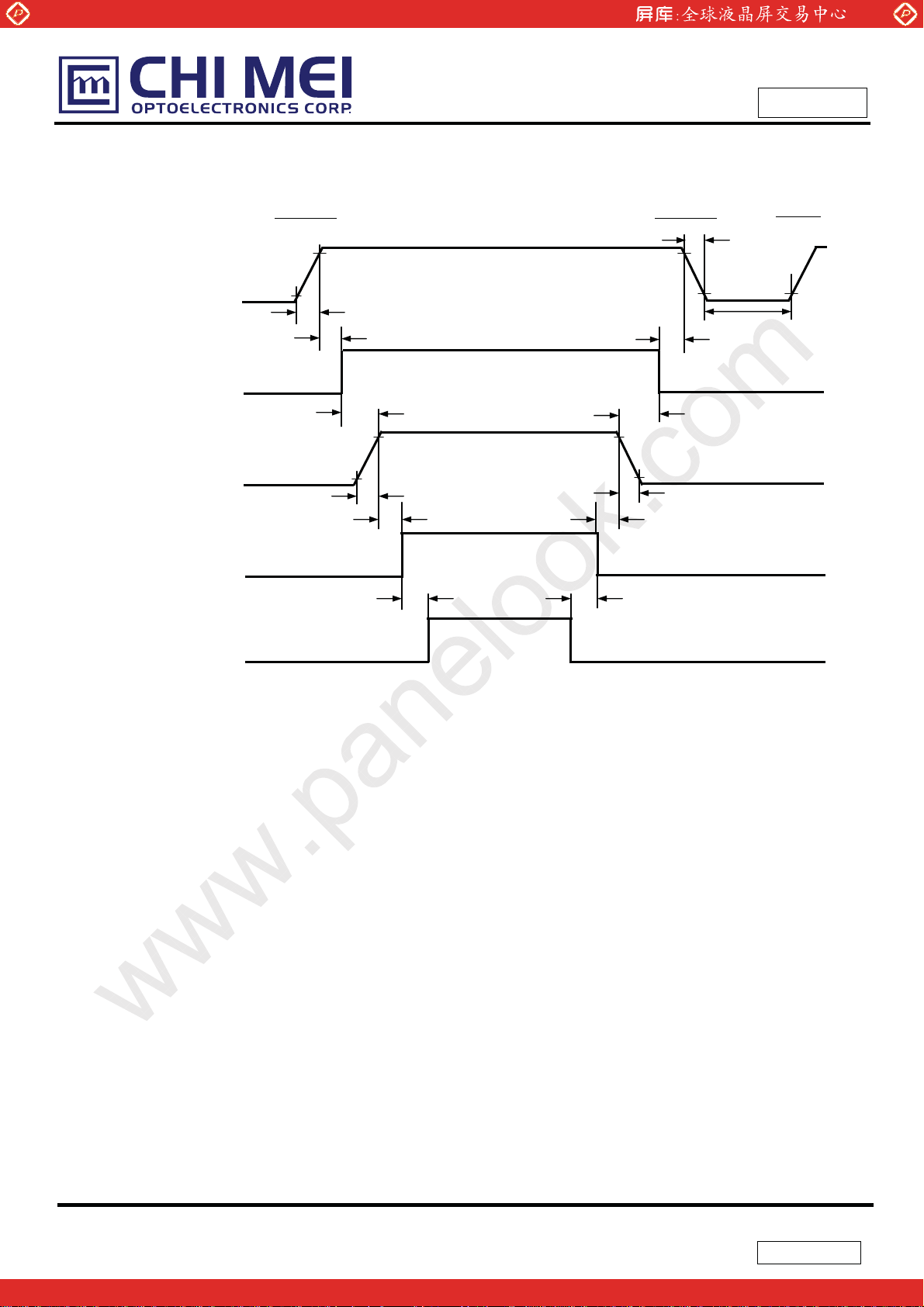

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

- Power Supply

for LCD, VCCS

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power Supply for

LED Converter,
LED_VCCS

- LED Converter

Dimming Signal,
LED_PWM

- LED Converter

Enable Signal,
LED_EN

0V

0V

0V

0V

0V

Power On

90%

10%

Power Off

t1

t2

Valid Data

t6t5

10%

90%

t

A

t

C

tE t

90%

t

B

t

D

F

90%

10%

Restart

t7

10%

t3

10%

t4

Timing Specifications:

0.5Љ t1ʳЉ 10 ms

0 Љ t2ʳЉ 50 ms

0 Љ t3ʳЉ 50 ms

t4ʳЊ 500 ms

t5ʳЊ 200 ms

t6ʳЊ 200 ms

0.5Љt7Љ10 ms

0.5Љt

A

0 Љt

B

t

ʳЊ 10 ms

C

t

Њ 10 ms

D

t

Њ 10 ms

E

t

Њ 10 ms

F

ʳЉ 10 ms

ʳЉʳ10 ms

20 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Please follow the LED converter power sequence as above. If the customer could not follow, it might

cause backlight flash issue during display ON/OFF or damage the LED backlight controller

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

21 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Converter Current IL 120 mA

The measurement methods of optical characteristics are shown in Section 8.2. The following items

should be measured under the test conditions described in Section 8.1 and stable environment shown in

Note (5).

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 500 650 - - (2), (5)

Response Time

Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points δW

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

25±2

50±10

TR - 3 5 ms

- 5 11 ms

T

F

L

AVE

Rx
Ry
Gx
Gy
Bx
By

=0° , θY =0°

θ

x

Viewing Normal Angle

190 220 - cd/m

0.623

0.345

0.340

TYP.

-0.03

0.592

0.159

TYP.

+0.03

0.074
Wx 0.313 ­Wy

0.329

θx+ 40 45 -

- 40 45 -

θ

x

θY+ 15 20 -

-

θ

Y

5p

CR≥10

40 45 -

θ

=0° , θY =0° 1.33 % (5),(6)

x

%RH

Deg. (1),(5)

Approval

o

C

(3)

2

(4), (6)

-

-

-

-

-

-

-

(1)

22 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

θx−

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

Gray Level 63

T

R

66.67 ms

, TF):

R

Gray Level 0

T

F

66.67 ms

Gray Level 63

Time

23 /31

Version 3.2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

500

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

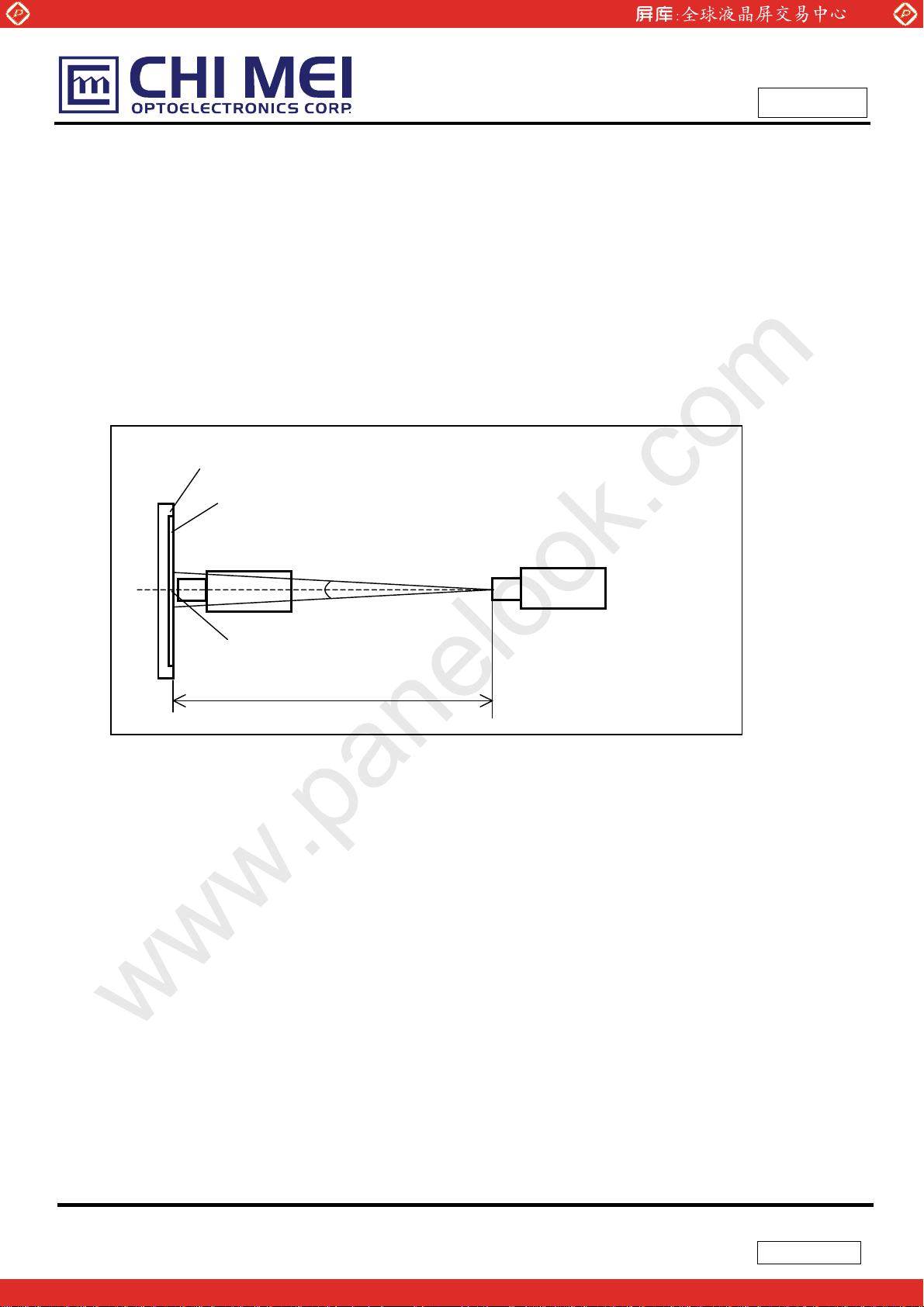

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

ʳ

LCD Module

LCD Panel

USB2000

AVE

):

CS-1000T

Center of the Screen

mm

Light Shield Room

(Ambient Luminance < 2 lux)

24 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

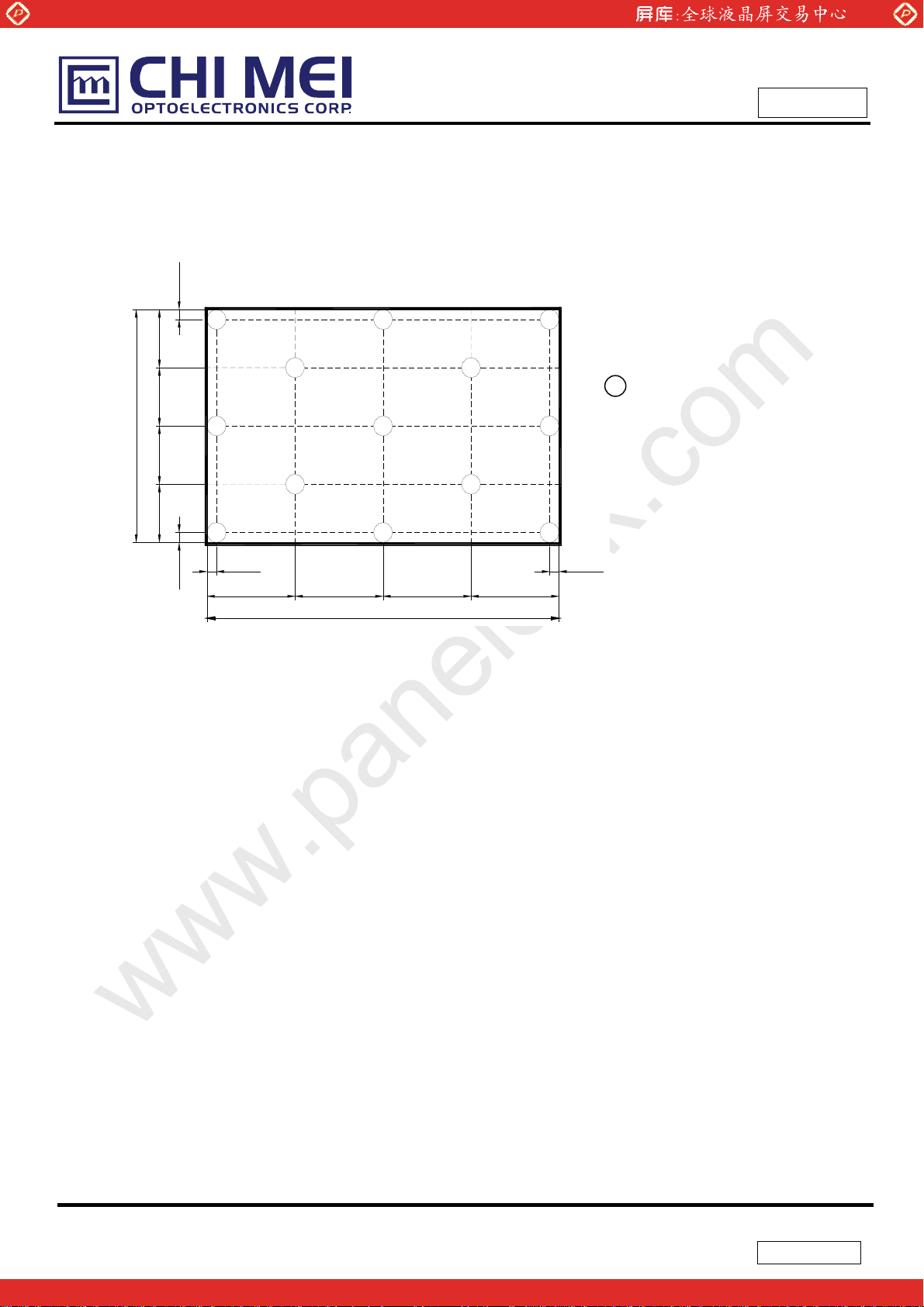

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW

= Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

5p

˄˃

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

ˉ

˛˂ˇ

˅

˄˃

ˌ

ˇˈ

˄˄

˄˃ ˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ

˛

˛˂ˇ ˛˂ˇ ˛˂ˇ

ˊ

ˆ

˄

˄˅

˪

ˋ

X

: Test Point

˄˃

˄ˆ

X=1 to 13

Active area

25 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

9.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the LED wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

9.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of LED will be higher than the room

temperature.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

26 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

10. PACKING

10.1 CARTON

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

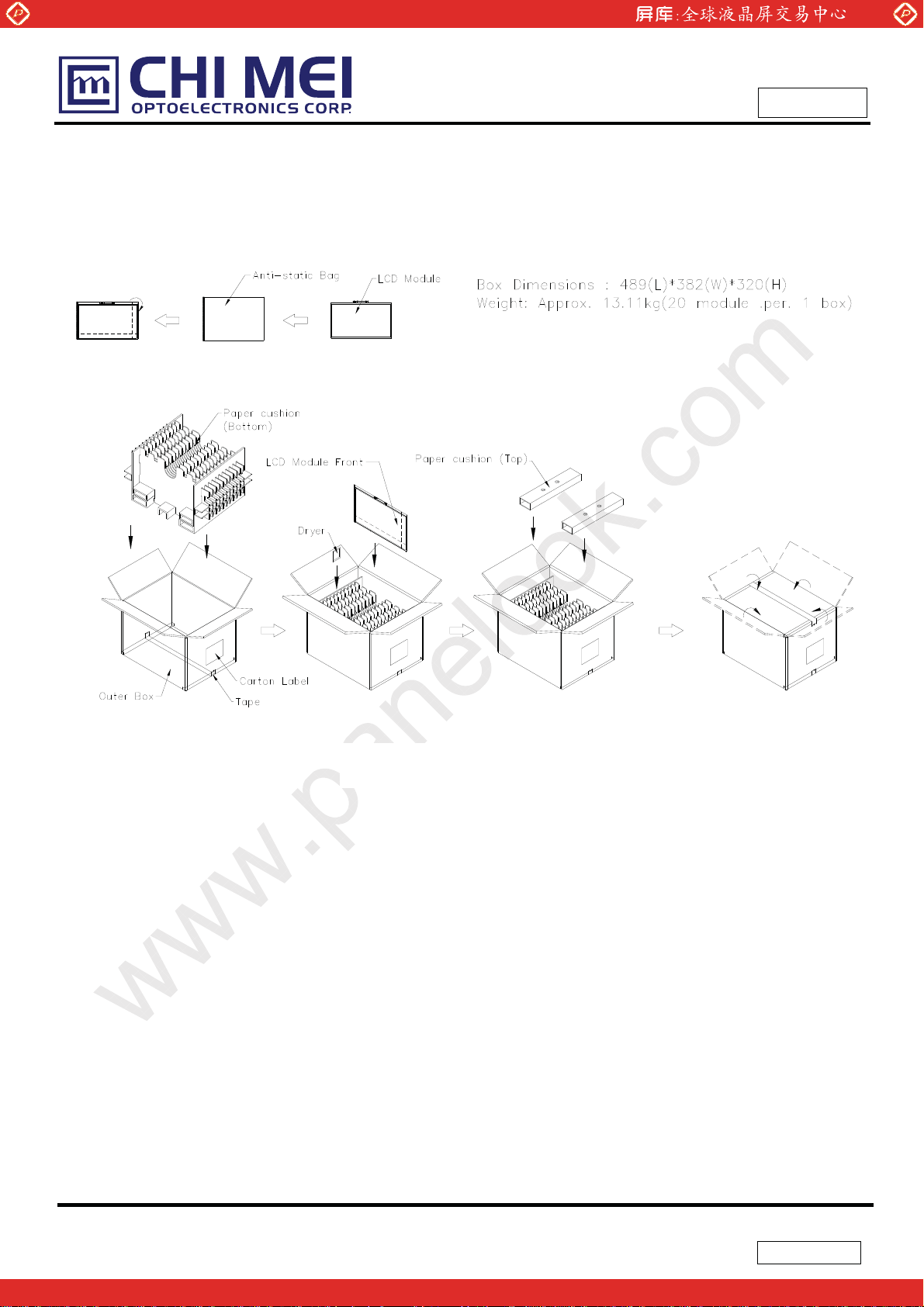

Figure. 10-1 Packing method

27 /31

Version 3.2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10.2 3$//(7

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

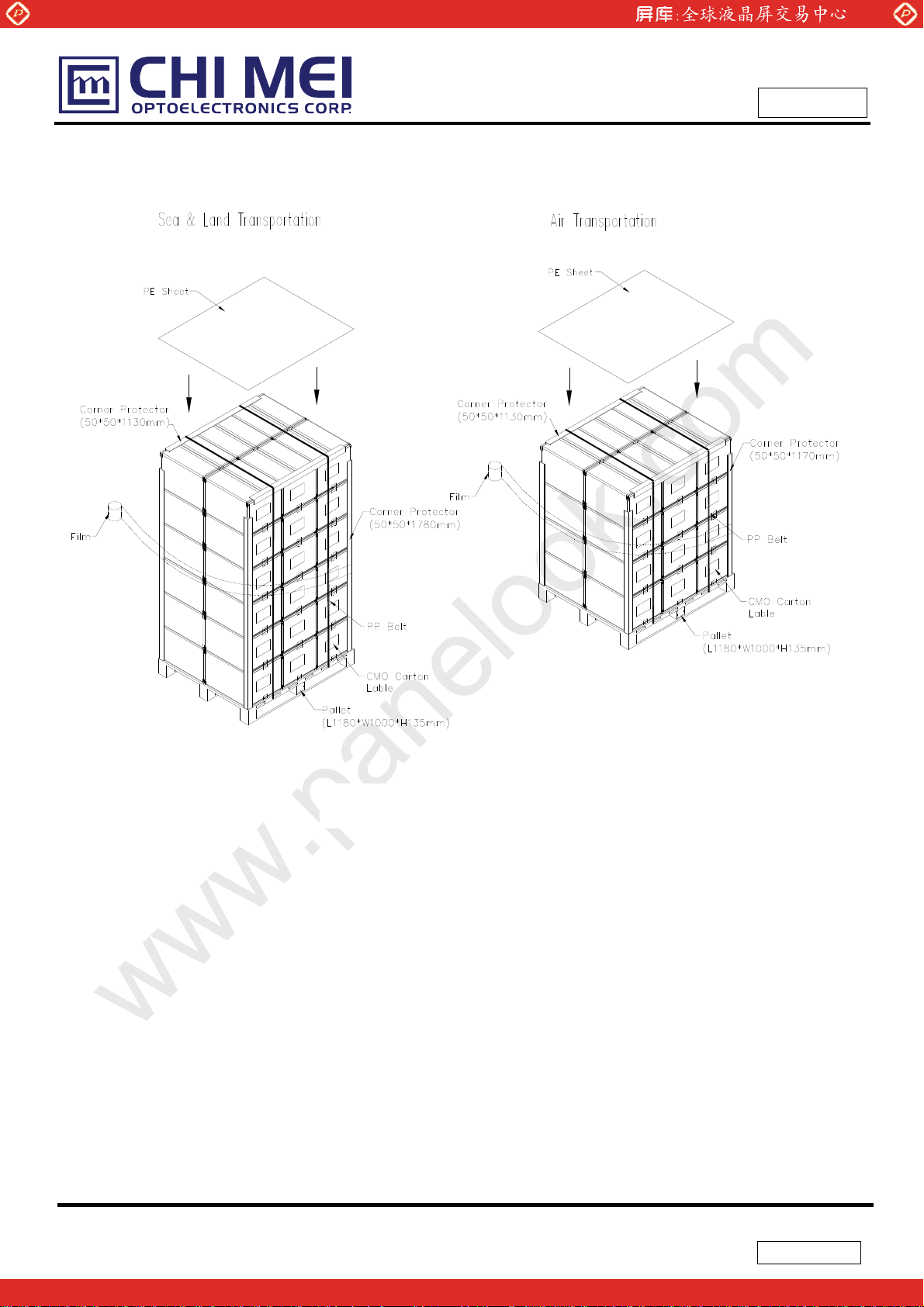

Figure. 10-2 Packing method

28 /31

Version 3.2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

11. DEFINITION OF LABELS

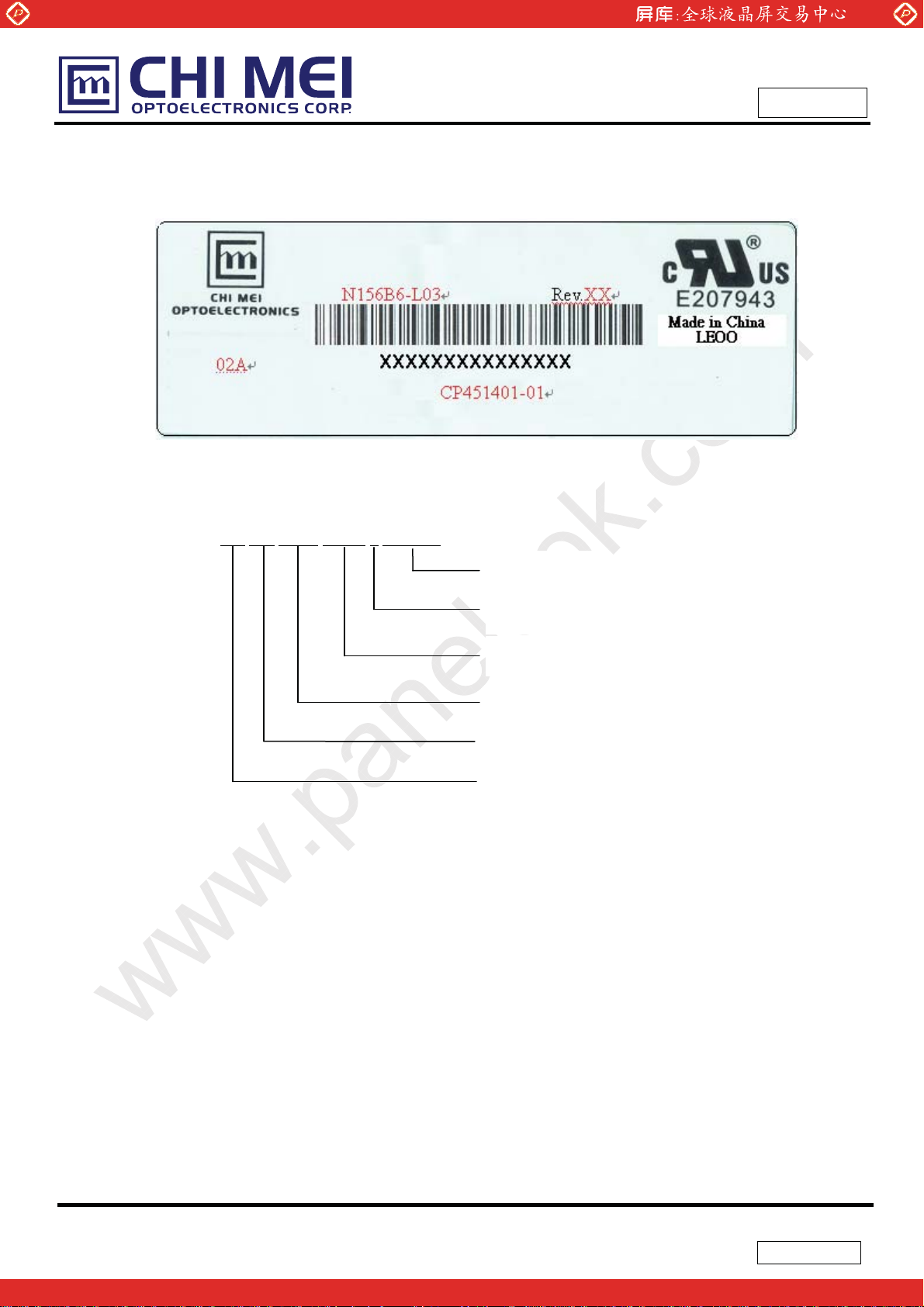

11.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

(a) Model Name: N156B6 - L03

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Made in XXXX, XXXX is production location for China or Taiwan

(d) Serial ID: X X

(e) Production Location: MADE IN XXXX. XXXX stands for production location.

(f) UL logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL requirement.

The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL requirement.

Serial ID includes the information as below:

X X X X X Y M D L N N N N

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

st

to 31st, exclude I , O and U

29 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

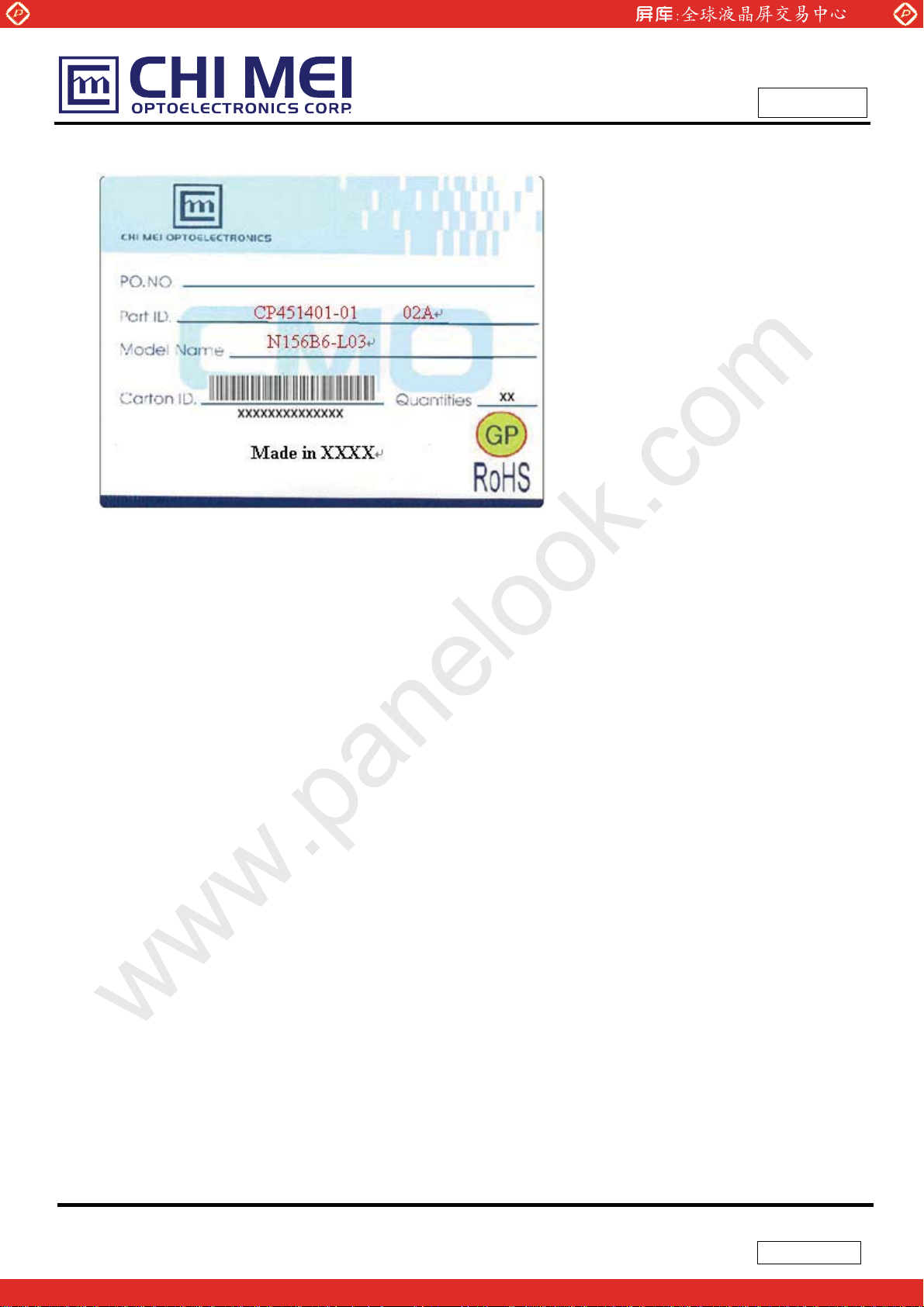

11.2 CARTON LABEL

www.panelook.com

Doc No.: 400030166

Issued Date: Aug. 05, 2009

Model No.: N156B6-L03

Approval

30 /31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.2

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
