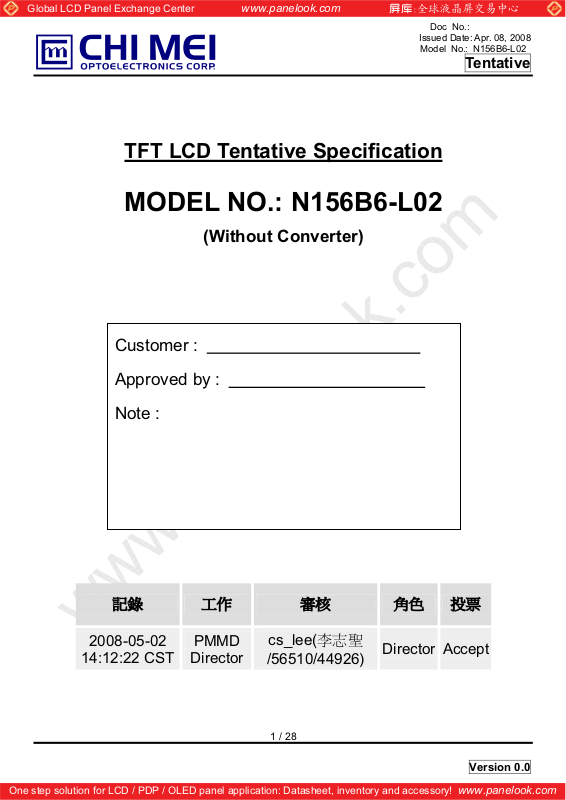

TFT LCD Tentative Specification

MODEL NO.: N156B6-L02

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

(Without Converter)

Customer :

pproved by :

Note :











2008-05-02

PMMD

cs_lee(ޕݳᆣ

Director Accept

14:12:22 CST

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Director

/56510/44926)

1 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

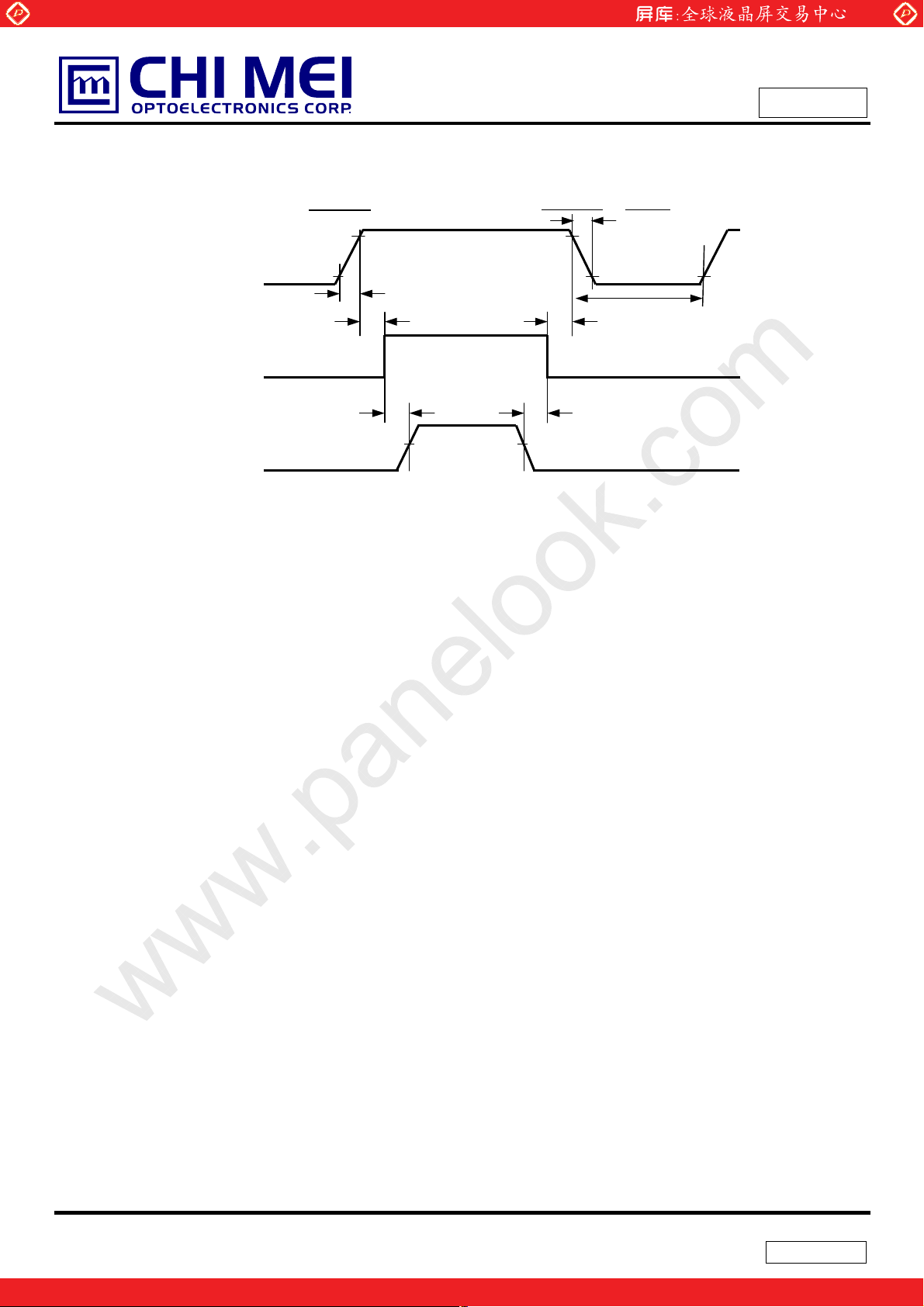

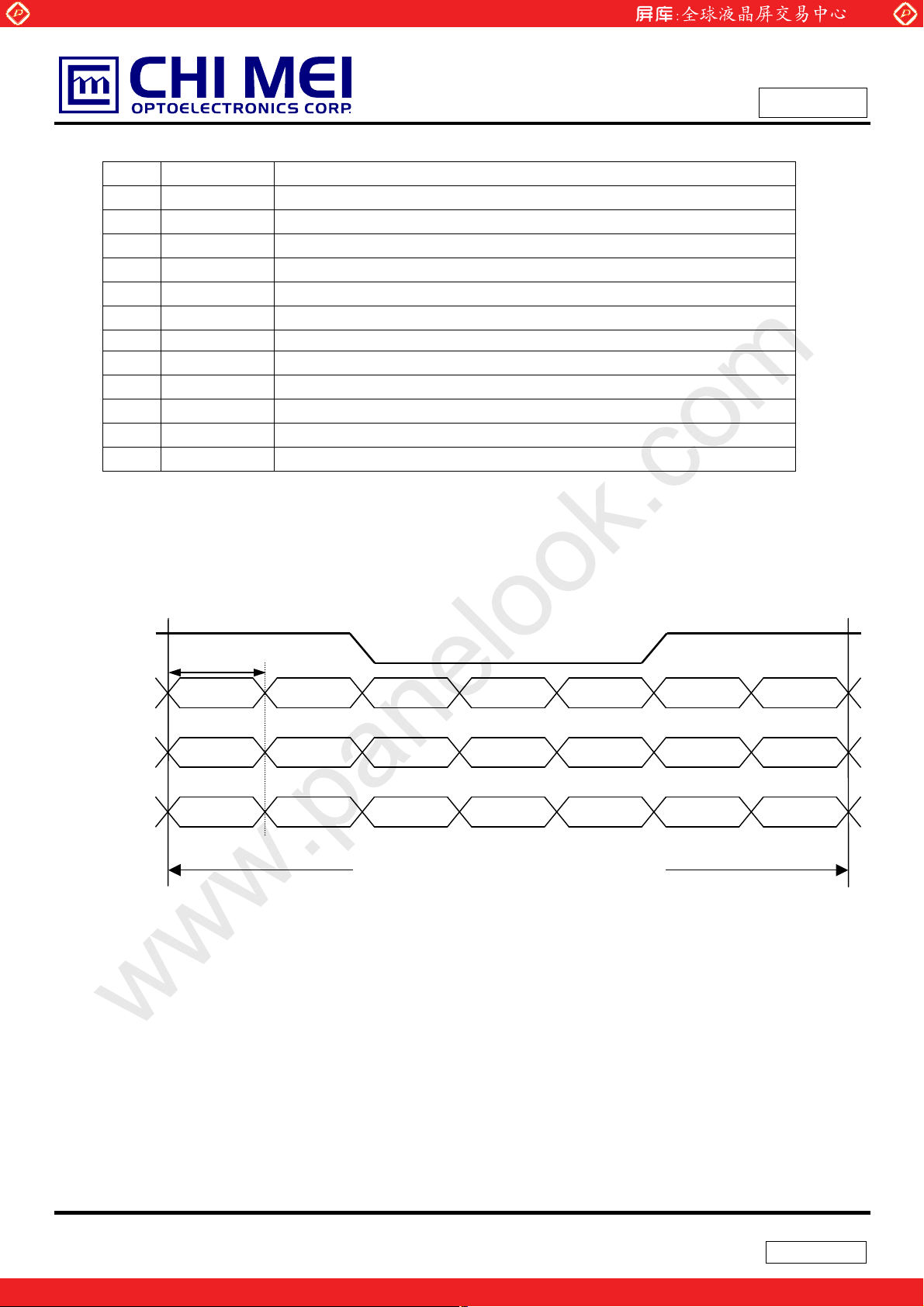

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID DATA STRUCTURE

5.6 EDID SIGNAL SPECIFICATION

6. INTERFACE TIMING ------------------------------------------------------- 17

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 19

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS ------------------------------------------------------- 23

8.1 HANDLING PRECAUTIONS

8.2 STORAGE PRECAUTIONS

8.3 OPERATION PRECAUTIONS

9. PACKING ------------------------------------------------------- 24

9.1 CARTON

9.2 PALLET

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

10.2 CARTON LABEL

------------------------------------------------------- 26

2 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

REVISION HISTORY

Version Date

Ver 0.0 Apr.08, 2008 All All Tentative specification first issued.

Page

(New)

Section Description

3 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N156B6-L02 is a 15.6” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins LVDS

interface. This module supports 1366 x 768 Wide-XGA mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction. The converter module for Backlight is not built in.

1.2 FEATURES

- Thin and light weight

- WXGA (1366 x 768 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

1.3 APPLICATION

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 344.232 (H) x 193.536 (V) (15.6” diagonal) mm
Bezel Opening Area 348.43 (H) x 197.74 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.252 (H) x 0.252 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 358.8 359.3 359.8 mm

Module Size

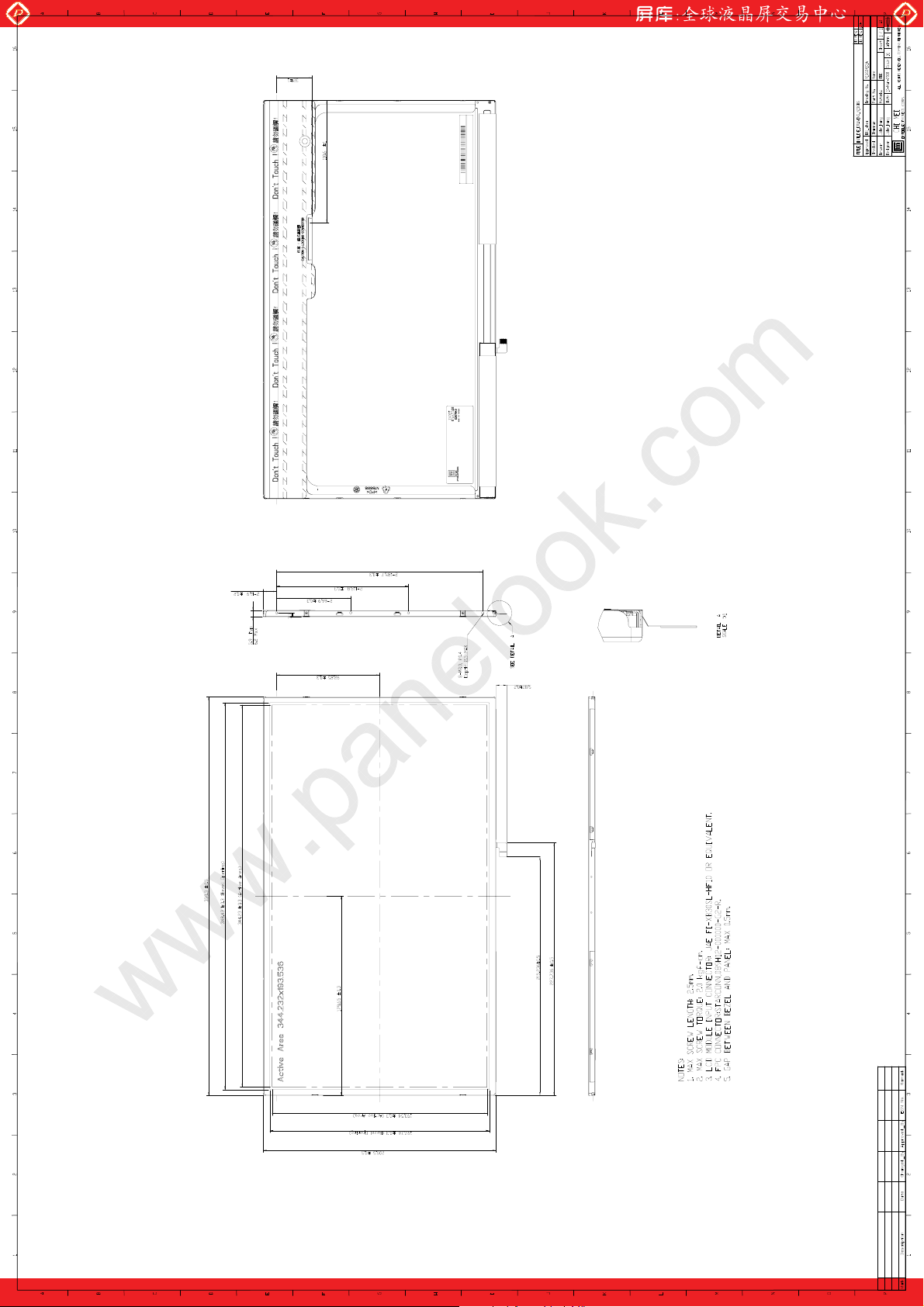

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 209 209.5 210 mm
Thickness(T) - 5.9 6.2 mm

Weight --- 490 505 g -

(1)

(1)

4 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC min. and 50 ºC max.

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Value

Min. Max.

- 200/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z

8060-20 400 20-40

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

LED Light Bar Power Supply
Voltage
LED Light Bar Power Supply
Current

www.panelook.com

Value

Min. Max.

Value

Min. Max.

0 TBD V

V

L

0 TBD mA

I

L

Unit Note

Unit Note

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

(1)

(1), (2)

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to 3.2 for further information).

6 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

White (320) TBD mA (3)a
Black

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

-

-

TH(LVDS)

-100 - - mV

TL(LVDS)

(380) TBD mA (3)b

- - +100 mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm -

Power per EBL WG P

- TBD - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Tentative

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

Measurement Conditions: Shown as the following figure. Test pattern: black.

: the maximum current when VCC is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

Q2

2SK1470

C2

0.01uF

FUSE

C3

1uF

Vcc rising time is 470us

+3.3V

VCC

Vcc

(LCD Module Input)

100ms

I

IS

0V

I

RUSH

470us

0.1Vcc

ICC

7 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Current and f

a. White Pattern

Note (4) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

= 60 Hz,

v

Active Area

(c) Luminance: 60 nits.

(d) The converter used is provided from Sumida

doesn’t provide the converter in this product.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

. Please contact them for detail information. CMO

Single Ended

0V

V

Differential

0V

V

VID

VID

8 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.

LED Quantity 54 PCs (1)
LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current

26.1 27.9 29.7 V

V

L

120 mA

I

L

Power Consumption PL 3.348 W (3), (Duty 100%)
LED Life Time LBL 15000 - - Hrs (4)

Note (1) LED light bar configuration is shown as below.

VL,I

L

Value

LED

Unit Note

(1),(2) (Duty 100%)

Tentative

Light Bar

Light Bar Feedback

Channels

Parallel:6

SeriesΚ9

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with current

balancing function to drive LED light-bar.

Note (3) P

= ILV

L

L

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25 2oC

and I

= 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.

L

9 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

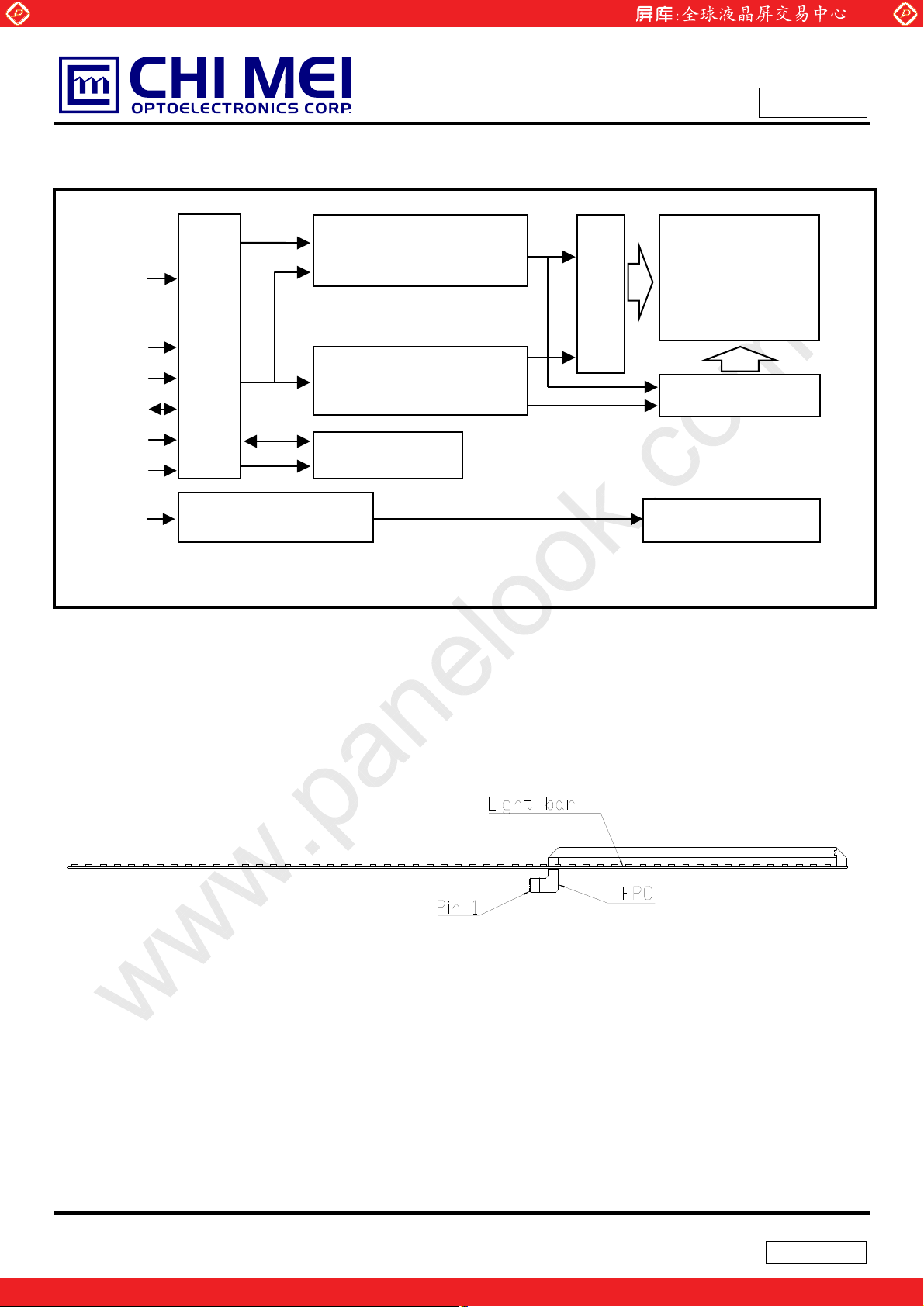

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

LED driving

Signals

INPUT CONNECTOR

LED FPC

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

4.2 BACKLIGHT UNIT

10 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 NC Non-Connection
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative

9 Rxin0+ LVDS Differential Data Input Positive

10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
25 Vss Ground
26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection

Note (1) Connector Part No. JAE FI-XB30SL-HF10 OR EQUIVALENT

DDC 3.3V Power DDC 3.3V Power

EDID

DDC Clock DDC Clock

EDID

DDC Data DDC Data

EDID

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

R0~R5,G0

G1~G5, B0, B1

LVDS Level Clock

Note (2) User’s connector Part No: JAE-FI-X30M or equivalent

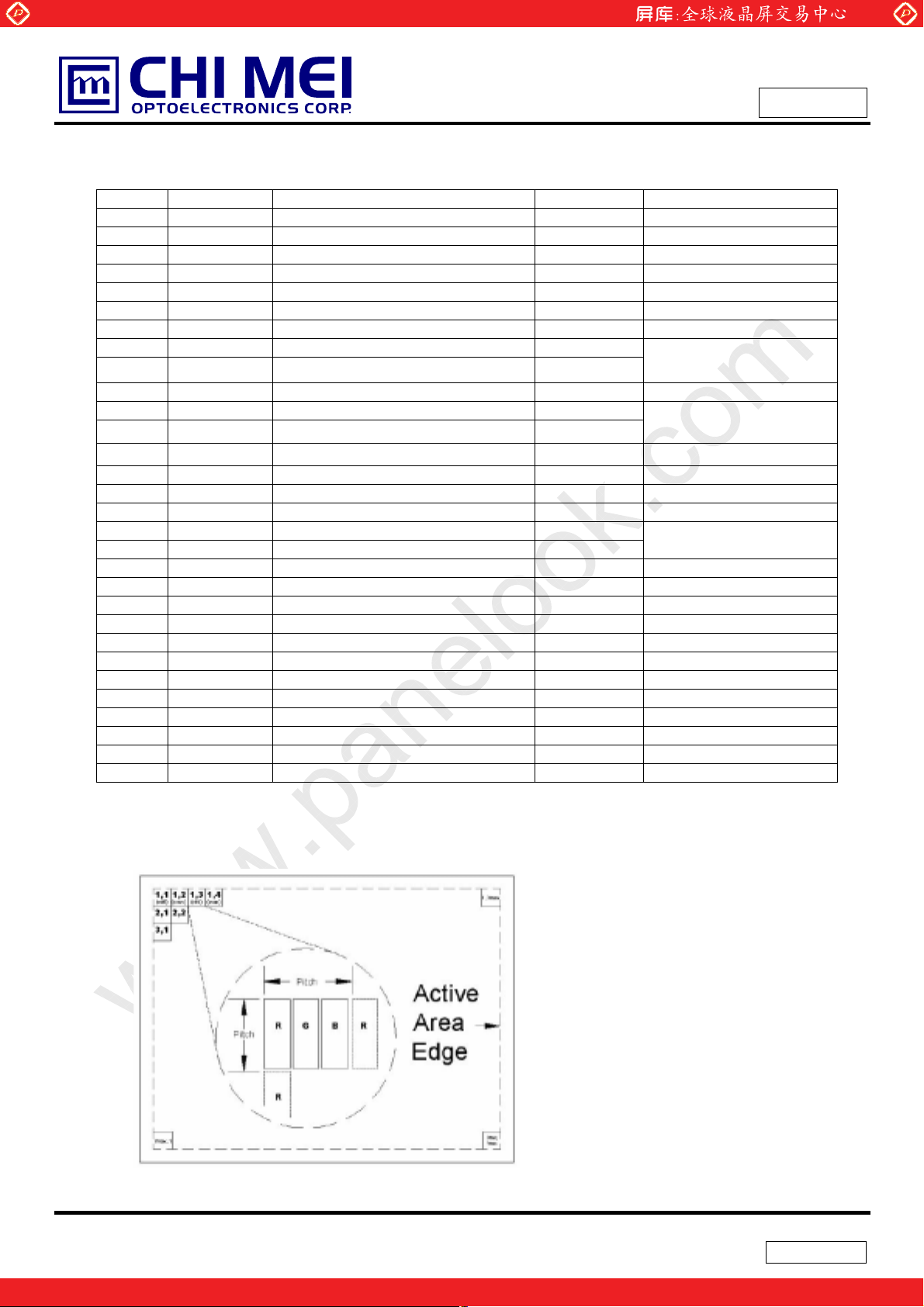

Note (3) The first pixel is odd as shown in the following figure.

11 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 Backlight FPC Pin Assignment

Pin Symbol Description

1 V

L

LED Light-bar Input Power
2 VL LED Light-bar Input Power
3 VL LED Light-bar Input Power
4 NC No connection
5 CH1 Light-bar Feedback Channel 1
6 CH2 Light-bar Feedback Channel 2
7 CH3 Light-bar Feedback Channel 3

8 CH4 Light-bar Feedback Channel 4
9 CH5 Light-bar Feedback Channel 5

10 CH6 Light-bar Feedback Channel 6
11 CH7 Light-bar Feedback Channel 7
12 CH8 Light-bar Feedback Channel 8

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Note (1) User’s connector Part No: STARCONN 089H12-000000-G2-R or equivalent

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0

R5

R4

Signal for 1 DCLK Cycle (T)

12 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

0

0

0

0

0

0

1

1

0

0
0
0
1
1
1
0
1
0
0
0

:

:
0
0
0
0
0
0

:

:
0
0
0
0
0
0

:

:
1
1
1

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

0

:

:

:

:

:

:

1

0

1

1

1

0

1

1

1

13 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte
#(decimal)

0 0 Header

1 1 Header

2 2 Header

3 3 Header

4 4 Header

5 5 Header

6 6 Header

7 7 Header

8 8 EISA ID manufacturer name (“CMO”)

9 9 EISA ID manufacturer name (Compressed ASCII)

10 0A ID product code (N156B6-L02) 66

11 0B ID product code (hex LSB first; N156B6-L02) 15

12 0C ID S/N (fixed “0”)

13 0D ID S/N (fixed “0”)

14 0E ID S/N (fixed “0”)

15 0F ID S/N (fixed “0”)

16 10 Week of manufacture (fixed “00H”)

17 11 Year of manufacture (fixed “00H”)

18 12 EDID structure version # (“1”)

19 13 EDID revision # (“3”)

20 14 Video I/P definition (“digital”)

21 15 Max H image size (“35cm”)

22 16 Max V image size (“19cm”)

23 17 Display Gamma (Gamma = ”2.2”)

24 18 Feature support (“Active off, RGB Color”)

25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)

26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)

27 1B Red-x (Rx = “0.602”)

28 1C Red-y (Ry = “0.340”)

29 1D Green-x (Gx = ”0.306”)

30 1E Green-y (Gy = ”0.530”)

31 1F Blue-x (Bx = ”0.151”)

32 20 Blue-y (By = ”0.120”)

33 21 White-x (Wx = ”0.313”)

34 22 White-y (Wy = ”0.329”)

35 23 Established timings 1

36 24 Established timings 2

37 25 Manufacturer’s reserved timings

38 26 Standard timing ID # 1

39 27 Standard timing ID # 1

Byte
#(hex)Field Name and Comments Value(hex) Value(binary)

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

00 00000000

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

00 00000000

0D 00001101

AF 10101111

01100110

00010101

00 00000000

00 00000000

00 00000000

00 00000000

28 00101000

11 00010001

01 00000001

03 00000011

80 10000000

23 00100011

13 00010011

78 01111000

0A 00001010

07 00000111

F5 11110101

9A 10011010

57 01010111

4E 01001110

87 10000111

26 00100110

1E 00011110

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

14 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

40 28 Standard timing ID # 2

41 29 Standard timing ID # 2

42 2A Standard timing ID # 3

43 2B Standard timing ID # 3

44 2C Standard timing ID # 4

45 2D Standard timing ID # 4

46 2E Standard timing ID # 5

47 2F Standard timing ID # 5

48 30 Standard timing ID # 6

49 31 Standard timing ID # 6

50 32 Standard timing ID # 7

51 33 Standard timing ID # 7

52 34 Standard timing ID # 8

53 35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“75.5MHz”, According to

54 36

55 37 # 1 Pixel clock (hex LSB first)

56 38 # 1 H active (“1366”)

57 39 # 1 H blank (“194”)

58 3A # 1 H active : H blank (“1366 :194”)

59 3B # 1 V active (”768”)

60 3C # 1 V blank (”38”)

61 3D # 1 V active : V blank (”768 :38”)

62 3E # 1 H sync offset (”31”)

63 3F # 1 H sync pulse width ("65”)

64 40 # 1 V sync offset : V sync pulse width (”4 : 12”)

65 41

66 42 # 1 H image size (”344 mm”)

67 43 # 1 V image size (”193 mm”)

68 44 # 1 H image size : V image size (”344 : 193”)

69 45 # 1 H boarder (”0”)

70 46 # 1 V boarder (”0”)

71 47

72 48 Detailed timing description # 2

73 49 # 2 Flag

74 4A # 2 Reserved

75 4B # 2 FE (hex) defines ASCII string (Model Name “N156B6-L02”, ASCII)

76 4C # 2 Flag

77 4D # 2 1st character of name (“N”)

78 4E # 2 2nd character of name (“1”)

79 4F # 2 3rd character of name (“5”)

80 50 # 2 4th character of name (“6”)

81 51 # 2 5th character of name (“B”)

82 52 # 2 6th character of name (“6”)

83 53 # 2 7th character of name (“-”)

VESA CVT Rev1.1)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
(”31: 65 : 4 : 12”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
Negatives

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

7E 01111110

1D 00011101

56 01010110

C2 11000010

50 01010000

00 00000000

26 00100110

30 00110000

1F 00011111

41 01000001

4C 01001100

00 00000000

58 01011000

C1 11000001

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

35 00110101

36 00110110

42 01000010

36 00110110

2D 00101101

15 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

84 54 # 2 8th character of name (“L”)

85 55 # 2 9th character of name (“0”)

86 56 # 2 9th character of name (“2”)

87 57 # 2 New line character indicates end of ASCII string

88 58 # 2 Padding with “Blank” character

89 59 # 2 Padding with “Blank” character

90 5A Detailed timing description # 3

91 5B # 3 Flag

92 5C # 3 Reserved

93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

94 5E # 3 Flag

95 5F # 3 1st character of string (“C”)

96 60 # 3 2nd character of string (“M”)

97 61 # 3 3rd character of string (“O”)

98 62 # 3 New line character indicates end of ASCII string

99 63 # 3 Padding with “Blank” character

100 64 # 3 Padding with “Blank” character

101 65 # 3 Padding with “Blank” character

102 66 # 3 Padding with “Blank” character

103 67 # 3 Padding with “Blank” character

104 68 # 3 Padding with “Blank” character

105 69 # 3 Padding with “Blank” character

106 6A # 3 Padding with “Blank” character

107 6B # 3 Padding with “Blank” character

108 6C Detailed timing description # 4

109 6D # 4 Flag

110 6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N156B6-L02”,

111 6F

112 70 # 4 Flag

113 71 # 4 1st character of name (“N”) 4E

114 72 # 4 2nd character of name (“1”) 31

115 73 # 4 3rd character of name (“5”) 35

116 74 # 4 4th character of name (“6”) 36

117 75 # 4 5th character of name (“B”) 42

118 76 # 4 6th character of name (“6”) 36

119 77 # 4 7th character of name (“-”) 2D

120 78 # 4 8th character of name (“L”) 4C

121 79 # 4 9th character of name (“0”)

122 7A # 4 9th character of name (“2”)

123 7B # 4 New line character indicates end of ASCII string

124 7C # 4 Padding with “Blank” character

125 7D # 4 Padding with “Blank” character

126 7E Extension flag

127 7F Checksum

ASCII)

4C 01001100

30 00110000

32 00110010

0A 00001010

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

32 00110010

0A 00001010

20 00100000

20 00100000

00 00000000

49 01001001

01001110

00110001

00110101

00110110

01000010

00110110

00101101

01001100

16 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 50 (76) (85) MHz (2)

Vertical Total Time TV (778) (806) (888) TH -

Vertical Active Display Period TVD 768 768 768 TH -

DE

Vertical Active Blanking Period TVB TV-TVD (38) TV-TVD TH

Horizontal Total Time TH (1446) (1560) (1936) Tc (2)

Horizontal Active Display Period THD 1366 1366 1366 Tc (2)

Horizontal Active Blanking Period THB

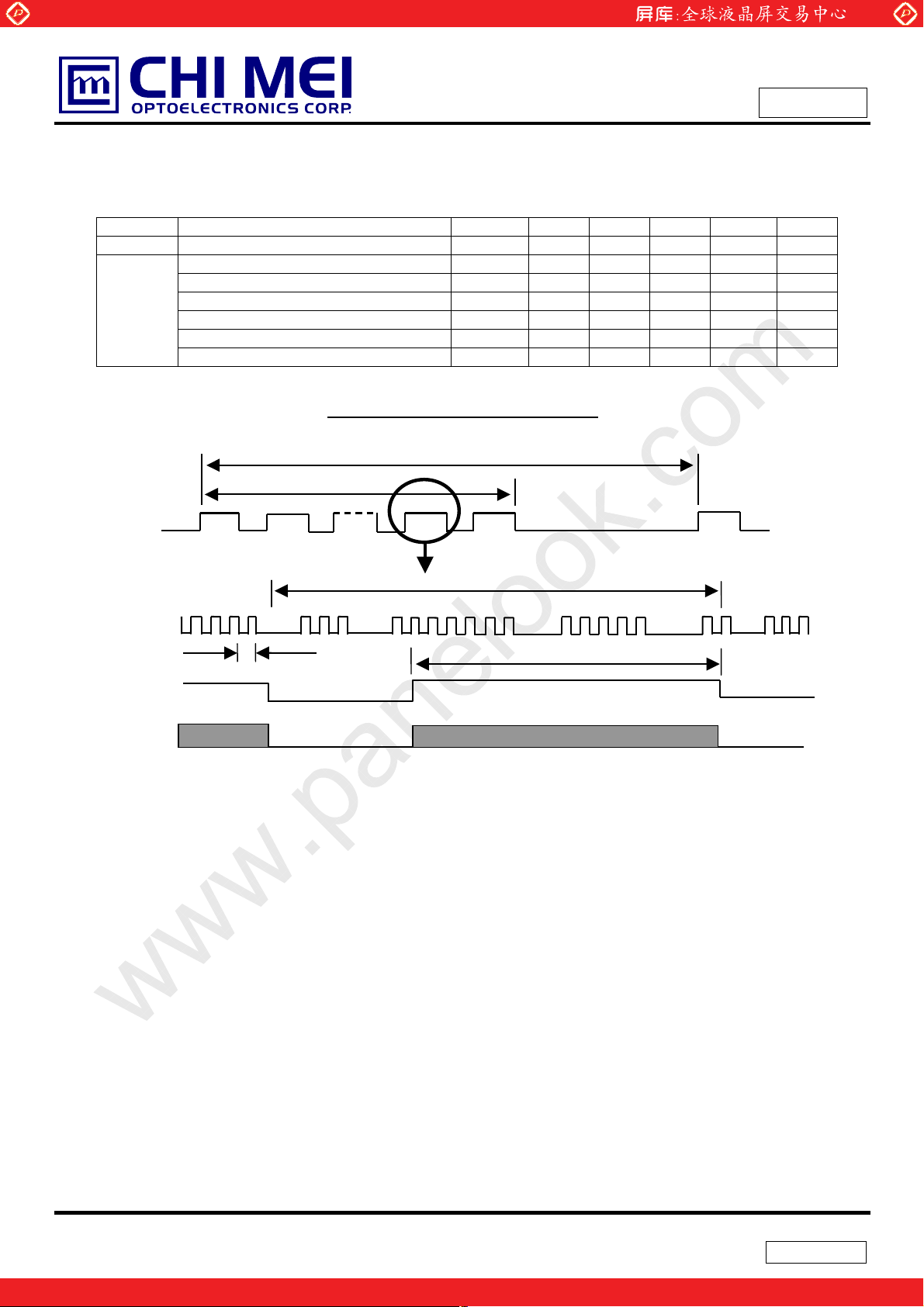

INPUT SIGNAL TIMING DIAGRAM

www.panelook.com

TH-THD

(194)

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

TH-THD

Tc (2)

DE

DCLK

DE

DATA

TC

HD

T

17 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Power Supply

for LCD, Vcc

0V

- Interface Signal

(LVDS Signal of
Transmitter), V

0V

I

- Power for LED

Timing Specifications:

0.5< t1 <= 10 msec

0 < t2 <= 50 msec

0 < t3 <= 50 msec

t4 >= 500 msec

Power On

90%

10%

10%

Restart

10%

t4

Power Off

t7

90%

t1

t3t2

Valid Data

t6t5

50%50%

ONOFF OFF

t5 >= 200 msec

t6 >= 200 msec

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5msЉt7Љ300 ms.

18 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Converter Current IL (120) mA

The measurement methods of optical characteristics are shown in Section 7.2. The following items

should be measured under the test conditions described in Section 7.1 and stable environment shown in

Note (5).

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 350 500 - - (2), (5)

Response Time

Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points GW

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

o

25r2

50r10

TR - 3 8 ms
T

- 7 12 ms

F

L

AVE

Rx
Ry
Gx
Gy
Bx
By

=0q, TY =0q

T

x

Viewing Normal Angle

175 220 - cd/m2(4), (6)

TBD
TBD
TBD

TYP.

-0.05

TBD
TBD

TYP.

+0.05

TBD
Wx 0.313 ­Wy

Tx+

T

x

TY+

T

Y

-

-

5p

CRt10

Tx=0q, TY =0q

0.329
40 45 ­40 45 ­15 20 ­40 45 ­75 85 - % (5),(6)

C

%RH

(3)

-

-

-

-

-

(1)

-

-

Deg. (1),(5)

19 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.67 ms

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Normal

Tx = Ty = 0º

Ty- Ty

TX- = 90º

6 o’clock

T

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Tx

Tx

12 o’clock direction

y+

T

y+ = 90º

x+

TX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

R

66.67 ms

, TF):

R

20 / 28

66

Time

T

F

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

500

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

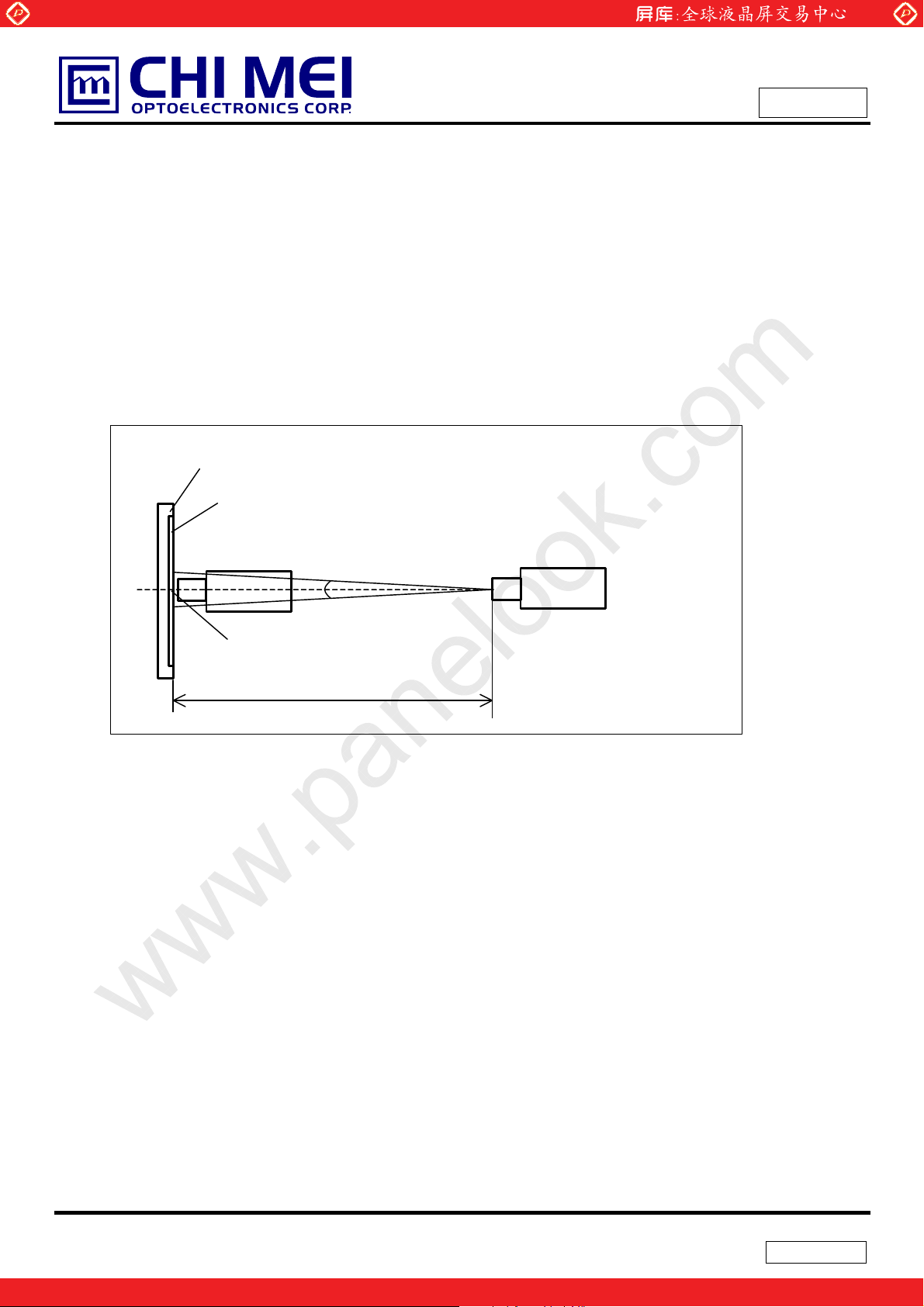

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

ʳ

LCD Module

LCD Panel

USB2000

AVE

):

CS-1000T

Center of the Screen

mm

Light Shield Room

(Ambient Luminance < 2 lux)

21 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

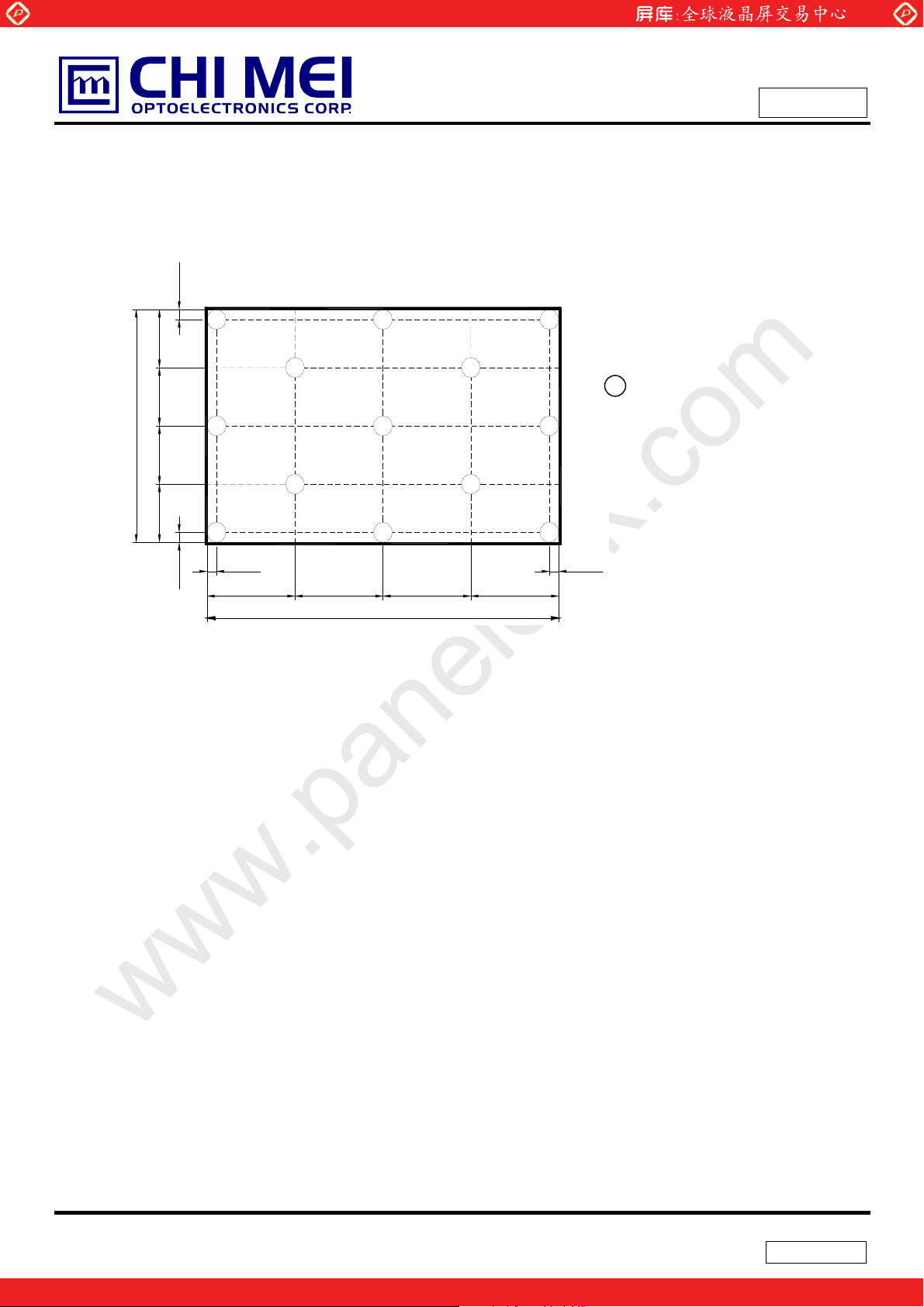

Note (6) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW

= Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

5p

˄˃

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

ˉ

˛˂ˇ

˅

˄˃

ˌ

ˇˈ

˄˄

˄˃ ˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ ˇ

˛

˛˂ˇ ˛˂ˇ ˛˂ˇ

ˊ

ˆ

˄

˄˅

˪

ˋ

X

: Test Point

˄˃

˄ˆ

X=1 to 13

Active area

22 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the LED wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

8.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of LED will be higher than the room

temperature.

8.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

23 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. PACKING

9.1 CARTON

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

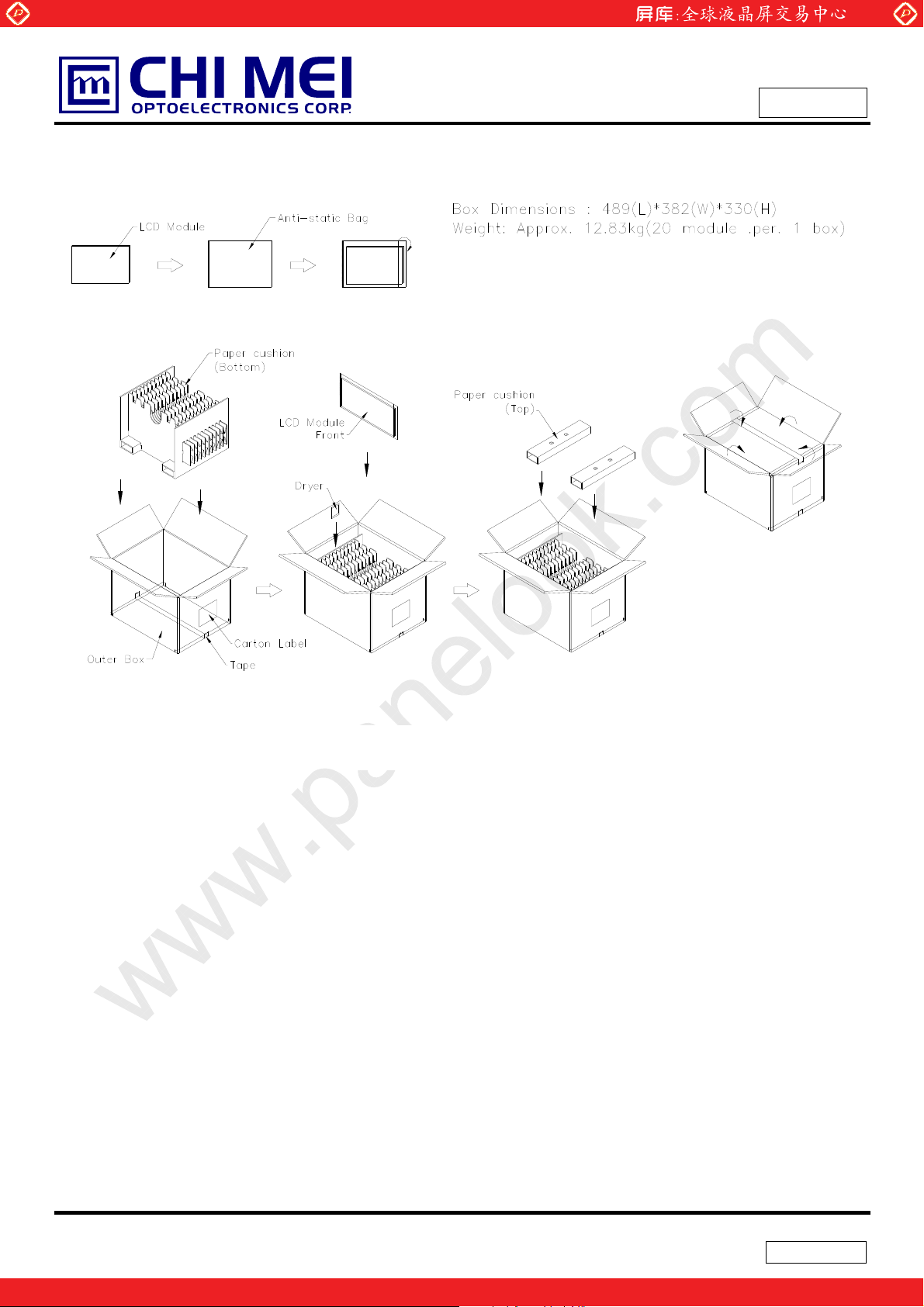

Figure. 9-1 Packing method

24 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9.2 3$//(7

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

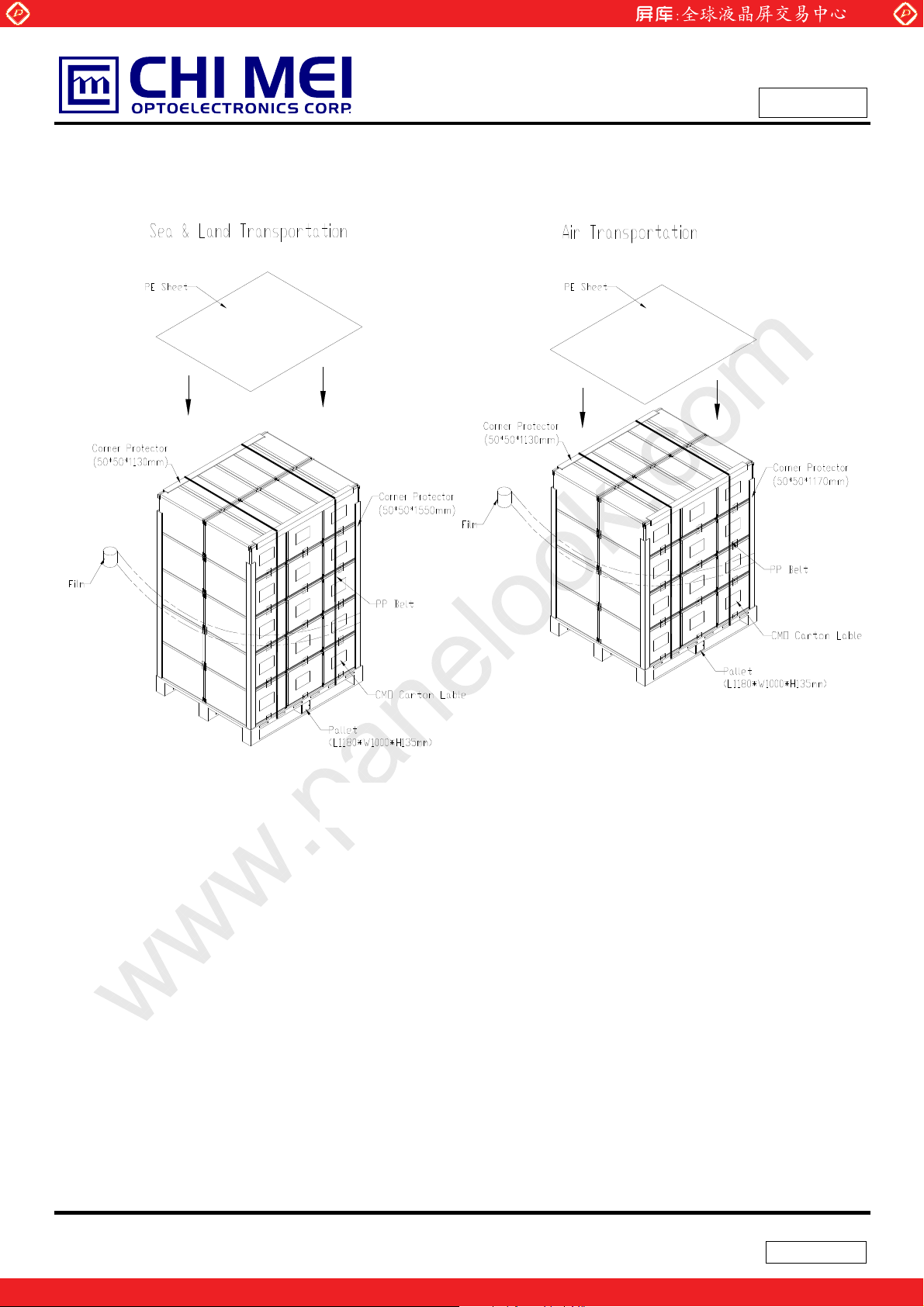

Figure. 9-2 Packing method

25 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

10. DEFINITION OF LABELS

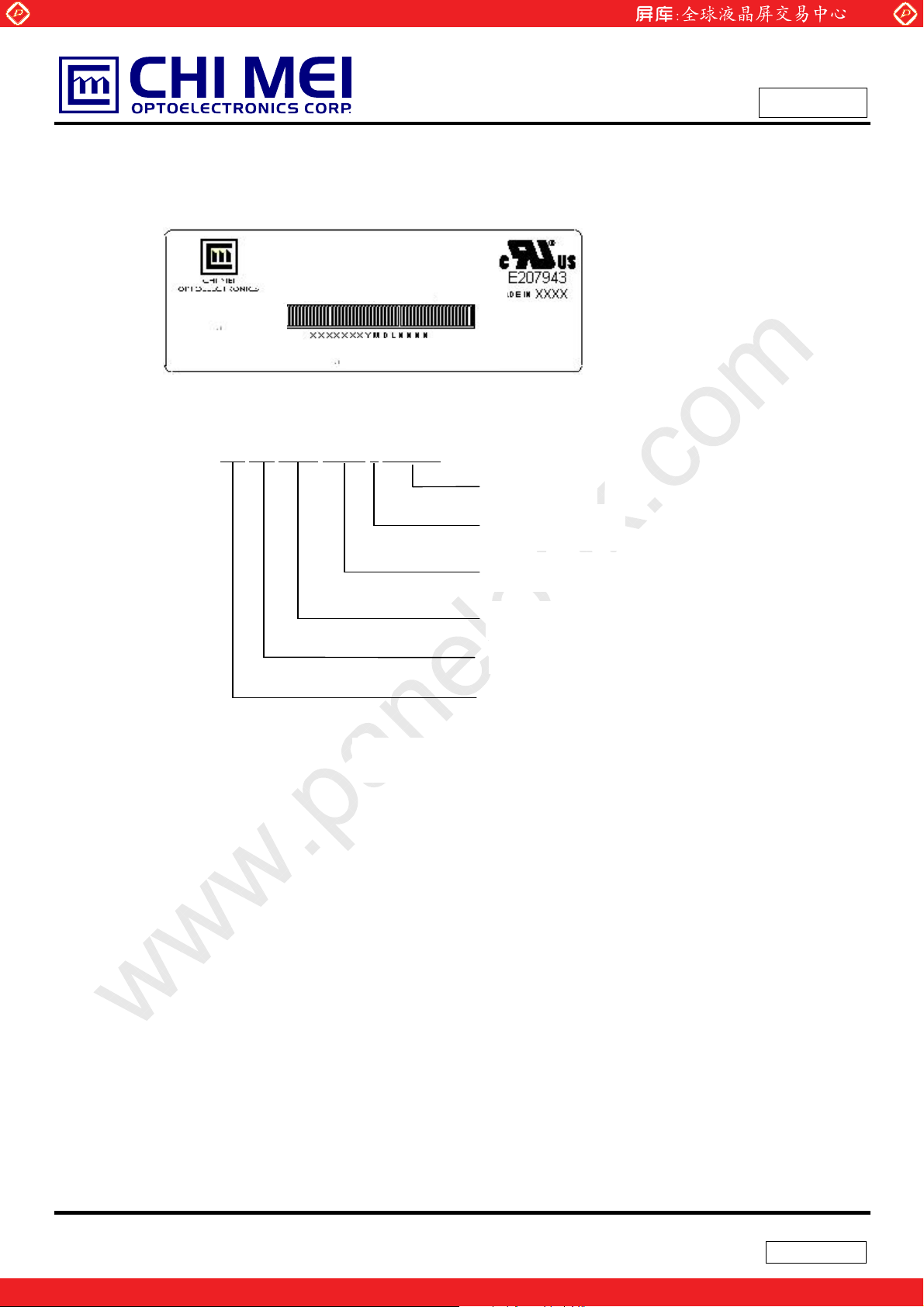

10.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

-

(a) Model Name: N156B6 - L02

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D L N N N N

Rev. XX

xxxx

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

Figure. 9-3 Packing method

st

to 31st, exclude I , O and U

26 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

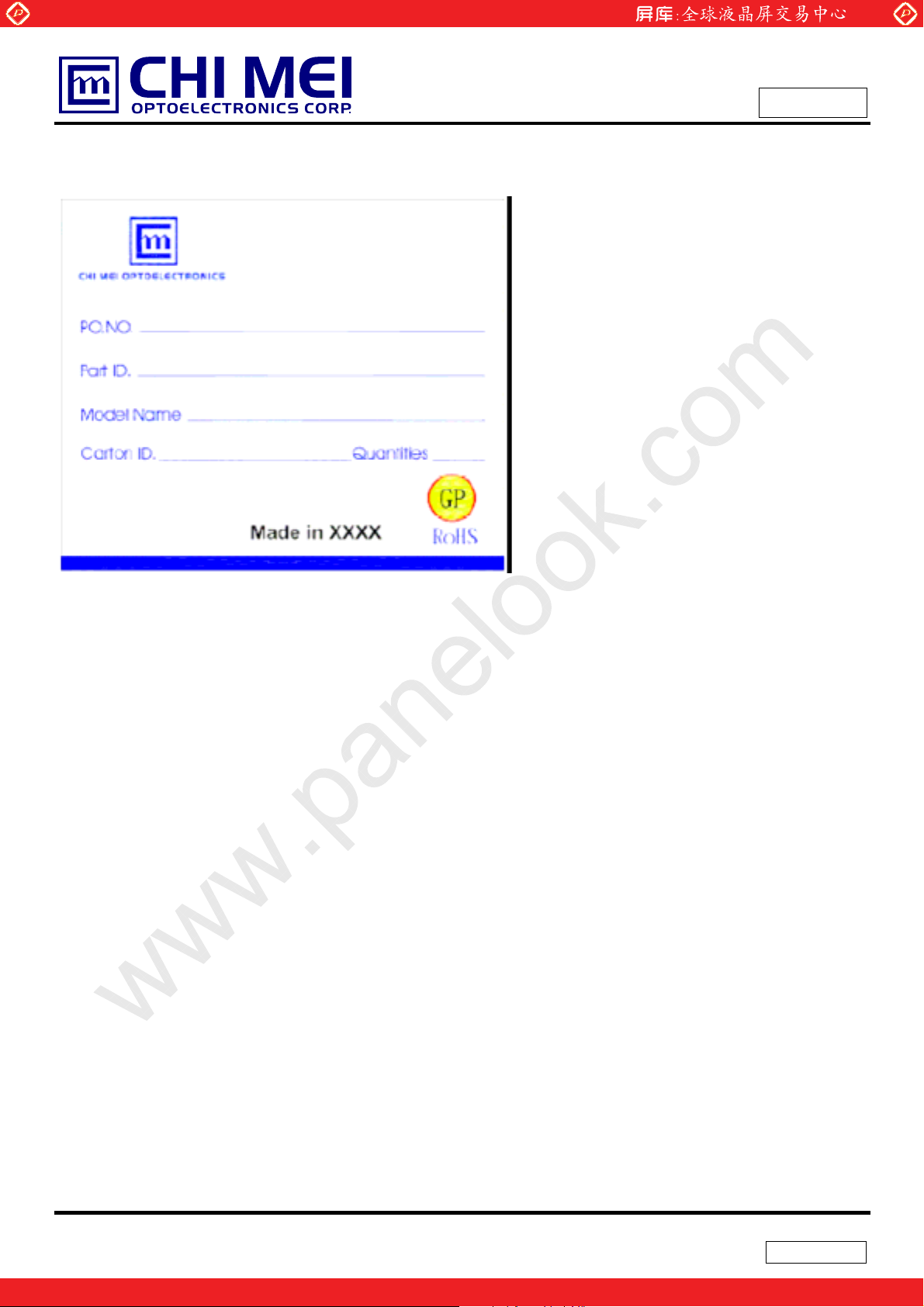

10.2 CARTON LABEL

www.panelook.com

Doc No.:

Issued Date: Apr. 08, 2008

Model No.: N156B6-L02

Tentative

27 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
