TFT LCD Approval Specification

MODEL NO.: N156B3-L04

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

Customer : Sony

Approved by :

Note :

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2009.12.25

Director Accept

2009-12-25

14:21:44

NB

1 / 30

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

8.2 STORAGE PRECAUTIONS

8.3 OPERATION PRECAUTIONS

9. PACKING ------------------------------------------------------- 26

9.1 CARTON

9.2 PALLET

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

10.2 CARTON LABEL

------------------------------------------------------- 4

------------------------------------------------------- 5

------------------------------------------------------- 7

------------------------------------------------------- 12

------------------------------------------------------- 13

------------------------------------------------------- 19

------------------------------------------------------- 21

------------------------------------------------------- 25

------------------------------------------------------- 28

11. MECHANICAL DRAWING

------------------------------------------------------- 30

2 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

REVISION HISTORY

Version Date

Ver. 3.0

Ver. 3.1

Jul. 15, 2009

Dec.21, 2009

Page

(New)

All

All

Section Description

Approval specification 3.0 was first issued for Sony.

All

Approval specification 3.1 was first issued for Sony.

All

3 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N156B3-L04 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with single CCFL Backlight

unit and 30 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144

colors. The optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- HD (1366 x 768 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

1.3 APPLICATION

- TFT LCD Notebook

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note

Active Area

Bezel Opening Area 348.43 (H) x 197.74 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.252 (H) x 0.252 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -

(15.547” diagonal, equals to 39.489cm )

344.232(H) × 193.536(V)
mm

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 358.8 359.3 359.8 mm

Module Size

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 209 209.5 210 mm
Thickness(T) - 5.9 6.2 mm

Weight --- 500 515 g -

(1)

(1)

4 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.

Relative Humidity (%RH)

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20

10

Storage Range

8060-20 40 0 20 -40

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCCS+0.3 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - 803 V
Lamp Current IL - 7.0 mA
Lamp Frequency FL 45 80 KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

www.panelook.com

Value

Min. Max.

Value

Min. Max.

Unit Note

Unit Note

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

(1)

(1), (2), IL = 6.0 mA

RMS

RMS

(1), (2)

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).

6 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage VCCS 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White - 260 360 mA (3)a
Black

lcc

TH(LVDS)

-100 - - mV

TL(LVDS)

- 370 450 mA (3)b

- - +100 mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (4)
LVDS Differential Input Voltage |VID| 100 - 600 mV (4)
LVDS Terminating Resistor RT - 100 - Ohm -

Power per EBL WG PEBL - 3.79 - W (5)

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Approval

(4),

=1.2V

V

CM

(4)

=1.2V

V

CM

Note (2) I

: the maximum current when VCCS is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

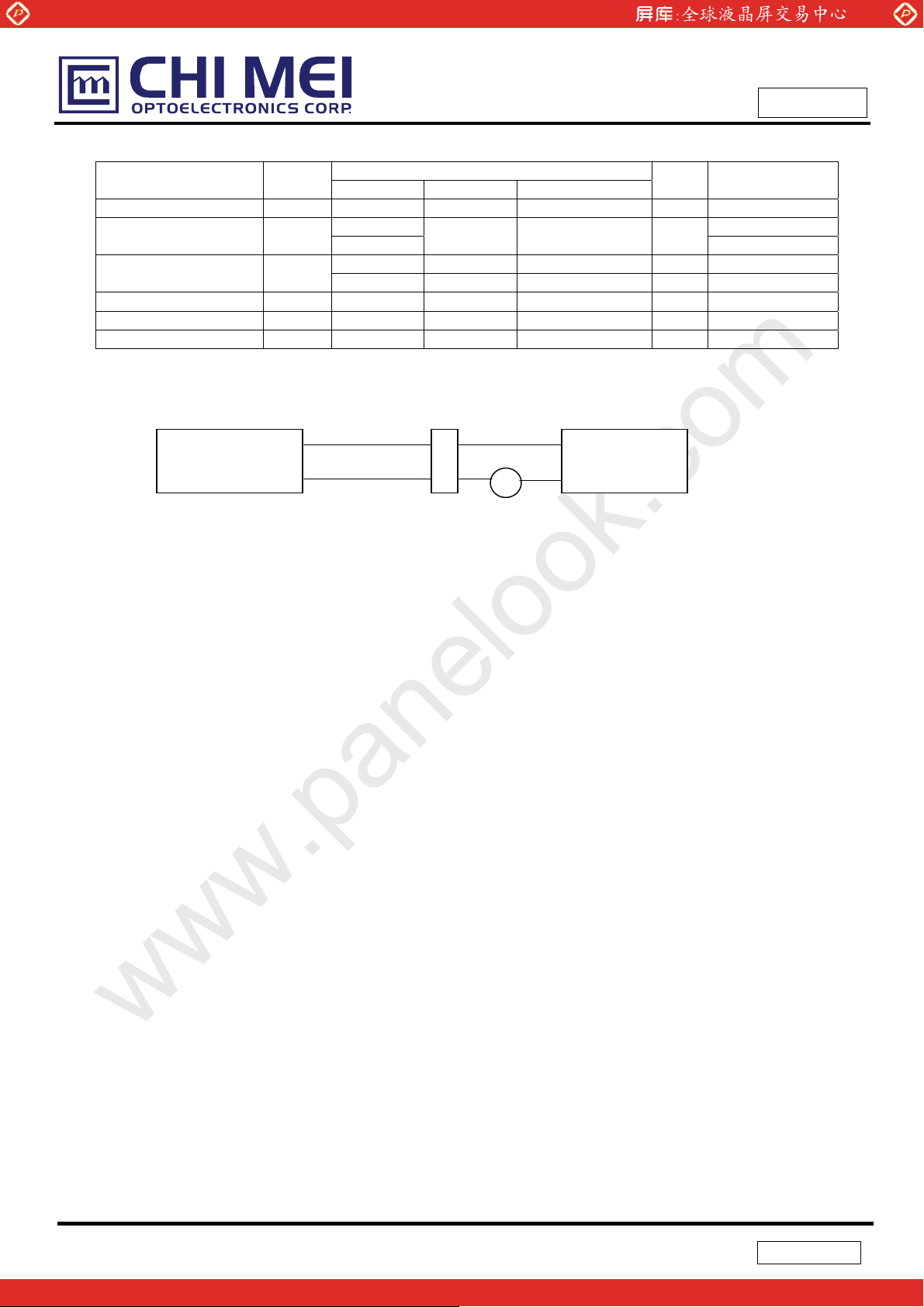

Measurement Conditions: Shown as the following figure. Test pattern: black.

+3.3V

Q1 2SK1475

R1

47K

FUSE

C3

1uF

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

VCCS

(LCD Module Input)

7 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

VCCS rising time is 0.5ms

8 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1

www.panelook.com

Global LCD Panel Exchange Center

|

|

Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Doc No.: 400035397
Issued Date: Dec. 21, 2009
Model No.: N156B3-L04

Approval

Current and f

Note (4) The parameters of LVDS signals are defined as the following figures.

a. White Pattern

Single Ended

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

CM

V

Active Area

VID|

Note (5) The specified power are the sum of LCD panel electronics input power and the converter input

Differential

power. Test conditions are as follows.

(a) VCCS = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

(d) The inverter used is provided from Sumida

0V

V

0V

V

= 60 Hz,

v

VID|

.

9 / 30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.1
