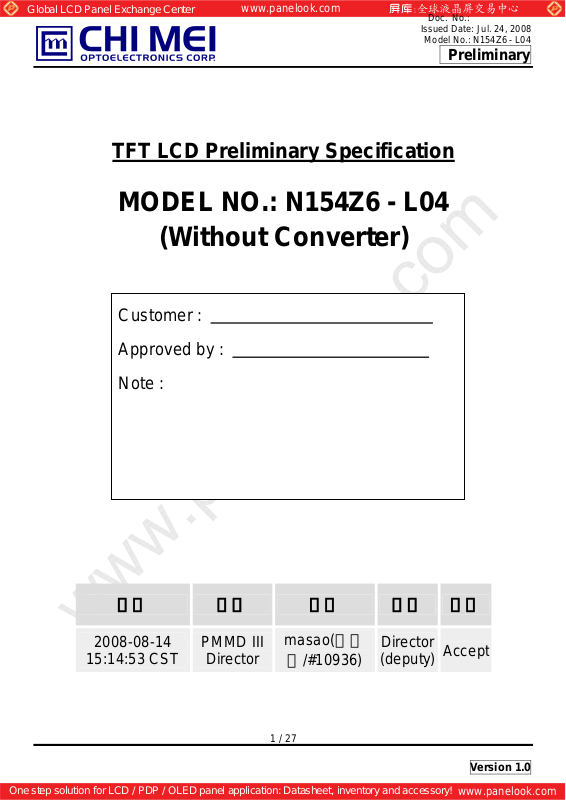

TFT LCD Preliminary Specification

MODEL NO.: N154Z6 - L04

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

(Without Converter)

Customer :

pproved by :

Note :

15:14:53 CST

記錄 工作 審核 角色 投票

2008-08-14

PMMD III

Director

masao(王正

雄/#10936)

1 / 27

Director

(deputy)

Accept

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATI NGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

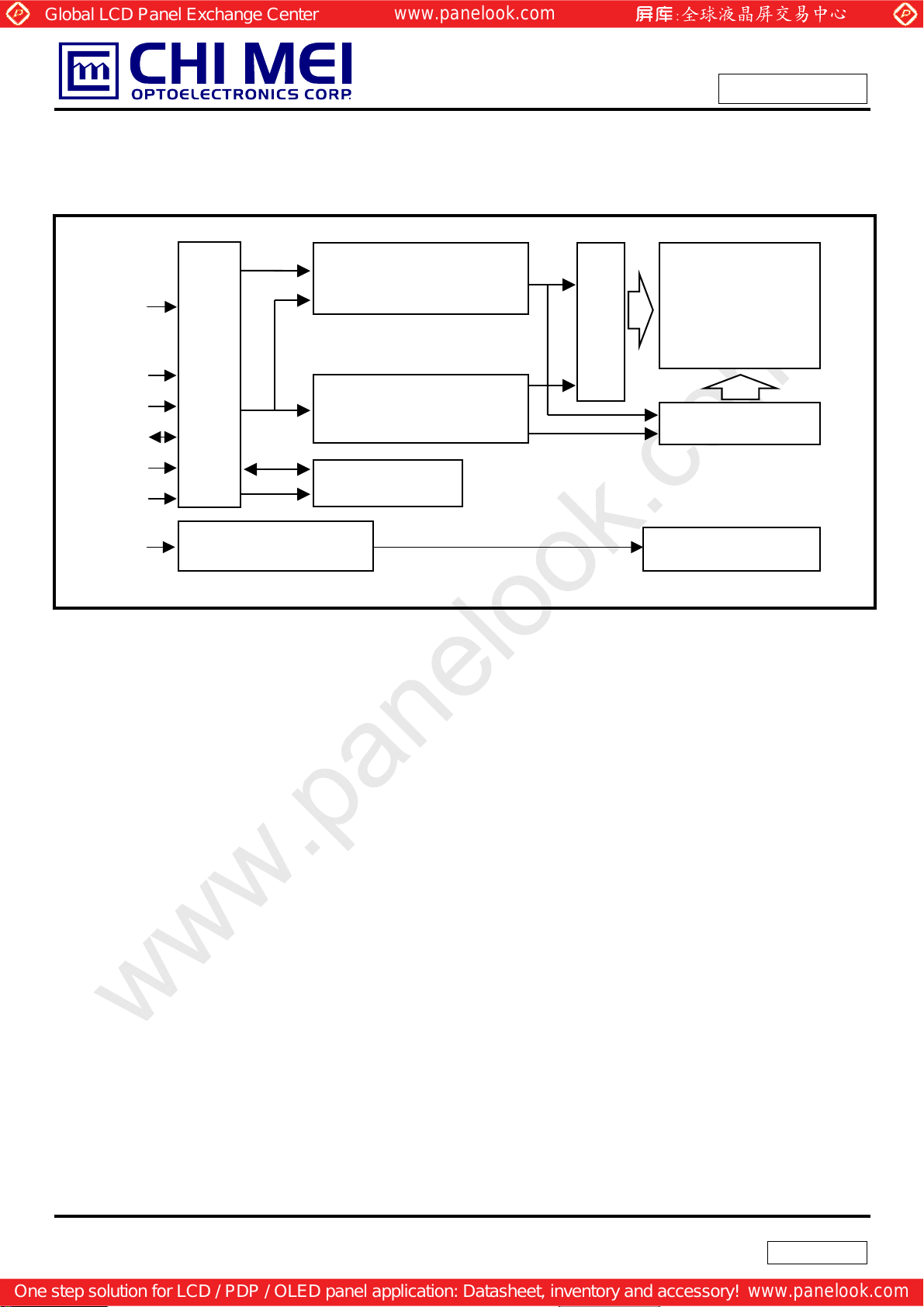

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

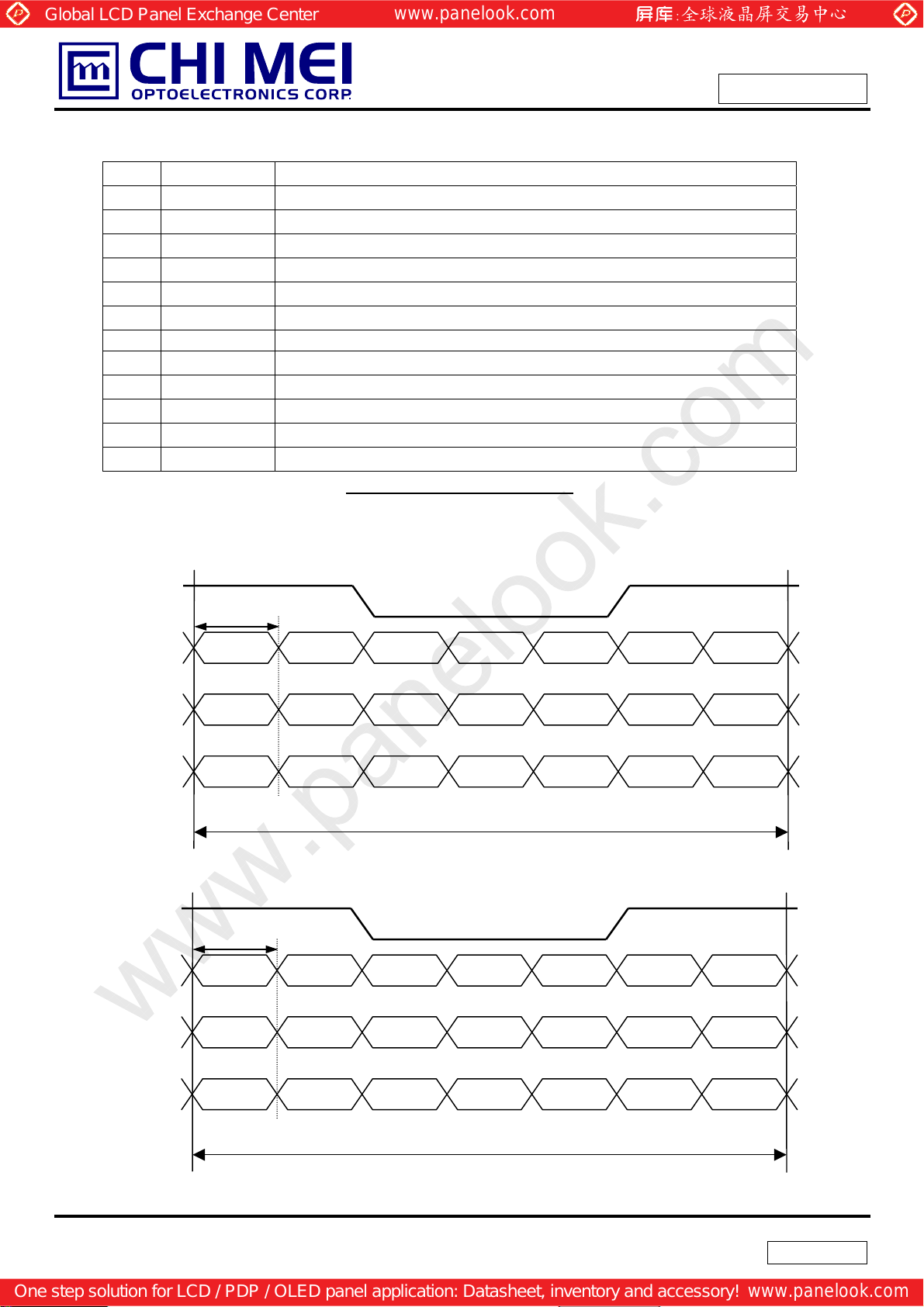

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID DATA STRUCTURE

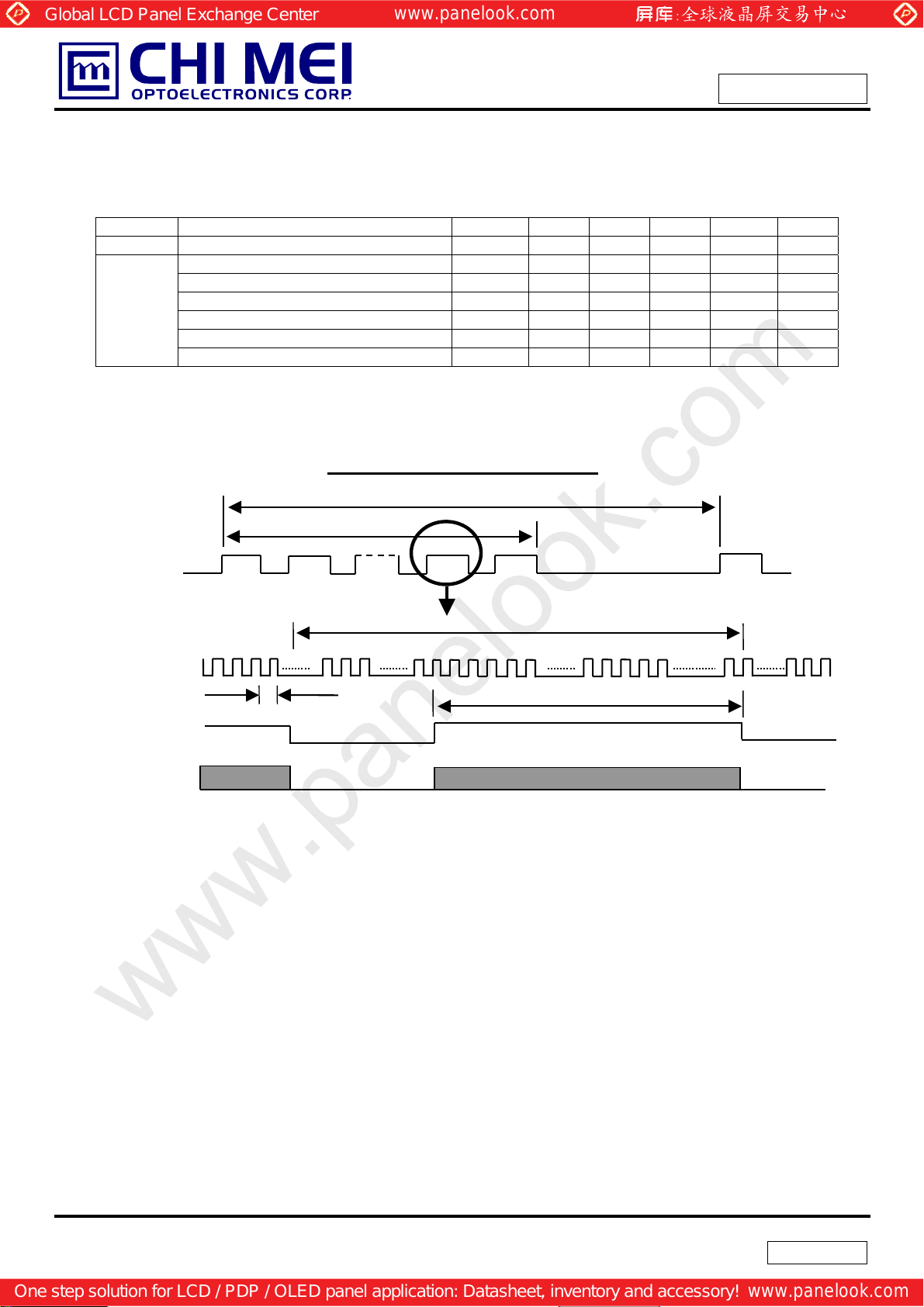

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS

8.1 ASSEMBL Y AND HANDLING PRECAUTIONS

8.2 SAFETY PRECAUTIONS

9. PACKING

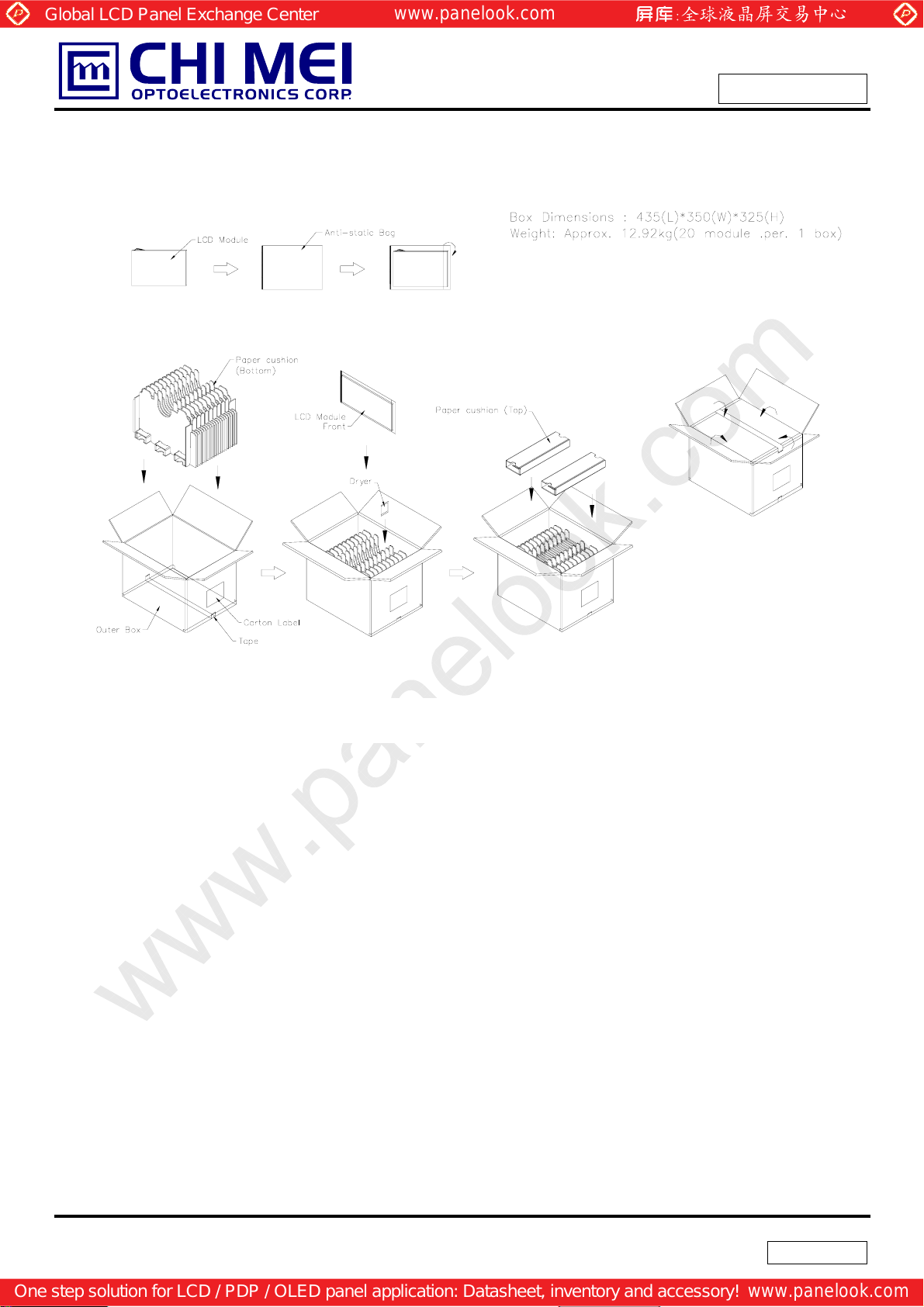

9.1 CARTON

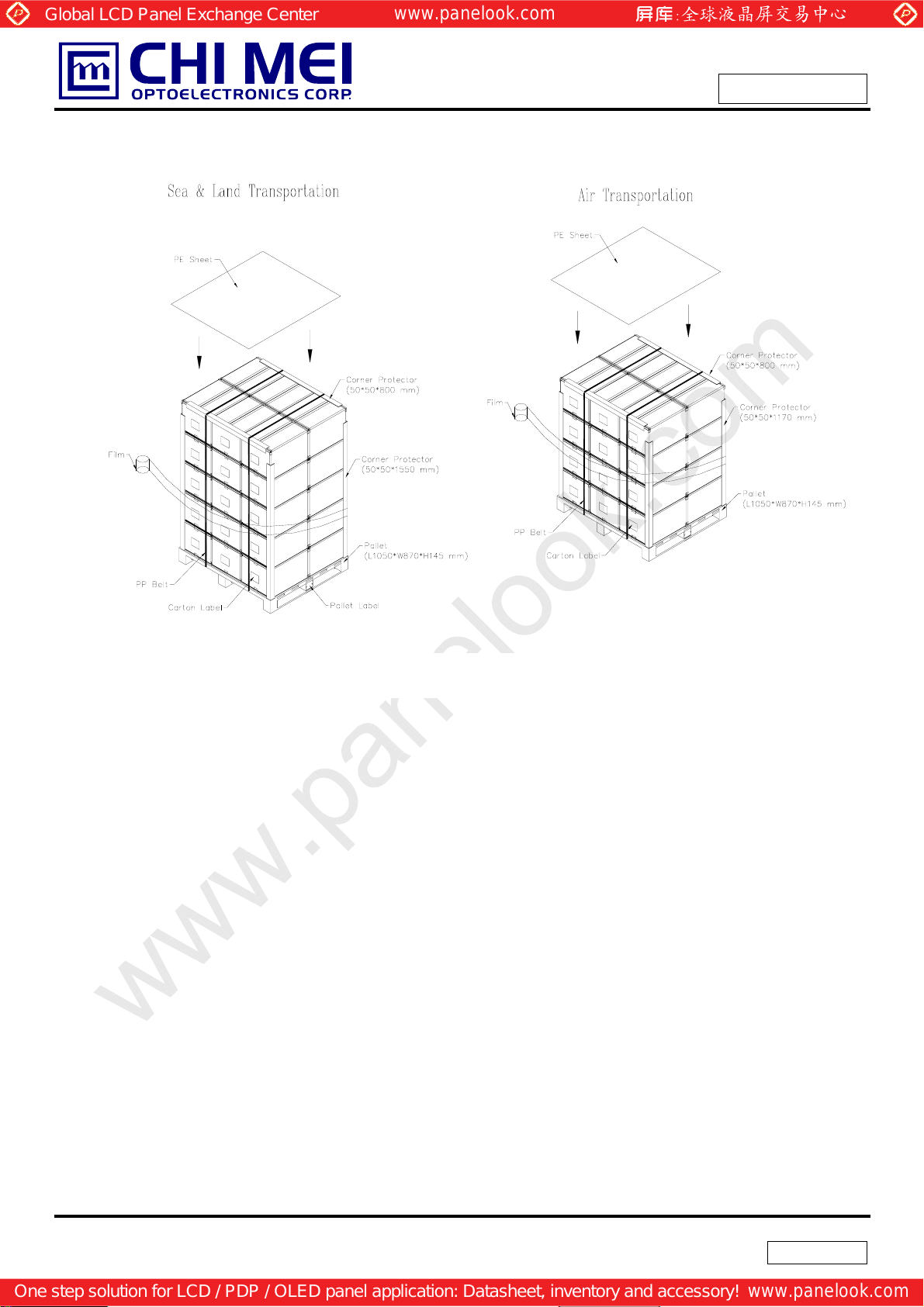

9.2 PALLET

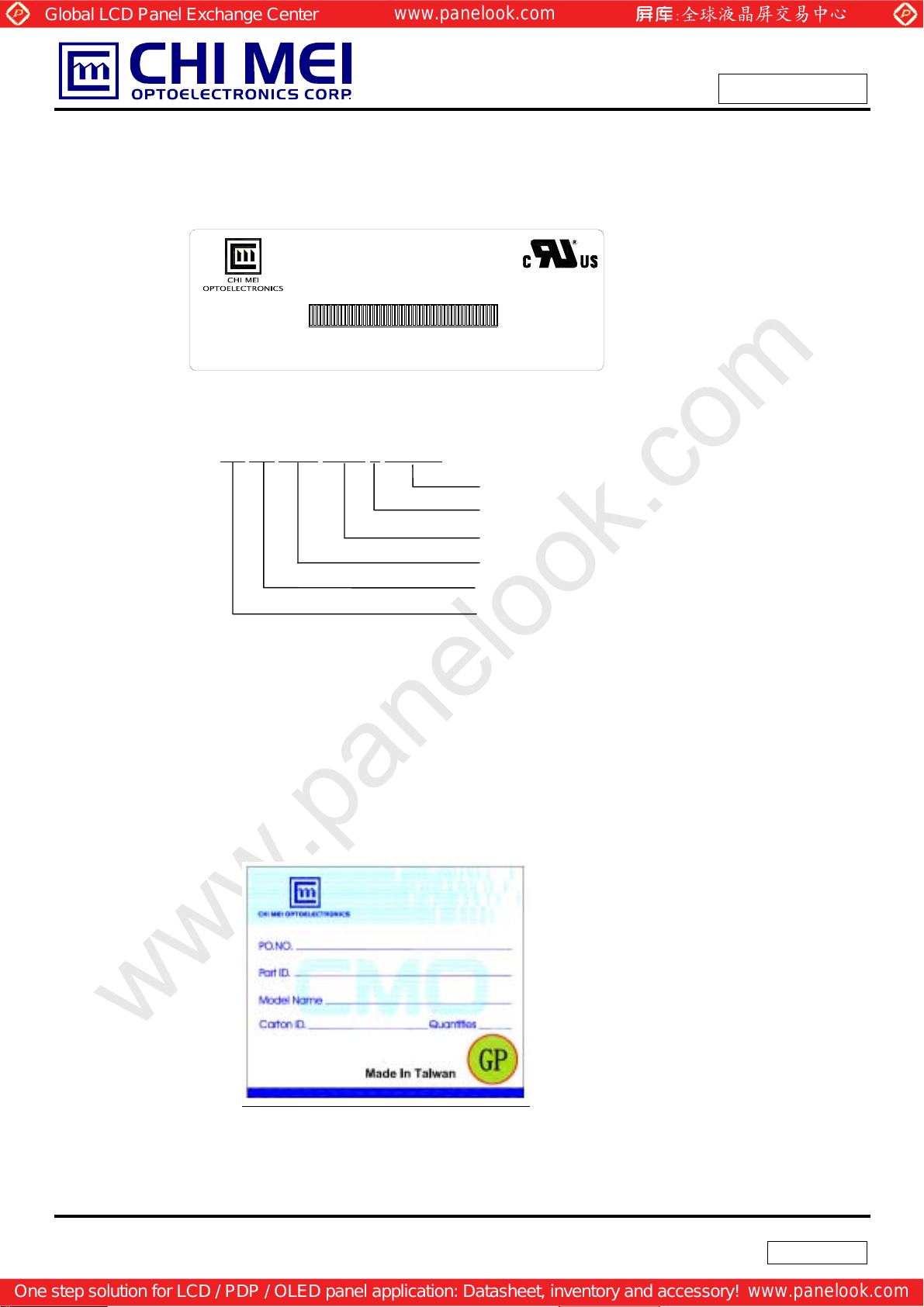

10. DEFINITION OF LABELS
10

.1 CMO MODULE LABEL

10.2 CMO CARTON LABEL

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

- CONTENTS -

------------------------------------------------------- 3

------------------------------------------------------- 4

------------------------------------------------------- 5

------------------------------------------------------- 7

------------------------------------------------------- 11

------------------------------------------------------- 12

------------------------------------------------------- 18

------------------------------------------------------- 20

------------------------------------------------------- 23

------------------------------------------------------- 24

------------------------------------------------------- 26

2 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Version Date

Ver 1.0

Jul. 24,’08 All

Page

(New)

REVISION HISTORY

Section Description

All

Preliminary Specification was first issued.

3 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N154Z6 - L04 is a 15.4” TFT Liquid Crystal Display module with single LED Backlight unit and 30 pins
LVDS interface. This module supports 1680 x 1050 Wide-SXGA+ mode and can display 262,144 colors.
The optimum viewing angle is at 6 o’clock direction.

1.2 FEATURES

- Thin and High Brightness

- WSXGA+ (1680 x 1050 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock

- Meet RoHS requirement

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

1.3 APPLICA TION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 331.128 (H) x 206.955 (V) (15.4 inch Diagonal) mm
Bezel Opening Area 335 (H) x 211.1 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1680 x 3 (RGB) x 1050 pixel ­Pixel Pitch 0.1971 x 0.1971 mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 343.5 344 344.5 mm

Module Size

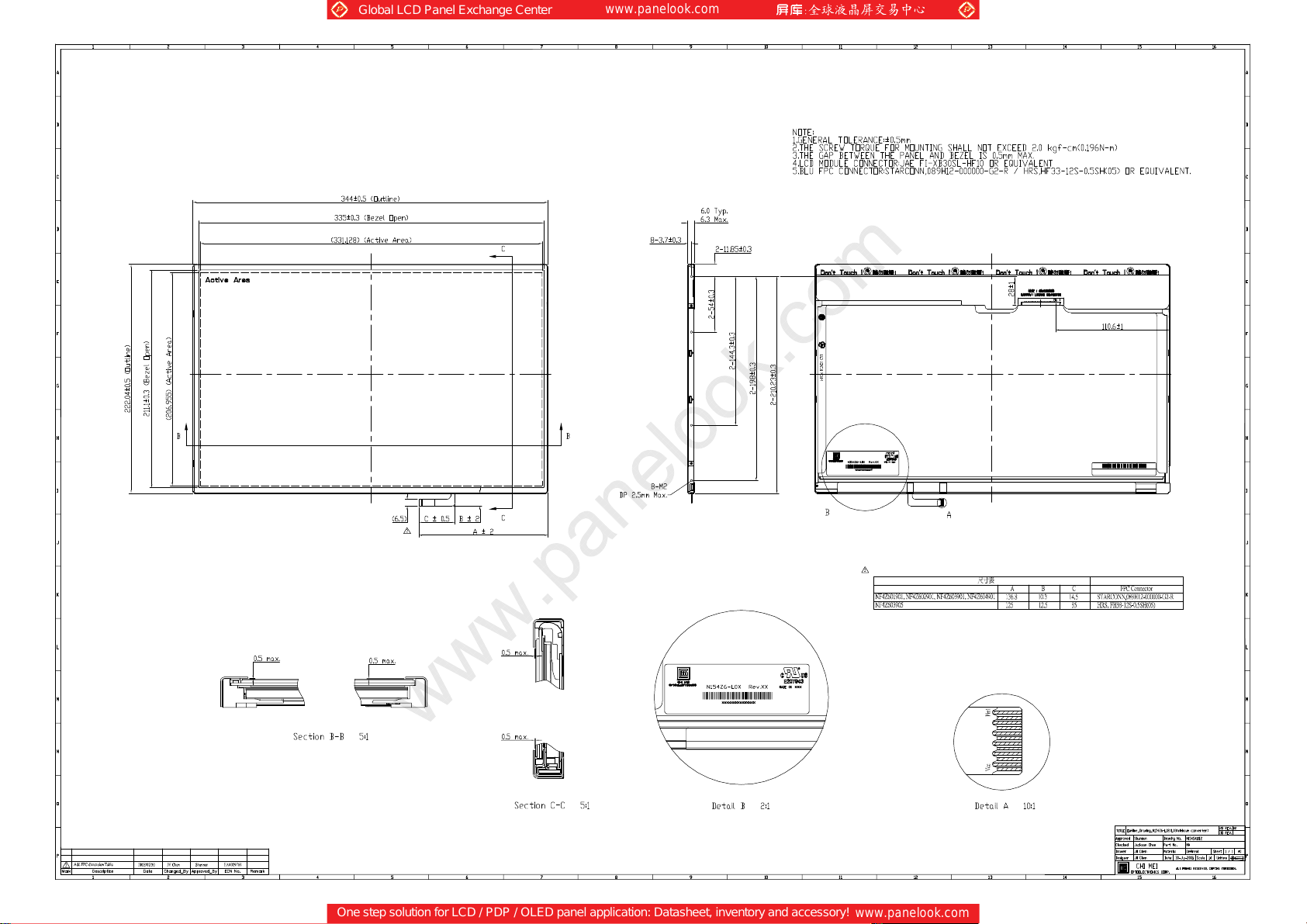

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical (V) 221.5 222 222.5 mm
Depth (D) --- 6.0 6.3 mm

Weight --- 515 530 g -

(1)

(1)

4 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient T emperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta ≦ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Value

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Unit Note

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,

8060 -20 400 20-40

Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

LCD Module

Side Mount Fixing Screw

gap=2mm

Side Mount Fixing Screw

Stage

Bracket

5 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V

2.2.2 BACKLIGHT UNIT

Item

LED Light Bar Power Supply Voltage 26.1 30.6 VDC
LED Light Bar Power Supply Current -- 150 mADC

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Value

Min. Max.

Value

Min Max.

Unit Note

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

(1)

Unit Note

(1), (2)

Note (2) Specified values are for LED (Refer to Section 3.2 for further information).

6 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP 50 mV ­Rush Current I

1.5 A (2)

RUSH

Initial Stage Current IIS 1.0 A (2)
Power Supply Current

LVDS Differential Input High Thresh old V
LVDS Differential Input Low Threshold V

White 350 380 mA (3)a
Black

Lcc

TH(LVDS)

TL(LVDS)

490 520 mA (3)b
+100 mV

-100 mV

LVDS Common Mode Voltage VCM 1.125 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 600 mV (5)
Terminating Resistor RT 100 Ohm
Power per EBL WG P

- TBD - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

V
V

(5),

=1.2V

CM

(5)

=1.2V

CM

Note (2) I
I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

Measurement Conditions: Shown as the following figure. Test pattern: black.

+3.3V

R1

47K

Q1 2SK1475

FUSE

C3
1uF

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

Vcc

(LCD Module Input)

7 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

0V

I

RUSH

Hz, whereas a power dissipation check pattern belo w is displayed.

a. White Pattern

Vcc rising time is 470us

0.9Vcc

470us

0.1Vcc

+3.3V

100ms

b. Black Pattern

I

IS

VCC

ICC

= 60

v

Note (4) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The converter used is provided from

CMO doesn’t provide the converter in this product.

Active Area

= 60 Hz,

v

. Please contact them for detail information.

Active Area

8 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

|

|

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

Single Ended

Differential

V

0V

V

0V

V

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

VID|

VID|

9 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol
LED light bar input

voltage
LED light bar input
current
LED Current Peak If - - 100 mADC Per EA
Power Consumption PO 2.35 3.46 4.59 W (2), IL = 120 mA
LED Life Time L

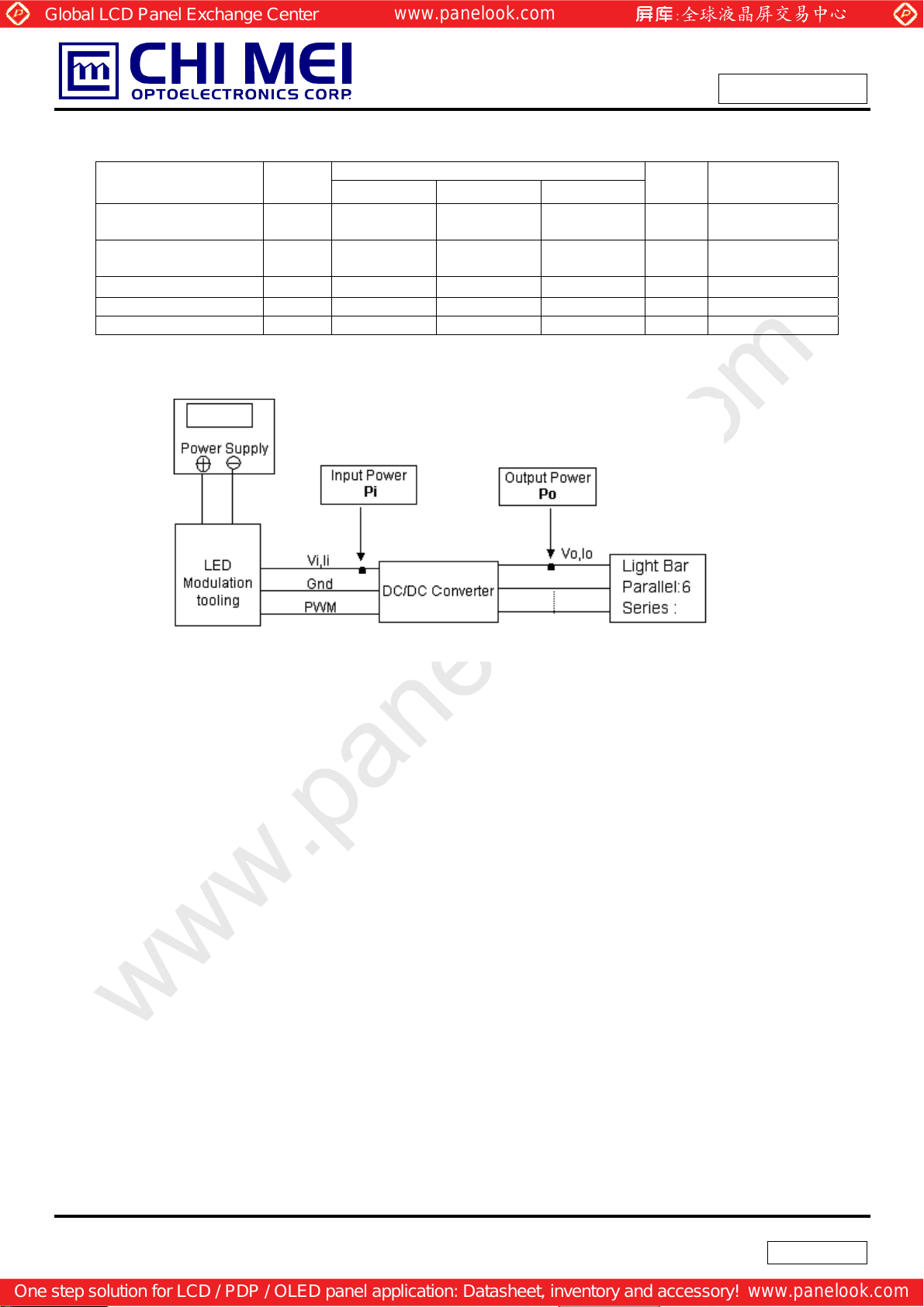

Note (1) LED current is measured by utilizing a high frequency current meter as shown below:

26.1 28.8 30.6 VDC (1), (Duty 100%)

V

O

90 120 150 mADC (1), (Duty 100%)

I

O

12000 - - Hrs (3)

LED

Min. Typ. Max.

Value

Unit Note

9

Note (2) PO = IO ×VO
Note (3) The lifetime of LED is defined as the time when it continues to operate under the conditions at

Ta = 25 ±2

o

C and I = 20 mA(Per EA) until the brightness becomes ≦ 50% of its original value.

10 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

LVDS Display
Data & Clock

Vcc

GND

Data

CLK

V

EDID

LED Power &

EDID

EDID

LVDS INPUT /

SCAN DRIVER IC

TIMING CONTROLLER

INPUT CONNECTOR

TFT LCD PANEL

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

DA TA DRIVER IC

EDID

EEPROM

LED

Converter

BACKLIGHT UNIT

11 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 VCC Power Supply +3.3 V (typical)
3 VCC Power Supply +3.3 V (typical)
4 V
5 NC Non-Connection
6 CLK
7 DATA
8 RXO0- LVDS Differential Data Input (Odd) Negative

9 RXO0+ LVDS Differential Data Input (Odd) Positive
10 Vss Ground
11 RXO1- LVDS Differential Data Input (Odd) Negative
12 RXO1+ LVDS Differential Data Input (Odd) Positive
13 Vss Ground
14 RXO2- LVDS Differential Data Input (Odd) Negative
15 RXO2+ LVDS Differential Data Input (Odd) Positive
16 Vss Ground
17 RXOC- LVDS Clock Data Input (Odd) Negative
18 RXOC+ LVDS Clock Data Input (Odd) Positive
19 Vss Ground

20 RXE0- LVDS Differential Data Input (Even) Negative
21 RXE0+ LVDS Differential Data Input (Even) Positive

22 Vss Ground
23 RXE1- LVDS Differential Data Input (Even) Negative
24 RXE1+ LVDS Differential Data Input (Even) Positive
25 Vss Ground
26 RXE2- LVDS Differential Data Input (Even) Negative
27 RXE2+ LVDS Differential Data Input (Even) Positive
28 Vss Ground
29 RXEC- LVDS Clock Data Input (Even) Negative
30 RXEC+ L V DS Clock Data Input (Even) Positive

Note (1) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent

DDC 3.3V Power

EDID

DDC Clock

EDID

DDC Data

EDID

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Note (2) User’s connector Part No: FI-X30C2L or equivalent

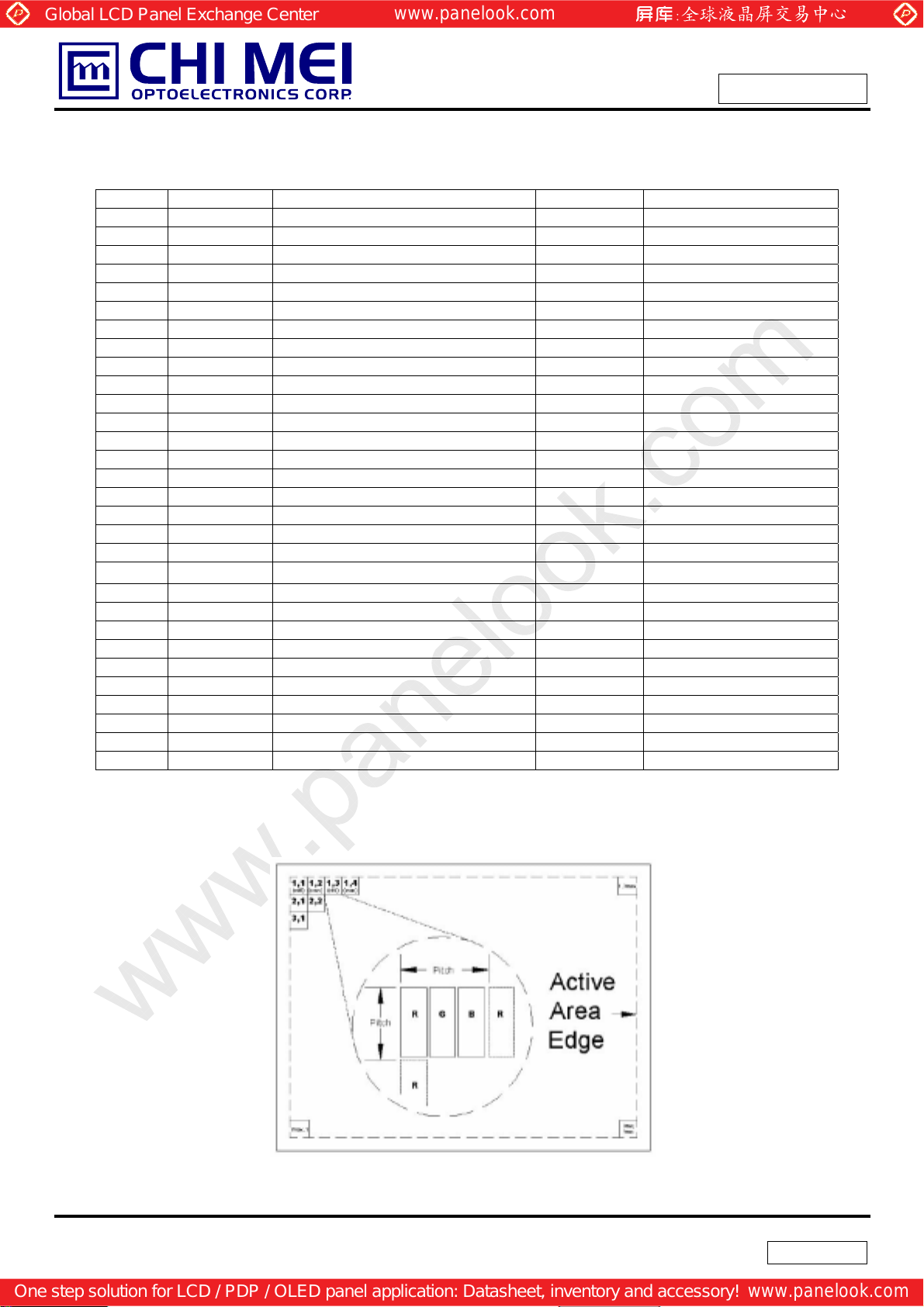

Note (3) The first pixel is odd as shown in the following figure.

12 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

5.2 BACKLIGHT UNIT

Pin Symbol Description

1 V

L

Light-bar Feedback Channel 1
2 VL Light-bar Feedback Channel 2
3 VL Light-bar Feedback Channel 3
4 NC Light-bar Feedback Channel 4
5 CH1 Light-bar Feedback Channel 5
6 CH2 Light-bar Feedback Channel 6
7 CH3 Light-bar Feedback Channel 7

8 CH4 Light-bar Feedback Channel 8
9 CH5 No connection

10 CH6 LED Light-bar Input Power
11 CH7 LED Light-bar Input Power
12 CH8 LED Light-bar Input Power

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Note (1) User’s connector Part No: St arconn 089H12-000000-G2-R or equivalent.

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

RXOC+/-

RXO2+/-

RXO1+/-

RXO0+/-

RXEC+/-

RXE2+/-

RXE1+/-

RXE0+/-

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE OB5 OB4 OB3 OB2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

OB1 OG4 OG3 OG2 OG1 OB0 OG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0

OG0 OR3 OR2 OR1 OR0 OR5 OR4

Signal for 1 DCLK Cycle (T)

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE EB5

IN13 IN12 IN11 IN10 IN9 IN8 IN7

EB1 EG4 EG3 EG2 EG1 EB0 EG5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

E

EB3 EB2 Vsync Hsync

EG0 ER3 ER2 ER1 ER0 ER5 ER4

Signal for 1 DCLK Cycle (T)

13 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

14 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.

Byte #

(decimal)

10 0A
11 0B
12 0C
13 0D
14 0E
15 0F
16 10
17 11
18 12
19 13
20 14
21 15
22 16
23 17
24 18
25 19
26 1A
27 1B
28 1C
29 1D
30 1E
31 1F
32 20
33 21
34 22
35 23
36 24
37 25
38 26
39 27
40 28
41 29

Byte #

(hex)

0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9

Field Name and Comments
Header

Header
Header
Header
Header
Header
Header
Header
EISA ID manufacturer name (“CMO”)
EISA ID manufacturer name (Compressed ASCII)
ID product code (N154Z6-L04) 73
ID product code (hex LSB first; N154Z6-L04) 15
ID S/N (fixed “0”)
ID S/N (fixed “0”)
ID S/N (fixed “0”)
ID S/N (fixed “0”)
Week of manufacture (fixed week code)
Year of manufacture (fixed year code)
EDID structure version # (“1”)
EDID revision # (“3”)
Video I/P definition (“digital”)
Max H image size (“33.12 cm”)
Max V image size (“20.7 cm”)
Display Gamma (Gamma = ”2.2”)
Feature support (“Active off, RGB Color”)
Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 CC
Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 5D
Rx=0.554 8D
Ry=0.355 5B
Gx=0.351 59
Gy=0.559 8F
Bx=0.161 29
By=0.13 21
Wx=0.312 4F
Wy=0.329 54
Established timings 1
Established timings 2
Manufacturer’s reserved timings
Standard timing ID # 1
Standard timing ID # 1
Standard timing ID # 2
Standard timing ID # 2

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Value

(hex)

00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
00 00000000
0D 00001101
AF 10101111

00 00000000
00 00000000
00 00000000
00 00000000
12 00010010
12 00010010
01 00000001
03 00000011
80 10000000
21 00100001
14 00010100
78 01111000
0A 00001010

00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
01 00000001

Value

(binary)

01110011

00010101

11001100
01011101

10001101

01011011

01011001

10001111
00101001
00100001

01001111
01010100

15 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Byte #

(decimal)

42 2A
43 2B
44 2C
45 2D
46 2E
47 2F
48 30
49 31
50 32
51 33
52 34
53 35
54 36 Detailed timing description # 1 Pixel clock (“119MHz”, According to

55 37
56 38
57 39
58 3A
59 3B
60 3C
61 3D
62 3E
63 3F
64 40
65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync width

66 42
67 43
68 44
69 45
70 46
71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol

72 48
73 49
74 4A
75 4B # 2 FE (hex) defines ASCII string (Model Name “N154Z6-L04 ”,

76 4C
77 4D
78 4E
79 4F
80 50
81 51
82 52
83 53
84 54

Byte #

(hex)

Field Name and Comments

Standard timing ID # 3
Standard timing ID # 3
Standard timing ID # 4
Standard timing ID # 4
Standard timing ID # 5
Standard timing ID # 5
Standard timing ID # 6
Standard timing ID # 6
Standard timing ID # 7
Standard timing ID # 7
Standard timing ID # 8
Standard timing ID # 8

VESA CVT Rev1.1)
# 1 Pixel clock (hex LSB first)
# 1 H active (“1680”)
# 1 H blank (“160”)
# 1 H active : H blank (“1680 : 160”)
# 1 V active (”1050”)
# 1 V blank (”30”)
# 1 V active : V blank (”1050 : 30”)
# 1 H sync offset (”48”)
# 1 H sync pulse width ("32”)
# 1 V sync offset : V sync pulse width (”3 : 6”)

(”48: 32 : 3 : 6”)
# 1 H image size (”331.2 mm”) 4B
# 1 V image size (”207.0 mm”) CF
# 1 H image size : V image size (”331.2 : 207”)
# 1 H boarder (”0”)
# 1 V boarder (”0”)

Negatives
Detailed timing description # 2
# 2 Flag
# 2 Reserved

ASCII)
# 2 Flag
# 2 1st character of name (“N”)
# 2 2nd character of name (“1”)
# 2 3rd character of name (“5”)
# 2 4th character of name (“4”)
# 2 5th character of name (“Z”)
# 2 6th character of name (“6”)
# 2 7th character of name (“-”)

# 2 8th character of name (“L”)

Value

(hex)

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

7C 01111100
2E 00101110

90 10010000
A0 10100000
60 01100000
1A 00011010
1E 00011110
40 01000000
30 00110000
20 00100000
36 00110110

00 00000000

10 00010000
00 00000000
00 00000000

18 00011000
00 00000000

00 00000000
00 00000000

FE 11111110
00 00000000

4E 01001110
31 00110001
35 00110101
34 00110100
5A 01011010
36 00110110
2D 00101101

4C 01001100

Value

(binary)

01001011

11001111

16 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Byte #

(decimal)

85 55
86 56
87 57
88 58
89 59
90 5A
91 5B
92 5C
93 5D
94 5E
95 5F
96 60
97 61
98 62

99 63
100 64
101 65
102 66
103 67
104 68
105 69
106 6A
107 6B
108 6C
109 6D
110 6E

111 6F # 4 FE (hex) defines ASCII string (Model Name“N154Z6-L04”,

112 70
113 71
114 72
115 73
116 74
117 75
118 76
119 77
120 78
121 79
122 7A
123 7B
124 7C
125 7D
126 7E
127 7F

Byte #

(hex)

Field Name and Comments

# 2 9th character of name (“0”)
# 2 9th character of name (“4”)
# 2 New line character indicates end of ASCII string
# 2 Padding with “Blank” character
# 2 Padding with “Blank” character
Detailed timing description # 3
# 3 Flag
# 3 Reserved
# 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)
# 3 Flag
# 3 1st character of string (“C”)
# 3 2nd character of string (“M”)
# 3 3rd character of string (“O”)
# 3 New line character indicates end of ASCII string
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
# 3 Padding with “Blank” character
Detailed timing description # 4
# 4 Flag
# 4 Reserved

ASCII)
# 4 Flag
# 4 1st character of name (“N”) 4E
# 4 2nd character of name (“1”) 31
# 4 3rd character of name (“5”) 35
# 4 4th character of name (“4”) 34
# 4 5th character of name (“Z”) 5A
# 4 6th character of name (“6”) 36
# 4 7th character of name (“-”) 2D
# 4 8th character of name (“L”) 4C
# 4 9th character of name (“0”)
# 4 9th character of name (“4”)
# 4 New line character indicates end of ASCII string
# 4 Padding with “Blank” character
# 4 Padding with “Blank” character
Extension flag
Checksum

Value

(hex)

30 00110000
34 00110100
0A 00001010
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
43 01000011
4D 01001101
4F 01001111
0A 00001010
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110
00 00000000

30 00110000
34 00110100
0A 00001010
20 00100000
20 00100000
00 00000000
B2 10110010

Value

(binary)

01001110
00110001
00110101
00110100
01011010

00110110
00101101
01001100

17 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 53.6 59.6 62.6 MHz (2)

Vertical Total Time TV 1057 1080 1090 TH -

Vertical Active Display Period TVD 1050 1050 1050 TH -

DE

Note (1) Because of this module is operated by DE only mode, Hsync and Vsync are ignored.

(2) 2 channels LVDS input.

Vertical Active Blanking Period TVB TV-TVD 30 TV-TVD TH -

Horizontal Total Time TH 890 920 1010 Tc (2)

Horizontal Active Display Period THD 840 840 840 Tc (2)

Horizontal Active Blanking Period THB

TH-THD

80

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

TH-THD

Tc (2)

INPUT SIGNAL TIMING DIAGRAM

DE

DCLK

TC

DE

DATA

HD

T

18 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

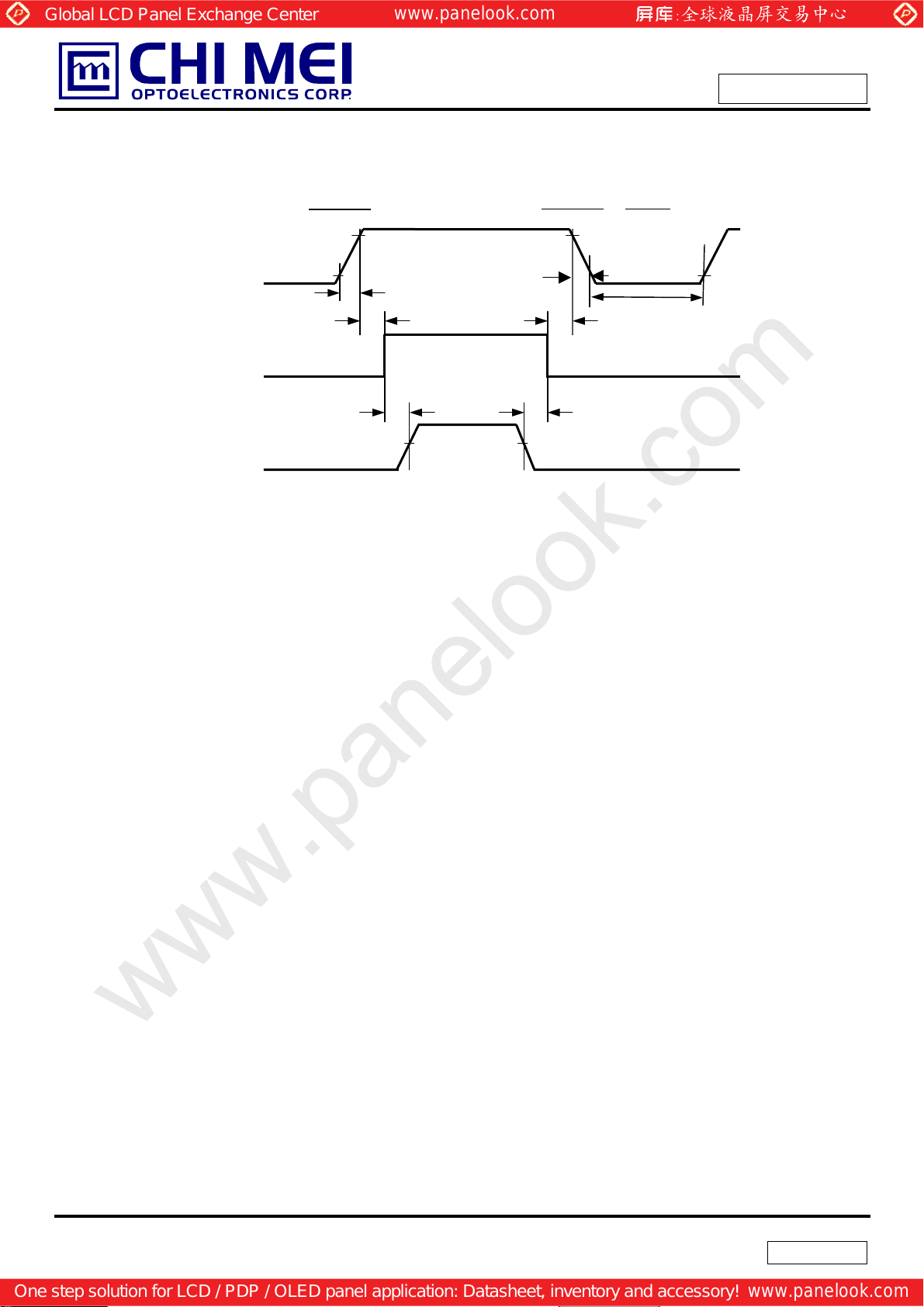

6.2 POWER ON/OFF SEQUENCE

Power On

Power Off

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Restart

Power Supply

for LCD, Vcc

0V

- L VDS Interface

0V

- Power for Backlight

Timing Specifications:

0.5 ≦ t1 ≦ 10 ms
0 ≦ t2 ≦ 50 ms
0 ≦ t3 ≦ 50 ms

t4 ≧ 500 ms
t5 ≧ 200 ms

10%

90%

t1

90%

Valid Data

t6 t5

50%50%

ONOFF OFF

t7

10%

t4

t3 t2

10%

t6 ≧ 200 ms

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power supply
for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow (50us)≦t7≦10 ms.

19 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current IL 120 mA

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 500 650 - - (2), (5)
Response Time
Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points δW5p

Green

Blue

White

Horizontal

Vertical

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

o

25±2

50±10

TR - 2 8 ms

- 6 12 ms

T

F

L

AVE

Rx
Ry
Gx
Gy
Bx
By

=0°, θY =0°

θ

x

Viewing Normal Angle

200

TYP.

-0.05

250 - cd/m2(4), (5)

0.553

0.358

0.350

0.564

0.160

TYP.

+0.05

0.128
Wx 0.313 ­Wy

θ

+

x

θ

x

θ

+

Y

θ

Y

50 60 -

­CR≥10

-

θ

=0°, θY =0°

x

50 60 ­40 50 ­40 50 ­80 - - % (5),(6)

0.329

C

%RH

(3)

-

-

-

-

-

(1)

-

-

Deg. (1),(5)

20 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

.67 ms

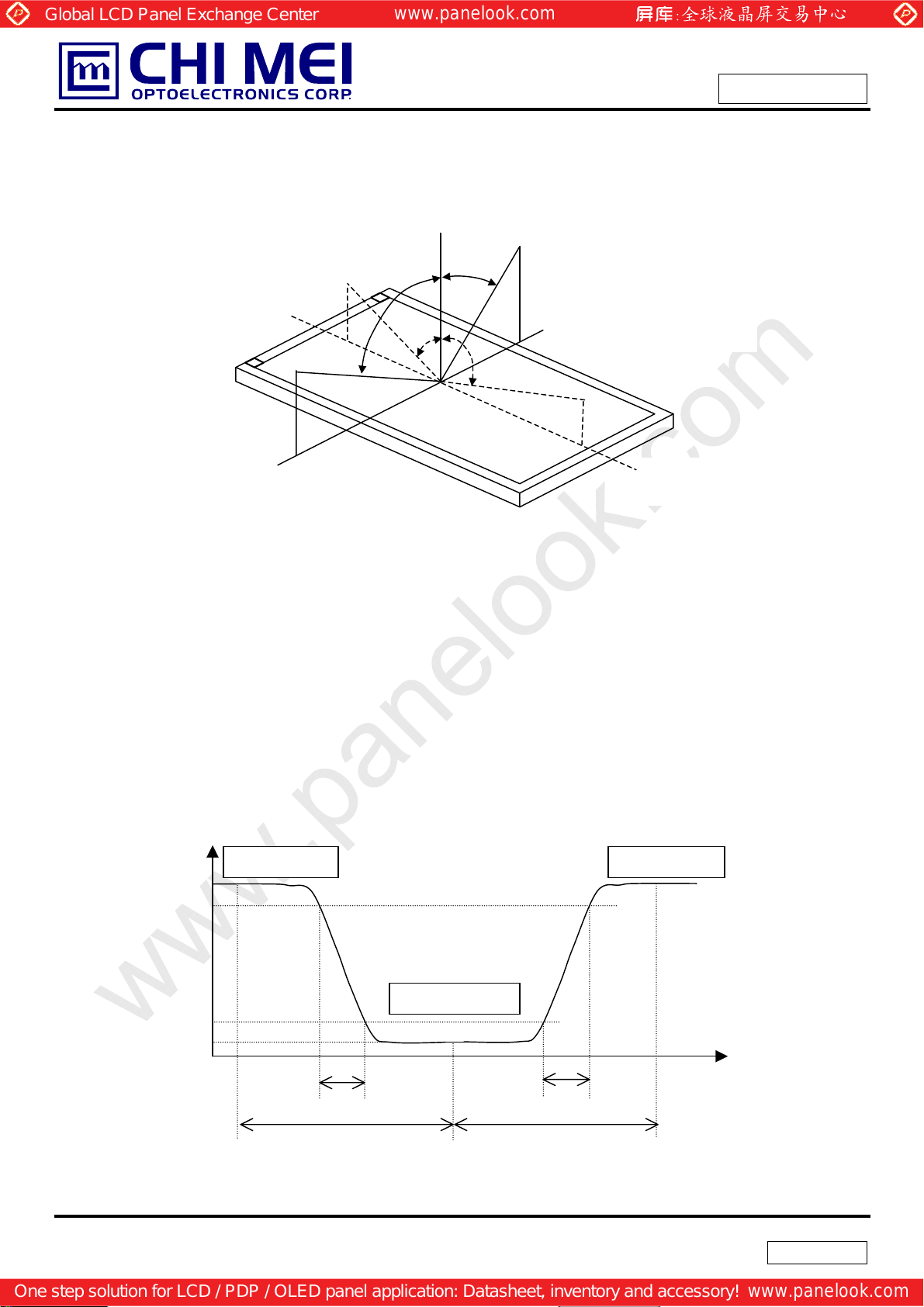

Note (1) Definition of Viewing Angle (θx, θy):

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

θX- = 90º

x-

6 o’clock

θ

y- = 90º

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

Normal

θx = θy = 0º

θy- θy+

θx−

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (1)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

R

T

R

66.67 ms

, TF):

66

Time

T

F

21 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

(

A

)

/

/

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points
L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

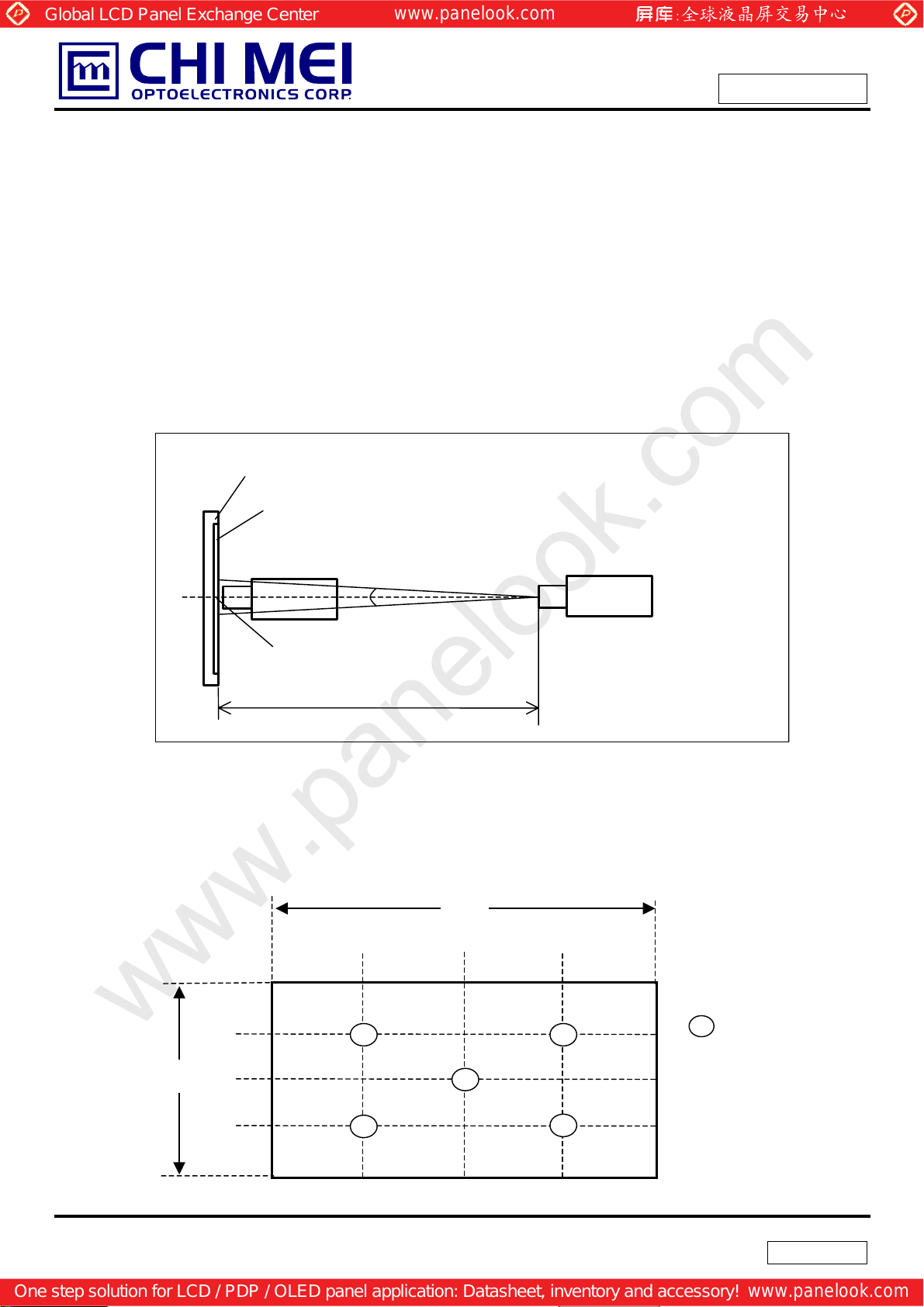

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.

LCD M odule

LCD P anel

USB2000

Center of the Screen

500 mm

):

AVE

CS-1000T

Light Shield Room

mbient Luminance < 2 l u x

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points
δW

= Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

5p

H/4

H/2

H

Vertical Line

3H/4

Horizontal Line

W

W/4 W

2 3

4

23W

1

22 / 27

Active Area

4

: Test Point

X

X=1 to 5

5

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

8. PRECAUTIONS

8.1 ASSEMBL Y AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter . Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washe d away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and sto rag e.

23 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

9. PACKING

9.1 CARTON

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Figure. 9-1 Packing method

24 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

9.2 PALLET

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

Figure. 9-2 Packing method

25 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.:

Issued Date: Jul. 24, 2008

Model No.: N154Z6 - L04

Preliminary

10. DEFINITION OF LABELS

110.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and it s definitions are as following explanation.

-

X X X X X X X Y M D L N N N N

C P 1 3 5 4 4 8 - 0 1

01A

N141X5 - L03 Rev.XX

(a) Model Name: N54Z6 - L03
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X

X X X X X Y M D X N N N N

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ De c.

Day: 1~9, A~Y, for 1

st

to 31st, exclude I , O and U

E207943

MADE IN TAIWAN

Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use

Revision

CMO Internal Use

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

10.2 CARTON LABEL

26 / 27

Version 1.0

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
