CMO N154Z1-L04 Specification

Download
Page 1
Global LCD Panel Exchange Center
ಖᙕ
ՠ܂
ᐉு
ߡۥ
ދป
A
TFT LCD Tentative Specification
MODEL NO.: N154Z1 - L04
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Customer :
pproved by :
Note :
2006-09-08 19:59:42 CST
2006-09-08 15:05:01 CST
Approve by Dept. Mgr.(QA RA)
Approve by Director
tomy_chen(ຫةԫ /52720/54140/43150)
teren_lin(ࣥ෌ո/56910/36064)
AssigneeAccept
Director Accept
1 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS

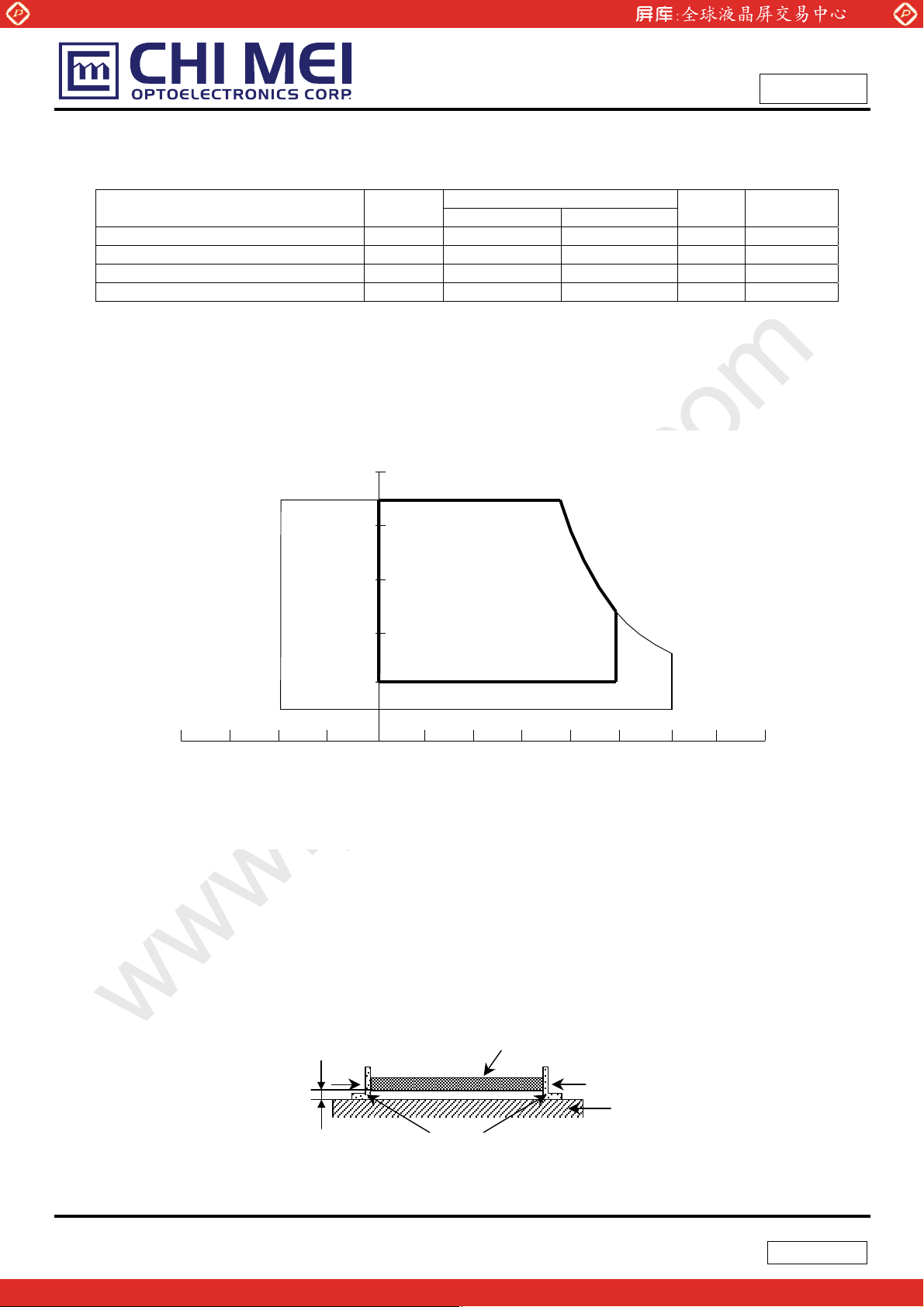

2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

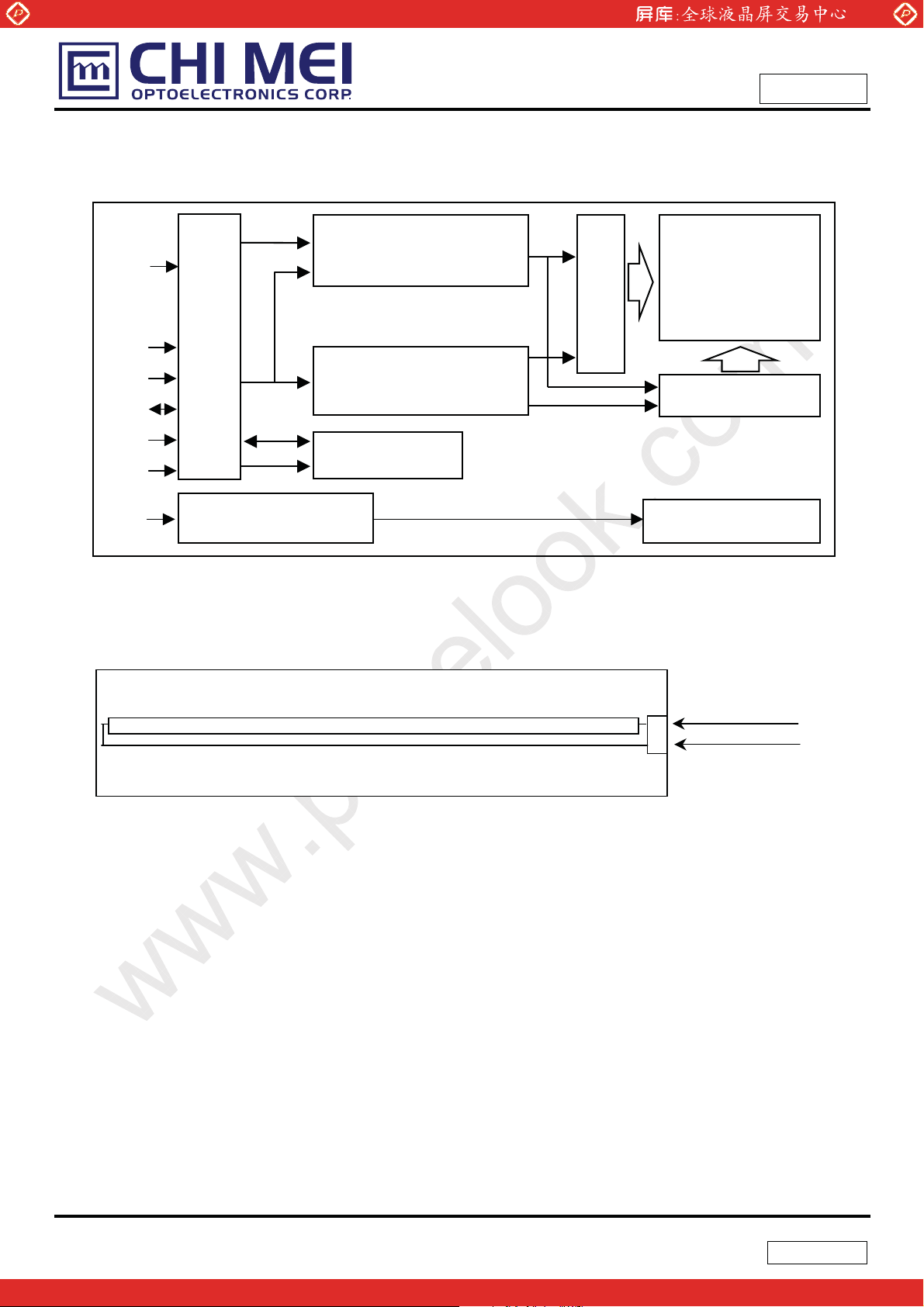

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT

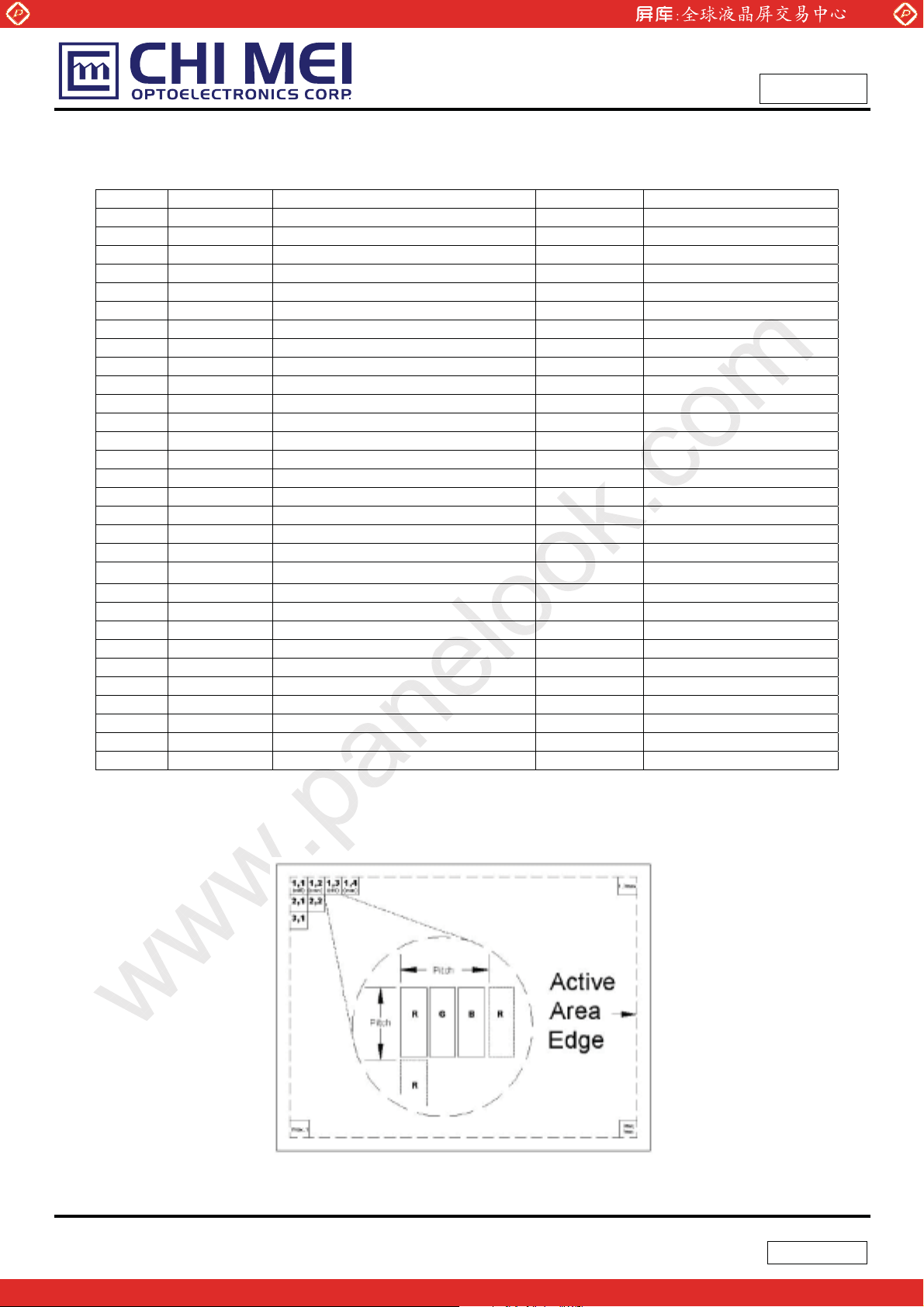

5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

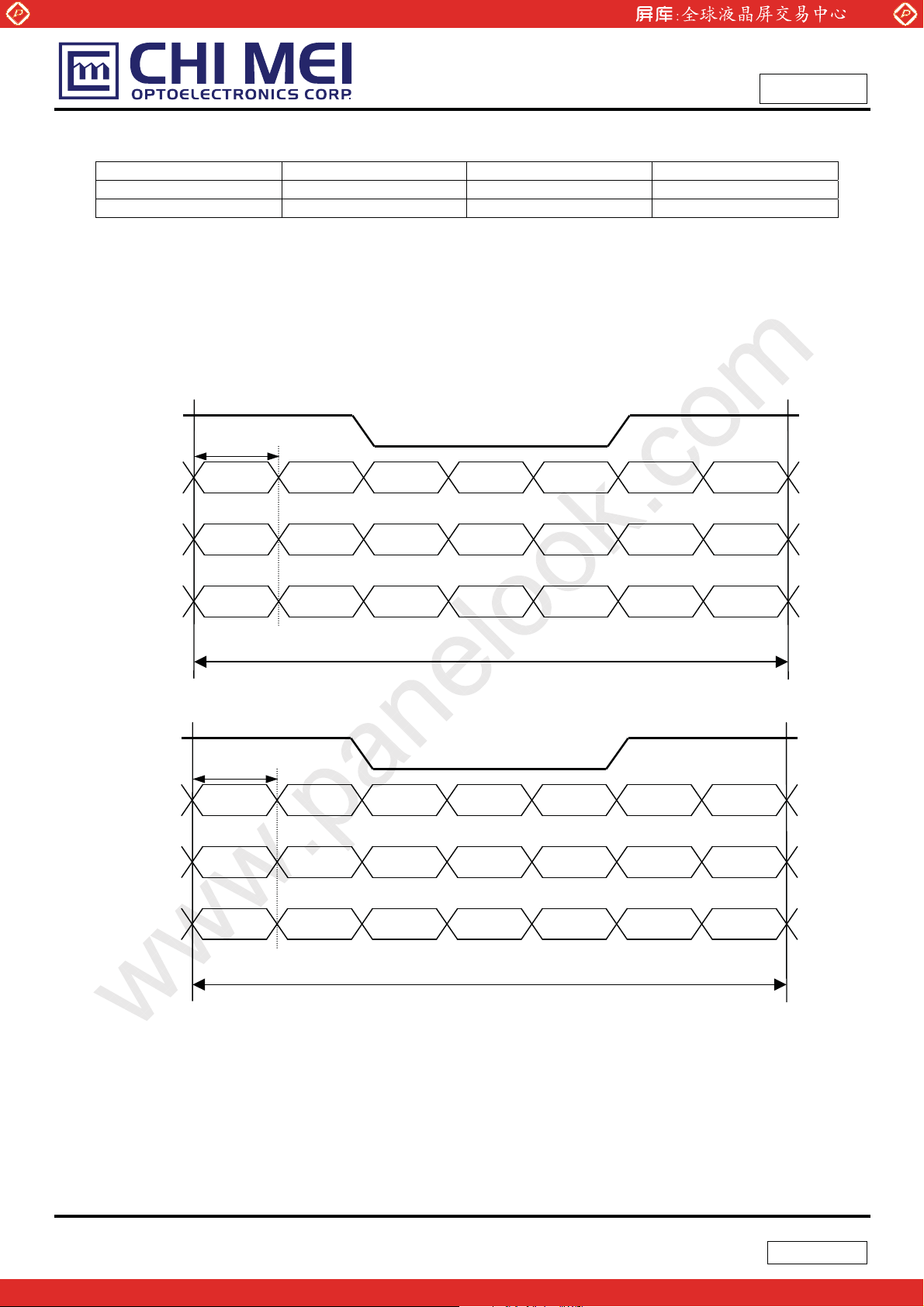

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.5 EDID DATA STRUCTURE

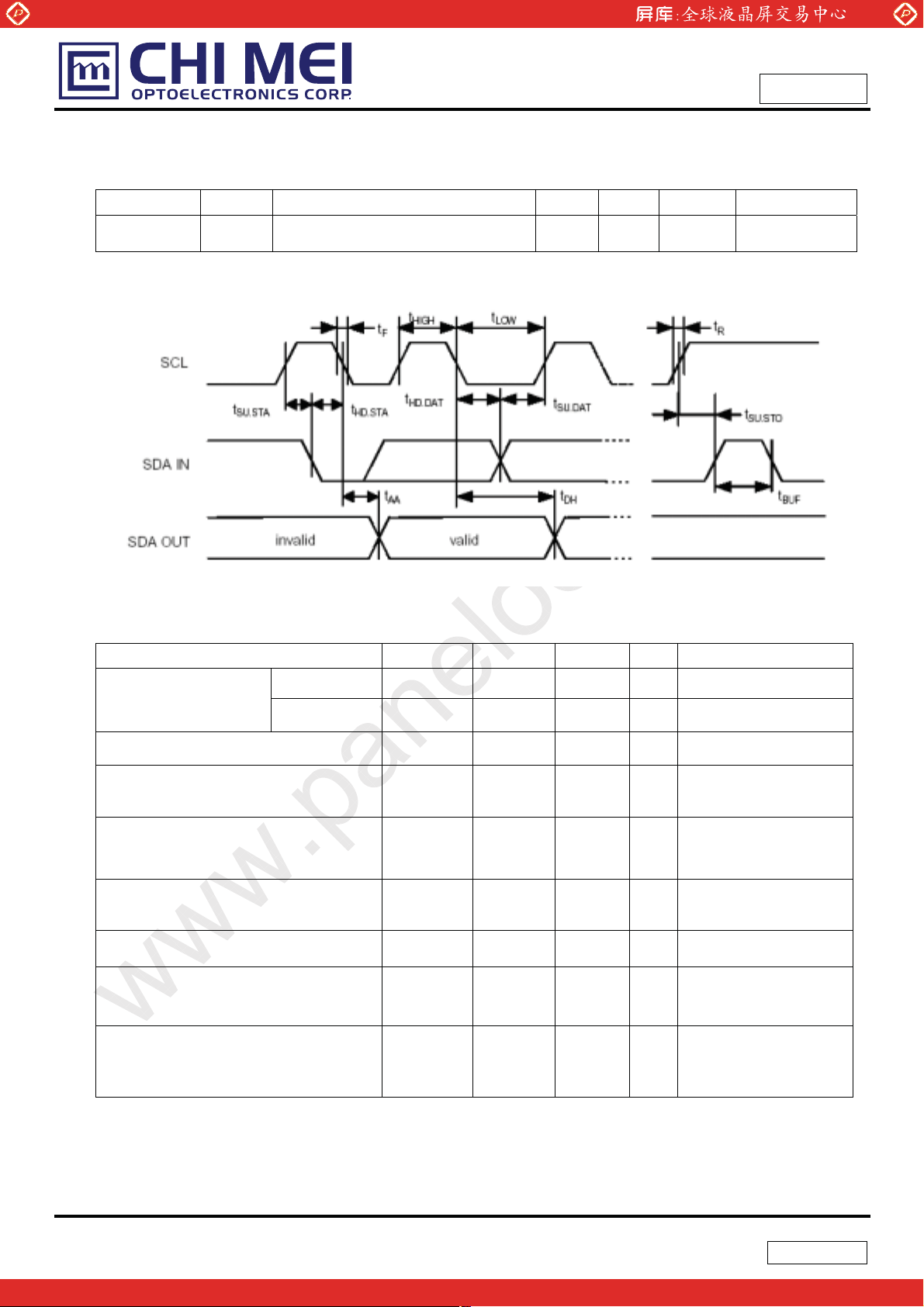

5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING

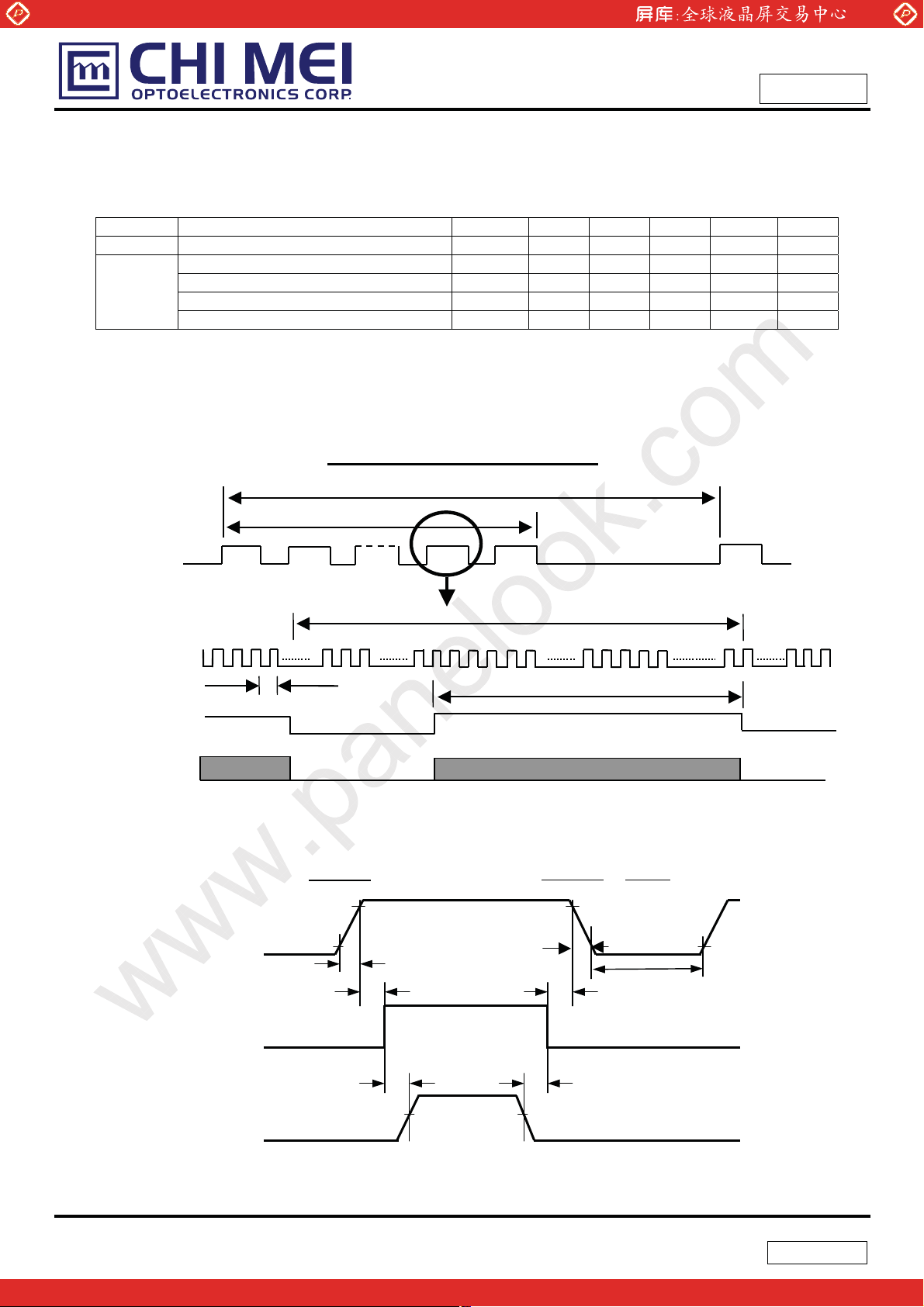

6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS

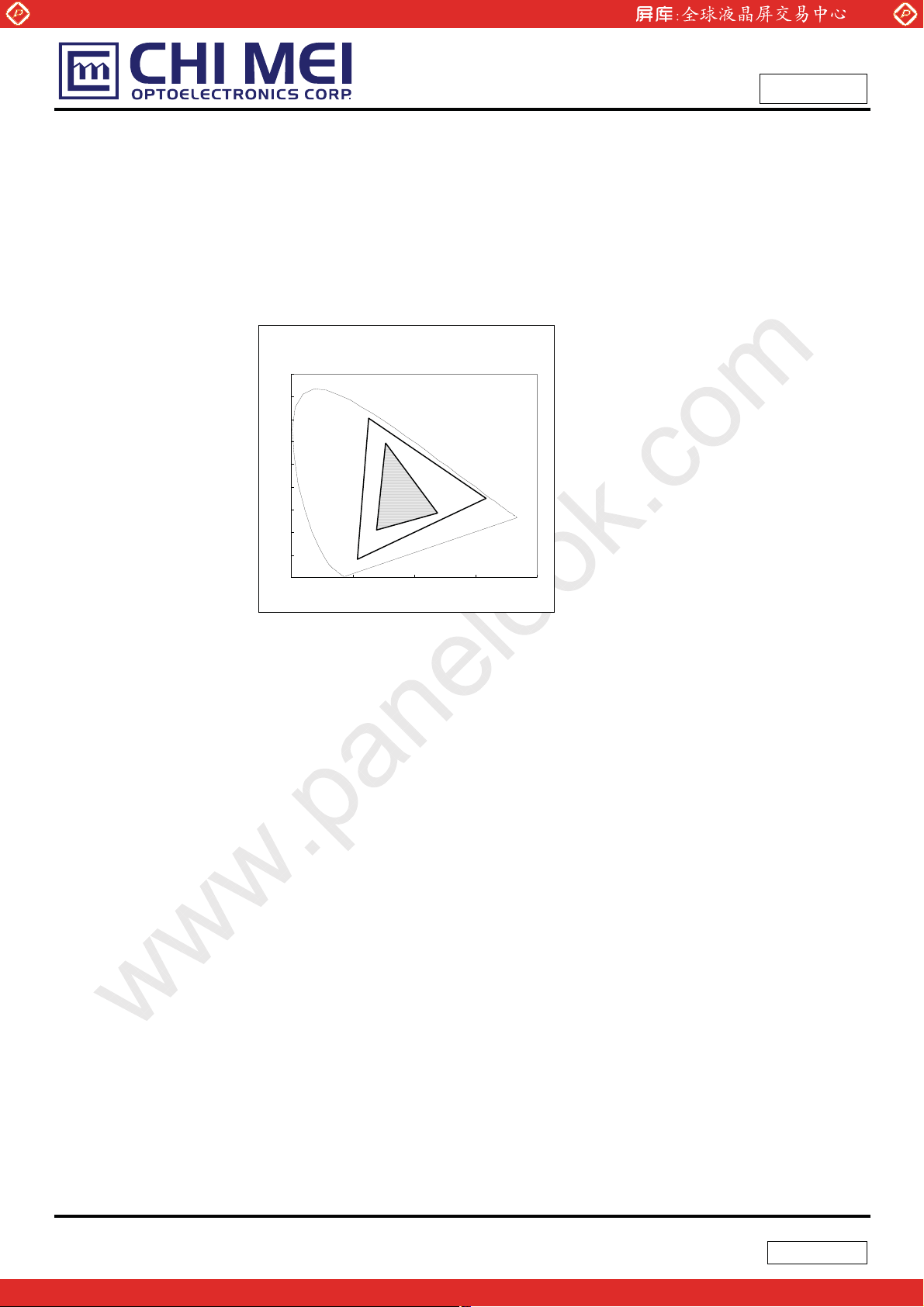

7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS

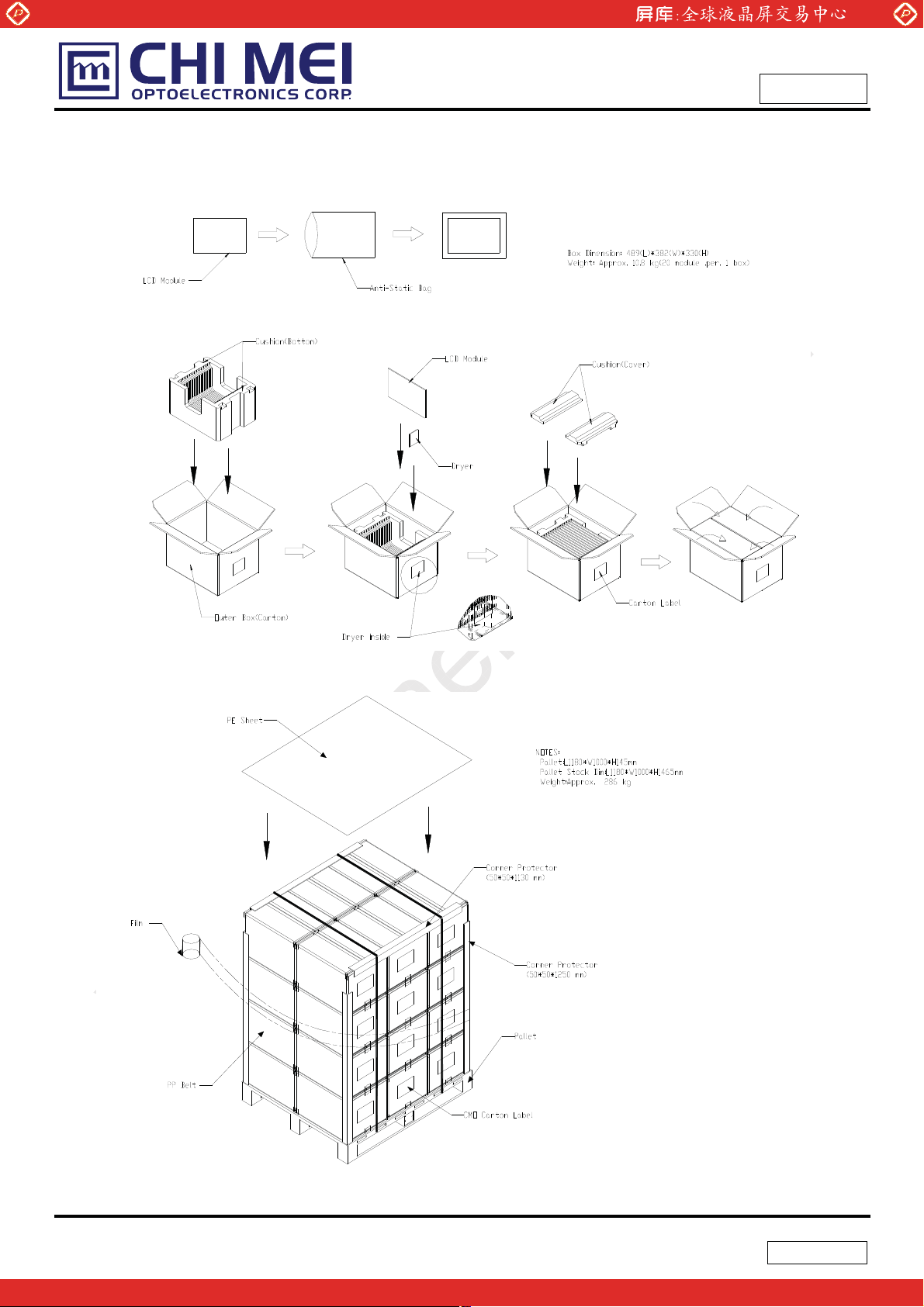

9. PACKING
9.1 CARTON
9.2 PALLET

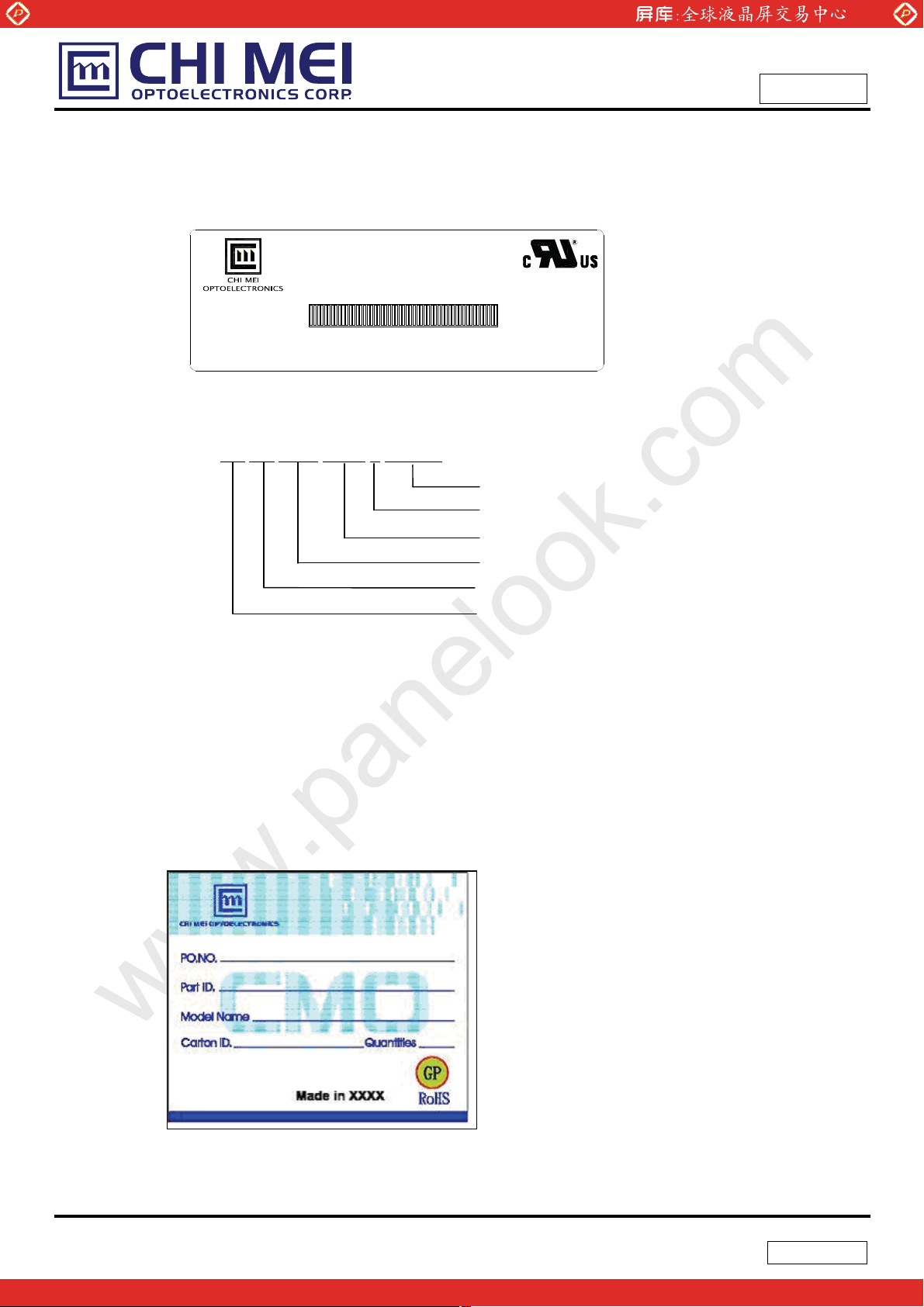

10. DEFINITION OF LABELS 10
.1 CMO MODULE LABEL
10.2 CMO CARTON LABEL

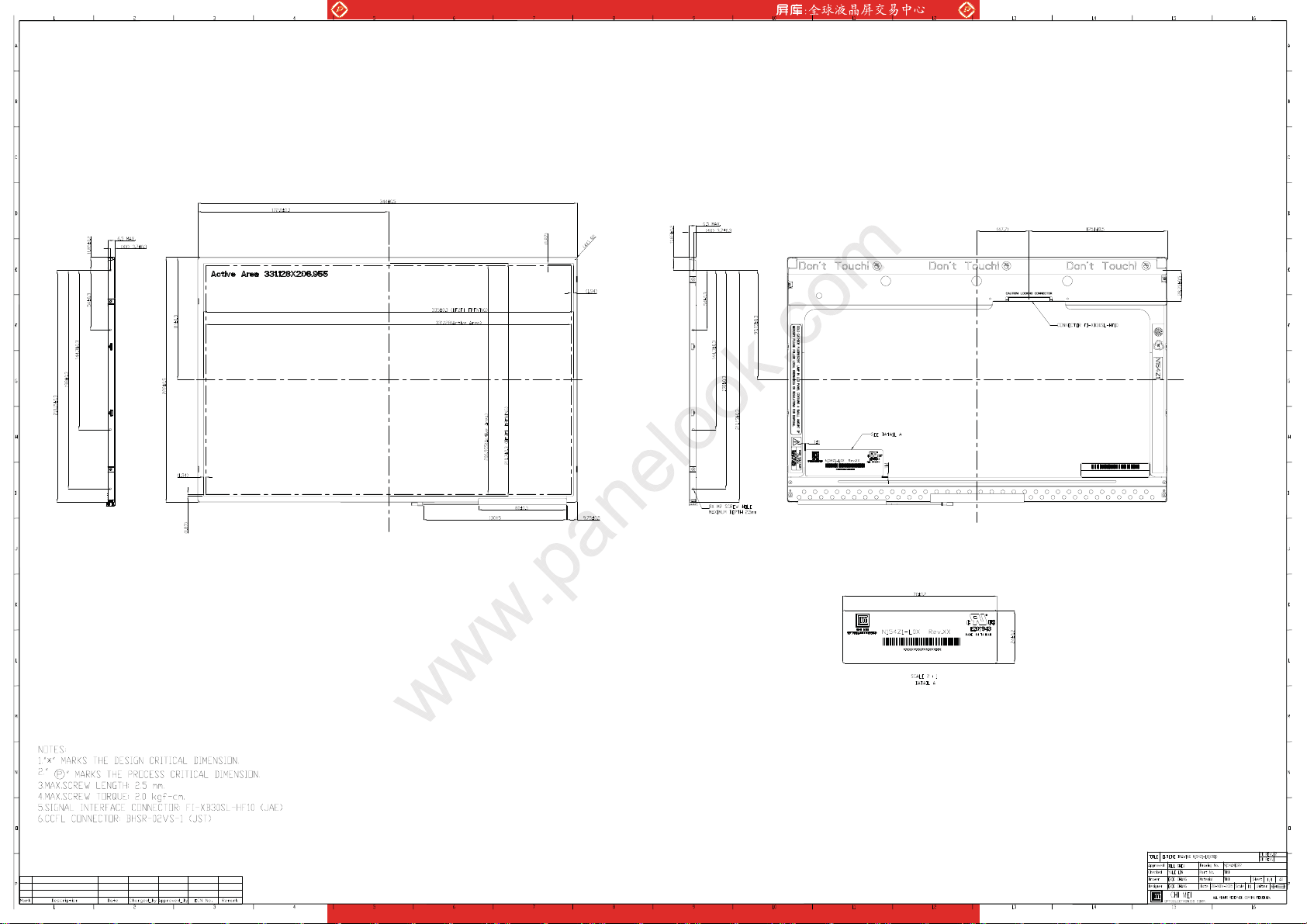

11. OUTLINE DIMENSION DRAWING ------------------------------------------------------- 29
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
------------------------------------------------------- 20
------------------------------------------------------- 22
------------------------------------------------------- 25
------------------------------------------------------- 27
------------------------------------------------------- 28
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
REVISION HISTORY
Version Date
Ver 0.0
Sep. 05,’06
Page
(New)
All
Section Description
All
Tentative specification was first issued.
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154Z1 - L04 is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1680 x 1050 Wide-WSXGA+ mode and can display 262,144 colors.
The optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and High Brightness
- WSXGA+ (1680 x 1050 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2.5V logic operation
- Single CCFL
- Meet RoHS requirement
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 331.128 (H) x 206.955 (V) (15.4 inch Diagonal) mm Bezel Opening Area 335 (H) x 210.7 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1680 x 3 (RGB) x 1050 pixel ­Pixel Pitch 0.1971 x 0.1971 mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Glare (2H) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 343.5 344 344.5 mm
Module Size
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 221.5 222 222.5 mm Depth (D) --- 6.2 6.5 mm
Weight --- 550 565 g -
(1)
(1)
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) HST - 220/2 G/ms (3), (5) Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Relative Humidity (%RH)
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Value
Min. Max.
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (2) The ambient temperature means the temperature of panel surface.
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave.
Note (4) 10 ~ 200 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z axis.
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
LCD Module
Side Mount Fixing Screw
gap=2mm
Side Mount Fixing Screw
Stage
Bracket
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL -- 2.5K V Lamp Current IL 3 7.0 mA Lamp Frequency FL 40 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

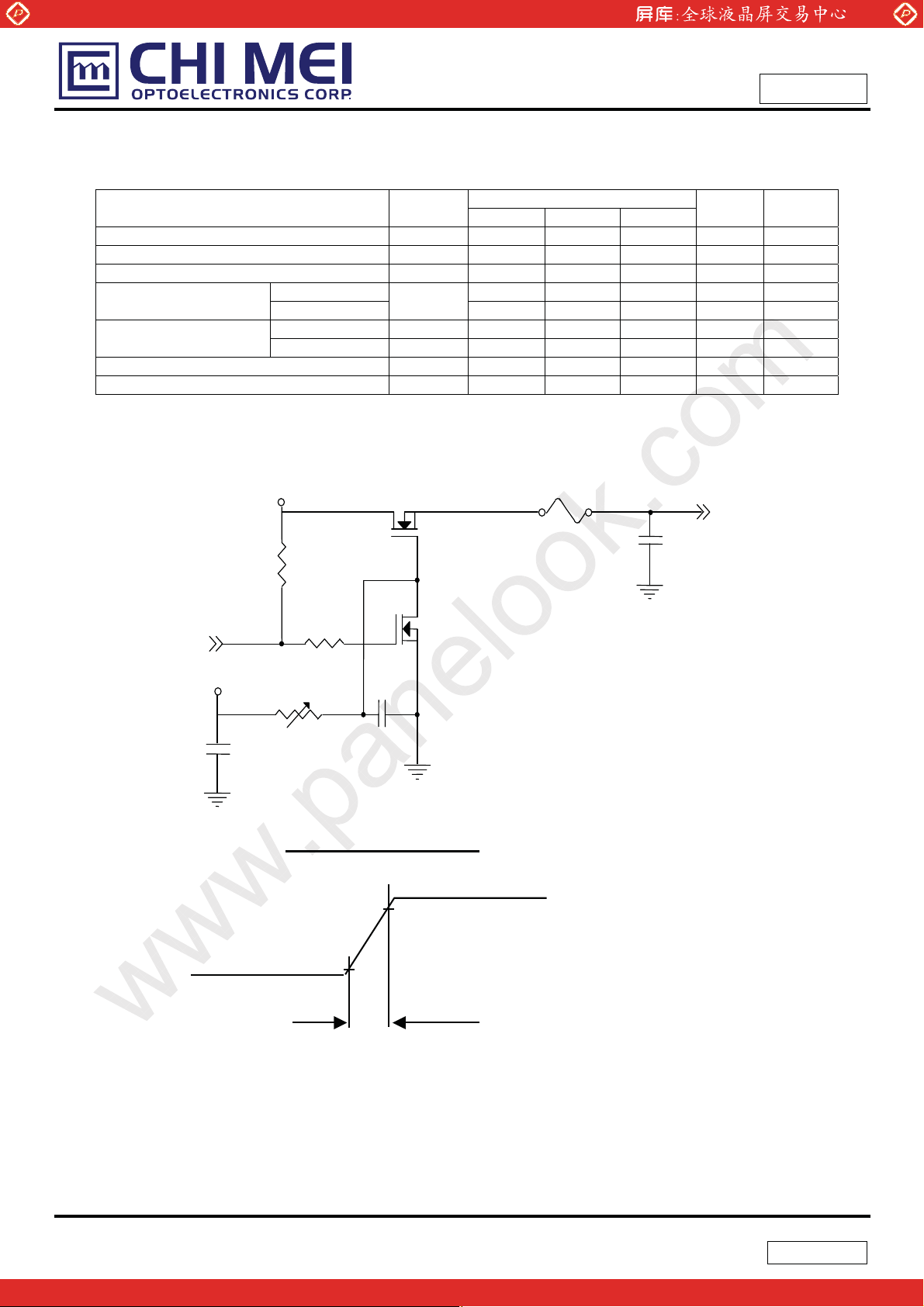

Page 7
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP 50 mV ­Rush Current I
Power Supply Current
Logical Input Voltage
White 390 450 mA (3)a Black “H” Level VIL +100 mV ­“L” Level V
1.5 A (2)
RUSH
Lcc
-100 mV -
IH
530 590 mA (3)b
Terminating Resistor RT 100 Ohm Power per EBL WG P
- 3.79 - W (4)
EBL
Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:
Value
Unit Note
Tentative
+3.3V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
Vcc
(LCD Module Input)
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470us
+3.3V
0.9Vcc
0.1Vcc
GND
470us
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
a. White Pattern
b. Black Pattern
Active Area
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
= 60 Hz,
v
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from _Sumida or Delta_.
Please contact them for detail
information. CMO doesn’t provide the inverter in this product.
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Lamp Input Voltage VL 630 700 770 V
Lamp Current IL
Lamp Turn On Voltage VS
2.0 (1),(2)
3.0 1140 (25 1580 (0
Operating Frequency FL 40 80 KHz (5) Lamp Life Time LBL 15,000 Hrs (7) Power Consumption PL 4.2 W (4), IL = 6.0 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
LCD
Module
HV (Pink)
LV (White)
Value
6.0 6.5 mA
1
Inverter
2
A
Current Meter
o
C) V
o
C) V
Unit Note
I
RMS
RMS
(4)
RMS
(4)
RMS
= 6.0 mA
L
(1),(3)
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Note (2) for burst mode inverter design
Note (3) for continuous mode inverter design
Note (4) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (5) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Note (6) P
Note (7) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Note (8) The waveform of the voltage output of inverter must be area-symmetric and the design of the
= IL V
L
Ta = 25 2
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
L
o
C and IL = 6.0 mArms until one of the following events occurs:
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter,
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

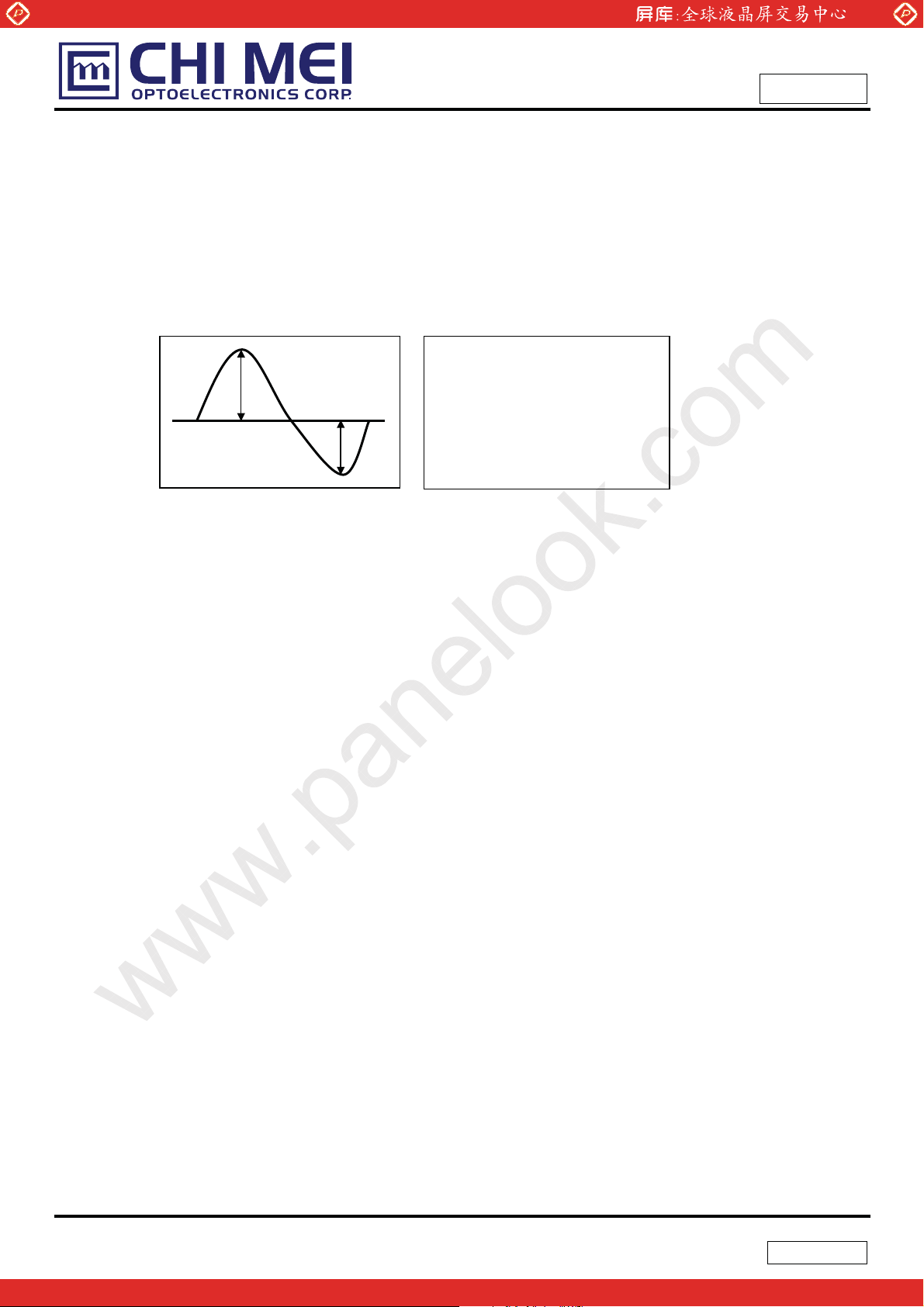

Page 10
Global LCD Panel Exchange Center
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.
a. The asymmetry rate of the inverter waveform should be 10% below;
b. The distortion rate of the waveform should be within Ѕ2 ± 10%;
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
* Asymmetry rate:
I p
I -p
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
10 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
LVD S di spl ay
Data & Clock
Vcc
(JAE-FI-XB30SL-HF10)
INPUT CONNECTOR
www.panelook.com
LVDS INPUT /
TIMING CONTROLLER
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
SCAN DRIVER IC
TFT LCD PANEL
(1680xR.G.B.x105
0)
GND
Data
EDID
CLK
EDID
V
EDID
VL
LAMP CONNECTOR
(JST-BHSR-02VS-1)
4.2 BACKLIGHT UNIT
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink) 2 LV (Black
11 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 NC Non-Connection 6 CLK 7 DATA 8 RXO0- LVDS Differential Data Input (Odd) Negative
9 RXO0+ LVDS Differential Data Input (Odd) Positive 10 Vss Ground 11 RXO1- LVDS Differential Data Input (Odd) Negative 12 RXO1+ LVDS Differential Data Input (Odd) Positive 13 Vss Ground 14 RXO2- LVDS Differential Data Input (Odd) Negative 15 RXO2+ LVDS Differential Data Input (Odd) Positive 16 Vss Ground 17 RXOC- LVDS Clock Data Input (Odd) Negative 18 RXOC+ LVDS Clock Data Input (Odd) Positive 19 Vss Ground
20 RxE0- LVDS Differential Data Input (Even) Negative 21 RxE0+ LVDS Differential Data Input (Even) Positive
22 Vss Ground 23 RxE1- LVDS Differential Data Input (Even) Negative 24 RxE1+ LVDS Differential Data Input (Even) Positive 25 Vss Ground 26 RxE2- LVDS Differential Data Input (Even) Negative 27 RxE2+ LVDS Differential Data Input (Even) Positive 28 Vss Ground 29 RXEC- LVDS Clock Data Input (Even) Negative 30 RXEC+ LVDS Clock Data Input (Even) Positive
Note (1) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent
DDC 3.3V Power
EDID
DDC Clock
EDID
DDC Data
EDID
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent
Note (3) The first pixel is odd as shown in the following figure.
12 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink 2 LV Ground Black
Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
RXOC+
RXO2+/-
RXO1+/-
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE OB5 OB4 OB3 OB2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
RXO0+/-
RXEC+
RXE2+/-
RXE1+/-
RXE0+/-
OB1 OG4 OG3 OG2 OG1 OB0 OG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
OG0 OR3 OR2 OR1 OR0 OR5 OR4
Signal for 1 DCLK Cycle (T)
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE EB5 EB4 EB3 EB2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
EB1 EG4 EG3 EG2 EG1 EB0 EG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
EG0 ER3 ER2 ER1 ER0 ER5 ER4
Signal for 1 DCLK Cycle (T)
13 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte #
(decimal)
10 0A 11 0B 12 0C 13 0D 14 0E 15 0F 16 10 17 11 18 12 19 13 20 14 21 15 22 16 23 17 24 18 25 19 26 1A 27 1B 28 1C 29 1D 30 1E 31 1F 32 20 33 21 34 22 35 23 36 24 37 25 38 26 39 27 40 28 41 29
Byte #
(hex)
0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
Field Name and Comments
Header Header Header Header Header Header Header Header EISA ID manufacturer name (“CMO”) EISA ID manufacturer name (Compressed ASCII) ID product code 20 ID product code 15 ID S/N (fixed “0”) ID S/N (fixed “0”) ID S/N (fixed “0”) ID S/N (fixed “0”) Week of manufacture (fixed week code) Year of manufacture (fixed year code) EDID structure version # (“1”) EDID revision # (“3”) Video I/P definition (“digital”) Max H image size (“33.12 cm”) Max V image size (“20.7 cm”) Display Gamma (Gamma = ”2.2”) Feature support (“Active off, RGB Color”) Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) Red-x (Rx = “0.626”) Red-y (Ry = “0.355”) Green-x (Gx = ”0.294”) Green-y (Gy = ”0.589”) Blue-x (Bx = ”0.144”) Blue-y (By = ”0.097”) White-x (Wx = ”0.309”) White-y (Wy = ”0.329”) Established timings 1 Established timings 2 Manufacturer’s reserved timings Standard timing ID # 1 Standard timing ID # 1 Standard timing ID # 2 Standard timing ID # 2
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Value
(hex)
00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 00 00000000 0D 00001101 AF 10101111
00 00000000 00 00000000 00 00000000 00 00000000 00 00000000 00 00000000 01 00000001 03 00000011 80 10000000 21 00100001 14 00010100 78 01111000 0A 00001010 77 01110111 F1 1111000 1 A0 10100000 5A 01011010 4B 01001011 96 10010110 24 00100100 18 00011000 4F 01001111 54 01010100 00 00000000 00 00000000 00 00000000 01 00000001 01 00000001 01 00000001 01 00000001
Value
(binary)
00100000 00010101
15 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Byte #
(decimal)
42 2A 43 2B 44 2C 45 2D 46 2E 47 2F 48 30 49 31 50 32 51 33 52 34 53 35 54 36 55 37 56 38 57 39 58 3A 59 3B 60 3C 61 3D 62 3E 63 3F 64 40 65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync width
66 42 67 43 68 44 69 45 70 46 71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
72 48 73 49 74 4A 75 4B 76 4C 77 4D 78 4E 79 4F 80 50 81 51 82 52 83 53 84 54
85 55
Byte #
(hex)
Field Name and Comments
Standard timing ID # 3 Standard timing ID # 3 Standard timing ID # 4 Standard timing ID # 4 Standard timing ID # 5 Standard timing ID # 5 Standard timing ID # 6 Standard timing ID # 6 Standard timing ID # 7 Standard timing ID # 7 Standard timing ID # 8 Standard timing ID # 8 Detailed timing description # 1 Pixel clock (“119 MHz”) # 1 Pixel clock (hex LSB first) # 1 H active (“1680”) # 1 H blank (“160”) # 1 H active : H blank (“1680 : 160”) # 1 V active (”1050”) # 1 V blank (”30”) # 1 V active : V blank (”1050 : 30”) # 1 H sync offset (”48”) # 1 H sync pulse width (”32”) # 1 V sync offset : V sync pulse width (”3 : 6”)
(”48 : 32 : 3 : 6”) # 1 H image size (”331.2 mm”) # 1 V image size (”207.0 mm”) # 1 H image size : V image size (”331.2 : 207”) # 1 H boarder (”0”) # 1 V boarder (”0”)
Negatives Detailed timing description # 2 # 2 Flag # 2 Reserved
# 2 FE (hex) defines ASCII string (Model Name “N154Z1-L01”, ASCII)
# 2 Flag # 2 1st character of name (“N”) # 2 2nd character of name (“1”) # 2 3rd character of name (“5”) # 2 4th character of name (“4”) # 2 5th character of name (“Z”) # 2 6th character of name (“1”) # 2 7th character of name (“-”) 2D
# 2 8th character of name (“L”) 4C
# 2 9th character of name (“0”)
Value
(hex)
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 7C 01111100 2E 00101110 90 10010000 A0 10100000 60 01100000 1A 00011010 1E 00011110 40 01000000 30 00110000 20 00100000 36 00110110
00 00000000
4B 01001011 CF 11 0 01111 10 00010000 00 00000000 00 00000000
18 00011000
00 00000000 00 00000000 00 00000000 FE 11111110 00 00000000 4E 01001110 31 00110001 35 00110101 34 00110100 5A 01011010 31 00110001
30 00110000
Value
(binary)
00101101
01001100
16 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
86 56 87 57 88 58 89 59 90 5A 91 5B 92 5C 93 5D 94 5E 95 5F 96 60 97 61 98 62
99 63 100 64 101 65 102 66 103 67 104 68 105 69 106 6A 107 6B 108 6C 109 6D
110 6E 111 6F 112 70 113 71 114 72 115 73 116 74 117 75 118 76
119 77 120 78 121 79 122 7A 123 7B 124 7C 125 7D 126 7E 127 7F
# 2 10th character of name (“1”)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
Detailed timing description # 3 # 3 Flag # 3 Reserved # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) # 3 Flag # 3 1st character of string (“C”) # 3 2nd character of string (“M”) # 3 3rd character of string (“O”)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
Detailed timing description # 4 # 4 Flag # 4 Reserved
# 4 FE (hex) defines ASCII string (Model Name“N154Z1-L01”, ASCII)
# 4 Flag
31 00110001 0A 00001010 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000 FE 11111110 00 00000000 43 01000011 4D 01001101 4F 01001111 0A 00001010 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000 FE 11111110 00 00000000
# 4 1st character of name (“N”) 4E # 4 2nd character of name (“1”) 31 # 4 3rd character of name (“5”) 35 # 4 4th character of name (“4”) 34 # 4 5th character of name (“Z”) 5A # 4 6th character of name (“1”) 31 # 4 7th character of name (“-”) 2D # 4 8th character of name (“L”) 4C # 4 9th character of name (“0”) # 4 10th character of name (“1”)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
(If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
Extension flag Checksum
30 00110000 31 00110001 0A 00001010 20 00100000 20 00100000 00 00000000 FD 1111110 1
01001110 00110001 00110101 00110100 01011010 00110001 00101101 01001100
17 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.6 EDID SIGNAL SPECIFICATION
(1) EDID Power
Parameter Symbol Conditions Min. Typ. Max. Unit
Power supply
voltage
Vcc Read Operation 2.2 — 5.5 V
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
(2) DC characteristics
SCL, SDA
terminal input voltage
Hysteresis Voltage VHYS 0.05 VCC — V
Output Voltage
Input Leak current
(Vin =0.1V~VCC)
Output Leak current ILO -10 10 uA
Terminal capacity(Input, Output) Cin, Cout — 10 pF
Operating current
Stillness current
(SDA=SCL=VCC)
(WP=VSS,A0,A1,A2=VSS)
Symbol Min. Max. Unit Index
High Voltage VIH
Low Voltage VIL —
VOL1 VOL2
ILI
ICC Write ICC Read
ICCS —
0.7uV
—
-10
-10
—
CC
— V
V
CC
0.3uV
0.4
0.6
10 50
3 1
30
100
V
uA
mA
uA
IOL=3mA, CC=2.5V IOL=6mA, CC=2.5V
WP=VSS WP=VCC
Vout =0.1V~VCC,
WP=VSS
VCC=5.0V
0
Ta=25
C, Fclk=1.0MHz
VCC=5.5V,
SCL=400KHz
VCC=3.0V VCC=5.5V
18 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
(3) AC characteristics (VCC=2.5~5.5V standard operation mode)
Item Symbol
Clock frequency Fclk — 100 — 400 KHz
Clock High Time THIGH 4000 — 900 —
Clock Low Time TLOW 4700 — 1300 —
SDA, SCL falling time TR — 1000 — 300
SDA, SCL rising time TF — 300 — 300
START hold time
START setup time
Data input hold time
Data input setup time
STOP setup time
Output decision time from a
clock
Bus free time TBUF 4700 — 1300 —
Rising time of Min VIH, VIL TOF — 250 20 250
THD:
STA
TSU:
STA
THD:
Data
TSU:
Data
TSU:
STO
TAA — 3500 100 900
www.panelook.com
VCC=2.5V-5.5V
(Standard operation
Min. Max. Min. Max. Unit Index
4000 — 600 —
4700 — 600 —
0 — 0 —
250 — 100 —
4700 — 600 —
mode)
VCC=4.5V-5.5V
(High-speed
operation
mode)
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
CBЉ100pF
Spike oppression TSP — 50 — 50 ns
A write-in cycle time TWR — 10 — 10 ms
The number of times of data
rewriting
— 1M — 1M — cycles
Byte and page
mode
VCC=5.0V
Ta=25
0
C,
19 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 50 59.6 67.5 MHz (2)
Vertical Total Time TV 1057 1080 1090 TH -
DE
Note (1) Because of this module is operated by DE only mode, Hsync and Vsync are ignored.
(2) 2 channels LVDS input.
Vertical Active Display Period TVD 1050 1050 1050 TH -
Horizontal Total Time TH 890 920 1010 Tc (2)
Horizontal Active Display Period THD 840 840 840 Tc (2)
INPUT SIGNAL TIMING DIAGRAM
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
DE
DCLK
TC
DE
DATA
6.2 POWER ON/OFF SEQUENCE
Power Supply
for LCD, Vcc
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
0V
0V
I
10%
Power On
90%
t1
HD
T
Restart
Valid Data
ONOFF OFF
Power Off
90%
t3 t2
t6 t5
50%50%
t7
10%
t4
20 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
Timing Specifications:
0.5 Љ t1 Љ 10 ms
0 Љ t2 Љ 50 ms
0 Љ t3 Љ 50 ms
t4 Њ 500 ms
t5 Њ 200 ms
t6 Њ 200 ms
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow
t7 Њ 5 msec
21 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.0 mA Inverter Driving Frequency FL 55 KHz Inverter Sumida H05-4915
The relative measurement methods of optical characteristics are shown in 7.2. The
following items should be measured under the test conditions described in 7.1 and stable
environment shown in Note (5).
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 350 500 - (2), (5)
Response Time
Average Luminance of White L
Red
Green
Color Chromaticity
White Variation of 5 Points GW5p
White Variation of 13 Points GW
Viewing Angle
Blue
White
Color
Gamut
Horizontal
Vertical
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
o
25r2
50r10
TR - 4 9 ms
- 12 17 ms
T
F
155 185 cd/m2(4), (5)
AVE
Rx
Ry Gx Gy Bx By
=0q, TY =0q
T
x
Viewing Normal
Angle
TYP
-0.03
0.596
0.337
0.322
0.531
0.152
0.134
TYP
+0.03
Wx 0.313 Wy
C.G%
13p
Tx+
T
-
x
TY+
T
-
Y
=0q, TY =0q
T
x
(BM-5A)
CRt10
0.329
42 45 - (7)
80 - - % 65 - - %
(70) (70) (50) (60)
C
%RH
(3)
(1), (5)
(1)
(5),(6)
Deg. (1), (5)
22 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
Normal
Tx = Ty = 0º
Ty- Ty
Tx
Tx
12 o’clock direction
y+
T
y+ = 90º
x+
TX+ = 90º
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
R
T
R
66.67 ms
, TF):
T
F
66.67 ms
Time
23 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6)

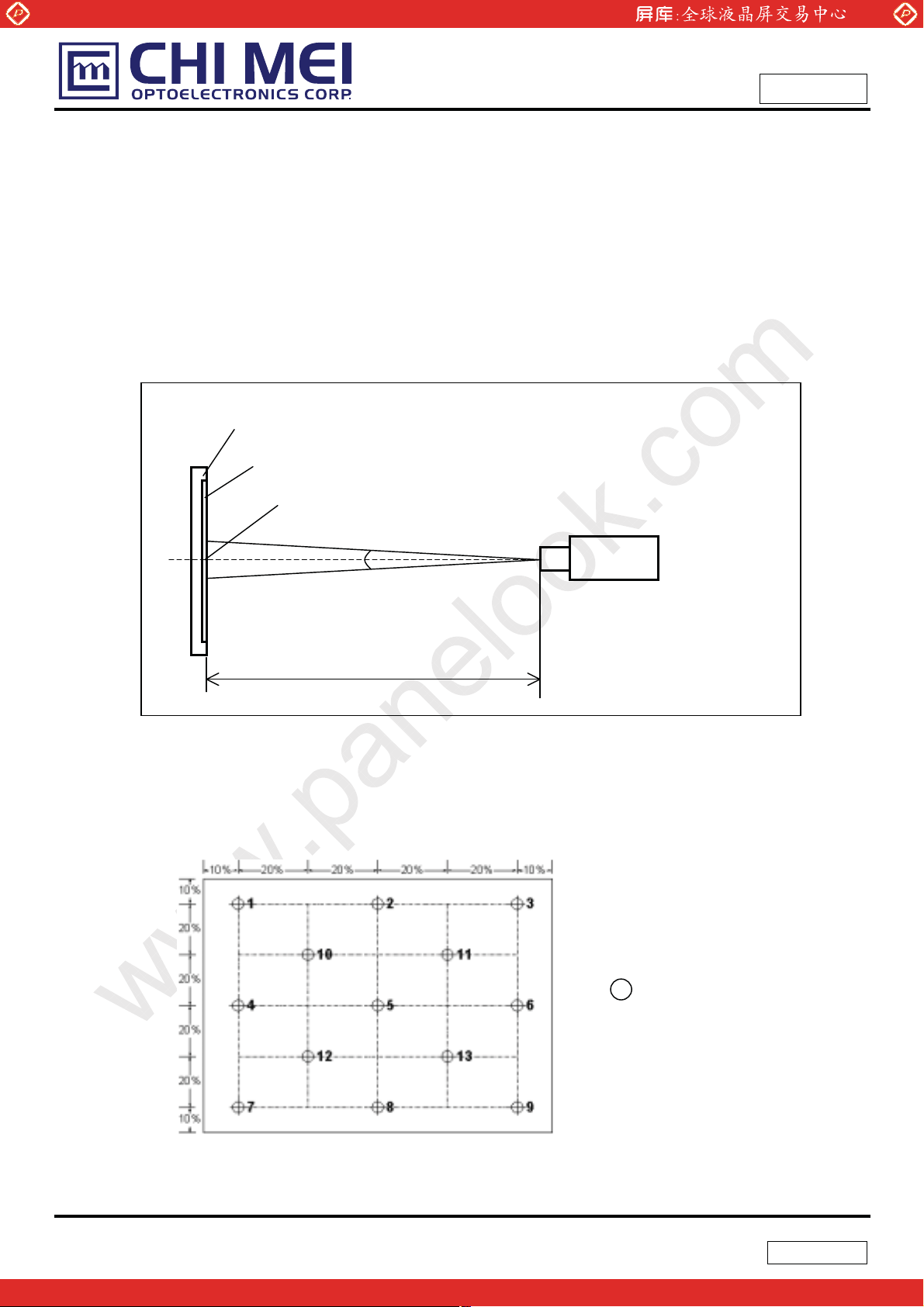

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
Field of View = 2º
AVE
):
Photometer
(CA210, CS-1000T)
Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW
= Minimum [L (10)+ L (11)+ L (12)+ L (13)+ L (5)] / Maximum [L (10)+ L (11)+ L (12)+ L (13)+ L (5)]
5p
GW
= Minimum [L (1) ~ L (13)] / Maximum [L (1) ~ L (13)]
13p
500 mm
Light Shield Room
(Ambient Luminance < 2 lux)
X
: Test Point
X=1 to 13
Active area
24 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
Note (7) Definition of color gamut (C.G%):
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
C.G%= ΓR G B /ΓR
R
R, G, B
ΓR
, G0, B0 : color coordinates of red, green, and blue defined by NTSC, respectively.
0
: color coordinates of module on 63 gray levels of red, green, and blue, respectively.
0 G0 B0
ΓR G B: area of triangle defined by R, G, B
0 G0 B0
,*100%
: area of triangle defined by R0, G0, B0
˖˜˘ʳ˄ˌˆ˄
˃ˁˌ
˃ˁˋ
˃ˁˊ
˃ˁˉ
˃ˁˈ
˃ˁˇ
˃ˁˆ
˃ˁ˅
˃ˁ˄
˃
˃ ˃ˁ˅ ˃ˁˇ ˃ˁˉ ˃ˁˋ
G
0
G
R
0
R
B
B
0
25 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
8.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
26 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
9. PACKING
9.1 CARTON
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
9.2 PALLET
27 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 05, 2006
Model No.: N154Z1 - L04
Tentative
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
N141X5 - L03 Rev.XX
01A
-
X X X X X X X Y M D L N N N N
C P 1 3 5 4 4 8 - 0 1
(a) Model Name: N54Z1 - L04
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X
X X X X X Y M D X N N N N
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
st
to 31st, exclude I , O and U
E207943
MADE IN TAIWAN
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
10.2 CARTON LABEL
28 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
