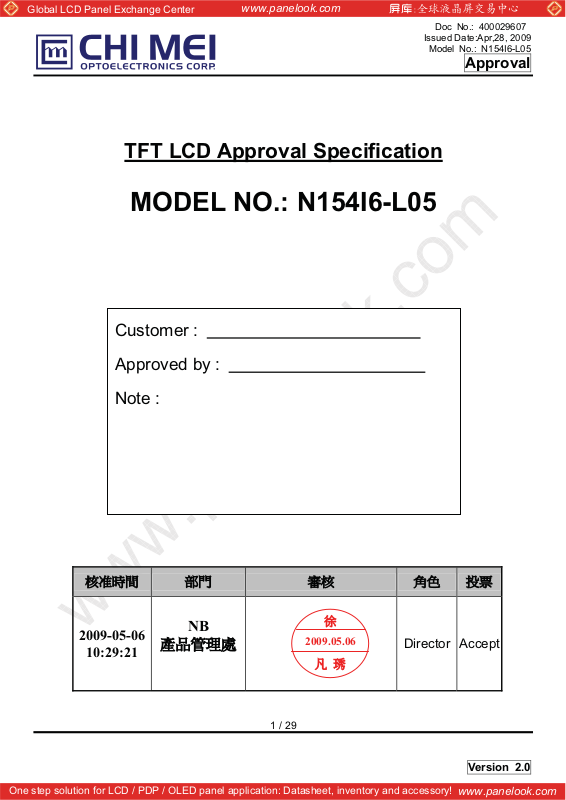

CMO N154I6-L05 Specification

Global LCD Panel Exchange Center

ு଱ழၴ ຝ ᐉு ߡۥ ދป

ข঴ጥ෻๠

徐

凡 琇

TFT LCD Approval Specification

MODEL NO.: N154I6-L05

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

Customer :

Approved by :

Note :

2009-05-06

NB

2009.05.06

Director Accept

10:29:21

1 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

- CONTENTS –

-

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10

4.1 TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10

5.1 TFT LCD MODULE

5.2 BACKLIGHT FPC PIN ASSIGNMENT

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID DATA STRUCTURE

6. CONVERTER SPECIFICATION ------------------------------------------------- 17

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

------------------------------------------------------- 18

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 24

9.1 HANDLING PRECAUTIONS

9.2 STORAGE PRECAUTIONS

9.3 OPERATION PRECAUTIONS

10. PACKING ------------------------------------------------------- 25

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS ------------------------------------------------------- 27

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

2 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

REVISION HISTORY

Version Date

Ver 2.0 Apr.28, 2009 All All Approval specification first issued.

Page

(New)

Section Description

3 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N154I6-L05 is a 15.4” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS

interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction.

1.2 FEATURES

- WXGA (1280 x 800 pixels) resolution.

- VESA standard LED model.

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

1.3 APPLICATION

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm
Bezel Opening Area 335 (H) x 211.1 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 343.5 344.0 344.5 mm

Module Size

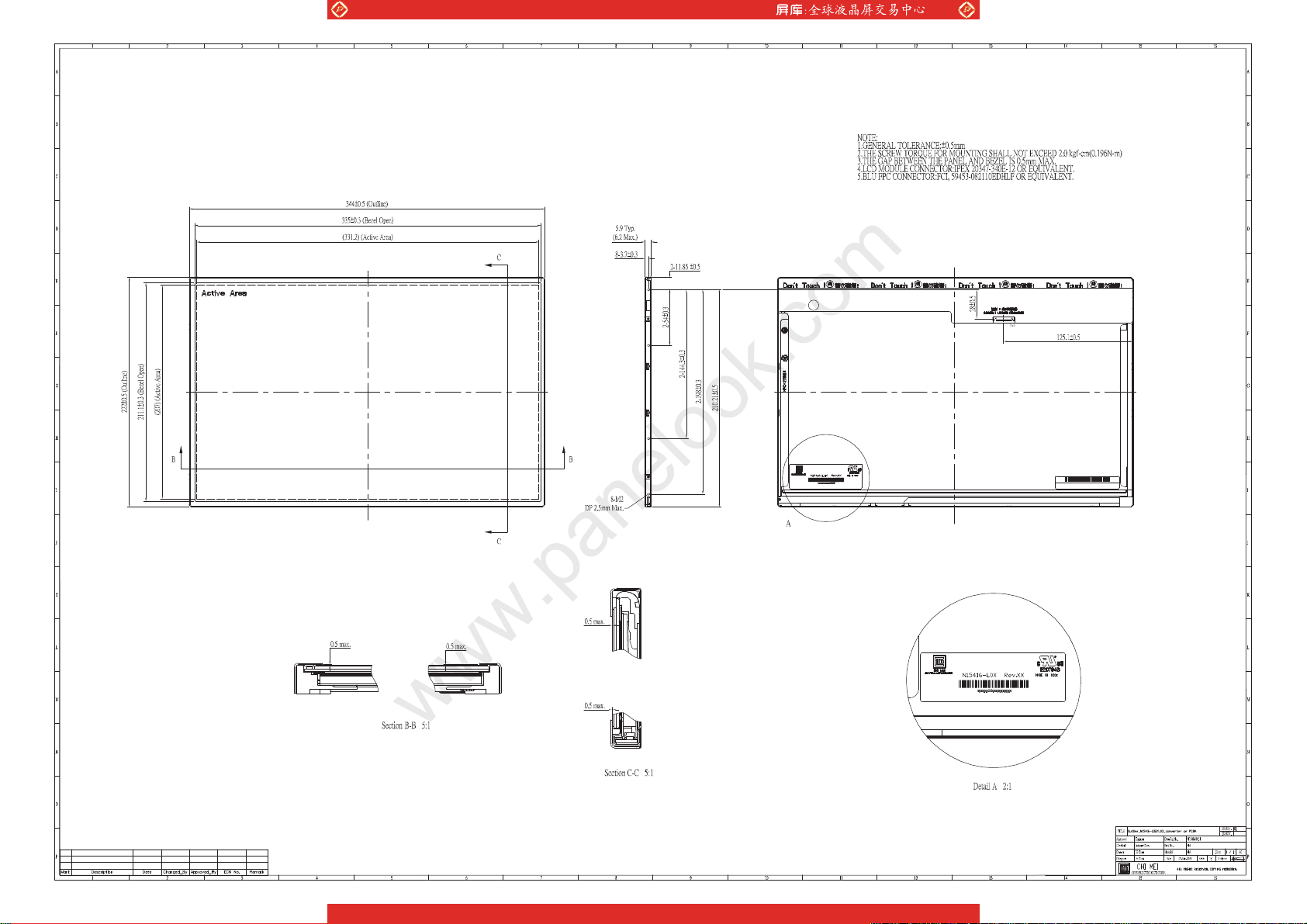

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 221.5 222.0 222.5 mm
Thickness(T) - 5.9 6.2 mm

Weight - 515 530 g

(1)

(1)

4 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface area should be 0 ºC min. and 60 ºC max.

Relative Humidity (%RH)

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

8060-20 40 0 20 -40

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 30 min/cycle, 1cycle for X,Y,Z-axis.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item

LED Light Bar Input Current -45 30.6 V
LED Peak Pulse Current 0 150 mA

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function

www.panelook.com

Value

Min. Max.

Value

Min Max.

Unit Note

Unit Note

DC

DC

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

(1)

(1), (2)

operation should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to Section 3.2 for further information).

6 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

White 320 360 mA (3)a
Black

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

-

-

TH(LVDS)

-100 - - mV

TL(LVDS)

380 430 mA (3)b

- - +100 mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm -

Power per EBL WG P

- 2.075 - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Approval

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

Measurement Conditions: Shown as the following figure. Test pattern: black.

: the maximum current when VCC is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

Q2

2SK1470

C2

0.01uF

FUSE

C3

1uF

Vcc rising time is 470us

+3.3V

VCC

Vcc

(LCD Module Input)

100ms

I

IS

0V

I

RUSH

470us

0.1Vcc

ICC

7 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC,

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

DC Current and f

a. White Pattern

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file “Flat

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

= 60 Hz,

v

Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

Differential

0V

V

VID

VID

8 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

L

Value

LED

Light Bar

Unit Note

DC

(1)(2)(Duty 100%)

DC

Parameter Symbol

LED light bar input
voltage
LED light bar input
current

26.1 28.8 30.6 V

V

L

114 120 126 mA

I

L

Min. Typ. Max.

Power Consumption PL 2.98 3.46 3.86 W (3)
LED Life Time LBL 15000 - - Hrs (4)

Note (1) LED current is measured by utilizing a high frequency current meter as shown below.

VL,I

Light Bar Feedback

Channels

Approval

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter

Note (3) P

with current balancing function to drive LED light-bar.

Ø V

= I

L

L

L

8

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25 ±

o

2

C and IL = 20.0 mA(Per EA) until the brightness becomes 50% of its original value.Љ

9 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

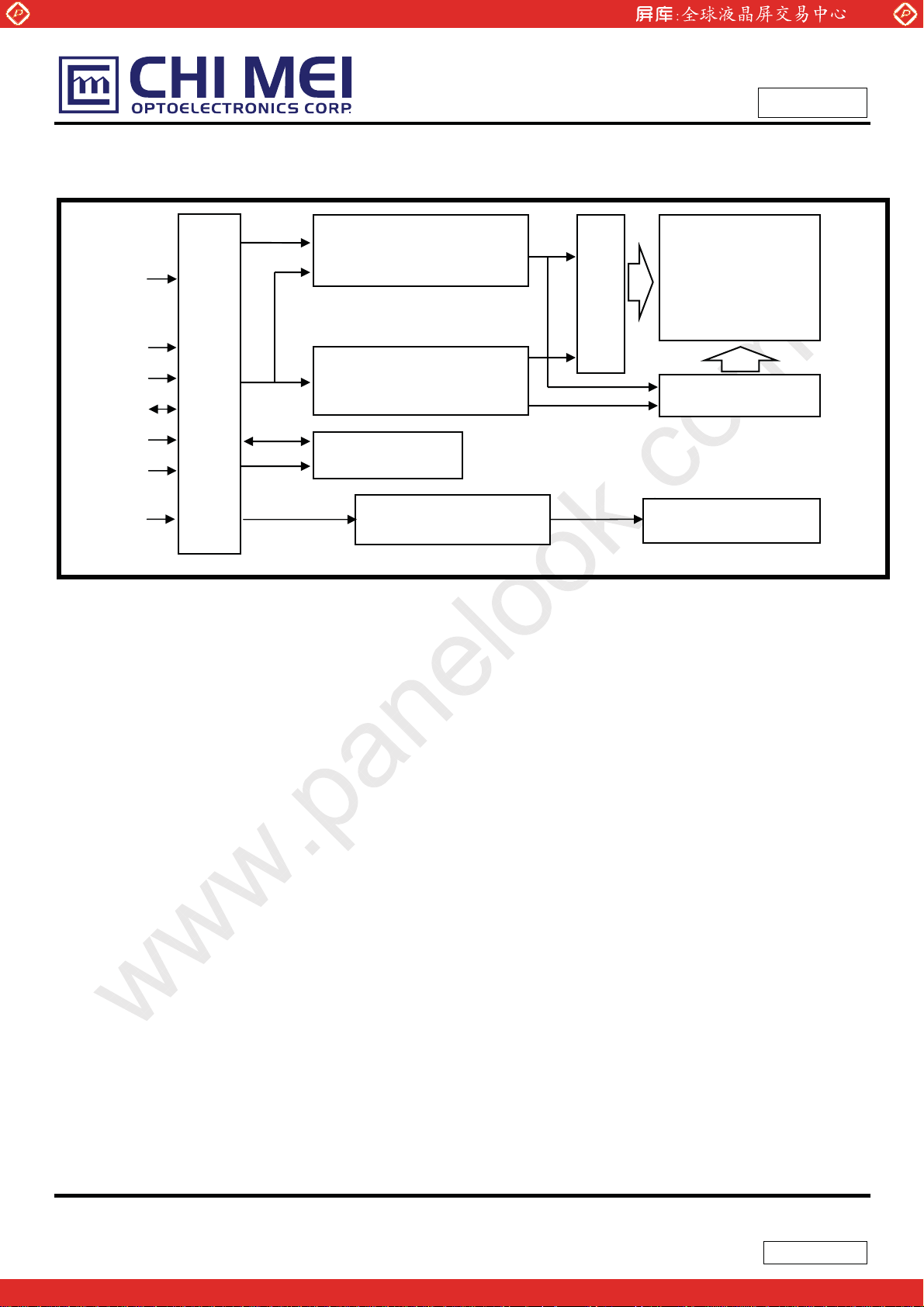

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

Converter

Input Signals

INPUT CONNECTOR

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

LED CONVERTER

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

10 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 NC Non-Connection
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative

9 Rxin0+ LVDS Differential Data Input Positive

10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
25 Vss Ground
26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection
31 LED_GND LED Ground
32 LED_GND LED Ground
33 LED_GND LED Ground
34 LED_VCCS LED Power
35 LED_VCCS LED Power
36 LED_VCCS LED Power
37 LED_VCCS LED Power
38 LED_PWM PWM Control Signal of LED Converter
39 LED_EN Enable Control Signal of LED Converter
40 NC Non-Connection

Note (1) Connector Part No.: IPEX 20347-340E-12 or equivalent

DDC 3.3V Power DDC 3.3V Power

EDID

DDC Clock DDC Clock

EDID

DDC Data DDC Data

EDID

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

R0~R5,G0

G1~G5, B0, B1

LVDS Level Clock

Note (2) User’s connector Part No: IPEX 20345-340T-12 or equivalent

Note (3) The first pixel is odd as shown in the following figure.

11 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

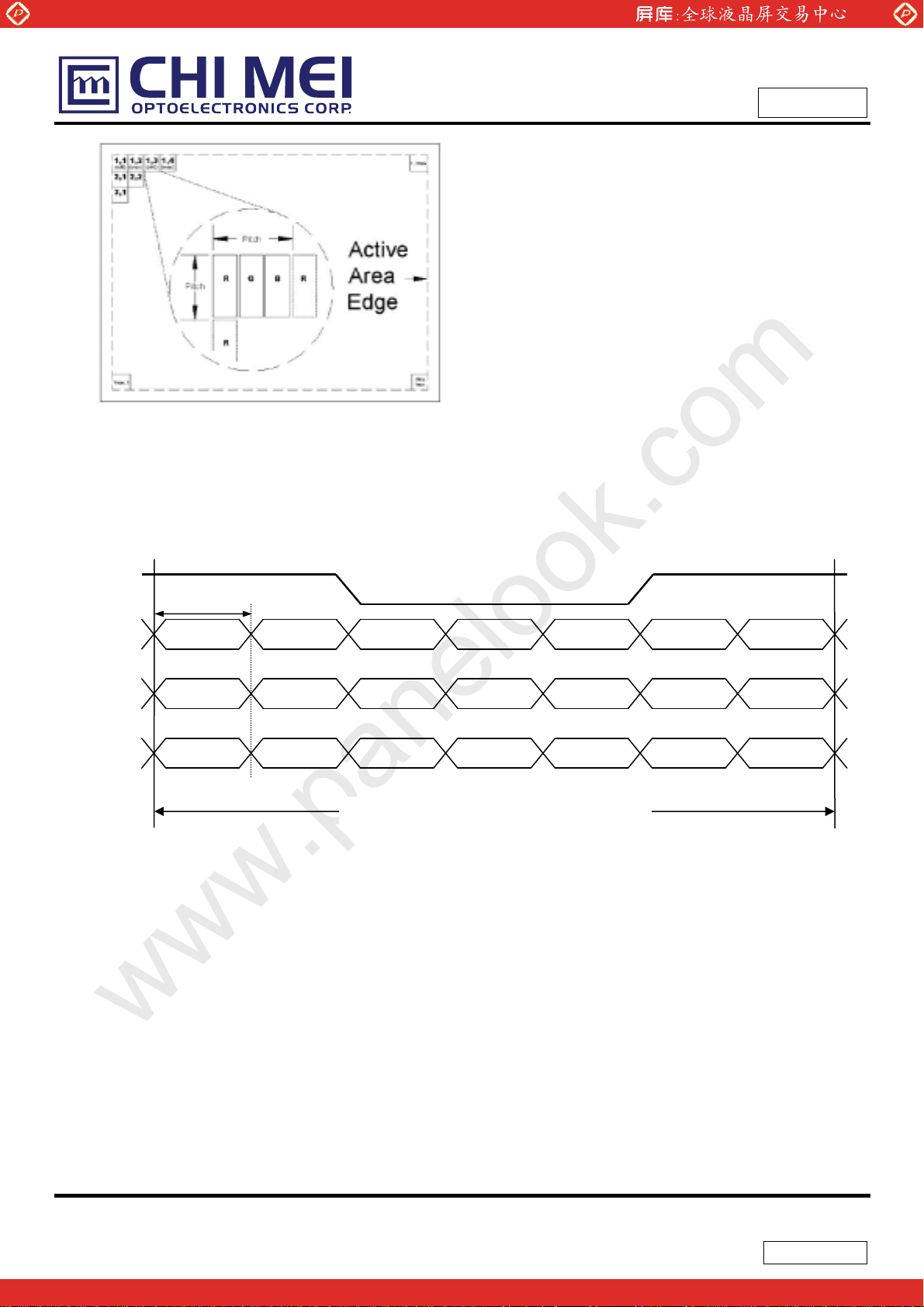

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0

R5

R4

Signal for 1 DCLK Cycle (T)

12 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

13 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte
#(decimal)

0 0 Header

1 1 Header

2 2 Header
3 3 Header

4 4 Header

5 5 Header

6 6 Header

7 7 Header

8 8 EISA ID manufacturer name (“CMO”)

9 9 EISA ID manufacturer name (Compressed ASCII)

10 0A ID product code (N154I6-L05) 86

11 0B ID product code (hex LSB first; N154I6-L05) 15

12 0C ID S/N (fixed “0”)

13 0D ID S/N (fixed “0”)

14 0E ID S/N (fixed “0”)

15 0F ID S/N (fixed “0”)

16 10 Week of manufacture (fixed “00H”)

17 11 Year of manufacture (fixed “00H”)

18 12 EDID structure version # (“1”)

19 13 EDID revision # (“3”)

20 14 Video I/P definition (“digital”)

21 15 Max H image size (“33cm”)

22 16 Max V image size (“21cm”)

23 17 Display Gamma (Gamma = ”2.2”)

24 18 Feature support (“Active off, RGB Color”)

25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)

26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)

27 1B Red-x (Rx = “0.602”)

28 1C Red-y (Ry = “0.340”)

29 1D Green-x (Gx = ”0.306”)

30 1E Green-y (Gy = ”0.530”)

31 1F Blue-x (Bx = ”0.151”)

32 20 Blue-y (By = ”0.120”)

33 21 White-x (Wx = ”0.313”)

34 22 White-y (Wy = ”0.329”)

35 23 Established timings 1

36 24 Established timings 2

37 25 Manufacturer’s reserved timings

38 26 Standard timing ID # 1

39 27 Standard timing ID # 1

Byte
#(hex)Field Name and Comments Value(hex) Value(binary)

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

00 00000000

FF 11111111

FF 11111111
FF 11111111
FF 11111111

FF 11111111

FF 11111111

00 00000000

0D 00001101

AF 10101111

10000110

00010101

00 00000000

00 00000000

00 00000000

00 00000000

28 00101000

11 00010001

01 00000001

03 00000011

80 10000000

21 00100001

15 00010101

78 01111000

0A 00001010

07 00000111

F5 11110101

9A 10011010

57 01010111

4E 01001110

87 10000111

26 00100110

1E 00011110

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

14 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

40 28 Standard timing ID # 2

41 29 Standard timing ID # 2

42 2A Standard timing ID # 3

43 2B Standard timing ID # 3

44 2C Standard timing ID # 4

45 2D Standard timing ID # 4

46 2E Standard timing ID # 5

47 2F Standard timing ID # 5

48 30 Standard timing ID # 6

49 31 Standard timing ID # 6

50 32 Standard timing ID # 7

51 33 Standard timing ID # 7

52 34 Standard timing ID # 8

53 35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“71MHz”, According to

54 36

55 37 # 1 Pixel clock (hex LSB first)

56 38 # 1 H active (“1280”)

57 39 # 1 H blank (“160”)

58 3A # 1 H active : H blank (“1280 : 160”)

59 3B # 1 V active (”800”)

60 3C # 1 V blank (”23”)

61 3D # 1 V active : V blank (”800 :23”)

62 3E # 1 H sync offset (”48”)

63 3F # 1 H sync pulse width ("32”)

64 40 # 1 V sync offset : V sync pulse width (”3 : 6”)

65 41

66 42 # 1 H image size (”331 mm”)

67 43 # 1 V image size (”207 mm”)

68 44 # 1 H image size : V image size (”331 : 207”)

69 45 # 1 H boarder (”0”)

70 46 # 1 V boarder (”0”)

71 47

72 48 Detailed timing description # 2

73 49 # 2 Flag

74 4A # 2 Reserved

75 4B # 2 FE (hex) defines ASCII string (Model Name “N154I6-L05”, ASCII)

76 4C # 2 Flag

77 4D # 2 1st character of name (“N”)

78 4E # 2 2nd character of name (“1”)

79 4F # 2 3rd character of name (“5”)

80 50 # 2 4th character of name (“4”)

81 51 # 2 5th character of name (“I”)

82 52 # 2 6th character of name (“6”)

VESA CVT Rev1.1)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
(”48: 32 : 3 : 6”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
Negatives

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

BC 10111100

1B 00011011

00 00000000

A0 10100000

50 01010000

20 00100000

17 00010111

30 00110000

30 00110000

20 00100000

36 00110110

00 00000000

4B 01001011

CF 11001111

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

35 00110101

34 00110100

49 01001001

36 00110110

15 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

83 53 # 2 7th character of name (“-”)

84 54 # 2 8th character of name (“L”)

85 55 # 2 9th character of name (“0”)

86 56 # 2 9th character of name (“5”)

87 57 # 2 New line character indicates end of ASCII string

88 58 # 2 Padding with “Blank” character

89 59 # 2 Padding with “Blank” character

90 5A Detailed timing description # 3

91 5B # 3 Flag

92 5C # 3 Reserved

93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

94 5E # 3 Flag

95 5F # 3 1st character of string (“C”)

96 60 # 3 2nd character of string (“M”)

97 61 # 3 3rd character of string (“O”)

98 62 # 3 New line character indicates end of ASCII string

99 63 # 3 Padding with “Blank” character

100 64 # 3 Padding with “Blank” character

101 65 # 3 Padding with “Blank” character

102 66 # 3 Padding with “Blank” character

103 67 # 3 Padding with “Blank” character

104 68 # 3 Padding with “Blank” character

105 69 # 3 Padding with “Blank” character

106 6A # 3 Padding with “Blank” character

107 6B # 3 Padding with “Blank” character

108 6C Detailed timing description # 4

109 6D # 4 Flag

110 6E # 4 Reserved

111 6F # 4 FE (hex) defines ASCII string (Model Name“N154I6-L05”, ASCII)

112 70 # 4 Flag

113 71 # 4 1st character of name (“N”) 4E

114 72 # 4 2nd character of name (“1”) 31

115 73 # 4 3rd character of name (“5”) 35

116 74 # 4 4th character of name (“4”) 34

117 75 # 4 5th character of name (“I”) 49

118 76 # 4 6th character of name (“6”) 36

119 77 # 4 7th character of name (“-”) 2D

120 78 # 4 8th character of name (“L”) 4C

121 79 # 4 9th character of name (“0”)

122 7A # 4 9th character of name (“5”)

123 7B # 4 New line character indicates end of ASCII string

124 7C # 4 Padding with “Blank” character

125 7D # 4 Padding with “Blank” character

126 7E Extension flag

127 7F Checksum

2D 00101101

4C 01001100

30 00110000

35 00110101

0A 00001010

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

35 00110101

0A 00001010

20 00100000

20 00100000

00 00000000

69 01101001

01001110

00110001

00110101

00110100

01001001

00110110

00101101

01001100

16 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date:Apr,28, 2009
Model No.: N154I6-L05

6. CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS 28V

LED_GND +/-0.3V

LED_PWM, LED_EN -0.3V~5.5V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage

EN Control Level

PWM Control Level

Backlight On 2.0 --- 5.5 V
Backlight Off 0 --- 0.8 V
PWM High Level 2.0 --- 5.5 V
PWM Low Level 0 --- 0.8 V

LED_Vccs

Min. Typ. Max.

6.0 12.0 21.0 V

PWM Control Duty Ratio 20 100 %
PWM Control Permissive Ripple Voltage
PWM Control Frequency f

LED_VCCS=Min

Converter Input Current

LED_VCCS=Typ
LED_VCCS=Max

VPWM_pp

190 210 230 Hz

PWM

100 mV

570 678 803 mA (1)

I

BL

285 339 402 mA (1)
163 194 230 mA (1)

Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min/Typ/Max”,

Value

Doc No.: 400029607

Approval

Unit Note

Ta = 25 ± 2 ºC, f

= 200 Hz, Duty=100%.

PWM

6.3 LED BACKLIGHT CONTROLL POWER SEQUENCE

Power On

LED_VCCS

LED_PWM

0V

0V

0V

Timing Specifications:

Њ 0ms

T

A

T

Њ 0ms

B

T

Њ 10ms

C

T

Њ 0ms

D

Note (1) Please follow the LED backlight power sequence as above. If the customer could not follow, it might

Power Off

cause backlight flash issue during display ON/OFF or damage the LED backlight controller

17 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

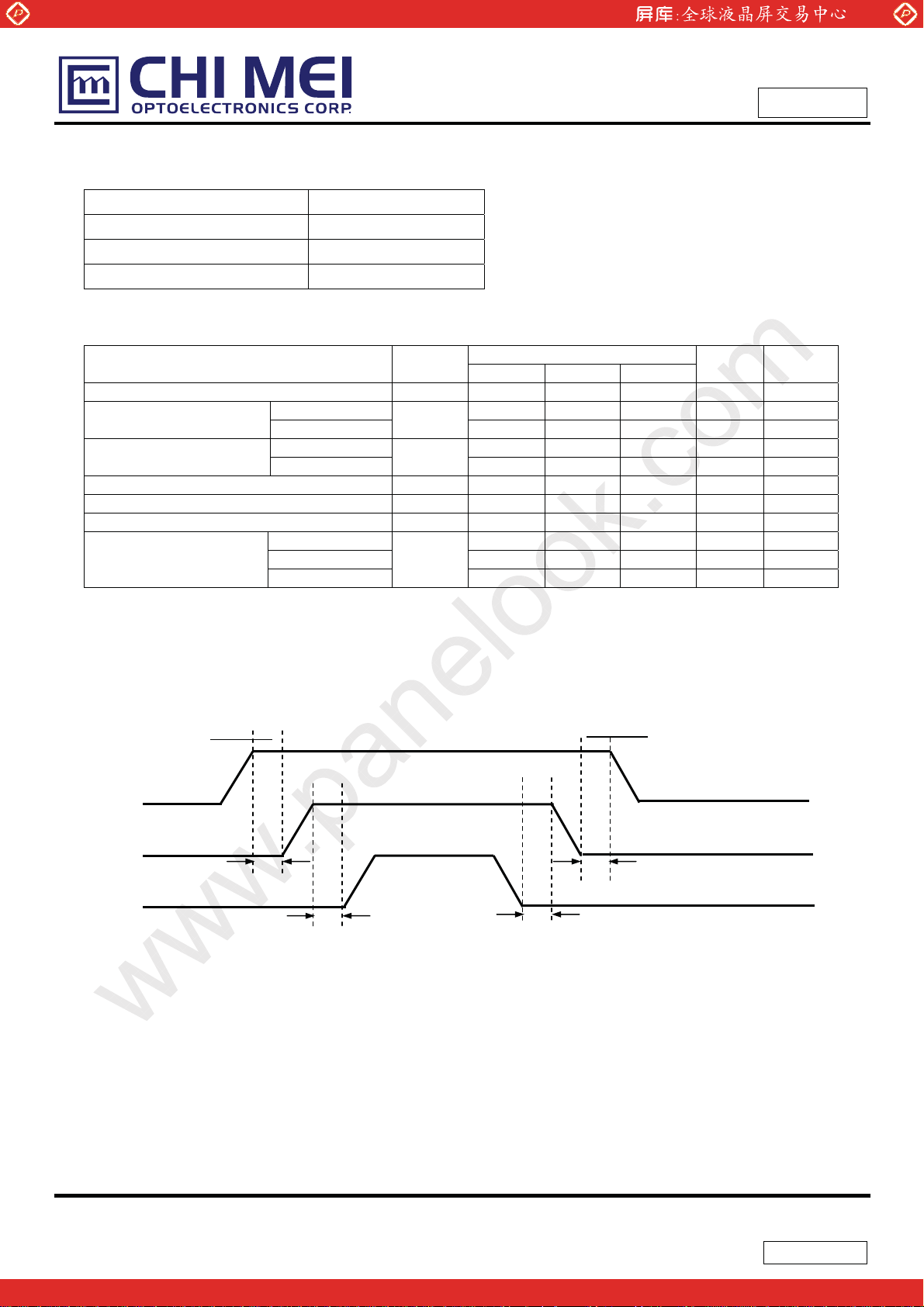

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 66 71 73 MHz (2)

Vertical Total Time TV 802 823 840 TH -

Vertical Active Display Period TVD 800 800 800 TH -

DE

Vertical Active Blanking Period TVB TV-TVD 23 TV-TVD TH

Horizontal Total Time TH 1380 1440 1450 Tc (2)

Horizontal Active Display Period THD 1280 1280 1280 Tc (2)

Horizontal Active Blanking Period THB

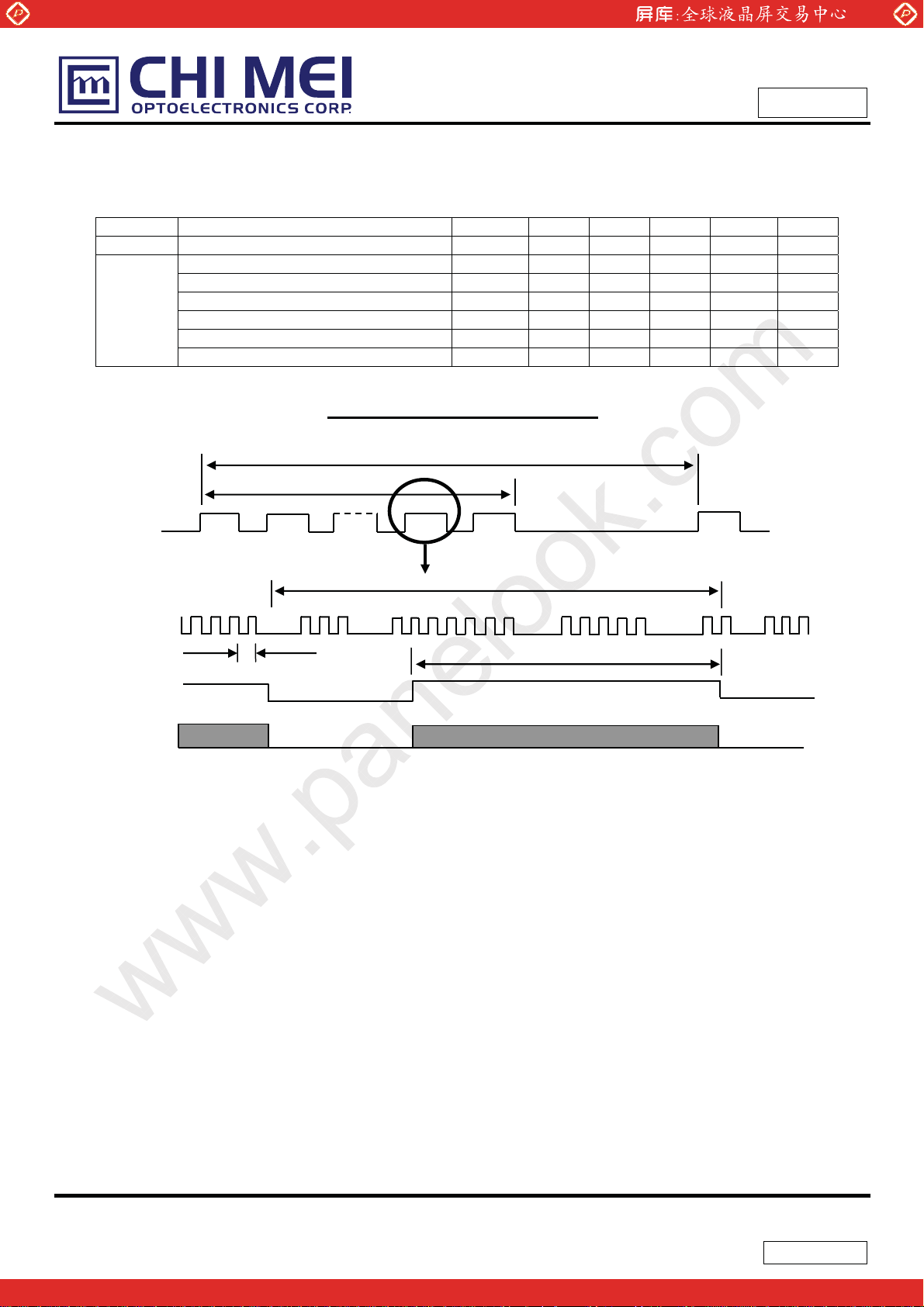

INPUT SIGNAL TIMING DIAGRAM

www.panelook.com

TH-THD

160

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

TH-THD

Tc (2)

DE

DCLK

DE

DATA

TC

HD

T

18 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

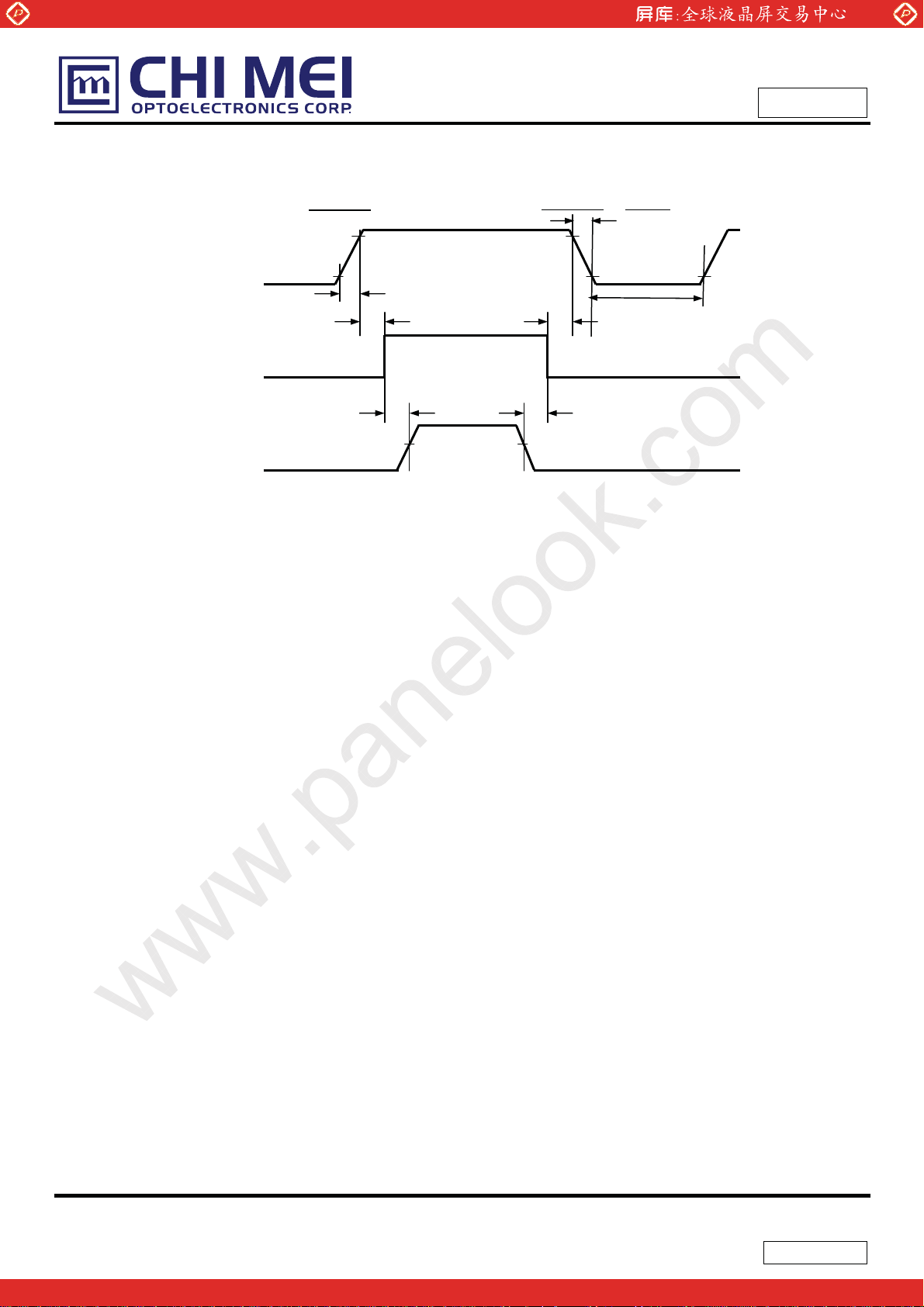

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

- Power Supply

for LCD, Vcc

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power for Backlight

Timing Specifications:

0.5< t1 <= 10 msec

0 < t2 <= 50 msec

0 < t3 <= 50 msec

t4 >= 500 msec

0V

0V

Power On

90%

10%

10%

Restart

10%

t4

Power Off

t7

90%

t1

t3t2

Valid Data

t6t5

50%50%

ONOFF OFF

t5 >= 200 msec

t6 >= 200 msec

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power

supply for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To avoid

this phenomenon, we suggest that the Vcc falling time is better to follow 50usЉt7Љ10 ms.

19 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current IL 120 mA

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 300 500 - - (2), (5)

Response Time

Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points δW

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

25±2

50±10

TR - 3 8 ms

- 5 12 ms

T

F

L

AVE

Rx

Ry
Gx
Gy

Bx

By

=0° , θY =0°

θ

x

Viewing Normal Angle

180 220 - cd/m

0.553

0.358

0.350

TYP.

-0.05

0.564

0.160

TYP.

+0.05

0.128
Wx 0.313 ­Wy

0.329

θx+ 40 45 -

- 40 45 -

θ

x

θY+ 15 20 -

-

θ

Y

5p

CR≥10

40 45 -

θ

=0° , θY =0° 80 - - % (5),(6)

x

%RH

Deg. (1),(5)

Approval

o

C

(3)

2

(4), (5)

-

-

-

-

-

-

-

(1)

20 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

θx−

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

R

66.67 ms

, TF):

R

T

F

66.67 ms

Time

21 / 29

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

500

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

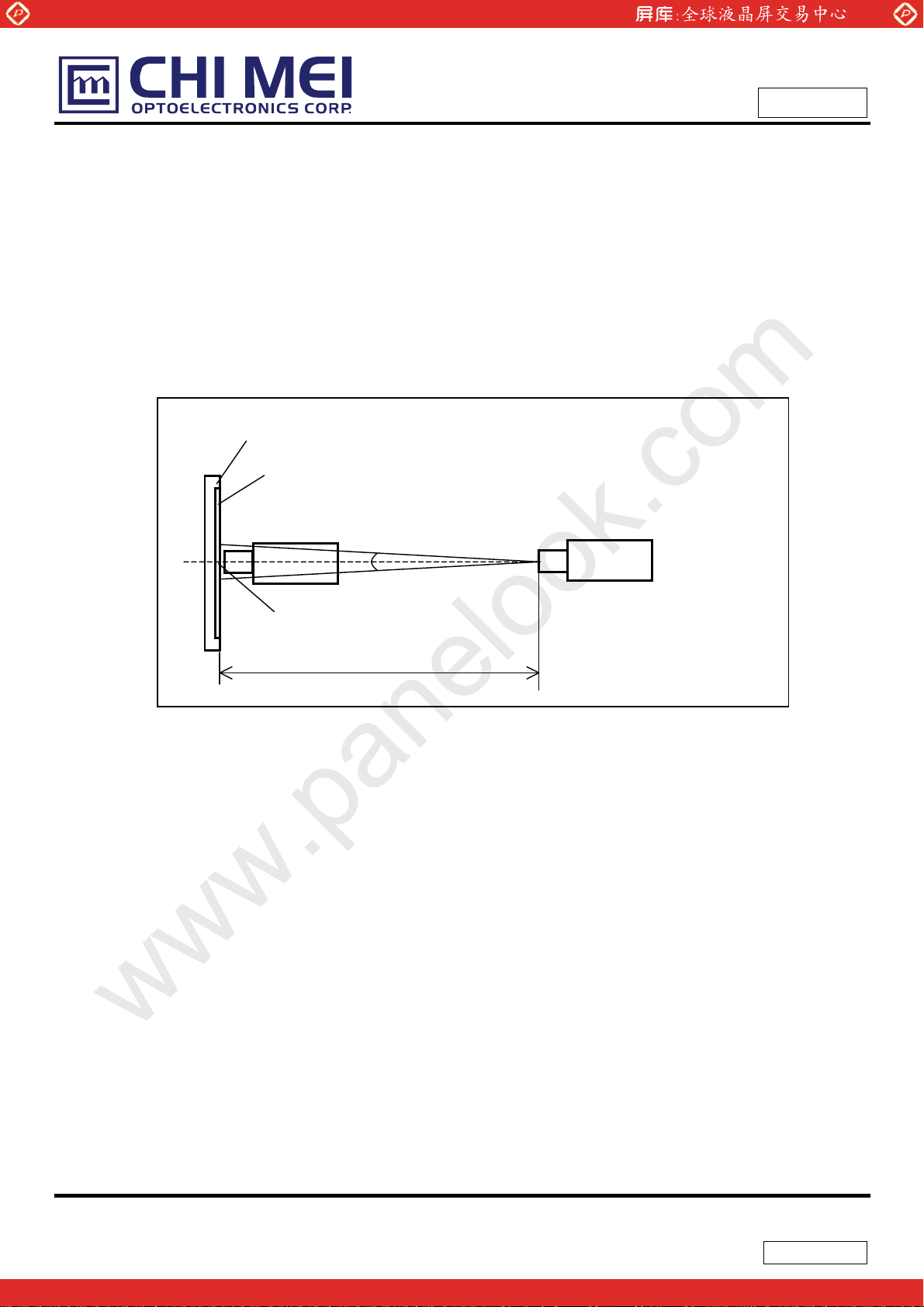

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

USB2000

AVE

):

CS-1000T

ʳʳʳʳʳʳʳʳʳʳʳʳ

Center of the Screen

Light Shield Room

mm

(Ambient Luminance < 2 lux)

22 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

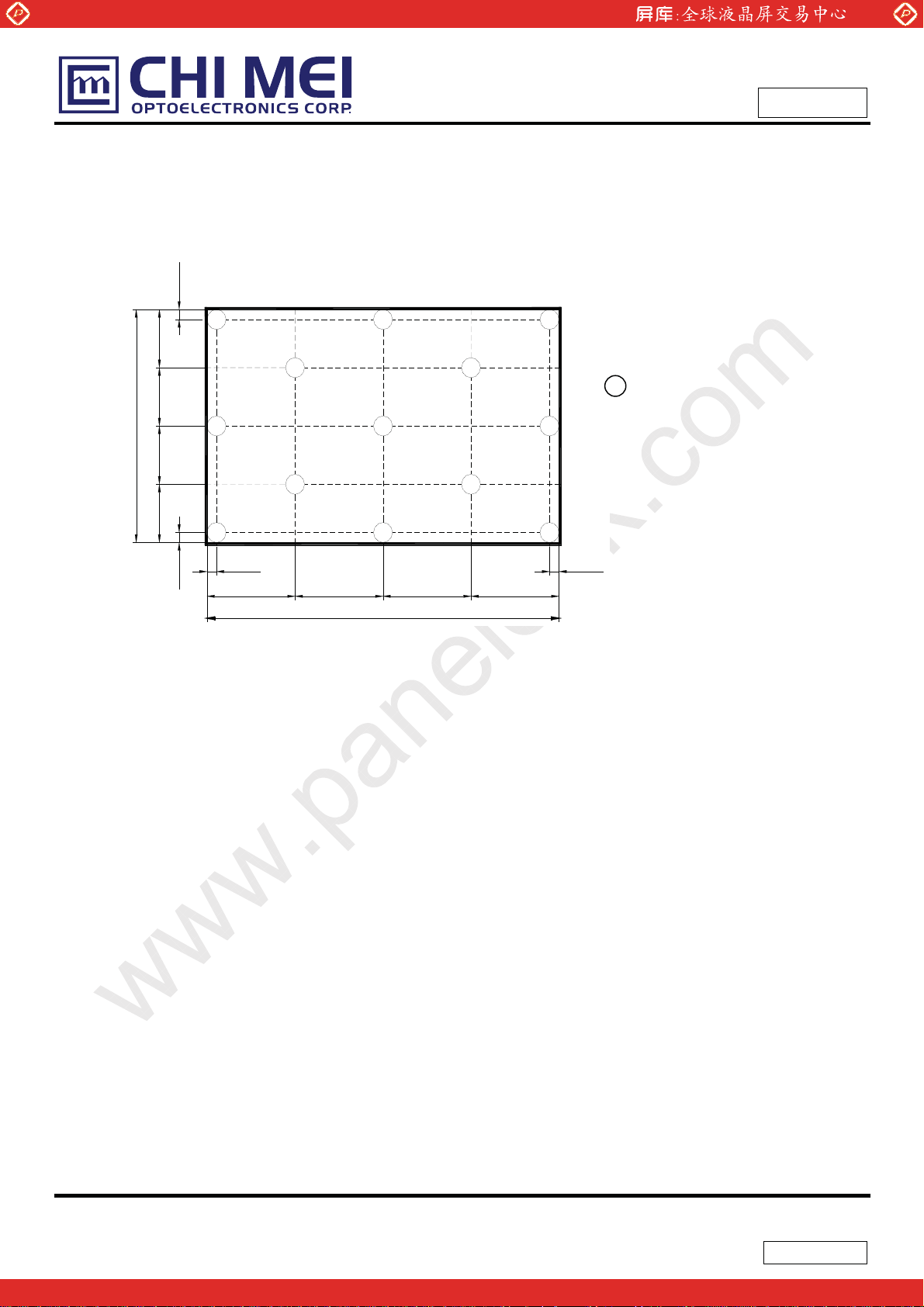

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW

= Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

5p

˄˃

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

ˉ

˛˂ˇ

˅

˄˃

ˌ

ˇˈ

˄˄

˄˃ ˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ

˛

˛˂ˇ ˛˂ˇ ˛˂ˇ

ˊ

ˆ

˄

˄˅

˪

ˋ

X

: Test Point

˄˃

˄ˆ

X=1 to 13

Active area

23 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

9.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the lamp wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

9.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of lamp will be higher than the room

temperature.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

24 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

10. PACKING

10.1 CARTON

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

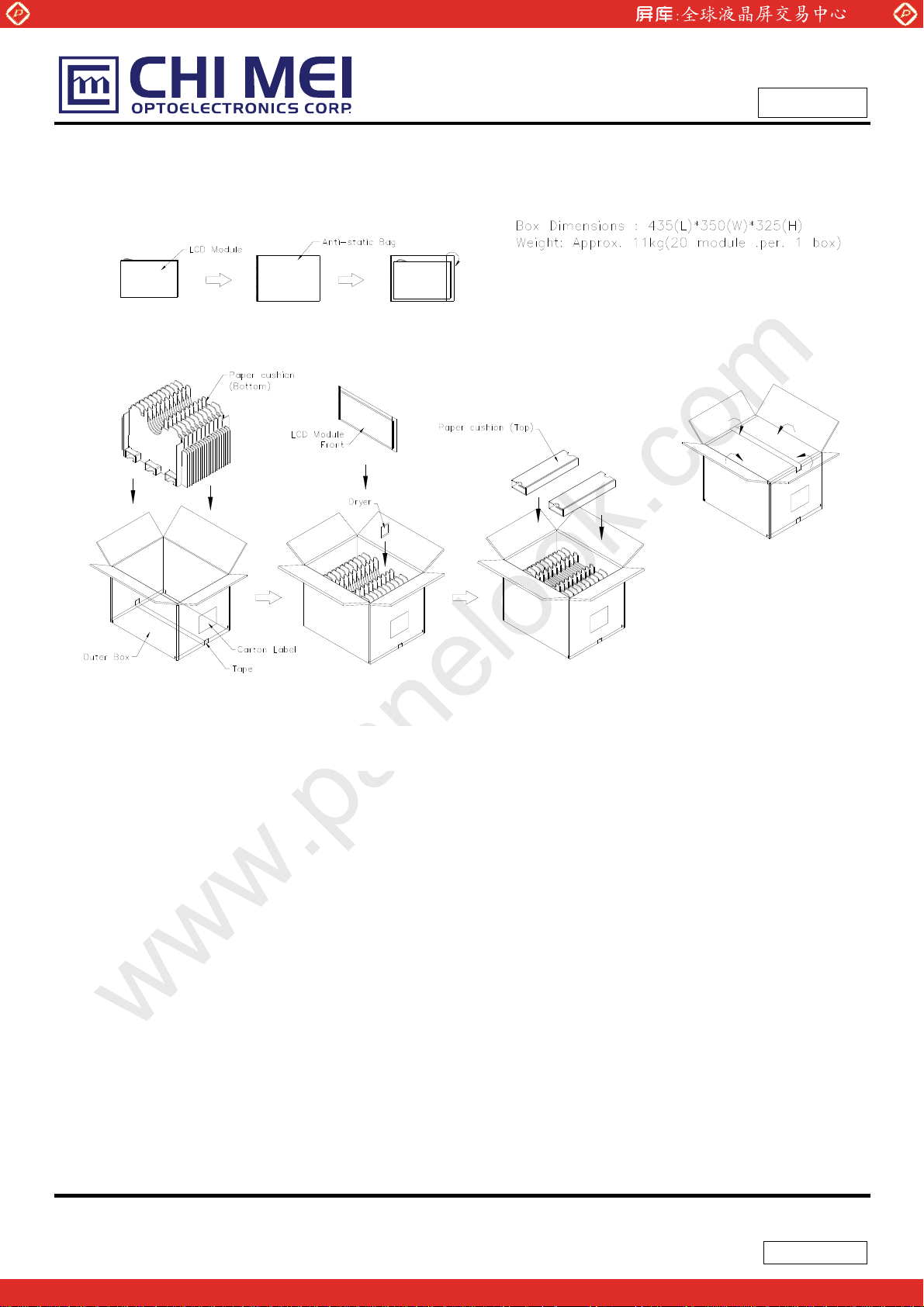

Figure. 10-1 Packing method

25 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

10.2 3$//(7

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

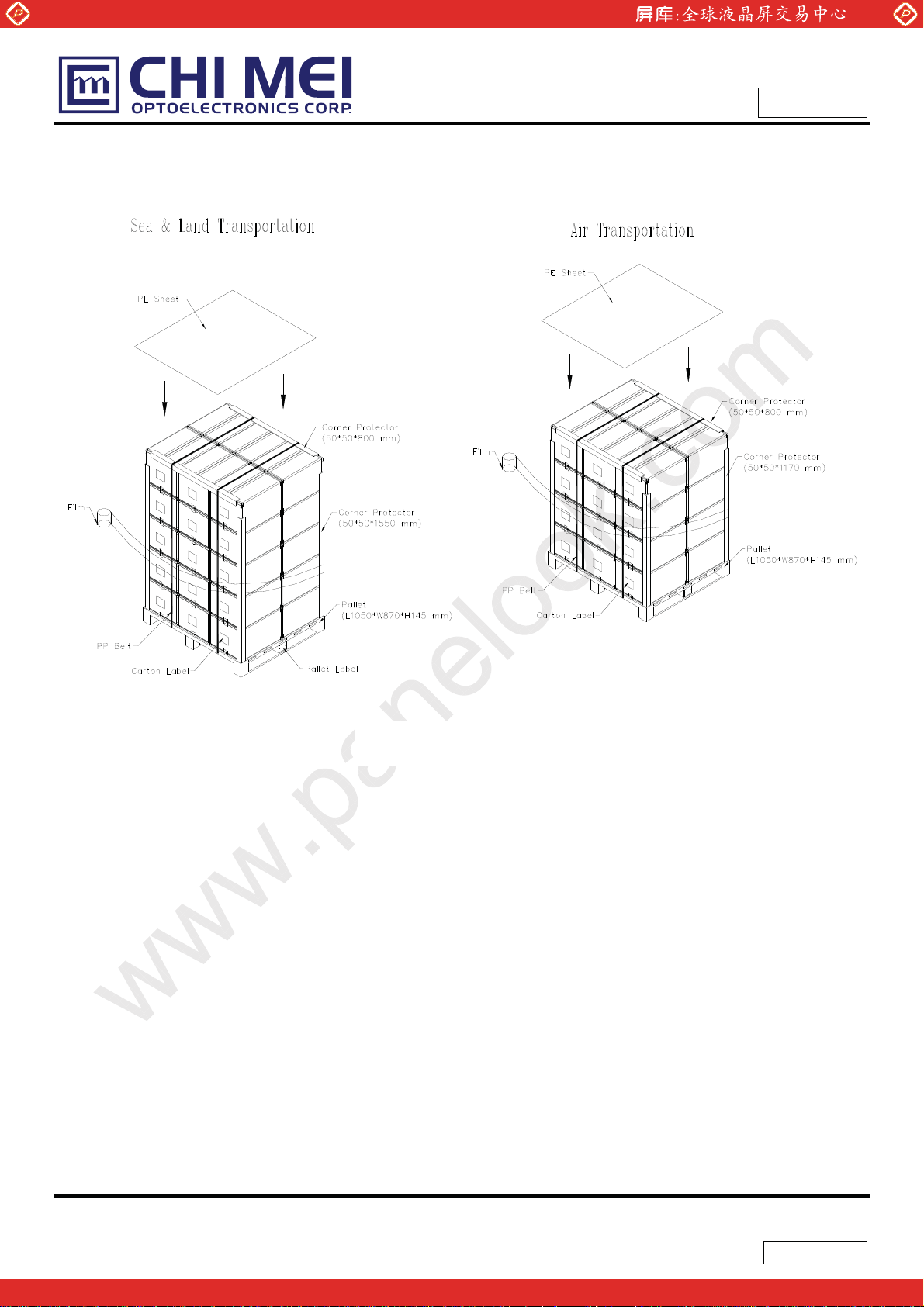

Figure. 10-2 Packing method

26 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

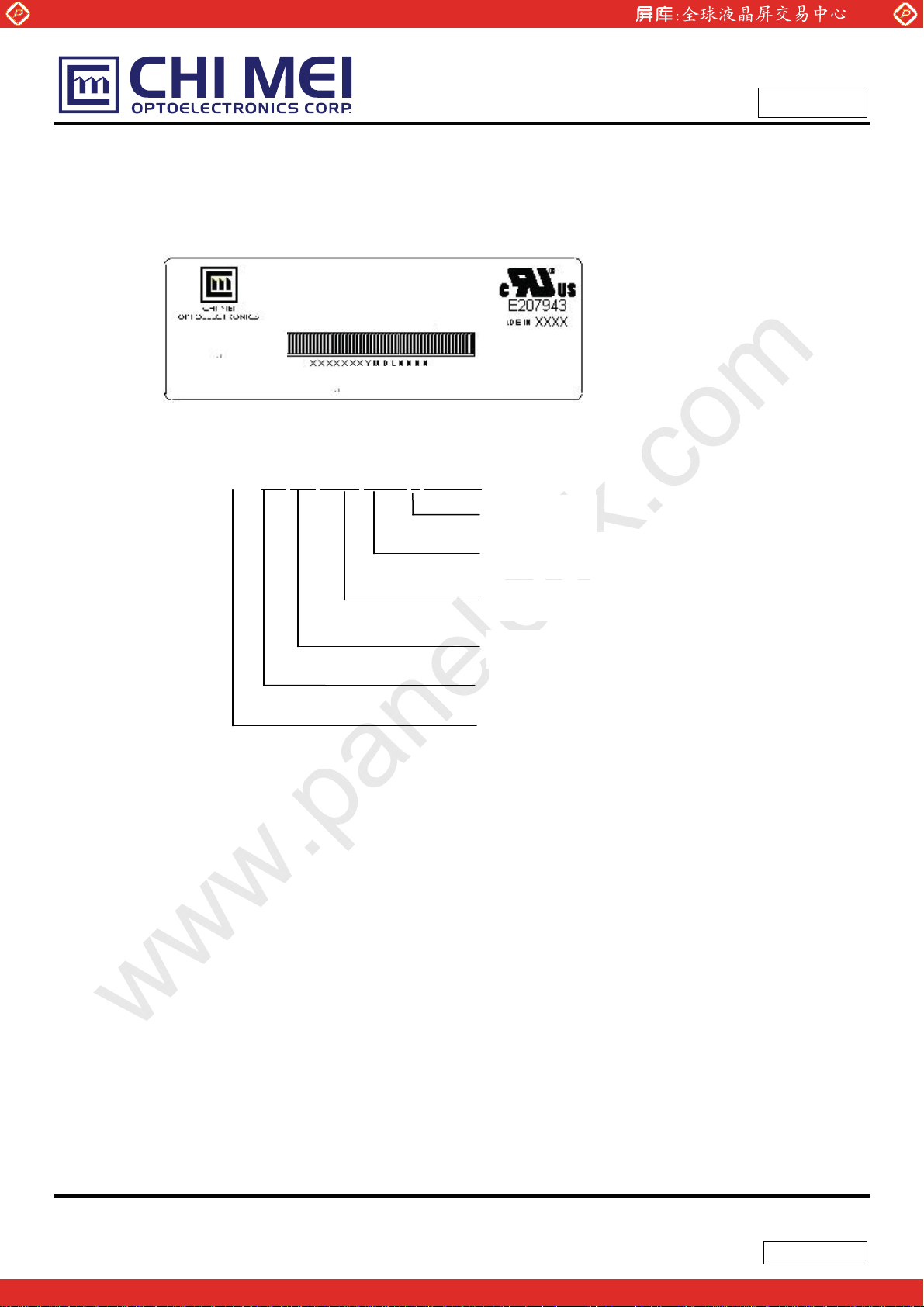

The barcode nameplate is pasted on each module as illustration, and its definitions are as following

explanation.

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

-

(a) Model Name: N154I6 - L05

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D L N N N N

Rev. XX

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

LEOO

Revision

CMO Internal Use

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

st

to 31st, exclude I , O and U

27 / 29

Version 2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

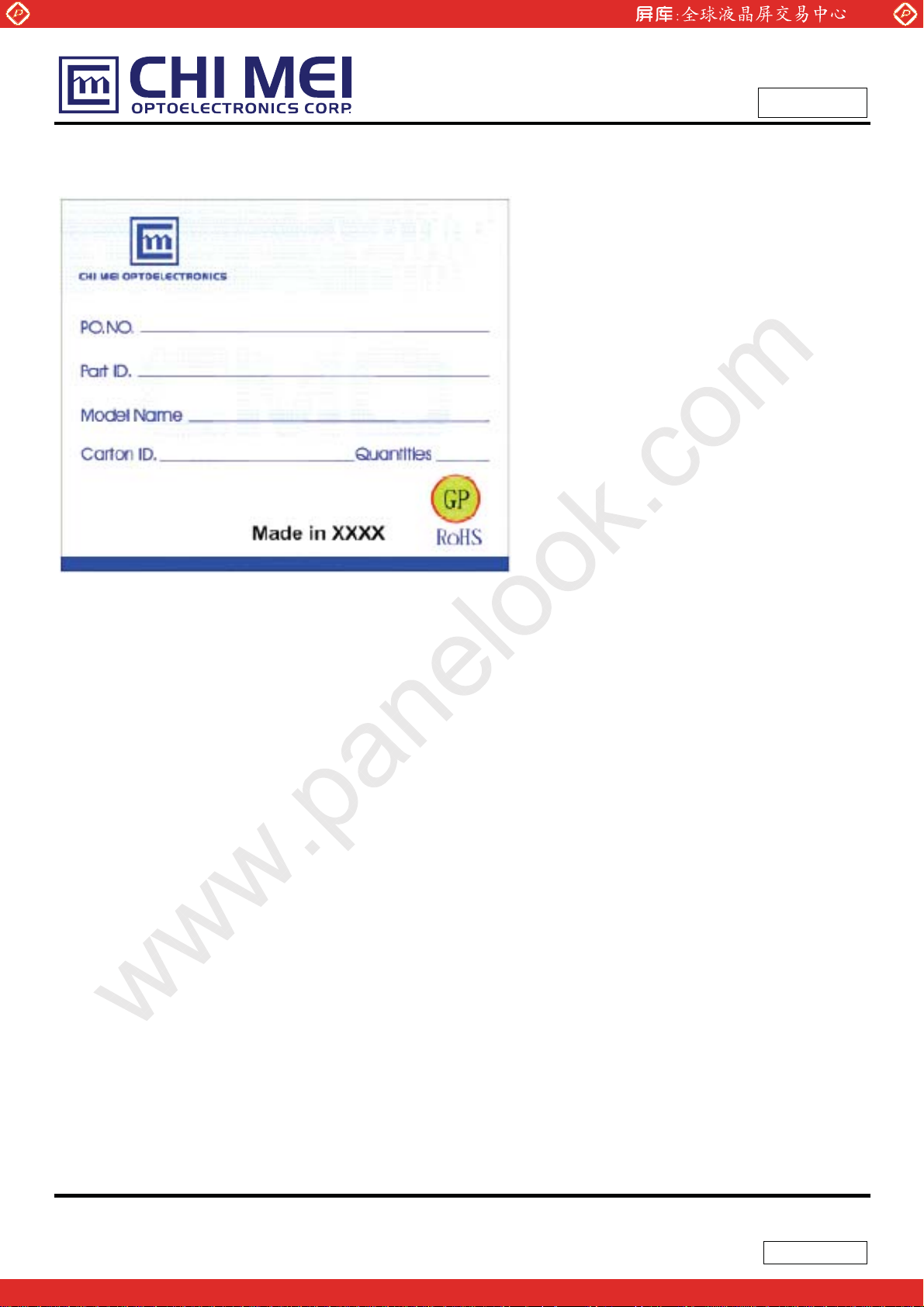

11.2 CARTON LABEL

www.panelook.com

Doc No.: 400029607
Issued Date:Apr,28, 2009
Model No.: N154I6-L05

Approval

28 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
