CMO N154I6-L03 Specification
Global LCD Panel Exchange Center
ಖᙕ
ՠ܂
ᐉு
ߡۥ
ދป
A

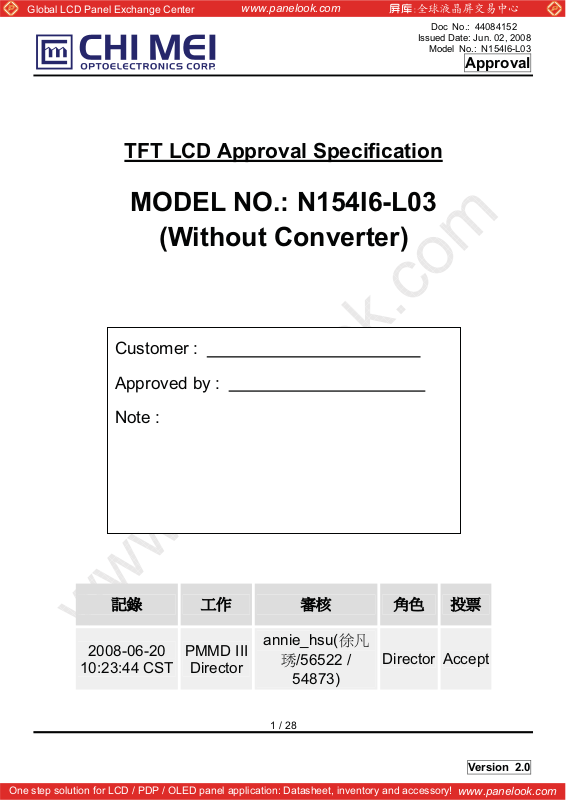

TFT LCD Approval Specification
MODEL NO.: N154I6-L03
(Without Converter)
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
Customer :
pproved by :
Note :
annie_hsu(ஊՅ
2008-06-20
10:23:44 CST
PMMD III
Director
≮/56522 /
Director Accept
54873)
1 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
- CONTENTS –
-
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT FPC PIN ASSIGNMENT

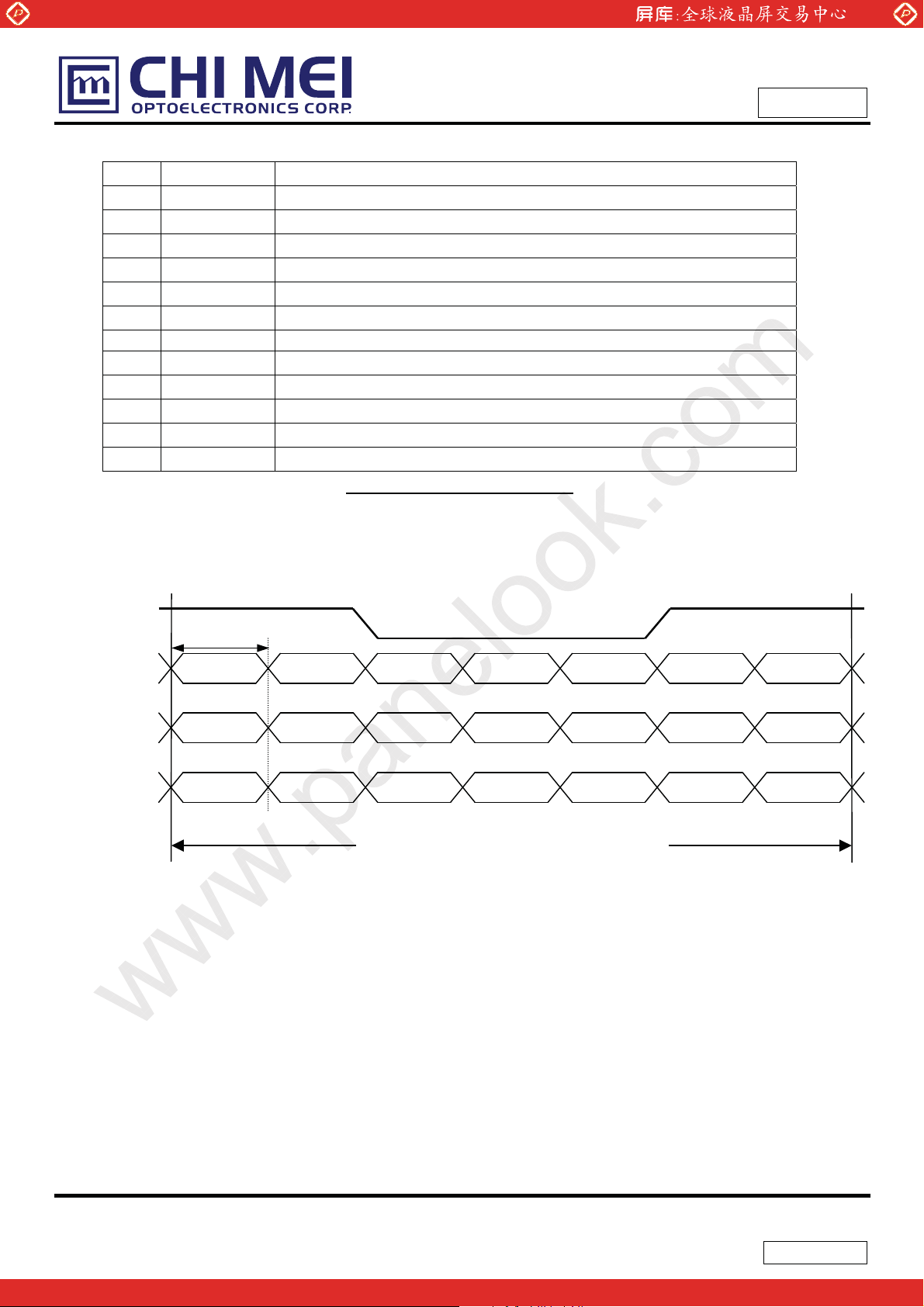

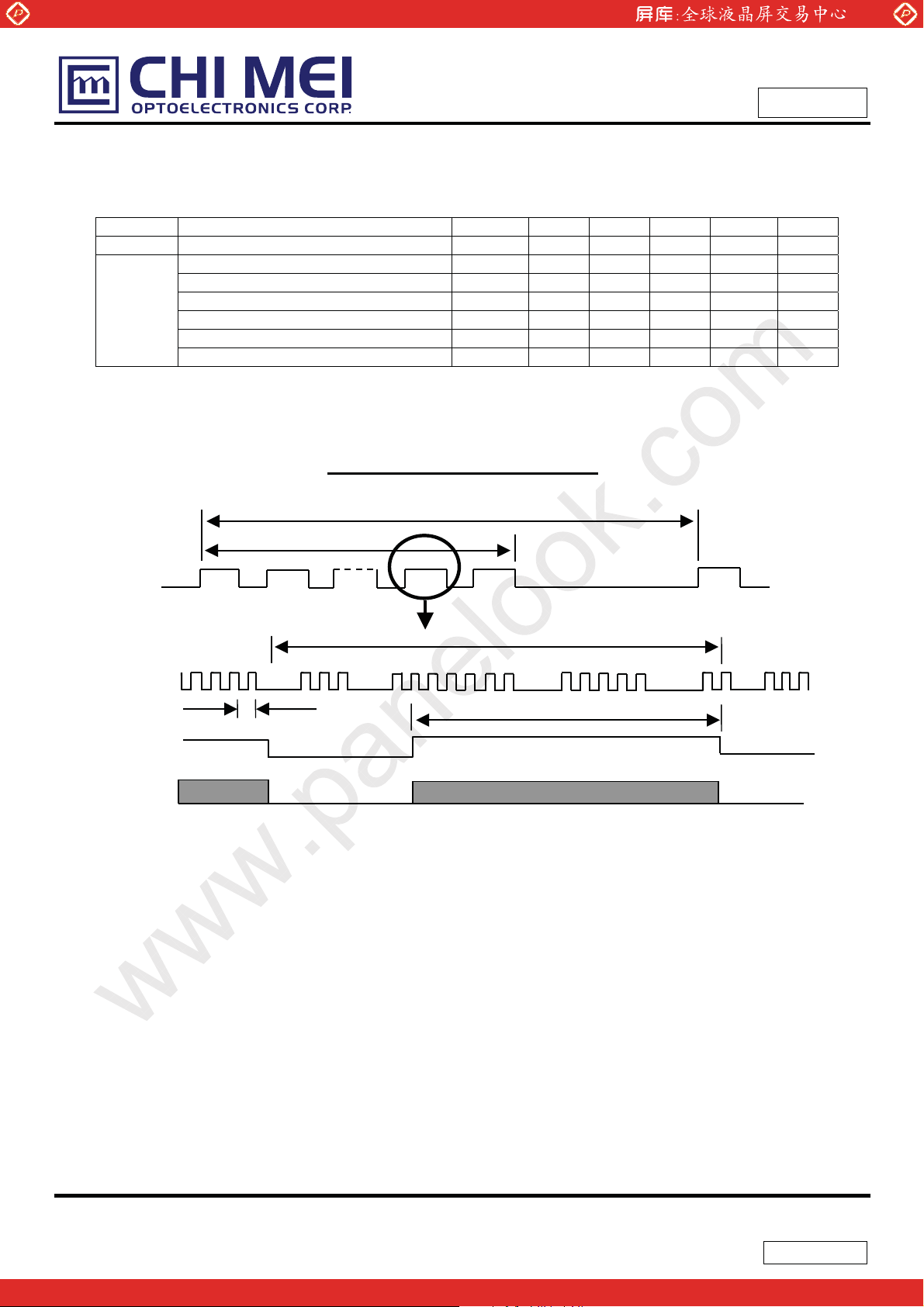

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 14
6.1 INPUT SIGNAL TIMING SPECIFICATIONS

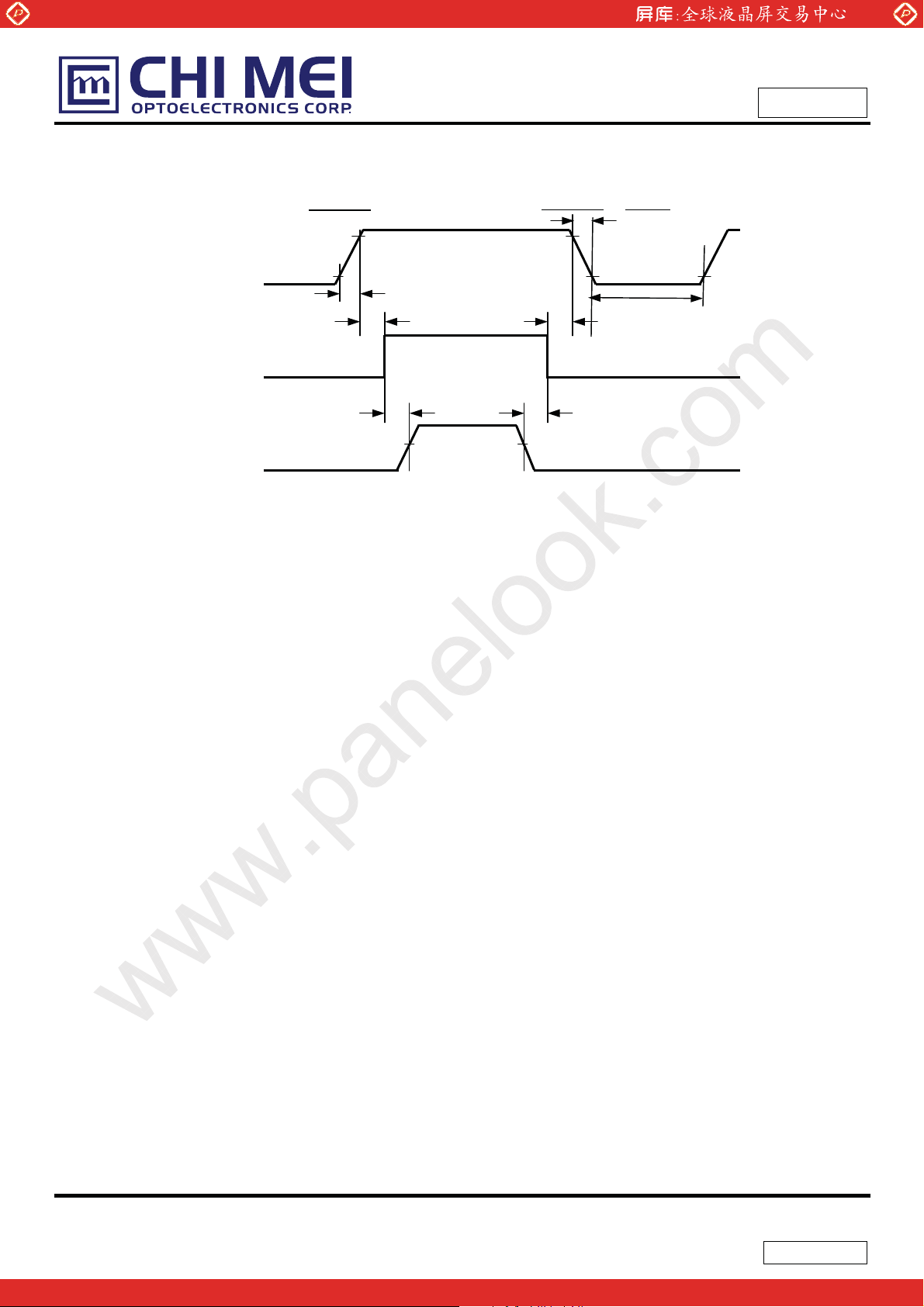

6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS

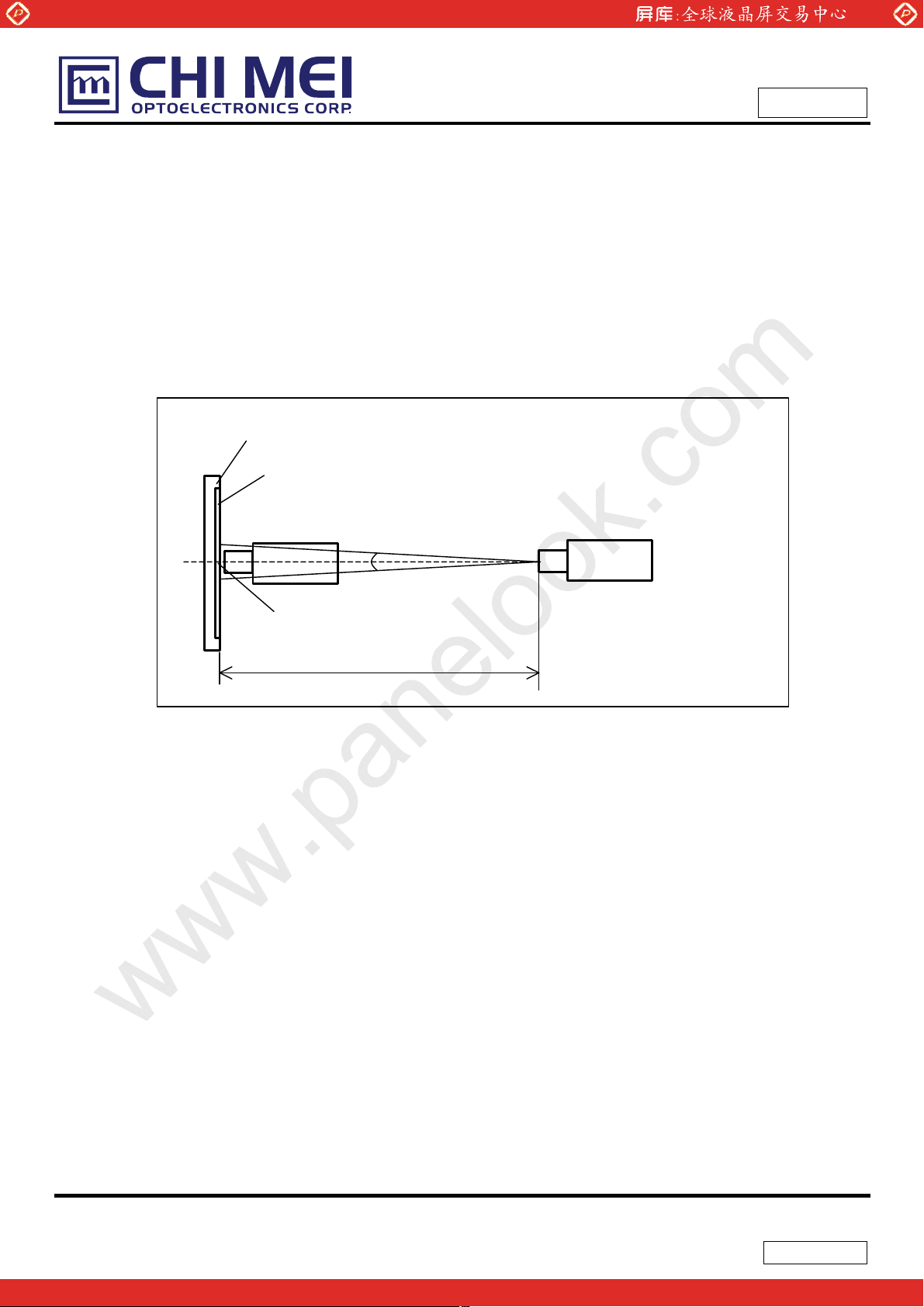

7.1 TEST CONDITIONS

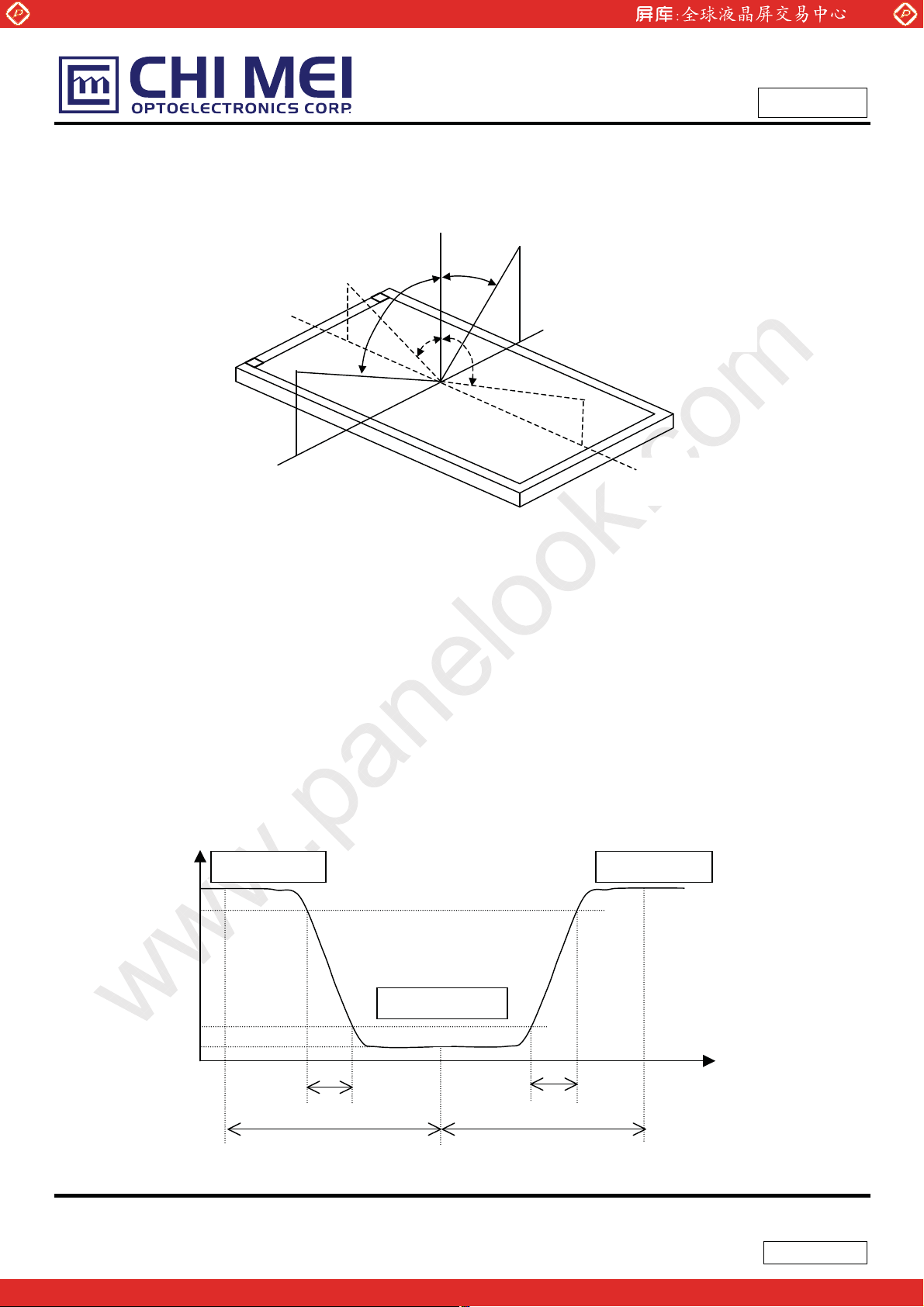

7.2 OPTICAL SPECIFICATIONS
------------------------------------------------------- 19
8. PRECAUTIONS ------------------------------------------------------- 23
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 24

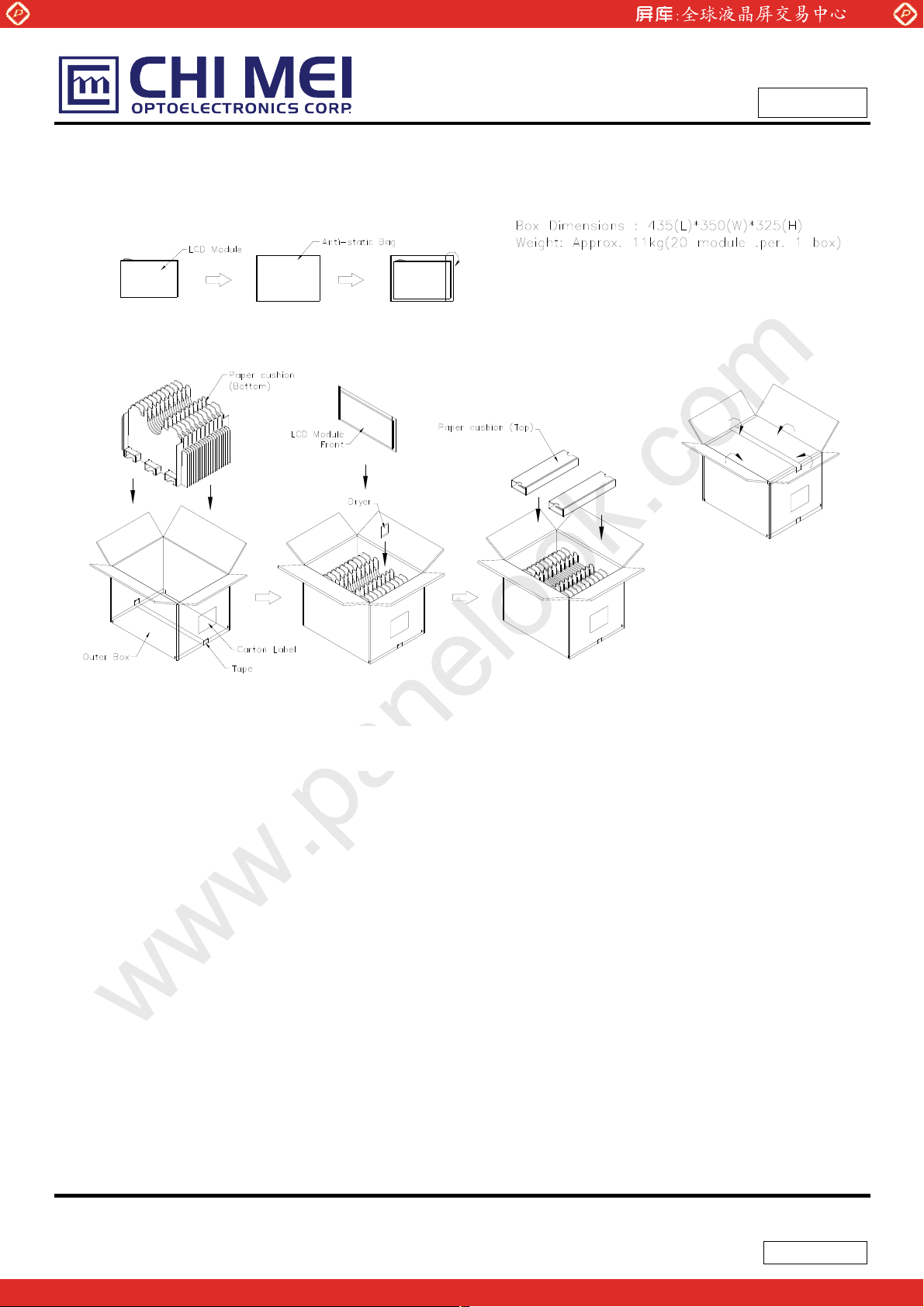

9.1 CARTON

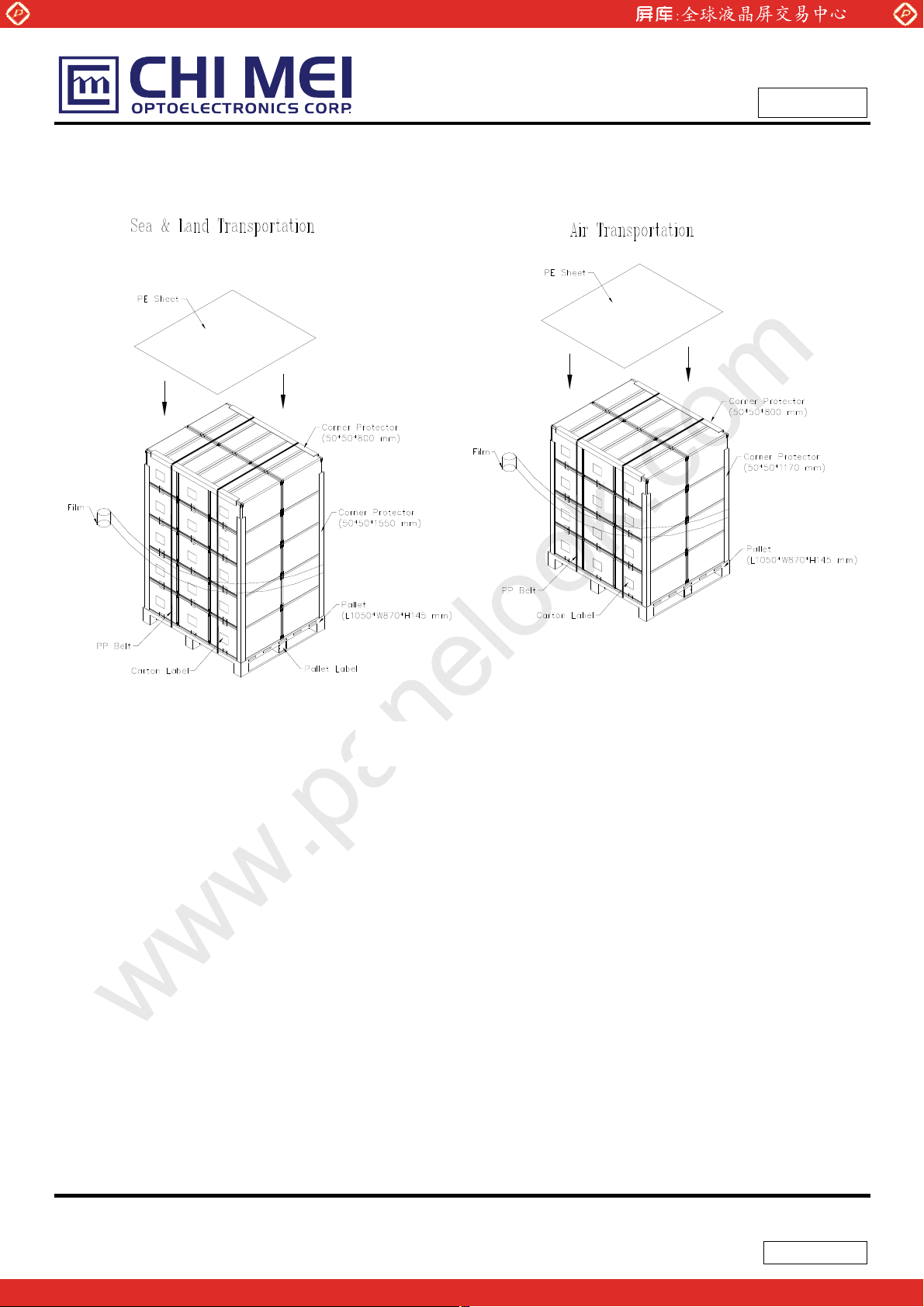

9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 26

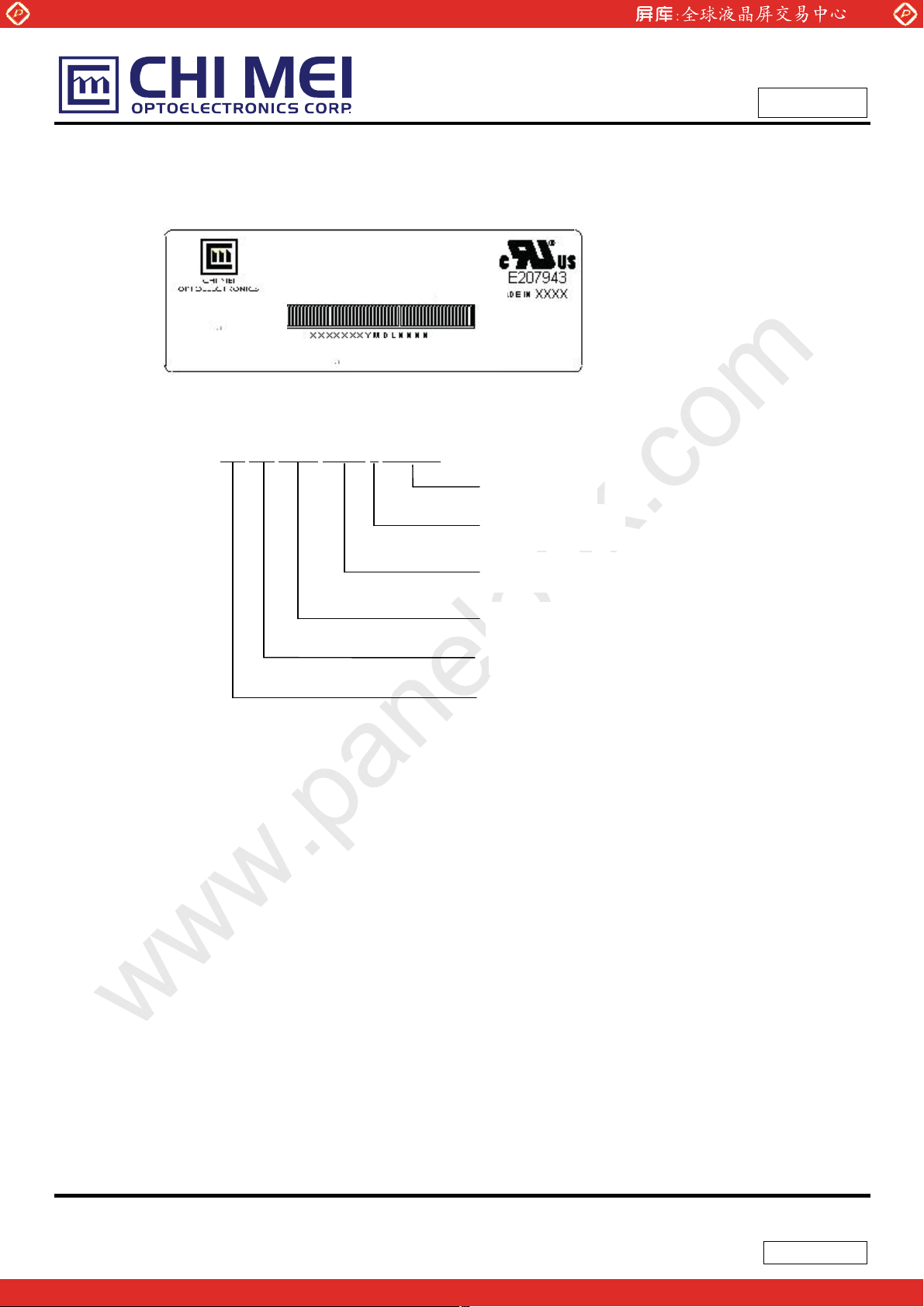

10.1 CMO MODULE LABEL
10.2 CARTON LABEL
2 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
REVISION HISTORY
Version Date
Ver 2.0 Jun. 02, 2008 All All Approval specification first issued.
Page
(New)
Section Description
3 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154I6-L03 is a 15.4” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins LVDS
interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction.
1.2 FEATURES
- WXGA (1280 x 800 pixels) resolution.
- VESA standard LED model.
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
1.3 APPLICATION
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm
Bezel Opening Area 335 (H) x 211.1 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1280 x R.G.B. x 800 pixel Pixel Pitch 0.2588 (H) x 0.2588 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344.0 344.5 mm
Module Size

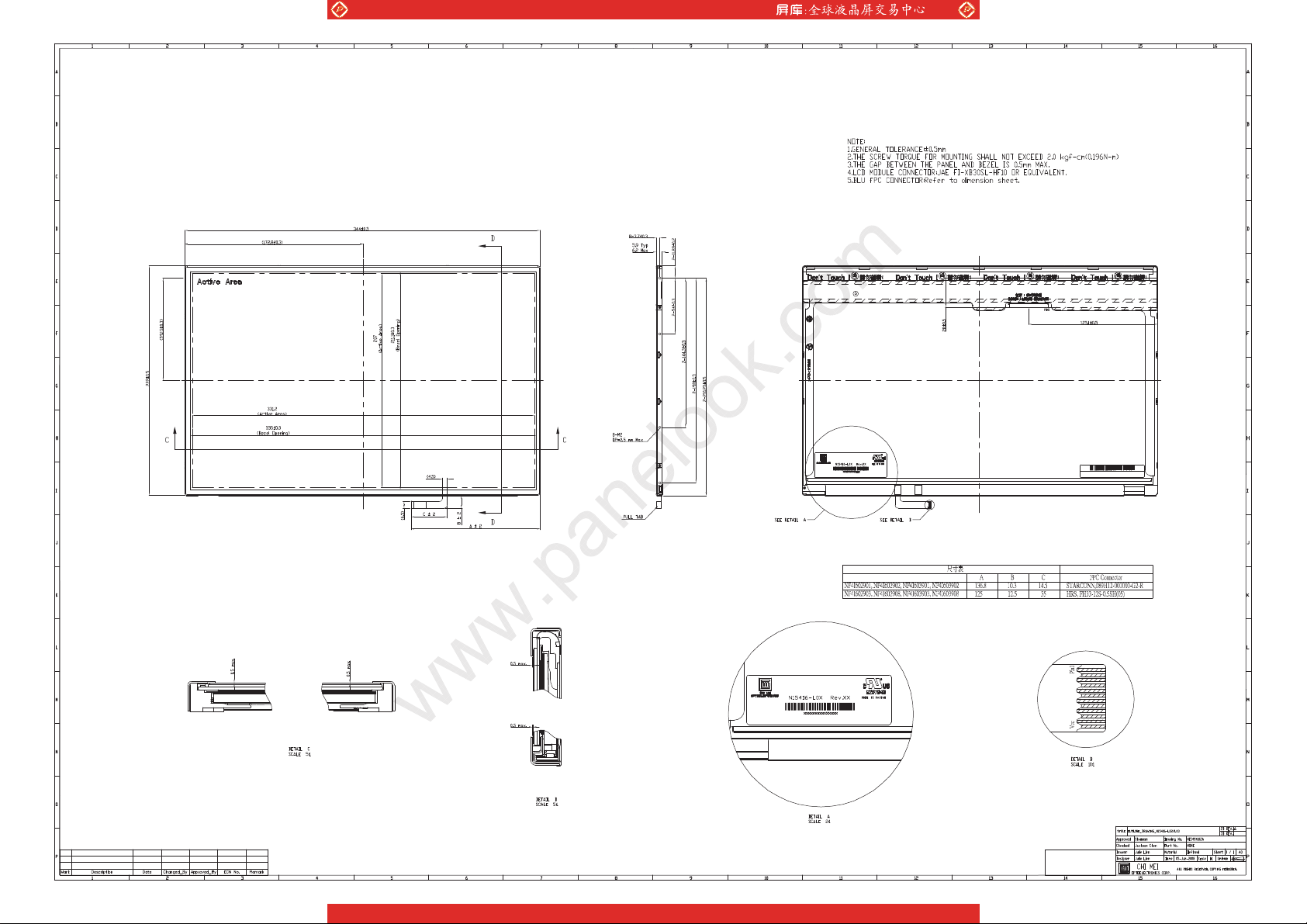

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 221.5 222.0 222.5 mm
Thickness(T) - 5.9 6.2 mm
Weight - 515 530 g
(1)
(1)
4 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface area should be 0 ºC min. and 60 ºC max.
Relative Humidity (%RH)
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
10
Storage Range
8060-20 400 20-40
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10~500 Hz, 30 min/cycle, 1cycle for X,Y,Z-axis.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item
LED Light Bar Power Supply Voltage -5 * 8 3.4 * 8 V
LED Light Bar Power Supply Current -- 30 * 6 mA
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min Max.
Unit Note
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
(1)
Unit Note
DC
DC
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for LED (Refer to Section 3.2 for further information).
6 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP - 50 mV Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - 320 420 mA (3)a
Black
lcc
TH(LVDS)
-100 - - mV
TL(LVDS)
- 380 480 mA (3)b
- - +100 mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm -
Power per EBL WG P
- 2.19 - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Unit Note
Approval
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
: the maximum current when VCC is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
0.01uF
Q1
2SK1475
FUSE
Q2
2SK1470
C2
C3
1uF
Vcc rising time is 470us
+3.3V
Vcc
(LCD Module Input)
VCC
100ms
I
IS
0V
I
RUSH
470us
0.1Vcc
ICC
7 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
Approval
Current and f
a. White Pattern
Note (4) The specified power are the sum of LCD panel electronics input power and the converter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
= 60 Hz,
v
Active Area
(c) Luminance: 60 nits.
(d) The converter used is provided from Sumida. Please contact them for detail information. CMO
doesn’t provide the converter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
Single Ended
0V
V
Differential
0V
V
VID
VID
8 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084152
Issued Date: Jun. 02, 2008
Model No.: N154I6-L03
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
LED light bar input
voltage
LED light bar input
current
LED Current Peak If - - 100 mADC Per EA
Power Consumption PO 2.88 3.07 3.26 W (2), IL = 120 mA
LED Life Time L
Note (1) LED current is measured by utilizing a high frequency current meter as shown below:
24 25.6 27.2 VDC (1), (Duty 100%)
V
O
114 120 150 mADC (1), (Duty 100%)
I
O
12000 - - Hrs (3)
LED
Min. Typ. Max.
Value
Unit Note
Approval
8
Note (2) PO = I
Note (3) The lifetime of LED is defined as the time when it continues to operate under the conditions at
OVO
Ta = 25 2
o
C and I = 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.
9 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
