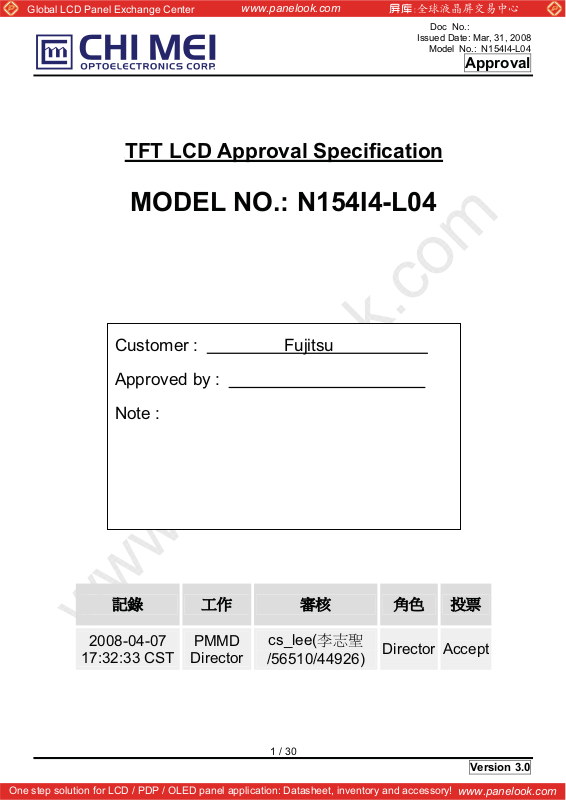

UTFT LCD Approval Specification

MODEL NO.: N154I4-L04

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Customer : Fujitsu

pproved by :

Note :

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2008-04-07

17:32:33 CST





PMMD

Director



cs_lee(ޕݳᆣ

/56510/44926)

1 / 30



Director Accept



www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

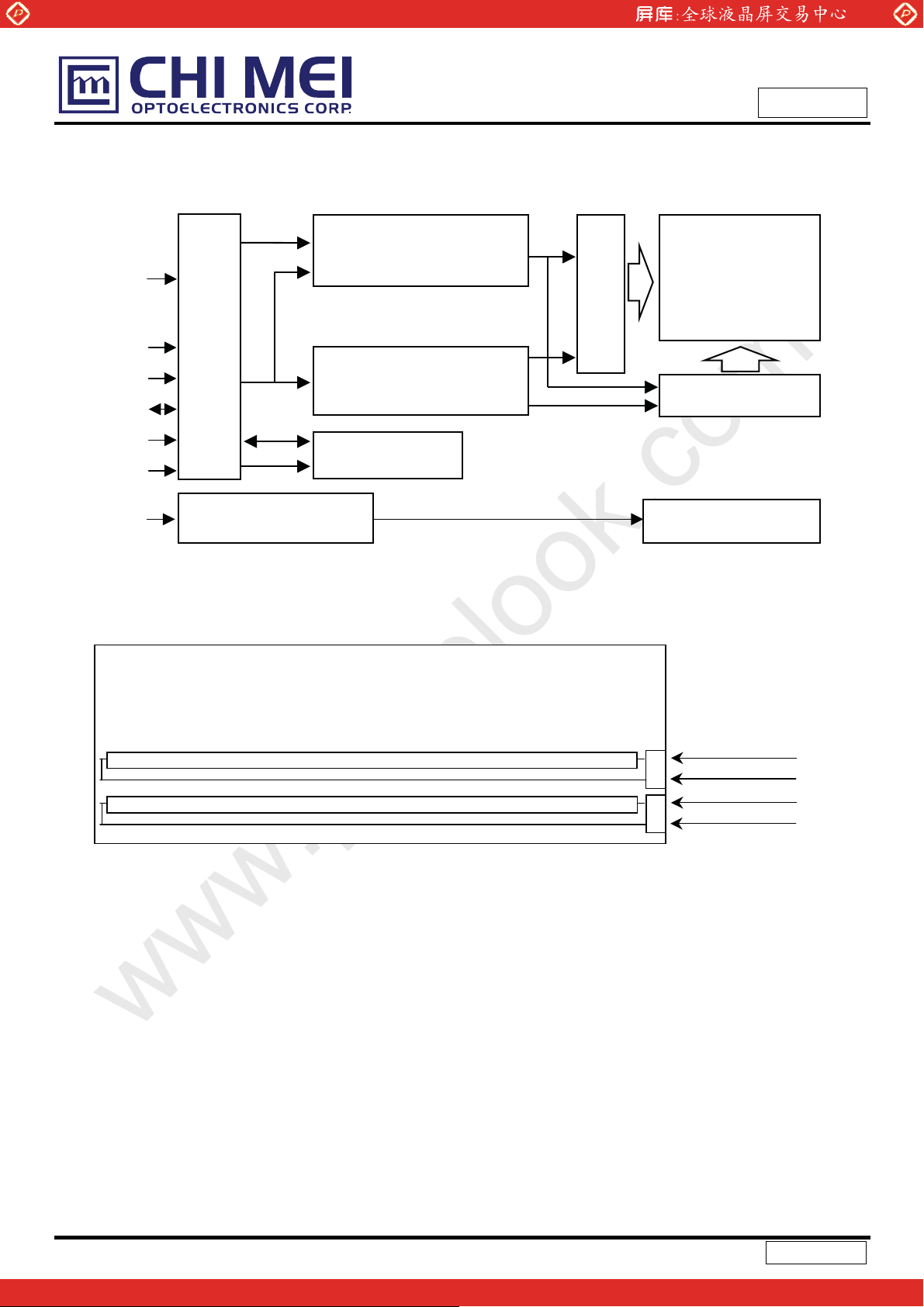

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

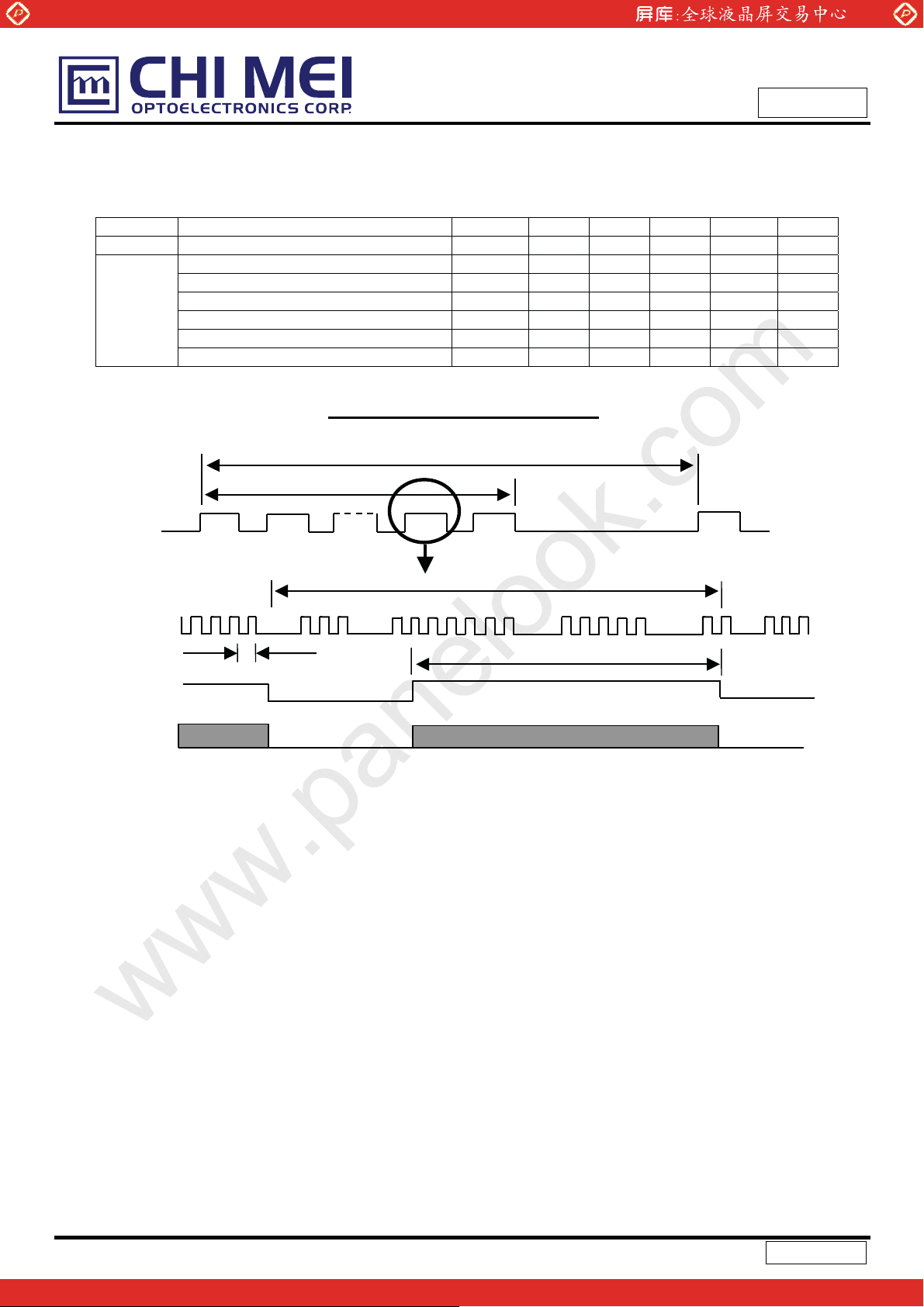

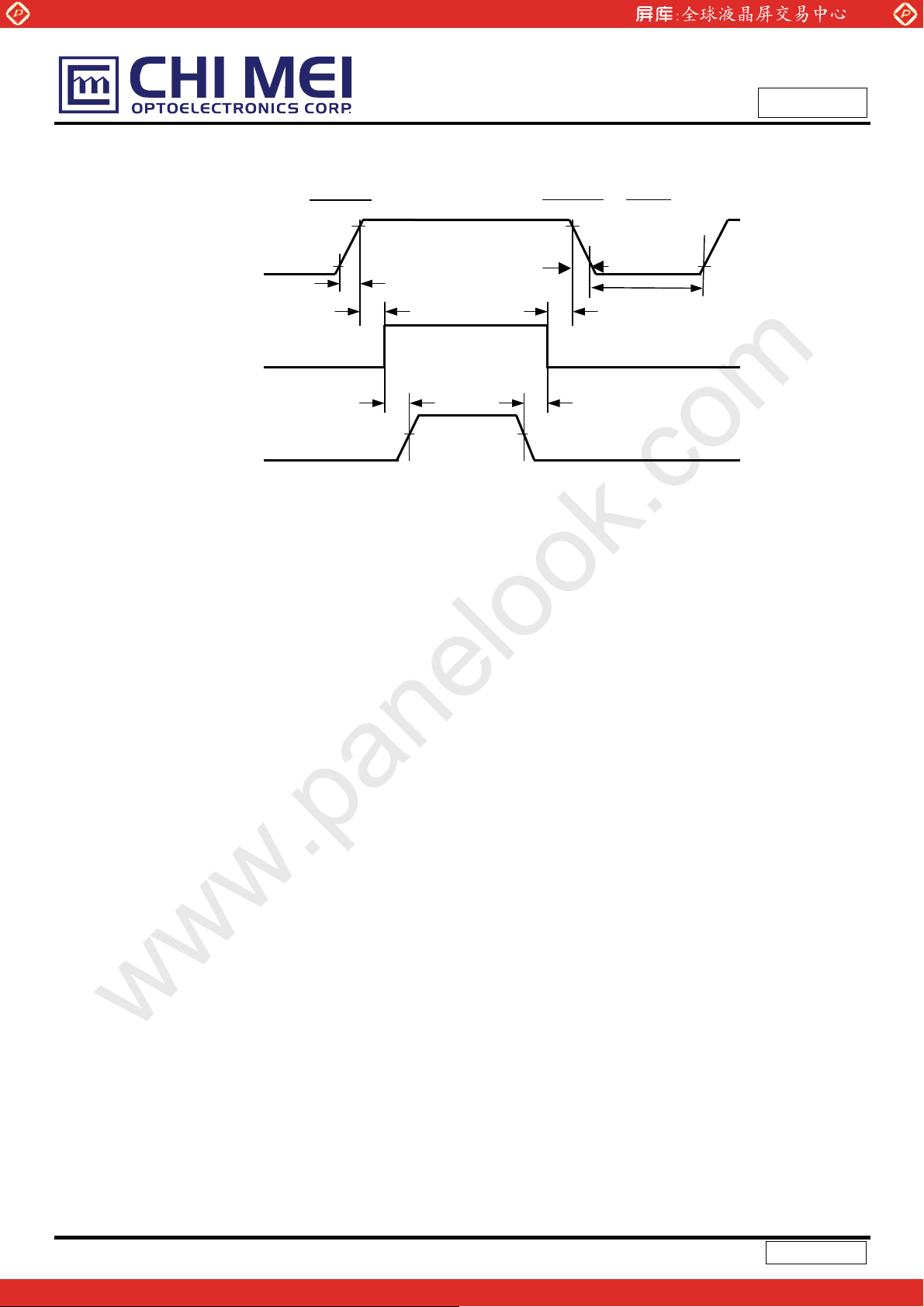

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID DATA STRUCTURE

5.6 EDID SIGNAL SPECIFICATION

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

8.2 STORAGE PRECAUTIONS

8.3 OPERATION PRECAUTIONS

9. PACKING ------------------------------------------------------- 26

9.1 CARTON

9.2 PALLET

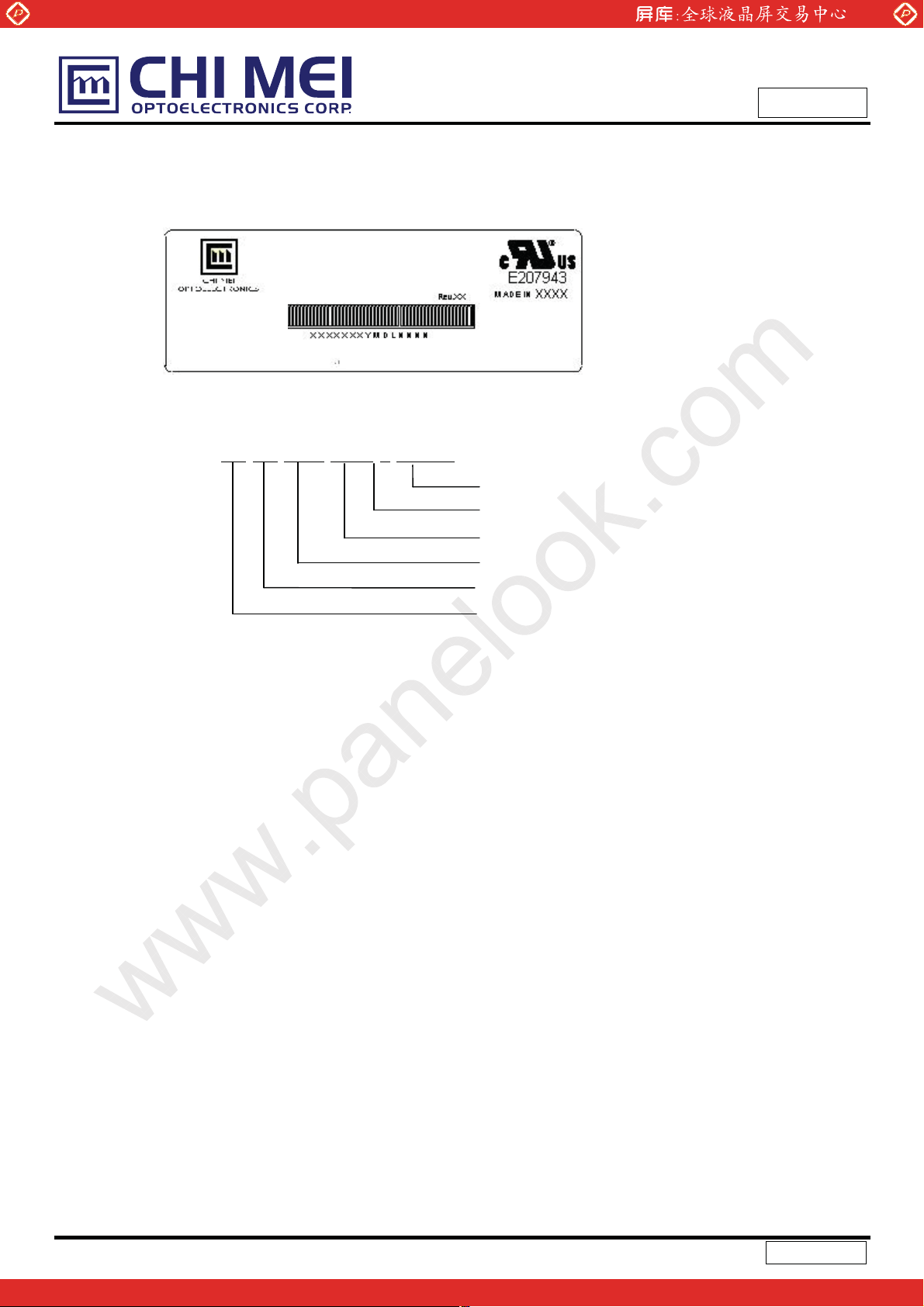

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

10.2 CARTON LABEL

------------------------------------------------------- 3

------------------------------------------------------- 4

------------------------------------------------------- 5

------------------------------------------------------- 7

------------------------------------------------------- 10

------------------------------------------------------- 11

------------------------------------------------------- 19

------------------------------------------------------- 21

------------------------------------------------------- 25

------------------------------------------------------- 28

2 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

UREVISION HISTORY

Version Date

Ver. 0.0

Ver. 2.0

Ver. 3.0

Sep.11, 2007

Dec.28, 2007

Mar. 31, 2008

Page

(New)

All

7

9

15

18

19

21

26

5

9

15

Section Description

All

Tentative specification was first issued.

3.1

3.2

5.5

6.1

6.2

7.2

2.1

3.2

5.5

TFT LCD MODULE

BACKLIGHT UNIT

EDID DATA STRUCTURE

INPUT SIGNAL TIMING SPECIFICATIONS

POWER ON/OFF SEQUENCE

OPTICAL SPECIFICATIONS

9

PACKING

ABSOLUTE RATINGS OF ENVIRONMENT

BACKLIGHT UNIT (Lamp Turn On Voltage)

EDID DATA STRUCTURE

3 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N154I4-L04 is a 15.4” TFT Liquid Crystal Display module with 2 CCFLs backlight unit and 30 pins LVDS

interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- Thin and light weight

- WXGA (1280 x 800 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

1.3 APPLICATION

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm
Bezel Opening Area 335.0 (H) x 210.7 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 343.5 344.0 344.5 mm

Module Size

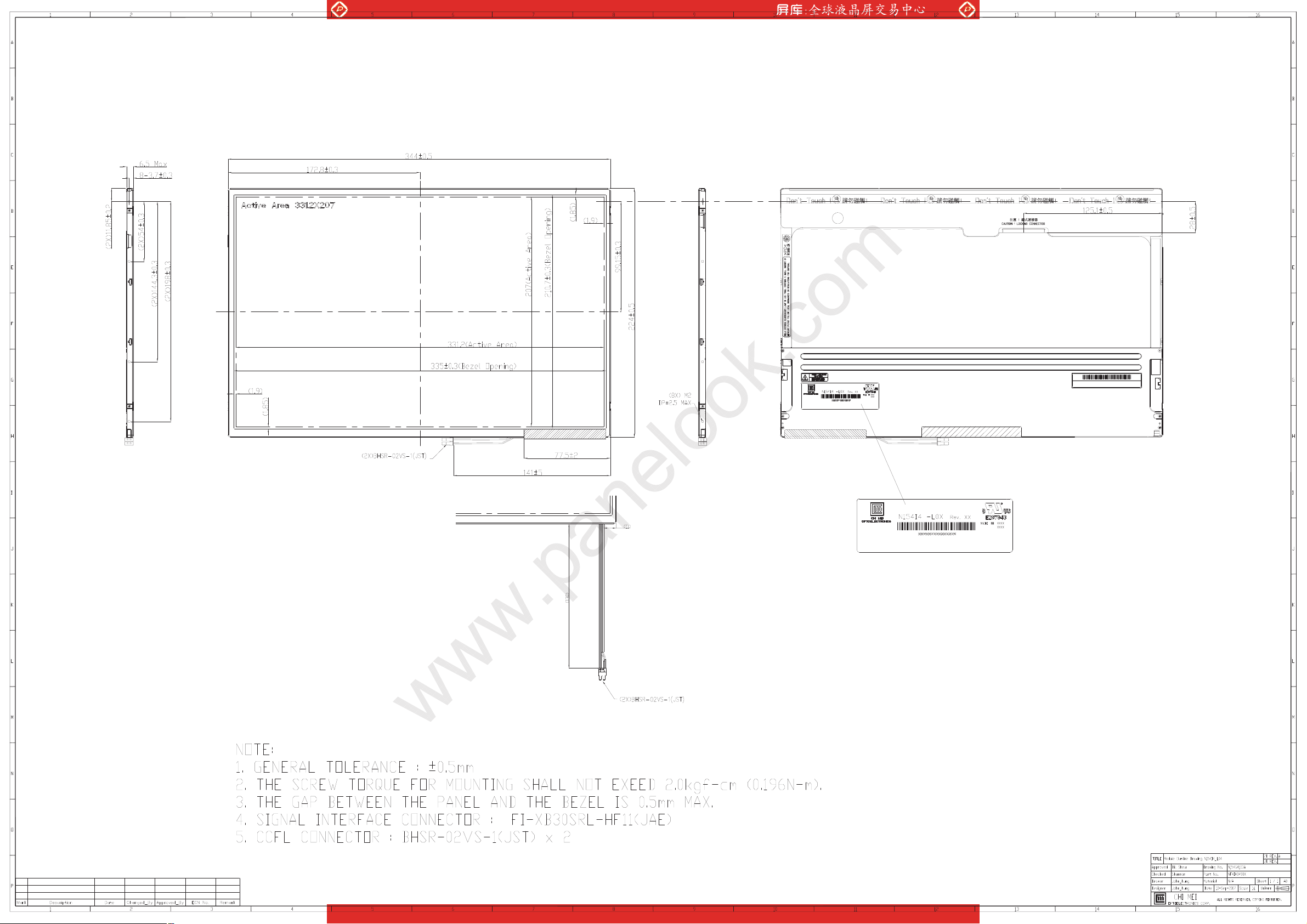

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 223.5 224.0 224.5 mm
Depth(D) - 6.2 6.5 mm

Weight - 535 550 g -

(1)

(1)

4 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TB
Operating Ambient Temperature TB
Shock (Non-Operating) SB
Vibration (Non-Operating) VB

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Value

Min. Max.

B -20 +60 ºC (1)

ST

B 0 +50 ºC (1), (2)

OP

B - 220/2 G/ms (3), (5)

NOP

B - 1.5 G (4), (5)

NOP

Unit Note

Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

U

t Room Temperature

Side Mount Fixing Screw

LCD Module

Side Mount Fixing Screw

Stage

Gap=2mm

Bracket

5 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VB

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VB
Lamp Current IB
Lamp Frequency FB

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Value

Min. Max.

B -0.3 Vcc+0.3 V

IN

Value

Min. Max.

B - 2.5K VB

L

B 2.0 7.0 mAB

L

B 45 80 KHz

L

Unit Note

Unit Note

B Lamp Voltage

RMS

Lamp Current

B

RMS

Lamp Frequency

Approval

(1)

Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).

6 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VB
Rush Current IB
Initial Stage Current IB

Power Supply Current

White - 320 mA (3)a
Black

LVDS Differential Input High Threshold VB

LVDS Differential Input Low Threshold VB

LVDS Common Mode Voltage VB
LVDS Differential Input Voltage |VB
Terminating Resistor RB
Power per EBL WG PB

B - 50 - mV -

RP

B - - 1.5 A (2)

RUSH

B - - 1.0 A (2)

IS

Icc

B - - +100 mV

TH(LVDS)

B -100 - - mV

TL(LVDS)

B 1.125 - 1.375 V (5)

CM

B| 100 - 600 mV (5)

ID

B - 100 - Ohm

T

B - 4.4 - W (4)

EBL

- 380 480 mA (3)b

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Unit Note

(5),

B

B=1.2V

V

CM

(5)

B

B=1.2V

V

CM

Note (2) I

I

B

B: the maximum current when VCC is rising

RUSH

B

B: the maximum current of the first 100ms after power-on

IS

Measurement Conditions: Shown as the following figure. Test pattern: black.

+3.3V

R1

47K

Q1 2SK1475

FUSE

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

UVcc rising time is 470us

0.9Vcc

0V

470us

0.1Vcc

+3.3V

100ms

IB

RUSH

B

C3

1uF

BISB

I

Vcc

(LCD Module Input)

VCC

ICC

7 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fB

Hz, whereas a power dissipation check pattern below is displayed.

a. White Pattern

b. Black Pattern

Active Area

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

B

B = 60 Hz,

v

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

B = 60

v

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

(d) The inverter used is provided from

U__________. UPlease contact them for detail information.

CMO doesn’t provide the inverter in this product.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

Single Ended

V

0V

VB

B

Differential

VB

0V

B

VID|

VID

8 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Lamp Input Voltage VB

Lamp Current IB

Lamp Turn On Voltage VB

Operating Frequency FB
Lamp Life Time LB
Power Consumption PB

B 675 730 945 VB

L

B

L

B 1000(0 P

S

B 45 55 80 KHz (5)

L

B 15,000 - - Hrs (7)

BL

B - 8.76 - W (6), IBLB = 6.0 mA

L

Min. Typ. Max.

2.0 (1),(2)

3.0

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

Unit Note

6.0 6.5 mA

o

P

C) VB

B IBLB = 6.0 mA

RMS

B

B

RMS

B (4)

RMS

Approval

(1),(3)

LCD

Module

HV (Pink)

LV (Black)

HV (White)

LV (Black)

1

2

Current Meter

3

4

Current Meter

A

Inverter

A

Note (2) for burst mode inverter design

Note (3) for continuous mode inverter design

Note (4) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second after

startup. Otherwise the lamp may not be turned on.

Note (5) The lamp frequency may generate interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

Note (6) P

B

B = IBLB  VBLB  2

L

Note (7) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta

o

= 25 2

P

P

C and IB

B = 6.5 mAB

L

B until one of the following events occurs:

RMS

(a) When the brightness becomes Љ 50% of its original value.

(b) When the effective ignition length becomes Љ 80% of its original value. (˧˻˸ʳ ˸˹˹˸˶˼˸ʳ ˼˺˼˼ʳ

˿˸˺˻ʳ˼ʳ˴ʳ˶˸ʳ˻˴ʳ˿˼˴˶˸ʳ˼ʳ˸ʳˊ˃ʸʳ˹ʳ˻˴ʳ˴ʳ˻˸ʳ˶˸˸ʳ˼ˁ)

Note (8) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid generating too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

9 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

The output of the inverter must have symmetrical (negative and positive) voltage waveform and

symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter,

which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may

produce interface with horizontal synchronous frequency and as a result this may cause beat on the

display. Therefore lamp frequency shall be as away possible from the horizontal synchronous

frequency and from its harmonics in order to prevent interference.

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its

leakage current.

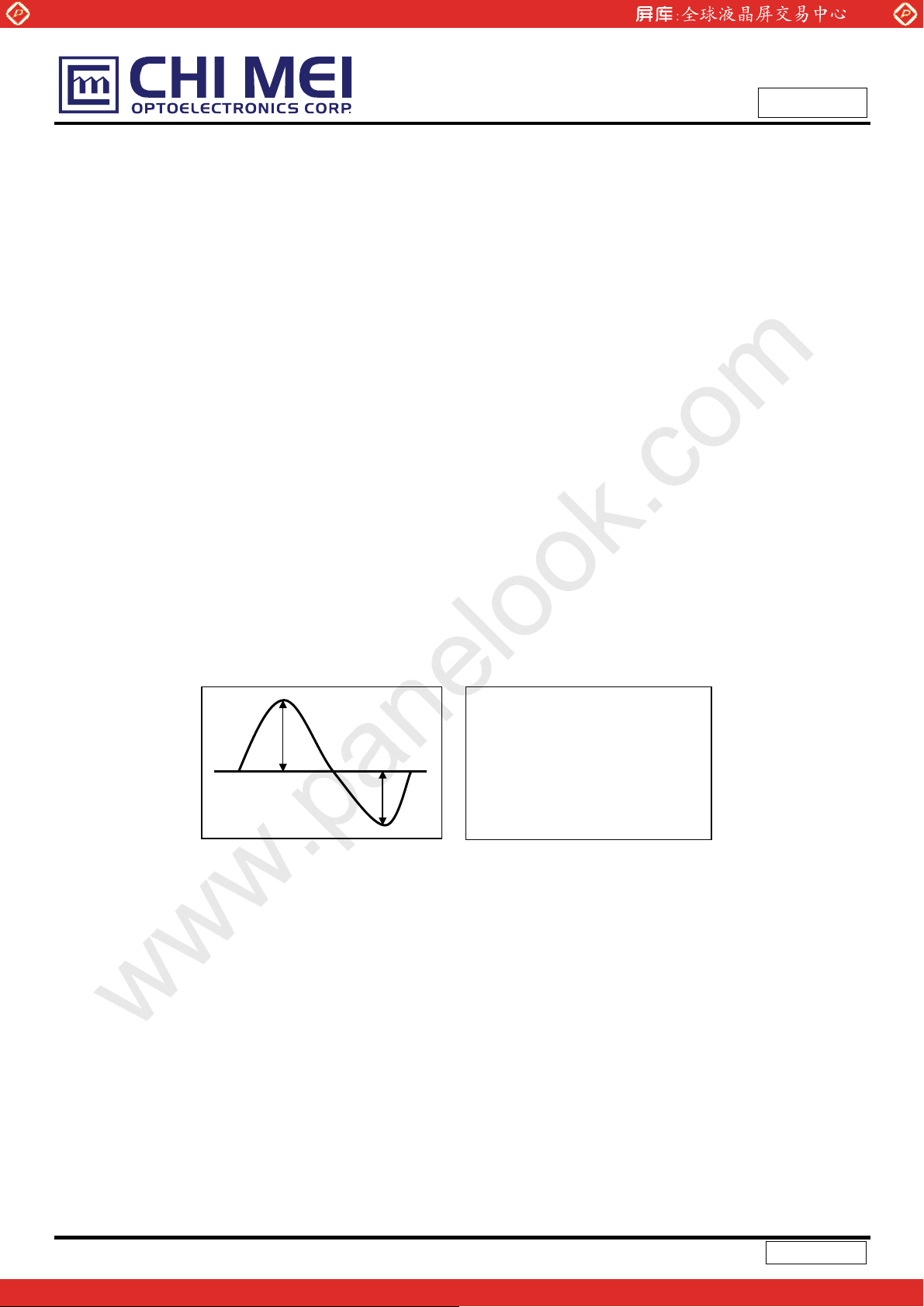

a. The asymmetry rate of the inverter waveform should be 10% below;

b. The distortion rate of the waveform should be within Ѕ2 ± 10%;

c. The ideal sine wave form shall be symmetric in positive and negative polarities.

* Asymmetry rate:

I p

| I

B

B – I B–pB | / IB

p

B * 100%

rms

I -p

* Distortion rate

I

B

B (or I B–pB) / IB

p

rms

B

10 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(

)

(

)

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

LVDS Display

Data & Clock

Vcc

INPUT CONNECTOR

www.panelook.com

LVDS INPUT /

TIMING CONTROLLER

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

SCAN DRIVER IC

TFT LCD PANEL

GND

DataB

B

EDID

CLKB

B

EDID

VB

B

EDID

VL

LAMP CONNECTOR

4.2 BACKLIGHT UNIT

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

DATA DRIVER IC

BACKLIGHT UNIT

1. HV (Pink)

2. LV

Black

3. HV (White)

4. LV

Black

11 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

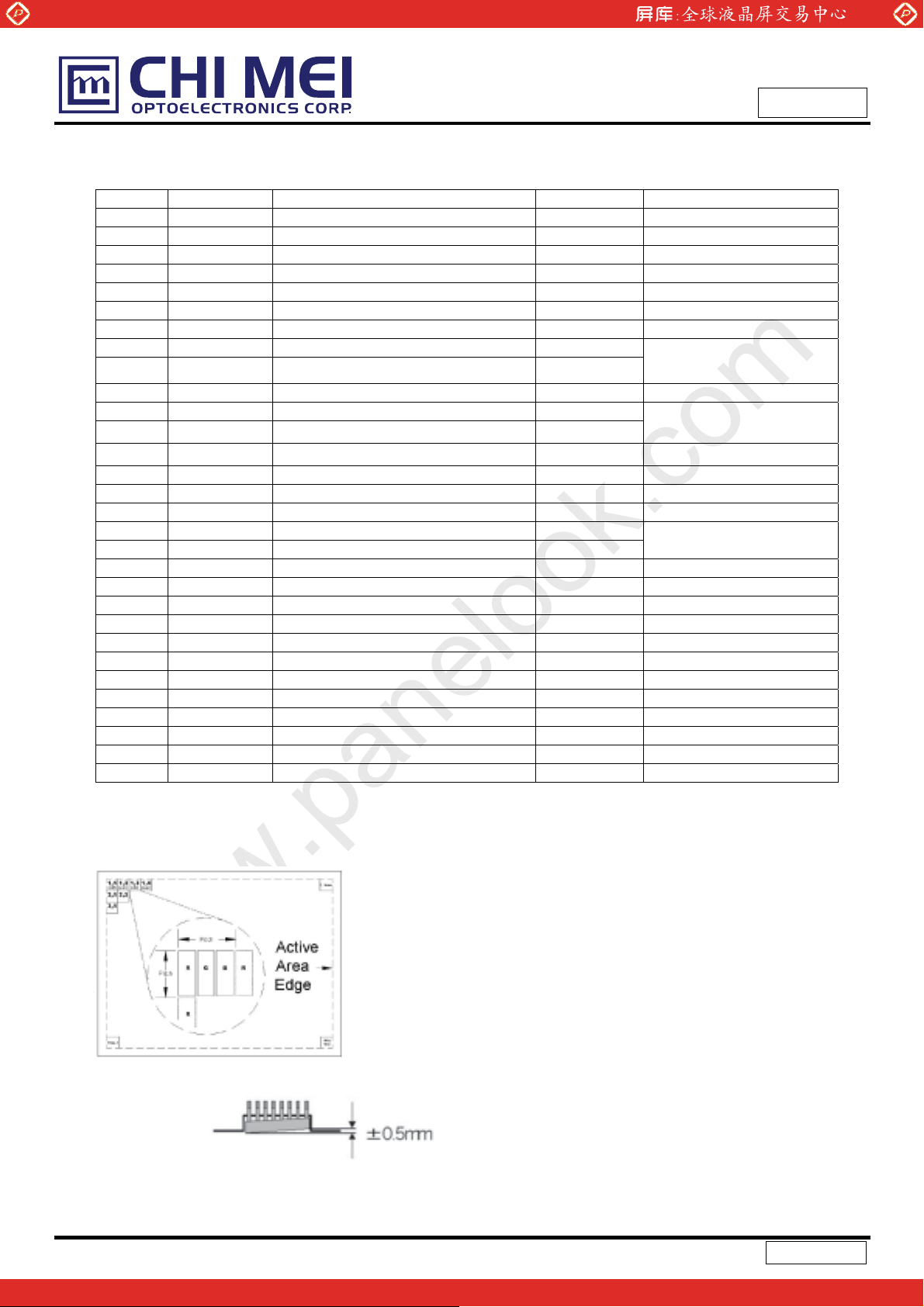

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 VB
5 NC Non-Connection
6 CLKB
7 DATAB
8 Rxin0- LVDS Differential Data Input Negative

9 Rxin0+ LVDS Differential Data Input Positive

10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
25 Vss Ground
26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection

Note (1) Connector Part No.: JAE-FI-XB30SRL-HF11 or equivalent

B DDC 3.3V Power DDC 3.3V Power

EDID

B DDC Clock DDC Clock

EDID

B DDC Data DDC Data

EDID

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

R0~R5,G0

G1~G5, B0, B1

LVDS Level Clock

Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

Note (3) The first pixel is odd as shown in the following figure.

Note (4) Mounting inclination of a connector carries out as follows

12 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 BACKLIGHT UNIT

Pin Symbol Description Color

1 HV High Voltage Pink
2 LV Ground Black
3 HV High Voltage White
4 LV Ground Black

Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent

Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent

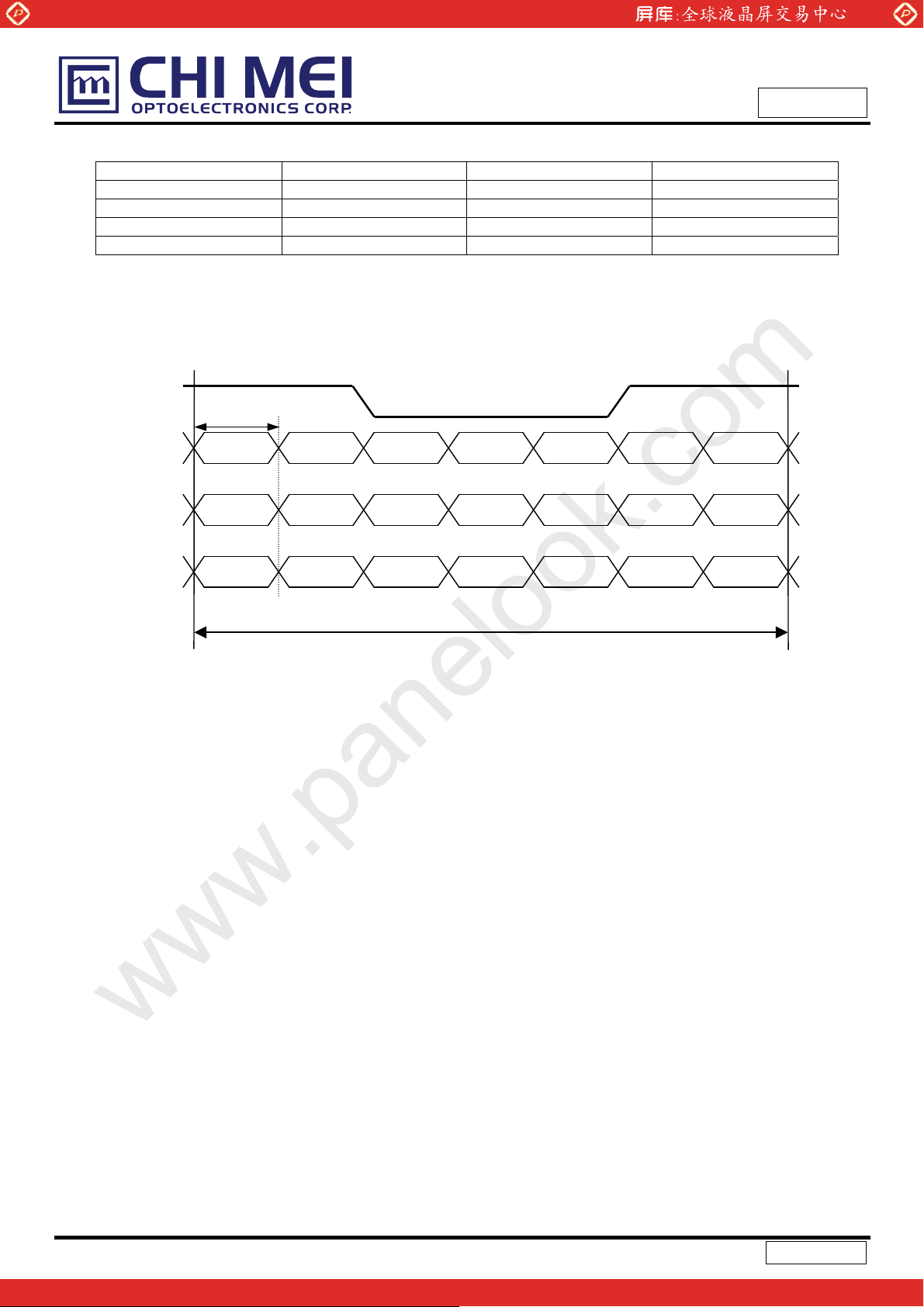

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

Rxin2

Rxin1

Rxin0

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0 R5 R4

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Signal for 1 DCLK Cycle (T)

13 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0
:
:

1

1

1

1

1

1

0

0

0

0

0

0
:
:

0

0

0

0

0

0

0

0

0

0

0

0
:
:

0

0

0

0

0

0

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

14 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte
#(decimal)

0 0 Header

1 1 Header

2 2 Header

3 3 Header

4 4 Header

5 5 Header

6 6 Header

7 7 Header

8 8 EISA ID manufacturer name (“CMO”)

9 9 EISA ID manufacturer name (Compressed ASCII)

10 0A ID product code (N154I4-L04) 59

11 0B ID product code (hex LSB first; N154I4-L04) 15

12 0C ID S/N (fixed “0”)

13 0D ID S/N (fixed “0”)

14 0E ID S/N (fixed “0”)

15 0F ID S/N (fixed “0”)

16 10 Week of manufacture (fixed “00H”)

17 11 Year of manufacture (fixed “00H”)

18 12 EDID structure version # (“1”)

19 13 EDID revision # (“3”)

20 14 Video I/P definition (“digital”)

21 15 Max H image size (“33cm”)

22 16 Max V image size (“21cm”)

23 17 Display Gamma (Gamma = ”2.2”)

24 18 Feature support (“Active off, RGB Color”)

25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)

26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)

27 1B Red-x (Rx = “0.642”)

28 1C Red-y (Ry = “0.334”)

29 1D Green-x (Gx = ”0.279”)

30 1E Green-y (Gy = ”0.603”)

31 1F Blue-x (Bx = ”0.150”)

32 20 Blue-y (By = ”0.069”)

33 21 White-x (Wx = ”0.313”)

34 22 White-y (Wy = ”0.329”)

35 23 Established timings 1

36 24 Established timings 2

37 25 Manufacturer’s reserved timings

38 26 Standard timing ID # 1

39 27 Standard timing ID # 1

Byte
#(hex)Field Name and Comments Value(hex) Value(binary)

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

00 00000000

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

00 00000000

0D 00001101

AF 10101111

01011001

00010101

00 00000000

00 00000000

00 00000000

00 00000000

04 00000100

12 00010010

01 00000001

03 00000011

80 10000000

21 00100001

15 00010101

78 01111000

0A 00001010

69 01101001

B5 10110101

A4 10100100

55 01010101

47 01000111

9A 10011010

26 00100110

11 00010001

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

15 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

40 28 Standard timing ID # 2

41 29 Standard timing ID # 2

42 2A Standard timing ID # 3

43 2B Standard timing ID # 3

44 2C Standard timing ID # 4

45 2D Standard timing ID # 4

46 2E Standard timing ID # 5

47 2F Standard timing ID # 5

48 30 Standard timing ID # 6

49 31 Standard timing ID # 6

50 32 Standard timing ID # 7

51 33 Standard timing ID # 7

52 34 Standard timing ID # 8

53 35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“71MHz”, According to

54 36

55 37 # 1 Pixel clock (hex LSB first)

56 38 # 1 H active (“1280”)

57 39 # 1 H blank (“160”)

58 3A # 1 H active : H blank (“1280 : 160”)

59 3B # 1 V active (”800”)

60 3C # 1 V blank (”23”)

61 3D # 1 V active : V blank (”800 :23”)

62 3E # 1 H sync offset (”48”)

63 3F # 1 H sync pulse width ("32”)

64 40 # 1 V sync offset : V sync pulse width (”3 : 6”)

65 41

66 42 # 1 H image size (”331 mm”)

67 43 # 1 V image size (”207 mm”)

68 44 # 1 H image size : V image size (”331 : 207”)

69 45 # 1 H boarder (”0”)

70 46 # 1 V boarder (”0”)

71 47

72 48 Detailed timing description # 2

73 49 # 2 Flag

74 4A # 2 Reserved

75 4B # 2 FE (hex) defines ASCII string (Model Name “N154I4-L04”, ASCII)

76 4C # 2 Flag

77 4D # 2 1st character of name (“N”)

78 4E # 2 2nd character of name (“1”)

79 4F # 2 3rd character of name (“5”)

80 50 # 2 4th character of name (“4”)

81 51 # 2 5th character of name (“I”)

82 52 # 2 6th character of name (“4”)

83 53 # 2 7th character of name (“-”)

VESA CVT Rev1.1)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
(”48: 32 : 3 : 6”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
Negatives

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

BC 10111100

1B 00011011

00 00000000

A0 10100000

50 01010000

20 00100000

17 00010111

30 00110000

30 00110000

20 00100000

36 00110110

00 00000000

4B 01001011

CF 11001111

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

35 00110101

34 00110100

49 01001001

34 00110100

2D 00101101

16 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

84 54 # 2 8th character of name (“L”)

85 55 # 2 9th character of name (“0”)

86 56 # 2 9th character of name (“4”)

87 57 # 2 New line character indicates end of ASCII string

88 58 # 2 Padding with “Blank” character

89 59 # 2 Padding with “Blank” character

90 5A Detailed timing description # 3

91 5B # 3 Flag

92 5C # 3 Reserved

93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

94 5E # 3 Flag

95 5F # 3 1st character of string (“C”)

96 60 # 3 2nd character of string (“M”)

97 61 # 3 3rd character of string (“O”)

98 62 # 3 New line character indicates end of ASCII string

99 63 # 3 Padding with “Blank” character

100 64 # 3 Padding with “Blank” character

101 65 # 3 Padding with “Blank” character

102 66 # 3 Padding with “Blank” character

103 67 # 3 Padding with “Blank” character

104 68 # 3 Padding with “Blank” character

105 69 # 3 Padding with “Blank” character

106 6A # 3 Padding with “Blank” character

107 6B # 3 Padding with “Blank” character

108 6C Detailed timing description # 4

109 6D # 4 Flag

110 6E # 4 Reserved

111 6F # 4 FE (hex) defines ASCII string (Model Name“N154I4-L04”, ASCII)

112 70 # 4 Flag

113 71 # 4 1st character of name (“N”) 4E

114 72 # 4 2nd character of name (“1”) 31

115 73 # 4 3rd character of name (“5”) 35

116 74 # 4 4th character of name (“4”) 34

117 75 # 4 5th character of name (“I”) 49

118 76 # 4 6th character of name (“4”) 34

119 77 # 4 7th character of name (“-”) 2D

120 78 # 4 8th character of name (“L”) 4C

121 79 # 4 9th character of name (“0”)

122 7A # 4 9th character of name (“4”)

123 7B # 4 New line character indicates end of ASCII string

124 7C # 4 Padding with “Blank” character

125 7D # 4 Padding with “Blank” character

126 7E Extension flag

127 7F Checksum

4C 01001100

30 00110000

34 00110100

0A 00001010

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

34 00110100

0A 00001010

20 00100000

20 00100000

00 00000000

96 10010110

01001110

00110001

00110101

00110100

01001001

00110100

00101101

01001100

17 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 45 71 80 MHz (2)

Vertical Total Time TV 802 823 1000 TH -

Vertical Active Display Period TVD 800 800 800 TH -

DE

Vertical Active Blanking Period TVB TV-TVD 23 TV-TVD TH

Horizontal Total Time TH 1380 1440 1600 Tc (2)

Horizontal Active Display Period THD 1280 1280 1280 Tc (2)

Horizontal Active Blanking Period THB

UINPUT SIGNAL TIMING DIAGRAM

www.panelook.com

TH-THD

160

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

TH-THD

Tc (2)

DE

DCLK

DE

DATA

TC

HD

T

18 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6.2 POWER ON/OFF SEQUENCE

UPower On

www.panelook.com

UPower Off

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

URestart

Power Supply

for LCD, Vcc

- LVDS Interface

- Power for Lamp

Timing Specifications:

0V

0V

0 < t1 Љ 20 msec

0 < t2 Љ 50 msec

0 < t3 Љ 50 msec

t4 Њ 200 msec

10%

90%

t1

90%

Valid Data

t6 t5

50%50%

ONOFF OFF

t7

10%

t4

t3 t2

10%

t5 Њ 100 msec

t6 Њ 0 msec

5Љt7 Љ 50 msec

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To avoid this

phenomenon, we suggest that the Vcc falling time is better to follow 5Љt7Љ50 ms.

19 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

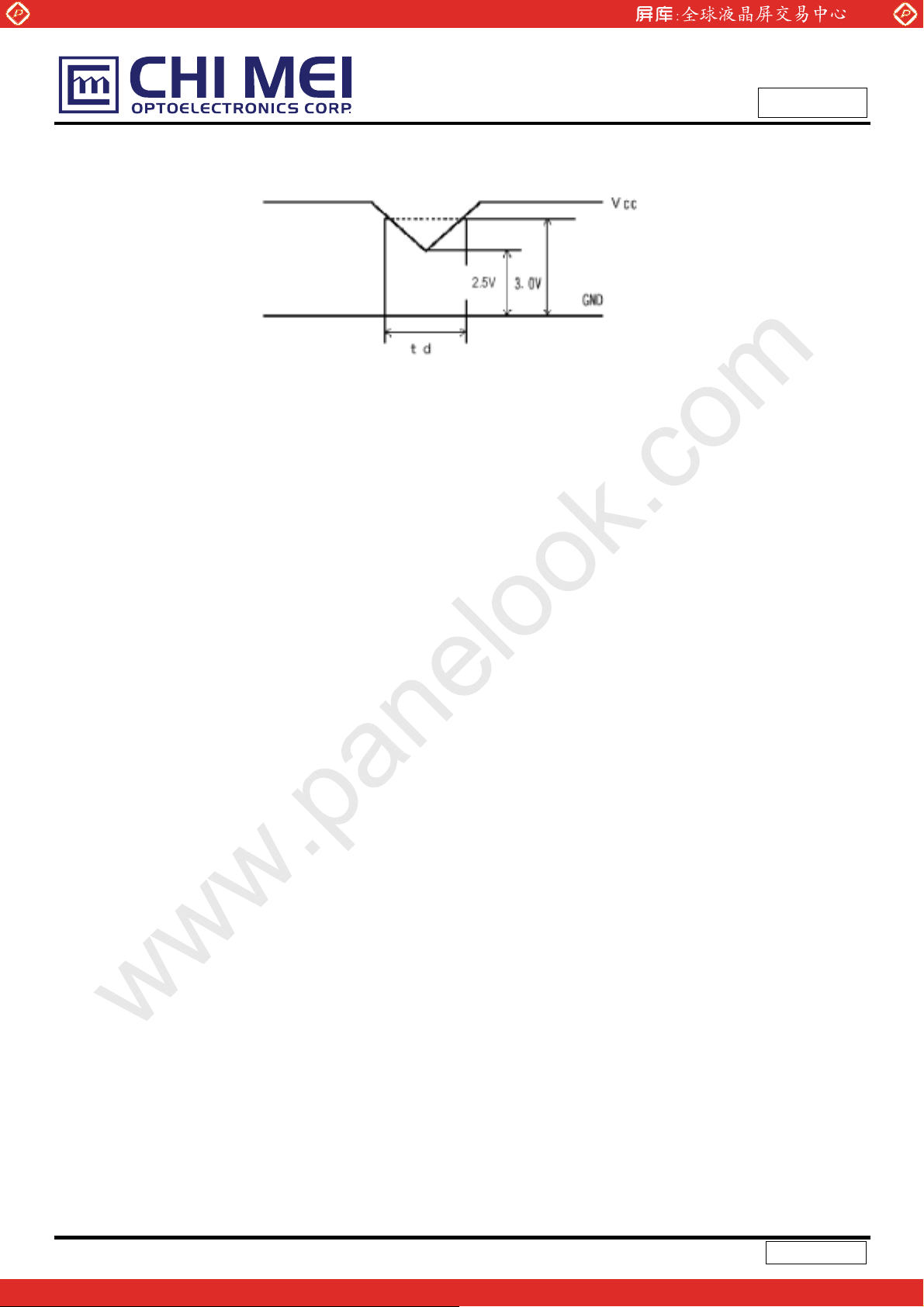

6.3 Momentary Voltage Drops

(1) When 2.5V Љ Vcc І3.0V and tdЉ10ms , the unit must work normally when VCC return to 3.0V.

(2) When Vcc < 2.5V, momentary voltage shall conform to the input voltage sequence.

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

20 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VB
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IB
Inverter Driving Frequency FB
Inverter Darfon-VK.12164.101

The measurement methods of optical characteristics are shown in Section 7.2. The following items

should be measured under the test conditions described in Section 7.1 and stable environment shown in

Note (6).

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

PoP

25r2

50r10

B 3.3 V

CC

B 6.0 mA

L

B 55 KHz

L

C

%RH

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 500 800 - - (2), (5)

TB

B - 3 8 ms

Response Time

Central Luminance of White LB

Red

Green
Color
Chromaticity

Blue

White

Color Gamut C.G%

Horizontal

Viewing Angle

Vertica l

White Variation of 5 Points

R

B

B - 5 12 ms

T

F

B 420 500 - cd/mP

C

Rx
Ry
Gx
Gy
Bx
By

B

B=0q, TBYB =0q

T

x

Viewing Normal Angle

TYP.

-0.03

0.642

0.334

0.279

0.603

0.150

0.069

TYP.

+0.03

Wx 0.313 ­Wy

0.329

- 72 - % ( 7 )

TB

T

TB

T

GW

B+

x

B

B-

x

B+

Y

B

B-

Y

B5pB

CRt10

TB

B=0q, TBYB =0q

x

(USB2000)

70 80 ­70 80 ­50 60 -

Deg. (1),(5)

70 80 -

75 - - % (5),(6)

(3)

2

P

(4), (6)

-

-

-

-

-

(1)

-

-

21 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.67 ms

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

TX- = 90º

x-

6 o’clock

T

y- = 90º

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

Normal

Tx = Ty = 0º

Ty- Ty

Tx

Tx

y+

12 o’clock direction

T

y+ = 90º

x+

TX+ = 90º

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

BRB

66.67 ms

B

B, TBFB):

R

66

Time

T

BFB

22 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

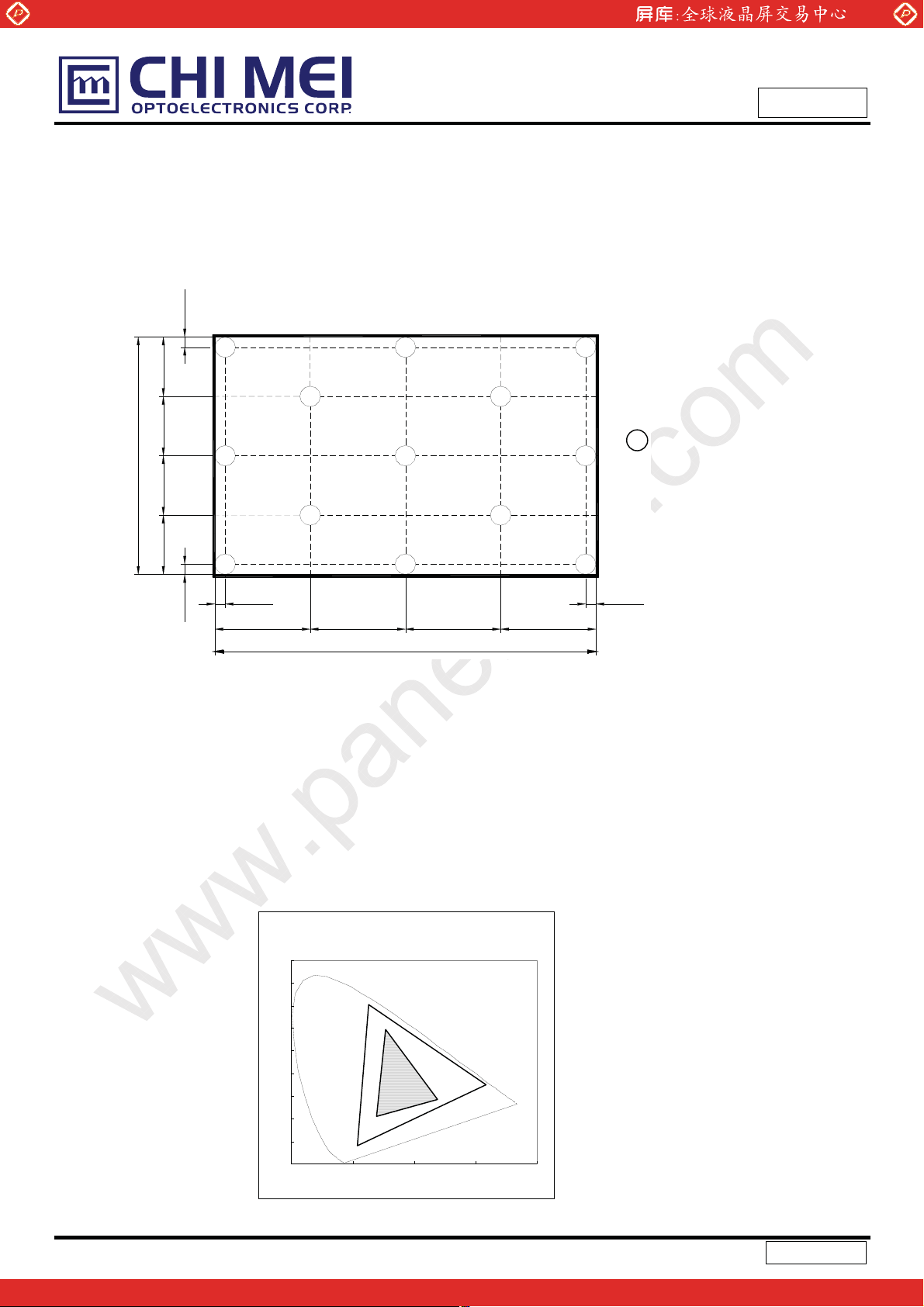

Note (4) Definition of Average Luminance of White (LB

Measure the luminance of gray level 63 at 5 points

LB

B = [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

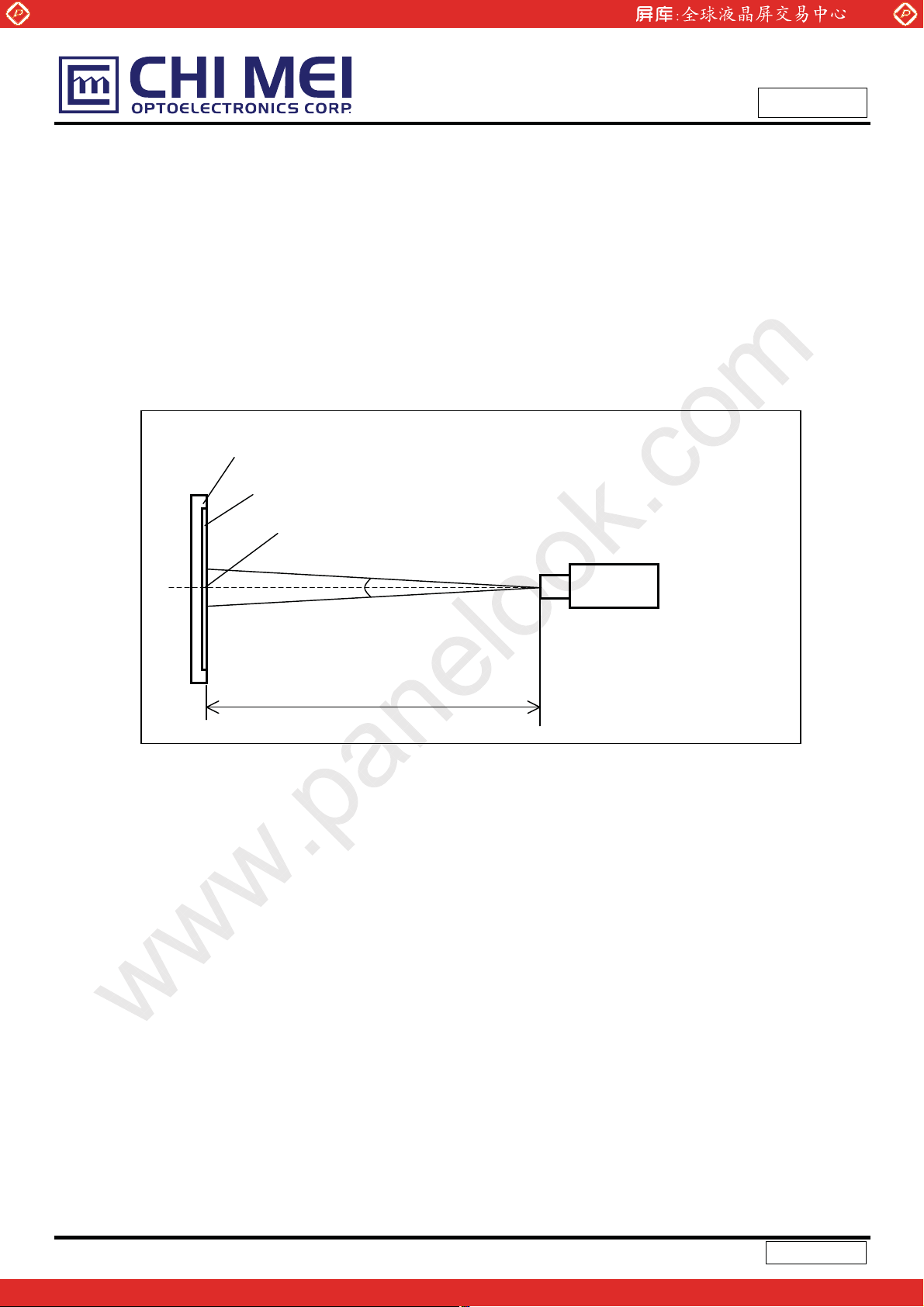

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

Center of the Screen

Field of View = 2º

AVE

B):

B

Photometer

(USB2000,CS-1000T)

500 mm

Light Shield Room

(Ambient Luminance < 2 lux)

23 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (6) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW

B

B = Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

5p

˄˃

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

ˉ

˛˂ˇ

˛

ˌ

˛˂ˇ ˛˂ˇ ˛˂ˇ

˄˄ ˄˅

˄˃ ˄˃

˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ

Note (7) Definition of color gamut (C.G%):

C.G%= ΓR G B /ΓR

R

R, G, B

ΓR

B

B, GB0B, BB0 B: color coordinates of red, green, and blue defined by NTSC, respectively.

0

B

B: color coordinates of module on 63 gray levels of red, green, and blue, respectively.

B

B GB0B BB0 B: area of triangle defined by RB0B, GB0B, BB

0

B

B GB0B BB0B,*100%

0

ˊ

˅

˄

ˆ

ˋ

X

˄˃

: Test Point

X=1 to 13

ˇˈ

Active area

˄ˆ

˪

B

0

ΓR G B: area of triangle defined by R, G, B

˖˜˘ʳ˄ˌˆ˄

˃ˁˌ

˃ˁˋ

˃ˁˊ

˃ˁˉ

˃ˁˈ

˃ˁˇ

˃ˁˆ

˃ˁ˅

˃ˁ˄

˃

˃ ˃ˁ˅ ˃ˁˇ ˃ˁˉ ˃ˁˋ

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

G

0

G

R

0

R

B

B

0

24 / 30

www.panelook.com

Global LCD Panel Exchange Center

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the lamp wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

8.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of lamp will be higher than the room

temperature.

8.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

25 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

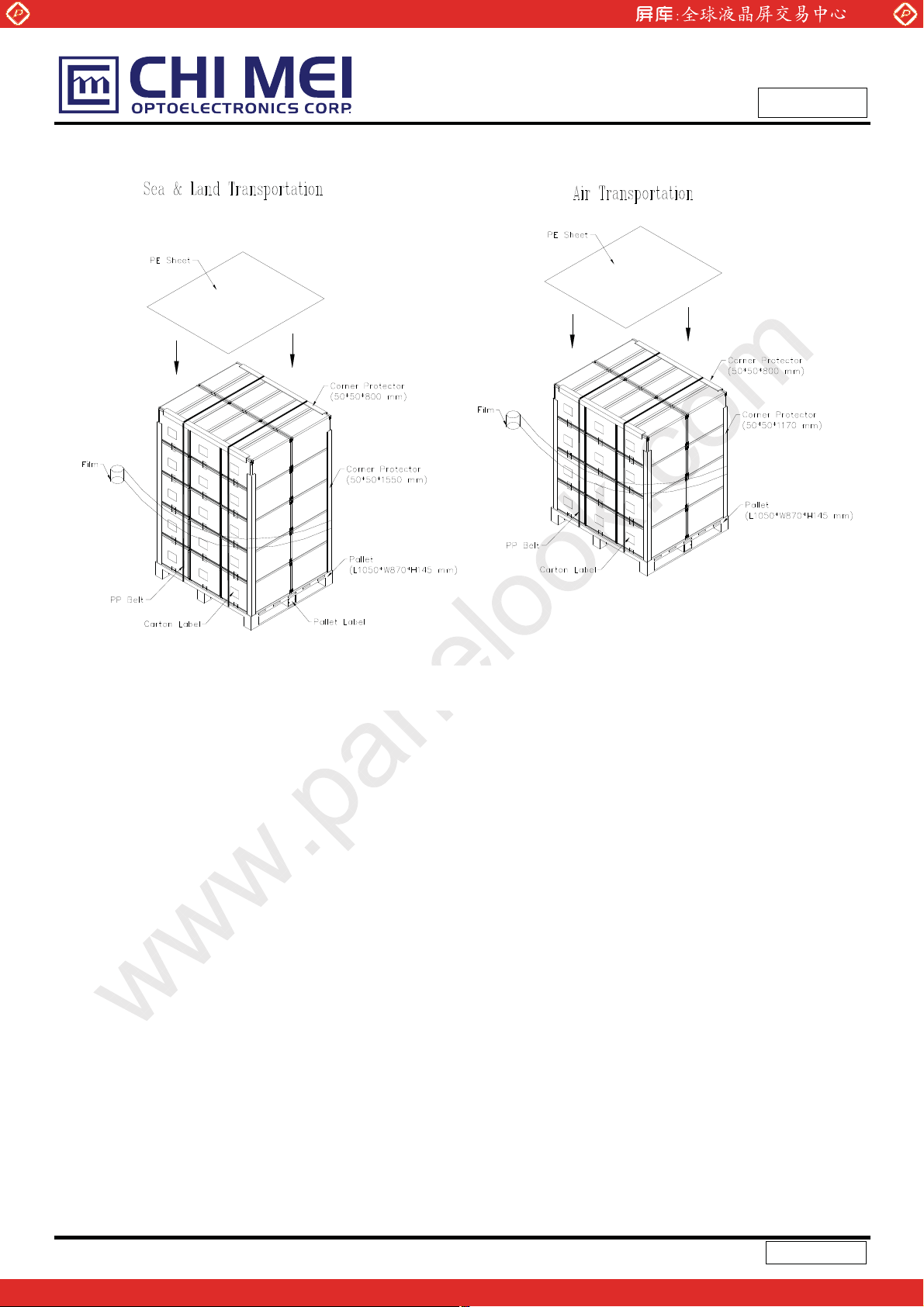

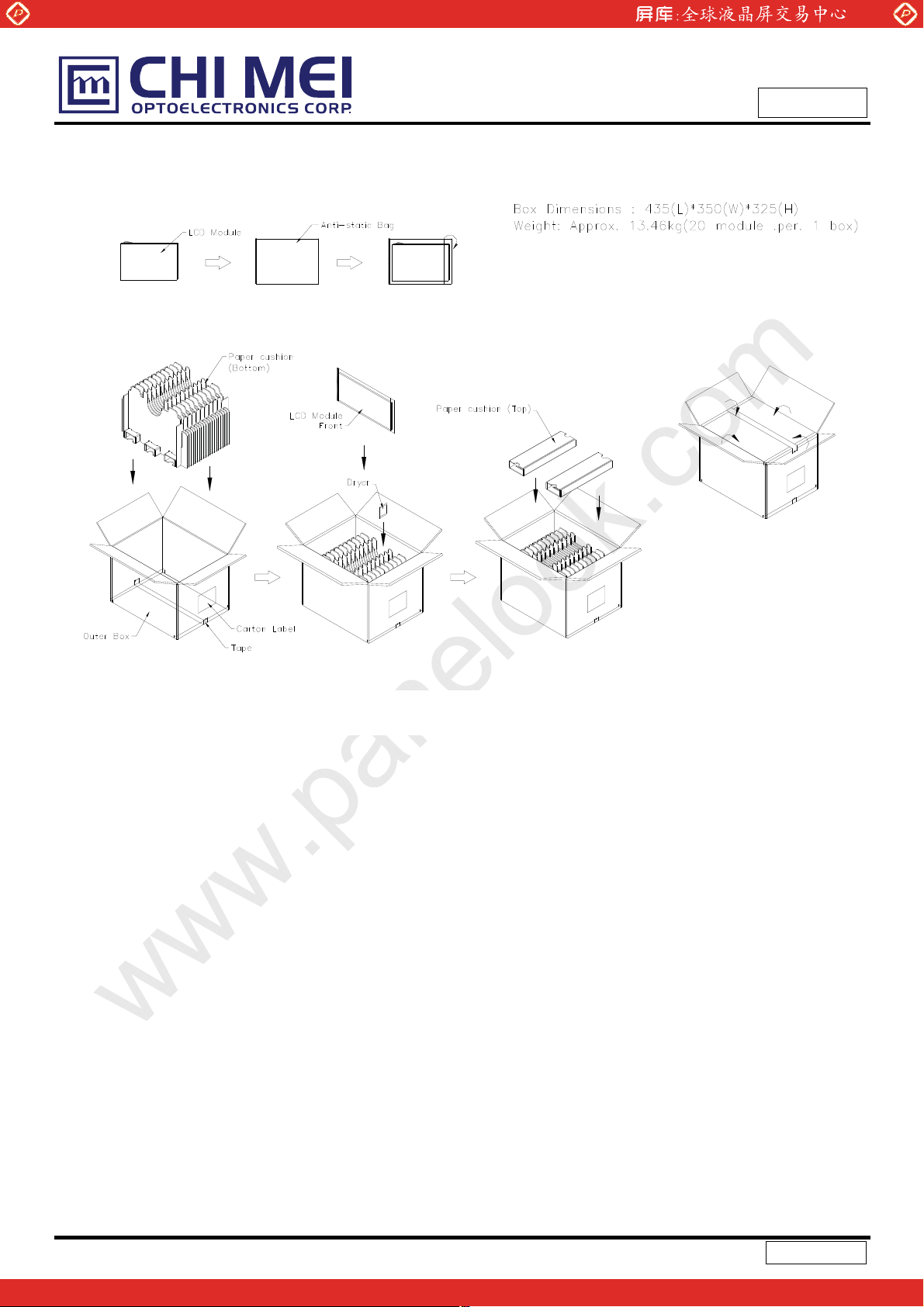

9. PACKING

9.1 CARTON

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Packing testing criteria :

(1) Packing drop : 1 corner, 3 edges, 6 faces, each direction for one time, follow ISTA standard.

Packing vibration : Random, follow ISTA standard.

Figure. 9-1 Packing method

26 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9.2 PALLET

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

Figure. 9-2 Packing method

27 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

N154I4 -L04

LEOO

01A

CP381001-01

(a) Model Name: N154I4 - L04

(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.

(c) Serial ID:

UX XU UX XU UX X XU UY M DU UXU UN N N N

Serial No.

CMO Internal Use

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e) UL logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL requirement.

The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL requirement.

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

st

P

P

to 31P

st

P

, exclude I , O and U

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

28 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

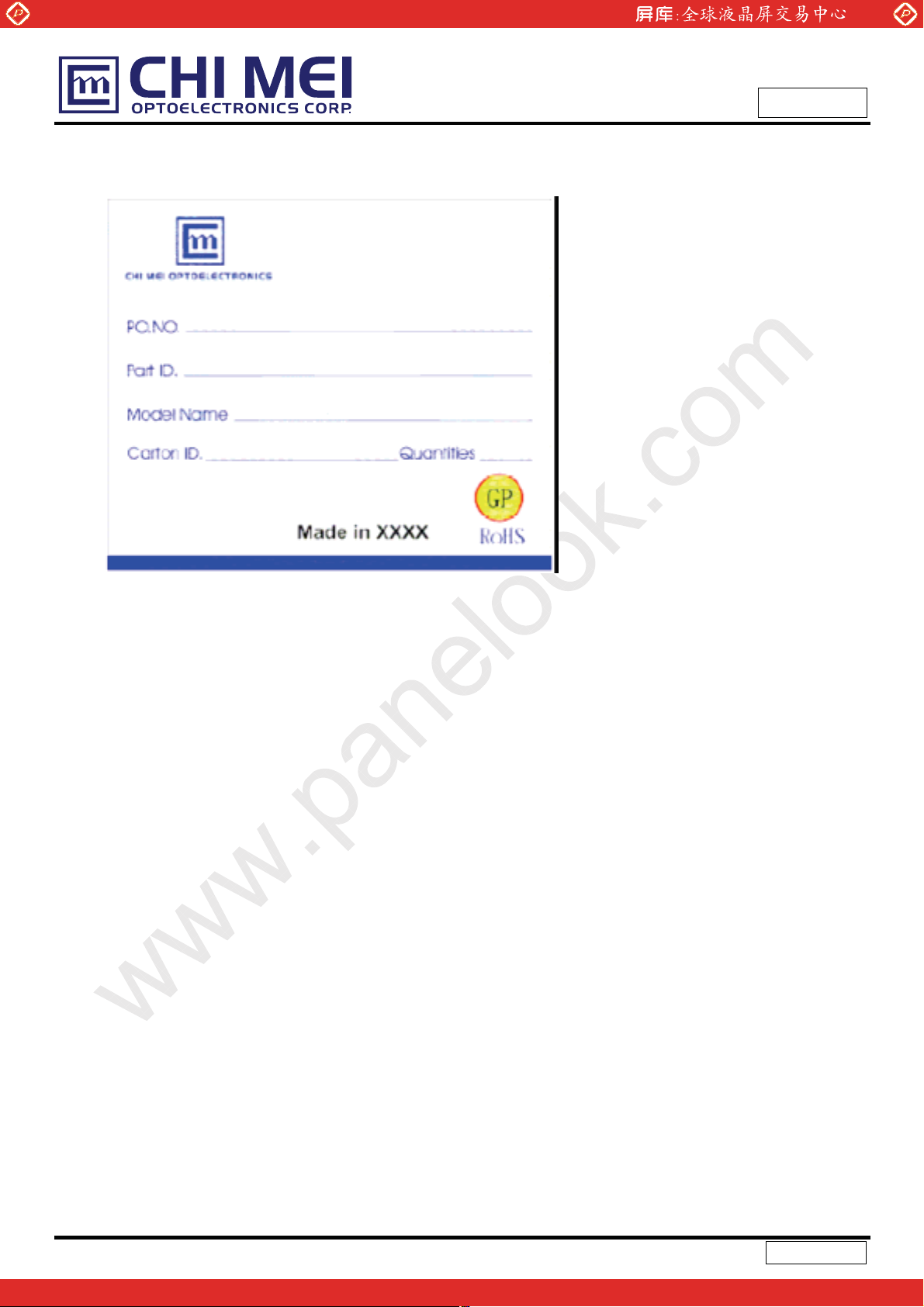

10.2 CARTON LABEL

www.panelook.com

Doc No.:

Issued Date: Mar, 31, 2008

Model No.: N154I4-L04

Approval

CP381001-01 01

(a) Production location: Made In XXXX. XXXX stands for production location.

29 / 30

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
