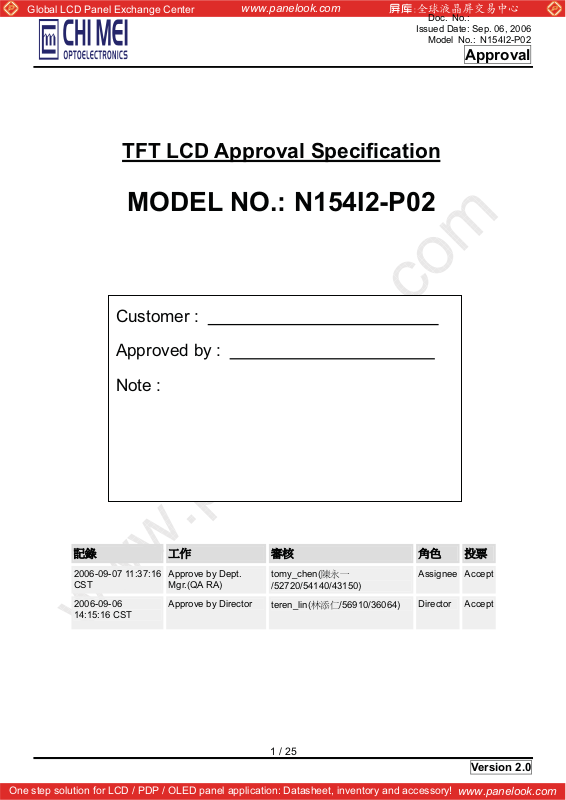

TFT LCD Approval Specification
MODEL NO.: N154I2-P02
www.panelook.com
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
Customer :
pproved by :
Note :
2006-09-07 11:37:16 CST
Approve by Dept. Mgr.(QA RA)
tomy_chen(ຫةԫ /52720/54140/43150)
AssigneeAccept
2006-09-06 14:15:16 CST
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Approve by Director
teren_lin(ࣥ෌ո/56910/36064)
1 / 25
Director Accept
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE)
2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)
2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD OPEN CELL

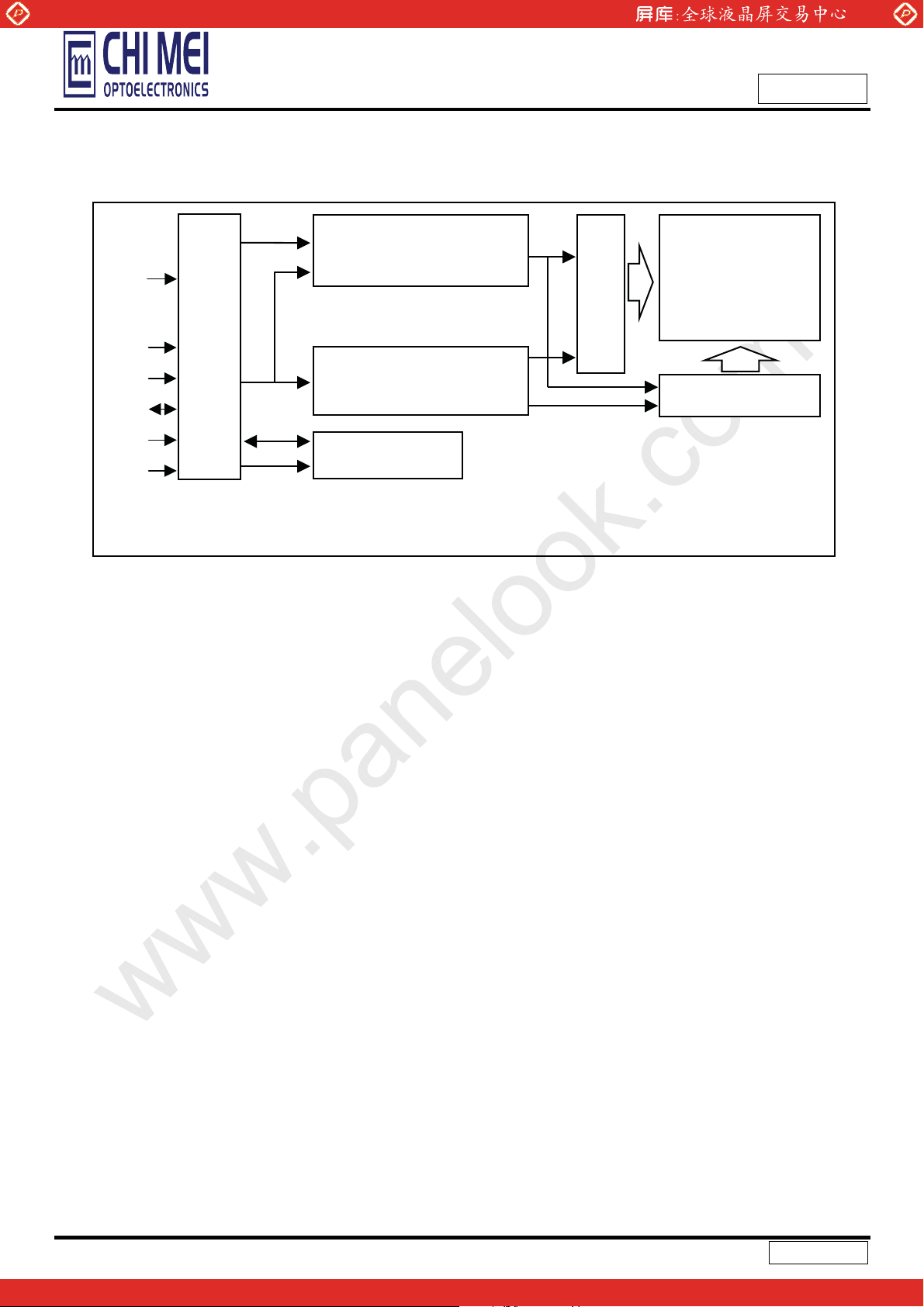

4. BLOCK DIAGRAM ------------------------------------------------------- 9
4.1 TFT LCD OPEN CELL
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10
5.1 TFT LCD MODULE

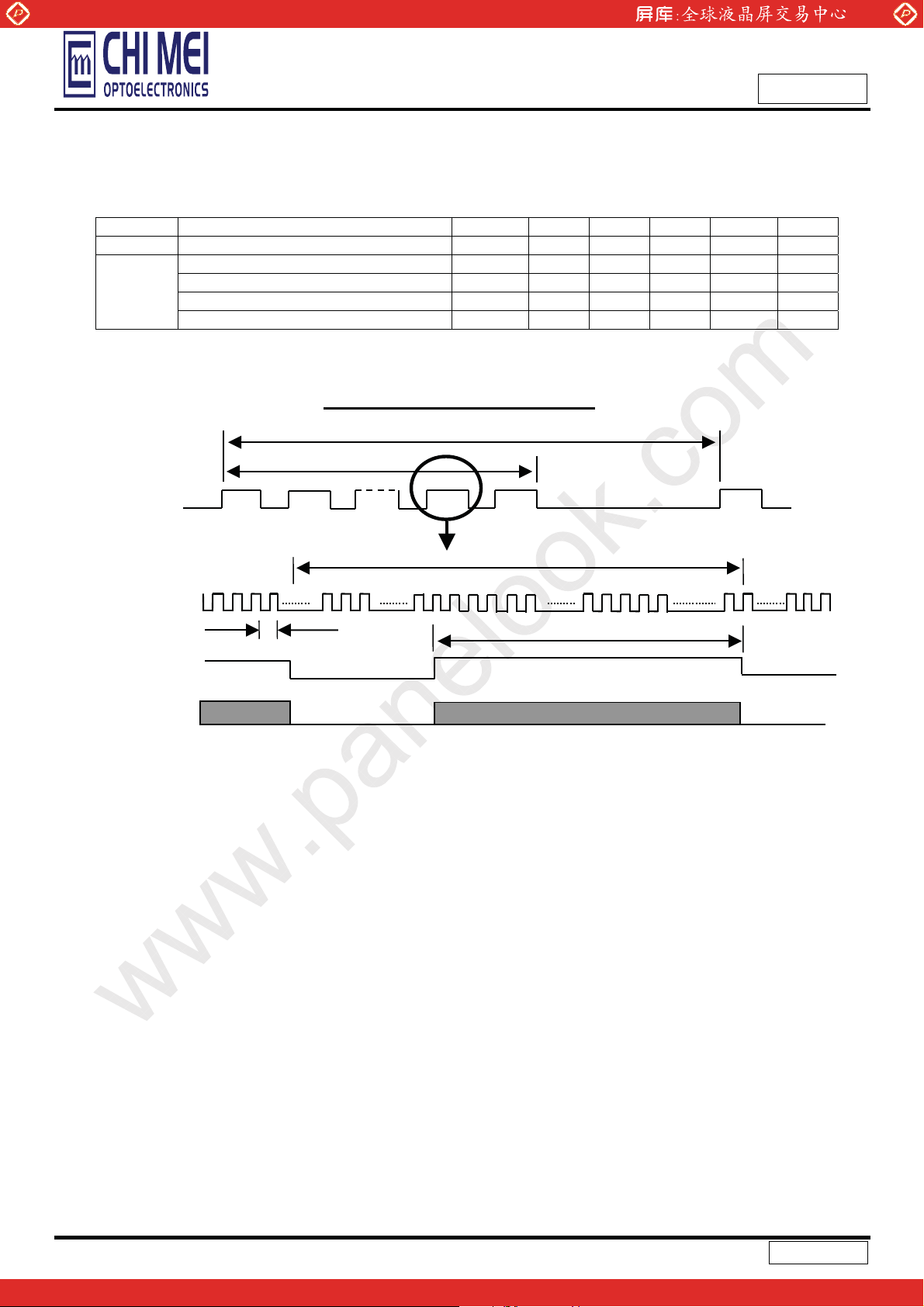

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 13
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 15
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
7.3 FLICKER ADJUSTMENT
8. PACKAGING ------------------------------------------------------- 20
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 23
10. PRECAUTIONS
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
11. MECHANICAL DRAWING
------------------------------------------------------- 24
------------------------------------------------------- 25
2 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Version Date Section Description
Ver. 2.0 Sep, 06 ’06 - N154I2-P02 Approval Specifications was first issuedΖ
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
3 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The N154I2-P02 is a 15.4-inch TFT LCD cell with driver ICs and a 30-pin-and-1ch-LVDS circuit board.
The product supports 1280 x 800 WXGA mode and can display up to 262,144 colors. The backlight unit is
not built in.
1.2 FEATURES
- WXGA (1280 x 800 pixels) resolution
- DE (Data Enable) only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface
- RoHS Compliance
www.panelook.com
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
1.3 APPLICATION
-TFT LCD Notebook
-TFT LCD Monitor
- TFT LCD TV
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm (1) Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally White - ­Surface Treatment Hard coating (3H),Anti-glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note Weight - 272.8 282.8 g ­I/F connector mounting position
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
The mounting inclination of the connector makes the screen center within ±0.5mm as the horizontal.
(2)
(2) Connector mounting position
+/- 0.5mm
4 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Sep. 06, 2006
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE M190E5-L0A)
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max.
Min. Max.
Value
Doc. No.:
Model No.: N154I2-P02
Approval
Unit Note
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
8060-20 400 20-40
5 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)
High temperature or humidity may reduce the performance of panel. Please store LCD panel within
the specified storage conditions.
Storage Condition: With packing.
Storage temperature range: 25±5 ºC.
Storage humidity range: 50±10%RH.
Shelf life: 30days
2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function
operation should be restricted to the conditions described under Normal Operating Conditions.
Value
Min Max
Unit Note
(1)
6 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
TFT LCD MODULE
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP - - 100 mV ­Rush Current I
Power Supply Current
White - 240 - mA (3)a Black
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
- - 1.5 A (2)
RUSH
Icc
TH(LVDS)
TL(LVDS)
- 330 - mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (4) LVDS Differential Input Voltage |VID| 100 600 mV (4) Terminating Resistor RT 100 Ohm
Note (1) The module should be always operated within above ranges.
Value
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
Unit Note
(4),
=1.2V
V
CM
(4)
=1.2V
V
CM
Note (2) Measurement Conditions:
+3.3V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
47K
Vcc rising time is 470us
Q1 2SK1475
FUSE
Q2
2SK1470
1K
C2
0.01uF
C3
1uF
Vcc
(LCD Module Input)
+3.3V
0.9Vcc
0.1Vcc
GND
470us
7 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc. No.:
Issued Date: Sep. 06, 2006
Model No.: N154I2-P02
Approval
a. White Pattern
Active Area

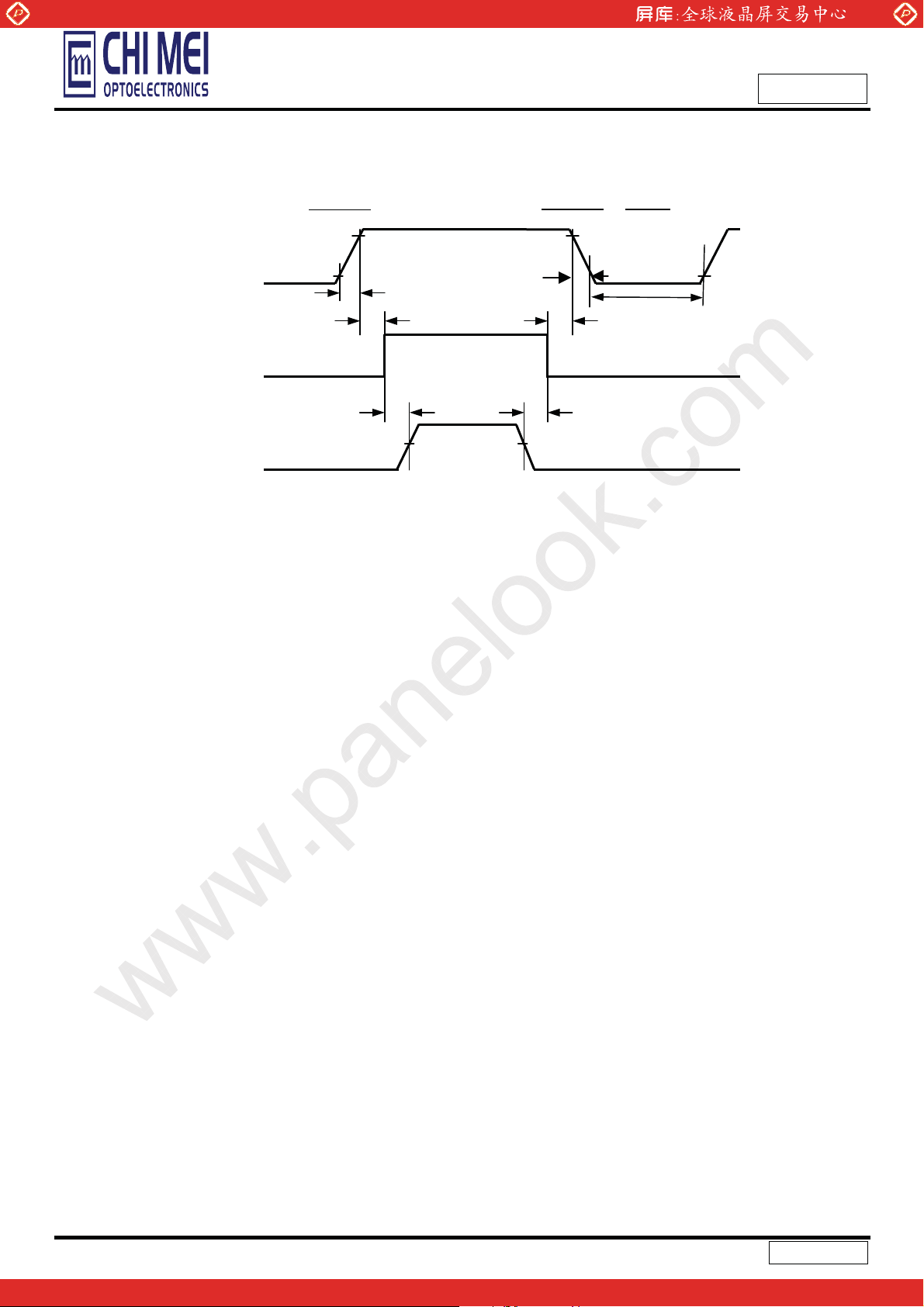

Note (4) The parameters of LVDS signals are defined as the following figures.
CM
V
b. Black Pattern
Single Ended
Active Area
VID
Differential
0V
V
VID
0V
V
8 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
