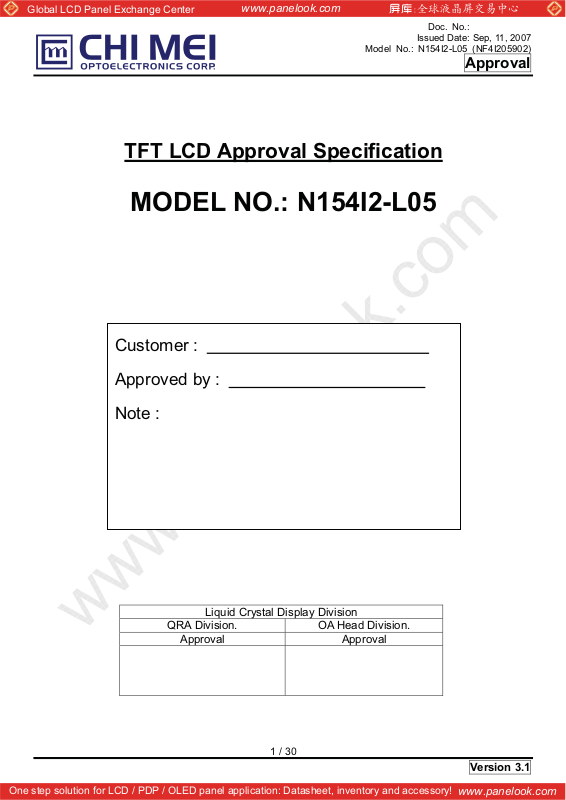

Page 1
Global LCD Panel Exchange Center
A
TFT LCD Approval Specification
MODEL NO.: N154I2-L05
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Customer :
pproved by :
Note :
Liquid Crystal Display Division
QRA Division. OA Head Division.
Approval Approval
1 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

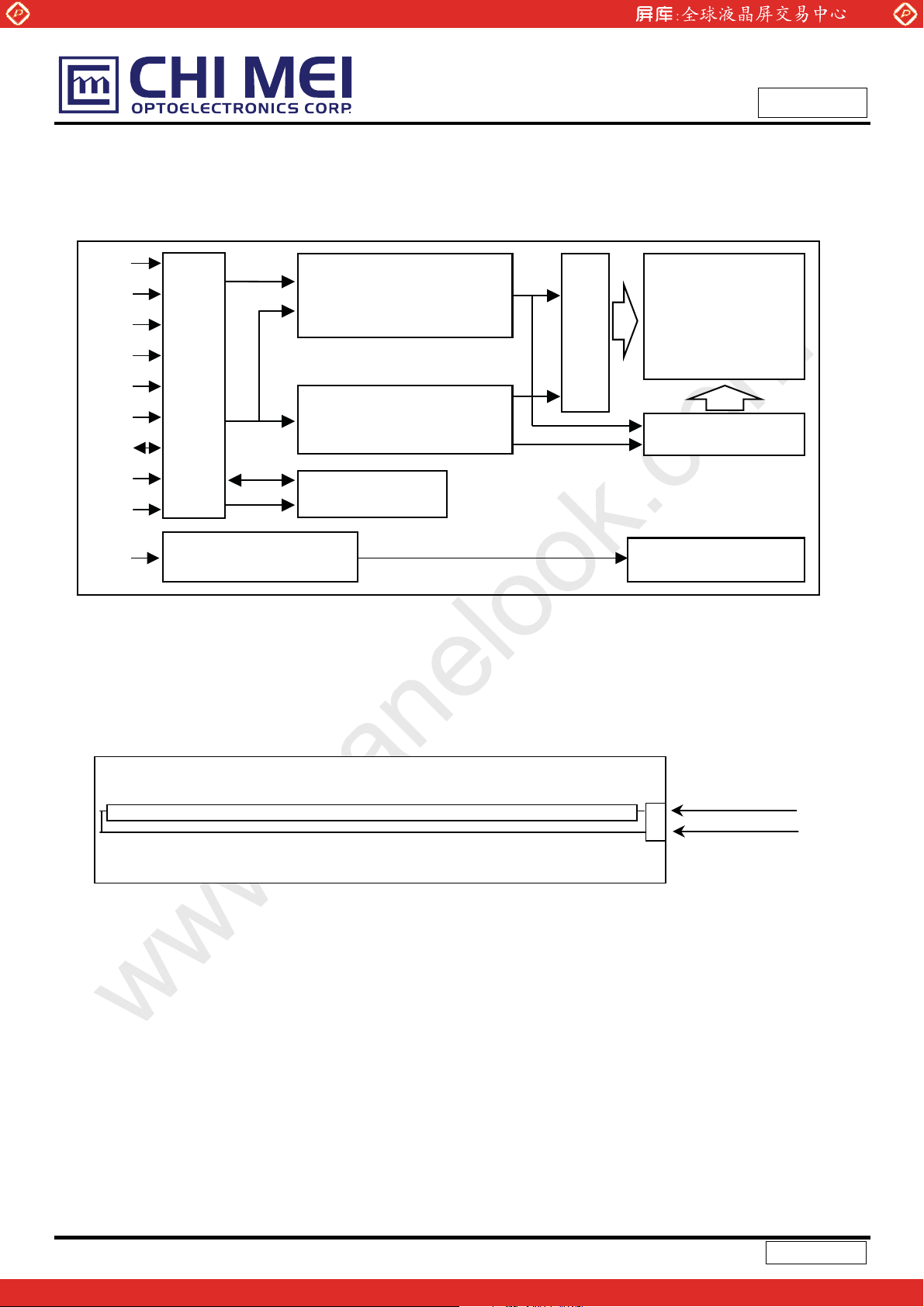

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

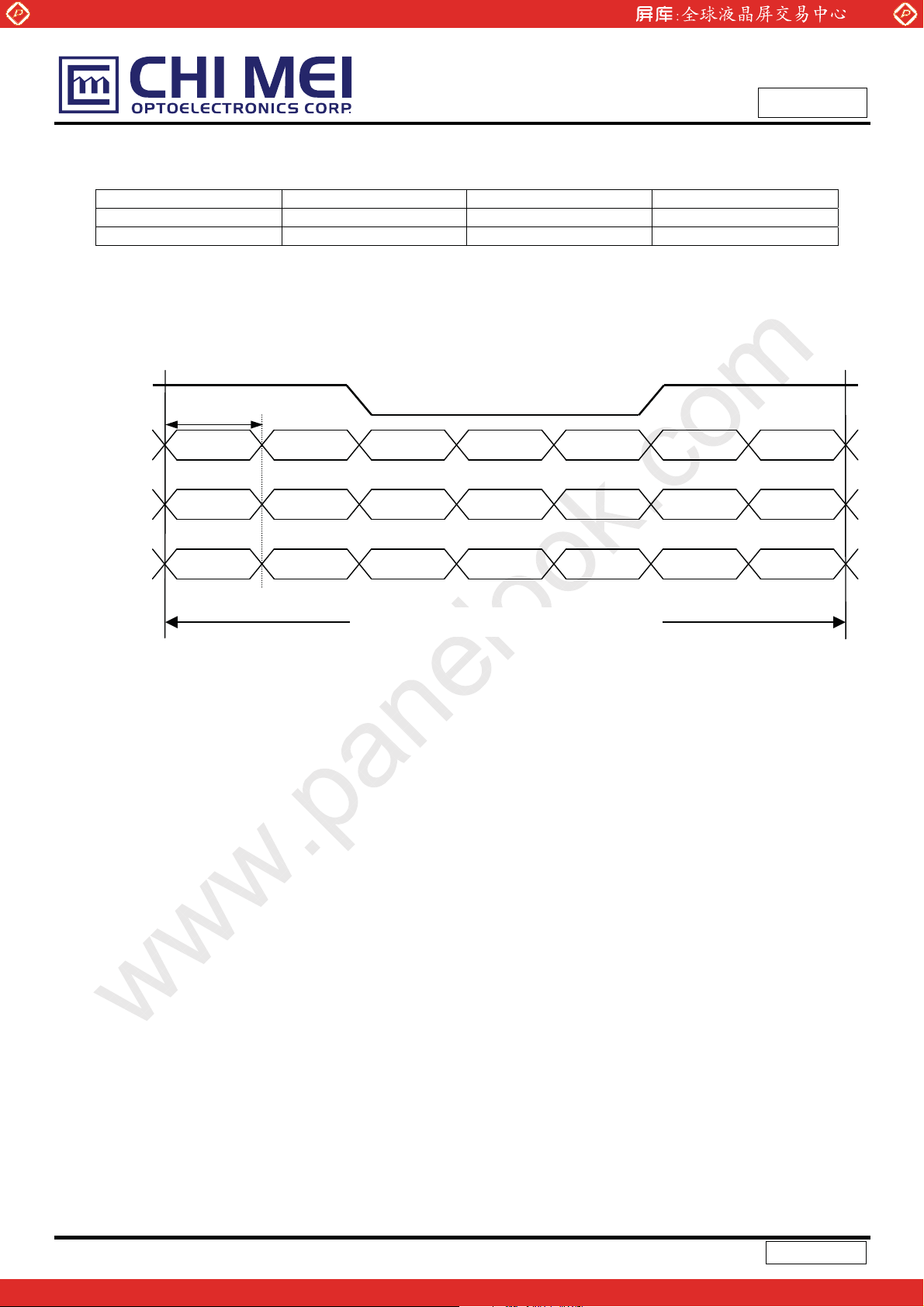

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION

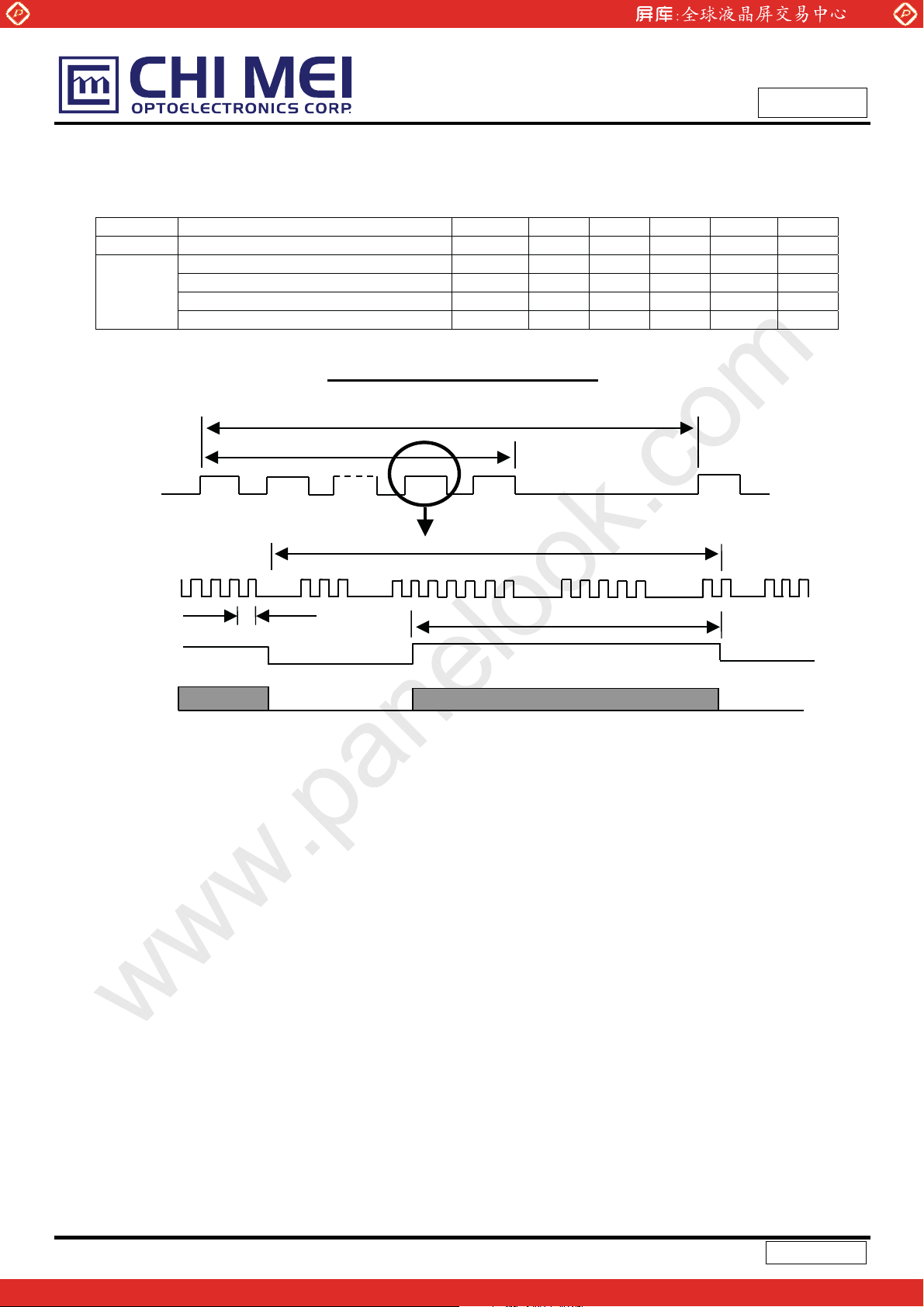

6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS

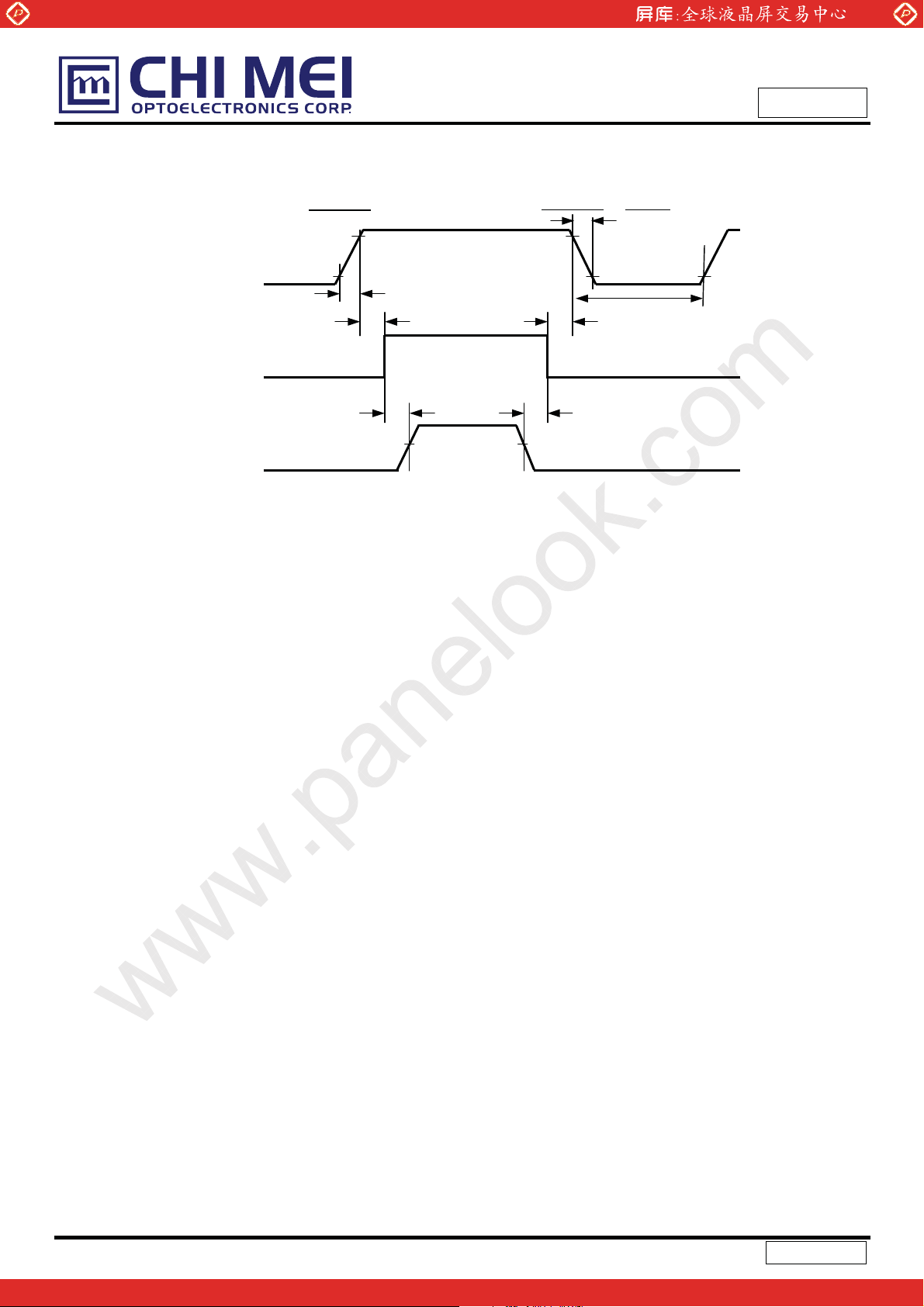

6.2 POWER ON/OFF SEQUENCE

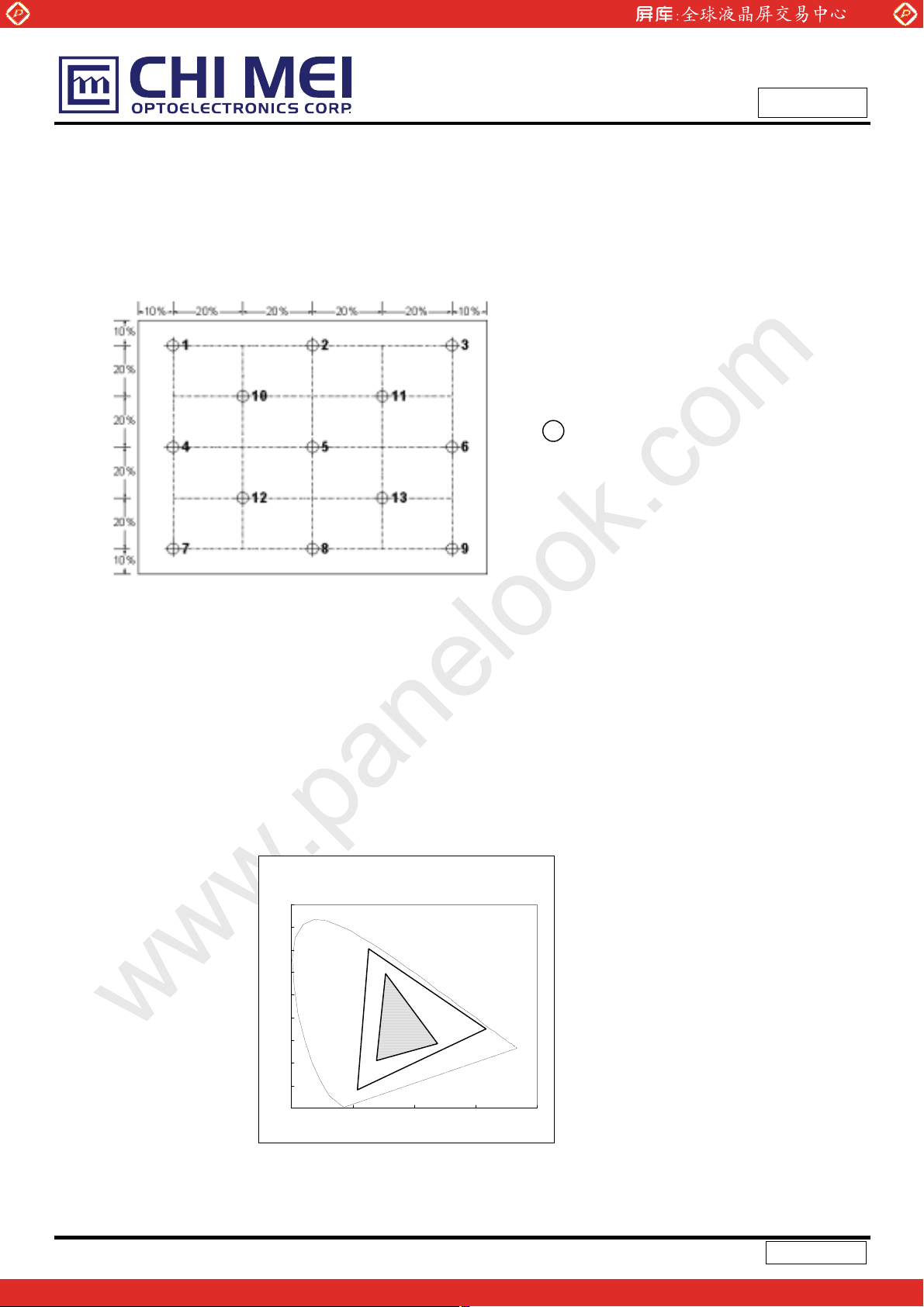

7. OPTICAL CHARACTERISTICS

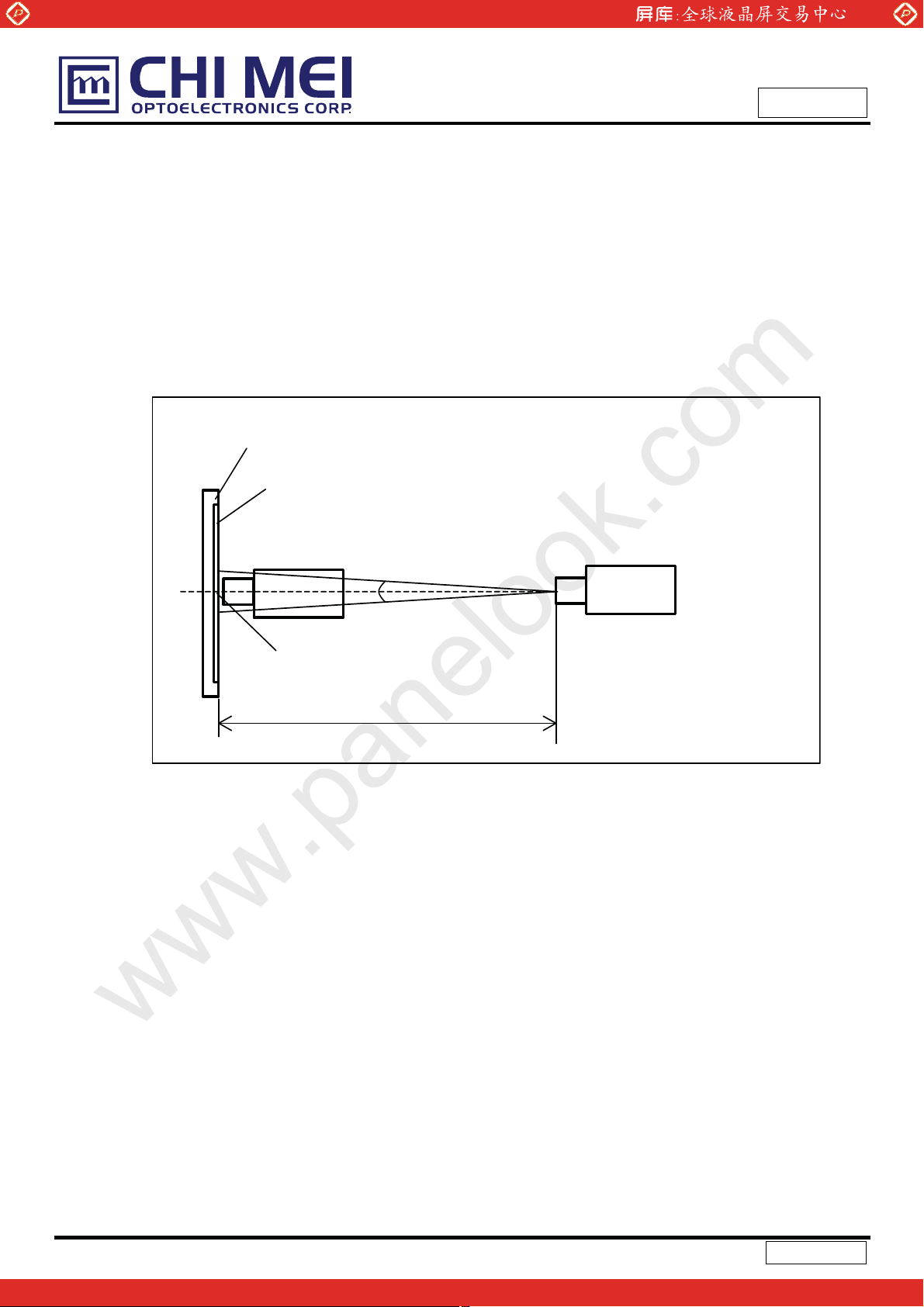

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS

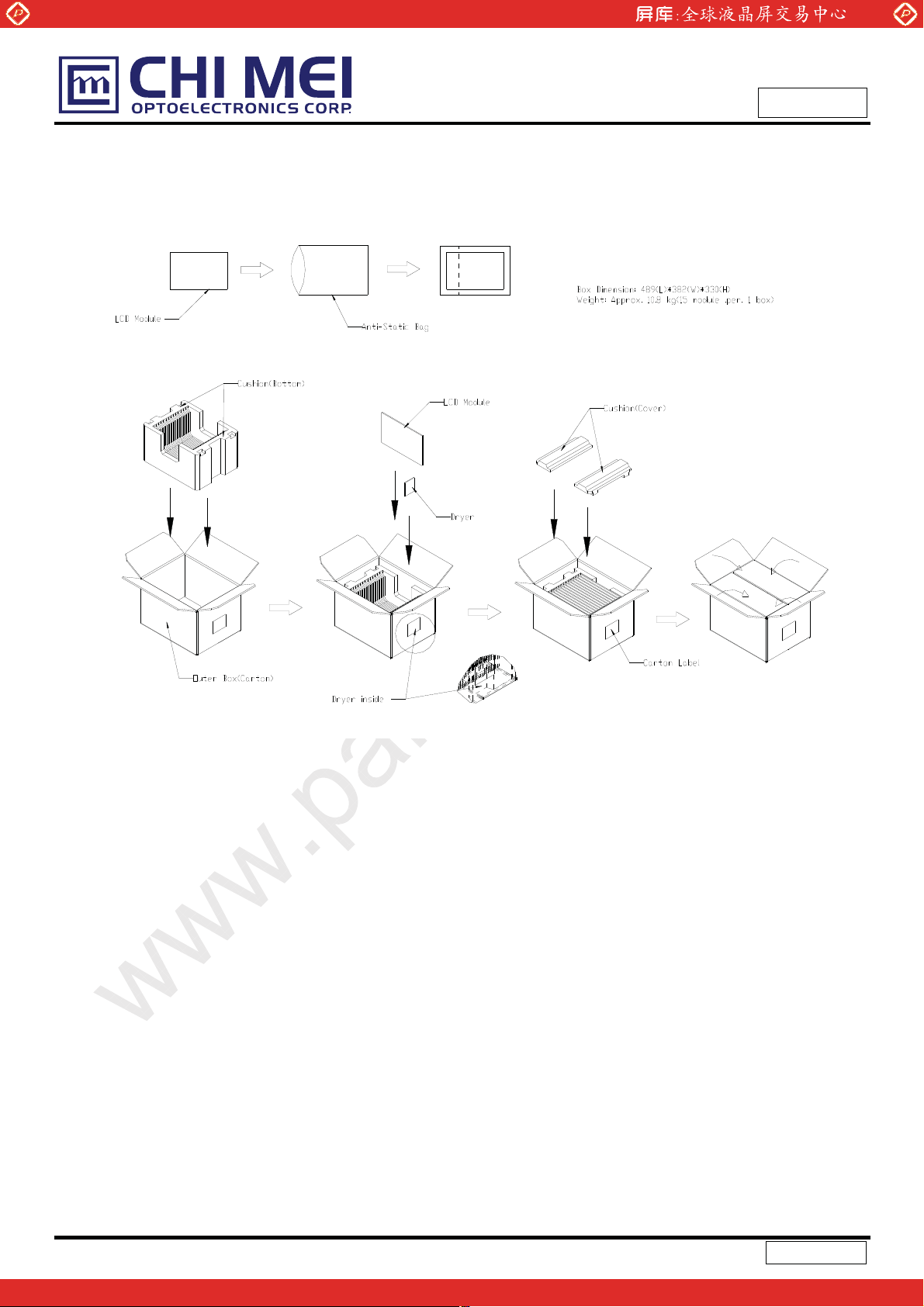

9. PACKING ------------------------------------------------------- 26
9.1 CARTON

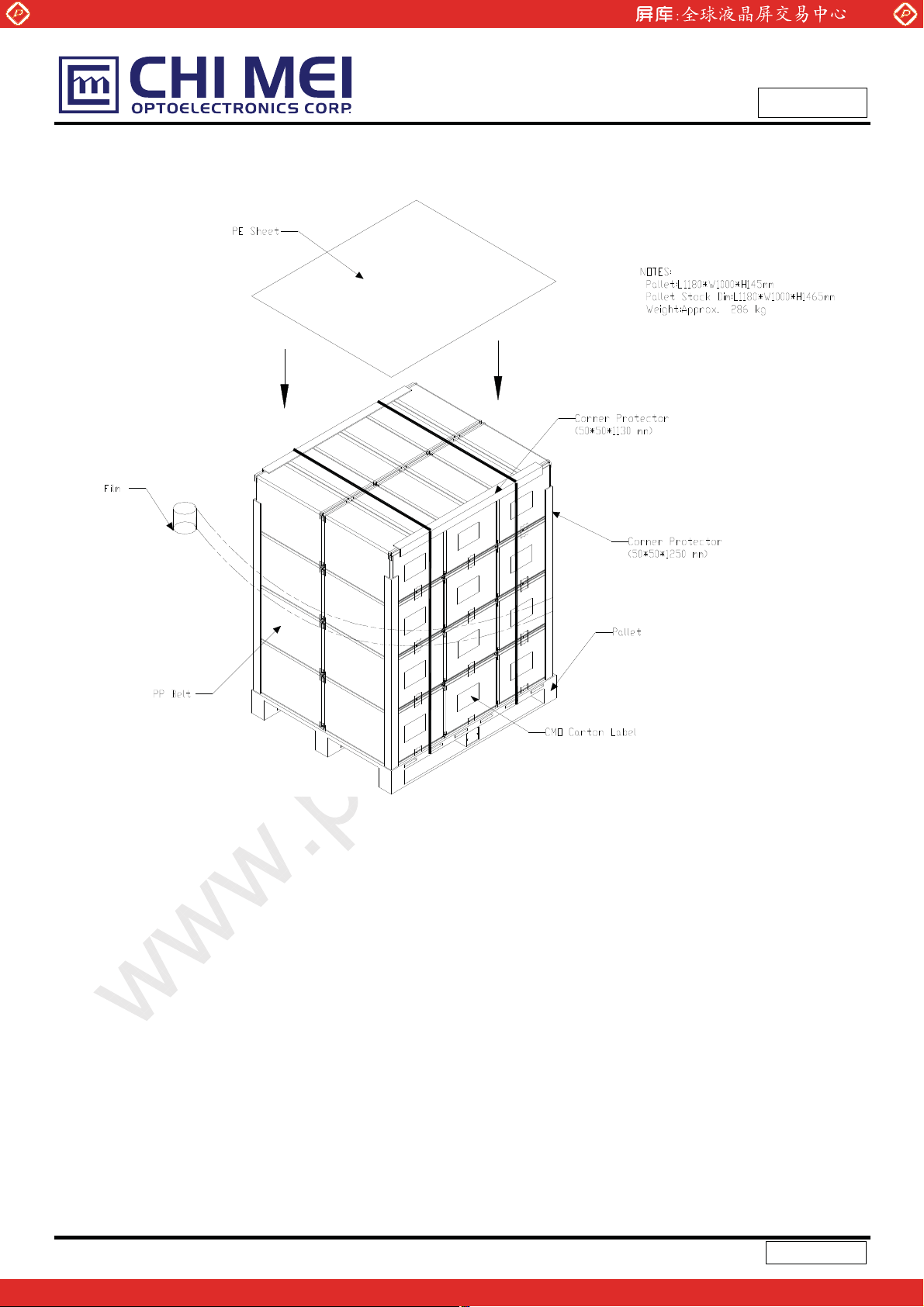

9.2 PALLET
10. DEFINITION OF LABELS

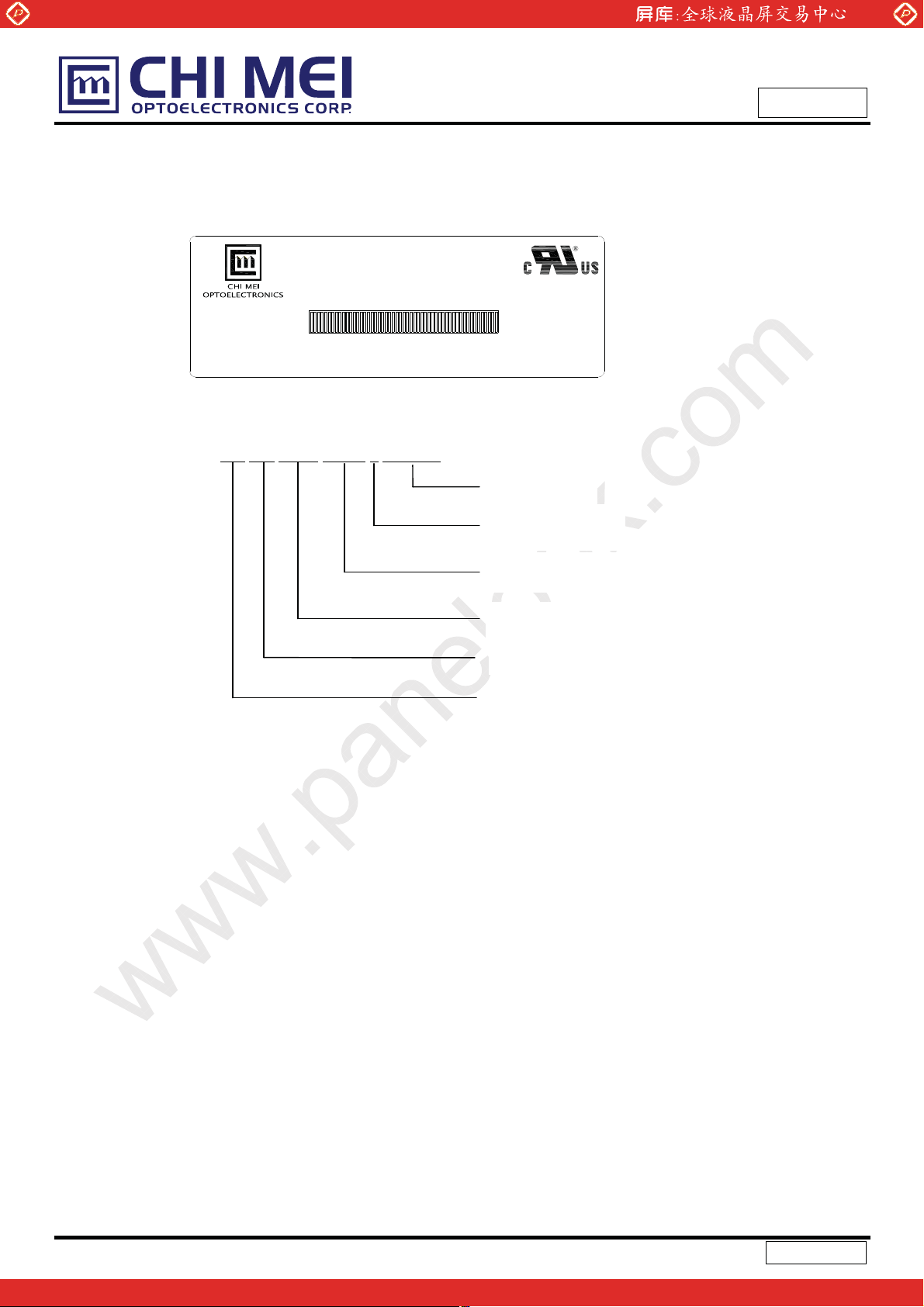

10.1 CMO MODULE LABEL
10.2 CARTON LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 10
------------------------------------------------------- 11
------------------------------------------------------- 19
------------------------------------------------------- 21
------------------------------------------------------- 25
------------------------------------------------------- 28
2 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
REVISION HISTORY
Version Date
Ver 0.0
Ver 1.0
Ver 2.0
Ver 3.0
Ver 3.1
Sep.27, 2006
Dec.15, 2006
Jan.02, 2007
Feb.02,2007
Sep.11,2007
Page
(New)
All
20
7
15
19
20
1
Section Description
Tentative specification first issued.
All
Preliminary specification release.
7.2
3.1
5.5
6.2
7.2
Average Luminance of White spec.
Power supply current spec.
EDID Table
Power On/Off sequence
Color chromaticity
Modify cover page
-
3 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154I2-L05 is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm Bezel Opening Area 335.0 (H) x 210.7 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmission Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344.0 344.5 mm
Module Size

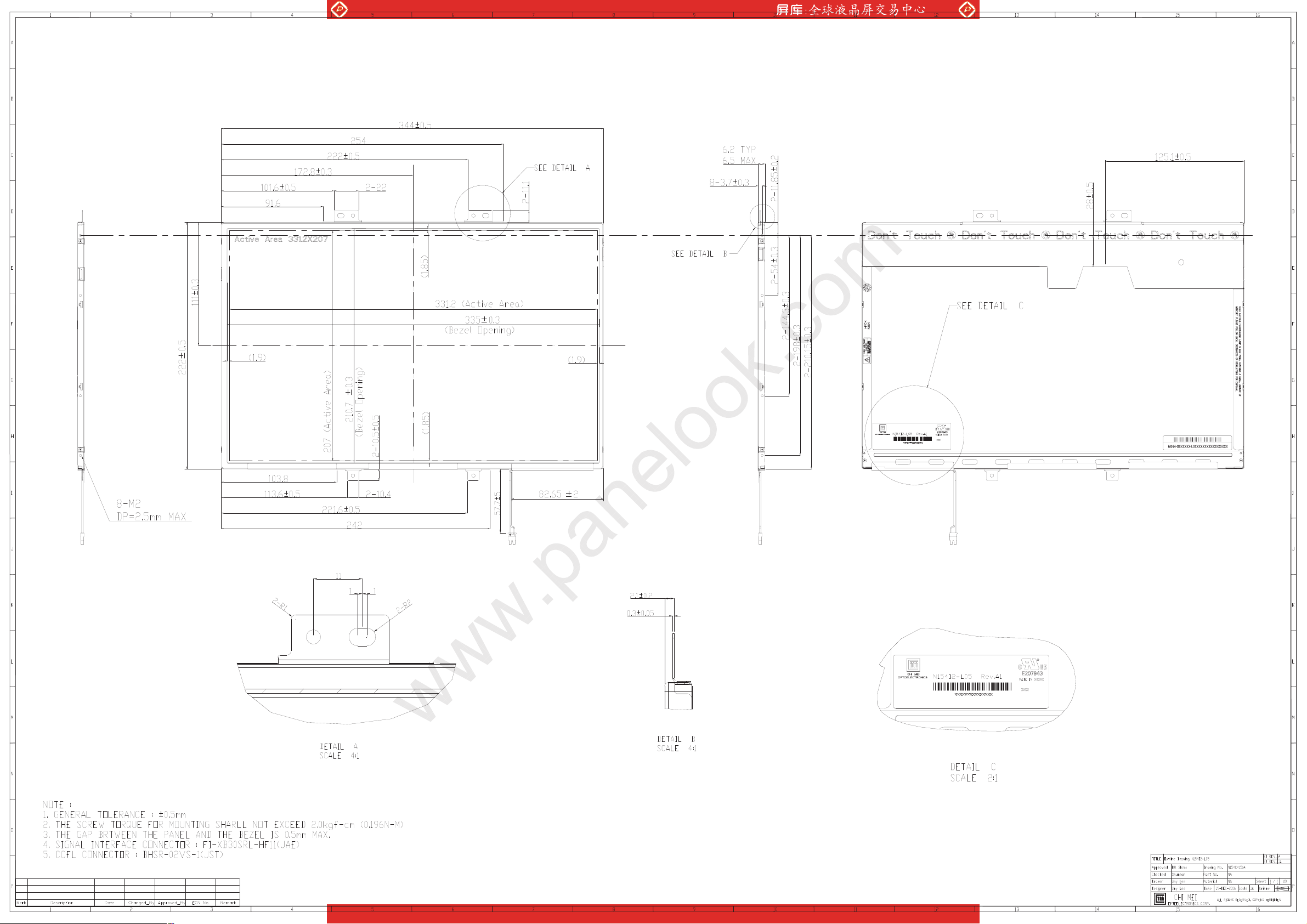

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 221.5 222.0 222.5 mm Depth(D) - 6.2 6.5 mm
Weight - 540 560 g -
(1)
(1)
4 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.
Relative Humidity (%RH)
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Value
Min. Max.
- 220G/2ms G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL - 6.5 mA Lamp Frequency FL - 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Model No.: N154I2-L05 (NF4I205902)
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc. No.:
Issued Date: Sep, 11, 2007
Approval
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).
6 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
White - 280 380 mA (3)a Black
www.panelook.com
Min. Typ. Max.
1.5 A (2)
RUSH
lcc
TH(LVDS)
TL(LVDS)
- 3.4 - W (4)
EBL
- 360 490 mA (3)b
- - +100 mV
-100 - - mV
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Value
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
Measurement Conditions: Shown as the following figure. Test pattern: black.
: the maximum current when VCC is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS
+3.3V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470us
+3.3V
VCC
Vcc
(LCD Module Input)
0V
470us
0.1Vcc
I
RUSH
100ms
I
IS
ICC
7 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Current and f
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
a. White Pattern
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
= 60 Hz,
v
Active Area
(c) Luminance: 60 nits.
(d) The inverter used is provided from Sumida
Note (5) The parameters of LVDS signals are defined as the following figures.
Single Ended
Differential
CM
V
0V
V
0V
V
.
VID|
VID|
8 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Lamp Input Voltage VL 630 700 770 V
Lamp Current IL
Lamp Turn On Voltage VS
2.0 (1),(2)
3.0
- -
- ­Operating Frequency FL 40 - 80 KHz (5) Lamp Life Time LBL 12,000 - - Hrs (7)
Power Consumption PL - 4.2 - W (6), IL = 6.0 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
Unit Note
(6.0) (7.0) mA
1140 ( 25к)
1580 (0к)
V V
IL = 6.0 mA
RMS
RMS
(4)
RMS
(4)
RMS
Approval
(1),(3)
LCD
Module
HV (Pink)
LV (Black)
1
2
Current Meter
Inverter
A
Note (2) for burst mode inverter design
Note (3) for continuous mode inverter design
Note (4) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (5) The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (6) P
= IL VL
L
Note (7) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
o
C and IL = 6.0 mA
until one of the following events occurs:
RMS
(a) When the brightness becomes Љ 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition
length is defined as an area that the brightness is less than 70% compared to the center point.)
Note (8) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
9 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center

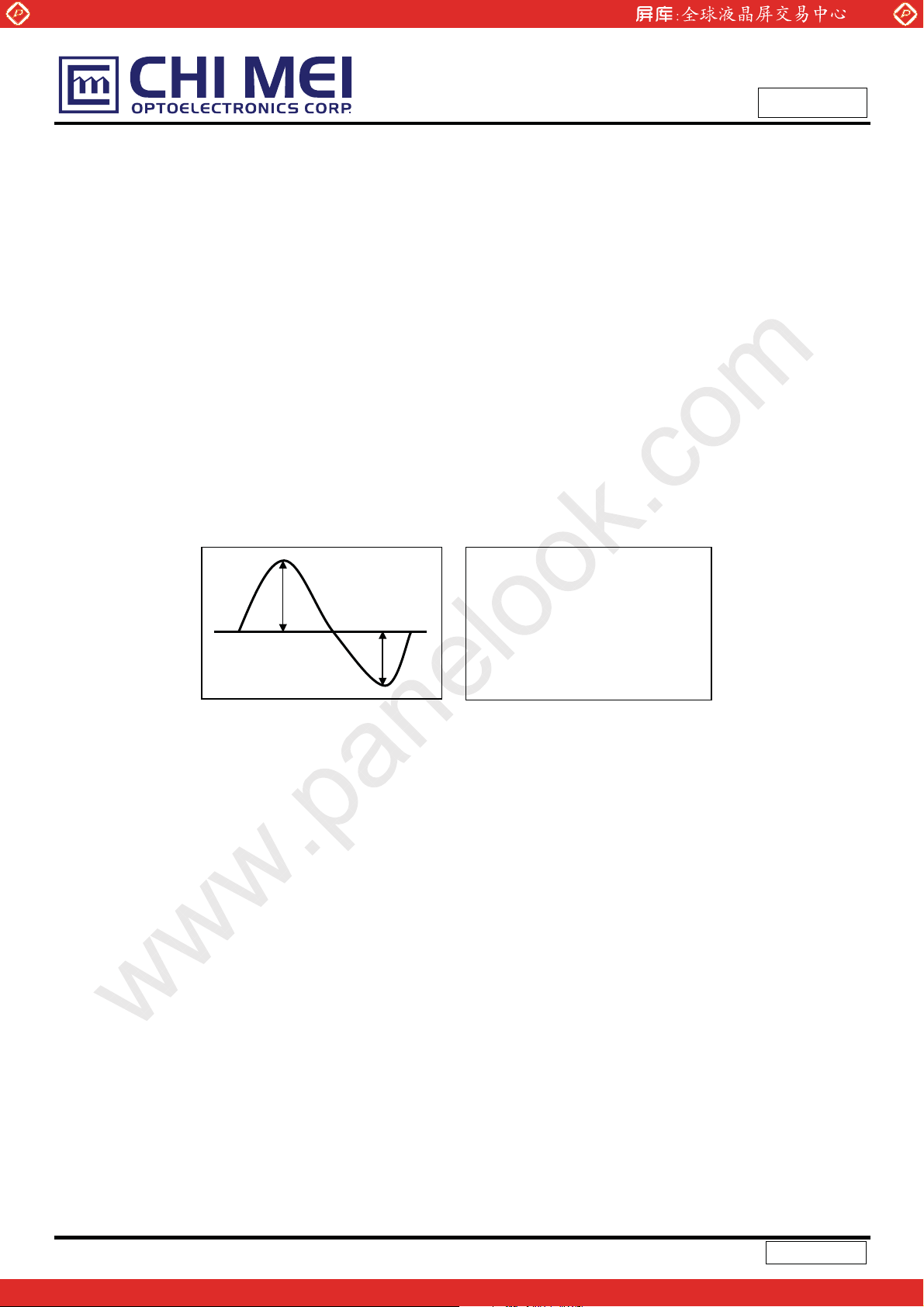

The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter,
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.
a. The asymmetry rate of the inverter waveform should be 10% below;
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
b. The distortion rate of the waveform should be within Ѕ2 ± 10%;
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
* Asymmetry rate:
I p
I -p
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
10 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
CLK(+/-)
Vcc
(JAE-FI-XB30SRL-HF10)
INPUT CONNECTOR
www.panelook.com
LVDS INPUT /
TIMING CONTROLLER
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
SCAN DRIVER IC
TFT LCD PANEL
(1280x3x800)
GND
Data
EDID
CLK
EDID
V
EDID
VL
LAMP CONNECTOR (JST-BHSR-02VS-1)
4.2 BACKLIGHT UNIT
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink)
2 LV (Black
11 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground ­2 Vcc Power Supply +3.3 V ­3 Vcc Power Supply +3.3 V ­4 V 5 NC - - ­6 CLK 7 Data 8 Rxin0- LVDS Differential Data Input Negative
9 Rxin0+ LVDS Differential Data Input Positive 10 Vss Ground ­11 Rxin1- LVDS Differential Data Input Negative 12 Rxin1+ LVDS Differential Data Input Positive 13 Vss Ground ­14 Rxin2- LVDS Differential Data Input Negative 15 Rxin2+ LVDS Differential Data Input Positive 16 Vss Ground ­17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 Vss Ground ­20 NC - - ­21 NC - - ­22 NC - ­23 NC - - ­24 NC - - ­25 NC - ­26 NC - - ­27 NC - - ­28 NC - ­29 NC - - ­30 NC - - -
Note (1) Connector Part No.: JAE-FI-XB30SRL-HF10 or equivalent
DDC +3.3 V -
EDID
DDC Clock -
EDID
DDC Data -
EDID
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
-
-
-
-
Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent
12 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink 2 LV Ground Black
Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
CLK+
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0
R5
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
R4
Signal for 1 DCLK Cycle (T)
13 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Byte
#(decimal)
1 0 Header 2 1 Header 3 2 Header 4 3 Header 5 4 Header 6 5 Header 7 6 Header 8 7 Header
9 8 EISA ID manufacturer name (“CMO”) 10 9 EISA ID manufacturer name (Compressed ASCII) 11 0A ID product code (N154I2-L05) 52 12 0B ID product code (hex LSB first; N154I2-L05) 15 13 0C ID S/N (fixed “0”) 14 0D ID S/N (fixed “0”) 15 0E ID S/N (fixed “0”) 16 0F ID S/N (fixed “0”) 17 10 Week of manufacture (fixed “00H”) 18 11 Year of manufacture (fixed “00H”) 19 12 EDID structure version # (“1”) 20 13 EDID revision # (“3”)
21 14 Video I/P definition (“digital”)
22 15 Max H image size (“33cm”)
23 16 Max V image size (“21cm”)
24 17 Display Gamma (Gamma = ”2.2”)
25 18 Feature support (“Active off, RGB Color”) 26 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 27 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) 28 1B Red-x (Rx = “0.602”) 29 1C Red-y (Ry = “0.340”) 30 1D Green-x (Gx = ”0.306”) 31 1E Green-y (Gy = ”0.530”) 32 1F Blue-x (Bx = ”0.151”) 33 20 Blue-y (By = ”0.120”) 34 21 White-x (Wx = ”0.313”) 35 22 White-y (Wy = ”0.329”)
Byte
#(hex)
Field Name and Comments
Value(hex) Value(binary)
00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 00 00000000 0D 00001101 AF 10101111
01010010
00010101 00 00000000 00 00000000 00 00000000 00 00000000 00 00000000 00 00000000 01 00000001 03 00000011
80 10000000
21 00100001
15 00010101
78 01111000
0A 00001010
06 00000110 A0 10100000 9A 10011010 57 01010111 4E 01001110 87 10000111 26 00100110 1E 00011110 50 01010000 54 01010100
36 23 Established timings 1
37 24 Established timings 2
38 25 Manufacturer’s reserved timings 39 26 Standard timing ID # 1
00 00000000
00 00000000
00 00000000
01 00000001
15 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
40 27 Standard timing ID # 1 41 28 Standard timing ID # 2 42 29 Standard timing ID # 2 43 2A Standard timing ID # 3 44 2B Standard timing ID # 3 45 2C Standard timing ID # 4 46 2D Standard timing ID # 4 47 2E Standard timing ID # 5 48 2F Standard timing ID # 5 49 30 Standard timing ID # 6 50 31 Standard timing ID # 6 51 32 Standard timing ID # 7 52 33 Standard timing ID # 7 53 34 Standard timing ID # 8 54 35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“71MHz”, According to
55 36 56 37 # 1 Pixel clock (hex LSB first) 57 38 # 1 H active (“1280”) 58 39 # 1 H blank (“160”) 59 3A # 1 H active : H blank (“1280 : 160”) 60 3B # 1 V active (”800”) 61 3C # 1 V blank (”23”) 62 3D # 1 V active : V blank (”800 :23”) 63 3E # 1 H sync offset (”48”) 64 3F # 1 H sync pulse width ("32”) 65 40 # 1 V sync offset : V sync pulse width (”3 : 6”)
66 41 67 42 # 1 H image size (”331 mm”) 68 43 # 1 V image size (”207 mm”) 69 44 # 1 H image size : V image size (”331 : 207”) 70 45 # 1 H boarder (”0”) 71 46 # 1 V boarder (”0”)
72 47 73 48 Detailed timing description # 2 74 49 # 2 Flag 75 4A # 2 Reserved
76 4B 77 4C # 2 Flag 78 4D # 2 1st character of name (“N”) 79 4E # 2 2nd character of name (“1”) 80 4F # 2 3rd character of name (“5”) 81 50 # 2 4th character of name (“4”) 82 51 # 2 5th character of name (“I”) 83 52 # 2 6th character of name (“2”) 84 53 # 2 7th character of name (“-”) 85 54 # 2 8th character of name (“L”)
VESA CVT Rev1.1)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48: 32 : 3 : 6”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
# 2 FE (hex) defines ASCII string (Model Name “N154I2-L05”, ASCII)
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
BC 10111100
1B 00011011 00 00000000 A0 10100000 50 01010000 20 00100000 17 00010111 30 00110000 30 00110000 20 00100000 36 00110110
00 00000000
4B 01001011 CF 11001111 10 00010000 00 00000000 00 00000000
18 00011000
00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000 4E 01001110 31 00110001 35 00110101 34 00110100 49 01001001 32 00110010 2D 00101101 4C 01001100
16 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
86 55 # 2 9th character of name (“0”) 87 56 # 2 9th character of name (“5”) 88 57 # 2 New line character indicates end of ASCII string 89 58 # 2 Padding with “Blank” character 90 59 # 2 Padding with “Blank” character
91 5A Detailed timing description # 3
92 5B # 3 Flag
93 5C # 3 Reserved
94 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)
95 5E # 3 Flag 96 5F # 3 1st character of string (“C”) 97 60 # 3 2nd character of string (“M”) 98 61 # 3 3rd character of string (“O”) 99 62 # 3 New line character indicates end of ASCII string
100 63 # 3 Padding with “Blank” character
101 64 # 3 Padding with “Blank” character
102 65 # 3 Padding with “Blank” character
103 66 # 3 Padding with “Blank” character
104 67 # 3 Padding with “Blank” character
105 68 # 3 Padding with “Blank” character
106 69 # 3 Padding with “Blank” character
107 6A # 3 Padding with “Blank” character 108 6B # 3 Padding with “Blank” character
109 6C Detailed timing description # 4
110 6D # 4 Flag
111 6E # 4 Reserved
# 4 FE (hex) defines ASCII string (Model Name“N154I2-L05”,
112 6F
113 70 # 4 Flag
114 71 # 4 1st character of name (“N”) 4E
115 72 # 4 2nd character of name (“1”) 31
116 73 # 4 3rd character of name (“5”) 35
117 74 # 4 4th character of name (“4”) 34
118 75 # 4 5th character of name (“I”) 49
119 76 # 4 6th character of name (“2”) 32
120 77 # 4 7th character of name (“-”) 2D
121 78 # 4 8th character of name (“L”) 4C
122 79 # 4 9th character of name (“0”)
123 7A # 4 9th character of name (“5”)
124 7B # 4 New line character indicates end of ASCII string
125 7C # 4 Padding with “Blank” character
ASCII)
30 00110000 35 00110101 0A 00001010 20 00100000 20 00100000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
43 01000011 4D 01001101 4F 01001111 0A 00001010 20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
30 00110000
35 00110101
0A 00001010
20 00100000
01001110
00110001
00110101
00110100
01001001
00110010
00101101
01001100
17 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
126 7D # 4 Padding with “Blank” character
127 7E Extension flag
128 7F Checksum
20 00100000
00 00000000
34 00110100
18 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc - 71 80 MHz -
Vertical Total Time TV 810 823 1000 TH -
DE
Vertical Addressing Time TVD 800 800 800 TH -
Horizontal Total Time TH 1360 1440 1600 Tc -
Horizontal Addressing Time THD 1280 1280 1280 Tc -
INPUT SIGNAL TIMING DIAGRAM
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
DE
DCLK
DE
DATA
TC
HD
T
19 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
6.2 POWER ON/OFF SEQUENCE
Power Supply
for LCD, Vcc
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
0V
0V
I
10%
Power On
90%
t1
www.panelook.com
Valid Data
ONOFF OFF
Power Off
90%
t3 t2
t6 t5
50%50%
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Restart
t7
10%
t4
10%
Timing Specifications:
0.5< t1 <= 10 msec
0 < t2 <= 50 msec
0 < t3 <= 50 msec
t4 >= 500 msec
t5 >= 200 msec
t6 >= 200 msec
Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be
damaged.
Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be
sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5msЉt7Љ300 ms.
20 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.0 mA Inverter Driving Frequency FL 55 KHz Inverter Sumida-H05-4915
The measurement methods of optical characteristics are shown in Section 7.2. The following items
should be measured under the test conditions described in Section 7.1 and stable environment shown in
Note (6).
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
o
25r2
50r10
C
%RH
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 280 400 - - (2), (5)
Response Time
Average Luminance of White
Red
Green Color Chromaticity
Blue
White
Color Gamut C.G.
Horizontal
Viewing Angle
Vertica l
White Variation of 5 Points GW5p White Variation of 13 Points GW
TR - 3 6 ms
- 5 10 ms
T
F
L
AVE
Rx
Ry Gx Gy Bx By
=0q, TY =0q
T
x
Viewing Normal Angle
187 220 - cd/m
0.602
0.340
0.306
TYP.
-0.03
0.530
0.151
TYP.
+0.03
0.120 Wx 0.313 ­Wy
0.329
42 45 % (7)
Tx+
T
x
TY+
T
Y
13p
­CRt10
-
=0q, TY =0q
T
x
40 45 ­40 45 ­15 20 -
Deg. (1),(5)
40 45 ­80 - - % 65 - - %
(3)
2
-
-
-
-
-
(1)
-
-
(5),(6)
21 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
.67 ms
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
Normal
Tx = Ty = 0º
Ty- Ty
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF):
R
66
Time
T
F
22 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
500
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6)
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 15 minutes in a windless room.
LCD Module
LCD Panel
USB2000
AVE
):
CS-1000T
Center of the Screen
mm
Light Shield Room
(Ambient Luminance < 2 lux)
23 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW
= Minimum [L (10)+ L (11)+ L (12)+ L (13)+ L (5)] / Maximum [L (10)+ L (11)+ L (12)+ L (13)+ L (5)]
5p
GW
= Minimum [L (1) ~ L (13)] / Maximum [L (1) ~ L (13)]
13p
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
X
: Test Point
X=1 to 13
Note (7) Definition of color gamut (C.G%):
C.G%= ΓR G B /ΓR
R
R, G, B
ΓR
, G0, B0 : color coordinates of red, green, and blue defined by NTSC, respectively.
0
: color coordinates of module on 63 gray levels of red, green, and blue, respectively.
0 G0 B0
: area of triangle defined by R0, G0, B0
0 G0 B0
ΓR G B: area of triangle defined by R, G, B
˃ˁˌ
˃ˁˋ
˃ˁˊ
˃ˁˉ
˃ˁˈ
˃ˁˇ
˃ˁˆ
˃ˁ˅
˃ˁ˄
˃
˃ ˃ˁ˅ ˃ˁˇ ˃ˁˉ ˃ˁˋ
,*100%
G
0
B
B
0
˖˜˘ʳ˄ˌˆ˄
G
Active area
R
0
R
24 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the lamp wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
25 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
9. PACKING
9.1 CARTON
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
Packing testing criteria :
(1) Packing drop : 1 corner, 3 edges, 6 faces, each direction for one time, follow ISTA standard.
(2) Packing vibration : Random, follow ISTA standard.
26 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
9.2 PALLET
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
27 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
01A
N154I2 - L05
-
X X X X X X X Y M D L N N N N
C P 1 3 5 4 4 8 - 0 1
Rev. XX
Rev.XX
(a) Model Name: N154I2 - L05
(b) Revision: Rev. XX, for example: C1, C2 …etc.
(c) Serial ID: X X
X X X X X Y M D L N N N N
E207943
MADE IN XXXXX
XXXX
Serial No.
Product Line
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.
st
to 31st, exclude I , O and U
28 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
10.2 CARTON LABEL
www.panelook.com
Doc. No.:
Issued Date: Sep, 11, 2007
Model No.: N154I2-L05 (NF4I205902)
Approval
29 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
