Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

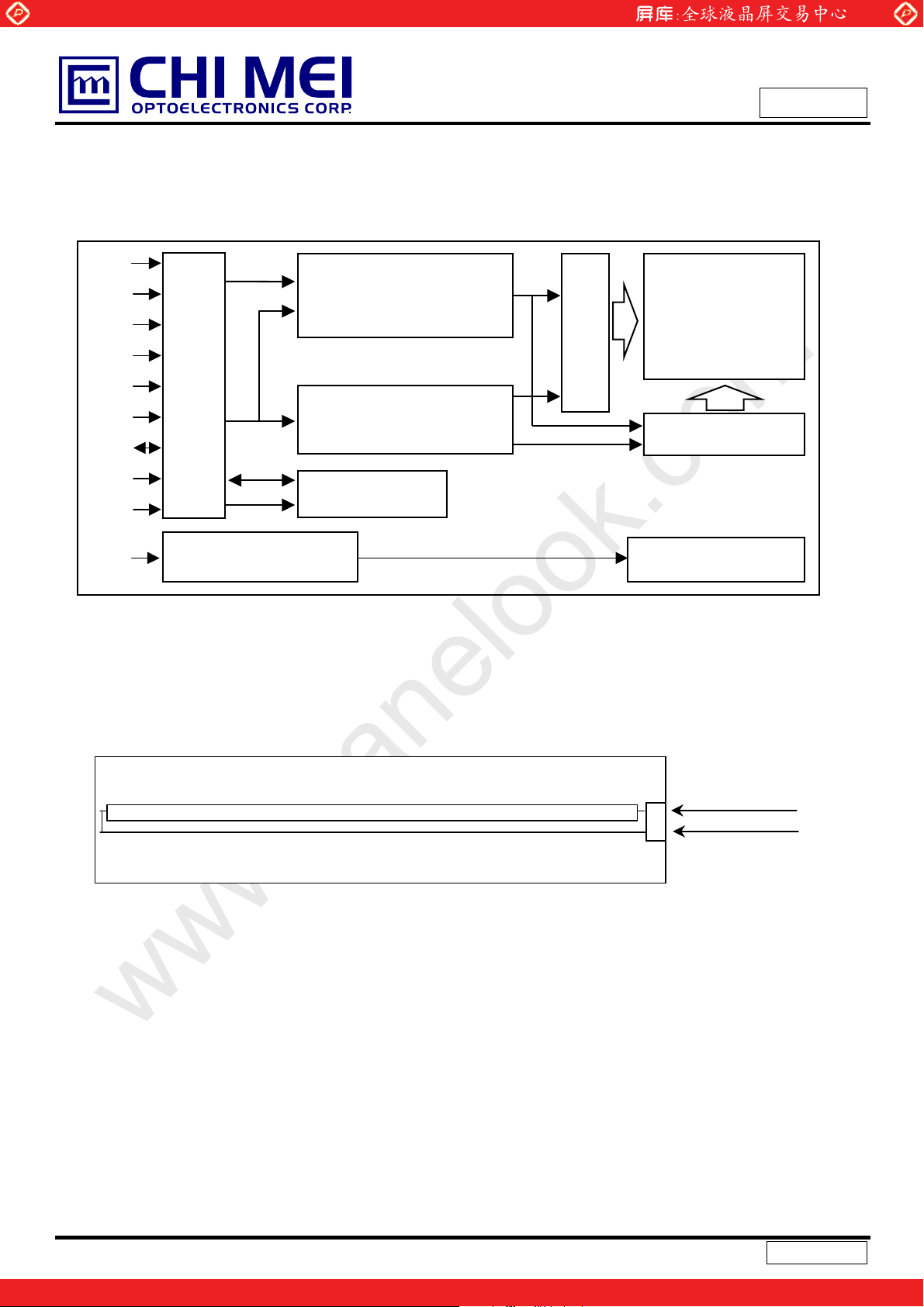

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID DATA STRUCTURE

5.6 EDID SIGNAL SPECIFICATION

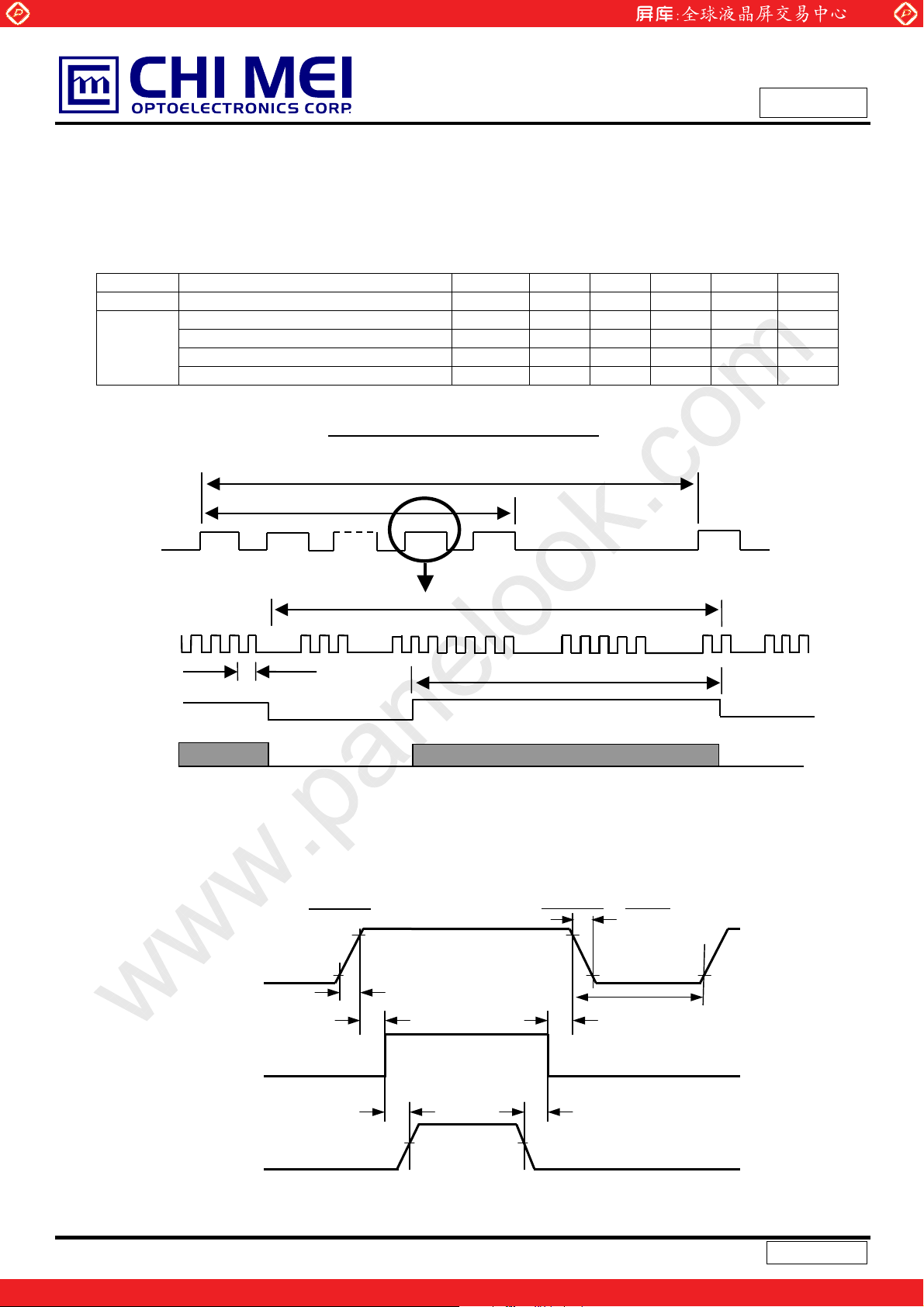

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

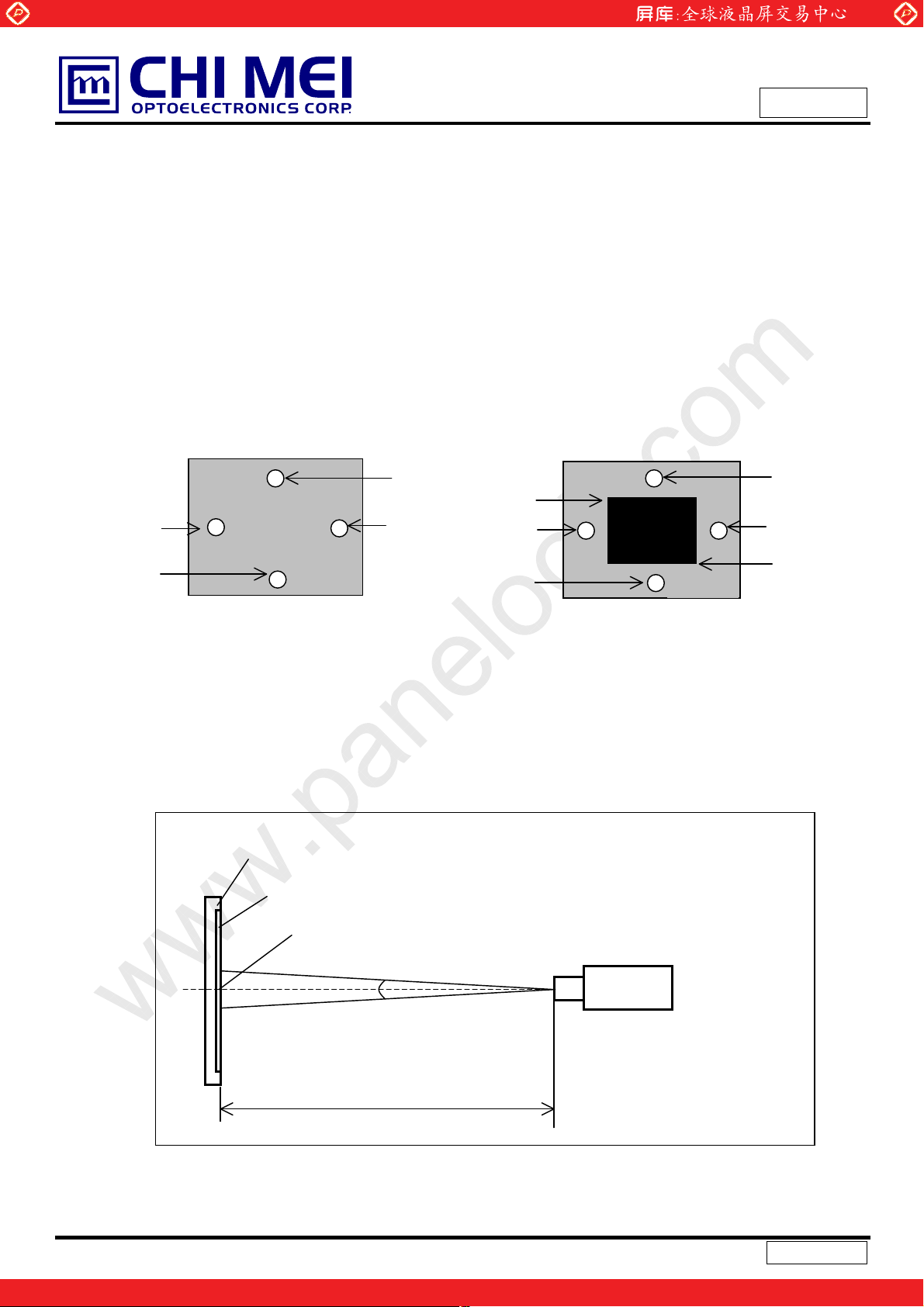

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

8.2 STORAGE PRECAUTIONS

8.3 OPERATION PRECAUTIONS

9. PACKING ------------------------------------------------------- 24

9.1 CARTON

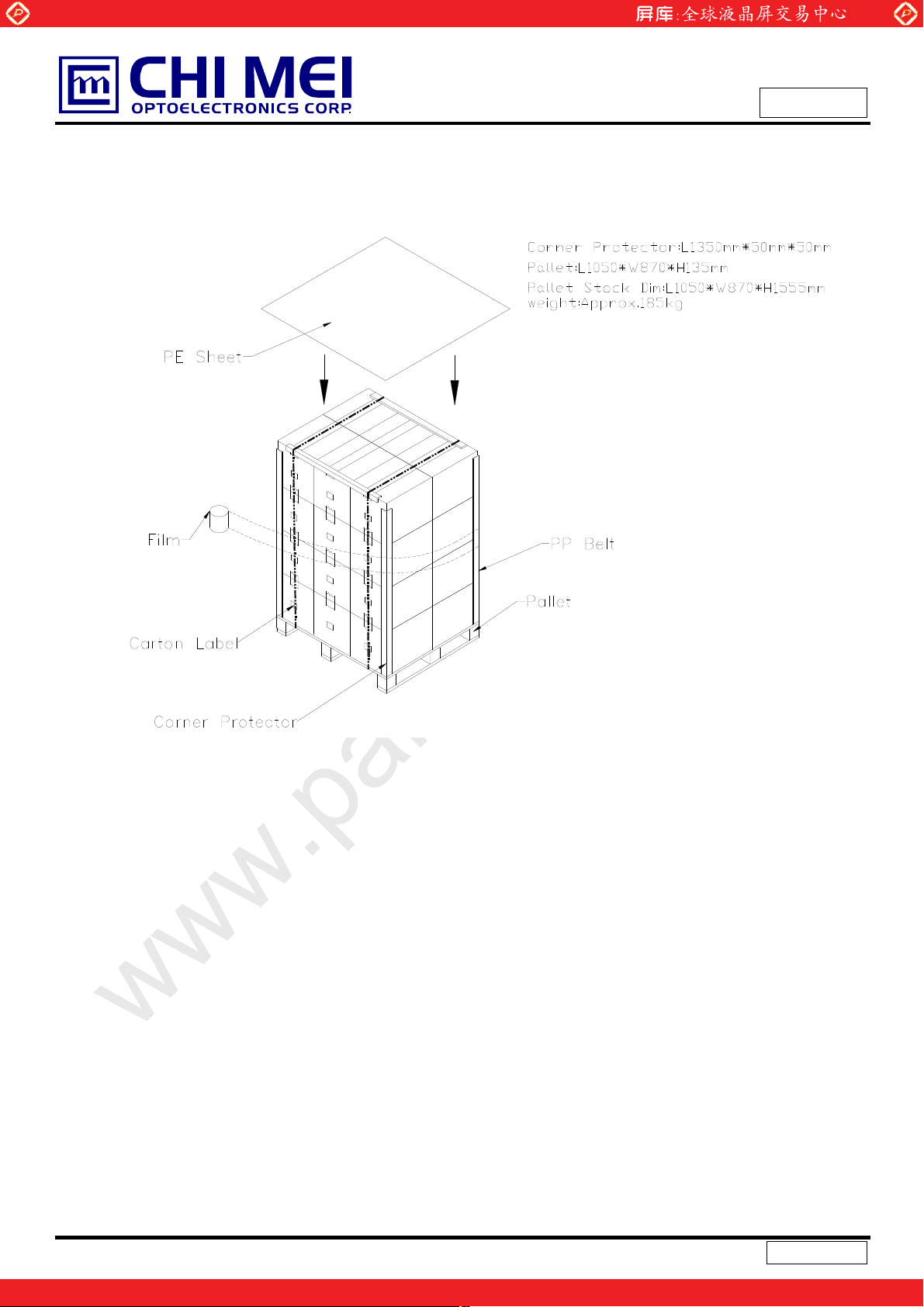

9.2 PALLET

10. DEFINITION OF LABELS

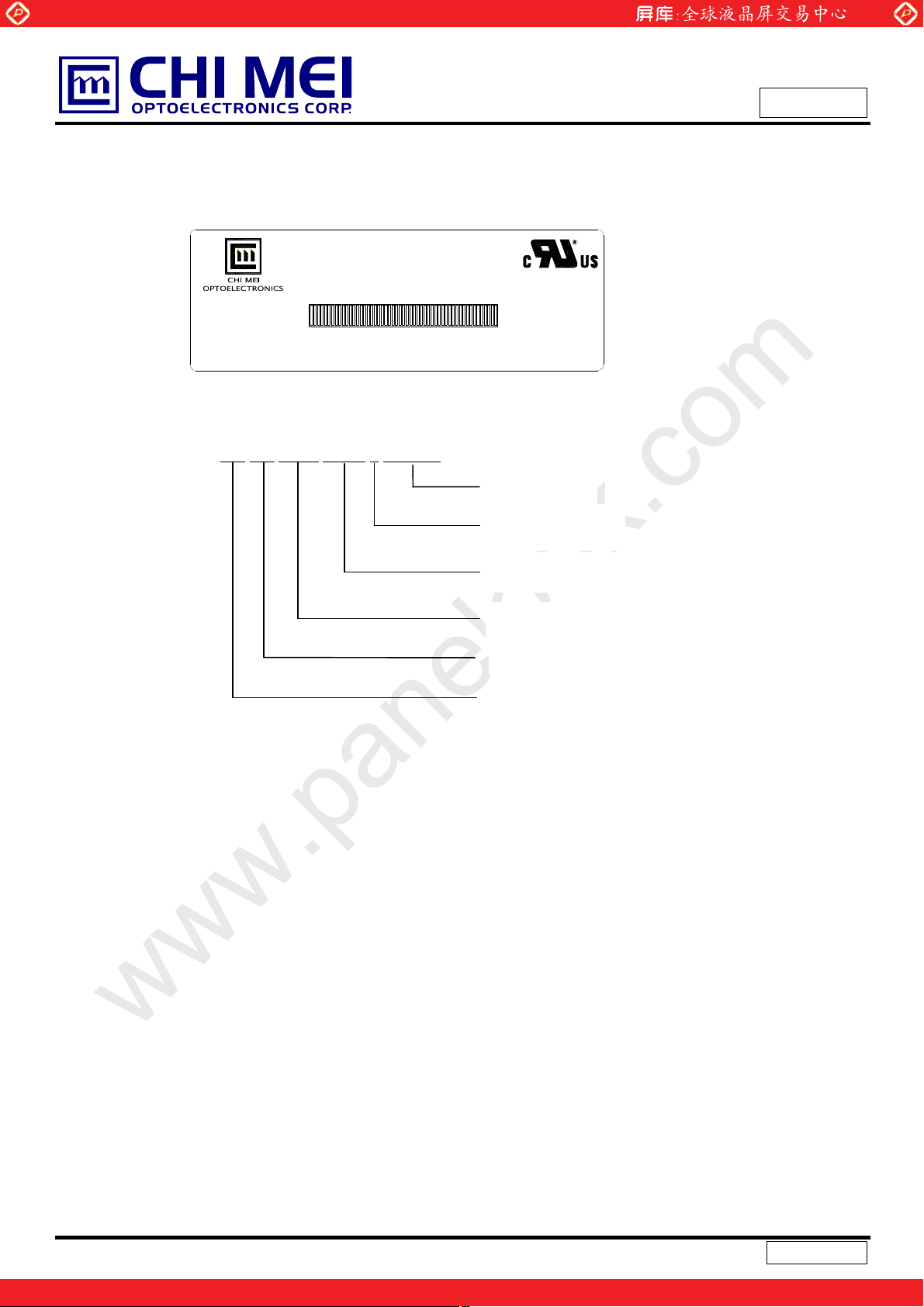

10.1 CMO MODULE LABEL

10.2 CARTON LABEL

------------------------------------------------------- 3

------------------------------------------------------- 4

------------------------------------------------------- 5

------------------------------------------------------- 7

------------------------------------------------------- 10

------------------------------------------------------- 11

------------------------------------------------------- 19

------------------------------------------------------- 21

------------------------------------------------------- 23

------------------------------------------------------- 26

2 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Version Date

Ver 0.0 Nov.18, 2005

Page

(New)

All

REVISION HISTORY

Section Description

All

Tentative specification first issued.

3 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N154I2 -L01 is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins

LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- Thin and light weight

- WXGA (1280 x 800 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm
Bezel Opening Area 335.0 (H) x 210.7 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 343.5 344.0 344.5 mm

Module Size

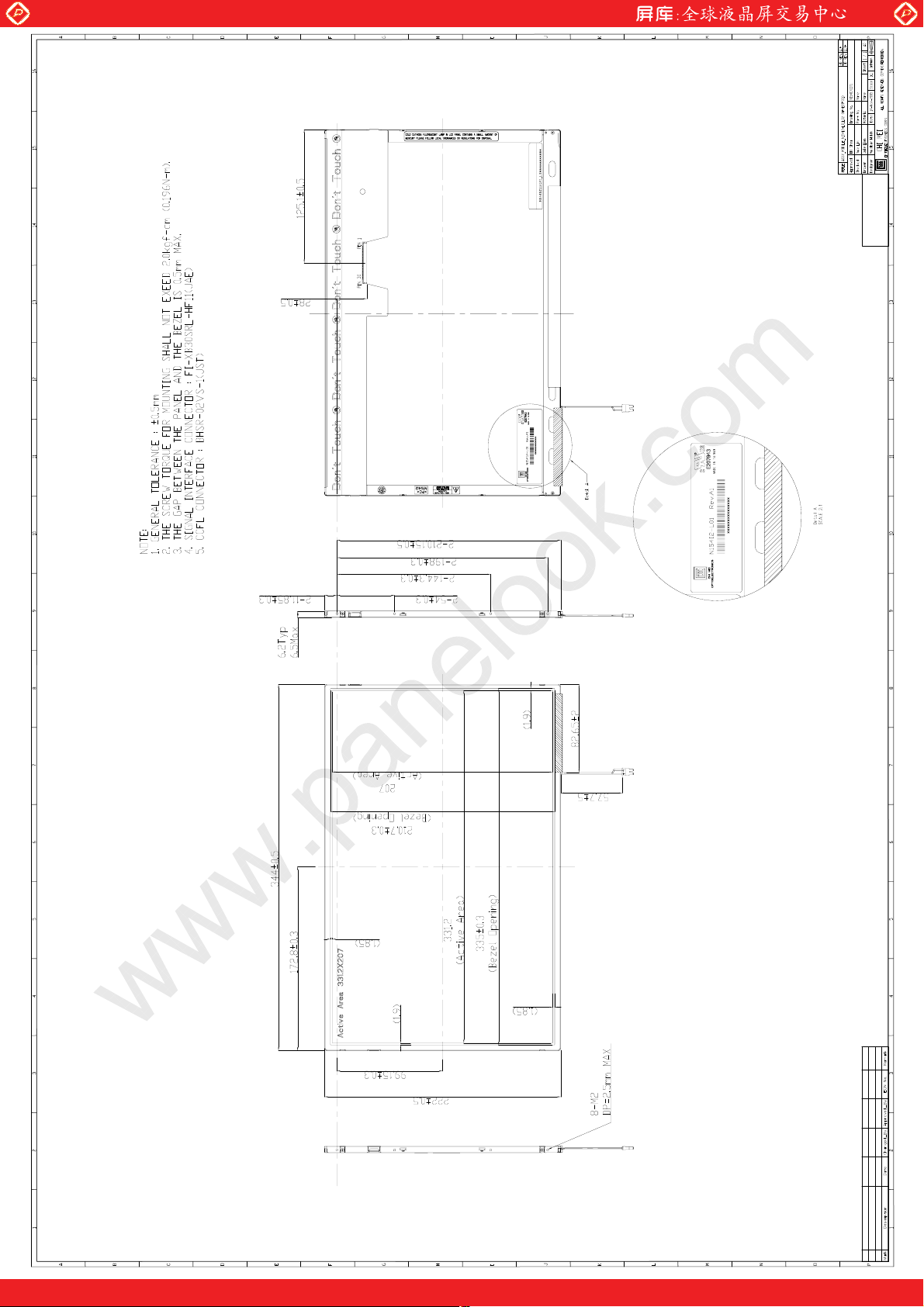

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 221.5 222.0 222.5 mm
Depth(D) - 6.2 6.5 mm

Weight - 600 620 g -

(1)

(1)

4 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0к min. and 50 к max.

Relative Humidity (%RH)

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Value

Min. Max.

- 200/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,.

Note (4) 10~200 Hz, 0.5hr/cycle 1cycle for X,Y,Z

8060 -20 400 20-40

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - (2.5K) V
Lamp Current IL - (7.0) mA
Lamp Frequency FL - (80) KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

www.panelook.com

Model No.: N154I2-L01 (NF4I201901)

Value

Min. Max.

Value

Min. Max.

Unit Note

Unit Note

Issued Date: Nov. 18, 2005

Tentative

(1)

(1), (2), IL = 6.5 mA

RMS

RMS

(1), (2)

Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).

6 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I

Power Supply Current

White - (420) mA (3)a
Black

- - 1.5 A (2)

RUSH

lcc

- (480) mA (3)b

“H” Level VIH - - +100 mV - Differential Input Voltage for

LVDS Receiver Threshold

“L” Level V

-100 - - mV -

IL

Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P

- TBD - W (4)

EBL

Note (1) The module should be always operated within above ranges.

Note (2) Measurement Conditions:

Value

Unit Note

Tentative

+3.3V

R1

47K

Q1 2SK1475

FUSE

C3

1uF

Vcc

(LCD Module Input)

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

Vcc rising time is 470us

+3.3V

0.9Vcc

0.1Vcc

GND

470us

7 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Current and f

Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

a. White Pattern

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

= 60 Hz,

v

Active Area

(c) Luminance: 60 nits.

(d) The inverter used is provided from O2Micro(www.o2micro.com). Please contact O2Micro for

detail information. CMO don’t provide the inverter in this product.

8 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Lamp Input Voltage VL (630) (700) (770) V
Lamp Current IL (2.0) (6.5) (7.0) mA

Lamp Turn On Voltage VS

- - (TBD) V

- - (TBD) V
Operating Frequency FL (50) - (80) KHz (3)
Lamp Life Time LBL (12,000) - - Hrs (5)
Power Consumption PL - (4.55) - W (4), IL = 6.5 mA

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

Unit Note

IL = 6.5 mA

RMS

(1)

RMS

(2)

RMS

(2)

RMS

Tentative

LCD

Module

HV (Pink)

LV (Black)

1

2

Current Meter

Inverter

A

Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.

Otherwise the lamp may not be turned on.

Note (3) The lamp frequency may generate interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

Note (4) P

= IL VL

L

Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta

= 25 2

o

C and IL = 6.5 mA

until one of the following events occurs:

RMS

(a) When the brightness becomes Љ 50% of its original value.

(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition

length is defined as an area that the brightness is less than 70% compared to the center point.)

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid generating too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

9 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

)

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

Rxin0(+/-)

Rxin1(+/-)

Rxin2(+/-)

CLK(+/-)

Vcc

GND

Data

EDID

CLK

EDID

(JAE-FI-XB30SL-HF10)

INPUT CONNECTOR

V

EDID

www.panelook.com

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

SCAN DRIVER IC

TFT LCD PANEL

(1280x3x800)

DATA DRIVER IC

VL

LAMP CONNECTOR

(JST-BHSR-02VS-1)

4.2 BACKLIGHT UNIT

BACKLIGHT UNIT

1 HV (Pink)

2 LV (Black

10 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground ­2 Vcc Power Supply +3.3 V ­3 Vcc Power Supply +3.3 V ­4 V
5 NC - - ­6 CLK
7 Data
8 Rxin0- LVDS Differential Data Input Negative

9 Rxin0+ LVDS Differential Data Input Positive
10 Vss Ground ­11 Rxin1- LVDS Differential Data Input Negative
12 Rxin1+ LVDS Differential Data Input Positive
13 Vss Ground ­14 Rxin2- LVDS Differential Data Input Negative
15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground ­17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground ­20 NC - - ­21 NC - - ­22 NC - ­23 NC - - ­24 NC - - ­25 NC - ­26 NC - - ­27 NC - - ­28 NC - ­29 NC - - ­30 NC - - -

Note (1) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent

DDC +3.3 V -

EDID

DDC Clock -

EDID

DDC Data -

EDID

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

-

-

-

-

Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

11 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 BACKLIGHT UNIT

Pin Symbol Description Color

1 HV High Voltage Pink
2 LV Ground Black

Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent

Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent

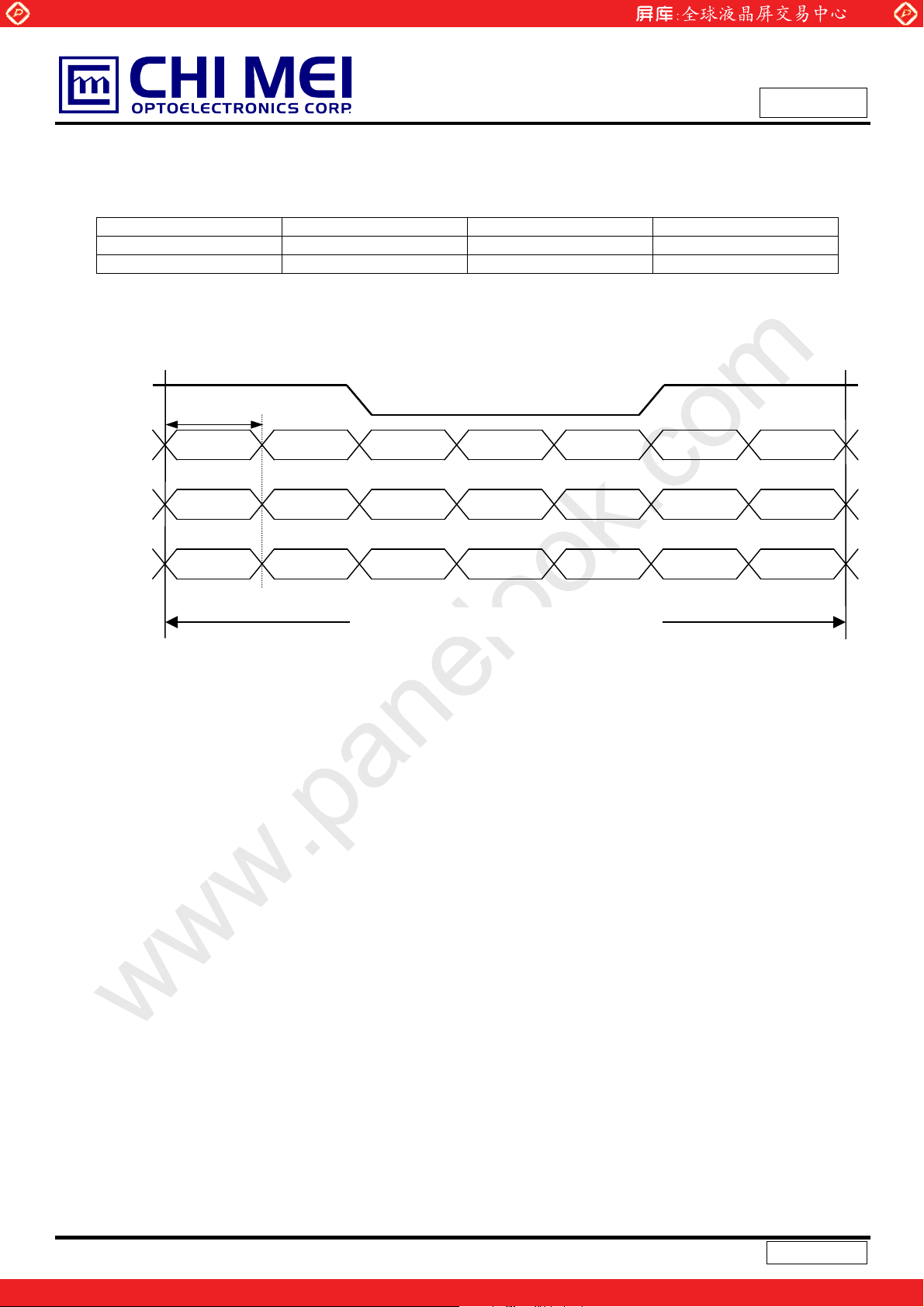

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

Rxin2

Rxin1

Rxin0

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0

R5

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

R4

Signal for 1 DCLK Cycle (T)

12 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0
:
:

1

1

1

1

1

1

0

0

0

0

0

0
:
:

0

0

0

0

0

0

0

0

0

0

0

0
:
:

0

0

0

0

0

0

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

13 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

˕˸ʳ
ʶʻ˷˸˶˼˴˿ʼʳ

˃ʳ
˄ʳ
˅ʳ
ˆʳ
ˇʳ
ˈʳ
ˉʳ
ˊʳ
ˋʳ
ˌʳ
˄˃ʳ
˄˄ʳ
˄˅ʳ
˄ˆʳ
˄ˇʳ
˄ˈʳ
˄ˉʳ
˄ˊʳ
˄ˋʳ
˄ˌʳ
˅˃ʳ
˅˄ʳ
˅˅ʳ
˅ˆʳ
˅ˇʳ
˅ˈʳ
˅ˉʳ
˅ˊʳ
˅ˋʳ
˅ˌʳ
ˆ˃ʳ
ˆ˄ʳ
ˆ˅ʳ
ˆˆʳ
ˆˇʳ
ˆˈʳ
ˆˉʳ
ˆˊʳ

˕˸ʳ
ʶʻ˻˸ʼʳ˙˼˸˿˷ʳˡ˴˸ʳ˴˷ʳ˖˸ʳ ˩˴˿˸ʻ˻˸ʼ˩˴˿˸ʻ˵˼˴ʼ

0 Header

1 Header

2 Header

3 Header

4 Header

5 Header

6 Header

7 Header

8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII)

0A ID product code (N154I2-L01) 24

0B ID product code (hex LSB first; N154I2-L01) 15

0C ID S/N (fixed “0”)

0D ID S/N (fixed “0”)

0E ID S/N (fixed “0”)

0F ID S/N (fixed “0”)

10 Week of manufacture (fixed “00H”)

11 Year of manufacture (fixed “00H”)

12 EDID structure version # (“1”)

13 EDID revision # (“3”)

14 Video I/P definition (“digital”)

15 Max H image size (“33cm”)

16 Max V image size (“21cm”)

17 Display Gamma (Gamma = ”2.2”)

18 Feature support (“Active off, RGB Color”)

19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)

1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)

1B Red-x (Rx = “0.598”)

1C Red-y (Ry = “0.337”)

1D Green-x (Gx = ”0.323”)

1E Green-y (Gy = ”0.523”)

1F Blue-x (Bx = ”0.150”)

20 Blue-y (By = ”0.127”)

21 White-x (Wx = ”0.313”)

22 White-y (Wy = ”0.329”)

23 Established timings 1

24 Established timings 2

25 Manufacturer’s reserved timings

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

00 00000000

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

FF 11111111

00 00000000

0D 00001101

AF 10101111

00100100

00010101

00 00000000

00 00000000

00 00000000

00 00000000

00 00000000

00 00000000

01 00000001

03 00000011

80 10000000

21 00100001

15 00010101

78 01111000

0A 00001010

1C 00011100

A5 10100101

99 10011001

56 01010110

52 01010010

86 10000110

26 00100110

20 00100000

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

14 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

ˆˋʳ
ˆˌʳ
ˇ˃ʳ
ˇ˄ʳ
ˇ˅ʳ
ˇˆʳ
ˇˇʳ
ˇˈʳ
ˇˉʳ
ˇˊʳ
ˇˋʳ
ˇˌʳ
ˈ˃ʳ
ˈ˄ʳ
ˈ˅ʳ
ˈˆʳ
ˈˇʳ
ˈˈʳ
ˈˉʳ
ˈˊʳ
ˈˋʳ
ˈˌʳ
ˉ˃ʳ
ˉ˄ʳ
ˉ˅ʳ
ˉˆʳ
ˉˇʳ
ˉˈʳ
ˉˉʳ
ˉˊʳ
ˉˋʳ
ˉˌʳ
ˊ˃ʳ
ˊ˄ʳ
ˊ˅ʳ
ˊˆʳ
ˊˇʳ
ˊˈʳ
ˊˉʳ
ˊˊʳ
ˊˋʳ
ˊˌʳ
ˋ˃ʳ
ˋ˄ʳ
ˋ˅ʳ

26 Standard timing ID # 1

27 Standard timing ID # 1

28 Standard timing ID # 2

29 Standard timing ID # 2

2A Standard timing ID # 3

2B Standard timing ID # 3

2C Standard timing ID # 4

2D Standard timing ID # 4

2E Standard timing ID # 5

2F Standard timing ID # 5

30 Standard timing ID # 6

31 Standard timing ID # 6

32 Standard timing ID # 7

33 Standard timing ID # 7

34 Standard timing ID # 8

35 Standard timing ID # 8

36 Detailed timing description # 1 Pixel clock (“71MHz”, According to VESA CVT Rev1.1)

37 # 1 Pixel clock (hex LSB first)

38 # 1 H active (“1280”)

39 # 1 H blank (“160”)

3A # 1 H active : H blank (“1280 : 160”)

3B # 1 V active (”800”)

3C # 1 V blank (”23”)

3D # 1 V active : V blank (”800 :23”)

3E # 1 H sync offset (”48”)

3F # 1 H sync pulse width ("32”)

40 # 1 V sync offset : V sync pulse width (”3 : 6”)

41 # 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48: 32 : 3 : 6”)

42 # 1 H image size (”331 mm”)

43 # 1 V image size (”207 mm”)

44 # 1 H image size : V image size (”331 : 207”)

45 # 1 H boarder (”0”)

46 # 1 V boarder (”0”)

47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives

48 Detailed timing description # 2

49 # 2 Flag

4A # 2 Reserved

4B # 2 FE (hex) defines ASCII string (Model Name “N154I2-L01”, ASCII)

4C # 2 Flag

4D # 2 1st character of name (“N”)

4E # 2 2nd character of name (“1”)

4F # 2 3rd character of name (“5”)

50 # 2 4th character of name (“4”)

51 # 2 5th character of name (“I”)

52 # 2 6th character of name (“2”)

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

01 00000001

BC 10111100

1B 00011011

00 00000000

A0 10100000

50 01010000

20 00100000

17 00010111

30 00110000

30 00110000

20 00100000

36 00110110

00 00000000

4B 01001011

CF 11001111

10 00010000

00 00000000

00 00000000

18 00011000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

4E 01001110

31 00110001

35 00110101

34 00110100

49 01001001

32 00110010

15 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

ˋˆʳ
ˋˇʳ
ˋˈʳ
ˋˉʳ
ˋˊʳ
ˋˋʳ
ˋˌʳ
ˌ˃ʳ
ˌ˄ʳ
ˌ˅ʳ
ˌˆʳ
ˌˇʳ
ˌˈʳ
ˌˉʳ
ˌˊʳ
ˌˋʳ
ˌˌʳ
˄˃˃ʳ
˄˃˄ʳ
˄˃˅ʳ
˄˃ˆʳ
˄˃ˇʳ
˄˃ˈʳ
˄˃ˉʳ
˄˃ˊʳ
˄˃ˋʳ
˄˃ˌʳ
˄˄˃ʳ
˄˄˄ʳ
˄˄˅ʳ
˄˄ˆʳ
˄˄ˇʳ
˄˄ˈʳ
˄˄ˉʳ
˄˄ˊʳ
˄˄ˋʳ
˄˄ˌʳ
˄˅˃ʳ
˄˅˄ʳ
˄˅˅ʳ
˄˅ˆʳ
˄˅ˇʳ
˄˅ˈʳ
˄˅ˉʳ
˄˅ˊʳ

53 # 2 7th character of name (“-”)

54 # 2 8th character of name (“L”)

55 # 2 9th character of name (“0”)

56 # 2 9th character of name (“1”)

57 # 2 New line character indicates end of ASCII string

58 # 2 Padding with “Blank” character

59 # 2 Padding with “Blank” character

5A Detailed timing description # 3

5B # 3 Flag

5C # 3 Reserved

5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

5E # 3 Flag

5F # 3 1st character of string (“C”)

60 # 3 2nd character of string (“M”)

61 # 3 3rd character of string (“O”)

62 # 3 New line character indicates end of ASCII string

63 # 3 Padding with “Blank” character

64 # 3 Padding with “Blank” character

65 # 3 Padding with “Blank” character

66 # 3 Padding with “Blank” character

67 # 3 Padding with “Blank” character

68 # 3 Padding with “Blank” character

69 # 3 Padding with “Blank” character

6A # 3 Padding with “Blank” character

6B # 3 Padding with “Blank” character

6C Detailed timing description # 4

6D # 4 Flag

6E # 4 Reserved

6F # 4 FE (hex) defines ASCII string (Model Name“N154I2-L01”, ASCII)

70 # 4 Flag

71 # 4 1st character of name (“N”) 4E

72 # 4 2nd character of name (“1”) 31

73 # 4 3rd character of name (“5”) 35

74 # 4 4th character of name (“4”) 34

75 # 4 5th character of name (“I”) 49

76 # 4 6th character of name (“2”) 32

77 # 4 7th character of name (“-”) 2D

78 # 4 8th character of name (“L”) 4C

79 # 4 9th character of name (“0”)

7A # 4 9th character of name (“1”)

7B # 4 New line character indicates end of ASCII string

7C # 4 Padding with “Blank” character

7D # 4 Padding with “Blank” character

7E Extension flag

7F Checksum

2D 00101101

4C 01001100

30 00110000

31 00110001

0A 00001010

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000

FE 11111110

00 00000000

30 00110000

31 00110001

0A 00001010

20 00100000

20 00100000

00 00000000

4C 01001100

01001110

00110001

00110101

00110100

01001001

00110010

00101101

01001100

16 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc - 71 80 MHz -

Vertical Total Time TV 810 823 (1000) TH -

DE

Vertical Addressing Time TVD 800 800 800 TH -

Horizontal Total Time TH 1360 1440 (1600) Tc -

Horizontal Addressing Time THD 1280 1280 1280 Tc -

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

DE

DCLK

TC

DE

DATA

6.2 POWER ON/OFF SEQUENCE

INPUT SIGNAL TIMING DIAGRAM

HD

T

Restart

t7

10%

10%

t4

Power Supply

for LCD, Vcc

0V

Power On

90%

10%

t1

Power Off

90%

t3 t2

- Interface Signal

(LVDS Signal of
Transmitter), V

0V

I

Valid Data

t6 t5

- Power for Lamp

ONOFF OFF

50%50%

17 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Timing Specifications:

0.5< t1 Љ 10 msec

0 < t2 Љ 50 msec

0 < t3 Љ 50 msec

t4 Њ 500 msec

t5 Њ 200 msec

t6 Њ 200 msec

Note (1) Please avoid floating state of interface signal at invalid period.

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time had better to follow

t7 Њ 5 msec

18 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IL 6.5 mA
Inverter Driving Frequency FL 55 KHz
Inverter Sumida-H05-4915

The measurement methods of optical characteristics are shown in Section 7.2. The following items

should be measured under the test conditions described in Section 7.1 and stable environment shown in

Note (6).

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

o

25r2

50r10

C

%RH

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR (280) (400) - - (2), (5)

Response Time

Central Luminance of White LC (170) (200) - cd/m2(4), (5)
White Variation

Red

Color
Chromaticity

Viewing Angle

Green

Blue

White

Horizontal

Vertica l

TR - (5) (10) ms
T

- (11) (16) ms

F

GW

Rx

Ry
Gx
Gy
Bx
By

Wx (0.283) (0.313) (0.343) ­Wy

Tx+

T

-

x

TY+

T

-

Y

=0q, TY =0q

T

x

Viewing Normal Angle

CRt10

- - (1.4) - (5), (6)
(0.568) (0.598) (0.628)
(0.307) (0.337) (0.367)
(0.293) (0.323) (0.353)
(0.493) (0.523) (0.553)
(0.120) (0.150) (0.180)
(0.097) (0.127) (0.157)

(0.299) (0.329) (0.359) -

(40) (45) ­(40) (45) ­(15) (20) ­(40) (45) -

Deg. (1)

(3)

-

-

-

-

-

-

(1)

19 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

TX- = 90º

x-

6 o’clock

T

y- = 90º

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Normal

Tx = Ty = 0º

Ty- Ty

Tx-

Tx+

y+

12 o’clock direction

T

y+ = 90º

x+

TX+ = 90º

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

R

T

R

, TF):

Time

T

F

20 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

A

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (7).

Note (5) Definition of Cross Talk (CT):

CT = | Y

– YA | / YA u 100 (%)

B

Where:

Y

= Luminance of measured location without gray level 0 pattern (cd/m2)

A

Y

= Luminance of measured location with gray level 0 pattern (cd/m2)

B

(0, 0)

ctive Area

Y

(D/8,W/2)

A, L

Gray 32

Y

(D/2,7W/8)

A, D

(D,W)

Y

(D/2,W/8)

A, U

Y

(7D/8,W/2)

A, R

AVE

):

(D/4,W/4)

Y

(D/8,W/2)

B, L

Y

(D/2,7W/8)

B, D

(0, 0)

ctive Area

Gray 0

Gray 32

Y

B, U

Y

B, R

(3D/4,3W/4)

(D,W)

(D/2,W/8)

(7D/8,W/2)

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

Center of the Screen

500 mm

Photometer

(CA210, CS-1000T)

Field of View = 2º

Light Shield Room

(Ambient Luminance < 2 lux)

21 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

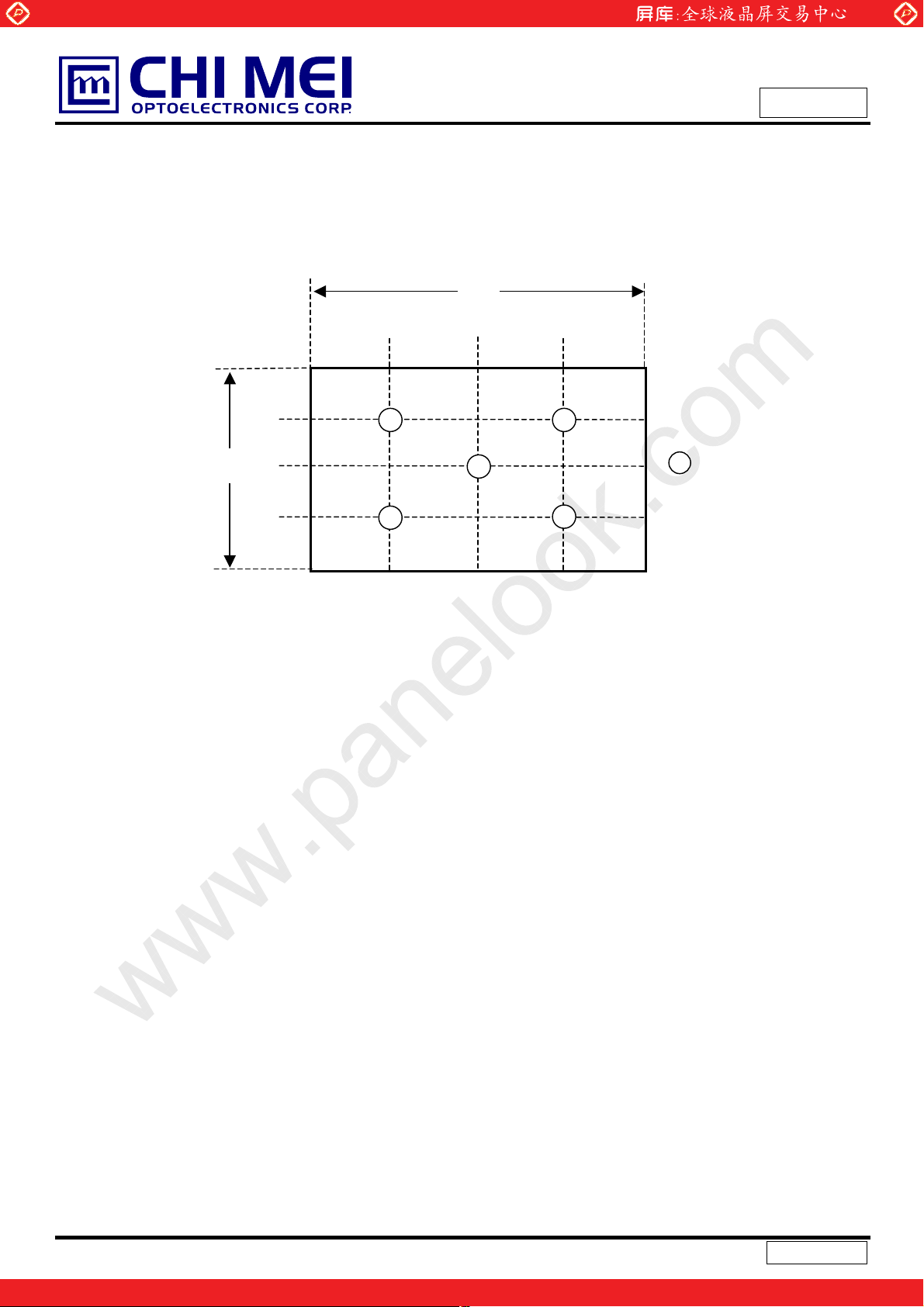

Note (7) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

W

W/4

W/2

3W/4

Vertical Line

Horizontal Line

D

D/4 D/2 3D/4

12

X

: Test Point

X=1 to 5

3

5

4

Active Area

22 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the lamp wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

8.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of lamp will be higher than the room

temperature.

8.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

23 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. PACKING

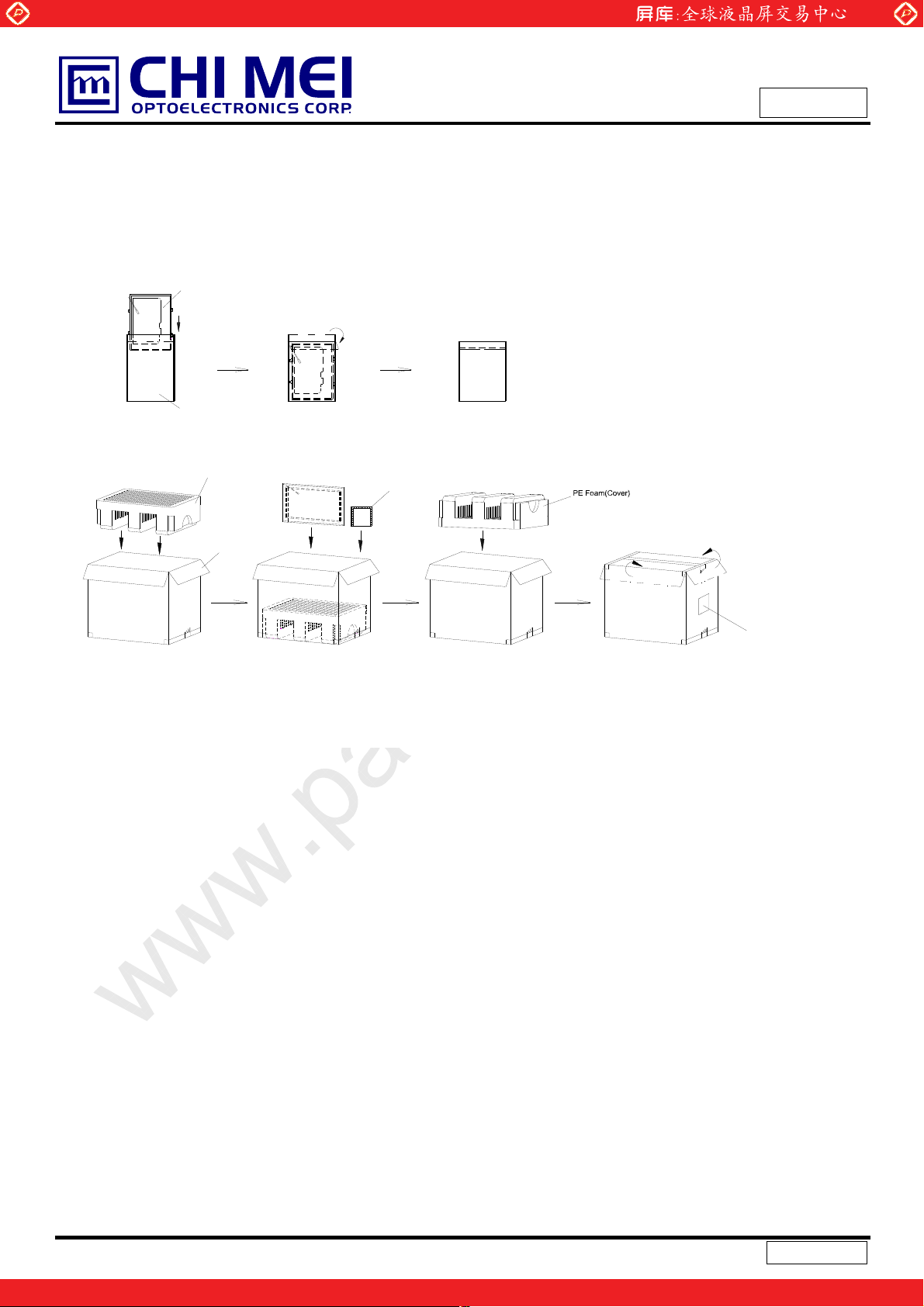

9.1 CARTON

LCD Module

Anti-static Bag

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

Box dimensions:422(L)x337(W)x345(H)mm
Weight:Appox. 7.5kg(10 module per 1 box)

PE Foam(Cover)

Carton

Drier

Packing testing criteria :

(1) Packing drop : 1 corner, 3 edges, 6 faces, each direction for one time, follow ISTA standard.

(2) Packing vibration : Random, follow ISTA standard.

(3)

Carton Label

24 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9.2 PALLET

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

25 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

01A

N141X5 - L03 Rev.XX

-

X X X X X X X Y M D L N N N N

C P 1 3 5 4 4 8 - 0 1

Rev. XX

(a) Model Name: N154I2 - L01

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D L N N N N

E207943

MADE IN TAIWAN

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

st

to 31st, exclude I , O and U

26 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

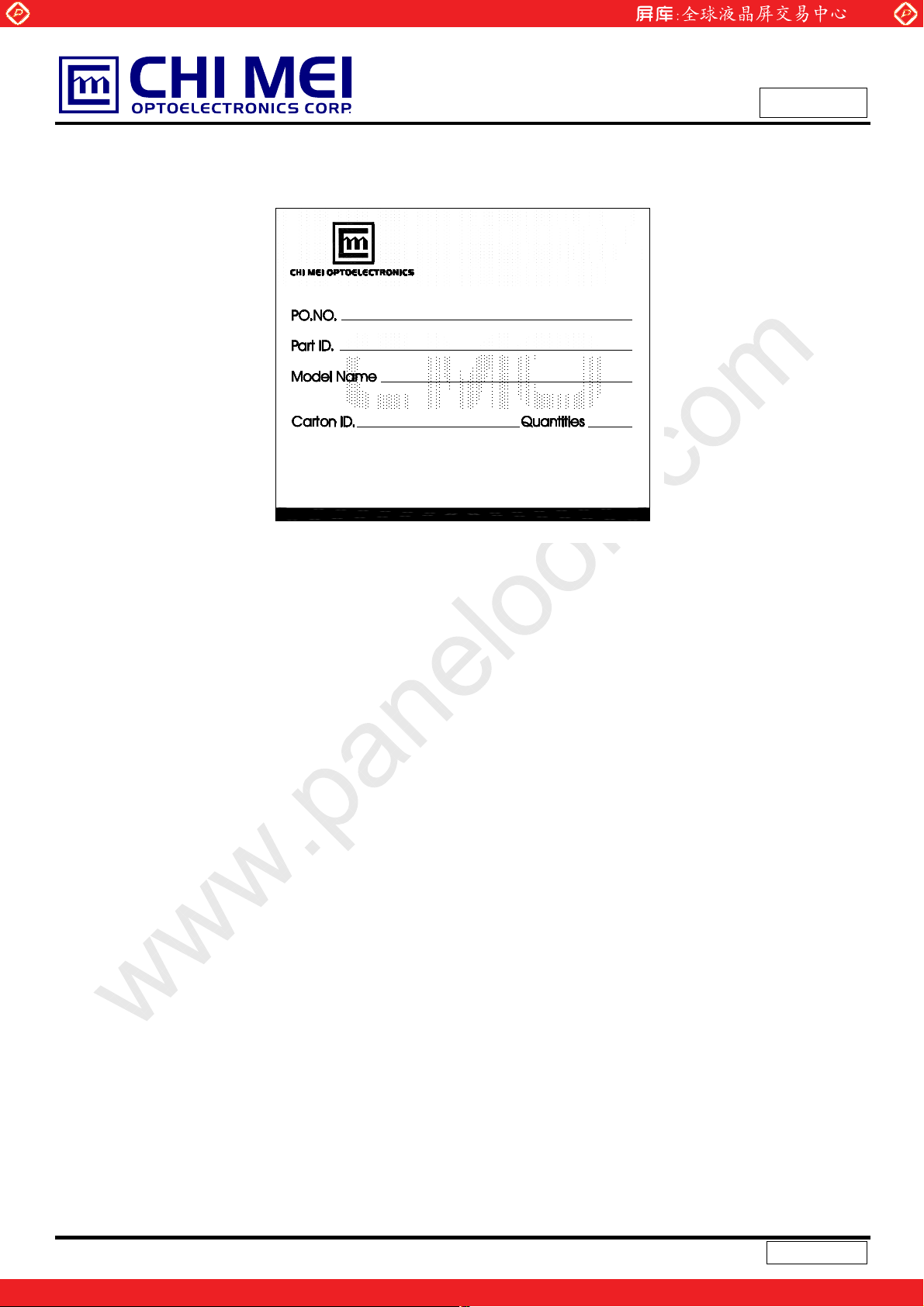

10.2 CARTON LABEL

www.panelook.com

Issued Date: Nov. 18, 2005

Model No.: N154I2-L01 (NF4I201901)

Tentative

27 / 28

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
