N154I1-L0C
Specification
30 pgs1.24 Mb0

CMO N154I1-L0C Specification

Download
Page 1
Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

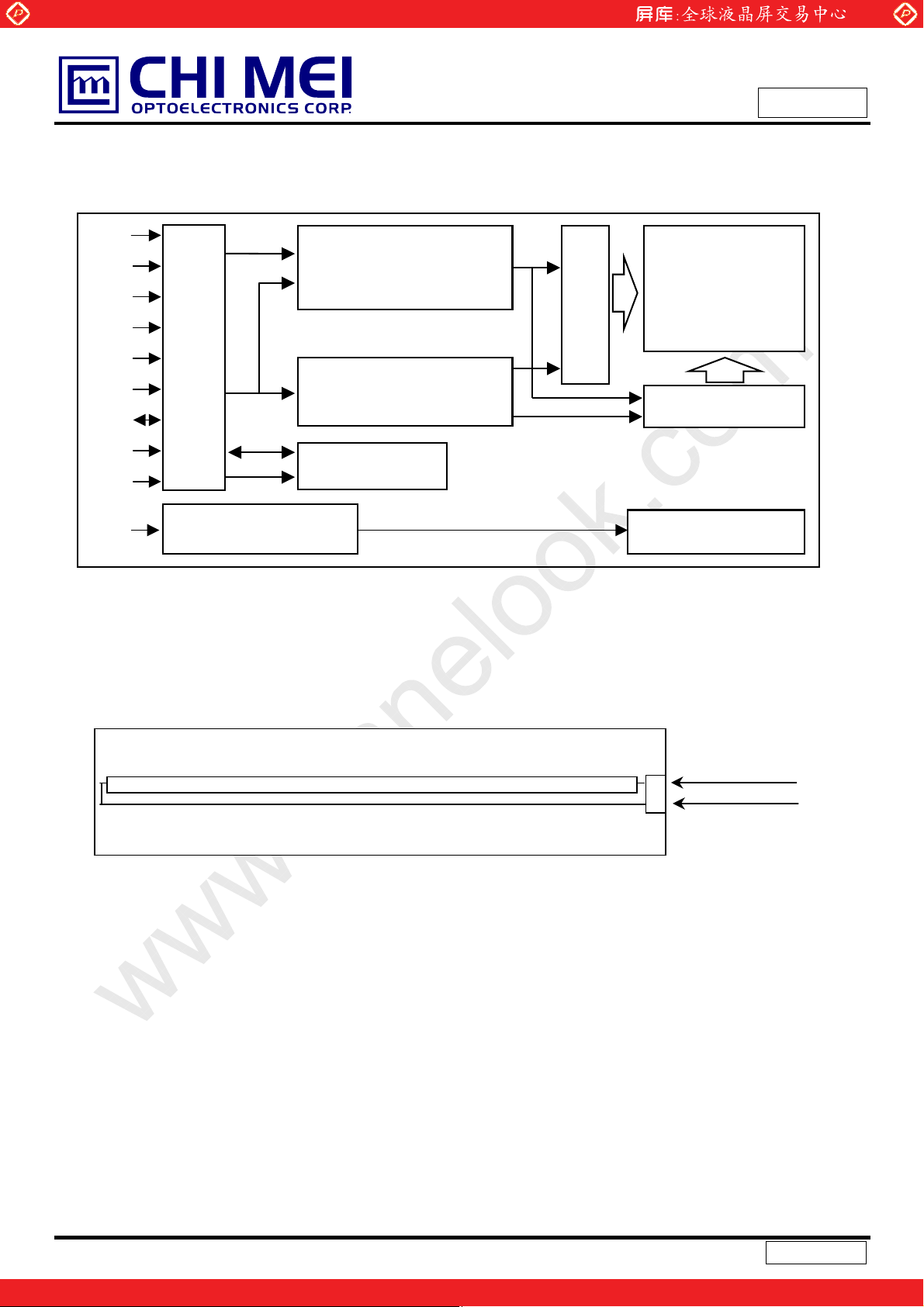

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

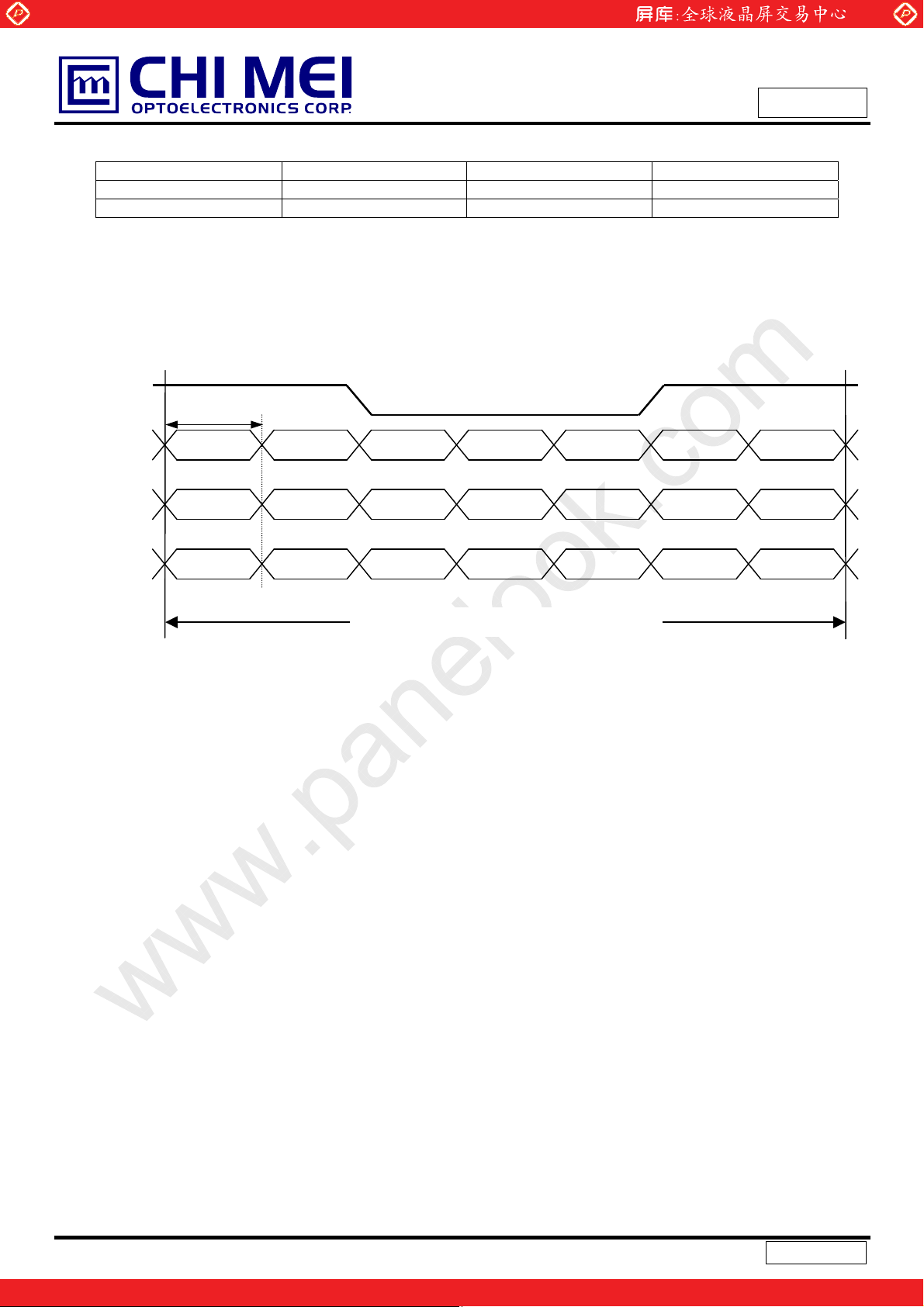

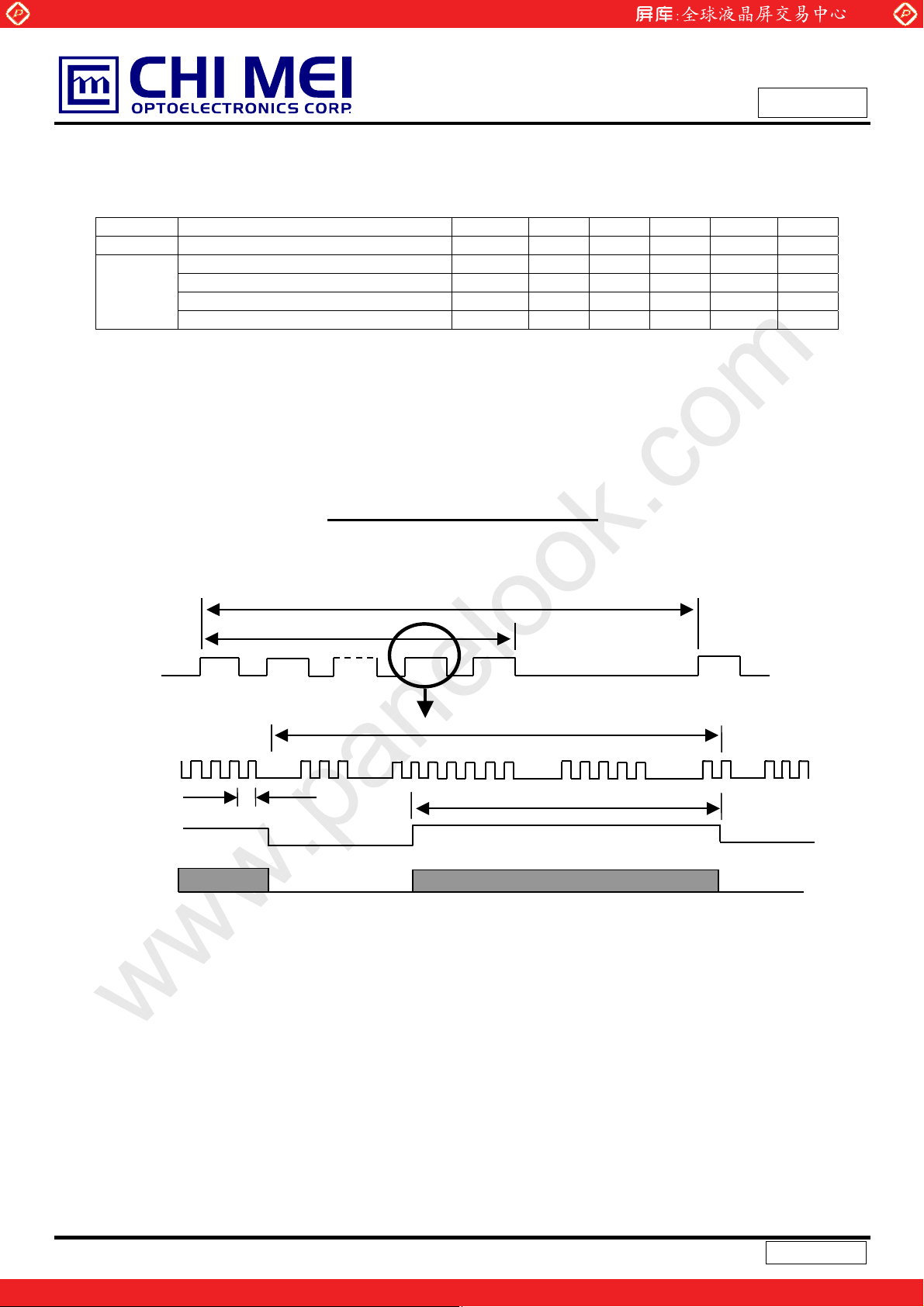

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE

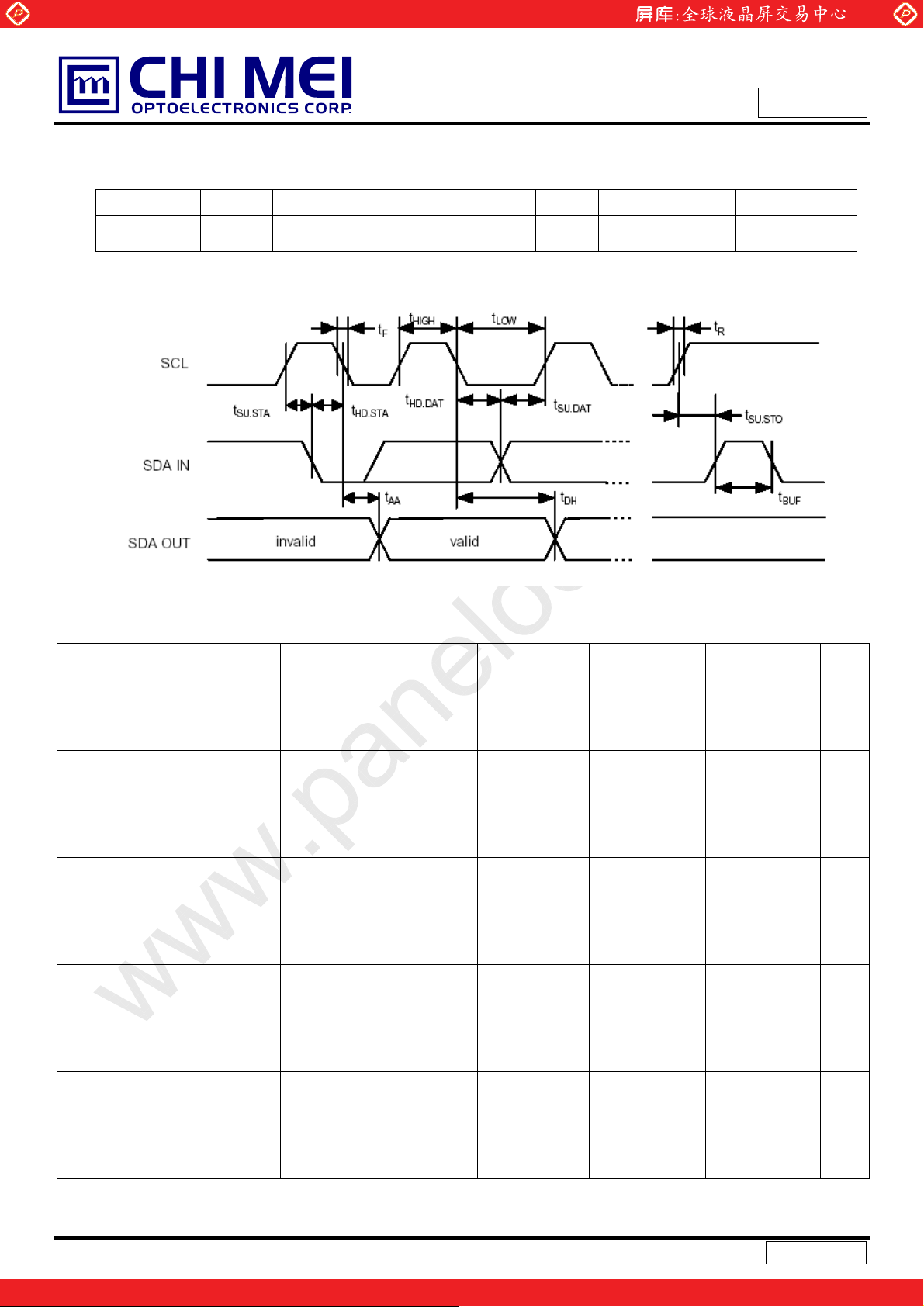

5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS

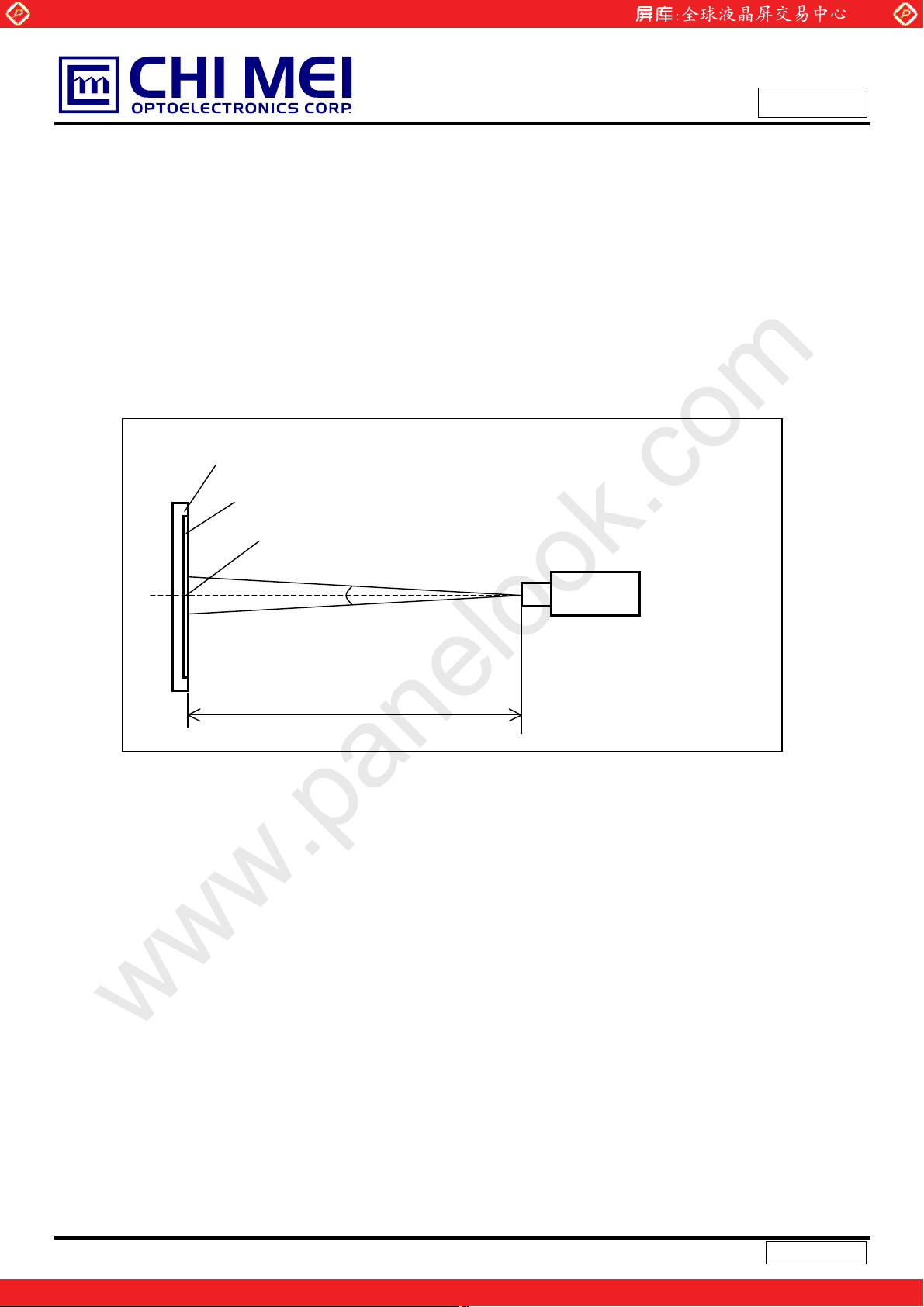

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 26

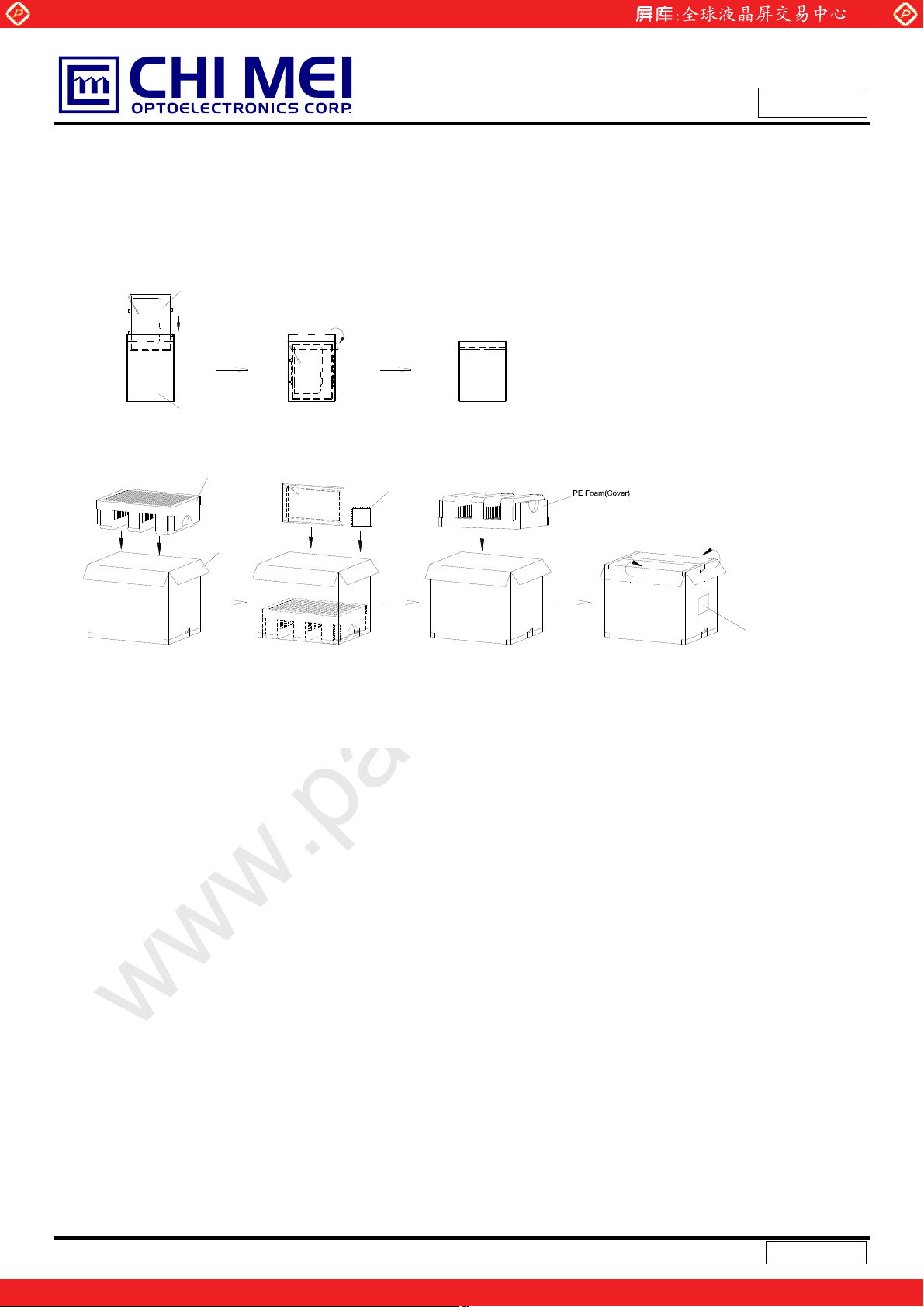

9.1 CARTON

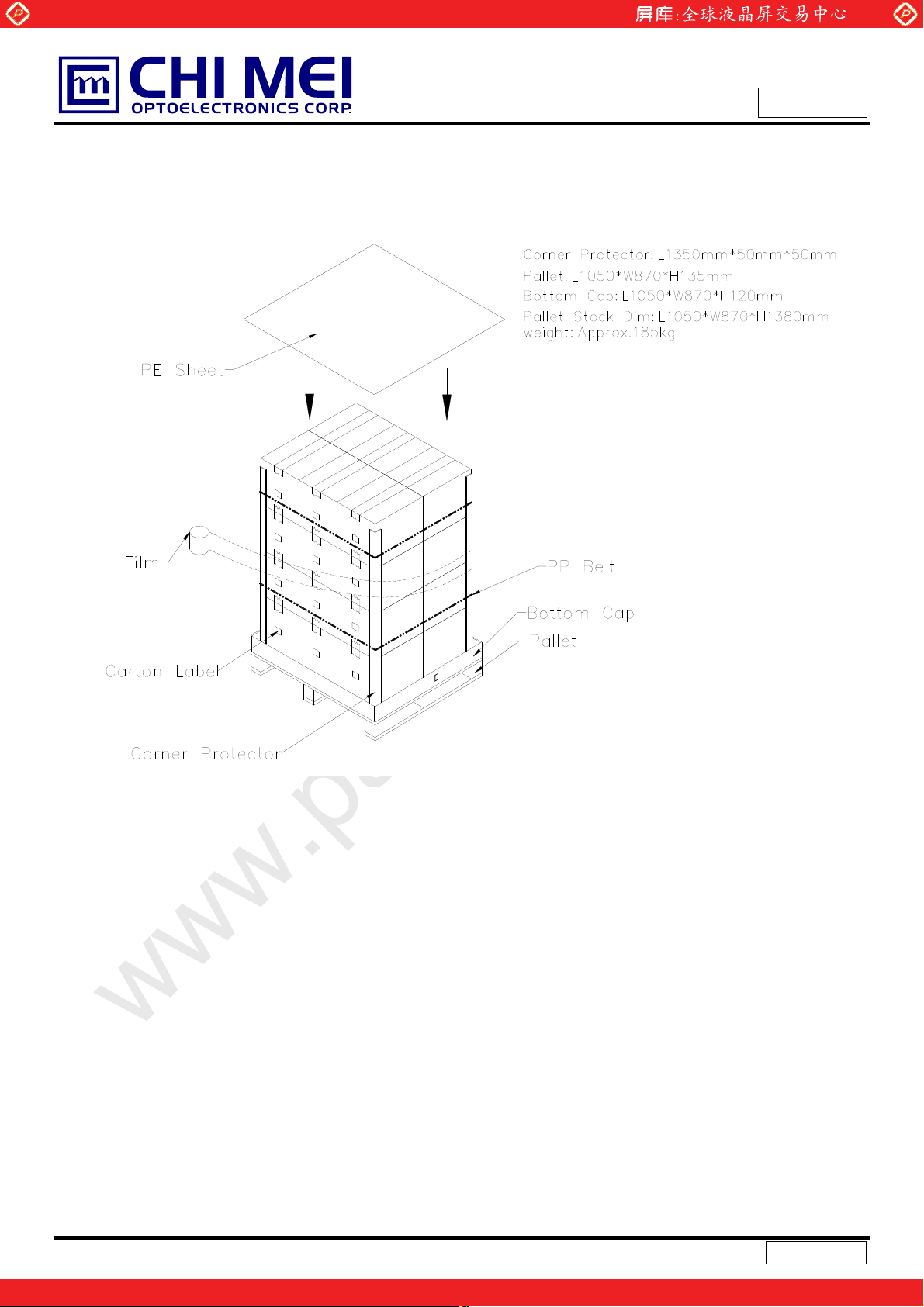

9.2 PALLET
10. DEFINITION OF LABELS

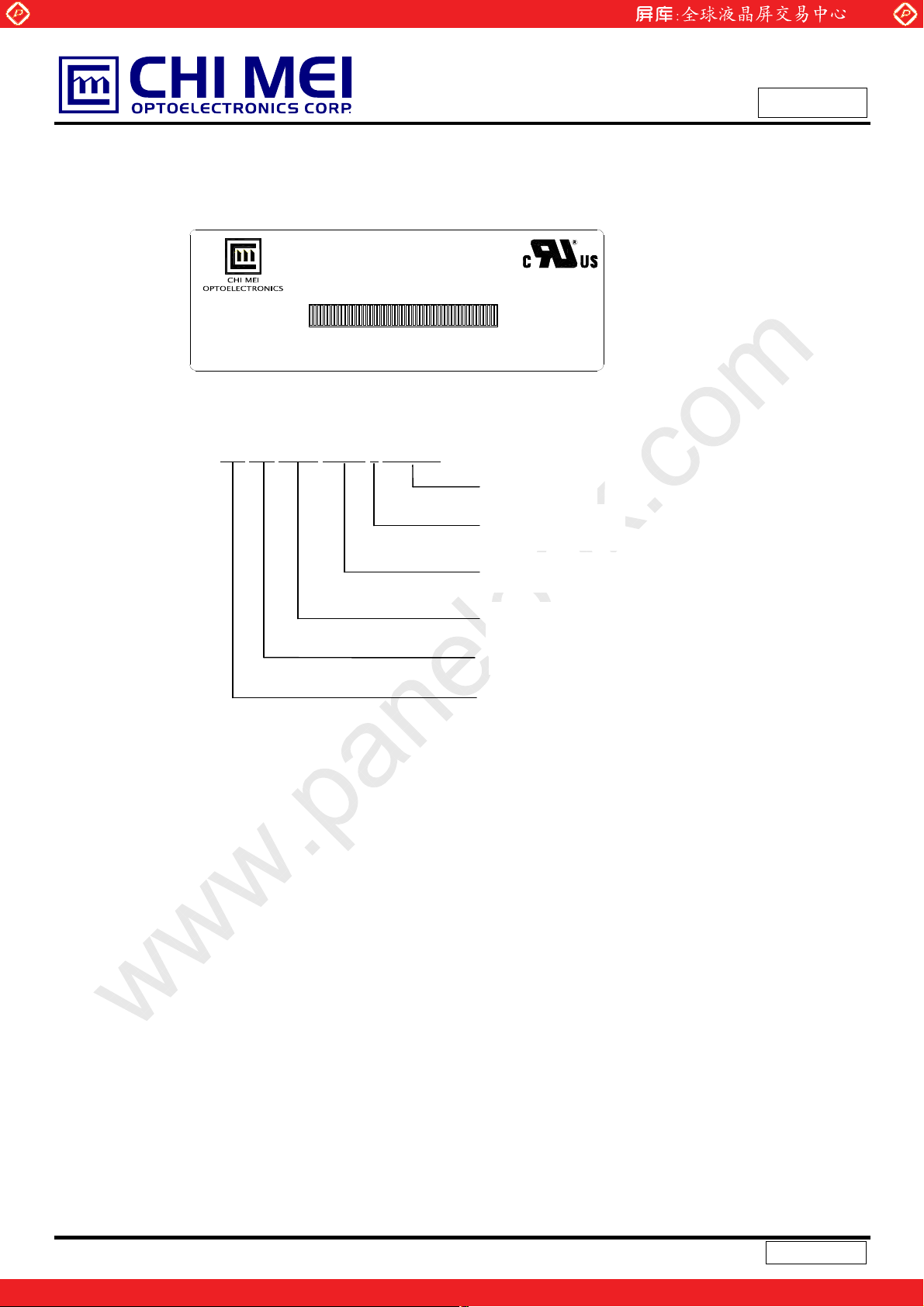

10.1 CMO MODULE LABEL

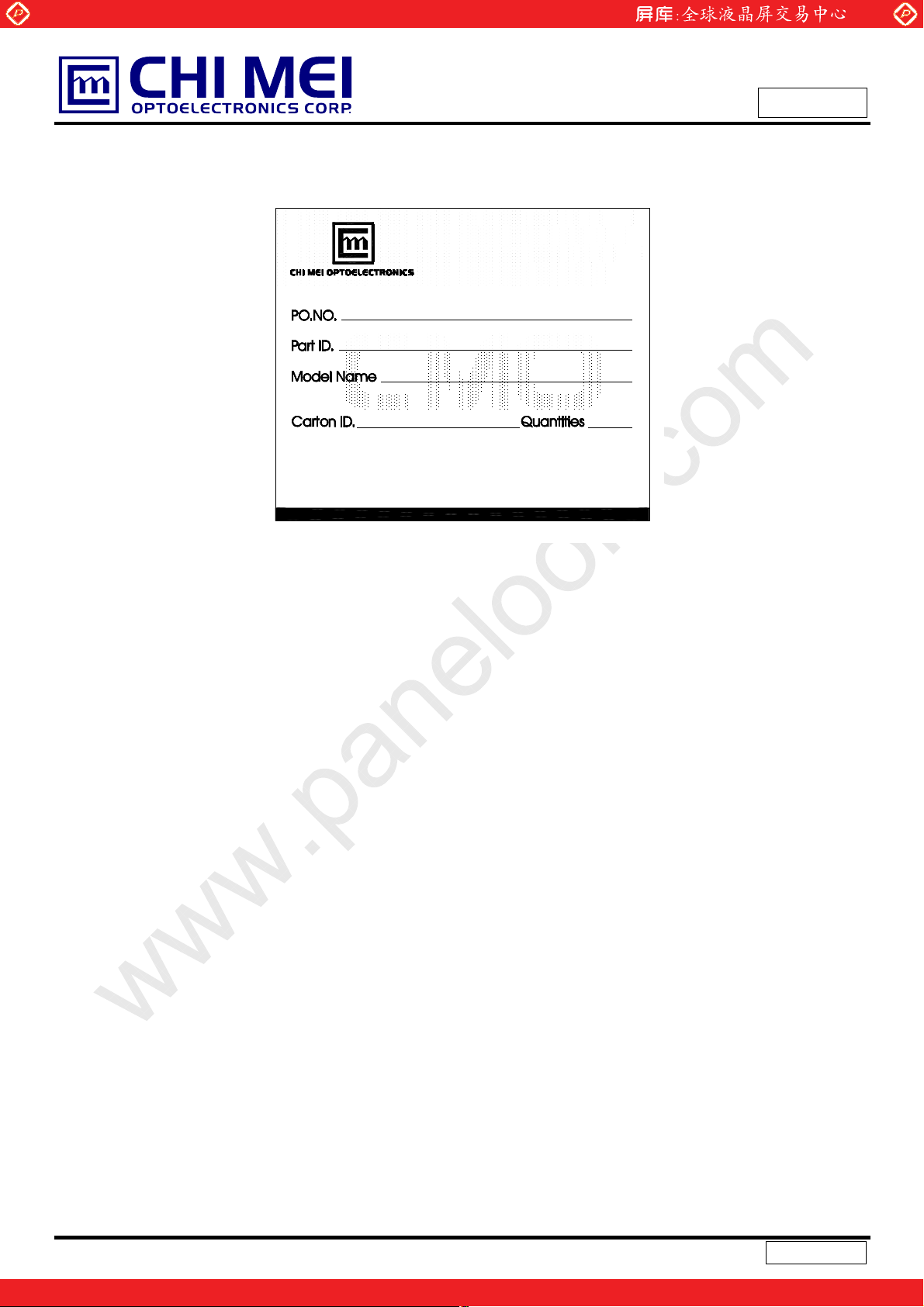

10.2 CARTON LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 10
------------------------------------------------------- 11
------------------------------------------------------- 19
------------------------------------------------------- 21
------------------------------------------------------- 25
------------------------------------------------------- 28
2 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
Approval
Version Date
Ver 3.0 Aug.25,2005
Page
(New)
All
REVISION HISTORY
Section Description
All
Approval specification first issued.
3 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154I1 -L0C is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- Meet RoHS requirement.
www.panelook.com
Model No.: N154I1-L0C
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm Bezel Opening Area 335.0 (H) x 210.7 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344.0 344.5 mm
Module Size

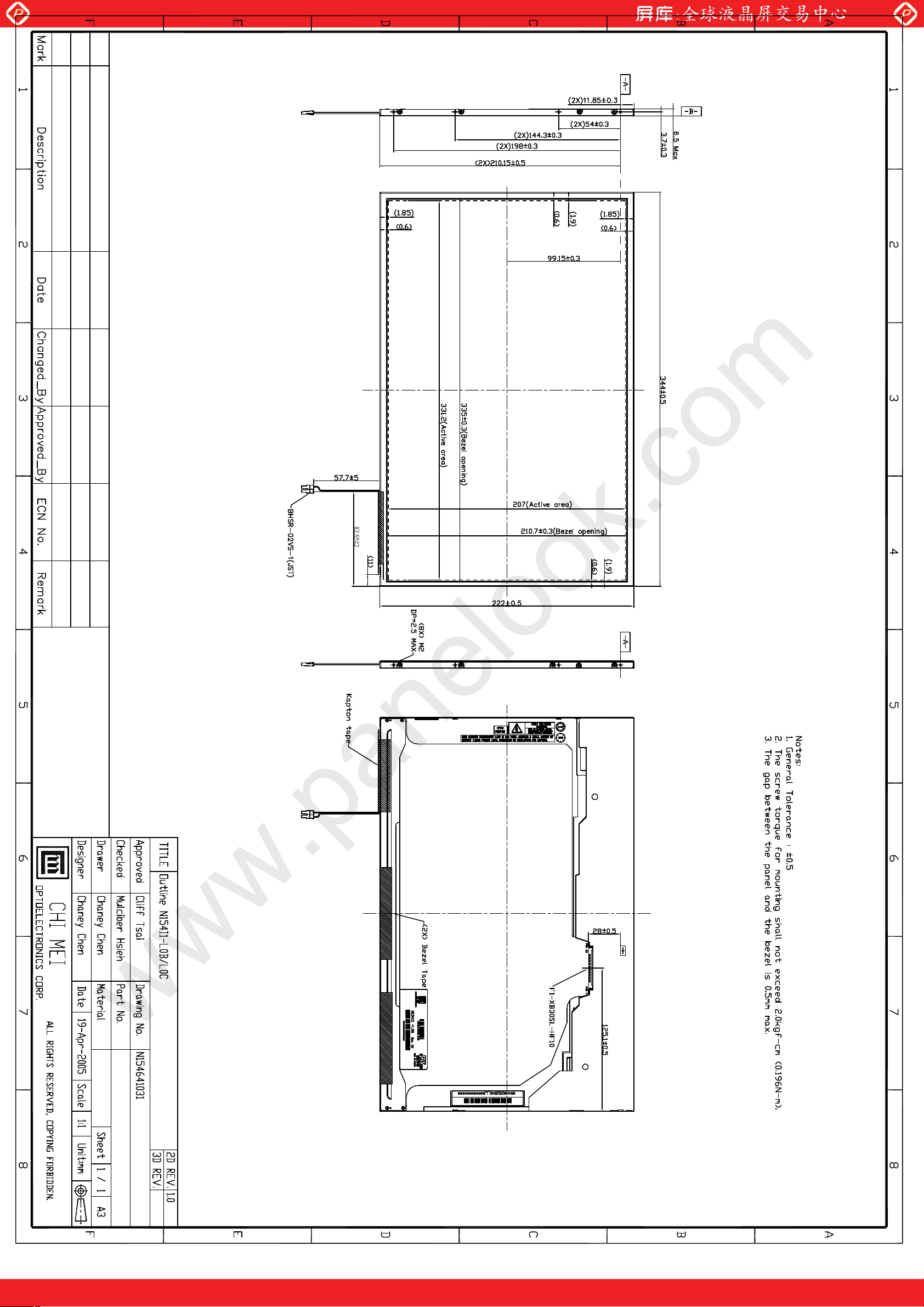

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 221.5 222.0 222.5 mm Depth(D) - 6.2 6.5 mm
Weight - 600 620 g -
(1)
(1)
4 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation .
www.panelook.com
Model No.: N154I1-L0C
Approval
Value
Min. Max.
- 220 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
Note (3) 2ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
Storage Range
5
Temperature (ºC)
8060 -20 400 20-40
Note (4) 10 ~ 200 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z. The fixing condition is shown as below:
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
so that the module would not be twisted or bent by the fixture.
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL - 7.0 mA Lamp Frequency FL - 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Model No.: N154I1-L0C
Approval
(1)
(1), (2), IL = 6.5 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).
6 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
- - 1.5 A (2)
RUSH
White - 580 mA (3)a
Power Supply Current
Black - 650 mA (3)b Vertical Stripe
lcc
- 650 mA (3)c
“H” Level VIH - - +100 mV - Differential Input Voltage for
LVDS Receiver Threshold
“L” Level V
-100 - - mV -
IL
Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P
- TBD - W (4)
EBL
Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:
Value
Unit Note
Approval
+3.3V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
Vcc
(LCD Module Input)
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470us
+3.3V
0.9Vcc
0.1Vcc
GND
470us
7 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Model No.: N154I1-L0C
Approval
Current and f
a. White Pattern
c. Vertical Stripe Pattern
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
B
B
R
R
R
Active Area
R
B
B
B
R
R
G
G
G
G
G
G
B
B
B
Active Area
R
R
R R
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
The inverter used is provided from O2Micro(www.o2micro.com). CMO doesn’t provide the inverter in
this product.
Active Area
= 60 Hz,
v
G
B
G
B
8 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Lamp Input Voltage VL 585 650 715 V Lamp Current IL 2.0 6.5 7.0 mA
Lamp Turn On Voltage VS
- -
- ­Operating Frequency FL 50 - 80 KHz (3) Lamp Life Time LBL 10,000 - - Hrs (5) Power Consumption PL - 4.22 - W (4), IL = 6.5 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
1230, 25
1530, 0к
Unit Note
IL = 6.5 mA
RMS
(1)
RMS
V
(2)
RMS
(2)
V
RMS
Approval
LCD
Module
HV (Pink)
LV (Black)
1
2
Current Meter
Inverter
A
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
o
C and IL = 6.5 mA
until one of the following events occurs:
RMS
(a) When the brightness becomes Љ 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition
length is defined as an area that the brightness is less than 70% compared to the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
9 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
CLK(+/-)
Vcc
GND
Data
EDID
CLK
EDID
(JAE-FI-XB30SL-HF10)
INPUT CONNECTOR
V
EDID
www.panelook.com
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
Model No.: N154I1-L0C
SCAN DRIVER IC
TFT LCD PANEL
(1280x3x800)
DATA DRIVER IC
Approval
VL
LAMP CONNECTOR
(JST-BHSR-02VS-1)
4.2 BACKLIGHT UNIT
BACKLIGHT UNIT
1 HV (Pink)
2 LV (Black
10 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground ­2 Vcc Power Supply +3.3 V ­3 Vcc Power Supply +3.3 V ­4 V 5 NC - - ­6 CLK 7 Data 8 Rxin0- LVDS Differential Data Input Negative
9 Rxin0+ LVDS Differential Data Input Positive 10 Vss Ground 11 Rxin1- LVDS Differential Data Input Negative 12 Rxin1+ LVDS Differential Data Input Positive 13 Vss Ground 14 Rxin2- LVDS Differential Data Input Negative 15 Rxin2+ LVDS Differential Data Input Positive 16 Vss Ground 17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 Vss Ground 20 NC - - ­21 NC - - ­22 NC - ­23 NC - - ­24 NC - - ­25 NC - ­26 NC - - ­27 NC - - ­28 NC - ­29 NC - - ­30 NC - - -
Note (1) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent
DDC +3.3 V
EDID
DDC Clock
EDID
DDC Data
EDID
www.panelook.com
Model No.: N154I1-L0C
Approval
-
R0~R5,G0
-
G1~G5,B0,B1
-
B2~B5,Hsync,Vsync,DE
LVDS Level
Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent
11 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink 2 LV Ground Black
Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
CLK+
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0
R5
www.panelook.com
Model No.: N154I1-L0C
Approval
R4
Signal for 1 DCLK Cycle (T)
12 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Model No.: N154I1-L0C
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
13 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
Approval
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA
Plug & Display and FPDI standards.
Byte #
(decimal)
0 0 Header 00 00000000 1 1 Header FF 11111111 2 2 Header FF 11111111 3 3 Header FF 11111111 4 4 Header FF 11111111 5 5 Header FF 11111111 6 6 Header FF 11111111 7 7 Header 00 00000000 8 8 EISA ID manufacturer name (“CMO”) 0D 00001101
9 9 EISA ID manufacturer name (Compressed ASCII) AF 10101111 10 0A ID product code (N154I1-L0C) 16 00010110 11 0B ID product code (hex LSB first; N154I1-L0C) 15 00010101 12 0C ID S/N (fixed “0”) 00 00000000 13 0D ID S/N (fixed “0”) 00 00000000 14 0E ID S/N (fixed “0”) 00 00000000 15 0F ID S/N (fixed “0”) 00 00000000 16 10 Week of manufacture (fixed “00H”) 00 00000000 17 11 Year of manufacture (fixed “00H”) 00 00000000 18 12 EDID structure version # (“1”) 01 00000001 19 13 EDID revision # (“3”) 03 00000011 20 14 Video I/P definition (“digital”) 80 10000000 21 15 Max H image size (“33.12cm”) 21 00100001 22 16 Max V image size (“20.70cm”) 15 00010101 23 17 Display Gamma (Gamma = ”2.2”) 78 01111000 24 18 Feature support (“Active off, RGB Color”) 0A 00001010 25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 1C 00011100 26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) A5 10100101 27 1B Red-x (Rx = “0.598”) 99 10011001 28 1C Red-y (Ry = “0.337”) 56 01010110 29 1D Green-x (Gx = ”0.323”) 52 01010010 30 1E Green-y (Gy = ”0.523”) 86 10000110 31 1F Blue-x (Bx = ”0.150”) 26 00100110 32 20 Blue-y (By = ”0.127”) 20 00100000 33 21 White-x (Wx = ”0.313”) 50 01010000 34 22 White-y (Wy = ”0.329”) 54 01010100 35 23 Established timings 1 00 00000000 36 24 Established timings 2 00 00000000 37 25 Manufacturer’s reserved timings 00 00000000 38 26 Standard timing ID # 1 01 00000001 39 27 Standard timing ID # 1 01 00000001 40 28 Standard timing ID # 2 01 00000001 41 29 Standard timing ID # 2 01 00000001 42 2A Standard timing ID # 3 01 00000001
Byte #
(hex)
Field Name and Comments
Value
(hex)
Value
(binary)
14 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
43 2B Standard timing ID # 3 01 00000001 44 2C Standard timing ID # 4 01 00000001 45 2D Standard timing ID # 4 01 00000001 46 2E Standard timing ID # 5 01 00000001 47 2F Standard timing ID # 5 01 00000001 48 30 Standard timing ID # 6 01 00000001 49 31 Standard timing ID # 6 01 00000001 50 32 Standard timing ID # 7 01 00000001 51 33 Standard timing ID # 7 01 00000001 52 34 Standard timing ID # 8 01 00000001 53 35 Standard timing ID # 8 01 00000001
Detailed timing description # 1 Pixel clock
54 36 55 37 # 1 Pixel clock (hex LSB first) 1B 00011011 56 38 # 1 H active (“1280”) 00 00000000 57 39 # 1 H blank (“160”) A0 10100000 58 3A # 1 H active : H blank (“1280 : 160”) 50 01010000 59 3B # 1 V active (”800”) 20 00100000 60 3C # 1 V blank (”23”) 17 00010111 61 3D # 1 V active : V blank (”800 :23”) 30 00110000 62 3E # 1 H sync offset (”48”) 30 00110000 63 3F # 1 H sync pulse width ("32”) 20 00100000 64 40 # 1 V sync offset : V sync pulse width (”3 : 6”) 36 00110110
65 41 66 42 # 1 H image size (”331 mm”) 4B 01001011 67 43 # 1 V image size (”207 mm”) CF 11001111 68 44 # 1 H image size : V image size (”261 : 163”) 10 00010000 69 45 # 1 H boarder (”0”) 00 00000000 70 46 # 1 V boarder (”0”) 00 00000000
71 47 72 48 73 49 74 4A
75 4B 76 4C 77 4D 78 4E 79 4F 80 50 81 51 82 52 83 53 84 54 85 55 86 56 87 57 88 58 89 59 90 5A
(“71MHz”, According to VESA CVT Rev1.1)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48: 32 : 3 : 6”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
Detailed timing description # 2 00 00000000 # 2 Flag 00 00000000 # 2 Reserved 00 00000000 # 2 FE (hex) defines ASCII string
(Model Name “N154I1”, ASCII) # 2 Flag 00 00000000 # 2 1st character of name (“N”) 4E 01001110 # 2 2nd character of name (“1”) 31 00110001 # 2 3rd character of name (“5”) 35 00110101 # 2 4th character of name (“4”) # 2 5th character of name (“I”) # 2 6th character of name (“1”) # 2 7th character of name (“-”) 2D 00101101 # 2 8th character of name (“L”) 4C 01001100 # 2 9th character of name (“0”) 30 00110000 # 2 10th character of name (“C”) 43 01000011 # 2 Padding with “Blank” character 0A 00001010 # 2 Padding with “Blank” character 20 00100000 # 2 Padding with “Blank” character 20 00100000 Detailed timing description # 3 00 00000000
www.panelook.com
Model No.: N154I1-L0C
Approval
BC 10111100
00 00000000
18 00011000
FE 11111110
34 00110100 49 01001001 31 00110001
15 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
Approval
91 5B 92 5C 93 5D 94 5E 95 5F 96 60 97 61 98 62 99 63
100 64 101 65 102 66 103 67 104 68 105 69 106 6A 107 6B 108 6C 109 6D 110 6E
111 6F 112 70 113 71 114 72 115 73 116 74 117 75 118 76 119 77 120 78 121 79 122 7A 123 7B 124 7C 125 7D 126 7E 127 7F Checksum 38
# 3 Flag 00 00000000 # 3 Reserved 00 00000000 # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) FE 11111110 # 3 Flag 00 00000000 # 3 1st character of string (“C”) 43 01000011 # 3 2nd character of string (“M”) 4D 01001101 # 3 3rd character of string (“O”) 4F 01001111 # 3 New line character indicates end of ASCII string 0A 00001010 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 # 3 Padding with “Blank” character 20 00100000 Detailed timing description # 4 00 00000000 # 4 Flag 00 00000000 # 4 Reserved 00 00000000 # 4 FE (hex) defines ASCII string
(Model Name“N154I1-L0C”, ASCII) # 4 Flag 00 00000000 # 4 1st character of name (“N”) 4E 01001110 # 4 2nd character of name (“1”) 31 00110001 # 4 3rd character of name (“5”) 35 00110101 # 4 4th character of name (“4”) # 4 5th character of name (“I”) # 4 6th character of name (“1”) # 4 7th character of name (“-”) 2D 00101101 # 4 8th character of name (“L”) 4C 01001100 # 4 9th character of name (“0”) 30 00110000 # 4 9th character of name (“C”) 43 01000011 # 4 New line character indicates end of ASCII string 0A 00001010 # 4 Padding with “Blank” character 20 00100000 # 4 Padding with “Blank” character 20 00100000 Extension flag 00 00000000
FE 11111110
34 00110100 49 01001001 31 00110001
00111000
16 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
5.6 EDID SIGINAL SPECIFICATION
(1) EDID Power
Parameter Symbol Test Condition Min. Typ. Max. Unit
Power supply
voltage
Vcc — 2.7 — 5.5 V
www.panelook.com
Model No.: N154I1-L0C
Approval
(2) DC characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Supply current Vcc=5.0V Icc READ at 100kHz — 0.4 1.0 mA
Supply current Vcc=5.0V Icc WRITE at 100kHz — 2.0 3.0 mA
Standby Current ISB Vin=Vcc or Vss — 1.6 4.0 μA
Input Leakage Current ILI Vin=Vcc or Vss — 0.1 3.0 μA
Onput Leakage Current ILO Vout=Vcc or Vss — 0.05 3.0 μA
Input Low Level VIL — -1.0 — Vcc x 0.3 V
Input High Level VIH — Vcc x 0.7 — Vcc+0.5 V
Output Low Level Vcc=1.8V VOL1 IOL=0.15mA — — 0.2 V
Output Low Level Vcc=3.0V VOL2 IOL=2.1mA — — 0.4 V
17 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
(3) AC characteristics (VCC=2.5~5.5V standard operation mode)
Parameter Symbol Min Max Unit
Clock Frequency, SCL FSCL — 100 kHz
www.panelook.com
Model No.: N154I1-L0C
Approval
Clock Pulse Width Low TLOW 4.7 —
Clock Pulse Width High THIGH 4.0 —
Noise Suppression Time TI — 100 ns
Clock Low to Data Out Valid TAA 0.1 4.5
Time the bus must be free
BUF 4.7 —
before a new transmission
can start
Start Hold Time THD.STA 4.0 —
Start Set-up Time TSU.STA 4.7 —
Data in Hold Time THD.DAT 0 —
Data in Set-up Time TSU.DAT 200 — ns
Inputs Rise Time TR — 1.0
T
Ӵs
Ӵs
Ӵs
Ӵs
Ӵs
Ӵs
Ӵs
Ӵs
Inputs Fall Time TF — 300 ns
Stop Set-up Time TSU.STO 4.7 —
Data Out Hold Time TDH 100 — ns
Write Cycle Time TWR — 10 ms
Ӵs
18 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc - 71 80 MHz -
Vertical Total Time TV 810 823 1000 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync input signals should be set
to low logic level or ground. Otherwise, this module would operate abnormally.
Note (2) The duration of DE signal must be longer than 1 clock period at every horizontal sync. period.
Vertical Addressing Time TVD 800 800 800 TH -
Horizontal Total Time TH 1360 1440 1600 Tc -
Horizontal Addressing Time THD 1280 1280 1280 Tc -
www.panelook.com
Model No.: N154I1-L0C
Approval
INPUT SIGNAL TIMING DIAGRAM
DE
DCLK
DE
DATA
TC
HD
T
19 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center

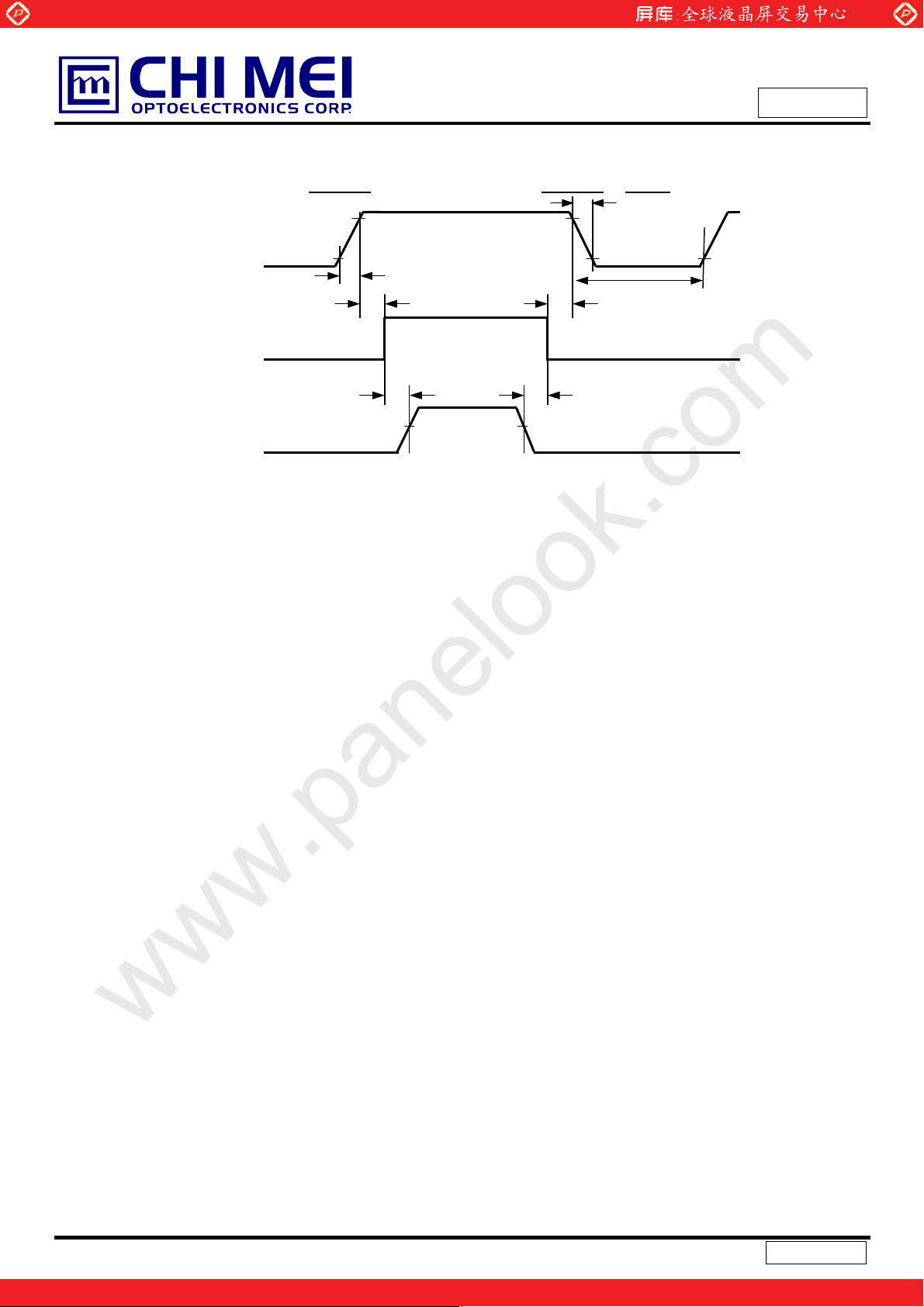

6.2 POWER ON/OFF SEQUENCE
www.panelook.com
Model No.: N154I1-L0C
Approval
Power Supply
for LCD, Vcc
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
Timing Specifications:
0.5< t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
Restart
t7
10%
10%
t4
Power On
90%
0V
0V
I
10%
t1
Valid Data
ONOFF OFF
Power Off
90%
t3 t2
t6 t5
50%50%
t4 Њ 500 msec
t5 Њ 200 msec
t6 Њ 200 msec
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow
t7 Њ 5 msec
20 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.5 mA Inverter Driving Frequency FL 55 KHz Inverter Sumida-H05-4915
The measurement methods of optical characteristics are shown in Section 7.2. The following items
should be measured under the test conditions described in Section 7.1 and stable environment shown in
Note (6).
www.panelook.com
25r2
50r10
Model No.: N154I1-L0C
Approval
o
C
%RH
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR - 400 - - (2), (5)
Response Time
Central Luminance of White L White Variation
Color
Green
Chromaticity
White
Horizontal
Viewing Angle
Vertica l
Red
Blue
TR - 5 10 ms
- 11 16 ms
T
F
170 200 - cd/m2(4), (5)
AVE
GW Rx Ry Gx Gy
Bx By
=0q, TY =0q
T
x
Viewing Normal Angle
- - 1.4 - (5), (6)
0.568 0.598 0.628
0.307 0.337 0.367
0.293 0.323 0.353
0.493 0.523 0.553
0.120 0.150 0.180
0.097 0.127 0.157 Wx 0.283 0.313 0.343 ­Wy
Tx+
T
x
TY+
T
Y
­CRt10
-
0.299 0.329 0.359 -
- 45 -
- 45 -
- 15 -
Deg. (1)
- 35 -
(3)
-
-
-
-
-
(1)
-
21 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Model No.: N154I1-L0C
Approval
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Normal
Tx = Ty = 0º
Ty- Ty
Tx-
Tx+
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
R
T
R
66.68 ms
, TF):
T
F
66.68 ms
Time
22 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
Approval
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
AVE
):
Photometer
(CA210, CS-1000)
Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
500 mm
Field of View = 2º
Light Shield Room
(Ambient Luminance < 2 lux)
23 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
W
/
www.panelook.com
Model No.: N154I1-L0C
Approval

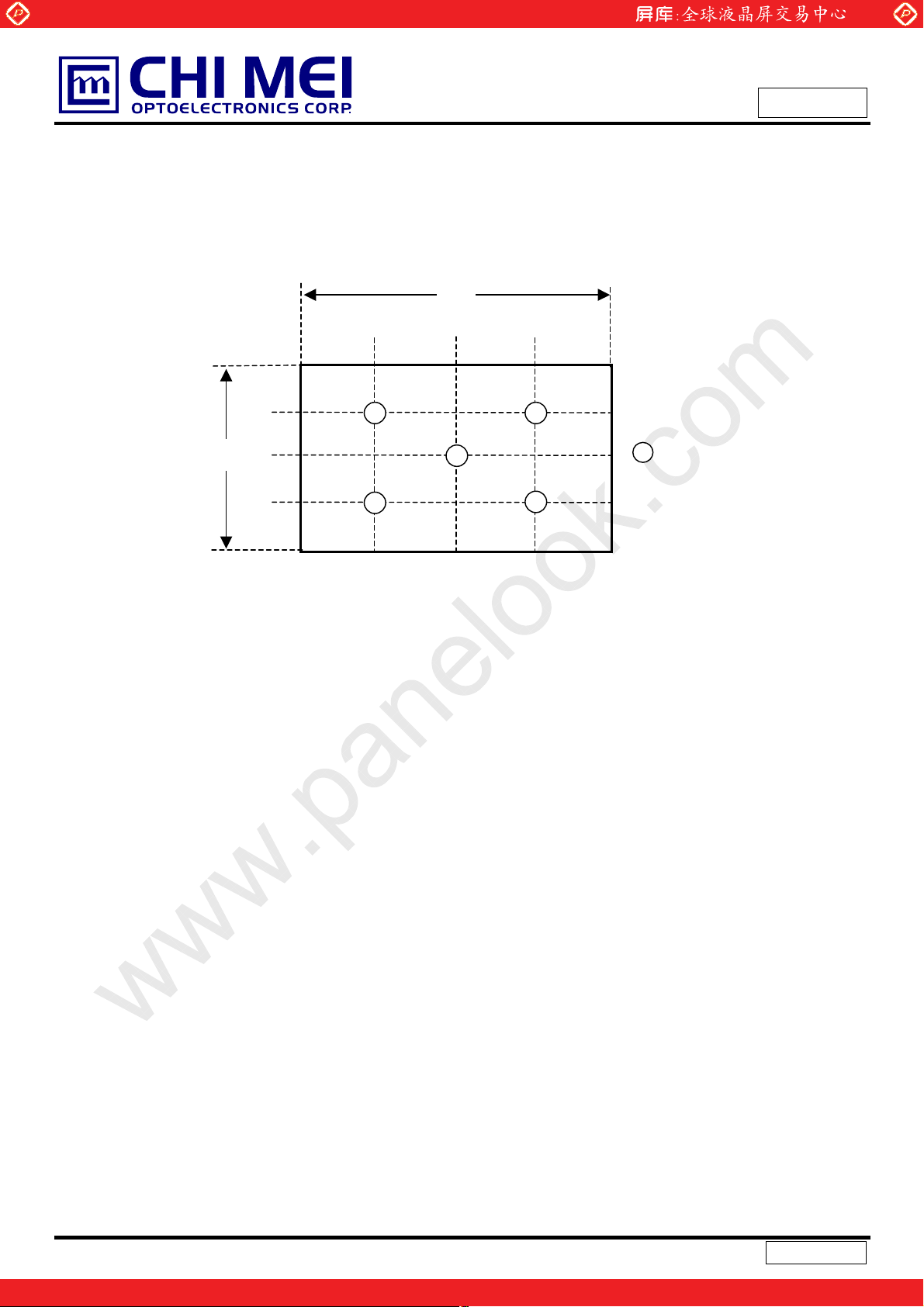

Horizontal Line
D
D/4 D/2 3D/4
Vertical Line
W/4
W/2
3W
1 2
5
3
X
: Test Point
X=1 to 5
4
Active Area
24 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
www.panelook.com
Model No.: N154I1-L0C
Approval
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the lamp wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
25 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
9. PACKING
9.1 CARTON
LCD Module
Anti-static Bag
www.panelook.com
Model No.: N154I1-L0C
Approval
Box dimensions:422(L)x337(W)x345(H)mm Weight:Appox. 7.5kg(10 module per 1 box)
PE Foam(Cover)
Carton
Drier
Packing testing criteria :
(1) Packing drop : 1 corner, 3 edges, 6 faces, each direction for one time, follow ISTA standard.
(2) Packing vibration : Random, follow ISTA standard.
Carton Label
26 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
9.2 PALLET
www.panelook.com
Model No.: N154I1-L0C
Approval
27 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154I1-L0C
Approval
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
01A
N141X5 - L03 Rev.XX
-
X X X X X X X Y M D L N N N N
C P 1 3 5 4 4 8 - 0 1
Rev. XX
(a) Model Name: N154I1 - L0C
(b) Revision: Rev. XX, for example: C1, C2 …etc.
(c) Serial ID: X X
X X X X X Y M D L N N N N
E207943
MADE IN TAIWAN
Serial No.
Product Line
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
st
to 31st, exclude I , O and U
28 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
10.2 CARTON LABEL
www.panelook.com
Model No.: N154I1-L0C
Approval
29 / 30
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
