CMO N154I1-L07 Specification

Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jun.16, 2005
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

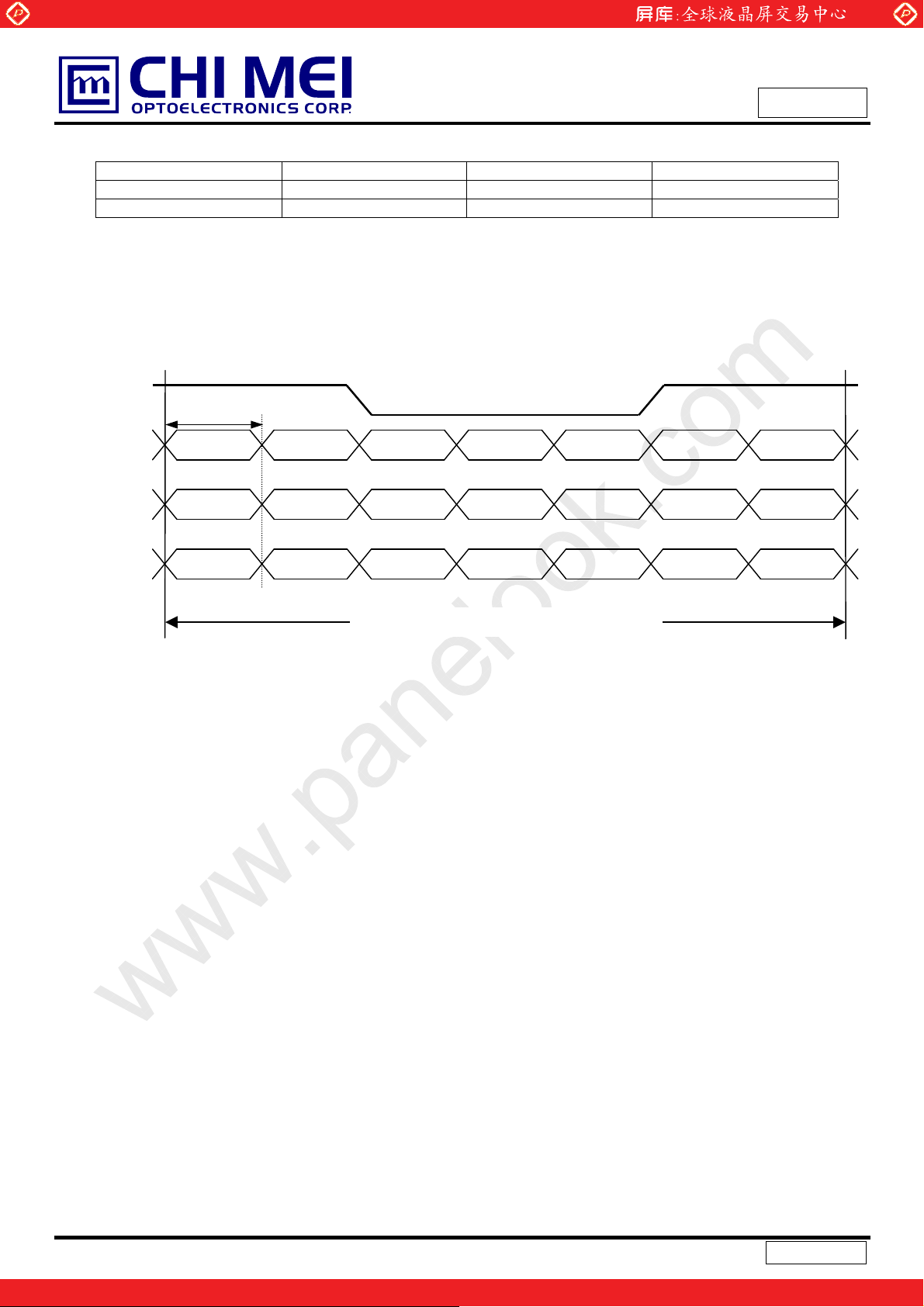

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE

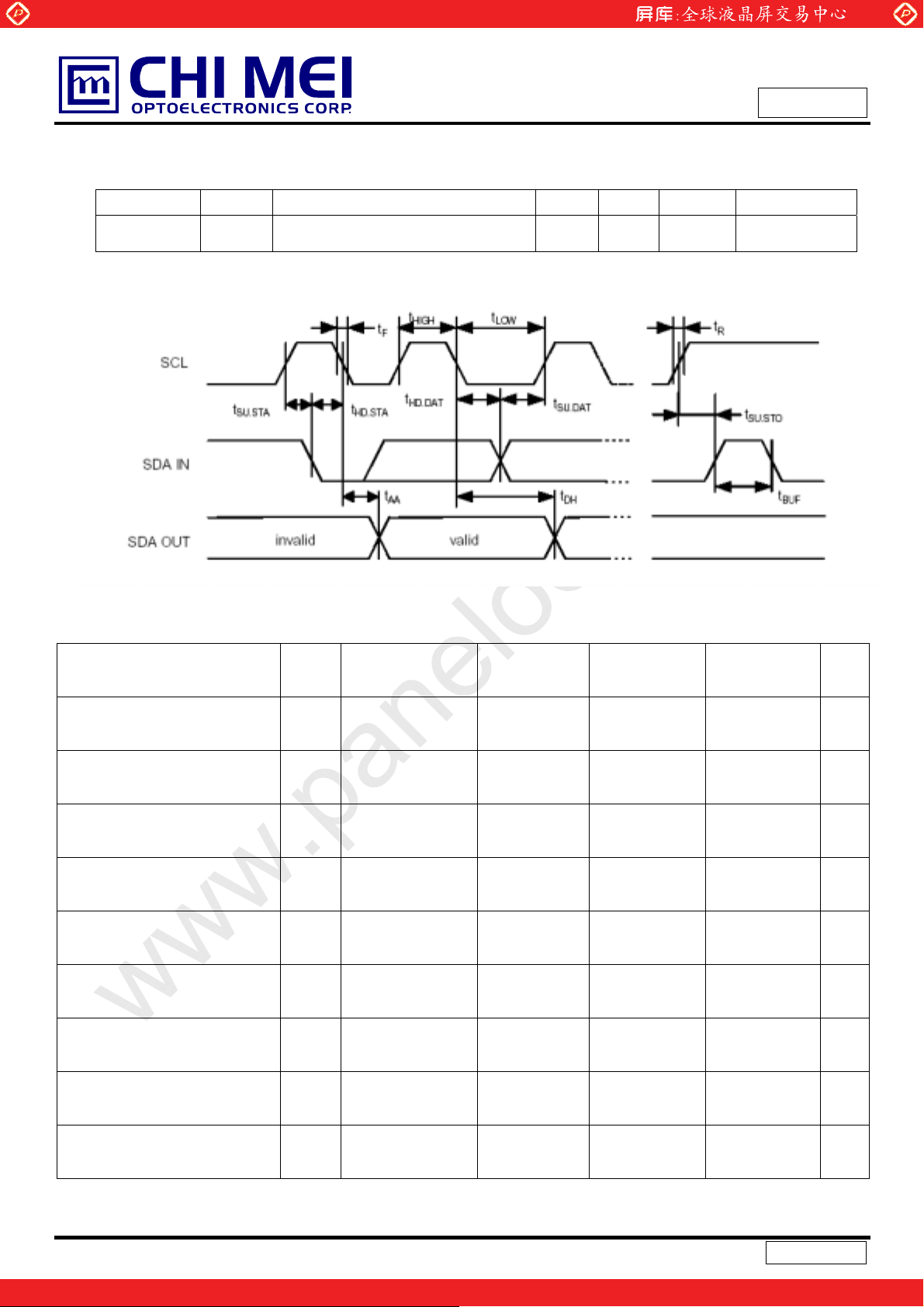

5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING ------------------------------------------------------- 19

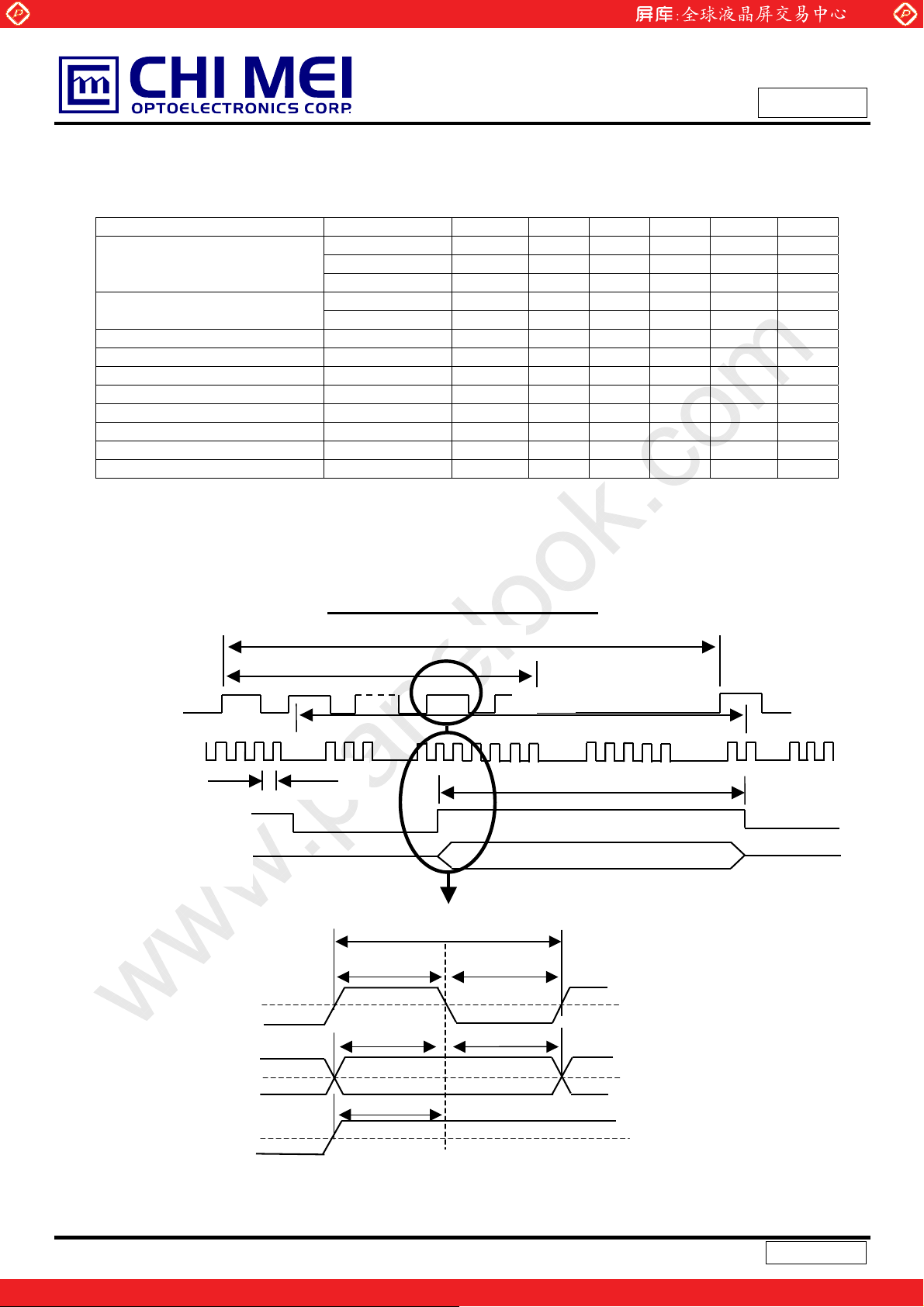

6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 25
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 26
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
------------------------------------------------------- 28
2 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jun.16, 2005
Approval
REVISION HISTORY
Version Date
Ver 3.0
Ver 3.1
Ver 3.2
Dec.14, 04’
May.13, 05’
Jun.16, 05’
Page
(New)
All
4
13-15
13-15
29
Section Description
All
Approval specification was first issued.
1.2
5.5
5.5
Add “Meet RoHS requirement”.
Modify EDID from checksum(0A) to (05)
Modify EDID from checksum(05) to (70)
Update outline drawing for screw hold on bracket.
3 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154I1 -L07 is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- Meet RoHS requirement.
www.panelook.com
Issued Date: Jun.16, 2005
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 331.2 (H) x 207.0 (V) (15.4” diagonal) mm Bezel Opening Area 335.0 (H) x 210.7 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2588 (H) x 0.2588 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344.0 344.5 mm
Module Size

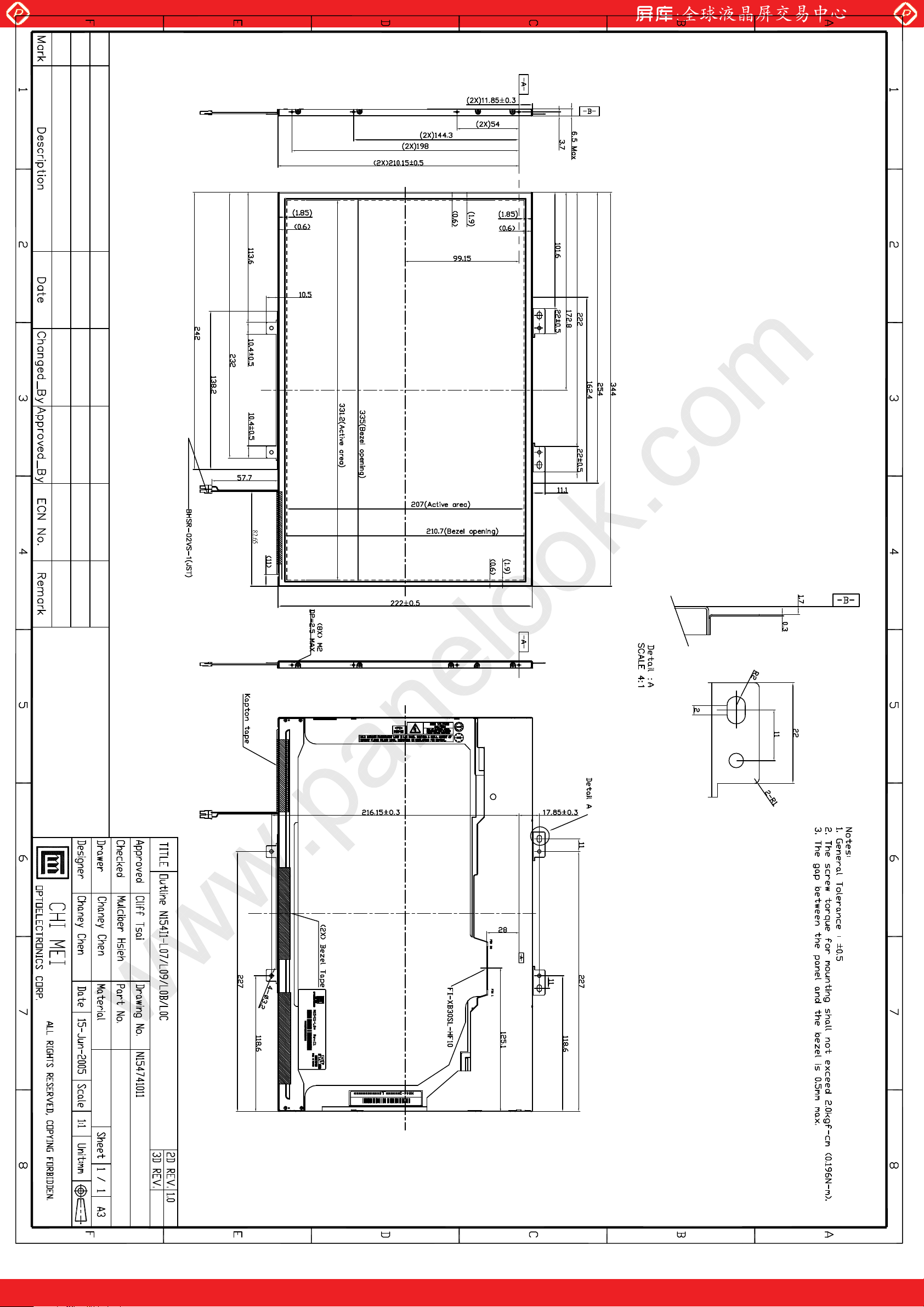

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 221.5 222.0 222.5 mm Depth(D) - 6.2 6.5 mm
Weight - 600 620 g -
(1)
(1)
4 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation .
Relative Humidity (%RH)
www.panelook.com
Issued Date: Jun.16, 2005
Approval
Value
Min. Max.
- 220 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
Storage Range
5
8060-20 400 20-40
Temperature (ºC)
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
Note (3) 2ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 200 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z. The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL - 7.0 mA Lamp Frequency FL - 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Issued Date: Jun.16, 2005
Approval
(1)
(1), (2), IL = 6.5 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
FUSE
Value
C3
1uF
Unit Note
Vcc
(LCD Module Input)
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
- - 1.5 A (2)
RUSH
White - 580 mA (3)a
Power Supply Current
Black - 650 mA (3)b Vertical Stripe
lcc
- 650 mA (3)c
“H” Level VIH - - +100 mV - Differential Input Voltage for
LVDS Receiver Threshold
“L” Level V
-100 - - mV -
IL
Terminating Resistor RT - 100 - Ohm -
Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:
+3.3V
R1
47K
Q1 2SK1475
(High to Low)
(Control Signal)
SW
+12V
R2
1K
47K
VR1
C1
1uF
0.01uF
Q2
2SK1470
C2
6 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Vcc rising time is 470us
0.1Vcc
GND
www.panelook.com
Issued Date: Jun.16, 2005
Approval
+3.3V
0.9Vcc
470us
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
Current and f
a. White Pattern
c. Vertical Stripe Pattern
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
B
R
R
Active Area
R
B
B
R
G
G
G
G
B
B
Active Area
R
R
B
R R
Active Area
7 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G
G
B
B
R
G
G
B
B
R
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jun.16, 2005
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Lamp Input Voltage VL 585 650 715 V Lamp Current IL 2.0 6.5 7.0 mA
Lamp Turn On Voltage V
S
- -
- ­Operating Frequency FL 50 - 80 KHz (3) Lamp Life Time LBL 10,000 - - Hrs (5) Power Consumption PL - 4.22 - W (4), IL = 6.5 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
1230, 25
1530, 0к
℃
Unit Note
IL = 6.5 mA
RMS
(1)
RMS
(2)
V
RMS
(2)
V
RMS
Approval
HV (Pink)
LCD
LV (Black)
Module
1
Inverter
2
A
Current Meter
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
L
= I
LVL
Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
o
C and IL = 6.5 mA
until one of the following events occurs:
RMS
(a) When the brightness becomes Љ 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition
length is defined as an area that the brightness is less than 70% compared to the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
8 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Issued Date: Jun.16, 2005
Approval
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
CLK(+/-)
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
VL
(JAE-FI-XB30SL-HF10)
INPUT CONNECTOR
LAMP CONNECTOR
(JST-BHSR-02VS-1)
4.2 BACKLIGHT UNIT
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
(1280x3x800)
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink)
2 LV (Black
9 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
