CMO N154C6-L04 Specification
Global LCD Panel Exchange Center
ಖᙕ
ՠ܂
ᐉு
ߡۥ
ދป
A

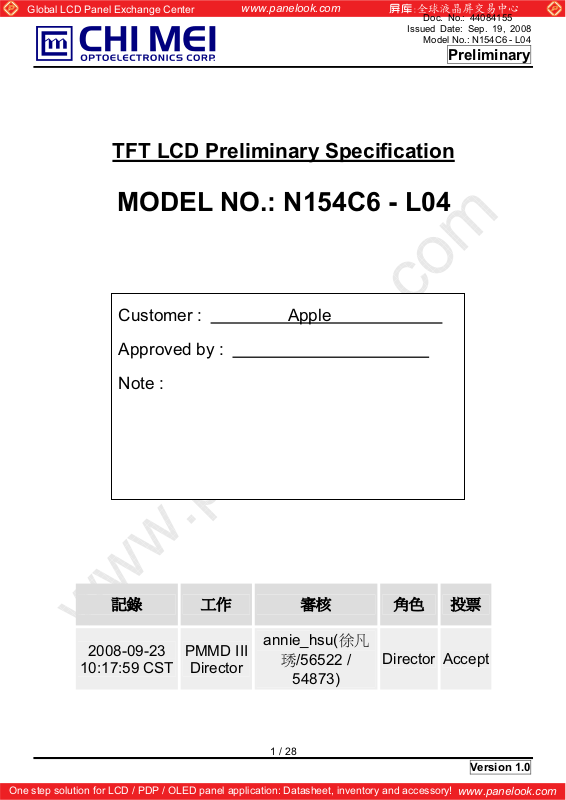

TFT LCD Preliminary Specification
MODEL NO.: N154C6 - L04
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
Customer : Apple
pproved by :
Note :
annie_hsu(ஊՅ
2008-09-23
10:17:59 CST
PMMD III
Director
≮/56522 /
Director Accept
54873)
1 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

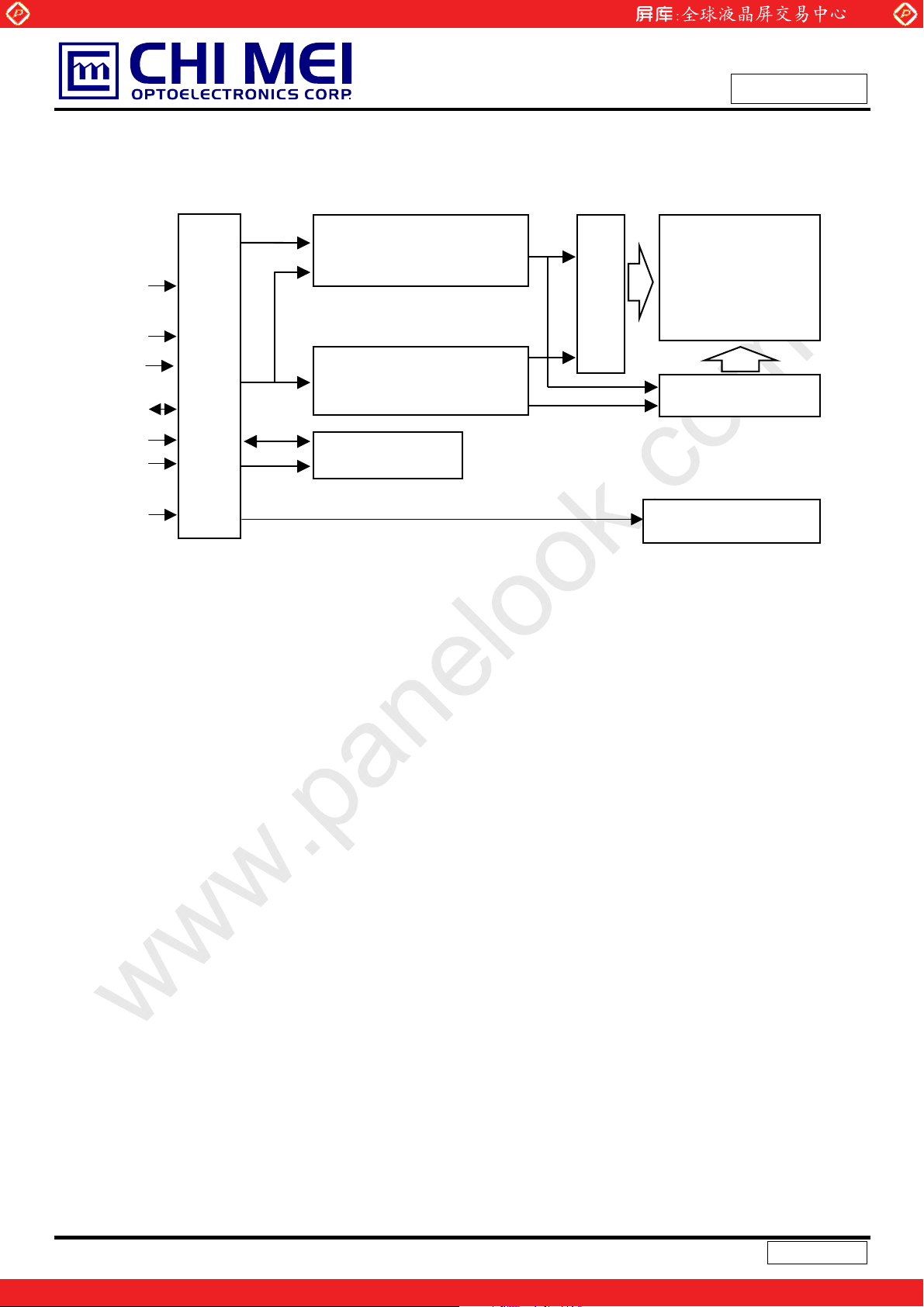

4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID CODE DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 17
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 19

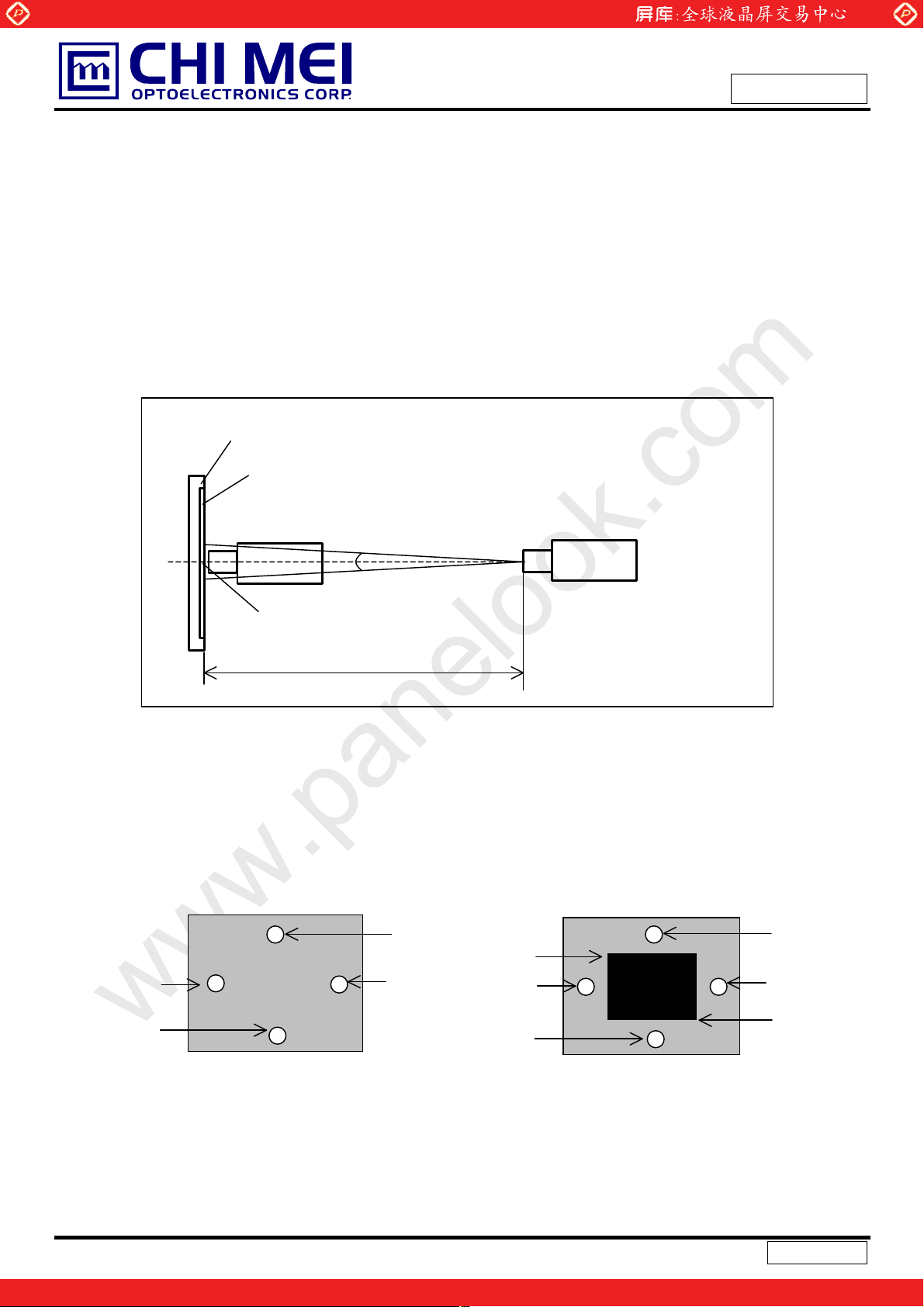

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 23
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 24

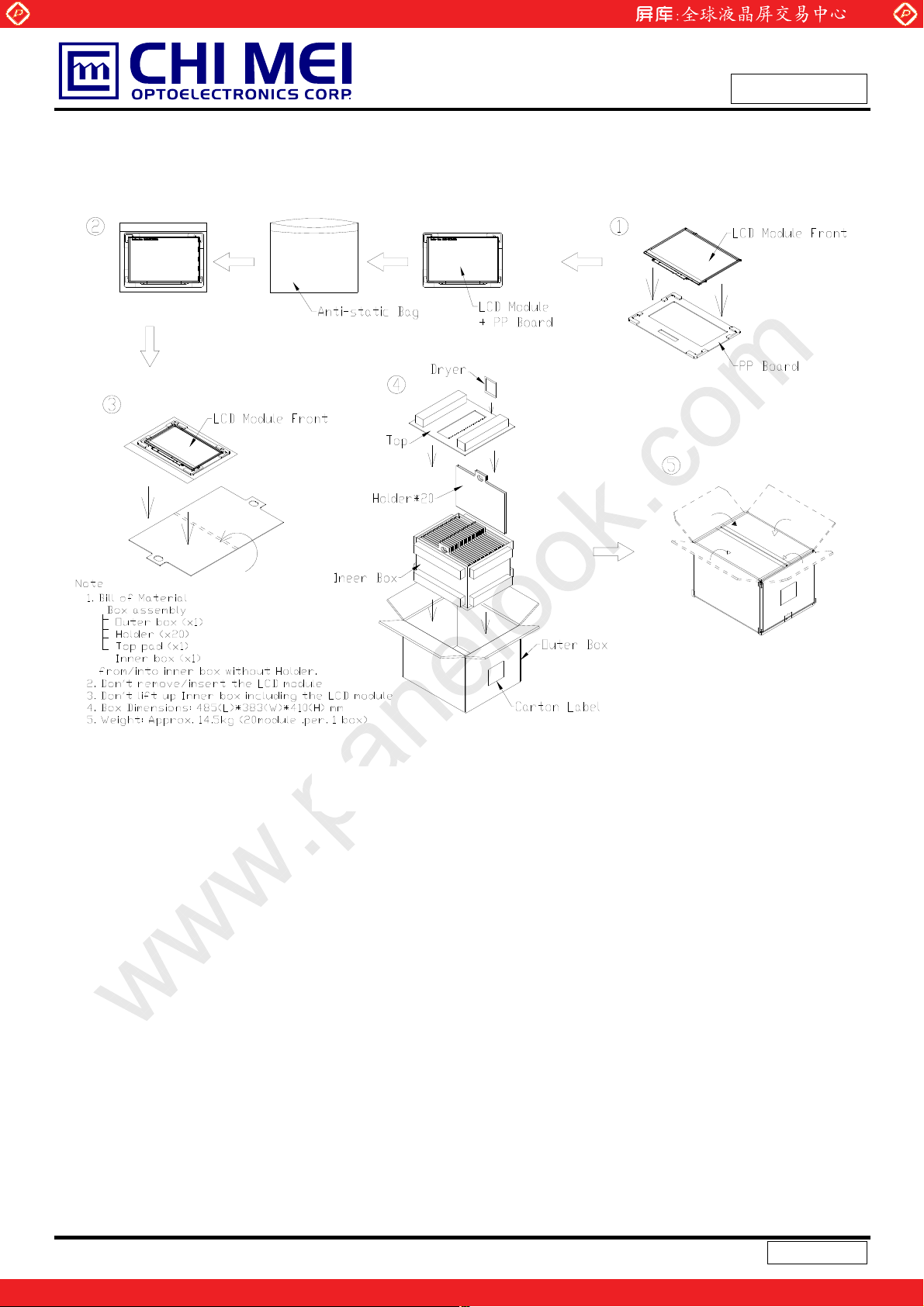

9.1 CARTON

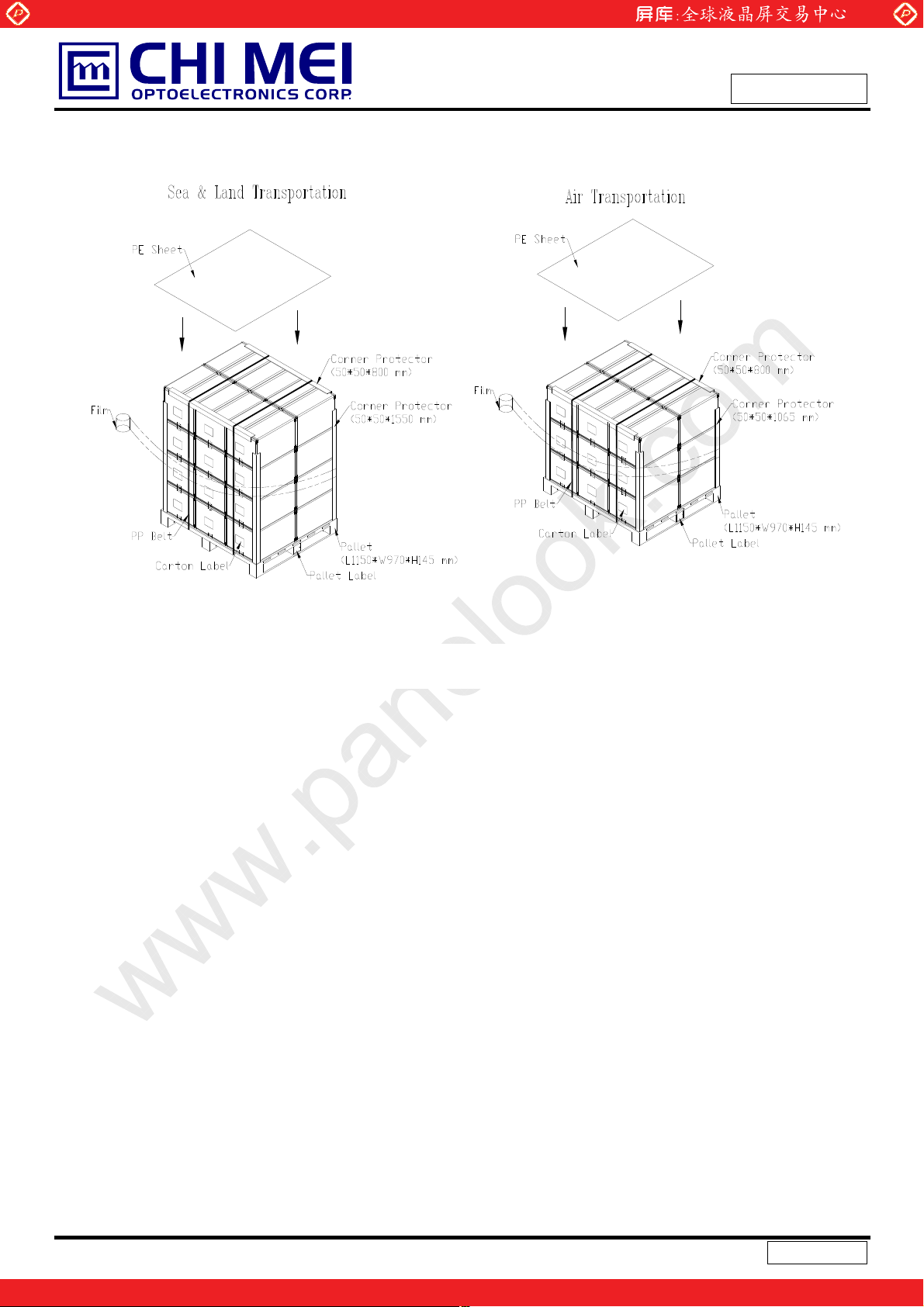

9.2 PALLET FOR SEA FREIGHT
9.3 PALLET FOR AIR FREIGHT
10. DEFINITION OF LABELS
10

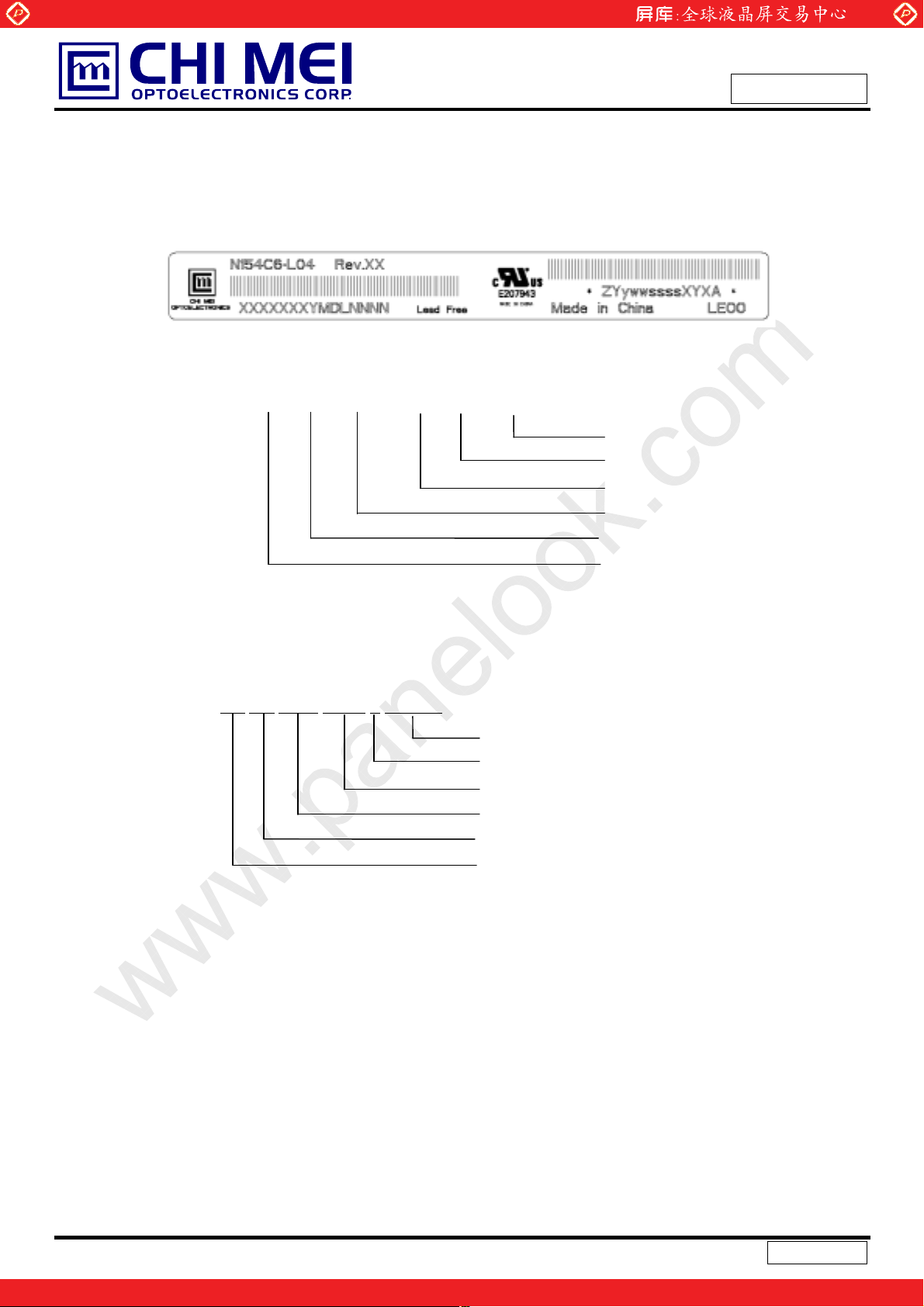

.1 CMO MODULE LABEL

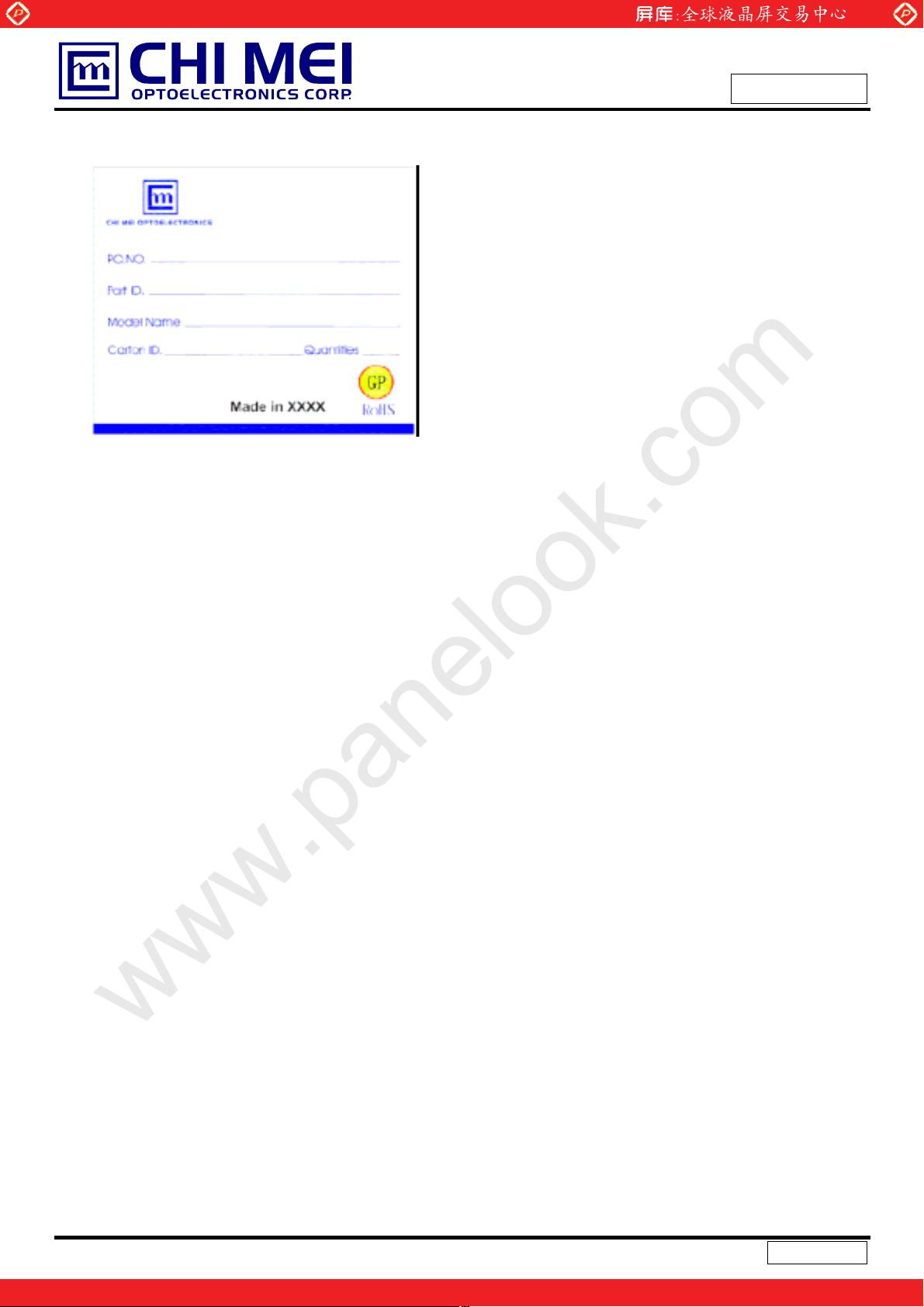

10.2 CMO CARTON LABEL
------------------------------------------------------- 26
2 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
REVISION HISTORY
Version Date
Ver. 0.0
Ver. 1.0
Mar. 25, ‘08
Sep.19. ’08 All All
Page
(New)
Section Description
Tentative Specification was first issued
Preliminary Specification was first issued
3 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154C6 - L04 is a 15.4” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS
interface. This module supports 1440 x 900 Wide-XGA+ mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The converter module for Backlight is not built in.
1.2 FEATURES
- Thin and High Brightness
- WXGA + (1440 x 900 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
- RoHS compliance
1.3 APPLICATION
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 331.344(H) x 207.09(V) (15.4” diagonal) mm
Bezel Opening Area NO FRONT BEZEL mm
Driver Element a-si TFT active matrix - Pixel Number 1440 (H) x 3 (R.G.B.) x 900 (V) pixel Pixel Pitch 0.2301 (H) x 0.2301 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment 3H, Glare Type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 342.55 342.85 343.15 mm
Module Size

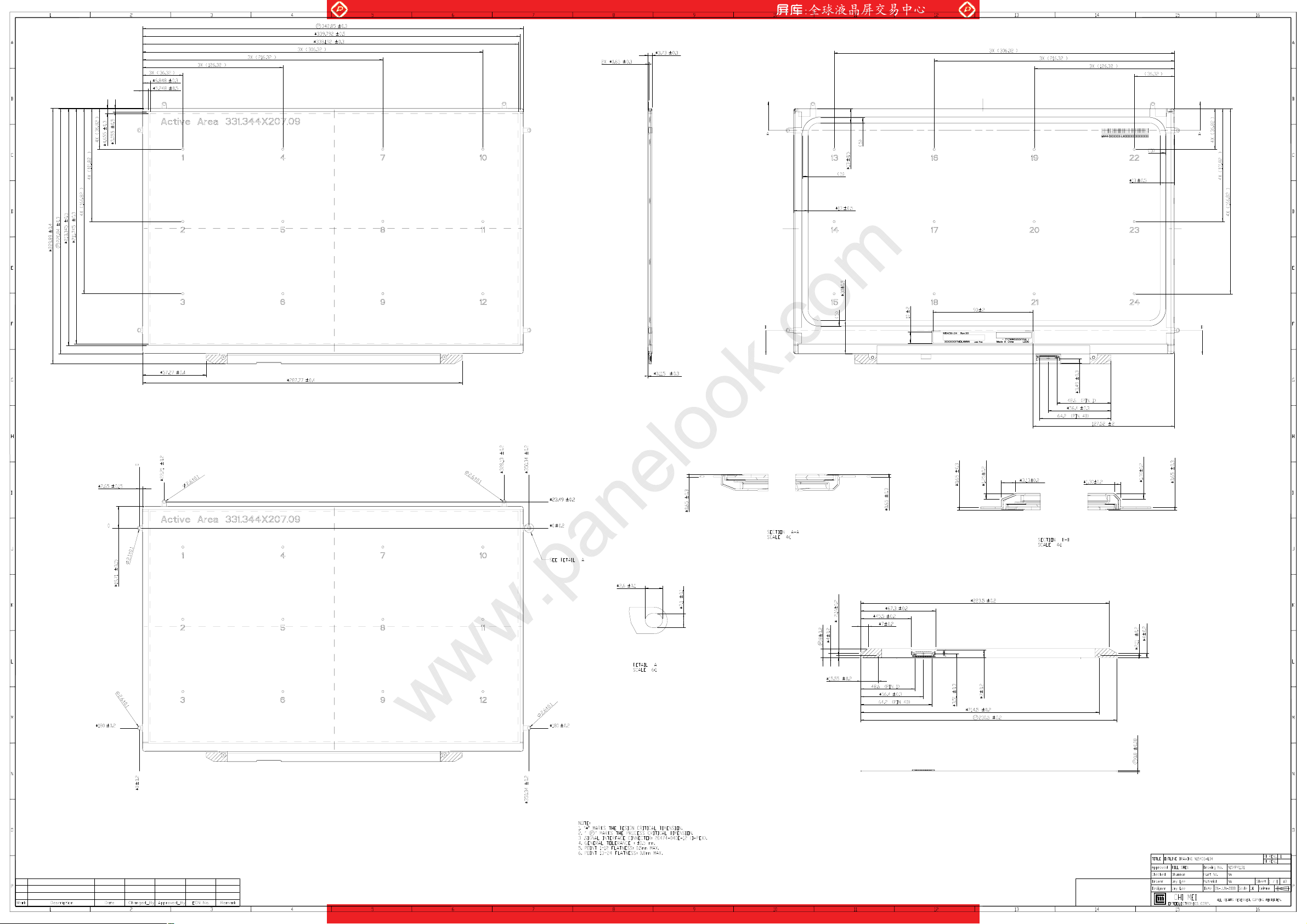

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 229.49 229.89 230.29 mm
Depth (D) 3.43 3.73 4.03 mm
Weight --- 440 450 g -
(1)
(1)
4 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 50 ºC Max.
Relative Humidity (%RH)
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item
LED Light Bar Power Supply Voltage 0 34 V
LED Light Bar Power Supply Current 0 150 mA
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min Max.
Unit Note
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
(1)
Unit Note
(1)
Note (2) Specified values are for LED (Refer to Section 3.2 for further information).
6 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
K
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Power Supply Voltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP - 50 - mV Rush Current I
RUSH
Initial Stage Current IIS 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - 240 290 mA (3)a
Black
Lcc
TH(LVDS)
TL(LVDS)
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm
Power per EBL WG P
1.67 W (4)
EBL
Ta = 25 ± 2 ºC
Min. Typ. Max.
- - 1.5 A (2)
- 333 364 mA (3)b
- - +100 mV
-100 - - mV
Value
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
Unit Note
(5),
=1.2V
V
CM
(5),
=1.2V
V
CM
Note (1) The module should be always operated within above ranges.
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47
R2
1K
VR1
C1
1u
47K
0.01uF
Q1
2SK147
5
Q2
2SK1470
C
2
FUSE
C3
1uF
Vcc
(LCD Module Input)
F
Vcc rising time is 470us
7 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
0V
470us
0.1Vcc
I
Rush
0.9Vcc
+3.3V
100ms
Vcc
I
IS
Icc
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern below is displayed.
a. White Pattern
b. Black Pattern
= 60
v
Active Area
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
= 60 Hz,
v
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The converter used is provided from CMO
. Please contact them for detail information.
CMO doesn’t provide the converter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
8 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
www.panelook.com
Doc. No.: 44084155
Issued Date: Sep. 19, 2008
Model No.: N154C6 - L04
Preliminary
CM
V
VID
Single Ended
0V
V
VID
Differential
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
LED Quantity 60 PCs (1)
LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current
Power Consumption PL -- 3.65 -- W (3), (Duty 100%)
LED Life Time LBL 10000 -- -- Hrs (4)
V
I
L
0V
V
Value
Min. Typ. Max.
30 32 34 V
L
-- 114 -- mA
Unit Note
(1),(2) (Duty 100%)
Note (1) LED current is measured by utilizing a high frequency current meter as shown below:
10
Note (2) P
Note (3) The lifetime of LED is defined as the time when it continues to operate under the conditions at
= I
O
OVO
Ta = 25 2
o
C and I = 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.
