Model No.: N154C2-L04
Preliminary
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

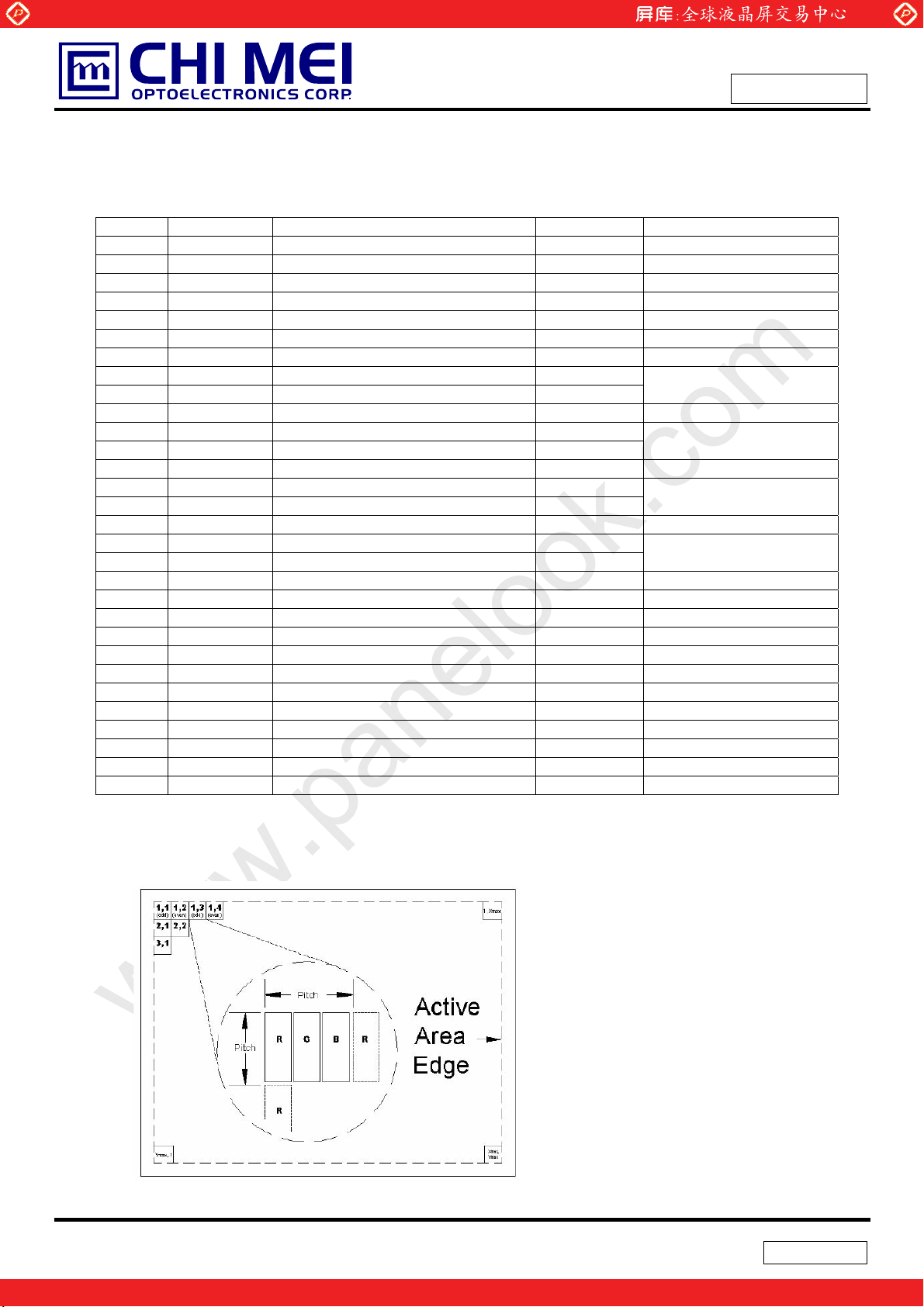

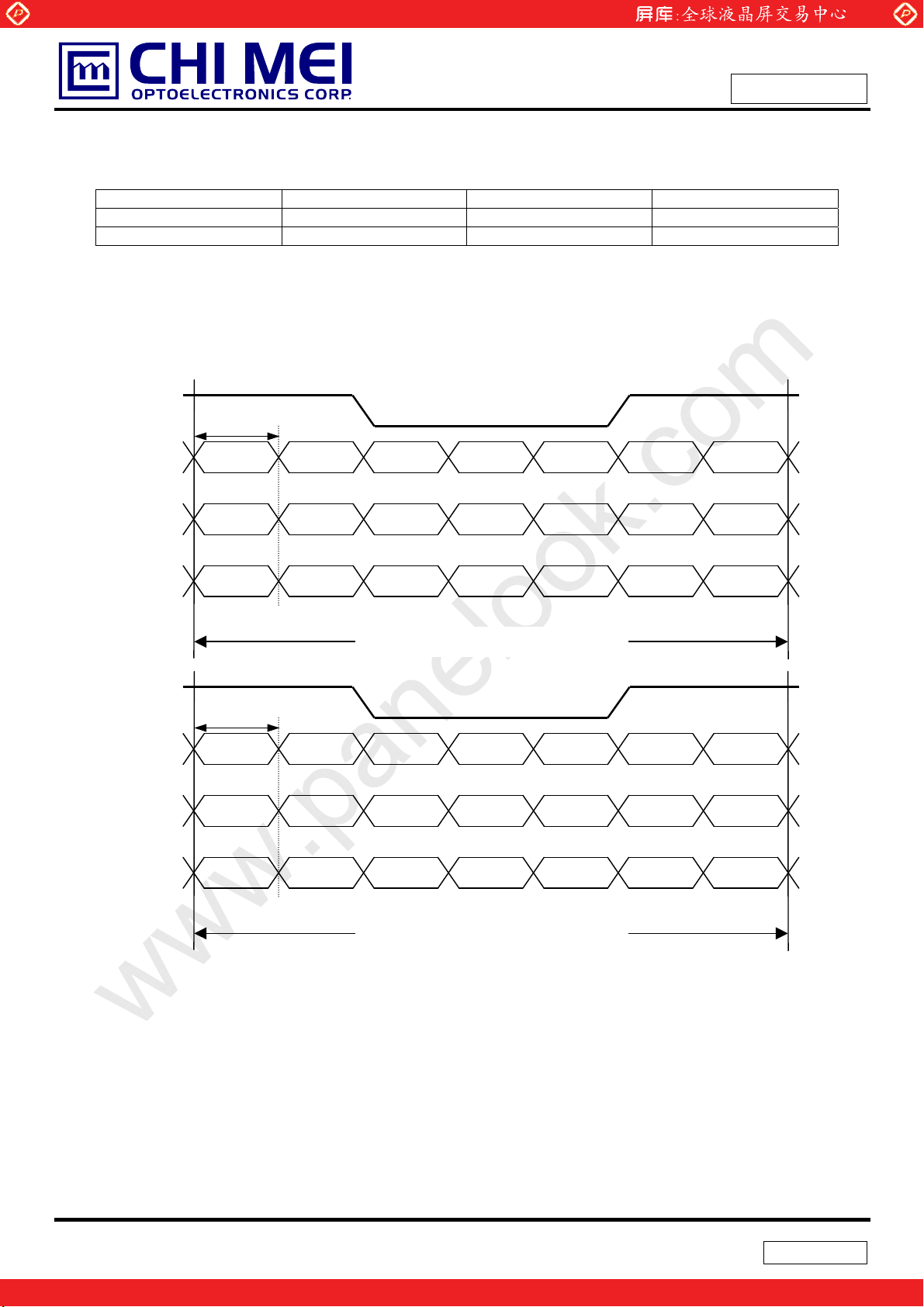

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 25

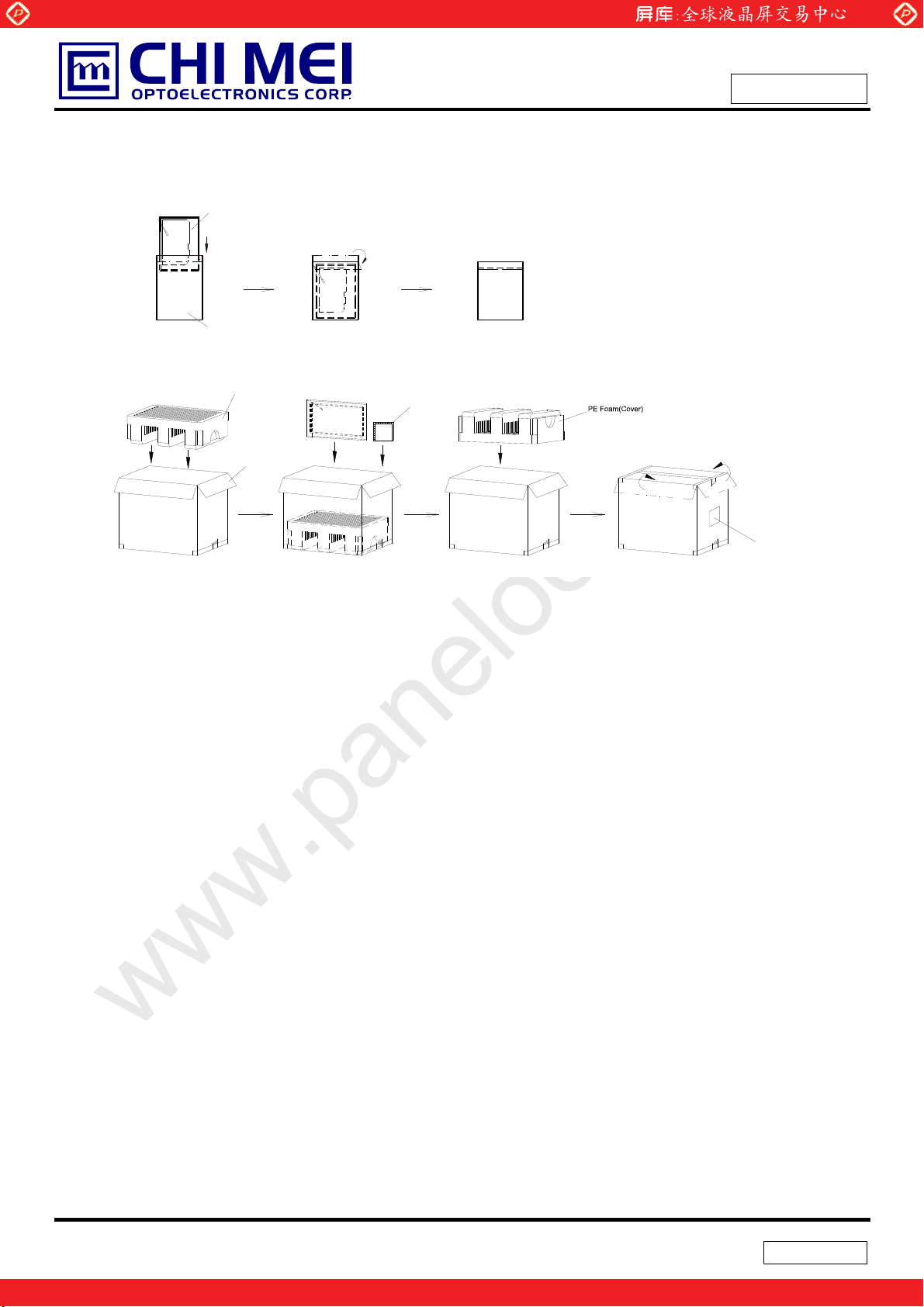

9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
------------------------------------------------------- 18
------------------------------------------------------- 20
------------------------------------------------------- 24
------------------------------------------------------- 27
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
Preliminary
Version Date
Ver 0.0
Ver 0.1
Ver 1.0
Feb. 24. ‘06
Apr. 10. ‘06
Jun. 15. ‘06
Page
(New)
All
20
6
9
13
20
20
REVISION HISTORY
Section Description
All
Tentative specification first issued.
7.2
2.2.2
3.2
5.2
7.1
7.2
Optical specification – Contrast, Luminance
Backlight Unit – lamp current, lamp frequency
Backlight Unit
Backlight Unit – connector pin definition
Test Conditions
Optical Specifications
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154C2-L04 is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1440 x 900 WXGA+ mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- WXGA+ (1440 x 900 pixels) resolution
- DE (Data Enable) only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
- Support EDID Structure Version 1.3
www.panelook.com
Model No.: N154C2-L04
Preliminary
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Outline Dimension 344(W) x 222 (H) mm Active Area 331.56 (H) x 207.225 (V) mm Bezel Opening Area 335 (H) x 210.7 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1440 x R.G.B. x 900 pixel ­Pixel Pitch 0.23025 (H) x 0.23025 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344 344.5 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

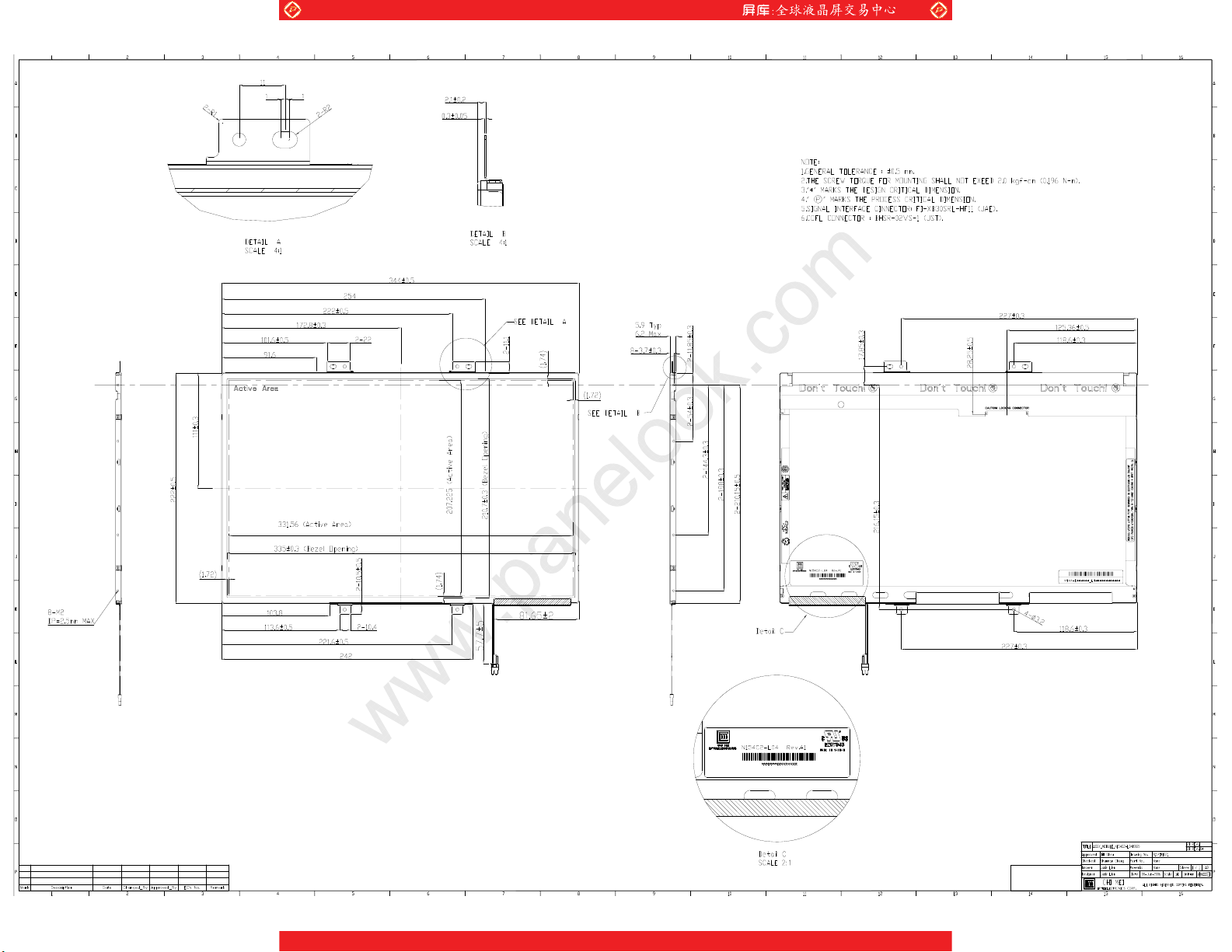

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 221.5 222 222.5 mm Depth(D) --- --- 6.2 mm
Weight --- 530 540 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 50 ºC max.
Relative Humidity (%RH)
www.panelook.com
Model No.: N154C2-L04
Preliminary
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10~200 Hz, 0.5hr/cycle 1cycle for X,Y,Z
8060 -20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL 2.0 7.0 mA Lamp Frequency FL 45 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Model No.: N154C2-L04
Preliminary
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
Preliminary
3 ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
Power Supply Current
White - 320 350 mA (3)a Black
- - 1.5 A (2)
RUSH
lcc
- 440 470 mA (3)b
“H” Level VIH - - +100 mV - Differential Input Voltage for
LVDS Receiver Threshold
“L” Level V
-100 - - mV -
IL
Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P
- TBD - W (4)
EBL
Note (1) The module should be always operated within above ranges.
Value
Unit Note
Note (2) Measurement Conditions:
+3.3V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
Vcc rising time is 470us
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
+3.3V
0.9Vcc
0.1Vcc
GND
470us
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Model No.: N154C2-L04
Preliminary
Current and f
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
a. White Pattern
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
= 60 Hz,
v
Active Area
(d) The inverter used is provided from O2Micro(www.o2micro.com). Please contact O2Micro for
detail information. CMO don’t provide the inverter in this product.
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Lamp Input Voltage VL 657 730 803 V Lamp Current IL 2.0 6.0 7.0 mA
Lamp Turn On Voltage VS
- - (1460) (25
- - (1600) (0 Operating Frequency FL 45 55 80 KHz (3) Power Consumption PL - 4.38 - W (4), IL = 6.0 mA Lamp Life Time LBL 15,000 - - Hrs (5)
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C) V
o
C) V
Unit Note
IL = 6.0 mA
RMS
(1)
RMS
(2)
RMS
(2)
RMS
Preliminary
LCD
Module
HV (White)
LV (Black)
1
2
Current Meter
Inverter
A
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second after
startup. Otherwise, the lamp may not be turned on normally.
Note (3) The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
o
C and IL = 6.0 mA
until one of the following events occurs:
RMS
(a) When the brightness becomes Љ 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition
length is defined as an area that the brightness is less than 70% compared to the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center

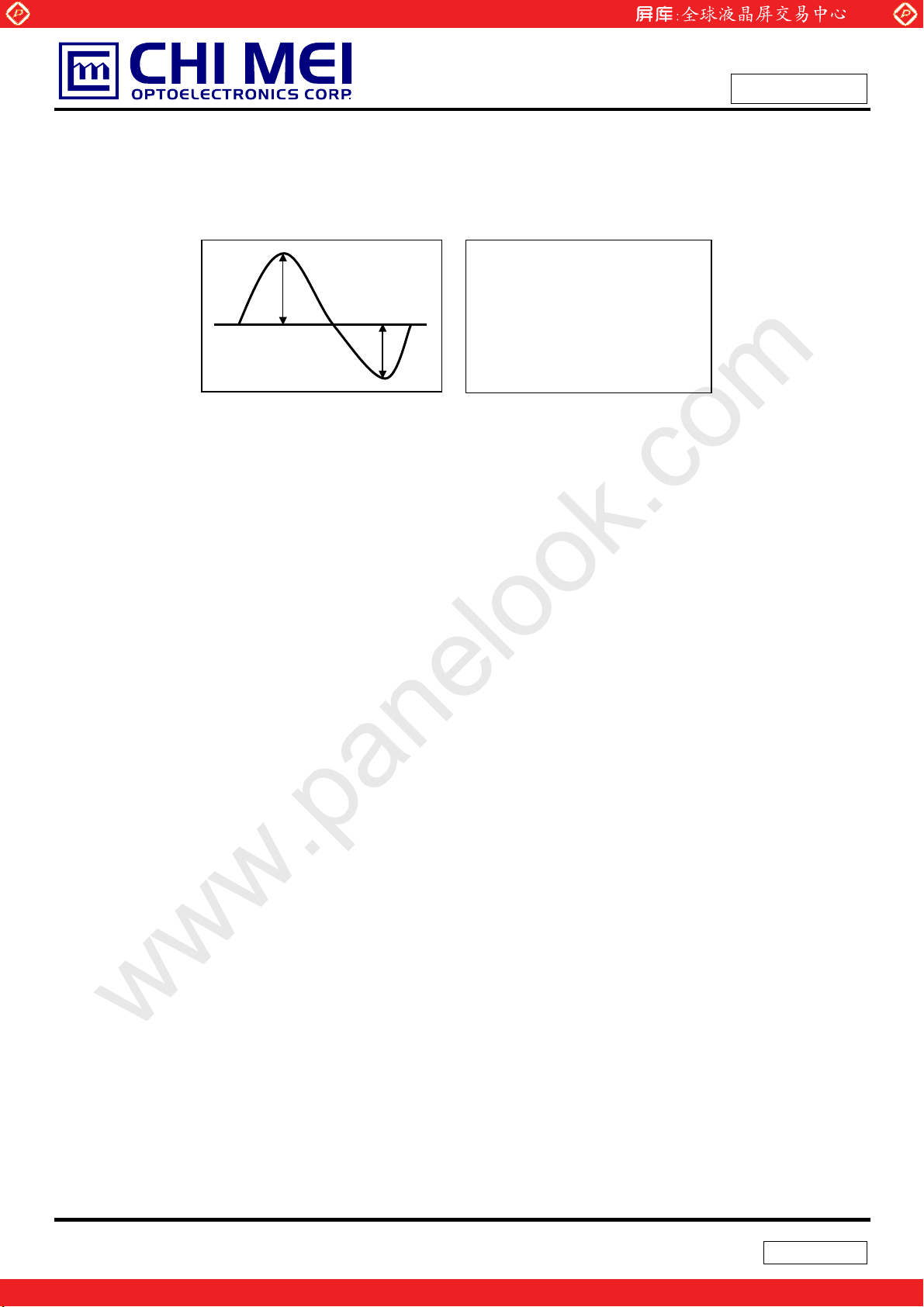

a. The asymmetry rate of the inverter waveform should be 10% below;
b. The distortion rate of the waveform should be within Ѕ2 ± 10%;
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
www.panelook.com
Model No.: N154C2-L04
Preliminary
* Asymmetry rate:
I p
I -p
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
10 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
)

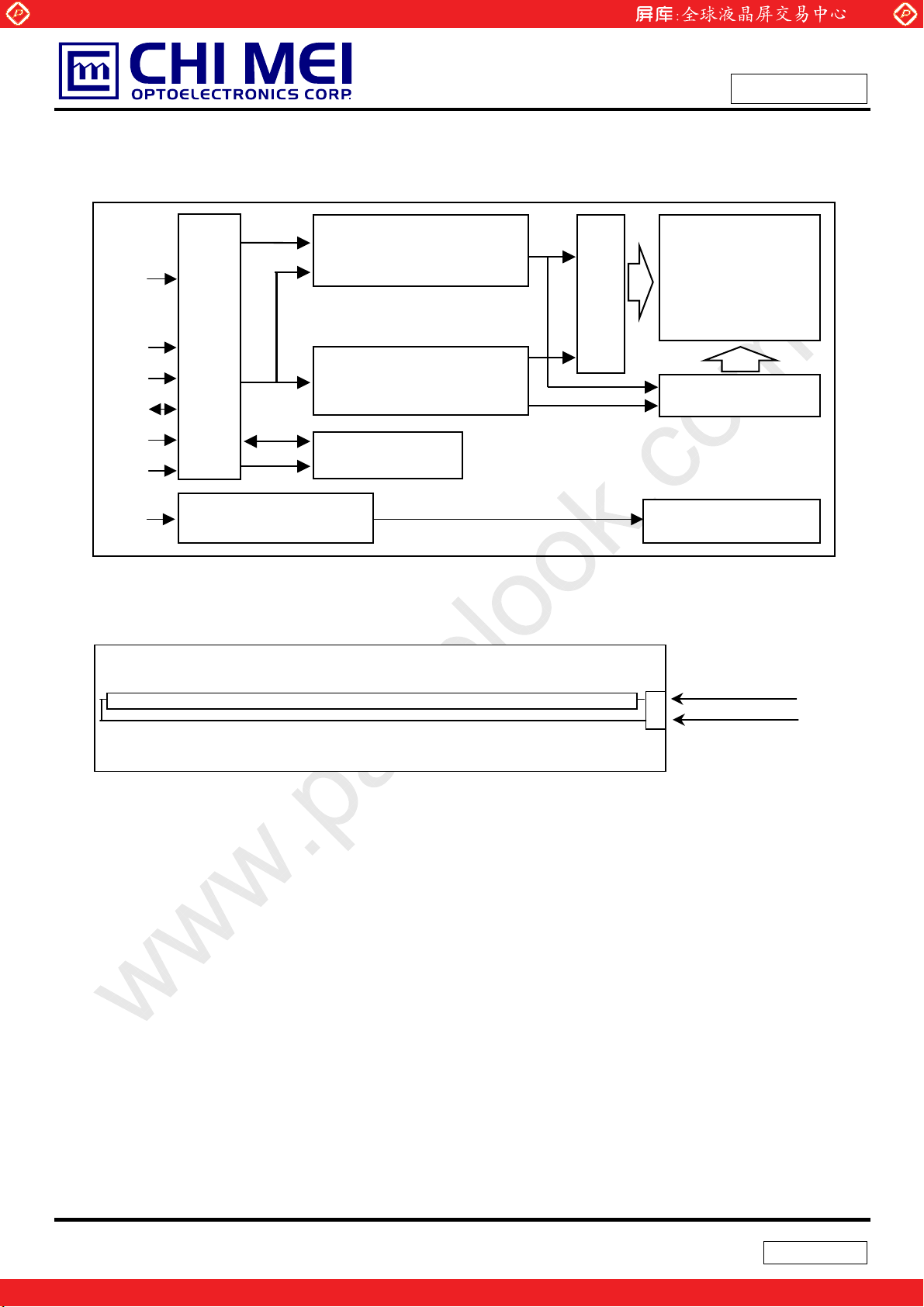

4 BLOCK DIAGRAM
4.1 TFT LCD MODULE
LVDS Display
Data & Clock
INPUT CONNECTOR
Vcc
GND
Data
CLK
V
EDID
EDID
EDID
VL
LAMP CONNECTOR
www.panelook.com
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
Model No.: N154C2-L04
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
Preliminary
4.2 BACKLIGHT UNIT
1 HV (White)
2 LV (Black
11 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5 INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 BIST Panel BIST enable 6 CLK 7 DATA 8 RXO0- LVDS Differential Data Input (Odd) Negative
9 RXO0+ LVDS Differential Data Input (Odd) Positive 10 Vss Ground 11 RXO1- LVDS Differential Data Input (Odd) Negative 12 RXO1+ LVDS Differential Data Input (Odd) Positive 13 Vss Ground 14 RXO2- LVDS Differential Data Input (Odd) Negative 15 RXO2+ LVDS Differential Data Input (Odd) Positive 16 Vss Ground 17 RXOC- LVDS Clock Data Input (Odd) Negative 18 RXOC+ LVDS Clock Data Input (Odd) Positive 19 Vss Ground 20 RxE0- LVDS Differential Data Input (Even) Negative 21 RxE0+ LVDS Differential Data Input (Even) Positive 22 Vss Ground 23 RxE1- LVDS Differential Data Input (Even) Negative 24 RxE1+ LVDS Differential Data Input (Even) Positive 25 Vss Ground 26 RxE2- LVDS Differential Data Input (Even) Negative 27 RxE2+ LVDS Differential Data Input (Even) Positive 28 Vss Ground 29 RXEC- LVDS Clock Data Input (Even) Negative 30 RXEC+ LVDS Clock Data Input (Even) Positive
Note (1) Connector Part No.: JAE-FI-XB30SL-HF10
DDC 3.3V Power
EDID
DDC Clock
EDID
DDC Data -
EDID
www.panelook.com
Model No.: N154C2-L04
Preliminary
Note (2) User’s connector Part No: JAE-FI-X30C2L
Note (3) The first pixel is odd as shown in the following figure.
12 / 29
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage White 2 LV Ground Black
Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent

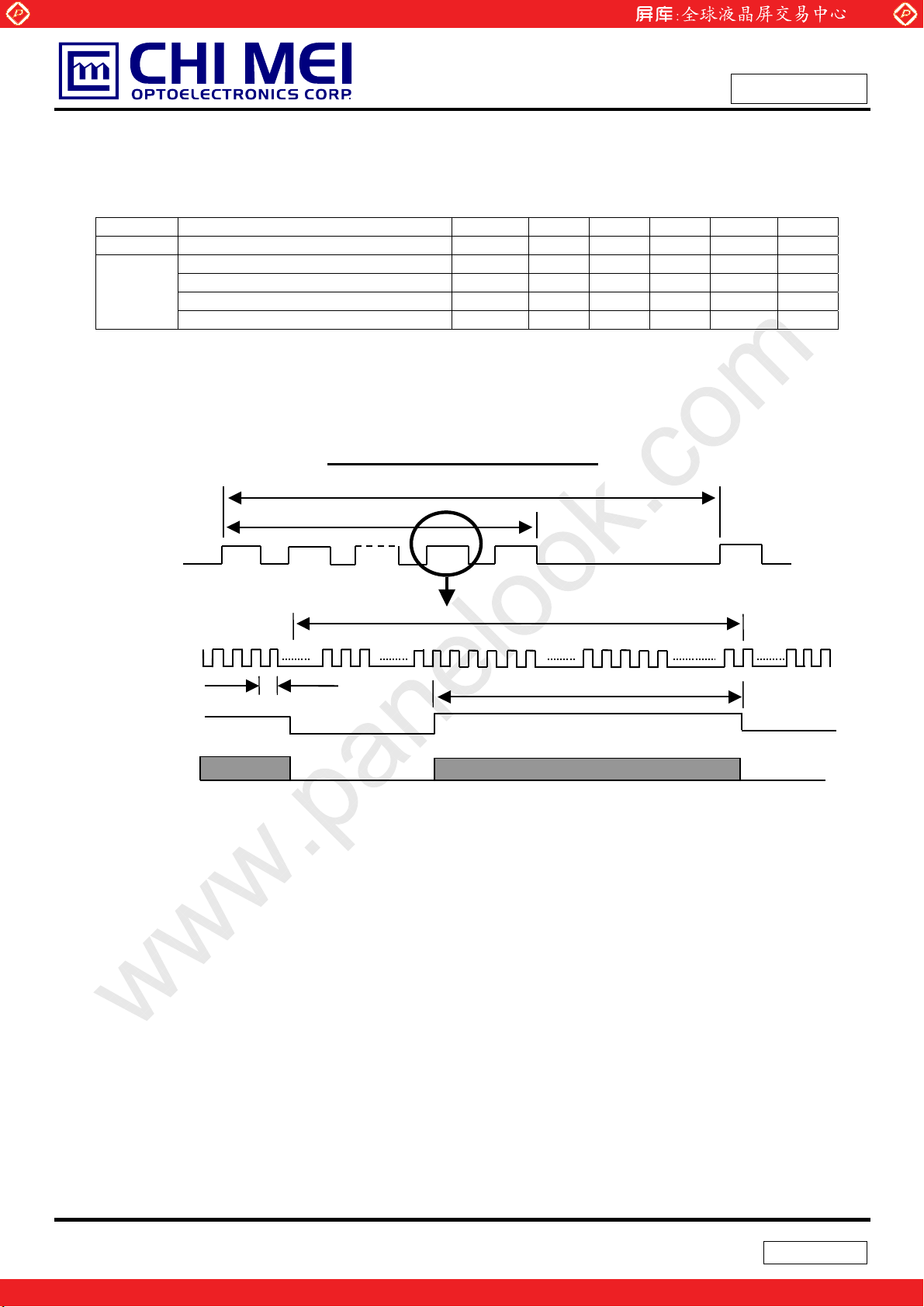

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
RXOC+
T/7
www.panelook.com
Model No.: N154C2-L04
Preliminary
RXO2+/-
RXO1+/-
RXO0+/-
RXEC+
RXE2+/-
RXE1+/-
RXE0+/-
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE OB5 OB4 OB3 OB2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
OB1 OG4 OG3 OG2 OG1 OB0 OG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
OG0 OR3 OR2 OR1 OR0 OR5 OR4
Signal for 1 DCLK Cycle (T)
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE EB5 EB4 EB3 EB2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
EB1 EG4 EG3 EG2 EG1 EB0 EG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
EG0 ER3 ER2 ER1 ER0 ER5 ER4
Signal for 1 DCLK Cycle (T)
13 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Model No.: N154C2-L04
Preliminary
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte #
(decimal)
0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
10 0A
11 0B 12 0C 13 0D 14 0E 15 0F 16 10 17 11 18 12 19 13 20 14 21 15 22 16 23 17 24 18 25 19 26 1A 27 1B 28 1C 29 1D 30 1E 31 1F 32 20 33 21 34 22 35 23 36 24 37 25 38 26 39 27 40 28 41 29
Byte #
(hex)
Field Name and Comments
Header Header Header Header Header Header Header Header EISA ID manufacturer name (“CMO”) EISA ID manufacturer name (Compressed ASCII) ID product code (N154C2-L04) 34 ID product code (hex LSB first; N154C2-L04) 15 ID S/N (fixed “0”) ID S/N (fixed “0”) ID S/N (fixed “0”) ID S/N (fixed “0”) Week of manufacture (fixed week code) Year of manufacture (fixed year code) EDID structure version # (“1”) EDID revision # (“3”) Video I/P definition (“digital”) Max H image size (“33.156cm”) 21 Max V image size (“20.7225cm”) 14 Display Gamma (Gamma = ”2.2”) Feature support (“Active off, RGB Color”) Rx1 Rx0 Ry1 Ry0 Gx1 Gx0 Gy1 Gy0 6C Bx1 Bx0 By1 By0 Wx1 Wx0 Wy1 Wy0 Rx= 0.591 97 Ry= 0.338 56 Gx= 0.319 51 Gy= 0.535 89 Bx= 0.151 26 By= 0.127 20 Wx= 0.313 50 Wy= 0.329 54 Established timings 1 Established timings 2 (1440x900@60Hz) Manufacturer’s reserved timings Standard timing ID # 1 Standard timing ID # 1 Standard timing ID # 2 Standard timing ID # 2
www.panelook.com
Model No.: N154C2-L04
Preliminary
Value
(hex)
00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111
00 00000000 0D 00001101 AF 10101111
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
10 00010000
01 00000001
03 00000011
80 10000000
78 01111000 0A 00001010
E5 11100101
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
01 00000001
Value
(binary)
00110011
00010101
00100001 00010100
01101100
10010111
01010110 01010001 10001001
00100110 00100000 01010000 01010100
15 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
Preliminary
42 2A 43 2B 44 2C 45 2D 46 2E 47 2F 48 30 49 31 50 32 51 33 52 34 53 35 54 36 Detailed timing description # 1 Pixel clock (“88.75MHz”,
55 37 56 38 57 39 58 3A 59 3B 60 3C 61 3D 62 3E 63 3F 64 40 65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync
66 42 67 43 68 44 69 45 70 46 71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
72 48 73 49 74 4A 75 4B # 2 FE (hex) defines ASCII string (Model Name “N154C2-L04”,
76 4C 77 4D 78 4E 79 4F 80 50 81 51 82 52 83 53 84 54
85 55
Standard timing ID # 3 Standard timing ID # 3 Standard timing ID # 4 Standard timing ID # 4 Standard timing ID # 5 Standard timing ID # 5 Standard timing ID # 6 Standard timing ID # 6 Standard timing ID # 7 Standard timing ID # 7 Standard timing ID # 8 Standard timing ID # 8
According to VESA CVT Rev1.1) # 1 Pixel clock (hex LSB first) # 1 H active (“1440”) # 1 H blank (“160”) # 1 H active : H blank (“1440 : 160”) # 1 V active (”900”) # 1 V blank (”26”) # 1 V active : V blank (”900 :26”) # 1 H sync offset (”48”) # 1 H sync pulse width ("32”) # 1 V sync offset : V sync pulse width (”3 : 6”)
width (”48: 32 : 3 : 6”) # 1 H image size (”332 mm”) 4C # 1 V image size (”207 mm”) CF # 1 H image size : V image size (”332 : 207”) # 1 H boarder (”0”) # 1 V boarder (”0”)
Negatives Detailed timing description # 2 # 2 Flag # 2 Reserved
ASCII) # 2 Flag # 2 1st character of name (“N”) 4E # 2 2nd character of name (“1”) 31 # 2 3rd character of name (“5”) 35 # 2 4th character of name (“4”) 34 # 2 5th character of name (“C”) 43 # 2 6th character of name (“2”) 32 # 2 7th character of name (“-”) 2D
# 2 8th character of name (“L”) 4C # 2 9th character of name (“0”) 30
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
AB 10101011
22 00100010 A0 10100000 A0 10100000
50 01010000
84 10000100 1A 00011010
30 00110000
30 00110000
20 00100000
36 00110110
00 00000000
01001100
11001111 10 00010000 00 00000000 00 00000000
18 00011000
00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
01001110 00110001 00110101 00110100 01000011 00110010 00101101
01001100
00110000
16 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
Preliminary
86 56 87 57 88 58 89 59 90 5A 91 5B 92 5C 93 5D 94 5E 95 5F 96 60 97 61 98 62
99 63 100 64 101 65 102 66 103 67 104 68 105 69 106 6A 107 6B 108 6C 109 6D
110 6E 111 6F # 4 FE (hex) defines ASCII string (Model Name“N141C1-L03”,
112 70 113 71 114 72 115 73 116 74 117 75 118 76
119 77 120 78 121 79 122 7A 123 7B 124 7C 125 7D 126 7E 127 7F
# 2 9th character of name (“3”) 33 # 2 New line character indicates end of ASCII string # 2 Padding with “Blank” character # 2 Padding with “Blank” character Detailed timing description # 3 # 3 Flag # 3 Reserved # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) # 3 Flag # 3 1st character of string (“C”) # 3 2nd character of string (“M”) # 3 3rd character of string (“O”) # 3 New line character indicates end of ASCII string # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character Detailed timing description # 4 # 4 Flag # 4 Reserved
ASCII) # 4 Flag # 4 1st character of name (“N”) 4E # 4 2nd character of name (“1”) 31 # 4 3rd character of name (“5”) 35 # 4 4th character of name (“4”) 34 # 4 5th character of name (“C”) 43 # 4 6th character of name (“2”) 32 # 4 7th character of name (“-”) 2D # 4 8th character of name (“L”) 4C # 4 9th character of name (“0”) # 4 9th character of name (“4”) # 4 New line character indicates end of ASCII string # 4 Padding with “Blank” character # 4 Padding with “Blank” character Extension flag 00 00000000 Checksum
0A 00001010
20 00100000 20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
43 01000011 4D 01001101 4F 01001111 0A 00001010
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
30 00110000
34 00110011 0A 00001010
20 00100000
20 00100000
93 10101000
00110011
01001110 00110001 00110101 00110100 01000011 00110010 00101101 01001100
17 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
6 INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 25 44.5 60 MHz (2)
Vertical Total Time TV 910 926 1500 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.
(2) 2 channels LVDS input.
Vertical Addressing Time TVD 900 900 900 TH -
Horizontal Total Time TH 760 800 880 Tc (2)
Horizontal Addressing Time THD 720 720 720 Tc (2)
www.panelook.com
Model No.: N154C2-L04
Preliminary
INPUT SIGNAL TIMING DIAGRAM
DE
DCLK
T
DE
DATA
TVD
C
v
T
T
H
HD
T
18 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center

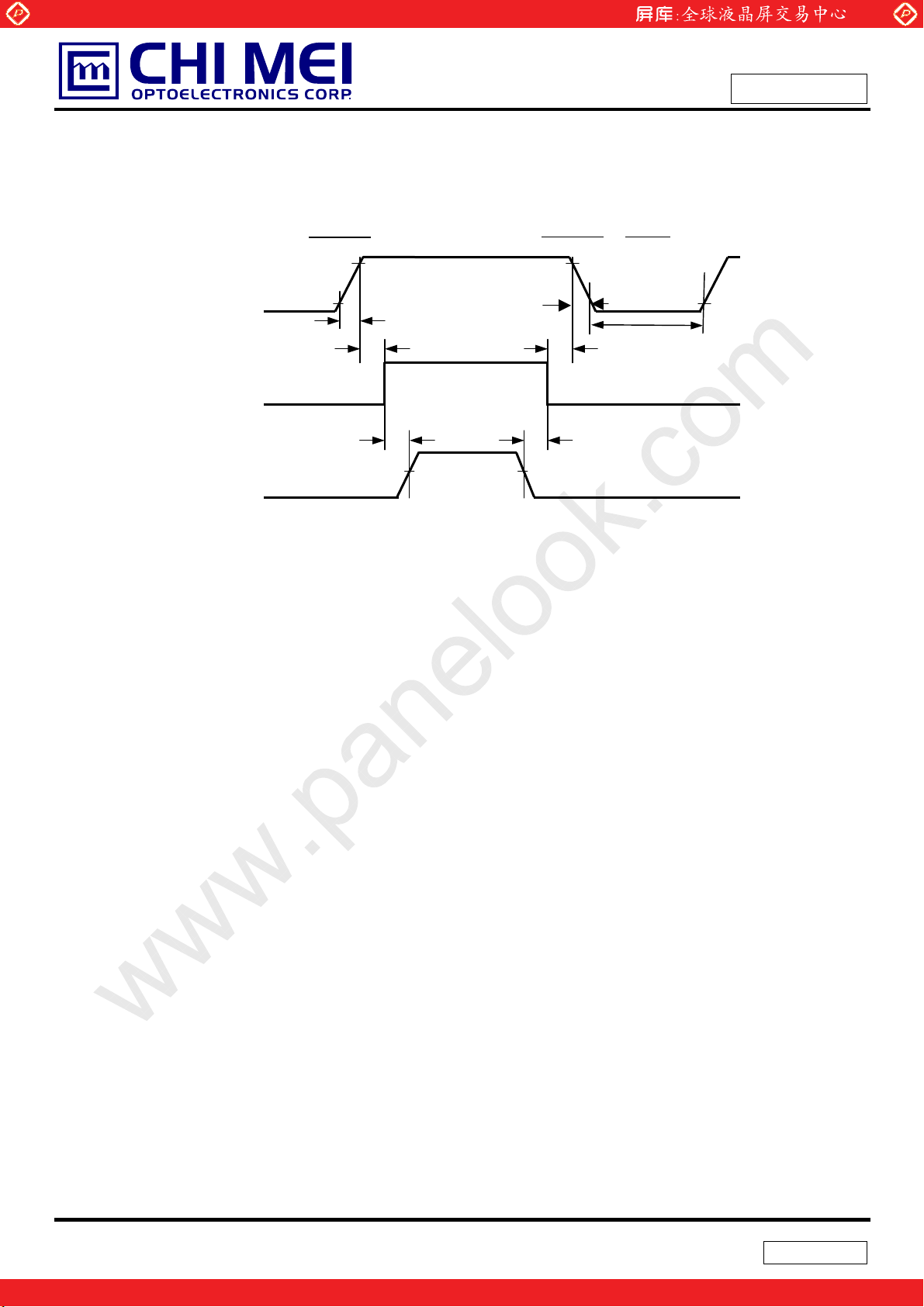

6.2 POWER ON/OFF SEQUENCE
Power On
www.panelook.com
Power Off
Model No.: N154C2-L04
Preliminary
Restart
Power Supply
for LCD, Vcc
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
Timing Specifications:
0.5 Љ t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
0V
0V
I
10%
t4 Њ 500 msec
t5 Њ 200 msec
90%
t1
90%
Valid Data
t6 t5
50%50%
ONOFF OFF
t7
10%
t4
t3 t2
10%
t6 Њ 200 msec
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow t7Њ5 msec
19 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta 25r2 Ambient Humidity Ha 50r10 %RH Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL Inverter Driving Frequency FL Inverter Sumida-H05-4915
The measurement methods of optical characteristics are shown in Section 7.2. The following items
should be measured under the test conditions described in Section 7.1 and stable environment shown in
Note (5).
www.panelook.com
6.0
61
Model No.: N154C2-L04
Preliminary
o
C
mA
KHz
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 300 400 - - (2), (5)
Response Time
Central Luminance of White LC 155 185 cd/m2(4), (5) Average Luminance of White L
White Variation
Red
Color Chromaticity
Green
Blue
White
Horizontal
Viewing Angle
Vertica l
TR - 3 8 ms
- 7 12 ms
T
F
150 175 - cd/m2(4), (5)
AVE
5pts - - 1.3 - (5), (6)
GW
Rx
Ry Gx Gy Bx By
=0q, TY =0q
T
x
Viewing Normal
Angle
TYP
-0.03
(0.593) (0.340) (0.317) (0.540) (0.151) (0.132)
TYP
+0.03
Wx 0.313 -
Wy
Tx+
T
x
TY+
T
Y
­CRt10
-
0.329
40 45 ­40 45 ­15 20 ­40 45 -
Deg.
(3)
-
-
-
-
-
­(1)
-
20 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center

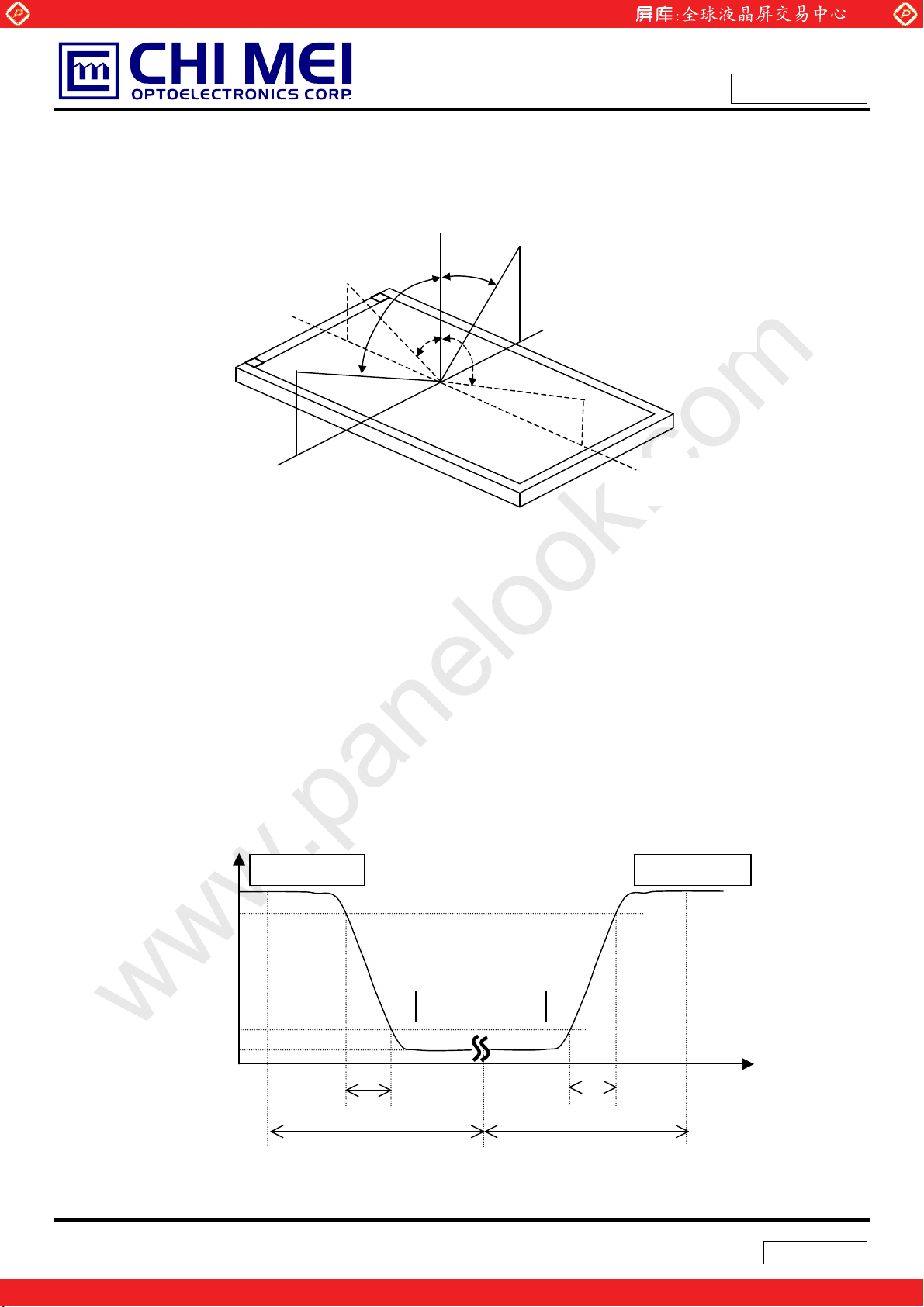

Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Model No.: N154C2-L04
Preliminary
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Normal
Tx = Ty = 0º
Ty- Ty
Tx-
Tx+
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
R
T
R
, TF):
Time
T
F
66.67 ms
66.67 ms
21 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
Preliminary
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).

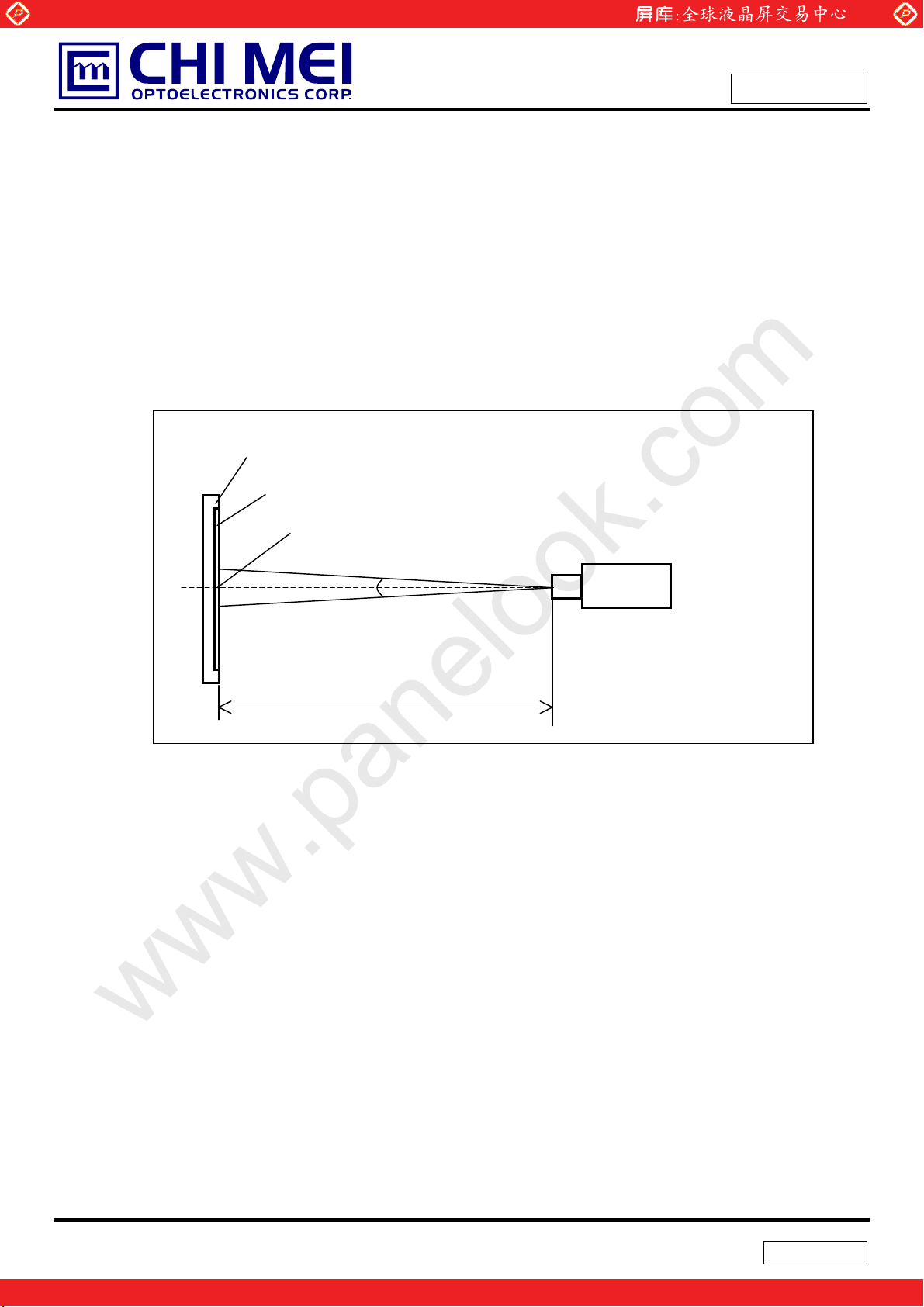

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 15 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
):
AVE
Field of View = 2º
TOPCON/BM-5A
MINOLTA /CA210
MINOLTA /CS-1000T
500 mm
Light Shield Room
(Ambient Luminance < 2 lux)
22 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center

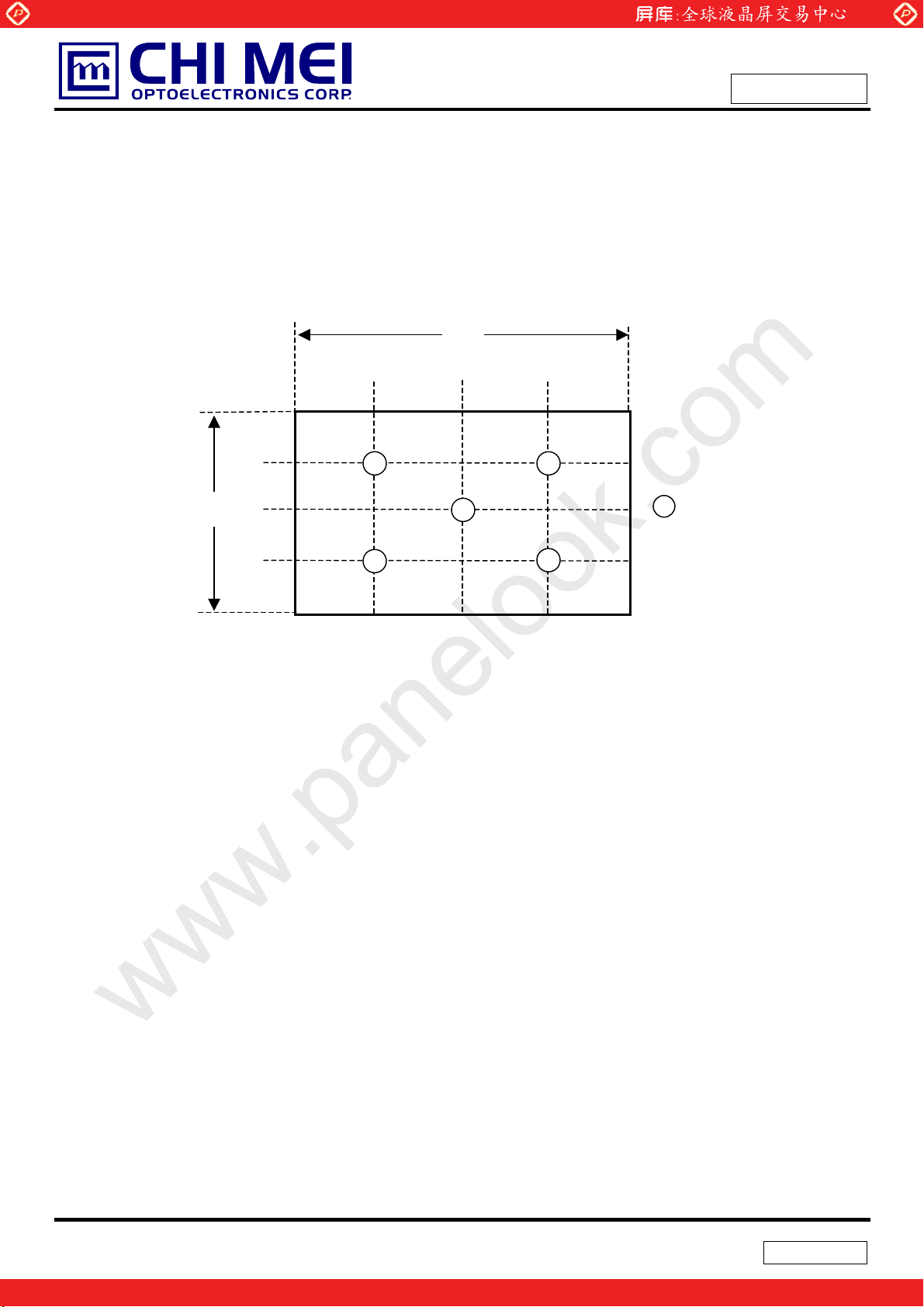

Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW
= Maximum [L (1) ~ L (5)] / Minimum [L (1) ~ L (5)]
5p
www.panelook.com
Model No.: N154C2-L04
Preliminary
Horizontal Line
Vertical Line
W
W/4
W/2
3W/4
D/4 D/2 3D/4
1 2
3
D
5
Active Area
X
4
: Test Point
X=1 to 5
23 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
8 PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
www.panelook.com
Model No.: N154C2-L04
Preliminary
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the lamp wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
24 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
9. PACKING
9.1 CARTON
LCD Module
Anti-static Bag
www.panelook.com
Model No.: N154C2-L04
Preliminary
Box dimensions:422(L)x337(W)x355(H)mm
Weight:Appox. 6.9 kg(10 module per 1 box)
PE Foam(Cover)
Carton
Drier
Carton Label
25 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center

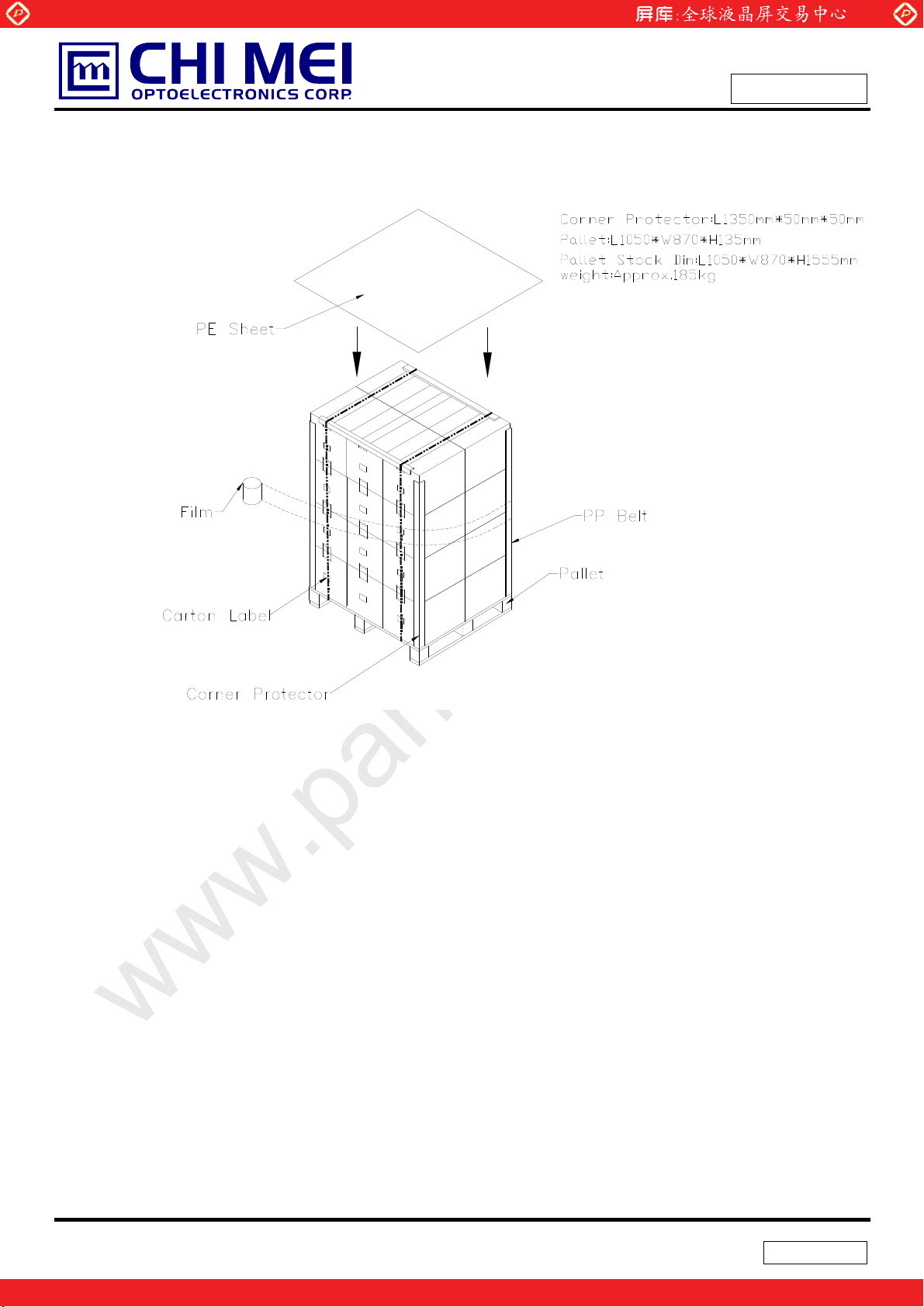

9.2 PALLET
www.panelook.com
Model No.: N154C2-L04
Preliminary
26 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N154C2-L04
Preliminary
10
DEFINITION OF LABELS

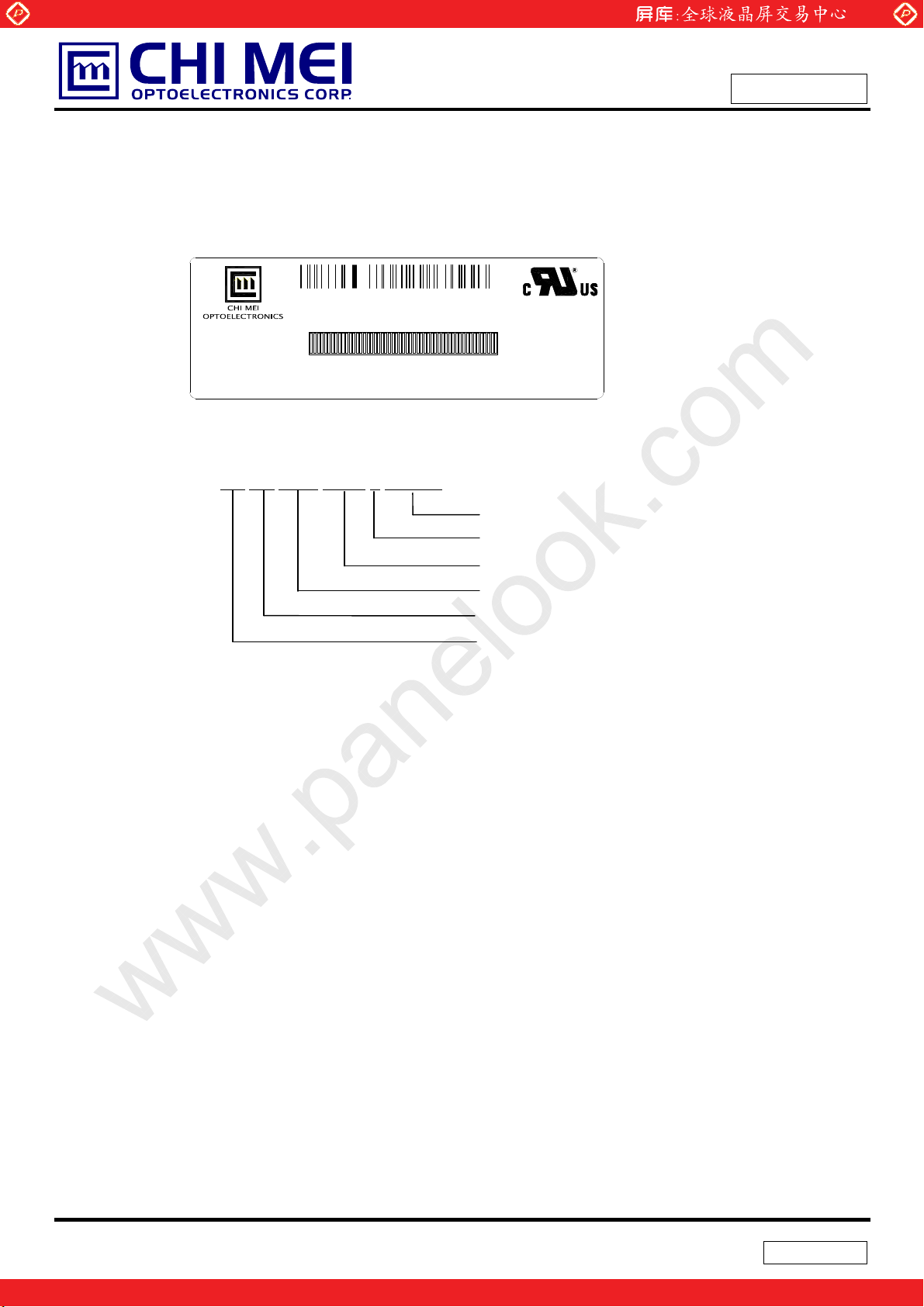

10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
01A
*ZYywwsssTW8A*
N154C2 -L04
N141X5 - L03 Rev.XX
X X X X X X X Y M D L N N N N
C P 1 3 5 4 4 8 - 0 1
E207943
MADE IN TAIWAN
(a) Model Name: N154C2 - L04
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
st
Serial No. CMO Internal Use
Year, Month, Date CMO Internal Use
Revision
CMO Internal Use
to 31st, exclude I , O and U
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
27 / 29
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center

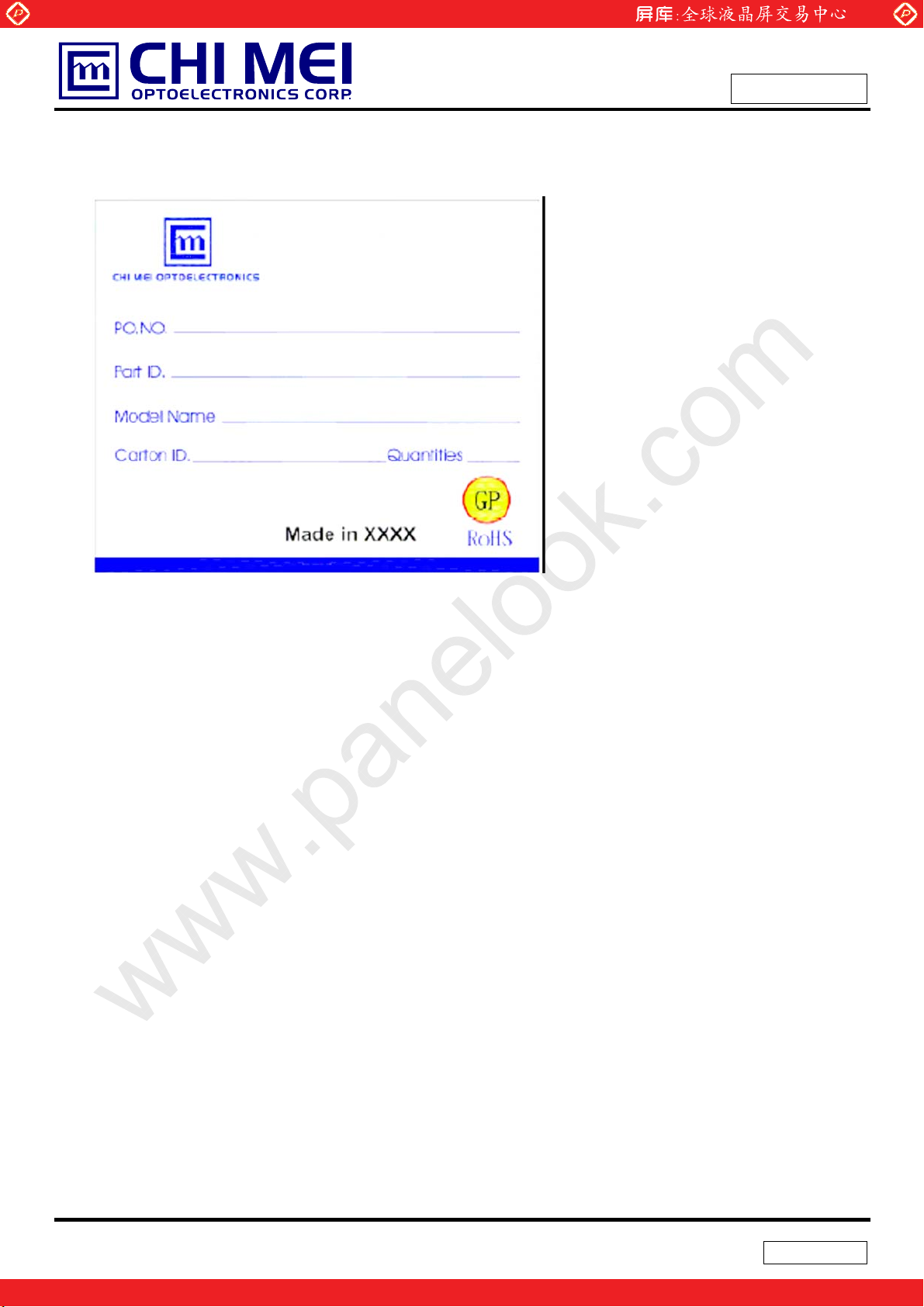

10.2 CARTON LABEL
www.panelook.com
Model No.: N154C2-L04
Preliminary
28 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
