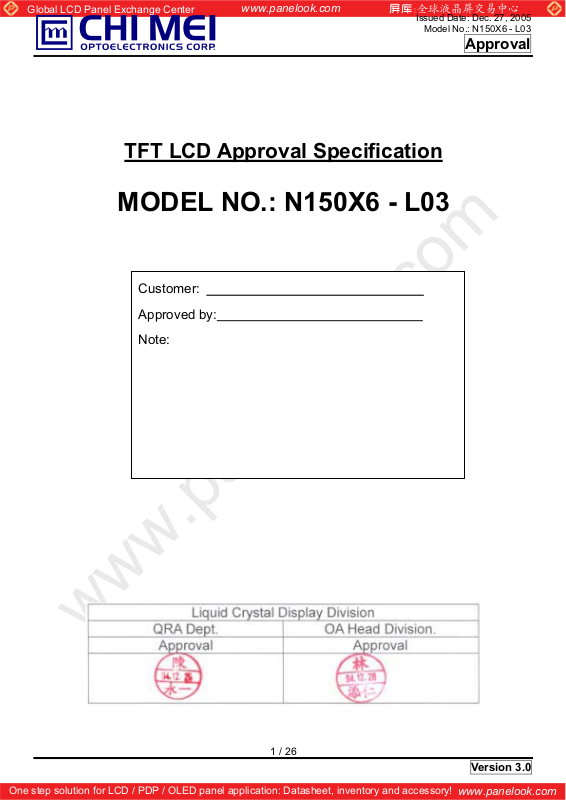

CMO N150X6-L03 Specification

Global LCD Panel Exchange Center

TFT LCD Approval Specification

MODEL NO.: N150X6 - L03

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Customer:

Approved by:

Note:

1 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION ------------------------------------------------------- 5

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10
TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA

5.5 EDID SIGNAL SPECIFICATION

6. INTERFACE TIMING ------------------------------------------------------- 21

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 23

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS ------------------------------------------------------- 27

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

8.2 SAFETY PRECAUTIONS

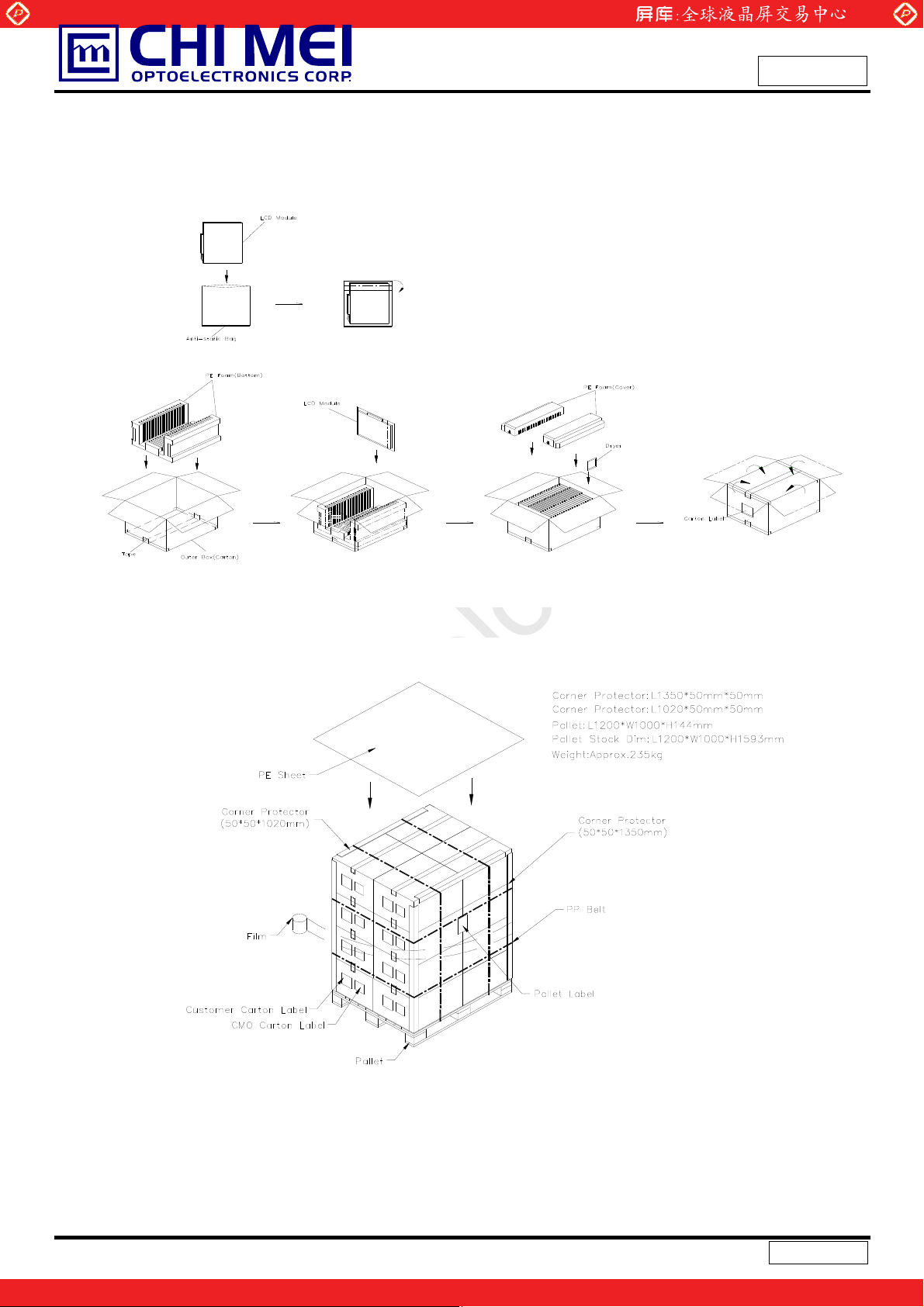

9. PACKING ------------------------------------------------ 32

9.1 CARTON

9.2 PALLET

2 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

REVISION HISTORY

Version Date

Ver 3.0 Dec. 27, ‘05 All All Approval Specification was first issued for Mitac.

Page

(New)

Section Description

3 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N150X6 - L03 is a 15.0” TFT Liquid Crystal Display module. This module supports 1024 x 768 XGA mode

and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.

1.2 FEATURES

- Thin and Light Weight

- XGA (1024 x 768 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

- SPWG (Standard Panel Working Group) Style B compatible

- Single CCFL

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 304.1 (H) x 228.1 (V) (15.0” diagonal) mm
Bezel Opening Area 307.8 (H) x 231.6 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1024 x R.G.B. x 768 pixel ­Pixel Pitch 0.297 (H) x 0.297 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 316.8 317.3 317.8 mm (1)

Module Size

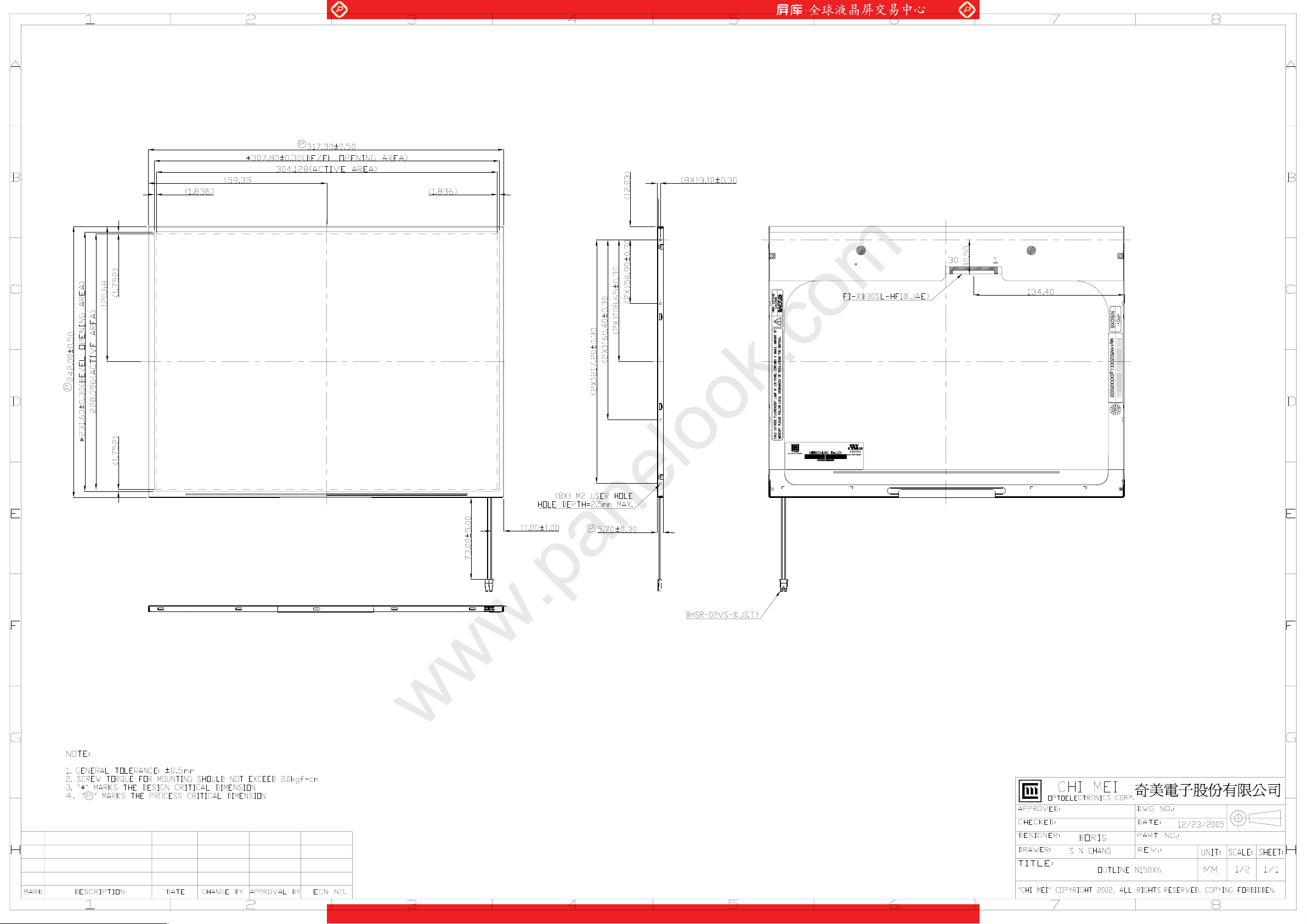

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 241.5 242 242.5 mm (1)
Depth(D) - 5.7 6.0 mm (1)

Weight - 555 570 g -

(1)

4 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.

Relative Humidity (%RH)

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Value

Min. Max.

- 200/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,.

Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.

8060-20 400 20-40

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - (2.5K) V
Lamp Current IL - (7.5) mA
Lamp Frequency FL - (80) KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

www.panelook.com

Value

Min. Max.

Value

Min. Max.

Unit Note

Unit Note

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

(1)

(1), (2), IL = 6.0 mA

RMS

RMS

(1), (2)

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Rush Current I

Power Supply Current

White - 320 360 mA (3)a
Black

- - 1.5 A (2)

RUSH

Lcc

- 440 480 mA (3)b

“H” Level VIL - - +100 mV - Logical Input Voltage

(LVDS)

“L” Level V

-100 - - mV -

IH

Terminating Resistor RT - 100 - Ohm -

Note (1) The module should be always operated within above ranges.

Note (2) Measurement Conditions:

+3.3V

R1

47K

Q1 2SK1475

Value

FUSE

C3

1uF

Unit Note

Vcc

(LCD Module Input)

(High to Low)

(Control Signal)

SW

+12V

R2

1K

47K

VR1

C1

1uF

0.01uF

Q2

2SK1470

C2

6 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Vcc rising time is 470µs

0.1Vcc

GND

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

+3.3V

0.9Vcc

470µs

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

Hz, whereas a power dissipation check pattern below is displayed.

a. White Pattern

Active Area

b. Black Pattern

Active Area

= 60

v

7 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Lamp Input Voltage VL 660 V
Lamp Current IL 2.0 6.0 6.5 mA

Lamp Turn On Voltage V

S

- 1130 (25

- 1355 (0
Operating Frequency FL (45) 60 (80) KHz (3)
Lamp Life Time LBL 15,000 - Hrs (5)
Power Consumption PL - 3.96 - W (4), IL = 6.0 mA

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

o

C) V

o

C) V

Unit Note

I

RMS

(1)

RMS

(2)

RMS

(2)

RMS

Approval

= 6.0 mA

L

HV (White)

LCD

LV (Black)

Module

1

Inverter

2

A

Current Meter

Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.

Otherwise the lamp may not be turned on.

Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

Note (4) P

L

= I

LVL

Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition

Ta = 25 2

o

C and IL = 6.0 mArms until one of the following events occurs:

(a) When the brightness becomes or lower than 50% of its original value.

(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective

ignition length is defined as an area that has less than 70% brightness compared to the

brightness in the center point.)

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid producing too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

8 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

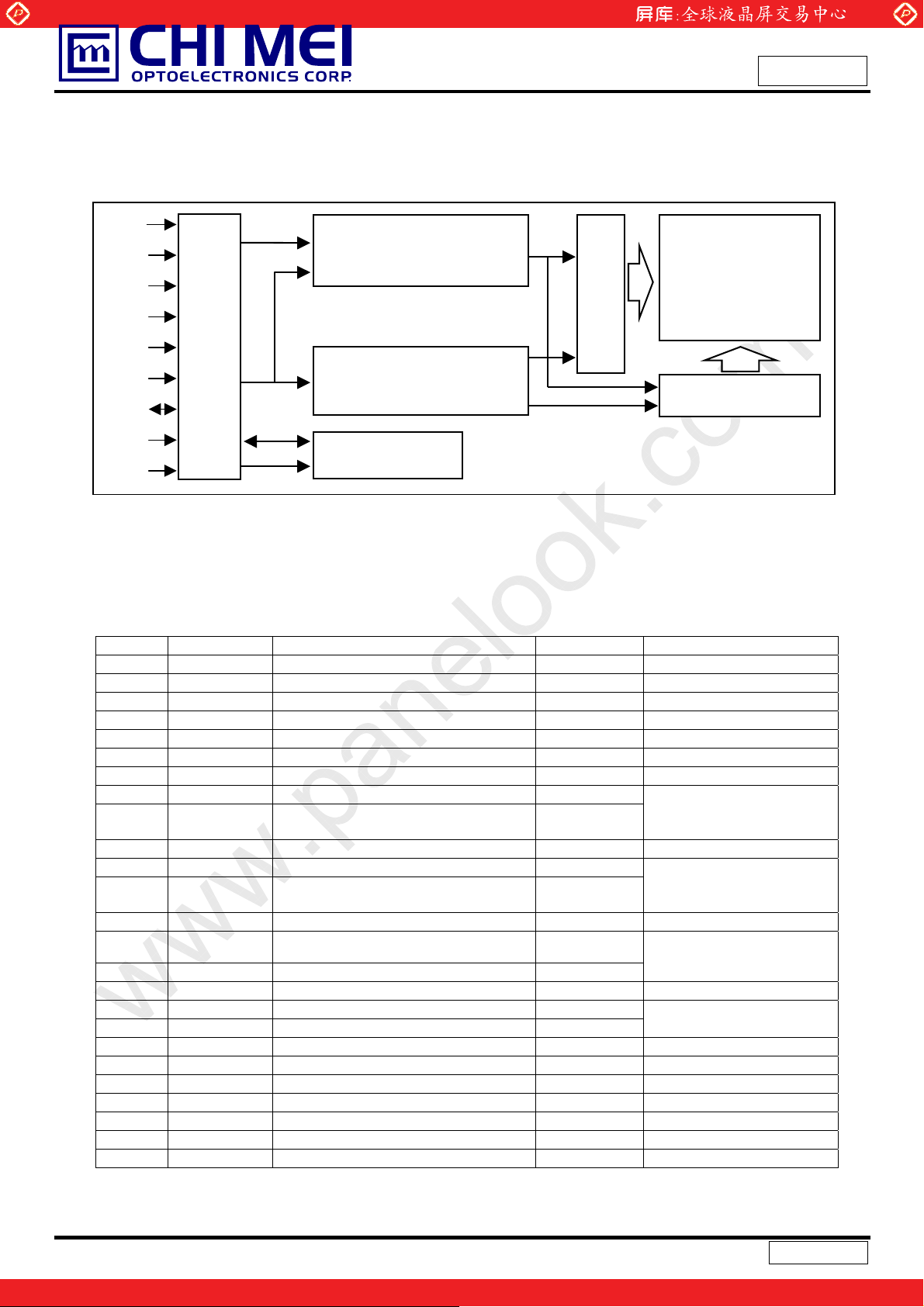

4. BLOCK DIAGRAM

TFT LCD MODULE

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Rxin0(+/-)

LVDS INPUT /

Rxin1(+/-)

Rxin2(+/-)

CLK(+/-)

Vcc

GND

(JAE-FI-XB30SL-HF10)

INPUT CONNECTOR

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

Data

CLK

V

EDID

EDID

EDID

GENERATOR

EDID

EEPROM

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 BIST Panel BIST Enable
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative

DDC 3.3V Power

EDID

DDC Clock

EDID

DDC Data -

EDID

SCAN DRIVER IC

TFT LCD PANEL

(1024xR.G.B.x768)

DATA DRIVER IC

R0~R5,G0

9 Rxin0+ LVDS Differential Data Input Positive

­10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

G1~G5,B0,B1

­13 Vss Ground

14 Rxin2- LVDS Differential Data Input Negative

B2~B5,DE,Hsync,Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive

LVDS Level Clock

19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
25 Vss Ground

9 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection

Note (1) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent

Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

Note (3) The first pixel is even.

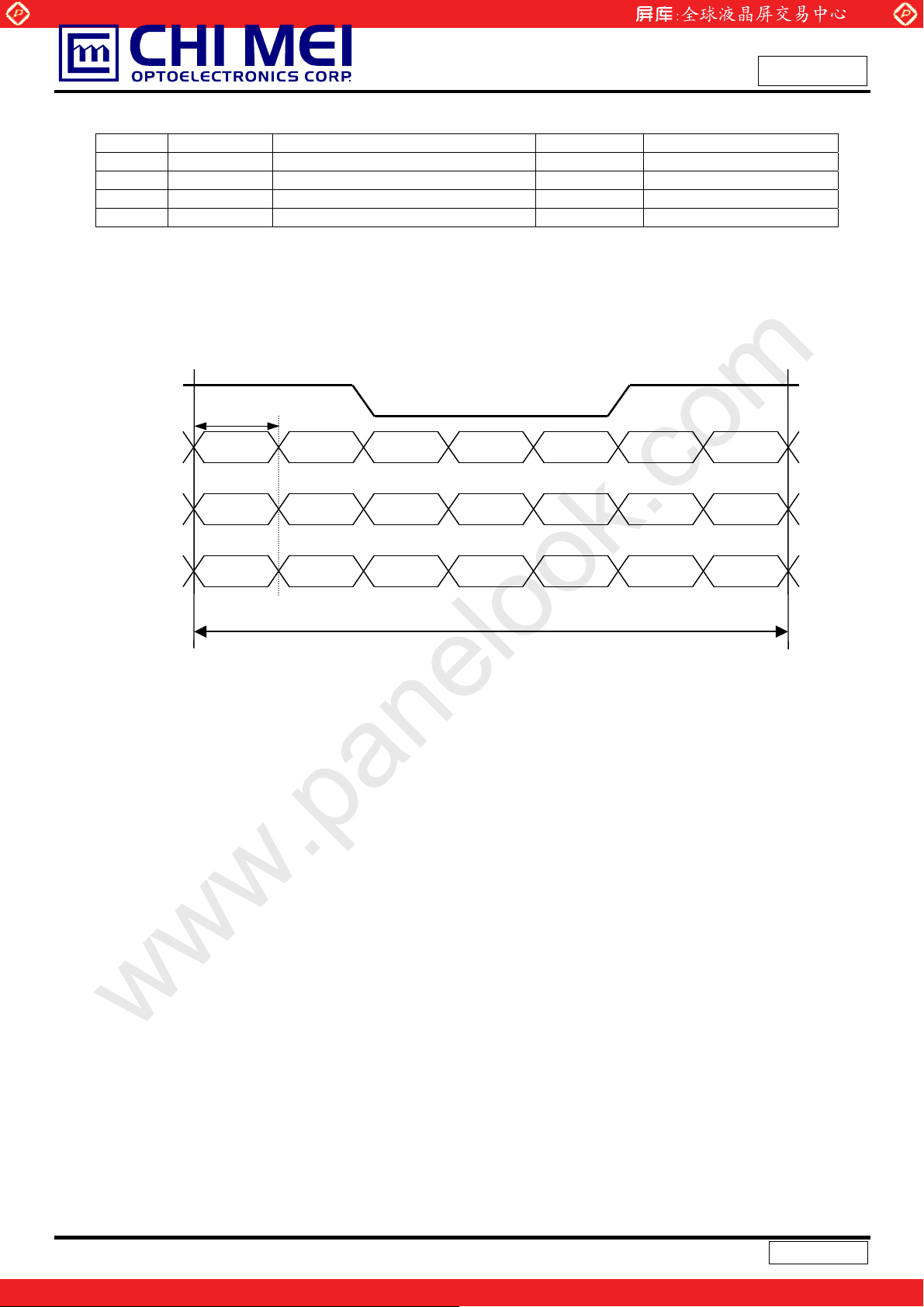

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0R5 R4

Signal for 1 DCLK Cycle (T)

10 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0
:
:

1

1

1

1

1

1

0

0

0

0

0

0
:
:

0

0

0

0

0

0

0

0

0

0

0

0
:
:

0

0

0

0

0

0

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

11 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.4 EDID DATA

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte #

(decimal)

0 0 Header 00 00000000
1 1 Header FF 11111111
2 2 Header FF 11111111
3 3 Header FF 11111111
4 4 Header FF 11111111
5 5 Header FF 11111111
6 6 Header FF 11111111
7 7 Header 00 00000000
8 8 EISA ID manufacturer name (“CMO”) 0D 00001101

9 9 EISA ID manufacturer name (Compressed ASCII) AF 10101111
10 0A ID product code (N150X6) 02 00000010
11 0B ID product code (hex LSB first; N150X6) 15 00010101
12 0C ID S/N (fixed “0”) 00 00000000
13 0D ID S/N (fixed “0”) 00 00000000
14 0E ID S/N (fixed “0”) 00 00000000
15 0F ID S/N (fixed “0”) 00 00000000

16
17

18 12 EDID structure version # (“1”) 01 00000001
19 13 EDID revision # (“3”) 03 00000011
20 14 Video I/P definition (“digital”) 80 10000000
21 15 Max H image size (“30.4128 cm”) 1E 00011110
22 16 Max V image size (“22.8096 cm”) 17 00010111
23 17 Display Gamma (Gamma = ”2.2”) 78 01111000
24 18 Feature support (“Active off, RGB Color”) 0A 00001010

25
26
27
28
29
30
31
32

33 21 White-x (Wx = ”0.309”) 4F 01001111
34 22 White-y (Wy = ”0.329”) 54 01010100
35 23 Established timings 1 00 00000000

36
37 25 Manufacturer’s reserved timings 00 00000000

38 26 Standard timing ID # 1 01 00000001
39 27 Standard timing ID # 1 01 00000001
40 28 Standard timing ID # 2 01 00000001
41 29 Standard timing ID # 2 01 00000001

Byte

#(hex)

Field Name and Comments Value

10 Week of manufacture (fixed) 0E 00001110
11 Year of manufacture (fixed) 0D 00001101

19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 77 01110111
1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) F1 11110001
1B Red-x (Rx = “0.626”) A0 10100000
1C Red-y (Ry = “0.355”) 5A 01011010
1D Green-x (Gx = ”0.294”) 4B 01001011
1E Green-y (Gy = ”0.589”) 96 10010110

1F Blue-x (Bx = ”0.144”) 24 00100100
20 Blue-y (By = ”0.097”) 18 00011000

24 Established timings 2 (1024x768@60Hz) 08 00001000

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Value

(hex)

(binary)

12 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

42 2A Standard timing ID # 3 01 00000001
43 2B Standard timing ID # 3 01 00000001

44 2C Standard timing ID # 4 01 00000001
45 2D Standard timing ID # 4 01 00000001
46 2E Standard timing ID # 5 01 00000001
47 2F Standard timing ID # 5 01 00000001
48 30 Standard timing ID # 6 01 00000001
49 31 Standard timing ID # 6 01 00000001
50 32 Standard timing ID # 7 01 00000001
51 33 Standard timing ID # 7 01 00000001
52 34 Standard timing ID # 8 01 00000001
53 35 Standard timing ID # 8 01 00000001
54 36 Detailed timing description # 1 Pixel clock (“65 MHz”) 64 01100100
55 37 # 1 Pixel clock (hex LSB first) 19 00011001
56 38 # 1 H active (“1024”) 00 00000000
57 39 # 1 H blank (“320”) 40 01000000
58 3A # 1 H active : H blank (“1024 : 320”) 41 01000001
59 3B # 1 V active (”768”) 00 00000000
60 3C # 1 V blank (”38”) 26 00100110
61 3D # 1 V active : V blank (”768 : 38”) 30 00110000
62 3E # 1 H sync offset (”24”) 18 00011000
63 3F # 1 H sync pulse width (”136”) 88 10001000
64 40 # 1 V sync offset : V sync pulse width (”3 : 6”) 36 00110110
65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync

width (”24 : 136 : 3 : 6”)

66 42 # 1 H image size (”304.128 mm”) 30 00110000
67 43 # 1 V image size (”228.096 mm”) E4 11100100
68 44 # 1 H image size : V image size (”304 : 228”) 10 00010000
69 45 # 1 H boarder (”0”) 00 00000000
70 46 # 1 V boarder (”0”) 00 00000000
71 47 # 1 Flags (”Non-Interlace, Non-Stereo, Digital Separate”) 18 00011000
72 48 Detailed timing description # 2 00 00000000
73 49 # 2 Flag 00 00000000
74 4A # 2 Reserved 00 00000000

4B # 2 FE (hex) defines ASCII string (Model Name “N150X3”,

75
76 4C # 2 Flag 00 00000000

77 4D # 2 1st character of string (“N”) 4E 01001110
78 4E # 2 2nd character of string (“1”) 31 00110001
79 4F # 2 3rd character of string (“5”) 35 00110101
80 50 # 2 4th character of string (“0”) 30 00110000
81 51 # 2 5th character of string (“X”) 58 01011000
82 52 # 2 6th character of string (“6”) 36 00110110
83 53 # 2 New line character # 2 indicates end of ASCII string 20 00100000
84 54 # 2 Padding with “Blank” character 20 00100000
85 55 # 2 Padding with “Blank” character 20 00100000
86 56 # 2 Padding with “Blank” character 20 00100000
87 57 # 2 Padding with “Blank” character 20 00100000

ASCII)

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

00 00000000

FE 11111110

13 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

88 58 # 2 Padding with “Blank” character 20 00100000
89 59 # 2 Padding with “Blank” character 20 00100000

90 5A Detailed timing description # 3 00 00000000
91 5B # 3 Flag 00 00000000
92 5C # 3 Reserved 00 00000000
93 5D # 3 FE (hex) defines ASCII string (Model Name “N150X3”,

ASCII)

94 5E # 3 Flag 00 00000000

95
96
97
98

99
100
101
102
103
104
105
106

5F # 3 1
60 # 3 2
61 # 3 3
62 # 3 4
63 # 3 5
64 # 3 6
65 # 3 New line character # 3 indicates end of ASCII string 20 00100000
66 # 3 Padding with “Blank” character 20 00100000
67 # 3 Padding with “Blank” character 20 00100000
68 # 3 Padding with “Blank” character 20 00100000
69 # 3 Padding with “Blank” character 20 00100000

6A # 3 Padding with “Blank” character 20 00100000
107 6B # 3 Padding with “Blank” character 20 00100000
108 6C Detailed timing description # 4 00 00000000
109 6D # 4 Flag 00 00000000
110 6E # 4 Reserved 00 00000000

111 6F # 4 FE (hex) defines Monitor name (“Color LCD”, ASCII) FE 11111100

112 70 # 4 Flag 00 00000000

113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

71 SMBUS value @ 20nits = 237d ED 11101101
72 SMBUS value @ 28nits = 201d C9 11001001
73 SMBUS value @ 40nits = 178d B2 10100010
74 SMBUS value @ 56nits = 157d 9D 10011101
75 SMBUS value @ 79nits = 132d 84 10000100
76 SMBUS value @ 111nits = 98d 62 01100010
77 SMBUS value @ 156nits = 61d 3D 00111101
78 SMBUS value @ 220nits = 0d 00 00000000

79 Numbers of LVDS Recevier chip = 1 01 00000001
7A # 4 New line character # 4 indicates end of Monitor name 00 00000000
7B # 4 Padding with “Blank” character 0A 00001010
7C # 4 Padding with “Blank” character 20 00100000
7D # 4 Padding with “Blank” character 20 00100000
7E Extension flag 00 00000000

7F Checksum 2C 00101100

st

character of string (“N”) 4E 01001110

nd

character of string (“1”) 31 00110001

rd

character of string (“5”) 35 00110101

th

character of string (“0”) 30 00110000

th

character of string (“X”) 58 01011000

th

character of string (“6”) 36 00110110

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

FE 11111110

14 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.5 EDID SIGINAL SPECIFICATION

(1) EDID Power

Parameter Symbol Conditions Min. Typ. Max. Unit

Power supply

voltage

Vcc Read Operation 2.2 — 5.5 V

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

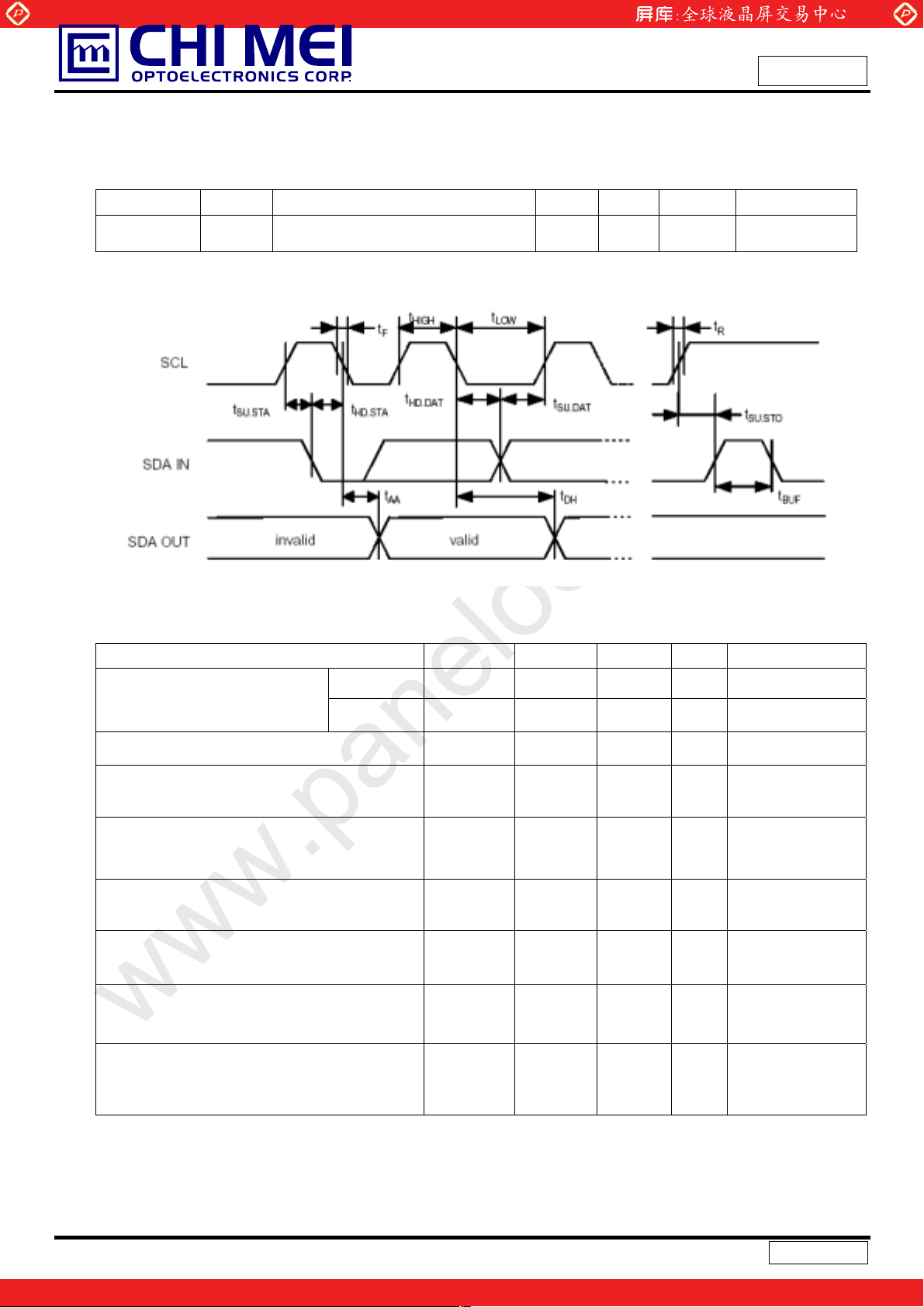

(2) DC characteristics

Symbol Min. Max. Unit Index

SCL, SDA terminal input voltage

Hysteresis Voltage VHYS 0.05 VCC — V

Output Voltage

Input Leak current

(Vin =0.1V~VCC)

Output Leak current ILO -10 10 uA

Terminal capacity(Input, Output) Cin, Cout — 10 pF

Operating current

Stillness current

(SDA=SCL=VCC)

(WP=VSS,A0,A1,A2=VSS)

High Voltage VIH

Low Voltage VIL —

VOL1
VOL2

ILI

ICC Write
ICC Read

ICCS —

0.7uV

—

-10

-10

—

CC

— V

0.3uV

0.4

0.6

10
50

3
1

30

100

CC

V

IOL=3mA, CC=2.5V

V

IOL=6mA, CC=2.5V

uA

Vout =0.1V~VCC,

Fclk=1.0MHz

mA

uA

VCC=5.5V,

SCL=400KHz

WP=VSS
WP=VCC

WP=VSS

VCC=5.0V

Ta=250C,

VCC=3.0V
VCC=5.5V

15 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(3) AC characteristics (VCC=2.5~5.5V standard operation mode)

Item Symbol

Clock frequency Fclk — 100 — 400 KHz

Clock High Time THIGH 4000 — 900 —

Clock Low Time TLOW 4700 — 1300 —

SDA, SCL falling time TR — 1000 — 300

SDA, SCL rising time TF — 300 — 300

START hold time THD: STA 4000 — 600 —

START setup time TSU: STA 4700 — 600 —

Data input hold time THD: Data 0 — 0 —

Data input setup time TSU: Data 250 — 100 —

STOP setup time TSU: STO 4700 — 600 —

Output decision time from

a clock

Bus free time TBUF 4700 — 1300 —

Rising time of Min VIH,

VIL

Spike oppression TSP — 50 — 50 ns

A write-in cycle time TWR — 10 — 10 ms

The number of times of

data rewriting

TAA — 3500

TOF — 250

— 1M — 1M — cycles

www.panelook.com

VCC=2.5V-5.5V

(Standard operation

mode)

Min. Max. Min. Max. Unit Index

VCC=4.5V-5.5V

(High-speed

operation mode)

100 900

20 250

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

ns

ns

ns

ns

ns

ns

ns

ns

ns

ns

ns

ns

CBЉ100pF

Byte and

page mode

VCC=5.0V

Ta=25

0

C,

16 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

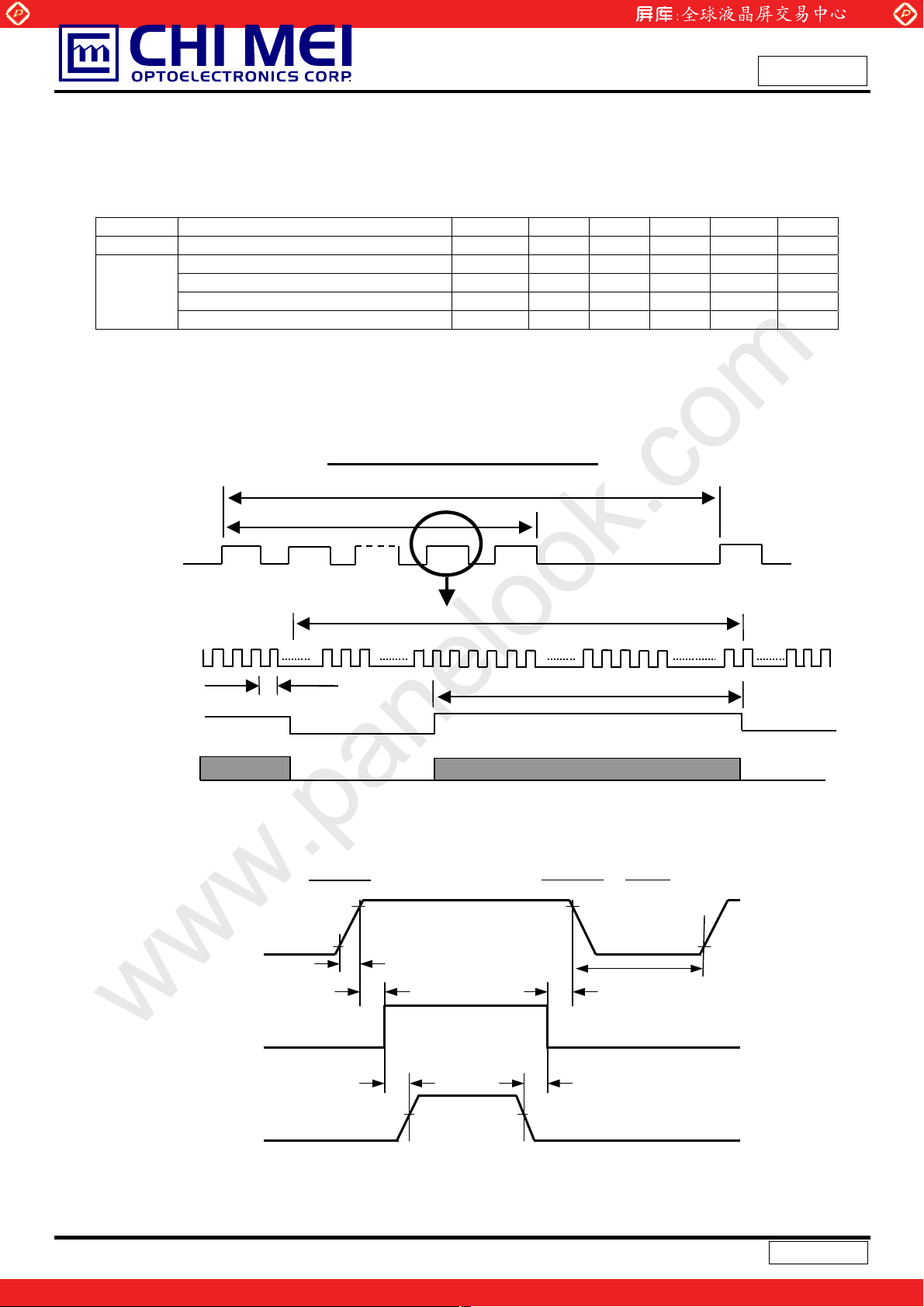

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 50 65 68 MHz -

Frame Time Cycle TV 771 806 850 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync input signals should be set

to low logic level or ground. Otherwise, this module would operate abnormally.

Vertical Active Display Period TVD 768 768 768 TH -

One Line Scanning Time Cycle TH 1200 1344 1600 Tc -

Horizontal Active Display Period THD 1024 1024 1024 Tc -

INPUT SIGNAL TIMING DIAGRAM

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

DE

DCLK

TC

DE

DATA

6.2 POWER ON/OFF SEQUENCE

Power On

90%

Power Supply

for LCD, Vcc

0V

10%

HD

T

Power Off

90%

t1

t3t2

Restart

10%

t4

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power for Lamp

0V

Valid Data

t6t5

50%50%

ONOFF OFF

17 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Timing Specifications:

0.47 < t1 Љ 10 msec

0 < t2 Љ 50 msec

0 < t3 Љ 50 msec

t4 Њ 500 msec

t5 Њ 200 msec

t6 Њ 200 msec

Note (1) Please avoid floating state of interface signal at invalid period.

Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

18 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IL 6.0 mA
Inverter Driving Frequency FL (50) KHz
Inverter TBD

The relative measurement methods of optical characteristics are shown in 6.2. The following items

should be measured under the test conditions described in 6.1 and stable environment shown in Note (6).

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 300 - - - (2), (6)

Response Time

Average Luminance of White L
White Variation
Cross Talk CT - - 3.0 % (5), (6)

Red

Color
Chromaticity

Viewing Angle

Green

Blue

White

Horizontal

Vertical

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

o

25r2

50r10

TR - 6 10 ms

- 17 25 ms

T

F

200 220 - cd/m2(4), (6)

AVE

GW

Rx (0.594) ­Ry (0.342) -

=0q, TY =0q

T

x

Viewing Normal Angle

- - 1.25 - (6), (7)

Gx (0.317) ­Gy (0.530) ­Bx (0.150) -

Typ

-0.03

Typ

+0.03

By (0.130) ­Wx 0.313 ­Wy

Tx+

T
TY+

T

Y

-

x

CRt10

-

0.329
40 45 ­40 45 ­15 20 ­35 40 -

C

%RH

-

Deg.

(3)

(1), (6)

19 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Normal

Tx = Ty = 0º

Ty- Ty

TX- = 90º

6 o’clock

T

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

Tx

Tx

y+

12 o’clock direction

T

y+ = 90º

x+

TX+ = 90º

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

, TF):

R

R

Time

T

F

20 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

A

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (7).

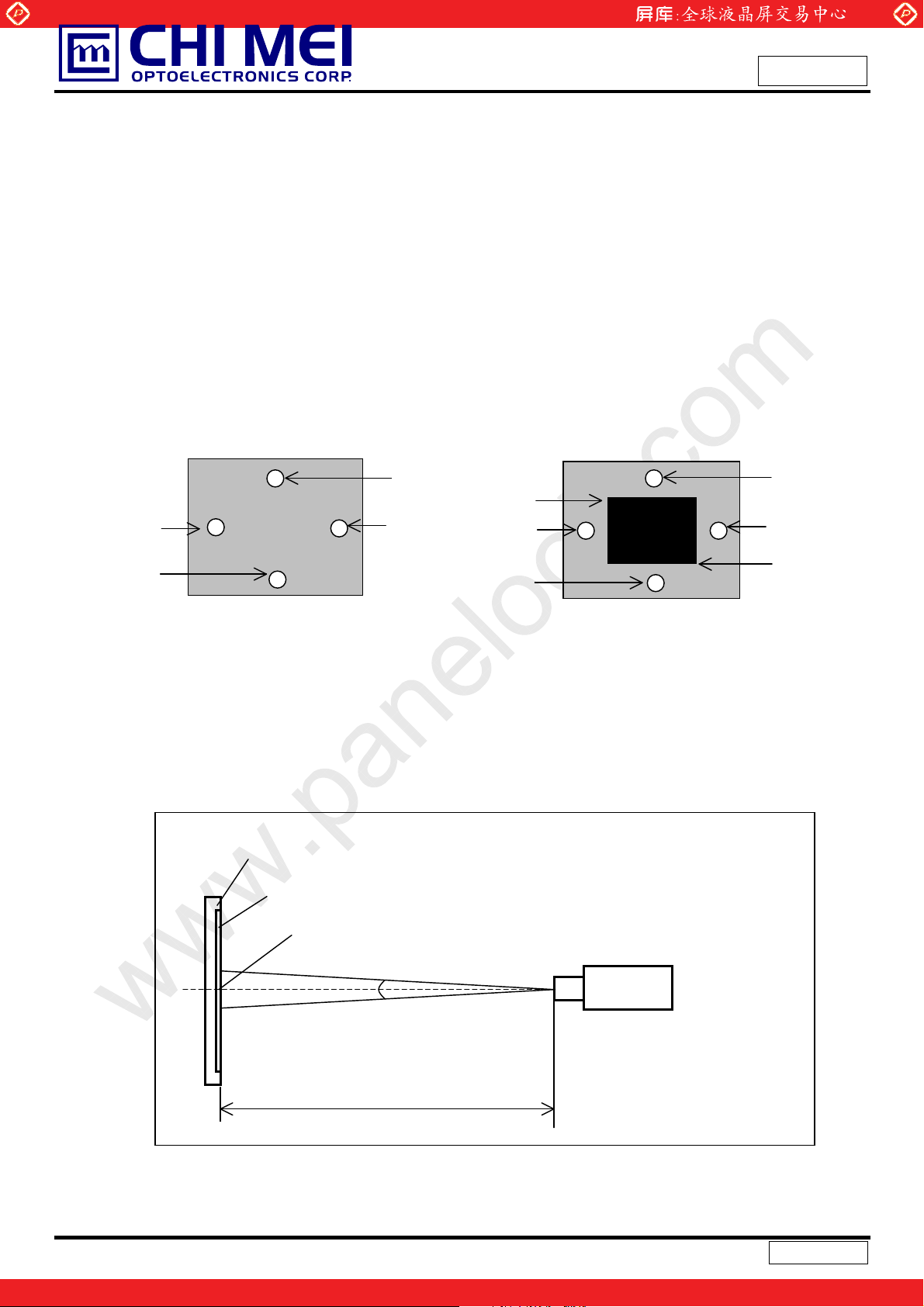

Note (5) Definition of Cross Talk (CT):

CT = | Y

– YA | / YAu 100 (%)

B

Where:

Y

= Luminance of measured location without gray level 0 pattern (cd/m2)

A

Y

= Luminance of measured location with gray level 0 pattern (cd/m2)

B

ctive Area

Gray 32

Y

A, U

Y

A, R

(D,W)

(D/2,W/8)

(7D/8,W/2)

Y

(D/8,W/2)

A, L

Y

(D/2,7W/8)

A, D

(0, 0)

AVE

):

(D/4,W/4)

Y

(D/8,W/2)

B, L

Y

(D/2,7W/8)

B, D

(0, 0)

ctive Area

Gray 0

Gray 32

Y

B, U

Y

B, R

(3D/4,3W/4)

(D,W)

(D/2,W/8)

(7D/8,W/2)

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

Center of the Screen

Field of View = 2º

500 mm

Photometer

(TOPCON BM-5A)

Light Shield Room

(Ambient Luminance < 2 lux)

21 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

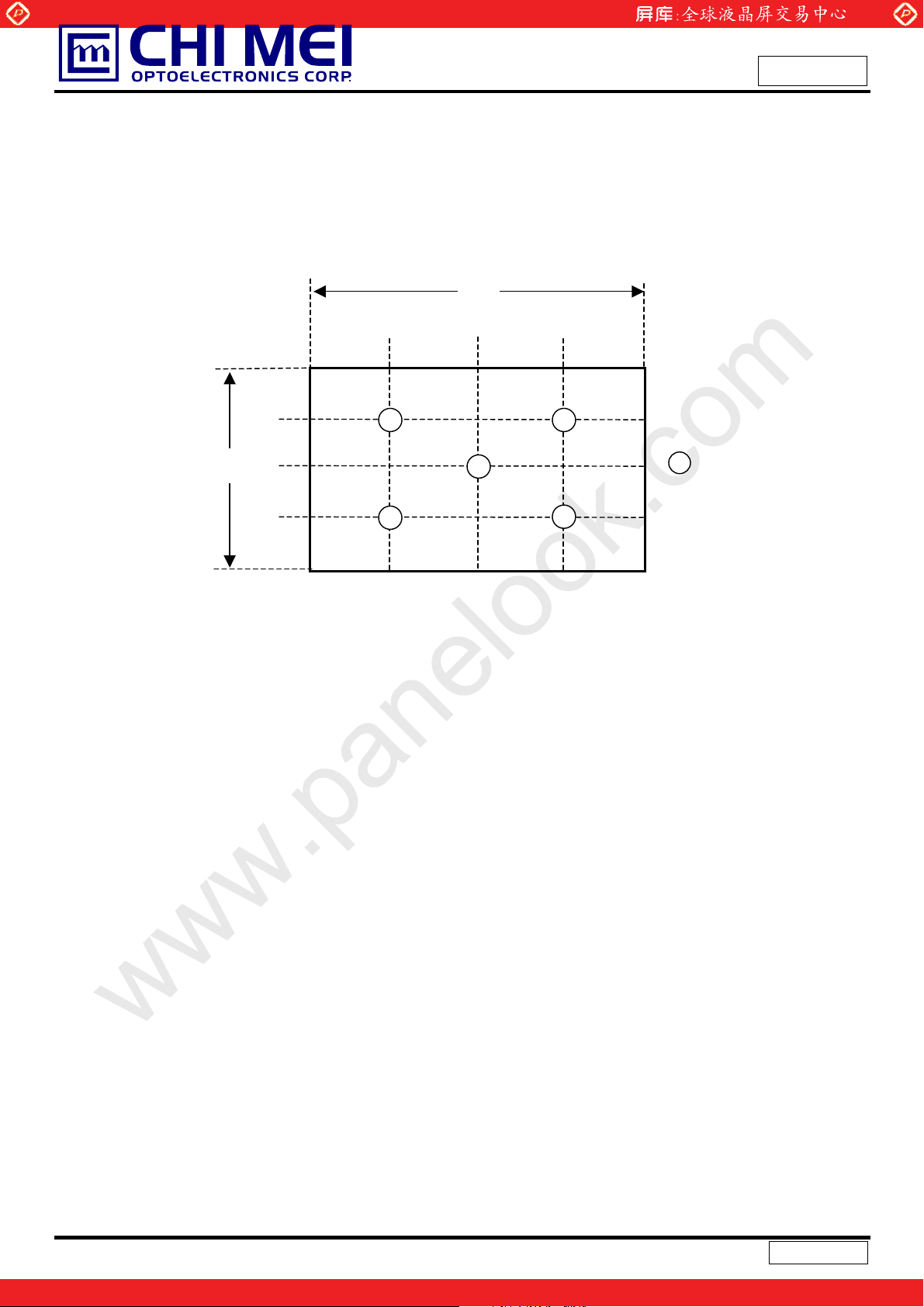

Note (7) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

Horizontal Line

D

D/4 D/2 3D/4

W/4

W/2

W

Vertical Line

3W/4

12

X

: Test Point

X=1 to 5

3

5

4

Active Area

22 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

23 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

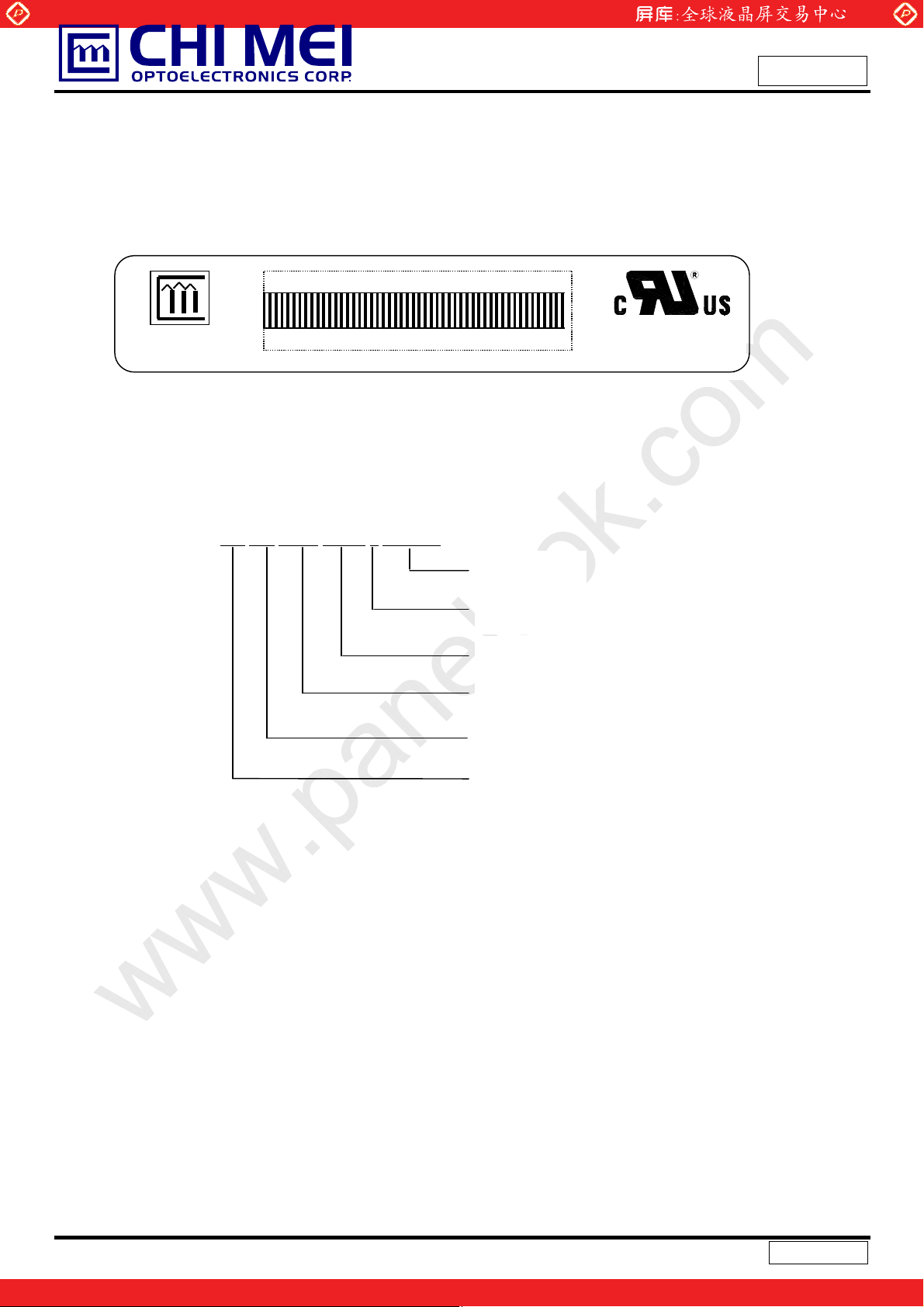

9. DEFINITION OF LABELS

9.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following

explanation.

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

N150X6 - L03 Rev. XX

CHI MEI

OPTOELECTRONICS

(a) Model Name: N150X6 - L03

(b) Revision: Rev. XX: WS, ES : A1, A2, A3,…, etc.

Note: It will happen that revision code changed without product changed in developing duration because

of CMO internal stage change, for example: AX Æ B1, BX Æ C1.

(c) Serial ID: X X

X X X X X Y M D L N N N N

X X X X X X X Y M D L N N N N

CS & MP : C1, C2, C3,…,etc.

MADE IN TAIWAN

E207943

MADE IN TAIWAN

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Serial ID includes the information as below:

(a) Manufactured Date: Year: 0 ~ 9, for 2000 ~ 2009.

Month: 1 ~ 9, A ~ C, for Jan. ~ Dec.

Day: 1 ~ 9, A ~ Y, for 1

(b) Revision Code: cover all the changes.

(c) Serial No.: Manufacturing sequence of product.

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

st

to 31st, exclude I, O and U.

Revision

CMO Internal Use

24 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10.PACKING

10.1 CARTON

www.panelook.com

Issued Date: Dec. 27, 2005

Model No.: N150X6 - L03

Approval

10.2 PALLET

25 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
