Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 5
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
TFT LCD MODULE w/ INVERTER
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10
5.1 TFT LCD MODULE
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID DATA

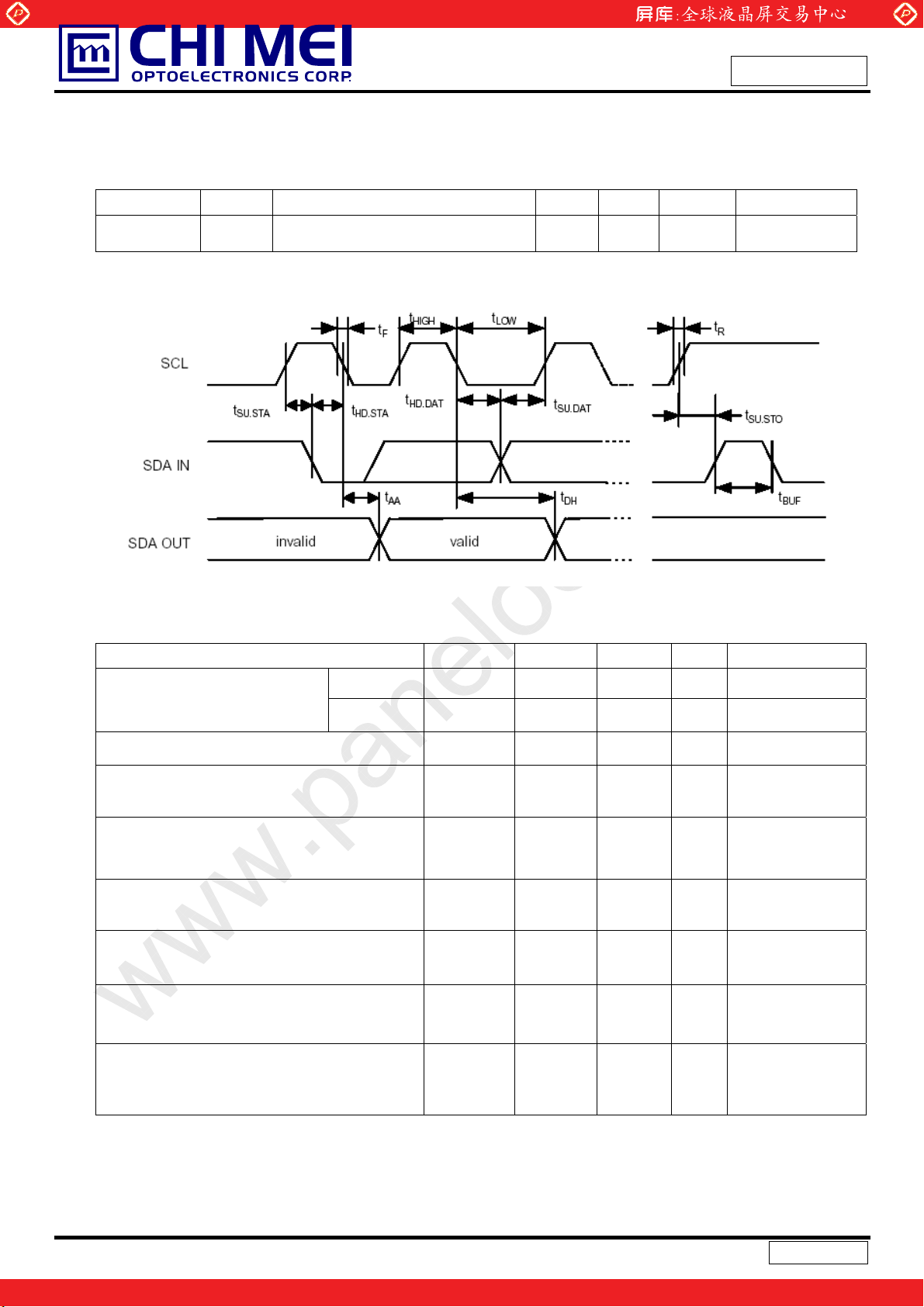

5.5 EDID SIGNAL SPECIFICATION
6. INVERTER SPECIFICATION ------------------------------------------------------- 18
6.1 TYPE OF INVERTER CONNECTOR
6.2 BUILT-IN INVERTER INPUT PIN ASSIGNMENT
6.2 BUILT-IN INVERTER OUTPUT PIN ASSIGNMENT
6.4 GENERAL ELECTRICAL SPECIFICATION
7. INTERFACE TIMING ------------------------------------------------------- 21
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 23

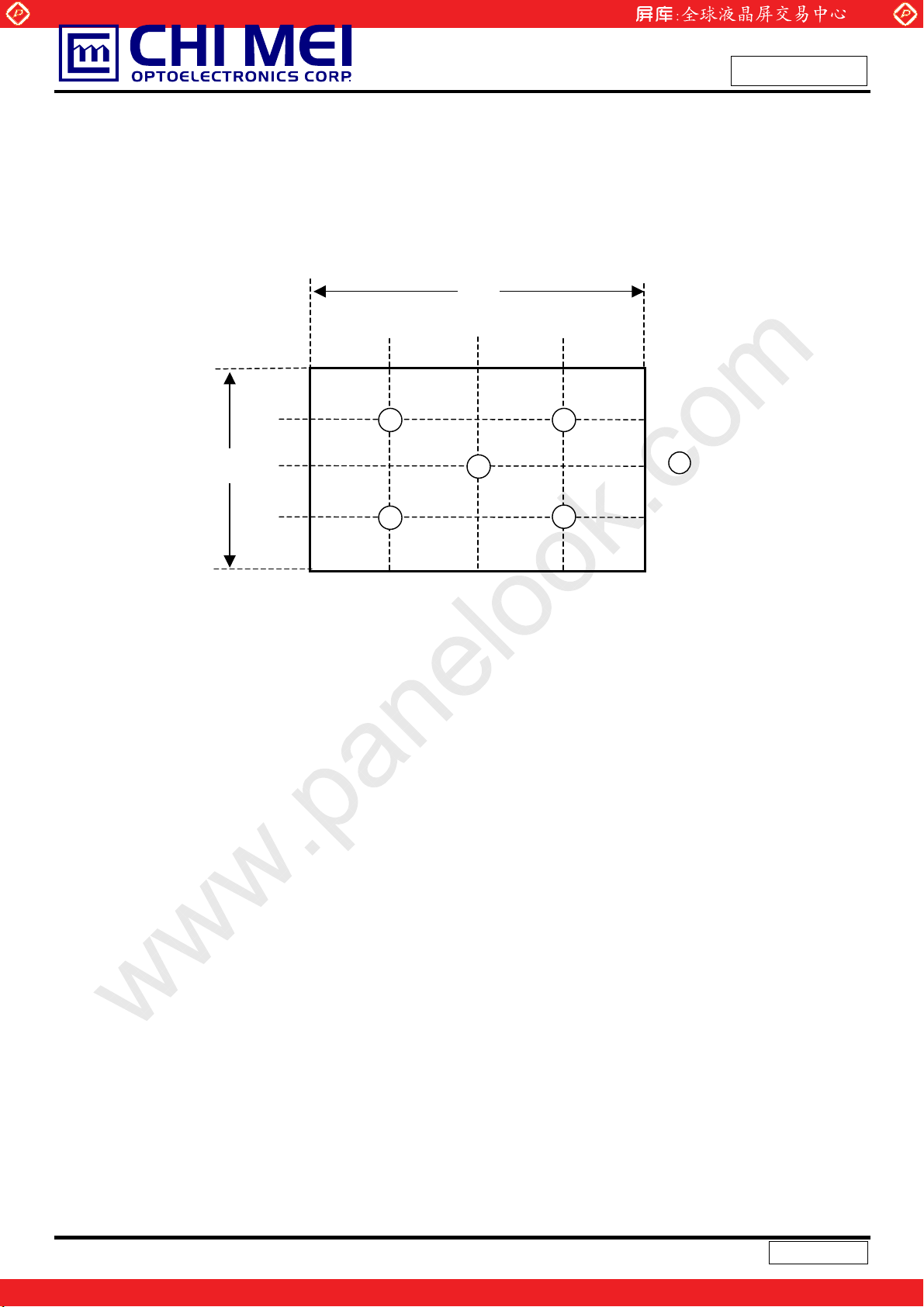

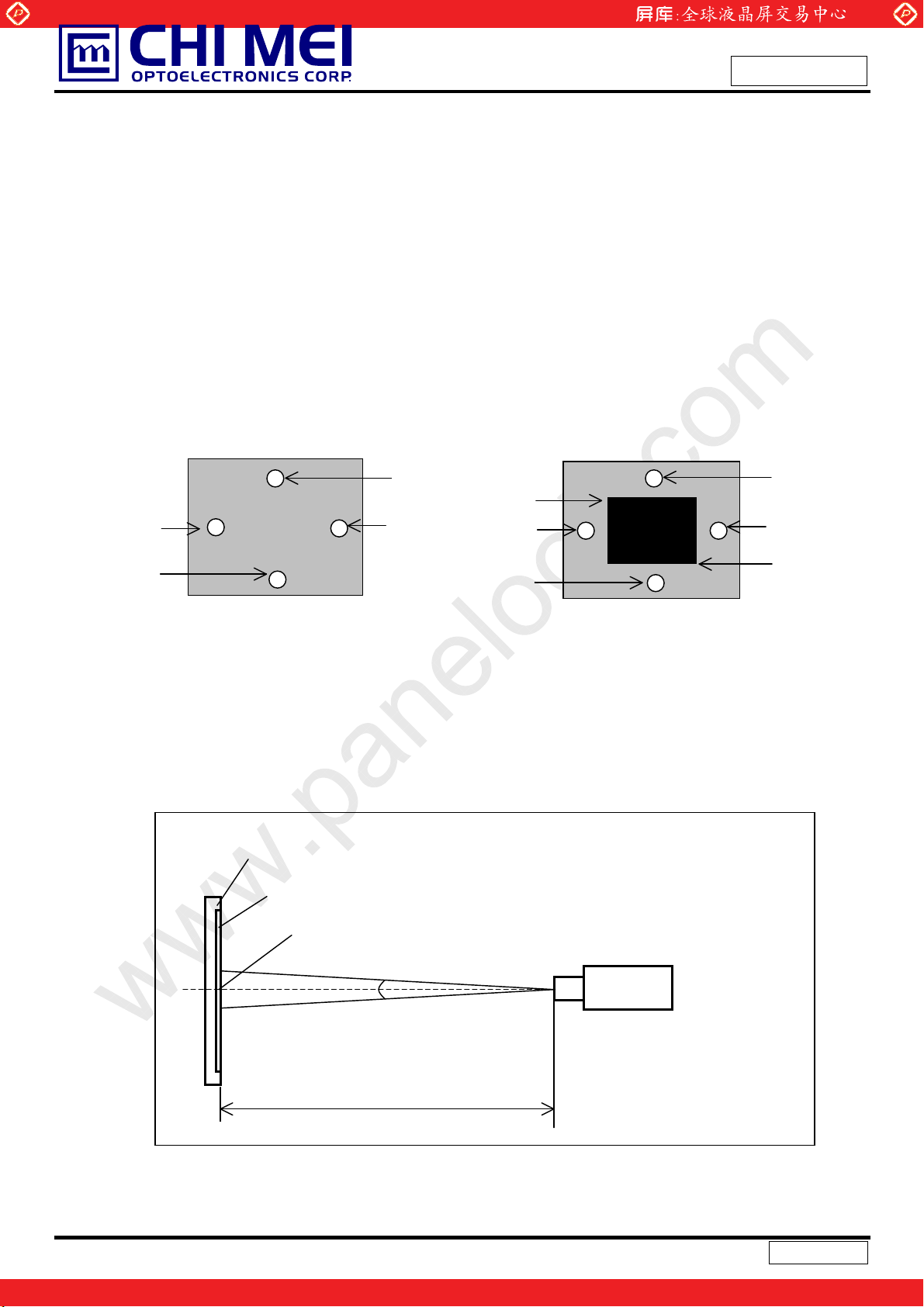

8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 27
9.1 ASSEMBLY AND HANDLING PRECAUTIONS
9.2 SAFETY PRECAUTIONS
2 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary

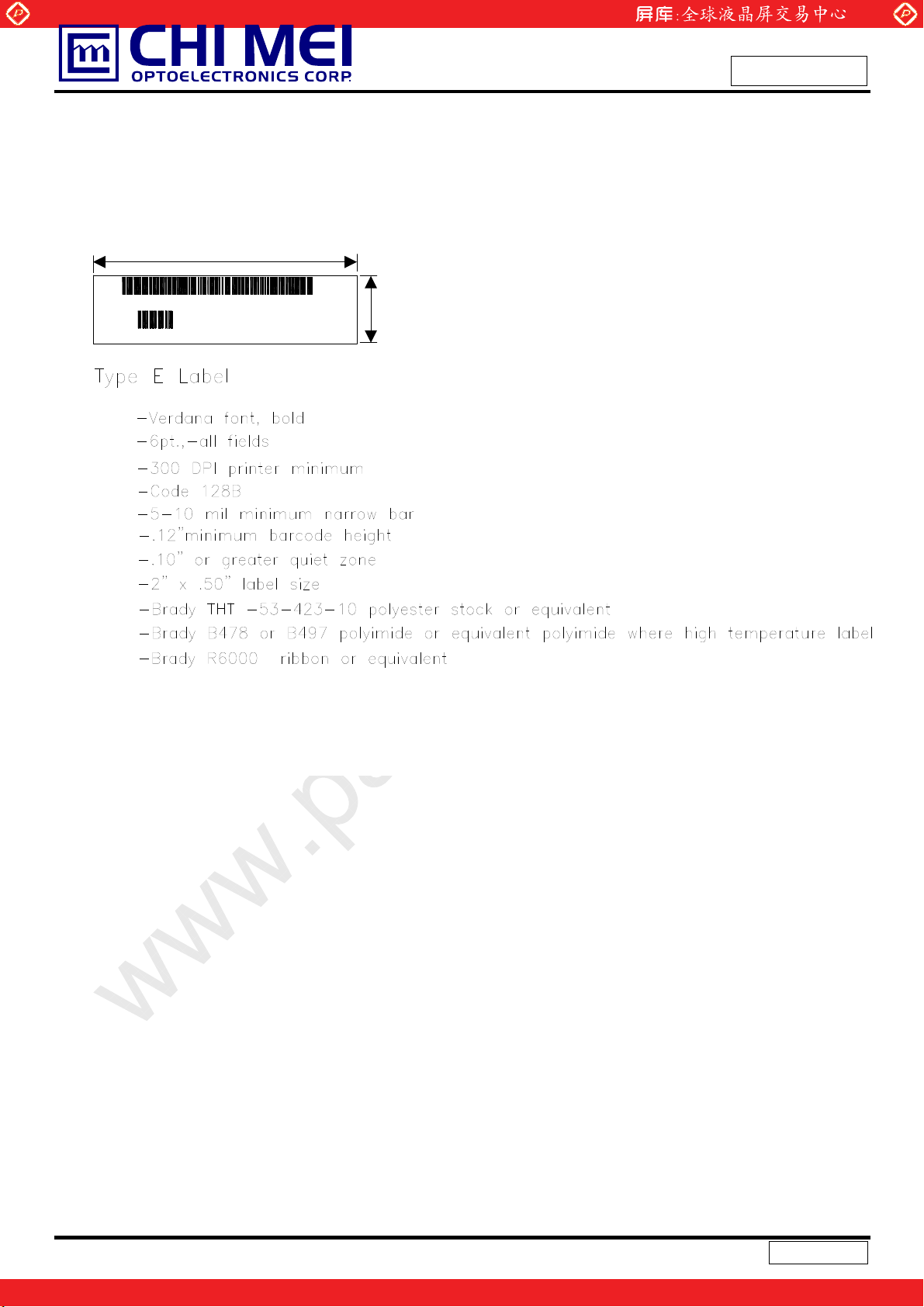

10. DEFINITION OF LABELS ------------------------------------------------------- 28

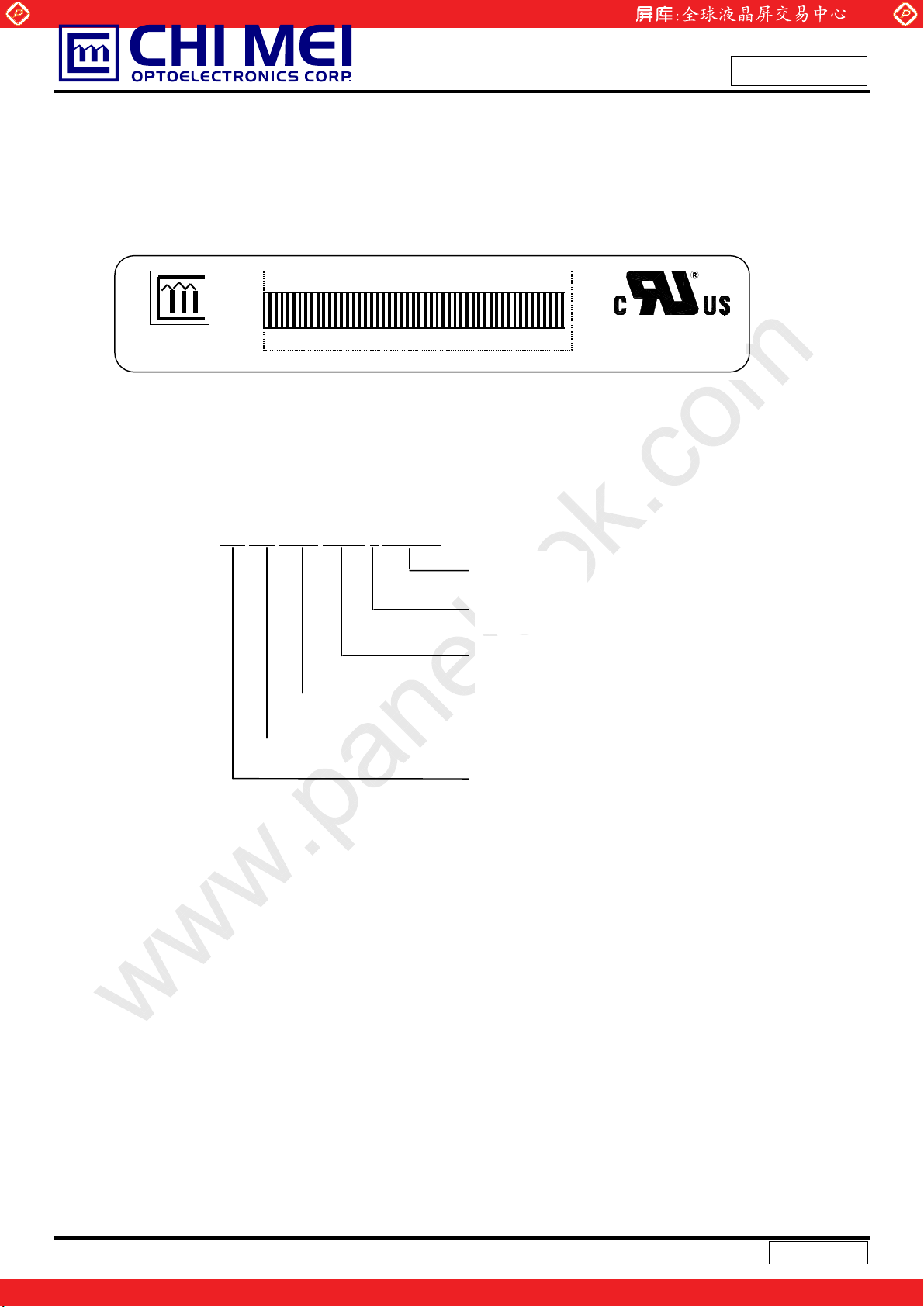

10.1 CMO MODULE LABEL
10.2 Dell LABEL
10.2.1 MAL PPID LABEL

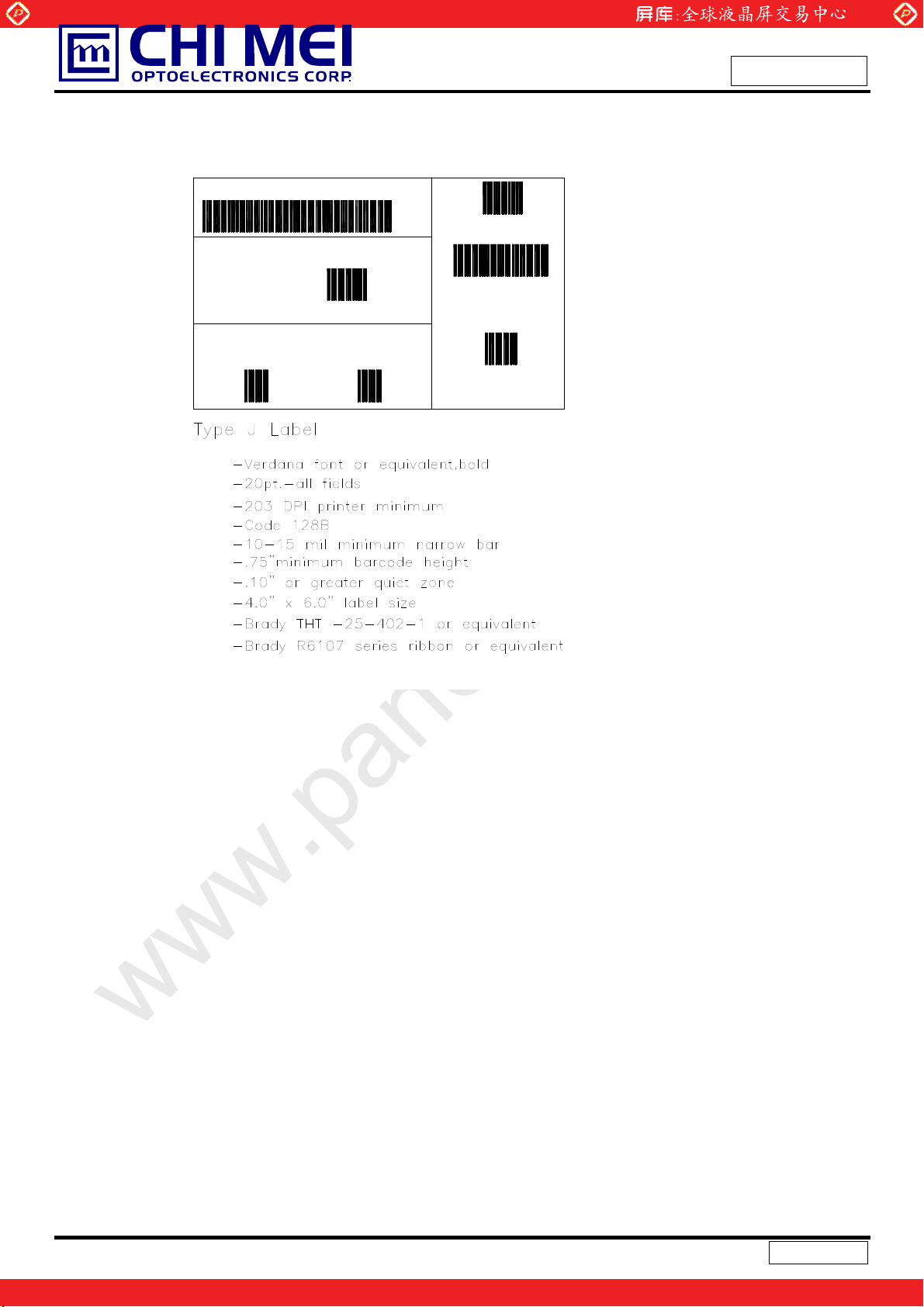

10.2.2 CARTON LABEL
10.2.3 PALLET LABEL

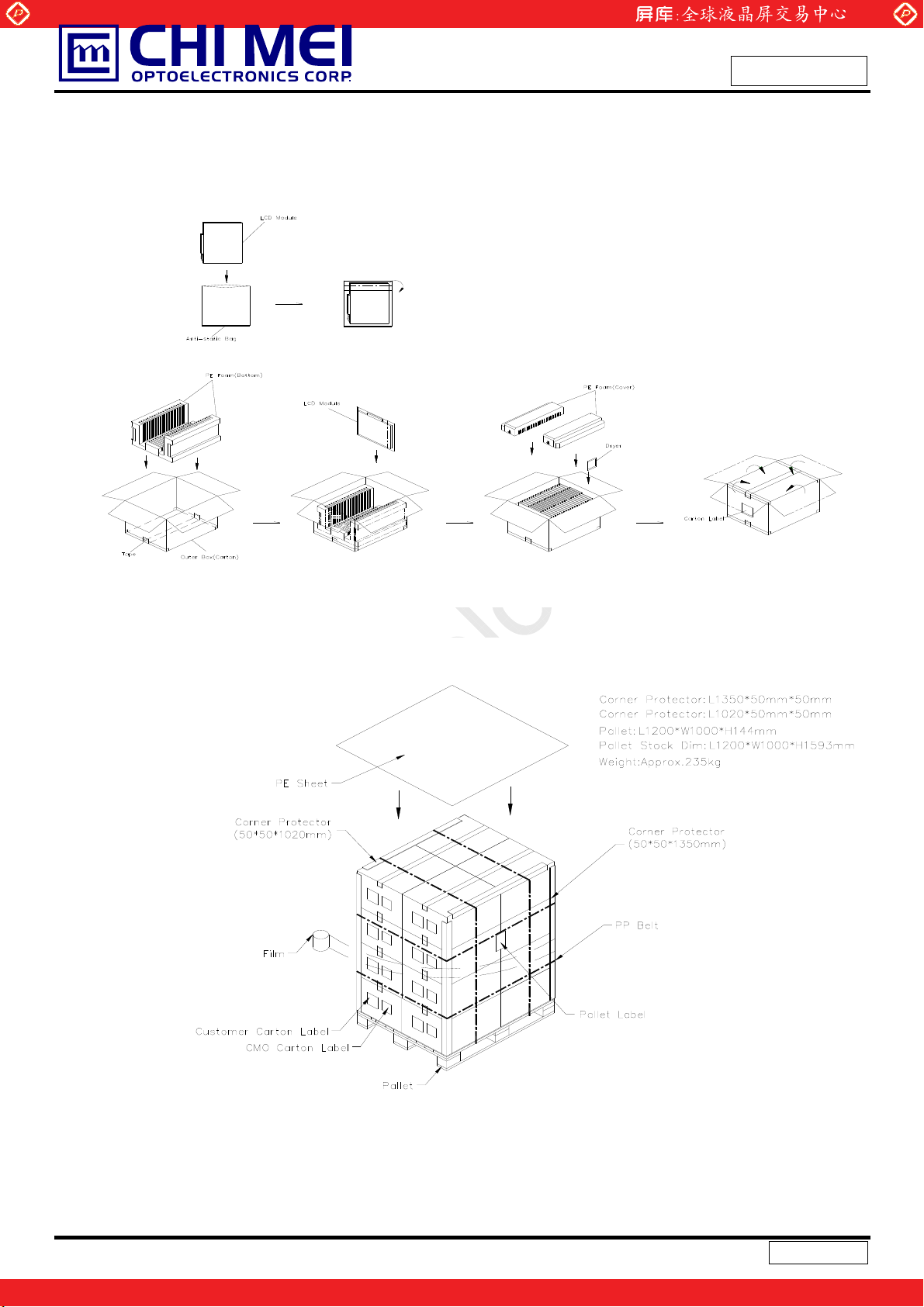

11. PACKING ------------------------------------------------ 32
11.1 CARTON
11.2 PALLET
3 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Version Date
Ver 1.0
Apr. 16 ‘04 All
Page
(New)
Section Description
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
REVISION HISTORY
All Preliminary specification was first issued for Dell.
4 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N150X6 - L02 is a 15.0” TFT Liquid Crystal Display module with burst mode inverter assemblies. This
module supports 1024 x 768 XGA mode and can display 262,144 colors. The optimum viewing angle is at 6
o’clock direction.
1.2 FEATURES
- Thin and Light Weight
- XGA (1024 x 768 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- SPWG (Standard Panel Working Group) Style B compatible
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
- Single CCFL
- with Inverter
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 304.1 (H) x 228.1 (V) (15.0” diagonal) mm
Bezel Opening Area 307.8 (H) x 231.6 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1024 x R.G.B. x 768 pixel Pixel Pitch 0.297 (H) x 0.297 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 316.8 317.3 317.8 mm (1)
Module Size

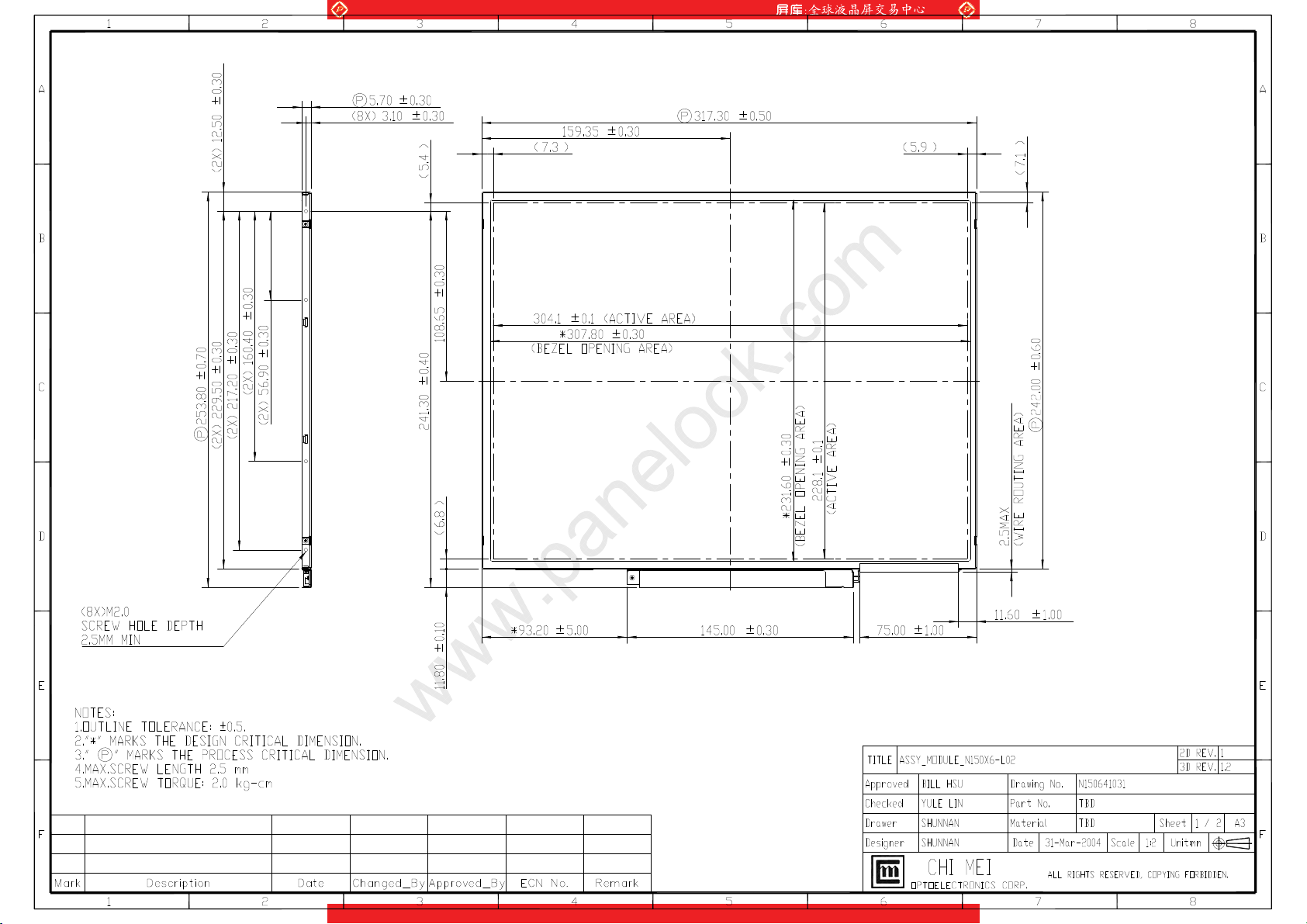

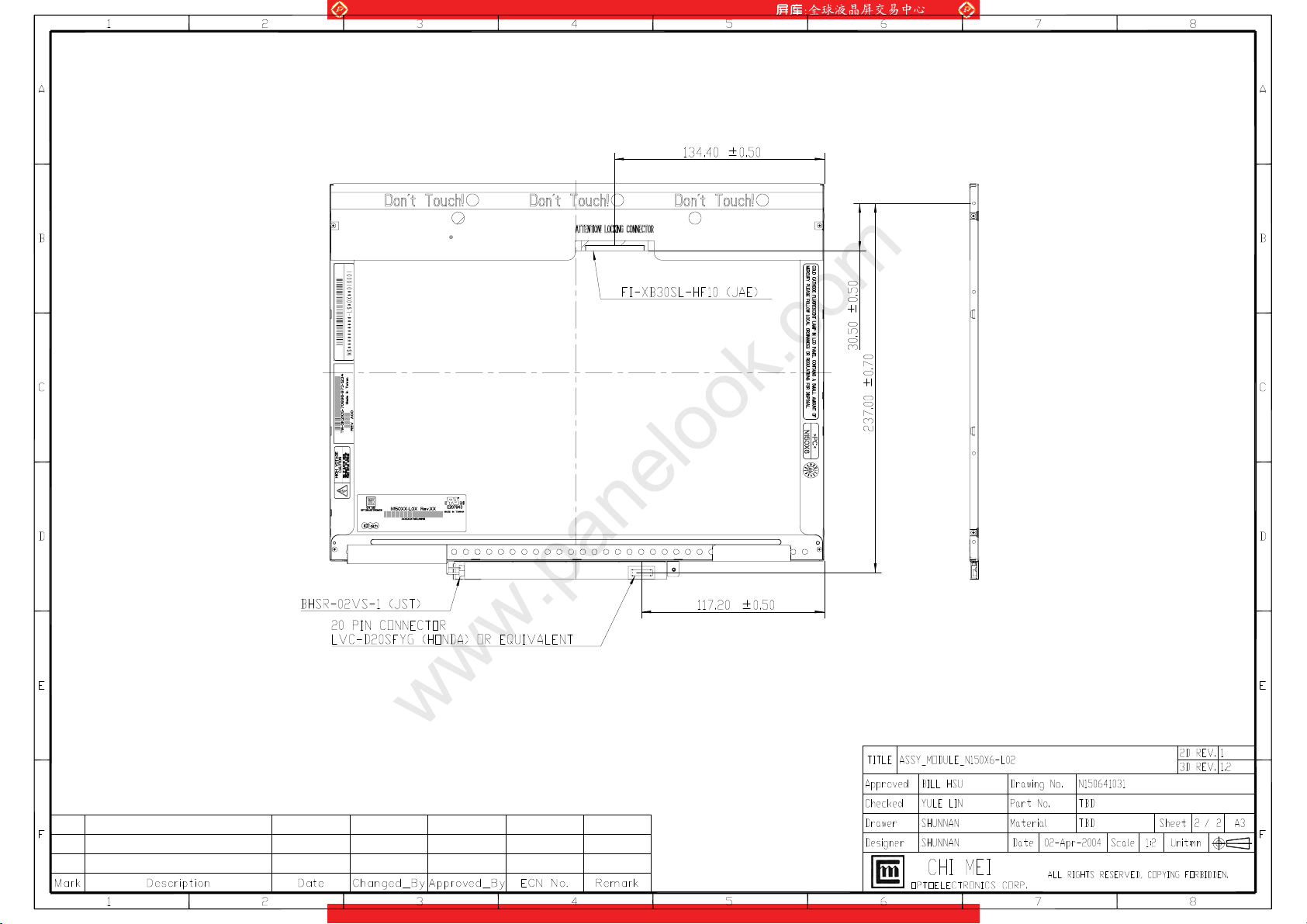

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V)
Depth(D) - 5.7 6.0 mm (1)
Weight - 555 570 g -
241.5 242 242.5 mm (1), (2)
252.83 253.33 254.03 mm (1), (3)
(1)
Note (2) Module vertical size without inverter.
Note (3) Module vertical size with inverter.
5 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Storage Humidity HST 5 95 %RH (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Operating Ambient Humidity HOP 8 95 %RH (1)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0к min. and 50 к max.
Note (3) Condition for 50/18 G/ms is Rectangle Wave. Condition for 220/2 G/ms is Half Since Wave.
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
Value
Min. Max.
-
NOP
- 1.5/10-200 G/Hz (4), (5)
NOP
50/18
220/2
Unit Note
G/ms (3), (4), (5)
Note (4) The fixing condition is shown as below:
Side Mount Fixing Screw
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
6 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - (2.5K) V
Lamp Current IL - (7.5) mA
Lamp Frequency FL - (80) KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP - 50 - mV Rush Current I
Power Supply Current
White - 320 360 mA (3)a
Black
- - 1.5 A (2)
RUSH
Lcc
- 440 480 mA (3)b
“H” Level VIL - - +100 mV - Logical Input Voltage
(LVDS)
“L” Level V
-100 - - mV -
IH
Terminating Resistor RT - 100 - Ohm -
Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:
+3.3V
Q1 2SK1475
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Value
FUSE
C3
1uF
Unit Note
Vcc
(LCD Module Input)
7 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Vcc rising time is 470μs
0.1Vcc
GND
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
+3.3V
0.9Vcc
470μs
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern below is displayed.
a. White Pattern
Active Area
b. Black Pattern
Active Area
= 60
v
8 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Lamp Input Voltage VL 660 V
Lamp Current IL 2.0 6.0 6.5 mA
Lamp Turn On Voltage VS
- 1130 (25
- 1355 (0
Operating Frequency FL (45) 60 (80) KHz (3)
Lamp Life Time LBL 15,000 - Hrs (5)
Power Consumption PL - 3.96 - W (4), IL = 6.0 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C) V
o
C) V
Unit Note
I
RMS
RMS
(2)
RMS
(2)
RMS
= 6.0 mA
L
(1)
LCD
Module
HV (White)
LV (Black)
1
2
Current Meter
Inverter
A
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Ta = 25 2
o
C and IL = 6.0 mArms until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
9 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
4. BLOCK DIAGRAM
TFT LCD MODULE w/ INVERTER
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
(JAE-FI-XB30SL-HF10)
INPUT CONNECTOR
CLK(+/-)
Vcc
GND
Data
CLK
V
EDID
EDID
EDID
Inputs for
Inverter
DC/AC INVERTER
MODULE
www.panelook.com
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
VL
LAMP CONNECTOR
(JST-BHSR-02VS-1)
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
SCAN DRIVER IC
TFT LCD PANEL
(1024xR.G.B.x768)
DATA DRIVER IC
BACKLIGHT UNIT
Preliminary
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 BIST Panel BIST Enable
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative
9 Rxin0+ LVDS Differential Data Input Positive
10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative
12 Rxin1+ LVDS Differential Data Input Positive
13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative
15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 NC Non-Connection
21 NC Non-Connection
22 Vss Ground
23 NC Non-Connection
24 NC Non-Connection
DDC 3.3V Power
EDID
DDC Clock
EDID
DDC Data -
EDID
R0~R5,G0
-
G1~G5,B0,B1
-
B2~B5,DE,Hsync,Vsync
LVDS Level Clock
10 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
25 Vss Ground
26 NC Non-Connection
27 NC Non-Connection
28 Vss Ground
29 NC Non-Connection
30 NC Non-Connection
Note (1) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent
Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent
Note (3) The first pixel is even.
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
www.panelook.com
Issued Date: Apr. 16, 2004
Model No.: N150X6 - L02
Preliminary
CLK+
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0 R5 R4
Signal for 1 DCLK Cycle (T)
11 / 32
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
