CMO N150X2-L01 Specification

Download
Page 1
Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com

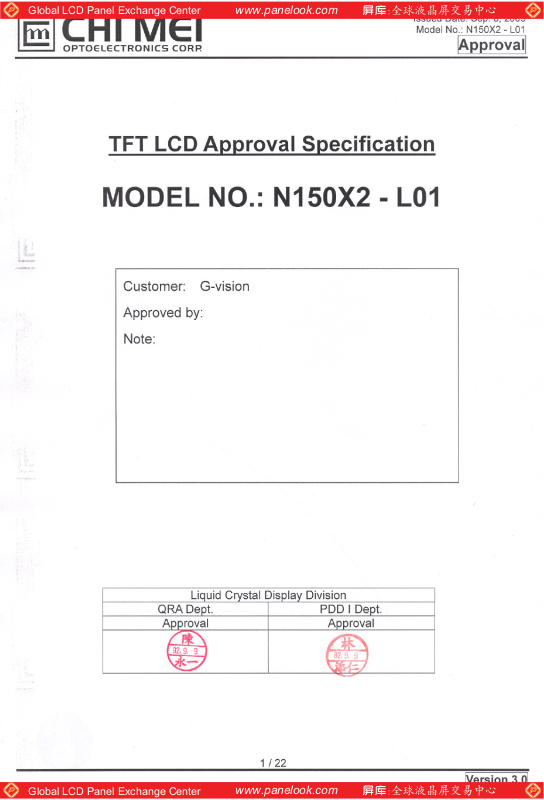

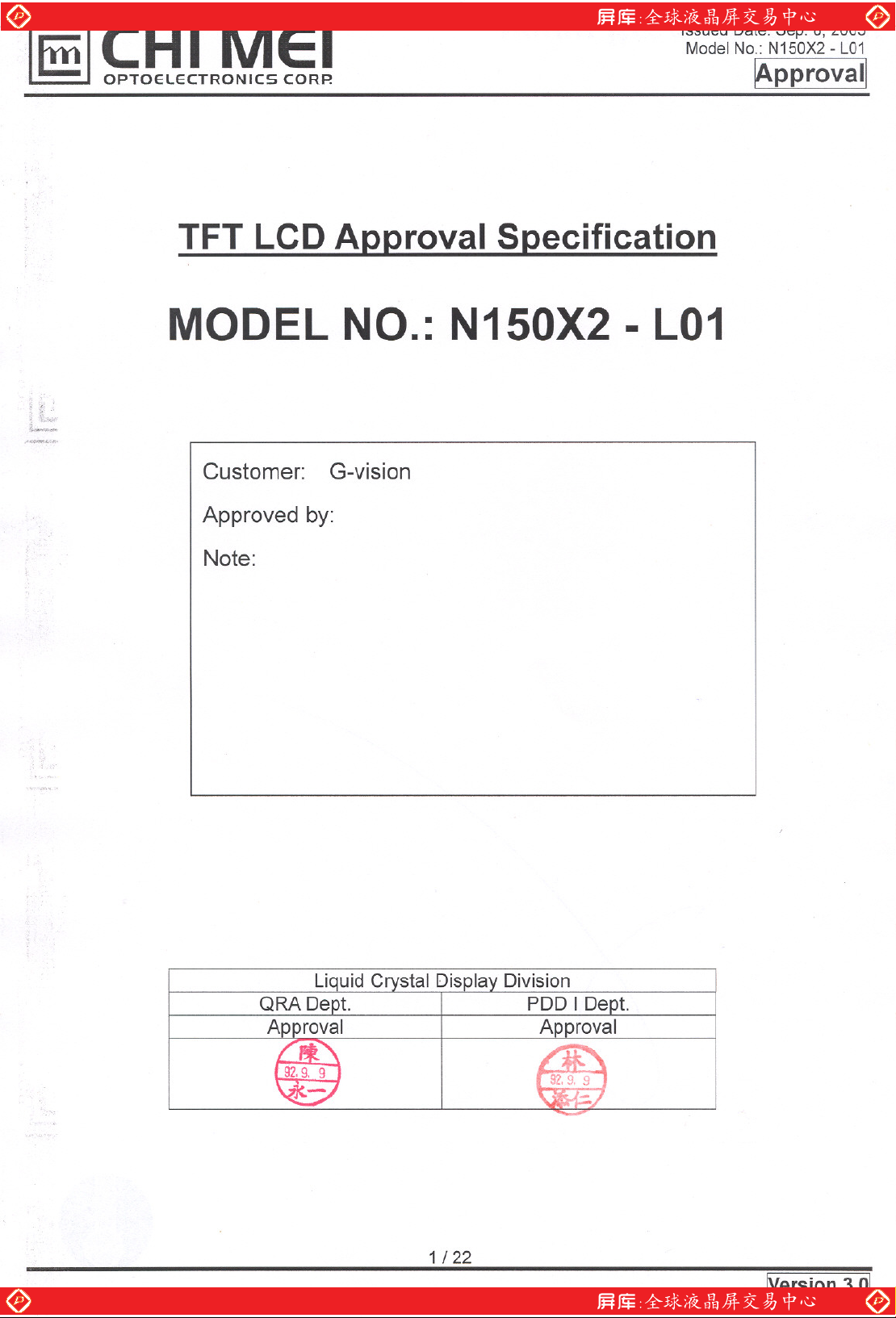

Model No.: N150X2 - L01
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS

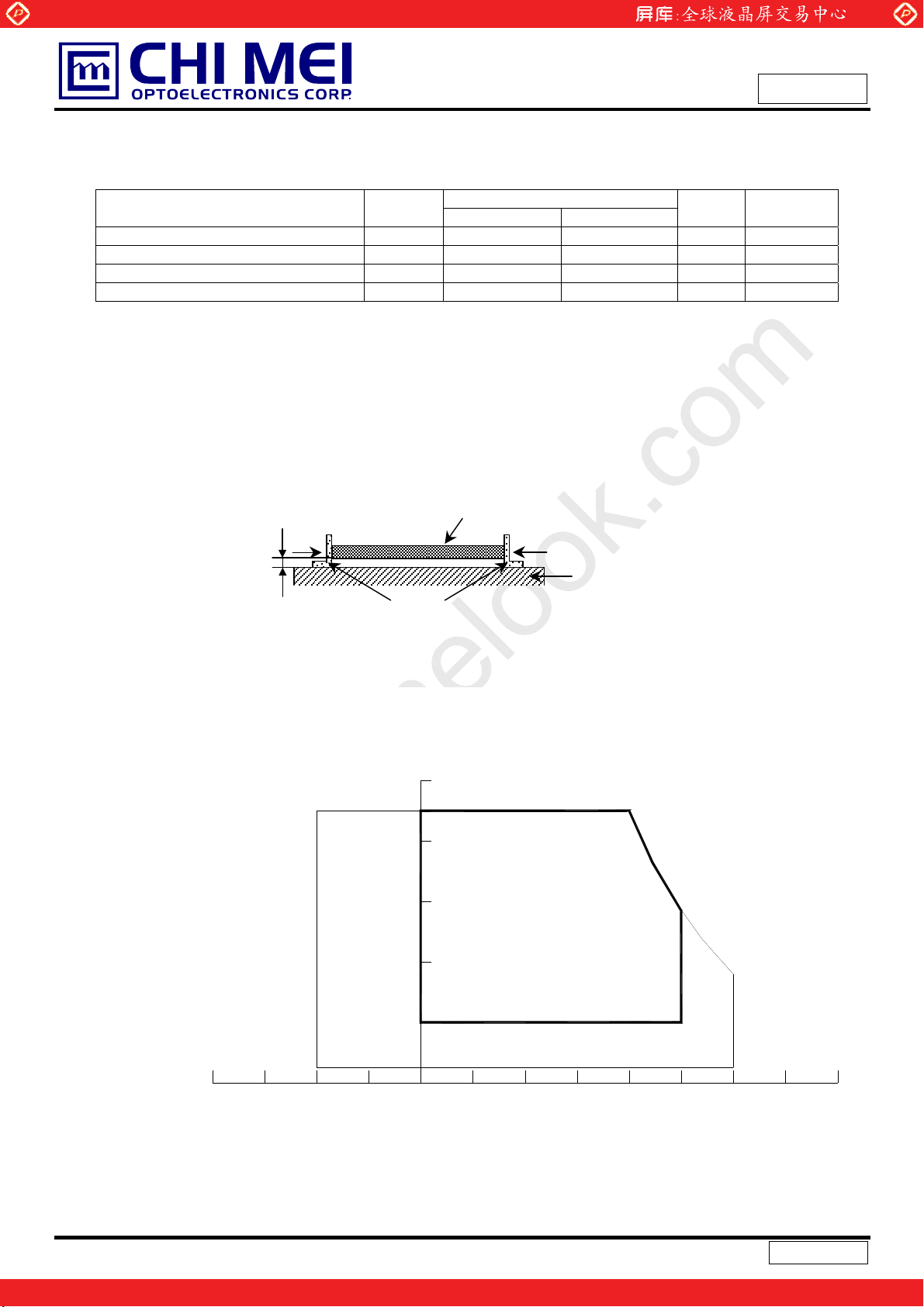

2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

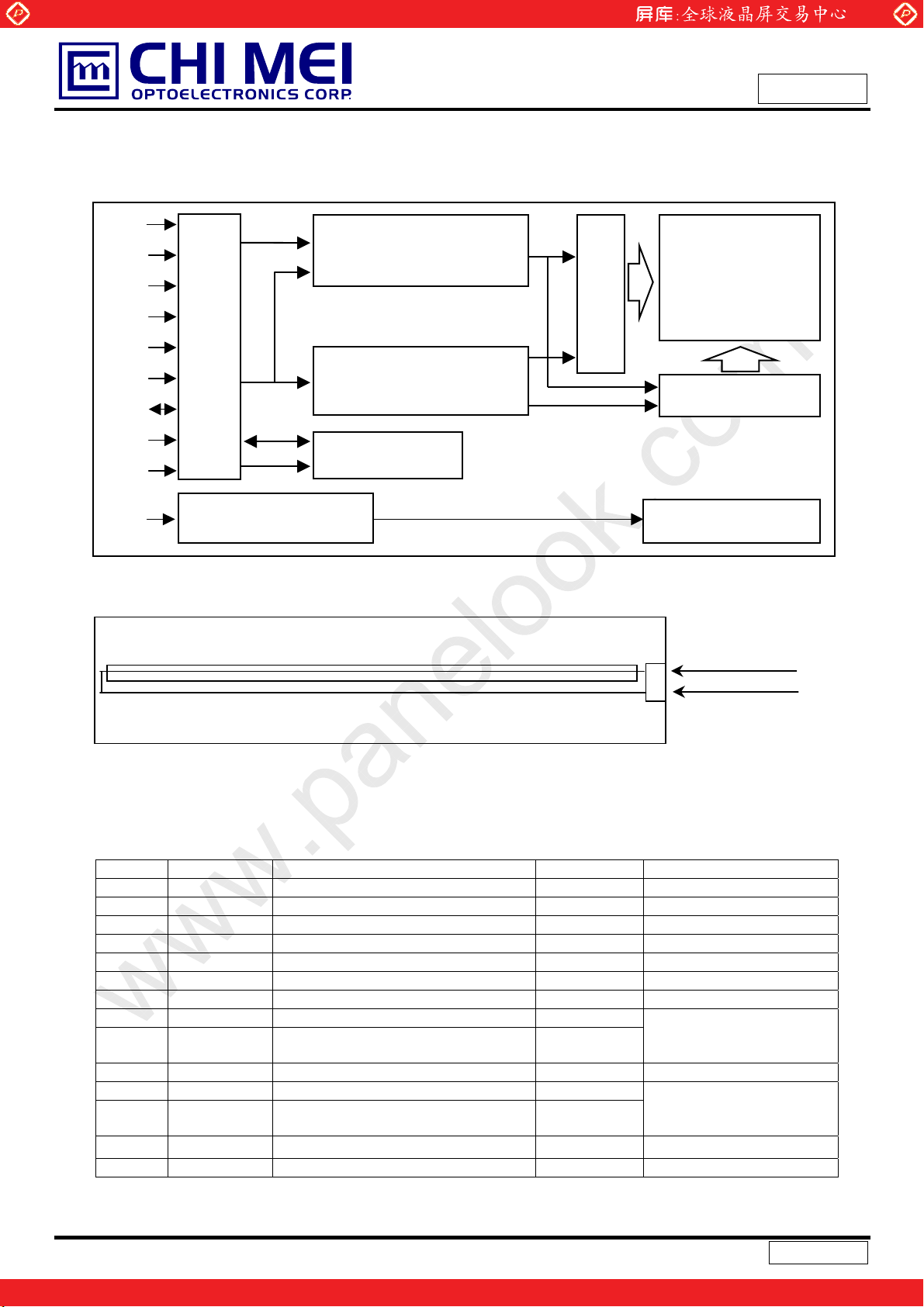

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. DEFINITION OF LABELS 9

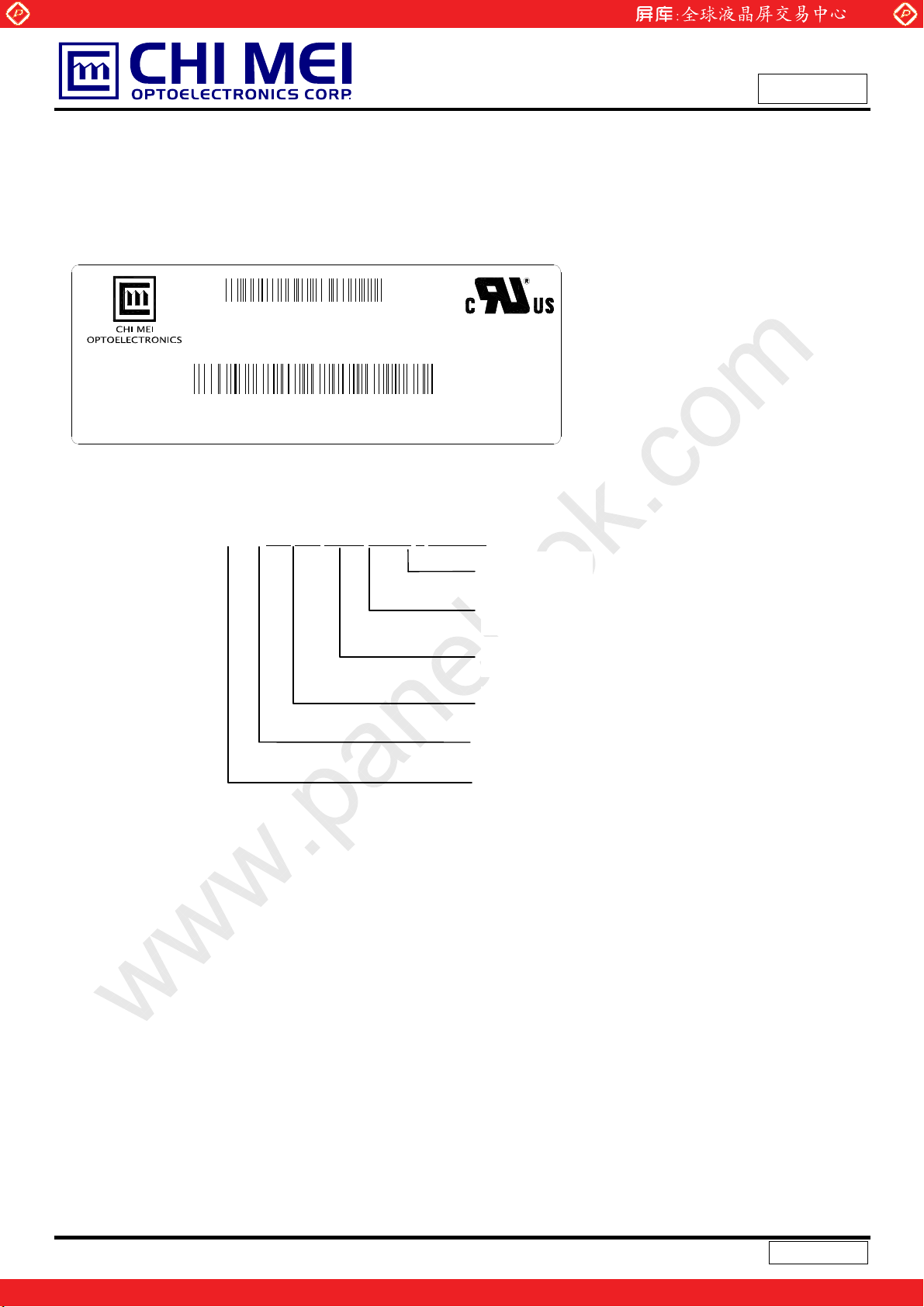

.1 CMO MODULE LABEL

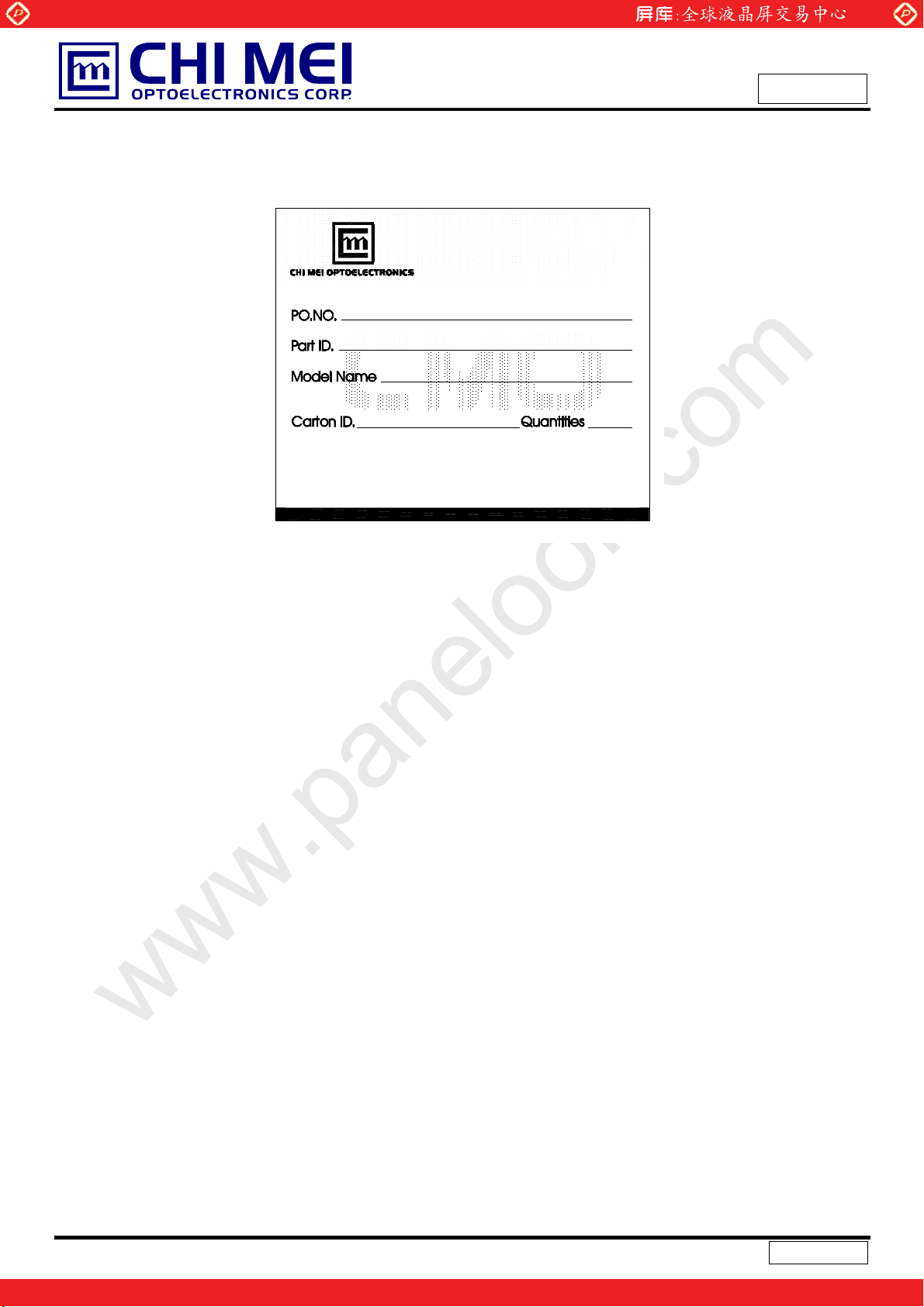

9.2 CMO CARTON LABEL

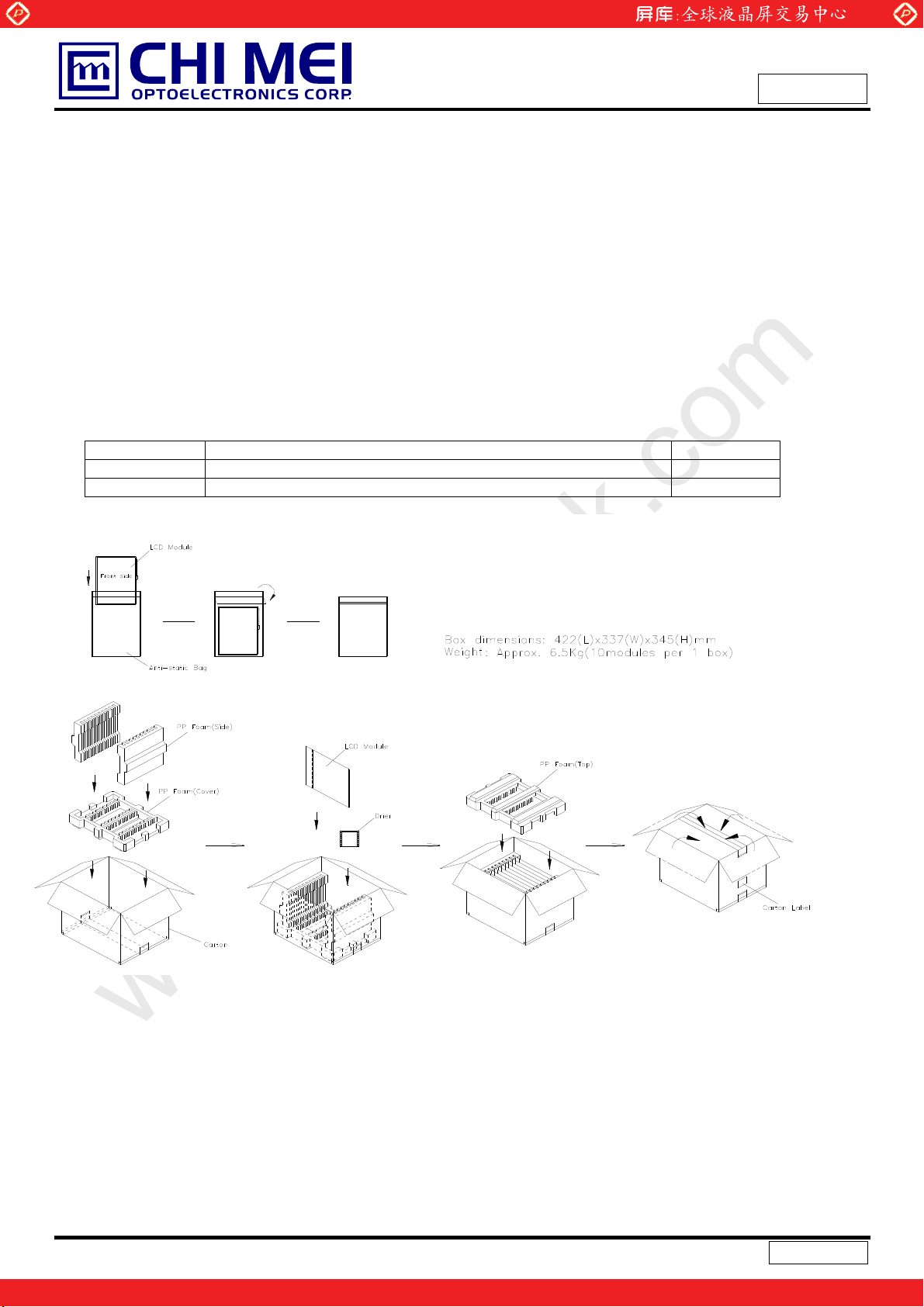

10. PACKAGING 10
.1 Packing Specification

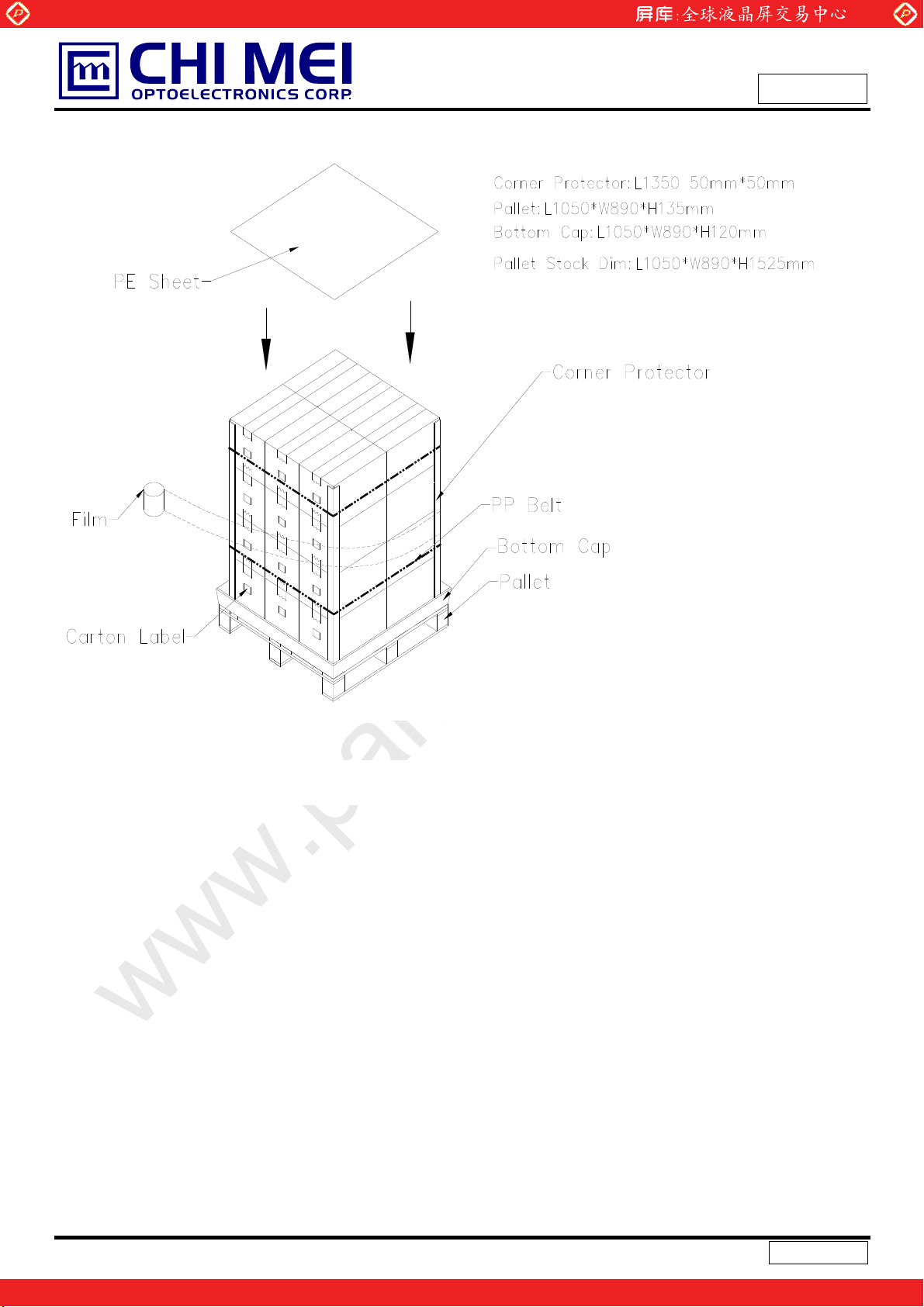

10.2 Packing Method
2 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N150X2 - L01
Approval
Version Date
Ver 3.0
Sep.08 ‘03 All All N150X2-L01 Specifications was first issued for Gvision.
Page
(New)
REVISION HISTORY
Section Description
3 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N150X2 - L01 is a 15.0” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1024 x 768 XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- XGA (1024 x 768 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
www.panelook.com
Model No.: N150X2 - L01
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 304.1 (H) x 228.1 (V) (15.0” diagonal) mm Bezel Opening Area 307.8 (H) x 231.6 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1024 x R.G.B. x 768 pixel ­Pixel Pitch 0.297 (H) x 0.297 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-glare (Haze 25 %) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 315.5 315.8 316.1 mm
Module Size

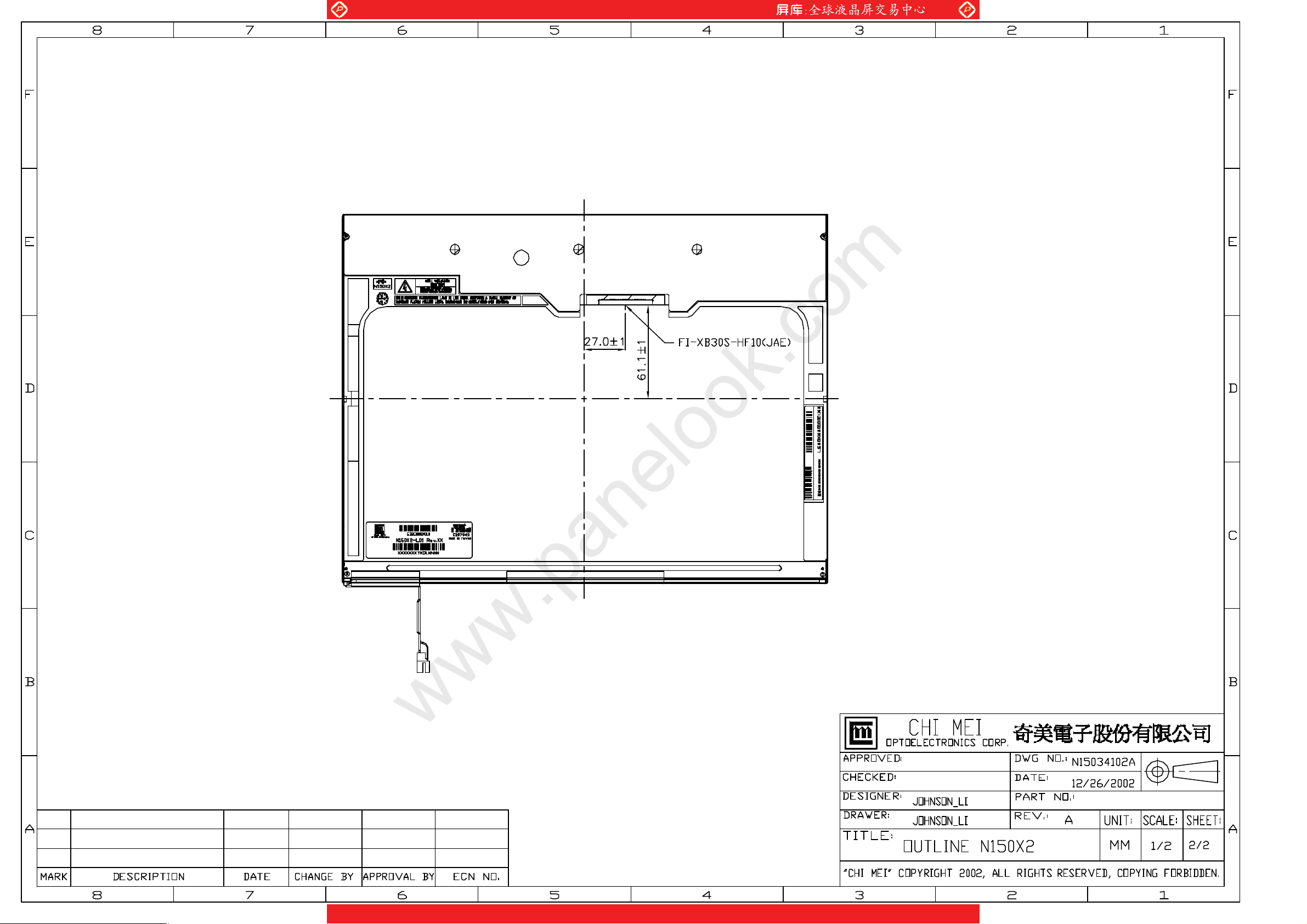

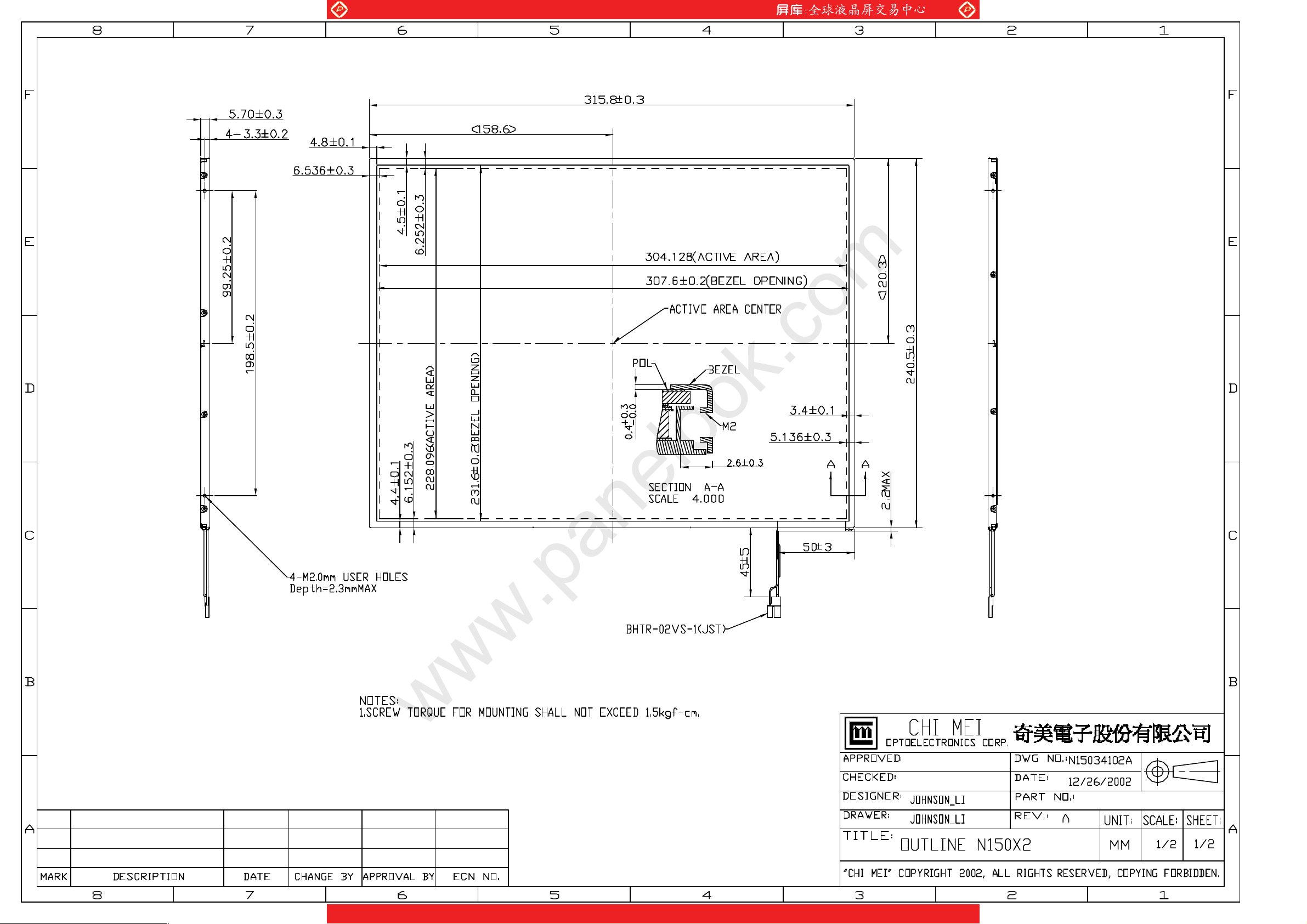

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 240.2 240.5 240.8 mm Depth(D) - 5.7 6.0 mm
Weight 490 505 520 g -
(1)
(1)
4 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The ambient temperature means the temperature of panel surface.
Note (3) 2ms, half sine wave, 1 times for ± X, ± Y, ± Z.
www.panelook.com
Model No.: N150X2 - L01
Approval
Value
Min. Max.
- 200 G (3), (5)
NOP
- 2.0 G (4), (5)
NOP
Unit Note
Note (4) 10 ~ 500 Hz, 0.5 Hr/Cycle,( 4 )cycles each X, Y, Z. The fixing condition is shown as below:
Side Mount Fixing Screw
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
gap=2mm
Relative Humidity (%RH)
Bracket
100
90
80
60
LCD Module
Side Mount Fixing Screw
Stage
Operating Range
2.2 ELECTRICAL ABSOLUTE RATINGS
40
20
Storage Range
5
Temperature (ºC)
5 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8060 -20 400 20-40
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Parameter Symbol
Lamp voltage VL - 2.5K V Lamp current IL 1.8 7.0 mA Lamp frequency fL - 80 KHz -
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Valu e s
Min. Max.
Unit Remarks
Unit Note
RMS
RMS
Model No.: N150X2 - L01
Approval
(1)
Note (1)
-
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Rush Current I
Power Supply Current
Logical Input Voltage
White - 300 - mA (3)a Black “H” Level VIL - - +100 mV ­“L” Level V
- 1.0 1.5 A (2)
RUSH
lcc
-100 - - mV -
IH
- 360 - mA (3)b
Terminating Resistor RT - 100 - Ohm -
Note (1) The module should be always operated within above ranges.

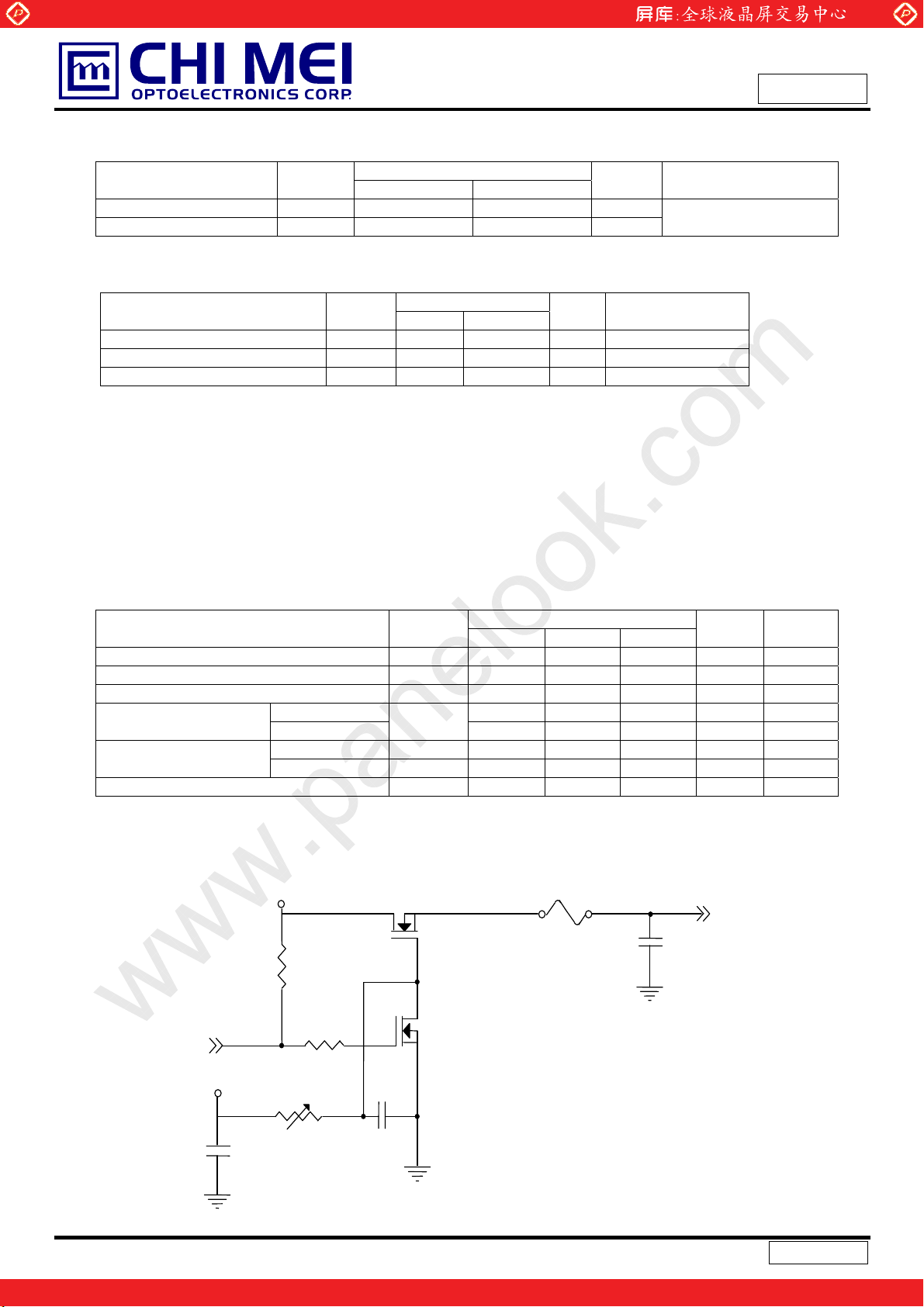

Note (2) Measurement Conditions:
+3.3V
Q1 2SK1475
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Value
FUSE
C3
1uF
Unit Note
Vcc
(LCD Module Input)
6 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center

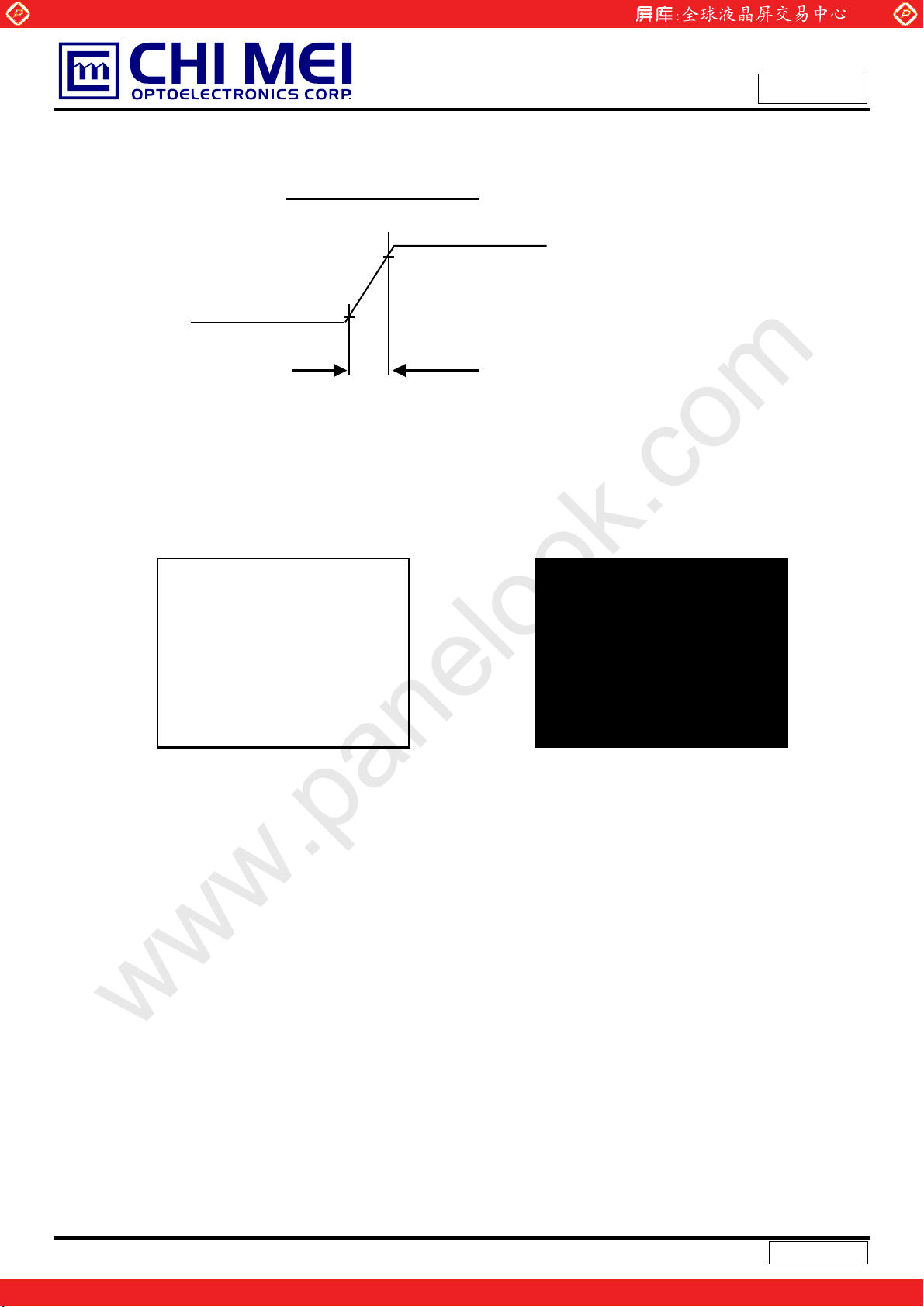

Vcc rising time is 470us
0.1Vcc
GND
www.panelook.com
Model No.: N150X2 - L01
Approval
+3.3V
0.9Vcc
470us
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern below is displayed.
a. White Pattern
Active Area
b. Black Pattern
Active Area
= 60
v
7 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N150X2 - L01

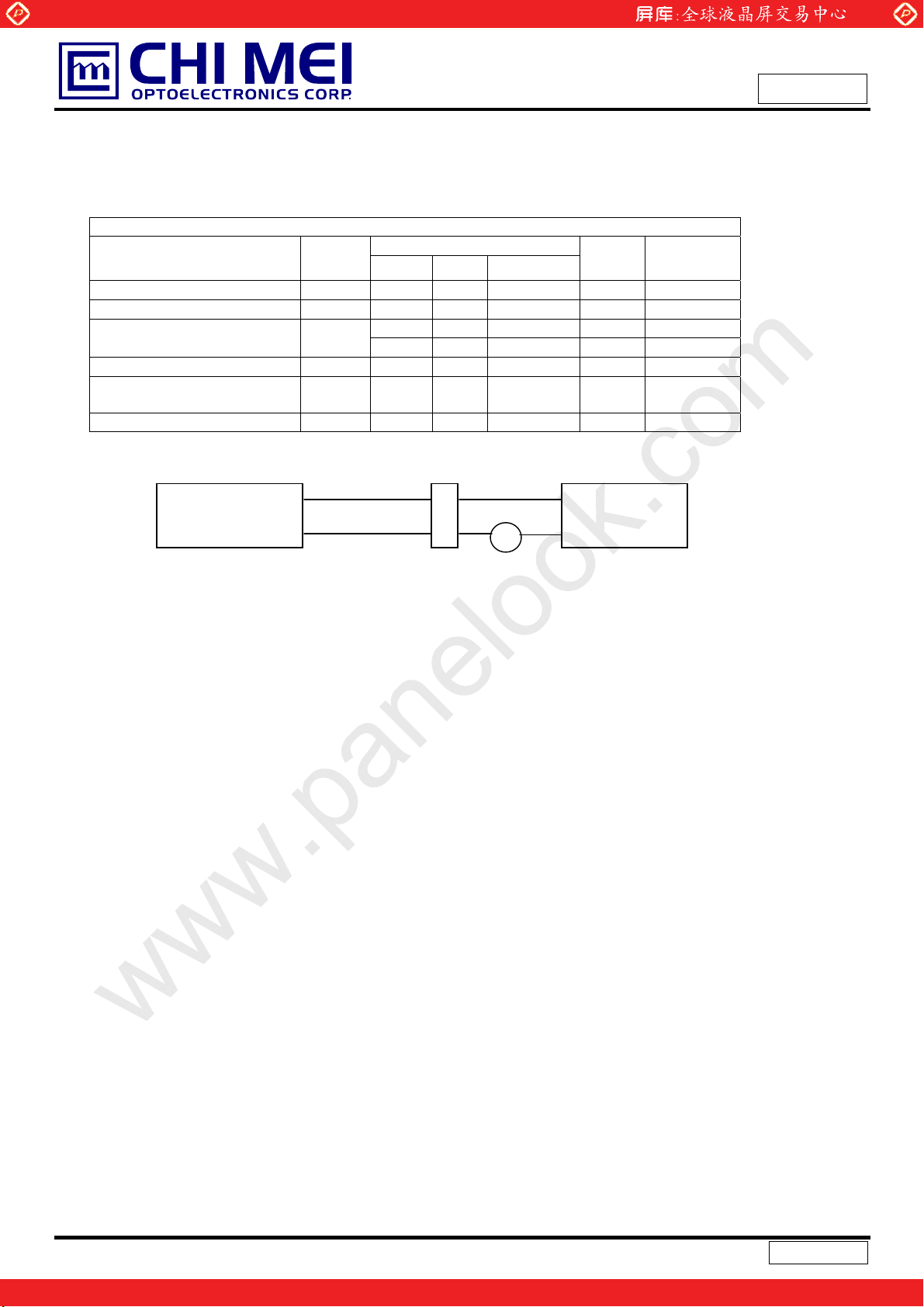

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
LAMP : Harison, MBVK2JB45YX309.5NCLFH/CS2
BACKLIGHT ( 1 Lamp)
Parameter Symbol
Min. Typ. Max.
Lamp Voltage VL 617 685 754 V Lamp Current IL 2.0 6.0 6.5 mA (3)
Startup Voltage VS
- - 1150 (25oC) V
- - 1500 (0
Operating Frequency FL 40 60 80 KHz (5)
Power Consumption PL - 4.11 - W
Lamp Life time LBL 10000 15000 - Hrs (7)
Value
o
C) V
Unit Notes
IL=6.0mA
RMS
(4)
RMS
(4)
RMS
(6),
=6.0mA
I
L
Approval
LCD
Module
HV (White)
LV (Black)
1
2
Current Meter
Inverter
A
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Ta = 25 2
o
C and IL = 6.5 mArms until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
8 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
(JAE-FI-XB30S-HF10)
INPUT CONNECTOR
CLK(+/-)
Vcc
GND
Data
CLK
V
EDID
EDID
EDID
VL
LAMP CONNECTOR
(JST-BHSR-02VS-1)
www.panelook.com
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
Model No.: N150X2 - L01
SCAN DRIVER IC
TFT LCD PANEL
(1024xR.G.B.x768)
DATA DRIVER IC
BACKLIGHT UNIT
Approval
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 NC Non-Connection 6 CLK 7 DATA 8 Rxin0- LVDS Differential Data Input Negative
9 Rxin0+ LVDS Differential Data Input Positive
10 Vss Ground 11 Rxin1- LVDS Differential Data Input Negative
12 Rxin1+ LVDS Differential Data Input Positive
13 Vss Ground 14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync
DDC 3.3V Power DDC 3.3V Power
EDID
DDC Clock DDC Clock
EDID
DDC Data DDC Data
EDID
1 HV (White)
2 LV (Black
R0~R5,G0
-
G1~G5, B0, B1
-
9 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
15 Rxin2+ LVDS Differential Data Input Positive 16 Vss Ground 17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 Vss Ground 20 NC Non-Connection 21 NC Non-Connection 22 Vss Ground 23 NC Non-Connection 24 NC Non-Connection 25 Vss Ground 26 NC Non-Connection 27 NC Non-Connection 28 Vss Ground 29 NC Non-Connection 30 NC Non-Connection
Note (1) Connector Part No.: JAE-FI-XB30S-HF10 or equivalent
www.panelook.com
Model No.: N150X2 - L01
Approval
LVDS Level Clock
Note (2) User’s connector Part No: FI-X30M or equivalent
Note (3) The first pixel is even.

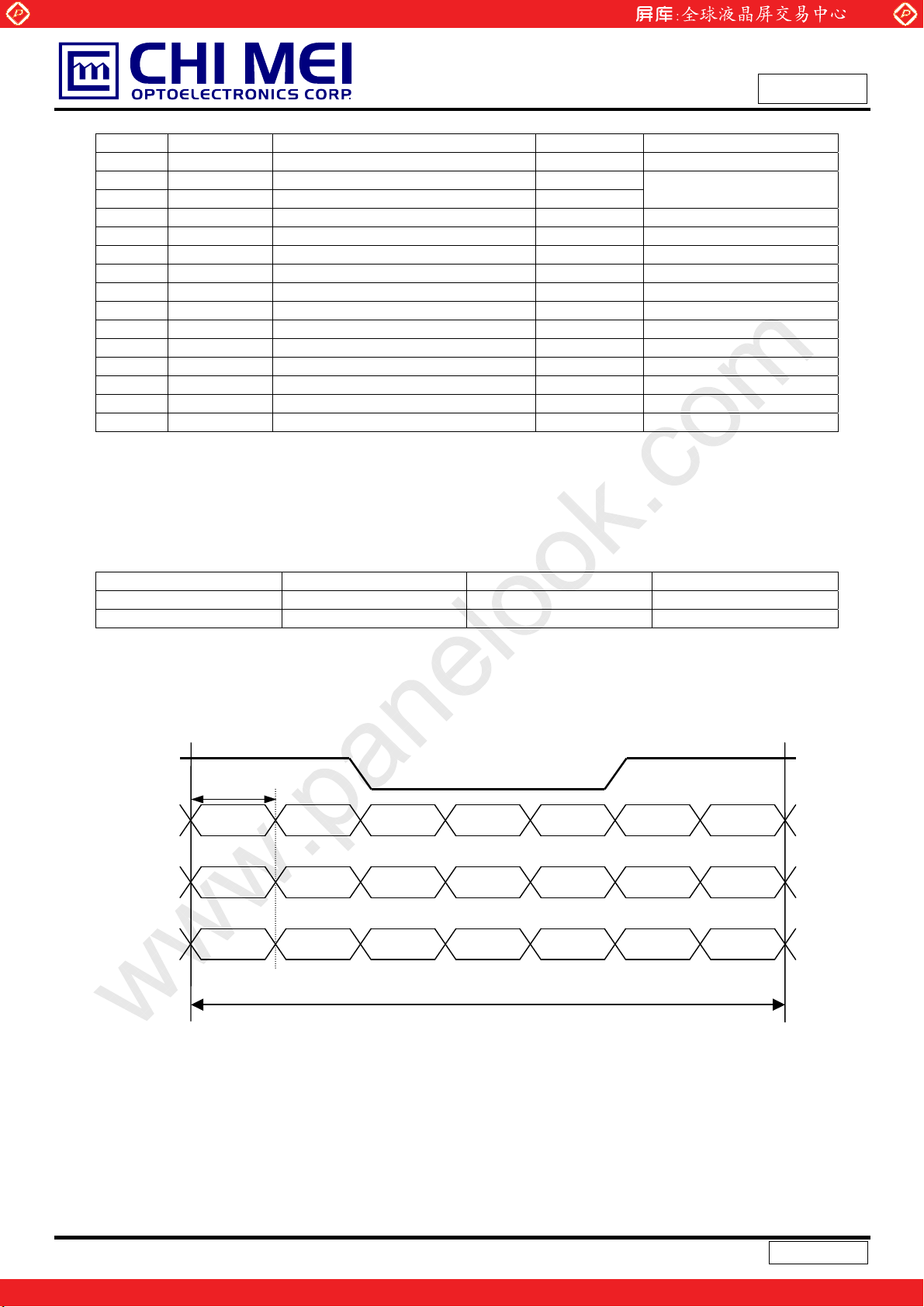

5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage White 2 LV Ground Black
Note (1) Connector Part No.: JST- BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
CLK+
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0 R5 R4
Signal for 1 DCLK Cycle (T)
10 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Black Red Green Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
www.panelook.com
Model No.: N150X2 - L01
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
Note (1) 0: Low Level Voltage, 1: High Level Voltage
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The specifications of input signal timing are as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 50 65 68 MHz -
Vertical Total Time TV 771 806 850 TH -
DE
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Vertical Addressing Time TVD 768 768 768 TH -
Horizontal Total Time TH 1200 1344 1500 Tc -
Horizontal Addressing Time THD 1024 1024 1024 Tc -
11 / 22
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N150X2 - L01
Approval

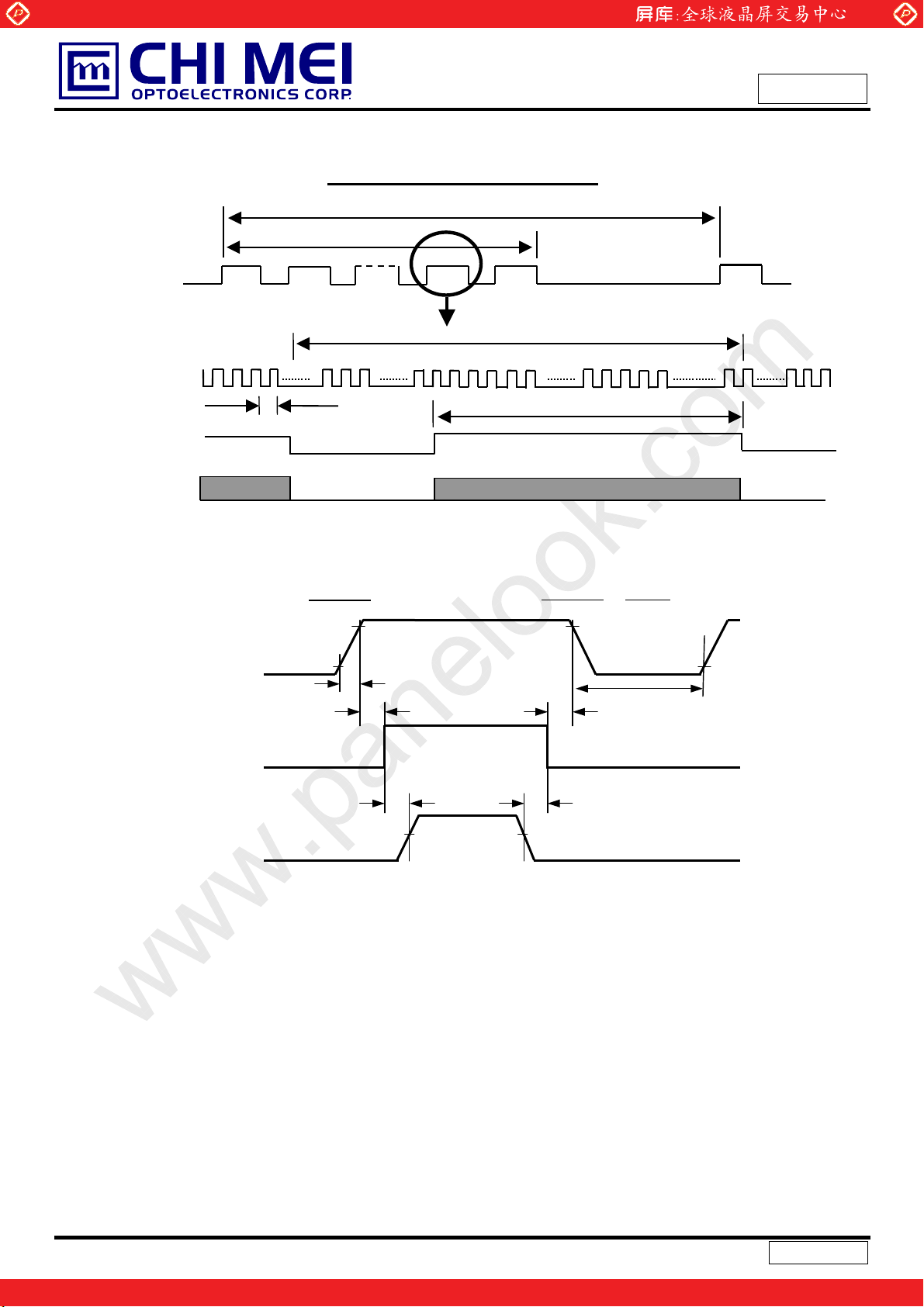

DE
DCLK
TC
DE
DATA
6.2 POWER ON/OFF SEQUENCE
Power Supply
for LCD, Vcc
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
0V
0V
I
10%
INPUT SIGNAL TIMING DIAGRAM
Power On
90%
t1
Valid Data
ONOFF OFF
Power Off
90%
t6 t5
50%50%
HD
T
Restart
10%
t3 t2
t4
Timing Specifications:
0 < t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
t4 Њ 300 msec
t5 Њ 100 msec
t6 Њ 100 msec
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
12 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.0 mA Inverter Driving Frequency FL 50 KHz Inverter HBL-0237 (Tamura)
The relative measurement methods of optical characteristics are shown in 6.2. The following items
www.panelook.com
25r2
50r10
Model No.: N150X2 - L01
Approval
o
C
%RH
should be measured under the test conditions described in 6.1 and stable environment shown in Note (6).
13 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
7.2 OPTICAL SPECIFICATIONS
www.panelook.com
Model No.: N150X2 - L01
Approval
Item Symbol Conditions
Contrast Ratio CR
Response Time
Average luminance of white ( 5 points )
TR - 6 10 ms T
F
Y
Cross Modulation D
Red
Luminance
Green
Uniformity Chromaticity
White
Hor.
Ver.
Viewing Angle
Hor.
Ver.
13 Points White Variation
13 Points CR Variation
Rx 0.569 0.599 0.629 ­Ry 0.316 0.346 0.376 ­Gx 0.299 0.329 0.359 Gy 0.495 0.525 0.555 Bx 0.121 0.151 0.181 Blue By 0.097 0.127 0.157 Wx 0.306 0.336 0.366 ­Wy
TX+ T
X-
TY+ T
Y-
TX+ T
X-
TY+ T
Y-
ӬW
ӬC
White Variation dL
Gamma
Specifications
Min. Typ. Max.
200 250 - - (2),(6)
AVE
- 17 25 ms
140 170 - cd/m2
L,AVE
Unit Note
(3)
=6.0mArms *
I
FL
Gray Scale
Level=L63 (White)
(4)
= TY =0q
T
- - 1.0 % (5)
SHA
X
Viewing normal angle
0.314 0.344 0.374 ­40 45 -
Center
CR>=10
Center
CR>=5
T
= TY =0q
R
X
Viewing normal angle
40 45 ­15 20 ­35 40 ­50 55 -
deg.
50 55 ­25 30 ­40 45 -
1.0 1.3 1.6 - (7)
- 2.0 2.5 - (7)
(1), (6)
- - 1.5 %/mm (8) 63 60 56 52 48 44 40 36 32 28 24
20 16 12
8 4 0
T
= TY =0q
X
Viewing normal angle
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.0%
0.2%
1.1%
2.6%
4.9%
8.0%
12.0%
16.8%
16.8%
29.2%
36.8%
45.4%
55.0%
65.6%
77.2%
89.8%
100.0%
-
-
-
-
-
-
-
-
-
%
-
(1) (6)
at center of
Viewing area
center only
-
-
-
-
-
-
-
14 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center

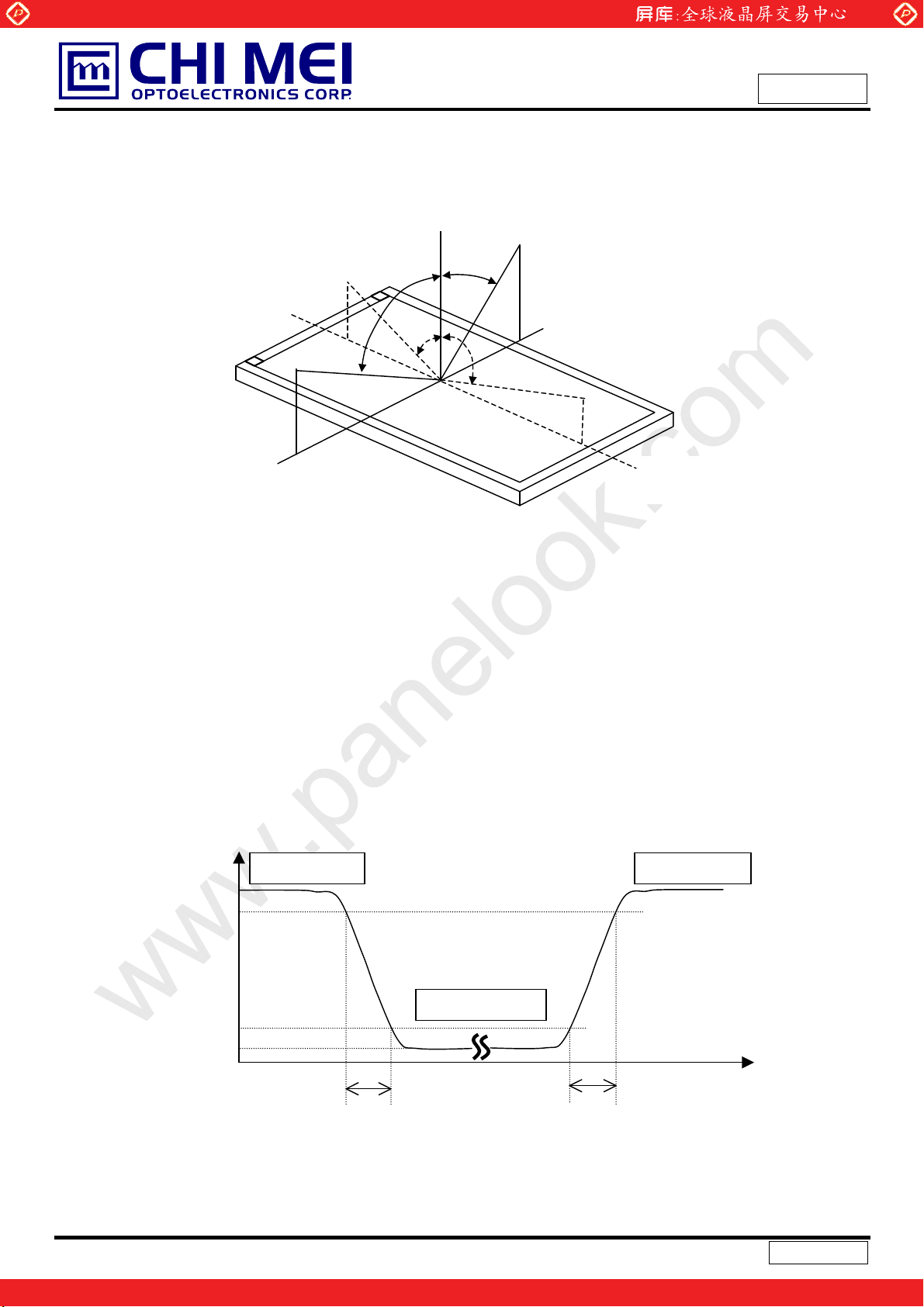

Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Model No.: N150X2 - L01
Approval
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Normal
Tx = Ty = 0º
Ty- Ty
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
R
T
R
, TF):
Time
T
F
15 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
A
A
www.panelook.com
Model No.: N150X2 - L01
Approval
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (7).

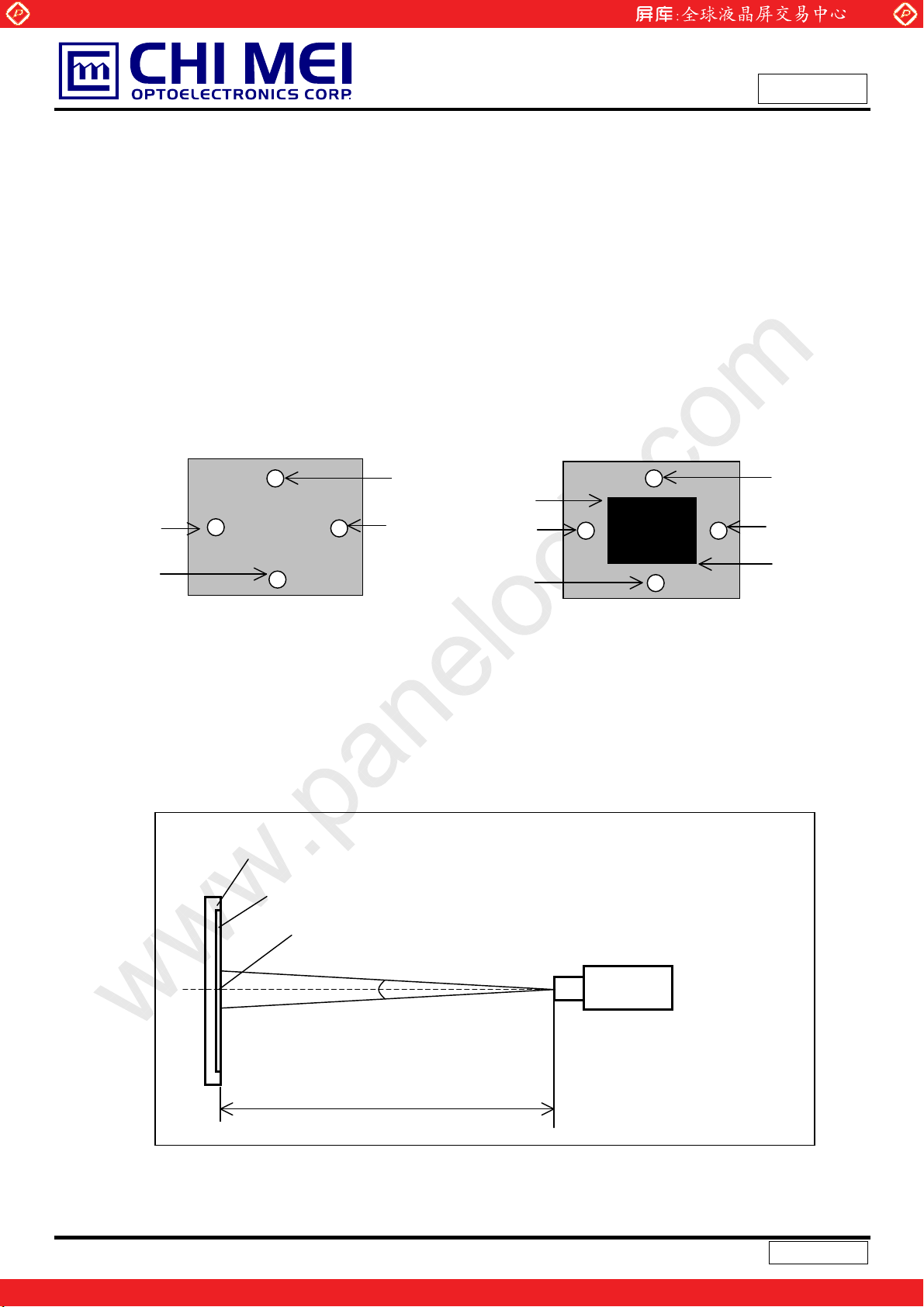

Note (5) Definition of Cross Talk (CT):
CT = | Y
– YA | / YA u 100 (%)
B
Where:
Y
= Luminance of measured location without gray level 0 pattern (cd/m2)
A
Y
= Luminance of measured location with gray level 0 pattern (cd/m2)
B
(0, 0)
ctive Area
Y
Y
(D/8,W/2)
A, L
Y
(D/2,7W/8)
A, D
Gray 32
Y
(D,W)
(D/2,W/8)
A, U
(7D/8,W/2)
A, R
AVE
):
(D/4,W/4)
Y
(D/8,W/2)
B, L
Y
(D/2,7W/8)
B, D
(0, 0)
ctive Area
Gray 0
Gray 32
Y
B, U
Y
B, R
(3D/4,3W/4)
(D,W)
(D/2,W/8)
(7D/8,W/2)
Note (6) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
500 mm
Photometer
(TOPCON BM-5A)
Field of View = 2º
Light Shield Room
(Ambient Luminance < 2 lux)
16 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center

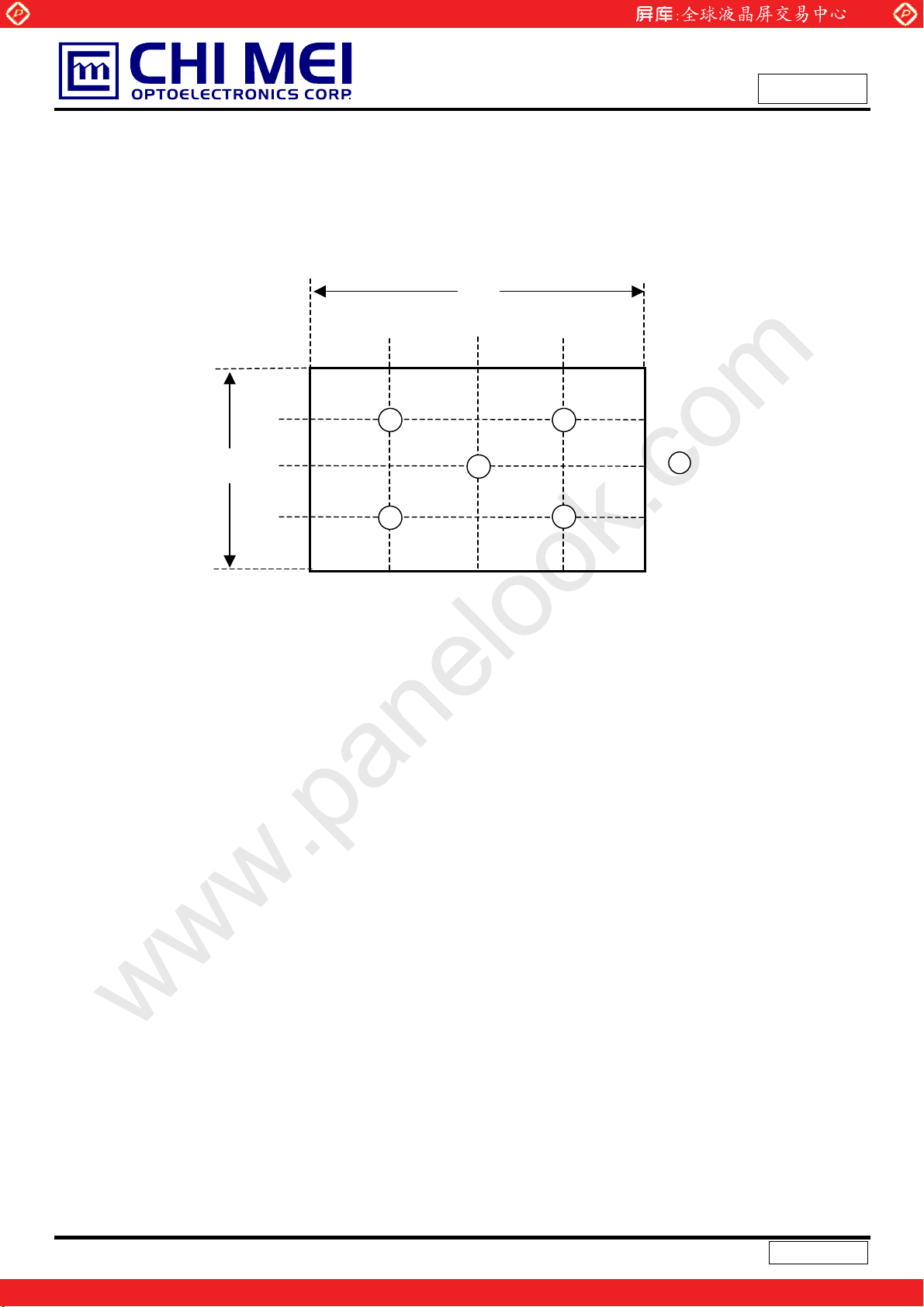

Note (7) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
www.panelook.com
Model No.: N150X2 - L01
Approval
W
W/4
W/2
3W/4
Vertical Line
Horizontal Line
D
D/4 D/2 3D/4
12
X
: Test Point
X=1 to 5
3
5
4
Active Area
17 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N150X2 - L01
Approval
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
8.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
18 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
9. DEFINITION OF LABELS
9.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
˚ˆˆ˖˃˃˃˃ˠ˄˄˃
ˡ˄ˈ ˃˫˅ˀ˟˃˄ʳʳʳʳʳʳʳ˥˸ ˁ˫˫
www.panelook.com
Model No.: N150X2 - L01
Approval
E207943
MADE IN TAIWAN
˫˫˫˫˫˫˫ˬˠ˗˟ˡ
(a) Model Name : N150X2-L01
(b) Revision : Rev.XX, for example : C1, C2 …etc.
(c) Serial ID: X X
Serial ID include the information as list.
ˡˡˡ
X X X X X Y M D L N N N N
Serial No.
Product Line
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
(a)Manufactured Date: Year: 1~9, for 2001~2009
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
(b)Revision Code: cover all the change
(c)Serial No.: Manufacturing sequence of product
(d)Product Line: 1 -> Line1, 2 -> Line 2, …etc.
st
to 31st, exclude I , O and U
19 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
9.2 CMO CARTON LABEL
www.panelook.com
Model No.: N150X2 - L01
Approval
20 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
10. PACKAGING
10.1 PACKING SPECIFICATIONS
(1) 10 LCD modules / 1 Box
(2) Box dimensions : 422(L) X 337(W) X 345(H) mm
(3) Weight : approximately 6.5Kg (10 modules per box)
10.2 PACKING METHOD
(1)Carton Packing should have no failure in the following reliability test items.
Test Item Test Conditions Note Vibration Random, 2-200 Hz, follow ISTA standard Non Operation Dropping Test 1 Angle, 3 Edge, 6 Face, 60cm Non Operation
Model No.: N150X2 - L01
Approval
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Figure. 10-1 Packing method
21 / 22
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N150X2 - L01
Approval
Figure. 10-2 Packing method
22 / 22
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
