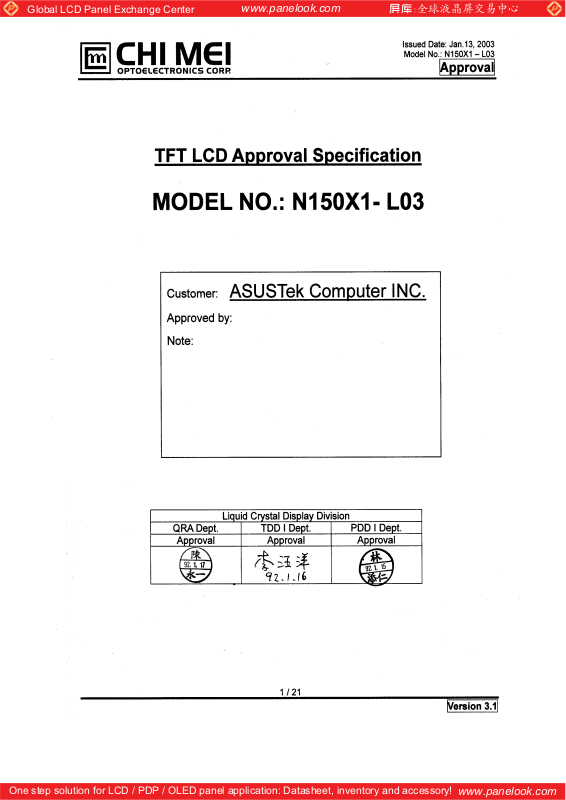

CMO N150X1-L03 Specification

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

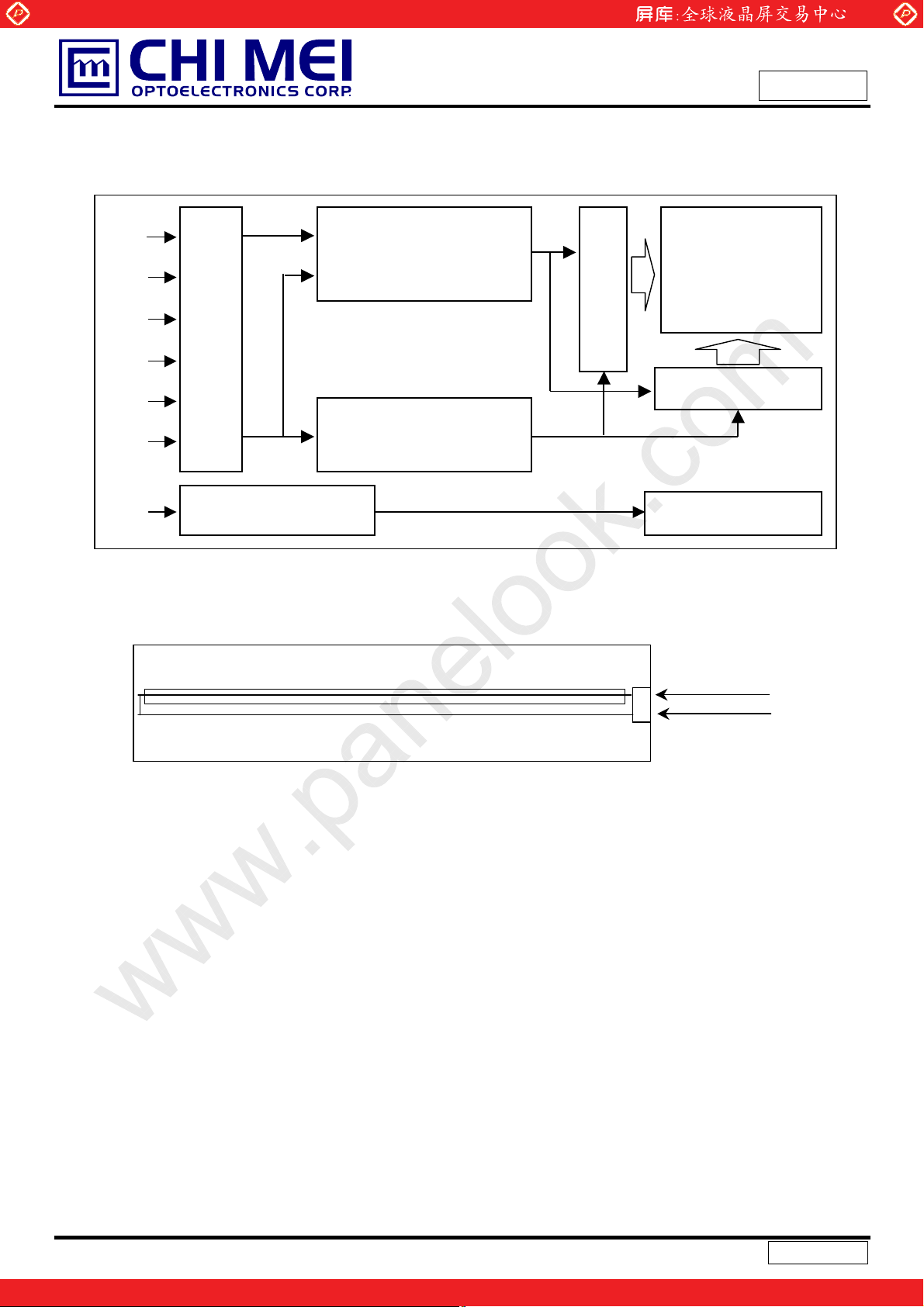

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

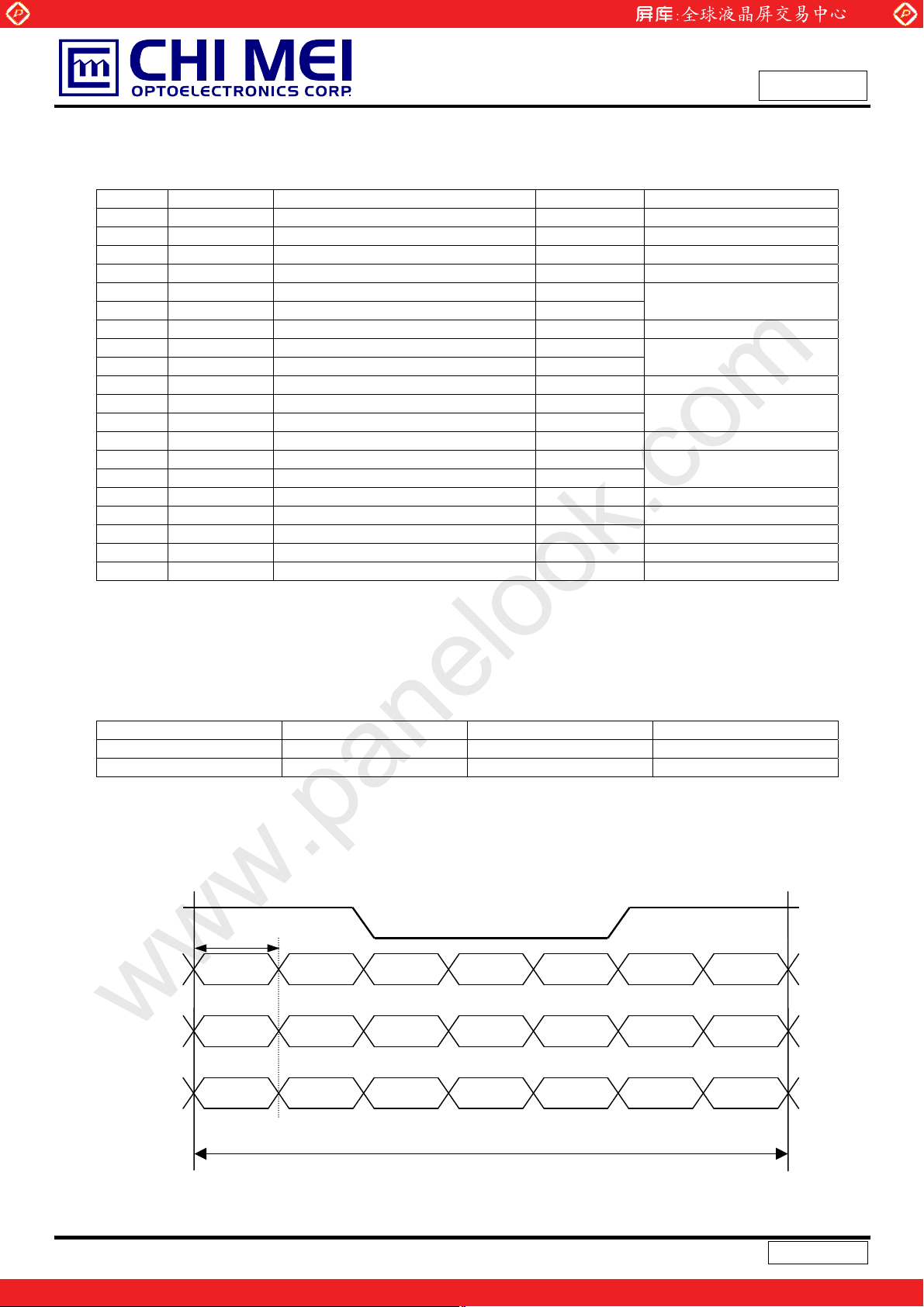

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. DEFINITION OF LABELS ------------------------------------------------- 18

8.1 CMO MODULE LABEL

8.2 CARTON LABEL

9. PACKING ------------------------------------------------- 19

9.1 Carton

9.2 Pallet

10. PRECAUTIONS 10

.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

------------------------------------------------------- 3

------------------------------------------------------- 4

------------------------------------------------------- 5

------------------------------------------------------- 6

------------------------------------------------------- 9

------------------------------------------------------- 10

------------------------------------------------------- 12

------------------------------------------------------- 14

------------------------------------------------------- 20

2 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

REVISION HISTORY

Version Date Section Description

All

Ver 1.0

Ver 3.0

Ver. 3.1

Jul. 05,’02

Sep. 25,02

Jan.13’03

Issue Preliminary Specification.

All

Page 4 - 1.5 MECHANICAL SPECIFICATIONS

Add min depth “6.4” & max depth “7.0” & Max Weight “605”

Modify typ. weight to be “590”

Page 6 – 2.2.2 BACKLIGHT UNIT

Modify the note of lamp voltage from “6.5 mA” to be “6.0 mA”

Page 7 – 3.2 BACKLIGHT UNIT

Modify lamp Input Voltage typ. value from “640” to “680”

Add lamp input voltage min.=612 max.=748

Modify “note” of “lamp input voltage” from “6.5” to “6.0”

Modify lamp current min.=2.0 typ.=6.0 max.=6.5

Add lamp life time typ.=15,000

Modify power consumption typ. from 4.2 to 4.08

Page 8 modify I

Page 12

Add frequency min.=20 typ.=68

Modify frame time cycle max. from 1000 to 850

Page 14

Modify “inverter Current” value from “6.5” to “6.0”

Modify “inverter driving frequency” from “60” to “50”.

Page 19

Add Section 8.2 Carton label

Add Section 9 PACKING

Revise section 1.4 item: Surface treatment

Modify to be Hard coating (2H), Low Reflection (R%Љ1.8%), Anti-glare (Haze

40)

= 6.0 mArms

L

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

3 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N150X1- L03 is a 15” TFT Liquid Crystal Display module with single CCFL Backlight unit and 20 pins LVDS

interface. This module supports 1024 x 768 XGA mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- Thin and light weight

- XGA (1024 x 768 pixels) resolution

- DE (Data Enable) only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note Active Area 304.1 (H) x 228.1 (V) (15.0” diagonal) mm Bezel Opening Area 307.8 (H) x 231.6 (V) mm Driver Element a-si TFT active matrix - Pixel Number 1024 x R.G.B. x 768 pixel Pixel Pitch 0.297 (H) x 0.297 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - -

Surface Treatment

Hard coating (2H), Low Reflection (R%Љ1.8%),

Anti-glare (Haze 40)

- -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 316.8 317.3 317.8 mm

Module Size

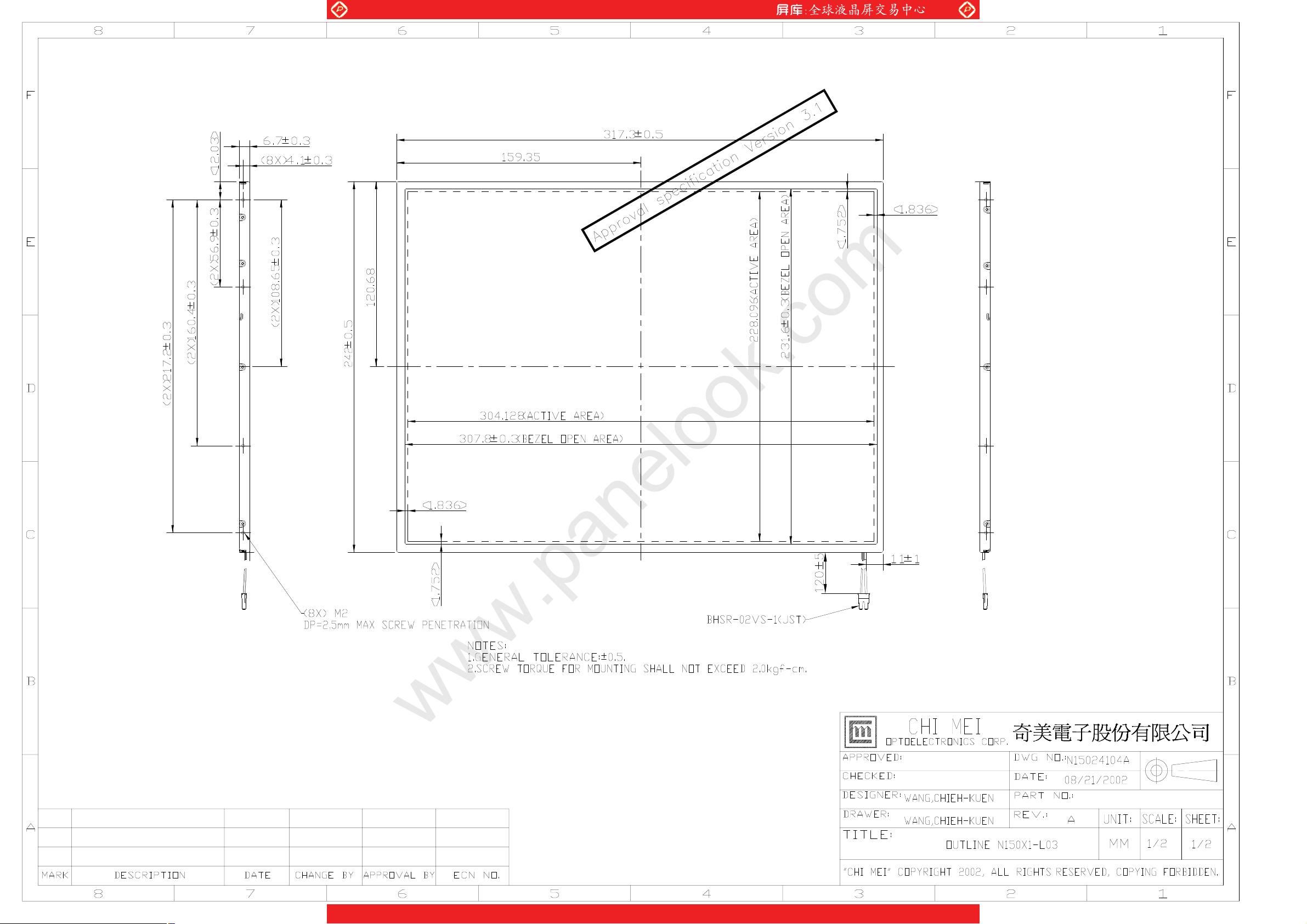

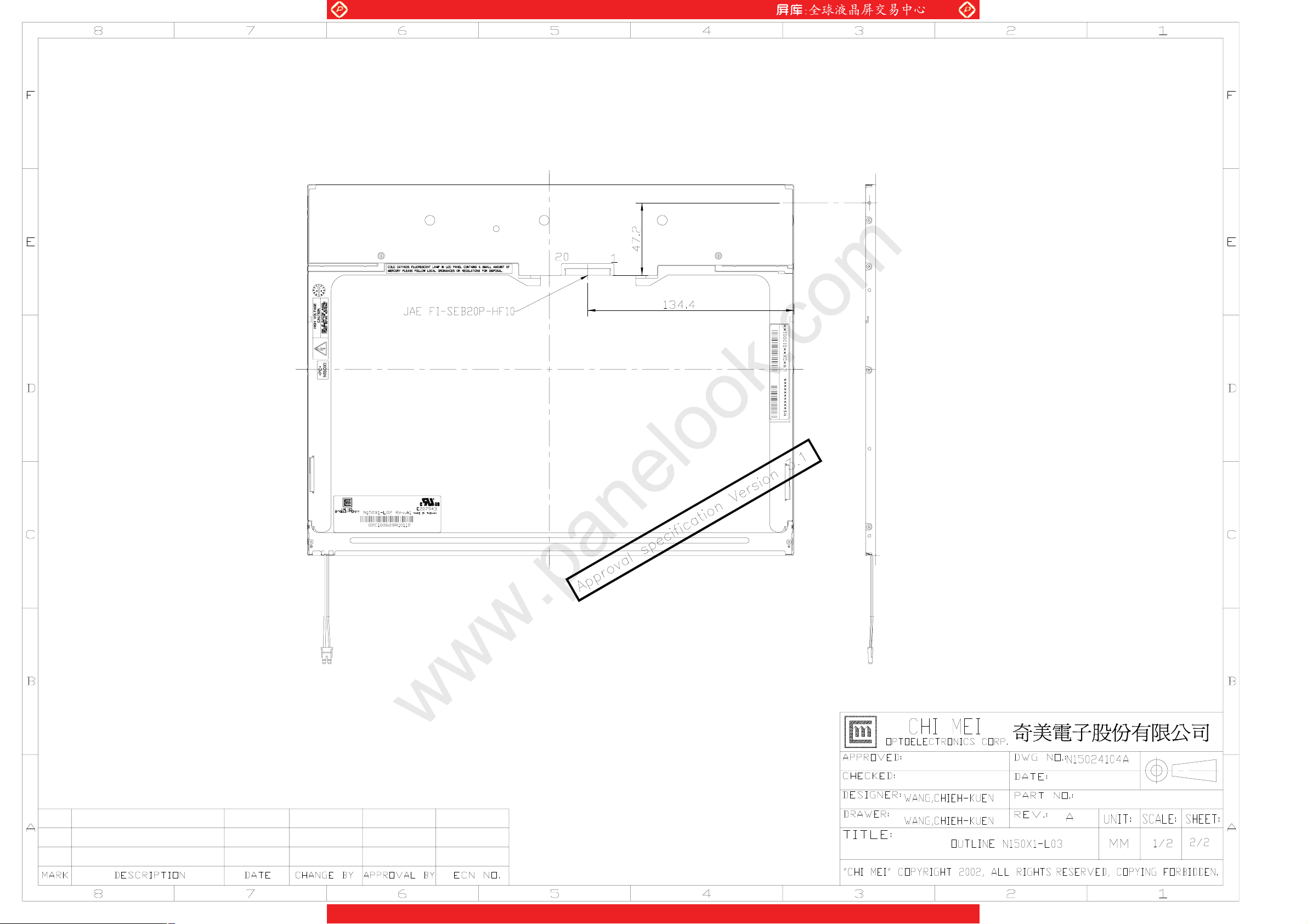

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 241.5 242.0 242.5 mm Depth(D) 6.4 6.7 7.0 mm

Weight - 590 605 g -

(1)

4 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max.

Note (3) 2ms, half sine wave, 1 time for ± X, ± Y, ± Z.

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

Value

Min. Max.

- 200 G (3), (5)

NOP

- 2.0 G (4), (5)

NOP

Unit Note

Note (4) 10 ~ 500 Hz, 0.5 Hr / cycle, 4 cycles for each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that

the module would not be twisted or bent by the fixture. The gap between panel and testing table

should be less then 2mm.

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

Storage Range

5

Temperature (ºC)

5 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8060 -20 400 20-40

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - 2.5K V Lamp Current IL - 7.5 mA Lamp Frequency FL - 80 KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

www.panelook.com

Value

Min. Max.

Value

Min. Max.

Unit Note

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

(1)

(1), (2), IL = 6.0 mA

RMS

(1), (2)

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

FUSE

Value

C3

1uF

Unit Note

Vcc

(LCD Module Input)

Parameter Symbol

Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP - 50 mV Rush Current I

Power Supply Current

Logical Input Voltage

White - 400 mA (3)a Black “H” Level VIL - - +100 mV “L” Level V

- 1.5 A (2)

RUSH

lcc

-100 - - mV -

IH

- 600 mA (3)b

Terminating Resistor RT - 100 - Ohm -

Note (1) The module should be always operated within above ranges.

Note (2) Measurement Conditions

+3.3V

Q1 2SK1475

VR1

R1

47K

R2

1K

47K

0.01uF

Q2

2SK1470

C2

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

6 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

GND

www.panelook.com

Vcc rising time is 470us

0.9Vcc

0.1Vcc

470us

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

+3.3V

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

60Hz, whereas a power dissipation check pattern below is displayed.

a. White Pattern

Active Area

b. Black Pattern

Active Area

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max. Lamp Input Voltage VL 612 680 748 V Lamp Current IL 2.0 6.0 6.5 mA

Lamp Turn On Voltage VS

- 1080(25

- 1290(0 Operating Frequency FL 40 60 67 KHz (3) Lamp Life Time LBL 10,000 15,000 0 Hrs (5) Power Consumption PL - 4.08 - W (4), IL = 6.0 mA

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

o

C) 11 V

o

C) V

Unit Note

I

RMS

(2)

RMS

(2)

RMS

= 6.0 mA

L

(1)

=

v

LCD

Module

HV (White)

LV (Black)

1

2

Current Meter

Inverter

A

7 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.

Otherwise the lamp may not be turned on.

Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

Note (4) P

Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

= IL VL

L

Ta = 25 2

(a) When the brightness becomes or lower than 50% of its original value.

(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective

ignition length is defined as an area that has less than 70% brightness compared to the

brightness in the center point.)

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid producing too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

o

C and IL = 6.0 mArms until one of the following events occurs:

8 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

Rxin0(+/-)

Rxin1(+/-)

Rxin2(+/-)

(JAE-FI-XB20P-HF10)

CLK(+/-)

Vcc

GND

V

L

LAMP CONNECTOR

4.2 BACKLIGHT UNIT

INPUT CONNECTOR

REFERENCE VOLTAGE

(JST-BHSR-02VS-1)

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

GENERATOR

SCAN DRIVER IC

TFT LCD PANEL

(1024x3x768)

DATA DRIVER IC

BACKLIGHT UNIT

1 HV (White)

9 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vcc Power Supply +3.3 V 2 Vcc Power Supply +3.3 V 3 Vss Ground 4 Vss Ground 5 Rxin0- LVDS Differential Data Input Negative 6 Rxin0+ LVDS Differential Data Input Positive 7 Vss Ground 8 Rxin1- LVDS Differential Data Input Negative

9 Rxin1+ LVDS Differential Data Input Positive 10 Vss Ground 11 Rxin2- LVDS Differential Data Input Negative 12 Rxin2+ LVDS Differential Data Input Positive 13 Vss Ground 14 CLK- LVDS Clock Data Input Negative 15 CLK+ LVDS Clock Data Input Positive 16 Vss Ground 17 VEDID 3.3V Power 18 NC Non-Connection 19 CLKEDID DDC Clock 20 DATAEDID DDC Data -

Note (1) Connector Part No.: JAE-FI-SEB20P-HF or equivalent

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

R0~R5,G0

G1~G5,B0,B1

B2~B5,DE,Hsync,Vsync

LVDS Level

Note (2) User’s connector Part No: JAE-FI-S020S or equivalent

Note (3) The first pixel is even.

5.2 BACKLIGHT UNIT

Pin Symbol Description Color

1 HV High Voltage White 2 LV Ground Black

Note (1) Connector Part No.: JAE-FI-SEB20P-HF10 or equivalent

Note (2) User’s connector Part No.: JAE-FI-S020S or equivalent

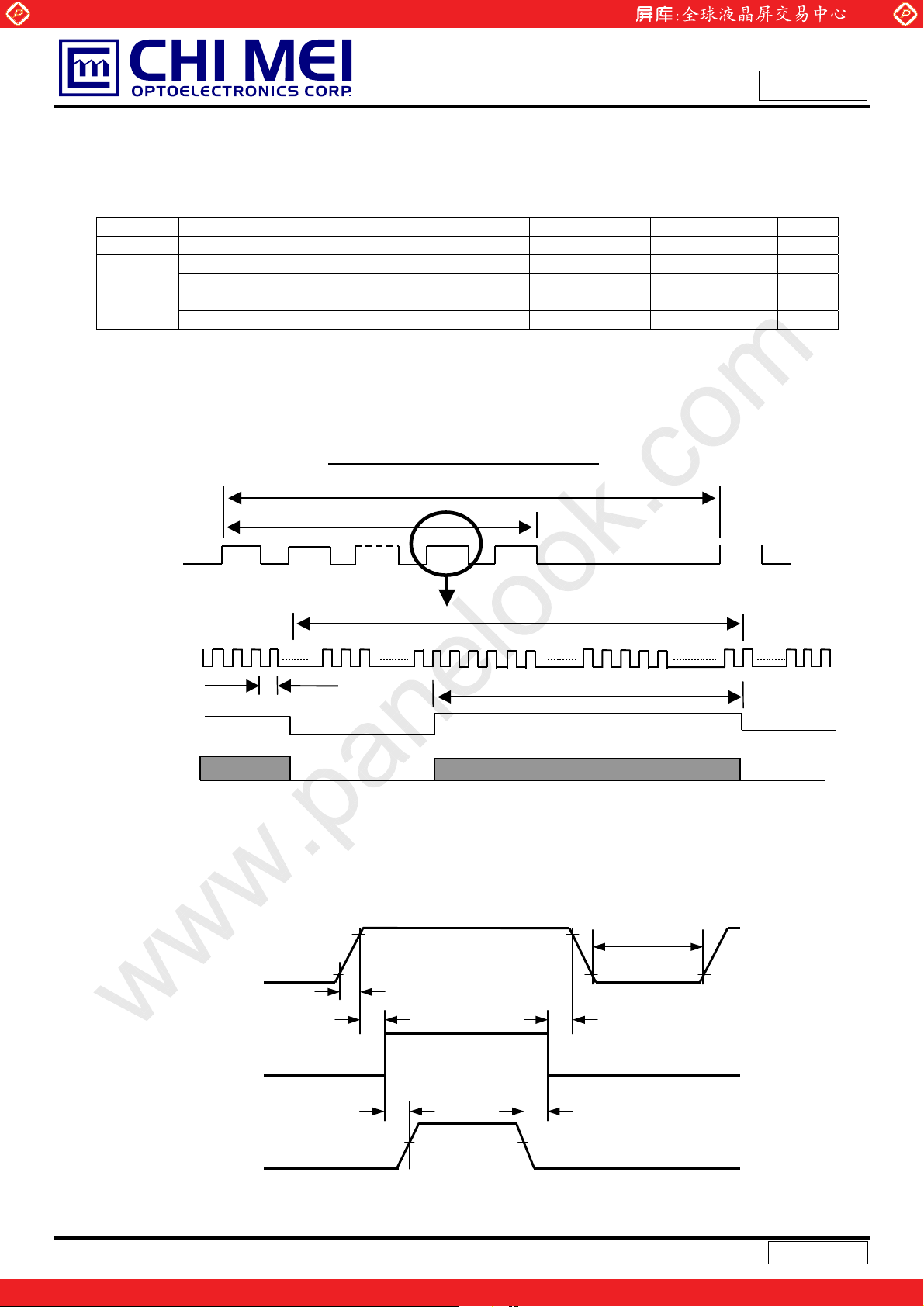

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

Rxin2

Rxin1

Rxin0

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0 R5 R4

Signal for 1 DCLK Cycle (T)

10 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green

Basic Colors

Gray Scale Of Red

Gray Scale Of Green

Gray Scale Of Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue Cyan Magenta Ye ll ow White Red(0)/Dark Red(1) Red(2)

:

: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)

:

: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)

:

: Blue(61) Blue(62) Blue(63)

0

1

0

1

0

0 : :

1

0

0 : :

0

0 : :

0

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

Data Signal

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

11 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc

Frame Time Cycle TV

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync input signals should be set

to low logic level or ground. Otherwise, this module would operate abnormally.

Vertical Active Display Period TVD 768 768 768 TH -

One Line Scanning Time Cycle TH

Horizontal Active Display Period THD 1024 1024 1024 Tc -

www.panelook.com

1200

20

771

65

806

1344

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

68

850

1600

MHz -

TH -

Tc -

DE

DCLK

TC

DE

DATA

6.2 POWER ON/OFF SEQUENCE

INPUT SIGNAL TIMING DIAGRAM

Power On

Power Off

HD

T

Restart

Power Supply

for LCD, Vcc

0V

10%

90%

t1

90%

t4

10%

t3 t2

10%

- Interface Signal

(LVDS Signal of Transmitter), V

0V

I

Valid Data

t6 t5

Timing Specifications:

- Power for Lamp

ONOFF OFF

50%50%

12 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

0 < t1 Љ 10 msec

0 < t2 Љ 50msec

0 < t3 Љ 50 msec

t4 Њ 1 sec

t5 Њ 200 msec

t6 Њ 200 msec

Note (1) Please avoid floating state of interface signal at invalid period.

Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

13 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6.0 mA Inverter Driving Frequency FL 60 KHz Inverter Sumida H05-4915

The relative measurement methods of optical characteristics are shown in 6.2. The following items

should be measured under the test conditions described in 6.1 and stable environment shown in Note (6).

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 150 250 - - (2), (6)

Response Time

Center Luminance of White L 170 200 - cd/m Average Luminance of White L White Variation Cross Talk CT - - 3.0 % (5), (6)

Red

Color Chromaticity

Viewing Angle

Green

Blue

White

Horizontal

Ver t i c al

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

o

25r2

50r10

TR - 6.0 10.0 ms

- 17.0 25.0 ms

T

F

150 180 - cd/m2(4), (6)

AVE

GW

=0q, TY =0q

T

Rx 0.598 0.628 0.658 Ry 0.326 0.356 0.386 -

x

Viewing Normal Angle

70 % (6), (7)

Gx 0.264 0.294 0.324 Gy 0.559 0.589 0.619 Bx 0.114 0.144 0.174 -

By 0.067 0.097 0.127 Wx 0.280 0.310 0.340 Wy

Tx+

T

x

TY+

T

Y

CRt10

-

0.300 0.330 0.360 40 45 40 45 -10 15 30 35 -

C

%RH

Deg.

2

(3)

(6)

(1), (6)

14 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

T

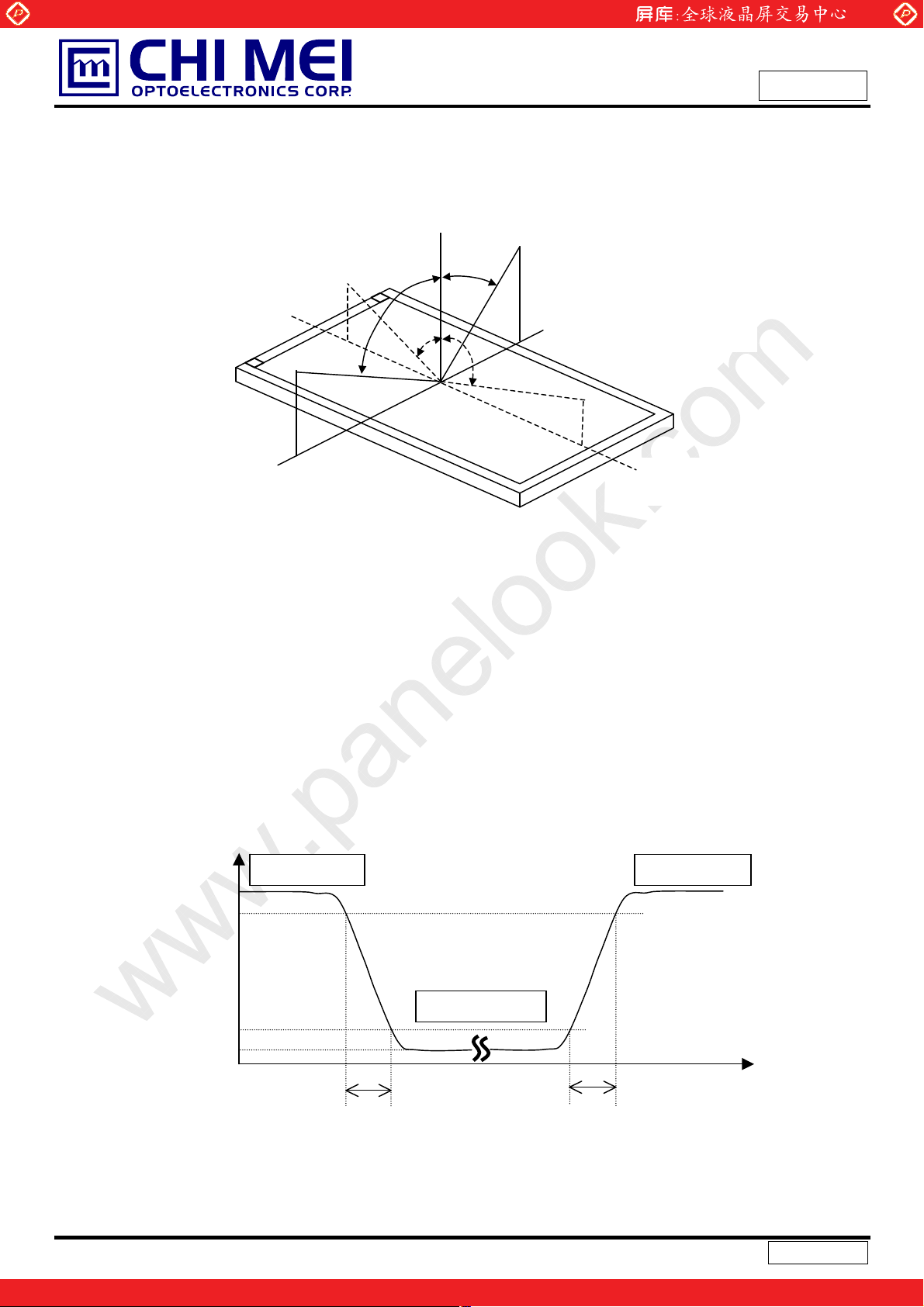

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

TX- = 90º

x-

6 o’clock

T

y- = 90º

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Normal

Tx = Ty = 0º

Ty- Ty

Tx

Tx

y+

12 o’clock direction

T

y+ = 90º

x+

TX+ = 90º

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

R

T

R

, TF):

ime

T

F

15 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

(

)

A

(

)

(

)

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (7).

Note (5) Definition of Cross Talk (CT):

CT = | Y

– YA | / YA u 100 (%)

B

Where:

Y

= Luminance of measured location without gray level 0 pattern (cd/m2)

A

Y

= Luminance of measured location with gray level 0 pattern (cd/m2)

B

(0, 0)

ctive Area

Y

(D/8,W/2)

A, L

Y

(D/2,7W/8)

A, D

Gray 32

Y

D,W

(D/2,W/8)

A, U

(7D/8,W/2)

A, R

AVE

Y

):

(D/4,W/4)

Y

(D/8,W/2)

B, L

(D/2,7W/8)

B, D

0, 0

ctive Area

Gray 0

Gray 32

Y

(D/2,W/8)

B, U

Y

(7D/8,W/2)

B, R

(3D/4,3W/4)

D,W

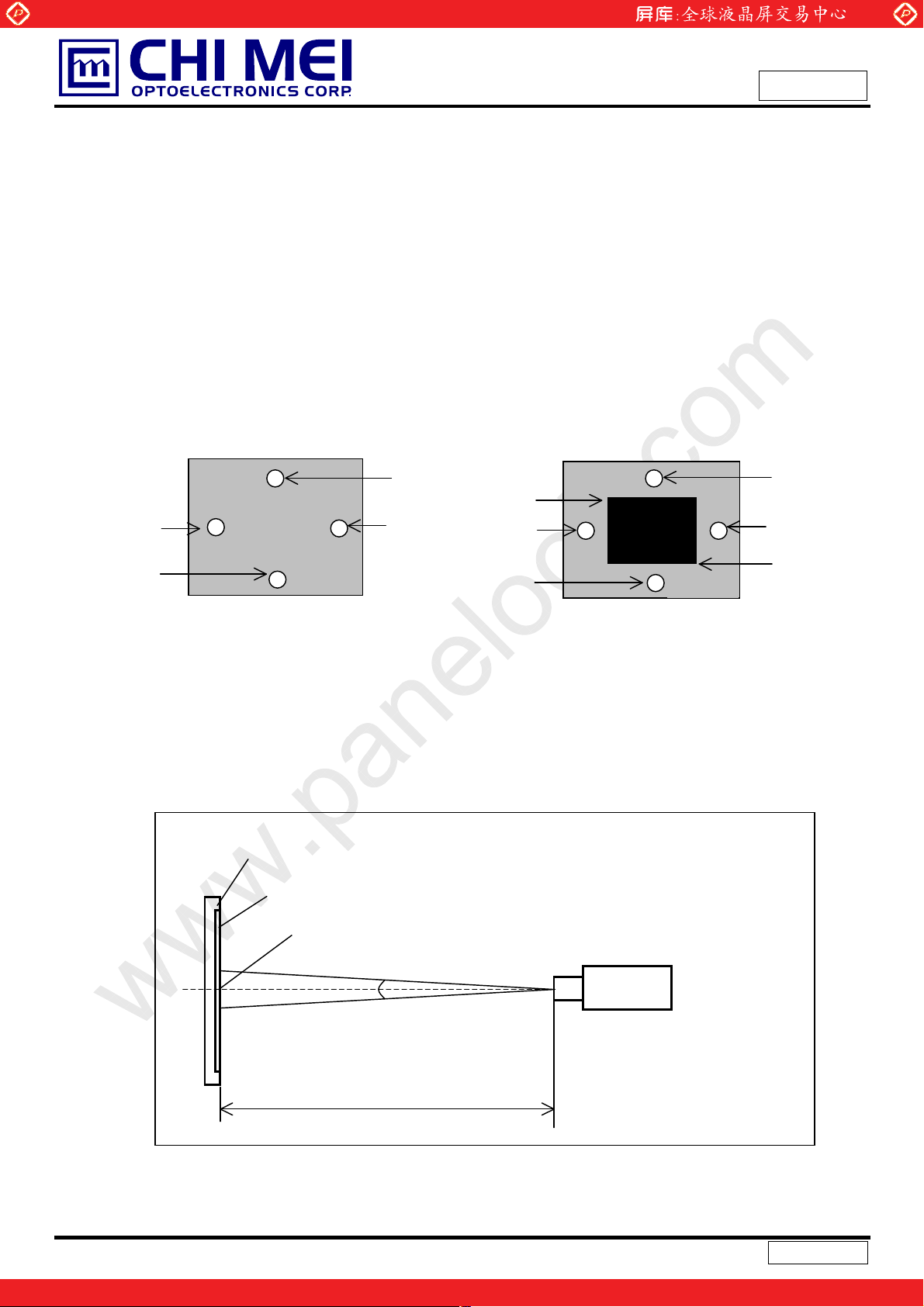

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

Center of the Screen

500 mm

Photometer

(TOPCON BM-5A)

Field of View = 2º

Light Shield Room

(Ambient Luminance < 2 lux)

16 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

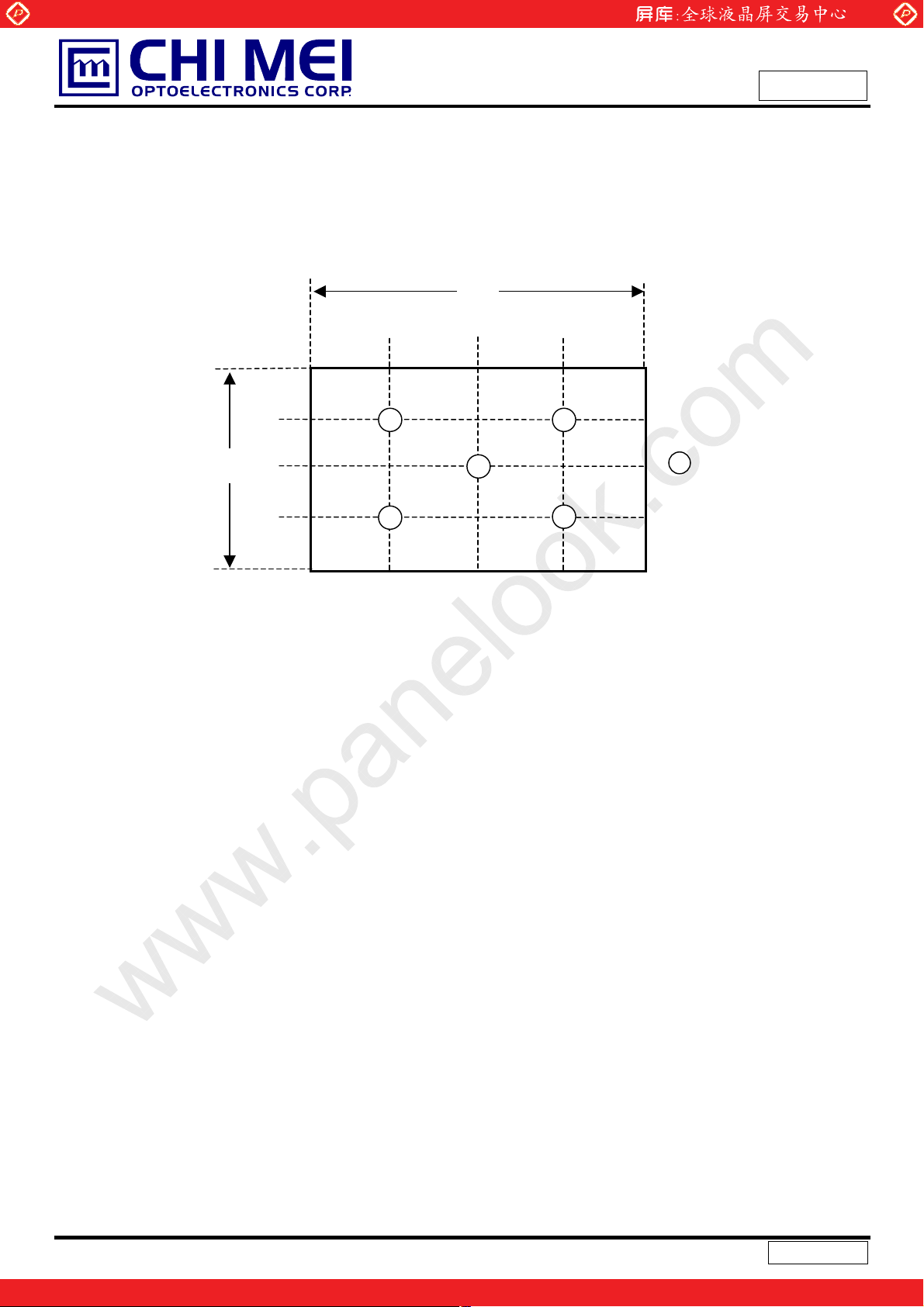

Note (7) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

W

W/4

W/2

3W/4

Vertical Line

Horizontal Line

D

D/4 D/2 3D/4

12

X

: Test Point

X=1 to 5

3

5

4

Active Area

17 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. DEFINITION OF LABELS

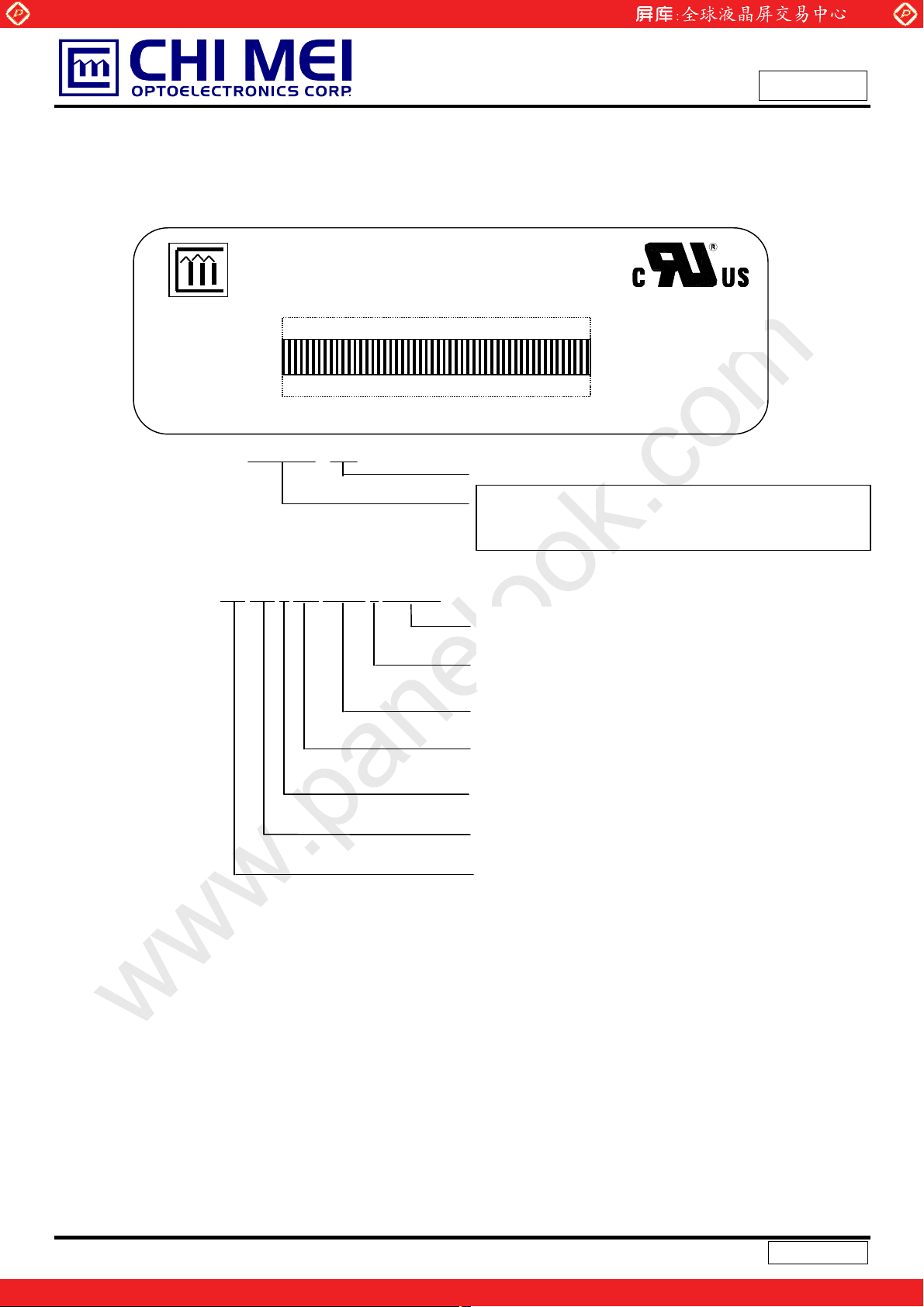

8.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

CHI MEI

OPTOELECTRONICS

N150X1 - L03 Rev. XX

www.panelook.com

MADE IN TAIWAN

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

E207943

MADE IN TAIWAN

X X X X X X X Y M D L N N N N

(a) Model Name: N150X1 - L03

Sub-Model Name for Sub-Model version control

Model Name (For Safety Application, please uses this

module name. Sub-Module Name may be changed)

(b) Revision: Rev. XX, for example: A0, A1… or C1, C2…etc.

(c) Serial ID: X X

X X X X X Y M D L N N N N

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: Cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, A -> Line A …etc.

st

to 31st, exclude I,O and U.

CMO Internal Use

18 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

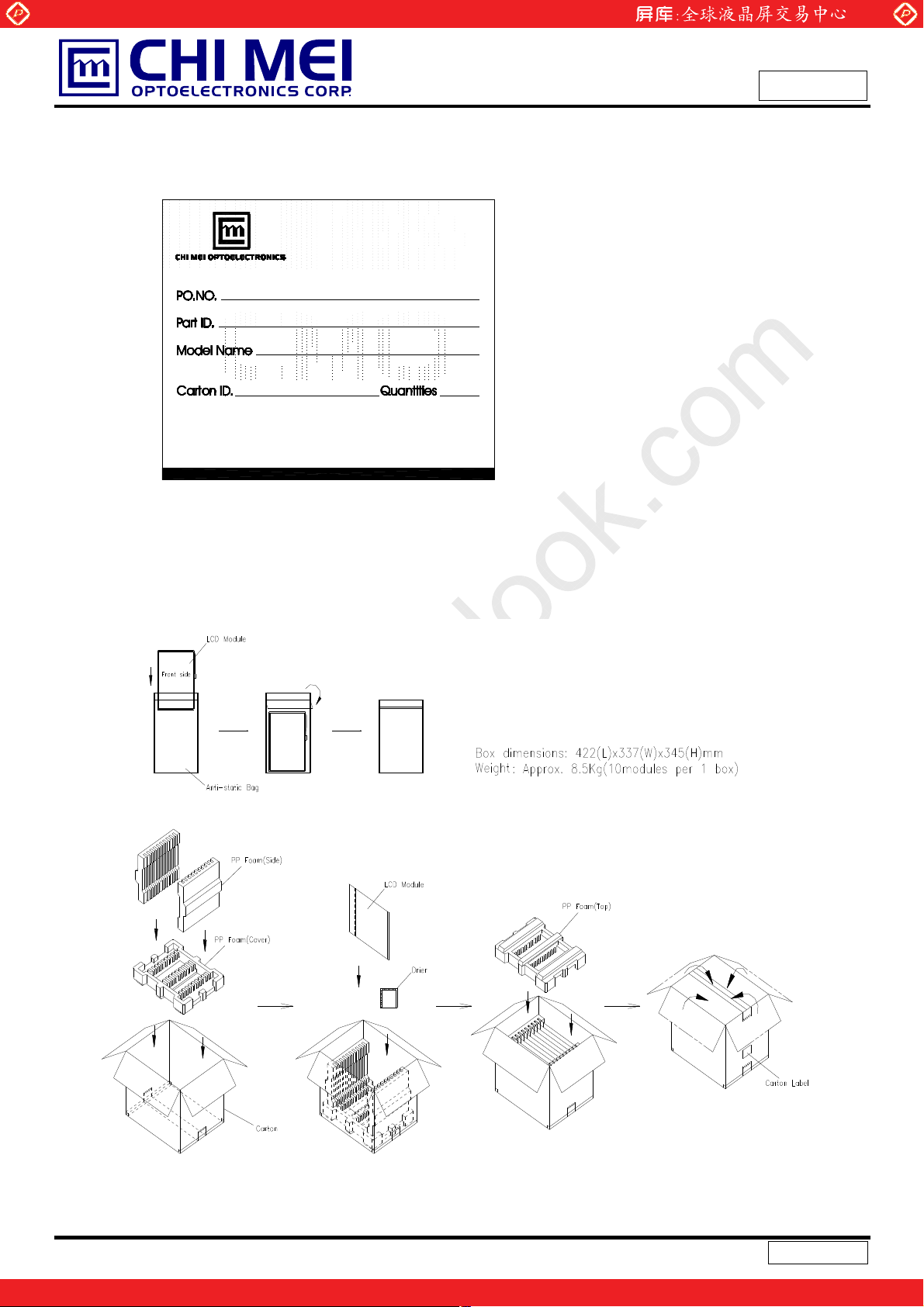

8.2 Carton Label

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

9. PACKING

9.1 Carton

19 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

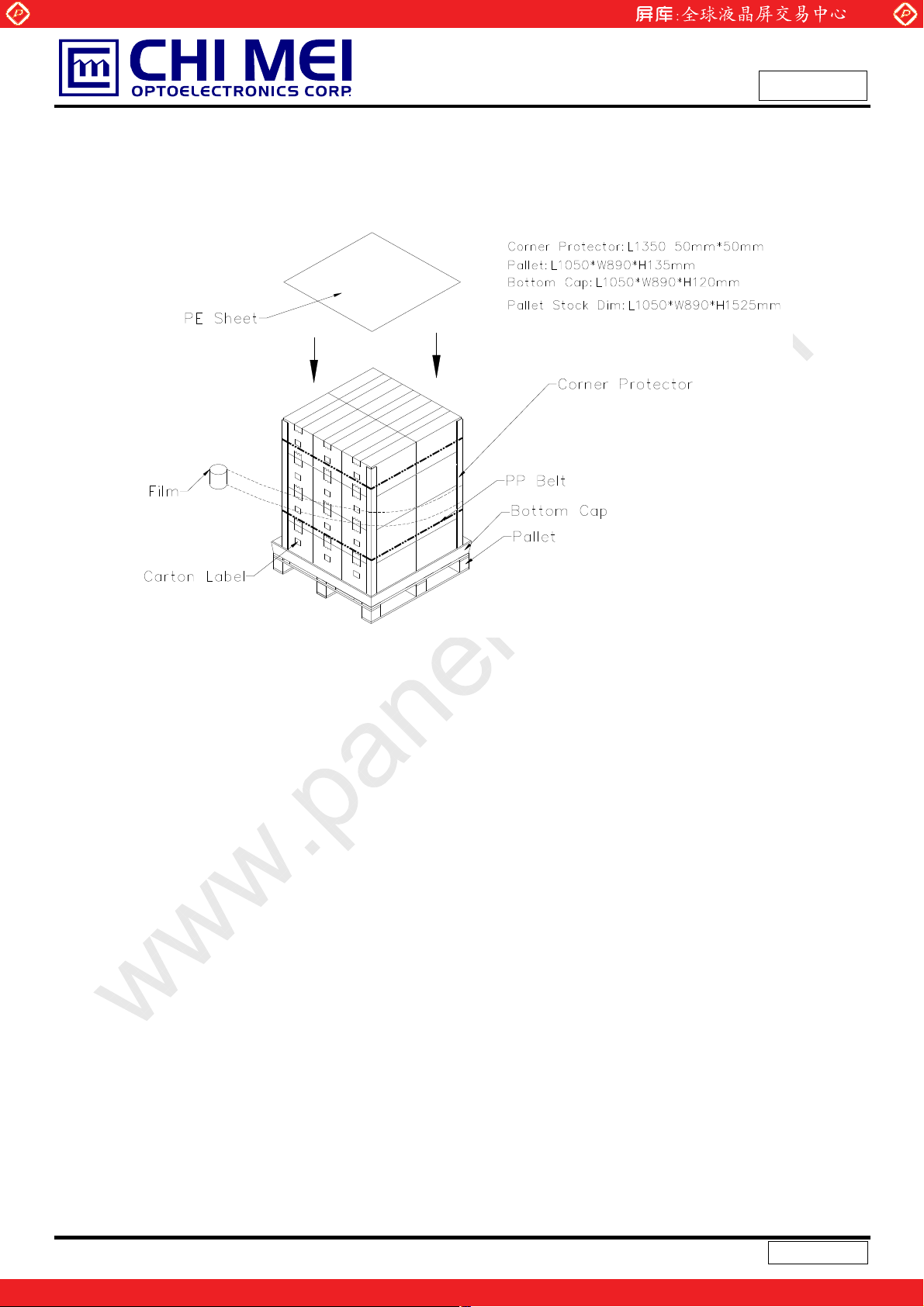

9.2 Pallet

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

20 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jan.13, 2003

Model No.: N150X1 – L03

Approval

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

10.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

21 / 21

Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

CMO N150X1-L03 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
