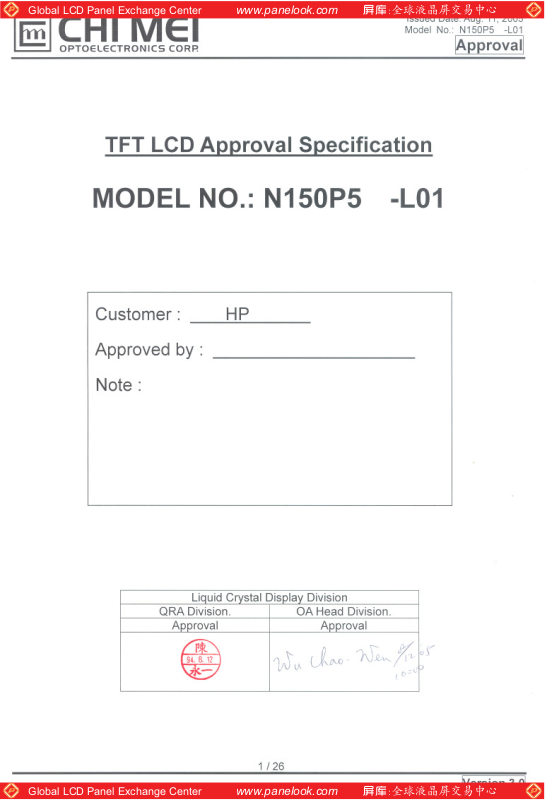

CMO N150P5-L01 Specification

Download
Page 1
Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

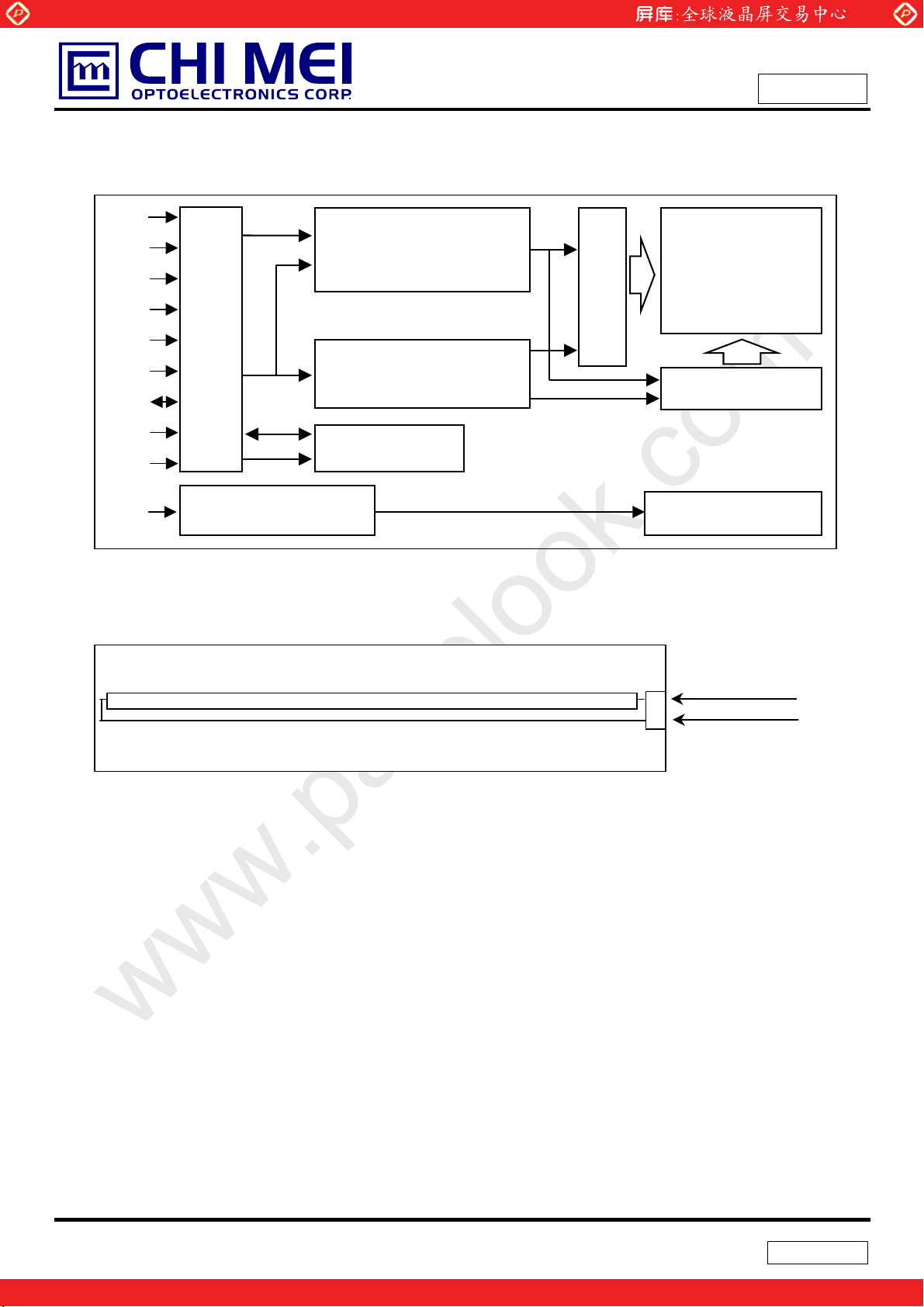

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS

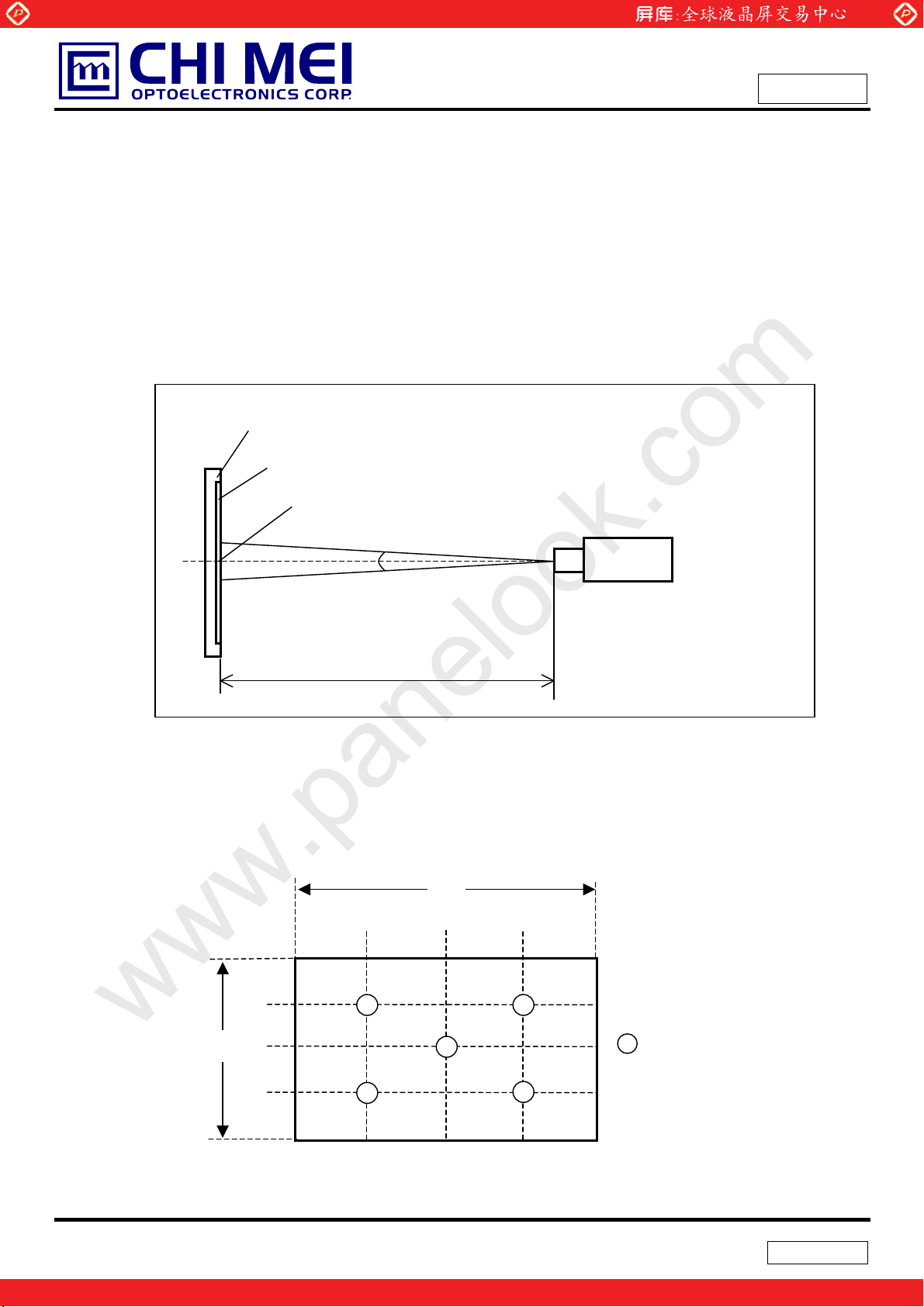

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 23
9.1 CARTON
9.2 PALLET

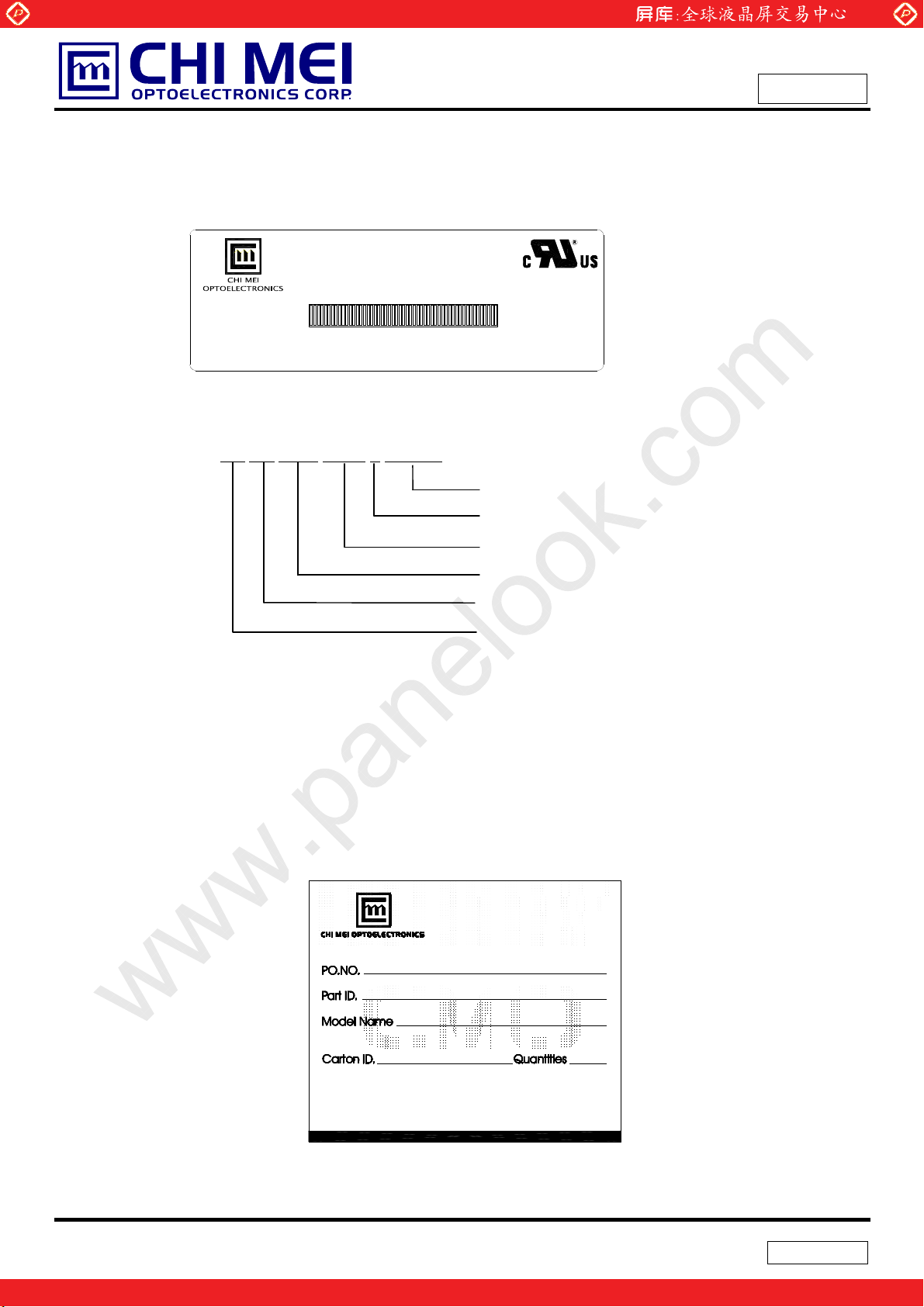

10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 10
------------------------------------------------------- 11
------------------------------------------------------- 17
------------------------------------------------------- 19
------------------------------------------------------- 22
------------------------------------------------------- 24
2 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Approval
REVISION HISTORY
Version Date
Ver 3.0
Aug.11. ‘05 All
Page
(New)
Section Description
All Issue Approval Specification for HP
3 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N150P5 is a 15.0” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins LVDS
interface. This module supports 1400x 1050 SXGA+ mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- SXGA+ (1400 x 1050 pixels) resolution
- DE (Data Enable) only mode
- 2 channel 3.3V LVDS (Low Voltage Differential Signaling) interface
- Support EDID Structure Version 1 Revision 3
www.panelook.com
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 304.5 (H) x 228.375 (V) (15” diagonal) mm Bezel Opening Area 308.1 (H) x 232 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1400 x R.G.B. x 1050 pixel ­Pixel Pitch 0.2175 (H) x 0.2175 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hardness (3H), Anti-glare (Haze 25) - -

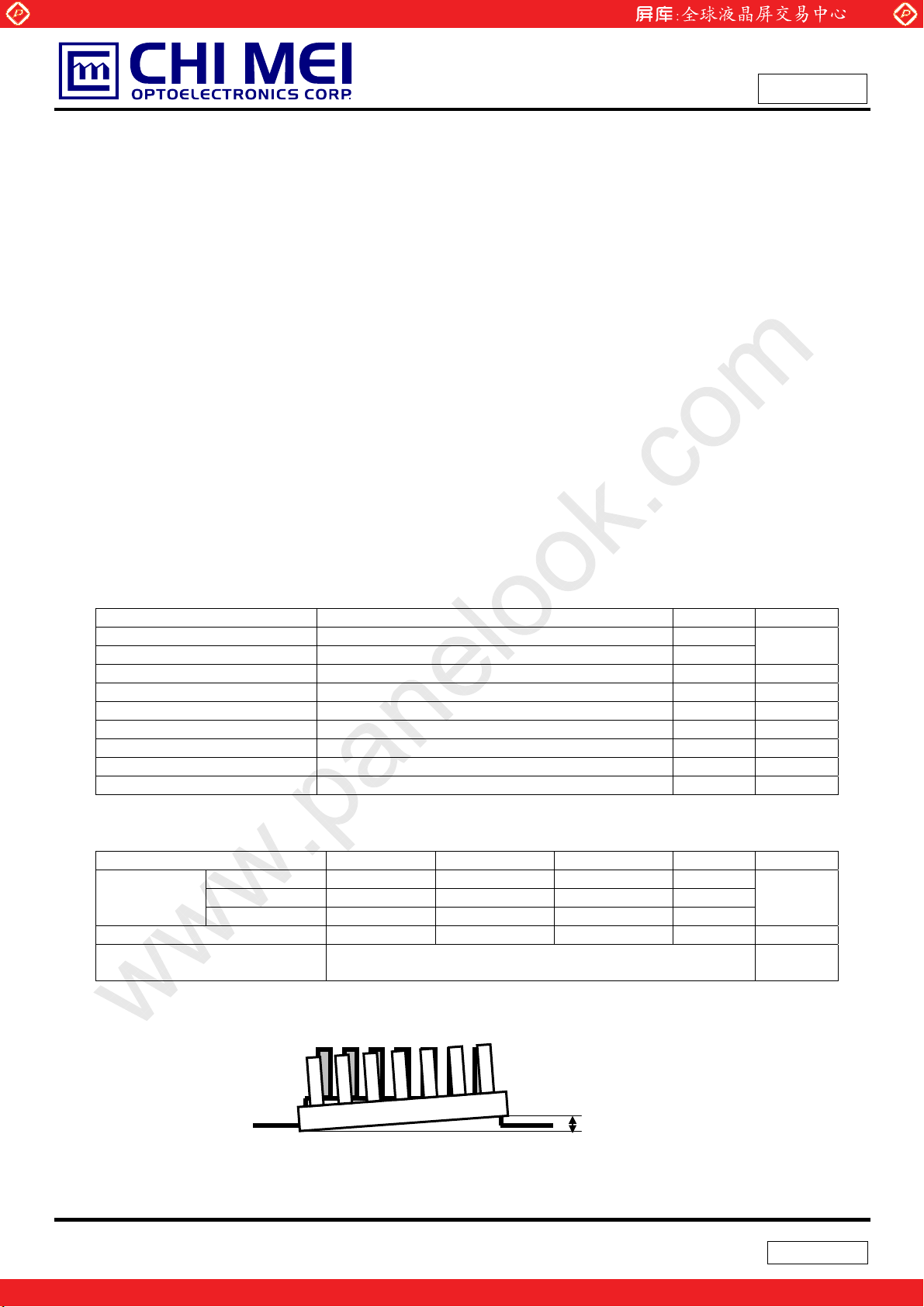

1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 316.8 317.3 317.8 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

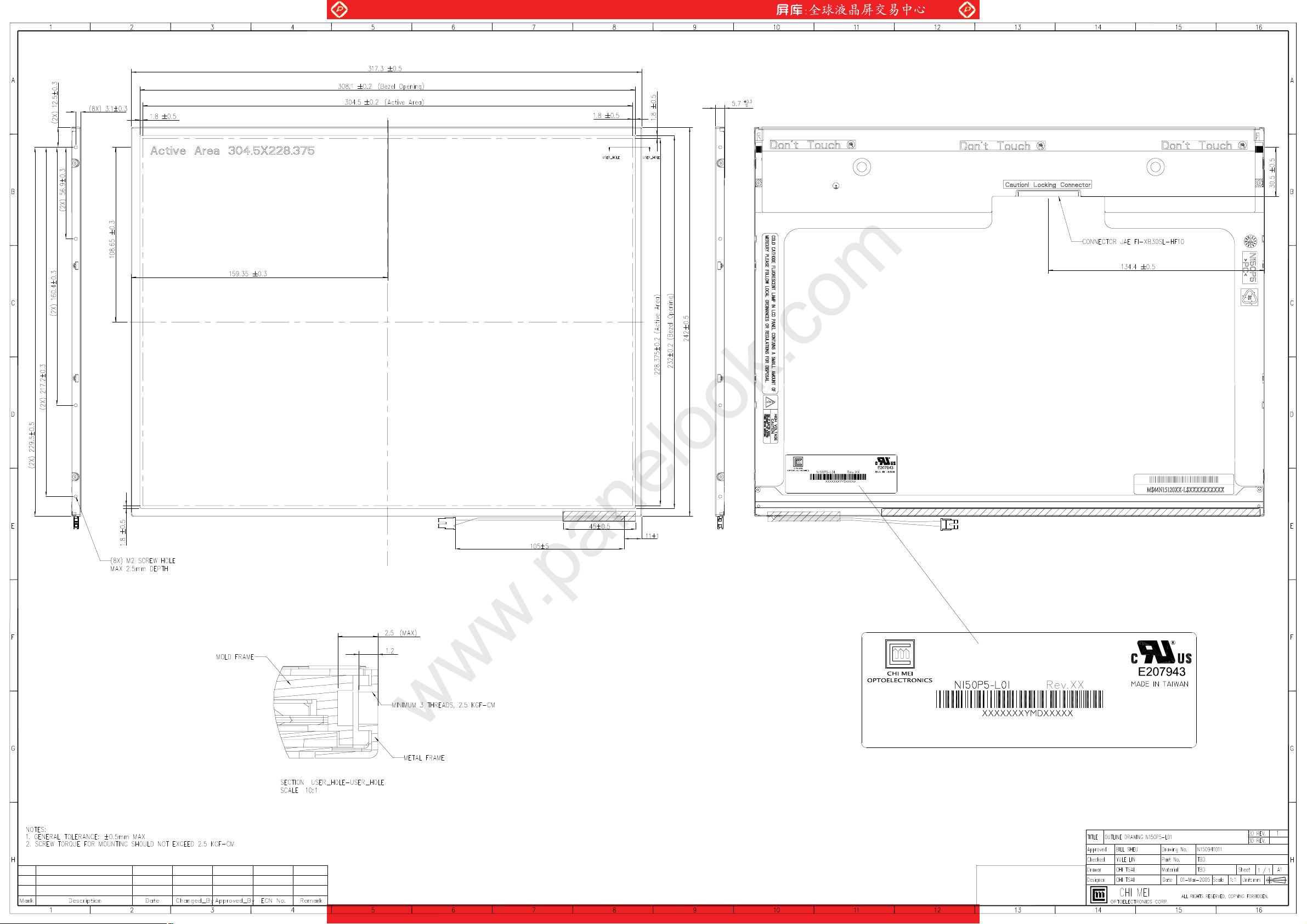

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 241.5 242.0 242.5 mm Depth(D) - 5.7 6.0 mm
Weight - 530 550 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
(2) Connector mounting position
+/- 0.5mm
4 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A

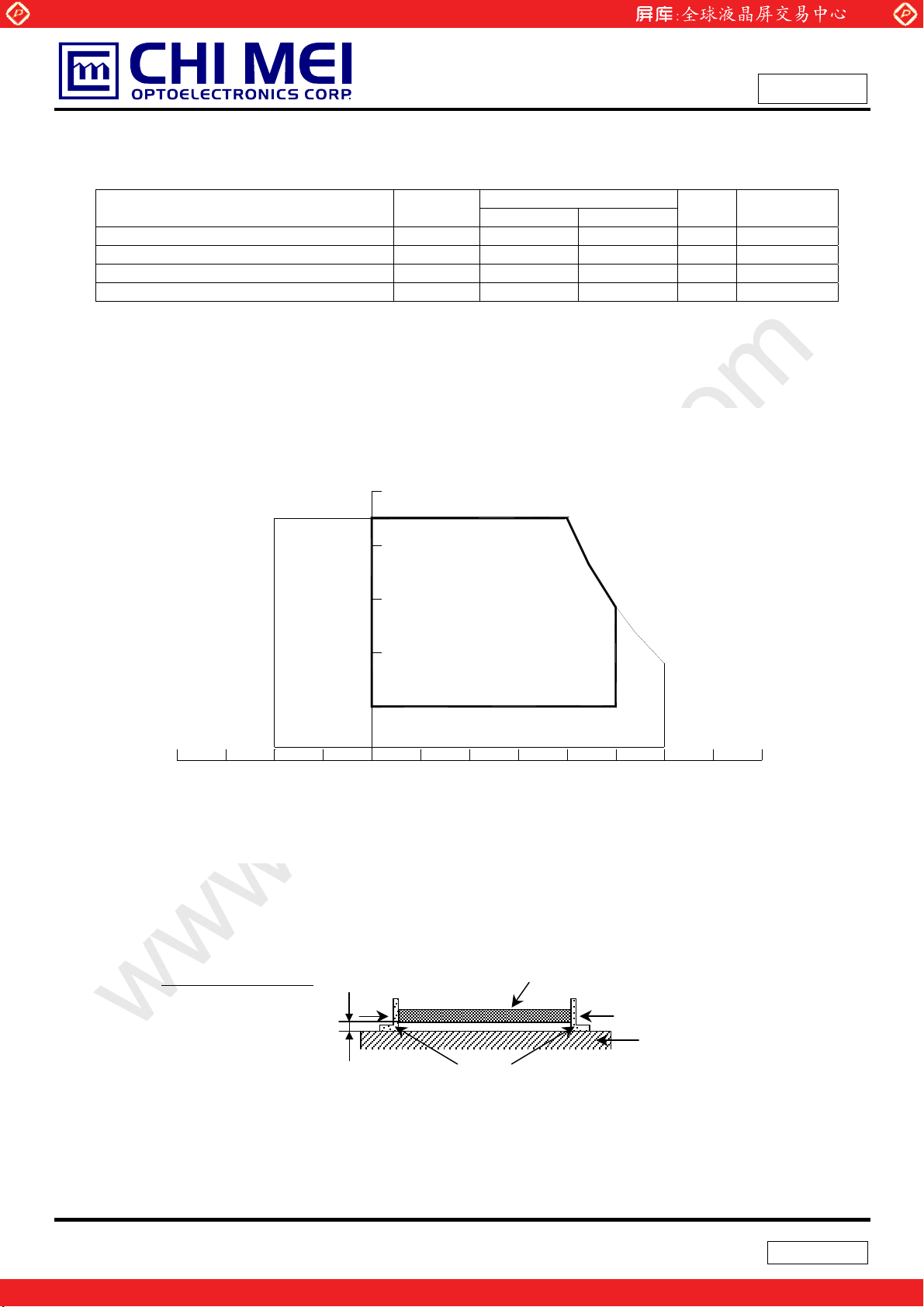

2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation .
www.panelook.com
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Value
Approval
Unit Note
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
Note (3) Condition for 220/2 G/ms is Half Sine Wave.
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
Storage Range
5
Temperature (ºC)
8060 -20 400 20-40
Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z. The fixing condition is shown as below:
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
so that the module would not be twisted or bent by the fixture.
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL - 7.0 mA Lamp Frequency FL - 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Approval
(1)
(1), (2), IL = (6.0) mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).
6 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Rush Current I
Power Supply Current
White - 400 450 mA (3)a Black
- - 1.5 A (2)
RUSH
lcc
- 530 580 mA (3)b
“H” Level VIH - - +100 mV - Differential Input Voltage for
LVDS Receiver Threshold
“L” Level V
-100 - - mV -
IL
Terminating Resistor RT - 100 - Ohm -
Note (1) The module should be always operated within above ranges.

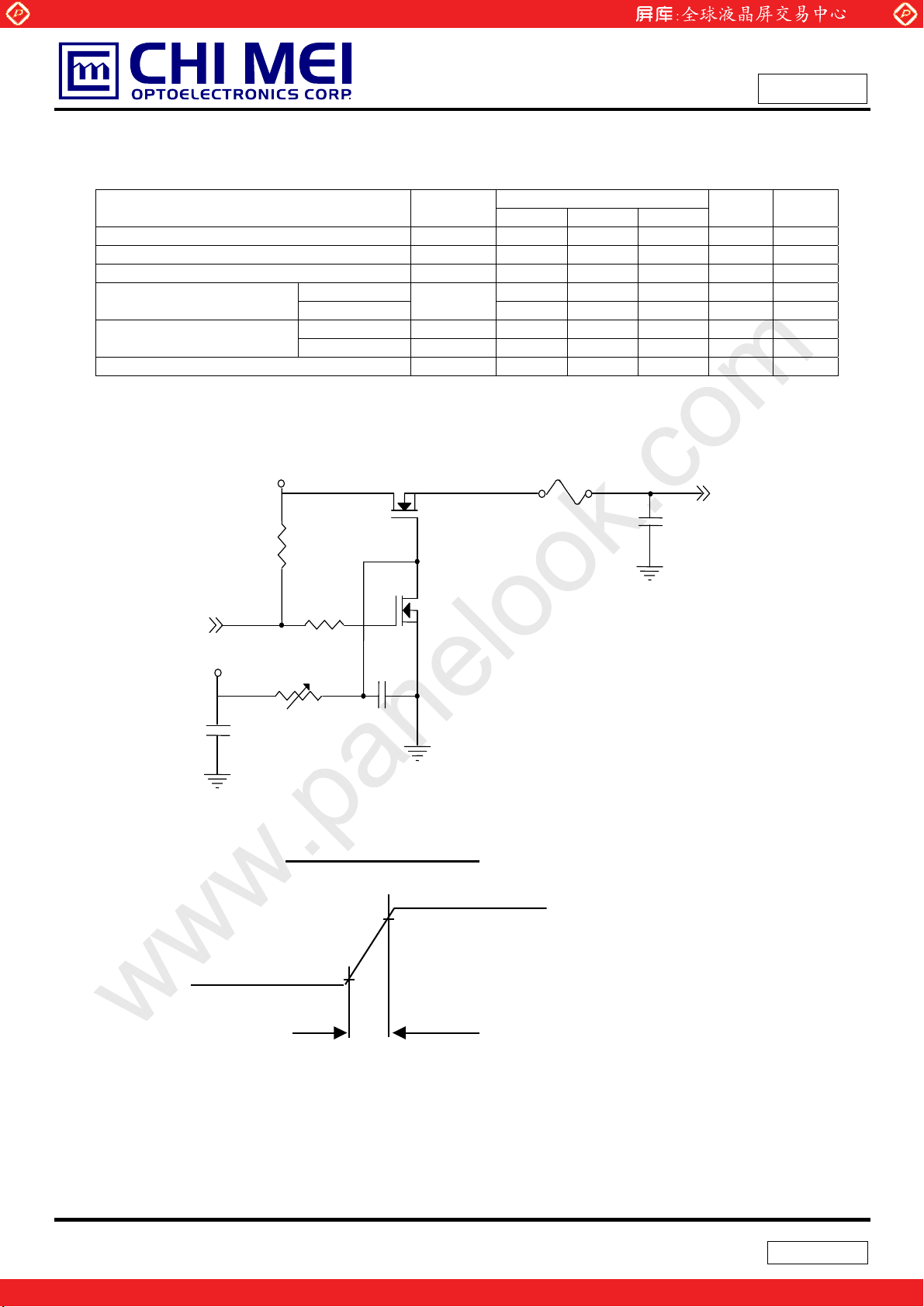

Note (2) Measurement Conditions:
Value
Unit Note
Approval
+3.3V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
Vcc
(LCD Module Input)
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470us
+3.3V
0.9Vcc
0.1Vcc
GND
470us
7 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center

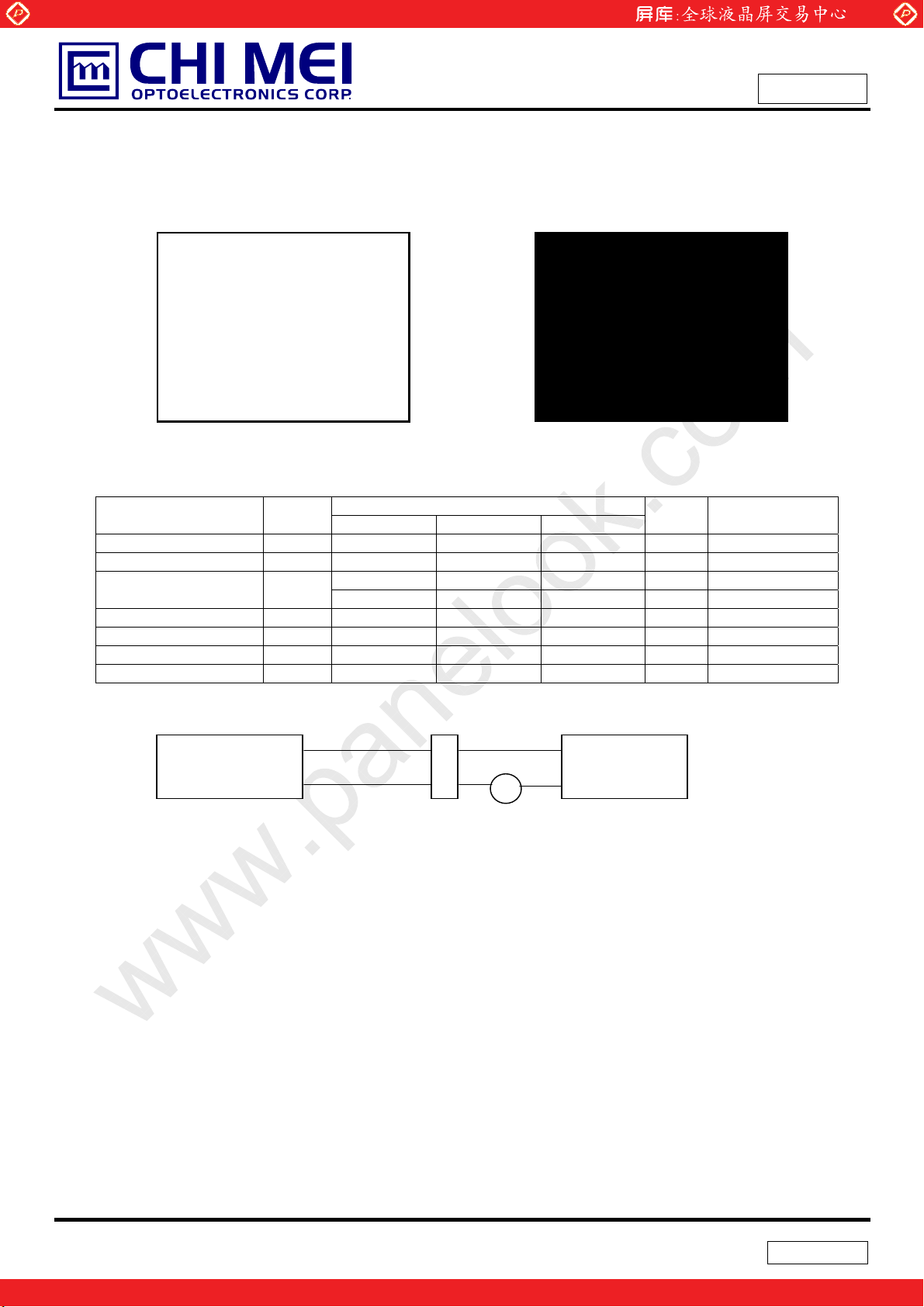

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Approval
Current and f
a. White Pattern
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
Active Area
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Lamp Input Voltage VL 641 675 709 V Lamp Current IL 2.0 6.0 7.0 mA
Lamp Turn On Voltage VS
- - 1150 (25
- - 1385 (0 Operating Frequency FL 45 65 80 KHz (3) Power Consumption PL - 4.05 - W (4), IL = 6.0 mA Lamp Life Time LBL 10,000 - - Hrs (5) Leakage Current IIN-I
- - 1.0 mA (7)
OUT
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C) V
o
C) V
Unit Note
I
RMS
RMS
(2)
RMS
(2)
RMS
= 6.0 mA
L
(1)
LCD
Module
HV (Pink)
LV (Black)
1
2
Current Meter
Inverter
A
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
o
C and IL = 6.0 mA
until one of the following events occurs:
RMS
(a) When the brightness becomes Љ 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition
length is defined as an area that the brightness is less than 70% compared to the center point.)
8 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.

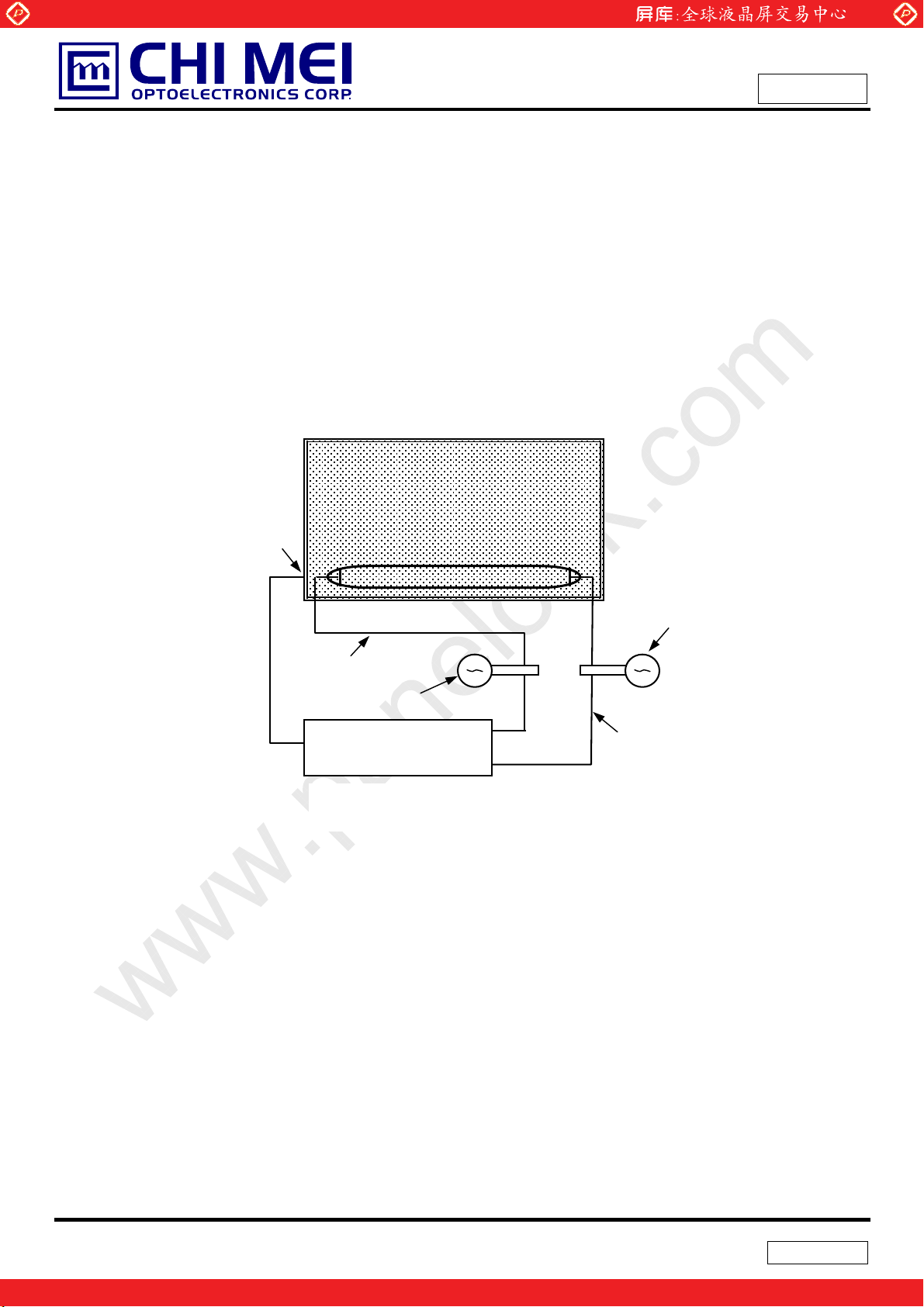

Note (7) The lamp leakage current is measured by the current difference between in and out. And the
measurement condition is as below:
www.panelook.com
Approval
FG
GND
Low
I
Low
Current Probe
Inverter
I
Leak(RMS)
LCD Module
Lamp
= I
High(RMS)
- I
Low(RMS)
High
Current Probe
I
High
9 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Approval
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
CLK(+/-)
Vcc
(JAE-FI-XB30SL-HF10)
GND
Data
CLK
V
EDID
EDID
EDID
VL
LAMP CONNECTOR
4.2 BACKLIGHT UNIT
INPUT CONNECTOR
(JST-BHSR-02VS-1)
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
LVDS INPUT /
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
(1400x3x1050)
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink)
2 LV (Black
10 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground ­2 Vcc Power Supply +3.3 V ­3 Vcc Power Supply +3.3 V ­4 V 5 NC Non-Connection ­6 CLK 7 DATA 8 RXE0- LVDS Differential Data Input(even) Negative 9 RXE0+ LVDS Differential Data Input(even) Positive
10 Vss Ground -
11 RXE1- LVDS Differential Data Input(even) Negative 12 RXE1+ LVDS Differential Data Input(even) Positive 13 Vss Ground ­14 RXE2- LVDS Differential Data Input(even) Negative 15 RXE2+ LVDS Differential Data Input(even) Positive 16 Vss Ground ­17 RXEC- LVDS Clock Data Input(even) Negative 18 RXEC+ LVDS Clock Data Input(even) Positive 19 Vss Ground ­20 RXO0- LVDS Differential Data Input(odd) Negative 21 RXO0+ LVDS Differential Data Input(odd) Positive 22 Vss Ground ­23 RXO1- LVDS Differential Data Input(odd) Negative 24 RXO1+ LVDS Differential Data Input(odd) Positive 25 Vss Ground ­26 RXO2- LVDS Differential Data Input(odd) Negative 27 RXO2+ LVDS Differential Data Input(odd) Positive 28 Vss Ground ­29 RXOC- LVDS Clock Data Input(odd) Negative 30 RXOC+ LVDS Clock Data Input(odd) Positive
Note (1) The first pixel is even.
DDC +3.3V -
EDID
DDC Clock -
EDID
DDC Data -
EDID
www.panelook.com
Approval
R0~R5,G0
G1~G5,B0,B1
B2~B5,DE,Hsync,Vsync
LVDS Level
R0~R5,G0
G1~G5,B0,B1
B2~B5,DE,Hsync,Vsync
LVDS Level
Note (2) Connector Part No.: JAE-FI-XB30SL-HF10 or equivalent
Note (3) User’s connector Part No: JAE-FI-X30C2L or equivalen
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink 2 LV Ground Black
Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB or equivalent
11 / 26
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center

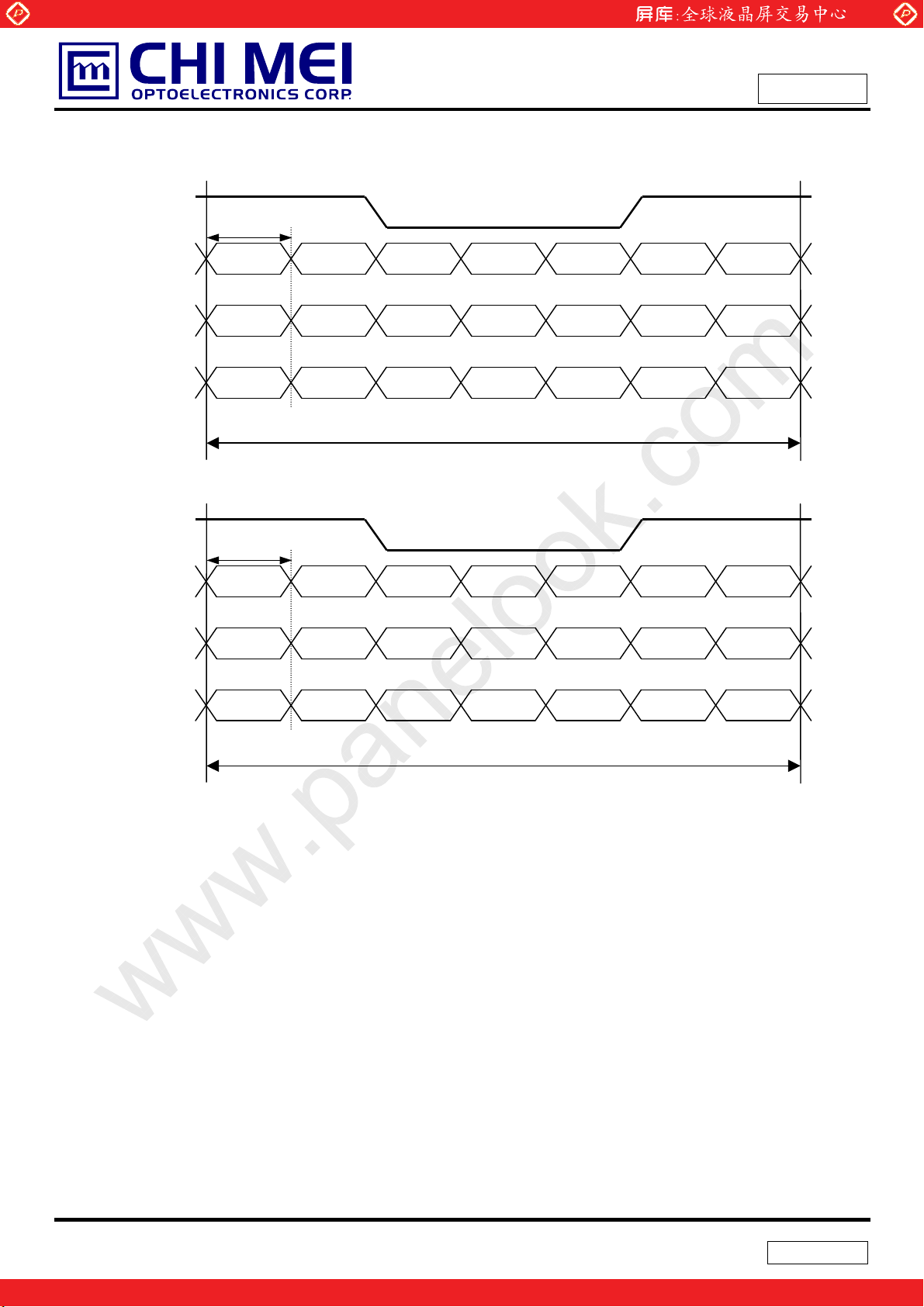

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
RXEC+
T/7
www.panelook.com
Approval
RXE2+
RXE1+
RXE0+
RXOC+
RXO2+
RXO1+
RXO0+
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0R5 R4
Signal for 1 DCLK Cycle (T)
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0R5 R4
Signal for 1 DCLK Cycle (T)
12 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
13 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte #
(decimal)
0 0 Header 00 00000000 1 1 H e a d er FF 11111111 2 2 H e a d er FF 11111111 3 3 H e a d er FF 11111111 4 4 H e a d er FF 11111111 5 5 H e a d er FF 11111111 6 6 H e a d er FF 11111111 7 7 Header 00 00000000 8 8 EISA ID manufacturer name (“CMO”) 0D 00001101 9 9 EISA ID manufacturer name (Compressed ASCII) AF 10101111
10 0A ID product code (N150P5-L01) 08 00001000
11 0B ID product code (hex LSB first; N150P5-L01) 15 00010101 12 0C ID S/N (fixed “0”) 00 00000000 13 0D ID S/N (fixed “0”) 00 00000000 14 0E ID S/N (fixed “0”) 00 00000000 15 0F ID S/N (fixed “0”) 00 00000000 16 10 Week of manufacture (fixed “53”) 35 00110101 17 11 Year of manufacture (fixed “2004”) 0E 00001110 18 12 EDID structure version # (“1”) 01 00000001 19 13 EDID revision # (“3”) 03 00000011 20 14 Video I/P definition (“digital”) 80 10000000 21 15 Max H image size (“30.45 cm”) 1E 00011110 22 16 Max V image size (“22.837 cm”) 17 00011110 23 17 Display Gamma (Gamma = ”2.2”) 78 01111000 24 18 Feature support (“Active off, RGB Color”) 0A 00001010 25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 05 00000101 26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) 60 01100000 27 1B Red-x (Rx = 0.590) 97 10010111 28 1C Red-y (Ry = 0.340) 57 01010111 29 1D Green-x (Gx = 0.318) 51 01010001 30 1E Green-y (Gy = 0.537) 89 10001001 31 1F Blue-x (Bx = 0.150) 4C 01001100 32 20 Blue-y (By = 0.120) 1E 00011110 33 21 White-x (Wx = 0.313) 50 01010000 34 22 White-y (Wy = 0.329) 54 01010100 35 23 Established timings 1 00 00000000 36 24 Established timings 2 (1400x1050@60Hz) 08 00001000 37 25 Manufacturer’s reserved timings 00 00000000 38 26 Standard timing ID # 1 01 00000001 39 27 Standard timing ID # 1 01 00000001 40 28 Standard timing ID # 2 01 00000001 41 29 Standard timing ID # 2 01 00000001
Byte #
(hex)
Field Name and Comments
www.panelook.com
Approval
Value
(hex)
Value
(binary)
14 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Approval
Byte #
(decimal)
42 2A Standard timing ID # 3 01 00000001 43 2B Standard timing ID # 3 01 00000001 44 2C Standard timing ID # 4 01 00000001 45 2D Standard timing ID # 4 01 00000001 46 2E Standard timing ID # 5 01 00000001 47 2F Standard timing ID # 5 01 00000001 48 30 Standard timing ID # 6 01 00000001 49 31 Standard timing ID # 6 01 00000001 50 32 Standard timing ID # 7 01 00000001 51 33 Standard timing ID # 7 01 00000001 52 34 Standard timing ID # 8 01 00000001 53 35 Standard timing ID # 8 01 00000001 54 36 Detailed timing description # 1 Pixel clock (“108 MHz”) 30 00110000 55 37 # 1 Pixel clock (hex LSB first) 2A 00101010 56 38 # 1 H active (“1400”) 78 01111000 57 39 # 1 H blank (“288”) 20 00100000 58 3A # 1 H active : H blank (“1400 : 288”) 51 01010001 59 3B # 1 V active (”1050”) 1A 00011010 60 3C # 1 V blank (”16”) 10 00010000 61 3D # 1 V active : V blank (”1050 : 16”) 40 01000000 62 3E # 1 H sync offset (”48”) 30 00110000 63 3F # 1 H sync pulse width (”112”) 70 01110000 64 40 # 1 V sync offset : V sync pulse width (”3 : 4”) 34 00110100
65 41
66 42 # 1 H image size (”304.5 mm”) 30 00110000 67 43 # 1 V image size (”228.37 mm”) E4 11100100 68 44 # 1 H image size : V image size (”304 : 228”) 10 00010000 69 45 # 1 H boarder (”0”) 00 00000000 70 46 # 1 V boarder (”0”) 00 00000000 71 47 # 1 Flags (”Non-Interlace, Non-Stereo, Digital Separate”) 18 00011000 72 48 Detailed timing description # 2 00 00000000 73 49 # 2 Flag 00 00000000 74 4A # 2 Reserved 00 00000000
75 4B
76 4C # 2 Flag 00 00000000 77 4D # 2 1st character of string (“N”) 4E 01001110 78 4E # 2 2nd character of string (“1”) 31 00110001 79 4F # 2 3rd character of string (“5”) 35 00110101 80 50 # 2 4th character of string (“0”) 30 00110000 81 51 # 2 5th character of string (“P”) 50 01010000 82 52 # 2 6th character of string (“5”) 35 00111001 83 53 # 2 New line character # 2 indicates end of ASCII string 0A 00001010
84 54 # 2 Padding with “Blank” character 20 00100000
85 55 # 2 Padding with “Blank” character 20 00100000
Byte #
(hex)
Field Name and Comments
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48 : 112 : 3 : 4”)
# 2 FE (hex) defines ASCII string (Model Name “N150P5”, ASCII)
Value
(hex)
00 00000000
FE 11111110
(binary)
Value
15 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
Byte #
(decimal)
42 2A Standard timing ID # 3 01 00000001 43 2B Standard timing ID # 3 01 00000001 44 2C Standard timing ID # 4 01 00000001 45 2D Standard timing ID # 4 01 00000001 46 2E Standard timing ID # 5 01 00000001 47 2F Standard timing ID # 5 01 00000001 48 30 Standard timing ID # 6 01 00000001 49 31 Standard timing ID # 6 01 00000001 50 32 Standard timing ID # 7 01 00000001 51 33 Standard timing ID # 7 01 00000001 52 34 Standard timing ID # 8 01 00000001 53 35 Standard timing ID # 8 01 00000001 54 36 Detailed timing description # 1 Pixel clock (“108 MHz”) 30 00110000 55 37 # 1 Pixel clock (hex LSB first) 2A 00101010 56 38 # 1 H active (“1400”) 78 01111000 57 39 # 1 H blank (“288”) 20 00100000 58 3A # 1 H active : H blank (“1400 : 288”) 51 01010001 59 3B # 1 V active (”1050”) 1A 00011010 60 3C # 1 V blank (”16”) 10 00010000 61 3D # 1 V active : V blank (”1050 : 16”) 40 01000000 62 3E # 1 H sync offset (”48”) 30 00110000 63 3F # 1 H sync pulse width (”112”) 70 01110000 64 40 # 1 V sync offset : V sync pulse width (”3 : 4”) 34 00110100
65 41
66 42 # 1 H image size (”304.5 mm”) 30 00110000 67 43 # 1 V image size (”228.37 mm”) E4 11100100 68 44 # 1 H image size : V image size (”304 : 228”) 10 00010000 69 45 # 1 H boarder (”0”) 00 00000000 70 46 # 1 V boarder (”0”) 00 00000000 71 47 # 1 Flags (”Non-Interlace, Non-Stereo, Digital Separate”) 18 00011000 72 48 Detailed timing description # 2 00 00000000 73 49 # 2 Flag 00 00000000 74 4A # 2 Reserved 00 00000000
75 4B
76 4C # 2 Flag 00 00000000 77 4D # 2 1st character of string (“N”) 4E 01001110 78 4E # 2 2nd character of string (“1”) 31 00110001 79 4F # 2 3rd character of string (“5”) 35 00110101 80 50 # 2 4th character of string (“0”) 30 00110000 81 51 # 2 5th character of string (“P”) 50 01010000 82 52 # 2 6th character of string (“5”) 35 00111001 83 53 # 2 New line character # 2 indicates end of ASCII string 0A 00001010
84 54 # 2 Padding with “Blank” character 20 00100000
Byte #
(hex)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48 : 112 : 3 : 4”)
# 2 FE (hex) defines ASCII string (Model Name “N150P5”, ASCII)
www.panelook.com
Field Name and Comments
Approval
Value
(hex)
00 00000000
FE 11111110
Value
(binary)
16 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
85 55 # 2 Padding with “Blank” character 20 00100000
Byte #
(decimal)
86 56 # 2 Padding with “Blank” character 20 00100000 87 57 # 2 Padding with “Blank” character 20 00100000 88 58 # 2 Padding with “Blank” character 20 00100000 89 59 # 2 Padding with “Blank” character 20 00100000 90 5A Detailed timing description # 3 00 00000000 91 5B # 3 Flag 00 00000000 92 5C # 3 Reserved 00 00000000 93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) FE 11111110 94 5E # 3 Flag 00 00000000 95 5F # 3 1st character of string (“C”) 43 01000011 96 60 # 3 2nd character of string (“M”) 4D 01001101 97 61 # 3 3rd character of string (“O”) 4F 01001111 98 62 # 3 New line character # 3 indicates end of ASCII string 0A 00001010 99 63 # 3 Padding with “Blank” character 20 00100000
100 64 # 3 Padding with “Blank” character 20 00100000 101 65 # 3 Padding with “Blank” character 20 00100000 102 66 # 3 Padding with “Blank” character 20 00100000 103 67 # 3 Padding with “Blank” character 20 00100000 104 68 # 3 Padding with “Blank” character 20 00100000 105 69 # 3 Padding with “Blank” character 20 00100000 106 6A # 3 Padding with “Blank” character 20 00100000 107 6B # 3 Padding with “Blank” character 20 00100000 108 0A Detailed timing description # 4 00 00000000 109 6D # 4 Flag 00 00000000 110 6E # 4 Reserved 00 00000000
111 6F
112 70 # 4 Flag 00 00000000 113 71 114 72 115 73 116 74 117 75 118 76 119 77 120 78 121 79 122 7A 123 7B 124 7C # 4 Padding with “Blank” character 20 00100000 125 7D # 4 Padding with “Blank” character 20 00100000 126 7E Extension flag 00 00000000 127 7F Checksum DE 11011110
Byte #
(hex)
# 4 FC (hex) defines Monitor name (“Model Name “N150P5-L01”, ASCII)
st
character of name (“N”)
# 4 1
nd
character of name (“1”)
# 4 2
rd
character of name (“5”)
# 4 3
th
character of name (“0”)
# 4 4
th
character of name (“P”)
# 4 5
th
character of name (“5”)
# 4 6
th
character of name (“-”)
# 4 7
th
character of name (“L”)
# 4 8
th
character of name (“0”)
# 4 9
th
character of name (“1”)
# 4 9 # 4 New line character # 4 indicates end of ASCII string
www.panelook.com
Field Name and Comments
Approval
Value
(hex)
FC 11111100
4E 01001110
31 00110001 35 00110101 30 00110000 50 01010000
35 00111001 2D 00101101 4C 01001100
30 00110000
31 00110001 0A 00001010
Value
(binary)
17 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 51 54 57 MHz -
Vertical Total Time TV 1058 1066 2046 TH -
DE
Vertical Addressing Time TVD 1050 1050 1050 TH -
Horizontal Total Time TH 762 844 1023 Tc -
Horizontal Addressing Time THD 700 700 700 Tc -

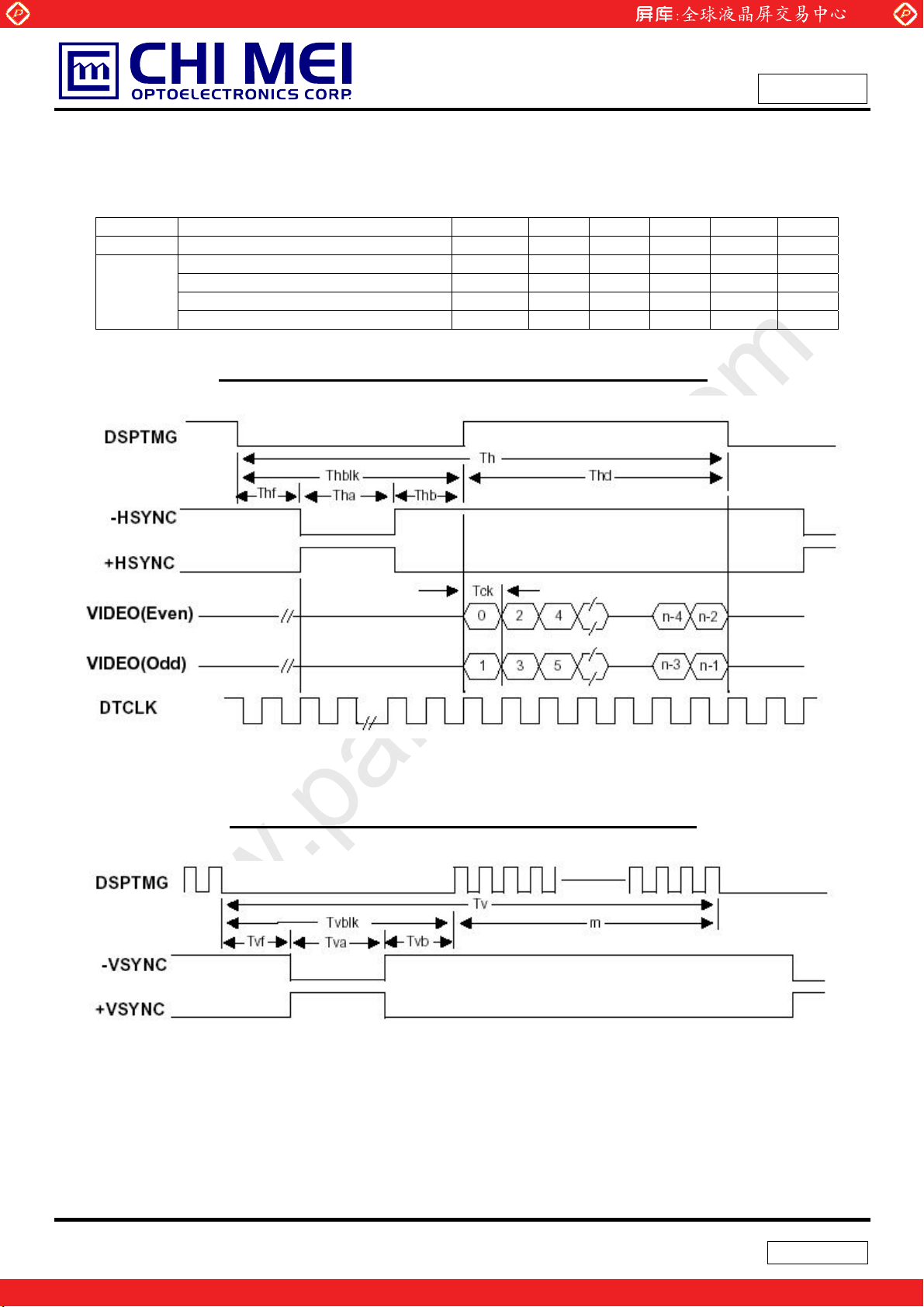

INPUT SIGNAL TIMING DIAGRAM ( Horizontal Timing Chart )
www.panelook.com
Approval
INPUT SIGNAL TIMING DIAGRAM ( Vertical Timing Chart )
18 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center

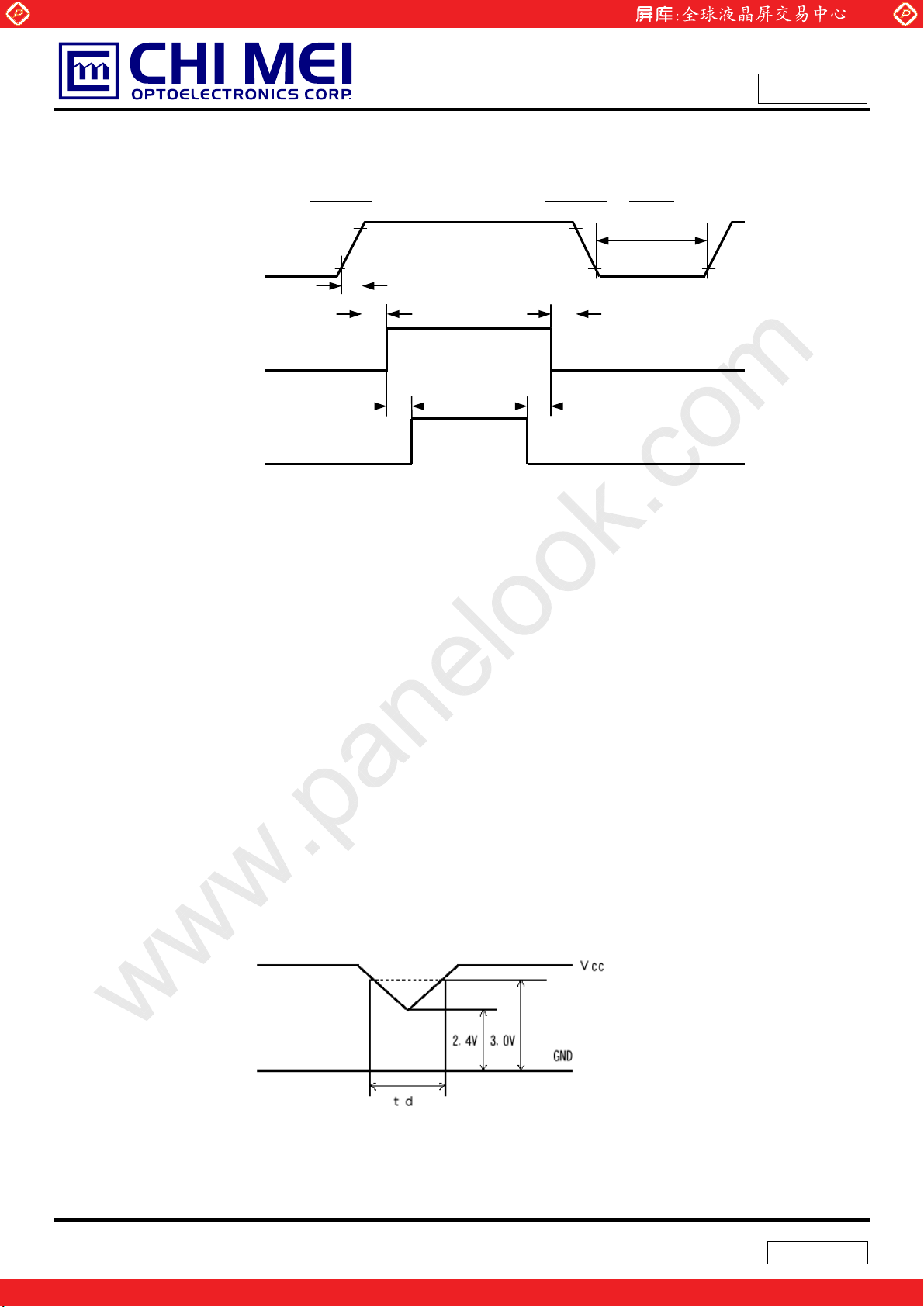

6.2 POWER ON/OFF SEQUENCE
Power On
90%
www.panelook.com
Power Off
90%
Approval
Restart
t4
Power Supply
for LCD, Vcc
0V
10%
t1
- Interface Signal
(LVDS Signal of Transmitter), V
0V
I
Valid Data
- Power for Lamp
ONOFF OFF
Timing Specifications:
470us Љ t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
t4 Њ 500 msec
t5 Њ 200 msec
t6 Њ 200 msec
Note (1) Please avoid floating state of interface signal at invalid period.
10%
t3t2
t6 t5
10%
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow t7 Њ 5 msec
6.3 Momentary Voltage Drops
(1) When 2.4V Љ Vcc І3.0V and tdЉ10ms , the unit must work normally when VCC return to 3.0V.
(2) When Vcc < 2.4V, momentary voltage shall conform to the input voltage sequence.
19 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta 25r2 Ambient Humidity Ha 50r10 %RH Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL Inverter Driving Frequency FL Inverter Sumida H05-4915
The measurement methods of optical characteristics are shown in Section 7.2. The following items
should be measured under the test conditions described in Section 7.1 and stable environment shown in
Note (6).
www.panelook.com
6.0 55
Approval
o
C
mA
KHz
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 300 400 - - (2), (5)
Response Time
Average Luminance of White L
TR T
F
170 200 - cd/m2(4), (5)
AVE
White Variation of 5 Points GW - - 1.25 - (5), (6)
Rx 0.590 ­Ry 0.340 ­Gx 0.318 -
=0q, TY =0q
T
x
Viewing Normal Angle
Gy 0.537 -
Bx 0.150 -
By 0.120 ­Wx 0.313 ­Wy
Tx+ 50 60 -
- 50 60 -
T
x
TY+ 30 40 -
T
-
Y
CRt10
Color Chromaticity
Viewing Angle
Red
Green
Blue
White
Horizontal
Vertical
- 5 10 ms
- 11 16 ms
Typ.
-0.03
Typ.
+0.03
0.329
Deg. (1), (5)
50 60 -
(3)
(1), (5)
-
20 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Approval
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Normal
Tx = Ty = 0º
Ty- Ty
Tx-
Tx+
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
Gray Level 63
10%
0%
R
T
R
, TF):
Gray Level 0
Gray Level 63
Time
T
F
66.6ms
66.6ms
21 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Approval
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (7).
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
Field of View = 2º
AVE
):
Photometer
(CA210, BM-5A, CS-1000T)
Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
Vertical Line
500 mm
Horizontal Line
D
Light Shield Room
(Ambient Luminance < 2 lux)
5
: Test Point
=
Active Area
22 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
www.panelook.com
Approval
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the lamp wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
23 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center

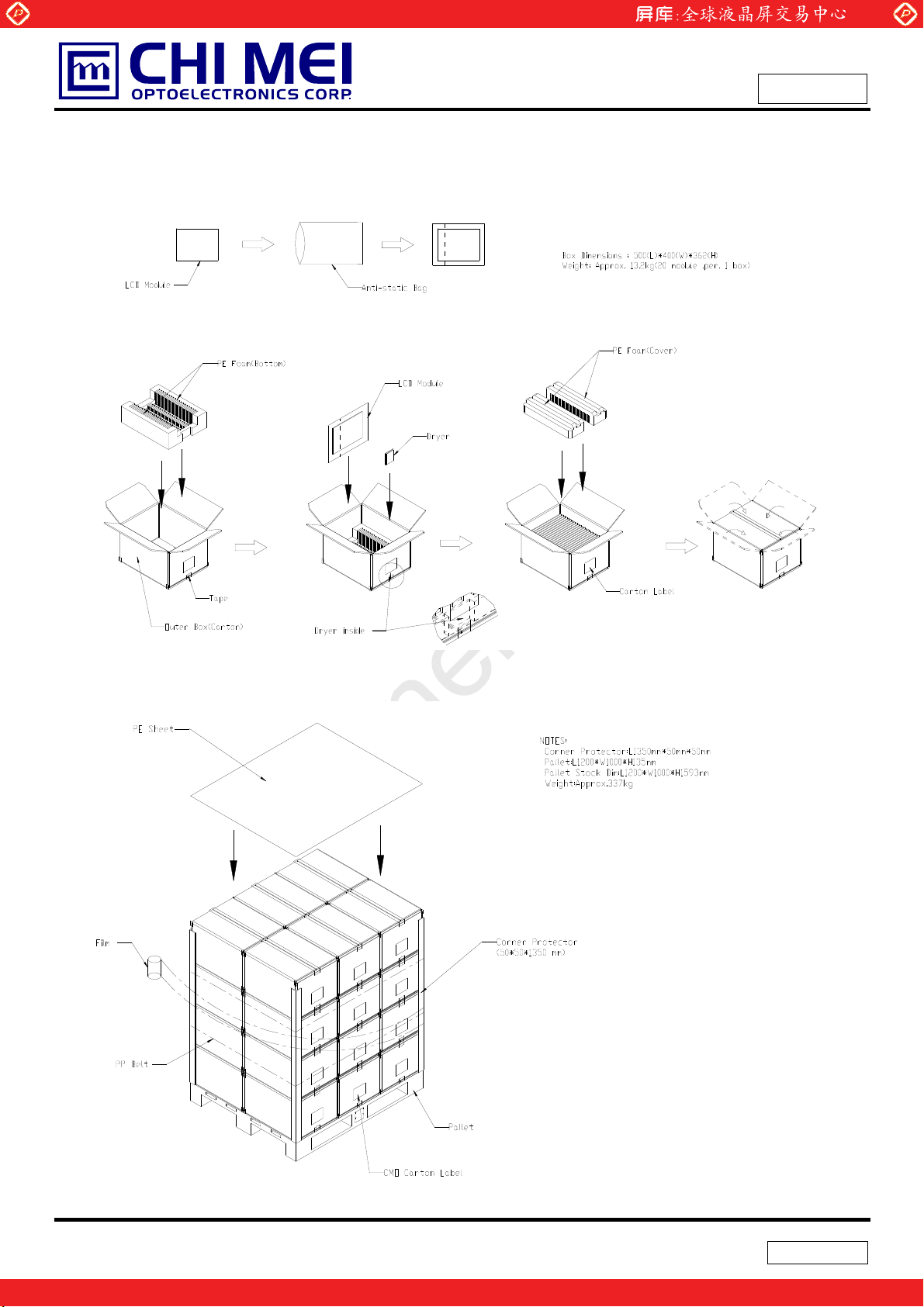

9. PACKING
9.1 CARTON
www.panelook.com
Approval
9.2 PALLET
24 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Approval
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
E207943
MADE IN TAIWAN
01A
01A
N141X5 - L03 Rev.XX
X X X X X X X Y M D L N N N N
-
C P 1 3 5 4 4 8 - 0 1
(a) Model Name: N150P5 - L01
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
X X X X X Y M D X N N N N
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
10.2 CARTON LABEL
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
st
to 31st, exclude I , O and U
25 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
