N141XB-L01
Specification
29 pgs1.38 Mb0

CMO N141XB-L01 Specification

Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com

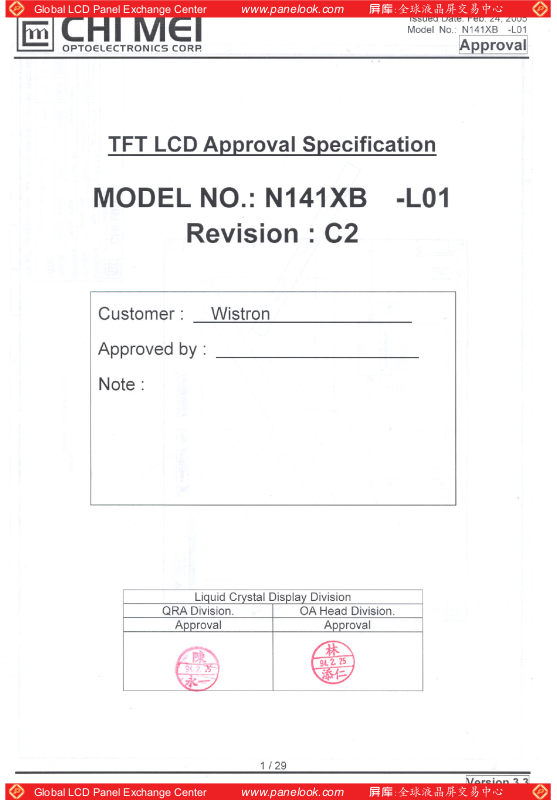

Model No.: N141XB -L01
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

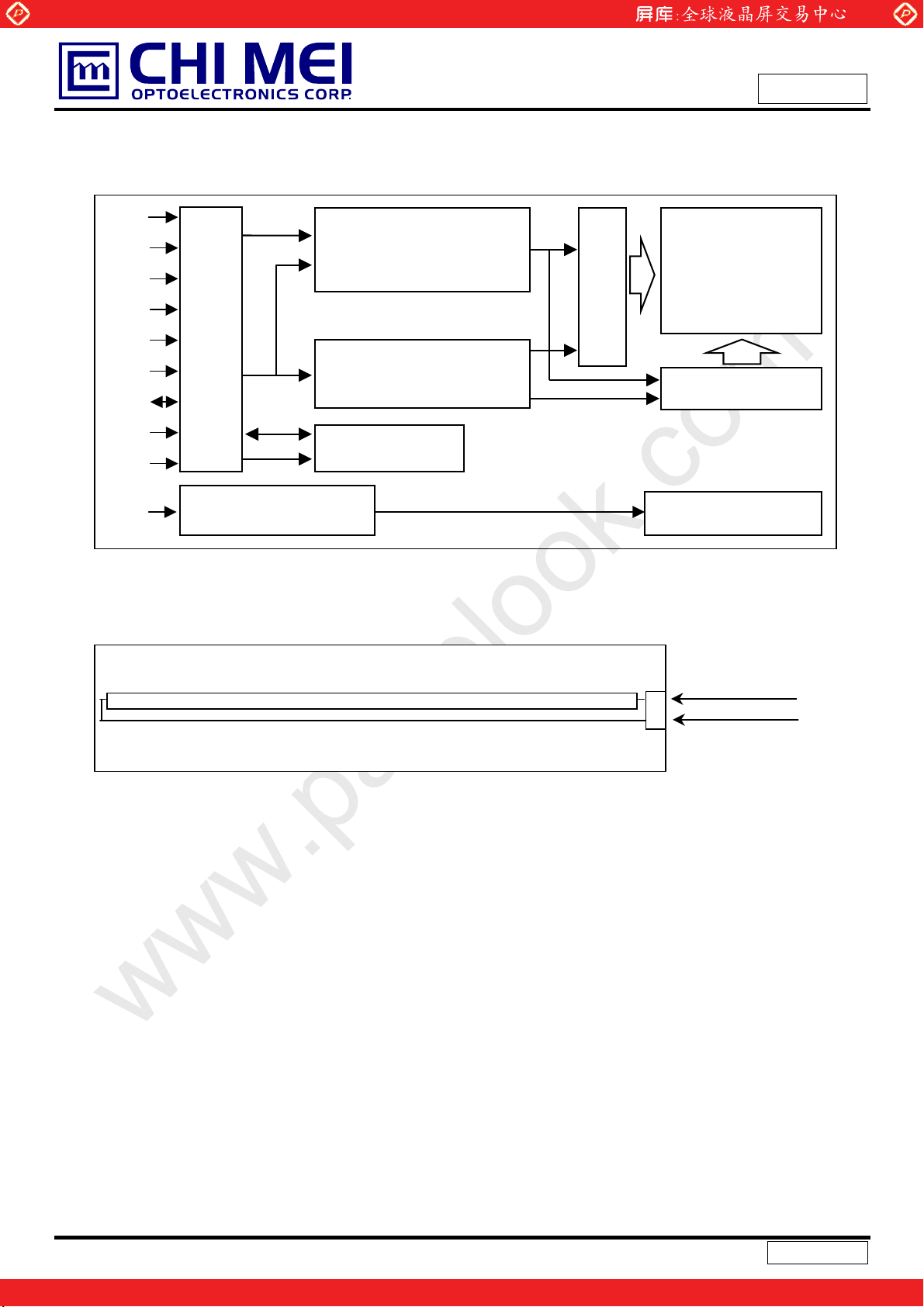

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

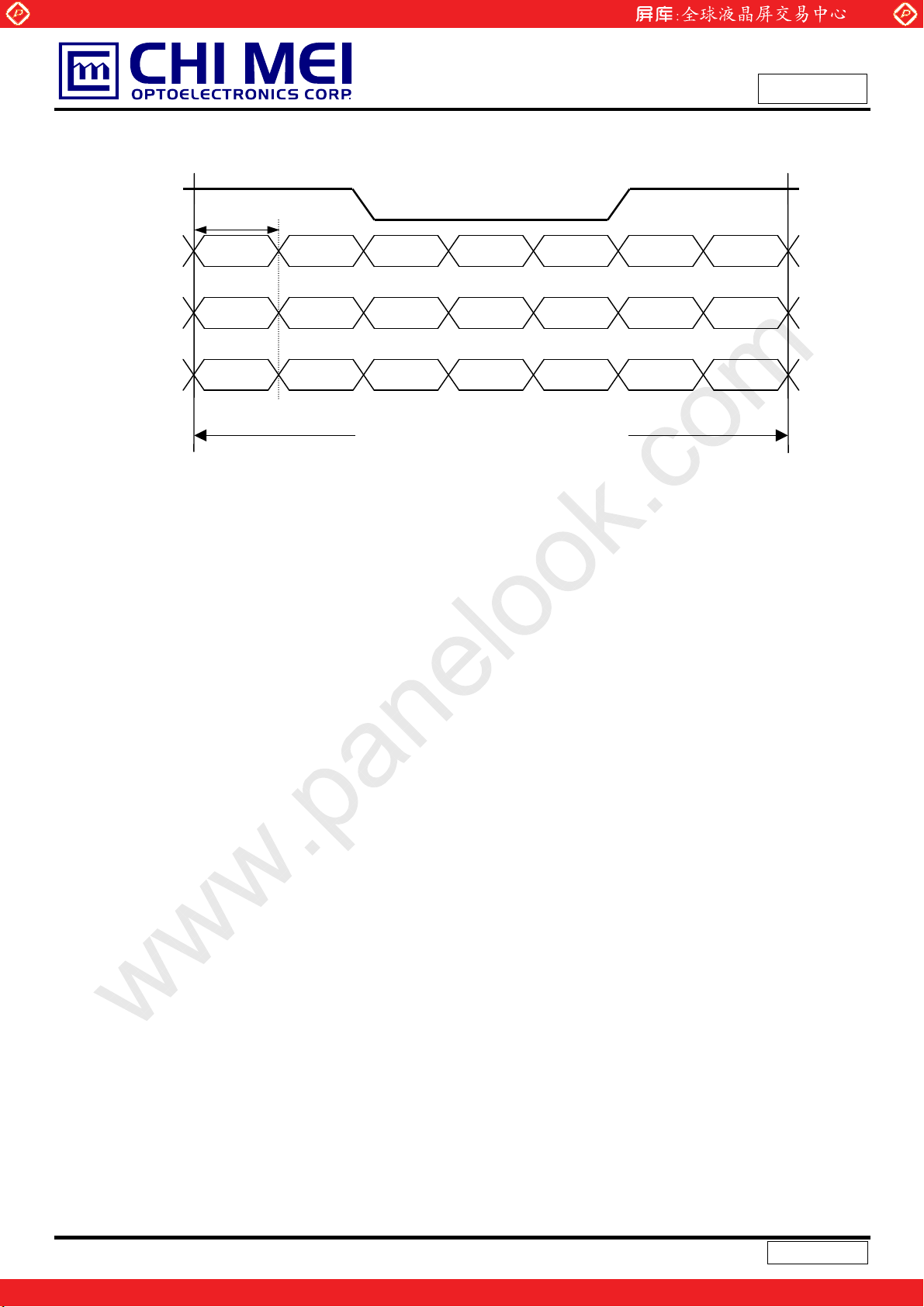

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE

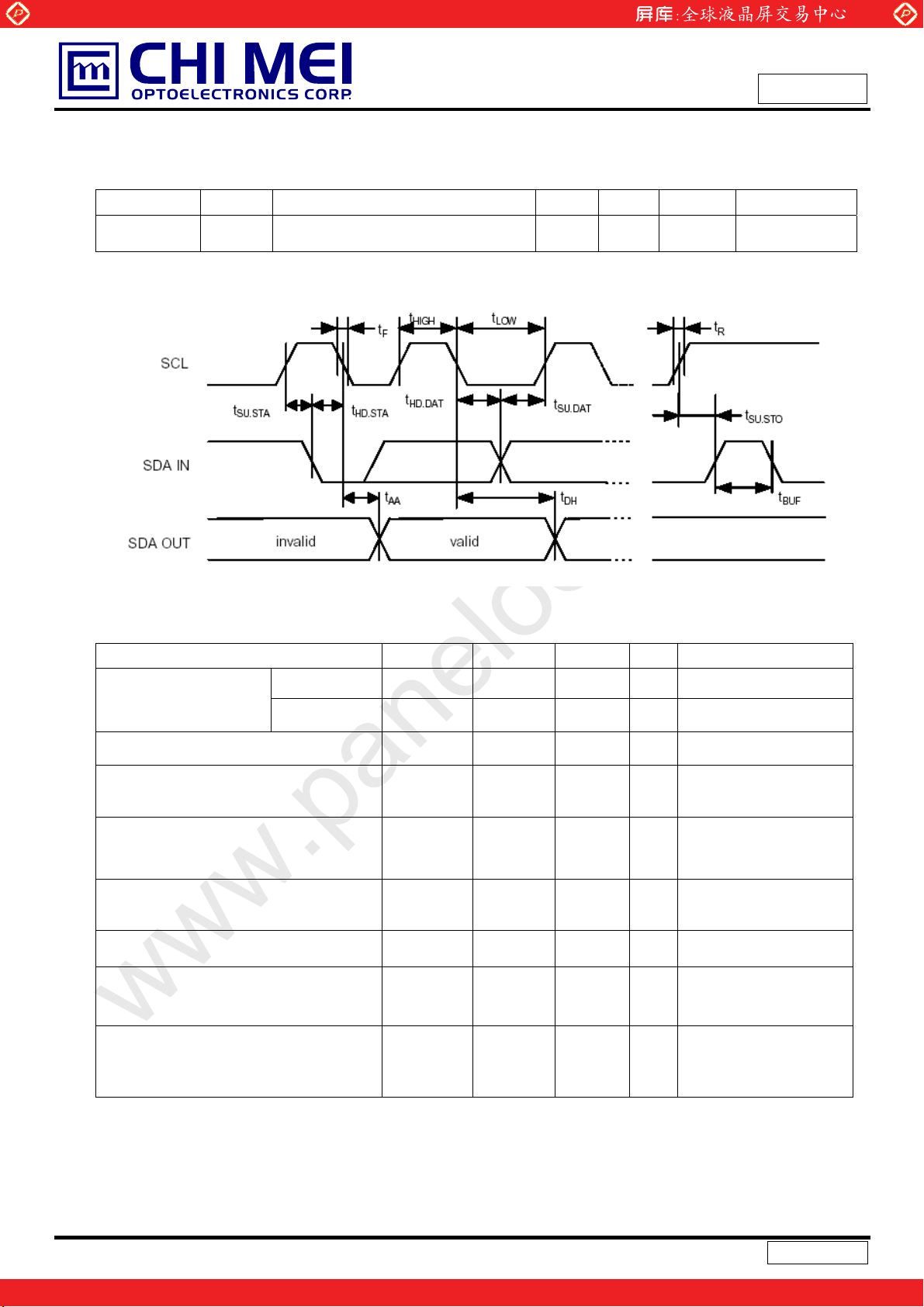

5.6 EDID SIGNAL SPECIFICATION

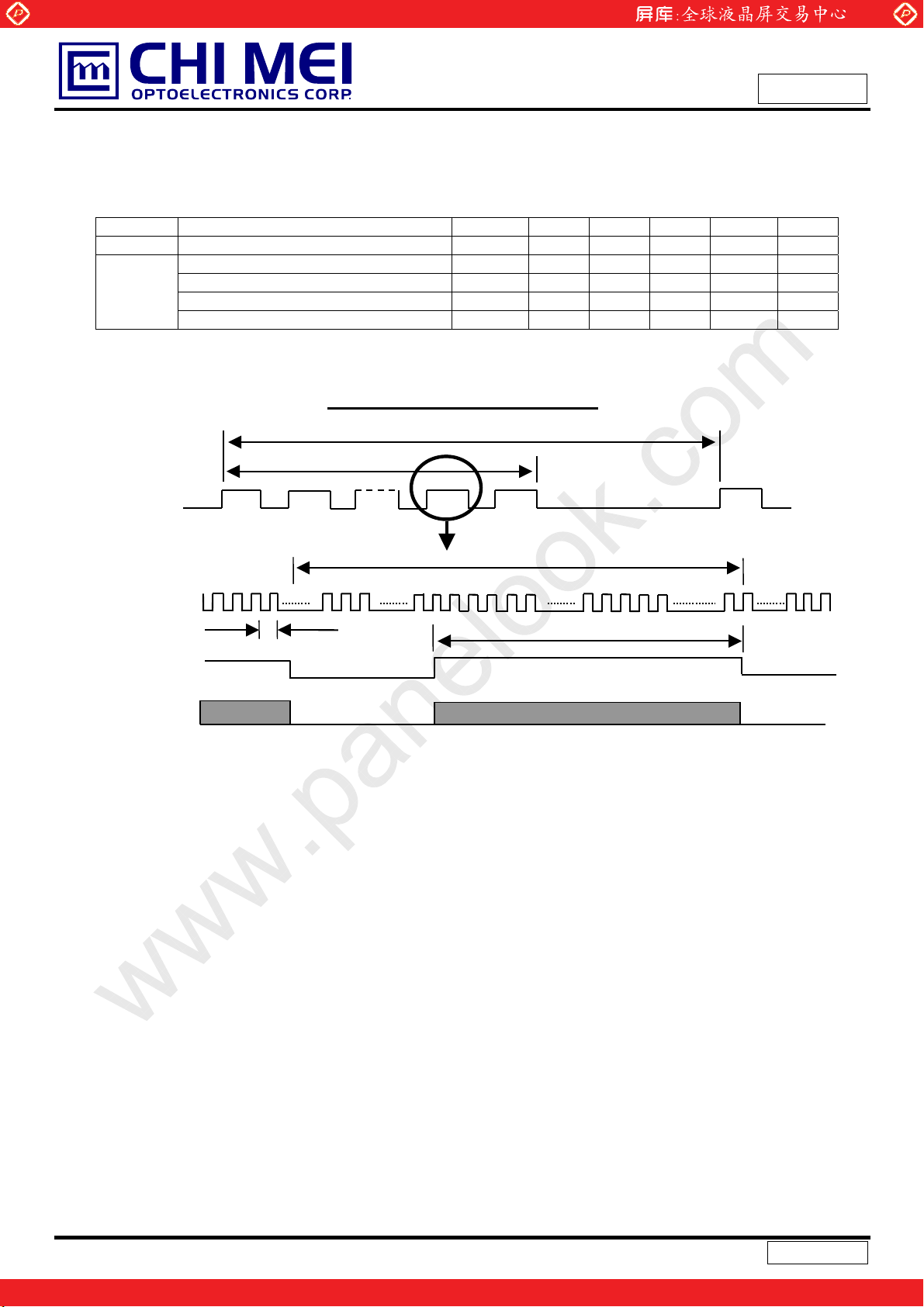

6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS

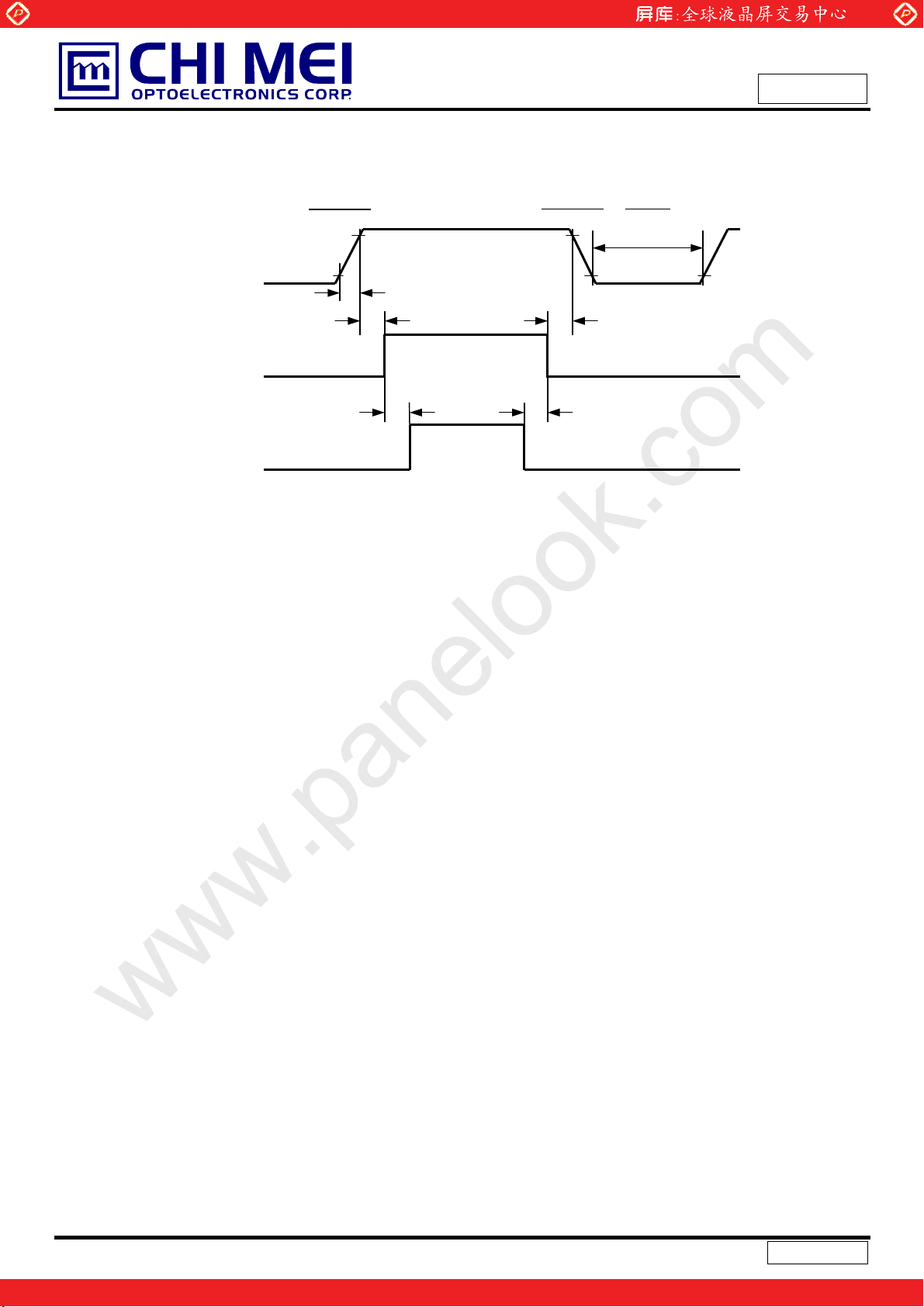

6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS

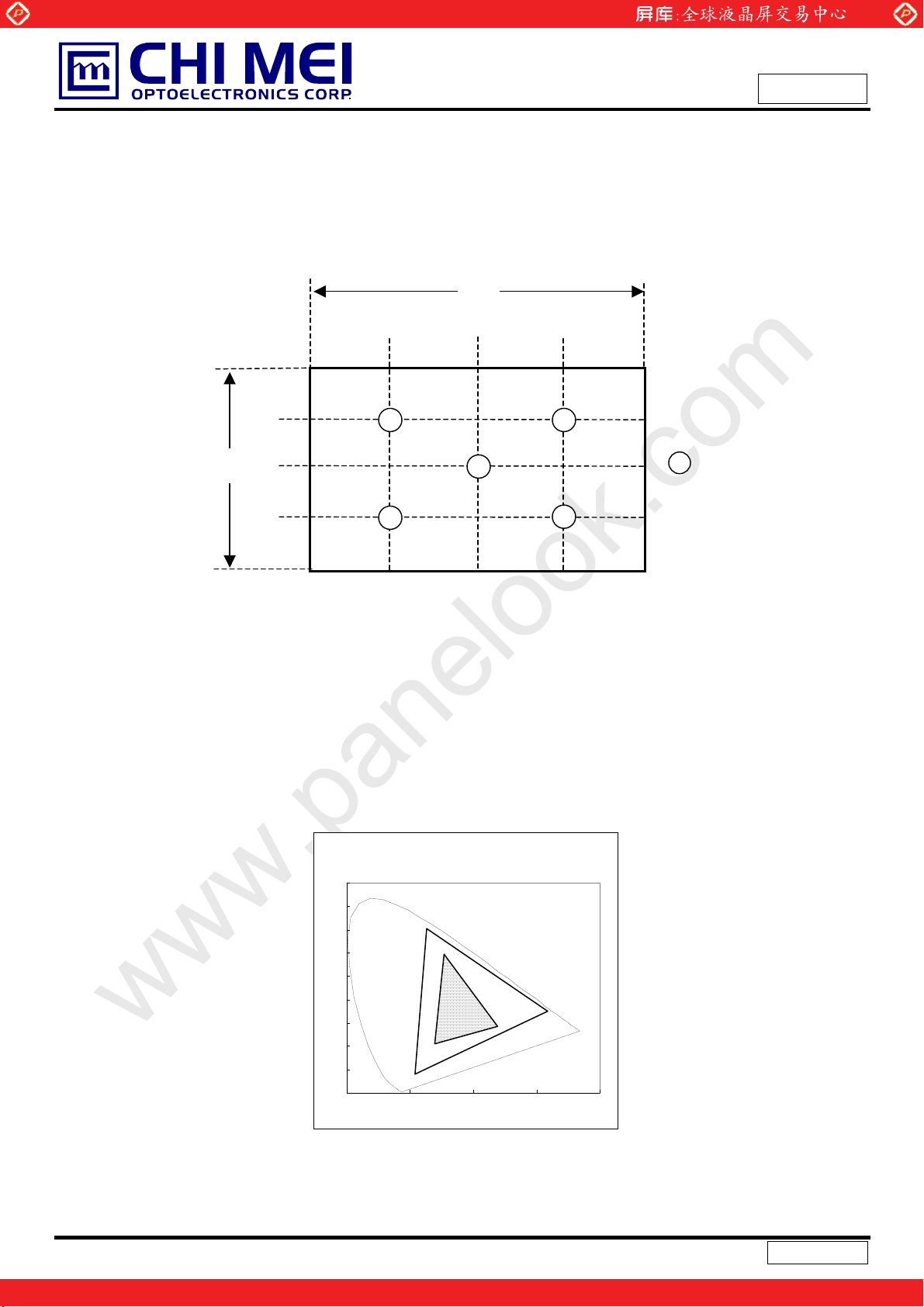

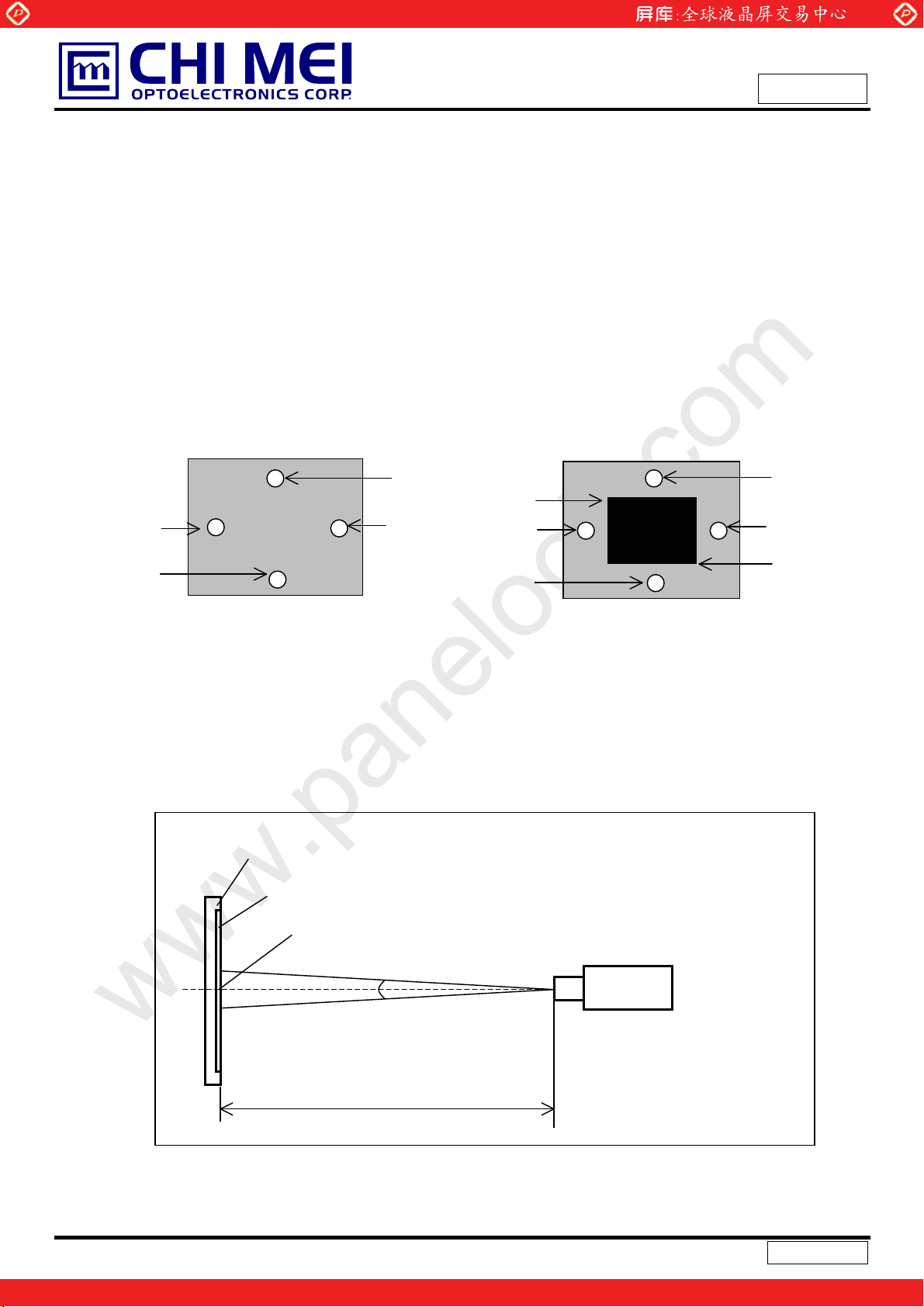

7.1 TEST CONDITIONS

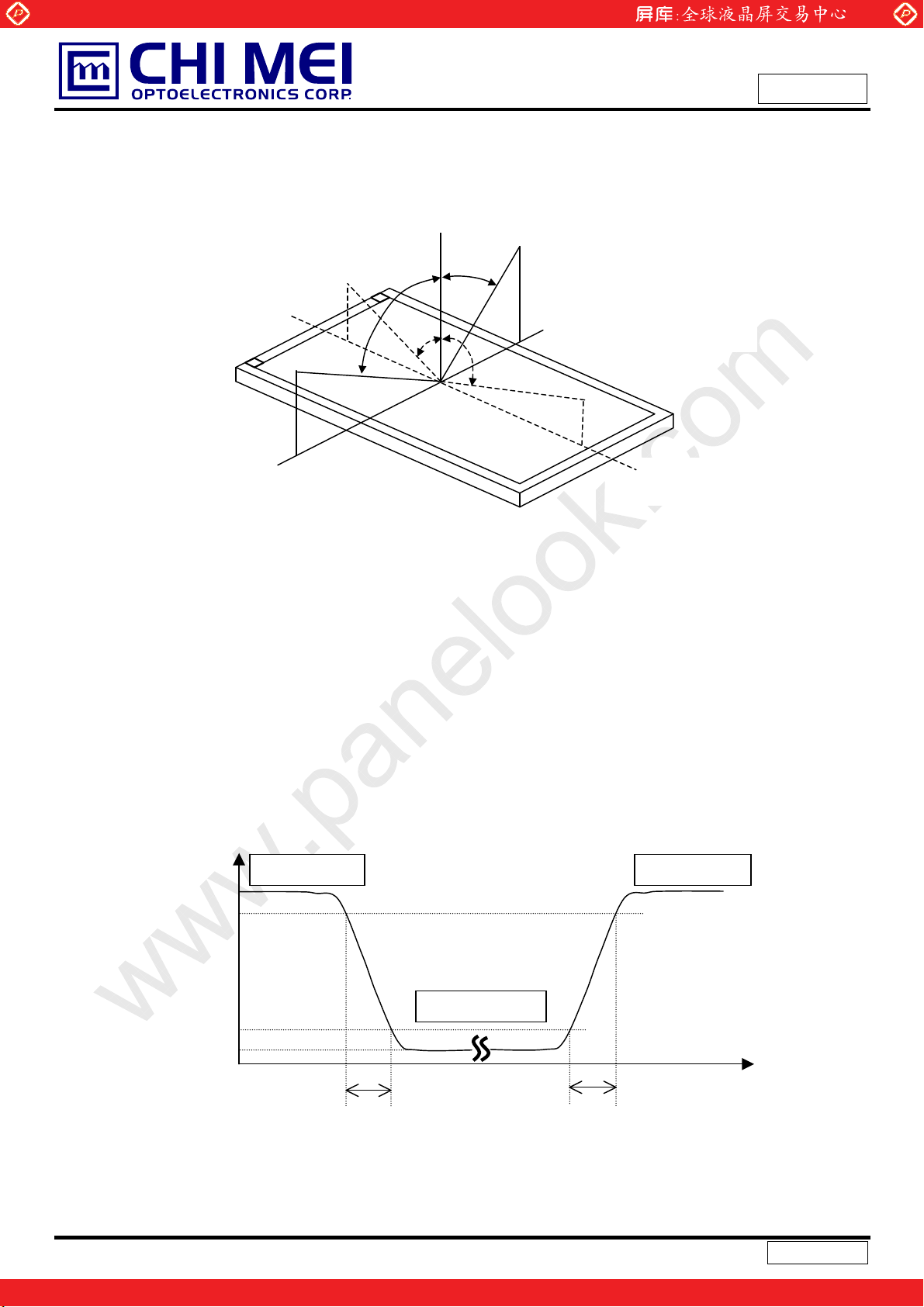

7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS

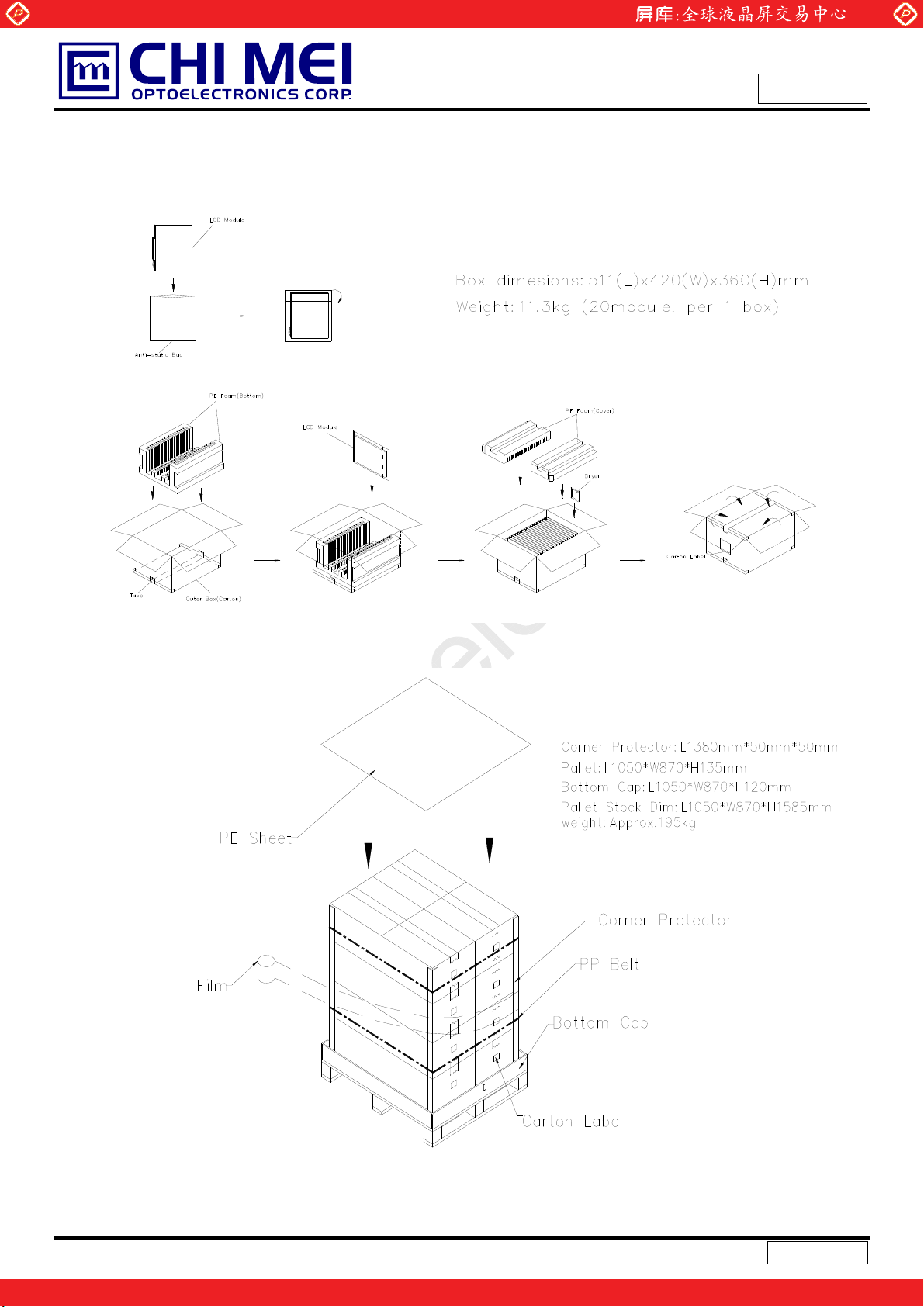

9. PACKING ------------------------------------------------------- 25
9.1 CARTON
9.2 PALLET

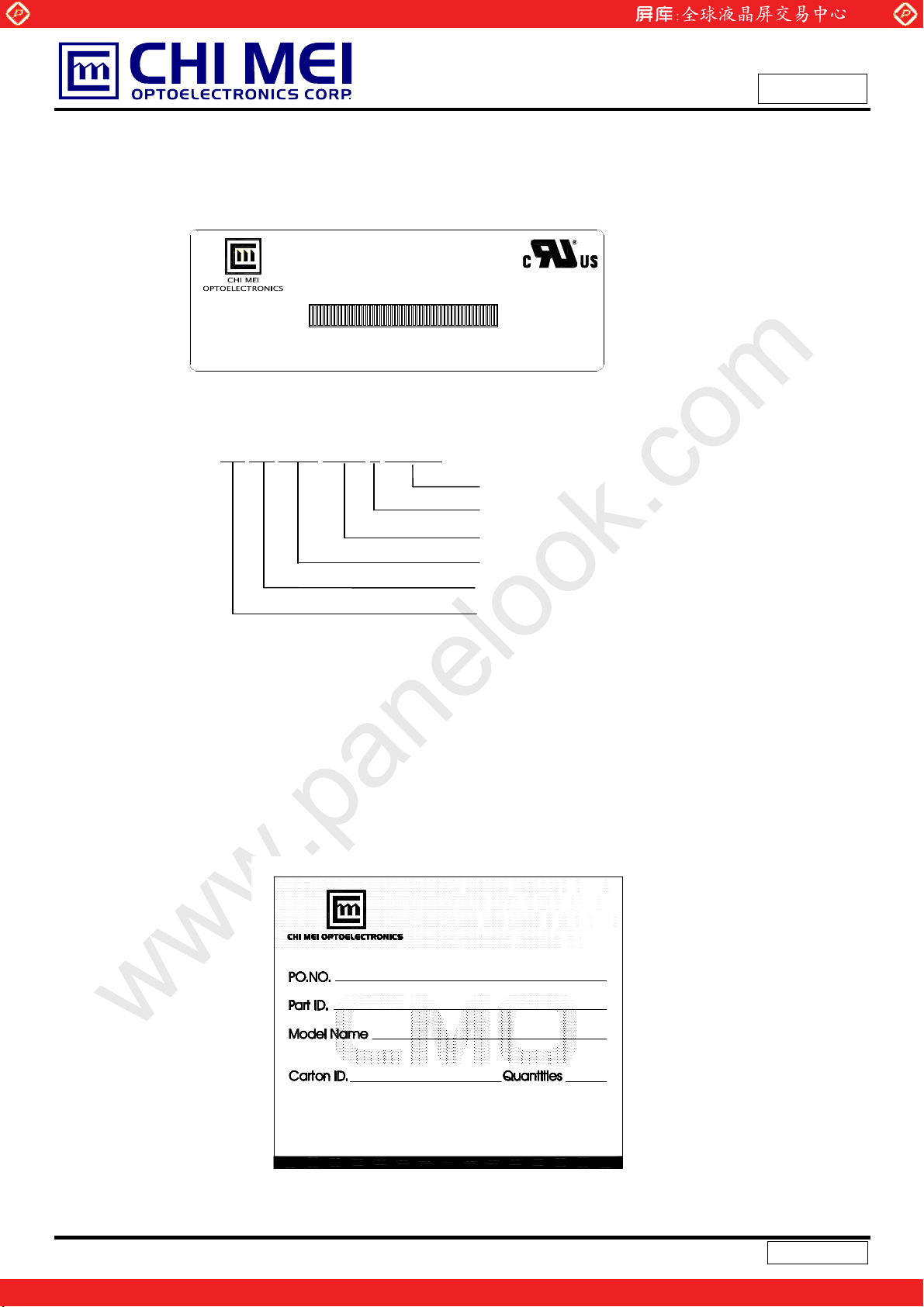

10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 9
------------------------------------------------------- 10
------------------------------------------------------- 18
------------------------------------------------------- 20
------------------------------------------------------- 24
------------------------------------------------------- 26
2 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N141XB -L01
Approval
Version Date
Ver 0.0
Ver 1.0
Ver 2.0
Ver 3.0
Ver 3.1
Ver 3.2
Ver 3.3
Jul. 07. ‘03
Nov. 28. ‘03
Feb. 18. ‘04
Feb. 18. ’04
Sep. 24. ‘04
Oct. 13. ‘04
Feb. 23. ‘05
Page
(New)
All
All
All
All
1
9
Last
REVISION HISTORY
Section Description
All
All
All
All
Cover
3.2
outline
Tentative specification first issued.
Preliminary Specification was first issued.
Approval Specification was first issued.
Issue Approval Specification for Wistron.
Add “ Revision : C2 “
Protection mode change from enable to disable (ECN040906)
Modify Note (6) to add asymmetry rate spec and distortion rate spec
Modify outline drawing
3 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N141XB -L01 is a 14.1” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1024 x 768 XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- Support EDID Structure Version 1 Revision 3
www.panelook.com
Model No.: N141XB -L01
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 285.7 (H) x 214.3 (V) (14.1” diagonal) mm Bezel Opening Area 288.9 (H) x 217.5 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1024 x R.G.B. x 768 pixel ­Pixel Pitch 0.279 (H) x 0.279 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hardness (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 298.5 299.0 299.5 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

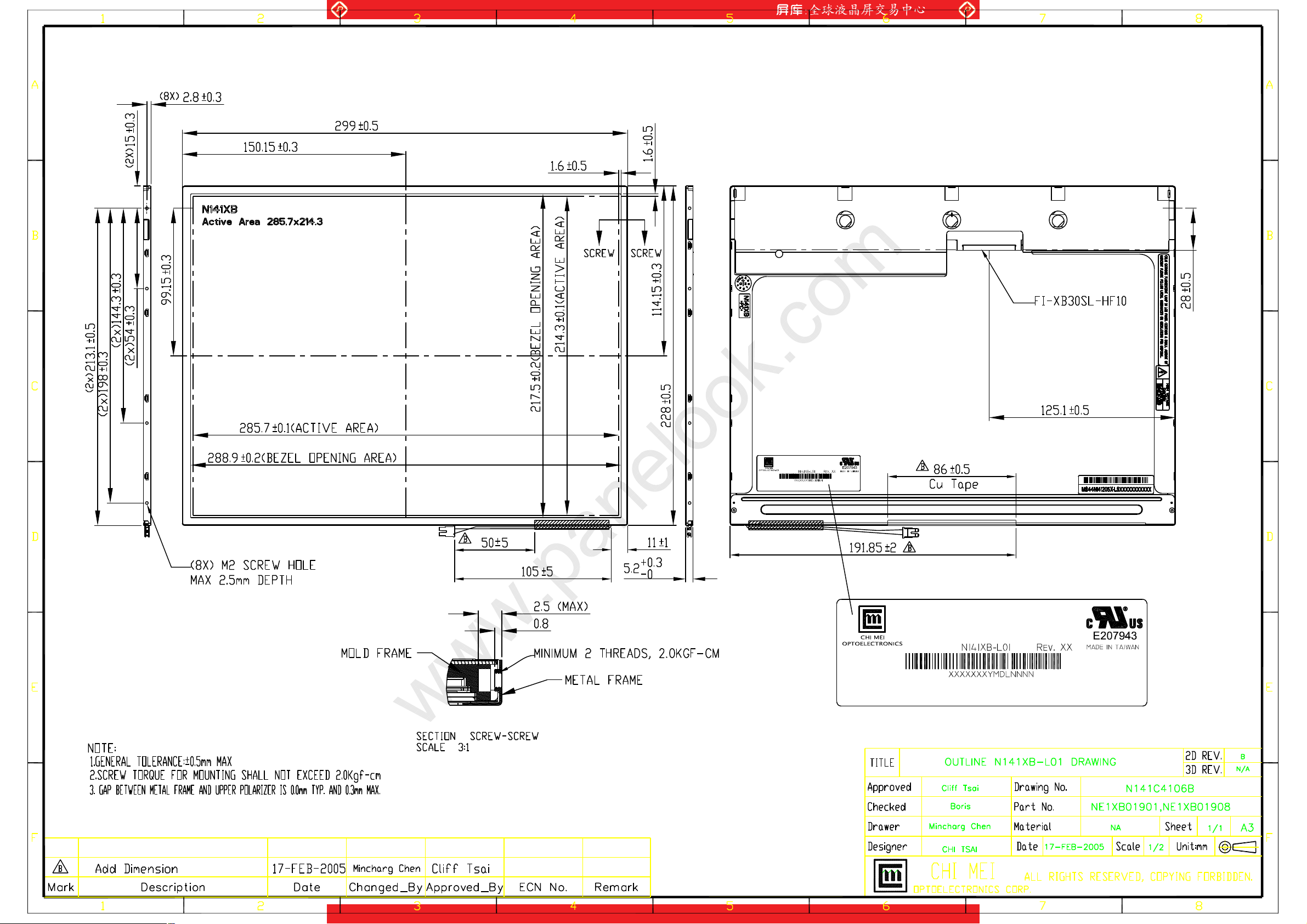

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 227.5 228.0 228.5 mm Depth(D) - 5.2 5.5 mm
Weight - 420 430 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
(2) Connector mounting position
+/- 0.5mm
4 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation .
www.panelook.com
Min. Max.
- 220 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Value
Model No.: N141XB -L01
Approval
Unit Note
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
Note (3) 2.0ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
Storage Range
5
Temperature (ºC)
8060 -20 400 20-40
Note (4) 10 ~ 200 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z. The fixing condition is shown as below:
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
so that the module would not be twisted or bent by the fixture.
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL - 6.5 mA Lamp Frequency FL - 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Model No.: N141XB -L01
Approval
(1)
(1), (2), IL = (6.0) mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to Section 3.2 for further information).
6 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N141XB -L01
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
- - 1.5 A (2)
RUSH
White - 350 mA (3)a
Power Supply Current
Black - 400 mA (3)b Vertical Stripe
lcc
- 400 mA (3)c
“H” Level VIH - - +100 mV - Differential Input Voltage for
LVDS Receiver Threshold
“L” Level V
-100 - - mV -
IL
Terminating Resistor RT - 100 - Ohm -
Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:
Value
Unit Note
Approval
+3.3V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
Vcc
(LCD Module Input)
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470us
+3.3V
0.9Vcc
0.1Vcc
GND
470us
7 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Model No.: N141XB -L01
Approval
Current and f
a. White Pattern
c. Vertical Stripe Pattern
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
B
B
R
R
R
Active Area
R
B
B
B
R
R
G
G
G
G
G
G
B
B
B
Active Area
R
R
R R
Active Area
G
B
G
B
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Lamp Input Voltage VL 576 640 704 V Lamp Current IL 3.0 6.0 6.5 mA
Lamp Turn On Voltage VS
Operating Frequency FL 50 - 80 KHz (3) Power Consumption PL - 3.84 - W (4), IL = 6.0 mA Lamp Life Time LBL 10,000 15,000 - Hrs (5) Leakage Current IIN-I

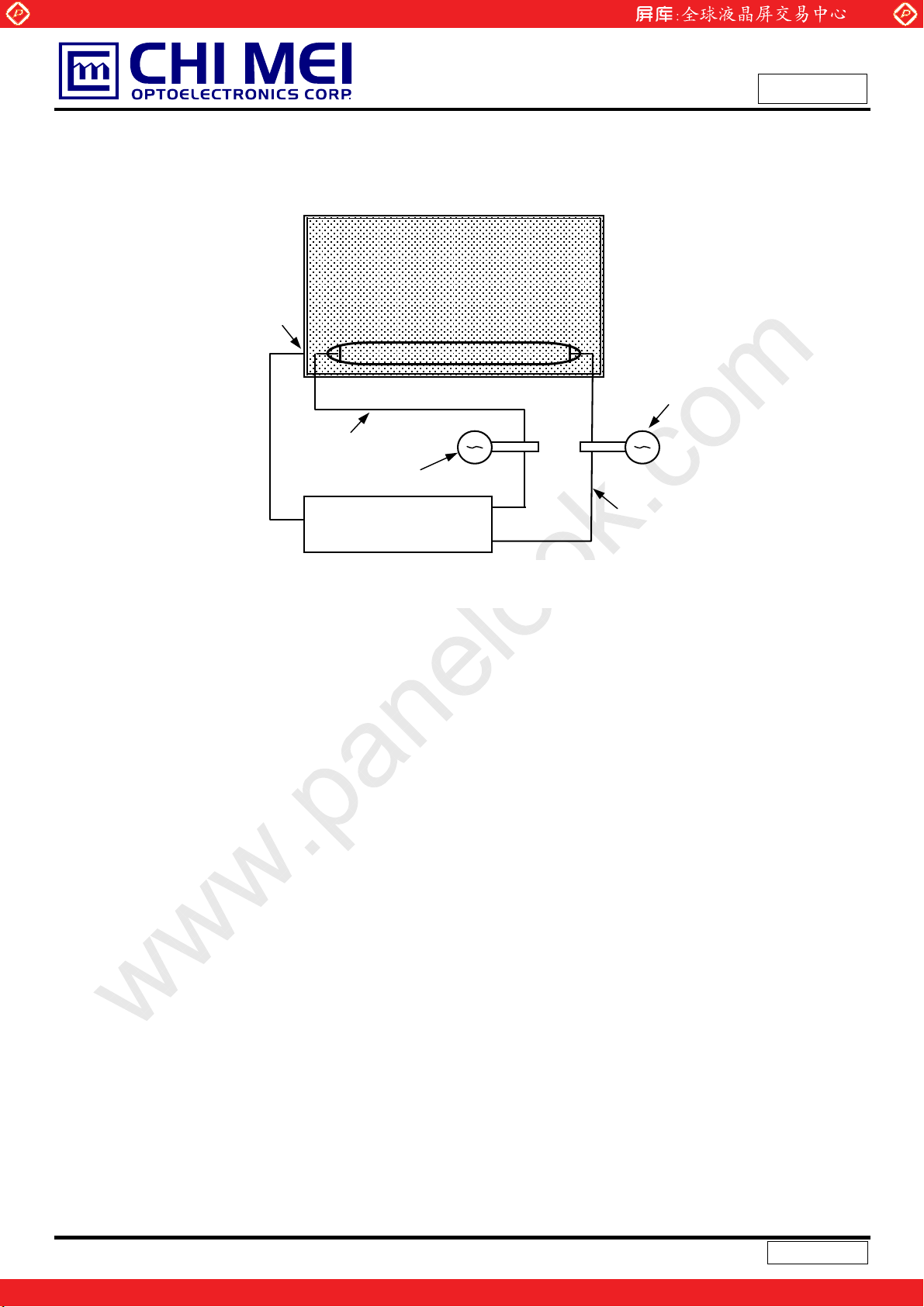

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
LCD
Module
- - 1.0 mA (7)
OUT
HV (Pink)
LV (Black)
Min. Typ. Max.
- - 1360 (25
- - 1670 (0
Value
1
2
Current Meter
Unit Note
o
C) V
o
C) V
I
RMS
RMS
(2)
RMS
(2)
RMS
= 6.0 mA
L
(1)
Inverter
A
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
8 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The lamp frequency may generate interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
www.panelook.com
Model No.: N141XB -L01
Approval
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp is defined as the time when it continues to operate under the conditions at Ta
= 25 2
o
C and IL = 6.0 mA
until one of the following events occurs:
RMS
(a) When the brightness becomes Љ 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value. (Effective ignition
length is defined as an area that the brightness is less than 70% compared to the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid generating too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter,
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.
a. The asymmetry rate of the inverter waveform should be 10% below;
b. The distortion rate of the waveform should be within Ѕ2 ± 10%;
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
* Asymmetry rate:
I p
| I
– I –p | / I
p
* 100%
rms
I
-p
* Distortion rate
I
(or I –p) / I
p
rms
9 / 29
. Version 3.3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
