TFT LCD Approval Specification
MODEL NO.: N141C3 - L01
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
Customer:
pproved by:
Note:
2007-04-04
08:52:38 CST
2007-03-28
10:50:30 CST
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Approve by Dept.
Mgr.(QA RA)
Approve by
Director
tomy_chen(ຫةԫ
/52720/54140/43150)
teren_lin(ࣥո
/56910/36064)
1 / 30
Department
Manager(QA RA)
Director Accept
Accept
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

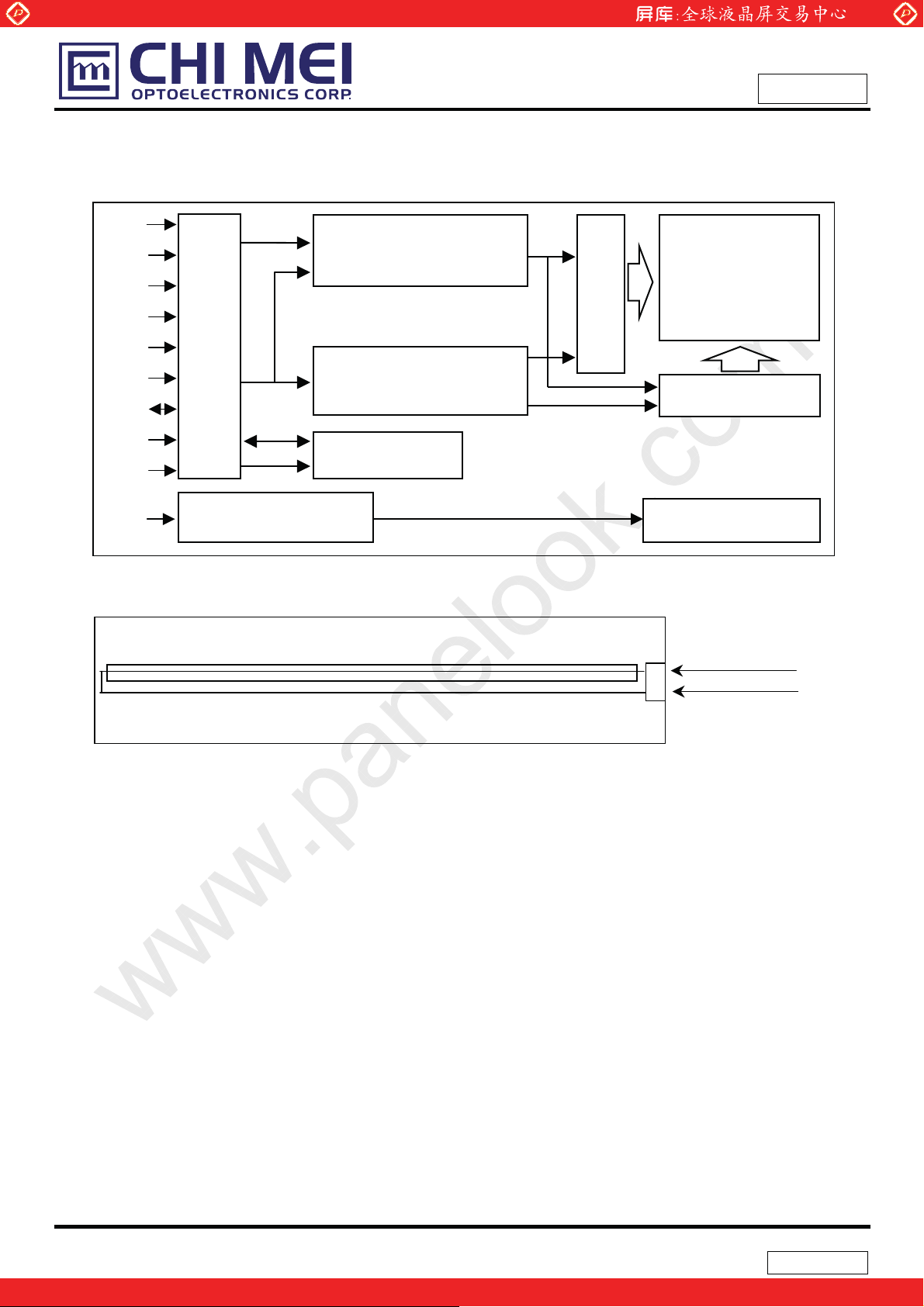

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

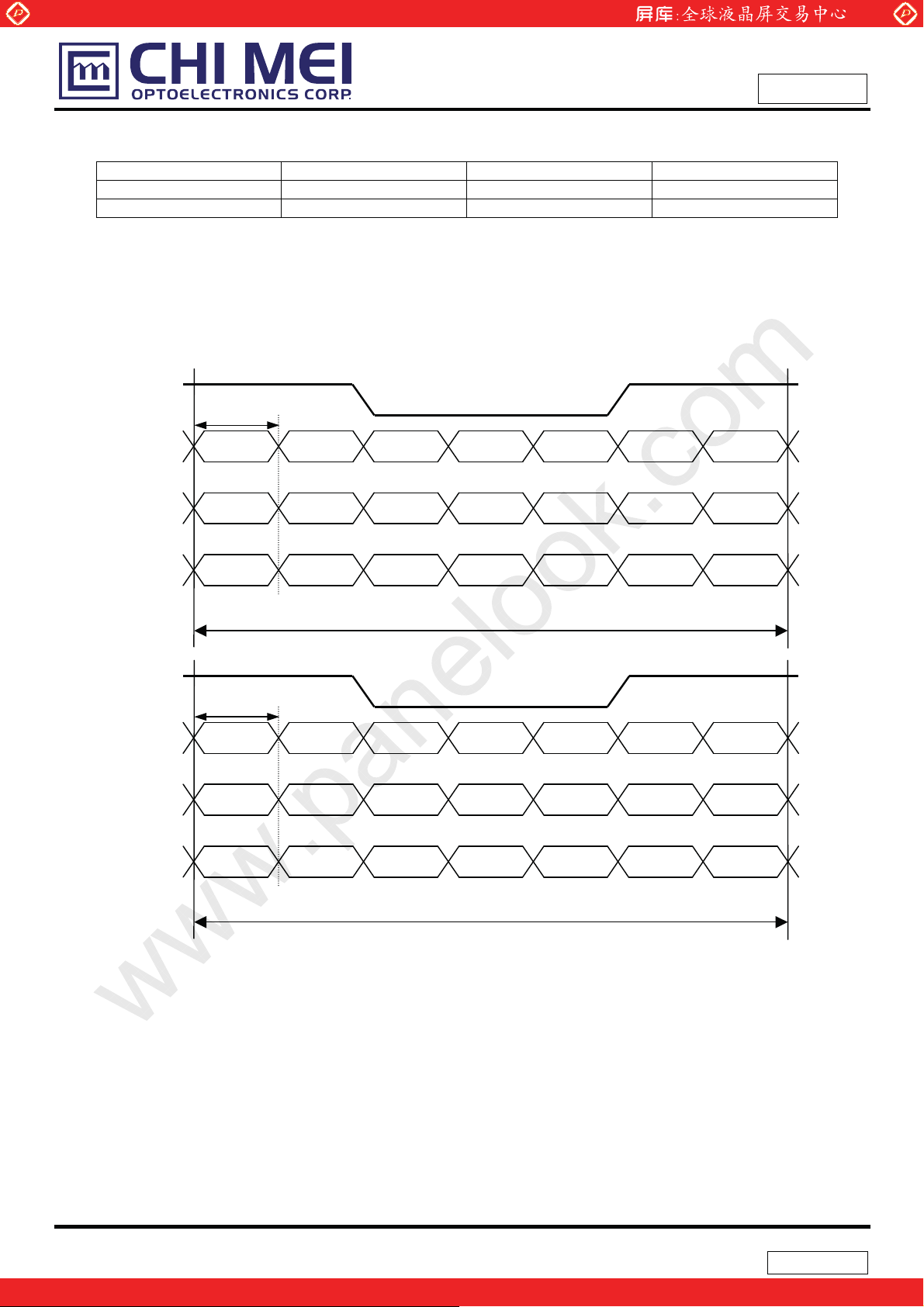

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
6. INTERFACE TIMING
6
.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
------------------------------------------------------- 18
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20

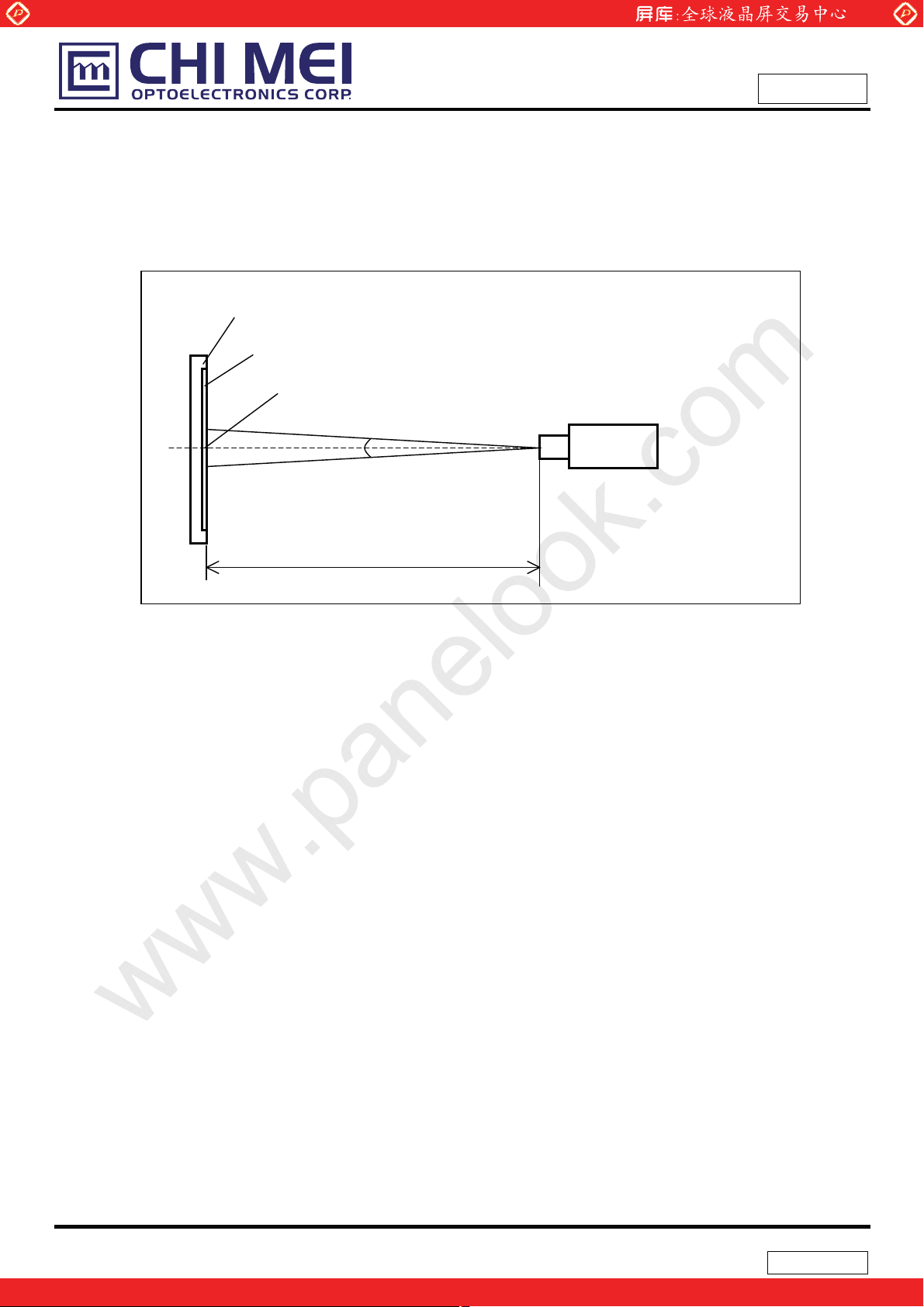

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 24
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS

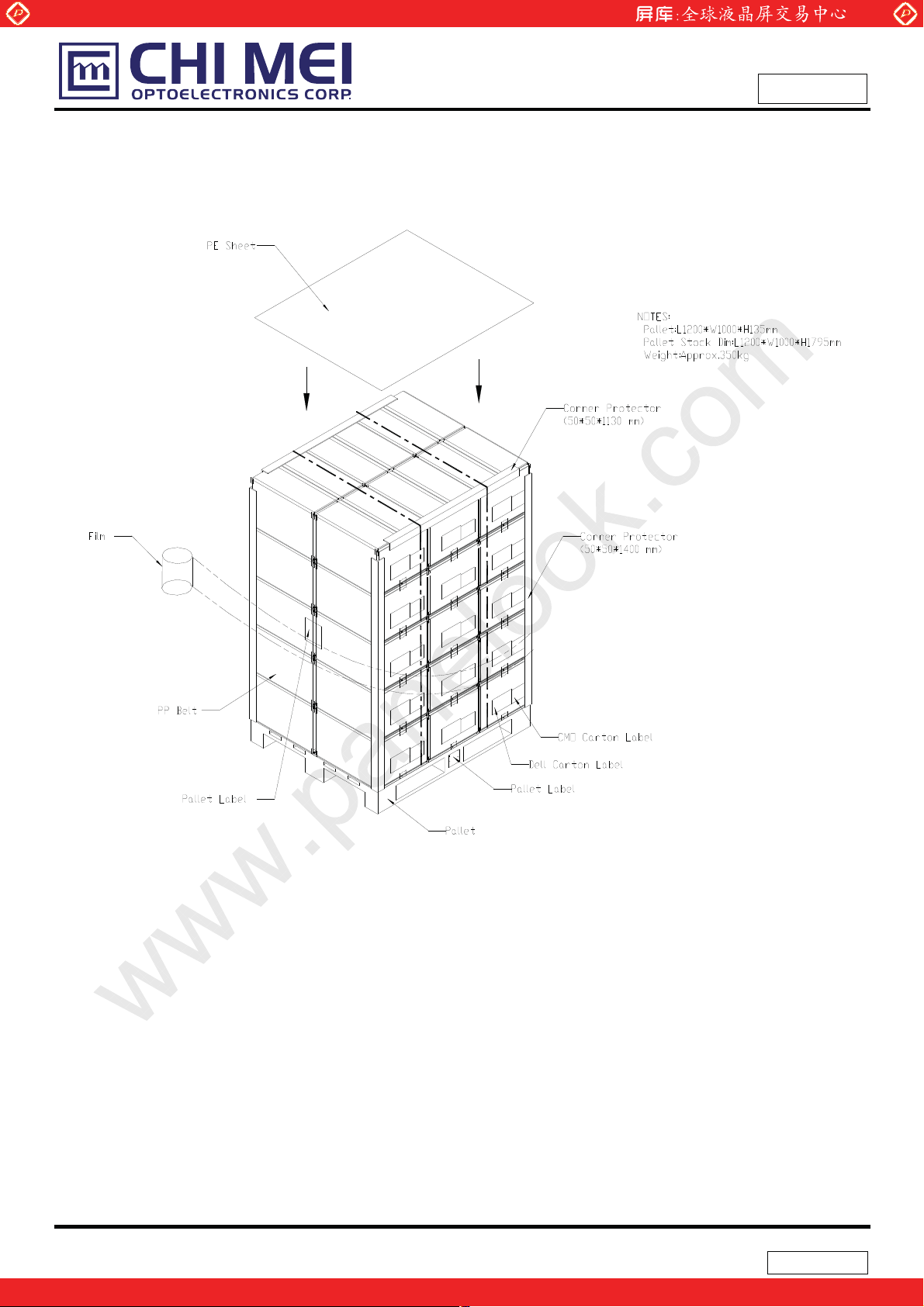

9. PACKING ------------------------------------------------------- 25
9.1 CARTON

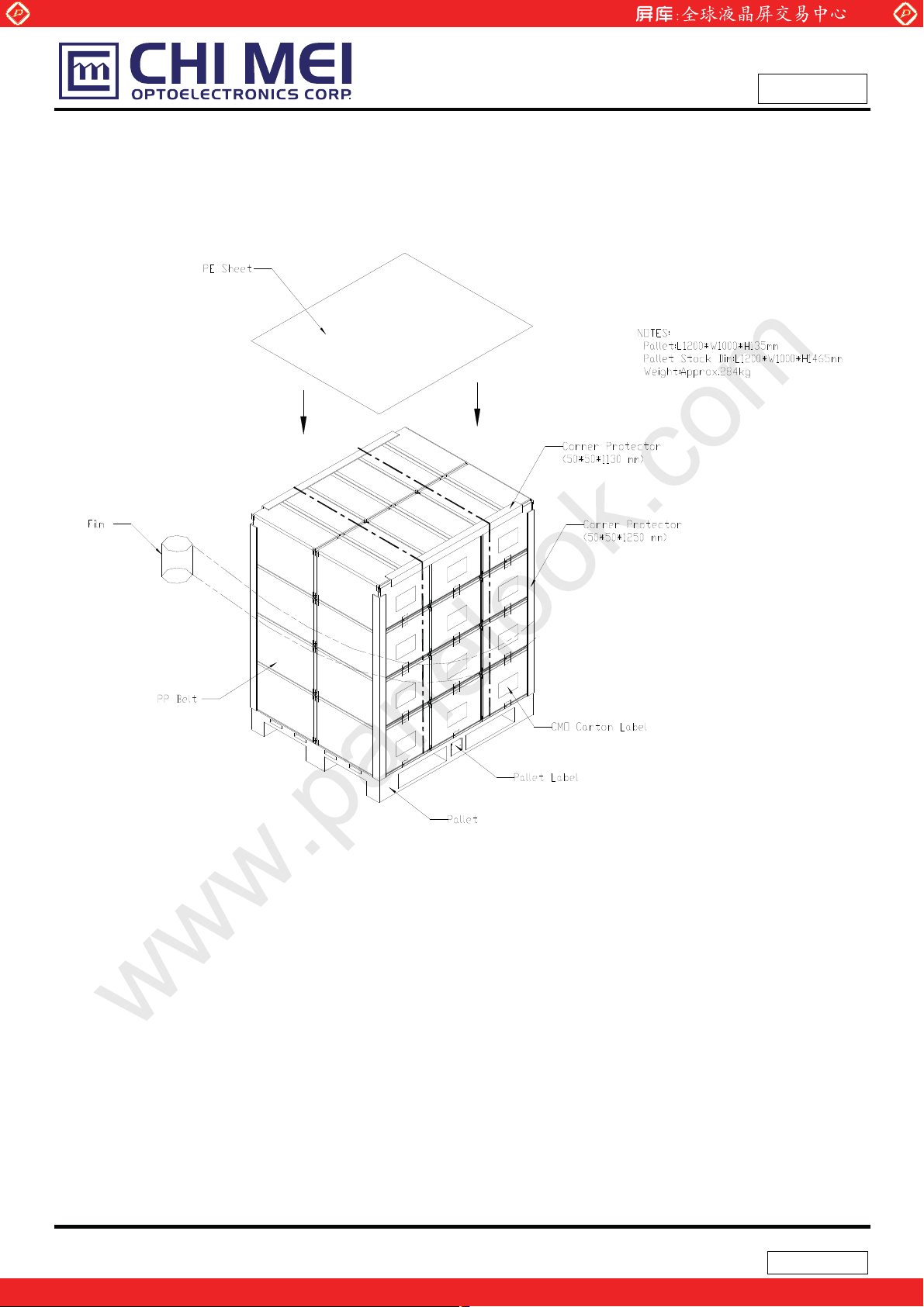

9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL

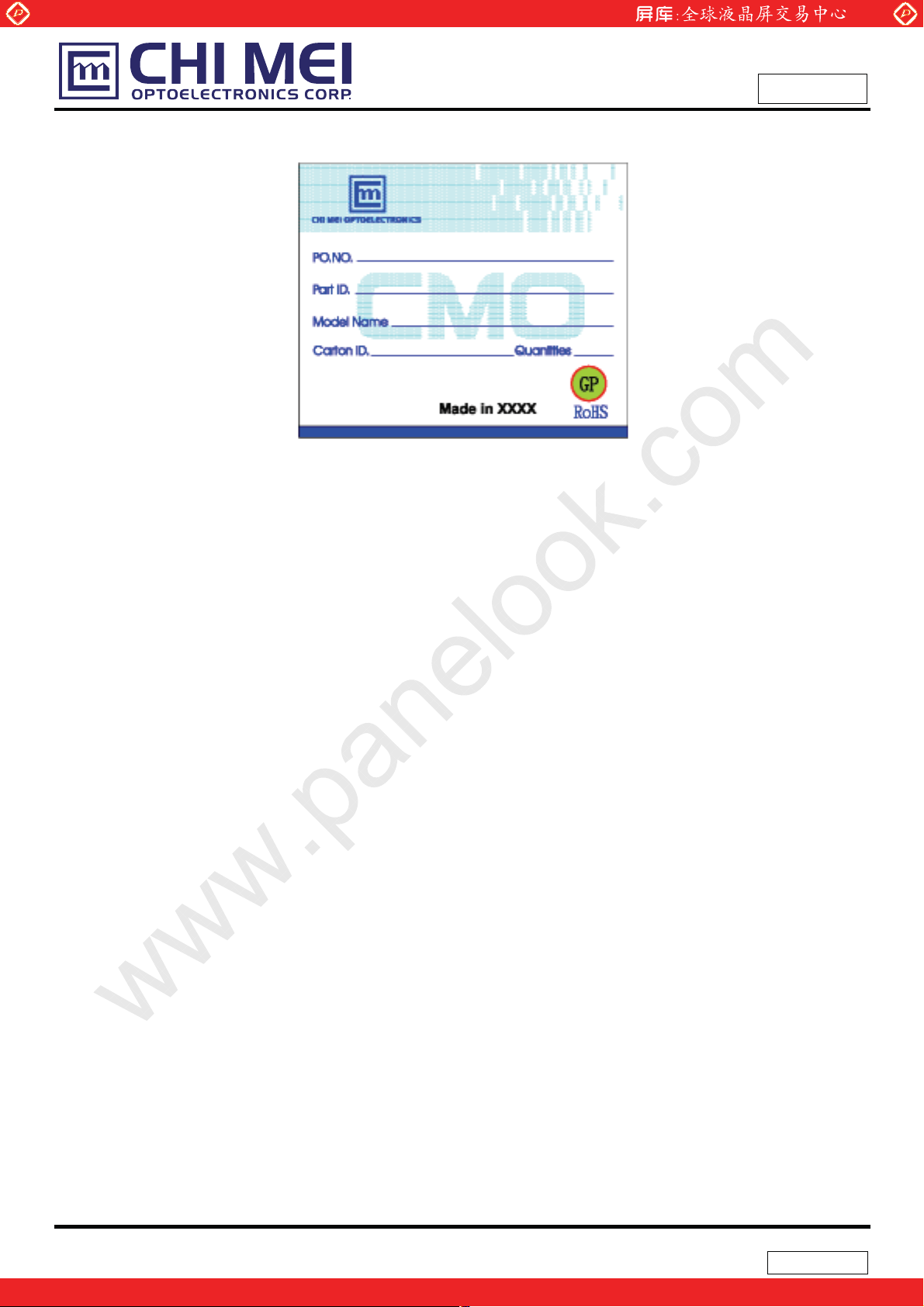

10.2 CMO CARTON LABE
2 / 30
------------------------------------------------------- 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
REVISION HISTORY
Version Date
0.0
2.0
Oct 11,’06
Mar. 27,’07
Page
(New)
All
All
Section Description
All
Tentative specification was first issued.
All
Approval specification was first issued.
3 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
1 GENERAL DESCRIPTION
1.1 OVERVIEW
N141C3 - L01 is a 14.1” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1440 x (3 RGB) x 900 WXGA+ mode and can display 262,144 colors.
The optimum viewing angle is at 6 o’clock direction. The inverter module for backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA+ (1440 x 900 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
- RoHS compliance
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 303.48(H) X 189.675(V) (14.1 inch Diagonal) mm
Bezel Opening Area 306.76 (H) x 193.0 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1440 x R.G.B. x 900 pixel Pixel Pitch 0.21075 (H) x 0.21075 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Anti-glare and Hard Coat , Haze 26, (3H min.) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 319 319.5 320 mm
Module Size
Vertical(V) 205 205.5 206 mm
Depth(D) -- 5.2 5.5 mm
Weight -- 425 430 g
(1)
(1)

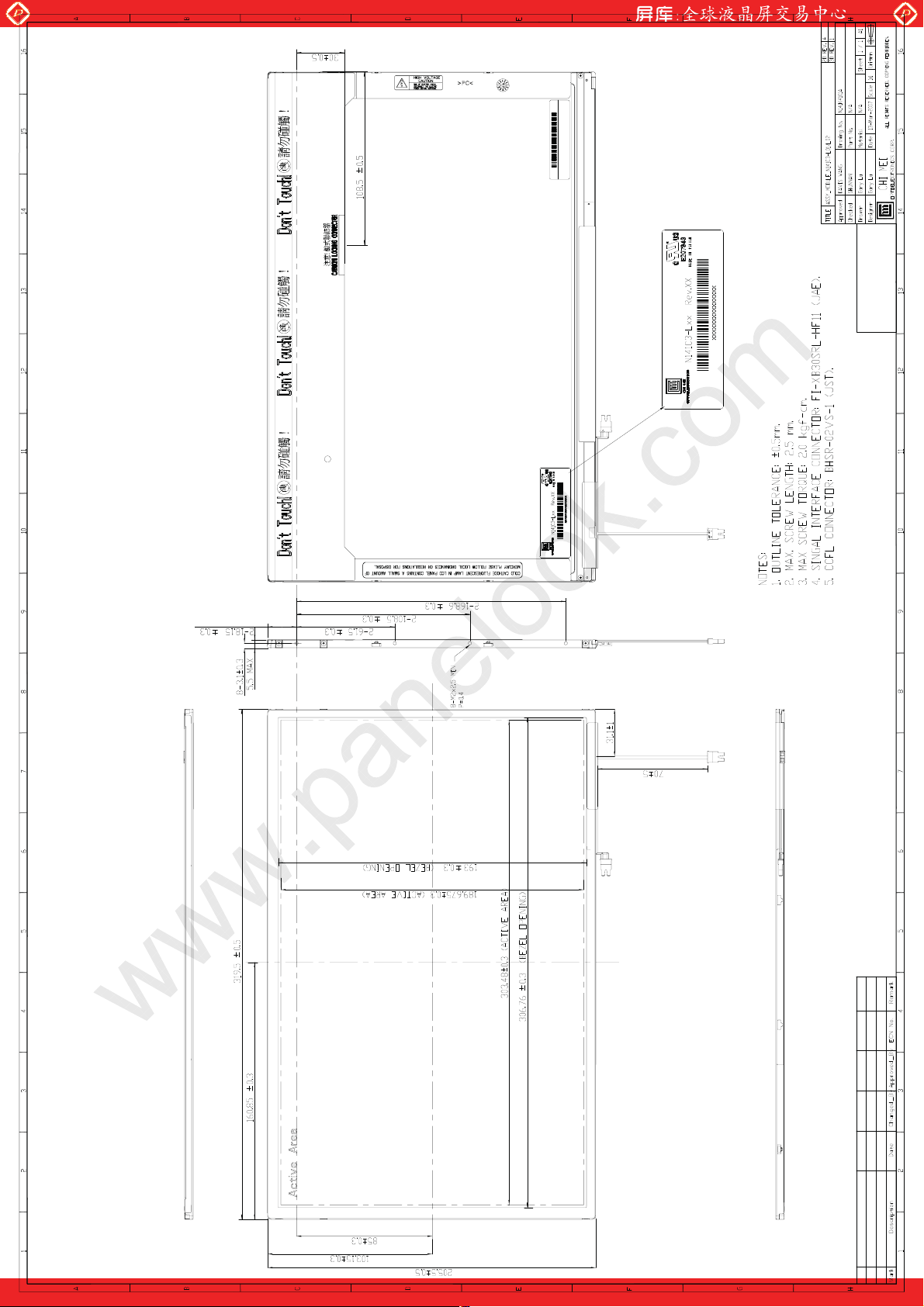

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions
4 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
A
2 ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max..
Relative Humidity (%RH)
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 200 Hz, 30 min / Cycle, 1 cycles for each X, Y, Z axis.
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Bracket
5 / 30
LCD Module
Side Mount Fixing Screw
Stage
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V
Lamp Current IL 2.0 6.5 mA
Lamp Frequency FL 45 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
(1)
(1), (2)
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
3 ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V Permissive Ripple Voltage VRP - 50 - mV Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - (380) (430) mA (3)a
Black
Icc
TH(LVDS)
TL(LVDS)
- (465) (510) mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm Power per EBL WG P
- TBD - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Unit Note
Approval
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
: the maximum current when VCC is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470us
VCC
ICC
0V
I
RUSH
470us
0.1Vcc
+3.3V
100ms
7 / 30
I
IS
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
Approval
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from Sumida (www.sumida.com.tw)
= 60 Hz,
v
b. Black Pattern
Active Area
. Please contact Sumida for detail
information. CMO doesn’t provide the inverter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
Single Ended
0V
V
Differential
0V
V
VID
VID
8 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 1406X170
Issued Date: Mar. 27, 2007
Model No.: N141C3 - L01
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Lamp Input Voltage VL 612 680 748 V
Lamp Current IL 2.0 6.0 6.5 mA
Lamp Turn On Voltage V
S
- - 1370 (25
- - 1520 (0
Operating Frequency FL 45 - 80 KHz (3)
Lamp Life Time LBL 15,000 - - Hrs (5)
Power Consumption PL - 4.08 - W (4), IL = 6.0 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C) V
o
C) V
Unit Note
I
RMS
(1)
RMS
(2)
RMS
(2)
RMS
Approval
= 6.0 mA
L
HV (Pink)
LCD
LV (White)
Module
1
Inverter
2
A
Current Meter
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= ILV
L
L
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Ta = 25 2
o
C and IL = 6 mArms until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)

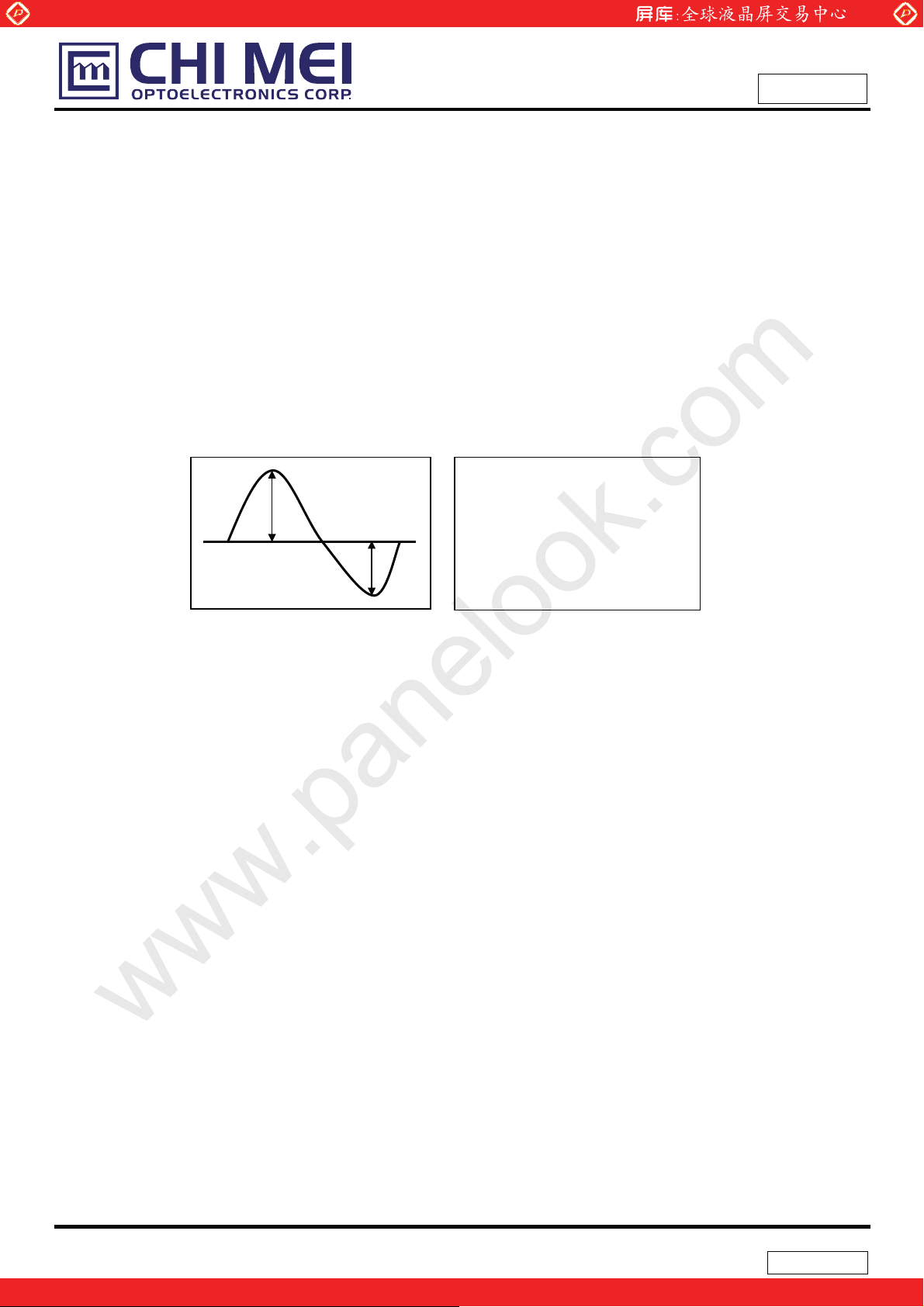

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter
9 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Loading...
