Page 1
Global LCD Panel Exchange Center
ಖᙕ
ՠ܂
ᐉு
ߡۥ
ދป
A

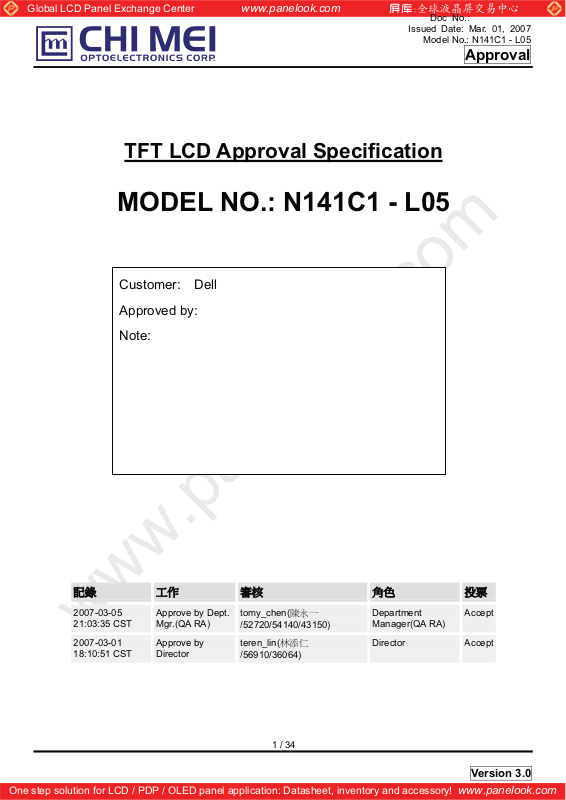

TFT LCD Approval Specification
MODEL NO.: N141C1 - L05
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Customer: Dell
pproved by:
Note:
2007-03-05
21:03:35 CST
2007-03-01
18:10:51 CST
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Approve by Dept.
Mgr.(QA RA)
Approve by
Director
tomy_chen(ຫةԫ
/52720/54140/43150)
teren_lin(ࣥո
/56910/36064)
1 / 34
Department
Manager(QA RA)
Director Accept
Accept
Version 3.0
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 1
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 5
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

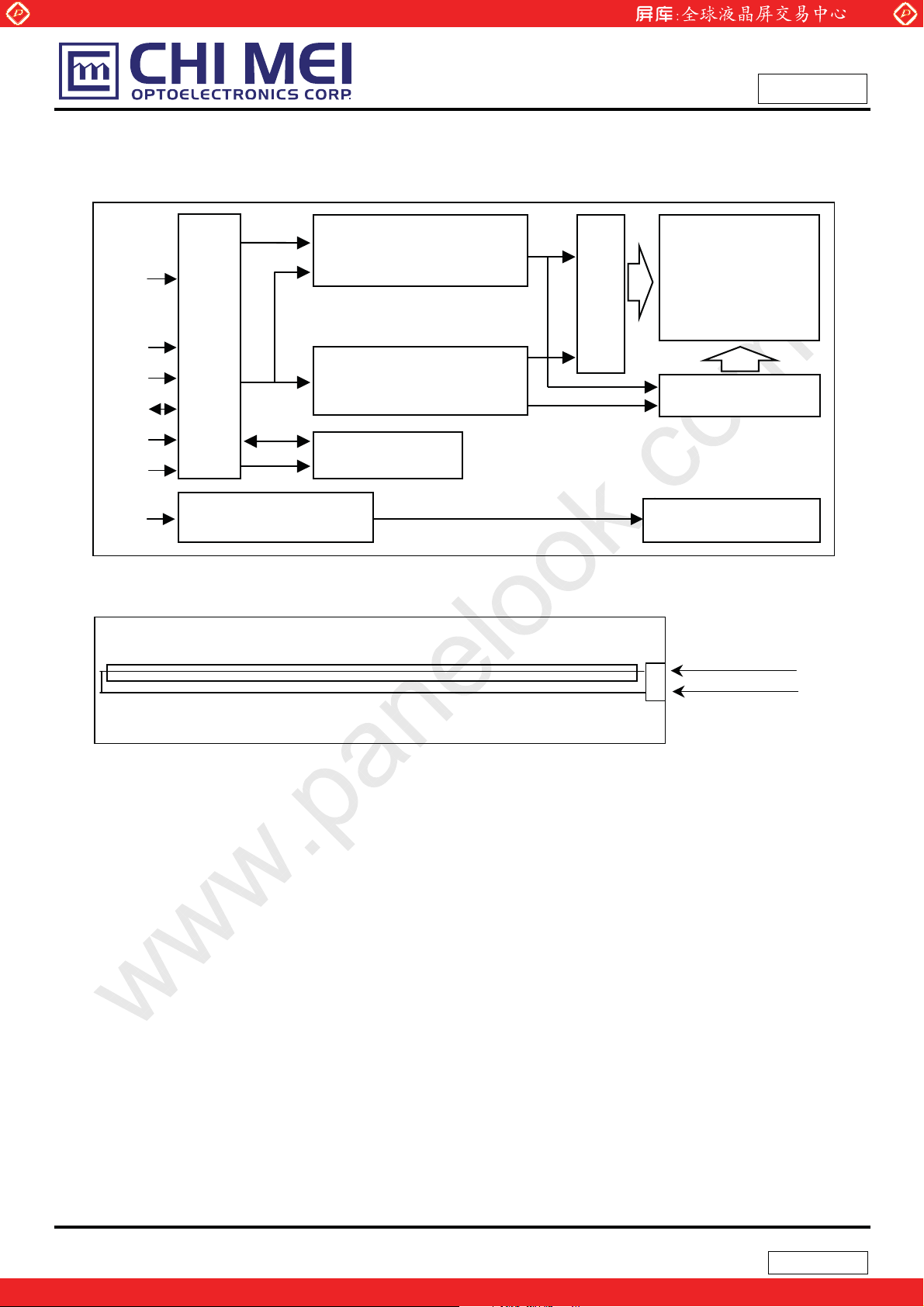

4. BLOCK DIAGRAM ------------------------------------------------------- 12
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 13
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

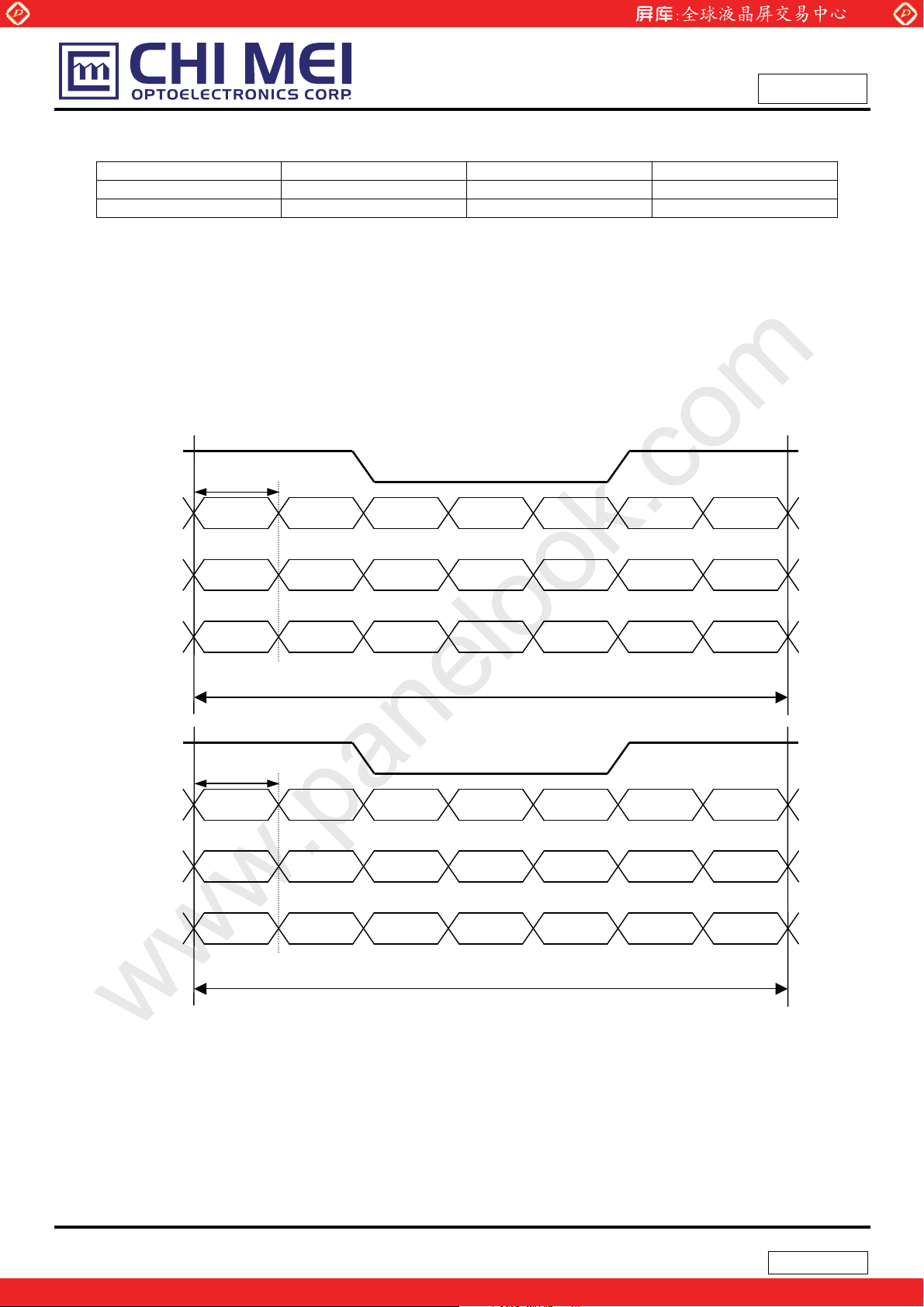

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INVERTER SPECIFICATION ------------------------------------------------------- 19
6.1 INPUT CONNECTOR PIN ASSIGNMENT
6.2 INPUT CONNECTOR PIN ASSIGNMENT
6.3 OUTPUT CONNECTOR PIN ASSIGNMENT
6.4 GENERAL ELECTRICAL SPECIFICATION
7. INTERFACE TIMING ------------------------------------------------------- 23
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE

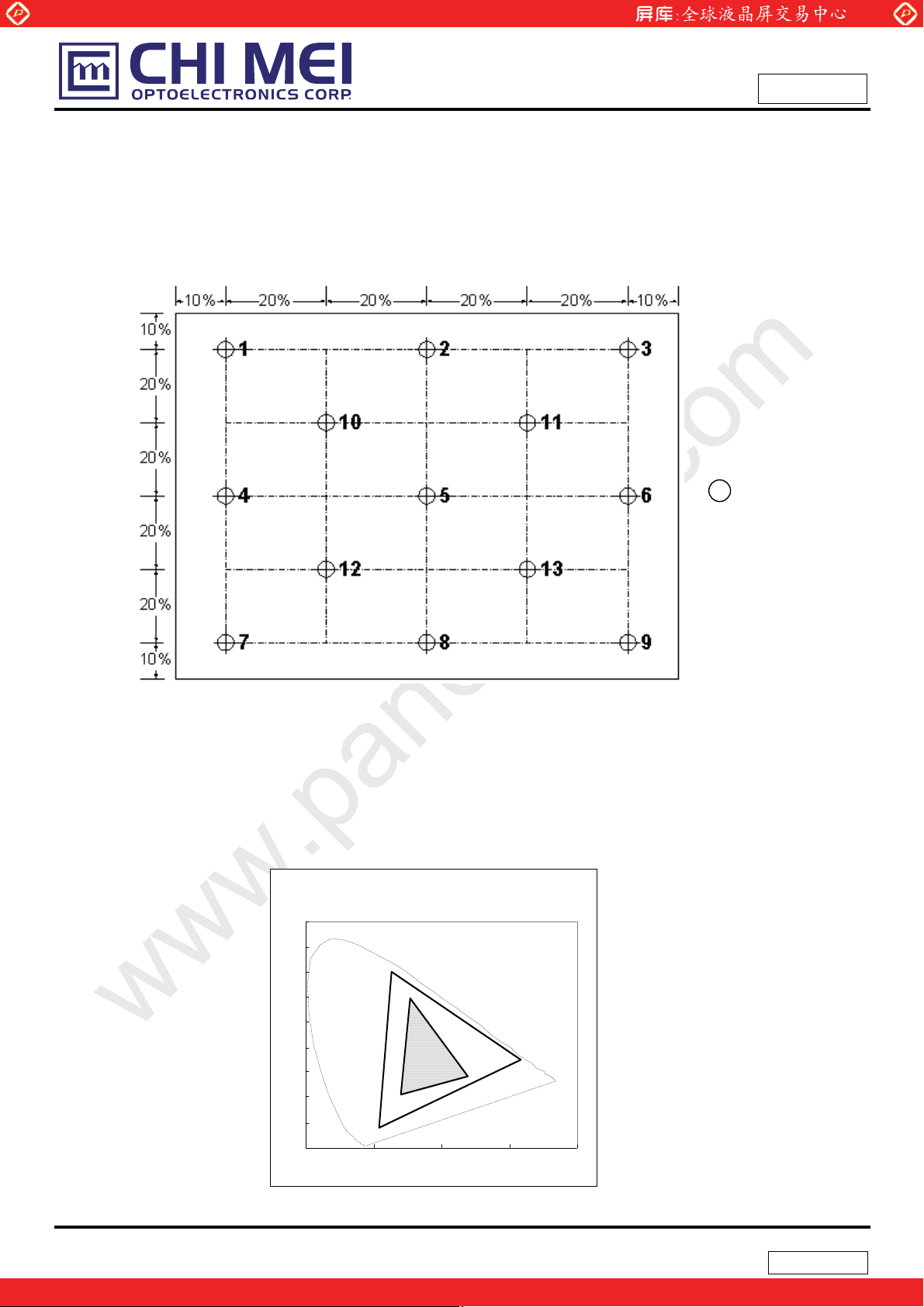

8. OPTICAL CHARACTERISTICS
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS
------------------------------------------------------- 25
------------------------------------------------------- 27

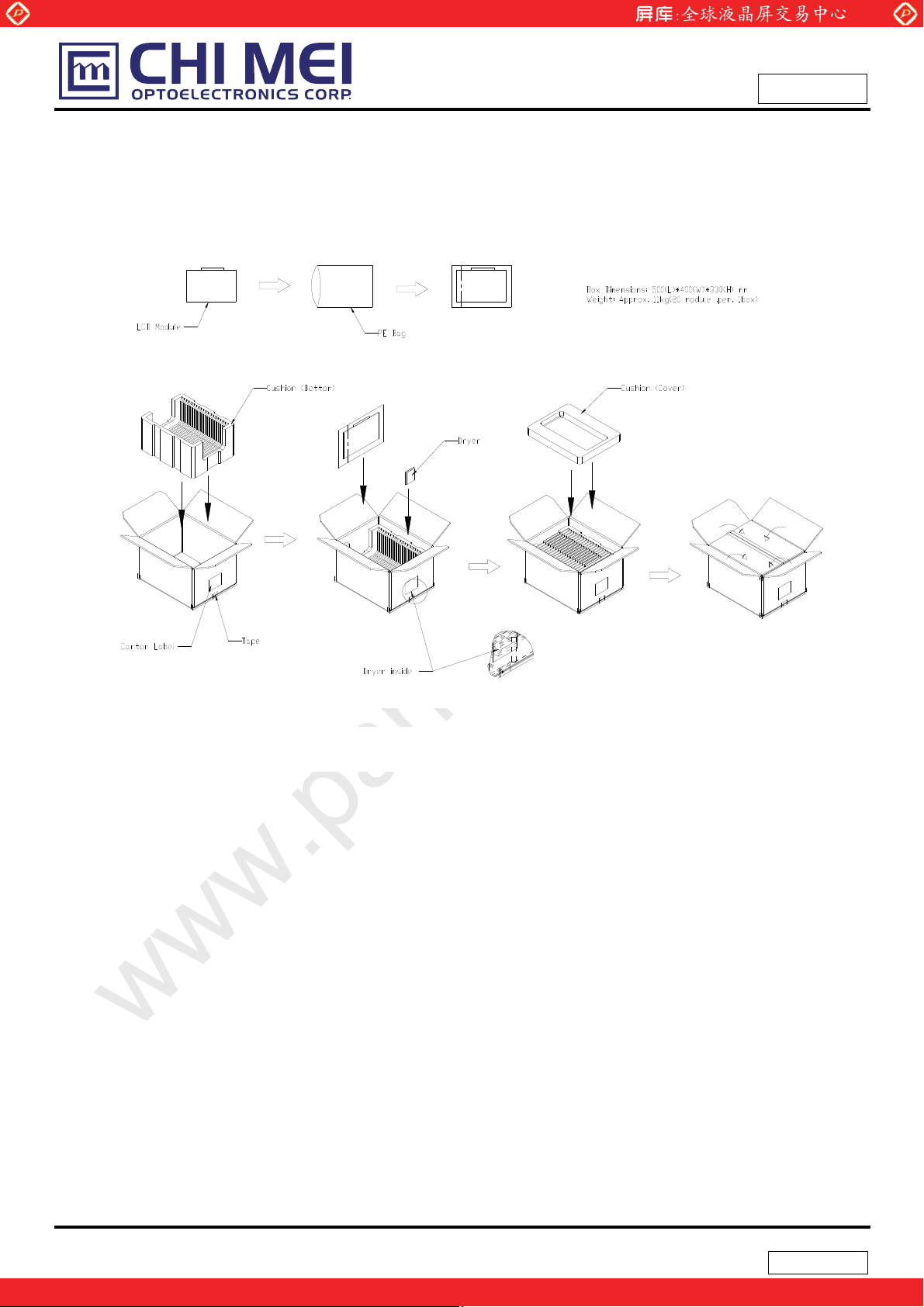

10. PACKING ------------------------------------------------------- 32
10.1 CARTON

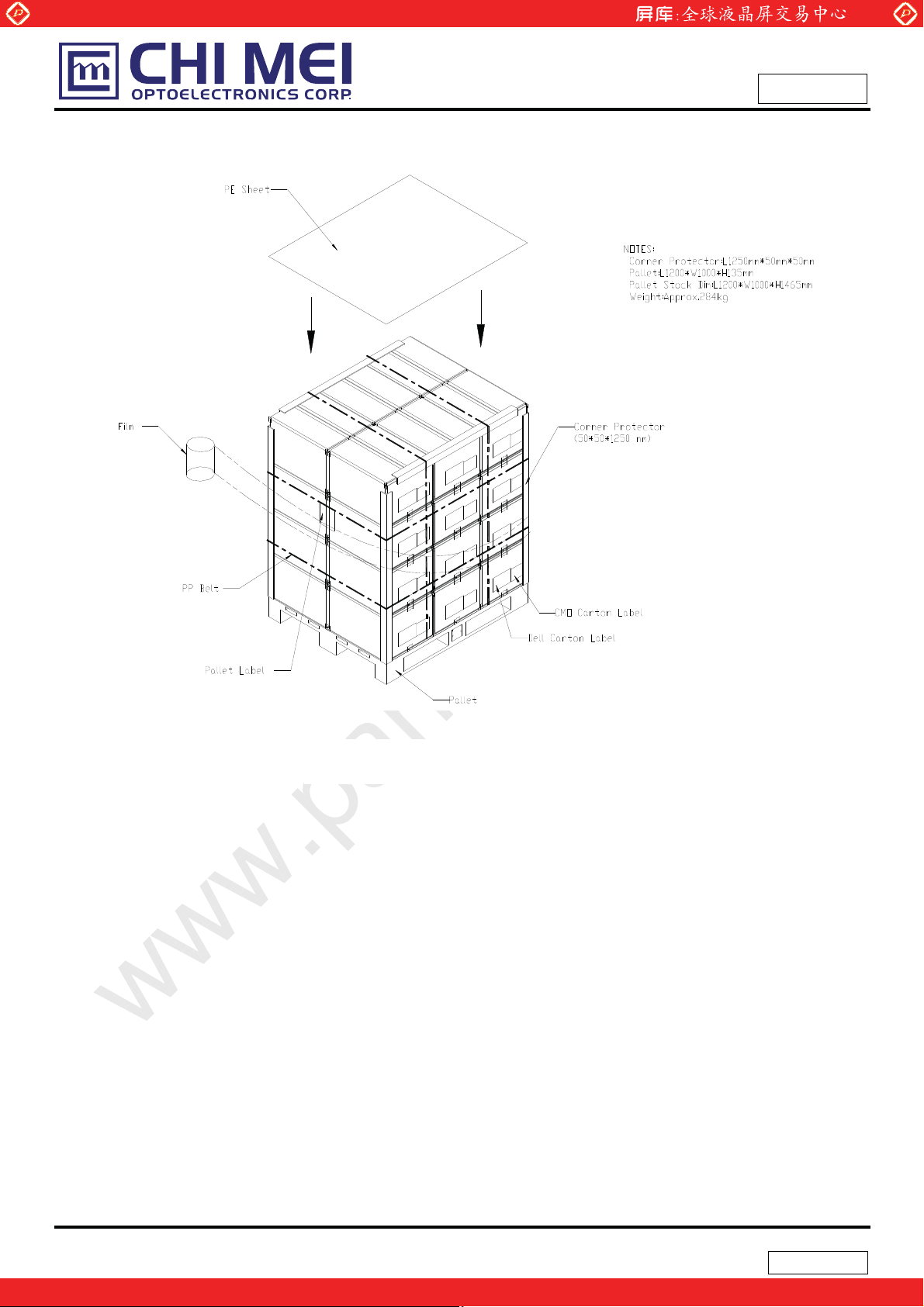

10.2 PALLET
2 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval

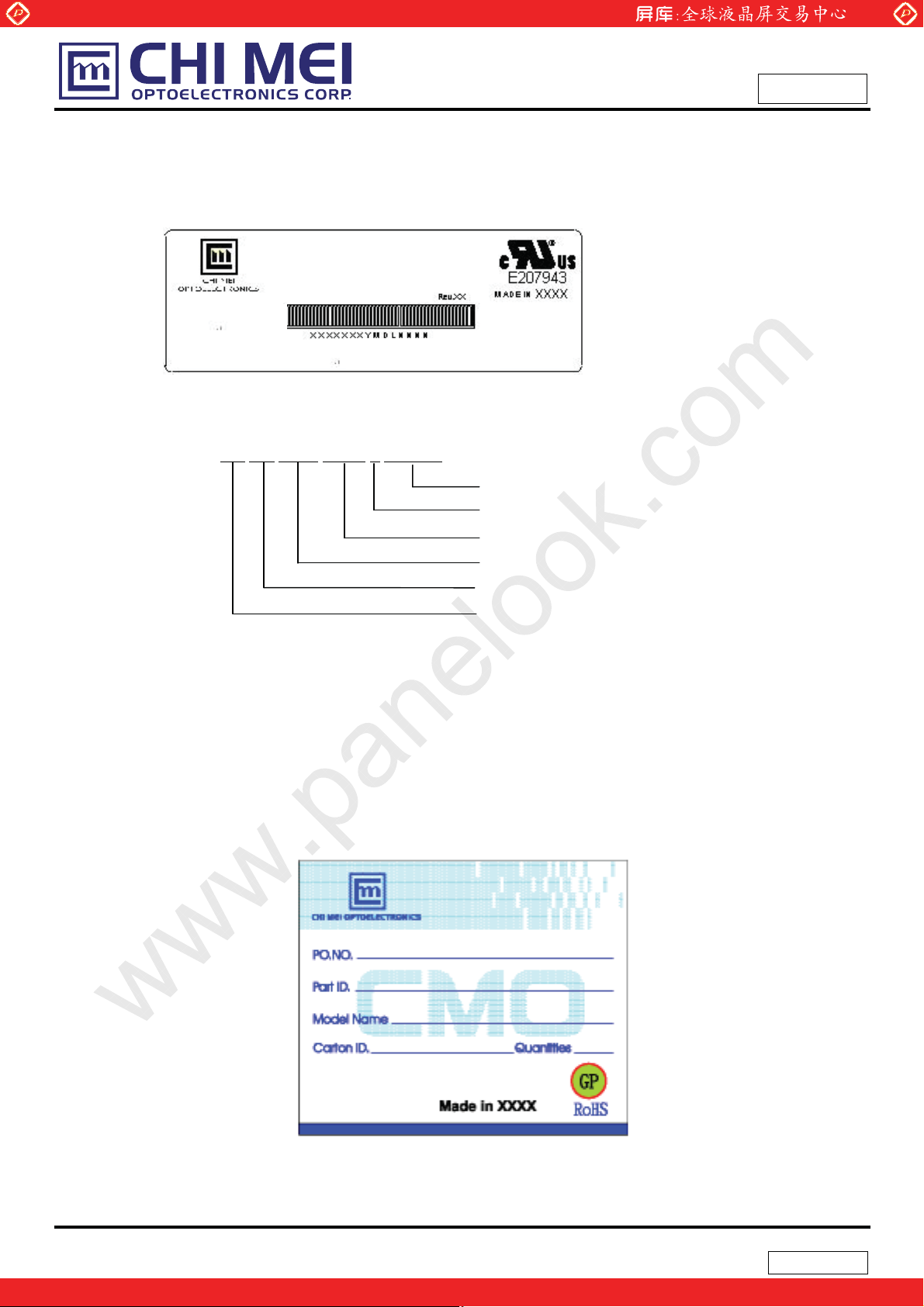

11. DEFINITION OF LABELS
11.1 CMO MODULE LABEL

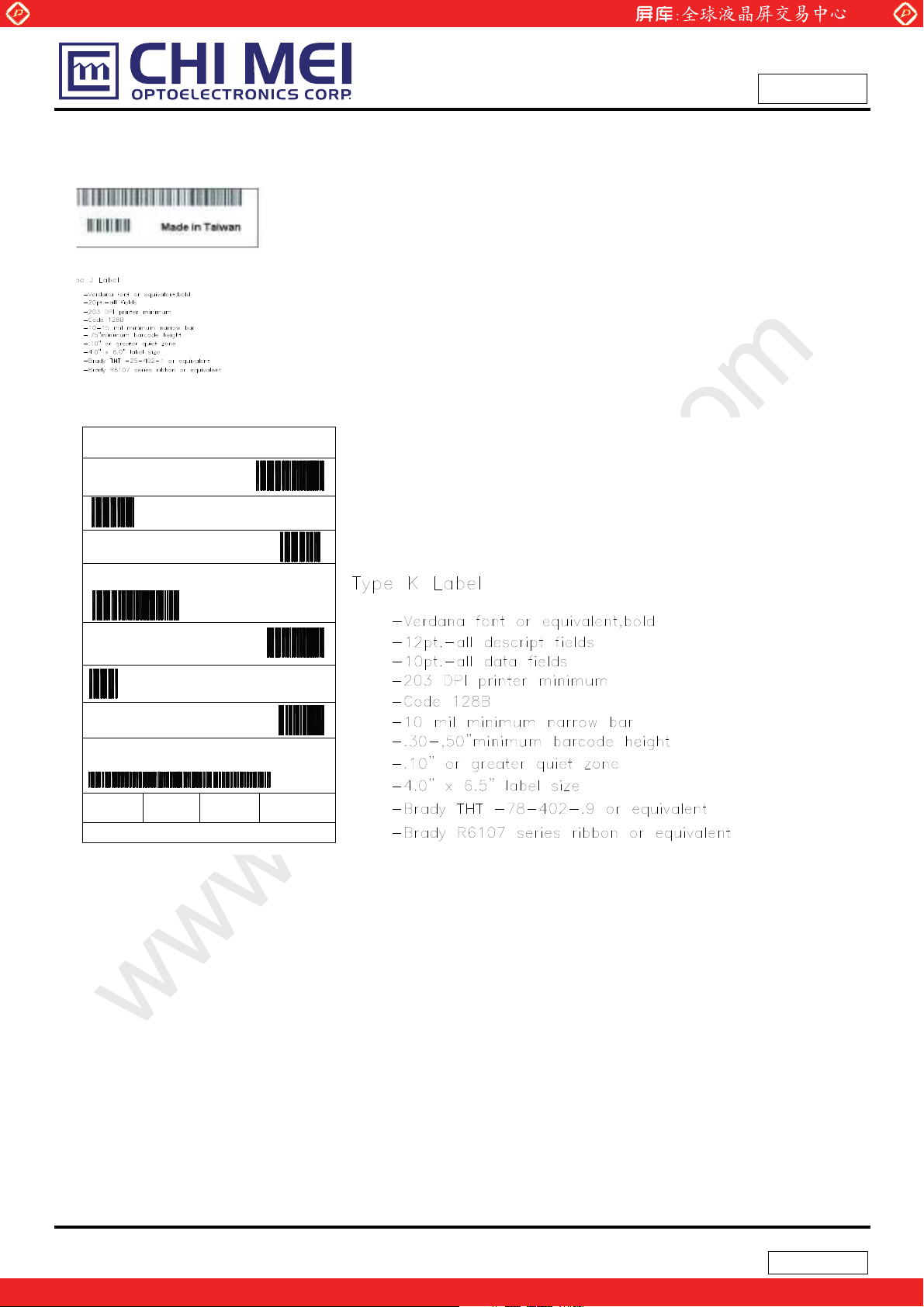

11.2 CMO CARTON LABE
------------------------------------------------------- 32
3 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
REVISION HISTORY
Version Date
3.0 Mar. 01,’07 All All Approval specification was first issued.
Page
(New)
Section Description
4 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
1 GENERAL DESCRIPTION
1.1 OVERVIEW
N141C1 - L05 is a 14.1” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1440 x (3 RGB) x 900 WXGA+ mode and can display 262,144 colors.
The optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA+ (1440 x 900 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 303.48(H) X 189.675(V) (14.1 inch Diagonal) mm
Bezel Opening Area 306.76 (H) x 193.0 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1440 x R.G.B. x 900 pixel Pixel Pitch 0.21075 (H) x 0.21075 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Antiglare, Haze 44%, 3H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 319 319.5 320 mm
Module Size
Vertical(V) 205 205.5 206 mm
Depth(D) -- 5.2 5.5 mm
Weight -- 395 410 g (2)
Weight -- 410 425 g (3)
(1)
(1)

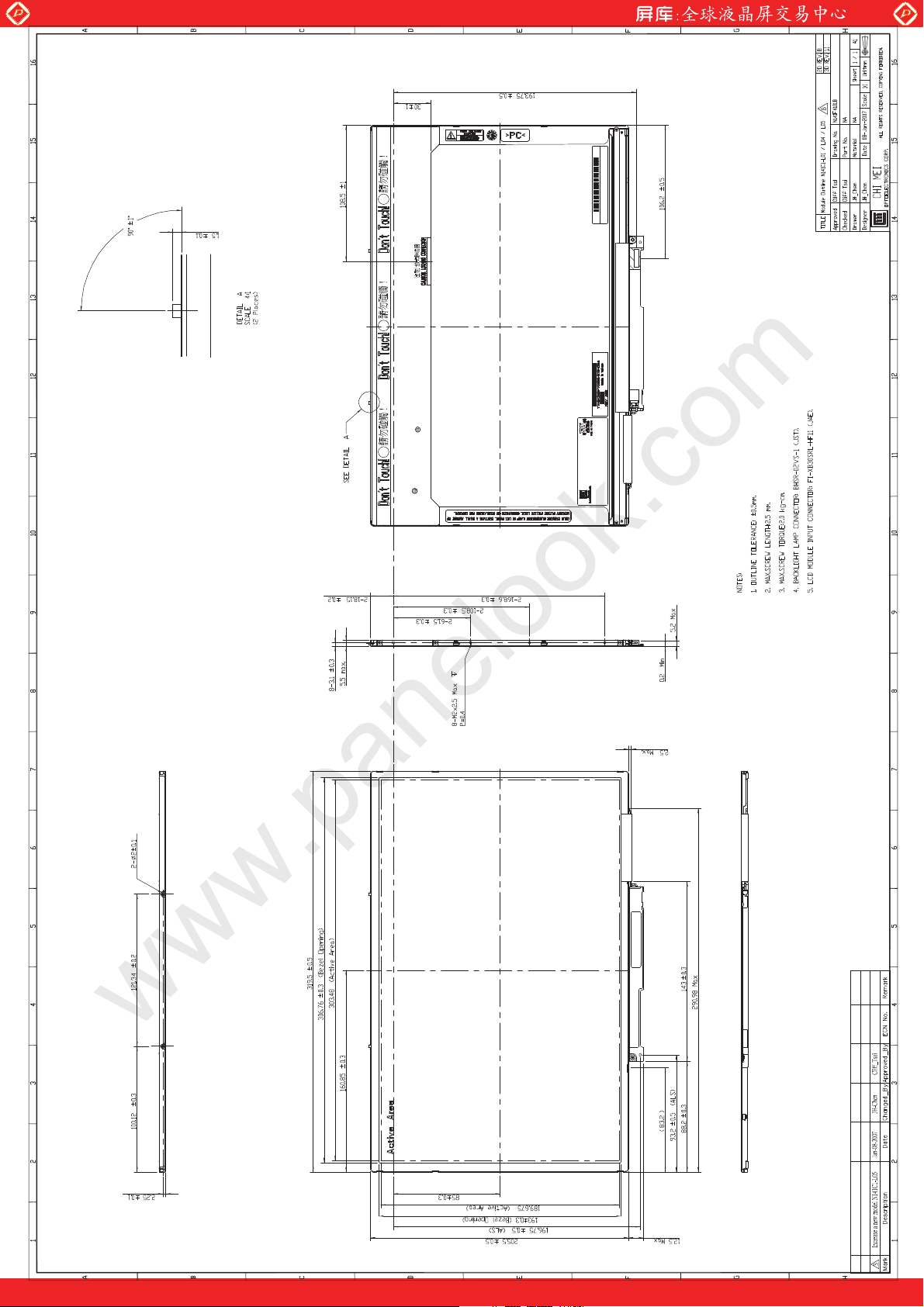

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions
(2) Weight without inverter
(3) Weight with inverter.
5 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
A
2 ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation .
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.
www.panelook.com
Min. Max.
- 220 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Value
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Unit Note
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave
8060-20 40020-40
Note (4) 10 ~ 300 Hz, 10 min / Cycle, 3 cycles for each X, Y, Z.:
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Bracket
LCD Module
Side Mount Fixing Screw
Stage
6 / 34
Version 3.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V
Lamp Current IL 2.0 6.5 mA
Lamp Frequency FL 45 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
(1)
(1), (2)
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
7 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
3 ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V Permissive Ripple Voltage VRP - 50 - mV Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - 420 470 mA (3)a
Black
Icc
TH(LVDS)
TL(LVDS)
- 500 565 mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm Power per EBL WG P
- (3.19) - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Unit Note
Approval
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
: the maximum current when VCC is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc rising time is 470us
Vcc
(LCD Module Input)
VCC
0V
I
RUSH
470us
0.1Vcc
+3.3V
100ms
I
IS
ICC
8 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
|
|
|
|
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from Sumida
= 60 Hz,
v
.
b. Black Pattern
Active Area
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
VID
Single Ended
0V
V
VID
Differential
0V
V
9 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Lamp Input Voltage VL 612 680 748 V
Lamp Current IL 2.0 6.0 6.5 mA
Lamp Turn On Voltage V
S
- - 1370 (25
- - 1520 (0
Operating Frequency FL 45 - 80 KHz (3)
Lamp Life Time LBL 15,000 - - Hrs (5)
Power Consumption PL - 4.08 - W (4), IL = 6.0 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C) V
o
C) V
Unit Note
I
RMS
RMS
RMS
RMS
L
(1)
(2)
(2)
Approval
= 6.0 mA
HV (Pink)
LCD
LV (White)
Module
1
Inverter
2
A
Current Meter
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= ILV
L
L
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Ta = 25 2
o
C and IL = 6 mArms until one of the following events occurs:
(a) When the brightness becomes or lowers than 50% of its original value.
(b) When the effective ignition length becomes or lowers than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter
10 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.
a. The asymmetry rate of the inverter waveform should be 10% below.
b. The distortion rate of the waveform should be within Ѕ2 ± 10%.
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
I p
I -p
* Asymmetry rate:
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
11 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
)
4 BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
LVDS Display
Data & Clock
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
VL
INPUT CONNECTOR
LAMP CONNECTOR
4.2 BACKLIGHT UNIT
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink)
2 LV (White
12 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5 INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 BIST Panel BIST enable
6 CLK
7 DATA
8 RXO0- LVDS Differential Data Input (Odd) Negative
9 RXO0+ LVDS Differential Data Input (Odd) Positive
10 Vss Ground
11 RXO1- LVDS Differential Data Input (Odd) Negative
12 RXO1+ LVDS Differential Data Input (Odd) Positive
13 Vss Ground
14 RXO2- LVDS Differential Data Input (Odd) Negative
15 RXO2+ LVDS Differential Data Input (Odd) Positive
16 Vss Ground
17 RXOC- LVDS Clock Data Input (Odd) Negative
18 RXOC+ LVDS Clock Data Input (Odd) Positive
19 Vss Ground
20 RxE0- LVDS Differential Data Input (Even) Negative
21 RxE0+ LVDS Differential Data Input (Even) Positive
22 Vss Ground
23 RxE1- LVDS Differential Data Input (Even) Negative
24 RxE1+ LVDS Differential Data Input (Even) Positive
25 Vss Ground
26 RxE2- LVDS Differential Data Input (Even) Negative
27 RxE2+ LVDS Differential Data Input (Even) Positive
28 Vss Ground
29 RXEC- LVDS Clock Data Input (Even) Negative
30 RXEC+ LVDS Clock Data Input (Even) Positive
Note (1) Connector Part No.: JAE-FI-XB30SRL-HF11 or equivalent
DDC 3.3V Power
EDID
DDC Clock
EDID
DDC Data -
EDID
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Note (2) User’s connector Part No: JAE-FI-X30C2L or equivalent

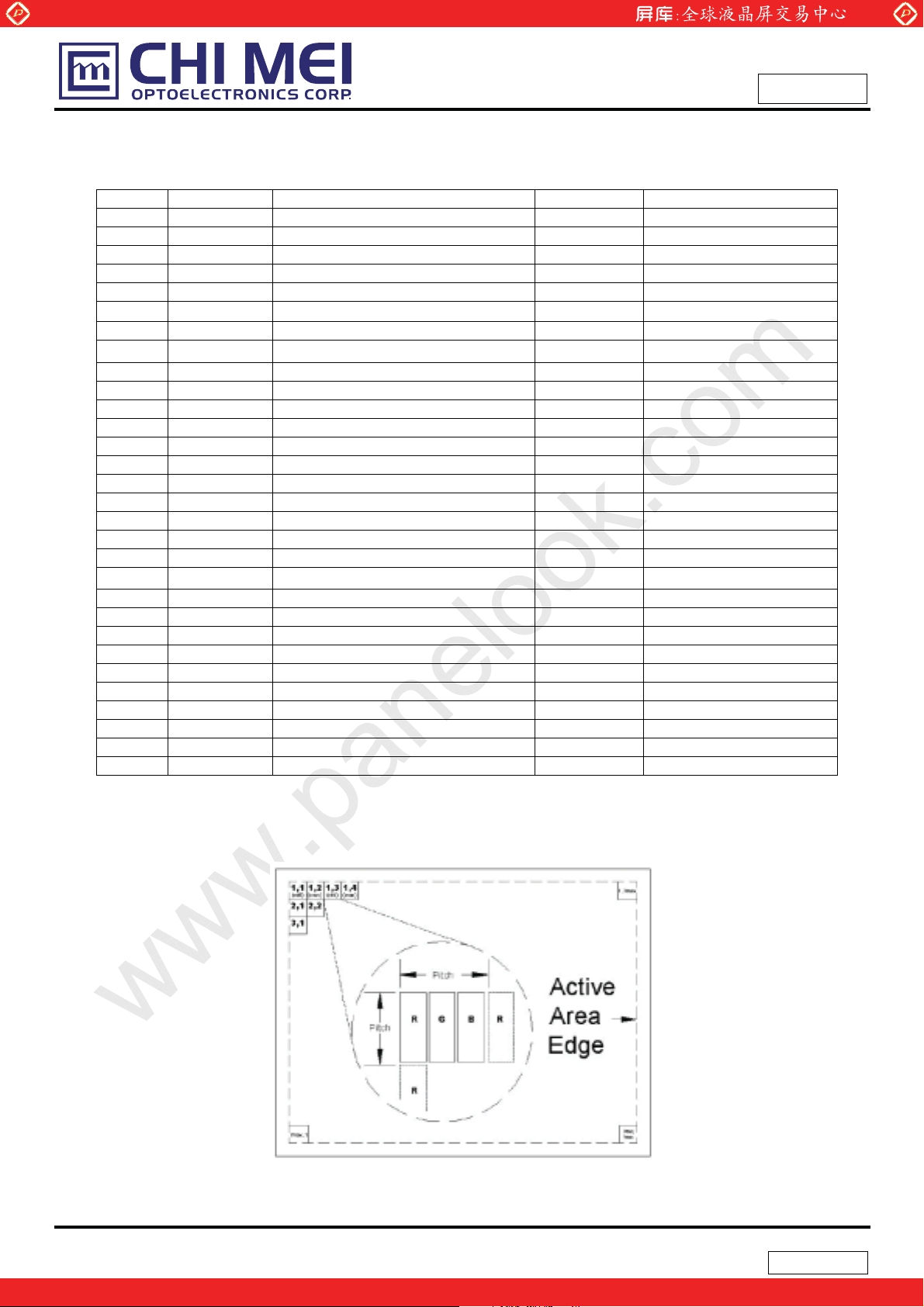

Note (3) The first pixel is odd as shown in the following figure.
13 / 34
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink
2 LV Ground White
Note (1) Connector Part No.: JST- BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
RXOC+
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
RXO2+/-
RXO1+/-
RXO0+/-
RXEC+
RXE2+/-
RXE1+/-
RXE0+/-
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE OB5 OB4 OB3 OB2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
OB1 OG4 OG3 OG2 OG1 OB0 OG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
OG0 OR3 OR2 OR1 OR0 OR5 OR4
Signal for 1 DCLK Cycle (T)
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE EB5 EB4 EB3 EB2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
EB1 EG4 EG3 EG2 EG1 EB0 EG5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
EG0 ER3 ER2 ER1 ER0 ER5 ER4
Signal for 1 DCLK Cycle (T)
14 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green
Basic
Colors
Gray
Scale
Of
Red
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)
:
:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)
:
:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)
:
:
Blue(61)
Blue(62)
Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
0
0
0
0
0
0
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
15 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte
#(dec
imal)
Byte
#(hex)
1 0 Header
2 1 Header
3 2 Header
4 3 Header
5 4 Header
6 5 Header
7 6 Header
8 7 Header
9 8 EISA ID manufacturer name (“CMO”)
10 9 EISA ID manufacturer name (Compressed ASCII)
11 0A ID product code (N141C1-L05) 33
12 0B ID product code (hex LSB first; N141C1-L05) 14
13 0C ID S/N (fixed “0”)
14 0D ID S/N (fixed “0”)
15 0E ID S/N (fixed “0”)
16 0F ID S/N (fixed “0”)
17 10 Week of manufacture (fixed “00H”)
18 11 Year of manufacture (fixed “00H”)
19 12 EDID structure version # (“1”)
20 13 EDID revision # (“3”)
21 14 Video I/P definition (“digital”)
22 15 Active area horizontal 30.348cm
23 16 Active area vertical 18.9675cm
24 17 Display Gamma (Gamma = ”2.2”)
25 18 Feature support (“Active off, RGB Color”)
26 19 Rx1 Rx0 Ry1 Ry0 Gx1 Gx0 Gy1 Gy0
27 1A Bx1 Bx0 By1 By0 Wx1 Wx0 Wy1 Wy0
28 1B Rx=0.597
29 1C Ry=0.340
30 1D Gx=0.320
31 1E Gy=0.535
32 1F Bx=0.152
33 20 By=0.125
34 21 Wx=0.313
35 22 Wy=0.329
36 23 Established timings 1
37 24 Established timings 2 (1440*900@60Hz)
38 25 Manufacturer’s reserved timings
39 26 Standard timing ID # 1
40 27 Standard timing ID # 1
41 28 Standard timing ID # 2
42 29 Standard timing ID # 2
Field Name and Comments
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Value(
hex) Value(binary)
00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
00 00000000
0D 00001101
AF 10101111
00110011
00010100
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
01 00000001
03 00000011
80 10000000
1E 00011110
13 00010011
78 01111000
0A 00001010
C0 11000000
05 00000101
98 10011000
57 01010111
52 01010010
89 10001001
27 00100111
20 00100000
50 01010000
54 01010100
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
01 00000001
16 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
43 2A Standard timing ID # 3
44 2B Standard timing ID # 3
45 2C Standard timing ID # 4
46 2D Standard timing ID # 4
47 2E Standard timing ID # 5
48 2F Standard timing ID # 5
49 30 Standard timing ID # 6
50 31 Standard timing ID # 6
51 32 Standard timing ID # 7
52 33 Standard timing ID # 7
53 34 Standard timing ID # 8
54 35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“88.75MHz”, According to VESA
55 36
56 37 # 1 Pixel clock (hex LSB first)
57 38 # 1 H active (“1440”)
58 39 # 1 H blank (“160”)
59 3A # 1 H active : H blank (“1440 : 160”)
60 3B # 1 V active (”900”)
61 3C # 1 V blank (”26”)
62 3D # 1 V active : V blank (”900 :26”)
63 3E # 1 H sync offset (”48”)
64 3F # 1 H sync pulse width ("32”)
65 40 # 1 V sync offset : V sync pulse width (”3 : 6”)
66 41
67 42 # 1 H image size (”303 mm”)
68 43 # 1 V image size (”190 mm”)
69 44 # 1 H image size : V image size (”303 : 190”)
70 45 # 1 H boarder (”0”)
71 46 # 1 V boarder (”0”)
72 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
73 48
74 49 # 2 Pixel clock (hex LSB first)
75 4A # 2 H active (“1440”)
76 4B # 2 H blank (“160”)
77 4C # 2 H active : H blank (“1440 : 160”)
78 4D # 2 V active (”900”)
79 4E # 2 V blank (”22”)
80 4F # 2 V active : V blank (”900 : 22”)
81 50 # 2 H sync offset (”48”)
82 51 # 2 H sync pulse width (”32”)
83 52 # 2 V sync offset : V sync pulse width (”3 : 6”)
84 53
85 54 # 2 H image size (”303 mm”)
86 55 # 2 V image size (”190 mm”)
87 56 # 2 H image size : V image size (”303 : 190”)
88 57 # 2 H boarder (”0”)
89 58 # 2 V boarder (”0”)
CVT Rev1.1)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48: 32 :
3 : 6”)
Detailed timing description # 2 Pixel clock (“73.75 MHz”, According to VESA
CVT Rev1.1)
# 2 H sync offset : H sync pulse width : V sync offset : V sync width (”48 :
32 : 3 : 6”)
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
AB 10101011
22 00100010
A0 10100000
A0 10100000
50 01010000
84 10000100
1A 00011010
30 00110000
30 00110000
20 00100000
36 00110110
00 00000000
2F 00101111
BE 10111110
10 00010000
00 00000000
00 00000000
19 00011001
CF 11001111
1C 00011100
A0 10100000
A0 10100000
50 01010000
84 10000100
16 00010110
30 00110000
30 00110000
20 00100000
36 00110110
00 00000000
2F 00101111
BE 10111110
10 00010000
00 00000000
00 00000000
17 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
90 59 Module "A" Revision = Example: 00, 01, 02, 03, etc.
91 5A Detailed timing description # 3
92 5B # 3 Flag
93 5C # 3 Reserved
94 5D # 3 FE (hex) defines ASCII string (Model Name “N141C1”, ASCII)
95 5E # 3 Flag
96 5F # Dell P/N "MC196" 1st character (“Y”)
97 60 # Dell P/N " MC196" 1st character (“Y”)
98 61 # Dell P/N " MC196" 1st character (“2”)
99 62 # Dell P/N " MC196" 1st character (“7”)
100 63 # Dell P/N " MC196" 1st character (“2”)
101 64 LCD Supplier EEDID Revision #: "1"
102 65 Manufacturer P/N ( "N")
103 66 Manufacturer P/N ( "1" )
104 67 Manufacturer P/N ( "4" )
105 68 Manufacturer P/N ( "1" )
106 69 Manufacturer P/N ( "C" )
107 6A Manufacturer P/N ( "1" )
Manufacturer P/N (If <13 char, then terminate with ASCII code 0Ah, set
108 6B
109 6C Flag
110 6D Flag
111 6E Flag
112 6F Data Type Tag:
113 70 Flag
114 71 SMBUS value @ 10nits = 36d 24
115 72 SMBUS value @ 17nits = 51d 33
116 73 SMBUS value @ 24nits = 58d 3A
117 74 SMBUS value @ 30nits = 70d 46
118 75 SMBUS value @ 60nits = 98d 62
119 76 SMBUS value @ 110nits = 141d 8D
120 77 SMBUS value @ 150nits = 171d AB
121 78 SMBUS value @ 220 nits = 255d FF
122 79 Numbers of LVDS Recevier chip = 2
123 7A BIST Enable: Yes = '01' No = '00' ("Yes")
124 7B (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
125 7C (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
126 7D (If <13 char, then terminate with ASCII code 0Ah, set remaining char = 20h)
127 7E Extension flag
128 7F Checksum
remaining char = 20h)
00 00000000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
59 01011001
59 01011001
32 00110010
37 00110111
32 00110010
31 00110001
4E 01001110
31 00110001
34 00110100
31 00110001
43 01000011
31 00110001
0A 00001010
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
02 00000010
01 00000001
0A 00001010
20 00100000
20 00100000
00 00000000
1A 00011010
00100100
00110011
00111010
01000110
01100010
10001101
10101011
11111111
18 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6 INVERTER SPECIFICATION
6.1 Connector type
Input connector type: LVC-D20SFYG (HONDA)
Output connector: JST SM02B-BHSS-1-TB (JST)
6.2 Input connector pin assignment
6.2.1 Input Connector pin assignment:
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Input connector
HONDA LVC-D20SFYG
Pin Function
1 INV_SRC
2 INV_SRC
3 INV_SRC
4 INV_SRC
5 GND Ground
6 NC No Connection
7 5VALW
8 GND Ground
9 SMB_DAT
10 SMB_CLK
11 GND Ground
12 INV_PWM System side PWM input signal for brightness control
13 GND Ground
14 NC No Connection
15 ~ 20 NC No Connection
This power rail should be used as a power rail to drive the backlight
DC-AC converter
This power rail should be used as a power rail to drive the backlight
DC-AC converter
This power rail should be used as a power rail to drive the backlight
DC-AC converter
This power rail should be used as a power rail to drive the backlight
DC-AC converter
This should be used as power source that stores the brightness/contrast
values & the circuit that interfaces with SMB_CLK & SMB_DAT
SMBus interface for sending brightness & contrast information to the
inverter/panel
SMBus interface for sending brightness & contrast information to the
inverter/panel
Comments
6.2.2 Absolute maximum ratings
Items Absolute max. ratings Unit
INV_SRC (Voltage) -1.0~23.5 V
FPBACK/SMB_CLK/SMB_DAT
(Voltage)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
-1.0~5.5 V
19 / 34
Version 3.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
6.3 Output connector pin assignment
Pin Name Description
1 CFL-High High-voltage output to the CCFL
2 CFL-Low Low-voltage output to the CCFL
6.4 General electrical specification
6.4.1 Absolute maximum ratings
Items Absolute max. ratings Unit
INV_SRC (Voltage) -1.0~23.5 V
FPBACK/SMB_CLK/SMB_DAT
(Voltage)
6.4.2 Electrical characteristics:
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
-1.0~5.5 V
No. Item Symbol
1 Input Voltage INV_SRC 7.5 14.4 21 V
Input Signal Level for
2
Input Signal Level for
3
4 Input Power Pin(Max) 220nits@Vin=12V - - 5.5 W
Brightness Adjust (Lamp
5
6 Output Voltage Vout IL = 6.3mA(typ) 612 680 748 Vrms
7
5VSUS
5VALW
Current Control)
Output Current
5VSUS - - - V
5VALW 4.75 5 5.2 V
SMB_DAT
Iout (Min)
Iout (Max)
Condition
Control by SMBus(256 steps
dimming control)
Vin=7.5V~21V SMB_DAT=00H
Ta =2 5к, after running 30 min.
Vin=7.5V~21V SMB_DAT=FFH
Ta =2 5к, after running 30 min.
Min. Typ. Max. Uint
00H - FFH -
1.5 1.8 2.1 mArms
6 6.3 6.6 mArms
8 Operation Frequency Freq Vin=7.5V~21V 45 - 65 KHz
9 Burst mode frequency fB Vin=7.5V~21V 200 - 220 Hz
10 Open Lamp Voltage Vopen No Load 1400 -- 1800 Vrms
11 Striking Time Ts No Loadw 0.6 1 1.4 Sec
12
13 Start and Delay Time
Efficiency K
Vin=7.5V, SMB_DAT=FFH
(RES LOAD=100K ohm)
Vin=14.4V,
SMB_DAT=00H - 130 200 uS
20 / 34
80 - - %
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Start –up time
14
(Turn on delay time)
zInput Voltage
The operating input voltage of inverter shall be defined.
The inverter shall ignite the CCFL lamp at minimum input voltage at any environment conditions.
zOn/Off control
Enable: At “ON” condition (FPBACK=Hi), enable the inverter.
Disable: At “OFF” condition (FPBACK=Lo), disable the inverter.
zQuiescent current
At the inverter “OFF” condition, input quiescent should be less than 0.1mA.
zOpen lamp voltage
The inverter start-up output voltage will be above “Vopen” for “Ts” minimum at any condition under specify
until lamp to be ignited. The inverter should be shutdown if lamp ignition was failed in “Ts” maximum. The
inverter shall be capable of withstanding the output connections open without component over-stress / fire /
smoke /arc.
zBurst mode frequency
The burst mode frequency should be in specification in any environment condition and electrical condition.
Vin=14.4V,
SMB_DAT=FFH - - 0.1 Sec
zBrightness control
SM-BUS values for panel luminance are to be included in the on LCD board EEDID ROM chip table. The
supplier will measure panel luminance in a system and define the SMBUS values for each of the 8 required
luminance levels. The panel luminance, for which SMBUS values will be provided in the EEDID from byte #
113(hex #71), to byte # 120, (hex # 78), is show in the table below. The inverter supplier should provide
these appropriate values to CMO.
Step Count Step 1 Step 2 Step3 Step 4 Step 5 Step 6 Step 7 Step 8
Address Byte
113
SM-Bus Data Value 24 33 3A 46 62 8D AB E8
Luminance (nits) 10 17 24 30 60 110 150 Max
z Output ripple ratio
Ripple ratio = 2 * (Ipeak - Ivalley) / (Ipeak + Ivalley) * 100%
The Ripple ratio should be less than 5% and ripple frequency should be less than 200 Hz.
z Power up Overshoot & Undershoot
Overshoot & Undershoot at power up should not exceed the following limits.
Byte
114
Byte
115
Byte
116
Byte
117
Byte
118
Byte
119
Byte
120
Vin
0ШVin(min.)
0ШVin(typ.)
Output current
Io(rms)
Io(max.)
Io(min.)
Io(max.)
Io(min.)
Overshoot/Undershoot
21 / 34
Io (dI)
150% / 50% 5 ms max.
150% / 50% 5 ms max.
Settling time
(dT)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
0ШVin(max.)
dI=Imax.-Io or dI=(Io-Imin.)/Io
z Output connections short protection
The inverter shall be capable of withstanding the output connections short without damage or over-stress.
And the inverter maximum input power shall be limited within 1W.
Io(max.)
Io(min.)
150% / 50% 5 ms max.
6.4.3 Mechanical Drawing
6.4.4 Other Information
z Safety
x The inverter shall meet the requirement of “Limited current circuits” in paragraphs 2.4.1 in IEC60950.
There is no fire/smoke while simulating the component of the inverter open/short test.
x The Inverter AND panel must be UL certified with CB certificate and LCC (Limited Current Circuit) test
and test reports from UL. Inverter panel combo must pass Dell Safety requirements.
z EMI
The inverter must meet the radiated limitation requirement of CISPR22 class B, FCC-B and VCCI level II
with 6dB margin minimum while the inverter operating in the complete system.
z Environment Regulation
x Follow the RoHS requirement.
x Fill in CMO’s official document <<Environmentally Conscious Products Questionnaire for Suppliers of
Materials, Parts, and Products>> and turn in to CMO before CMO’s specification approval process.
z Dell’s other requirements
1. The inverter must not emit any audible noise.
2. Please refer to CMO’s official document. “General Inverter Specification for LCD Module” for other
general information such as reliability test, safety and etc..
3. Please also refer to DELL’s official document about inverter:
z LCD Backlight Design Spec X00-04
z DELL’s LCD Inverter Qualification Plan, Rev. A00
z Prohibited Components
z “Holy Stone(كعഘ)”’s products are prohibited.
Confidential Notice
Remind that all the information described in this document is confidential. Please don’t reveal to other people
else before getting CMO’s agreement.ibed in this document is confidential. Please don’t reveal to other people
else before getting CMO’s agreement.
22 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center

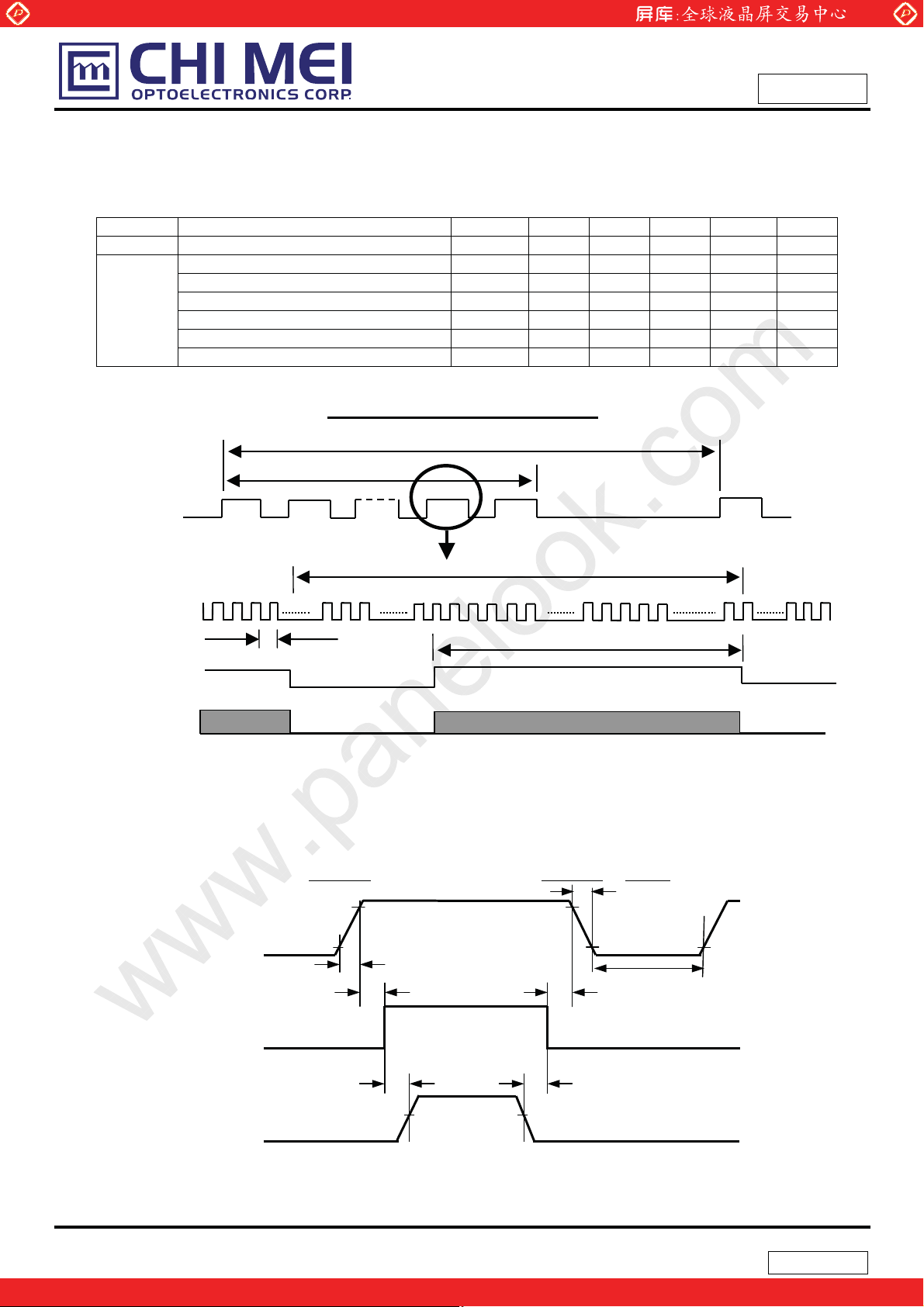

7 INTERFACE TIMING
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
The specifications of input signal timing are as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 25 44.5 60 MHz (2)
Vertical Total Time TV 910 926 1500 TH -
Vertical Active Display Period TVD 900 900 900 TH -
DE
Vertical Active Blanking Period TVB 10 26 600 TH
Horizontal Total Time TH 760 800 880 Tc (2)
Horizontal Active Display Period THD 720 720 720 Tc (2)
Horizontal Active Blanking Period THB
INPUT SIGNAL TIMING DIAGRAM
www.panelook.com
40
80
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
160
Tc (2)
DE
DCLK
TC
DE
DATA
7.2 POWER ON/OFF SEQUENCE
Power On
90%
Power Supply
for LCD, Vcc
0V
10%
HD
T
Power Off
t7
90%
t1
t3t2
10%
Restart
10%
t4
- Interface Signal
(LVDS Signal of
Transmitter), V
I
- Power for Lamp
0V
Valid Data
t6t5
50%50%
ONOFF OFF
23 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
Timing Specifications:
0.5< t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
t4 Њ 500 msec
t5 Њ 200 msec
t6 Њ 200 msec
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow
t7 Њ 5 msec
24 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
8 OPTICAL CHARACTERISTICS
8.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IL 6 mA
Inverter Driving Frequency FL 61 KHz
Inverter Sumida H05-4915
The relative measurement methods of optical characteristics are shown in 8.2. The following items
should be measured under the test conditions described in 8.1 and stable environment shown in Note (6).
8.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR
Response Time
Average Luminance of White L
Luminance Non-Uniformity
Color Gamut C.G 42 45 - % (5), (7)
Red
Color
Chromaticity
Viewing Angle
Green
Blue
White
Horizontal
Vertical
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
o
%RH
Deg.
C
(3)
2
(4), (5)
(5), (6)
-
-
-
-
-
(1), (5)
-
25r2
50r10
300 400
- - (2), (5)
TR - 5 10 ms
- 11 16 ms
T
F
- cd/m
TYP
+0.02
GW
GW
Rx
Ry
Gx
Gy
Bx
By
5p
5p
13p
=0q, TY =0q
T
x
Viewing Normal
Angle
200 220
- - 20 %
- - 35 %
0.590
0.340
0.319
TYP
-0.02
0.541
0.152
0.125
Wx 0.313 -
Wy
Tx+
T
x
TY+
T
Y
CRt10
-
0.329
40 45 40 45 15 20 40 45 -
25 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center
.67 ms
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Normal
Tx = Ty = 0º
Ty- Ty
TX- = 90º
6 o’clock
T
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L
/ L
63
0
L63: Luminance of gray level 63
L
: Luminance of gray level 0
0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF):
R
26 / 34
66
Time
T
F
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 27
Global LCD Panel Exchange Center
Note (4) Definition of Average Luminance of White (L5p):
Measure the luminance of gray level 63 at 5 points
L
= [L (5)+ L (10)+ L (11)+ L (12)+ L (13)] / 5
5p
L (x) is corresponding to the luminance of the point X at Figure in Note (6)

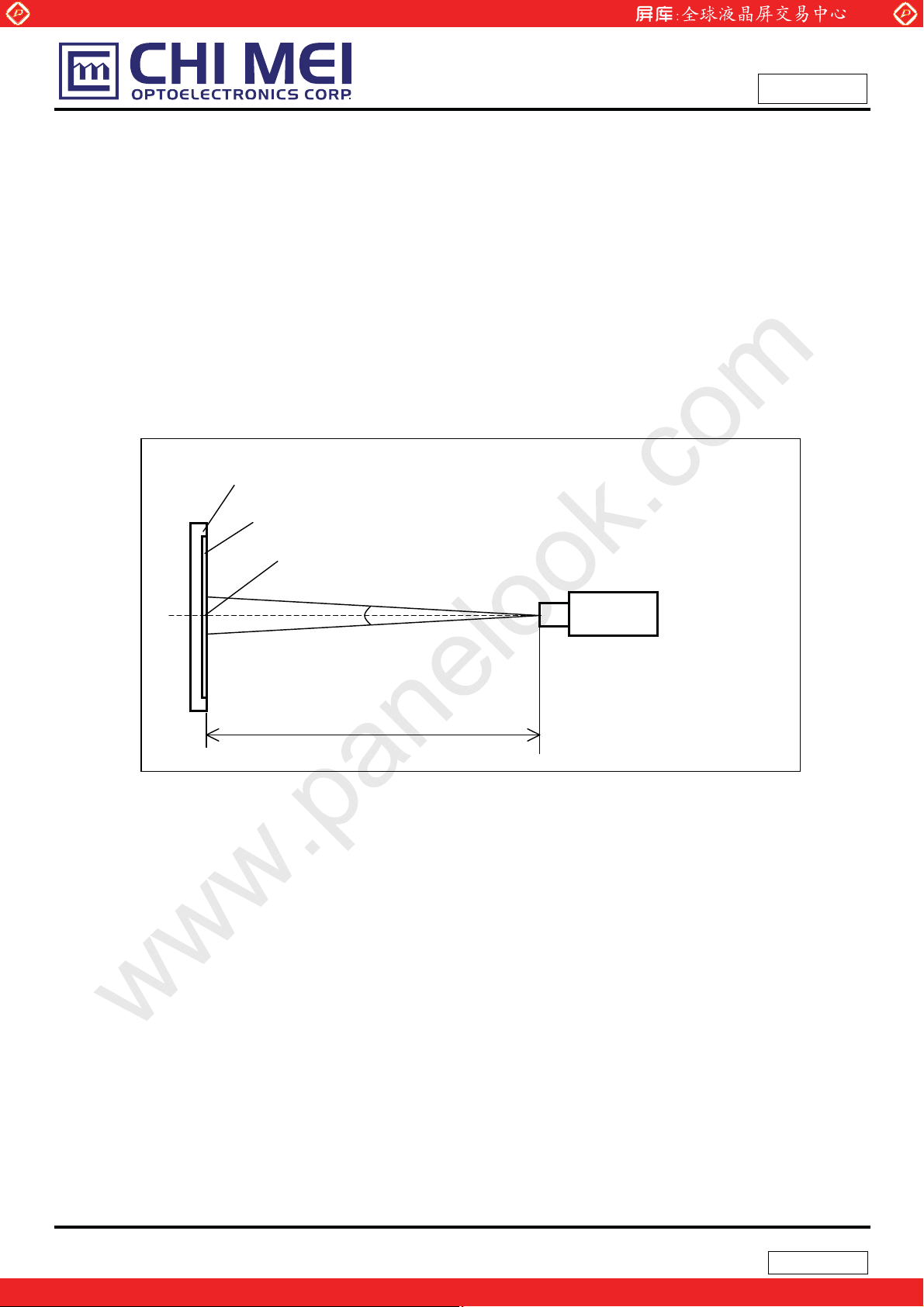

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
LCD Module
LCD Panel
Center of the Screen
Photometer
(CA210, CS-1000T)
Field of View = 2º
Light Shield Room
500 mm
(Ambient Luminance < 2 lux)
27 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Note (6) Definition of White Variation (GW5p, GW
Measure the luminance of gray level 63 at 5, 13 points
GW
={1-{ Minimum [L (5)+ L (10)+ L (11)+ L (12)+ L (13)] / Maximum [L (5)+ L (10)+ L (11)+ L (12)+
5p
L (13)]}} *100%
GW
={1-{ Minimum [L (1) ~ L (13)] / Maximum [L (1) ~ L (13)]}} *100%
13p
13p
):
X
: Test Point
X=1 to 5
Note (7) Definition of color gamut (C.G):
C.G= 'R G B /'R
R
, G0, B0: color coordinates of red, green, and blue defined by NTSC, respectively.
0
0 G0 B0
,*100%
R, G, B : color coordinates of module on 63 gray levels of red, green, and blue, respectively.
'R
0 G0 B0
: area of triangle defined by R0, G0, B
0
'R G B: area of triangle defined by R, G, B
˖˜˘ ʳ˄ˌ ˆ˄
˃ˁˌ
˃ˁˋ
˃ˁˊ
˃ˁˉ
˃ˁˈ
˃ˁˇ
˃ˁˆ
˃ˁ˅
˃ˁ˄
˃
˃ ˃ˁ˅ ˃ˁˇ ˃ˁˉ ˃ˁˋ
G
0
G
R
0
R
B
B
0
28 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 29
Global LCD Panel Exchange Center
9 PRECAUTIONS
9.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be
careful not to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the lamp wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
9.2 SAFETY PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
9.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
29 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 30
Global LCD Panel Exchange Center
10 PACKAGING
10.1 CARTON
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Figure. 10-1 Packing method
30 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 31
Global LCD Panel Exchange Center
10.2 PALLET
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
Figure. 10-2 Packing method
31 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 32
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
11 DEFINITION OF LABELS
11.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
-
(a) Model Name: N141C1 - L05
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
11.2 CMO CARTON LABEL
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
st
to 31st, exclude I , O and U
(a) Production location: Made In XXXX. XXXX stands for production location.
32 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 33
Global LCD Panel Exchange Center
11.3 PPID LABEL
TW-0YY272-70896-YMD-XXXX
REV A00
11.4 PALLET LABEL
www.panelook.com
Doc No.:
Issued Date: Mar. 01, 2007
Model No.: N141C1 - L05
Approval
FROM :CMO Corporation
Tainan,
Taiwan 744 R.O.C
P.O.NUMBER
12345678
COUNTRY OF ORIGIN
TW
PACKING LIST QTY
654321
DESTINATION LOCATION
B4
PKG CNT
999 OF 999 12345
PART DESCRIPTION XXXXXXXXXXXXXXXXXXXXXXXXX
12345678901234567890123456789012345678901
BOX CNT REVISION
TO:DELL COMPUTER
2128 West Braker
Austin TX
DELL P/N
12345
PACKING LIST#
1234567890123
DESTINATION MAS LOC
12345678901234567890
A00-00 Apr 29,2003
60
AIRBILL NUMBER
SHIP DATE
33 / 34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 34
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
