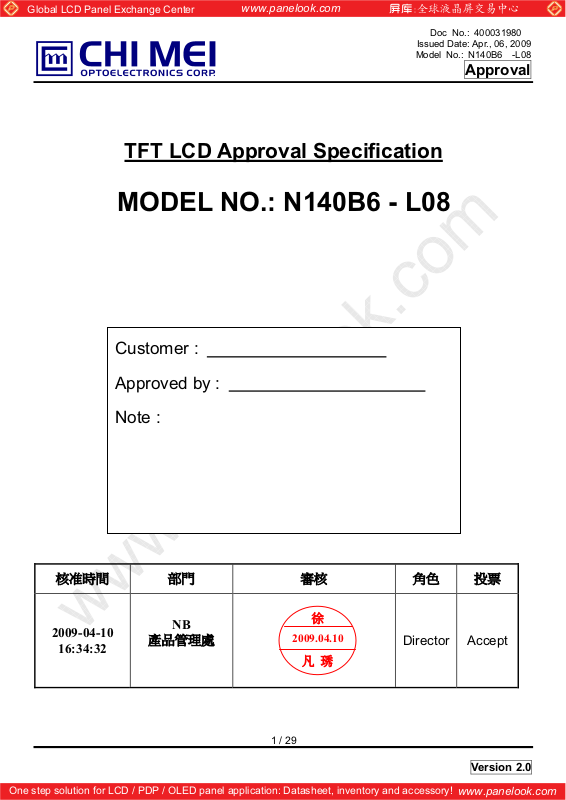

TFT LCD Approval Specification
MODEL NO.: N140B6 - L08
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Customer :
Approved by :
Note :
2009.04.10
Director Accept
2009-04-10
16:34:32
NB
1 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 3
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 6
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 9
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10
5.1 TFT LCD MODULE

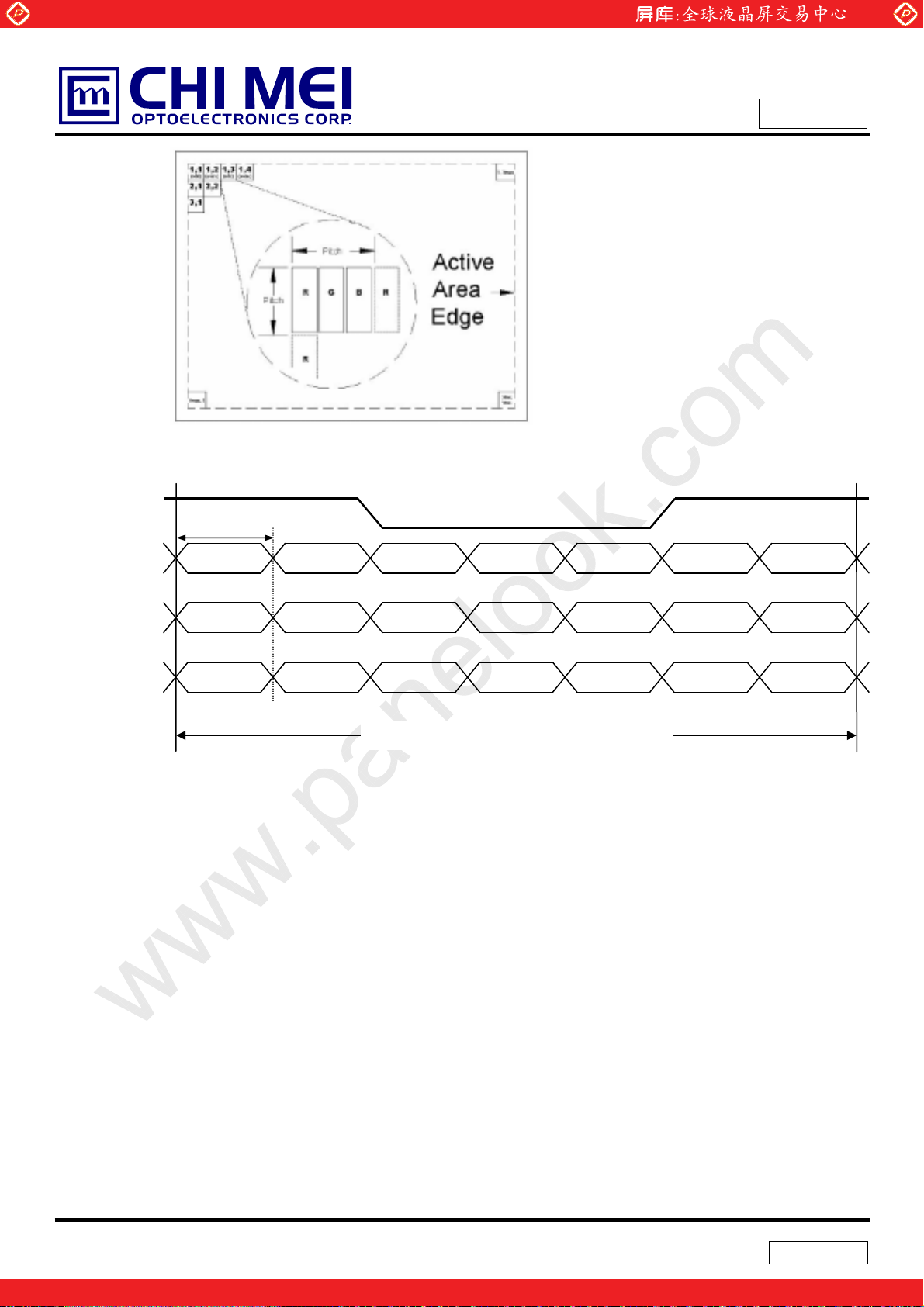

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID DATA STRUCTURE
5.5 EDID SIGNAL SPECIFICATION
6. CONVERTER SPECIFICATION ------------------------------------------------------- 17
6.1 INPUT CONNECTOR PIN ASSIGNMENT
6.2
RECOMMENDED OPERATING RATINGS
LED Black light power consumption
6.3
6.4 INPUT ELECTRICAL CHARACTERISTICS OF CONVERTER
7. INTERFACE TIMING ------------------------------------------------------- 19
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 24
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS
10. PACKING ------------------------------------------------------- 25

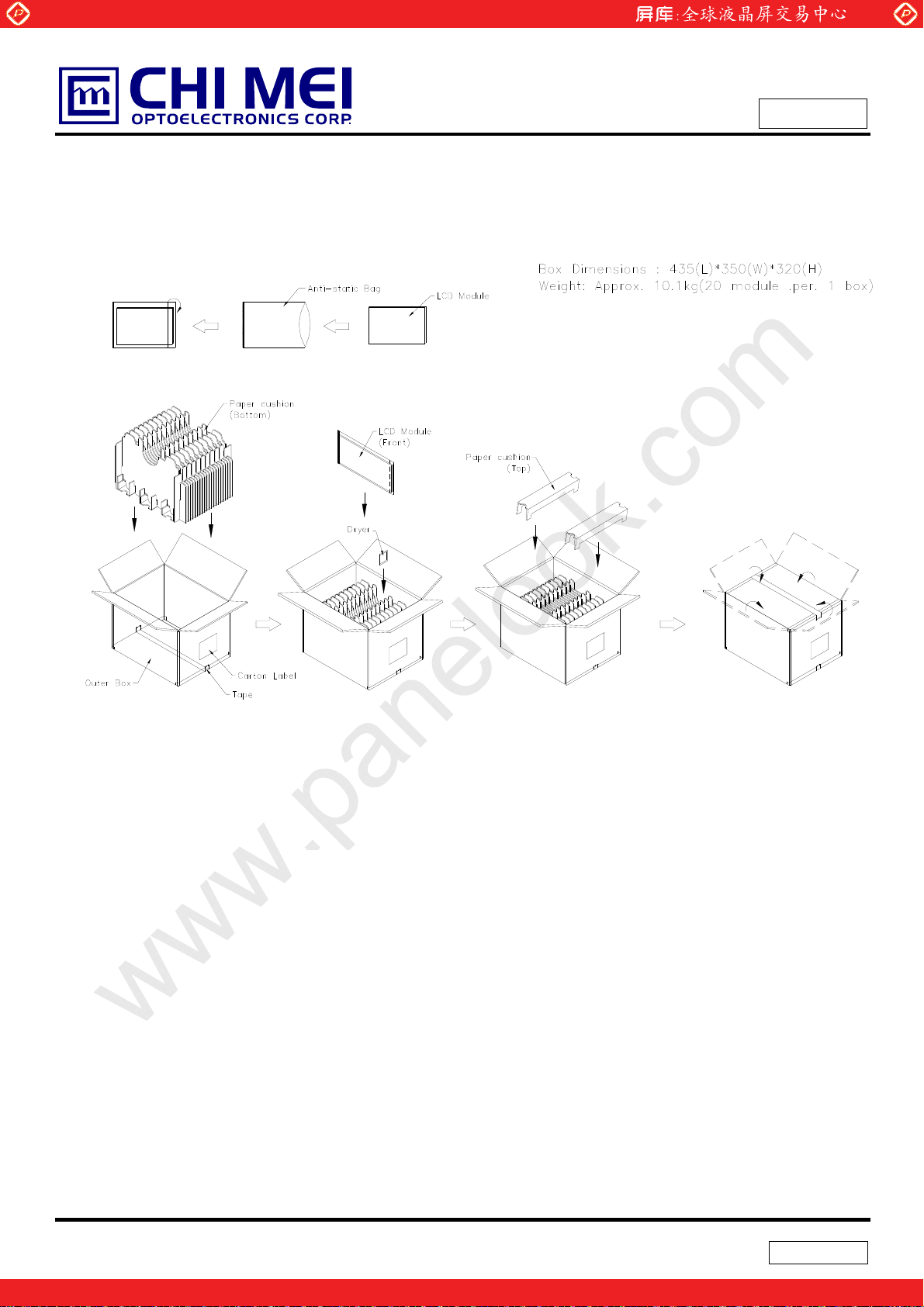

10.1 CARTON

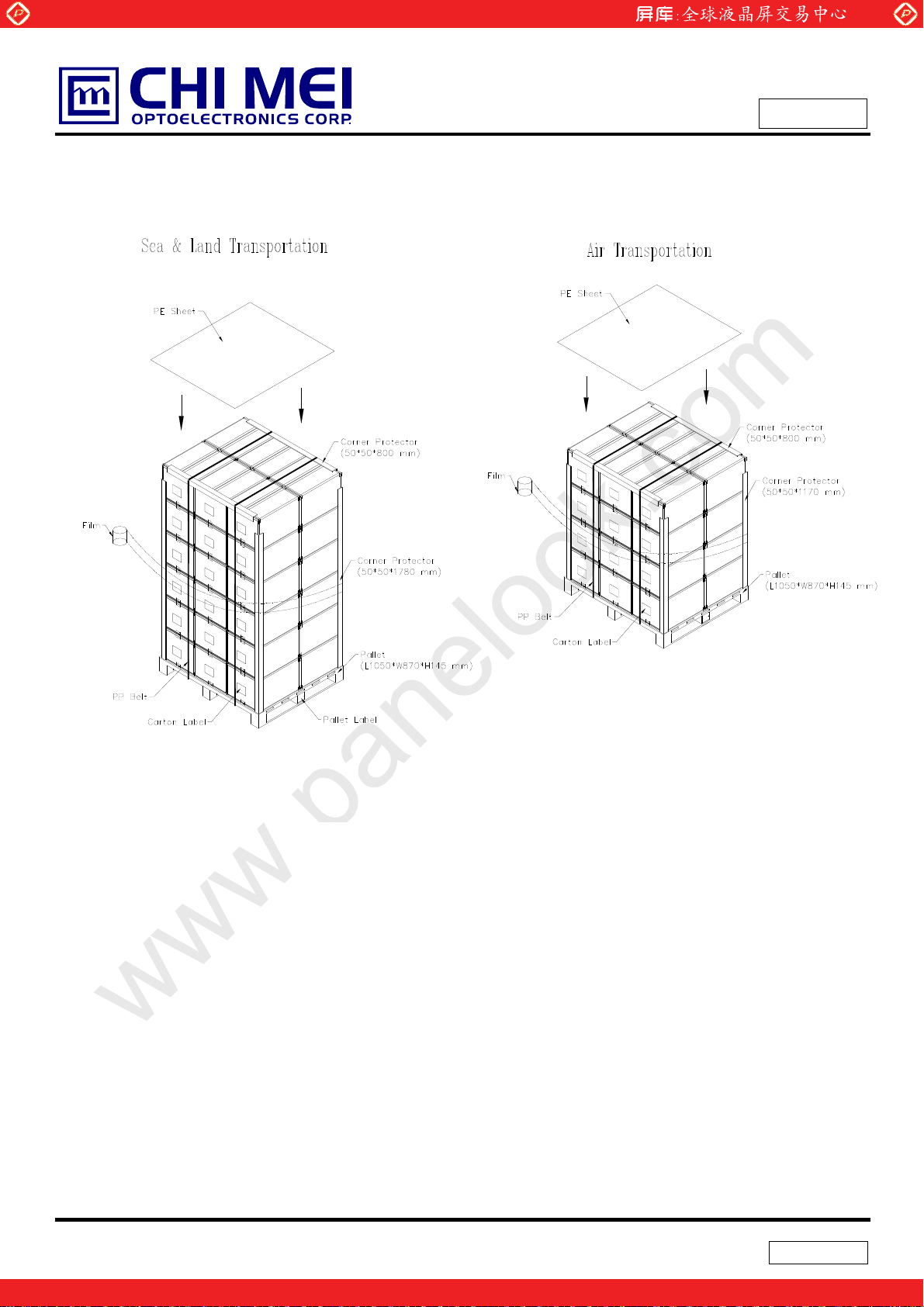

10.2 PALLET
11. DEFINITION OF LABELS ------------------------------------------------------- 27

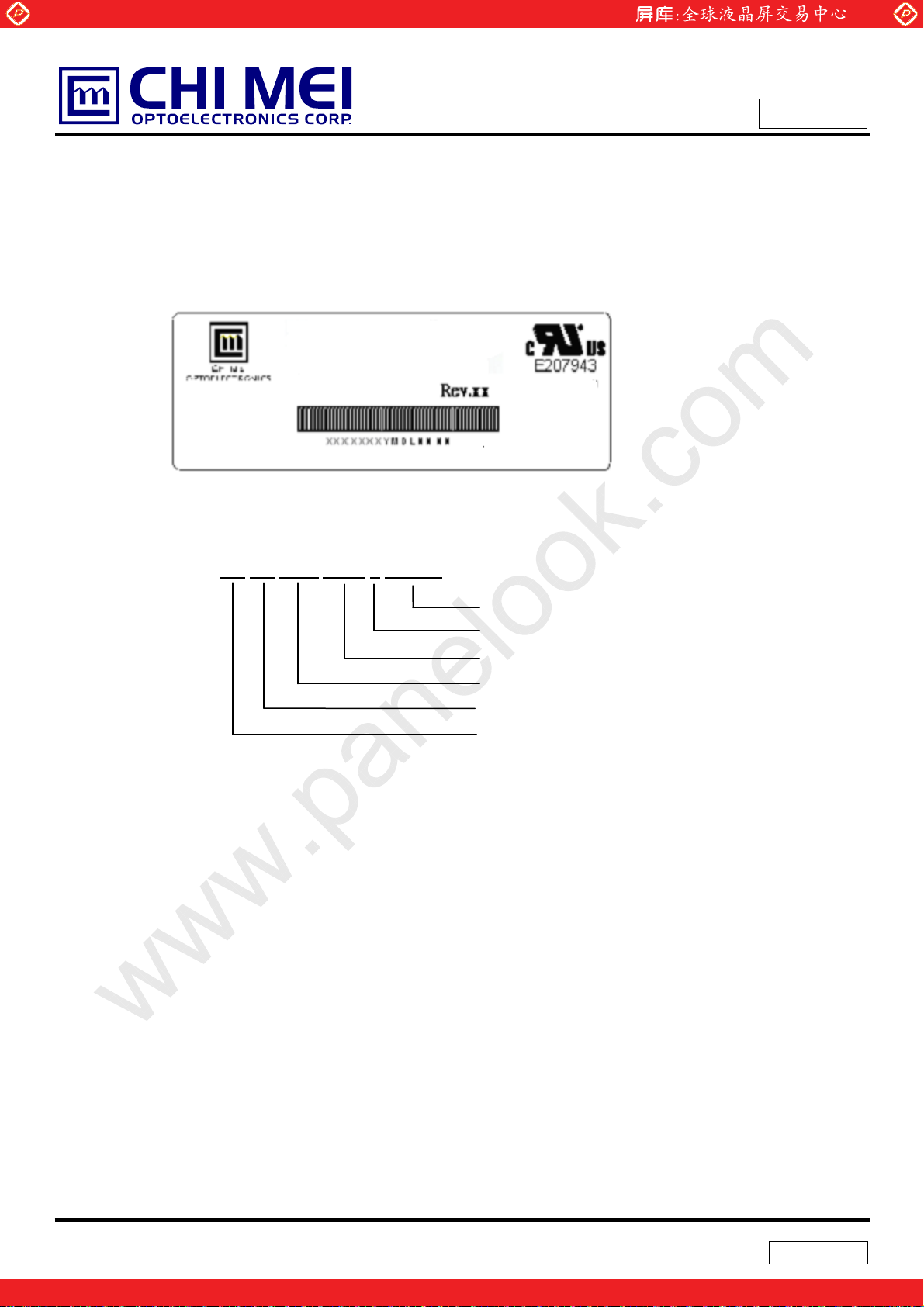

11.1 CMO MODULE LABEL

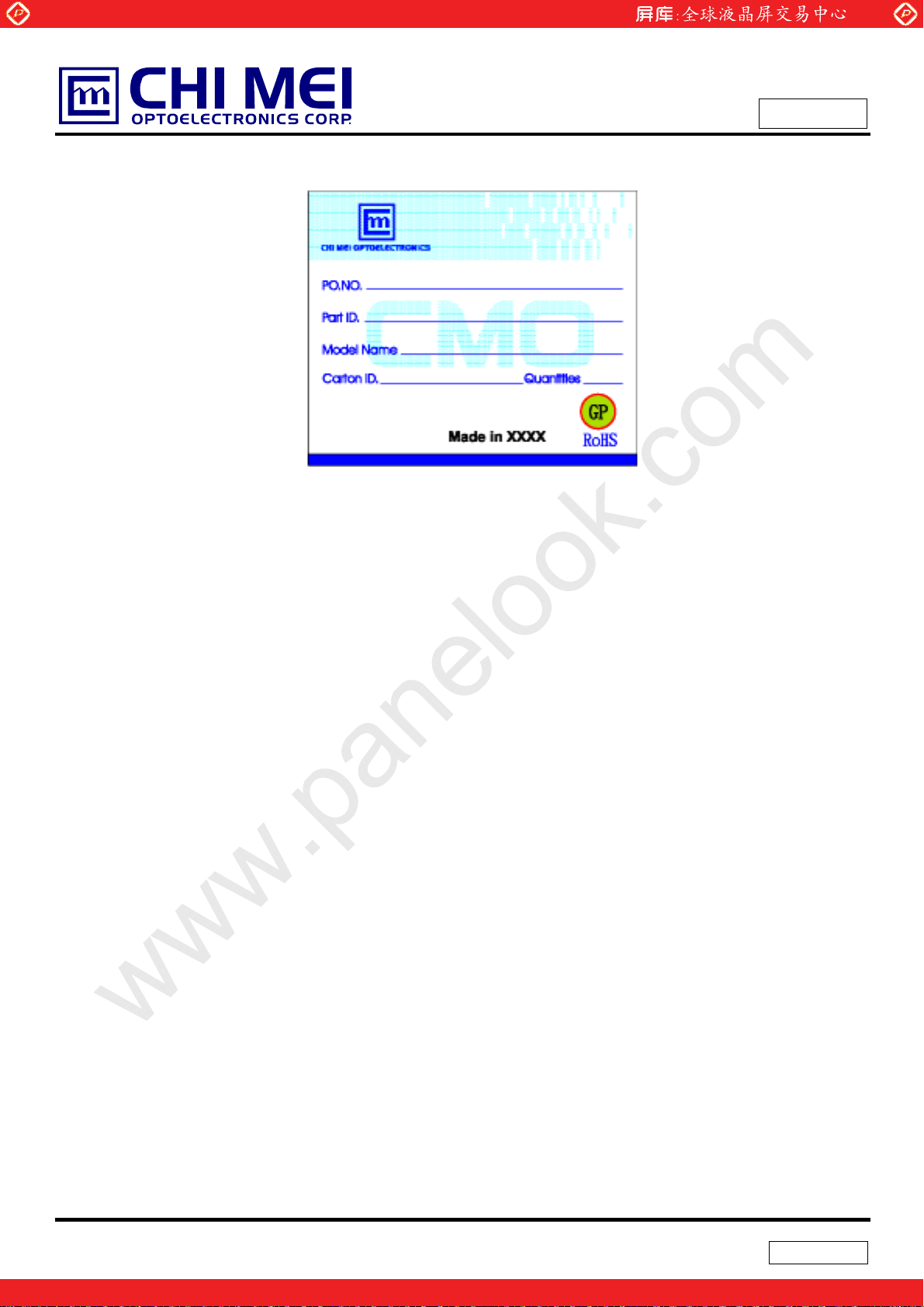

11.2 CARTON LABEL
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
REVISION HISTORY
Version Date
Ver 2.0
Apr. 06,’09
Page
(New)
All
Section Description
All
Approval specification first issued.
1 GENERAL DESCRIPTION
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1.1 OVERVIEW
N140B6-L08 is a 14.0” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS
interface. This module supports 1366 x 768 Wide-XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction.
1.2 FEATURES
- Aspect ratio 16:9
- WXGA (1366 x 768 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- Meet RoHS requirement
- LED Backlight
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 309.40 (H) x 173.95 (V) (14.0” diagonal) mm
Bezel Opening Area 313.51 (H) x 177.35 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1366 x R.G.B. x 768 pixel Pixel Pitch 0.2265 (H) x 0.2265 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), glare type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 323 323.5 324 mm
Module Size

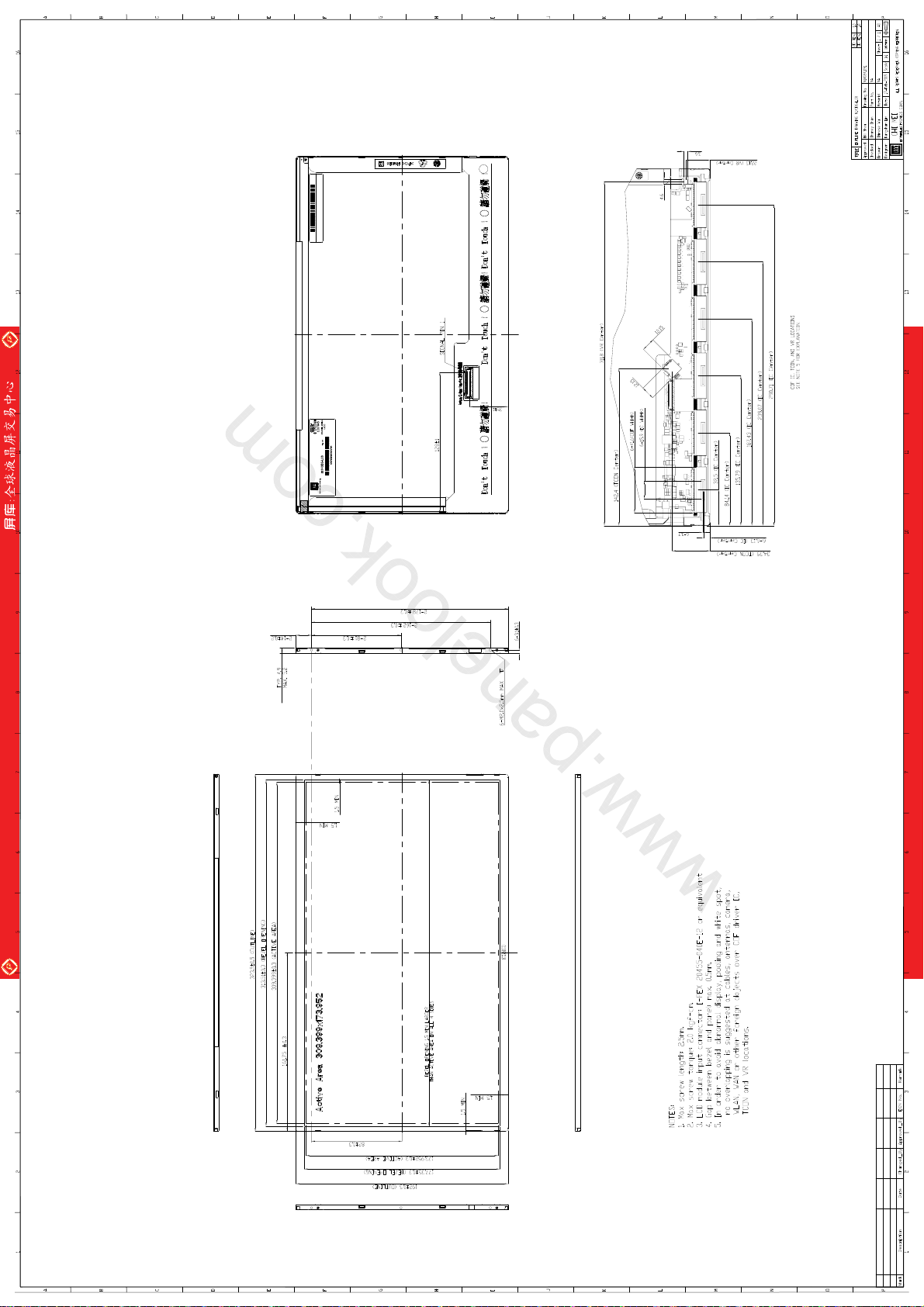

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 191.5 192 192.5 mm
Depth(D) - 4.9 5.2 mm
Weight - 365 380 g
(1)
(1)
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
2 ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 50 ºC Max.
Relative Humidity (%RH)
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
20
10
Storage Range
8060-20 40 0 20 -40
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
2.2 ELECTRICAL ABSOLUTE RATINGS
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
LED Light Bar Power Supply Voltage VL -50 35 V
LED Light Bar Power Supply Current IL 0 75 mA
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
(1)
Unit Note
(1), (2)
Note (2) Specified values are for LED (Refer to Section 3.2 for further information).
3 ELECTRICAL CHARACTERISTICS
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
3.1 TFT LCD MODULE
Parameter Symbol
Power Supply Voltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP - 50 mV Rush Current I
Initial Stage Current IIS 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
LVDS Common Mode Voltage VCM 1.125 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 600 mV (5)
Terminating Resistor RT - 100 - Ohm Power per EBL WG P
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
White 180 200 220 mA (3)a
Black
www.panelook.com
Min. Typ. Max.
- 1.5 A (2)
RUSH
lcc
TH(LVDS)
TL(LVDS)
- 1.384 W (4)
EBL
230 250 280 mA (3)b
+100 mV
-100 mV
Value
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
VCC
0V
I
RUSH
470us
0.1Vcc
0.9Vcc
+3.3V
100ms
I
IS
ICC
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
= 60
v
Version 2.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
|
|
|
|
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the converter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
= 60 Hz,
v
b. Black Pattern
Active Area
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
VID
Single Ended
0V
V
VID
Differential
0V
V
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Parameter Symbol
LED Quantity 30 Pcs (1),
LED light bar Power
Supply Voltage
LED light bar Power
Supply Current
LED Life Time LBL 15,000 - - Hrs (4)
Power Consumption PL 1.539 1.92 2.205 W (3), IL = 60mA
Note (1) LED light bar configuration is shown as below:
Light Bar Feedback
Channels
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Value
Min. Typ. Max.
27 32 35 V
V
L
57 60 63 mA
I
L
VL,I
L
LED
Light Bar
Unit Note
dc
Approval
(1), (2)
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with
current balancing function to drive LED light-bar.
Note (3) P
L
= I
LVL
Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at
Ta = 25 2
o
C and IL = 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.
4 BLOCK DIAGRAM
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center

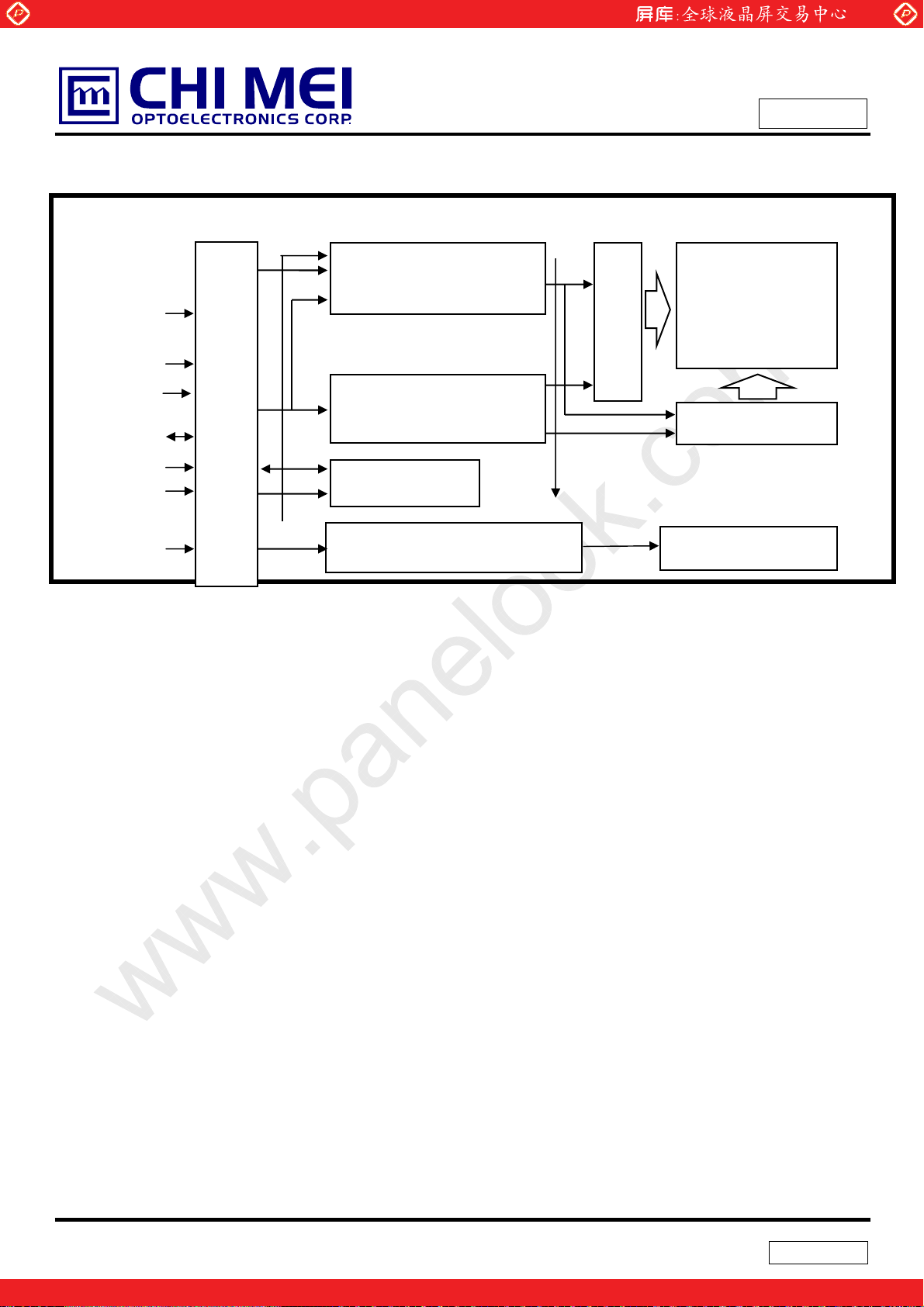

4.1 TFT LCD MODULE
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
LVDS Display
Data & Clock
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
LED Power & Signal
INPUT CONNECTOR
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
LED
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
5 INPUT TERMINAL PIN ASSIGNMENT
10 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Reserve Non-Connection use by CMO
2 VCCS Power Supply +3.3 V
3 VCCS Power Supply +3.3 V
4 EE_VDD DDC +3.3 V
5 BIST Panel Self Test
6 EE_SC DDC Clock
7 EE_SD DDC Data
8 Rx0- LVDS Differential Data Input Negative
9 Rx0+ LVDS Differential Data Input Positive
10 VSS Ground
11 Rx1- LVDS Differential Data Input Negative
12 Rx1+ LVDS Differential Data Input Positive
13 VSS Ground
14 Rx2- LVDS Differential Data Input Negative
15 Rx2+ LVDS Differential Data Input Positive
16 VSS Ground
17 RXC- LVDS Clock Data Input Negative
18 RXC+ LVDS Clock Data Input Positive
19 VSS Ground 20 NC No Connection 21 NC No Connection
22 VSS Ground
23 NC No Connection
24 NC No Connection
25 VSS Ground
26 NC No Connection
27 NC No Connection
28 VSS Ground
29 NC No Connection
30 NC No Connection
31 LED_GND Ground_LED
32 LED_GND Ground_LED
33 LED_GND Ground_LED
34 Reserve Non-Connection use by CMO
35
36 LED_EN LED enable pin
37
38 LED_VCCS LED Power
39 LED_VCCS LED Power
40 LED_VCCS LED Power
LED_PWMI_CN
CABC_EN_CN
System PWM Signal Input
CABC enable pin
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
R0~R5,G0-
G1~G5,B0,B1
-
B2~B5,Hsync,Vsync,DE
LVDS Level Clock
LED Power Input
Note (1) Connector Part No.: I-PEX 20455-040E-12 or equivalent
Note (2) User’s connector Part No.: I-PEX 20453-040T-11 or equivalent
Note (3) The first pixel is odd as shown in the following figure.
11 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
CLK+
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0
R5
R4
Signal for 1 DCLK Cycle (T)
12 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.3 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green
Basic
Colors
Gray
Scale
Of
Red
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)
:
:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)
:
:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)
:
:
Blue(61)
Blue(62)
Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
13 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Byte #
(decimal)
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Byte #
(hex)
Field Name and Comments
0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“CMO”)
9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N140B6-L08) 53
0B ID product code (hex LSB first; N140B6-L08) 14
0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)
0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”)
10 Week of manufacture (fixed week code)
11 Year of manufacture (fixed year code)
12 EDID structure version # (“1”)
13 EDID revision # (“3”)
14 Video I/P definition (“digital”)
15 Active area horizontal 30.94cm
16 Active area vertical 17.395cm
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)
19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 59
1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 E5
1B Rx=0.575 93
1C Ry=0.360 5C
1D Gx=0.350 59
1E Gy=0.575 93
1F Bx=0.155 27
20 By=0.111 1C
21 Wx=0.313 50
22 Wy=0.329 54
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings
26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2
Value
(hex)
Value
(binary)
00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
00 00000000
0D 00001101
AF 10101111
01010011
00010100
00 00000000
00 00000000
00 00000000
00 00000000
10 00010000
13 00010011
01 00000001
03 00000011
80 10000000
1F 00011111
11 00010001
78 01111000
0A 00001010
01011001
11100101
10010011
01011100
01011001
10010011
00100111
00011100
01010000
01010100
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
14 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82 52 # 2 6th character of name (“6”)
83
84
85
86
29 Standard timing ID # 2
2A Standard timing ID # 3
2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4
2E Standard timing ID # 5
2F Standard timing ID # 5
30 Standard timing ID # 6
31 Standard timing ID # 6
32 Standard timing ID # 7
33 Standard timing ID # 7
34 Standard timing ID # 8
35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“75.44MHz”, According to VESA
36
CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1366”)
39 # 1 H blank (“194”)
3A # 1 H active : H blank (“1366 :194”)
3B # 1 V active (”768”)
3C # 1 V blank (”38”)
3D # 1 V active : V blank (”768 :38”)
3E # 1 H sync offset (”31”)
3F # 1 H sync pulse width ("65”)
40 # 1 V sync offset : V sync pulse width (”4 : 12”)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”31:
41
65 : 4 : 12”)
42 # 1 H image size (”309 mm”) 35
43 # 1 V image size (”174 mm”) AE
44 # 1 H image size : V image size (”309 : 174”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)
47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
48 Detailed timing description # 2
49 # 2 Flag
4A # 2 Reserved
4B # 2 FE (hex) defines ASCII string (Model Name “N140B6-L08”, ASCII)
4C # 2 Flag
4D # 2 1st character of name (“N”)
4E # 2 2nd character of name (“1”)
4F # 2 3rd character of name (“4”)
50 # 2 4th character of name (“0”)
51 # 2 5th character of name (“B”)
53 # 2 7th character of name (“-”)
54 # 2 8th character of name (“L”)
55 # 2 9th character of name (“0”)
56 # 2 9th character of name (“8”)
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
78 01111000
1D 00011101
56 01010110
C2 11000010
50 01010000
00 00000000
26 00100110
30 00110000
1F 00011111
41 01000001
4C 01001100
00 00000000
00110101
10101110
10 00010000
00 00000000
00 00000000
18 00011000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
4E 01001110
31 00110001
34 00110100
30 00110000
42 01000010
36 00110110
2D 00101101
4C 01001100
30 00110000
38 00111000
15 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
57 # 2 New line character indicates end of ASCII string
58 # 2 Padding with “Blank” character
59 # 2 Padding with “Blank” character
5A Detailed timing description # 3
5B # 3 Flag
5C # 3 Reserved
5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)
5E # 3 Flag
5F # 3 1st character of string (“C”)
60 # 3 2nd character of string (“M”)
61 # 3 3rd character of string (“O”)
62 # 3 New line character indicates end of ASCII string
63 # 3 Padding with “Blank” character
64 # 3 Padding with “Blank” character
65 # 3 Padding with “Blank” character
66 # 3 Padding with “Blank” character
67 # 3 Padding with “Blank” character
68 # 3 Padding with “Blank” character
69 # 3 Padding with “Blank” character
6A # 3 Padding with “Blank” character
6B # 3 Padding with “Blank” character
6C Detailed timing description # 4
6D # 4 Flag
6E # 4 Reserved
6F # 4 FE (hex) defines ASCII string (Model Name“N140B6-L08”, ASCII)
70 # 4 Flag
71 # 4 1st character of name (“N”) 4E
72 # 4 2nd character of name (“1”) 31
73 # 4 3rd character of name (“4”) 34
74 # 4 4th character of name (“0”) 30
75 # 4 5th character of name (“B”) 42
76 # 4 6th character of name (“6”) 36
77 # 4 7th character of name (“-”) 2D
78 # 4 8th character of name (“L”) 4C
79 # 4 9th character of name (“0”)
7A # 4 9th character of name (“8”)
7B # 4 New line character indicates end of ASCII string
7C # 4 Padding with “Blank” character
7D # 4 Padding with “Blank” character
7E Extension flag
7F Checksum
0A 00001010
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
43 01000011
4D 01001101
4F 01001111
0A 00001010
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000
FE 11111110
00 00000000
30 00110000
38 00111000
0A 00001010
20 00100000
20 00100000
00 00000000
61 01100001
01001110
00110001
00110100
00110000
01000010
00110110
00101101
01001100
16 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
6 CONVERTER SPECIFICATION
6.1 ABSOLUTE MAXIMUM RATINGS
Symbol Ratings
LED_VCCS -0.3~28.0V
LED_PWM -0.3V~3.6V
LED_EN -0.3V~5.5V
6.2 RECOMMENDED OPERATING RATINGS
Parameter Symbol
Converter Input power supply voltage
LED_EN Control Level
CABC_EN Control Level
PWM Control Level
Backlight On
Backlight Off
CABC On
CABC Off
PWM High Level 3.0 --PWM Low Level
LED_Vccs
LED_EN
CABC_EN
Min. Typ. Max.
6.0 12.0 21.0 V
2.0
0.0 ---
3.0
0.0 -
0.0 --- 0.8 V
PWM Control Duty Ratio 20 100 %
PWM Control Permissive Ripple Voltage
PWM Control Frequency
LED_VCCS=Min
Converter Input Current
LED_VCCS=Typ
LED_VCCS=Max
VPWM_pp
f
PWM
I
BL
100 mV
320 330 350 Hz
285 376 459 mA (1)
143 188 230 mA (1)
81 108 131 mA (1)
Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min/Typ/Max”,
Value
--- 5.0
-
0.8
3.6
0.8
3.6
Approval
Unit Note
V
V
V
V
V
Ta = 25 ± 2 ºC, f
= 330 Hz, Duty=100%.
PWM
6.3 LED Black light power consumption
Parameter Symbol
Converter Input power
consumption
Power consumption at
Gray Scale 63
Power consumption at
Gray Scale 31
Power consumption at
Gray Scale 0
Power consumption at
25% White Screen(2)
CABC Off
CABC On
P
L
P
63
P
31
P
0
P
1/4W
Min. Typ. Max.
1.8 2.2 2.7
1.8
1.28 1.56
0.20 0.24 0.29
0.95 1.16 1.42 W (1)
Note (1) The specified LED power supply Voltage is under the conditions at “LED_VCCS = 12V, Ta = 25 ± 2
ºC,
Note (2) 25% White Screen pattern is shown as below.
Value
2.2
2.7
1.91
Unit Note
W
W
W
W
(1)
(1)
(1)
(1)
17 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com

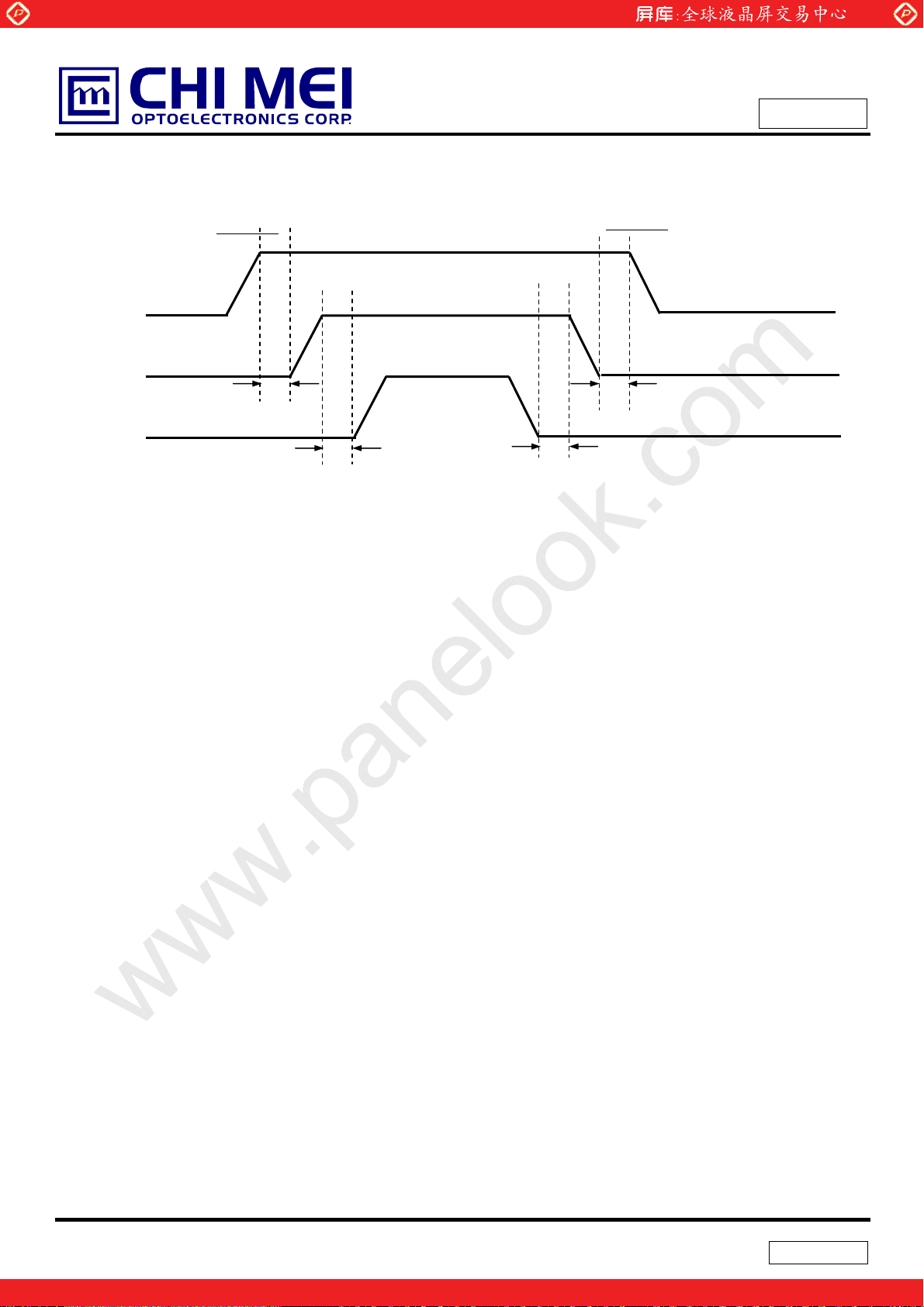

6.4 LED BACKLIGHT CONTROLL POWER SEQUENCE
Power On
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Power Off
LED_VCCS
0V
LED_PWM
0V
T
B
LED_EN
0V
Timing Specifications:
T
T
T
T
Њ 0ms
A
Њ 0ms
B
Њ10ms
C
Њ 0ms
D
T
A
T
T
C
D
Note (1) Please follow the LED backlight power sequence as above. If the customer could not follow, it might
cause backlight flash issue during display ON/OFF or damage the LED backlight controller
18 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center

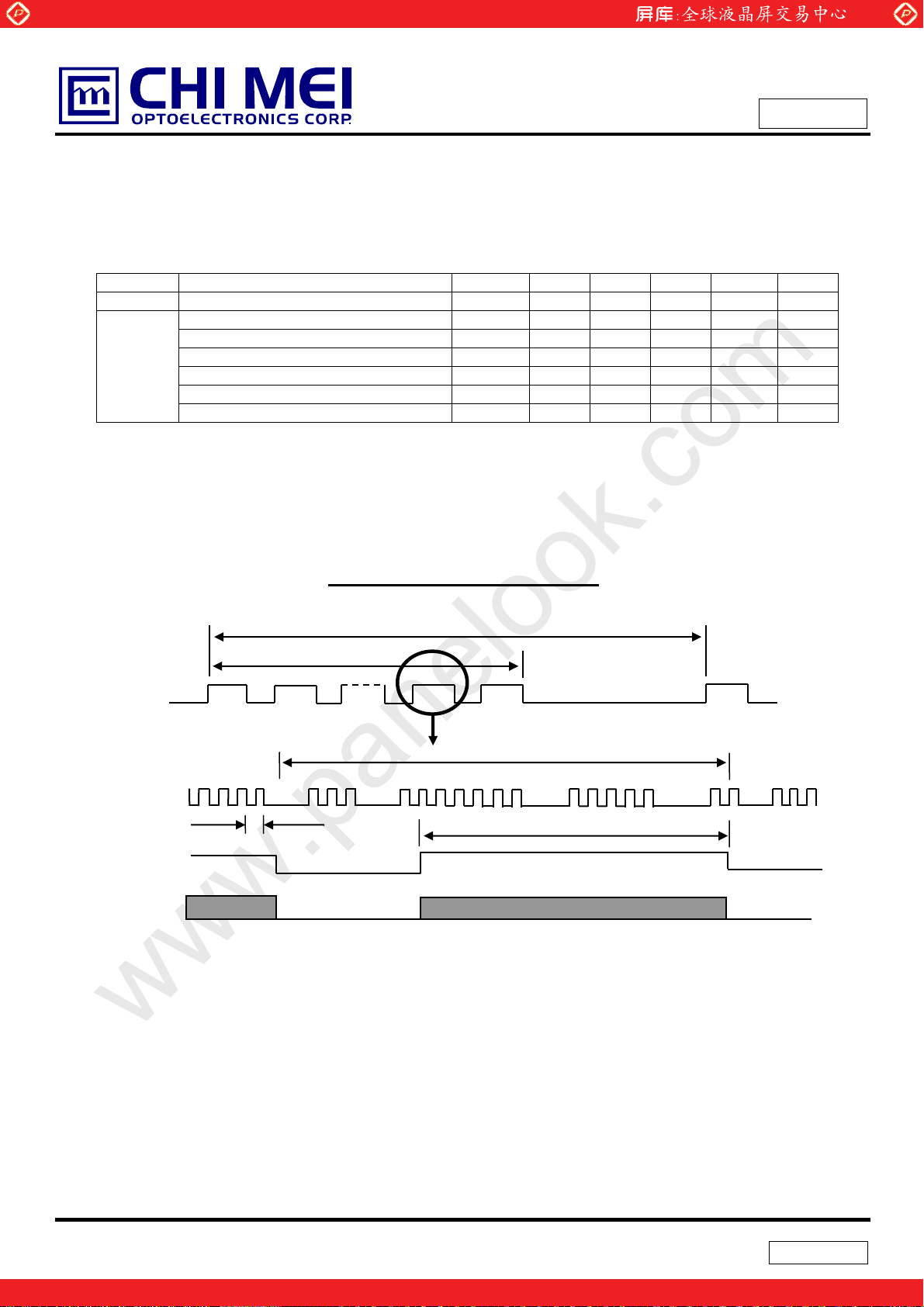

7 INTERFACE TIMING
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 57 75.44 79 MHz
Vertical Total Time TV 772 806 816 TH
Vertical Active Display Period TVD 768 768 768 TH
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored
Vertical Active Blanking Period TVB TV-TVD 38 TV-TVD TH
Horizontal Total Time TH 1370 1560 1609 Tc
Horizontal Active Display Period THD 1366 1366 1366 Tc
Horizontal Active Blanking Period THB
www.panelook.com
TH-THD
194
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
TH-THD
Tc
DCLK
DE
DE
DATA
INPUT SIGNAL TIMING DIAGRAM
TC
HD
T
19 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center

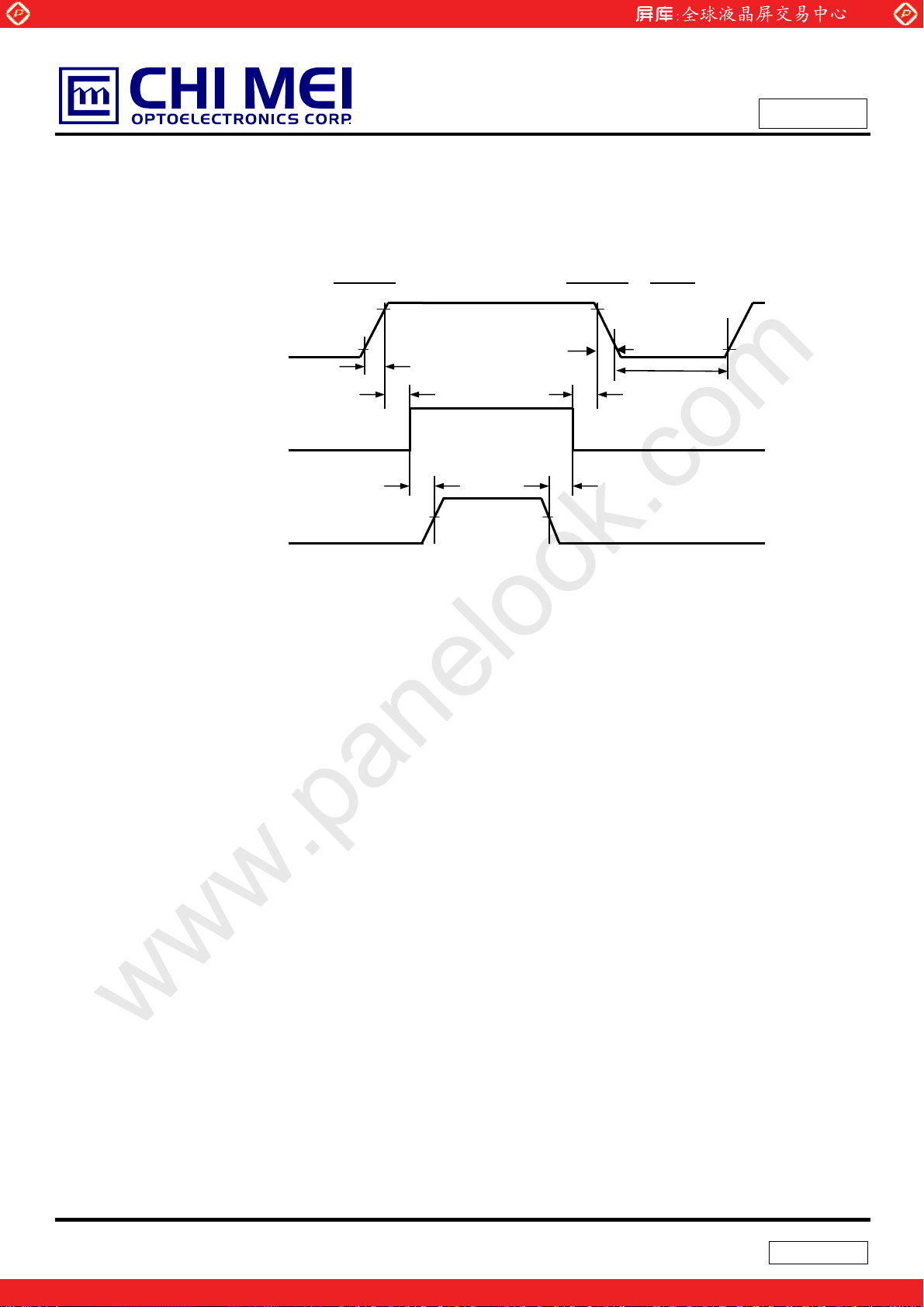

7.2 POWER ON/OFF SEQUENCE
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
- Power Supply
for LCD, Vcc
- LVDS Interface
- Power for Backlight
Timing Specifications:
0.5Љ t1 Љ 10 ms
0 Љ t2 Љ 50 ms
0 Љ t3 Љ 50 ms
0V
0V
Power On
90%
10%
Power Off
90%
t1
t3t2
Valid Data
t6t5
50%
ONOFF OFF
50%
Restart
t7
10%
t4
10%
t4 Њ 500 ms
t5 Њ 200 ms
t6 Њ 200 ms
Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be
damaged.
Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be
sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight converter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight converter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time is better to follow 50usЉt7Љ10 ms.
20 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
8 OPTICAL CHARACTERISTICS
8.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature Ta 25±2
Ambient Humidity Ha 50±10 %RH
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current I
The measurement methods of optical characteristics are shown in Section 8.2. The following items
should be measured under the test conditions described in Section 8.2 and stable environment shown in
Note (5).
www.panelook.com
L
60
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
o
C
mA
8.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 500 650 - - (2), (5)
Response Time
Luminance of White (5P) L
White Variation δW - - 1.25 - (5), (6)
Red
Color
Chromaticity
Green
Blue
White
Horizontal
Viewing Angle
Vertical
TR - 2 5 ms
- 6 11 ms
T
F
140 170 - cd/m2(4), (5)
AVE
Rx
Ry
Gx
Gy
Bx
By
=0° , θY =0°
θ
x
Viewing Normal Angle
Typ.-
0.05
0.575
0.360
0.350
0.575
0.155
0.111
Typ.+
0.05
Wx 0.313 Wy
0.329
θx+ 40 45 -
- 40 45 -
θ
x
θY+ 15 20 -
-
θ
Y
CR≥10
Deg. (1), (5)
40 45 -
(3)
-
-
-
(1), (5)
-
-
-

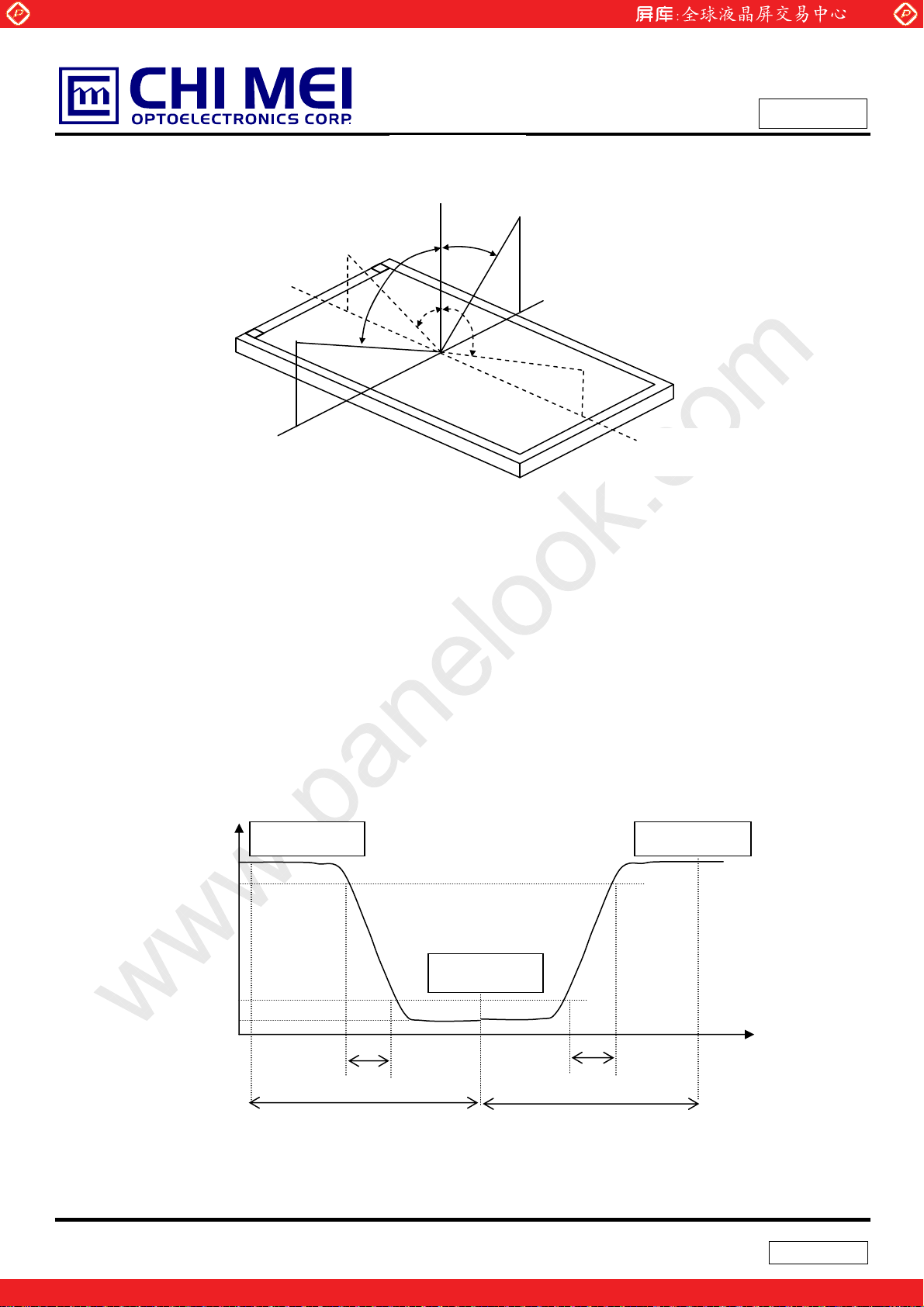

Note (1) Definition of Viewing Angle (θx, θy):
21 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Normal
θx = θy = 0º
θy- θy+
θX- = 90º
6 o’clock
θ
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
θx-
θx+
y+
12 o’clock direction
θ
y+ = 90º
x+
θX+ = 90º
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
Gray Level 63
100%
90%
Optical
Response
10%
0%
T
, TF):
R
R
Gray Level 0
66.67ms
Note (4) Definition of Average Luminance of White (L
AVE
Gray Level 63
Time
T
F
66.67m
):
22 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center
500
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).

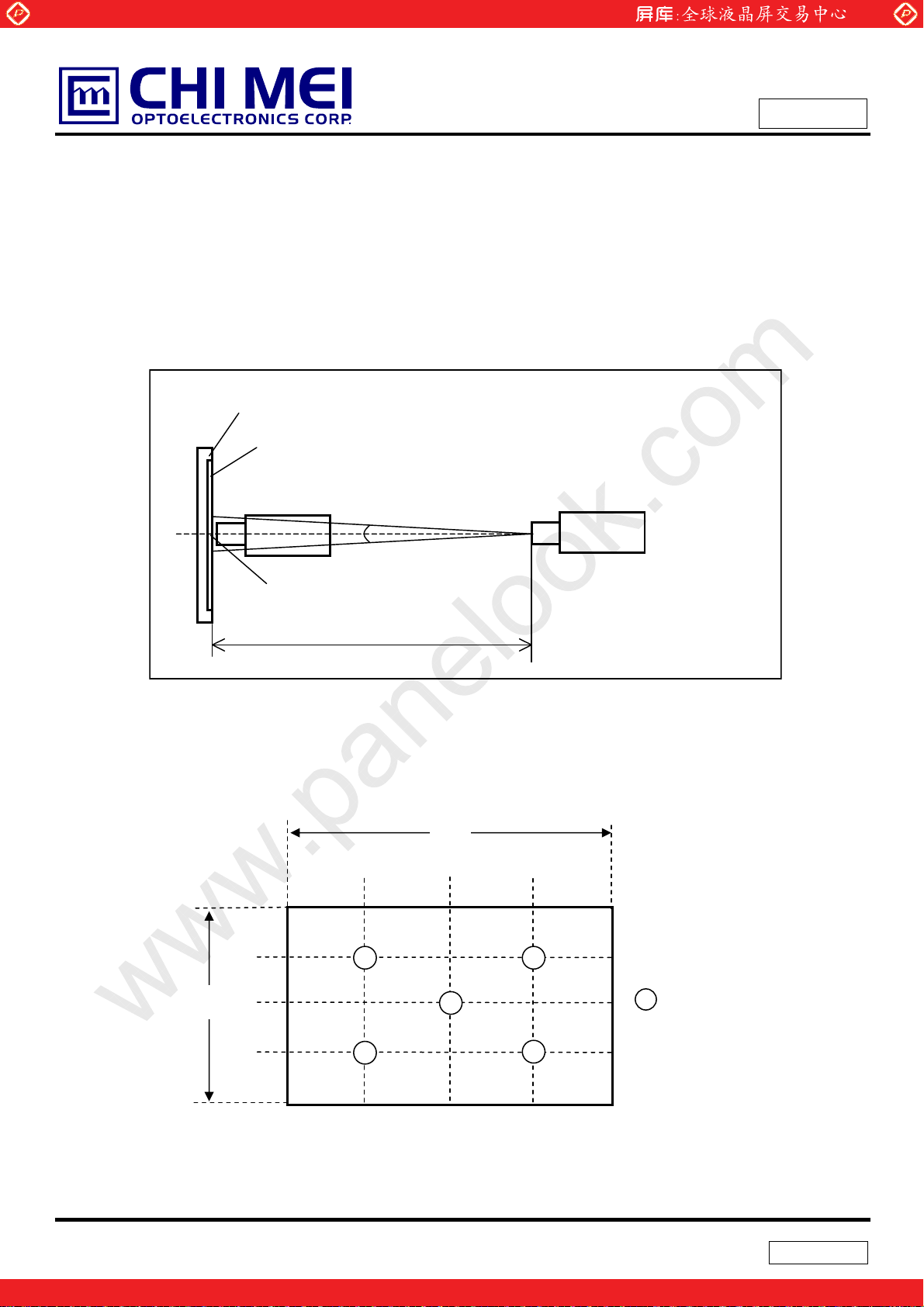

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 15 minutes in a windless room.
LCD Module
LCD Panel
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
USB2000
Center of the Screen
mm
Note (6) Definition of White Variation (δW):
Measure the luminance of gray level 63 at 5 points
δW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
D/4 D/2 3D/4
CS-1000T
Light Shield Room
(Ambient Luminance < 2 lux)
Horizontal Line
D
W/4
W/2
W
Vertical Line
3W/
1 2
5
3
Active Area
X
: Test Point
X=1 to 5
4
23 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
9 PRECAUTIONS
9.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the lamp wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
9.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
9.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.
24 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
10 PACKING
10.1 CARTON
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Figure. 10-1 Packing method
25 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center
10.2 3$//(7
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
Figure. 10-2 Packing method
26 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
11 DEFINITION OF LABELS
11.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
N140B6-L08
(a) Model Name: N140B6 - L08
(b) Revision: Rev. XX, for example: C1, C2 …etc.
(c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
(e) UL/CB logo: “LEOO” especially stands for panel manufactured by CMO Ningbo satisfying UL/CB
requirement. “LEOO” is the CMO’s UL factory code for Ningbo factory.
X X X X X Y M D X N N N N
MADE IN XXXX
LEOO
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of production
st
to 31st, exclude I , O and U
27 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 28
Global LCD Panel Exchange Center
11.2 CARTON LABEL
www.panelook.com
Doc No.: 400031980
Issued Date: Apr., 06, 2009
Model No.: N140B6 -L08
Approval
N140B6-L08
(a) Production location: Made in XXXX. XXXX stands for production location.
28 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 29
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Loading...
