CMO N133IB-L01 Specification

Download
Page 1
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
A

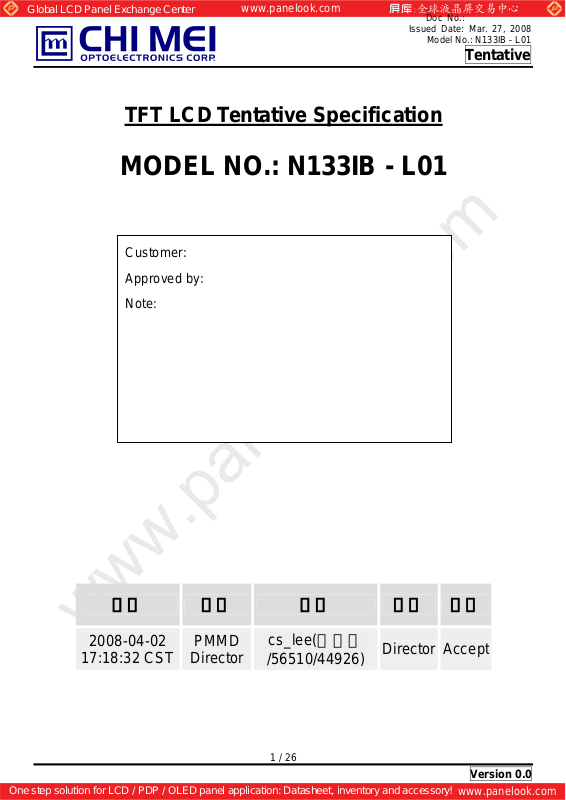

TFT LCD Tentative Specification
MODEL NO.: N133IB - L01
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Customer:
pproved by:
Note:
Version 0.0
17:18:32 CST
記錄 工作 審核 角色 投票
2008-04-02
PMMD
Director
cs_lee(李志聖
Director Accept
/56510/44926)
Page 2
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

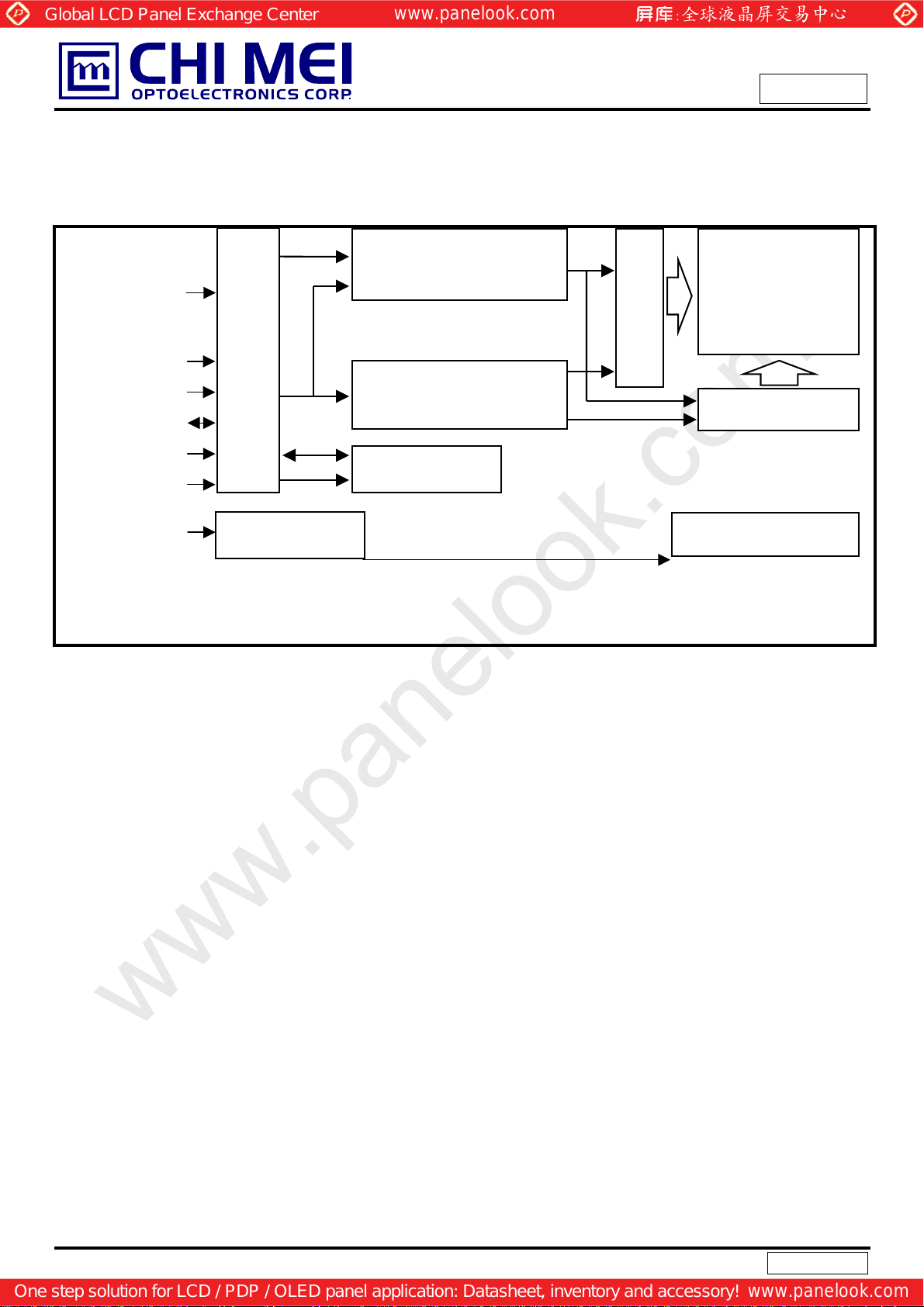

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 24
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
10.3 CUSTOMER CARTON LABEL
10.4 CUSTOMER PALLET LABEL
------------------------------------------------------- 2
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 6
------------------------------------------------------- 10
------------------------------------------------------- 11
------------------------------------------------------- 17
------------------------------------------------------- 19
------------------------------------------------------- 23
------------------------------------------------------- 26
Version 0.0
Page 3
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Version Date
0.0
Mar. 27, 2008 All
Page
(New)
Section Description
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
REVISION HISTORY
All Tentative specification wa s first issued.
Version 0.0
Page 4
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133IB - L01 is a 13.3” TFT Liquid Crystal Display module with LED Backlight unit and 20 pins LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. The converter module for Backlight is not built in.
1.2 FEATURES
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- Meet RoHS requirement
- LED Backlight
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
1.3 APPLICA TION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 286.08 (H) x 178.8 (V) mm Bezel Opening Area 289.1 (H) x 181.8 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Glare , AR<1%, 2H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 298.5 299 299.5 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

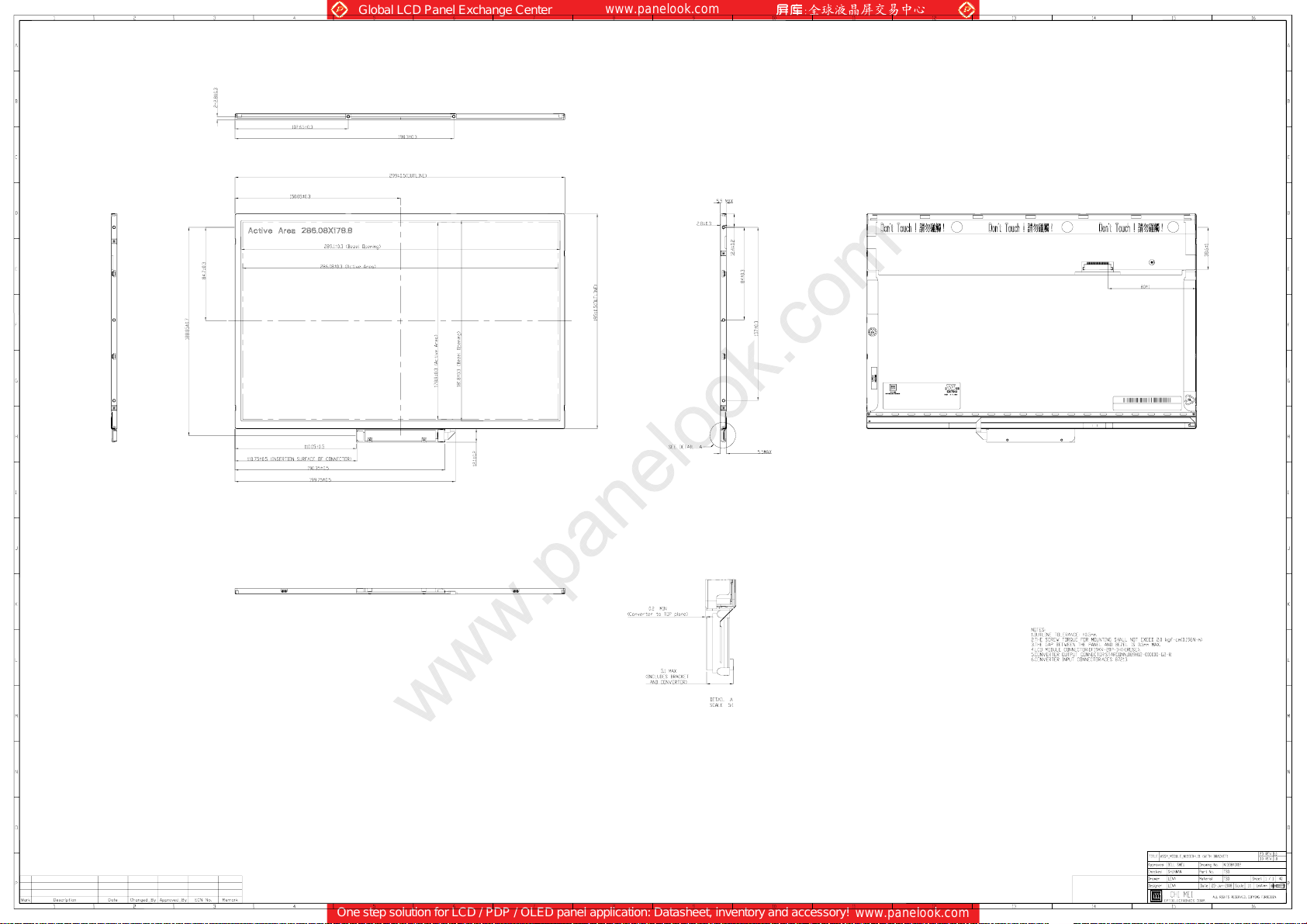

Note (1) Please refer to the attache d dra win gs for more information of front and back outline dimensions.
Vertical(V) 194.5 195 195.5 mm Depth(D) --- --- 5.5 mm
Weight --- 350 365 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
Note (2) Connector mounting position
+/- 0.5mm
Version 0.0
Page 5
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient T emperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below. (a) 90 %RH Max. (Ta ≦ 40 ºC). (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation.
Relative Humidity (%RH)
Min. Max.
- 200/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Value
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Unit Note
100
90 80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (2) The temperature of p anel surface should be 0 ºC Min. and 60 ºC Max. Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave, Note (4) 10 ~ 200 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z axis.
8060 -20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture. The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
LCD Module
Side Mount Fixing Screw
Stage
Gap=2mm
Bracket
Version 0.0
Page 6
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V

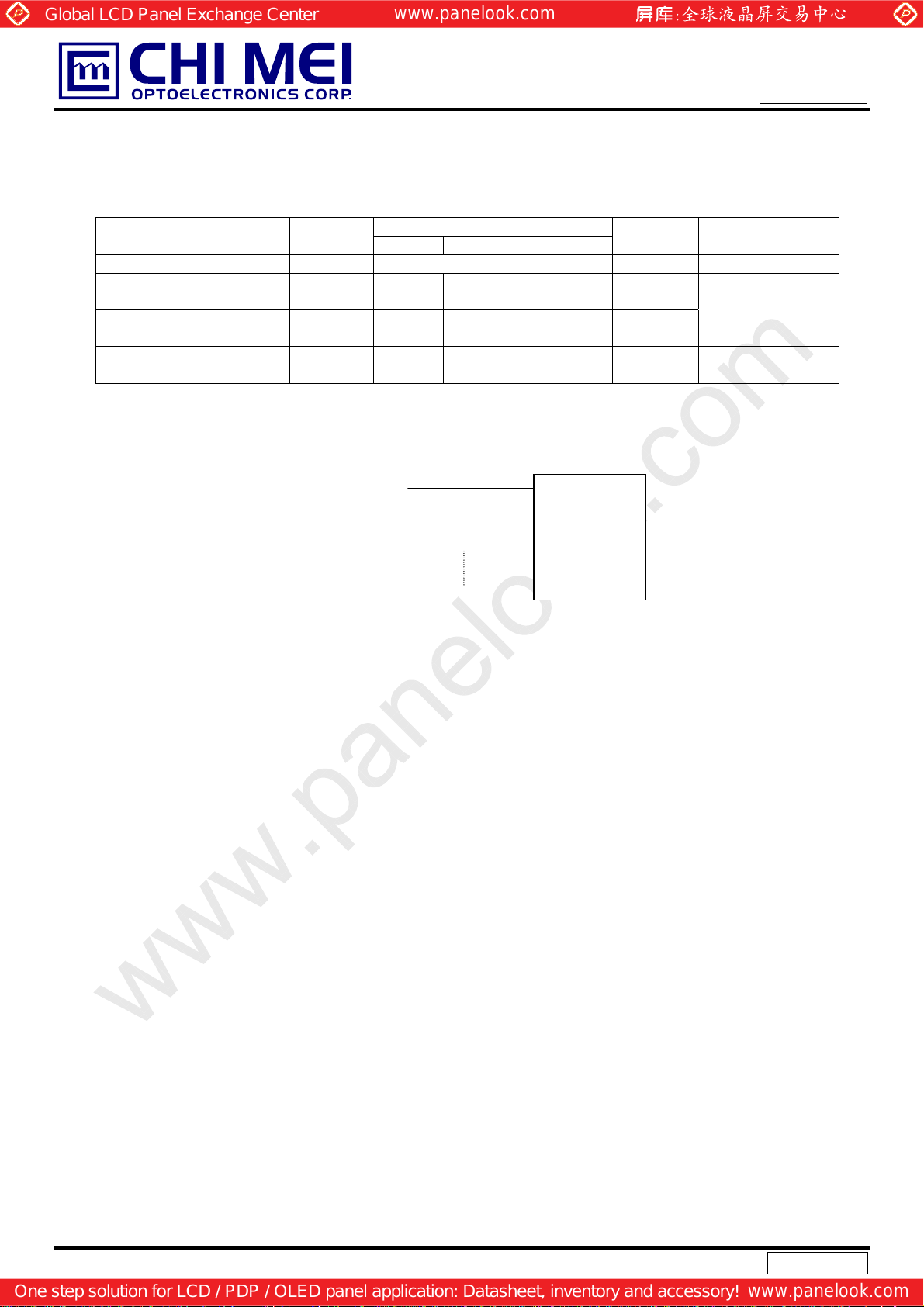

2.2.2 BACKLIGHT UNIT
Item Symbol
LED Light Bar Power Supply Voltage LED Light Bar Power Supply Current
Issued Date: Mar. 27, 2008
Value
Min. Max.
Value
Min. Max.
0 TBD V
V
L
0 TBD mA
I
L
Unit Note
Unit Note
Doc No.:
Model No.: N133IB - L01
Tentative
(1)
(1), (2)
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for LED (Refer to 3.2 for further information).
Version 0.0
Page 7
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 100 mV ­Rush Current I Initial Stage Current IIS 1.0 A (2)
Power Supply Current LVDS Differential Input High Threshold V LVDS Differential Input Low Threshold V
LVDS Common Mode V oltage VCM 1.125 1.375 V (5) LVDS Differential Input Voltage |VID| 100 600 mV (5) Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
White - (220) (270) mA (3)a Black
Min. Typ. Max.
- 1.2 1.5 A (2)
RUSH
lcc
TH(LVDS)
TL(LVDS)
- (TBD) W (4)
EBL
- (270) (310) mA (3)b +100 mV
-100 mV
Value
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
C1
1uF
+3.3V
R1
47K
VR1
R2
1K
47K
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3 1uF
(High to Low)
(Control Signal)
SW
+12V
0.9Vcc
0V
470us
0.1Vcc
+3.3V
100ms
I
I
RUSH
IS
Vcc
(LCD Module Input)
VCC
ICC
Version 0.0
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
|
|
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Note (3)The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern belo w is displayed.
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
a. White Pattern
Active Area
power. Test conditions are as follows. (a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f (b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
= 60 Hz,
v
b. Black Pattern
Active Area
= 60
v
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt. (c) Luminance: 60 nits. (d) The converter used is provided from Sumida(CMO converter P/N:27-D016392).
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
Single Ended
Differential
V
0V
V
0V
V
VID|
VID|
Version 0.0
Page 9
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
3.2 BACKLIGHT UNIT
Parameter Symbol
Min. Typ. Max.
Value
Ta = 25 ± 2 ºC
Unit Note
LED Quantity 42 Pcs (1), LED light bar Power Supply Voltage LED light bar Power Supply Current
21 22.4 23.8 Vdc
V
L
114 120 150 mA
I
L
(1), (2)
LED Life Time LBL 12,000 -- -- Hrs (4) Power Consumption Po 2.52 2.70 2.86 W (3), IL = 120.0 mA
Note (1) LED light bar configuration is shown as below:
V
L, IL
LED Light Bar
Light Bar Feedback Channels
Parallel:6 Series：7
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with
current balancing function to drive LED light-bar.
Note (3) P
= IL ×VL
O
Note (3) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta =25 ±2
o
C and I = 20mA(Per EA) until the brightness becomes ≦ 50% of its original value.
Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25 ±2
I
= 20 mA(Per EA) until the brightness becomes ≦ 50% of its original value.
L
o
C and
Version 0.0
Page 10
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
r
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
LVDS Display Data & Clock
Vcc
GND
Data
CLK
V
LED Power & Signal
EDID
EDID
EDID
LVDS INPUT /
INPUT CONNECTOR
LED
Converte
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
(1280x3x800)
DA TA DRIVER IC
BACKLIGHT UNIT
10 / 26
Version 0.0
Page 11
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 VSS Ground ­2 VDD Power Supply +3.3 V ­3 VDD Power Supply +3.3 V ­4 V 5 TEST Panel Self Test 6 CLK 7 Data 8 Rxin0- LVDS Differential Data Input Negative
9 Rxin0+ LVDS Differential Data Input Positive 10 VSS Ground 11 Rxin1- LVDS Differential Data Input Negative 12 Rxin1+ LVDS Differential Data Input Positive 13 VSS Ground 14 Rxin2- LVDS Differential Data Input Negative 15 Rxin2+ LVDS Differential Data Input Positive 16 VSS Ground 17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 VSS Ground - ­20 VSS Ground - -
Note (1) Connector Part No.: DF19KR-20P-1H or equivalent
DDC +3.3 V
EDID
DDC Clock
EDID
DDC Data
EDID
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
R0~R5,G0-
G1~G5,B0,B1
-
B2~B5,Hsync,Vsync,DE
LVDS Level
Note (2) User’s connector Part No: DF19G-20S-1C or equivalent Note (3) The first pixel is odd as shown in the following figure.
CLK+

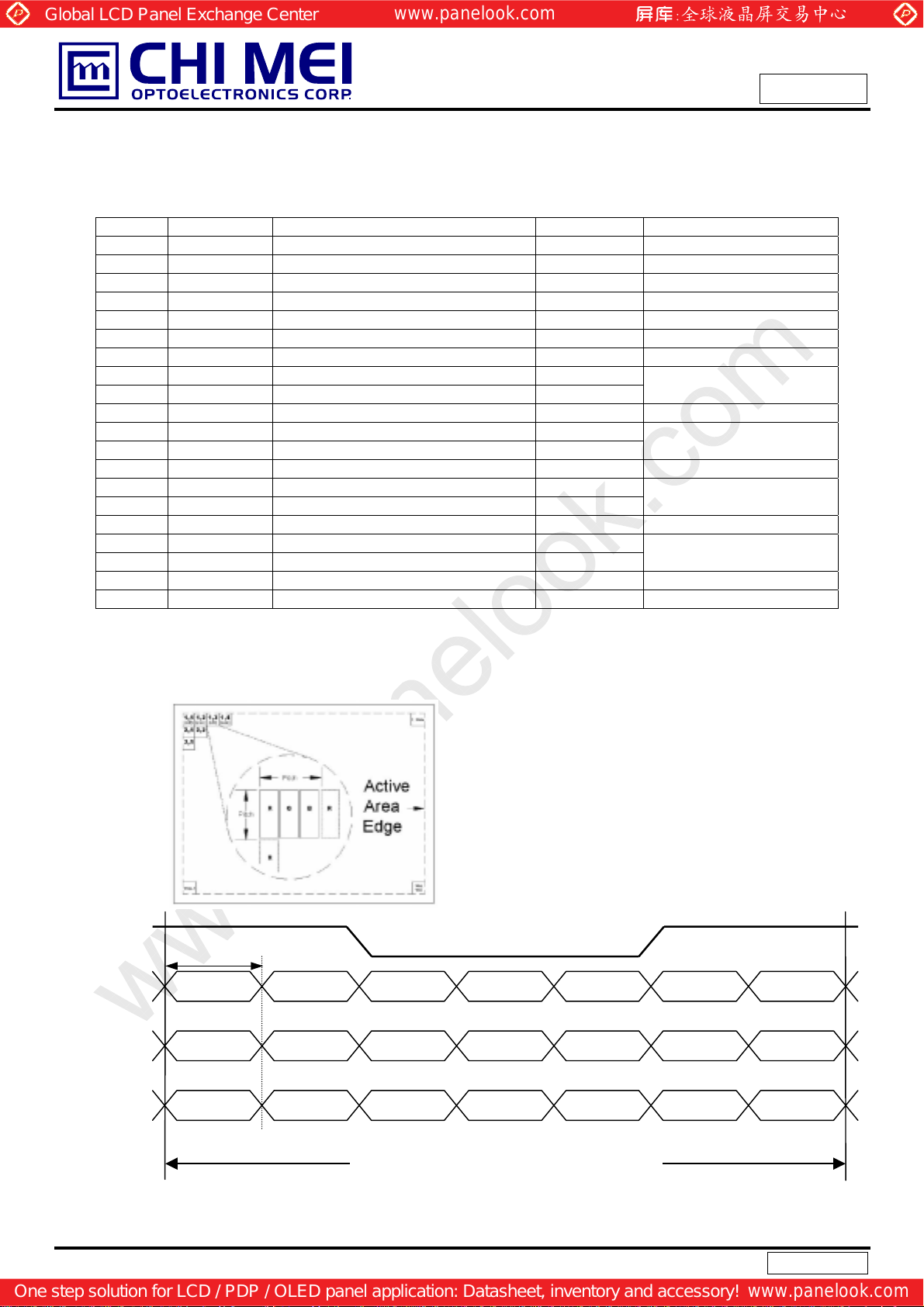

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0
R5
R4
Signal for 1 DCLK Cycle (T)
11 / 26
Version 0.0
Page 12
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5.3 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for the color. The higher the binary input the brighter the color. The table below provides the assignment of color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
12 / 26
Version 0.0
Page 13
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA Plug & Display and FPDI standards.
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Byte #
(decimal)
0 0 Header 00 00000000 1 1 Header FF 11111111 2 2 Header FF 11111111 3 3 Header FF 11111111 4 4 Header FF 11111111 5 5 Header FF 11111111 6 6 Header FF 11111111 7 7 Header 00 00000000 8 8 EISA ID manufacturer name (“CMO”) 0D 00001101 9 9 EISA ID manufacturer name (Compressed ASCII) AF 10101111 10 0A ID product code (N133IB-L01) 14 00010100 11 0B ID product code (hex LSB first; N133IB-L01) 13 00010011 12 0C ID S/N (fixed “0”) 00 00000000 13 0D ID S/N (fixed “0”) 00 00000000 14 0E ID S/N (fixed “0”) 00 00000000 15 0F ID S/N (fixed “0”) 00 00000000 16 10 Week of manufacture (fixed week code) 00 00000000 17 11 Year of manufacture (fixed year code ) 00 00000000 18 12 EDID structure version # (“1”) 01 00000001 19 13 EDID revision # (“3”) 03 00000011 20 14 Video I/P definition (“digital”) 80 10000000 21 15 Active area horizontal 28.608cm 1D 00011101 22 16 Active area vertical 17.88cm 12 00010010 23 17 Display Gamma (Gamma = ”2.2”) 78 01111000 24 18 Feature support (“Active off, RGB Color”) 0A 00001010 25 19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 08 00001000 26 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) A5 10100101 27 1B Red-x (Rx = “0.602”) 9A 10011010 28 1C Red-y (Ry = “0.340”) 57 01010111 29 1D Green-x (Gx = ”0.330”) 54 01010100 30 1E Green-y (Gy = ”0.543”) 8B 10001011 31 1F Blue-x (Bx = ”0.158”) 28 00101000 32 20 Blue-y (By = ”0.146”) 25 00100101 33 21 White-x (Wx = ”0.313”) 50 01010000 34 22 White-y (Wy = ”0.329”) 54 01010100 35 23 Established timings 1 00 00000000 36 24 Established timings 2 00 00000000 37 25 Manufacturer’s reserved timings 00 00000000
38 26 Standard timing ID # 1 01 00000001 39 27 Standard timing ID # 1 01 00000001
Byte #
(hex)
Field Name and Comments
Value
(hex)
Value
(binary)
13 / 26
Version 0.0
Page 14
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
40 28 Standard timing ID # 2 01 00000001 41 29 Standard timing ID # 2 01 00000001 42 2A Standard timing ID # 3 01 00000001 43 2B Standard timing ID # 3 01 00000001 44 2C S tandard timing ID # 4 01 00000001 45 2D S tandard timing ID # 4 01 00000001 46 2E Standard timing ID # 5 01 00000001 47 2F Standard timing ID # 5 01 00000001 48 30 Standard timing ID # 6 01 00000001 49 31 Standard timing ID # 6 01 00000001 50 32 Standard timing ID # 7 01 00000001 51 33 Standard timing ID # 7 01 00000001 52 34 Standard timing ID # 8 01 00000001 53 35 Standard timing ID # 8 01 00000001
54 36 55 37 # 1 Pixel clock (hex LSB first) 1B 0001101 1
56 38 # 1 H active (“1280”) 00 00000000 57 39 # 1 H blank (“160”) A0 10100000 58 3A # 1 H active : H blank (“1280 : 160”) 50 01010000 59 3B # 1 V active (”800”) 20 00100000 60 3C # 1 V blank (”23”) 17 00010111 61 3D # 1 V active : V blank (”800 :23”) 30 00110000 62 3E # 1 H sync offset (”48”) 30 00110000 63 3F # 1 H sync pulse width ("32”) 20 00100000 64 40 # 1 V sync offset : V sync pulse width (”3 : 6”) 36 00110110
65 41 66 42 # 1 H image size (”286 mm”) 1E 00011110
67 43 # 1 V image size (”179 mm”) B3 10110011 68 44 # 1 H image size : V image size (”286 : 179”) 10 00010000 69 45 # 1 H boarder (”0”) 00 00000000 70 46 # 1 V boarder (”0”) 00 00000000 71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives 18 00011000 72 48 Detailed timing description # 2 00 00000000 73 49 # 2 Flag 00 00000000 74 4A # 2 Reserved 00 00000000 75 4B # 2 FE (hex) defines ASCII string (Model Name “N133I7-L01”, ASCII) FE 11111110 76 4C # 2 Flag 00 00000000 77 4D # 2 1st character of name (“N”) 4E 01001110 78 4E # 2 2nd character of name (“1”) 31 00110001 79 4F # 2 3rd character of name (“3”) 33 00110011 80 50 # 2 4th character of name (“3”) 33 00110011 81 51 # 2 5th character of name (“I”) 49 01001001 82 52 # 2 6th character of name (“B”) 42 01000010 83 53 # 2 7th character of name (“-”) 2D 00101101 84 54 # 2 8th character of name (“L”) 4C 01001100 85 55 # 2 9th character of name (“0”) 30 00110000
Detailed timing description # 1 Pixel clock (“71MHz”, According to VESA
CVT Rev1.1)
# 1 H sync offset : H sync pulse width : V sync offset : V sync wi dth (”48:
32 : 3 : 6”)
BC 10111100
00 00000000
14 / 26
Version 0.0
Page 15
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
86 56 # 2 9th character of name (“1”) 31 00110001 87 57 # 2 New line character indicates end of ASCII string 0A 00001010 88 58 # 2 Padding with “Blank” character 20 00100000 89 59 # 2 Padding with “Blank” character 20 00100000 90 5A Detailed timing description # 3 00 00000000 91 5B # 3 Flag 00 00000000 92 5C # 3 Reserved 00 00000000 93 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) FE 11111110 94 5E # 3 Flag 00 00000000 95 5F # 3 1st character of string (“C”) 43 01000011 96 60 # 3 2nd character of string (“M”) 4D 01001101 97 61 # 3 3rd character of string (“O”) 4F 0100111 1 98 62 # 3 New line character indicates end of ASCII string 0A 00001010 99 63 # 3 Padding with “Blank” character 20 00100000 100 64 # 3 Padding with “Blank” character 20 00100000 101 65 # 3 Padding with “Blank” character 20 00100000 102 66 # 3 Padding with “Blank” character 20 00100000 103 67 # 3 Padding with “Blank” character 20 00100000 104 68 # 3 Padding with “Blank” character 20 00100000 105 69 # 3 Padding with “Blank” character 20 00100000 106 6A # 3 Padding with “Blank” character 20 00100000 107 6B # 3 Padding with “Blank” character 20 00100000 108 6C Detailed timing description # 4 00 00000000 109 6D # 4 Flag 00 00000000 110 6E # 4 Reserved 00 00000000 111 6F # 4 FE (hex) defines ASCII string (Model Name“N133I7-L01”, ASCII) FE 11111110 112 70 # 4 Flag 00 00000000 113 71 # 4 1st character of name (“N”) 4E 01001110 114 72 # 4 2nd character of name (“1”) 31 00110001 115 73 # 4 3rd character of name (“3”) 33 001 10011 116 74 # 4 4th character of name (“3”) 33 00110011 117 75 # 4 5th character of name (“I”) 49 01001001 118 76 # 4 6th character of name (“B”) 42 01000010 119 77 # 4 7th character of name (“-”) 2D 00101101 120 78 # 4 8th character of name (“L”) 4C 01001100 121 79 # 4 9th character of name (“0”) 30 00110000 122 7A # 4 9th character of name (“1”) 31 00110001 123 7B # 4 New line character indicates end of ASCII string 0A 00001010 124 7C # 4 Padding with “Blank” character 20 00100000 125 7D # 4 Padding with “Blank” character 20 00100000 126 7E Extension flag 00 00000000 127 7F Checksum 98 10011000
15 / 26
Version 0.0
Page 16
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc (40) (71) (80) MHz (2)(3)
Vertical Total Time TV 802 823 (1023) TH -
Vertical Active Display Period TVD 800 800 800 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored (2) 2 channels LVDS input. (3) The module can be operated at 40Hz refresh rate. However, there might be some side effect like
Vertical Active Blanking Period TVB TV-TVD 23 TV-TVD TH
Horizontal Total Time TH 1380 1440 (1600) T c (2)
Horizontal Active Display Period THD 1280 1280 1280 Tc (2)
Horizontal Active Blanking Period THB
TH-THD
160
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
TH-THD
Tc (2)
flicker, bri ghtness change or etc.

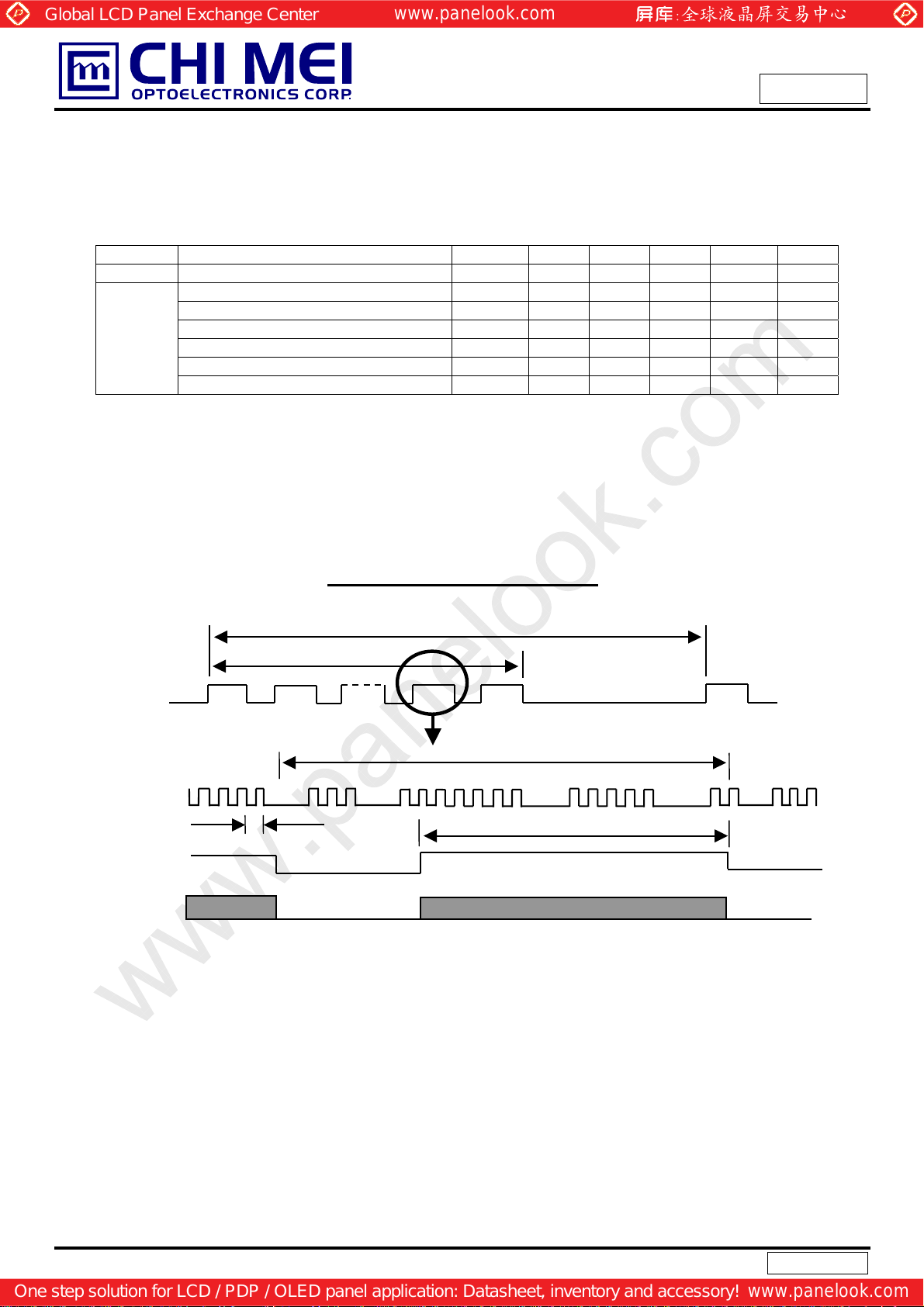

INPUT SIGNAL TIMING DIAGRAM
DE
DCLK
DE
DATA
TC
HD
T
16 / 26
Version 0.0
Page 17
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

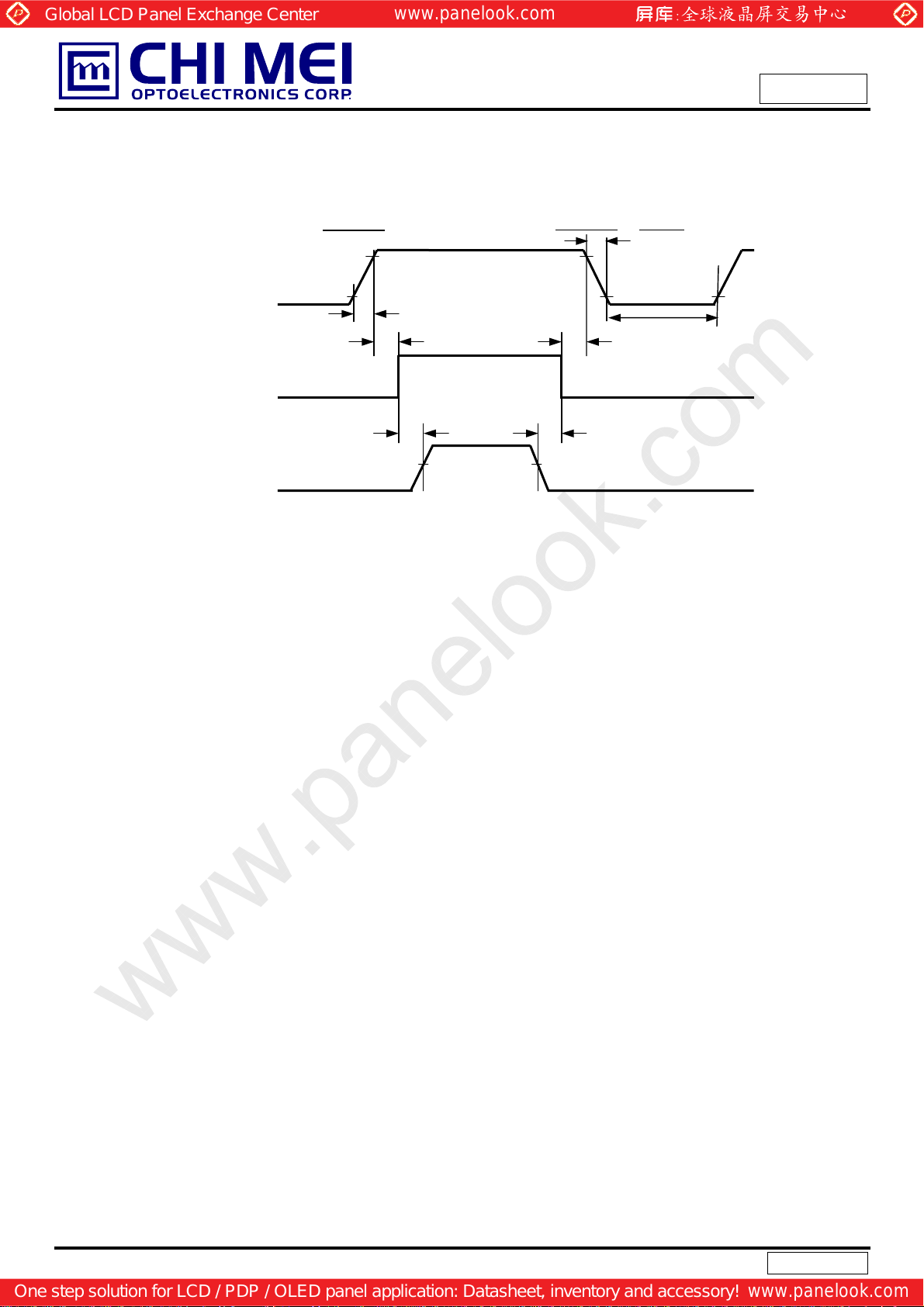

6.2 POWER ON/OFF SEQUENCE
Power On
90%
Power Off
90%
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Restart
t7
Power Supply
for LCD, Vcc
- Interface Signal (LVDS Signal of Transmitter), V
- Power for Light
Timing Specifications:
0.5< t1 ≦ 10 msec 0 < t2 ≦ 50 msec 0 < t3 ≦ 50 msec
0V
0V
I
t4 ≧ 500 msec t5 ≧ 200 msec t6 ≧ 200 msec
10%
t1
Valid Data
t6 t5
50%50%
ONOFF OFF
10%
t4
t3 t2
10%
Note (1) Please avoid floating state of interface signal at invalid period. Note (2) When the interface signal is invalid, be su re to pull down the power supply of LCD Vcc to 0 V. Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5≦t7≦300 ms.
17 / 26
Version 0.0
Page 18
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta 25±2 Ambient Humidity Ha 50±10 %RH Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" LED Light Bar Input Current IL
The measurement methods of optical characteristics are shown in Section 7.2. The following items should be measured under the test conditions described in Section 7.1 and stable environment shown in Note (6).
120
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
o
C
mA
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 300 400 - - (2), (5) Response Time Luminance of White (5P) L
White Variation
Color
Green
Chromaticity
White
Horizontal
Viewing Angle
Vertical
Red
Blue
TR - 3 8 ms
- 7 12 ms
T
F
190 220 - cd/m2(4), (5)
AVE
δW
Rx Ry
Gx (0.320) -
θ
=0°, θY =0°
x
Viewing Normal Angle
Gy (0.555) -
Bx (0.155) -
- - 1.40 - (5), (6) (0.595)
(0.345)
Typ.-
0.05
Typ.+
0.05
By (0.145) ­Wx (0.313) ­Wy
θ
+
x
θ
x
θ
Y
θ
Y
­+
CR≥10
-
(0.329) 40 45 ­40 45 ­15 20 ­40 45 -
Deg. (1), (5)
(3)
-
-
(1), (5)
-
18 / 26
Version 0.0
Page 19
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

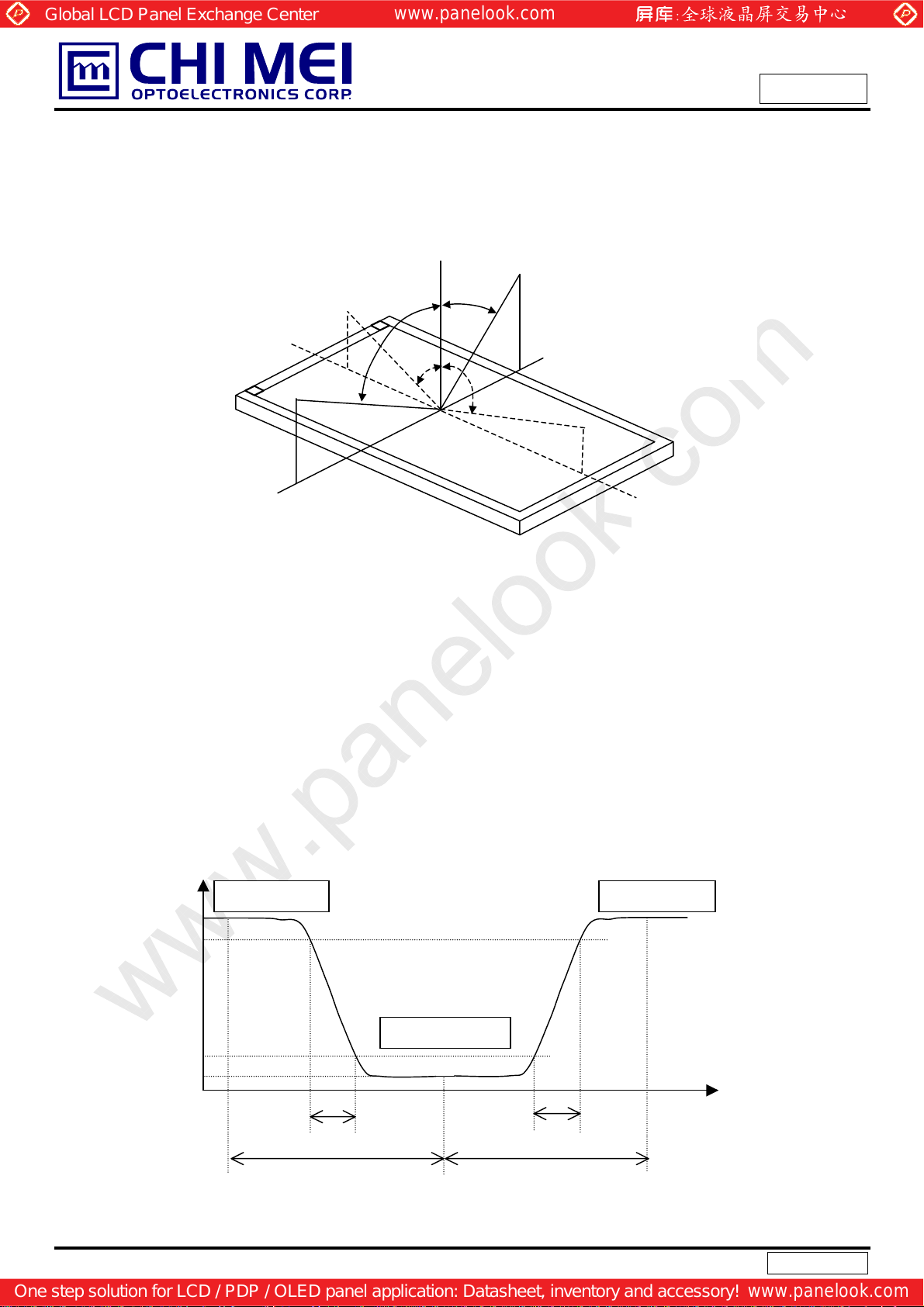

Note (1) Definition of Viewing Angle (θx, θy):
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
θX- = 90º
x-
6 o’clock
θ
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Normal
θx = θy = 0º
θy- θy+
θx−
θx+
y+
12 o’clock direction
θ
y+ = 90º
x+
θX+ = 90º
Contrast Ratio (CR) = L63 / L0 L63: Luminance of gray level 63 L 0: Luminance of gray level 0 CR = CR (5) CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF) and measurement method:
R
T
F
66.67 ms
Time
19 / 26
Version 0.0
Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
500
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).

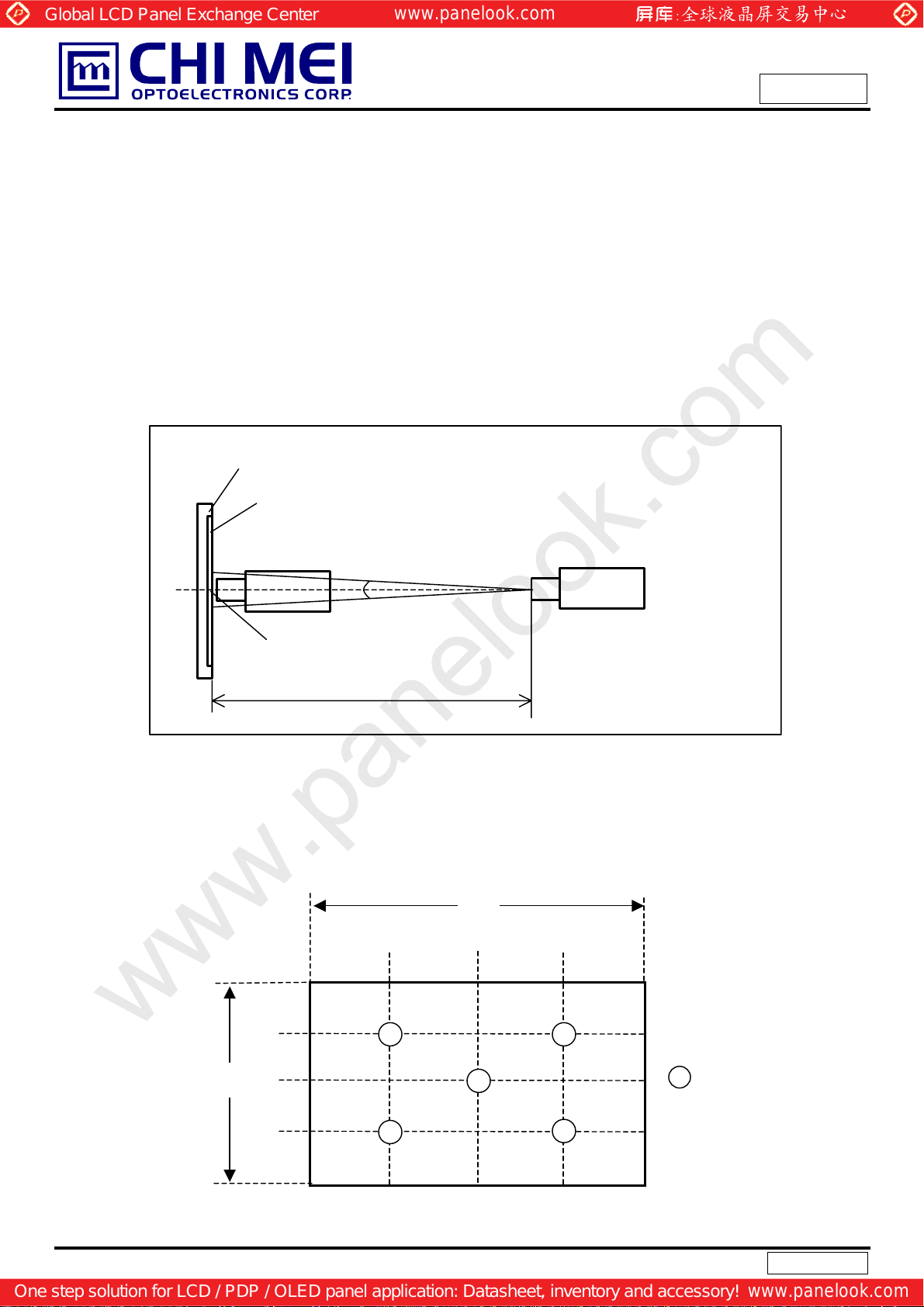

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt temperature change during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 15 minutes in a windless room.
LCD Module
LCD Panel
USB2000
AVE
):
CS-1000T
Center of the Screen
mm
Note (6) Definition of White Variation (δW):
Measure the luminance of gray level 63 at 5 points δW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
W
W/4
W/2
3W/4
Vertical Line
D/4 D/2 3D/4
Light Shield Room (Ambient Luminance < 2 lux)
Horizontal Line
D
12
X
5
3
4
: Test Point X=1 to 5
Active Area
20 / 26
Version 0.0
Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroug hly with soap. (8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC. (9) Do not disassemble the module. (10) Do not pull or fold the lamp wire. (11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions. (2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating. (3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of lamp will be higher than the room
temperature.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating. (2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up. (3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
21 / 26
Version 0.0
Page 22
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
assembling with converter . Do not disassemble the module or insert anything into the Backlight unit.
9. PACKAGING
9.1 CARTON
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative

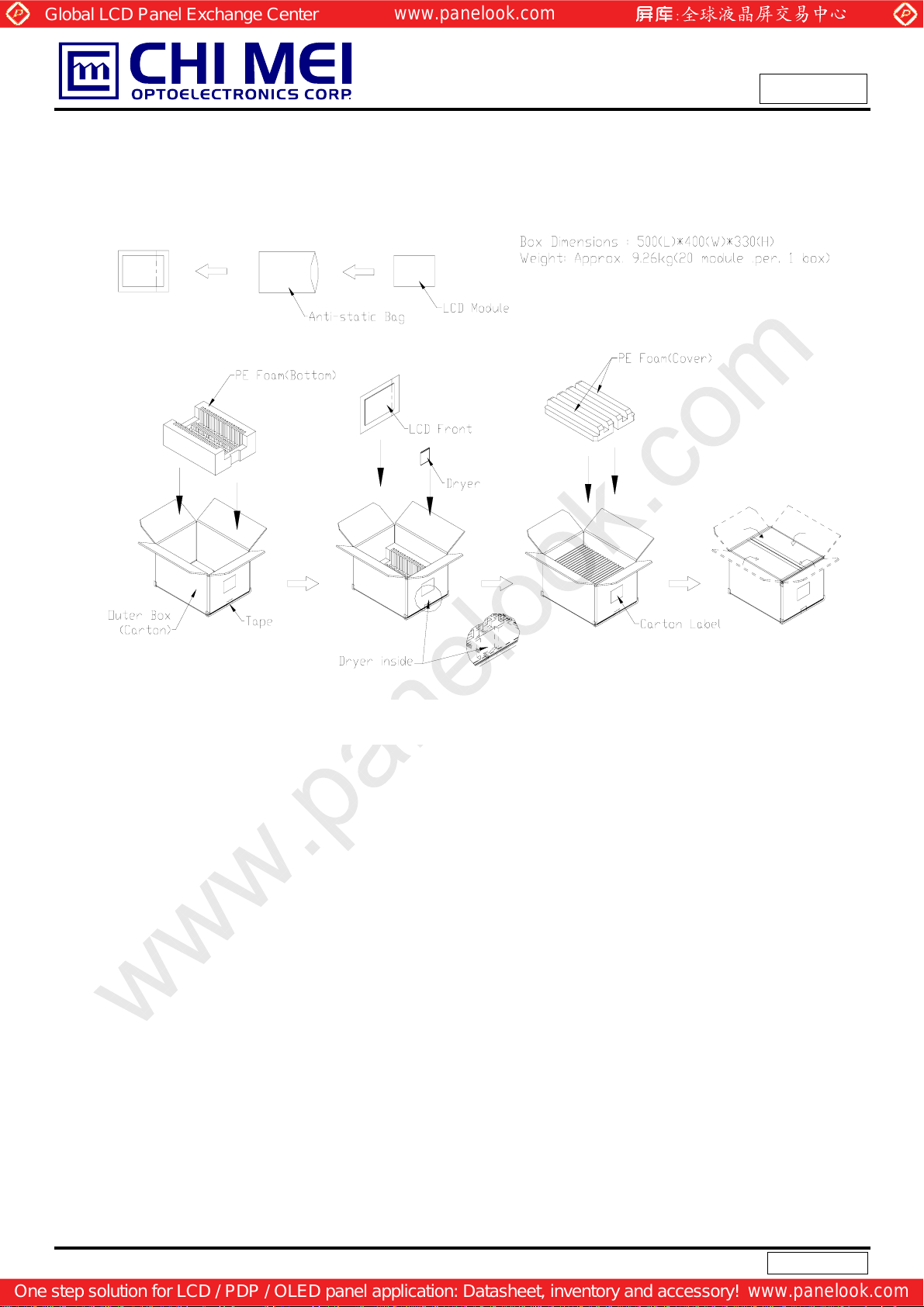

Figure. 9-1 Packing method
22 / 26
Version 0.0
Page 23
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
9.2 PALLET
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative

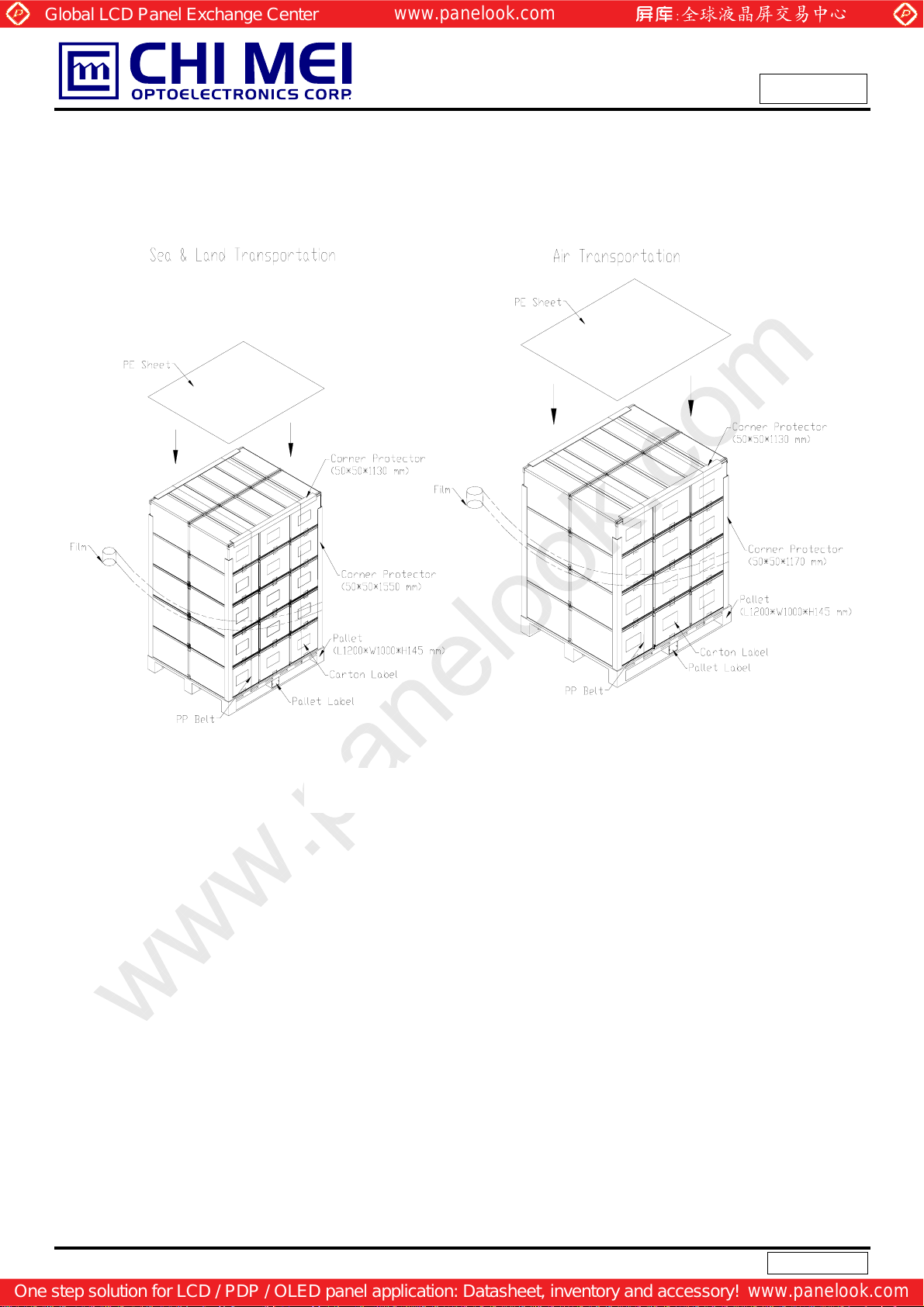

Figure. 9-2 Packing method
23 / 26
Version 0.0
Page 24
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
10. DEFINITION OF LABELS

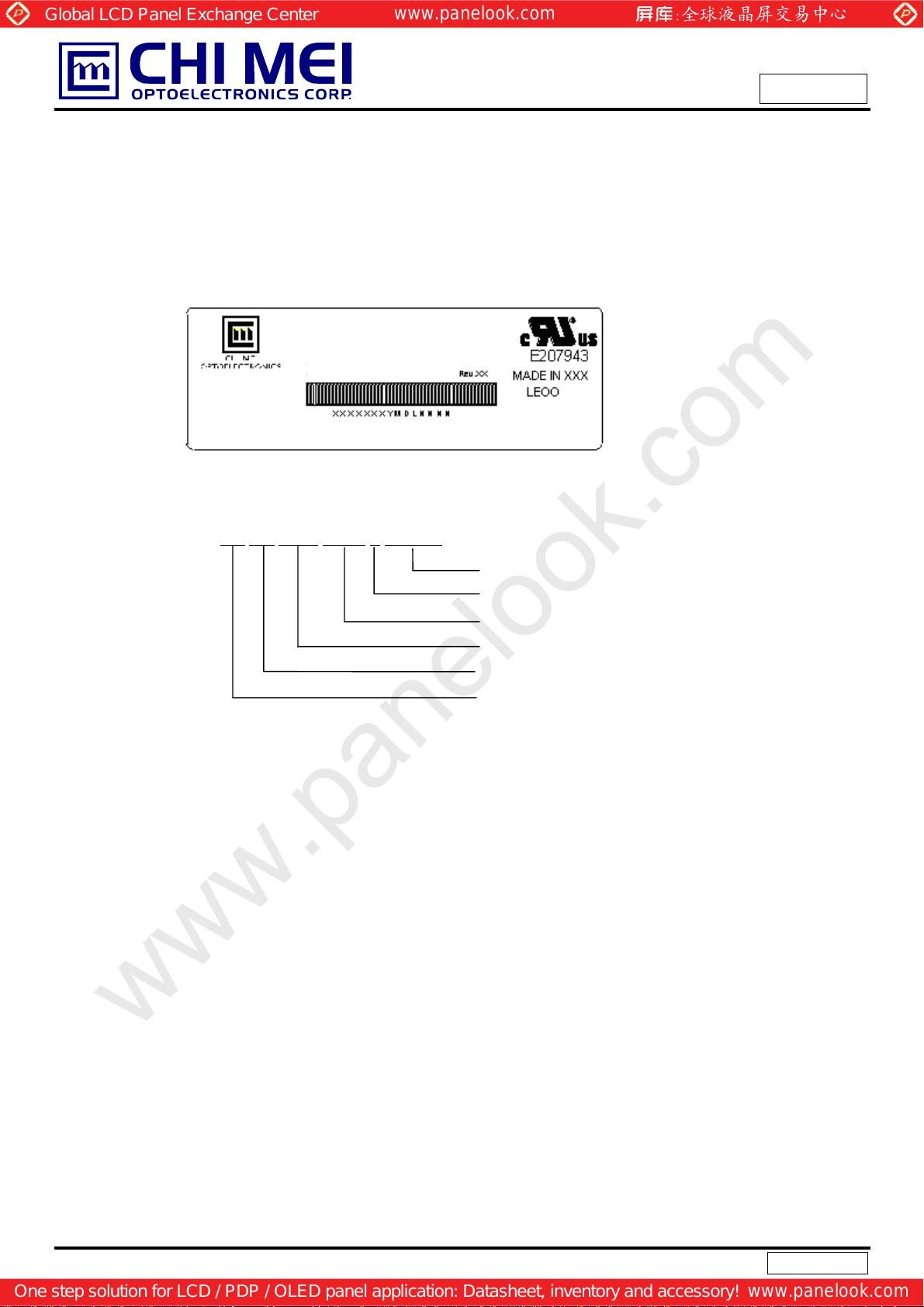

10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
N133IB-L01
(a) Model Name: N133IB - L01 (b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc. (c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
(e)UL/CB logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL/CB
requirement. The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL/CB requirement.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ De c.
Day: 1~9, A~Y, for 1
st
Serial No. CMO Internal Use Year, Month, Date CMO Internal Use
Revision
CMO Internal Use
to 31st, exclude I , O and U (b) Revision Code: cover all the change (c) Serial No.: Manufacturing sequence of product
24 / 26
Version 0.0
Page 25
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

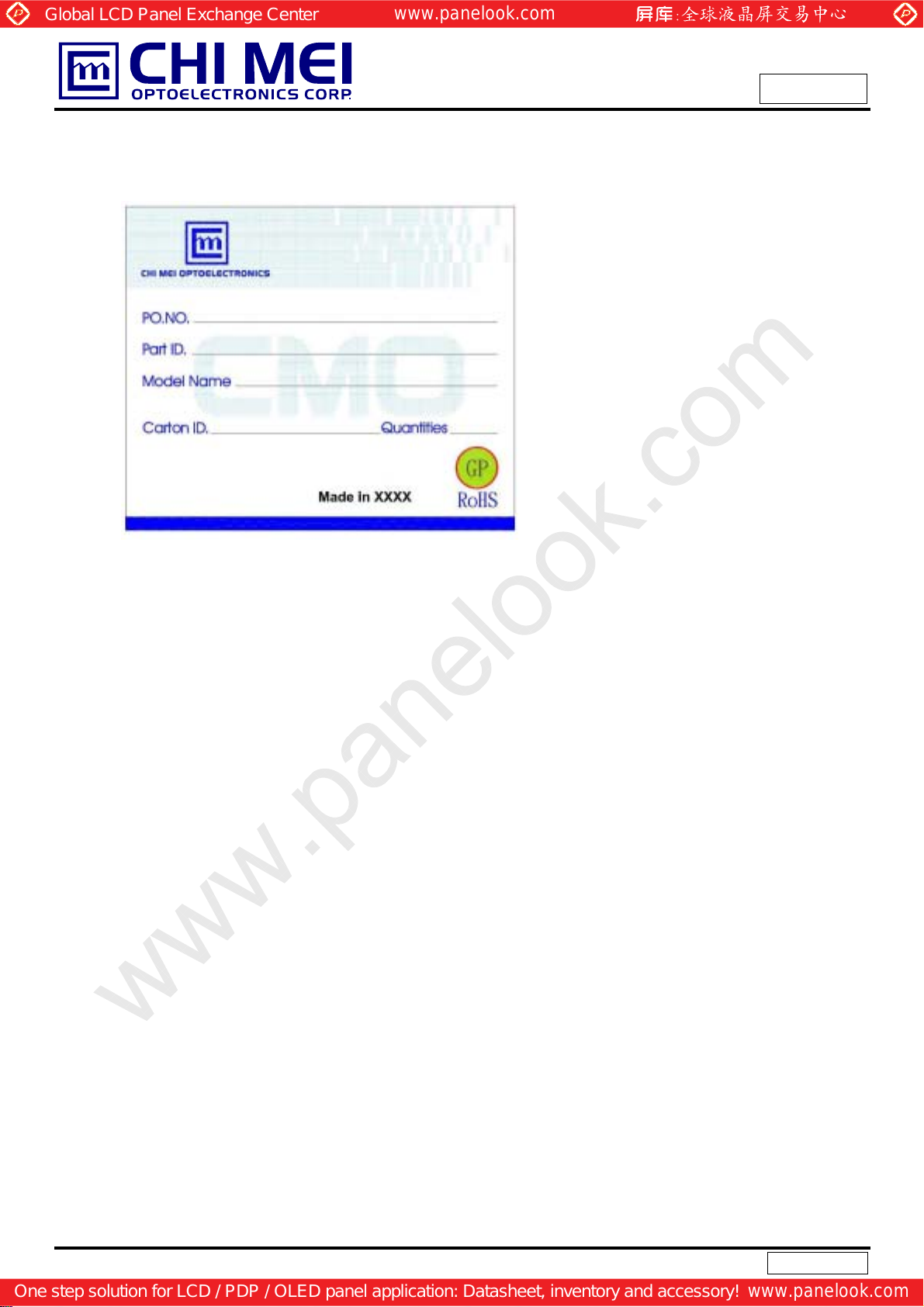

10.2 CMO CARTON LABEL
Doc No.:
Issued Date: Mar. 27, 2008
Model No.: N133IB - L01
Tentative
(a) Production location: Made in XXXX. XXXX stands for production location.
25 / 26
Version 0.0
Page 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
