CMO N133I6-P0A Specification

Global LCD Panel Exchange Center

TFT LCD Preliminary Specification

MODEL NO.: N133I6 - P0A

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Customer:

Approved by:

1 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO OPEN CELL)

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD OPEN CELL

4. BLOCK DIAGRAM

4.1 TFT LCD OPEN CELL

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD OPEN CELL

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 POWER ON/OFF SEQUENCE

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS
8

.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

8.3 FLICKER ADJUSTMENT

9. PACKAGING

9.1 PACKING SPECIFICATIONS

9.2 PACKING METHOD

10. DEFINITION OF LABELS ----

10.1 CMO OPEN CELL LABEL

10.2 CMO CARTON LABEL

11. PRECAUTIONS ----

11.1 ASSEMBLY AND HANDLING PRECAUTIONS

11.2 SAFETY PRECAUTIONS

-------------------------------------------------------

-------------------------------------------------------

-------------------------------------------------------

-------------------------------------------------------

-------------------------------------------------------

-------------------------------------------------------

------------------------------------------------------

------------------------------------------------------

------------------------------------------------------

-----------------------------------------------------27

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

4

5

6

8

11

18

20

23

-------------------------------------------------29

-------------------------------------------------30

12

12. MECHANICAL DRAWING

---------------------------------------------------------31

2 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Version Date

1.0

Dec, 04,’09 All

Page

(New)

REVISION HISTORY

Section Description

All Preliminary specification was first issued.

3 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N133I6 - P0A is a 13.3” TFT Liquid Crystal Display open cell with a 40 pins LVDS interface. This open cell

supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum viewing angle is at 6

o’clock direction. The converter open cell for Backlight is built in.

1.2 FEATURES

- Thin and Light Weight

- WXGA (1280 x 800 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 286.08 (H) x 178.8 (V) mm
Top Polarizer Area 289.48 (H) x 182.2 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Anti Glare - -

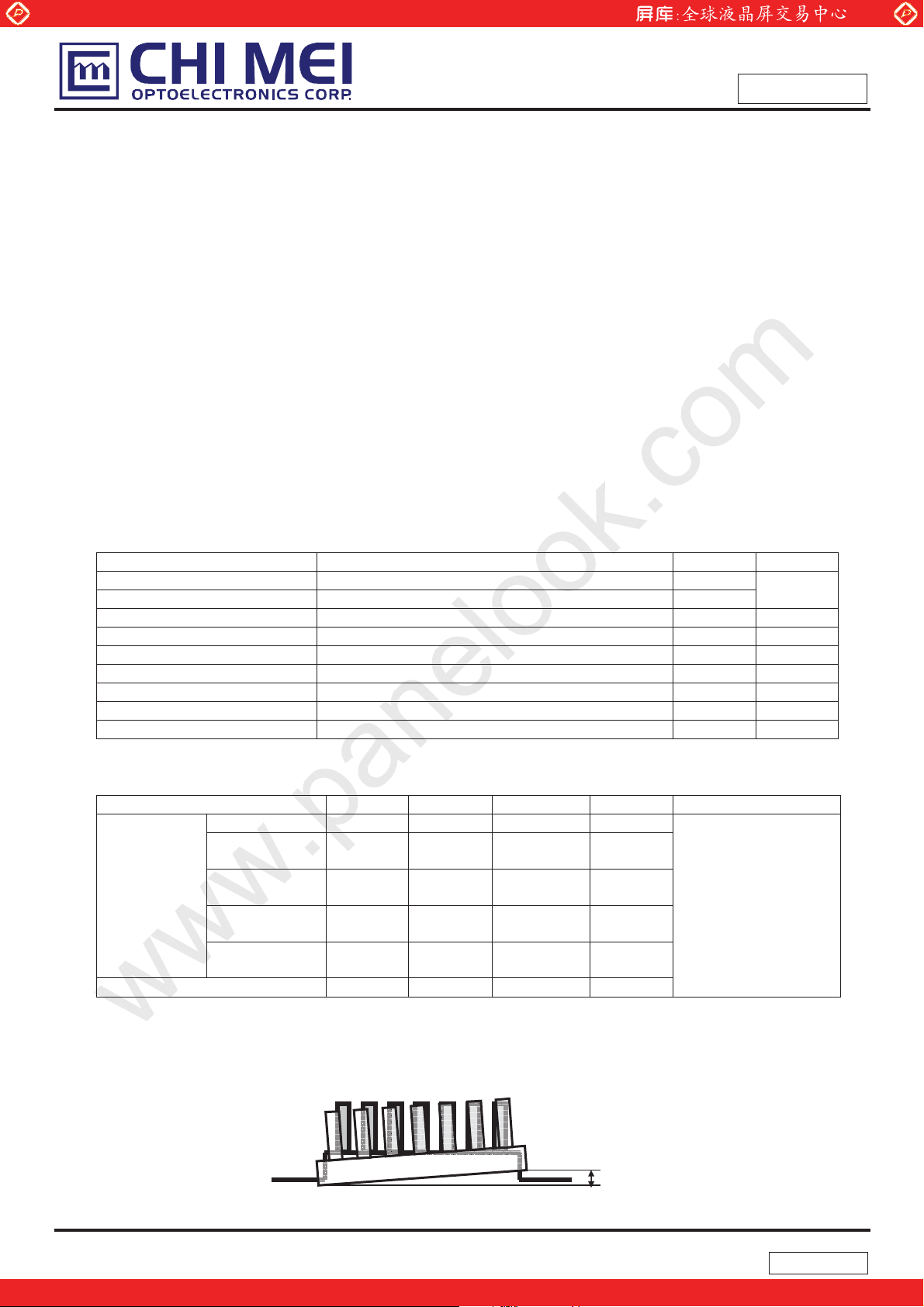

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 294.24 294.44 294.64 mm

Module Size

Vertical (V)
With PCB
Vertical (V)
W/o PCB
Thickness (T)
With PCB
Thickness (T)

W/o PCB

Weight - -

200.9 201.9 202.9 mm

188.3 188.5 188.7 mm

3.45 3.6 3.75 mm

0.77 0.87 0.97 mm

175 mm

(1)

(1) (2)

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Note (2) Connector mounting position

+/- 0.5mm

4 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

5 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

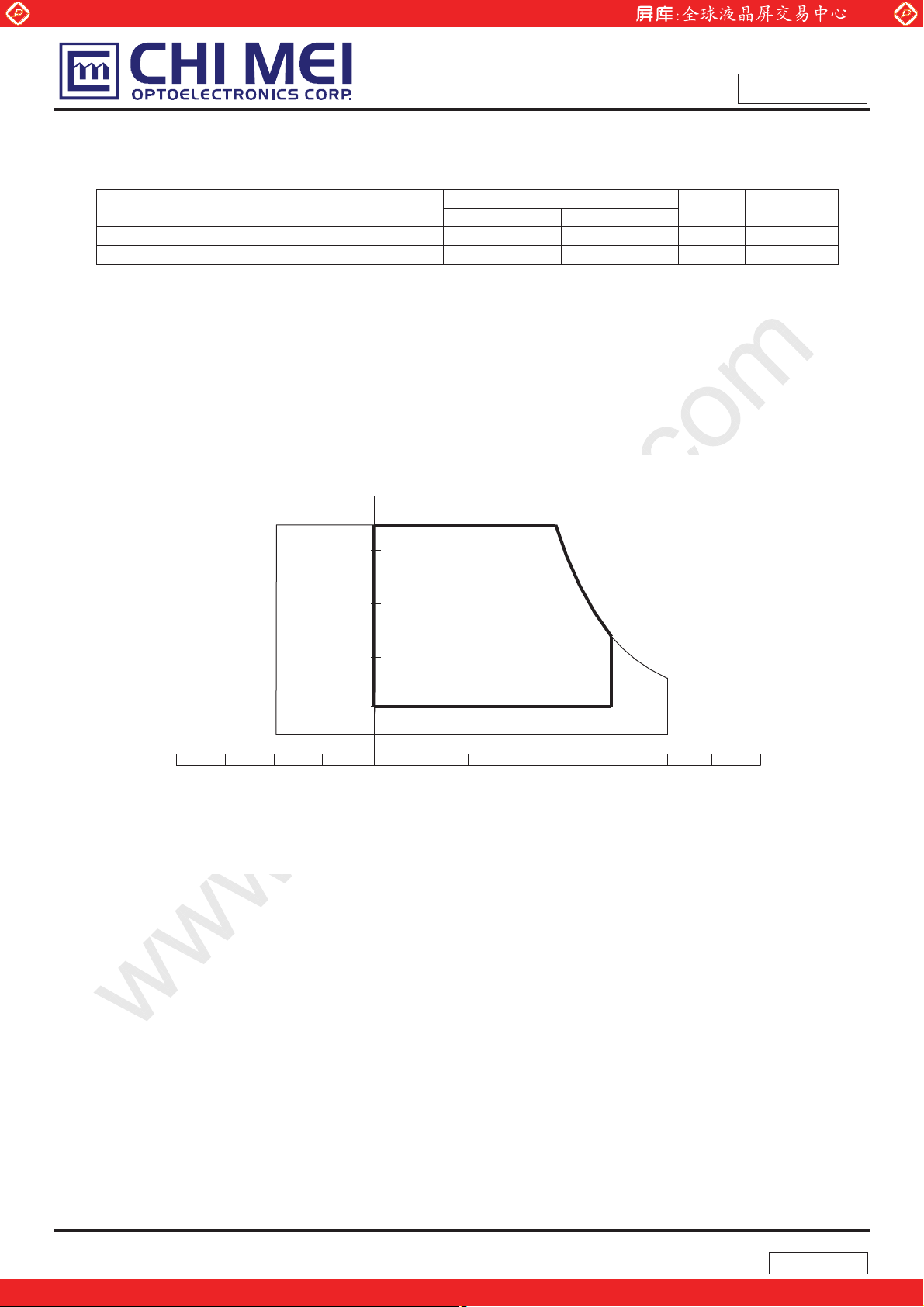

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)

Note (1) Temperature and relative humidity range is shown in the figure below.

www.panelook.com

Value

Min. Max.

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Unit Note

(a) 90 %RH Max. (Ta

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.

Љ

40 ºC).

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20
10

Storage Range

80 60 -20 40 0 20 -40

Temperature (ºC)

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

High temperature or humidity may reduce the performance of panel. Please store LCD panel within

the specified storage conditions.

Storage Condition: With packing.

Storage temperature range: 25±5 ºC.

Storage humidity range: 50±10%RH.

Shelf life: 30days

6 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

Version 1.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

www.panelook.com

Value

Min. Max.

Unit Note

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

(1)

7 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

3. ELECTRICAL CHARACTERISTICS

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

3.1 TFT LCD OPEN CELL

Parameter Symbol

Value

Min. Typ. Max.

Unit Note

Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP - 50 - mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White - 200 230 mA (3)a
Black

Icc

- - +100 mV

TH(LVDS)

-100 - - mV

TL(LVD S)

- 270 300 mA (3)b

V

CM

V

CM

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm
Power per EBL WG P

- 1.4 - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Note (2) I

I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

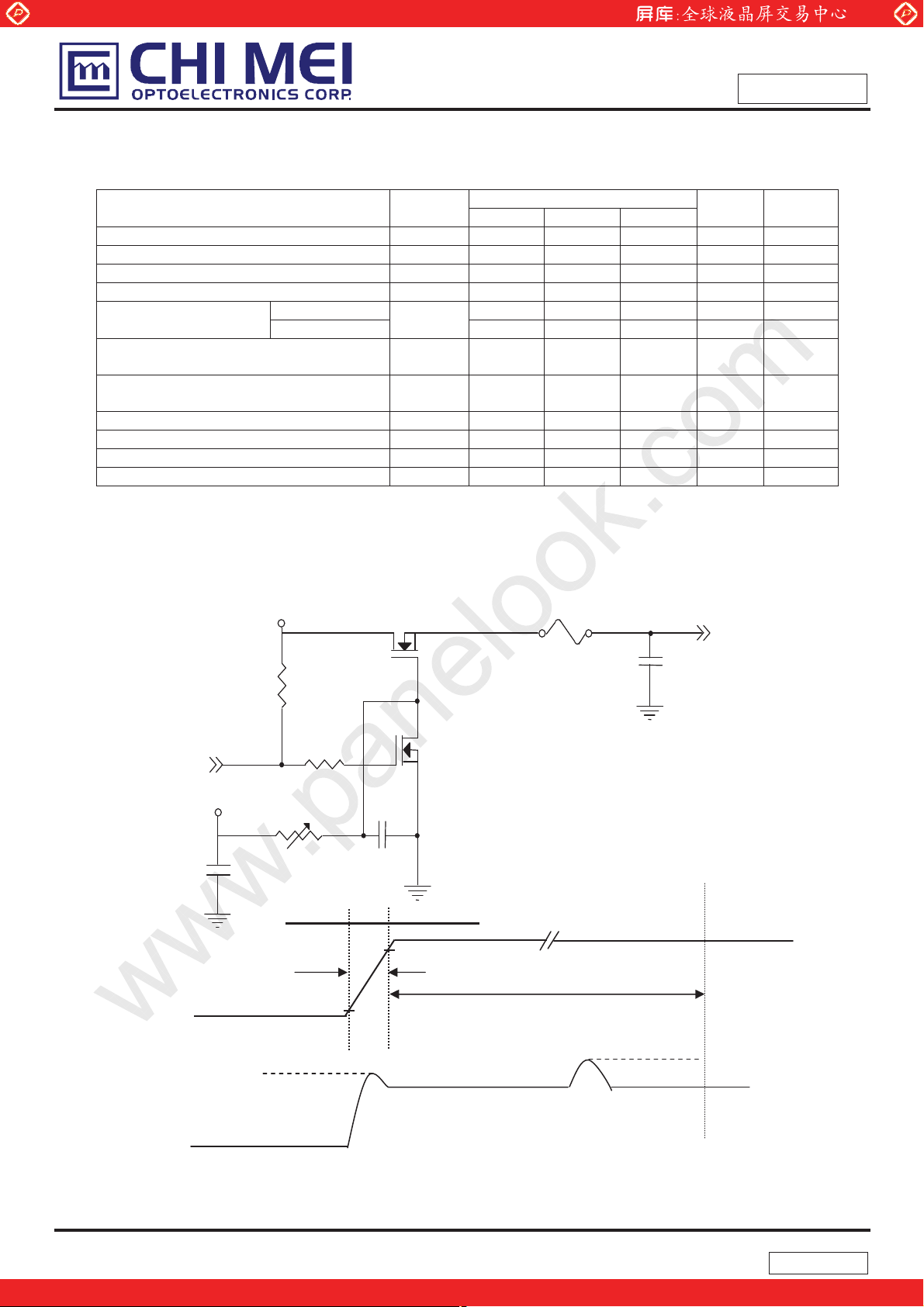

Measurement Conditions: Shown as the following figure. Test pattern: black.

+3.3V

R1

VR1

47K

R2

1K

47K

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

Q1 2SK1475

C2

0.01uF

Vcc

(LCD Module Input)

Q2

2SK1470

C3

1uF

FUSE

0V

Vcc rising time is 470us

0.9Vcc

470us

0.1Vcc

+3.3V

100ms

VCC

I

I

RUSH

IS

ICC

(5),

=1.2V

(5)

=1.2V

8 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

)

)

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

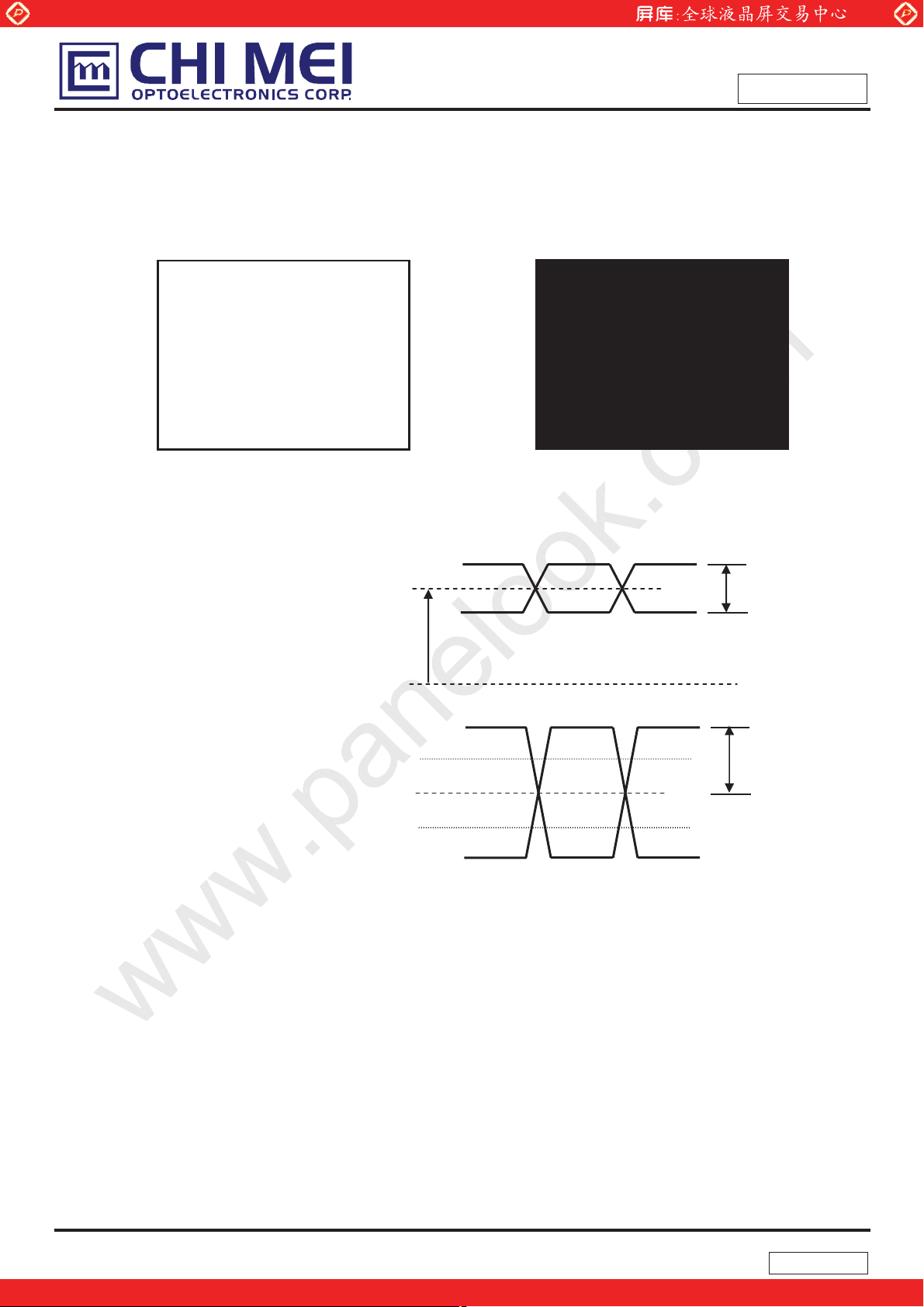

a. White Pattern

b. Black Pattern

Active Area

Note (4) The parameters of LVDS signals are defined as the following figures.

V

CM

Single Ended

0V

Active Area

V

ID

Differential

V

TH(LVDS

0V

V

TL(LVDS

|VID|

Note (5) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

(a) VCCS = 3.3 V, Ta = 25 ± 2 ºC, f

= 60 Hz,

v

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file “Flat

Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

9 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD OPEN CELL

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

LVDS Display

Data & Clock

Vcc

GND

Data

CLK

V

Converter

Input Signals

EDID

EDID

EDID

LVDS INPUT /

TIMING CONTROLLER

INPUT CONNECTOR

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

LED CONVERTER

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

10 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD OPEN CELL

Pin Symbol Description Polarity Remark
1 VSS Ground
2 NC no connect
3 VDD Logic power 3.3V
4 VDD Logic power 3.3V
5 VDD Logic power 3.3V
6 VEDID EDID 3.3V power DDC 3.3V Power
7 NC no connect
8 CLK EDID clock DDC Clock
9 DATA EDID data DDC Data

10 VSS Ground
11 VSS Ground

12

NC no connect

13

RIN0-

14

RIN0+

15 VSS0 Ground-LVDS0

16

RIN1-

17

RIN1+

18 VSS1 Ground-LVDS1

19

RIN2-

20

RIN2+
21 VSS2 Ground-LVDS2
22 CLK- - LVDS differential clock input
23 CLK+ + LVDS differential clock input
24 VSS3 Ground-LVDS3

INV_PWM /
25

R_PWM PWM brightness control
26 LED_Enable Enable LED
27 VSS LED Ground
28 VSS LED Ground
29 VSS LED Ground
30 VSS LED Ground

31 NC no connect
32 VBL+ 7V - 20V LED power
33 VBL+ 7V - 20V LED power
34 VBL+ 7V - 20V LED power
35 VBL+ 7V - 20V LED power
36 VBL+ 7V - 20V LED power
37 NC no connect
38 NC no connect
39 NC no connect
40 VSS Ground

Note (1) Connector Part No.: 20347- 140E-02(I-PEX) or equivalent

- LVDS differential data input (R0-R5,
G0)
+ LVDS differential data input
(R0-R5, G0)

- LVDS differential data input (G1-G5,
B0-B1)
+ LVDS differential data input
(G1-G5, B0-B1)

- LVDS differential data input
(B2-B5,HS,VS, DE)
+ LVDS differential data input
(B2-B5,HS,VS, DE)

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Negative

Positive

Negative

Positive

Negative

B2~B5, DE, Hsync, Vsync

Positive

R0~R5,G0

G1~G5, B0, B1

LVDS Level Clock

Note (2) User’s connector Part No: 20345-040T-02 (I-PEX) or equivalent

11 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

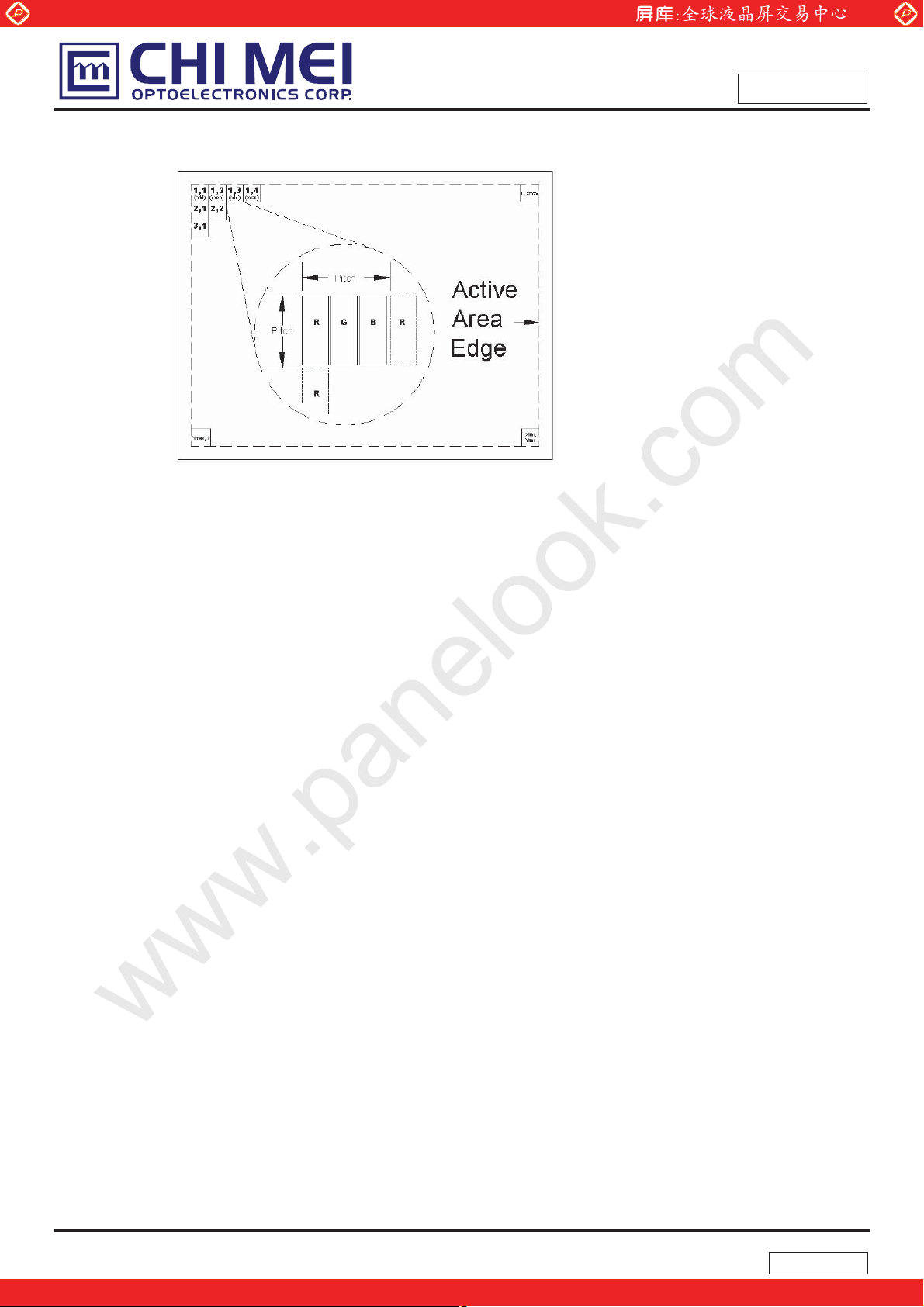

Note (3) The first pixel is odd as shown in the following figure.

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

12 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.2 LED CONVERTER OUTPUT PIN ASSIGNMENT

Pin Symbol Description

1 CH1

LED converter feedback channel 1
2 NC No connection
3 CH2 LED converter feedback channel 2
4 NC No connection
5 NC No connection
6 NC No connection
7 VL LED converter output voltage

8 VL LED converter output voltage

Note (1) Connector Part No.: ???? or equivalent

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

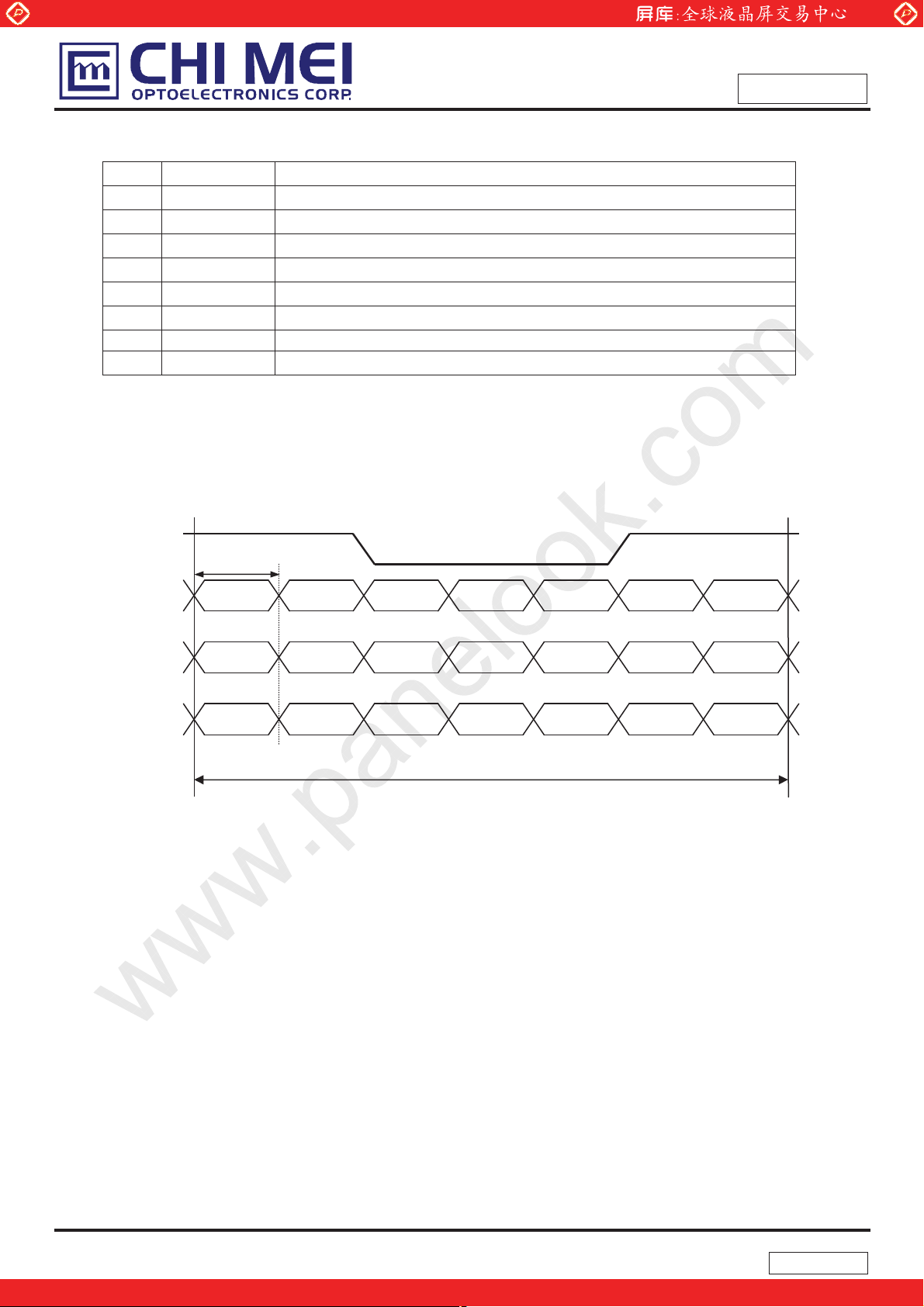

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

Rxin2

Rxin1

Rxin0

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0

Signal for 1 DCLK Cycle (T)

R3 R2 R1 R0 R5 R4

13 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0
1
0
0
0
1
1
1
0
0
0

1
1
1
0
0
0

0
0
0
0
0
0

0
0
0

0
1
0
0
0
1
1
1
0
0
0

:

:

:

:
1
1
1
0
0
0

:

:

:

:
0
0
0
0
0
0

:

:

:

:
0
0
0

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0
0
0

0
0
0
0
0
0

0
0
0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

1

0
0
0

1
1
1

0

0

0

0

0

0

:

:
:

1

1

1

:

:

:
1
1
1

0
0
0

0
0
0
0
0
1

0
1
1

0
0
0

:

:

:

:
0
0
0
0
1
0

:

:

:

:
1
0
1

14 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA Plug &

Display and FPDI standards.

Byte #
(decimal)

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

38

39

Byte #
(hex)

Field Name and Comments

0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N133I6-L0A) 13
0B ID product code (hex LSB first; N133I6-L0A) 13

0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)

0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”)
10 Week of manufacture (fixed week code)

11 Year of manufacture (fixed year code)
12 EDID structure version # (“1”)
13 EDID revision # (“3”)
14 Video I/P definition (“digital”)
15 Active area horizontal 28.608cm 1D
16 Active area vertical 17.88cm 13
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)
19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)
1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)
1B Red-x (Rx = “0.622”)

1C Red-y (Ry = “0.346”) 58
1D Green-x (Gx = ”0.333”)

1E Green-y (Gy = ”0.528”)
1F Blue-x (Bx = ”0.164”)
20 Blue-y (By = ”0.162”)
21 White-x (Wx = ”0.313”)
22 White-y (Wy = ”0.329”)
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings

26 Standard timing ID # 1
27 Standard timing ID # 1

Value
(hex)

Value

(binary)
00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111

FF 11111111
00 00000000
0D 00001101
AF 10101111

00010011

00010011
00 00000000
00 00000000
00 00000000
00 00000000
23 00100011
12 00010010
01 00000001
03 00000011
80 10000000

00011101

00010011
78 01111000
0A 00001010
5C 01011100
80 10000000
98 10011000

01011000
51 01010001
8E 10001110
27 00100111
25 00100101
50 01010000
54 01010100
00 00000000
00 00000000
00 00000000

01 00000001

01 00000001

15 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

40
41
42
43
44
45
46
47
48
49
50
51
52
53

54

55
56
57
58
59
60
61
62
63
64

65

66
67
68
69
70

71

72
73
74

75

76
77
78
79
80
81

82 52 # 2 6th character of name (“6”) 36
83
84

28 Standard timing ID # 2
29 Standard timing ID # 2
2A Standard timing ID # 3

2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4

2E Standard timing ID # 5

2F Standard timing ID # 5

30 Standard timing ID # 6

31 Standard timing ID # 6

32 Standard timing ID # 7

33 Standard timing ID # 7

34 Standard timing ID # 8

35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“71MHz”, According

36

to VESA CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1280”)
39 # 1 H blank (“160”)
3A # 1 H active : H blank (“1280 : 160”)
3B # 1 V active (”800”)

3C # 1 V blank (”23”)
3D # 1 V active : V blank (”800 :23”)

3E # 1 H sync offset (”48”)
3F # 1 H sync pulse width ("32”)
40 # 1 V sync offset : V sync pulse width (”3 : 6”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync
41

width (”48: 32 : 3 : 6”)
42 # 1 H image size (”286 mm”) 1E
43 # 1 V image size (”179 mm”) B3
44 # 1 H image size : V image size (”286 : 179”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
47

Negatives
48 Detailed timing description # 2
49 # 2 Flag
4A # 2 Reserved

# 2 FE (hex) defines ASCII string (Model Name “N133I6-L0A”,
4B

ASCII)

4C # 2 Flag
4D # 2 1st character of name (“N”) 4E

4E # 2 2nd character of name (“1”) 31
4F # 2 3rd character of name (“3”) 33
50 # 2 4th character of name (“3”) 33
51 # 2 5th character of name (“I”) 49

53 # 2 7th character of name (“-”) 2D
54 # 2 8th character of name (“L”) 4C

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

BC 10111100

1B 00011011
00 00000000
A0 10100000
50 01010000
20 00100000
17 00010111
30 00110000
30 00110000
20 00100000
36 00110110

00 00000000

10 00010000
00 00000000
00 00000000

19 00011001

00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

00011110
10110011

01001110
00110001
00110011
00110011

01001001

00110110
00101101
01001100

16 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

111

112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

55 # 2 9th character of name (“0”)
56 # 2 9th character of name (“A”)
57 # 2 New line character indicates end of ASCII string
58 # 2 Padding with “Blank” character
59 # 2 Padding with “Blank” character
5A Detailed timing description # 3

5B # 3 Flag
5C # 3 Reserved
5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)

5E # 3 Flag

5F # 3 1st character of string (“C”)

60 # 3 2nd character of string (“M”)

61 # 3 3rd character of string (“O”)

62 # 3 New line character indicates end of ASCII string

63 # 3 Padding with “Blank” character

64 # 3 Padding with “Blank” character

65 # 3 Padding with “Blank” character

66 # 3 Padding with “Blank” character

67 # 3 Padding with “Blank” character

68 # 3 Padding with “Blank” character

69 # 3 Padding with “Blank” character

6A # 3 Padding with “Blank” character

6B # 3 Padding with “Blank” character
6C Detailed timing description # 4
6D # 4 Flag

6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N133I6-L0A”,

6F

ASCII)
70 # 4 Flag
71 # 4 1st character of name (“N”) 4E
72 # 4 2nd character of name (“1”) 31
73 # 4 3rd character of name (“3”) 33
74 # 4 4th character of name (“3”) 33
75 # 4 5th character of name (“I”) 49
76 # 4 6th character of name (“6”) 36
77 # 4 7th character of name (“-”) 2D
78 # 4 8th character of name (“L”) 4C
79 # 4 9th character of name (“0”)
7A # 4 9th character of name (“A”)
7B # 4 New line character indicates end of ASCII string

7C # 4 Padding with “Blank” character
7D # 4 Padding with “Blank” character

7E Extension flag
7F Checksum

30 00110000
41 01000001
0A 00001010
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000
43 01000011

4D 01001101

4F 01001111
0A 00001010
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

01001110

00110001

00110011
00110011

01001001

00110110
00101101
01001100

30 00110000
41 01000001
0A 00001010
20 00100000
20 00100000
00 00000000

2D 00101101

17 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

6 CONVERTER SPECIFICATION

www.panelook.com

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

Vin 40.0V

Gnd +/-0.3V

PWM, EN -0.3V~6.0V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage Vin 7.0 12.0 21.0 V

EN Control Level

PWM Control Level

PWM Control Duty Ratio 20 100 %
PWM Control Frequency f

Converter Input Current

Note (1) The specified LED power supply current is under the conditions at Vin = 7 V, Ta = 25 ± 2 ºC, f

200 Hz, Duty=100%.

Backlight on 2.0 --- 5.5 V
Backlight off
PWM High Level 2.0 --- 5.5 V
PWM Low Level

Vin=7 V 600 650 mA (1)
Vin=21V

PW M

IBL

Min. Typ. Max.

0 --- 0.8 V

0 --- 0.8 V

180 200 220 Hz

200 220 mA (2)

Value

Doc No.:

Preliminary

Unit Note

=

PW M

Note (2) The specified LED power supply current is under the conditions at Vin = 21V, Ta = 25 ± 2 ºC, f

= 200 Hz, Duty=100%.

PW M

18 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The specifications of input signal timing are as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 50 71 80 MHz -

Vertical Total Time TV 803 823 1028 TH -

Vertical Addressing Time TVD 800 800 800 TH -

DE

Note (1) Because this open cell is operated by DE only mode, Hsync and Vsync are ignored.

Vertical Active Blanking Period TVB TV-TVD 23 TV-TVD TH

Horizontal Total Time TH 1362 1440 1800 Tc -

Horizontal Addressing Time THD 1280 1280 1280 Tc -

Horizontal Active Blanking Period THB

www.panelook.com

TH-THD

160

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

TH-THD

Tc

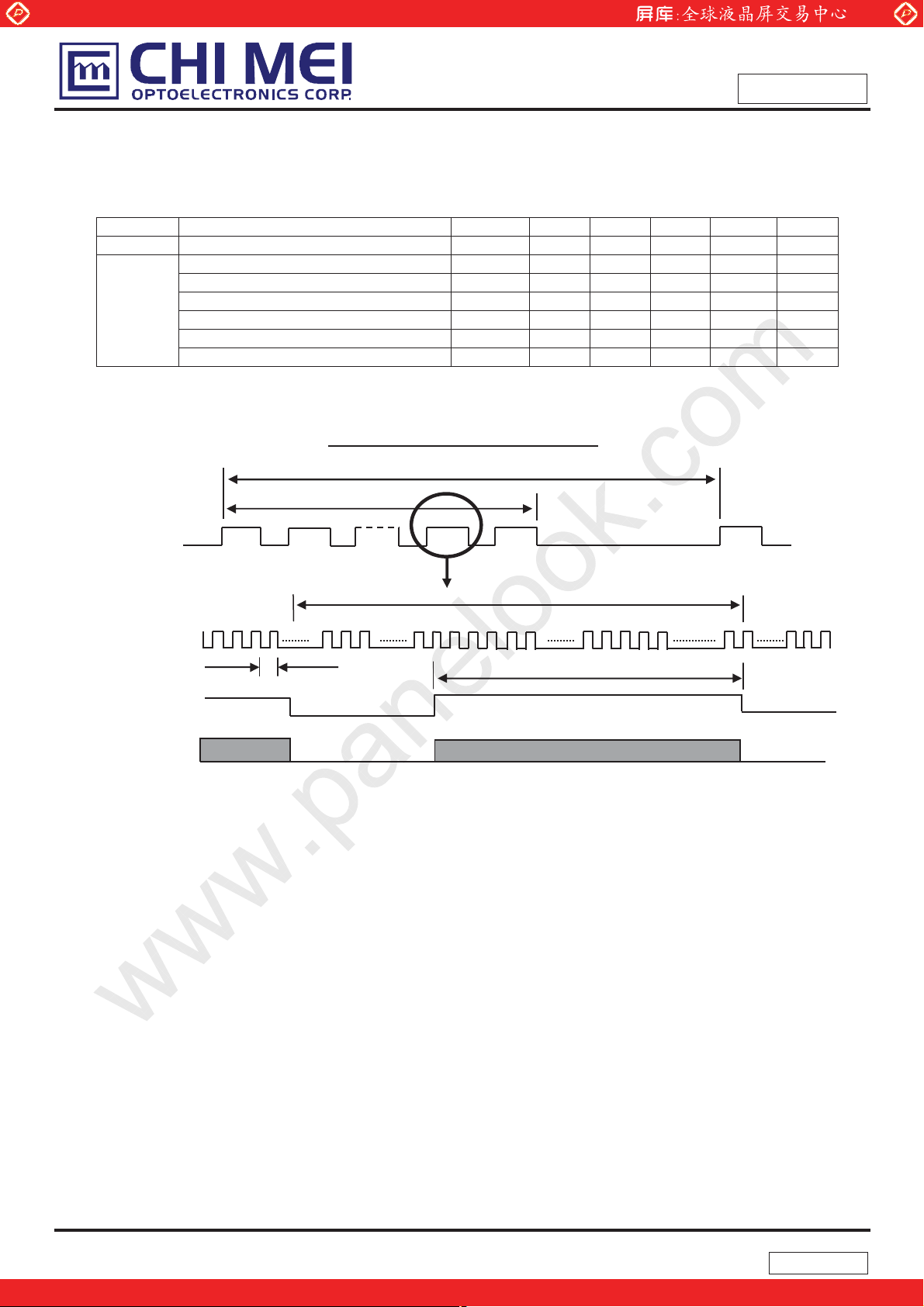

INPUT SIGNAL TIMING DIAGRAM

DE

DCLK

TC

DE

DATA

T

HD

19 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

pply

p

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Restart Power On Power Off

- Power Su
for LCD, Vcc

- LVDS Interface

- Power for Lam

Timing Specifications:

Љ

0.5

t1 Љ 10 ms

Љ

t2 Љ 50 ms

0

Љ

t3 Љ 50 ms

0

t4

t5

Њ

500 ms

Њ

200 ms

0V

0V

10%

90%

t1

90%

Valid Data

t6 t5

ON OFF OFF

t7

10%

t4

t3 t2

50% 50%

10%

Њ

200 ms

t6

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD open cell might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

Љt7Љ

avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5

300 ms.

20 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

8 OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.4 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"

8.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown as below. The following items

should be measured under the test conditions described in 7.1 and stable environment shown in Note (6).

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Color
Chromaticity

Center Transmittance T%
Contrast Ratio CR

Response Time

Transmittance uniformity

Viewing Angle

Green

Blue

White

Horizontal

Vertical

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

o

25±2

50±10

Rcx 0.601
Rcy

0.329

Gcx 0.286

=0°, θY =0°

θ

Gcy

Bcx 0.141

Standard light source “C”

x

CS-1000T

Typ -

0.05

Bcy

0.547

0.176

Typ +

0.05

Wcx 0.303
Wcy

=0°, θY =0°

θ

x

CS-1000T, CMO BLU
TR - 5 10
T

F

δT%

θ

=0°, θY =0°

x

=0°, θY =0°

θ

x

BM-5A

5.6 7 -

200 300

θx+

θ

-

x

θY+

θ

Y

-

CR≥10

BM-5A

0.350

-

- 11 16

80 90 -

40 45 ­40
15
40

45 ­20 ­45 -

C

%RH

-

-

-

­(0),(6)

-

-

-

-

(1), (8)

- (1), (3)

ms
ms

(4)

- (1), (7)

Deg.

(1), (3)

(6)

Note (0) Light source is the standard light source “C” which is defined by CIE and driving voltages are

based on suitable gamma voltages. The calculating method is as following

Κ

1. Measure Module’s and BLU’s spectrums. White is without signal input and R, G, B are with signal

input. BLU is supplied by CMO.

2. Calculate cell’s spectrum.

3. Calculate cell’s chromaticity by using the spectrum of standard light source “C”

Note (1) Light source is the BLU which is supplied by CMO and driving voltages are based on suitable

gamma voltages. White is without signal input and R, G, B are with signal input. SPEC is judged

by CMO’s golden sample.

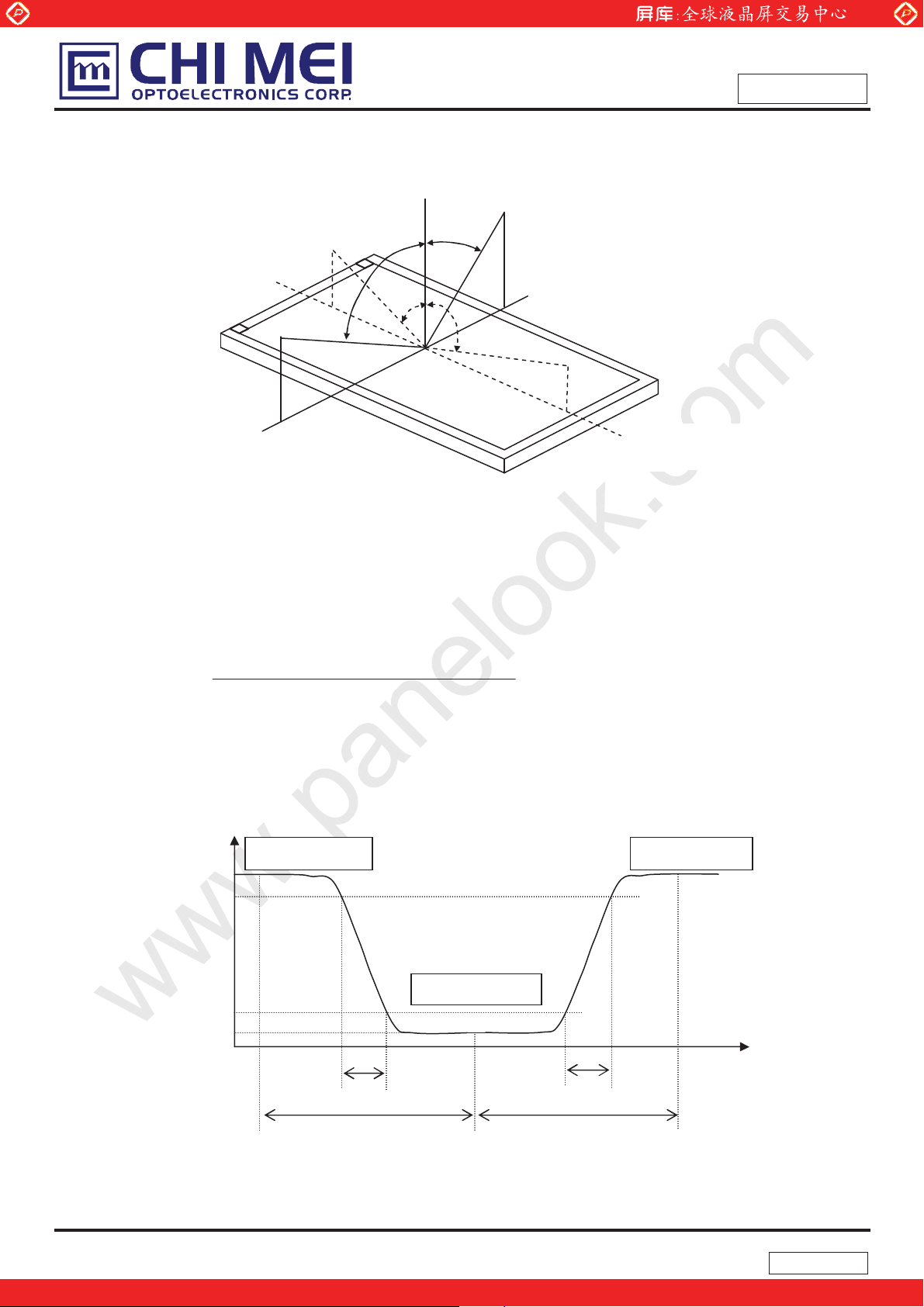

Note (2) Definition of Viewing Angle (θx, θy):

21 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

T

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

θX- = 90º

x-

6 o’clock

y-

= 90º

θ

y-

Note (3) Definition of Contrast Ratio (CR):

= [CR(1)+ CR(2)+ CR(3)+ CR(4)+ CR(5)] / 5

CR

AVE

=Max value of CR at whole Viewing Angle

CR

max

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Normal

θx = θy = 0º

θy- θy+

θx−

θx+

12 o’clock direction

y+

y+

θ

= 90º

x+

θX+ = 90º

Luminance with all pixel white (Gmax)

CR =

Luminance with all pixel black (Gmin)

Gmax: Luminance of gray max at the center point of panel.

Gmin: Luminance of gray min at the center point of panel.

Note (4) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

Gray Level 255

T

, TF):

R

R

Gray Level 255

ime

T

F

m

m

22 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

Note (5) Definition of Luminance of White (LC):

Measure the luminance of gray level 255 at center point

= L (5)

L

C

L (x) is corresponding to the luminance of the point X at Figure in Note (7).

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

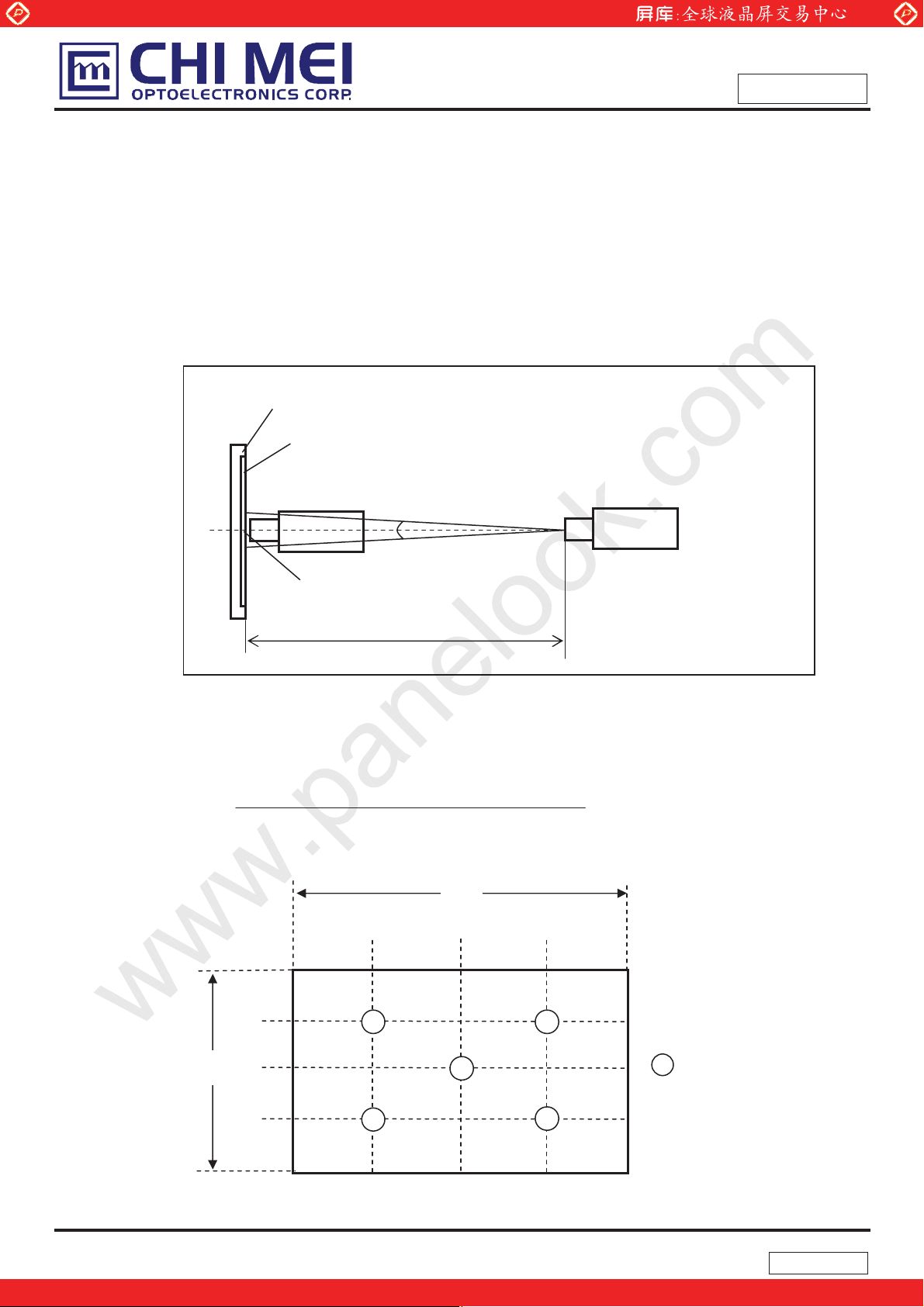

Note (7) Definition of Transmittance Variation (δT%):

Measure the transmittance at 5 points



T% =

LCD Module

LCD Panel

USB2000

Center of the Screen

Minimum [T%(1), T%(2), … T%(5)]

Maximum [T%(1), T%(2), … T%(5)]

D/4 D/2 3D/4

CS-2000T

Field of View = 2º

Light Shield Room

(Ambient Luminance < 2 lux)

Horizontal Line

D

Vertical Line

W

W/4

W/2

3W /4

1 2

: Test Point

X

X=1 to 5

3

5

4

Active Area

23 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

Note (8) Definition of Transmittance (T%):

Module is without signal input.

BLU is supplied by CMO.

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

Transmittance =

Luminance of LCD module

Luminance of backlight

Ϡ

100%

9. PRECAUTIONS

9.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the open cell during assembly.

(2) To assemble or install open cell into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the open cell because the LCD panel and Backlight

will be damaged.

(4) Always follow the correct power sequence when LCD open cell is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the open cell is operating.

(6) Do not disassemble the open cell.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD open cell, because moisture may

damage LCD open cell when it is operating.

(9) High temperature or humidity may reduce the performance of open cell. Please store LCD open cell

within the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

9.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the open cell or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the open cell’s end of life, it is not harmful in case of normal operation and storage.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the open cell is operating.

24 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

(2)

Always follow the correct power on/off sequence when LCD open cell is connecting and operating. This

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

can prevent the CMOS LSI chips from damage during latch-up.

10. PACKAGING

10.1 PACKING SPECIFICATIONS

(1) 56 open cells / 1 Box

(2) Box dimensions: 650mm(L) X 495mm(W) X 320mm(H)

(3) Weight: approximately 12.3Kg (56 open cells per box)

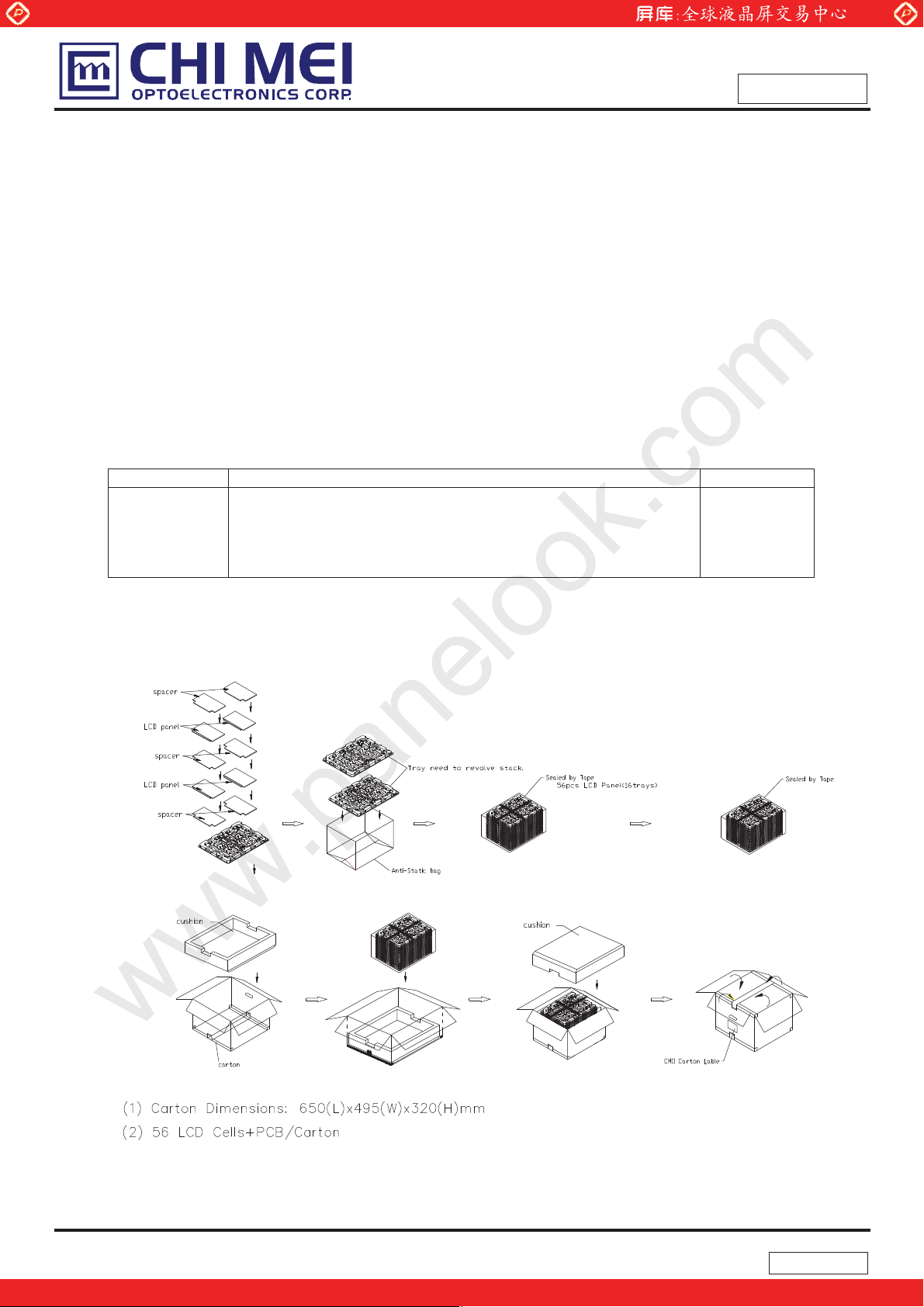

10.2 PACKING METHOD

(1) Carton Packing should have no failure in the following reliability test items

Test Item Test Conditions Note

ISTA STANDARD

Packing
Vibration

(2) Packing method.

Random, Frequency Range: 1 – 200 Hz
Top & Bottom: 30 minutes (+Z), 10 min (-Z),
Right & Left: 10 minutes (X)
Back & Forth 10 minutes (Y)

Non Operation

25 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

10.2 Pallet:

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

ʳ

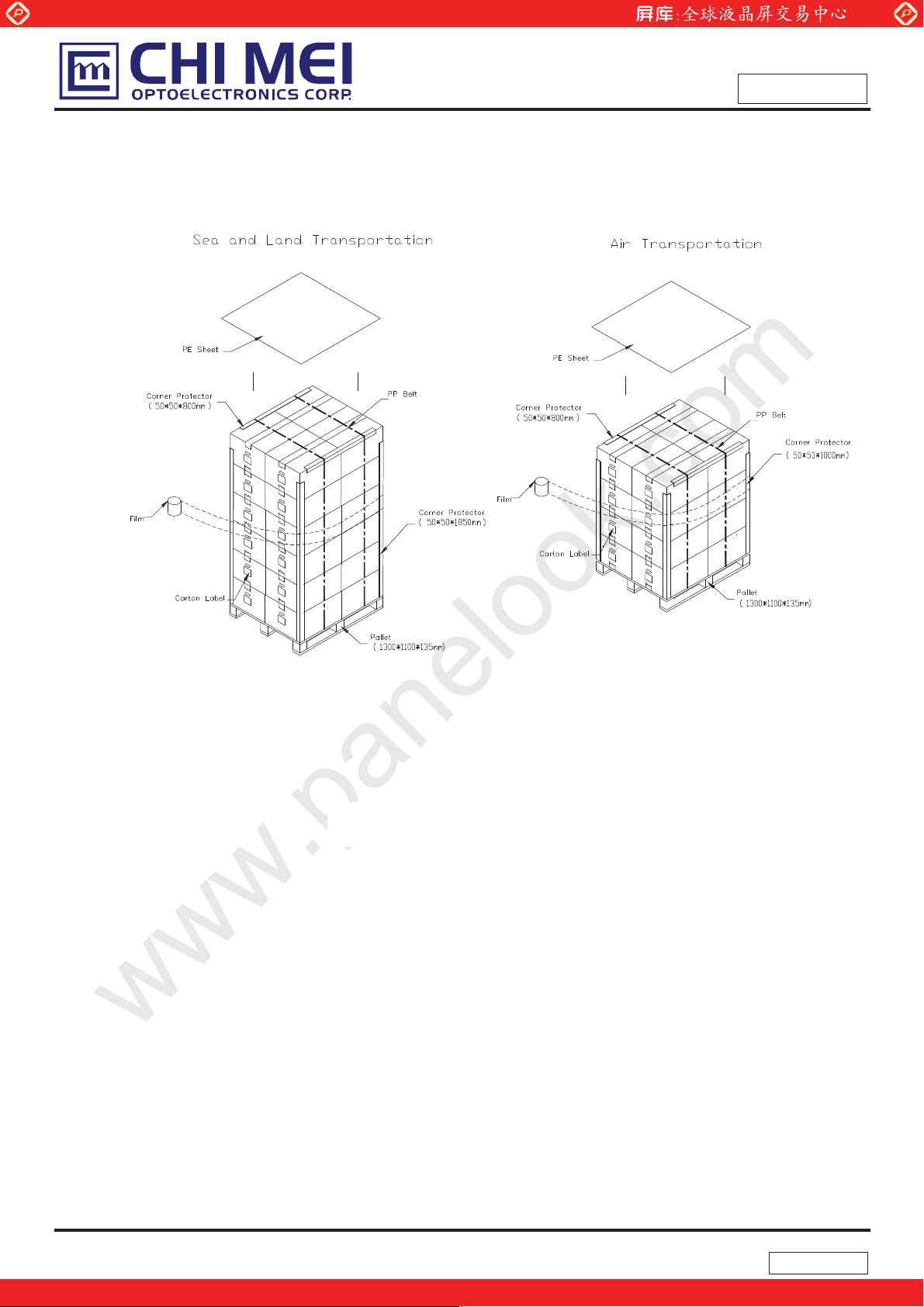

Figure. 10-2 Packing method

26 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com

Global LCD Panel Exchange Center

11. DEFINITION OF LABELS

11.1 CMO OPEN CELL LABEL

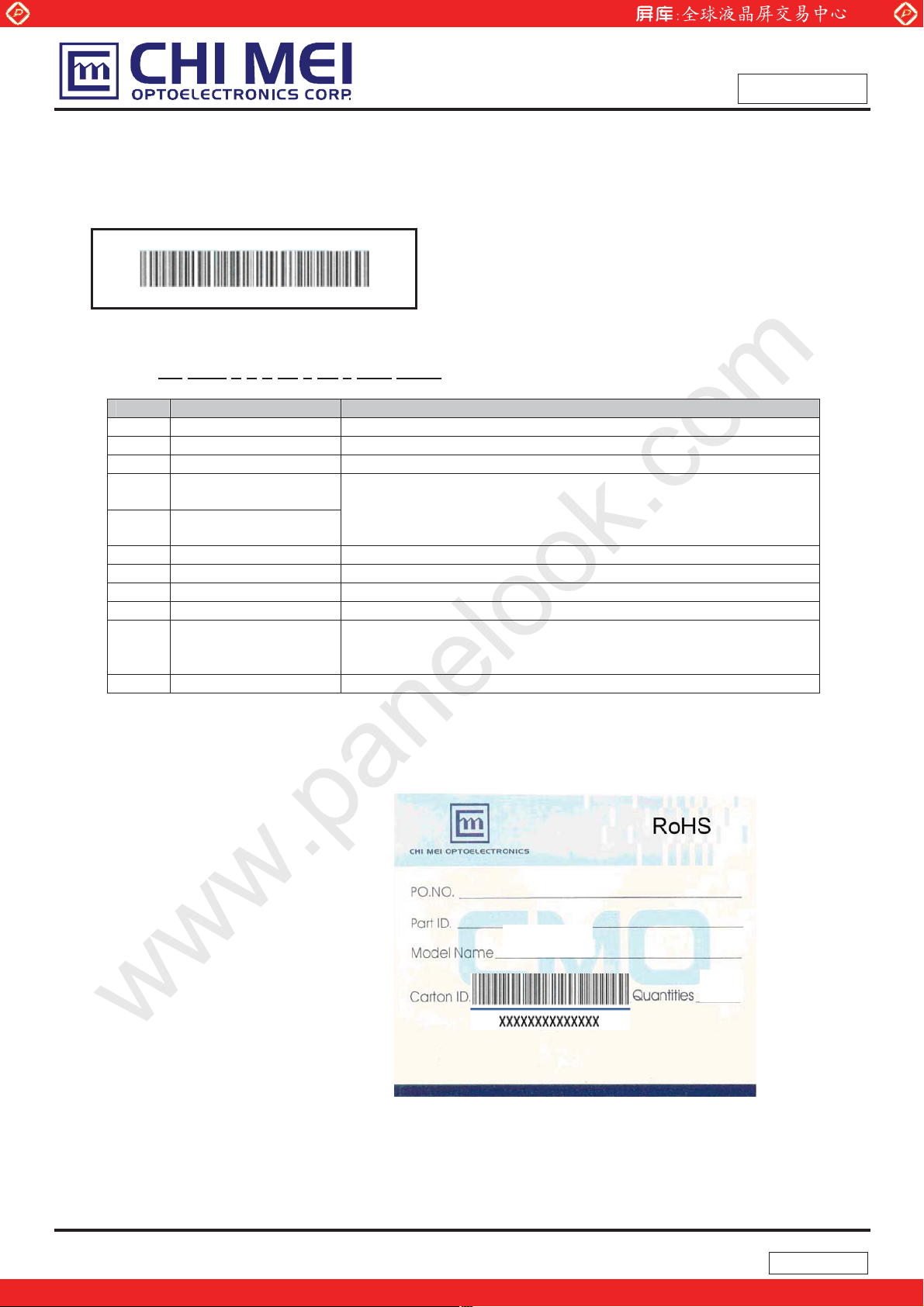

The barcode nameplate is pasted on each OPEN CELL as illustration for CMO internal control.

www.panelook.com

Doc No.:

Issued Date: Dec. 04, 2009

Model No.: N133I6 - P0A

Preliminary

N133I6-P0A RoHS Rev.XX

Barcode definition:

Serial ID: CM

Code Meaning Description

CM Supplier code CMO=CM

13I6A Model number N133I6-P0A=13I6A

X Revision code C1:1 ,C2:2……

X Source driver IC code

X Gate driver IC code

XX Cell location Tainan, Taiwan=TN

L Cell line # 0~12=1~C

XX Module location Tainan, Taiwan=TN

L Module line # 0~12=1~C

YMD

NNNN Serial number Manufacturing sequence of product

CM13I6AXXXXXLXXLYMDNNNN

-13I62-X-X-X-XX-L-XX-L-YMD-NNNN

Year, month, day Year: 2001=1, 2002=2, 2003=3, 2004=4…

ʳ

Century=1, CLL=2, Demos=3, Epson=4, Fujitsu=5, Himax=6,
Hitachi=7, Hynix=8, LDI=9, Matsushita=A, NEC=B, Novatec=C,
OKI=D, Philips=E, Renasas=F, Samsung=G, Sanyo=H, Sharp=I,
TI=J, Topro=K, Toshiba=L, Windbond=M

Month: 1~12=1, 2, 3, ~, 9, A, B, C
Day: 1~31= 1, 2, 3, ~, 9, A, B, C, ~, T, U, V

11.2 CMO CARTON LABEL

The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation

(a) Model Name: N133I6 –P0A

(b) Carton ID: CMO internal control

(c) Quantities: 56

ˡ˄ˆˆ˜ˉˀˣ˃˔ʳ

ˈˉʳ

27 / 30

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.0

www.panelook.com
