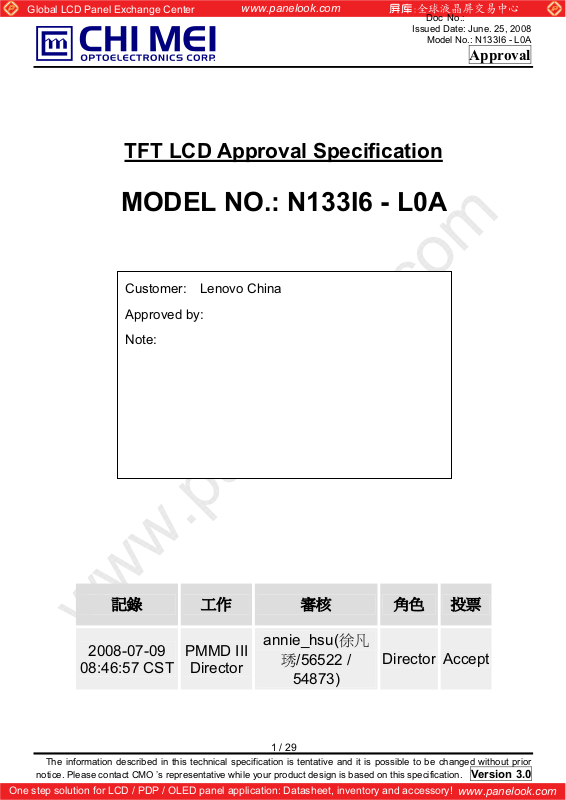

TFT LCD Approval Specification
MODEL NO.: N133I6 - L0A
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Customer: Lenovo China
Approved by:
Note:
annie_hsu(ஊՅ
2008-07-09
08:46:57 CST
PMMD III
Director
≮/56522 /
DirectorAccept
54873)
1 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 4
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 5
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID DATA STRUCTURE
6. CONVERTER SPECIFICATION ------------------------------------------------------- 18
6.1 INPUT CONNECTOR PIN ASSIGNMENT
6.2 INPUT ELECTRICAL CHARACTERISTICS OF CONVERTER
7. INTERFACE TIMING ------------------------------------------------------- 19
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 24
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS
10. PACKING ------------------------------------------------------- 25
10.1 CARTON
10.2 PALLET
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
11. DEFINITION OF LABELS ------------------------------------------------------- 27
11.1 CMO MODULE LABEL
11.2 CMO CARTON LABE
11.3 CUSTOMER CARTON LABEL
11.4 CUSTOMER PALLET LABEL
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
REVISION HISTORY
Version Date
0.0
1.0
2.0
3.0
Nov, 01,’07
May, 10,’08
Jun.25.’08
Jun.25.’08
Page
(New)
All
All
All
All
Section Description
All
Tentative specification was first issued.
All
Preliminary specification was first issued.
All
Approval specification was first issued
All
Approval specification for Lenovo China was first issued
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133I6 - L0A is a 13.3” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS
interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 286.08 (H) x 178.8 (V) mm Top Polarizer Area 289.48 (H) x 182.2 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Anti Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) -- 304.75 -- mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen
Vertical(V) -- 203.15 -- mm Depth(D) 3.55 3.7 3.85 mm
Weight --- -- 245 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)

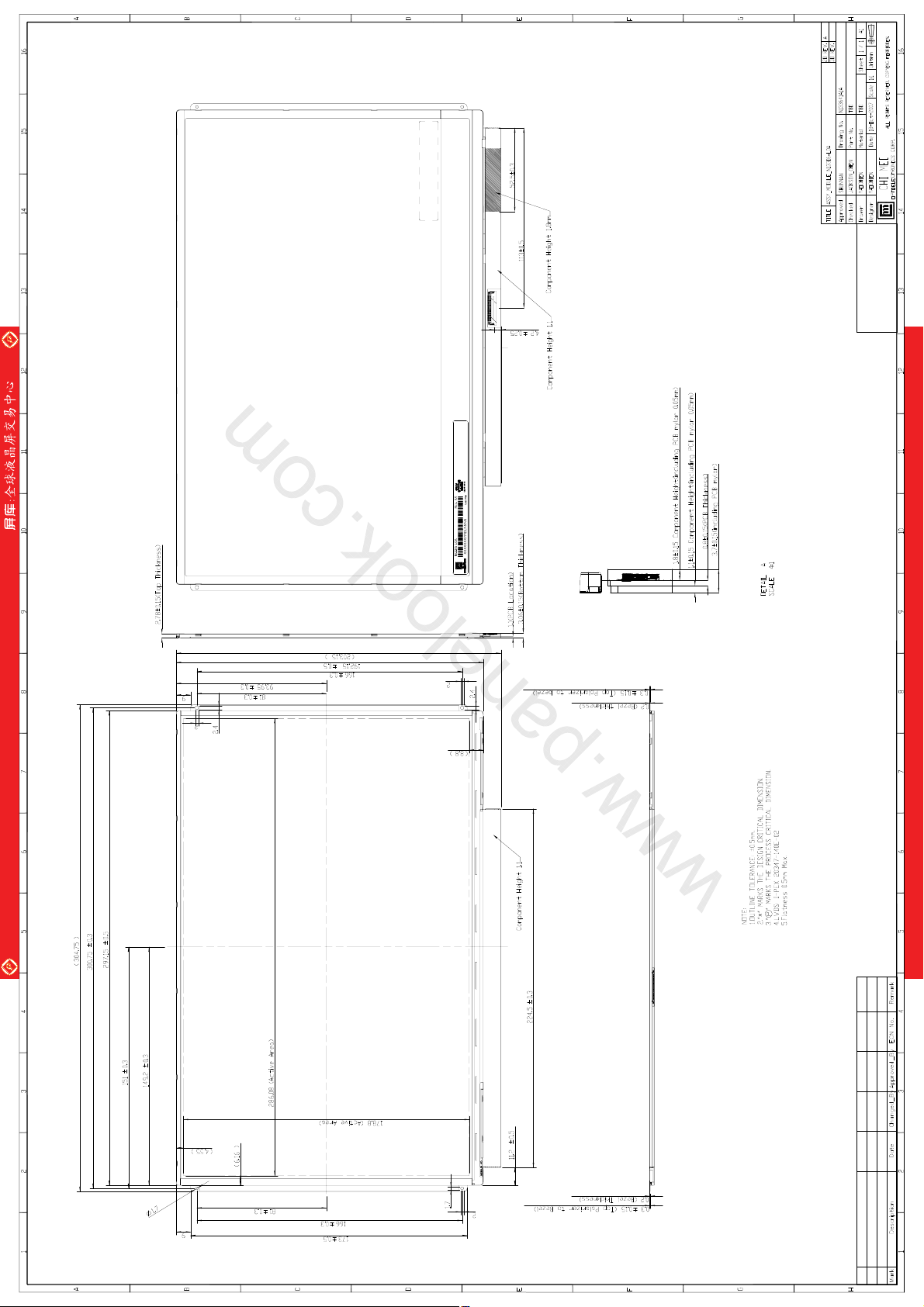

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Connector mounting position
+/- 0.5mm
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Value
Min. Max.
- 200/2 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
8060-20 400 20-40
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,
Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
At Room Temperature
LCD Module
Side Mount Fixing Screw
gap=2mm
Bracket
Side Mount Fixing Screw
Stage
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item
LED Light Bar Input voltage 27.0 -- 30.6 V LED Light Bar Input Current -- (120) -- mA
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
www.panelook.com
Value
Min. Max.
Value
Min Typ. Max.
Unit Note
Unit Note
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
(1)
DC
DC
(1), (2)
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for LED (Refer to Section 3.2 for further information).
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP - 50 - mV ­Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - 200 230 mA (3)a Black
Icc
TH(LVDS)
TL(LVDS)
- 270 300 mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT - 100 - Ohm Power per EBL WG P
- 1.4 - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc rising time is 470us
+3.3V
0.9Vcc
Vcc
(LCD Module Input)
VCC
100ms
I
IS
0V
I
RUSH
470us
0.1Vcc
ICC
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
|
|
)
)
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
a. White Pattern
Active Area
b. Black Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
= 60 Hz,
v
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
Single Ended
0V
V
TH(LVD S
Differential
0V
V
TL(LVD S
VID
|VID|
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
LED light bar input voltage LED light bar input current
27.0 30.6 V
V
L
120 mA
I
L
Min. Typ. Max.
Power Consumption PL 3.24 3.68 W (2), IL = 120 mA LED Life Time LBL 10000 - - Hrs (3)
Value
Unit Note
(1), (Duty 100%)
RMS
(1), (Duty 100%)
RMS
Approval
9
Note (2) P
Note (3) The lifetime of LED is defined as the time when it continues to operate under the conditions at
= I
L
oVo
Ta = 25 2
o
C and I = 20 mA(Per EA) until the brightness becomes Љ 50% of its original value
10 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center

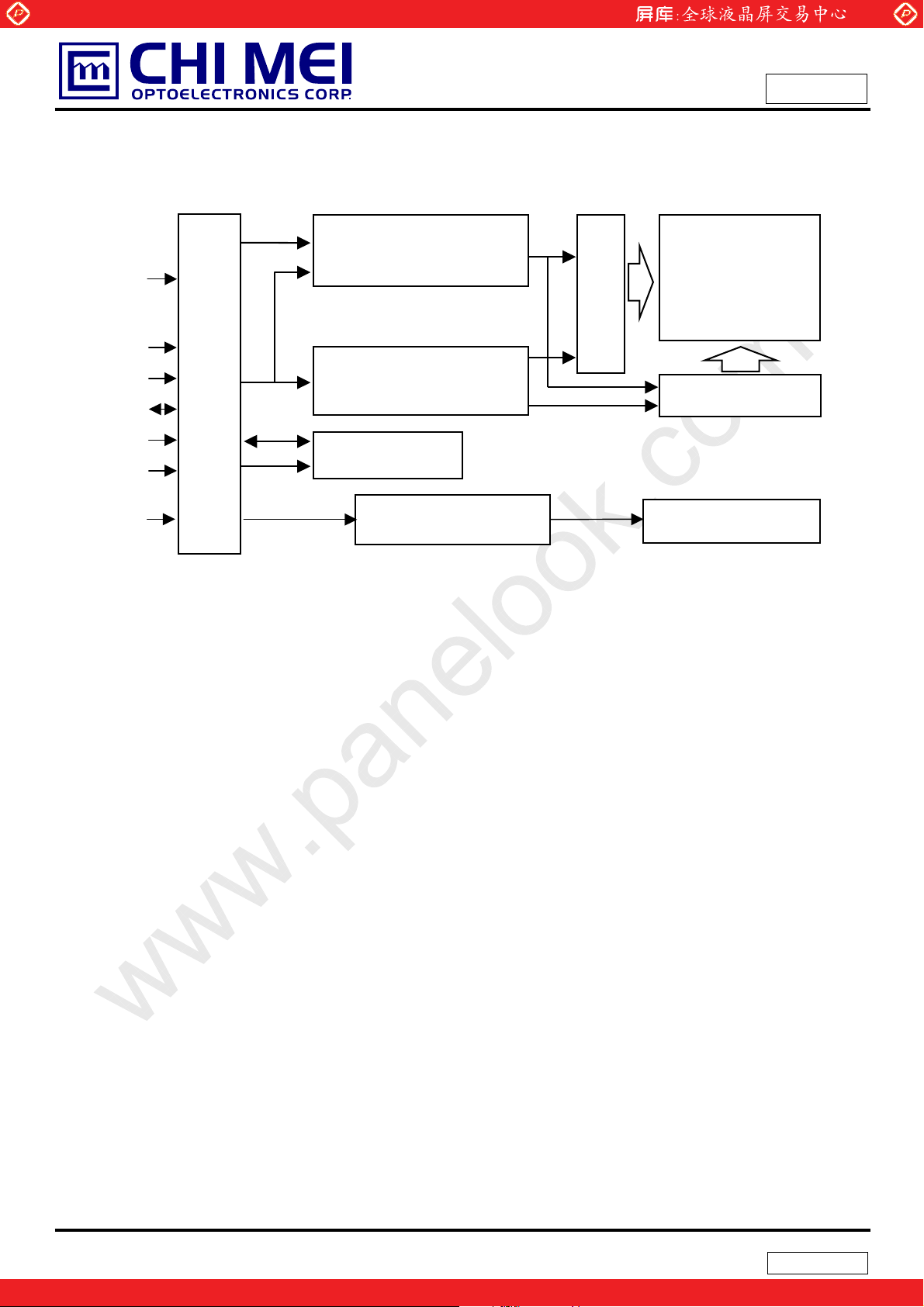

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
LVDS Display
Data & Clock
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
Converter
Input Signals
INPUT CONNECTOR
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
LED CONVERTER
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
11 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark 1 VSS Ground 2 NC no connect 3 VDD Logic power 3.3V 4 VDD Logic power 3.3V 5 VDD Logic power 3.3V 6 VEDID EDID 3.3V power DDC 3.3V Power 7 NC no connect 8 CLK EDID clock DDC Clock 9 DATA EDID data DDC Data
10 VSS Ground 11 VSS Ground
12
NC no connect
13
RIN0-
14
RIN0+
15 VSS0 Ground-LVDS0
16
RIN1-
17
RIN1+
18 VSS1 Ground-LVDS1
19
RIN2-
20
RIN2+ 21 VSS2 Ground-LVDS2 22 CLK- - LVDS differential clock input 23 CLK+ + LVDS differential clock input 24 VSS3 Ground-LVDS3
INV_PWM / 25
R_PWM PWM brightness control 26 LED_Enable Enable LED 27 VSS LED Ground 28 VSS LED Ground 29 VSS LED Ground 30 VSS LED Ground
31 NC no connect 32 VBL+ 7V - 20V LED power 33 VBL+ 7V - 20V LED power 34 VBL+ 7V - 20V LED power 35 VBL+ 7V - 20V LED power 36 VBL+ 7V - 20V LED power 37 NC no connect 38 NC no connect 39 NC no connect 40 VSS Ground
Note (1) Connector Part No.: 20347- 140E-02(I-PEX) or equivalent
- LVDS differential data input (R0-R5, G0) + LVDS differential data input (R0-R5, G0)
- LVDS differential data input (G1-G5, B0-B1) + LVDS differential data input (G1-G5, B0-B1)
- LVDS differential data input (B2-B5,HS,VS, DE) + LVDS differential data input (B2-B5,HS,VS, DE)
www.panelook.com
Negative
Positive
Negative
Positive
Negative
Positive
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
R0~R5,G0
G1~G5, B0, B1
B2~B5, DE, Hsync, Vsync
LVDS Level Clock
Note (2) User’s connector Part No: 20345-040T-02 (I-PEX) or equivalent
12 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center

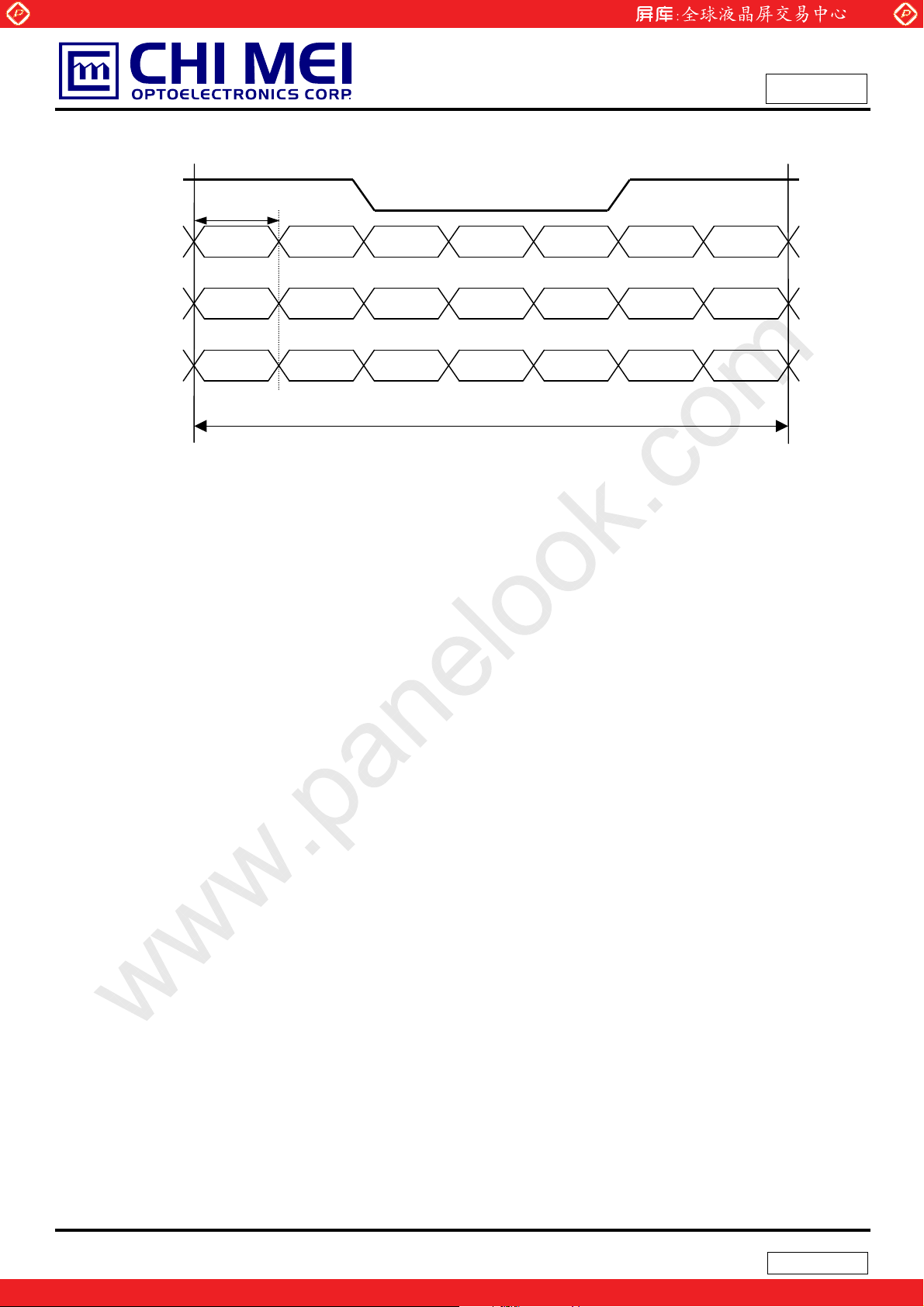

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
CLK+
T/7
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Rxin2
Rxin1
Rxin0
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0R5 R4
Signal for 1 DCLK Cycle (T)
13 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.3 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
5.4 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA Plug &
Display and FPDI standards.
Byte # (decimal)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
38
39
Byte # (hex)
Field Name and Comments
0 Header 1 Header 2 Header 3 Header 4 Header 5 Header 6 Header 7 Header 8 EISA ID manufacturer name (“CMO”)
9 EISA ID manufacturer name (Compressed ASCII) 0A ID product code (N133I6-L0A) 13 0B ID product code (hex LSB first; N133I6-L0A) 13 0C ID S/N (fixed “0”) 0D ID S/N (fixed “0”) 0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”) 10 Week of manufacture (fixed week code) 11 Year of manufacture (fixed year code) 12 EDID structure version # (“1”) 13 EDID revision # (“3”) 14 Video I/P definition (“digital”) 15 Active area horizontal 28.608cm 1D 16 Active area vertical 17.88cm 13 17 Display Gamma (Gamma = ”2.2”) 18 Feature support (“Active off, RGB Color”)
19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) 1B Red-x (Rx = “0.622”) 1C Red-y (Ry = “0.346”) 58 1D Green-x (Gx = ”0.333”) 1E Green-y (Gy = ”0.528”)
1F Blue-x (Bx = ”0.164”)
20 Blue-y (By = ”0.162”)
21 White-x (Wx = ”0.313”)
22 White-y (Wy = ”0.329”)
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings
26 Standard timing ID # 1
27 Standard timing ID # 1
Value (hex)
Value
(binary) 00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 00 00000000 0D 00001101 AF 10101111
00010011
00010011 00 00000000 00 00000000 00 00000000 00 00000000 23 00100011 12 00010010 01 00000001 03 00000011 80 10000000
00011101
00010011 78 01111000 0A 00001010 5C 01011100 80 10000000 98 10011000
01011000 51 01010001 8E 10001110 27 00100111 25 00100101 50 01010000 54 01010100 00 00000000 00 00000000 00 00000000
01 00000001
01 00000001
15 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
40 41 42 43 44 45 46 47 48 49 50 51 52 53
54
55 56 57 58 59 60 61 62 63 64
65
66 67 68 69 70
71
72 73 74
75
76 77 78 79 80 81
82 52 # 2 6th character of name (“6”) 36 83 84
28 Standard timing ID # 2
29 Standard timing ID # 2 2A Standard timing ID # 3 2B Standard timing ID # 3 2C Standard timing ID # 4 2D Standard timing ID # 4 2E Standard timing ID # 5
2F Standard timing ID # 5
30 Standard timing ID # 6
31 Standard timing ID # 6
32 Standard timing ID # 7
33 Standard timing ID # 7
34 Standard timing ID # 8
35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“71MHz”, According
36
to VESA CVT Rev1.1) 37 # 1 Pixel clock (hex LSB first) 38 # 1 H active (“1280”) 39 # 1 H blank (“160”)
3A # 1 H active : H blank (“1280 : 160”) 3B # 1 V active (”800”) 3C # 1 V blank (”23”) 3D # 1 V active : V blank (”800 :23”) 3E # 1 H sync offset (”48”)
3F # 1 H sync pulse width ("32”) 40 # 1 V sync offset : V sync pulse width (”3 : 6”)
# 1 H sync offset : H sync pulse width : V sync offset : V sync 41
width (”48: 32 : 3 : 6”) 42 # 1 H image size (”286 mm”) 1E 43 # 1 V image size (”179 mm”) B3 44 # 1 H image size : V image size (”286 : 179”) 45 # 1 H boarder (”0”) 46 # 1 V boarder (”0”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol 47
Negatives 48 Detailed timing description # 2 49 # 2 Flag
4A # 2 Reserved
# 2 FE (hex) defines ASCII string (Model Name “N133I6-L0A”,
4B
ASCII)
4C # 2 Flag 4D # 2 1st character of name (“N”) 4E 4E # 2 2nd character of name (“1”) 31
4F # 2 3rd character of name (“3”) 33 50 # 2 4th character of name (“3”) 33 51 # 2 5th character of name (“I”) 49
53 # 2 7th character of name (“-”) 2D 54 # 2 8th character of name (“L”) 4C
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
BC 10111100
1B 00011011 00 00000000 A0 10100000 50 01010000 20 00100000 17 00010111 30 00110000 30 00110000 20 00100000 36 00110110
00 00000000
10 00010000 00 00000000 00 00000000
19 00011001
00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
00011110
10110011
01001110 00110001 00110011 00110011 01001001 00110110 00101101 01001100
16 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110
111
112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127
55 # 2 9th character of name (“0”) 56 # 2 9th character of name (“A”) 57 # 2 New line character indicates end of ASCII string 58 # 2 Padding with “Blank” character 59 # 2 Padding with “Blank” character
5A Detailed timing description # 3 5B # 3 Flag 5C # 3 Reserved 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) 5E # 3 Flag
5F # 3 1st character of string (“C”) 60 # 3 2nd character of string (“M”) 61 # 3 3rd character of string (“O”) 62 # 3 New line character indicates end of ASCII string 63 # 3 Padding with “Blank” character 64 # 3 Padding with “Blank” character 65 # 3 Padding with “Blank” character 66 # 3 Padding with “Blank” character 67 # 3 Padding with “Blank” character 68 # 3 Padding with “Blank” character 69 # 3 Padding with “Blank” character
6A # 3 Padding with “Blank” character 6B # 3 Padding with “Blank” character 6C Detailed timing description # 4 6D # 4 Flag 6E # 4 Reserved
# 4 FE (hex) defines ASCII string (Model Name“N133I6-L0A”, 6F
ASCII) 70 # 4 Flag 71 # 4 1st character of name (“N”) 4E 72 # 4 2nd character of name (“1”) 31 73 # 4 3rd character of name (“3”) 33 74 # 4 4th character of name (“3”) 33 75 # 4 5th character of name (“I”) 49 76 # 4 6th character of name (“6”) 36 77 # 4 7th character of name (“-”) 2D 78 # 4 8th character of name (“L”) 4C 79 # 4 9th character of name (“0”)
7A # 4 9th character of name (“A”) 7B # 4 New line character indicates end of ASCII string 7C # 4 Padding with “Blank” character 7D # 4 Padding with “Blank” character 7E Extension flag
7F Checksum
30 00110000 41 01000001 0A 00001010 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000 43 01000011
4D 01001101
4F 01001111 0A 00001010 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
30 00110000 41 01000001 0A 00001010 20 00100000 20 00100000 00 00000000
2D 00101101
01001110 00110001 00110011 00110011 01001001 00110110 00101101 01001100
17 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A

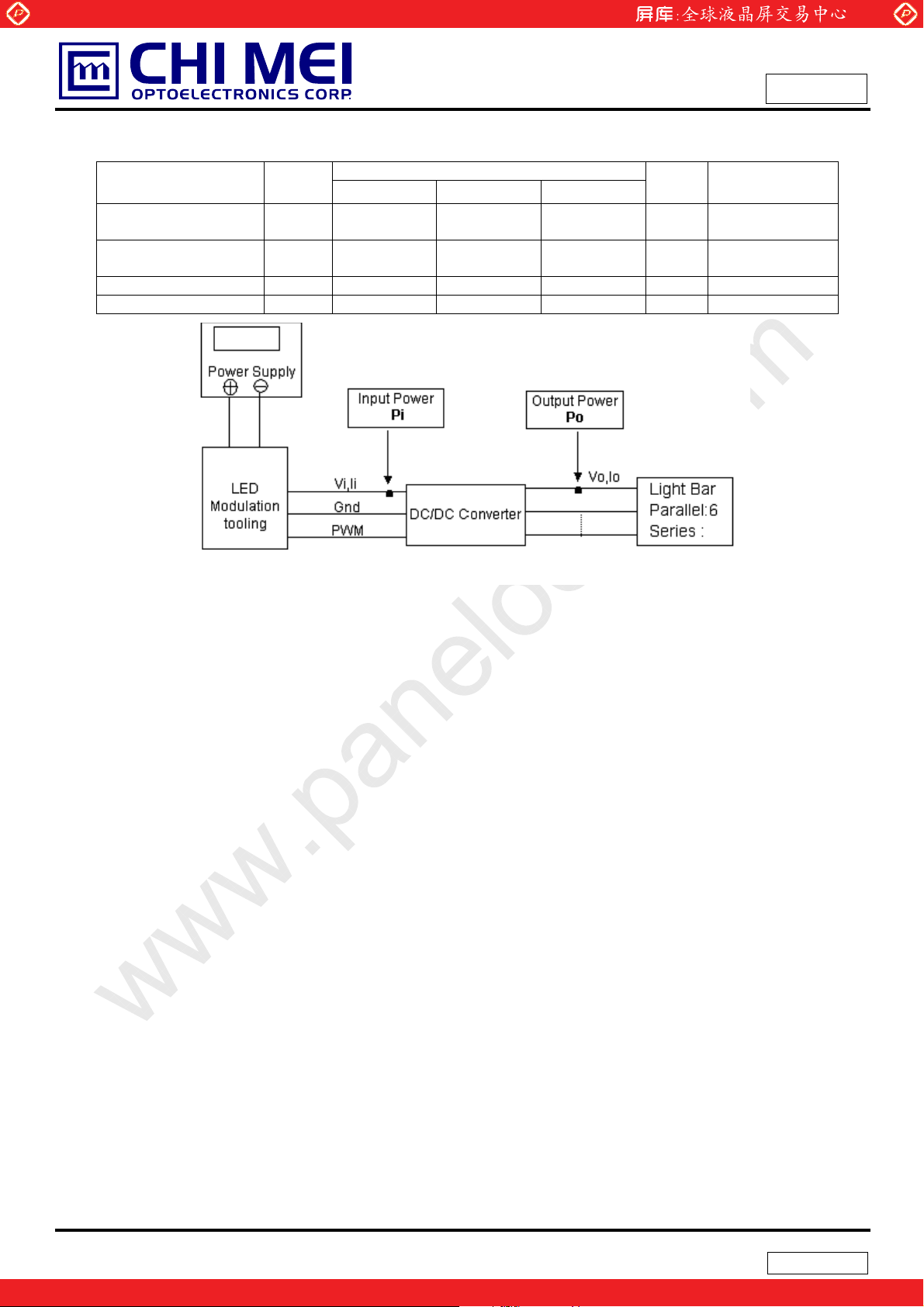

6. CONVERTER SPECIFICATION
6.1 ABSOLUTE MAXIMUM RATINGS
Symbol Ratings
Vin 40.0V
Gnd +/-0.3V
PWM, EN -0.3V~6.0V
6.2 RECOMMENDED OPERATING RATINGS
Parameter Symbol
Converter Input power supply voltage Vin 7.0 12.0 21.0 V
EN Control Level
PWM Control Level
PWM Control Duty Ratio 20 100 % PWM Control Frequency f
Converter Input Current
Note (1) The specified LED power supply current is under the conditions at Vin = 7 V, Ta = 25 ± 2 ºC, f
200 Hz, Duty=100%.
Backlight on 2.0 --- 5.5 V Backlight off 0 --- 0.8 V PWM High Level 2.0 --- 5.5 V PWM Low Level 0 --- 0.8 V
PWM
Vin=7 V 600 650 mA (1) Vin=21V
I
BL
Min. Typ. Max.
180 200 220 Hz
200 220 mA (2)
Value
Approval
Unit Note
=
PWM
Note (2) The specified LED power supply current is under the conditions at Vin = 21V, Ta = 25 ± 2 ºC, f
= 200 Hz, Duty=100%.
PWM
18 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center

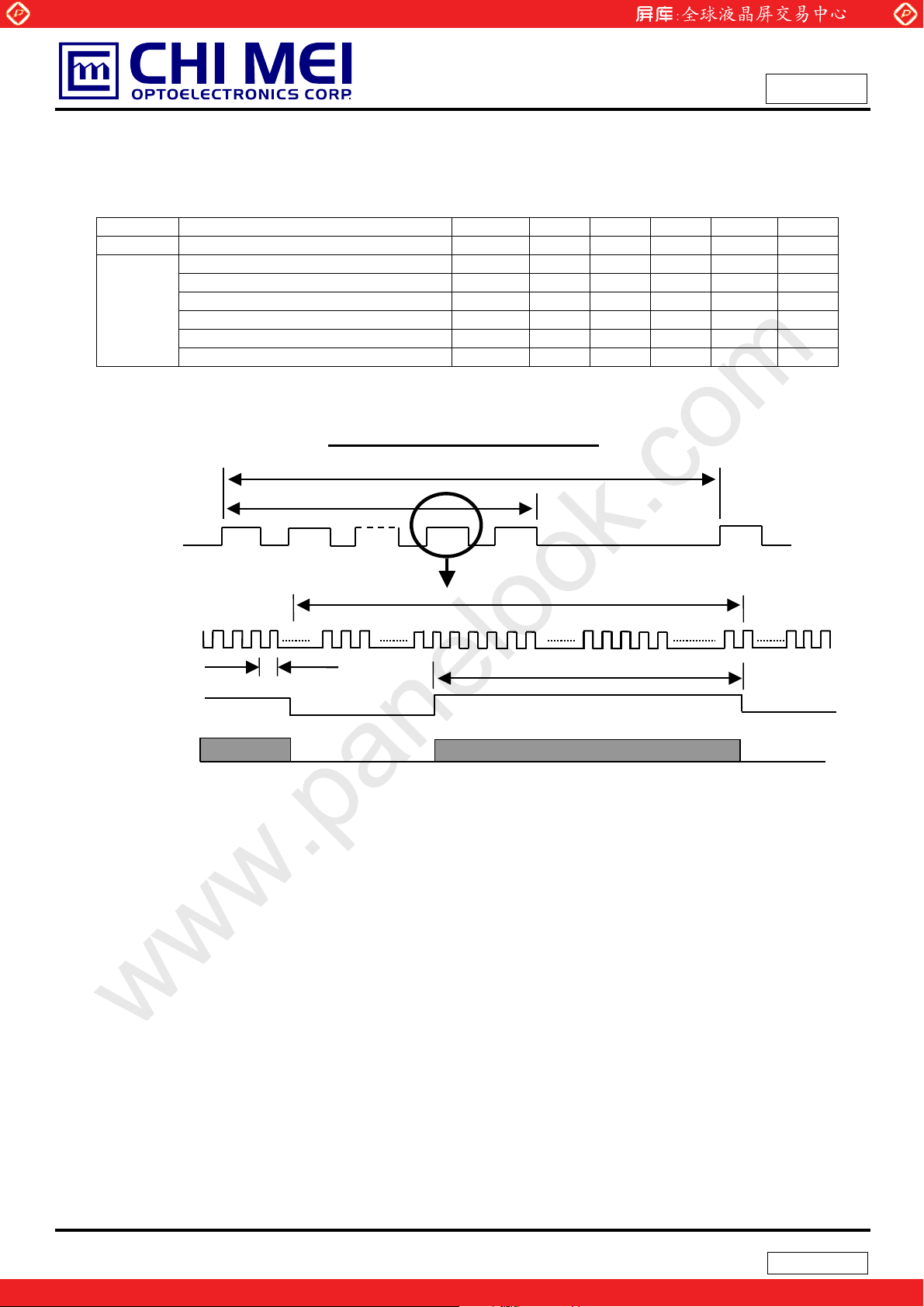

7. INTERFACE TIMING
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
The specifications of input signal timing are as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 50 71 80 MHz -
Vertical Total Time TV 803 823 1028 TH -
Vertical Addressing Time TVD 800 800 800 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.
Vertical Active Blanking Period TVB TV-TVD 23 TV-TVD TH
Horizontal Total Time TH 1362 1440 1800 Tc -
Horizontal Addressing Time THD 1280 1280 1280 Tc -
Horizontal Active Blanking Period THB
INPUT SIGNAL TIMING DIAGRAM
www.panelook.com
TH-THD
160
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
TH-THD
Tc
DE
DCLK
DE
DATA
TC
HD
T
19 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
7.2 POWER ON/OFF SEQUENCE
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Power Supply
for LCD, Vcc
0V
- LVDS Interface
0V
- Power for Backlight
Timing Specifications:
0.5 Љ t1 Љ 10 ms
0 Љ t2 Љ 50 ms
0 Љ t3 Љ 50 ms
t4 Њ 500 ms
Power On
90%
10%
Power Off
90%
t1
t3t2
Valid Data
t6t5
50%50%
ONOFF OFF
Restart
t7
10%
t4
10%
t5 Њ 200 ms
t6 Њ 200 ms
Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be
damaged.
Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be
sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight converter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight converter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time is better to follow 5Љt7Љ300 ms.
20 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
8 OPTICAL CHARACTERISTICS
8.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta 25r2 Ambient Humidity Ha 50r10 %RH Supply Voltage VCC 3.4 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" LED Light Bar Input Current I
The measurement methods of optical characteristics are shown in Section 7.2. The following items
should be measured under the test conditions described in Section 7.1 and stable environment shown in
Note (6).
8.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 200 300 - (2), (5)
Response Time
Average Luminance of White L White Variation
Red
Color Chromaticity
Viewing Angle
Green
Blue
White
Horizontal
Vertical
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
o
C
L
(120)
TR - 5 10 ms
- 11 16 ms
T
F
240 300 cd/m2(4), (5)
AVE
GW
Rx Ry Gx 0.331 -
T
=0q, TY =0q
x
Viewing Normal
Angle Gy 0.572 ­Bx 0.156 -
1.4 - (5), (6)
0.584
0.337
TYP
-0.05
TYP
+0.05
By 0.133 -
Wx 0.313 -
Wy
Tx+
T
x
TY+
T
Y
­CRt10
-
0.329
40 45 40 45 15 20 40 45
mA
-
-
-
Deg.
(3)
(1)
21 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
s
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Normal
Tx = Ty = 0º
Ty- Ty
TX- = 90º
6 o’clock
T
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 m
, TF) and measurement method:
R
T
F
66.67 ms
Time
22 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center
500
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).

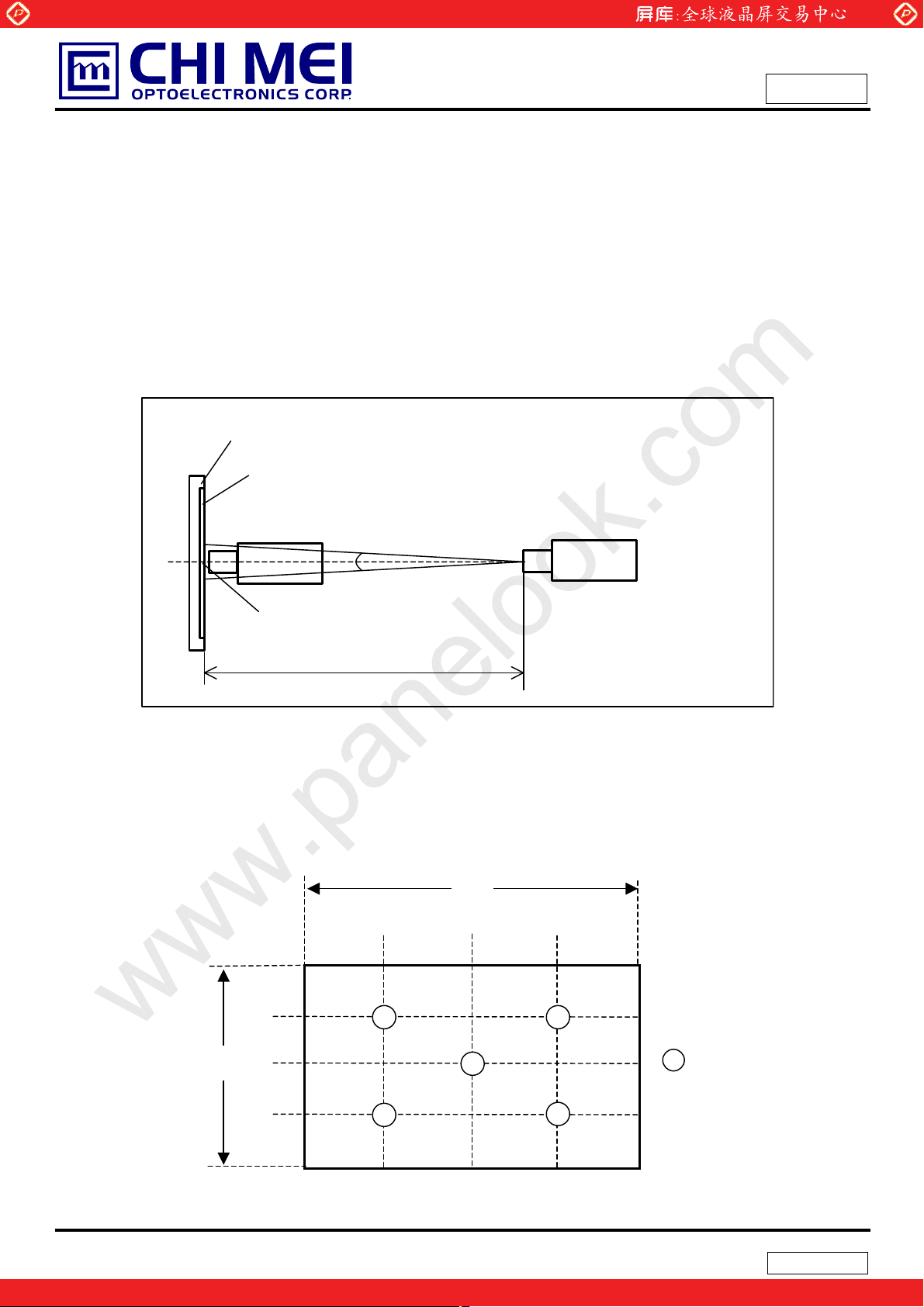

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 15 minutes in a windless room.
LCD Module
LCD Panel
USB2000
AVE
):
CS-1000T
Center of the Screen
mm
Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
D/4 D/2 3D/4
W/4
W/2
W
Vertical Line
3W/4
Light Shield Room
(Ambient Luminance < 2 lux)
Horizontal Line
D
12
X
5
3
4
: Test Point
X=1 to 5
Active Area
23 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
9. PRECAUTIONS
9.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
9.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
9.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
24 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
10. PACKAGING
10.1 CARTON
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval

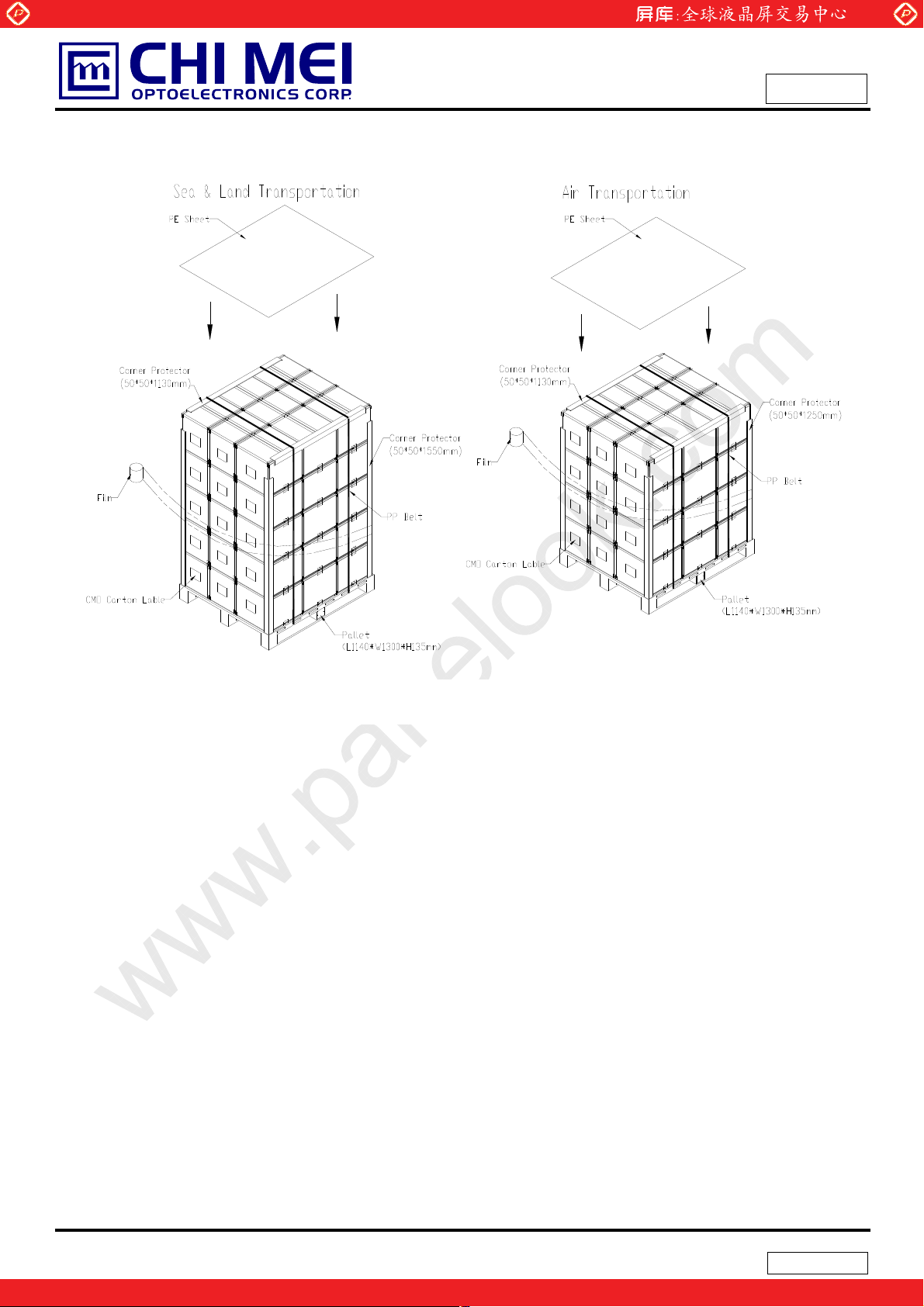

Figure. 9-1 Packing method
25 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center
10.2ʳˣ˔˟˟˘˧ʳ
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval

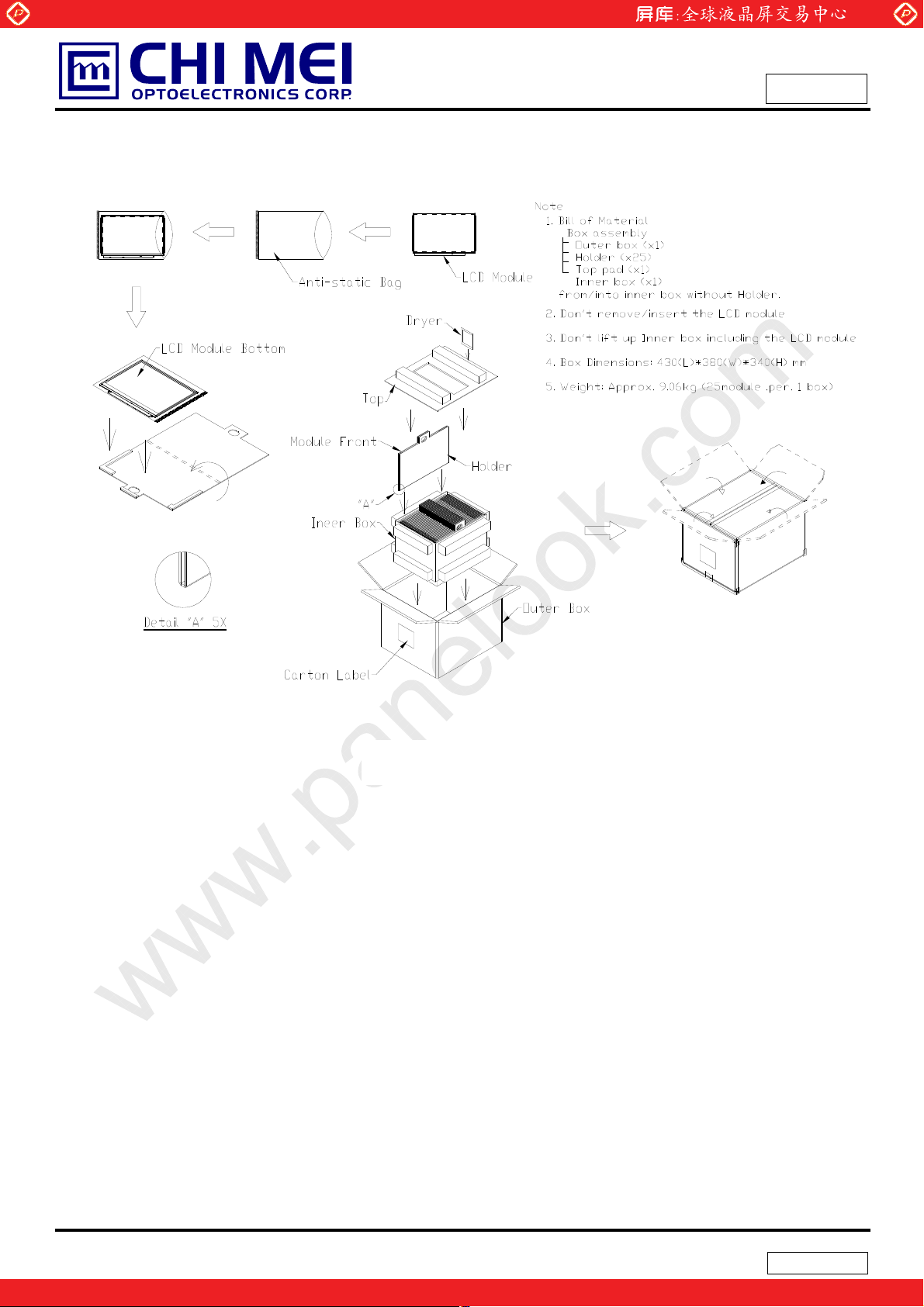

Figure. 9-2 Packing method
26 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 27
Global LCD Panel Exchange Center
11. DEFINITION OF LABELS
11.1 CMO MODULE LABEL

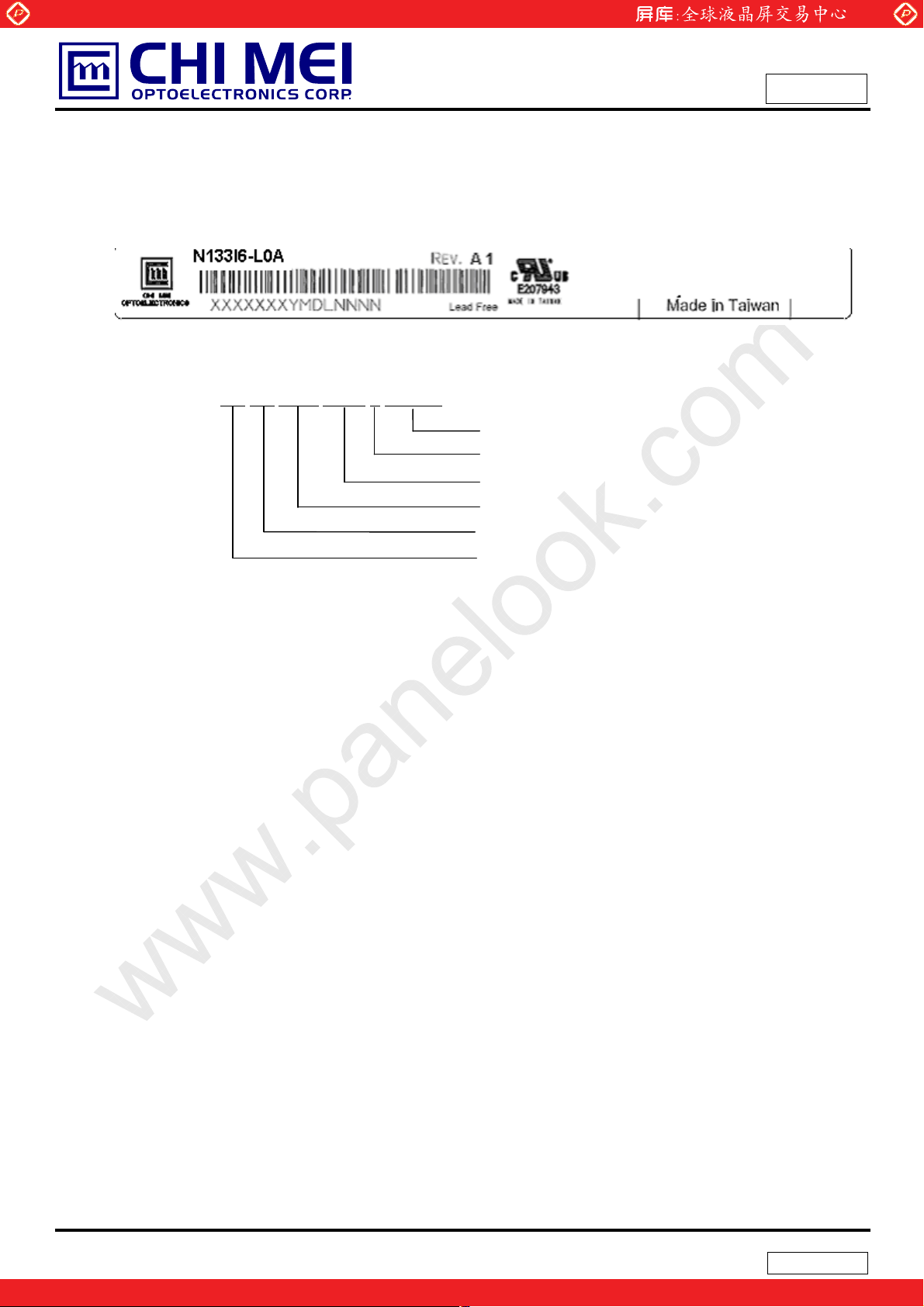

The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
(a) Model Name: N133I6 - L0A
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
(c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
st
to 31st, exclude I , O and U
27 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 28
Global LCD Panel Exchange Center

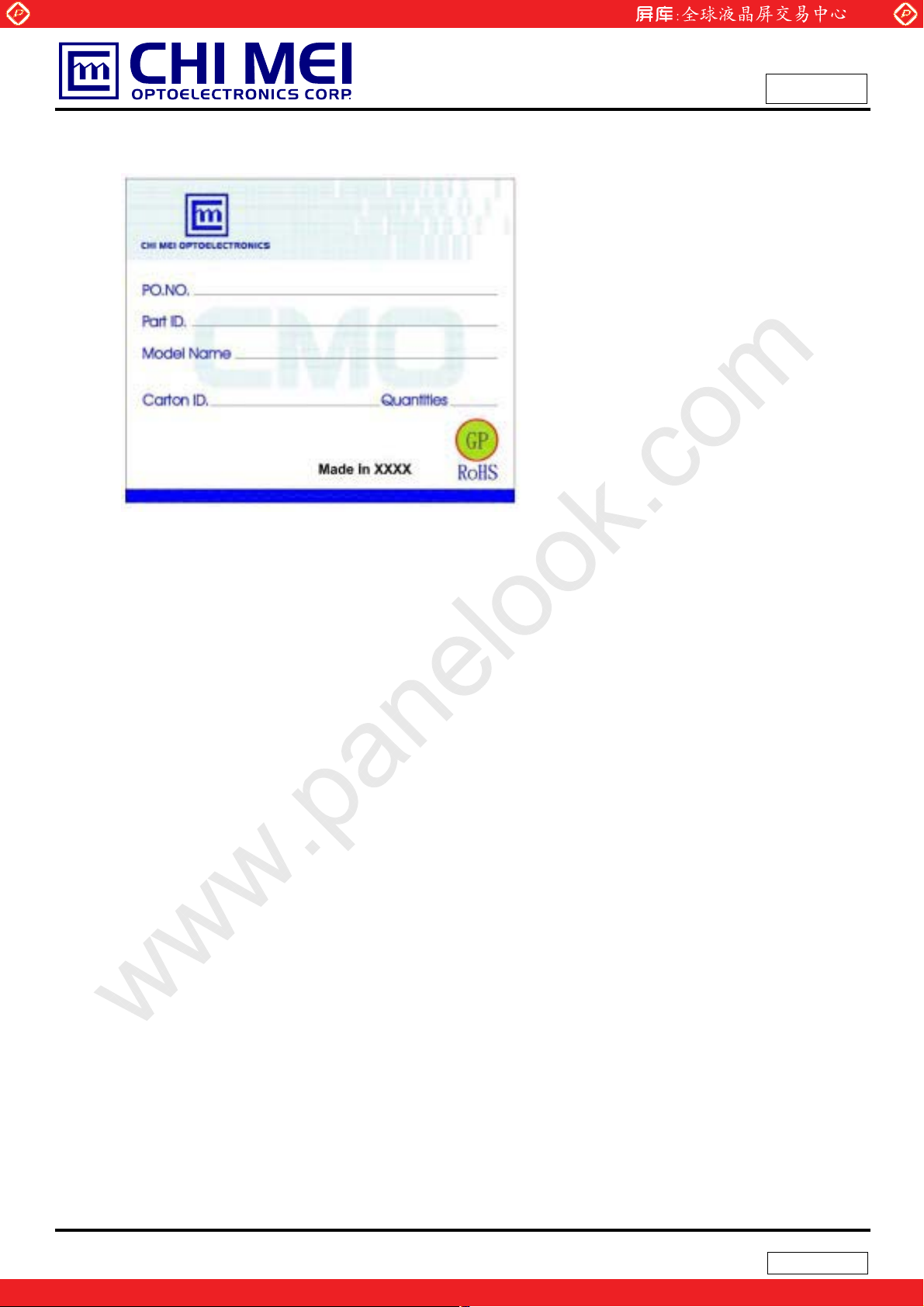

11.2 CMO CARTON LABEL
www.panelook.com
Doc No.:
Issued Date: June. 25, 2008
Model No.: N133I6 - L0A
Approval
28 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Page 29
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
