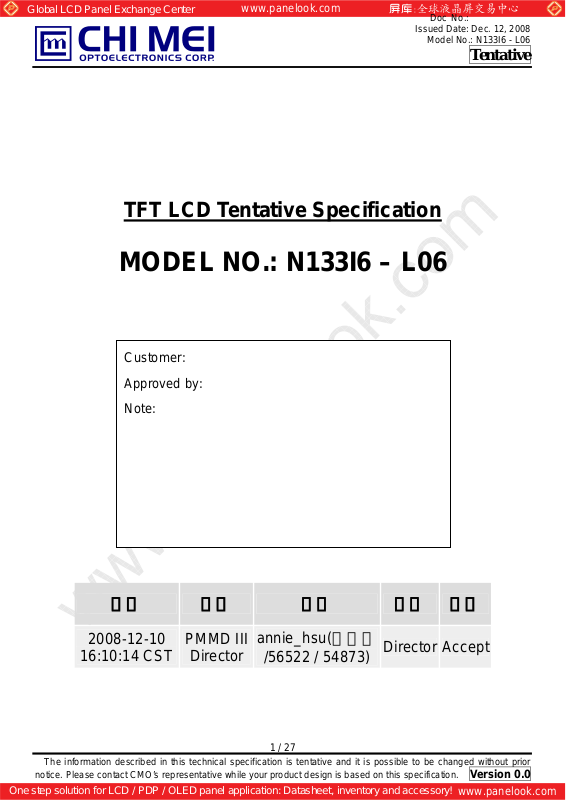

TFT LCD Tentative Specification
MODEL NO.: N133I6 – L06
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
Customer:
pproved by:
Note:
記錄 工作 審核 角色 投票
2008-12-10
16:10:14 CST
PMMD III
Director
annie_hsu(徐凡琇
Director Accept
/56522 / 54873)
1 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATI NGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 23
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
10.3 CUSTOMER CARTON LABEL
10.4 CUSTOMER PALLET LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
------------------------------------------------------- 16
------------------------------------------------------- 18
------------------------------------------------------- 22
------------------------------------------------------- 25
2 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
Version Date
0.0
Dec, 12,’08 All
Page
(New)
REVISION HISTORY
Section Description
All Tentative specification was first issued.
3 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133I6 – L06 is a 13.3” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins LVDS interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. The converter module for Backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
1.3 APPLICA TION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 286.08 (H) x 178.8 (V) mm CF Polarizer 289.38 (H) x 182.3 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Glare, LT4 , 3H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 296.85 297.15 297.45 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

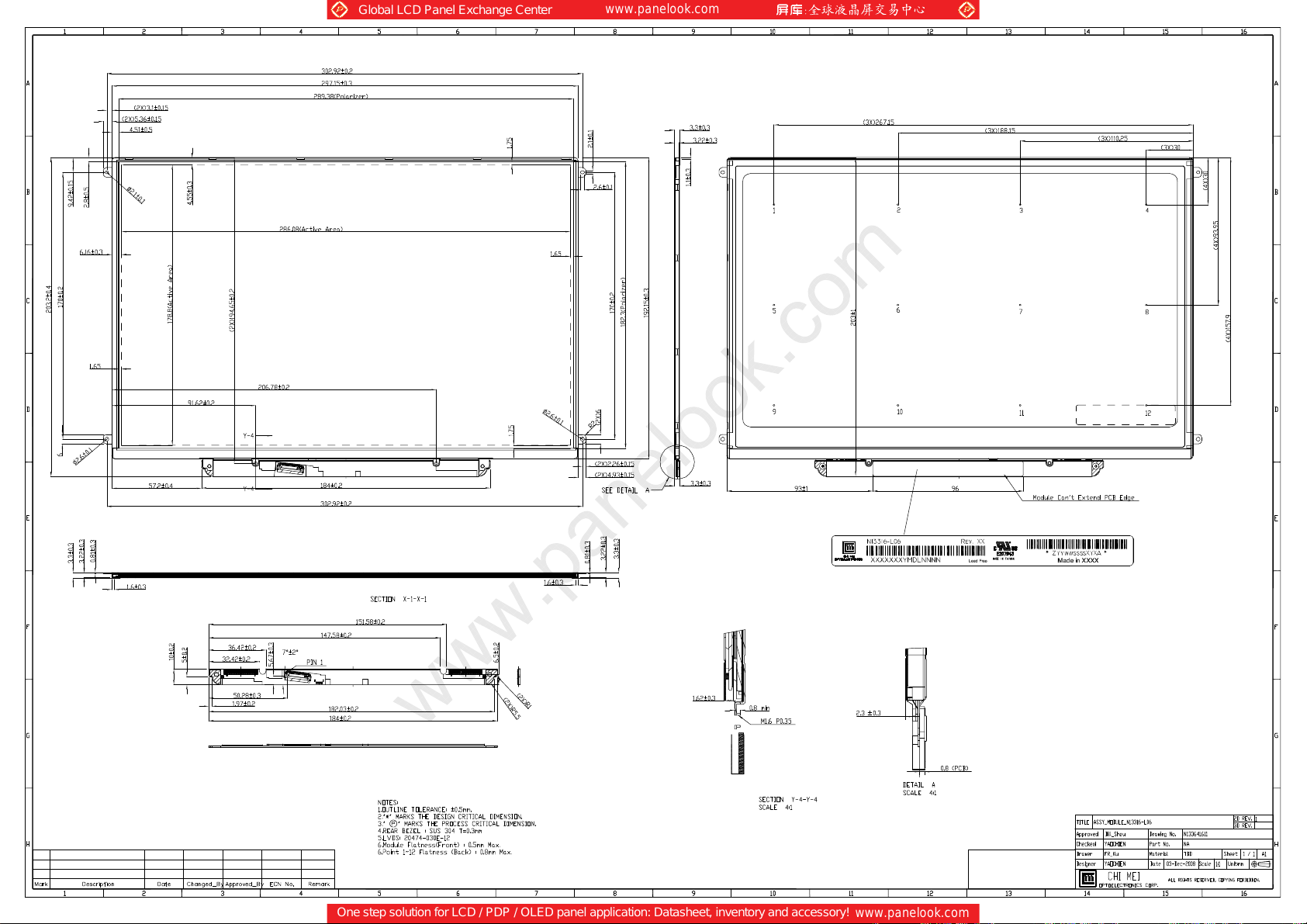

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 202.8 203.2 203.6 mm Depth(D) 3.0 3.3 3.6 mm
Weight -- -- 310 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
Note (2) Connector mounting position
+/- 0.5mm
4 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient T emperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below. (a) 90 %RH Max. (Ta ≦ 40 ºC). (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation.
Relative Humidity (%RH)
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
Value
Min. Max.
- 200/2 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90 80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max. Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,. Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z.
80 60 -20 40 0 20 -40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
At Room Temperature
5 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item
LED Light Bar Power Supply Voltage 0 34 V LED Light Bar Power Supply Current 0 150 mA
Note (1) Permanent damage to the device may occur if maximum or minimum values are exceeded.
Function operation should be restricted to the conditions described under Normal Operating Conditions.
Value
Min. Max.
Value
Min Max.
Unit Note
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
(1)
Unit Note
(1)
6 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP - 50 - mV ­Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2) Power Supply Current
LVDS Differential Input High Threshold V LVDS Differential Input Low Threshold V
White - 190 220 mA (3)a Black
Icc
TH(LVDS)
TL(LVDS)
- 250 280 mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT - 100 - Ohm Power per EBL WG P
- 1.40 - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
+3.3V
R1
47K
Q1 2SK1475
FUSE
C3 1uF
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470us
0.9Vcc
0V
470us
0.1Vcc
+3.3V
100ms
I
I
RUSH
IS
Vcc
(LCD Module Input)
VCC
ICC
7 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
|
)
)
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern belo w is displayed.
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
Tentative
Note (4) The specified power are the sum of LCD panel electronics input power and the converter input
a. White Pattern
Active Area
power. Test conditions are as follows. (a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f (b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt. (c) Luminance: 60 nits. (d) The converter used is provided from
= 60 Hz,
v
Please contact them for detail information.
b. Black Pattern
Active Area
CMO doesn’t provide the converter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
Single Ended
Differential
V
0V
V
TH(LVDS
0V
V
TL(LVDS
VID|
|VID|
8 / 27
Version 0.0
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.:
Issued Date: Dec. 12, 2008
Model No.: N133I6 - L06
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol LED Quantity 54 PCs (1)
LED Light Bar Power Supply Voltage LED Light Bar Power Supply Current Power Consumption PL -- 3.46 -- W (3), (Duty 100%) LED Life Time LBL 10000 -- -- Hrs (4)
Note (1) LED light bar configuration is shown as below.
27 28.8 30.6 V
V
L
-- 120 -- mA
I
L
Min. Typ. Max.
Value
Unit Note
(1),(2) (Duty 100%)
Tentative
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with current
balancing function to drive LED light-bar. Note (3) P Note (4) The lifetime of LED is defined as the time when it continues to operate under the co nditions at Ta = 25 ±2
= IL ×VL
L
and I
= 20 mA(Per EA) until the brightness becomes ≦ 50% of its original value.
L
Light Bar Feedback Channels
V
L, IL
LED Light Bar Parallel: 6 Series: 9
o
C
9 / 27
Version 0.0
Loading...
