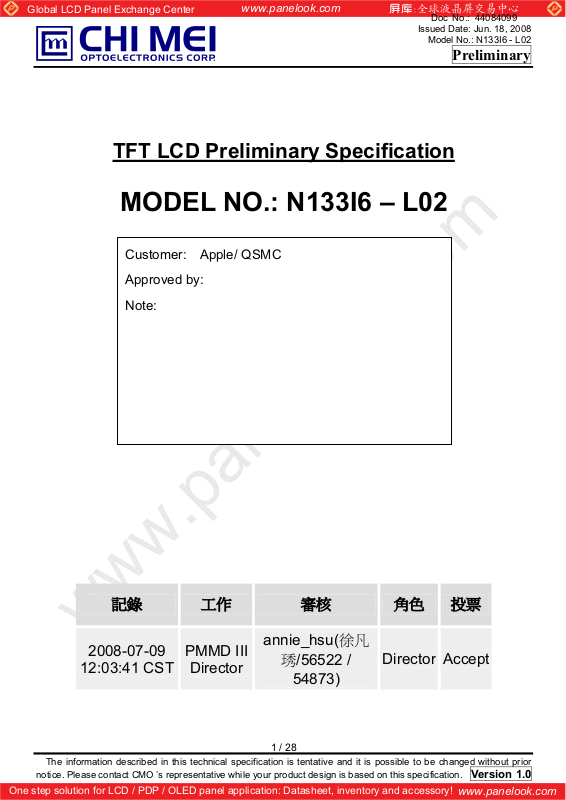

TFT LCD Preliminary Specification
MODEL NO.: N133I6 – L02
Customer: Apple/ QSMC
pproved by:
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Note:
annie_hsu(ஊՅ
2008-07-09
12:03:41 CST
PMMD III
Director
≮/56522 /
DirectorAccept
54873)
1 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

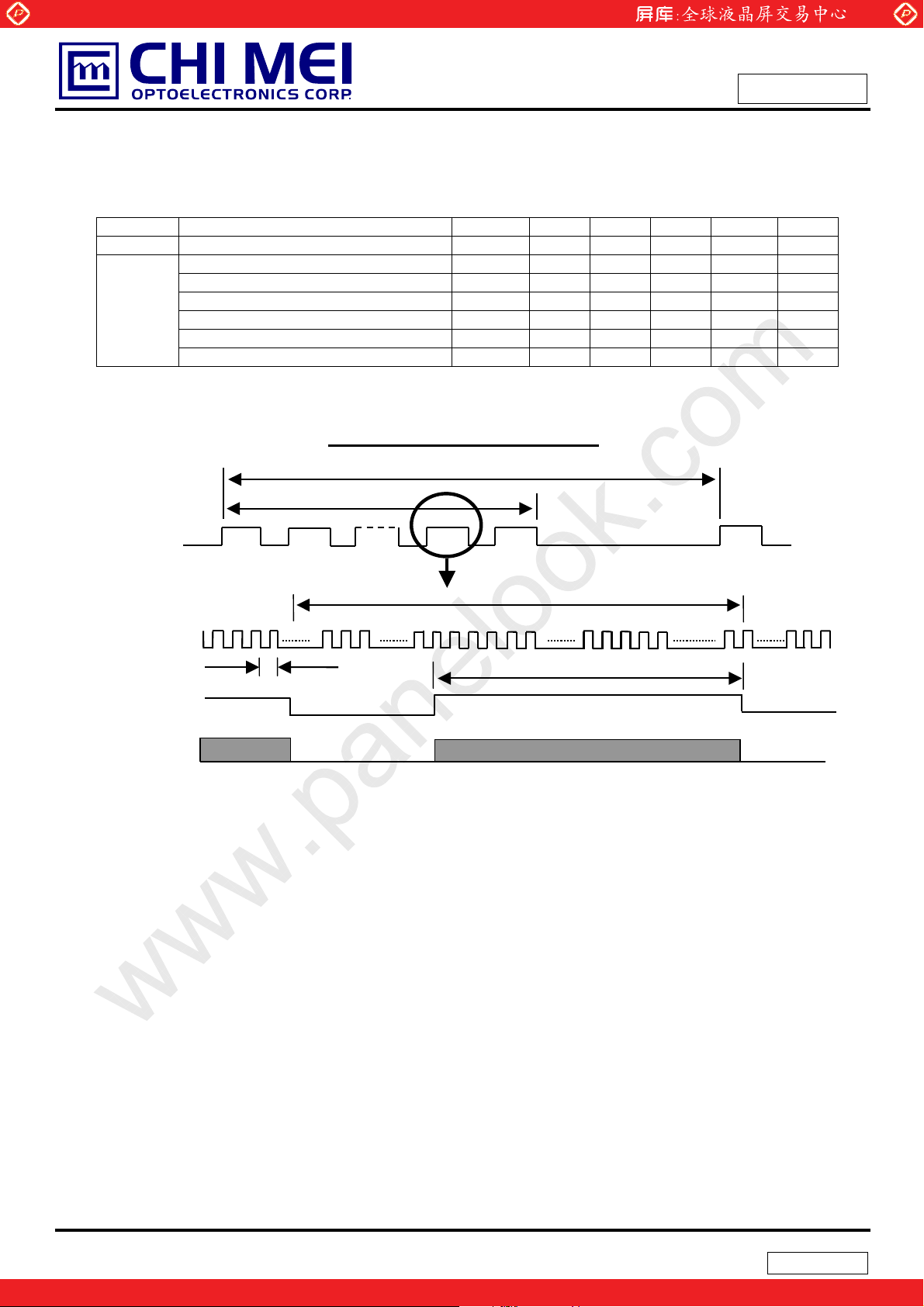

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
------------------------------------------------------- 16
------------------------------------------------------- 18
------------------------------------------------------- 22
9. PACKING ------------------------------------------------------- 23
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
10.3 CUSTOMER CARTON LABEL
10.4 CUSTOMER PALLET LABEL
------------------------------------------------------- 25
2 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
REVISION HISTORY
Version Date
0.0
1.0
Mar, 26,’08
Jun, 18,’08
Page
(New)
All
All
Section Description
All
Tentative specification was first issued.
All
Preliminary specification was first issued
3 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133I6 – L02 is a 13.3” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins LVDS
interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The converter module for Backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 286.08 (H) x 178.8 (V) mm CF Polarizer 289.38 (H) x 182.3 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Glare, LT4 , 3H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 296.85 297.15 297.45 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

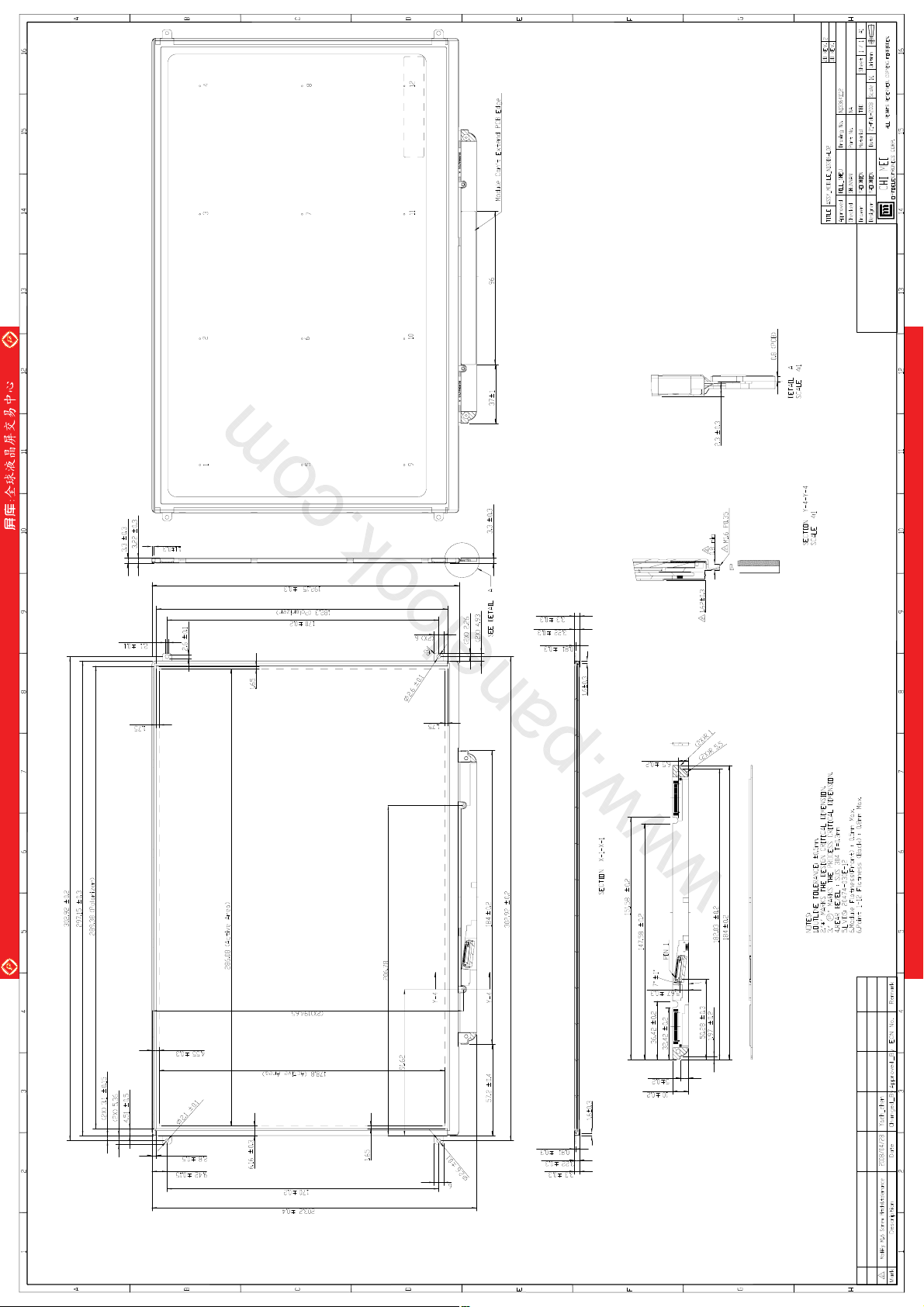

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 202.8 203.2 203.6 mm Depth(D) 3.0 3.3 3.6 mm
Weight -- -- 310 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)

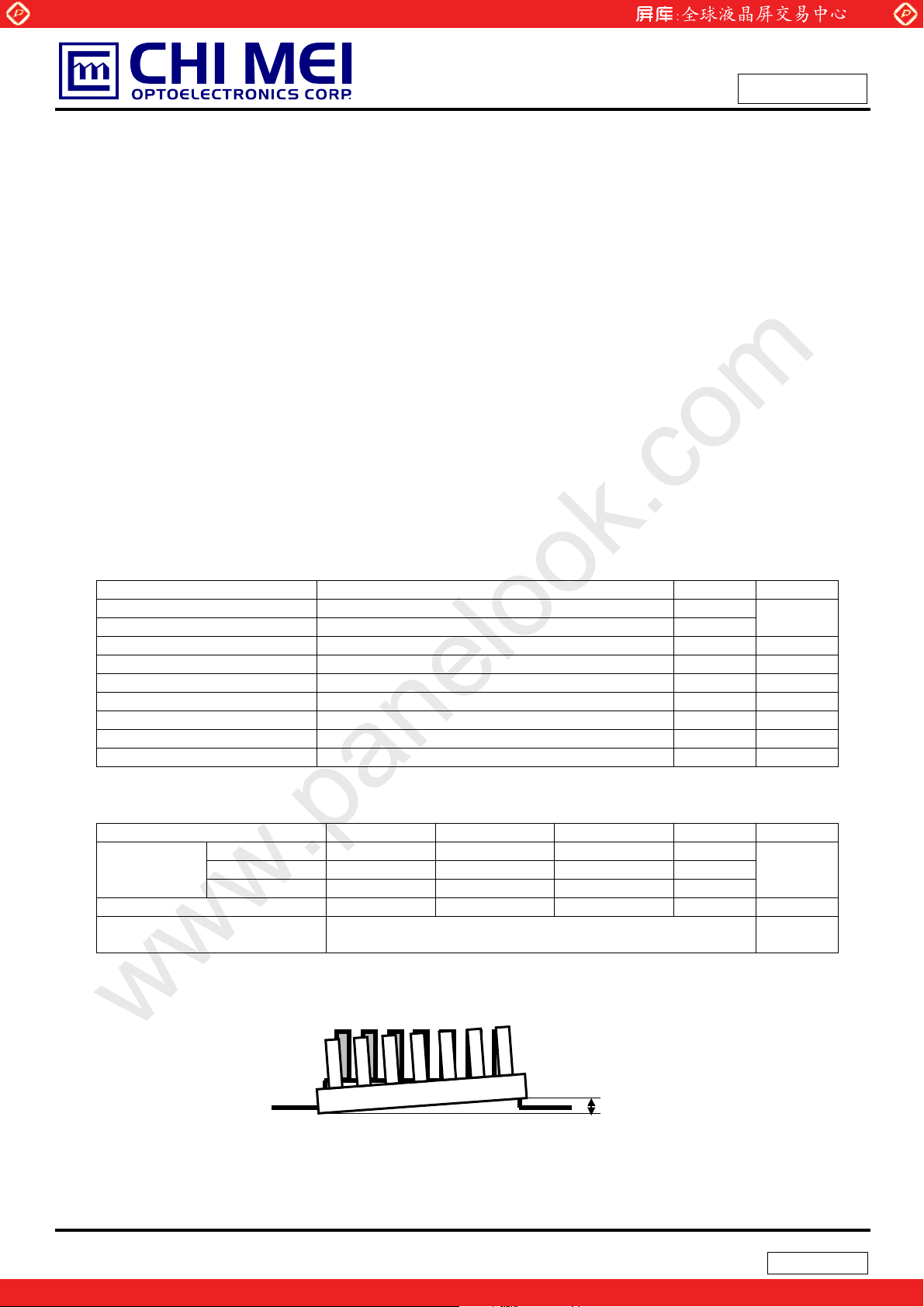

Note (2) Connector mounting position
+/- 0.5mm
4 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V

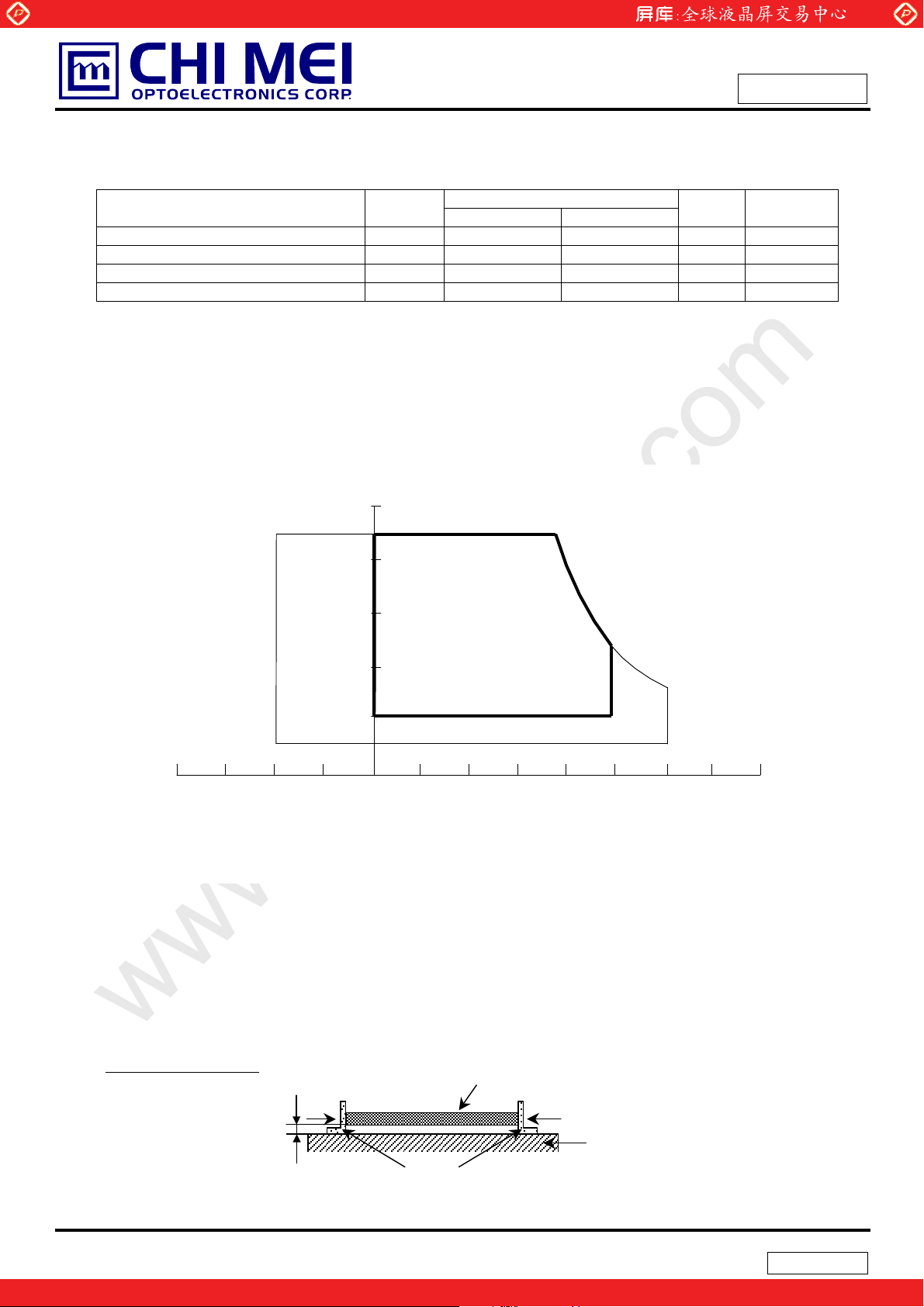

Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Value
Min. Max.
- 200/2 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
8060-20 400 20-40
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,.
Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
At Room Temperature
LCD Module
Side Mount Fixing Screw
gap=2mm
Bracket
Side Mount Fixing Screw
Stage
5 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item
LED Light Bar Power Supply Voltage 0 34 V LED Light Bar Power Supply Current 0 150 mA
Note (1) Permanent damage to the device may occur if maximum or minimum values are exceeded.
Function operation should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min Max.
Unit Note
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
(1)
Unit Note
(1)
6 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP - 50 - mV ­Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
White - 190 220 mA (3)a Black
Icc
TH(LVDS)
TL(LVDS)
- 250 280 mA (3)b
- - +100 mV
-100 - - mV
LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT - 100 - Ohm Power per EBL WG P
- 1.40 - W (4)
EBL
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Unit Note
(5),
=1.2V
V
CM
(5)
=1.2V
V
CM
Note (2) I
I
: the maximum current when VCC is rising
RUSH
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc rising time is 470us
+3.3V
0.9Vcc
Vcc
(LCD Module Input)
VCC
100ms
I
IS
0V
I
RUSH
470us
0.1Vcc
ICC
7 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
|
|
)
)
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
a. White Pattern
Active Area
b. Black Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the converter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
= 60 Hz,
v
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The converter used is provided from
Please contact them for detail information.
CMO doesn’t provide the converter in this product.
Note (5) The parameters of LVDS signals are defined as the following figures.
CM
V
Single Ended
0V
V
TH(LVD S
Differential
0V
V
TL(LVD S
VID
|VID|
8 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
LED Quantity 54 PCs (1) LED Light Bar Power Supply Voltage LED Light Bar Power Supply Current
27 28.8 30.6 V
V
L
-- 120 -- mA
I
L
Power Consumption PL -- 3.46 -- W (3), (Duty 100%) LED Life Time LBL 10000 -- -- Hrs (4)
Note (1) LED light bar configuration is shown as below.
VL,I
L
Light Bar Feedback
Channels
Value
LED
Light Bar
Parallel:6
SeriesΚ9
Unit Note
(1),(2) (Duty 100%)
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with current
balancing function to drive LED light-bar.
Note (3) P
Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25 2
= I
L
LVL
and I
= 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.
L
o
C
9 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center

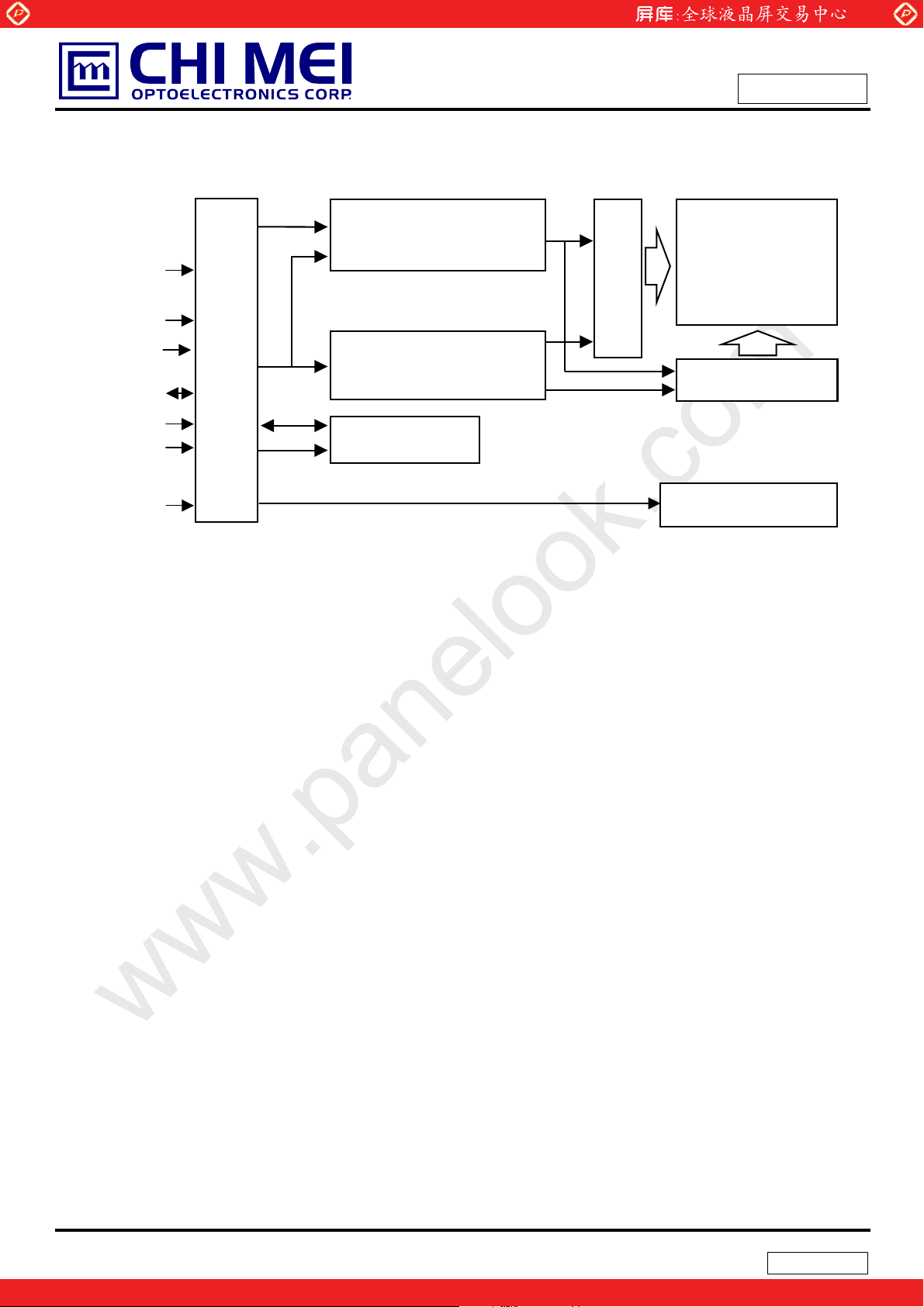

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
LVDS Display
Data & Clock
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
LED Power & Signal
INPUT CONNECTOR
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
10 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 NC No connect 6 CLK 7 DATA 8 Rxin0- LVDS Differential Data Input Negative
DDC 3.3V Power DDC 3.3V Power
EDID
DDC Clock DDC Clock
EDID
DDC Data DDC Data
EDID
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
R0~R5,G0
9 Rxin0+ LVDS Differential Data Input Positive
10 Vss Ground 11 Rxin1- LVDS Differential Data Input Negative
12 Rxin1+ LVDS Differential Data Input Positive
13 Vss Ground 14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync
15 Rxin2+ LVDS Differential Data Input Positive 16 Vss Ground 17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 Vss Ground 20 Vss Ground 21 Vdc(1&2&3) LED Annold (Positive) 22 Vdc(4&5&6) LED Annold (Positive) 23 NC No connect 24 Vdc1 LED Cathode (Negative) 25 Vdc2 LED Cathode (Negative) 26 Vdc3 LED Cathode (Negative) 27 Vdc4 LED Cathode (Negative) 28 Vdc5 LED Cathode (Negative) 29 Vdc6 LED Cathode (Negative) 30 Vss Ground
Note (1) Connector Part No.: 20474-030E-12(I-PEX) or equivalent
G1~G5, B0, B1
LVDS Level Clock
-
-
Note (2) User’s connector Part No: 20472-030T-10(I-PEX) or equivalent
11 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center

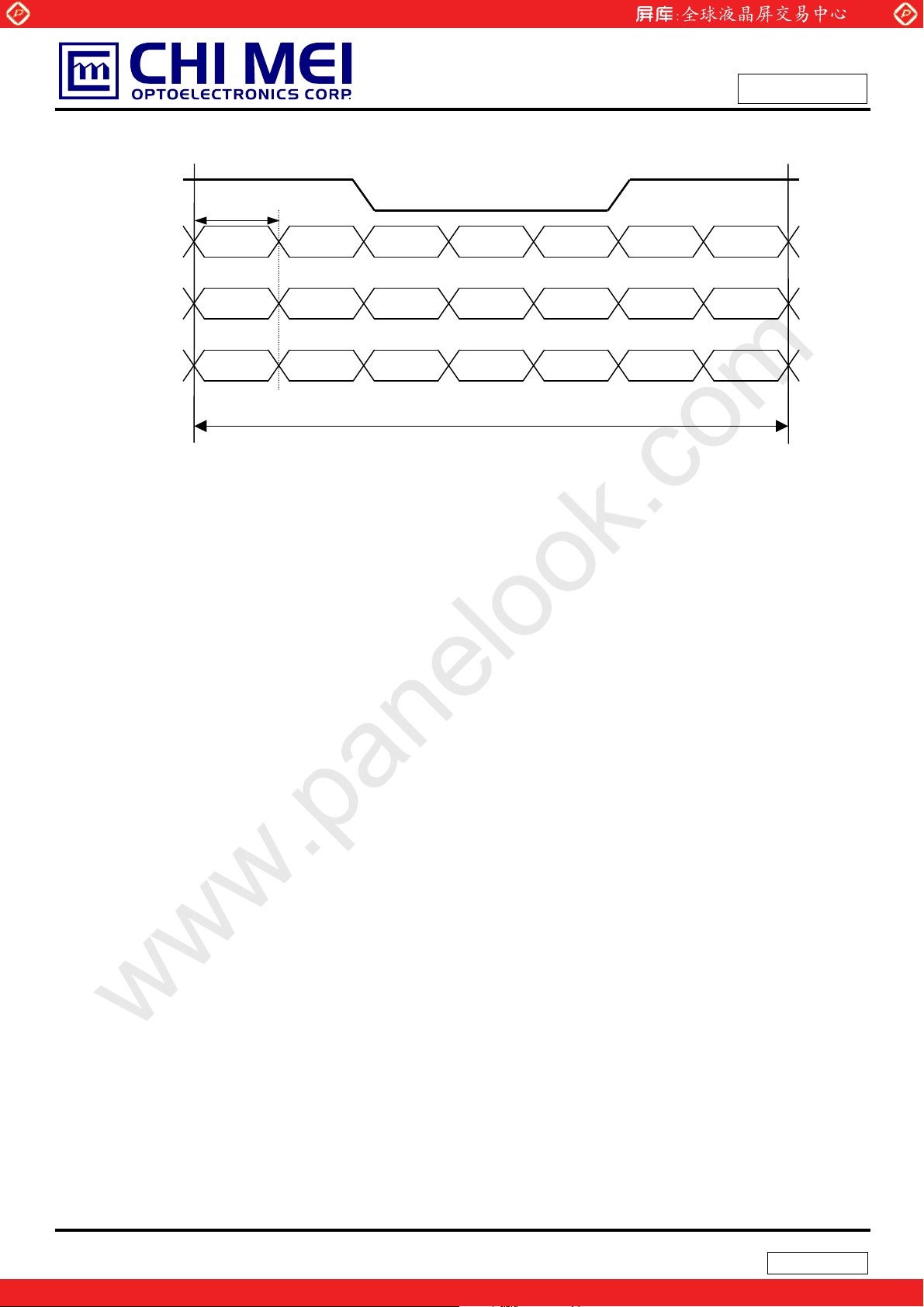

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
CLK+
T/7
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Rxin2
Rxin1
Rxin0
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0R5 R4
Signal for 1 DCLK Cycle (T)
12 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
13 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA Plug &
Display and FPDI standards.
Byte # (decimal)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
38
39 40 41
Byte # (hex)
Field Name and Comments
0 Header 1 Header 2 Header 3 Header 4 Header 5 Header 6 Header 7 Header 8 EISA ID manufacturer name (“APP”)
9 EISA ID manufacturer name (Compressed ASCII) 0A ID product code (N133I6-L02) 8b 0B ID product code (hex LSB first; N133I6-L02) 9C 0C ID S/N (fixed “0”) 0D ID S/N (fixed “0”) 0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”) 10 Week of manufacture (fixed “27”) 11 Year of manufacture (fixed “2008”) 12 EDID structure version # (“1”) 13 EDID revision # (“3”) 14 Video I/P definition (“digital”) 15 Max H image size (“29.7cm”) 16 Max V image size (“19.2cm”) 17 Display Gamma (Gamma = ”2.2”) 18 Feature support (“Active off, RGB Color”)
19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) 1B Red-x (Rx = “0.595”) 1C Red-y (Ry = “0.345”) 58 1D Green-x (Gx = ”0.320”) 1E Green-y (Gy = ”0.555”)
1F Blue-x (Bx = ”0.155”)
20 Blue-y (By = ”0.145”)
21 White-x (Wx = ”0.313”)
22 White-y (Wy = ”0.329”)
23 Established timings 1
24 Established timings 2 (1280x800@60Hz)
25 Manufacturer’s reserved timings
26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2
29 Standard timing ID # 2
Value (hex)
Value
(binary) 00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 00 00000000 06 00000110 10 00010000
10001011
10011100 00 00000000 00 00000000 00 00000000 00 00000000 1B 00011011 12 00010010 01 00000001 03 00000011 80 10000000 1D 00011101 13 00010011 78 01111000 0A 00001010 5C 01011100 80 10000000 98 10011000
01011000 51 01010001 8E 10001110 27 00100111 25 00100101 50 01010000 54 01010100 00 00000000 00 00000000 00 00000000
01 00000001
01 00000001 01 00000001 01 00000001
14 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
42 43 44 45 46 47 48 49 50 51 52 53
54
55 56 57 58 59 60 61 62 63 64
65
66 67 68 69 70
71
72 73 74 75 76 77 78 79 80 81 82 52 ʳ 83 84 85 86
2A Standard timing ID # 3 2B Standard timing ID # 3 2C Standard timing ID # 4 2D Standard timing ID # 4 2E Standard timing ID # 5
2F Standard timing ID # 5 30 Standard timing ID # 6 31 Standard timing ID # 6 32 Standard timing ID # 7 33 Standard timing ID # 7 34 Standard timing ID # 8 35 Standard timing ID # 8
36 37 # 1 Pixel clock (hex LSB first) 38 # 1 H active (“1280”)
39 # 1 H blank (“160”) 3A # 1 H active : H blank (“1280 : 160”) 3B # 1 V active (”800”) 3C # 1 V blank (”23”) 3D # 1 V active : V blank (”800 :23”) 3E # 1 H sync offset (”48”)
3F # 1 H sync pulse width ("32”)
40 # 1 V sync offset : V sync pulse width (”3 : 6”)
41
42 # 1 H image size (”286.08 mm”)
43 # 1 V image size (”178.8 mm”)
44 # 1 H image size : V image size (”286 : 178”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)
47
48 Detailed timing/monitor
49 descriptor #2 4A ʳ 4B ʳ 4C Version 4D Apple edid signature 4E Apple edid signature
4F Link Type (LVDS Link,MSB justified)
50 Pixel and link component format (6-bit panel interface)
51 Panel features (No inverter)
53 ʳ
54 ʳ
55 ʳ
56 ʳ
Detailed timing description # 1 Pixel clock (“72.5MHz”, According to VESA CVT Rev1.1)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”48: 32 : 3 : 6”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
52 01010010
1C 00011100 00 00000000 A0 10100000 50 01010000 20 00100000 17 00010111 30 00110000 30 00110000 20 00100000 36 00110110
00 00000000
1E 00011110 B2 10110010 10 00010000 00 00000000 00 00000000
18 00011000
00 00000000 00 00000000 00 00000000 01 00000001 00 00000000 06 00000110 10 00010000 20 00100000 00 00000000 00 00000000 00 00000000 00 00000000 00 00000000 00 00000000 00 00000000
15 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
87 88 89 90 91 92
93
94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127
57 ʳ
58 ʳ
59 ʳ 5A Detailed timing description # 3 5B # 3 Flag 5C # 3 Reserved
# 3 FE (hex) defines ASCII string (Model Name “N133I3-L01”,
5D
ASCII)
5E # 3 Flag
5F # 3 1st character of name (“N”)
60 # 3 2nd character of name (“1”)
61 # 3 3rd character of name (“3”)
62 # 3 4th character of name (“3”)
63 # 3 5th character of name (“I”)
64 # 3 6th character of name (“6”)
65 # 3 7th character of name (“-”)
66 # 3 8th character of name (“L”)
67 # 3 9th character of name (“0”)
68 # 3 9th character of name (“2”)
69 # 3 New line character indicates end of ASCII string 6A # 3 Padding with “Blank” character 6B # 3 Padding with “Blank” character 6C Detailed timing description # 4 6D # 4 Flag 6E # 4 Reserved
6F # 4 FC (hex) defines Monitor name ("Color LCD", ASCII)
70 # 4 Flag
71 # 4 1st character of name ("C") 43
72 # 4 2nd character of name ("o") 6F
73 # 4 3rd character of name ("l") 6C
74 # 4 4th character of name ("o") 6F
75 # 4 5th character of name ("r") 72
76 # 4 6th character of name (<space>) 20
77 # 4 7th character of name ("L") 4C
78 # 4 8th character of name ("C") 43
79 # 4 9th character of name ("D") 7A # 4 New line character # 4 indicates end of Monitor name 7B # 4 Padding with "Blank" character 7C # 4 Padding with "Blank" character 7D # 4 Padding with "Blank" character 7E Extension flag
7F Checksum
00 00000000 0A 00001010 20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000 4E 01001110 31 00110001 33 00110011 33 00110011 49 01001001 36 00110110 2D 00101101 4C 01001100 30 00110000 32 00110010 0A 00001010 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000
FC 111111 00
00 00000000
44 01000100
0A 00001010
20 00100000 20 00100000 20 00100000 00 00000000 38 00111000
01000011
01101111
01101100
01101111 01110010 00100000 01001100 01000011
16 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The specifications of input signal timing are as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 50 71 80 MHz -
Vertical Total Time TV 803 823 1028 TH -
Vertical Addressing Time TVD 800 800 800 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.
Vertical Active Blanking Period TVB TV-TVD 23 TV-TVD TH
Horizontal Total Time TH 1362 1440 1800 Tc -
Horizontal Addressing Time THD 1280 1280 1280 Tc -
Horizontal Active Blanking Period THB
INPUT SIGNAL TIMING DIAGRAM
www.panelook.com
TH-THD
160
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
TH-THD
Tc
DE
DCLK
DE
DATA
TC
HD
T
17 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
6.2 POWER ON/OFF SEQUENCE
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Power Supply
for LCD, Vcc
0V
- LVDS Interface
0V
- Power for Lamp
Timing Specifications:
0.5 Љ t1 Љ 10 ms
0 Љ t2 Љ 50 ms
0 Љ t3 Љ 50 ms
t4 Њ 500 ms
Power On
90%
10%
Power Off
90%
t1
t3t2
Valid Data
t6t5
50%50%
ONOFF OFF
Restart
t7
10%
t4
10%
t5 Њ 200 ms
t6 Њ 200 ms
Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

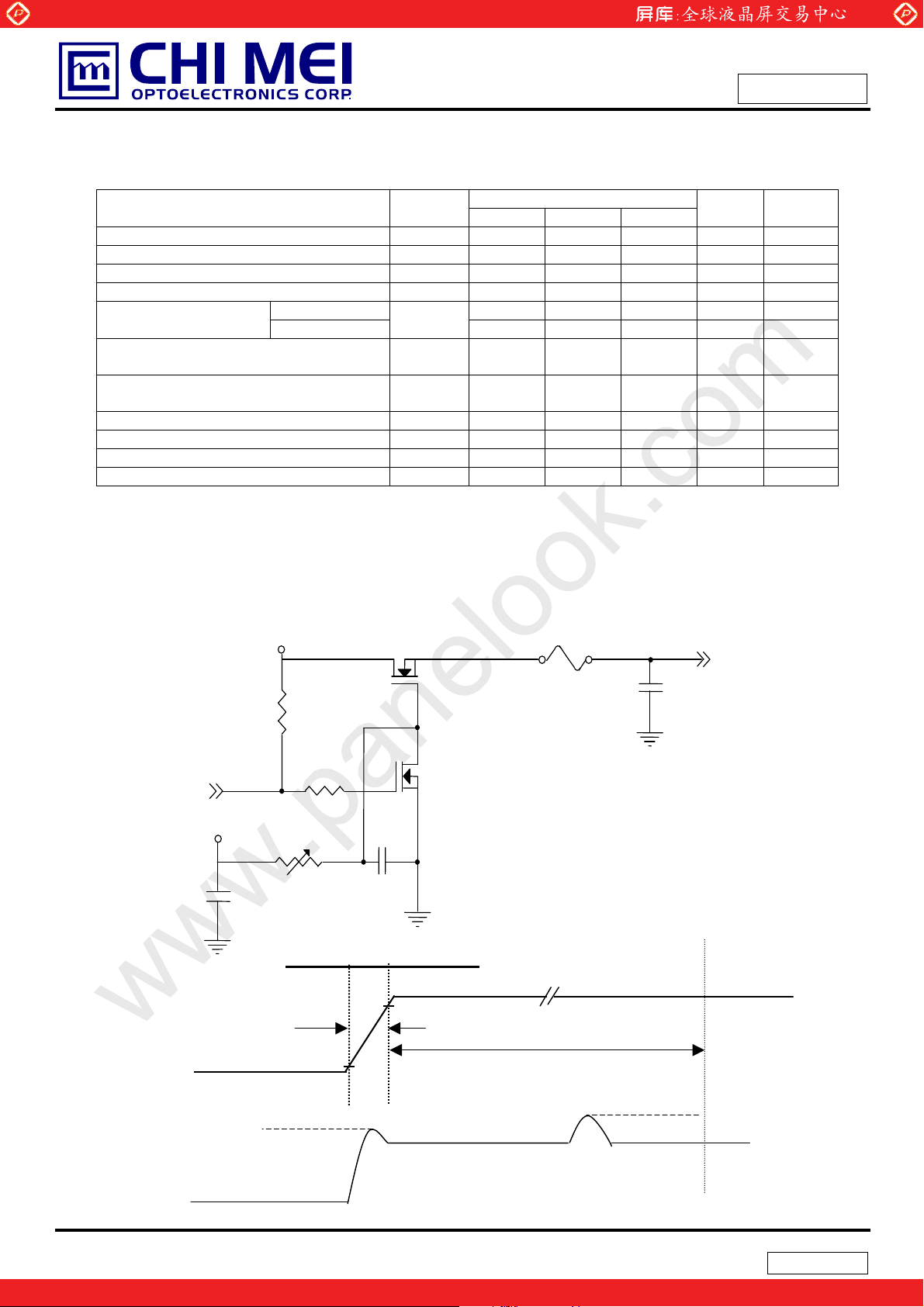

damaged.
Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be
sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight converter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight converter power must be turned off before the power supply
for the logic and the interface signal is invalid.
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time is better to follow
5Љt7Љ300 ms.
18 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center
7 OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta 25r2 Ambient Humidity Ha 50r10 %RH Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" LED Light Bar Input Current I
The measurement methods of optical characteristics are shown in Section 7.2. The following items
should be measured under the test conditions described in Section 7.1 and stable environment shown in
Note (5).
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR (400) (500) - (2), (5)
Response Time
Center Luminance of White Lct 275 290 cd/m2(4), (5) Luminance Uniformity U 60 % (5), (8)
Red
Color Chromaticity
Cross-talk
Color Difference w.r.t. center - - (0.009) - (5), (9)
Color Difference over panel - - (0.013) - (5), (10)
Color Difference worst neighbor
Viewing Angle
Green
Blue
White
Horizontal
Vertical
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
L
TR - 3 8 ms
- 7 12 ms
T
F
Rx Ry Gx
=0q, TY =0q
T
Gy Bx By
x
Viewing Normal
Angle
Wx
Wy
D
SHA
Tx+
T
-
TY+
T
x
-
Y
CRt10
120
0.575 0.595 0.615
0.325 0.345 0.365
0.300 0.320 0.340
0.535 0.555 0.575
0.135 0.155 0.175
0.125 0.145 0.165
(0.297) (0.313) (0.329)
(0.313) (0.329) (0.345)
- - 2 % (5), (6)
- - (0.005) - (5), (11) 40 45 40 45 15 20
Deg. (1)
40 45
Preliminary
o
C
mA
(3)
-
-
-
-
-
-
-
-
(5)
19 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
.67 ms

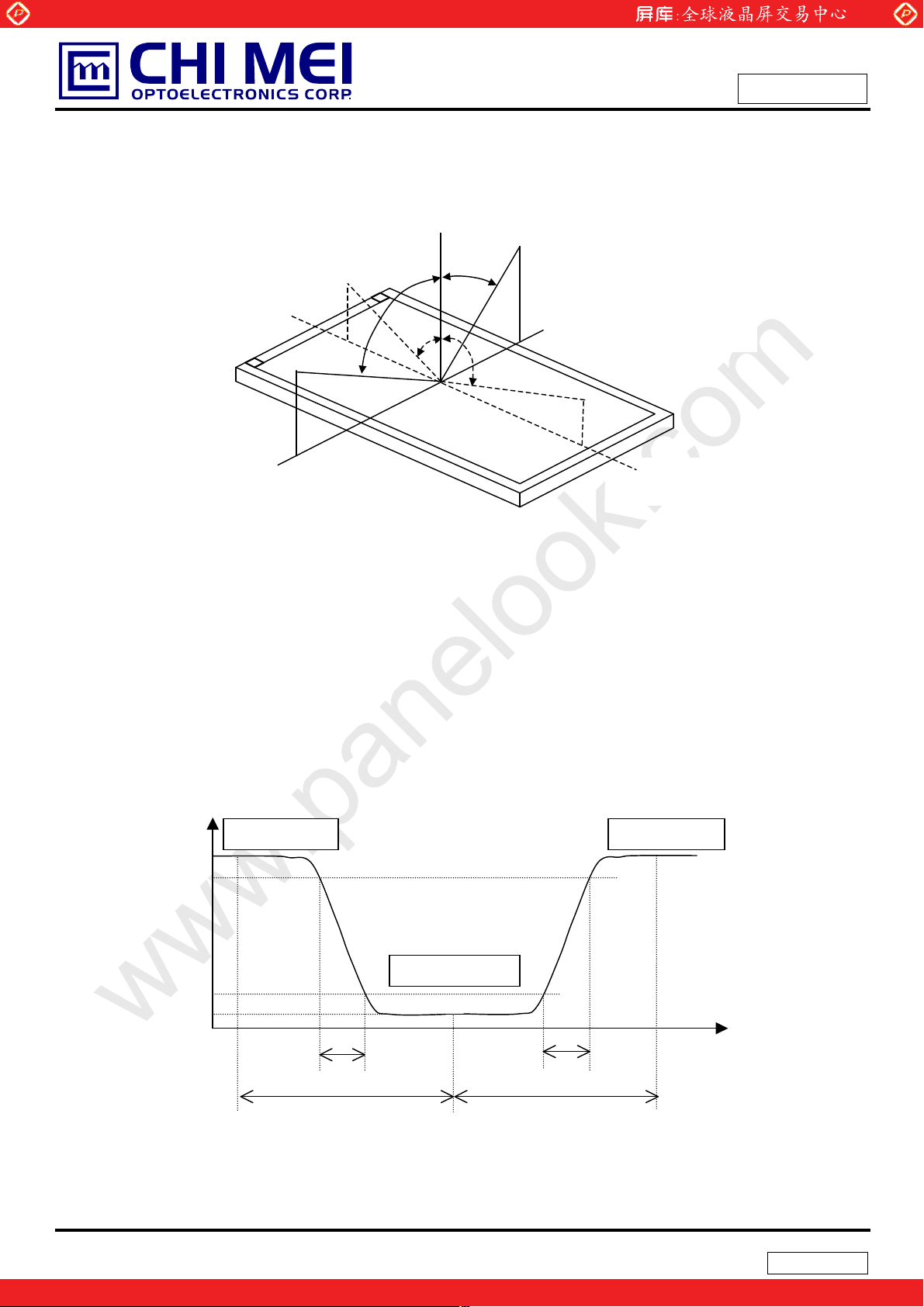

Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Normal
Tx = Ty = 0º
Ty- Ty
TX- = 90º
6 o’clock
T
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L
L
: Luminance of gray level 63
63
L
: Luminance of gray level 0
0
/ L
63
0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF):
R
66
Time
T
F
20 / 28
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
500
A
A
y
Note (4) Definition of Center Luminance of White (Lct):
Measure the luminance of gray level 63 at center points
L
= L (5)
ct
L (x) is corresponding to the luminance of the point X at Figure in Note (7).

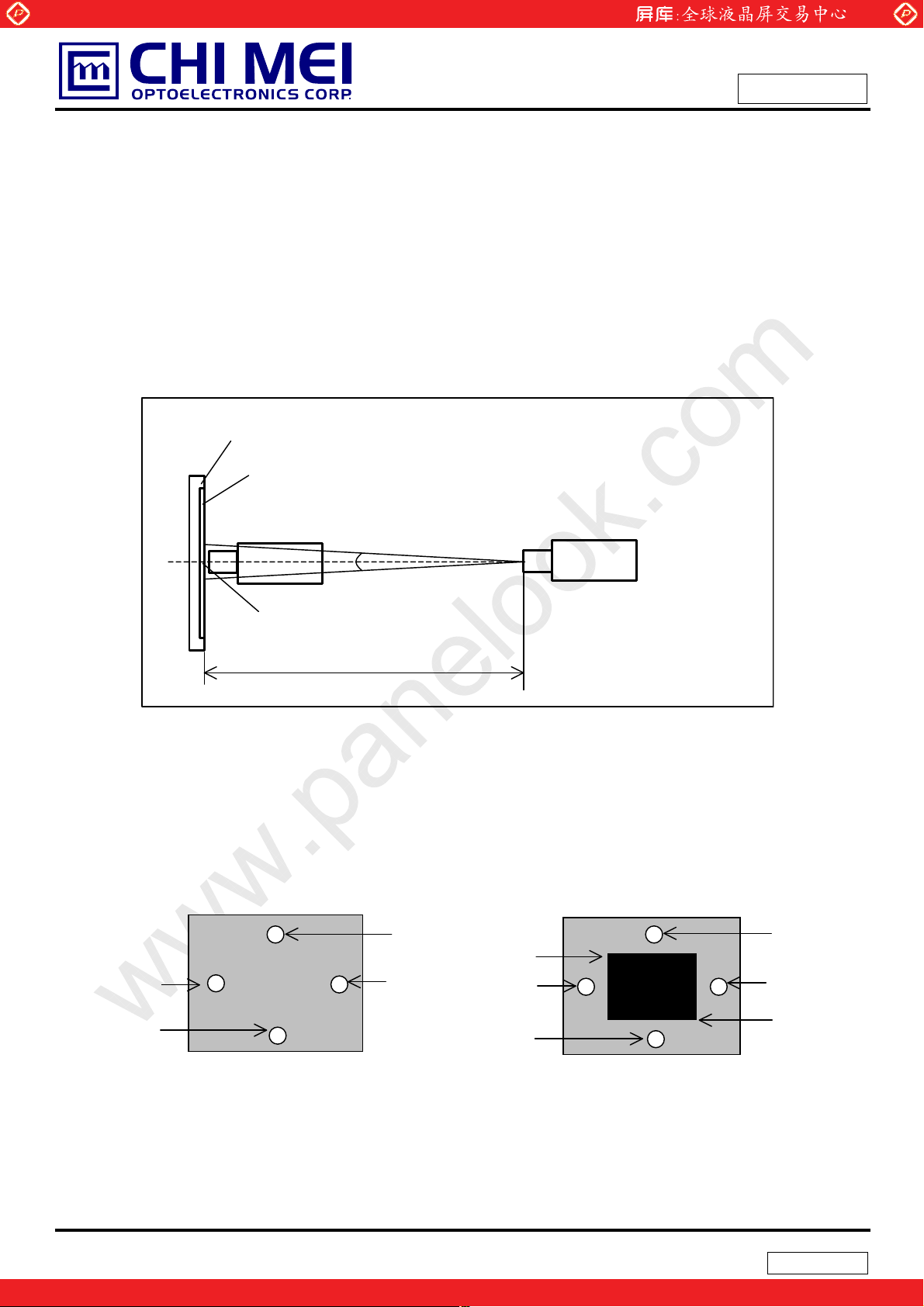

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 15 minutes in a windless room.
LCD Module
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
LCD Panel
USB2000
Center of the Screen
Note (6) Definition of Cross-talk (D
D
= | YB – YA | / YAu100 (%)
SHA
Where:
Y
= Luminance of measured location without gray level 0 pattern (cd/m2)
A
Y
= Luminance of measured location with gray level 0 pattern (cd/m2)
B
ctive Area
Gray 32
Y
(D/8,W/2)
A, L
Y
(D/2,7W/8)
A, D
(0, 0)
SHA
mm
)
(D,W)
Y
(D/2,W/8)
A, U
Y
(7D/8,W/2)
A, R
(D/4,W/4)
Y
(D/8,W/2)
B, L
Y
(D/2,7W/8)
B, D
CS-1000T
Light Shield Room
(Ambient Luminance < 2 lux)
(0, 0)
ctive Area
Gray 0
Gra
32
Y
B, U
Y
B, R
(3D/4,3W/4)
(D,W)
(D/2,W/8)
(7D/8,W/2)
21 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center

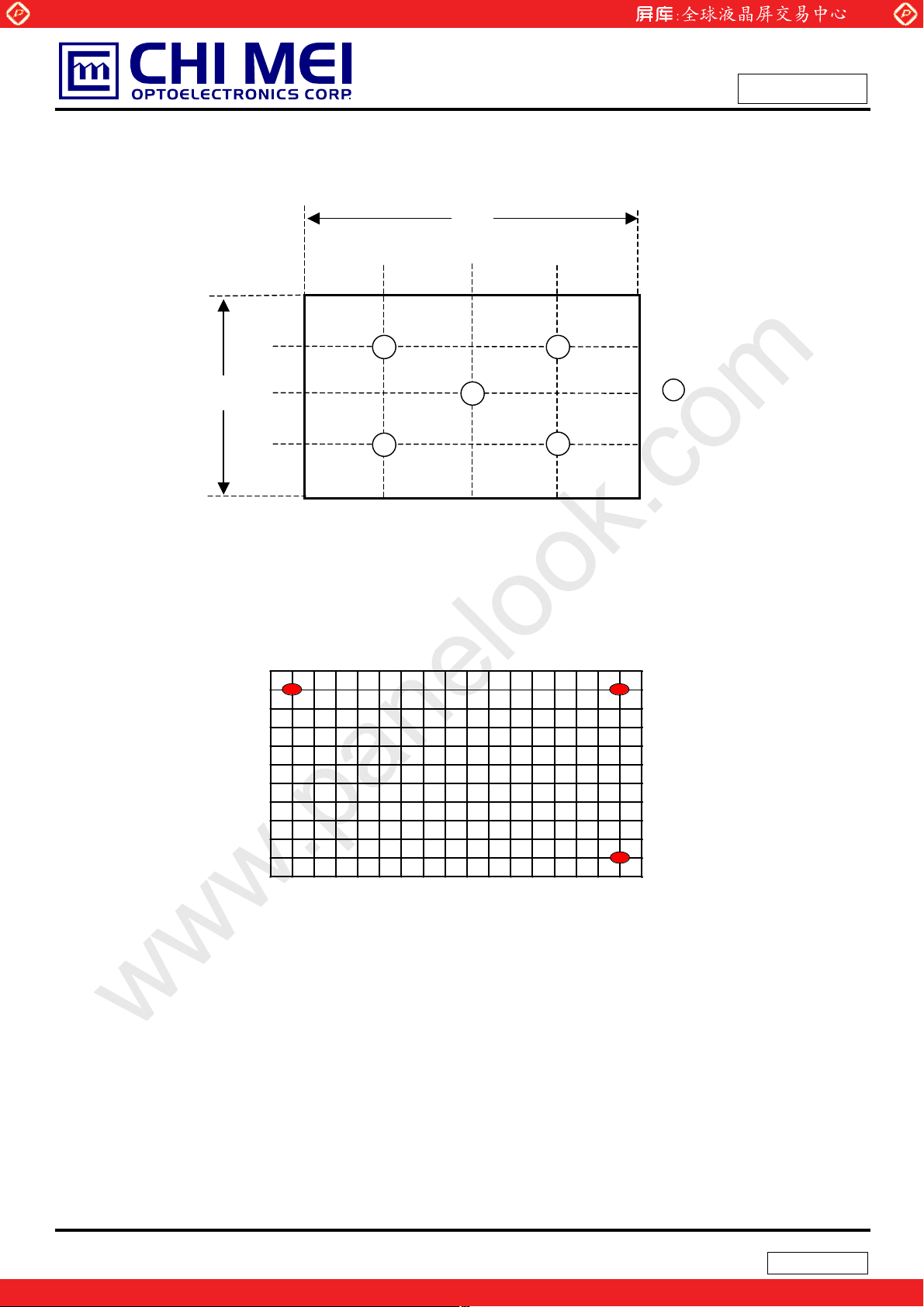

Note (7) Definition of measure point
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
Horizontal Line
D
D/4 D/2 3D/4
W/4
W/2
W
Vertical Line
3W/4
12
3
Note (8) Definition of Luminance Uniformity(U)
U = Lmin/Lmax Where:
Lmax = max {Luminance values at 160 points}, Lmin = min {Luminance values at 160 points}
0 1/17L 16/17L L
0
1/11W
1
5
Active Area
X
: Test Point
X=1 to 5
4
16
160
10W/11
W
Note (9) Definition of Color Difference with respect to the center
Center color coordinate is defined as the Average of points of 72, 73, 88, 89. where is corresponding to the measured point in Note (8)
Color Difference = [(u’
- u’c) 2 +(v’x - v’c) 2]
x
1/2
Where x is any point in Note (8) , c is the center point.
Note (10) Definition of Color Difference over the panel
Color Difference between any two measured points over the 160 points
- u’y) 2 +(v’x - v’y) 2]
=[(u’
x
1/2
Where x , y is any two points in Note (8)
Note (11) Definition of Color Difference between two neighbor
Color Difference between any two neighboring points on the panel
- u’y) 2 +(v’x - v’y) 2]
=[(u’
x
1/2
Where x , y is any two neighbor points in Note (8)
22 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
8.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.
23 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
9. PACKAGING
9.1 CARTON
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary

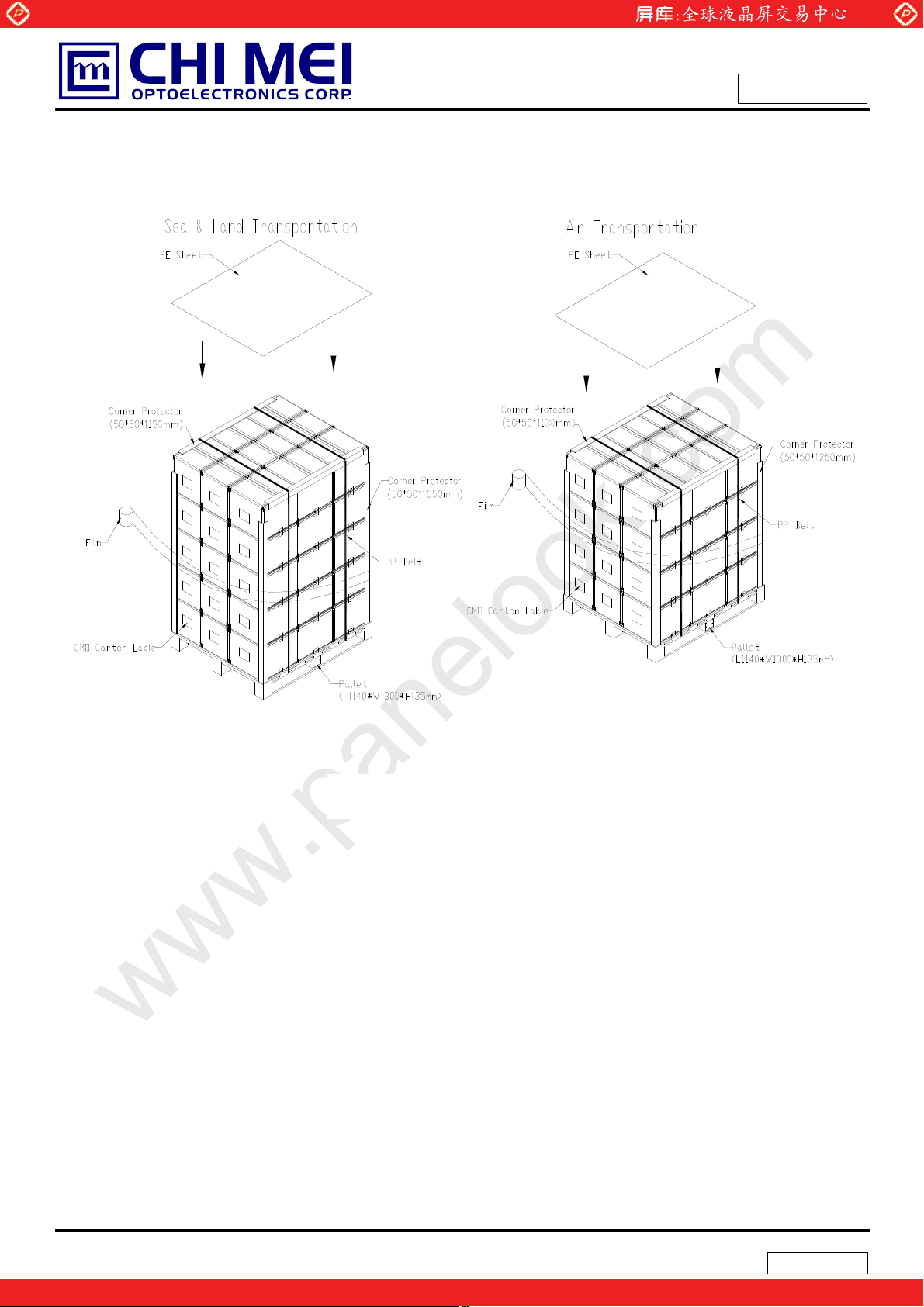

Figure. 9-1 Packing method
24 / 28
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
9.2 3$//(7
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary

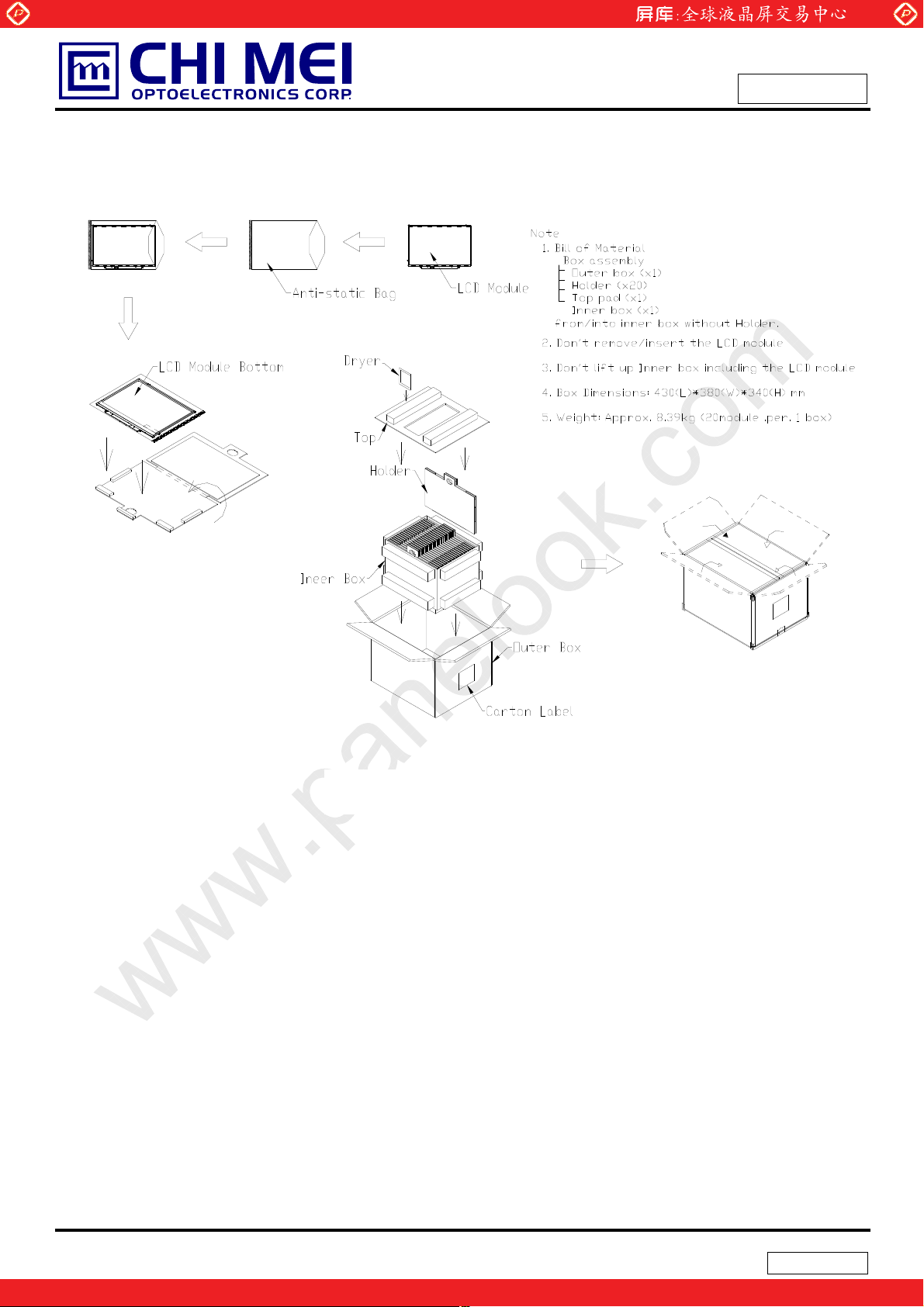

Figure. 9-2 Packing method
25 / 28
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
10. DEFINITION OF LABELS

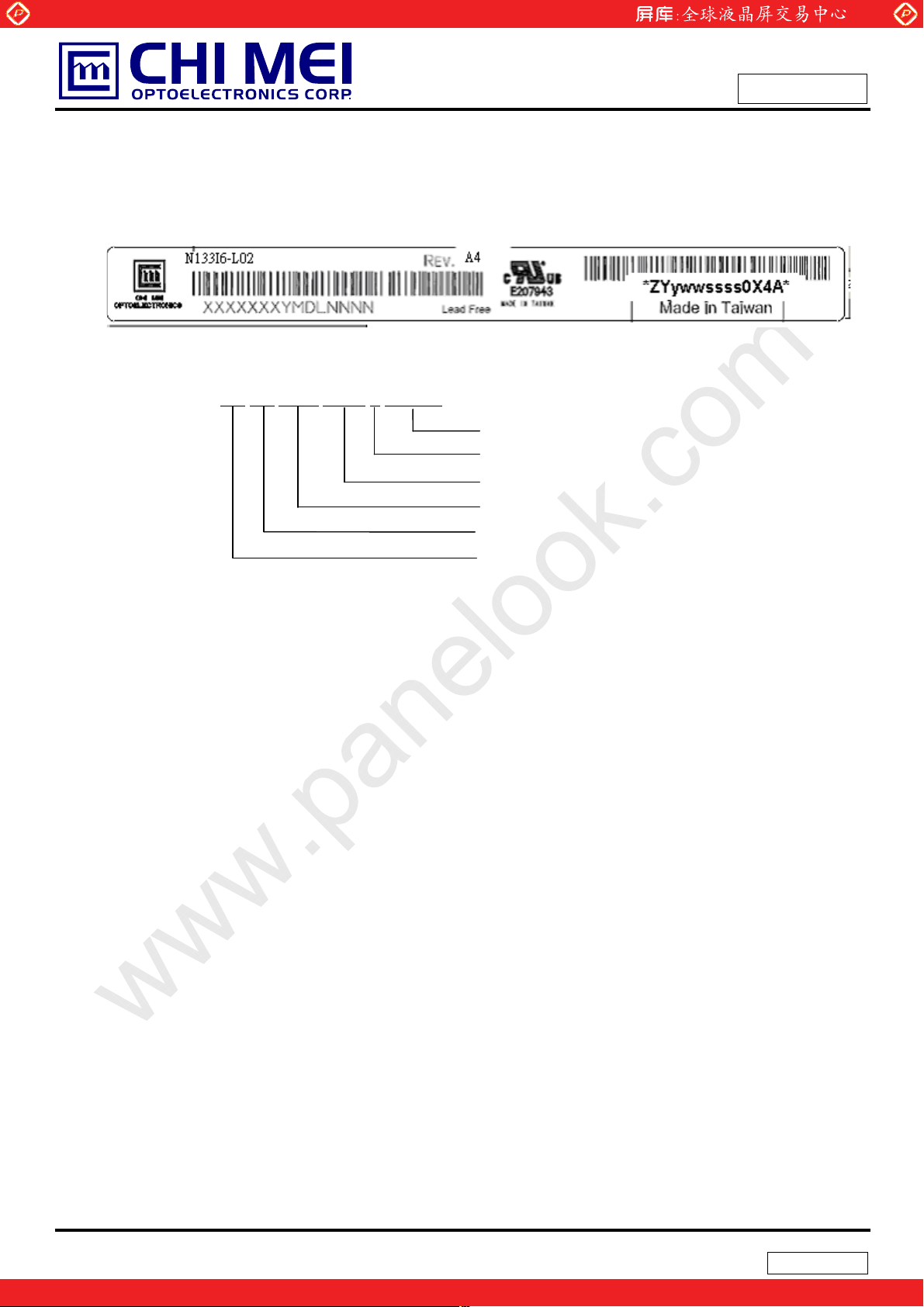

10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
(a) Model Name: N133I6 - L02
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
(c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
st
to 31st, exclude I , O and U
26 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 27
Global LCD Panel Exchange Center

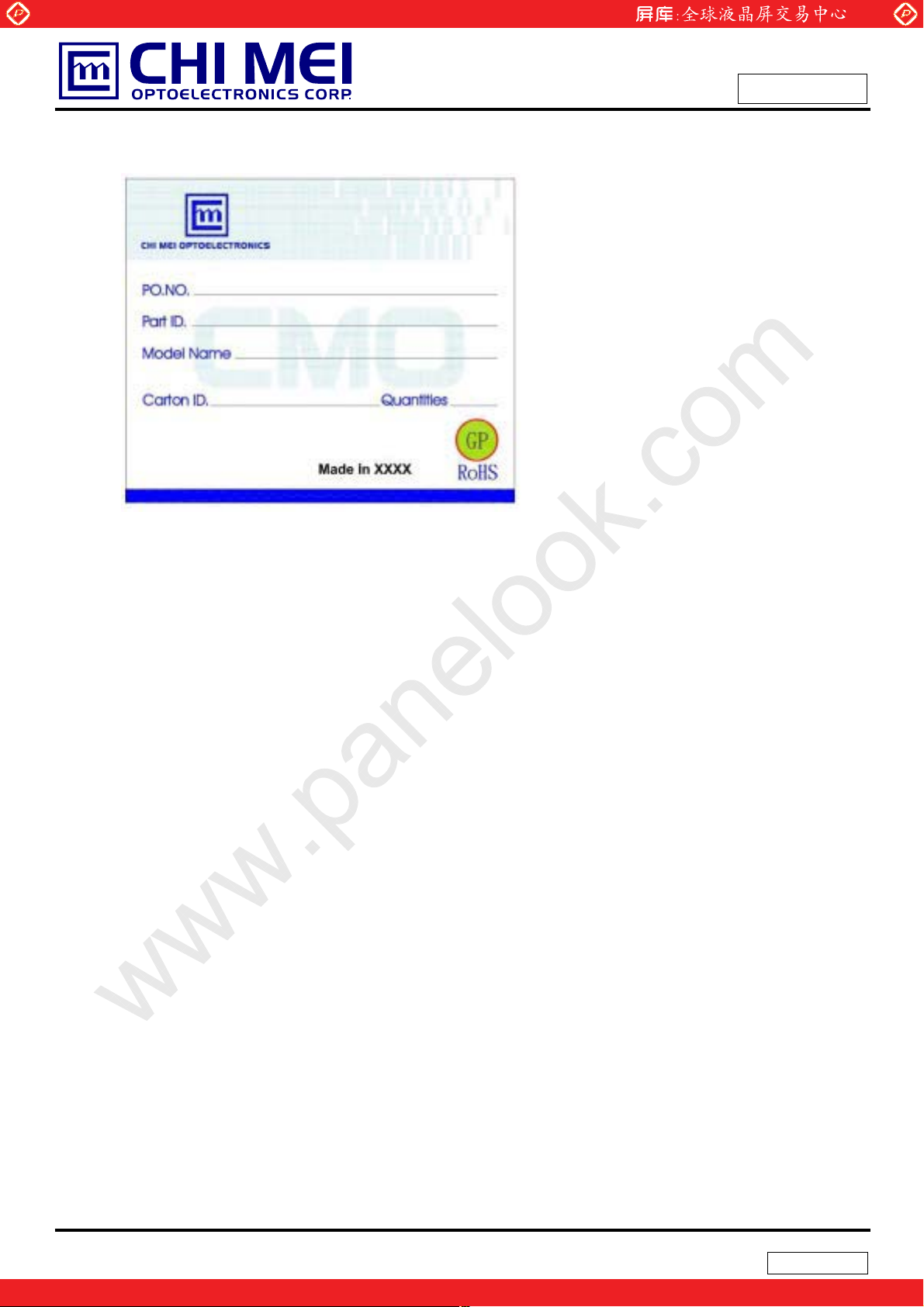

10.2 CMO CARTON LABEL
www.panelook.com
Doc No.: 44084099
Issued Date: Jun. 18, 2008
Model No.: N133I6 - L02
Preliminary
27 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 28
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
