CMO N133I3-L01 Specification

Global LCD Panel Exchange Center

A

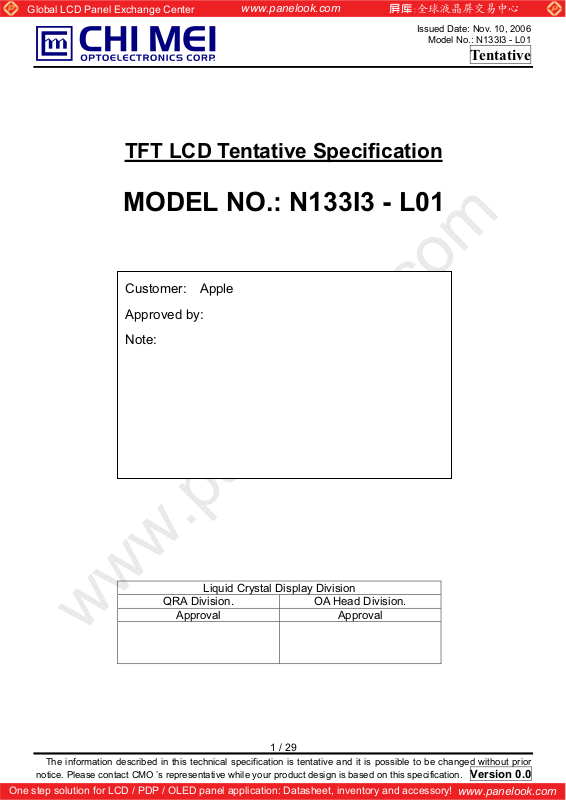

TFT LCD Tentative Specification

MODEL NO.: N133I3 - L01

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t ive

Customer: Apple

pproved by:

Note:

Liquid Crystal Display Division

QRA Division. OA Head Division.

Approval Approval

1 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t ive

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

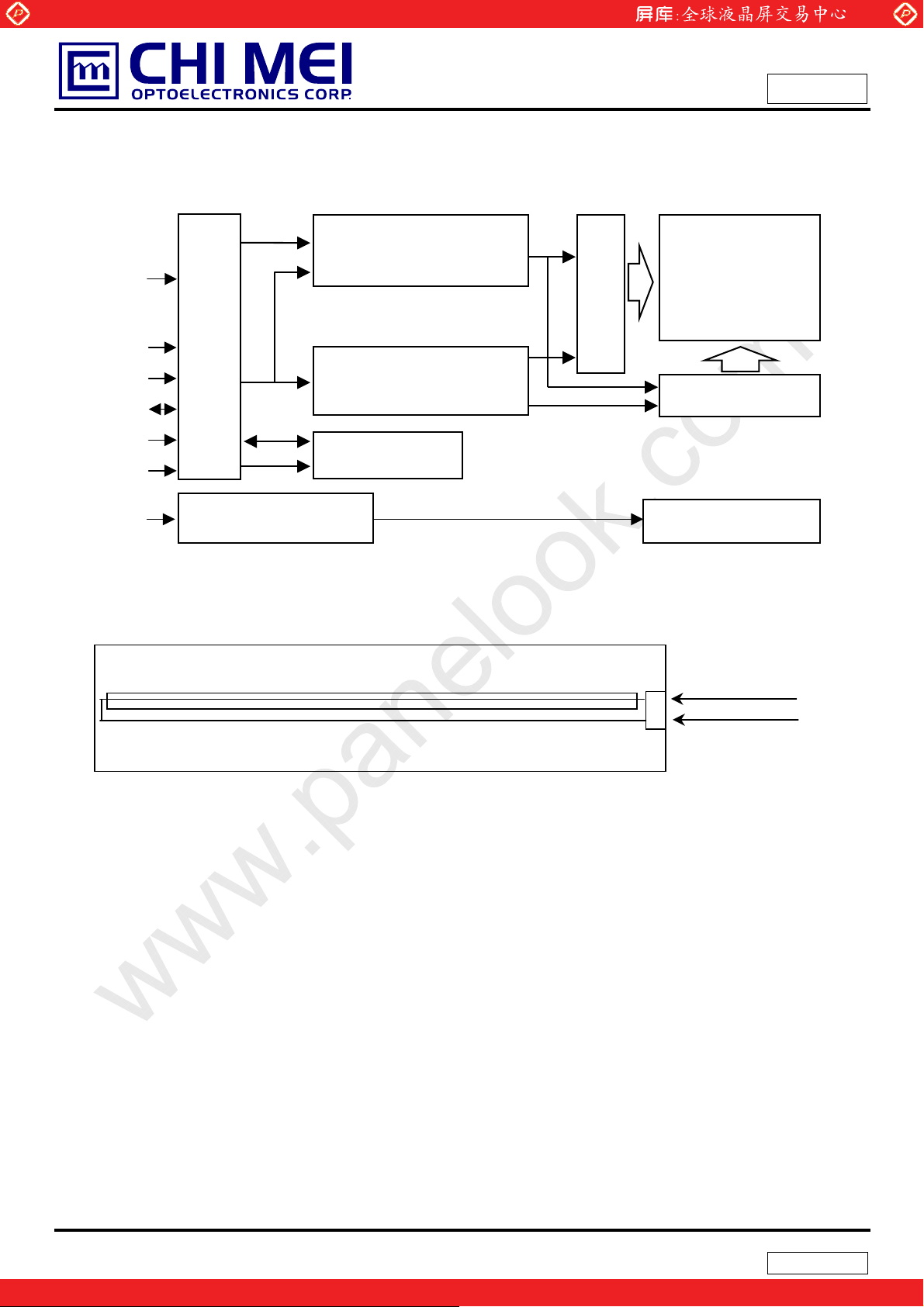

4. BLOCK DIAGRAM ------------------------------------------------------- 11

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

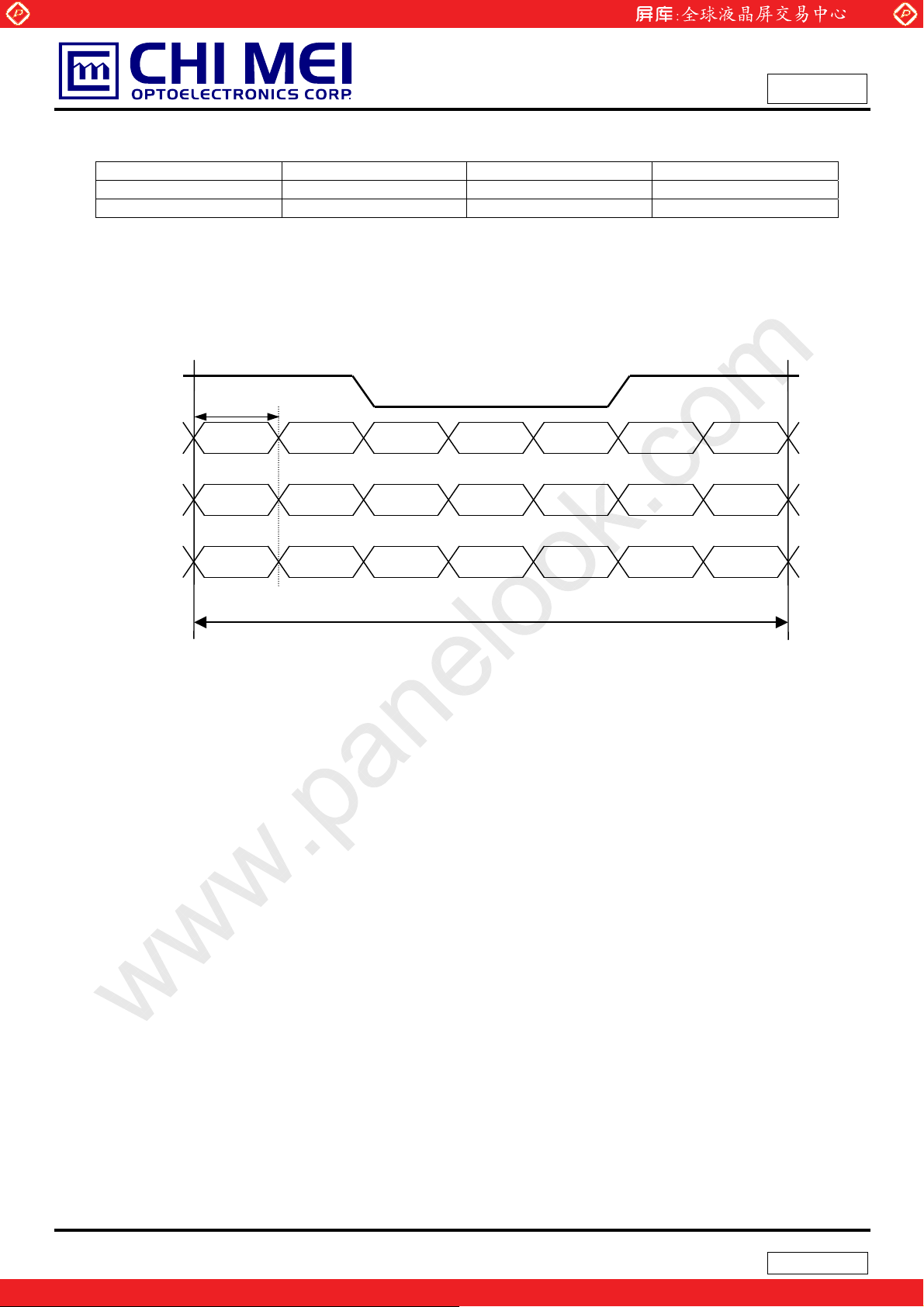

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.4 COLOR DATA INPUT ASSIGNMENT

5.5 EDID DATA STRUCTURE

6. INTERFACE TIMING ------------------------------------------------------- 16

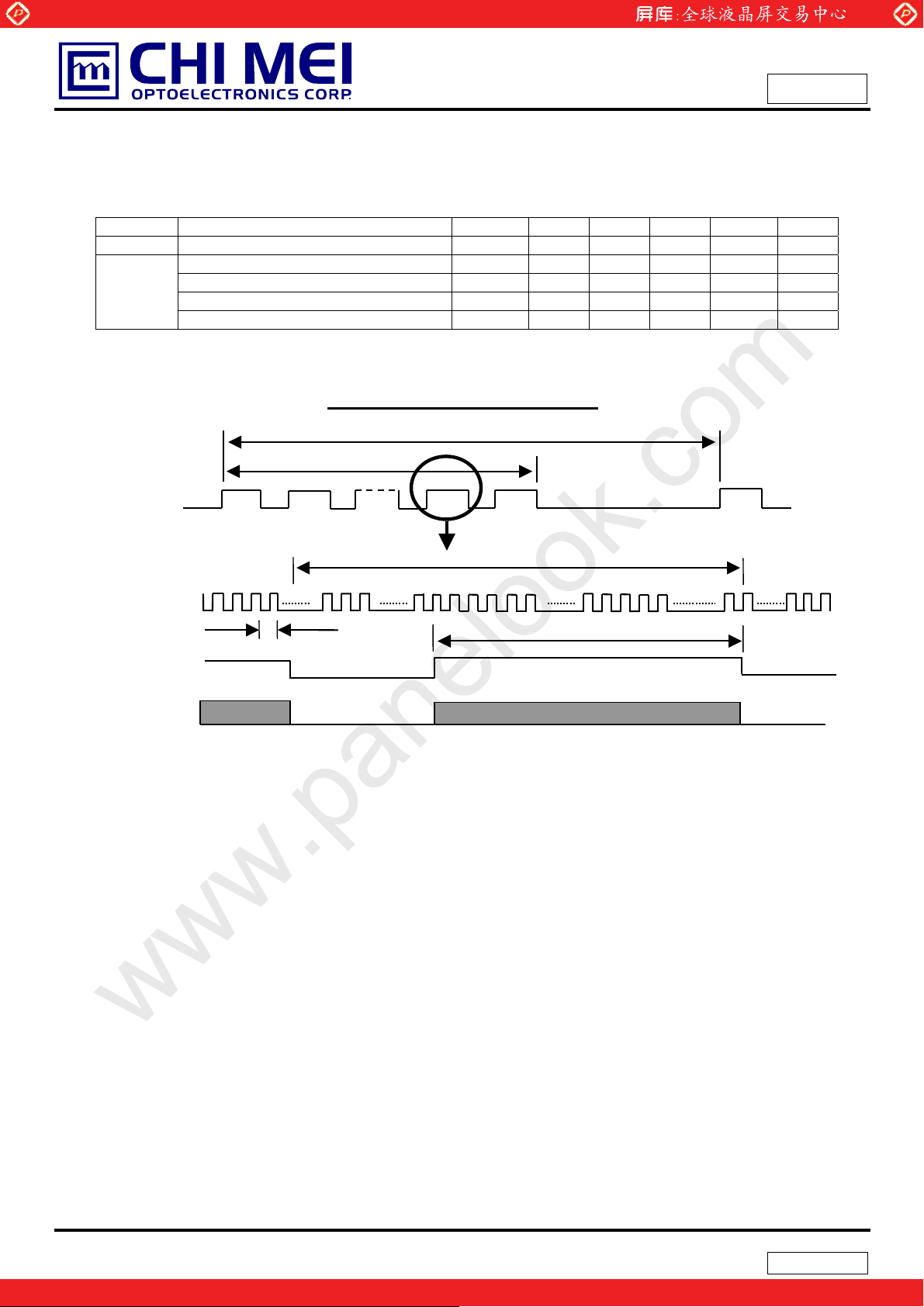

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 18

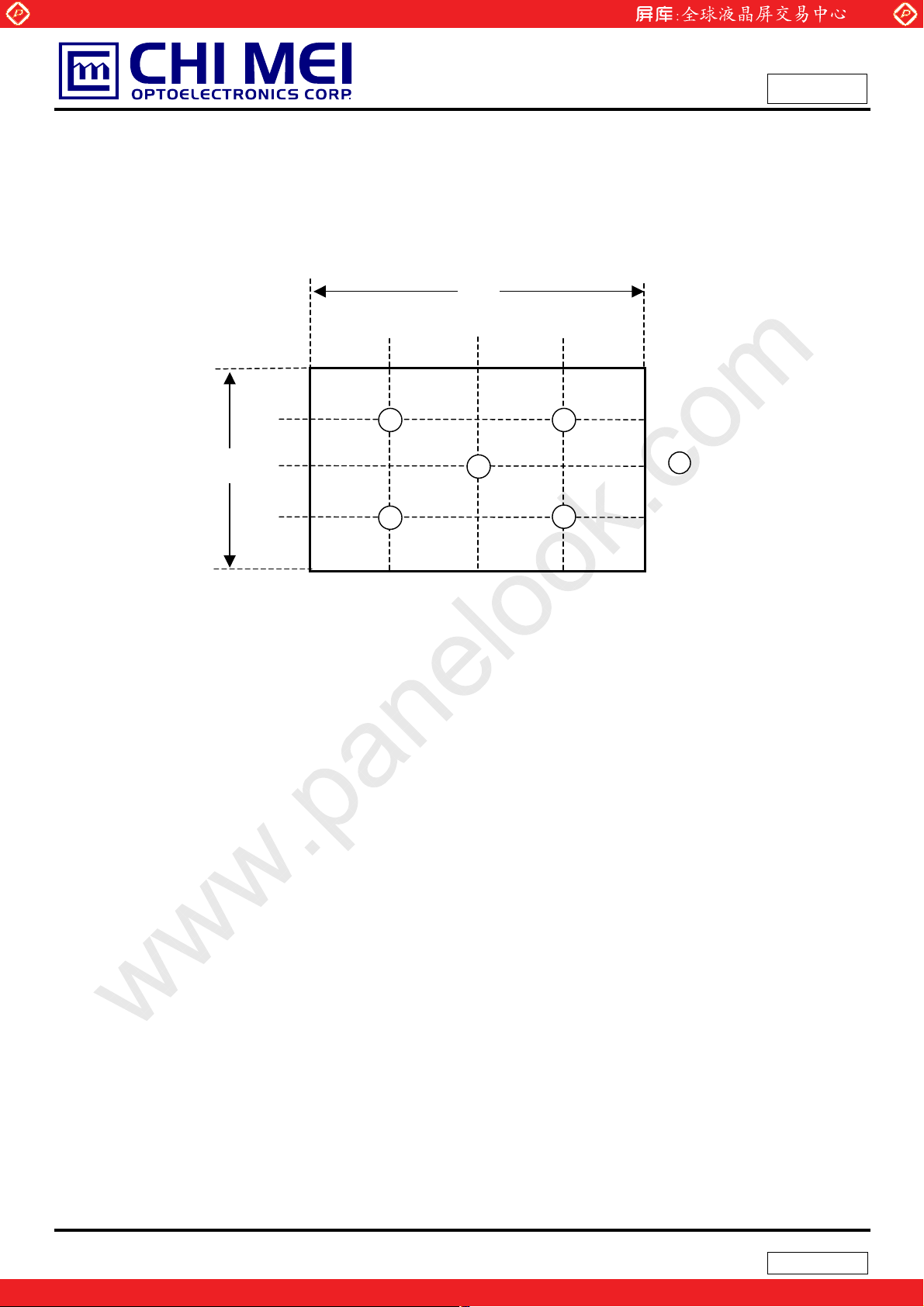

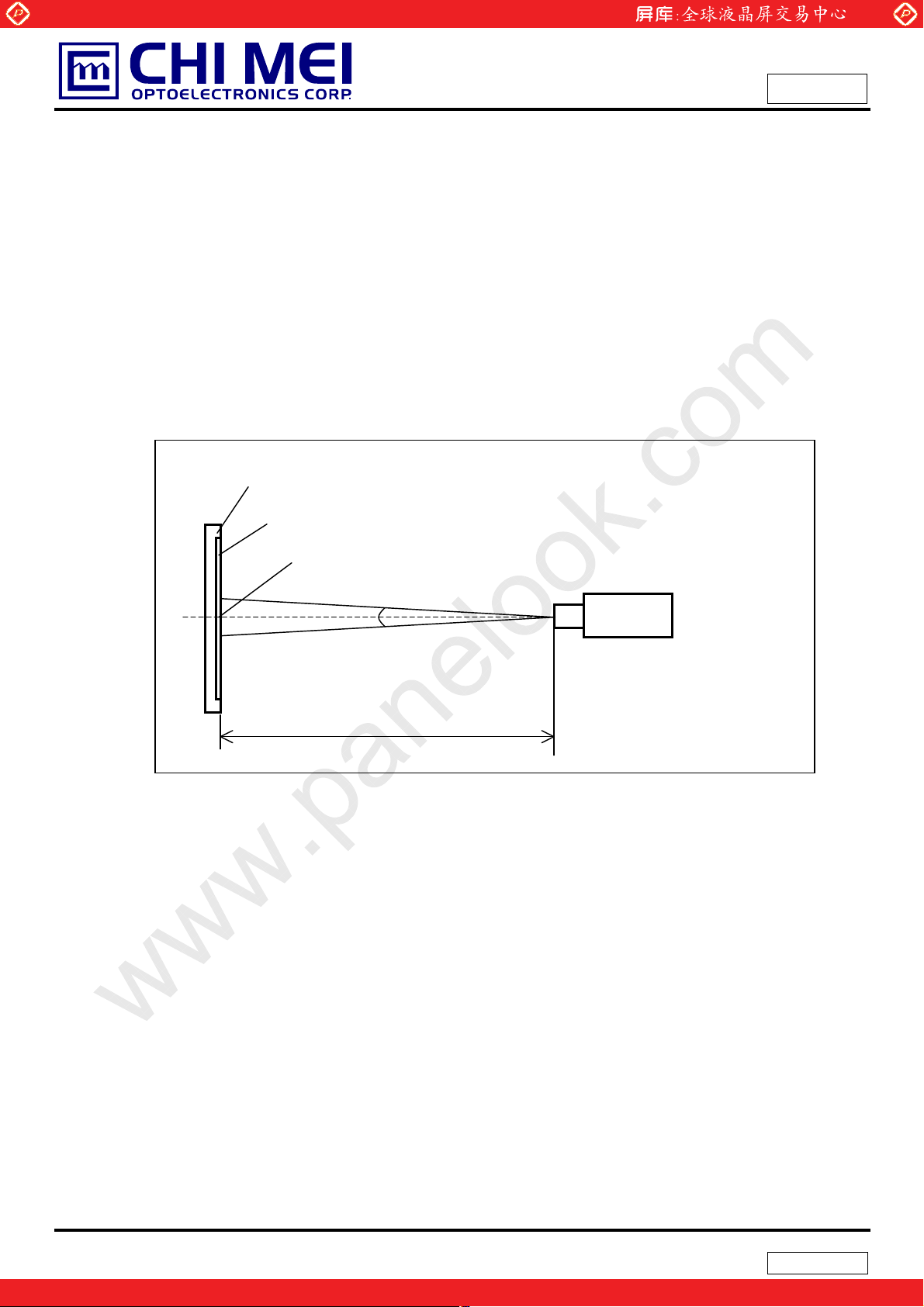

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS ------------------------------------------------------- 22

8.1 HANDLING PRECAUTIONS

8.2 STORAGE PRECAUTIONS

8.3 OPERATION PRECAUTIONS

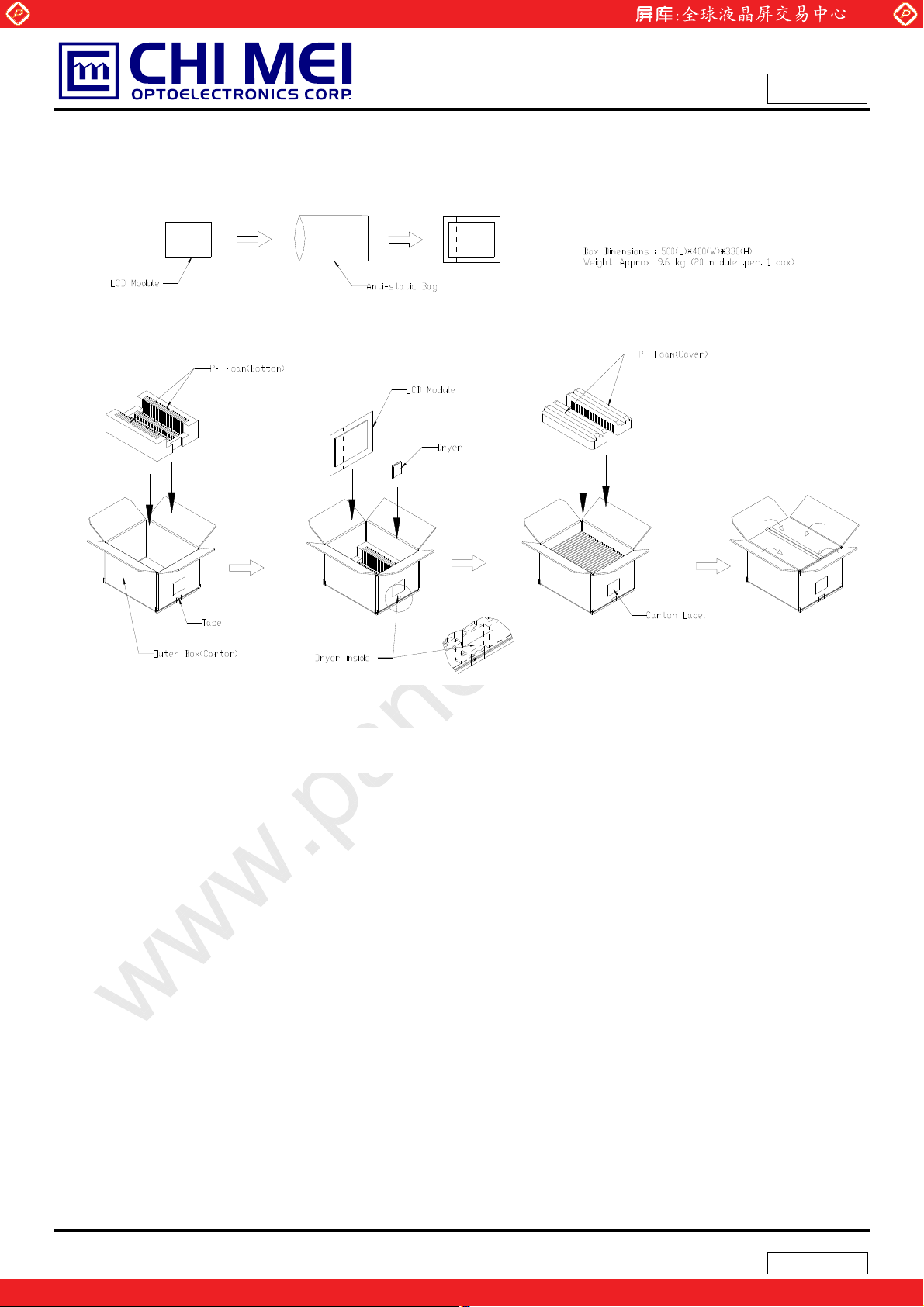

9. PACKING ------------------------------------------------------- 23

9.1 CARTON

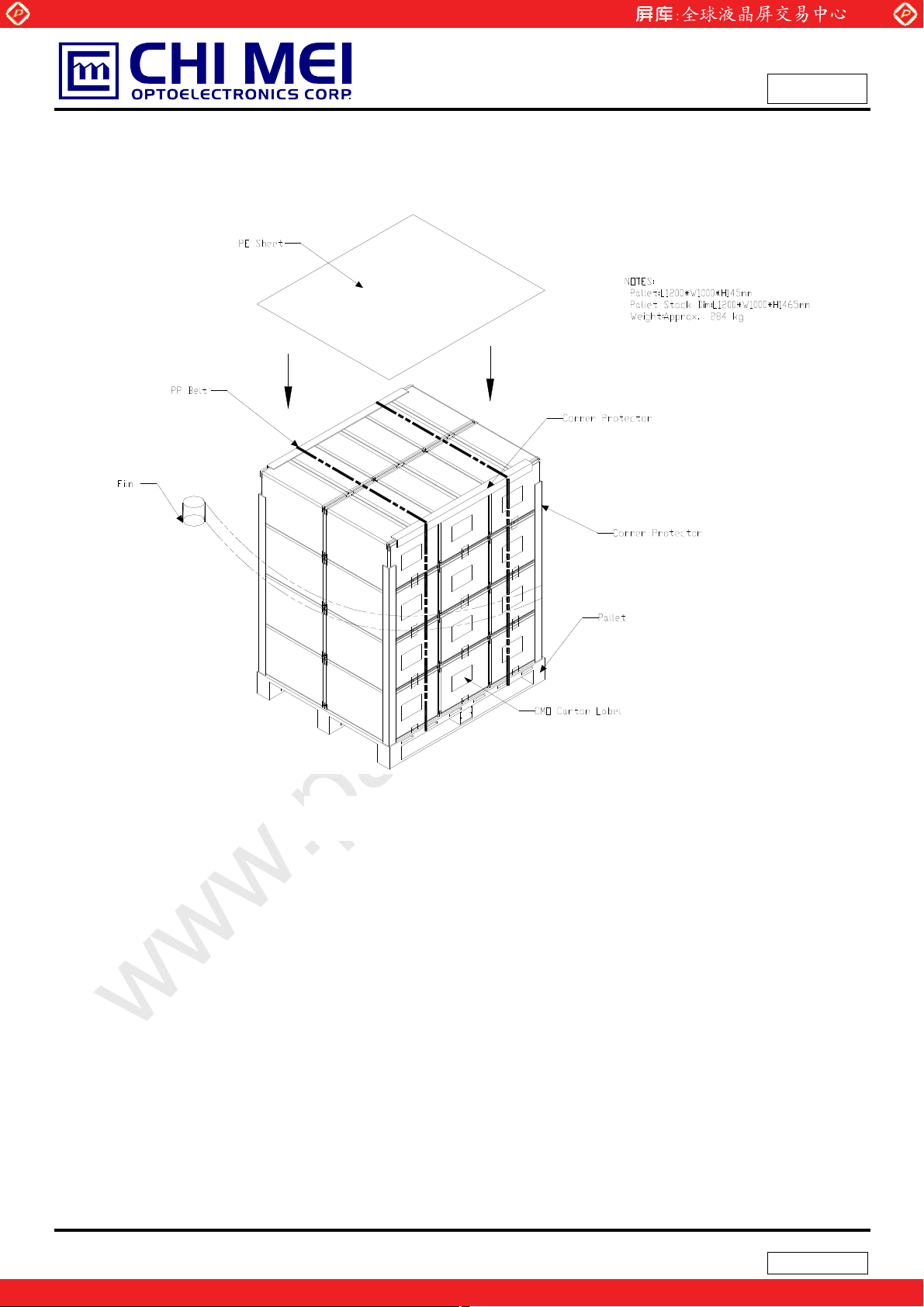

9.2 PALLET

10. DEFINITION OF LABELS

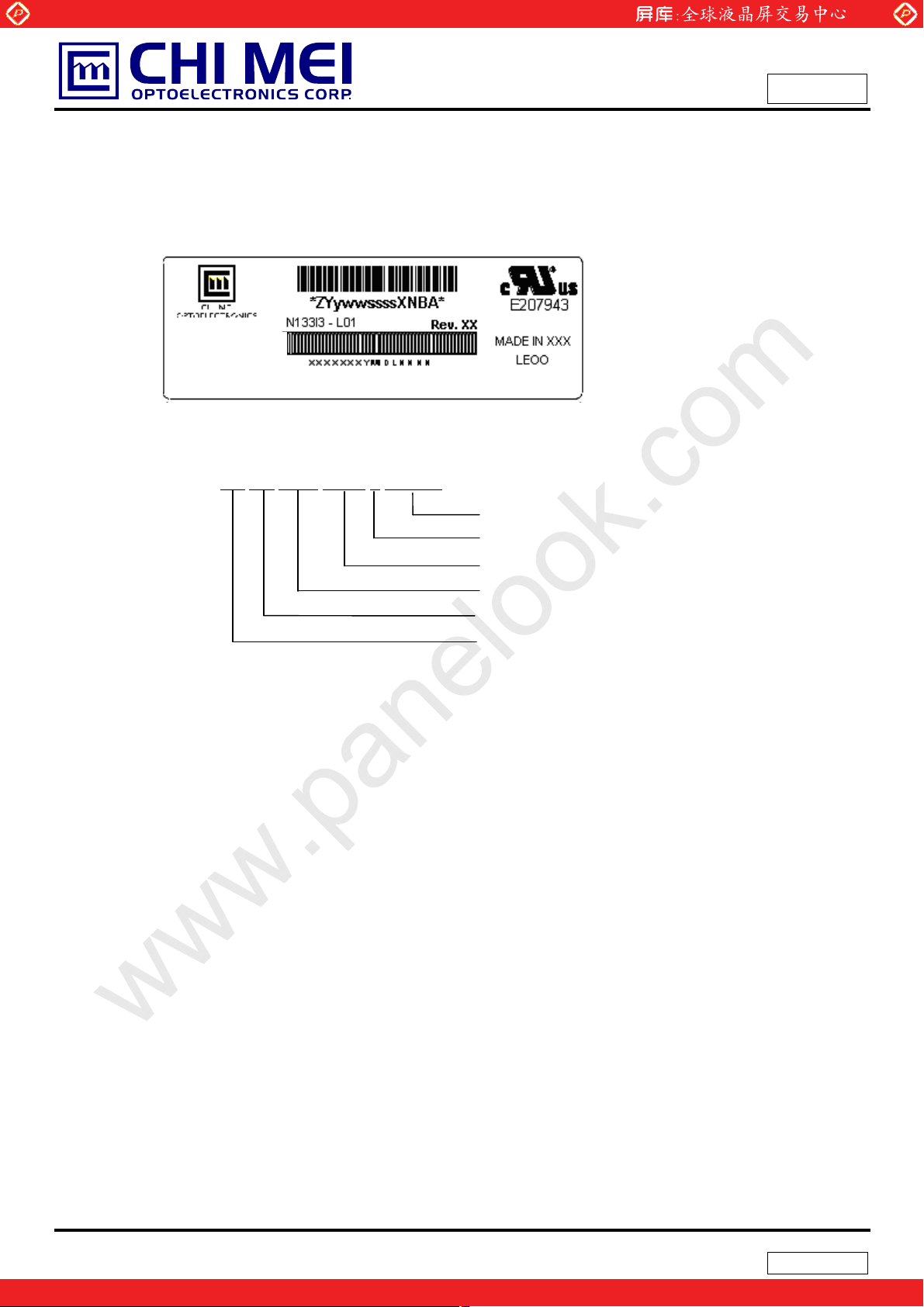

10.1 CMO MODULE LABEL

10.2 CMO CARTON LABE

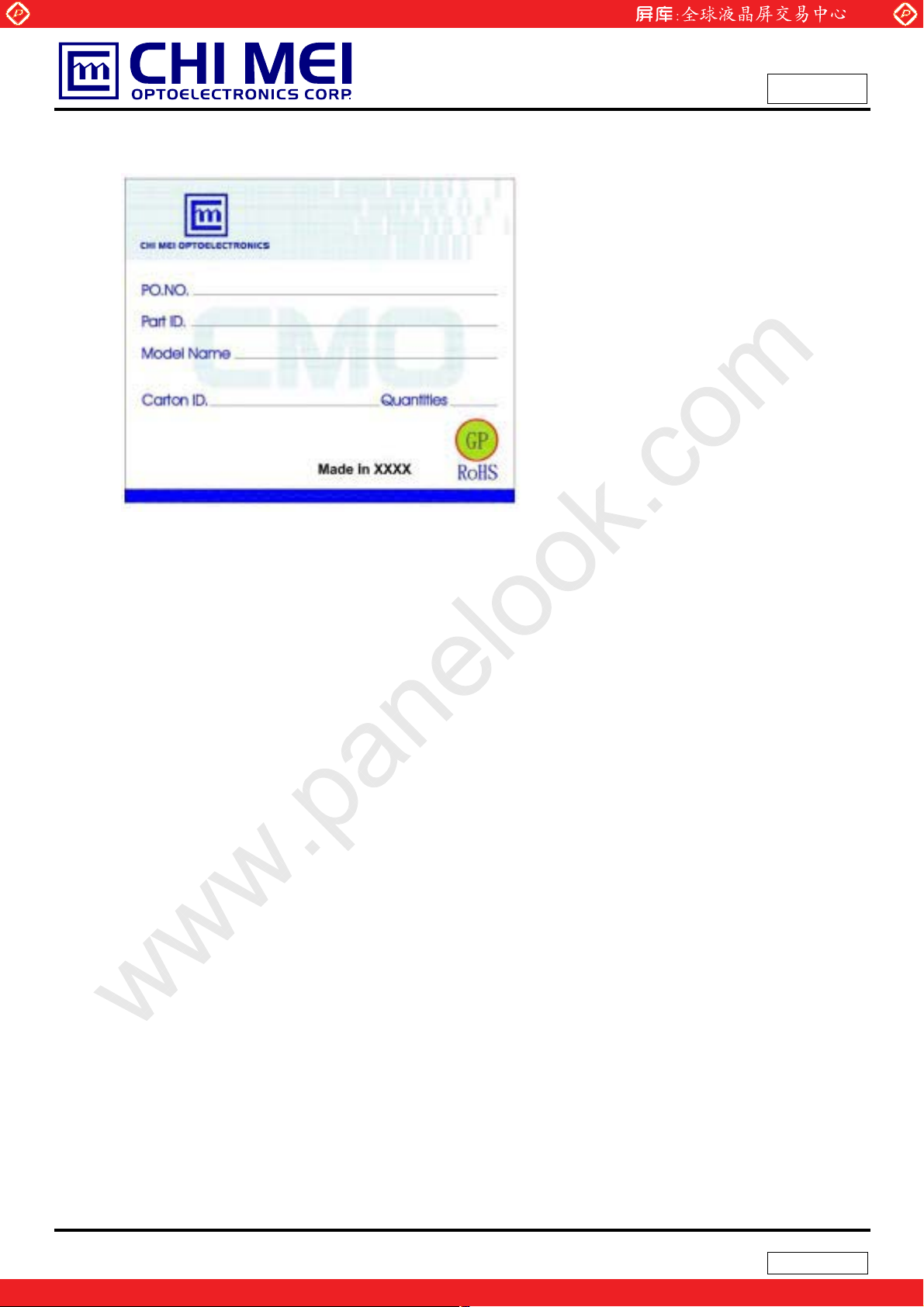

10.3 CUSTOMER CARTON LABEL

10.4 CUSTOMER PALLET LABEL

------------------------------------------------------- 25

2 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

REVISION HISTORY

Version Date

0.0 Nov, 10,’05 All All Tentative specification was first issued.

Page

(New)

Section Description

3 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N133I3 - L01 is a 13.3” TFT Liquid Crystal Display module with single CCFL Backlight unit and 20 pins

LVDS interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES

- Thin and Light Weight

- WXGA (1280 x 800 pixels) resolution

- DE only mode

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 286.08 (H) x 178.8 (V) mm
Bezel Opening Area 289.1 (H) x 181.8 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Glare , 3H - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 298.7 299 299.3 mm

Module Size

I/F connector mounting position The mounting inclination of the connector makes the screen

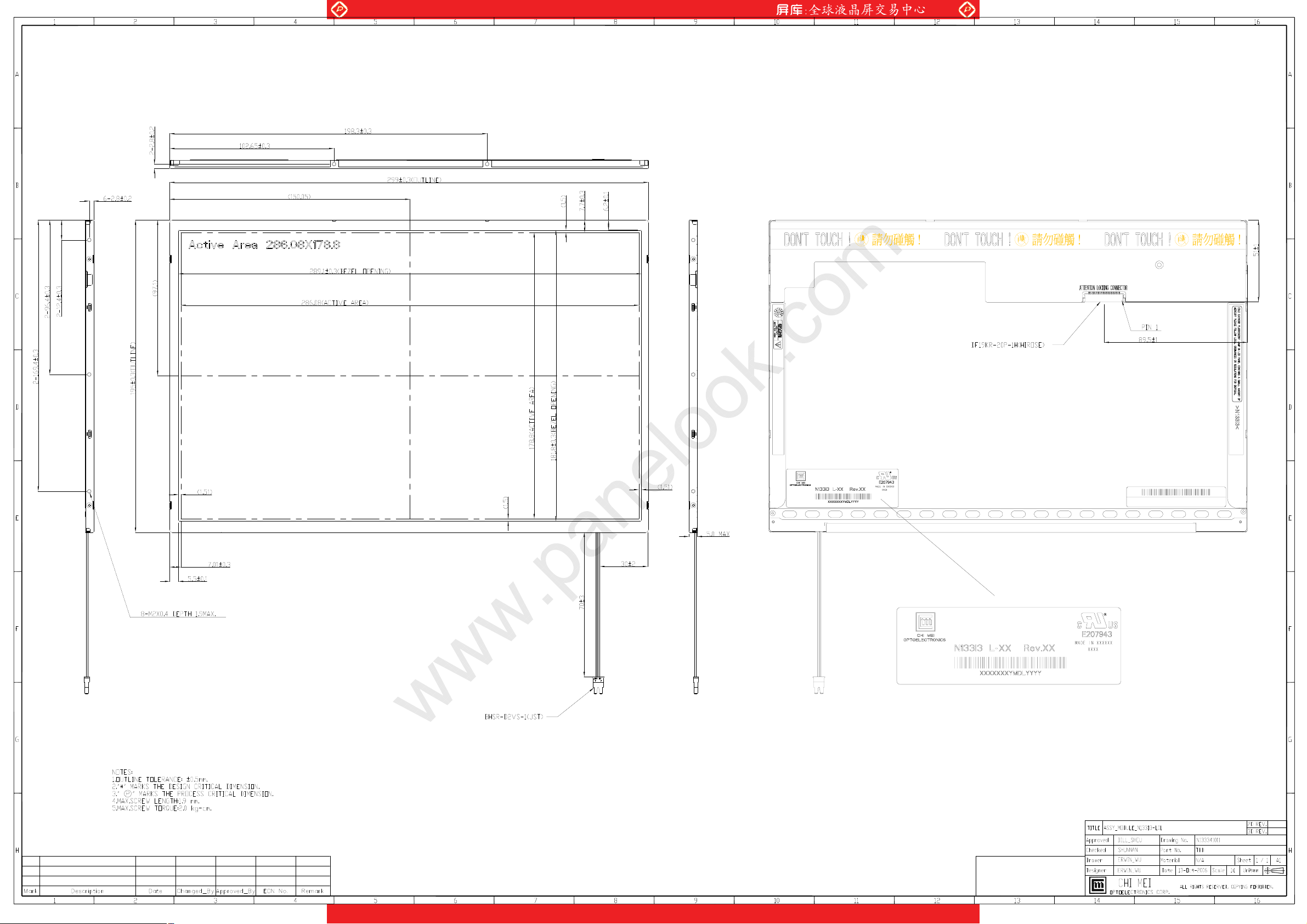

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 194.7 195 195.3 mm
Depth(D) 4.5 4.8 5.0 mm

Weight --- (320) (335) g -

center within ±0.5mm as the horizontal.

(1)

(1)

(2)

Note (2) Connector mounting position

+/- 0.5mm

4 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Value

Min. Max.

- 200/2 G (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.

8060-20 400 20-40

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,

Note (4) 10 ~ 500 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

At Room Temperature

LCD Module

Side Mount Fixing Screw

gap=2mm

Bracket

Side Mount Fixing Screw

Stage

5 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCC -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCC+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - (2.5K) V
Lamp Current IL (2.0) (7.0) mA
Lamp Frequency FL (45) (80) KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

www.panelook.com

Value

Min. Max.

Value

Min. Max.

Unit Note

Unit Note

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

(1)

(1), (2), IL = 6.0 mA

RMS

RMS

(1), (2)

Te n t a t iv e

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

6 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Permissive Ripple Voltage VRP - 50 - mV ­Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White - (190) (220) mA (3)a
Black

Icc

TH(LVDS)

TL(LVDS)

- (230) (260) mA (3)b

- - +100 mV

-100 - - mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 - 600 mV (5)
Terminating Resistor RT - 100 - Ohm
Power per EBL WG P

EBL

- TBD - W (4)

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Unit Note

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK 1475

C2

0.01uF

Q2

2SK1470

FUSE

C3

1uF

Vcc rising time is 470us

+3.3V

0.9Vcc

Vcc

(LCD Module Input)

VCC

100ms

I

IS

0V

I

RUSH

470us

0.1Vcc

ICC

7 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

)

)

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

a. White Pattern

Active Area

b. Black Pattern

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

= 60 Hz,

v

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

(d) The inverter used is provided from ___TBD .

Please contact them for detail information.

CMO doesn’t provide the inverter in this product.

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

TH(LVD S

Differential

0V

V

TL(LVD S

VID

|VID|

8 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Lamp Input Voltage VL 576 640 704 V
Lamp Current IL 2.0 6.0 7.0 mA

Lamp Turn On Voltage V

S

--- --- 1300 (25oC) V

--- --- 1450 (0
Operating Frequency FL 45 55 80 KHz (3)
Lamp Life Time LBL 15,000 --- --- Hrs (5)
Power Consumption PL 3.46 3.84 4.22 W (4), IL = 6.0 mA

Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:

Value

o

C) V

Unit Note

I

RMS

(1)

RMS

(2)

RMS

(2)

RMS

Te n t a t iv e

= 6.0 mA

L

HV (Pink)

LCD

LV (White)

Module

1

Inverter

2

A

Current Meter

Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second

after startup. Otherwise, the lamp may not be turned on normally.

Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the

display, and this may cause line flow on the display. In order to avoid interference, the lamp

frequency should be detached from the horizontal synchronous frequency and its harmonics as far

as possible.

Note (4) P

L

= I

LVL

Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition

Ta = 25 2

o

C and IL = 6 mArms until one of the following events occurs:

(a) When the brightness becomes or lower than 50% of its original value.

(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective

ignition length is defined as an area that has less than 70% brightness compared to the

brightness in the center point.)

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for

the lamp. All the parameters of an inverter should be carefully designed to avoid producing too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

The output of the inverter must have symmetrical (negative and positive) voltage waveform and

9 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter

which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may

produce interface with horizontal synchronous frequency and as a result this may cause beat on the

display. Therefore lamp frequency shall be as away possible from the horizontal synchronous

frequency and from its harmonics in order to prevent interference.

Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its

leakage current.

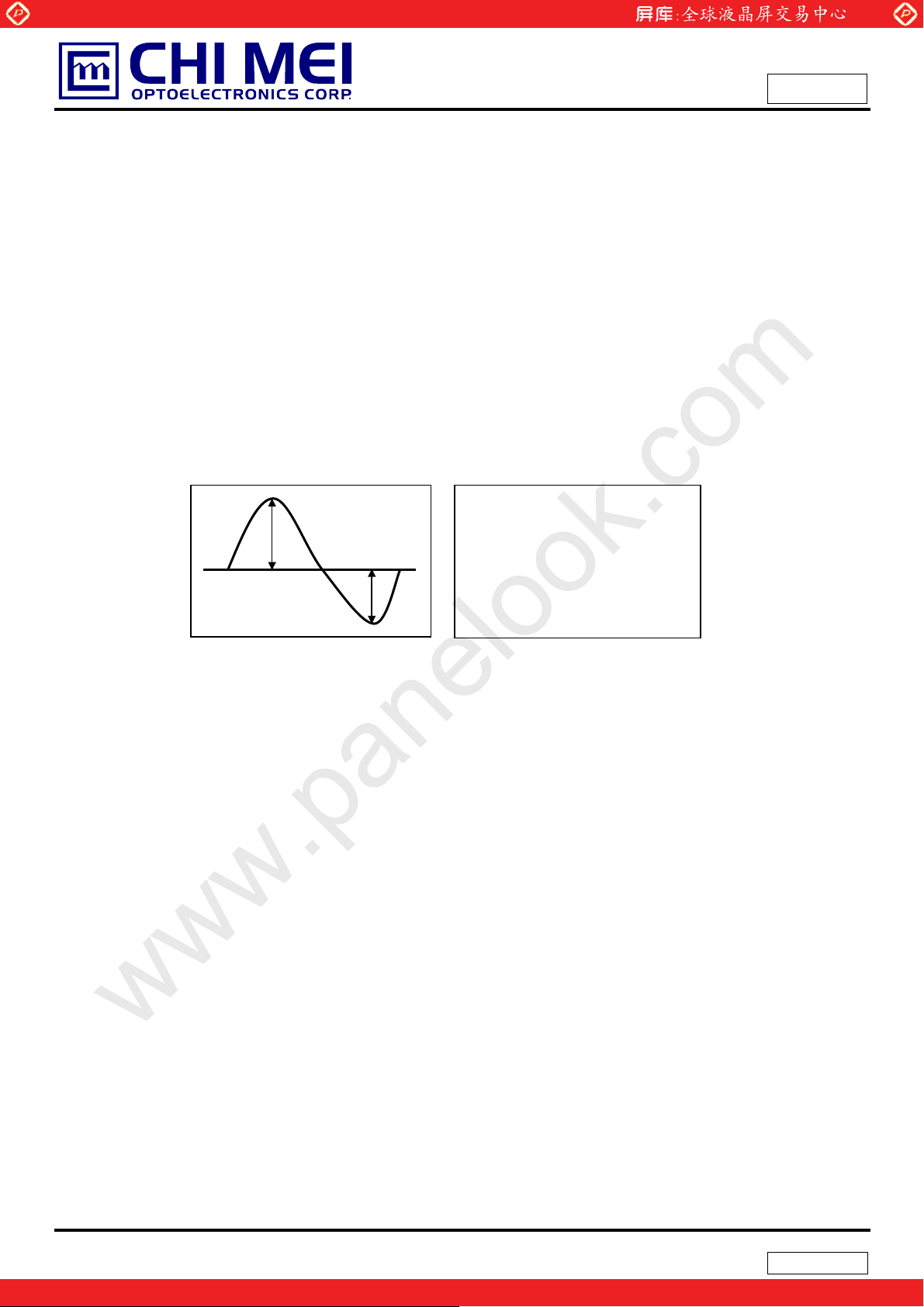

a. The asymmetry rate of the inverter waveform should be 10% below.

b. The distortion rate of the waveform should be within Ѕ2 ± 10%.

c. The ideal sine wave form shall be symmetric in positive and negative polarities.

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

I p

I -p

* Asymmetry rate:

| I

* Distortion rate

I

– I –p | / I

p

(or I –p) / I

p

rms

rms

* 100%

10 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

)

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

VL

INPUT CONNECTOR

LAMP CONNECTOR

4.2 BACKLIGHT UNIT

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

SCAN DRIVER IC

TFT LCD PANEL

DATA DRIVER IC

BACKLIGHT UNIT

1 HV (Pink)

2 LV (White

11 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 Vss Ground
2 Vcc Power Supply +3.3 V (typical)
3 Vcc Power Supply +3.3 V (typical)
4 V
5 BIST Panel BIST enable
6 CLK
7 DATA
8 Rxin0- LVDS Differential Data Input Negative

DDC 3.3V Power DDC 3.3V Power

EDID

DDC Clock DDC Clock

EDID

DDC Data DDC Data

EDID

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

R0~R5,G0

9 Rxin0+ LVDS Differential Data Input Positive

10 Vss Ground
11 Rxin1- LVDS Differential Data Input Negative

12 Rxin1+ LVDS Differential Data Input Positive

13 Vss Ground
14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync

15 Rxin2+ LVDS Differential Data Input Positive
16 Vss Ground
17 CLK- LVDS Clock Data Input Negative
18 CLK+ LVDS Clock Data Input Positive
19 Vss Ground
20 Vss Ground

Note (1) Connector Part No.: DF19KR-20P-1H (HIROSE) or equivalent

Note (2) User’s connector Part No: DF-19G-20S-1SD or equivalent

G1~G5, B0, B1

LVDS Level Clock

-

-

12 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5.2 BACKLIGHT UNIT

Pin Symbol Description Color

1 HV High Voltage Pink
2 LV Ground White

Note (1) Connector Part No.: JST- BHSR-02VS-1 or equivalent

Note (2) User’s connector Part No.: SM02B-BHSS-1-TB or equivalent

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0R5 R4

Signal for 1 DCLK Cycle (T)

13 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0
:
:

1

1

1

1

1

1

0

0

0

0

0

0
:
:

0

0

0

0

0

0

0

0

0

0

0

0
:
:

0

0

0

0

0

0

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

14 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5.5 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte #

(decimal)

˃ʳ
˄ʳ
˅ʳ
ˆʳ
ˇʳ
ˈʳ
ˉʳ
ˊʳ
ˋʳ
ˌʳ
˄˃ʳ
˄˄ʳ
˄˅ʳ
˄ˆʳ
˄ˇʳ
˄ˈʳ
˄ˉʳ
˄ˊʳ
˄ˋʳ
˄ˌʳ
˅˃ʳ
˅˄ʳ
˅˅ʳ
˅ˆʳ
˅ˇʳ
˅ˈʳ
˅ˉʳ
˅ˊʳ
˅ˋʳ
˅ˌʳ
ˆ˃ʳ
ˆ˄ʳ
ˆ˅ʳ
ˆˆʳ
ˆˇʳ
ˆˈʳ
ˆˉʳ
ˆˊʳ
ˆˋʳ
ˆˌʳ
ˇ˃ʳ
ˇ˄ʳ

Byte

#(hex)

Field Name and Comments Value

0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“APP”)

9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N133I3-L01) 5E
0B ID product code (hex LSB first; N133I3-L01) 9C
0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)
0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”)

10 Week of manufacture (fixed “00H”)
11 Year of manufacture (fixed “00H”)
12 EDID structure version # (“1”)
13 EDID revision # (“3”)
14 Video I/P definition (“digital”)
15 Max H image size (“29.9cm”)
16 Max V image size (“19.5cm”)
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)

19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)
1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)
1B Red-x (Rx = “0.622”)
1C Red-y (Ry = “0.346”)
1D Green-x (Gx = ”0.333”)
1E Green-y (Gy = ”0.528”)
1F Blue-x (Bx = ”0.164”)

20 Blue-y (By = ”0.162”)

21 White-x (Wx = ”0.313”)

22 White-y (Wy = ”0.329”)

23 Established timings 1

24 Established timings 2 (1280x800@60Hz)

25 Manufacturer’s reserved timings

26 Standard timing ID # 1

27 Standard timing ID # 1

28 Standard timing ID # 2

29 Standard timing ID # 2

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Value

(hex)

00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
00 00000000
06 00000110
10 00010000

00 00000000
00 00000000
00 00000000
00 00000000
09 00001001
10 00010000
01 00000001
03 00000011
80 10000000
1D 00011101
13 00010011
78 01111000
0A 00001010
65 01100101
21 00100001
9F 10011111
58 01011000
55 01010101
87 10000111
2A 00101010
29 00101001
50 01010000
54 01010100
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
01 00000001

(binary)

01011110
10011100

15 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

ˇ˅ʳ
ˇˆʳ
ˇˇʳ
ˇˈʳ
ˇˉʳ
ˇˊʳ
ˇˋʳ
ˇˌʳ
ˈ˃ʳ
ˈ˄ʳ
ˈ˅ʳ
ˈˆʳ

ˈˇʳ
ˈˈʳ
ˈˉʳ
ˈˊʳ
ˈˋʳ
ˈˌʳ
ˉ˃ʳ
ˉ˄ʳ
ˉ˅ʳ
ˉˆʳ
ˉˇʳ

ˉˈʳ
ˉˉʳ
ˉˊʳ
ˉˋʳ
ˉˌʳ
ˊ˃ʳ

ˊ˄ʳ
ˊ˅ʳ
ˊˆʳ
ˊˇʳ
ˊˈʳ
ˊˉʳ
ˊˊʳ
ˊˋʳ
ˊˌʳ
ˋ˃ʳ
ˋ˄ʳ
ˋ˅ʳ
ˋˆʳ
ˋˇʳ
ˋˈʳ
ˋˉʳ

2A Standard timing ID # 3
2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4
2E Standard timing ID # 5
2F Standard timing ID # 5

30 Standard timing ID # 6

31 Standard timing ID # 6

32 Standard timing ID # 7

33 Standard timing ID # 7

34 Standard timing ID # 8

35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“71MHz”, According

36

to VESA CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1280”)
39 # 1 H blank (“160”)

3A # 1 H active : H blank (“1280 : 160”)
3B # 1 V active (”800”)
3C # 1 V blank (”23”)
3D # 1 V active : V blank (”800 :23”)
3E # 1 H sync offset (”48”)
3F # 1 H sync pulse width ("32”)

40 # 1 V sync offset : V sync pulse width (”3 : 6”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync
41

width (”48: 32 : 3 : 6”)
42 # 1 H image size (”286.08 mm”)
43 # 1 V image size (”178.8 mm”)
44 # 1 H image size : V image size (”286 : 178”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
47

Negatives
48 Detailed timing/monitor 00 00000000
49 descriptor #2 00 00000000

4A ʳ 00 00000000
4B ʳ 01 00000001
4C Version 00 00000000
4D Apple edid signature 06 00000110
4E Apple edid signature 10 00010000
4F Link Type (LVDS Link,MSB justified) 20

50 Pixel and link component format (6-bit panel interface) 00 00000000
51 Panel features (No inverter) 00 00000000
52 ʳ 00 00000000
53 ʳ 00 00000000
54 ʳ 00 00000000
55 ʳ 00 00000000
56 ʳ 00 00000000

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

BC 10111100

1B 00011011
00 00000000
A0 10100000
50 01010000
20 00100000
17 00010111
30 00110000
30 00110000
20 00100000
36 00110110

00 00000000

1E 00011110
B2 10110010
10 00010000
00 00000000
00 00000000

18 00011000

00100000

16 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

ˋˊʳ
ˋˋʳ
ˋˌʳ
ˌ˃ʳ
ˌ˄ʳ
ˌ˅ʳ

ˌˆʳ
ˌˇʳ
ˌˈʳ
ˌˉʳ
ˌˊʳ
ˌˋʳ
ˌˌʳ
˄˃˃ʳ
˄˃˄ʳ
˄˃˅ʳ
˄˃ˆʳ
˄˃ˇʳ
˄˃ˈʳ
˄˃ˉʳ
˄˃ˊʳ
˄˃ˋʳ
˄˃ˌʳ
˄˄˃ʳ
˄˄˄ʳ
˄˄˅ʳ
˄˄ˆʳ
˄˄ˇʳ
˄˄ˈʳ
˄˄ˉʳ
˄˄ˊʳ
˄˄ˋʳ
˄˄ˌʳ
˄˅˃ʳ
˄˅˄ʳ
˄˅˅ʳ
˄˅ˆʳ
˄˅ˇʳ
˄˅ˈʳ
˄˅ˉʳ
˄˅ˊʳ

57 ʳ 00 00000000
58 ʳ 0A 00001010
59 ʳ 20 00100000

5A Detailed timing description # 3
5B # 3 Flag
5C # 3 Reserved

# 3 FE (hex) defines ASCII string (Model Name “N133I3-L01”,

5D

ASCII)

5E # 3 Flag
5F # 3 1st character of name (“N”)

60 # 3 2nd character of name (“1”)
61 # 3 3rd character of name (“3”)
62 # 3 4th character of name (“3”)
63 # 3 5th character of name (“I”)
64 # 3 6th character of name (“3”)
65 # 3 7th character of name (“-”) 2D
66 # 3 8th character of name (“L”) 4C
67 # 3 9th character of name (“0”)
68 # 3 9th character of name (“1”)
69 # 3 New line character indicates end of ASCII string

6A # 3 Padding with “Blank” character
6B # 3 Padding with “Blank” character
6C Detailed timing description # 4 00 00000000
6D # 4 Flag 00 00000000
6E # 4 Reserved 00 00000000
6F # 4 FC (hex) defines Monitor name ("Color LCD", ASCII) FC 11111100

70 # 4 Flag 00 00000000
71 # 4 1st character of name ("C") 43 01000011
72 # 4 2nd character of name ("o") 6F 01101111
73 # 4 3rd character of name ("l") 6C 01101100
74 # 4 4th character of name ("o") 6F 01101111
75 # 4 5th character of name ("r") 72 01110010
76 # 4 6th character of name (<space>) 20 00100000
77 # 4 7th character of name ("L") 4C 01001100
78 # 4 8th character of name ("C") 43 01000011
79 # 4 9th character of name ("D") 44 01000100

7A # 4 New line character # 4 indicates end of Monitor name 0A 00001010
7B # 4 Padding with "Blank" character 20 00100000
7C # 4 Padding with "Blank" character 20 00100000
7D # 4 Padding with "Blank" character 20 00100000
7E Extension flag 00 00000000
7F Checksum

00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000
4E 01001110
31 00110001
33 00110011
33 00110011
49 01001001
31 00110001

00101101

01001100
30 00110000
31 00110001
0A 00001010
20 00100000
20 00100000

61 01100001

17 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The specifications of input signal timing are as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 50 71.1 80 MHz -

Vertical Total Time TV 810 823 1900 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

Vertical Addressing Time TVD 800 800 800 TH -

Horizontal Total Time TH 1360 1440 1900 Tc -

Horizontal Addressing Time THD 1280 1280 1280 Tc -

INPUT SIGNAL TIMING DIAGRAM

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

DE

DCLK

DE

DATA

TC

HD

T

18 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

6.2 POWER ON/OFF SEQUENCE

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Power Supply

for LCD, Vcc

0V

- LVDS Interface

0V

- Power for Lamp

Timing Specifications:

0.5 Љ t1 Љ 10 ms

0 Љ t2 Љ 50 ms

0 Љ t3 Љ 50 ms

t4 Њ 500 ms

Power On

90%

10%

Power Off

90%

t1

t3t2

Valid Data

t6t5

50%50%

ONOFF OFF

Restart

t7

10%

t4

10%

t5 Њ 200 ms

t6 Њ 200 ms

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight inverter power must be turned off before the power supply

for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow

5Љt7Љ300 ms.

19 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IL 6 mA
Inverter Driving Frequency FL 61 KHz
Inverter Sumida-H05-4915

The relative measurement methods of optical characteristics are shown in 7.2. The following items

should be measured under the test conditions described in 7.1 and stable environment shown in Note (6).

7.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR (350) (500) - (2), (5)

Response Time

Average Luminance of White L
White Variation

Red

Color
Chromaticity

Viewing Angle

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

o

25r2

50r10

TR - (9) (14) ms

- (16) (21) ms

T

F

(210) (250) cd/m2(4), (5)

AVE

GW

Rx
Ry
Gx (0.330) -

T

=0q, TY =0q

x

Viewing Normal

Angle
Gy (0.543) ­Bx (0.158) -

1.4 - (5), (6)
(0.600)

(0.340)

TYP

-0.03

TYP

+0.03

By (0.146) -

Wx (0.313) -

Wy

Tx+

T

x

TY+

T

Y

(40) (45)

­CRt10

-

(40) (45)
(15) (20)
(40) (45)

(0.329)

C

%RH

-

-

-

Deg.

Te n t a t iv e

(3)

(1)

20 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

s

Note (1) Definition of Viewing Angle (Tx, Ty):

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Normal

Tx = Ty = 0º

Ty- Ty

TX- = 90º

6 o’clock

T

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

Tx

Tx

y+

12 o’clock direction

T

y+ = 90º

x+

TX+ = 90º

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

R

66.67 m

, TF) and measurement method:

R

T

F

66.67 ms

Time

21 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6).

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

Center of the Screen

AVE

):

CA210

CS-1000T

Field of View = 2º

500 mm

Light Shield Room

(Ambient Luminance < 2 lux)

22 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

Note (6) Definition of White Variation (GW):

Measure the luminance of gray level 63 at 5 points

GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Horizontal Line

D

D/4 D/2 3D/4

W/4

W/2

W

Vertical Line

3W/4

12

X

: Test Point

X=1 to 5

3

5

4

Active Area

23 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will

be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

8.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.

24 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

9. PACKAGING

9.1 CARTON

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Figure. 9-1 Packing method

25 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

9.2 PALLET

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

Figure. 9-2 Packing method

26 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10. DEFINITION OF LABELS

10.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following

explanation.

(a) Model Name: N133I3 - L01

(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

(c) Serial ID: X X

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e)UL/CB logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL/CB

requirement. The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL/CB

requirement.

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

X X X X X Y M D X N N N N

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

Serial No.

CMO Internal Use

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

st

to 31st, exclude I , O and U

27 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

10.2 CMO CARTON LABEL

www.panelook.com

Issued Date: Nov. 10, 2006

Model No.: N133I3 - L01

Te n t a t iv e

28 / 29

The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO ’s representative while your product design is based on this specification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
