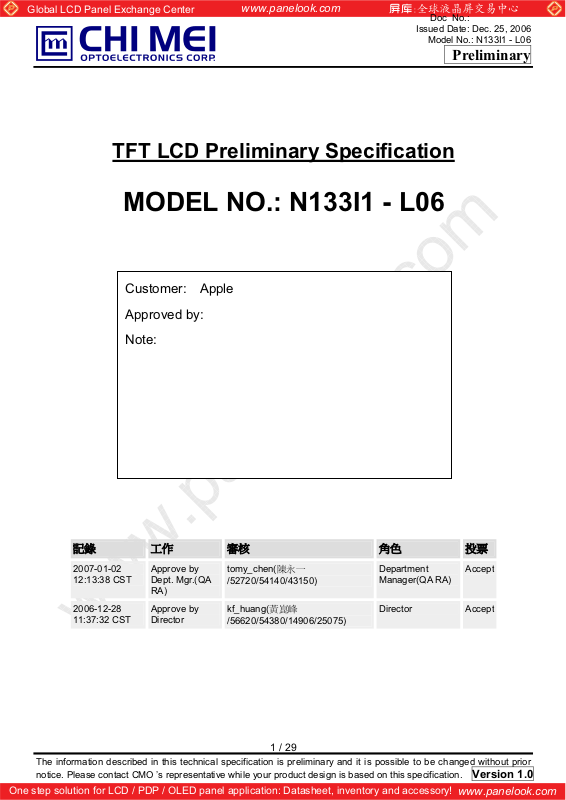

TFT LCD Preliminary Specification
MODEL NO.: N133I1 - L06
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Customer: Apple
pproved by:
Note:
2007-01-02 12:13:38 CST
2006-12-28 11:37:32 CST
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Approve by Dept. Mgr.(QA RA)
Approve by Director
tomy_chen(ຫةԫ /52720/54140/43150)
kf_huang(႓഼୽ /56620/54380/14906/25075)
1 / 29
Department Manager(QA RA)
Director Accept
Accept
Version 1.0
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

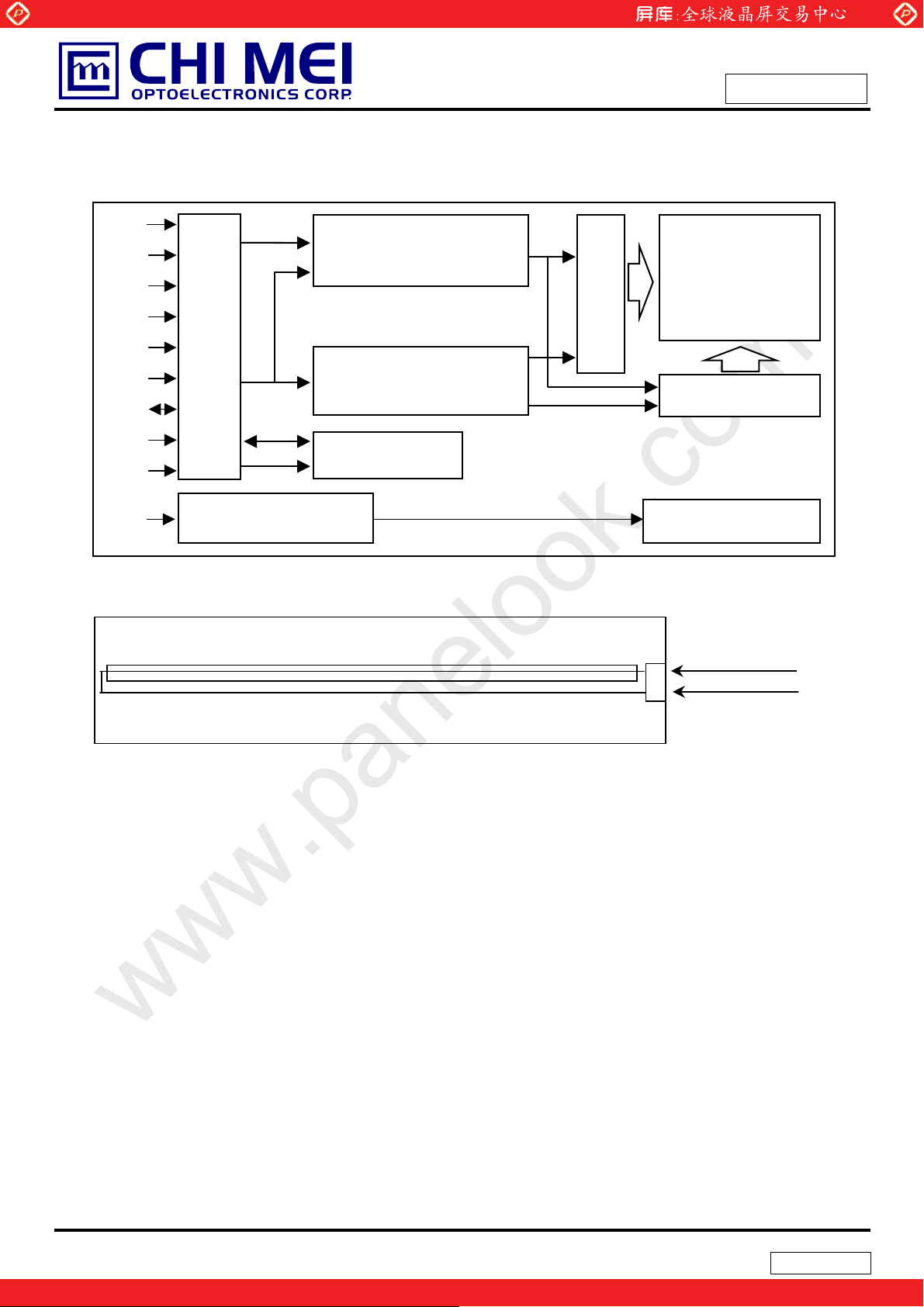

4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT

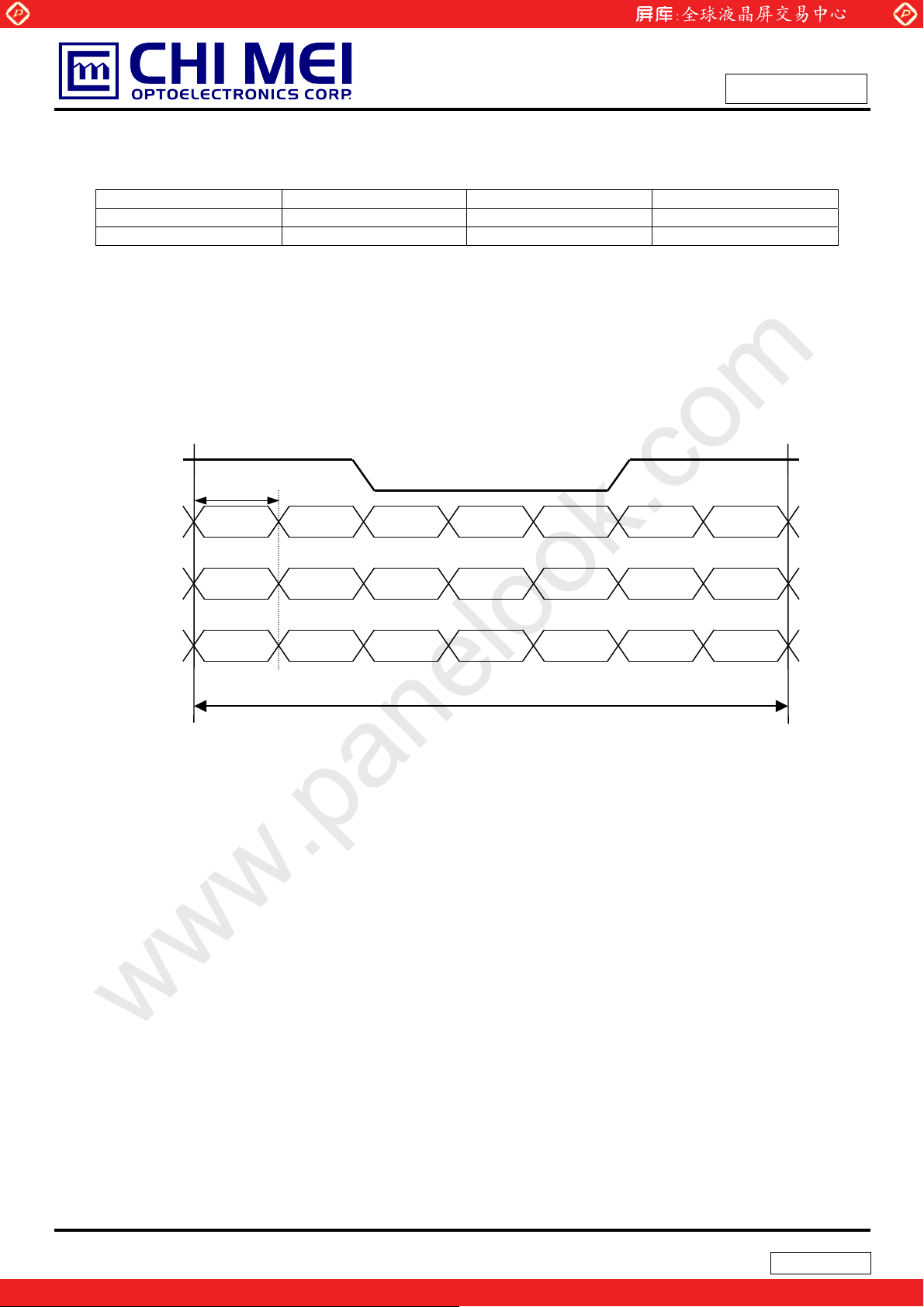

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 18

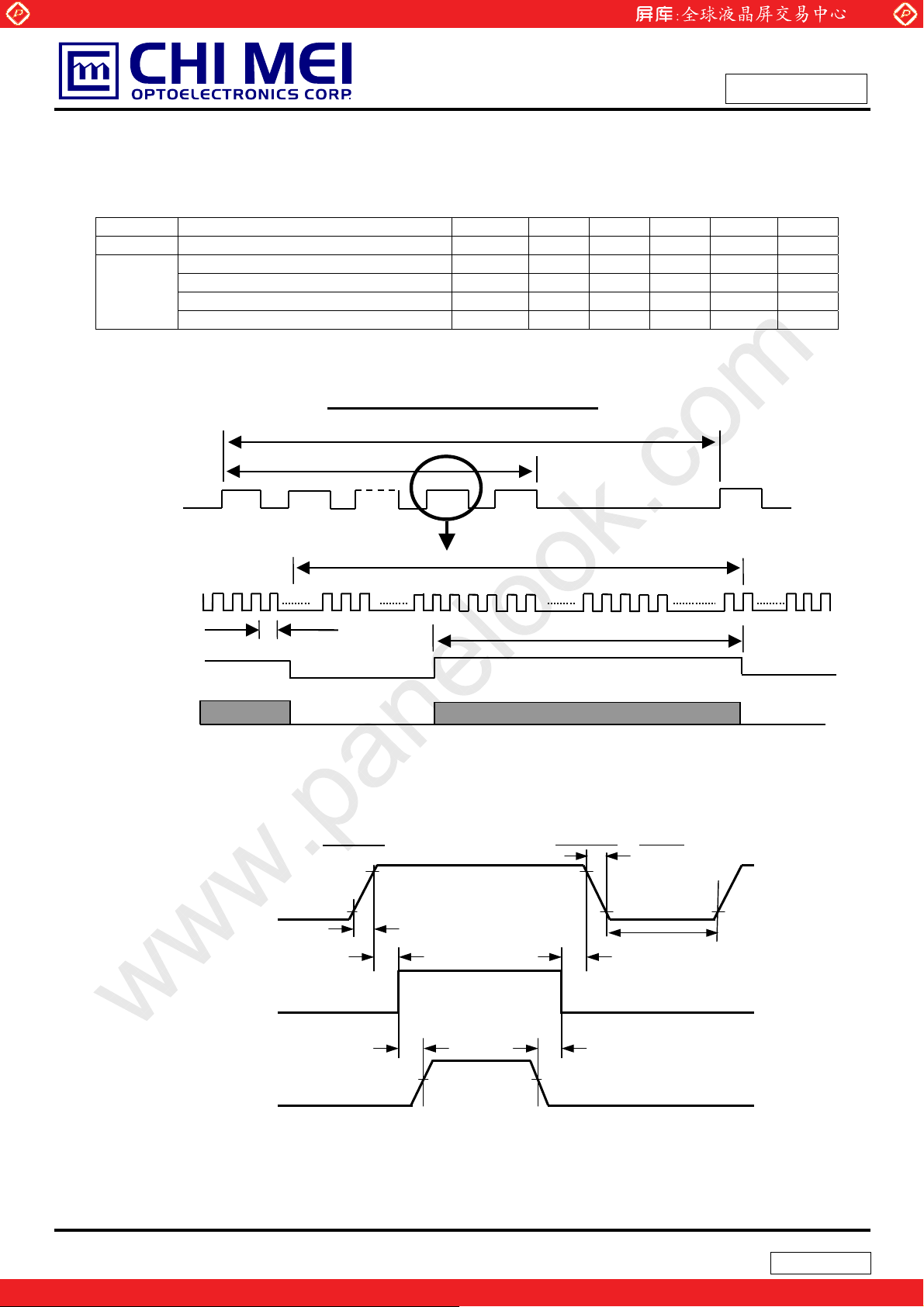

6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE

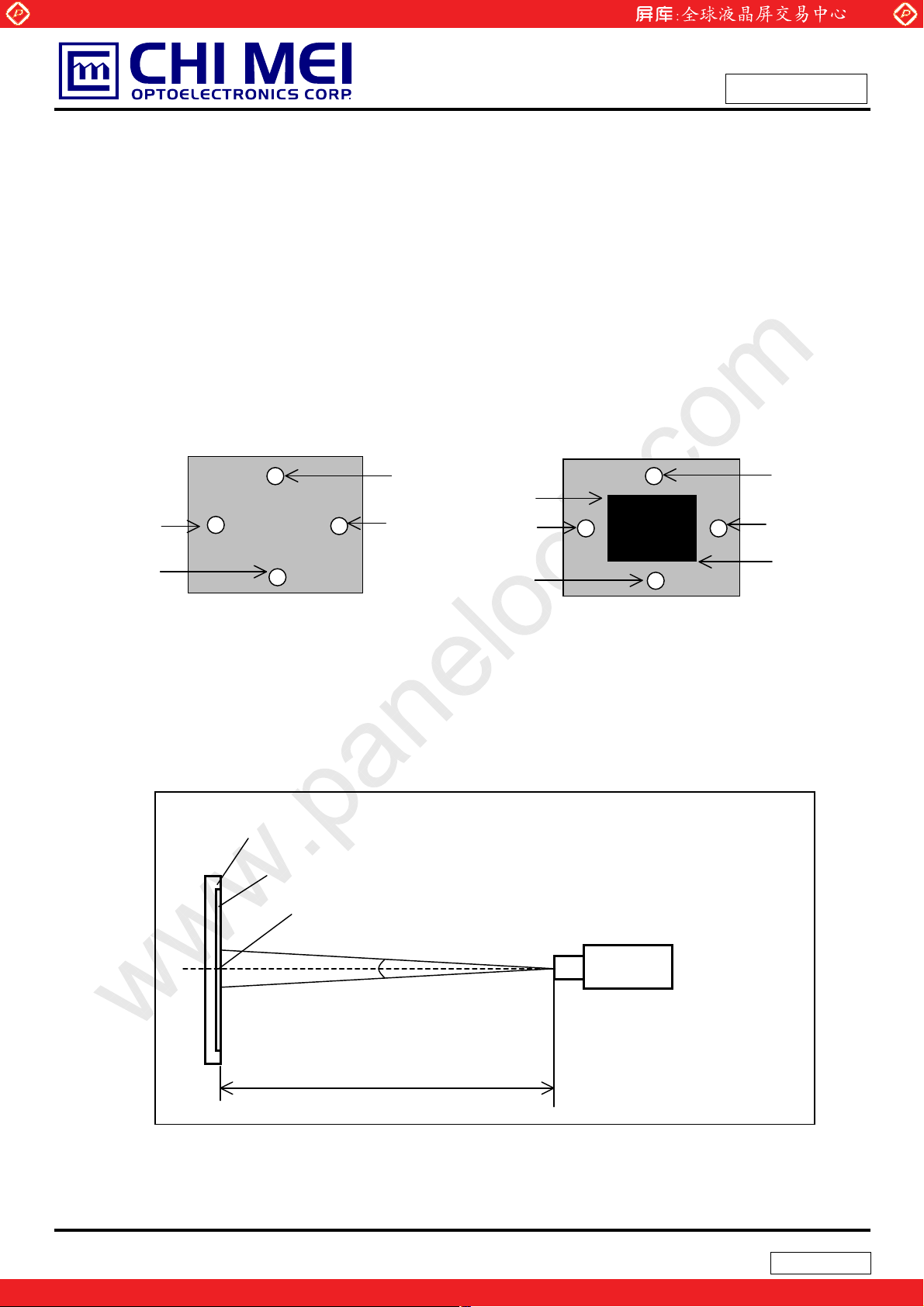

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 24
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS

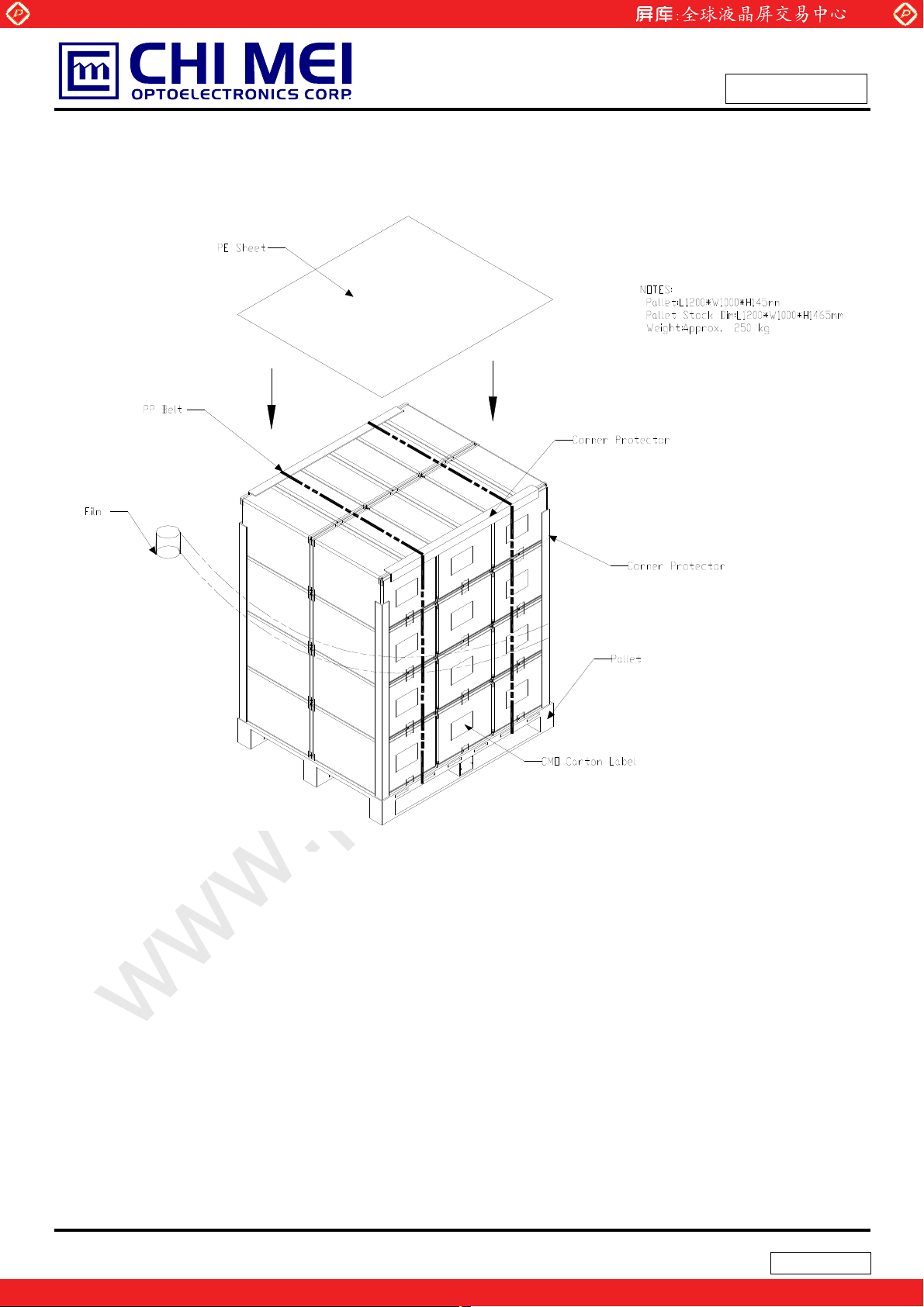

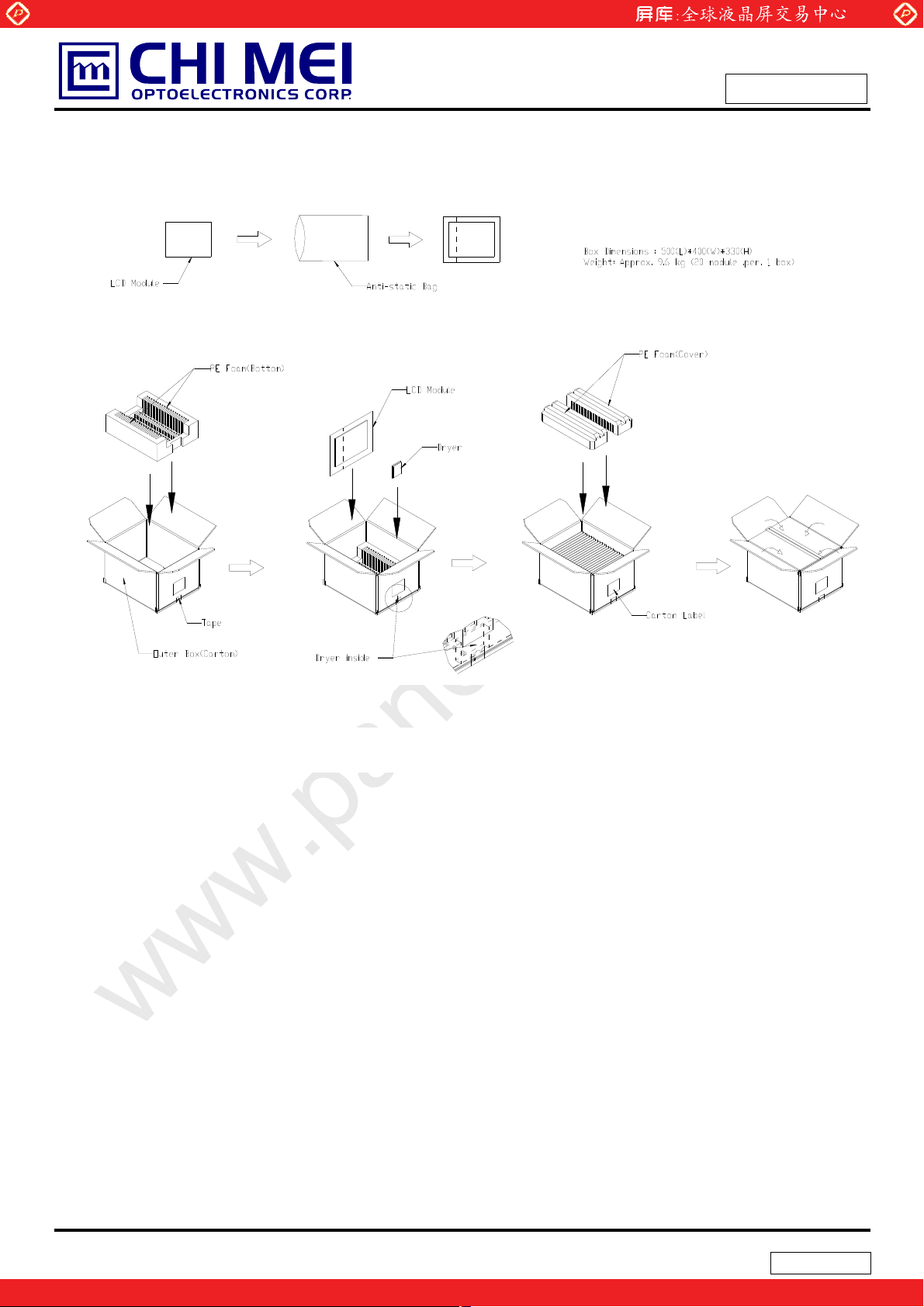

9. PACKING ------------------------------------------------------- 25
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
10.3 CUSTOMER CARTON LABEL
10.4 CUSTOMER PALLET LABEL
------------------------------------------------------- 27
2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
REVISION HISTORY
Version Date
1.0 Dec, 25,’06 All All Preliminary specification was first issued.
Page
(New)
Section Description
3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133I1 - L06 is a 13.3” TFT Liquid Crystal Display module with single CCFL Backlight unit and 20 pins
LVDS interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The
optimum viewing angle is at 6 o’clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 286.08 (H) x 178.8 (V) mm Bezel Opening Area 289.1 (H) x 181.8 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Glare , AR<1%, 3H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 298.5 299 299.5 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

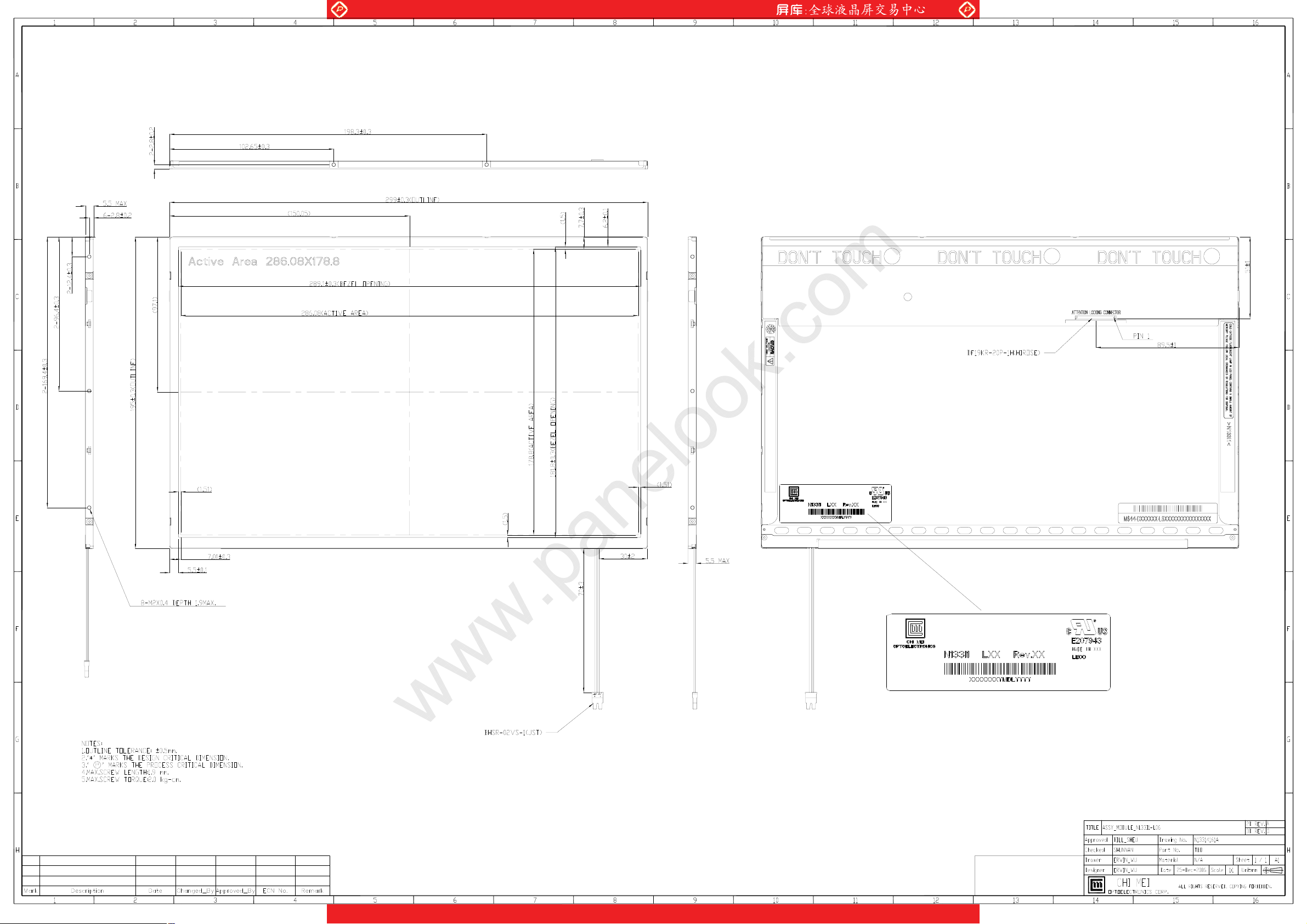

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 194.5 195 195.5 mm Depth(D) --- --- 5.5 mm
Weight --- 350 365 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
Note (2) Connector mounting position
+/- 0.5mm
4 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Relative Humidity (%RH)
www.panelook.com
Min. Max.
- 200/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Value
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Unit Note
100
90
80
60
Operating Range
40
20 10
Storage Range
Temperature (ºC)
Note (2) The temperature of panel surface should be 0 ºC Min. and 50 ºC Max.
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (200G / 2ms) is half Sine Wave,
Note (4) 10 ~ 200 Hz, 0.5 Hr / Cycle, 1 cycles for each X, Y, Z.
8060-20 400 20-40
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL -- 2.5K V Lamp Current IL 2.0 7.0 mA Lamp Frequency FL 45 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
Power Supply Current
Logical Input Voltage
White - 190 220 mA (3)a Black “H” Level VIL - - +100 mV ­“L” Level V
- - 1.5 A (2)
RUSH
lcc
-100 - - mV -
IH
- 230 260 mA (3)b
Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P
- 2.43 - W (4)
EBL
Note (1) The module should be always operated within above ranges.
Value
Unit Note
Note (2) Measurement Conditions:
+3.3V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
Vcc rising time is 470us
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
+3.3V
FUSE
C3
1uF
Vcc
(LCD Module Input)
0.9Vcc
0.1Vcc
GND
470us
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern below is displayed.
7 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
= 60
v
Version 1.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
a. White Pattern
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from Sumida (www.sumida.com.tw)
= 60 Hz,
v
b. Black Pattern
Active Area
. Please contact Sumida for
detail information. CMO doesn’t provide the inverter in this product.
8 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Lamp Input Voltage VL 576 640 704 V Lamp Current IL 2.0 6.0 7.0 mA
Lamp Turn On Voltage V
S
--- --- 1300 (25oC) V
--- --- 1450 (0 Operating Frequency FL 45 55 80 KHz (3) Lamp Life Time LBL 15,000 --- --- Hrs (5) Power Consumption PL 3.46 3.84 4.22 W (4), IL = 6.0 mA Leakage Current IIN-I
- - 1.5 mA (7)
OUT
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C) V
Unit Note
I
RMS
(1)
RMS
(2)
RMS
(2)
RMS
Preliminary
= 6.0 mA
L
HV (Pink)
LCD
LV (White)
Module
1
Inverter
2
A
Current Meter
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise, the lamp may not be turned on normally.
Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
L
= I
LVL
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Ta = 25 2
o
C and IL = 6 mArms until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)

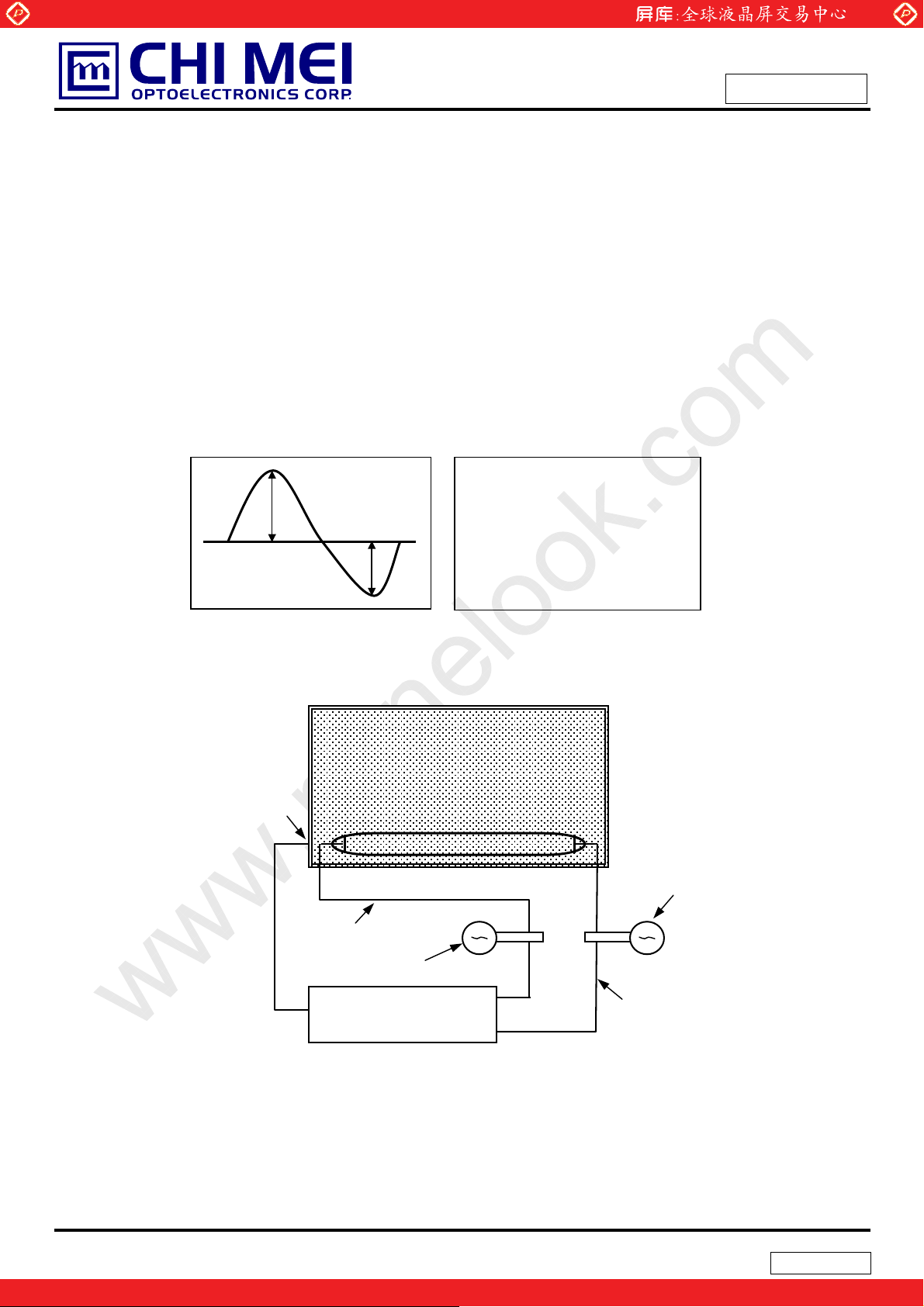

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter
9 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.
a. The asymmetry rate of the inverter waveform should be 10% below.
b. The distortion rate of the waveform should be within Ѕ2 ± 10%.
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
* Asymmetry rate:
I p
I -p
| I
– I –p | / I
p
* Distortion rate
I
(or I –p) / I
p
rms
rms
* 100%
Note (7) The lamp leakage current is measured by the current difference between in and out.
And the measurement condition is as below:
LCD Module
FG
Low
Lamp
High
Current Probe
I
Low
Current Probe
I
Inverter
High
GND
I
Leak(RMS)
= I
High(RMS)
- I
Low(RMS)
10 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
CLK(+/-)
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
VL
(HIROSE-DF19KR-20P-1H)
INPUT CONNECTOR
LAMP CONNECTOR
(JST-BHSR-02VS-1)
4.2 BACKLIGHT UNIT
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
(1280xR.G.B.x800)
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink)
2 LV (White
11 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 BIST Panel BIST enable 6 CLK 7 DATA 8 Rxin0- LVDS Differential Data Input Negative
DDC 3.3V Power DDC 3.3V Power
EDID
DDC Clock DDC Clock
EDID
DDC Data DDC Data
EDID
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
R0~R5,G0
9 Rxin0+ LVDS Differential Data Input Positive
10 Vss Ground 11 Rxin1- LVDS Differential Data Input Negative
12 Rxin1+ LVDS Differential Data Input Positive
13 Vss Ground 14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync
15 Rxin2+ LVDS Differential Data Input Positive 16 Vss Ground 17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 Vss Ground 20 Vss Ground
Note (1) Connector Part No.: DF19KR-20P-1H (HIROSE) or equivalent
Note (2) User’s connector Part No: DF-19G-20S-1SD or equivalent
G1~G5, B0, B1
LVDS Level Clock
-
-
12 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink 2 LV Ground White
Note (1) Connector Part No.: JST- BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: SM02B-BHSS-1-TB or equivalent
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
CLK+
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0R5 R4
Signal for 1 DCLK Cycle (T)
13 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte #
(decimal)
˃ʳ ˄ʳ ˅ʳ ˆʳ ˇʳ ˈʳ ˉʳ ˊʳ ˋʳ ˌʳ ˄˃ʳ ˄˄ʳ ˄˅ʳ ˄ˆʳ ˄ˇʳ ˄ˈʳ ˄ˉʳ ˄ˊʳ ˄ˋʳ ˄ˌʳ ˅˃ʳ ˅˄ʳ ˅˅ʳ ˅ˆʳ ˅ˇʳ ˅ˈʳ ˅ˉʳ ˅ˊʳ ˅ˋʳ ˅ˌʳ ˆ˃ʳ ˆ˄ʳ ˆ˅ʳ ˆˆʳ ˆˇʳ ˆˈʳ ˆˉʳ ˆˊʳ ˆˋʳ ˆˌʳ ˇ˃ʳ ˇ˄ʳ
Byte
#(hex)
Field Name and Comments Value
0 Header 1 Header 2 Header 3 Header 4 Header 5 Header 6 Header 7 Header 8 EISA ID manufacturer name (“APP”)
9 EISA ID manufacturer name (Compressed ASCII) 0A ID product code (N133I1-L06) 5E 0B ID product code (hex LSB first; N133I1-L06) 9C 0C ID S/N (fixed “0”) 0D ID S/N (fixed “0”) 0E ID S/N (fixed “0”) 0F ID S/N (fixed “0”)
10 Week of manufacture (fixed “00H”) 11 Year of manufacture (fixed “00H”) 12 EDID structure version # (“1”) 13 EDID revision # (“3”) 14 Video I/P definition (“digital”) 15 Max H image size (“29.9cm”) 16 Max V image size (“19.5cm”) 17 Display Gamma (Gamma = ”2.2”) 18 Feature support (“Active off, RGB Color”)
19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0) 1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0) 1B Red-x (Rx = “0.622”) 1C Red-y (Ry = “0.346”) 1D Green-x (Gx = ”0.333”) 1E Green-y (Gy = ”0.528”) 1F Blue-x (Bx = ”0.164”)
20 Blue-y (By = ”0.162”)
21 White-x (Wx = ”0.313”)
22 White-y (Wy = ”0.329”)
23 Established timings 1
24 Established timings 2 (1280x800@60Hz)
25 Manufacturer’s reserved timings
26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2
29 Standard timing ID # 2
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Value
(hex)
00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 00 00000000 06 00000110 10 00010000
00 00000000 00 00000000 00 00000000 00 00000000 09 00001001 10 00010000 01 00000001 03 00000011 80 10000000 1D 00011101 13 00010011 78 01111000 0A 00001010 65 01100101 21 00100001 9F 10011111 58 01011000 55 01010101 87 10000111 2A 00101010 29 00101001 50 01010000 54 01010100 00 00000000 00 00000000 00 00000000 01 00000001 01 00000001 01 00000001 01 00000001
(binary)
01011110
10011100
15 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
ˇ˅ʳ ˇˆʳ ˇˇʳ ˇˈʳ ˇˉʳ ˇˊʳ ˇˋʳ ˇˌʳ ˈ˃ʳ ˈ˄ʳ ˈ˅ʳ ˈˆʳ
ˈˇʳ ˈˈʳ ˈˉʳ ˈˊʳ ˈˋʳ ˈˌʳ ˉ˃ʳ ˉ˄ʳ ˉ˅ʳ ˉˆʳ ˉˇʳ
ˉˈʳ ˉˉʳ ˉˊʳ ˉˋʳ ˉˌʳ ˊ˃ʳ
ˊ˄ʳ ˊ˅ʳ ˊˆʳ ˊˇʳ ˊˈʳ ˊˉʳ ˊˊʳ ˊˋʳ ˊˌʳ ˋ˃ʳ ˋ˄ʳ ˋ˅ʳ ˋˆʳ ˋˇʳ ˋˈʳ ˋˉʳ
2A Standard timing ID # 3 2B Standard timing ID # 3 2C Standard timing ID # 4 2D Standard timing ID # 4 2E Standard timing ID # 5 2F Standard timing ID # 5
30 Standard timing ID # 6
31 Standard timing ID # 6
32 Standard timing ID # 7
33 Standard timing ID # 7
34 Standard timing ID # 8
35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“71MHz”, According
36
to VESA CVT Rev1.1) 37 # 1 Pixel clock (hex LSB first) 38 # 1 H active (“1280”) 39 # 1 H blank (“160”)
3A # 1 H active : H blank (“1280 : 160”) 3B # 1 V active (”800”) 3C # 1 V blank (”23”) 3D # 1 V active : V blank (”800 :23”) 3E # 1 H sync offset (”48”) 3F # 1 H sync pulse width ("32”)
40 # 1 V sync offset : V sync pulse width (”3 : 6”)
# 1 H sync offset : H sync pulse width : V sync offset : V sync 41
width (”48: 32 : 3 : 6”) 42 # 1 H image size (”286.08 mm”) 43 # 1 V image size (”178.8 mm”) 44 # 1 H image size : V image size (”286 : 178”) 45 # 1 H boarder (”0”) 46 # 1 V boarder (”0”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol 47
Negatives 48 Detailed timing/monitor 00 00000000 49 descriptor #2 00 00000000
4A ʳ 00 00000000 4B ʳ 01 00000001 4C Version 00 00000000 4D Apple edid signature 06 00000110 4E Apple edid signature 10 00010000 4F Link Type (LVDS Link,MSB justified) 20
50 Pixel and link component format (6-bit panel interface) 00 00000000 51 Panel features (No inverter) 00 00000000 52 ʳ 00 00000000 53 ʳ 00 00000000 54 ʳ 00 00000000 55 ʳ 00 00000000 56 ʳ 00 00000000
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
BC 10111100
1B 00011011 00 00000000 A0 10100000 50 01010000 20 00100000 17 00010111 30 00110000 30 00110000 20 00100000 36 00110110
00 00000000
1E 00011110 B2 10110010 10 00010000 00 00000000 00 00000000
18 00011000
00100000
16 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
ˋˊʳ ˋˋʳ ˋˌʳ ˌ˃ʳ ˌ˄ʳ ˌ˅ʳ
ˌˆʳ ˌˇʳ ˌˈʳ ˌˉʳ ˌˊʳ ˌˋʳ ˌˌʳ ˄˃˃ʳ ˄˃˄ʳ ˄˃˅ʳ ˄˃ˆʳ ˄˃ˇʳ ˄˃ˈʳ ˄˃ˉʳ ˄˃ˊʳ ˄˃ˋʳ ˄˃ˌʳ ˄˄˃ʳ ˄˄˄ʳ ˄˄˅ʳ ˄˄ˆʳ ˄˄ˇʳ ˄˄ˈʳ ˄˄ˉʳ ˄˄ˊʳ ˄˄ˋʳ ˄˄ˌʳ ˄˅˃ʳ ˄˅˄ʳ ˄˅˅ʳ ˄˅ˆʳ ˄˅ˇʳ ˄˅ˈʳ ˄˅ˉʳ ˄˅ˊʳ
57 ʳ 00 00000000 58 ʳ 0A 00001010 59 ʳ 20 00100000
5A Detailed timing description # 3 5B # 3 Flag 5C # 3 Reserved
# 3 FE (hex) defines ASCII string (Model Name “N133I1-L06”,
5D
ASCII)
5E # 3 Flag 5F # 3 1st character of name (“N”)
60 # 3 2nd character of name (“1”) 61 # 3 3rd character of name (“3”) 62 # 3 4th character of name (“3”) 63 # 3 5th character of name (“I”) 64 # 3 6th character of name (“1”) 65 # 3 7th character of name (“-”) 2D 66 # 3 8th character of name (“L”) 4C 67 # 3 9th character of name (“0”) 68 # 3 9th character of name (“1”) 69 # 3 New line character indicates end of ASCII string
6A # 3 Padding with “Blank” character 6B # 3 Padding with “Blank” character 6C Detailed timing description # 4 00 00000000 6D # 4 Flag 00 00000000 6E # 4 Reserved 00 00000000 6F # 4 FC (hex) defines Monitor name ("Color LCD", ASCII) FC 11111100
70 # 4 Flag 00 00000000 71 # 4 1st character of name ("C") 43 01000011 72 # 4 2nd character of name ("o") 6F 01101111 73 # 4 3rd character of name ("l") 6C 01101100 74 # 4 4th character of name ("o") 6F 01101111 75 # 4 5th character of name ("r") 72 01110010 76 # 4 6th character of name (<space>) 20 00100000 77 # 4 7th character of name ("L") 4C 01001100 78 # 4 8th character of name ("C") 43 01000011 79 # 4 9th character of name ("D") 44 01000100
7A # 4 New line character # 4 indicates end of Monitor name 0A 00001010 7B # 4 Padding with "Blank" character 20 00100000 7C # 4 Padding with "Blank" character 20 00100000 7D # 4 Padding with "Blank" character 20 00100000 7E Extension flag 00 00000000 7F Checksum
00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000 4E 01001110 31 00110001 33 00110011 33 00110011 49 01001001 31 00110001
00101101
01001100 30 00110000 31 00110001 0A 00001010 20 00100000 20 00100000
61 01100001
17 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The specifications of input signal timing are as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 50 71.1 80 MHz -
Vertical Total Time TV 810 823 1900 TH -
DE
Vertical Addressing Time TVD 800 800 800 TH -
Horizontal Total Time TH 1360 1440 1900 Tc -
Horizontal Addressing Time THD 1280 1280 1280 Tc -
INPUT SIGNAL TIMING DIAGRAM
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
DE
DCLK
TC
DE
DATA
6.2 POWER ON/OFF SEQUENCE
Power On
90%
Power Supply
for LCD, Vcc
0V
10%
HD
T
10%
Restart
10%
t4
Power Off
t7
90%
t1
t3t2
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
0V
I
Valid Data
t6t5
50%50%
ONOFF OFF
18 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Timing Specifications:
0.5< t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
t4 Њ 500 msec
t5 Њ 200 msec
t6 Њ 200 msec
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow
t7 Њ 5 msec
19 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6 mA Inverter Driving Frequency FL 61 KHz Inverter Sumida-H05-4915
The relative measurement methods of optical characteristics are shown in 7.2. The following items
should be measured under the test conditions described in 7.1 and stable environment shown in Note (6).
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 350 400 - (2), (6)
Response Time
Average Luminance of White L White Variation Cross Talk CT - - 4.0 % (5), (6)
Red
Color Chromaticity
Viewing Angle
Green
Blue
White
Horizontal
Vertical
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
o
25r2
50r10
TR - 9 14 ms
- 16 21 ms
T
F
220 250 cd/m2(4), (6)
AVE
GW
T
=0q, TY =0q
Rx Ry Gx 0.320 -
x
Viewing Normal
Angle
Gy 0.555 ­Bx 0.155 -
1.5 - (6), (7)
0.595
0.345
TYP
-0.03
TYP
+0.03
By 0.145 -
Wx 0.313 -
Wy
Tx+
T
x
TY+
T
Y
­CRt10
-
0.329
40 45 40 45 15 20 25 30
C
%RH
-
-
-
Deg.
(3)
(1), (6)
20 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
s
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Normal
Tx = Ty = 0º
Ty- Ty
TX- = 90º
6 o’clock
T
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (1)
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 m
, TF) and measurement method:
R
T
F
66.67 ms
Time
21 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
A
A
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).
Note (5) Definition of Cross Talk (CT):
CT = | Y
– YA | / YAu 100 (%)
B
Where:
Y
= Luminance of measured location without gray level 0 pattern (cd/m2)
A
Y
= Luminance of measured location with gray level 0 pattern (cd/m2)
B
ctive Area
Gray 32
Y
A, U
Y
A, R
(D,W)
(D/2,W/8)
(7D/8,W/2)
Y
(D/8,W/2)
A, L
Y
(D/2,7W/8)
A, D
(0, 0)
AVE
):
(D/4,W/4)
Y
(D/8,W/2)
B, L
Y
(D/2,7W/8)
B, D
(0, 0)
ctive Area
Gray 0
Gray 32
Y
B, U
Y
B, R
(3D/4,3W/4)
(D,W)
(D/2,W/8)
(7D/8,W/2)
Note (6) Measurement Setup:
The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed
after lighting Backlight for 15 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
Field of View = 2º
500 mm
TOPCON/BM-5A
MINOLTA /CA210
MINOLTA /CS-1000T
Light Shield Room
(Ambient Luminance < 2 lux)
22 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center
A
X

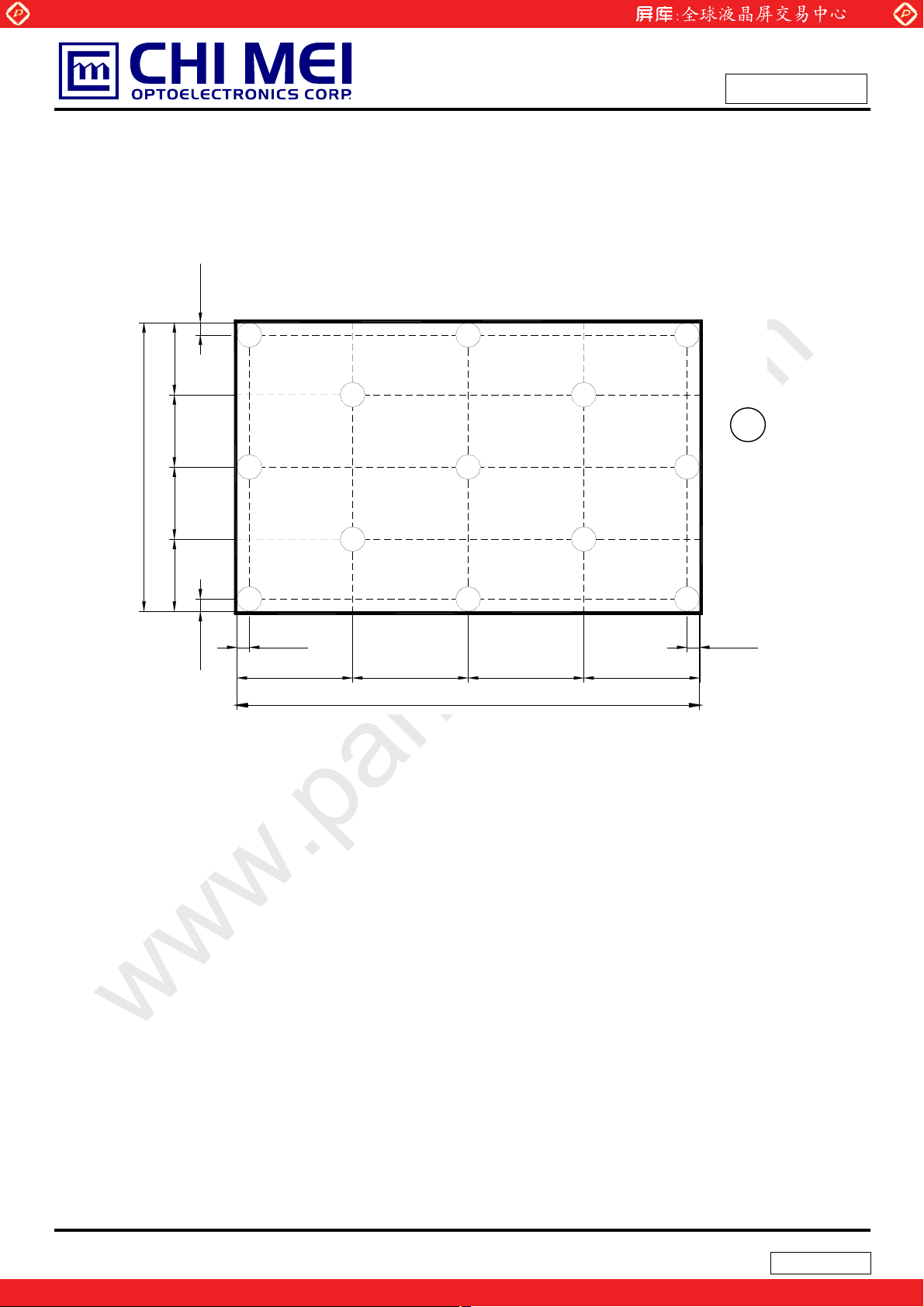

Note (7) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 13 points
GW = Maximum [L (1), L (2) ……L (12), L (13)] / Minimum [L (1), L (2) …… L (12), L (13)]
˄˃
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Horizontal Line Number
˛˂ˇ
˛
Vertical Line Number
˛˂ˇ ˛˂ˇ ˛˂ˇ
˄˄ ˄˅
˄˃
˪
ˊ
ˆ
˄
ˋ
˄˃
˄ˆ
ˉ
˅
ˌ
ˇˈ
˄˃ ˄˃
˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ
ctive area
ΚTest Point XЈ1 to 13
23 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
8.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
24 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
9. PACKAGING
9.1 CARTON
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Figure. 9-1 Packing method
25 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center
9.2 PALLET
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
Figure. 9-2 Packing method
26 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 27
Global LCD Panel Exchange Center
10. DEFINITION OF LABELS

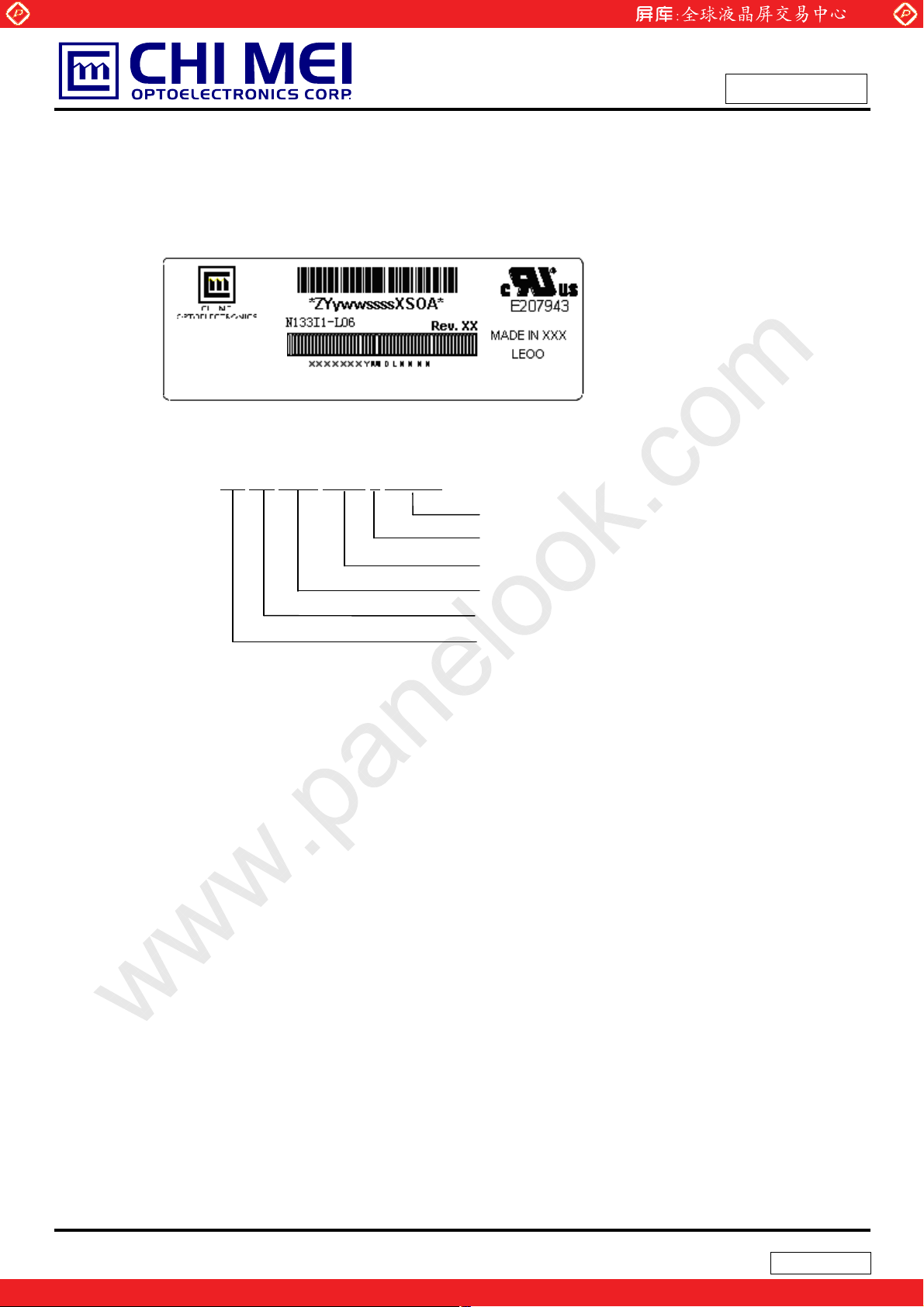

10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
(a) Model Name: N133I1 - L06
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
(c) Serial ID: X X
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
(e)UL/CB logo: LEOO especially stands for panel manufactured by CMO NingBo satisfying UL/CB
requirement. The panel without LEOO mark stands for manufactured by CMO Taiwan satisfying UL/CB
requirement.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
st
to 31st, exclude I , O and U
27 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 28
Global LCD Panel Exchange Center

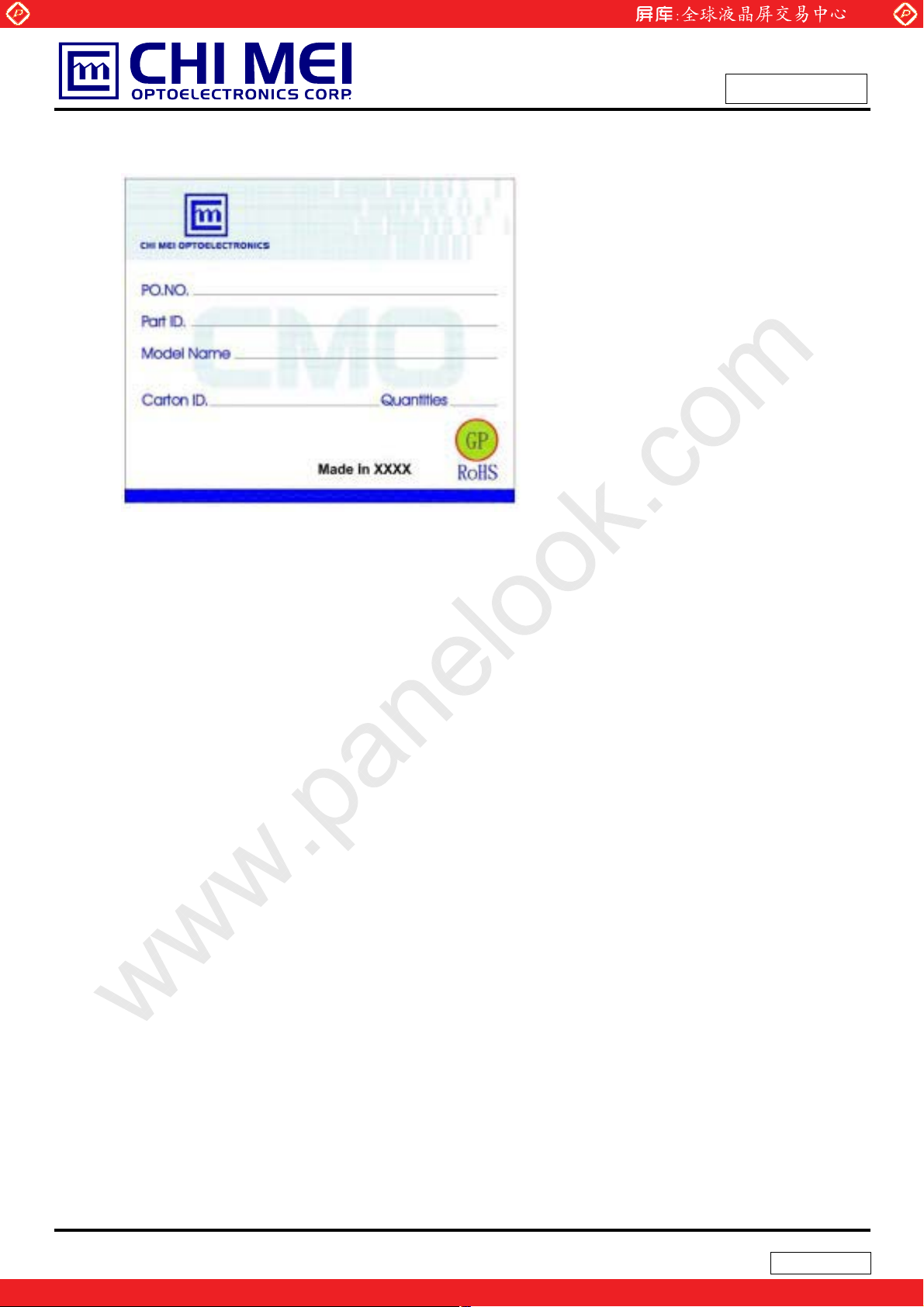

10.2 CMO CARTON LABEL
www.panelook.com
Doc No.:
Issued Date: Dec. 25, 2006
Model No.: N133I1 - L06
Preliminary
28 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 1.0
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
