CMO N133I1-L03 Specification

Download
Page 1
Global LCD Panel Exchange Center
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03
Te n t a t ive
- CONTENTS -
REVISION HISTORY

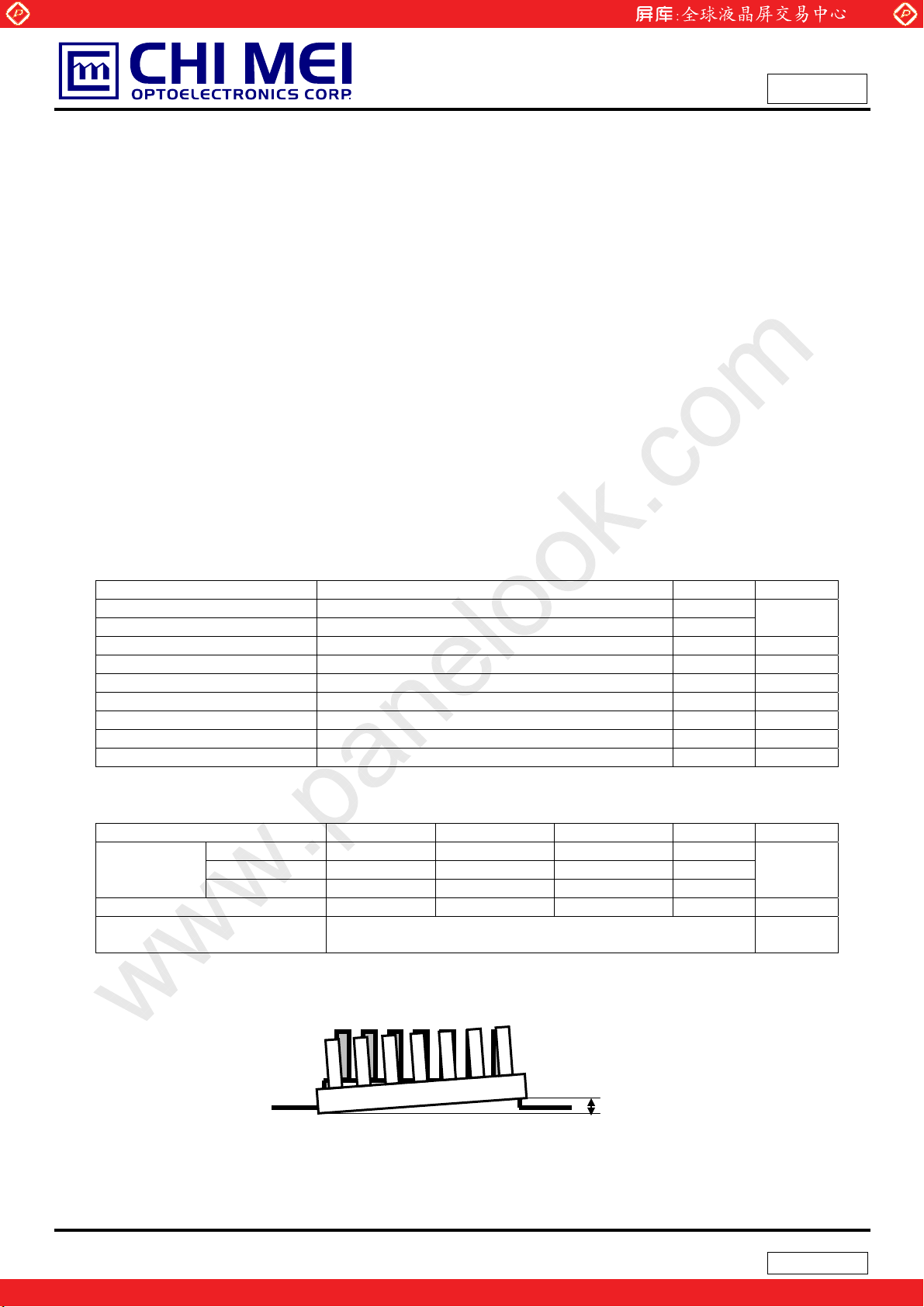

1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS

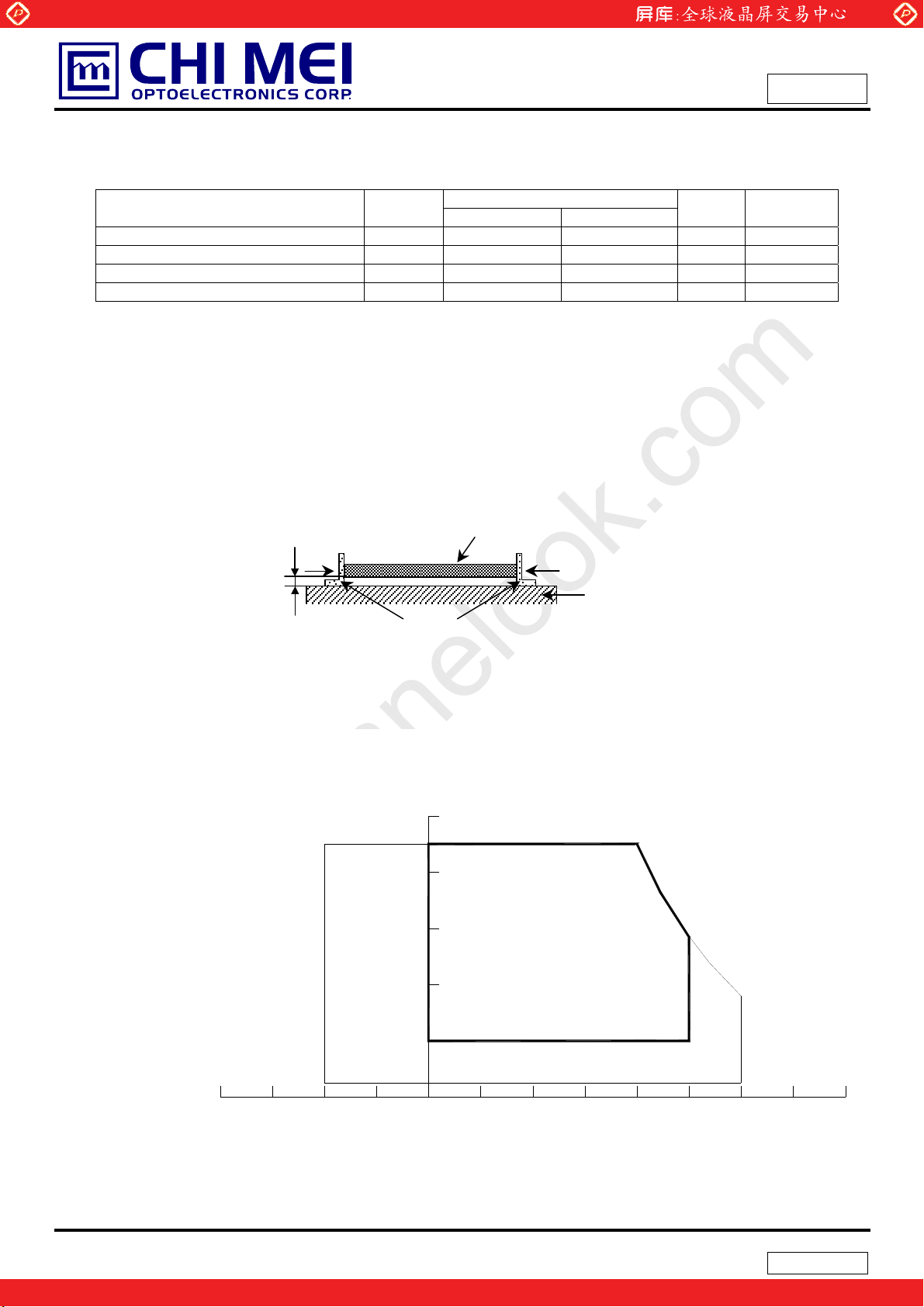

2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

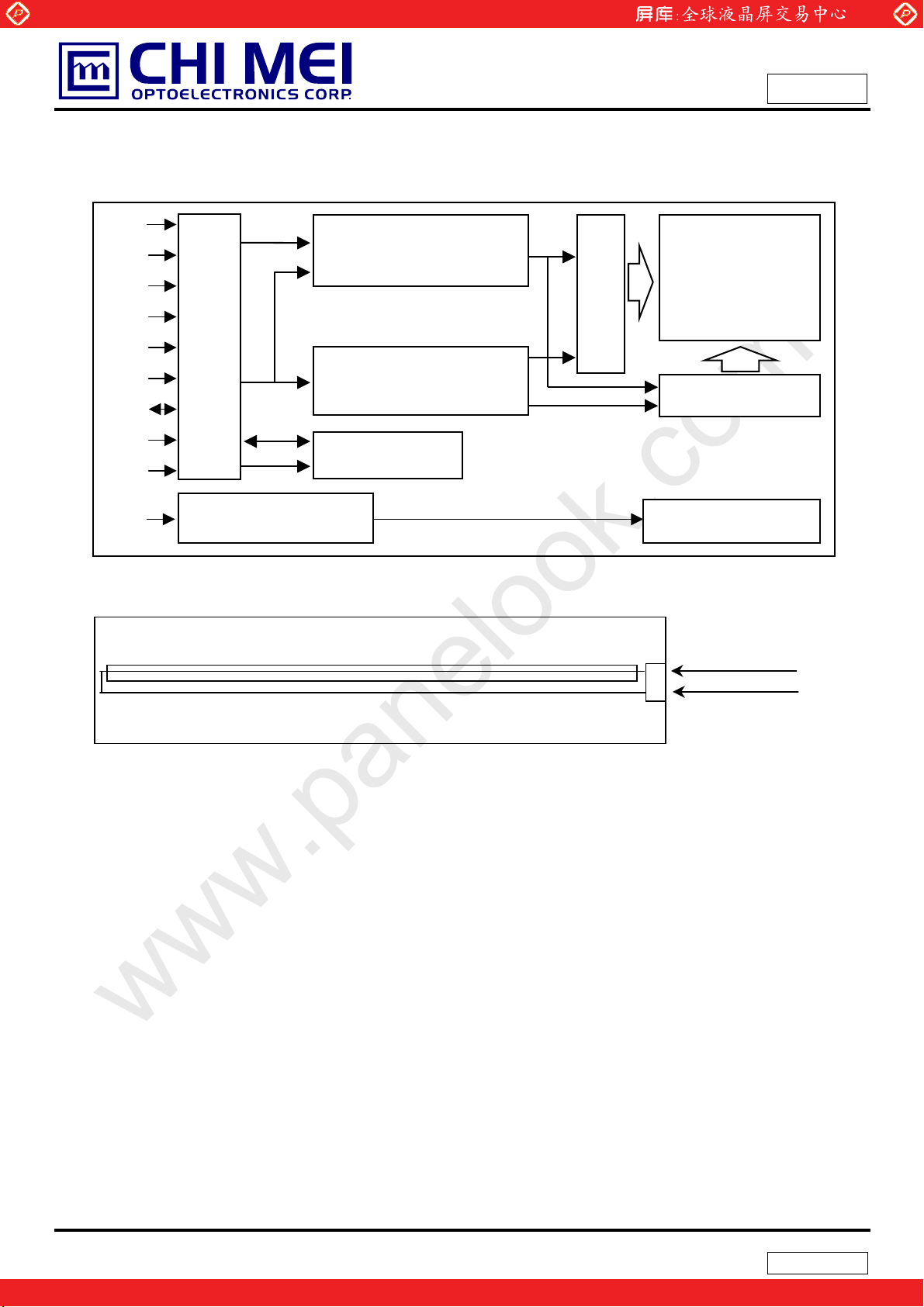

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE

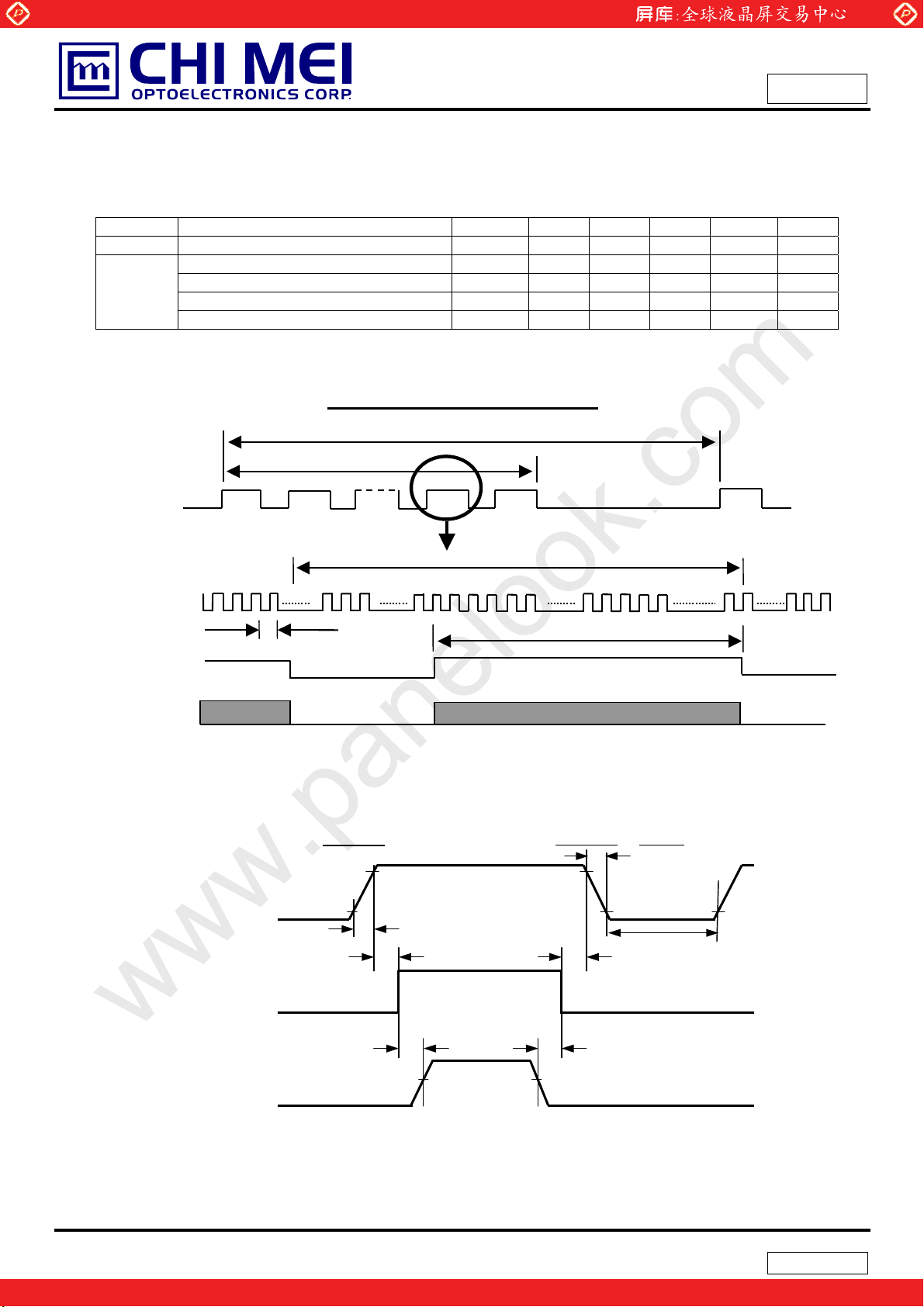

6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS

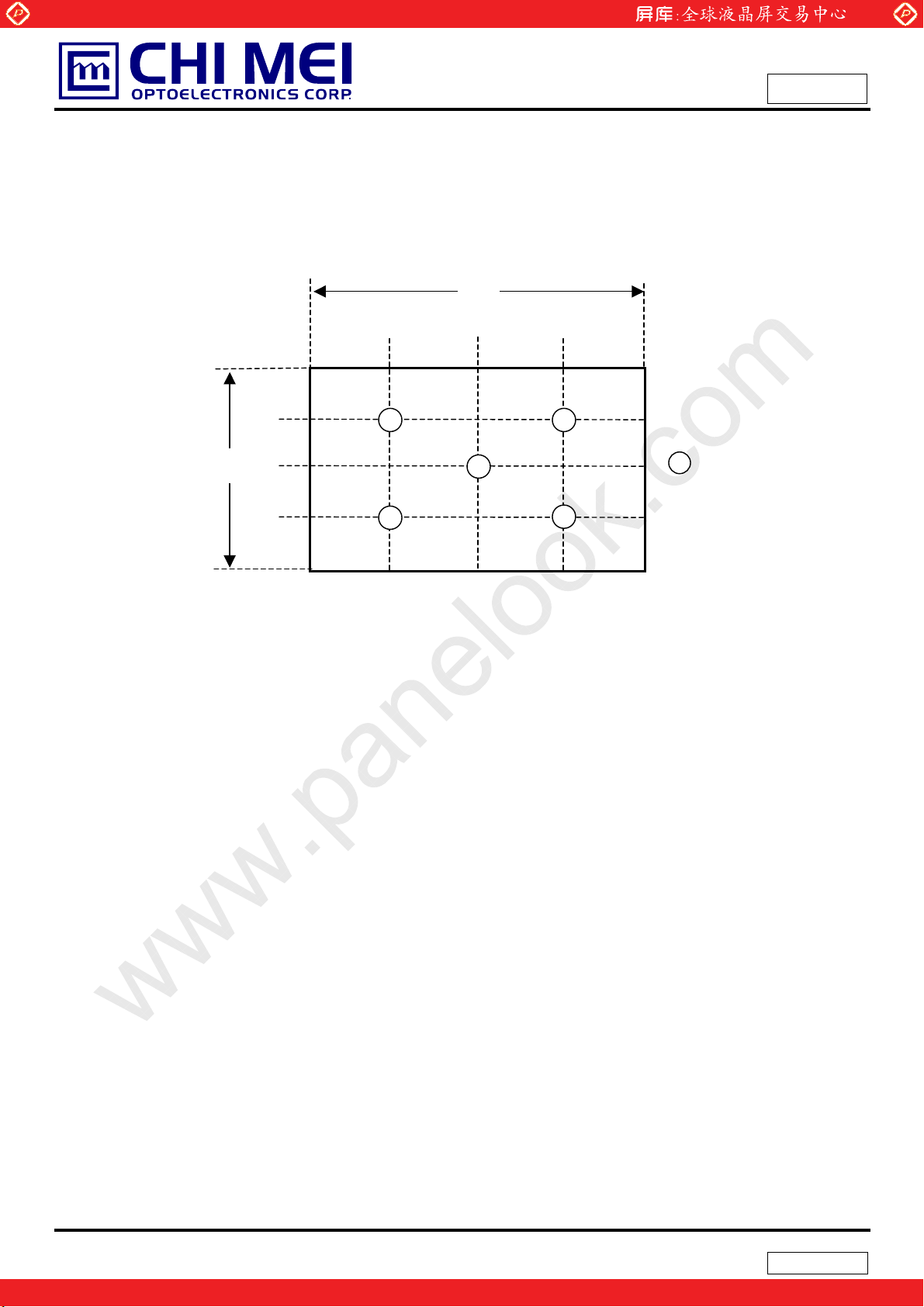

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 23

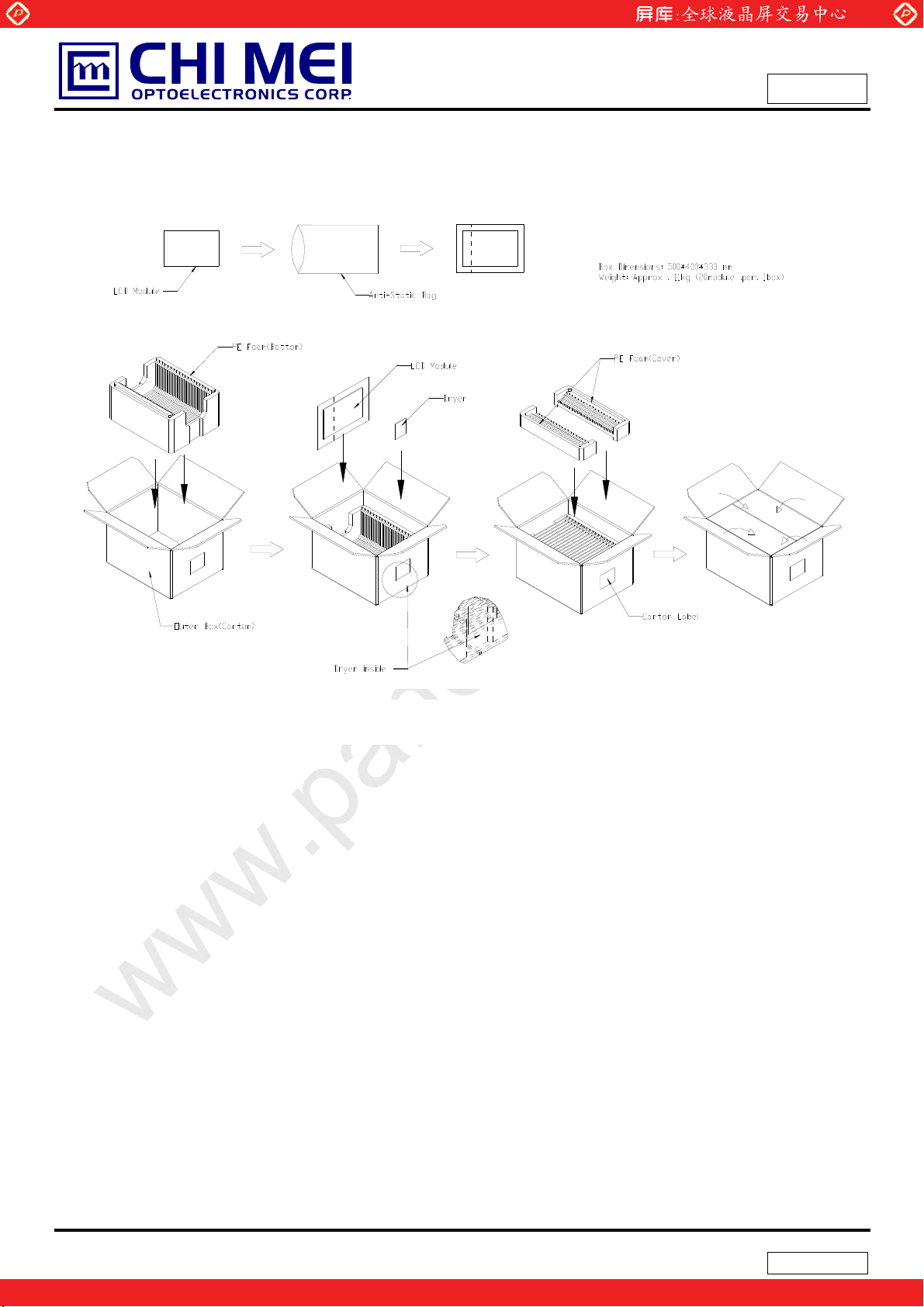

9.1 CARTON

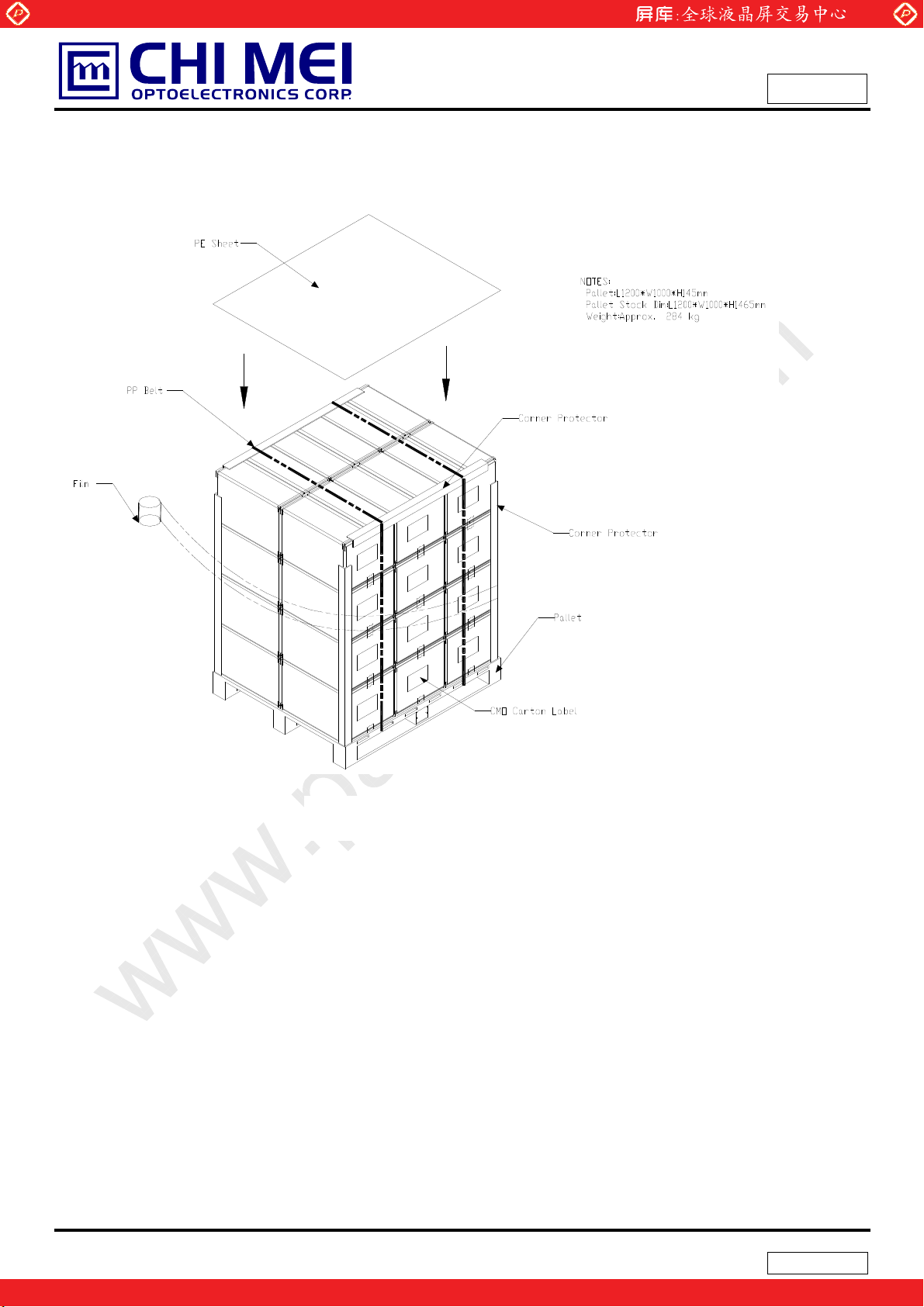

9.2 PALLET

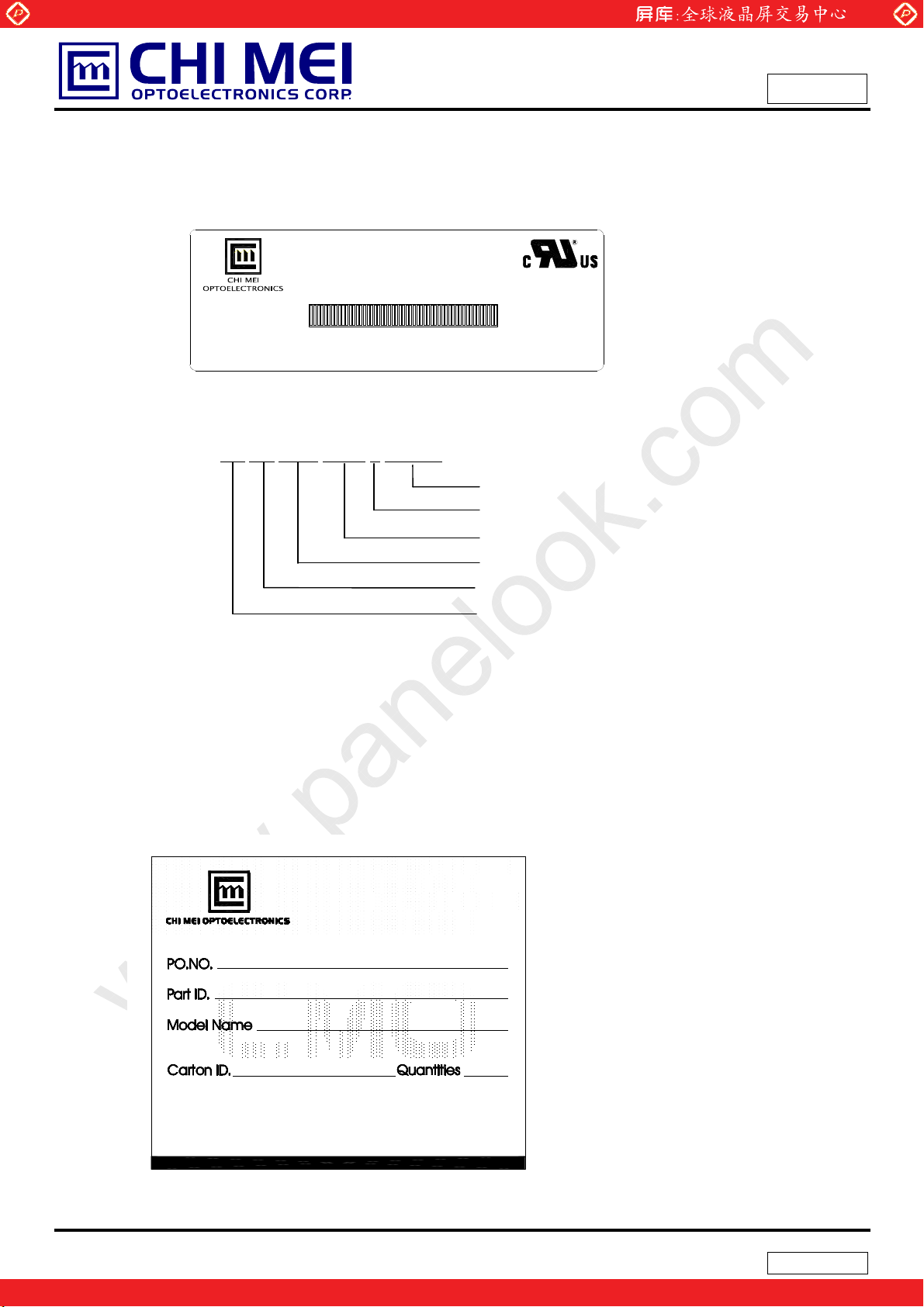

10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
10.3 CUSTOMER CARTON LABEL
10.4 CUSTOMER PALLET LABEL
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
------------------------------------------------------- 16
------------------------------------------------------- 18
------------------------------------------------------- 22
------------------------------------------------------- 25
2 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Version Date
0.0
Nov, 1,’05
Page
(New)
All
Section Description
www.panelook.com
REVISION HISTORY
All Tentative specification was first issued.
Model No.: N133I1 - L03
Te n t a t ive
3 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133I1 - L03 is a 13.3” TFT Liquid Crystal Display module with single CCFL Backlight unit and 20 pins
LVDS interface. This module supports 1280 x 800 XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o’clock direction. The inverter module for Backlight is built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
www.panelook.com
Model No.: N133I1 - L03
Te n t a t ive
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 286.08 (H) x 178.8 (V) mm Bezel Opening Area 289.1 (H) x 181.8 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 800 pixel ­Pixel Pitch 0.2235 (H) x 0.2235 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment AG , 25%Haze - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 298.5 299 299.5 mm
Module Size
I/F connector mounting position The mounting inclination of the connector makes the screen

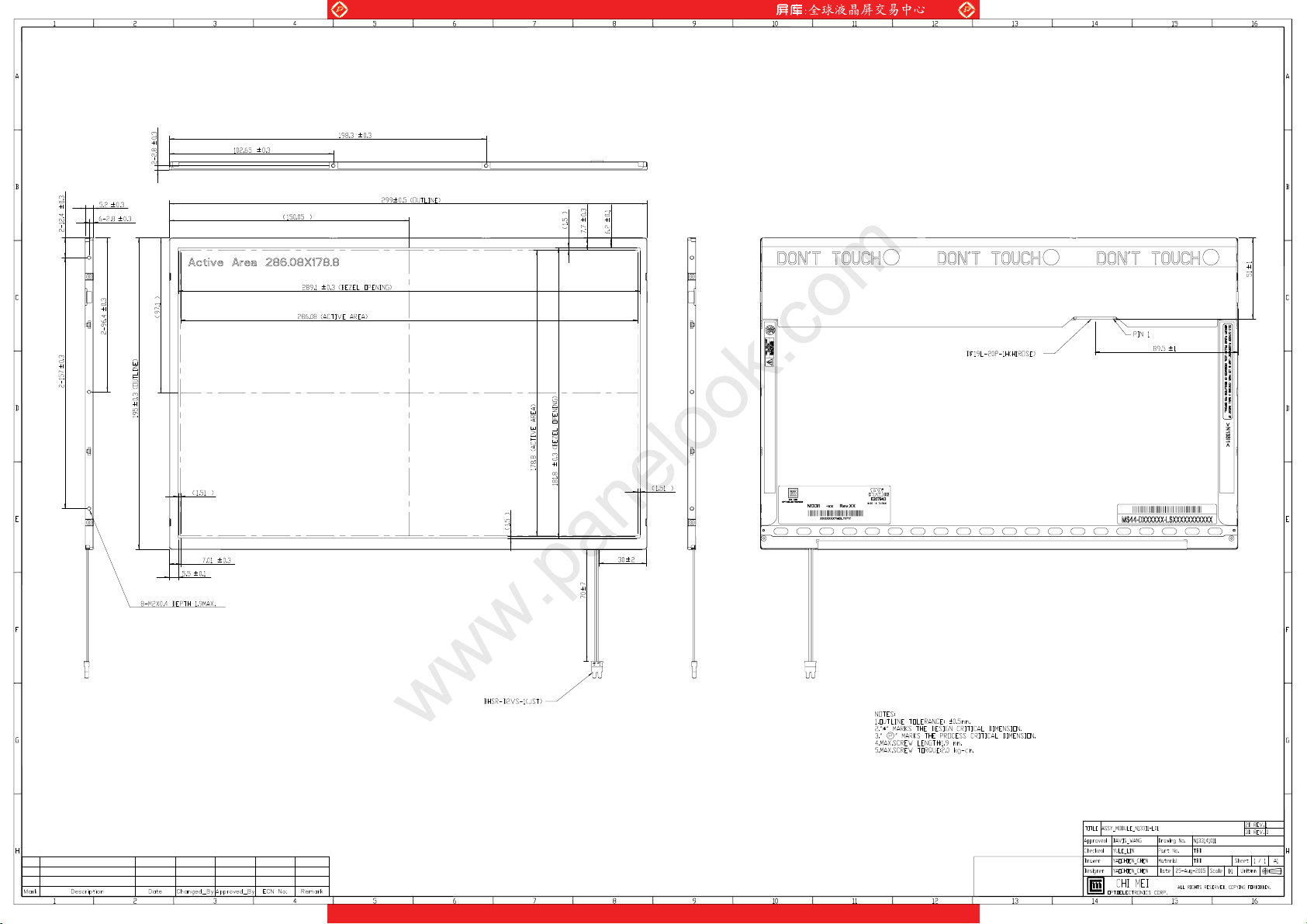

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 194.5 195 195.5 mm Depth(D) 4.9 5.2 5.5 mm
Weight --- 355 365 g -
center within ±0.5mm as the horizontal.
(1)
(1)
(2)
Note (2) Connector mounting position
+/- 0.5mm
4 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The ambient temperature means the temperature of panel surface.
Note (3) 2ms, half sine wave, 1 times for ± X, ± Y, ± Z.
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Value
Min. Max.
- 220 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
Note (4) 10 ~ 200Hz, 0.5hr/cycle, 1 cycle for each X, Y, Z. The fixing condition is shown as below:
Side Mount Fixing Screw
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
Relative Humidity (%RH)
100
90
80
60
Operating Range
2.2 ELECTRICAL ABSOLUTE RATINGS
40
20
Storage Range
5
Temperature (ºC)
5 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8060 -20 400 20-40
Version 0.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - (2.0K) V Lamp Current IL (2.0) (6.5) mA Lamp Frequency FL (45) (80) KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Model No.: N133I1 - L03
(1)
(1), (2), IL = 6.0 mA
RMS
RMS
(1), (2)
Te n t a ti ve
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
Power Supply Current
Logical Input Voltage
White - (255) (295) mA (3)a Black “H” Level VIL - - +100 mV ­“L” Level V
- - 1.5 A (2)
RUSH
lcc
-100 - - mV -
IH
- (330) (375) mA (3)b
Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P
- TBD - W (4)
EBL
Note (1) The module should be always operated within above ranges.
Value
Unit Note
Te n t a ti ve

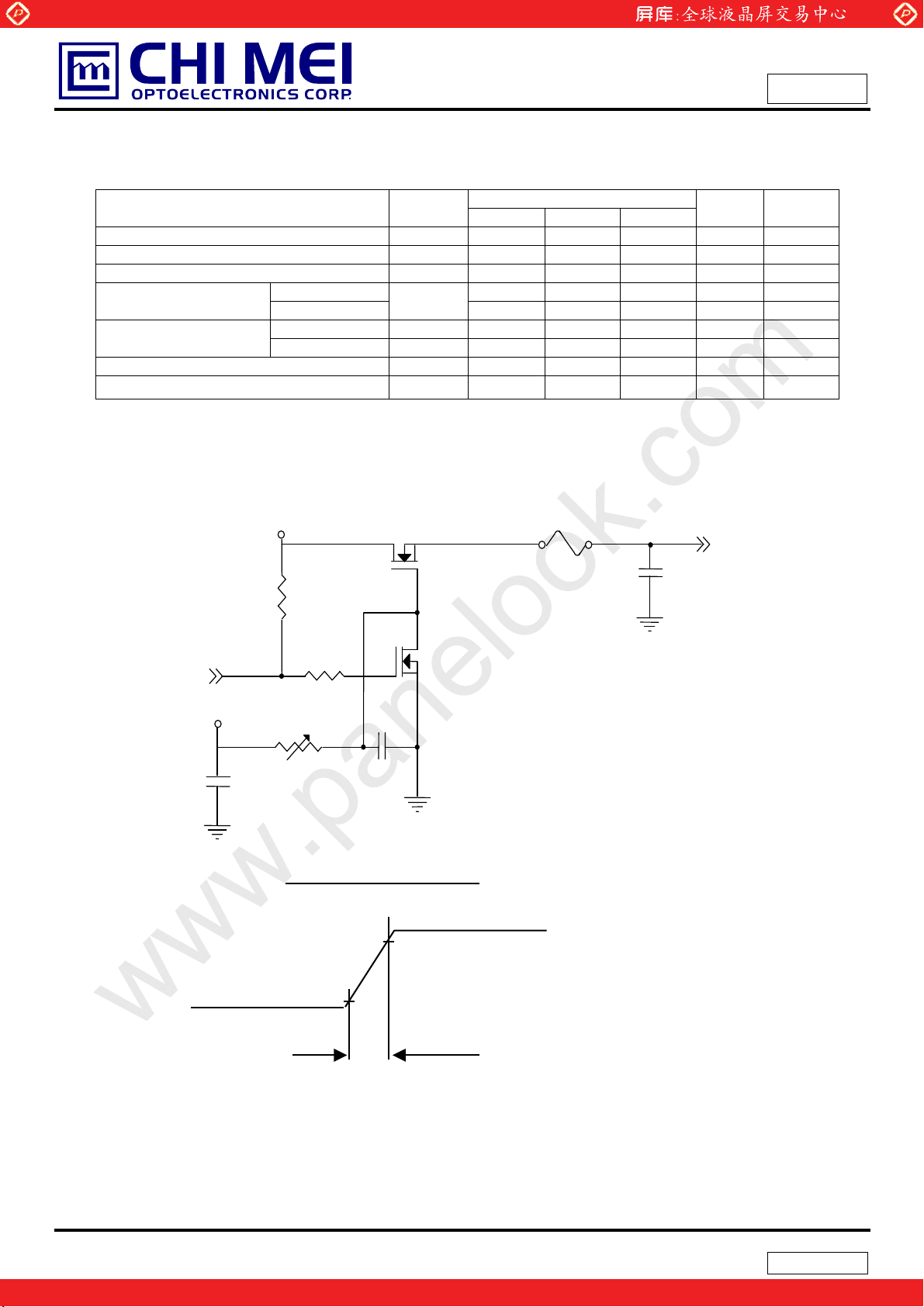

Note (2) Measurement Conditions:
+3.3V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
Vcc rising time is 470us
Q1 2SK 1475
C2
0.01uF
Q2
2SK1470
+3.3V
FUSE
C3
1uF
Vcc
(LCD Module Input)
0.9Vcc
0.1Vcc
GND
470us
Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern below is displayed.
7 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
= 60
v
Version 0.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Note (4) The specified power are the sum of LCD panel electronics input power and the inverter input

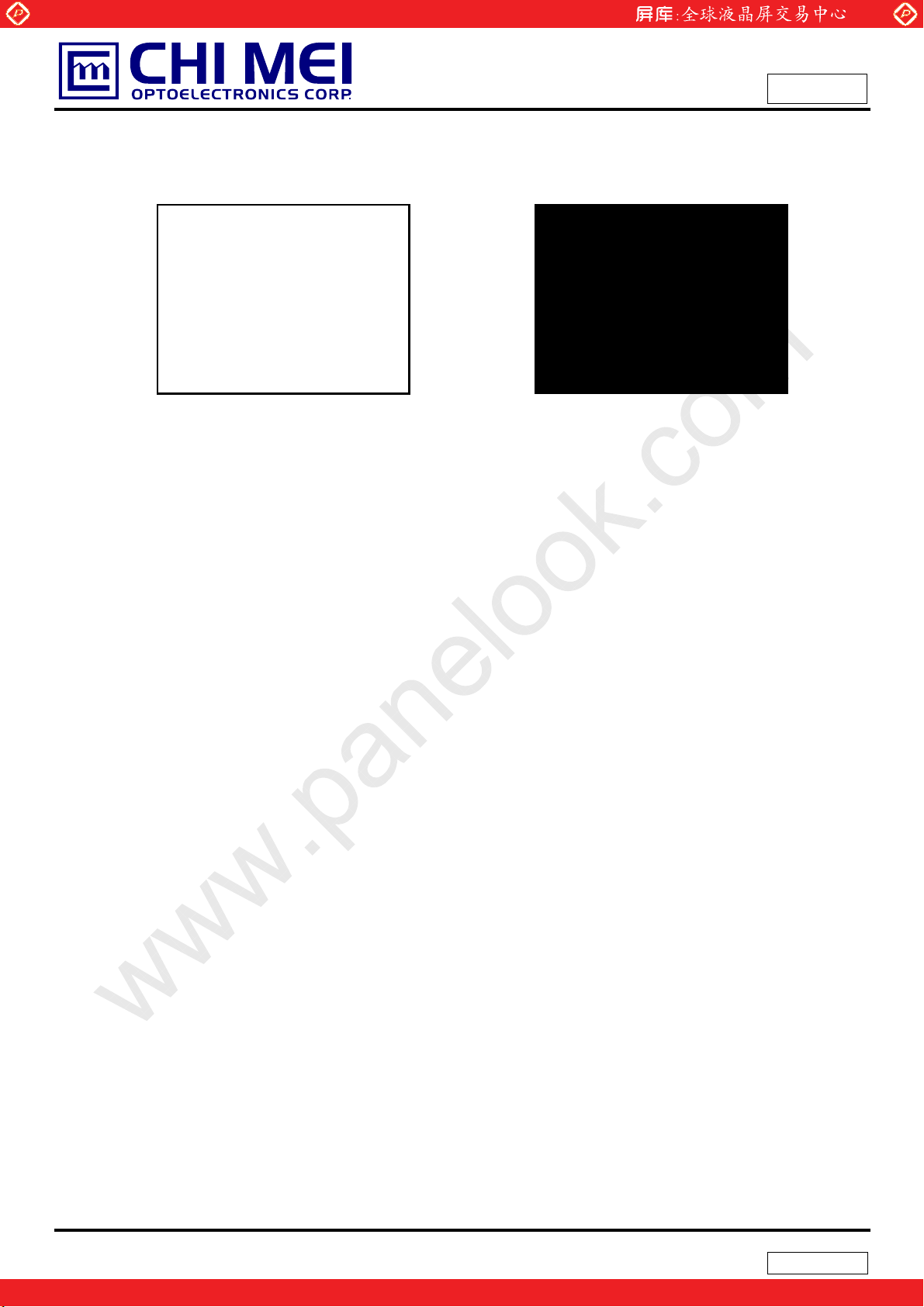

a. White Pattern
Active Area
power. Test conditions are as follows.
(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
(d) The inverter used is provided from XXXX(www.XXX.com). CMO doesn’t provide the inverter in
= 60 Hz,
v
b. Black Pattern
Active Area
this product.
8 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03

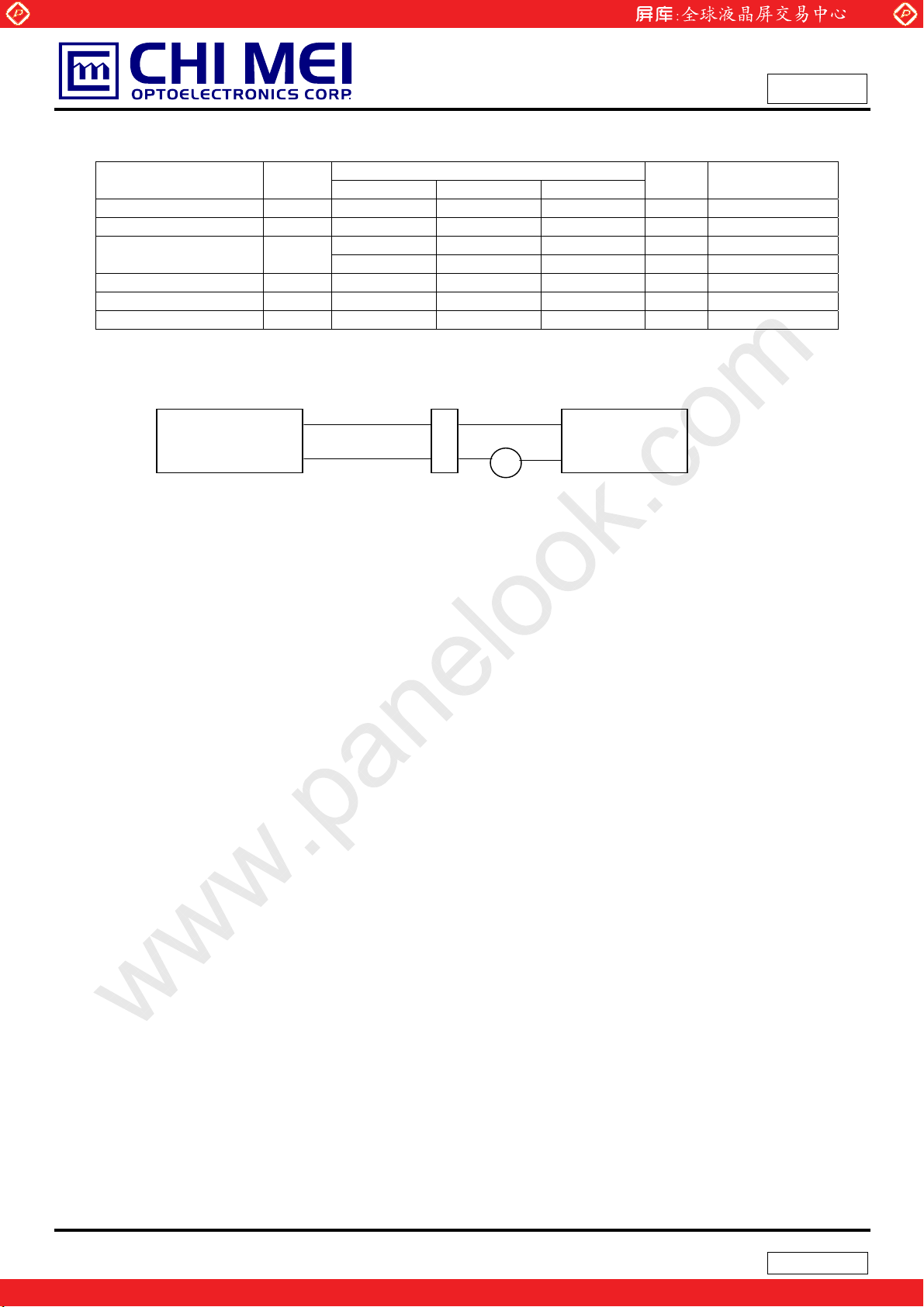

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Lamp Input Voltage VL (603) (670) (737) V Lamp Current IL (2.0) (6.0) (6.5) mA
Lamp Turn On Voltage VS
--- --- (1360 (25
--- --- (1500 (0 Operating Frequency FL (45) --- (80) KHz (3) Lamp Life Time LBL (15,000) --- --- Hrs (5) Power Consumption PL --- (4.02) --- W (4), IL = 6.0 mA
Note (1) Lamp current is measured by utilizing a high frequency current meter as shown below:
Value
o
C)) V
o
C)) V
Unit Note
I
RMS
(1)
RMS
(2)
RMS
(2)
RMS
Te n t a ti ve
= 6.0 mA
L
LCD
Module
HV (Pink)
LV (White)
1
2
Current Meter
Inverter
A
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise the lamp may not be turned on.
Note (3) The lamp frequency may produce interference with horizontal synchronous frequency from the
display, and this may cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronous frequency and its harmonics as far
as possible.
Note (4) P
= IL VL
L
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the condition
Ta = 25 2
o
C and IL = 6 mArms until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for
the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
9 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its
leakage current.

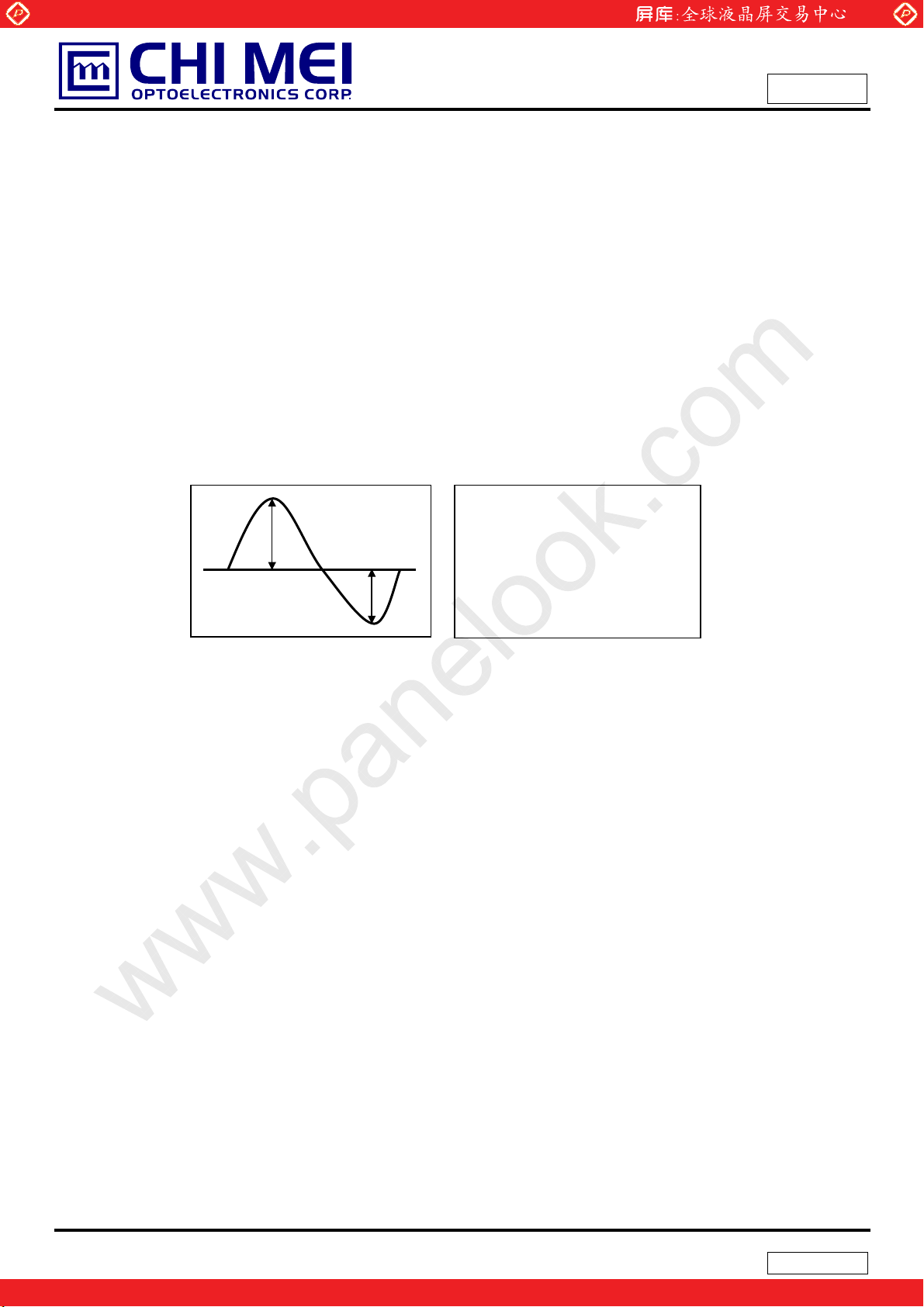

a. The asymmetry rate of the inverter waveform should be 10% below.
b. The distortion rate of the waveform should be within Ѕ2 ± 10%.
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
* Asymmetry rate:
I p
I -p
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
10 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
)
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Rxin0(+/-)
Rxin1(+/-)
Rxin2(+/-)
(JAE-FI-XB30SL-HF10)
CLK(+/-)
Vcc
GND
Data
EDID
CLK
EDID
V
EDID
VL
LAMP CONNECTOR
4.2 BACKLIGHT UNIT
TIMING CONTROLLER
INPUT CONNECTOR
DC/DC CONVERTER &
REFERENCE VOLTAGE
(JST-BHSR-02VS-1)
LVDS INPUT /
GENERATOR
EDID
EEPROM
SCAN DRIVER IC
TFT LCD PANEL
(1280xR.G.B.x800)
DATA DRIVER IC
BACKLIGHT UNIT
1 HV (Pink)
2 LV (White
11 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 12
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Polarity Remark
1 Vss Ground 2 Vcc Power Supply +3.3 V (typical) 3 Vcc Power Supply +3.3 V (typical) 4 V 5 BIST Panel BIST enable 6 CLK 7 DATA 8 Rxin0- LVDS Differential Data Input Negative
9 Rxin0+ LVDS Differential Data Input Positive
10 Vss Ground 11 Rxin1- LVDS Differential Data Input Negative
12 Rxin1+ LVDS Differential Data Input Positive
13 Vss Ground 14 Rxin2- LVDS Differential Data Input Negative B2~B5, DE, Hsync, Vsync
15 Rxin2+ LVDS Differential Data Input Positive 16 Vss Ground 17 CLK- LVDS Clock Data Input Negative 18 CLK+ LVDS Clock Data Input Positive 19 Vss Ground 20 Vss Ground
Note (1) Connector Part No.: DF19L-20P-1H (HIROSE) or equivalent
DDC 3.3V Power DDC 3.3V Power
EDID
DDC Clock DDC Clock
EDID
DDC Data DDC Data
EDID
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
R0~R5,G0
-
G1~G5, B0, B1
-
LVDS Level Clock
Note (2) User’s connector Part No: DF-19G-20S-1SD or equivalent
12 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
5.2 BACKLIGHT UNIT
Pin Symbol Description Color
1 HV High Voltage Pink 2 LV Ground White
Note (1) Connector Part No.: JST- BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: SM02B-BHSS-1-TB or equivalent

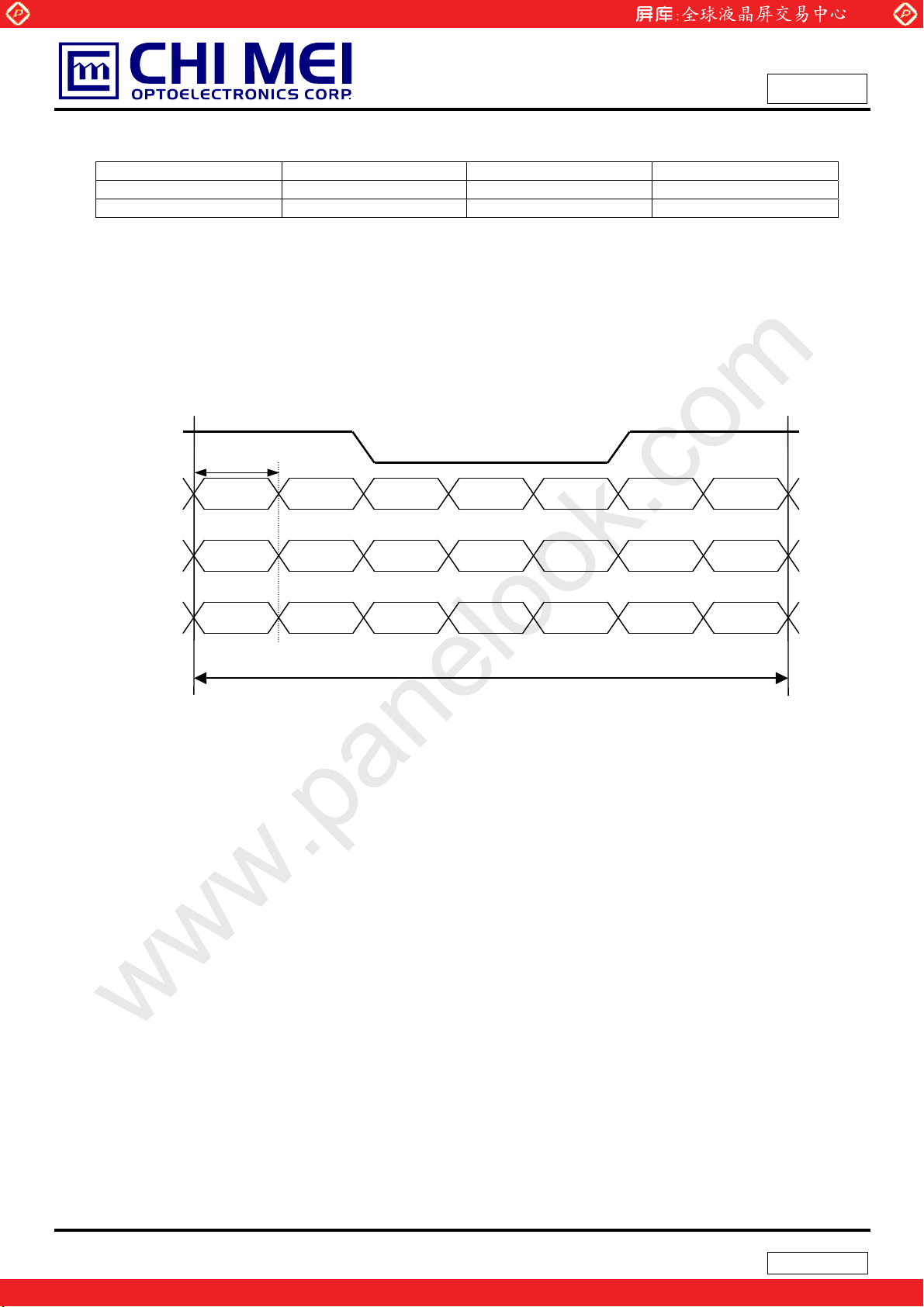

5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
CLK+
Rxin2
Rxin1
Rxin0
T/7
IN20 IN19 IN18 IN17 IN16 IN15 IN14
DE B5 B4 B3 B2 Vsync Hsync
IN13 IN12 IN11 IN10 IN9 IN8 IN7
B1 G4 G3 G2 G1 B0 G5
IN6 IN5 IN4 IN3 IN2 IN1 IN0
G0 R3 R2 R1 R0 R5 R4
Signal for 1 DCLK Cycle (T)
13 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5.4 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0 : :
1
1
1
1
1
1
0
0
0
0
0
0 : :
0
0
0
0
0
0
0
0
0
0
0
0 : :
0
0
0
0
0
0
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
14 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
5.5 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
TBD
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
15 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The specifications of input signal timing are as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 50 71.1 80 MHz -
Vertical Total Time TV 810 823 1900 TH -
DE
Vertical Addressing Time TVD 800 800 800 TH -
Horizontal Total Time TH 1360 1440 1900 Tc -
Horizontal Addressing Time THD 1280 1280 1280 Tc -
Model No.: N133I1 - L03
Te n t a ti ve
DE
DCLK
TC
DE
DATA
6.2 POWER ON/OFF SEQUENCE
INPUT SIGNAL TIMING DIAGRAM
HD
T
Power On
90%
Power Off
90%
Restart
t7
Power Supply
for LCD, Vcc
0V
10%
t1
- Interface Signal
(LVDS Signal of Transmitter), V
- Power for Lamp
0V
I
Valid Data
t6 t5
50%50%
ONOFF OFF
10%
t4
t3 t2
10%
16 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
Timing Specifications:
0.5< t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
t4 Њ 500 msec
t5 Њ 200 msec
t6 Њ 200 msec
Note (1) Please avoid floating state of interface signal at invalid period.
Note (2) When the interface signal is invalid, be sure to pull down the power supply of LCD Vcc to 0 V.
Note (3) The Backlight inverter power must be turned on after the power supply for the logic and the
interface signal is valid. The Backlight inverter power must be turned off before the power supply
for the logic and the interface signal is invalid.
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To
avoid this phenomenon, we suggest that the Vcc falling time had better to follow
t7 Њ 5 msec
17 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 6 mA Inverter Driving Frequency FL (61) KHz Inverter H05-4915

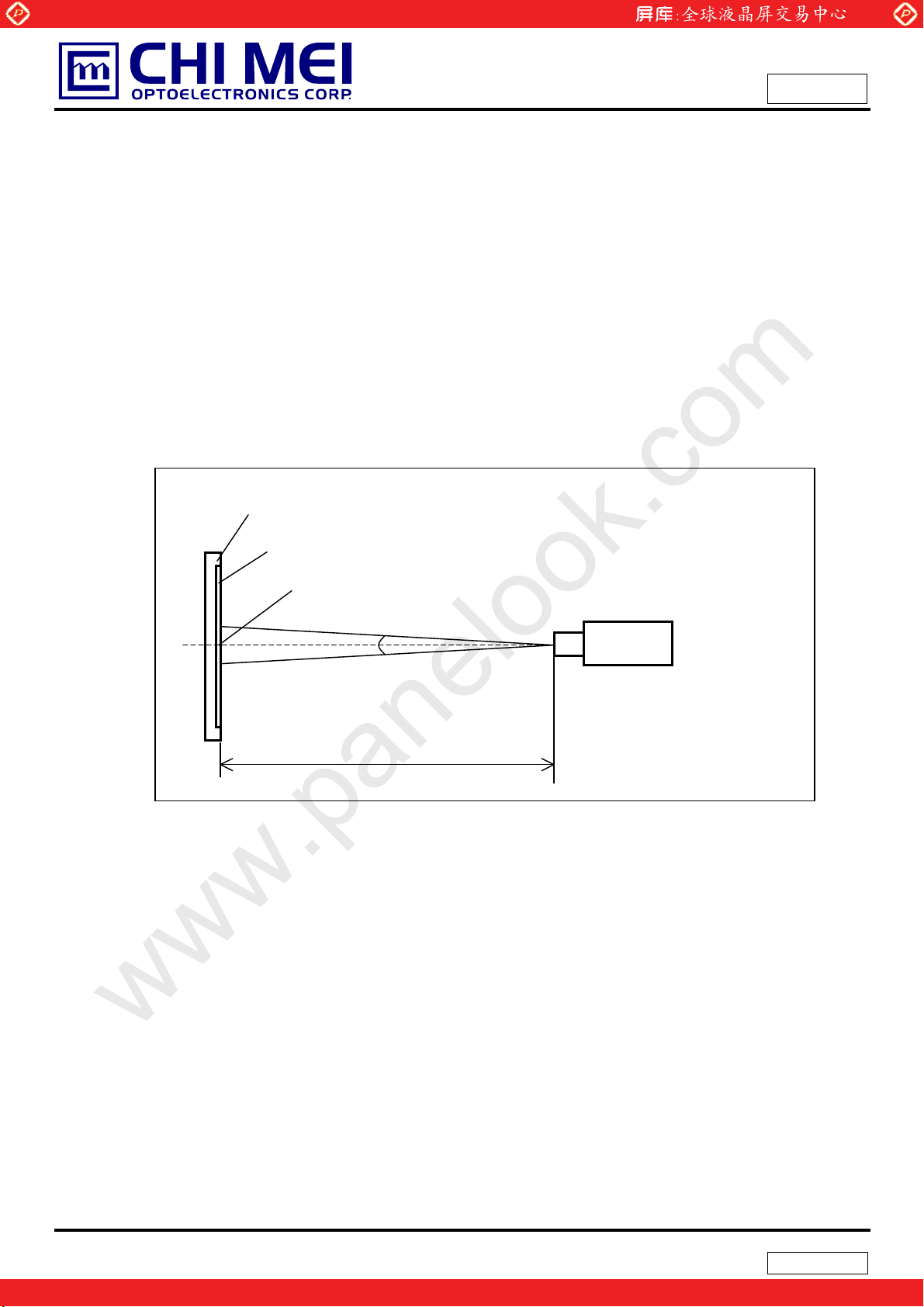

The relative measurement methods of optical characteristics are shown in 7.2. The following items
should be measured under the test conditions described in 7.1 and stable environment shown in Note (6).
7.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR (350) (400) - (2), (5)
Response Time
Average Luminance of White L White Variation
Red
Color Chromaticity
Green
Blue
White
Horizontal
Viewing Angle
Vertical
TR - (6) (11) ms
- (14) (19) ms
T
F
(180) (220) cd/m2(4), (5)
AVE
GW
Rx Ry Gx (0.340) ­Gy (0.541) ­Bx (0.167) ­By (0.183) -
Wx 0.313 -
Wy
Tx+
-
T
x
TY+
T
-
Y
T
=0q, TY =0q
x
Viewing Normal
Angle
CRt10
Model No.: N133I1 - L03
Te n t a ti ve
o
25r2
50r10
(1.4) - (5), (6)
(0.615) (0.346)
TYP
-0.03
TYP
+0.03
0.329
(40) (45) (40) (45) (15) (20) (25) (30)
C
%RH
-
-
-
Deg.
(3)
(1)
18 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Note (1) Definition of Viewing Angle (Tx, Ty):
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
TX- = 90º
x-
6 o’clock
T
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Normal
Tx = Ty = 0º
Ty- Ty
Tx
Tx
y+
12 o’clock direction
T
y+ = 90º
x+
TX+ = 90º
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (5)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (7).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF) and measurement method:
R
T
F
66.67 ms
Time
19 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (7).
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
Center of the Screen
AVE
):
CA210
CS-1000T
Field of View = 2º
500 mm
Light Shield Room
(Ambient Luminance < 2 lux)
20 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
Note (6) Definition of White Variation (GW):
Measure the luminance of gray level 63 at 5 points
GW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
W
W/4
W/2
3W/4
Vertical Line
Horizontal Line
D
D/4 D/2 3D/4
12
X
: Test Point
X=1 to 5
3
5
4
Active Area
21 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
8. PRECAUTIONS
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will
be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
8.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
22 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 23
Global LCD Panel Exchange Center
9. PACKAGING
9.1 CARTON
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Figure. 9-1 Packing method
23 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 24
Global LCD Panel Exchange Center
9.2 PALLET
www.panelook.com
Model No.: N133I1 - L03
Te n t a ti ve
Figure. 9-2 Packing method
24 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Model No.: N133I1 - L03
10. DEFINITION OF LABELS
10.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
Te n t a ti ve
E207943
MADE IN TAIWAN
01A
N133I1 -L03 Rev. XX
N141X5 - L03 Rev.XX
X X X X X X X Y M D L N N N N
C P 1 3 5 4 4 8 - 0 1
(a) Model Name: N133I1 - L03
(b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.
(c) Serial ID: X X
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
X X X X X Y M D X N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
st
Serial No. CMO Internal Use
Year, Month, Date CMO Internal Use
Revision
CMO Internal Use
to 31st, exclude I , O and U
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
10.2 CMO CARTON LABEL
25 / 26
The information described in this technical specification is tentative and it is possible to be changed without prior notice. Please contact CMO ’s representative while your product design is based on this specification.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 0.0
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
