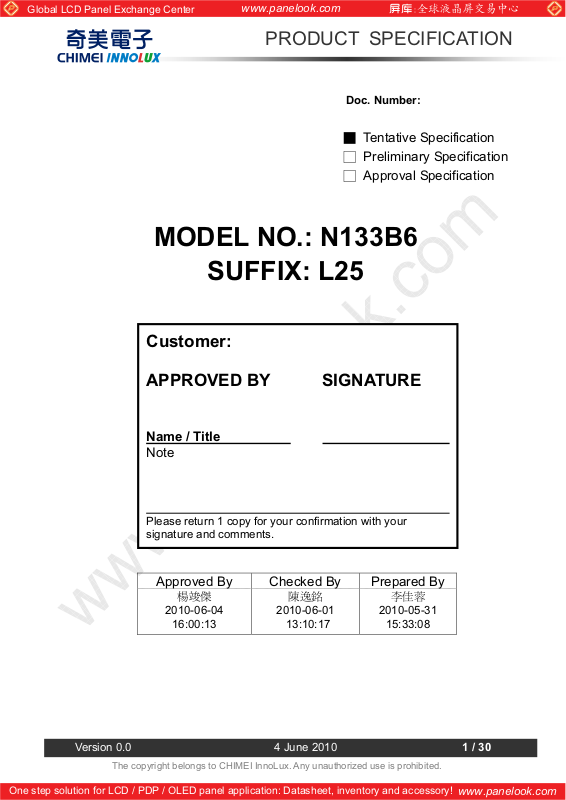

CMO N133B6-L25 Specification
Global LCD Panel Exchange Center
MODEL NO.: N133B6
www.panelook.com
PRODUCT SPECIFICATION
Doc. Number:
Ϯʳ Tentative Specification
ϭʳ Preliminary Specification
ϭʳ Approval Specification
SUFFIX: L25
Customer:
APPROVED BY SIGNATURE
Name / Title
Note
Please return 1 copy for your confirmation with your
signature and comments.
Approved By Checked By Prepared By
ᄘ࿚ໃ
2010-06-04
16:00:13
ຫၝᎮ
2010-06-01
13:10:17
ޕࠋፚ
2010-05-31
15:33:08
Version 0.0 4 June 2010 1 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT SPECIFICATION
CONTENTS
1. GENERAL DESCRIPTION .........................................................................................................4
1.1 OVERVIEW..................................................................................................................4
1.2 GENERAL SPECIFICATI0NS ......................................................................................4
2. MECHANICAL SPECIFICATIONS ............................................................................................. 4
2.1 CONNECTOR TYPE....................................................................................................4
3. ABSOLUTE MAXIMUM RATINGS .............................................................................................5
3.1 ABSOLUTE RATINGS OF ENVIRONMENT ................................................................5
3.2 ELECTRICAL ABSOLUTE RATINGS...........................................................................5
3.2.1 TFT LCD MODULE ...............................................................................................5
4. ELECTRICAL SPECIFICATIONS............................................................................................... 6
4.1 FUNCTION BLOCK DIAGRAM....................................................................................6
4.2. INTERFACE CONNECTIONS.....................................................................................6
4.3 ELECTRICAL CHARACTERISTICS ............................................................................8
4.3.1 LCD ELETRONICS SPECIFICATION...................................................................8
4.3.2 LED CONVERTER SPECIFICATION .................................................................10
4.3.3 BACKLIGHT UNIT .............................................................................................. 12
4.4 LVDS INPUT SIGNAL TIMING SPECIFICATIONS ....................................................13

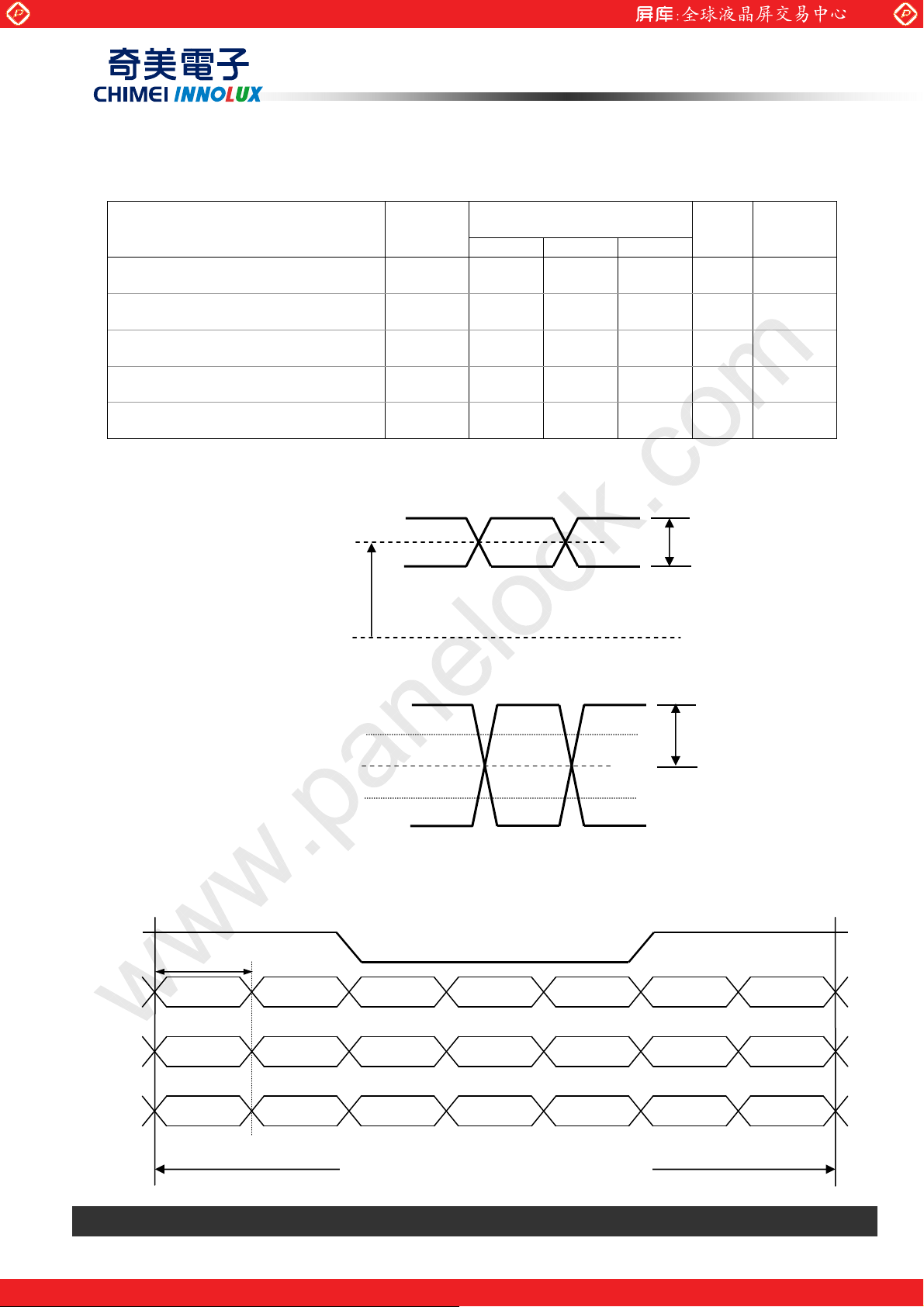

4.4.1 LVDS DC SPECIFICATIONS ..............................................................................13
4.4.2 LVDS DATA FORMAT .........................................................................................13
4.4.3 COLOR DATA INPUT ASSIGNMENT .................................................................14

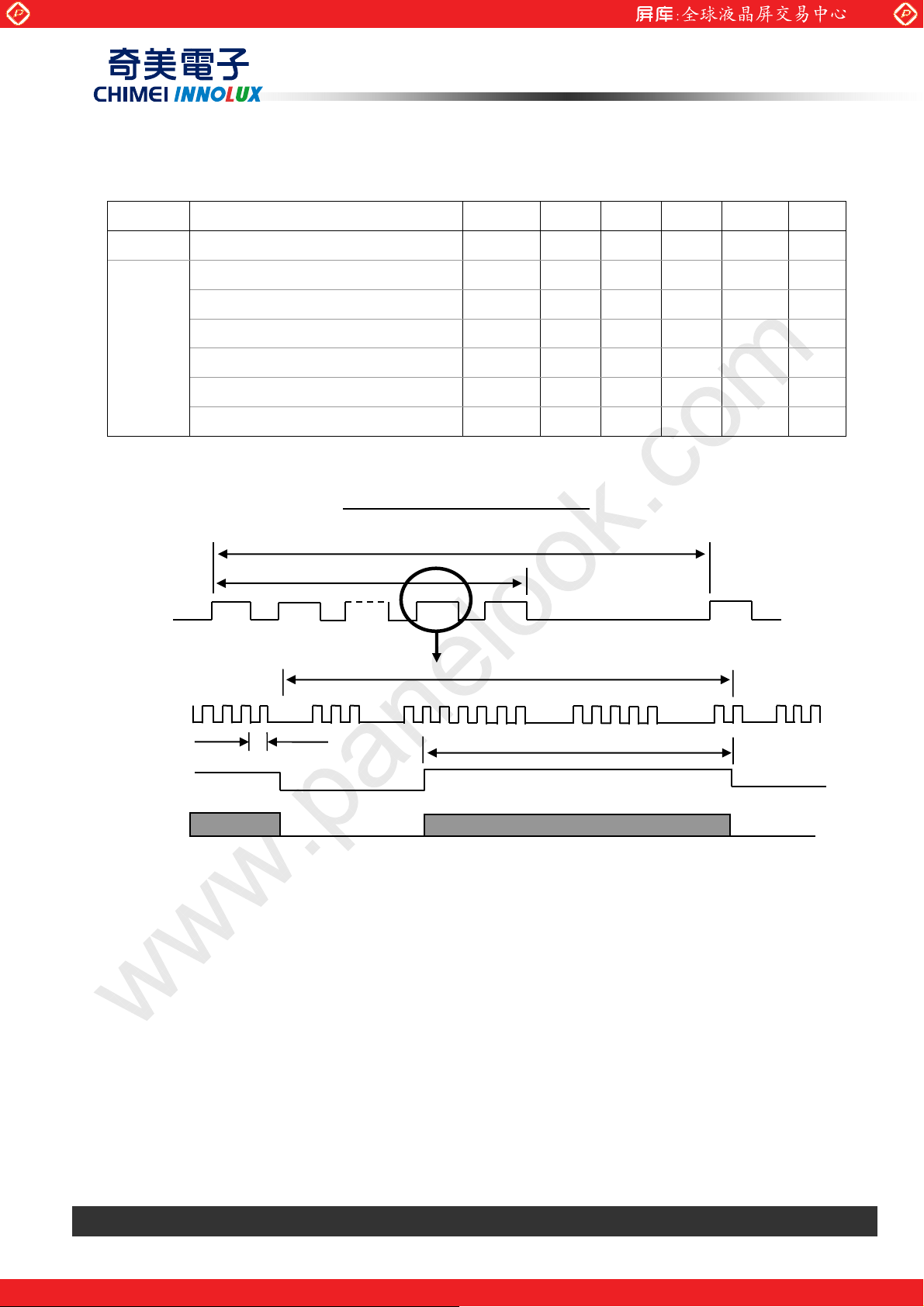

4.5 DISPLAY TIMING SPECIFICATIONS ........................................................................15

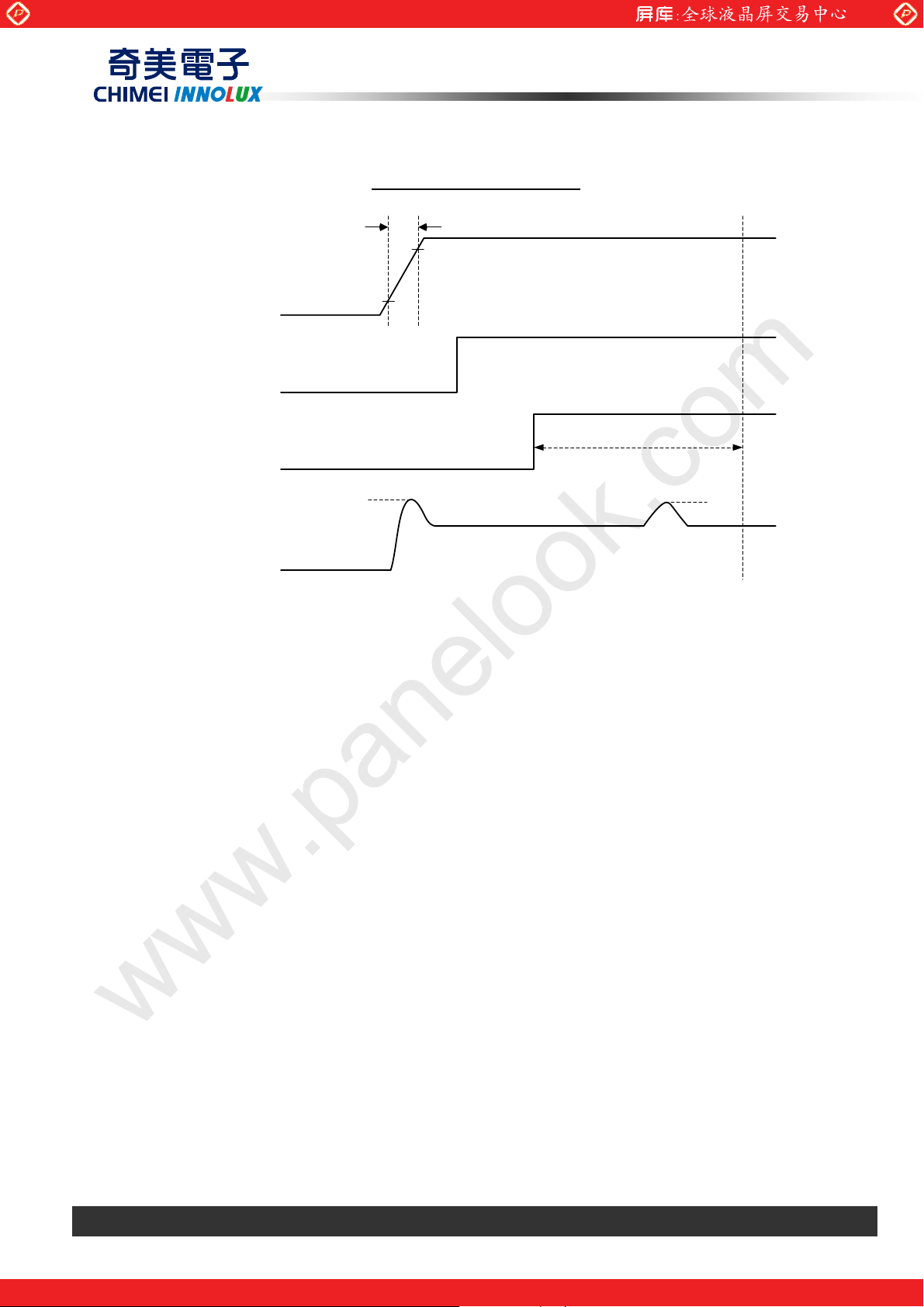

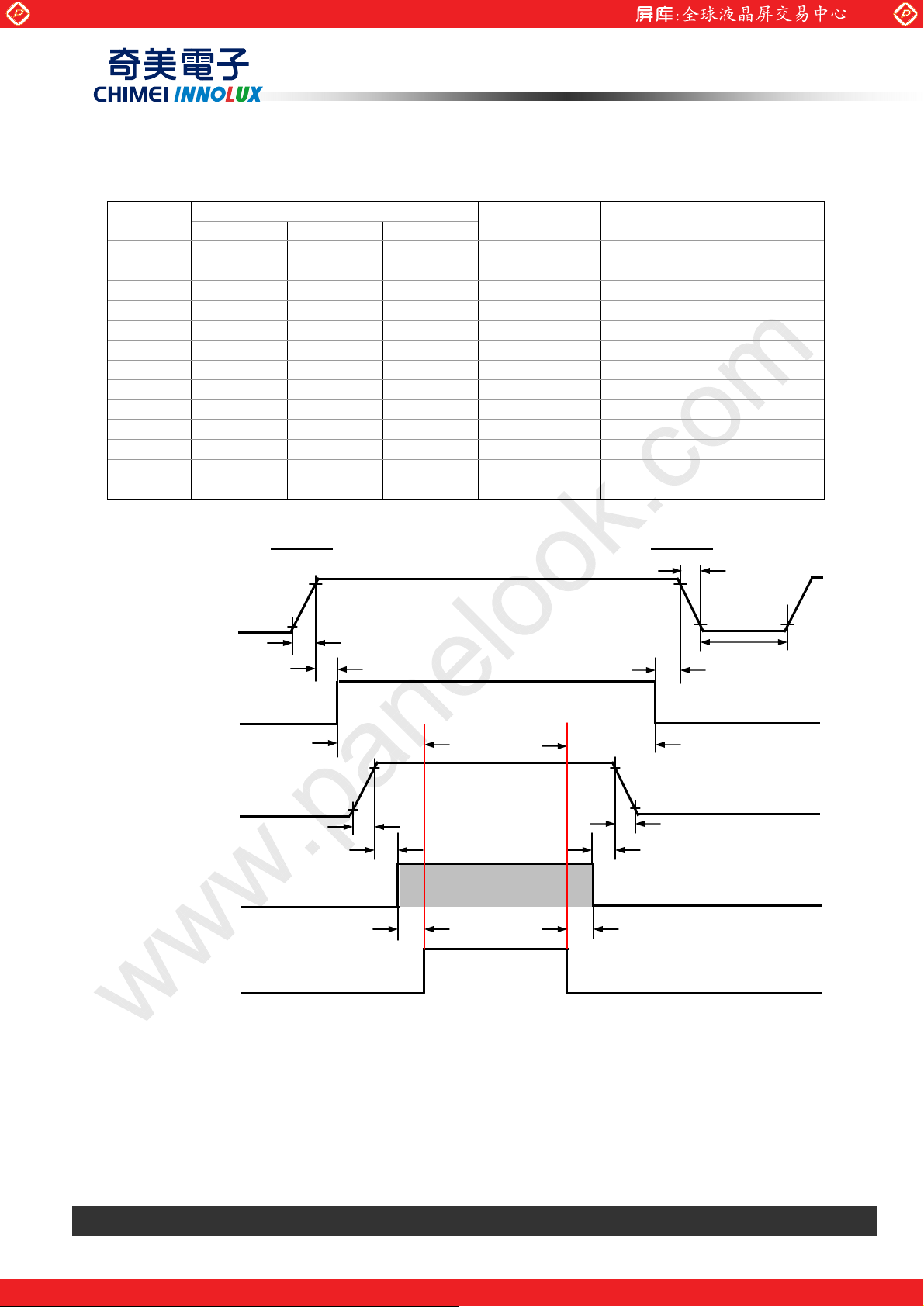

4.6 POWER ON/OFF SEQUENCE..................................................................................16
5. OPTICAL CHARACTERISTICS ...............................................................................................17

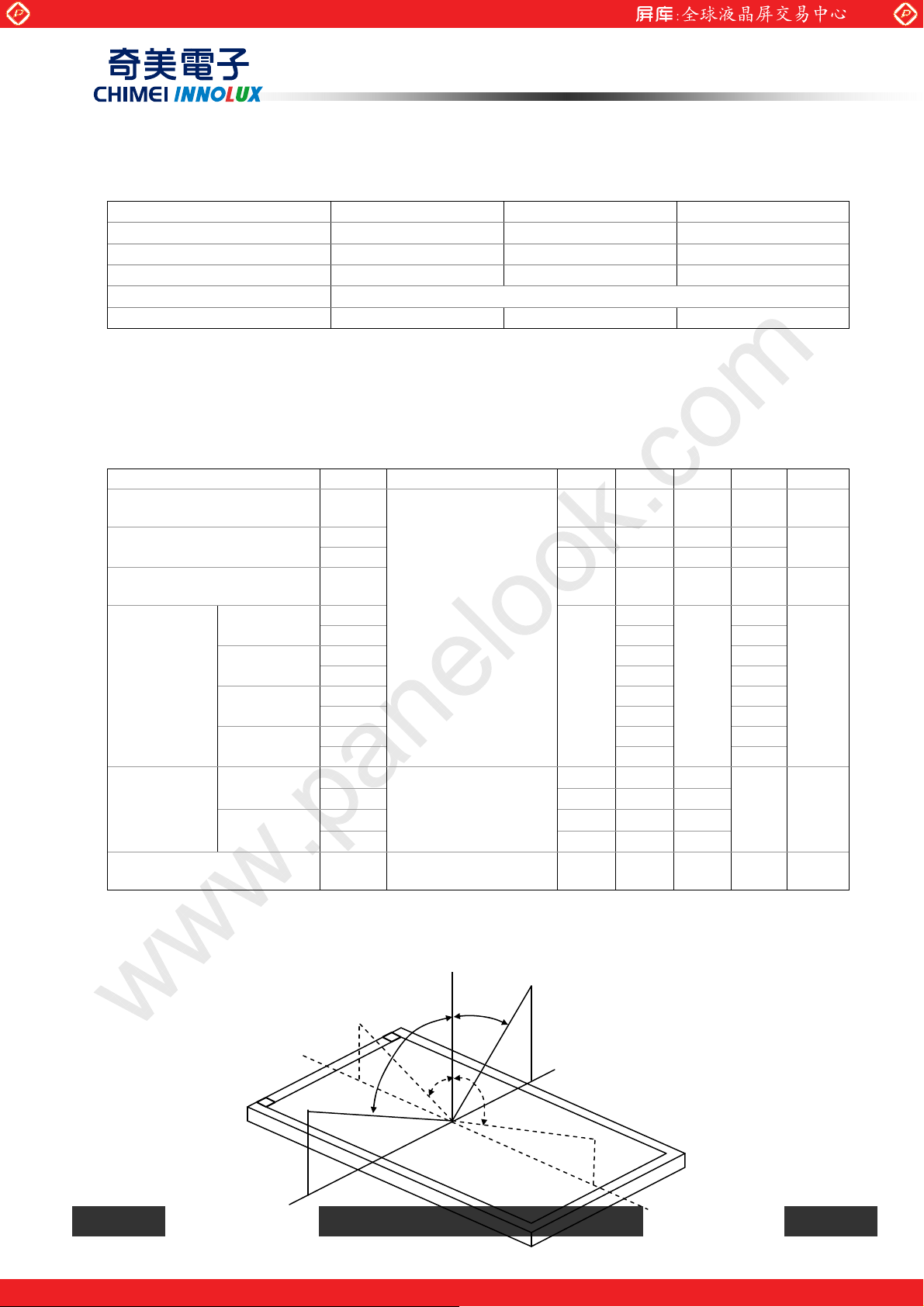

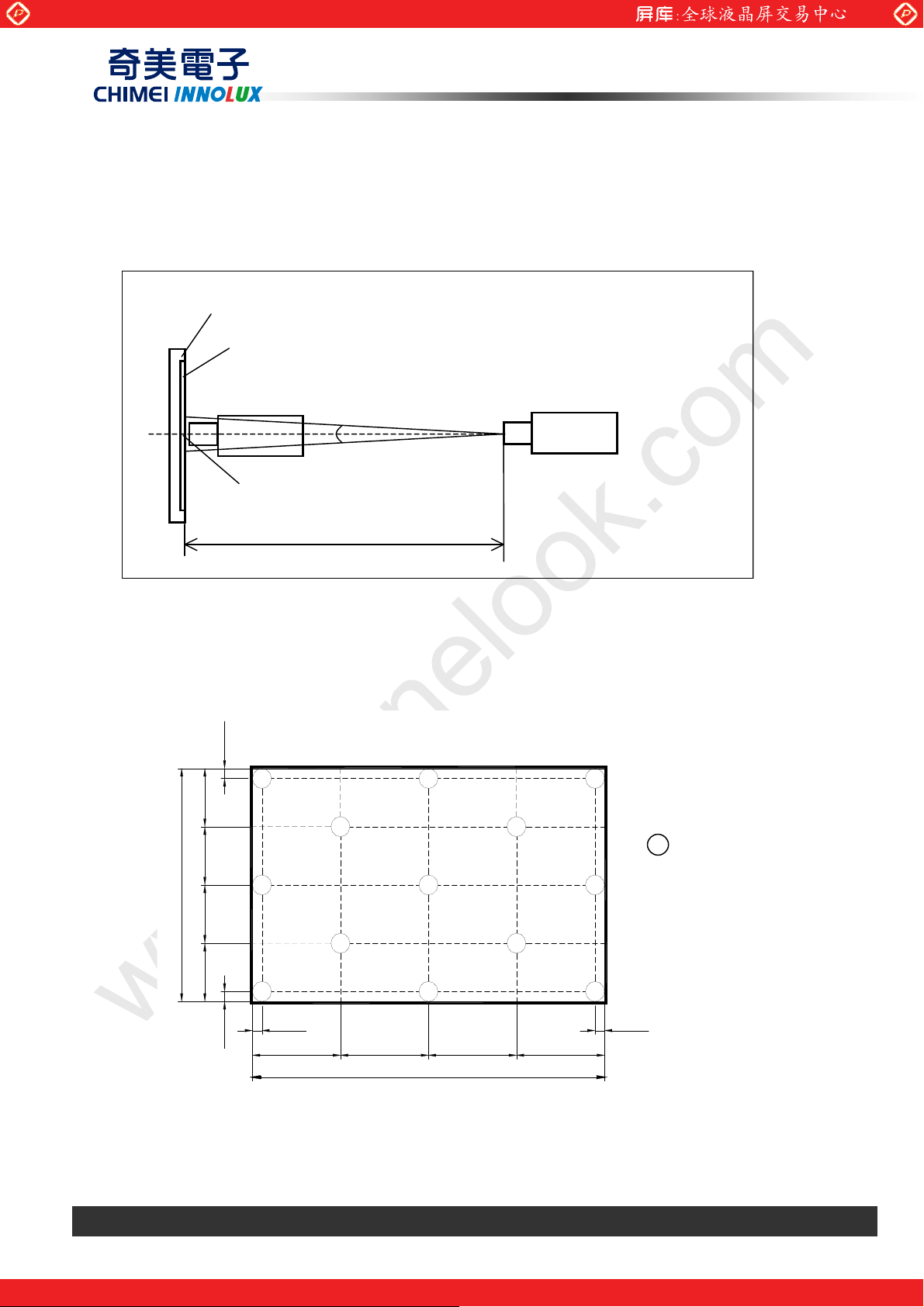

5.1 TEST CONDITIONS ..................................................................................................17
5.2 OPTICAL SPECIFICATIONS .....................................................................................17
6. RELIABILITY TEST ITEM ........................................................................................................20
7. PACKING..................................................................................................................................21

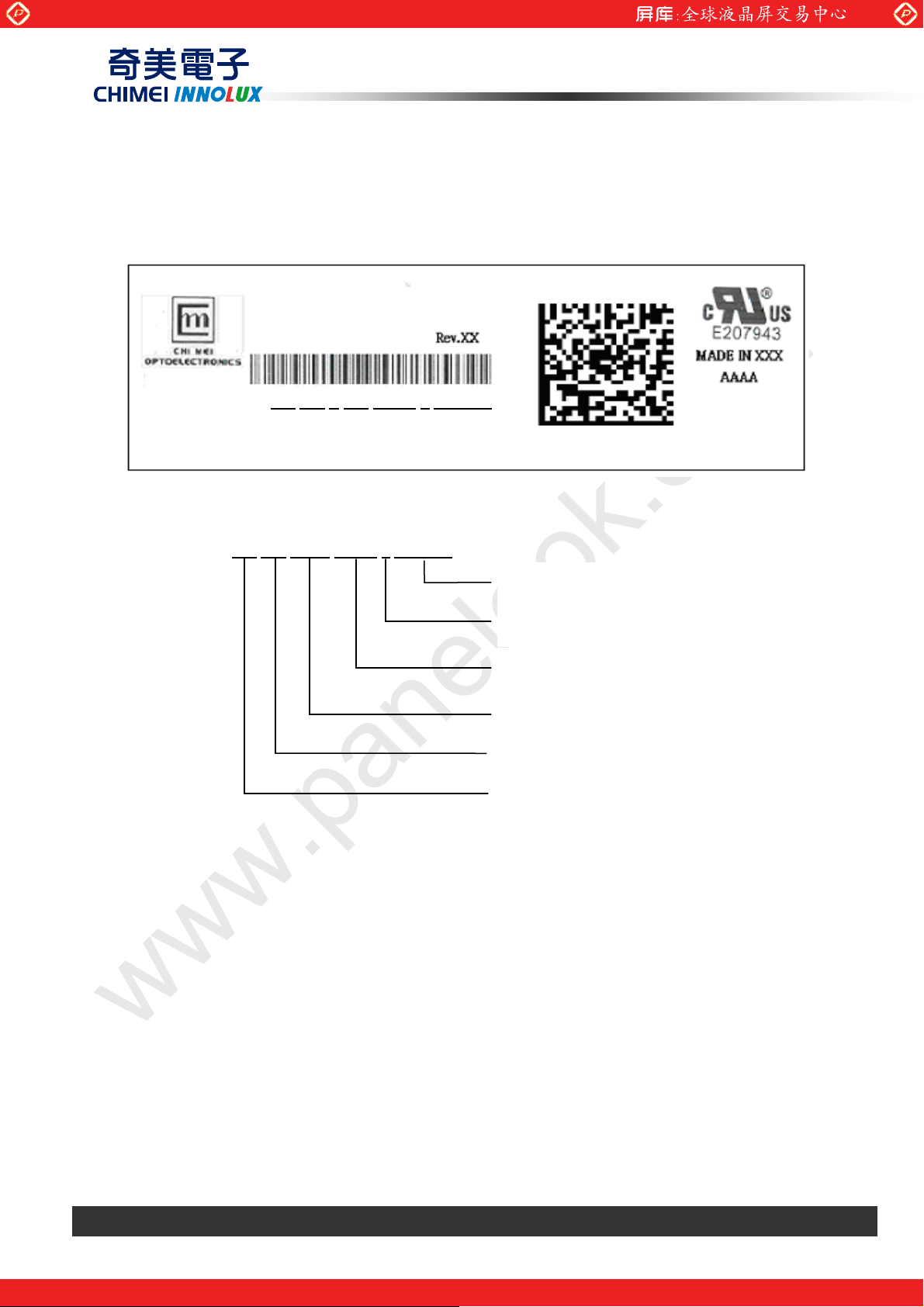

7.1 MODULE LABEL........................................................................................................21

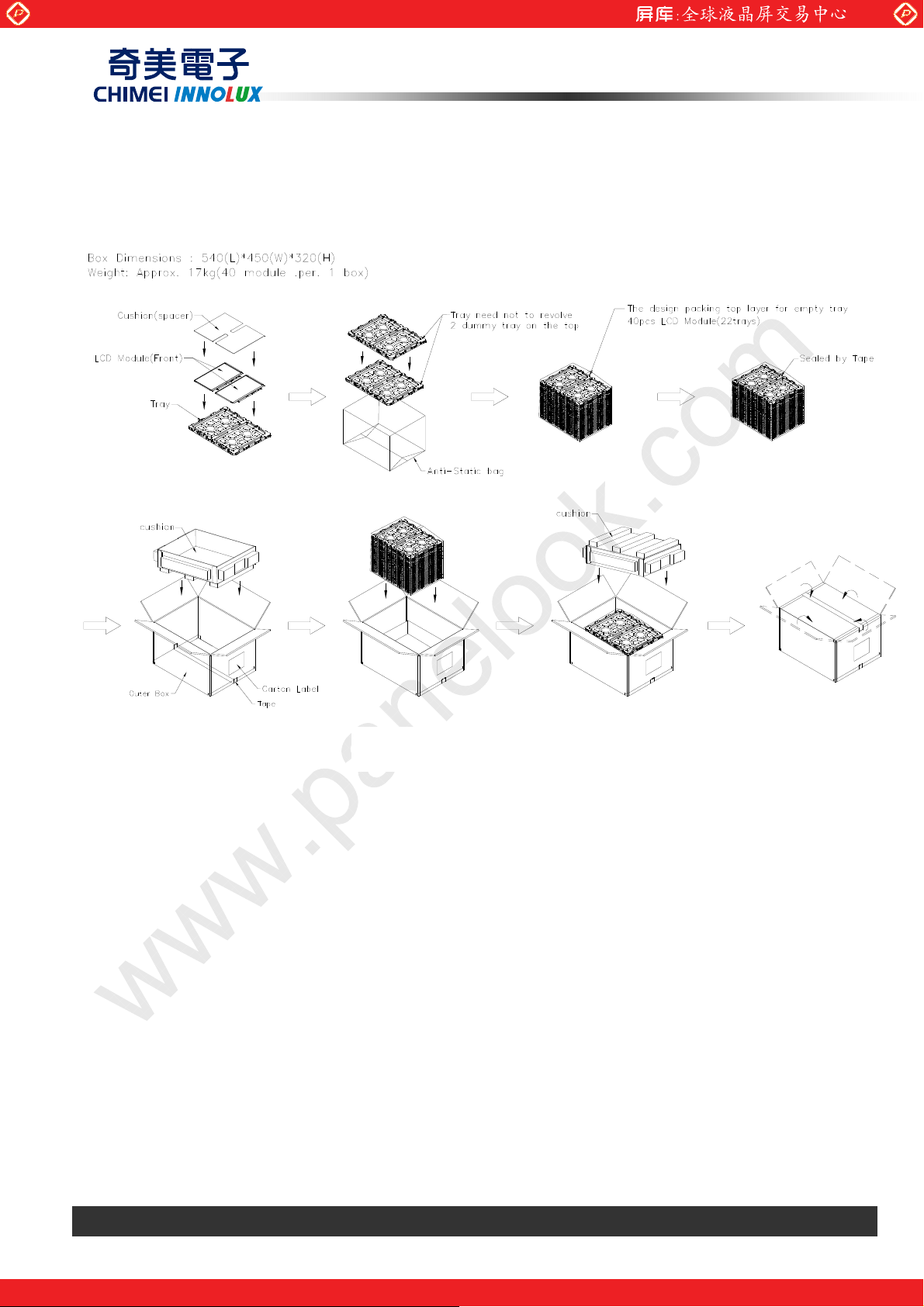

7.2 CARTON....................................................................................................................23

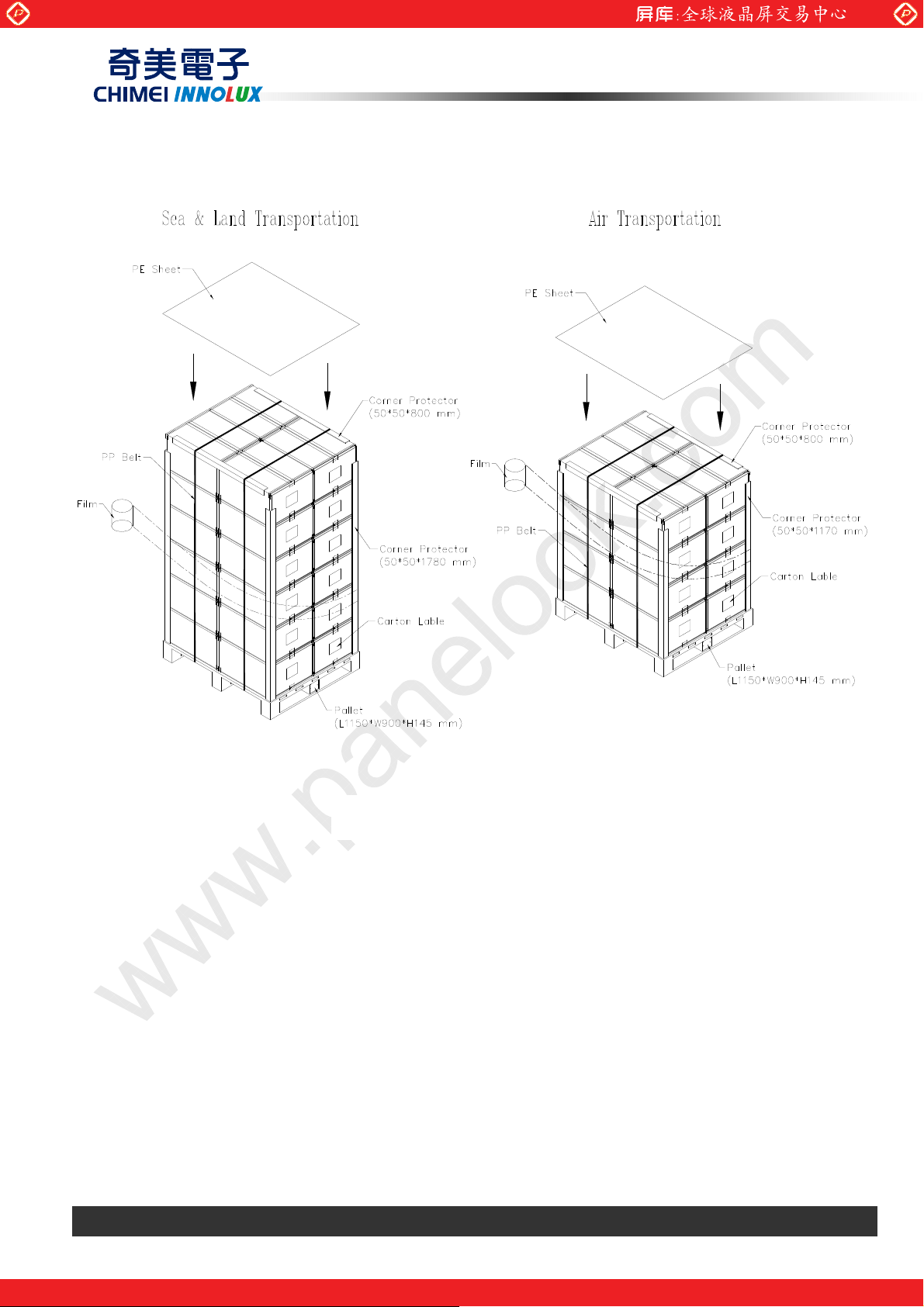

7.3 PALLET......................................................................................................................24
8. PRECAUTIONS ........................................................................................................................25
8.1 HANDLING PRECAUTIONS......................................................................................25
8.2 STORAGE PRECAUTIONS.......................................................................................25
8.3 OPERATION PRECAUTIONS ...................................................................................25
Appendix. EDID DATA STRUCTURE...............................................................................26

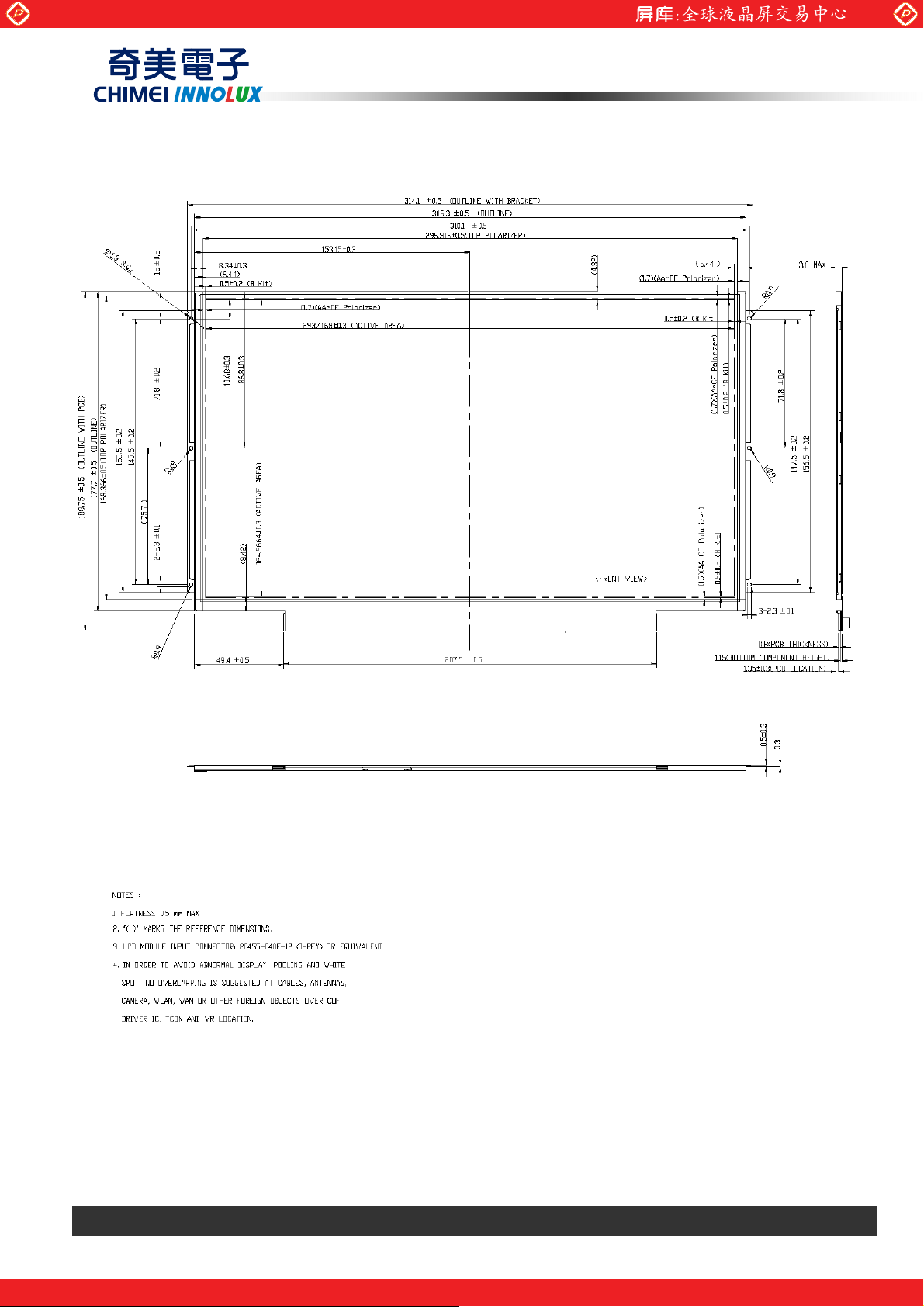

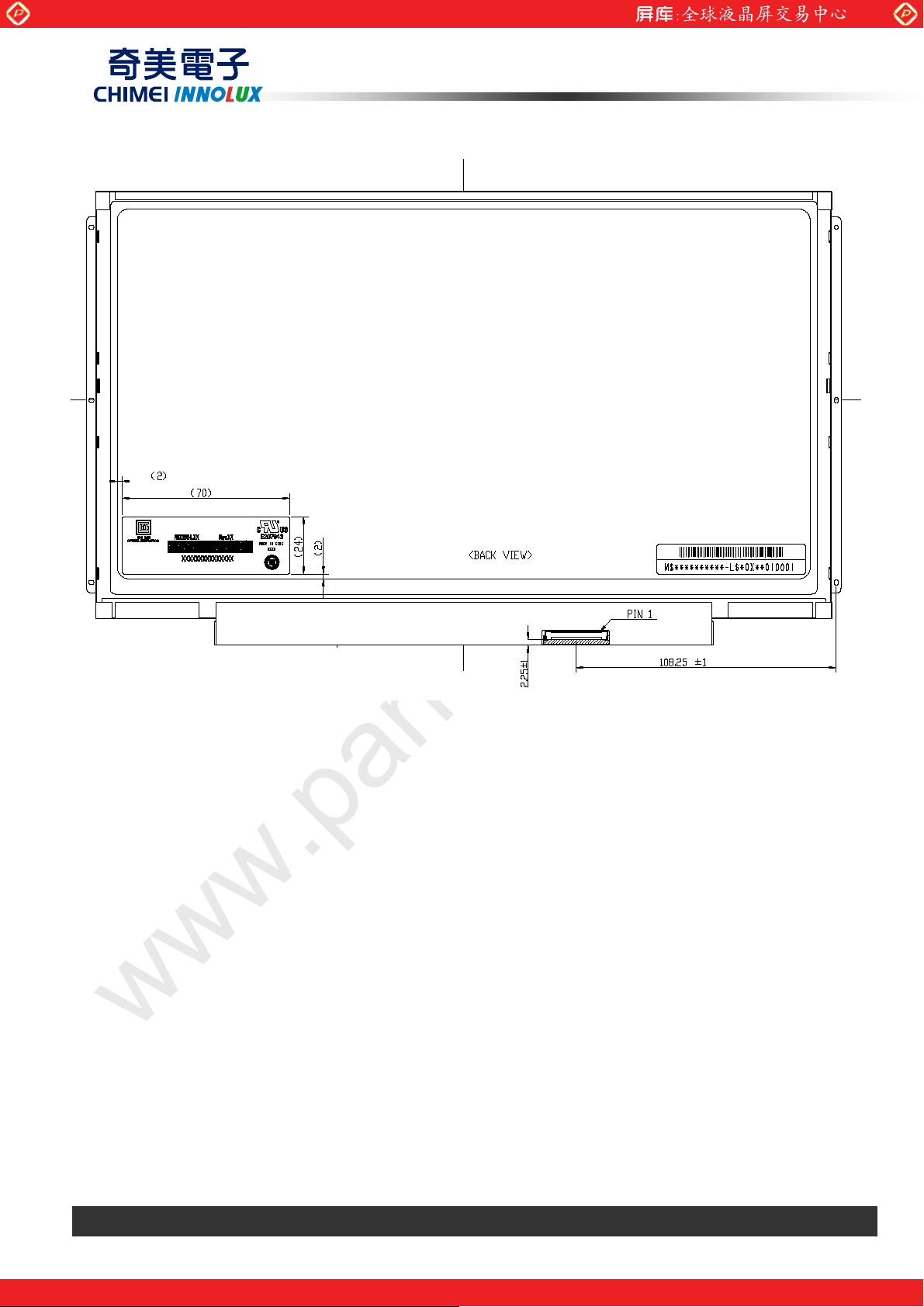

Appendix. OUTLINE DRAWING ......................................................................................29
Version 0.0 4 June 2010 2 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
REVISION HISTORY
Version Date Page Description
0.0 May.27, 2010 All Tentative spec Ver.0.0 was first issued.
www.panelook.com
PRODUCT SPECIFICATION
Version 0.0 4 June 2010 3 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N133B6-L25 is a 13.3” (13.3” diagonal) TFT Liquid Crystal Display module with LED Backlight unit
and 40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144
colors. The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Screen Size 13.3 diagonal
Driver Element a-si TFT active matrix - Pixel Number 1366 x R.G.B. x 768 pixel Pixel Pitch 0.2148 (H) x 0.2148 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Anti-Glare - Luminance, White 220 Cd/m2
Power Consumption Total 3.25 W (Max.) @ cell 0.57 W (Max.), BL 2.68 W (Max.) (1)
Note (1) The specified power consumption is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC,
www.panelook.com
PRODUCT SPECIFICATION
LED_VCCS = Typ, fPWM = 200 Hz, Duty=100% and fv = 60 Hz, whereas mosaic pattern is displayed.
2. MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 313.6 314.1 314.6 mm
Module Size
Bezel Area
Active Area
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 188.25 188.75 189.25 mm
Thickness (T) - 3.3 3.6 mm
Horizontal 296.816 mm
Vertical 168.366 mm
Horizontal - 293.4168 - mm
Vertical - 164.9664 - mm
Weight - 280 290 g
2.1 CONNECTOR TYPE
Pin1 Pin40
(1)
Please refer Appendix Outline Drawing for detail design.
Connector Part No.: IPEX-20455-040E-12 or equivalent
User’s connector Part No: IPEX-20453-040T-01 or equivalent
Version 0.0 4 June 2010 4 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3. ABSOLUTE MAXIMUM RATINGS
3.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 50 ºC max.
Relative Humidity (%RH)
www.panelook.com
PRODUCT SPECIFICATION
Value
Min. Max.
Unit Note
100
90
80
60
Operating
40
20
10
Storage Range
Temperature (ºC)
3.2 ELECTRICAL ABSOLUTE RATINGS
3.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCCS+0.3 V
Converter Input Voltage
Converter Control Signal Voltage
Converter Control Signal Voltage
LED_VCCS
LED_PWM,
LED_EN
Value
Min. Max.
-0.3 25 V
-0.3 6 V
-0.3 6 V
Unit Note
8060-20 40 0 20 -40
(1)
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function
operation should be restricted to the conditions described under Normal Operating Conditions.
Version 0.0 4 June 2010 5 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
4. ELECTRICAL SPECIFICATIONS
4.1 FUNCTION BLOCK DIAGRAM
LVDS Display
Data & Clock
VCCS
GND
Data
EDID
CLK
EDID
V
EDID
INPUT CONNECTOR
www.panelook.com
PRODUCT SPECIFICATION
SCAN DRIVER IC
TIMING ONTROLLER
TFT LCD
PANE L
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
DATA DRIVER IC
EDID
EEPROM
Converter
Input Signals
4.2. INTERFACE CONNECTIONS
PIN ASSIGNMENT
Pin Symbol Description Remark
1 DIAG_LOOP Detection loop or No connection
2 VCCS Power Supply (3.3V typ.)
3 VCCS Power Supply (3.3V typ.)
4 VEDID DDC 3.3V power
5 BIST Panel Self Test
6 CLKEDID DDC clock
7 DATAEDID DDC data
8 Rxin0- LVDS differential data input
9 Rxin0+ LVDS differential data input
10 VSS Ground
11 Rxin1- LVDS differential data input
12 Rxin1+ LVDS differential data input
13 VSS Ground
14 Rxin2- LVDS Differential Data Input
15 Rxin2+ LVDS Differential Data Input
16 VSS Ground
17 RxCLK- LVDS differential clock input
18 RxCLK+ LVDS differential clock input
19 VSS Ground
20 NC No Connection (Reserve)
21 NC No Connection (Reserve)
22 VSS Ground
LED CONVERTER BACKLIGHT UNIT
R0-R5, G0
G1~G5, B0, B1
B2-B5,HS,VS, DE
LVDS CLK
Version 0.0 4 June 2010 6 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
23 NC No Connection (Reserve)
24 NC No Connection (Reserve)
25 VSS Ground
26 NC No Connection (Reserve)
27 NC No Connection (Reserve)
28 VSS Ground
29 NC No Connection (Reserve)
30 NC No Connection (Reserve)
31 LED_GND LED Ground
32 LED_GND LED Ground
33 LED_GND LED Ground
34 DIAG_LOOP Detection loop or No connection
35 LED_PWM PWM Control Signal of LED Converter
36 LED_EN Enable Control Signal of LED Converter
37 NC No Connection (Reserve)
38 LED_VCCS LED Power Supply
39 LED_VCCS LED Power Supply
40 LED_VCCS LED Power Supply
Note (1) The first pixel is odd as shown in the following figure.
www.panelook.com
PRODUCT SPECIFICATION
1,1
(odd)
2,1
3,1
1,2
(even)
2,2
1,3
(odd)
1,4
(even)
1,Xmax
Pitch
Pitch
Ymax,1
Version 0.0 4 June 2010 7 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ymax,
Xmax
www.panelook.com
Global LCD Panel Exchange Center
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD ELETRONICS SPECIFICATION
Parameter Symbol
Power Supply Voltage VCCS 3.0 3.3 3.6 V -
Ripple Voltage VRP - 50 - mV -
www.panelook.com
PRODUCT SPECIFICATION
Value
Unit Note
Min. Typ. Max.
Inrush Current I
- - 1.5 A (2)
RUSH
Mosaic - (170) (190) mA (3)a
Power Supply Current
Black
Icc
- (200) (230) mA (3)b
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Note (2) I
: the maximum current when VCCS is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS

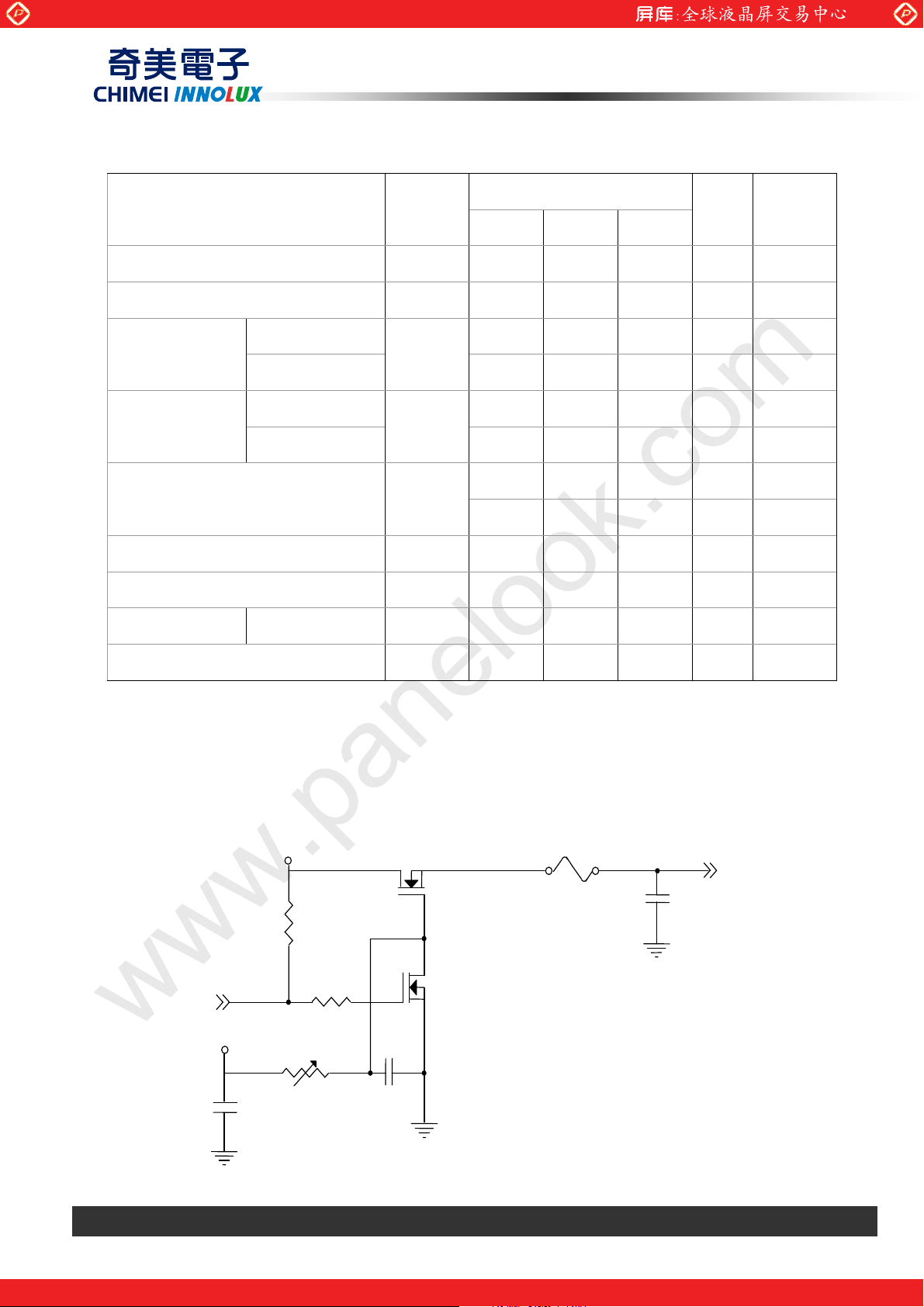

Measurement Conditions: Shown as the following figure. Test pattern: black.
+3.3V
Q1 2SK1475
R1
47K
FUSE
C3
1uF
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
VCCS
(LCD Module Input)
VCCS rising time is 0.5ms
Version 0.0 4 June 2010 8 / 30
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
PRODUCT SPECIFICATION
Current and f
a. Mosaic Pattern
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
Active Area
